Introduction
Thank you for choosing the Creative Sound Blaster Free (SB1660) Bluetooth®speaker. With its high
performance speaker drivers, the water resistant portable speaker delivers powerful audio and
enhanced bass response for your audio playback.
Connect it wirelessly through Bluetooth or through a wired analog connection for immense sound on
demand – it even supports digital USB audio streaming from a PC or Mac!Play music directly from your
microSD card with the integrated music player, or double it up as a Bluetooth speakerphone.
Package Checklist
Your Sound Blaster Free package comes with the following:
lSound Blaster Free Bluetooth speaker
l0.4m Micro-USB cable
lDrawstring cloth pouch
System Requirements
For Windows®OS
lIntel® Core™2 Duo or AMD equivalent processor, 2.8 GHz or faster recommended
lMicrosoft®Windows 8.1 64-bit or 32-bit, Windows 8 64-bit or 32-bit, Windows 7 64-bit or 32-bit,
Windows Vista™ 64-bit or 32-bit
l1 GBRAM
l600 MB of free hard disk space
lPowered USB 2.0 / USB 3.0 port
For Mac®OS
lIntel® Core™2 Duo, 2.8 GHz or faster recommended
lMac OS X® 10.6.8 or higher
l1 GB RAM
l600 MB of free hard disk space
lPowered USB 2.0 / USB 3.0 port
For iOS device
liPhone® / iPad® running iOS 5.1.1 or higher for Bluetooth
For Android device
lPhone / tablet running Android 2.3 or higher for Bluetooth
Registering Your Product
Registering your product ensures you receive the most appropriate service and product support
available. You can register your product during installation or at register.creative.com. Please note that
your warranty rights are not dependent on registration.
Introduction 1
More Help
For the latest news and products for the Sound Blaster, please visit www.soundblaster.com. The site
also includes information on making purchases, technical help and the latest software updates.
Using Creative Software AutoUpdate
Locating, downloading and installing updates for your Creative products is now simpler and faster with
the web-based Creative Software AutoUpdate system.
When you connect to Creative Software AutoUpdate via the Internet, the website will analyze your
computer system to determine your operating system, language and which Creative products are
connected to your system.
When this analysis is completed, you will then be given a list of only the most relevant software updates
for your connected products. The files can then be retrieved and installed.
To learn more about the Creative Software AutoUpdate, please visit support.soundblaster.com.
Note:
First-time users of Creative Software AutoUpdate may be prompted to authorize the download of a
browser component required for system analysis. Check to ensure that this content is signed by
Creative Labs, Inc., then click the Yes button.
Please ensure that all your Creative products are connected and installed on the same computer
running Creative Software AutoUpdate.
Introduction 2
Product Overview
The Sound Blaster Free has input and output jacks to enable connection to various devices. A
touchscreen interface located at the top of the Sound Blaster Free gives you basic control over the
system's functions.
Top
Item Description
1Bluetooth
LEDindicator
Indicates the Bluetooth pairing and connection
status.
Blue blinking:Bluetooth discovery mode
Blue:Bluetooth paired
2Phone/
Bluetooth
icon
Tap to enter Bluetooth pairing mode or pick up
phone calls.
Bluetooth:Tap and hold 2 seconds
Answer/end call:Tap once
(when there's a phone call)
3Volume +
icon
Tap to increase volume.
4Power icon Tap to power on/off.
5Battery
status
indicator
Indicates the device's battery level.
Product Overview 3
Item Description
6Volume - icon Tap to decrease volume.
Music Player
Item Description
7LOUD button Press to activate LOUD mode.
8Play/Pause
button
Press to play or pause a track.
9Shuffle/Repeat
All button
Press to select random play or repeat all tracks.
Product Overview 4
Item Description
10 Next/Previous
button
Press to skip track.
Press and hold to skip folder.
11 Mic Mute
button
Press to mute or unmute internal microphone.
Input / Output Interface
Item Description
12 Micro-USB
port
Connects to the USB port of a computer for audio
streaming and battery charging.
13 Aux-in jack Connects to line-level sources (such as MP3
players).
14 MicroSD slot Supports up to 64GB SD card for audio playback
and recording.
15 Rear passive
radiator
For enhanced bass. (TBD)
Product Overview 5
Setting Up Your Audio Device
Step 1:Charging Your Sound Blaster Free
Sound Blaster Free comes with a built-in rechargeable battery that provides up to 10 hours of playtime
when fully charged. Charge the speaker for at least 8 hours before its first use by connecting it to a
USBport on your computer. Each subsequent charge cycle takes around 3 to 4 hours.
Power Saving Mode
The speaker automatically powers down after 15 minutes of inactivity. When it is connected to a
computer, it automatically powers down when the computer shuts down or enters hibernation.
Note:
Lithium polymer battery life may suffer when it is constantly fully depleted or overexerted at low
voltage. It is a good practice to keep the battery well charged.
Step 2: Turning On Sound Blaster Free
Tap on the Power icon to turn Sound Blaster Free on. Tap again to power it off.
Note:
If the speaker has not been paired with any devices previously, it will go into Bluetooth discoverable
mode. Otherwise, it will be automatically paired to previously paired devices.
Setting Up Your Audio Device 6
Step 3: Connecting Peripherals
Bluetooth Pairing
The Bluetooth discoverable mode is activated for 60 seconds after the headset is turned on. To activate
Bluetooth manually, tap and hold the Bluetooth/Phone icon for 2 seconds.
Action LEDStatus Status
1 Tap and hold the Bluetooth/Phone
icon for 2 seconds.
Blue (blinking) Pairing mode.
Ready to be paired with new device.
2 Turn on Bluetooth on your device.
Search and select "Sound Blaster Free".
Blue Ready to stream music.
Note:
If no device is paired within 1 minute, it will exit from pairing mode.
Bluetooth pairing between these devices may vary depending upon the model type. Consult your
device’s manual on how to pair.
The Sound Blaster Free supports dual connections, which means you can connect it to two
Bluetoothdevices at the same time. If you wish to connect it with a third device, you should
disconnect the existing two devices first before connecting it to the other device.
Setting Up Your Audio Device 7

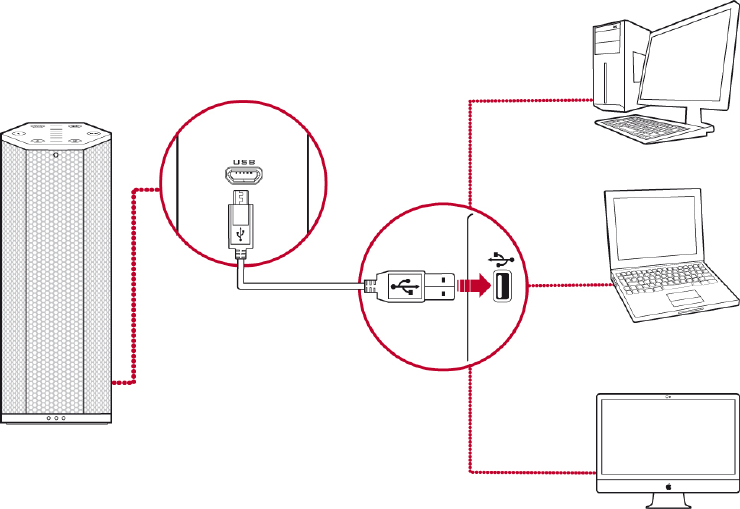

USB Connection
Connect your Sound Blaster Free to a computer using the Micro-USB cable provided.
Setting Sound Blaster Free as the default audio device:
For Windows
i. Go to Control Panel and click Sound.
ii. Click the Playback tab, select Sound Blaster Free, then click the Set Default button.
For Mac
i. Go to System Preferences and click Sound.
ii. Click the Output tab, then select Sound Blaster Free.
Setting Up Your Audio Device 8

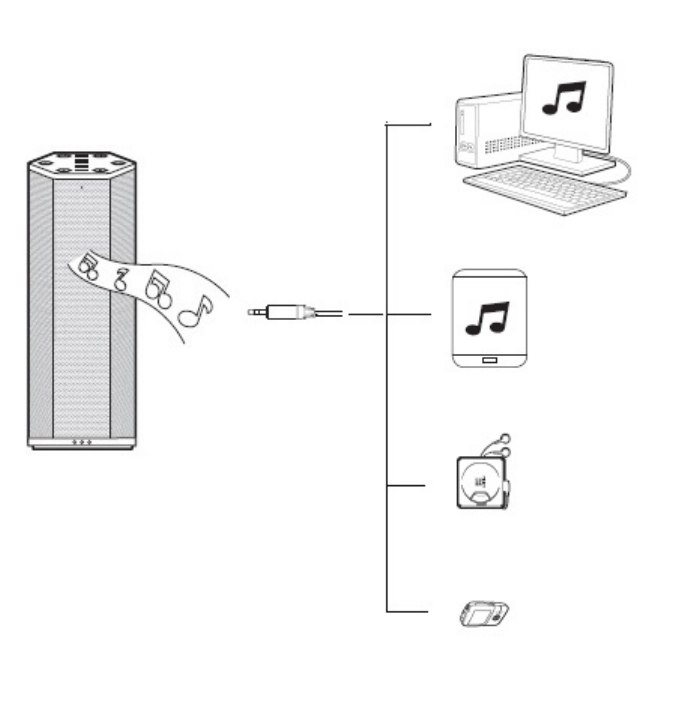

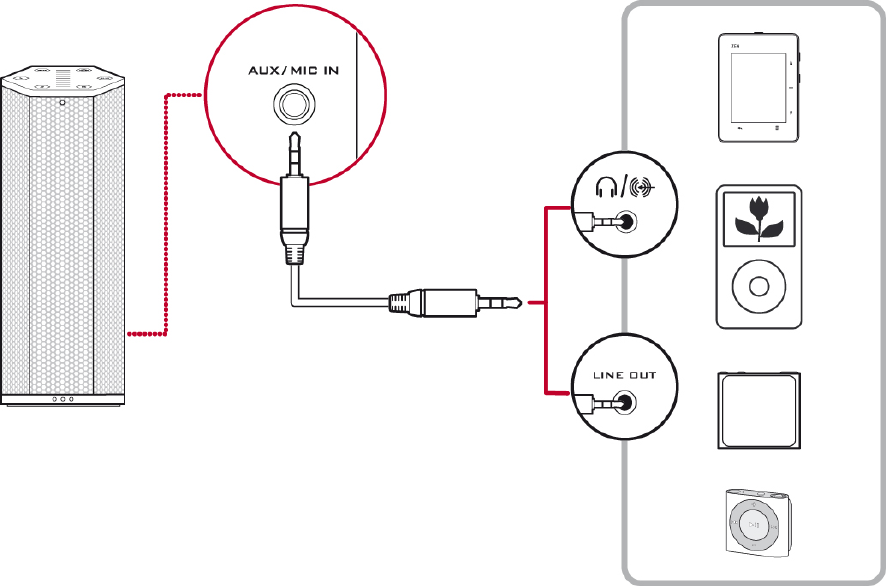

Analog Connection
The Sound Blaster Free also lets you connect devices using the 3.5mm mini stereo cable (not included).
Setting Up Your Audio Device 9
Using Your Audio Device
Your Sound Blaster Free works seamlessly with many external devices to perform different tasks:
lPlaying music
lAnswering calls
Playing music
Playing music from a Bluetooth device
Play/pause music: Press Play/Pause button
Skip tracks/folders
lSkip tracks: Press Next/Previous button
lSkip folders: Press and hold Next/Previous button
Adjust speaker volume:
lIncrease volume: Tap Volume + icon
lDecrease volume: Tap Volume - icon
Using Your Audio Device 10

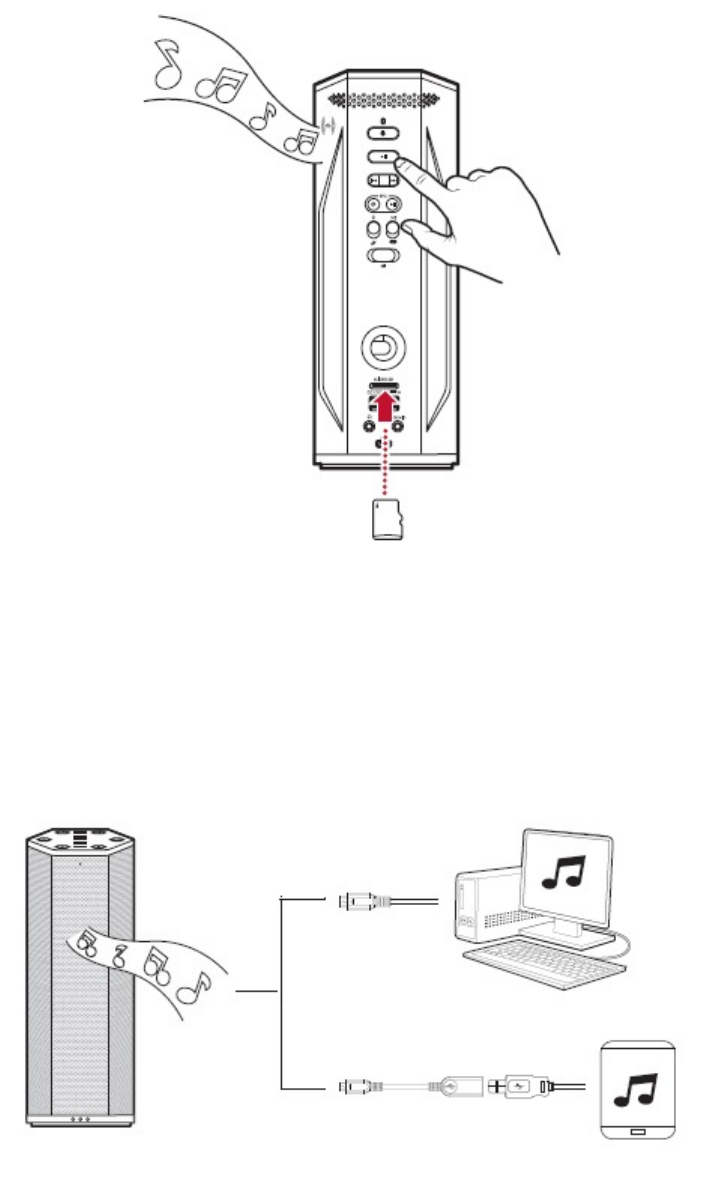

Playing music from a microSD card
Note:
When an microSD card is inserted while Bluetooth is connected, the built-in music player browses
and plays music from the SD card.
Playing music from a computer via USB
Using Your Audio Device 11
Playing music from an aux-in device
Using Your Audio Device 12
Answering calls
When there's an incoming call, the call takes precedence over audio playback – playback stops and the
ringtone will be heard. The music will resume after the call has ended.
Answer/end call: Tap Phone/Bluetooth icon
Mute/unmute mic: Press Mic Mute button
Adjust speaker volume:
lIncrease volume: Tap Volume + icon
lDecrease volume: Tap Volume - icon
Using Your Audio Device 13
Installing and Uninstalling Software
To take full advantage of your Sound Blaster Free audio device, you need to install device drivers and
applications. At times, you may also need to uninstall some or all of the device drivers and applications
to correct problems, change configurations, or upgrade outdated drivers or applications. To learn how to
do so in all supported Windows and Mac operating systems, consult the following sections:
lInstalling Drivers and Applications
lUninstalling Drivers and Applications
Installing Drivers and Applications
Ensure that your audio device is connected before proceeding. For instructions on
connecting your audio device, consult your Quick Start leaflet.
After you have connected your audio device, turn on your computer. Windows automatically detects
your audio device and searches for device drivers.
For Windows OS
1. Using a standard web browser, visit support.creative.com.
2. Locate Sound Blaster Free and the software package for your Windows operating system.
3. Download this package into your local hard disk.
4. Locate and launch the software package.
5. Follow the on-screen instructions to complete the installation.
6. When prompted, restart your computer.
7. Launch the application by locating and clicking Sound Blaster Free Control Panel.
For Mac OS
1. Using a standard web browser, visit support.creative.com.
2. Locate Sound Blaster Free and the software package for your Mac OS.
3. Download this package into your local hard disk.
4. Double-click the downloaded file to uncompress it.
5. Double-click the uncompressed DMG file.
6. Double-click the Install icon and follow the subsequent on-screen instructions to complete the
installation.
7. Launch the Sound Blaster Free Control Panel from the Applications >Creative folder.
Note:
Depending on your operating system, model and software version, the user interface or color theme
may differ.
Installing and Uninstalling Software 14
Uninstalling Drivers and Applications
In the event that an uninstallation is required (such as for upgrades), please follow the following
procedure.
Before you begin, close all running audio applications. Applications that are still running
during uninstallation will not be removed.
For Windows OS
1. From the Control Panel, click Uninstall a program.
2. Select your audio device's entry.
3. Click the Uninstall button or option.
If the User Account Control dialog box appears, click the Continue button.
4. Click the Yes button.
5. When prompted, restart your computer.
For Mac OS
1. Click Applications >Creative >Creative Uninstaller.
2. Select the Creative product to be uninstalled.
3. Click the Uninstall button.
4. Follow the on-screen instructions.
Installing and Uninstalling Software 15
Using the Creative Software Suite
A specialized software for the Sound Blaster Free is developed to provide additional enhancements to
the audio and voice inputs and outputs of the product. The software bundle supports a range of
operating systems including:
lWindows 8, Windows 7, Windows Vista, Windows XP
lMac
To take full advantage of your Sound Blaster Free, we recommend downloading and installing this
software into your computer. The following applications are included in the software bundle:
For Windows OS,
lSound Blaster Free Control Panel
lCreative SoftwareAutoUpdate
lCreative System Information
lProduct Registration
lCreative ALchemy
lHost OpenAL
lCreative Driver
For Mac OS,
lSound Blaster Free Control Panel
lProduct Registration
lCreative Uninstaller
Note:
Some applications are available only for certain operating systems. To learn more about each
application, please consult its respective Online Help.
Using the Creative Software Suite 16

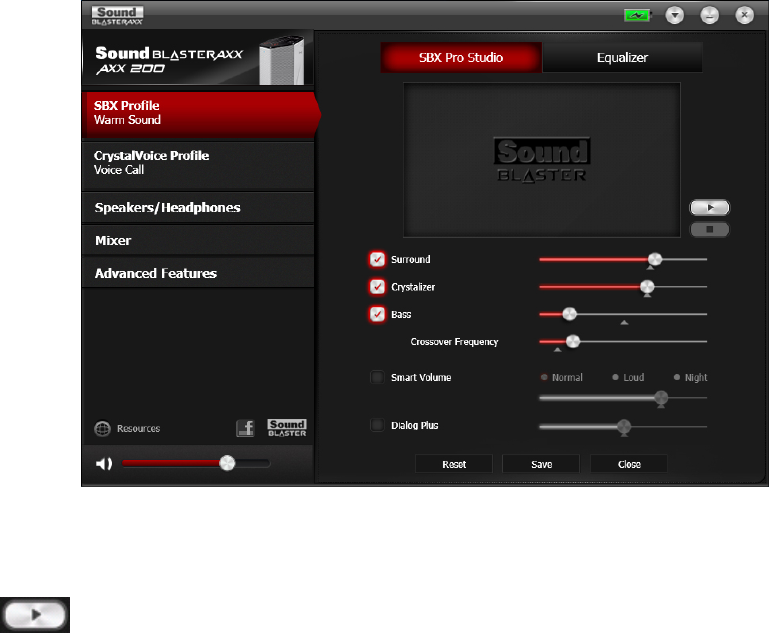

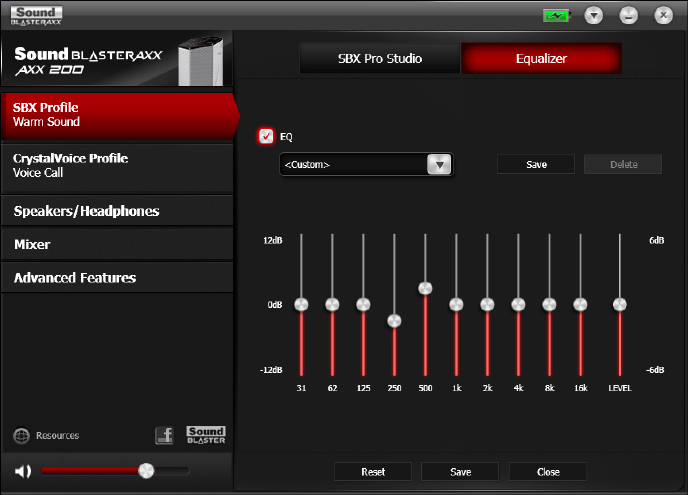

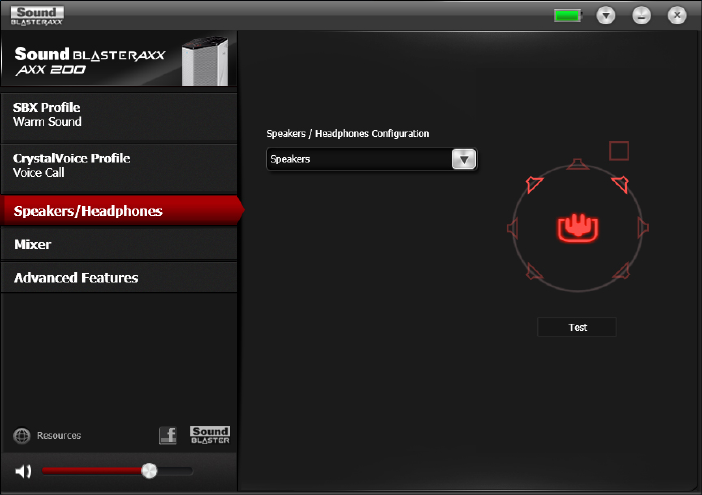

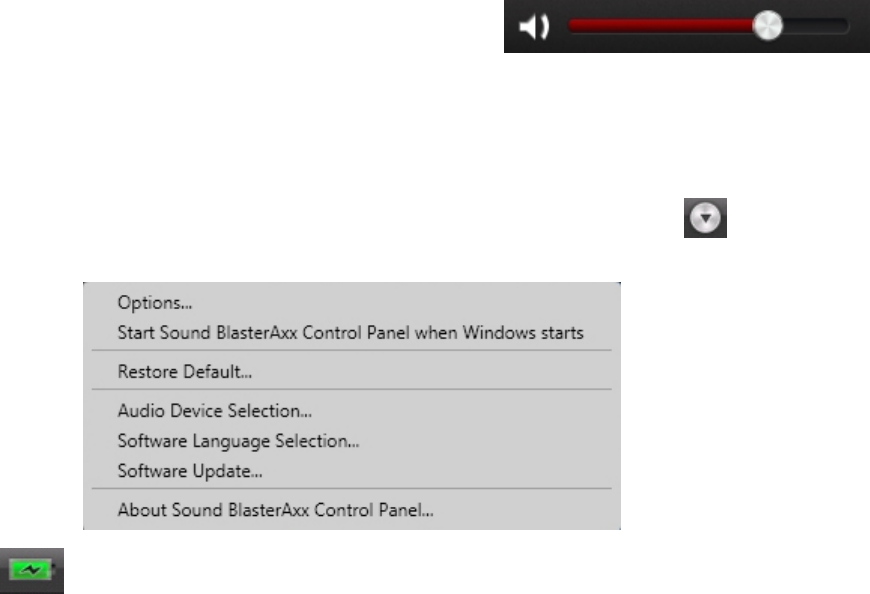

Sound Blaster Free Control Panel
The rest of this chapter explains how to use the Sound Blaster Free Control Panel to view and adjust the
various features of your Sound Blaster Free. The examples and screenshots below uses Windows as an
example. The UI for other operating systems may differ slightly.

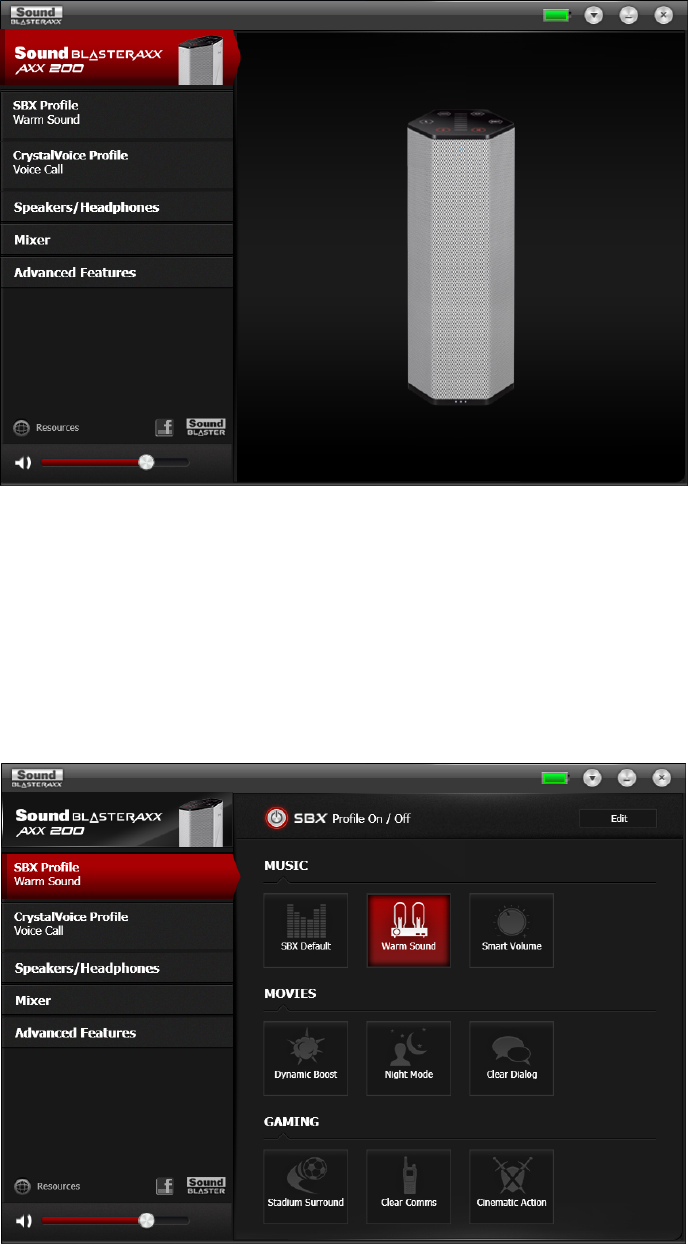

Managing Your Profiles
The Sound Blaster Free Control Panel comes equipped with a set of pre-configured profiles to suit your
different needs including:
lMusic
lMovies
lGaming
To activate a profile,
Using the Creative Software Suite 17
1. Click the SBX Profile menu on the left to view the SBX Profile screen.
2. Select your desired profile from the screen.
To modify and save changes to the active profile,
1. Click the Edit button to modify the profile you have selected.
2. Navigate through the various other menu options of the Sound Blaster Free Control Panel and
modify the configurations as desired.
Adjusting Speaker Volume Via Software
A master volume slider is available at the bottom left corner of
the interface. Drag the slider to adjust the master volume. You
can also mute / unmute the speaker by clicking the speaker icon to the left of the slider.
Configuring Your General Settings
You can change the language settings or restore settings to their default values. Click from the top
right corner of the interface and select the option from the list.
The battery icon indicates the battery status of the Sound Blaster Free.
Using the Creative Software Suite 18
SBX Pro Studio Settings
To configure SBX Pro Studio, go to the SBX Profile screen, select a profile and click Edit to enter the
SBX Pro Studio screen. By default, the SBX effect is turned on. You may adjust the effects on this
screen.
1. Click the power button to toggle ON SBX Pro Studio.
2. Select the type(s) of enhancements to apply and drag the sliders to adjust the level for each
enhancement.
3. Click to test the audio output, if necessary.
4. Click Save to save the adjusted settings or Reset to restore default settings.
Note:
You can also toggle SBX Pro Studio ON via the physical touchscreen of the Sound Blaster Free.
Enhancement adjustments can only be made via the software.
SBX Pro Studio includes a number of enhancements for movies and gaming, elevating your movie and
gaming experience to the next level. These include:
lSBX Surround - designed to work best when you connect a pair of headphones to the Sound Blaster
Free, this technology provides immersion control to enhance the natural sense of audio depth and
spaciousness by creating virtual surround sound channels. Stereo content or multichannel content
will sound as if its coming from all sides while voices remain centered in front and original balance
and timbre is preserved.
lSBX Crystalizer - restores the natural dynamic range that is lost when music files (iTunes and
MP3) gets compressed. This makes the music sound as good as the artist originally intended, and
adds an enhanced level of realism for movies and games.
lSBX Bass - fills in the missing low frequency tones and gives the extra impact for a better
entertainment experience. Consumers no longer have to tolerate a lack of bass in speakers as the
SBX Pro Studio Bass technology dramatically improves the sound experience even in the absence of
a subwoofer.
Using the Creative Software Suite 19
lSBX Smart Volume - addresses the problem of abrupt volume level changes during playback and
between songs by continously measuring volume automatically, applying gain and attenuation
intelligently to compensate for any changes.
lSBX Dialog Plus - enhances the voices in movies for clearer dialog, allowing the listener to hear
the dialog over the rest of the soundtrack and over ambient noise in the listening environment.
Equalizer Settings
To configure Equalizer settings, select a profile from the SBX Profile screen. Click Edit and then click
Equalizer.
To adjust and apply an equalizer preset,
1. Check the EQ checkbox to enable the use of the equalizer.
2. From the drop down menu, select the preset to use.
3. Adjust the vertical slider bars to achieve your desired level.
4. Click Save to save the changes to the active preset or to a new preset.
You can also delete any user created equalizer presets by selecting the preset from the drop down menu
and clicking Delete.
Note:
All default equalizer presets cannot be deleted.
Using the Creative Software Suite 20
Speakers / Headphones Settings
Each Sound Blaster Free is equipped with a headphone jack, allowing you to connect your favorite
headphones to the Sound Blaster Free for audio output. Connecting headphones to the Sound Blaster
Free automatically mutes the speaker. From the software, you can check whether audio is played via
speakers or headphones.
1. View the current settings for the speakers / headphones.
2. Click Test to hear a sample audio clip played back based on the settings.
Using the Creative Software Suite 21
Mixer Settings
A mixer is also available via the software, allowing you to adjust the volume levels of individual outputs
and channels including the microphone, speakers, etc. Simply click the Mixer option on the menu and
adjust the volumes using the sliders.
Using the Creative Software Suite 22
General Specifications
Controls and Indicators
Top Panel
lBluetooth LEDindicator
lPhone/Bluetooth button
lVolume + icon
lVolume - icon
lPower icon
lBattery status indicator
Music Player
lLOUDbutton
lPlay/Pause button
lShuffle/Repeat All button
lNext/Previous button
lMic Mute button
Input/Output
lMicro-USBport
lAux-in jack
lMicroSDslot
lRear passive radiator
Physical Specifications
lDimensions (L x W x H) : 64 x 72.3 x 200.6 mm
lWeight: Approx. 0.5 kg
Technical Specifications
Bluetooth Version: Bluetooth 4.0
Bluetooth Profiles:
lA2DP (Wireless Stereo Bluetooth)
lAVRCP (Bluetooth Remote Control)
lHFP (Hands-Free Profile)
Bluetooth Operating Frequency: 2402 - 2480 MHz
Bluetooth Operating Range: Up to 10 meters / 33 feet
(Measured in open space. Walls and structures may affect range of device.)
Audio Codec: SBC
Operating Temperature range: 0°C to 45°C
(0°C to 40°C when powered by external power adapter)
Lithium Ion Battery: 3.7 V 2200 mAh
Power Input: DC 5 V, 1.5 A
Connector:USBstandard Type Afemale connector (TBC)
Note:
General Specifications 23
Compliance markings are located on the bottom of this product. Remove rubber cover to see the
compliance markings.
The serial number for your Sound Blaster Free is located on the bottom of this product. Please write
the serial number down and keep it in a secure place.
General Specifications 24
Troubleshooting and Support
This chapter provides solutions to issues that may be encountered during the installation or usage of
your Sound Blaster Free.
1. The Sound Blaster Free does not power on.
The Sound Blaster Free is designed to be powered on simply by the built-in battery. Make sure that it is
charged. When charging the battery, check the following:
lTighten the USB connection at both ends of the cable.
lThe USB cable may be faulty. Replace the cable with a working USB cable.
lYour computer's USB port may be disabled, or faulty or requires a driver update. Check your
computer's hardware device manager to determine the working status of your USB port. Enable
your USB port and/or update its driver.
If the problem persists, connect the Sound Blaster Free to a different USB port.
If you are connected via a USB Power Adapter, please check that all cables are tightly connected and
the power socket is turned on.
2. I am having difficulty in linking up my Bluetooth device with Sound Blaster Free.
Ensure that your Bluetooth enabled device supports A2DP profile.
Please also try the following steps:
lMake sure that Bluetooth is enabled (turned on) on your device.
lOn some devices, ensure that the Sound Blaster Free is selected as the default headset / wireless
stereo audio playback device.
lMake sure that there are no other wireless devices within a 10 meter radius when pairing.
lPosition them within 1 meter or closer to each other if you experience pairing difficulties.
lCheck if you have input the correct passcode/pin number (0000) on your Bluetooth device.
lEnsure that both, your Bluetooth device and Sound Blaster Free are not connected to any other
devices.
lRestart your Bluetooth device or pair the devices again.
3. Bluetooth link is established and paired between the devices but there’s no music.
Ensure that the device’s volume is not set to minimum or muted. Also, make sure that the built-in music
player is not in use.
With some built-in Bluetooth enabled computers or 3rd party USB Bluetooth dongles, you may be
required to manually specify/set-up the audio output as the Sound Blaster Free (under sound and audio
devices section) on your computer’s operating system.
Note:
Audio transmitted from your Sound Blaster Free may be slightly delayed; this is due to the
characteristics of Bluetooth technology.
4. There is no audio output from the Sound Blaster Free.
Check speaker connection:
lMake sure Bluetooth is turned on and in range.
lUnplug the USB cable from the computer and plug it in again.
lMake sure the cable from your line-in device is properly plugged in.
lEnsure that the format of the audio files from the SD card is supported.
Troubleshooting and Support 25
Check volume level:
lThe volume of Sound Blaster Free is at the appropriate level.
lMaster volume and mute icon on the software is at the appropriate level.
lThe appropriate channel(s) and output types on the Mixer settings interface is not 0.
5. What are the types of microSD cards supported?
All microSD, microSDHC and microSDXC cards up to 64GB are supported for audio playback. For
recording, we recommend that you use Class 4 microSDor microSDHC cards.
6. Some of my music files on the microSD card cannot be played back.
Ensure that the media files being played back are in MP3, WAV or FLAC format.
For optimal playback, you are not advised to store more than 999 music files in each folder on your
microSD card. Reorganize files into different folders so that all your music files can be played back.
7. Unable to playback audio recordings.
Please wait for a while. Playback of audio recordings sometimes do not start immediately.
Additional Support
If you encounter any other issues or have any other enquiries about your Sound Blaster Free or any
other Creative products, please visit our comprehensive knowledge base at support.creative.com or
www.soundblaster.com for additional information.
Troubleshooting and Support 26
Regulatory Information
The following sections contains notices for various countries.
Caution:
This product is intended for use with FCC/CE certified computer equipment. Please check the
equipment operating/installation manual and/or the equipment manufacturer to verify/confirm if
your equipment is suitable prior to the installation or use of the product.
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCC PART 15: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
lConsult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Caution:
To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this
device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Operation
with non-certified computers or non-shielded cables may result in interference to radio or television
reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user’s authority to operate the device.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Regulatory Information 27
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de classe B est conforme aux normes canadiennes NMB-003 et CNR-210.
This device complies with Industry Canada licence-exempt RSS standard.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesirable operation.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence.
Son fonctionnement est soumis aux deux conditions suivantes :
1. Le matériel ne peut étre source D’interférences et
2. Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un
fonctionnement indésirable.
CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment standard
entitled "Digital Apparatus," ICES-003 of the Department of Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Classe B prescrites dans la norme sur le materiel brouilleur: "Appareils Numeriques,"
NMB-003 edictee par le ministre des Communications.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the device.
Toute modification non approuvée explicitement par le fournisseur de licence de l'appareil peut
entraîner l'annulation du droit de l'utilisateur à utiliser l'appareil.
Regulatory Information 28
European Compliance
This product conforms to the following:
RoHS Directive 2011/65/EU.
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/95/EC and
Commission Regulation(s) Implementing Directive 2009/125/EC.
Communication / RF wireless products for the European market comply with R&TTE Directive
1999/5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified
computer equipment which meet with Class B lmits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other devices
or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Limited
or one of its affliated companies could void the user's warranty and guarantee rights.
[FR] European Compliance
Ce produit est conforme aux normes suivantes :
Directive 2004/108/CE sur les émissions électromagnétiques.
Directive RoHS 2011/65/UE.
Les produits secteur pour le marché européen sont conformes à la Directive sur la faible tension
2006/95/CE et à la réglementation de la Commission exécutant la Directive 2009/125/CE.
Les produits de communication/sans fil RF destinés au marché européen sont conformes à la directive
R&TTE 1999/5/CE.
ATTENTION : pour respecter les critères CE d'Europe, cet appareil doit être installé avec du matériel
informatique certifié CE respectant les limites de la classe B. Tous les câbles utilisés pour connecter cet
appareil doivent être blindés, reliés à la terre et ne pas faire plus de 3 m de long. L'utilisation
d'ordinateurs non certifiés ou de câbles inappropriés peut entraîner des interférences avec d'autres
appareils ou des effets indésirables sur le produit.
MODIFICATION : toute modification non approuvée explicitement par Creative Technology Limited ou
l'une de ses sociétés affiliées peut entraîner l'annulation de la garantie et des droits de garantie de
l'utilisateur.
[IT] Conformità alle normative europee
Questo prodotto è conforme alla seguente normativa:
Direttiva EMC 2004/108/CE.
Direttiva RoHS 2011/65/UE.
I prodotti che funzionano con corrente di rete per il mercato europeo sono conformi alla direttiva bassa
tensione 2006/95/CE e alla direttiva di implementazione nelle normative europee 2009/125/CE.
I prodotti di comunicazione/wireless RF per il mercato europeo sono conformi alla Direttiva R&TTE
1999/5/CE.
ATTENZIONE: ai fini della conformità con i requisiti del marchio CE europeo, il dispositivo deve essere
installato in un computer certificato CE conforme ai limiti di Classe B. Tutti i cavi usati per collegare il
Regulatory Information 29
dispositivo devono essere schermati, dotati di idonea messa a terra e avere una lunghezza massima di
3 metri. L'uso del dispositivo con computer non certificati o cavi non idonei può provocare interferenze
ad altri dispositivi nonché danneggiare il prodotto stesso.
MODIFICHE: eventuali modifiche o alterazioni non espressamente approvate da Creative Technology
Limited o dalle sue società controllate possono rendere nulli la garanzia e il diritto dell'utente a
utilizzare il prodotto.
[DE] Einhaltung der europäischen Bestimmungen
Dieses Produkt erfüllt die folgenden Bestimmungen:
EMC-Richtlinie 2004/108/EG.
RoHS-richtlinie 2011/65/EU.
Netzbetriebene Produkte für den europäischen Markt erfüllen die Niederspannungsverordnung
2006/95/EG und der Commission Regulation(s) Implementing-Verordnung 2009/125/EG.
Drahtlose Kommunikationsgeräte/Funksender und -empfänger für den europäischen Markt erfüllen die
R&TTE-Richtlinie 1999/5/EG.
ACHTUNG: Um die Anforderungen der europäischen CE-Norm zu erfüllen, muss dieses Produkt an
einem CE-geprüften Computer der Klasse B angeschlossen werden.Alle Verbindungskabel zu diesem
Gerät müssen abgeschirmt und geerdet sein und dürfen nicht länger als 3 m sein. Der Betrieb mit nicht
zertifizierten Computern oder nicht ordnungsgemäßen Kabeln kann zu Störungen anderer Geräte oder
unerwünschten Auswirkungen auf das Produkt führen.
MODIFIZIERUNG: Jegliche Änderung oder Modifizierung des Produkts, die nicht ausdrücklich von
Creative Technology Limited oder einer der zugehörigen Firmen genehmigt worden ist, kann für den
Benutzer zum Erlöschen der Garantie und der Gewährleistungsrechte führen.
[ES] Homologación para Europa
Este producto cumple:
la Directiva de compatibilidad electromagnética 2004/108/CE.
Directiva RoHS 2011/65/UE.
Los productos funcionando con corriente electrica cumplen con la Directiva 2006/95/CE de baja tensión
y con la implementación de los requisitos de la Comisión para la directiva 2009/125/CE.
Los productos inalámbricos de comunicación o frecuencias de radio para el mercado europeo cumplen la
Directiva 1999/5/CE de equipos de radio y terminales de telecomunicaciones.
ATENCIÓN: para cumplir con los requisitos de Homologación para Europa, este dispositivo debe
instalarse con un equipo informático con certificación CE que cumpla los límites de la Clase B. Todos los
cables utilizados para conectar este dispositivo deben estar protegidos, conectados a tierra y no tener
más de 3 m de longitud. El funcionamiento del dispositivo con equipos no certificados o cables
incorrectos podría provocar interferencias a otros dispositivos o efectos no deseados al producto.
MODIFICACIÓN: los cambios o modificaciones no aprobados expresamente por Creative Technology
Limited o una de sus empresas afiliadas podrían invalidar la garantía del usuario y los derechos de la
garantía.
[NL] Europese naleving
Dit product voldoet aan de volgende voorschriften:
EMC-richtlijn 2004/108/EG.
RoHS-richtlijn 2011/65/EU.
Regulatory Information 30
Electrische producten voor de Europese markt voldoen aan de Laagspanningsrichtlijn 2006/95/EG en EC
and Verordening(en) voor uitvoering van Richtlijn 2009/125/EG.
Communicatie- of draadloze RF-producten voor de Europese markt voldoen aan de richtlijn R&TTE
1999/5/EG.
LET OP: Om te voldoen aan de Europese CE-norm, moet dit apparaat zijn geïnstalleerd in
computerapparatuur die CE-gecertificeerd is voor de Klasse B-limieten. Alle kabels die worden gebruikt
om dit apparaat aan te sluiten, moeten zijn afgeschermd en geaard, en mogen niet langer dan 3 meter
zijn. Gebruik met niet-gecertificeerde computers of incorrecte kabels kan leiden tot interferentie van
andere apparaten of ongewenste effecten op het product.
AANPASSING: Alle wijzigingen of modificaties die niet uitdrukkelijk zijn goedgekeurd door Creative
Technology Limited of een van de gelieerde maatschappijen, kunnen ertoe leiden dat de rechten van de
gebruiker met betrekking tot garantie en vrijwaring vervallen.
[PT] Conformidade Europeia
Este produto está em conformidade com a seguinte regulamentação:
Directiva EMC 2004/108/EC.
Directiva RoHS 2011/65/UE.
Os produtos com ligação à rede destinados ao mercado europeu estão em conformidade com a directiva
de baixa voltagem 2006/95/CE. Directiva de Implementação do(s) Regulamento(s) da Comissão
2009/125/CE.
Os produtos de comunicação/radiofrequência sem fios destinados ao mercado europeu estão em
conformidade com a directiva R&TTE 1999/5/CE.
ATENÇÃO: De modo a cumprir com os requisitos da marca CE Europeia, este dispsotivo deve ser
instalado com equipamento informático com certificação CE que cumpra com os limites de Classe B
limits. Todos os cabos usados para ligar este dispositivo devem ser blindados, ligados à terra e não
devem exceder os 3m de comprimento. O funcioanemnto com computadores não certificados ou cabos
incorrectos pode resultar em interferências em outros dispositivos ou provocar efeitos indesejados no
produto.
MODIFICAÇÃO: Quaisquer alterações ou modificações que não sejam expressamente aprovadas pela
Creative Technology Limited ou por uma das suas afiliadas, pode anular a garantia do utilizador e os
direitos inerentes à mesma.
[SV] Europeisk efterlevnad
Denna produkt uppfyller följande:
EMC-direktivet 2004/108/EC.
RoHS Direktivet 2011/65/EU.
Produkter för den europeiska marknaden som drivs via elnätet uppfyller Lågspänningsdirektivet
2006/95/EC och Kommissionens regleringsimplementeringsdirektiv 2009/125/EG.
Trådlösa kommunikations/RF-produkter för den europeiska marknaden uppfyller R&TTE-direktivet
1999/5/EC.
VARNING: För att uppfylla CE-kraven i Europa måste denna produkt installeras med CE-certifierad
datorutrustning som uppfyller gränsvärdena för klass B. Alla kablar som används för anslutning av
denna produkt måste vara avskärmade, jordade och får inte vara längre än 3 m. Användning med icke
certifierade datorer eller felaktiga kablar kan leda till interferens på annan utrustning eller oönskade
effekter på produkten.
Regulatory Information 31
MODIFIERING: Alla förändringar och modifieringar som inte är uttryckligen tillåtna av Creative
Technology limited eller något av dess filialföretag kan göra användarens garanti och garantirättigheter
ogiltiga.
[NO] Europeisk samsvar
Dette produktet er i samsvar med følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Elektriske produkter til det europeiske markedet er i samsvar med Lavspenningsdirektivet 2006/95/EC
og Økodesigndirektivet 2009/125/EC.
Kommunikasjon/RF trådløse produkter til det europeiske markedet er i samsvar med R&TTEdirektivet
1999/5/EC.
ADVARSEL: For å overholde det europeiske CE-kravet må denne enheten installeres med CEsertifisert
datautstyr som tilfredsstiller klasse B-grensene. Alle kabler som kobles til enheten må være skjermet,
jordet og ikke lenger enn 3 m i lengde. Bruk av ikke-sertifiserte datamaskiner eller feil kabler kan føre
til forstyrrelse av andre enheter eller uønsket effekt på produktet.
MODIFIKASJON: Eventuelle endringer eller modifikasjoner som ikke uttrykkelig er godkjent av
Creative Technology Limited eller et av dets tilknyttede selskaper, kan ugyldiggjøre garantien eller
garantirettighetene.
[DK] Overholdelse af Europæiske regler og standarder
Dette produkt overholder følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Produkter til det Europæiske marked, skal ovberholde Lavspændingsdirektivet 2006/95/EC og
Kommissionens forordninger for implementering af direktivet 2009/125/EF.
Kommunikations- / RF-trådløse produkter til det Europæiske overholder R&TTE-direktivet 1999/5/EC.
ADVARSEL: For at overholde Europe CE-kravet, skal denne enheden installeres med CE-certificeret
computerudstyr, der opfylder klasse B-grænserne. Alle kabler der anvendes til at tilslutte enheden skal
være skærmede, jordforbundne og ikke længere end 3 m lange. Drift med ikke-certificerede computere
og ukorrekte kabler kan medføre interferens for andre enheder eller uønskede effekter på produktet.
MODIFIKATION: Enhver ændring eller modifikation, der ikke er udtrykkeligt godkendt af Creative
Technology Limited eller et associerede selskab, vil gøre brugerens garanti og garanterede rettigheder
ugyldig.
[FI] Eurooppalainen yhdenmukaisuus
Tämä tuote täyttää seuraavat tuotemääritykset:
TEMC-direktiivin 2004/108/EC.
RoHS-direktiivin 2011/65/EU.
Euroopan markkinoiden verkkovirtaa käyttävät tuotteet ovat matalajännitedirektiivin 2006/95/EY
mukaisia. Euroopan parlamentin ja neuvoston ohjaava direktiivi 2009/125/EY.
Euroopan markkinoiden tietoliikenne- ja langattomat radiotaajuustuotteet noudattavat R&TTEdirektiiviä
1999/5/EY.
Regulatory Information 32
VAROITUS: Jotta tämä laite noudattaisi Euroopan CE-vaatimuksia , tämä laite on asennettava
CEsertifioituun tietokoneeseen, joka noudattaa luokan B rajoituksia. Kaikki tämän laitteen liittämiseen
käytetyt kaapelit tulee suojata ja maadoittaa eivätkä ne saa olla 3 m pidempiä. Luokan rajoituksia
noudattamattoman tietokoneen tai vääränlaisten kaapeleiden käyttäminen voi aiheuttaa häiriöitä
muihin laitteisiin tai haitata itse laitteen toimintaa.
MUOKKAUKSET: Muutokset tai muokkaukset, joita Creative Technology Limited tai sen tytäryhtiöt
eivät nimenomaisesti ole hyväksyneet, voivat mitätöidä tuotteelle annetun takuun.
[CZ] Evropská shoda
Tento výrobek splňuje následující směrnice:
Směrnice EMC 2004/108/EC.
Směrnice RoHS 2011/65/EU.
Výrobky napájené z elektrické zásuvky pro evropský trh splňují směrnici o nízkém napětí 2006/95/EC a
směrnici komise 2009/125/EC o zavádění předpisů.
Komunikační / vysokofrekvenční bezdrátové výrobky pro evropský trh splňují směrnici R&TTE
1999/5/EC.
UPOZORNĚNÍ: Aby toto zařízení splňovalo evropský požadavek CE, musí být nainstalováno s
počítačovým vybavením s certifikátem CE, které splňuje limity pro zařízení třídy B. Veškeré kabely
používané pro připojení tohoto zařízení musí být stíněné, uzemněné a nesmí být delší než 3 metry. Při
používání s necertifikovanými počítači nebo nesprávnými kabely může dojít k rušení jiných zařízení
nebo k nežádoucím vlivům na produkt.
ÚPRAVY: Jakékoli změny nebo úpravy, které nebyly vysloveně schváleny společností Creative
Technology Limited nebo některou z jejích dceřiných společností, mohou způsobit propadnutí záruky
uživatele a záručních práv.
[PL] Zgodność z przepisami europejskimi
Urządzenie jest zgodne z
dyrektywą EMC 2004/108/EC.
Dyrektywa RoHS 2011/65/UE.
Urządzenia zasilane z sieci elektrycznej przeznaczone na rynek europejski muszą być zgodne z
dyrektywą dotyczącą urządzeń niskonapięciowych 2006/95/EC oraz z dyrektywą wdrażającą komisji
regulacyjnej 2009/125/WE.
Urządzenia komunikacyjne / bezprzewodowe wykorzystujące transmisję radiową przeznaczone na
rynek europejski spełniają warunki dyrektywy RTTE 1999/5/EC.
UWAGA: Aby uzyskać zgodność z wymogami europejskiej normy CE urządzenie musi być
zainstalowane wraz ze sprzętem komputerowym mającym certyfikat CE z ograniczeniami klasy B.
Wszystkie przewody używane do podłączania niniejszego urządzenia muszą być ekranowane, uziemione
i nie dłuższe niż 3 metry. Użytkowanie z komputerami nie posiadającymi certyfikatów lub
wykorzystanie niewłaściwych przewodów może powodować zakłócenia pracy innych urządzeń lub
opisywanego urządzenia.
MODYFIKACJE: Dokonanie jakichkolwiek zmian lub modyfikacji, na które firma Creative Technology
Limited lub spółki z nią stowarzyszone nie udzielają wyraźnej zgody, może doprowadzić do
unieważnienia praw gwarancji i rękojmi użytkownika.
[HU] Európai megfelelőség
Ez a termék megfelel a következőknek:
Regulatory Information 33
2004/108/EGK sz., az elektromágneses összeférhetőségre. 2011/65/EU, RoHS.
Az Európa területére szánt hálózati termékek megfelelnek az alacsony feszültségre vonatkozó
2006/95/EC irányelvnek.
Az irányelvet 2009/125/EK végrehajtó bizottsági rendeletek.
Az Európa területére szánt, távközlési, illetve rádiófrekvenciás vezeték nélküli termékek megfelelnek a
rádióés távközlő végberendezésekre vonatkozó 1999/5/EK irányelvnek.
FIGYELEM!: Az európai CE követelmények teljesítéséhez ezt a készüléket a B kategóriájú értékeknek
megfelelő, CE minősítésű számítógéppel együtt kell telepíteni. A készülék csatlakoztatására használt
valamennyi kábelnek árnyékoltnak és földeltnek kell lennie, továbbá hosszúsága nem haladhatja meg a
3 métert. A nem hitelesített számítógépekkel vagy helytelen kábelekkel való használat más készülékek
zavarását vagy a termék nem kívánatos befolyásolását okozhatja.
MÓDOSÍTÁS: Minden módosítás vagy változtatás, amit kifejezetten nem hagyott jóvá a Creative
Technology Limited vagy valamelyik leányvállalata, érvénytelenítheti a készülék garanciáját és
felhasználó garanciális jogait.
[EL] Ευρωπαϊκή συμμόρφωση
Το παρόν προϊόν συμμορφώνεται με τα παρακάτω:
Οδηγία ΗΜΣ 2004/108/EΚ.
Οδηγία RoHS 2011/65/EE.
Τα προϊόντα που λειτουργούν με ρεύμα για την ευρωπαϊκή αγορά συμμορφώνονται με την Οδηγία περί
χαμηλής τάσης 2006/95/EΚ και τους κανονισμούς της επιτροπής που υλοποιούν την οδηγία 2009/125/EK.
Τα ασύρματα προϊόντα επικοινωνιών / RF για την ευρωπαϊκή αγορά συμμορφώνονται με την οδηγία
R&TTE 1999/5/EK.
ΠΡΟΣΟΧΗ: Για τη συμμόρφωση με τις απαιτήσεις του ευρωπαϊκού CE, αυτή η συσκευή θα πρέπει να
εγκατασταθεί σε εξοπλισμό υπολογιστή με πιστοποίηση CE ο οποίος πληροί τα όρια της κατηγορίας Β.
Όλα τα καλώδια που χρησιμοποιούνται για τη σύνδεση της συσκευής θα πρέπει να είναι θωρακισμένα,
γειωμένα και να μην υπερβαίνουν σε μήκος τα 3μ. Η λειτουργία με μη πιστοποιημένους υπολογιστές ή
λάθος καλώδια μπορεί να οδηγήσει σε παρεμβολές με άλλες συσκευές ή ανεπιθύμητες επιδράσεις στο
προϊόν.
ΤΡΟΠΟΠΟΙΗΣΗ: Οι όποιες αλλαγές ή τροποποιήσεις που δεν έχουν εγκριθεί ρητά από την Creative
Technology Limited ή κάποια από τις θυγατρικές της ενδέχεται να ακυρώσουν την εγγύηση του χρήστη
και τα δικαιώματα που απορρέουν από αυτήν
[LT] Europos Sąjungos atitiktis
Šis gaminys atitinka šiuos reikalavimus:
„Elektromagnetinės atitikties“ („EMC“) direktyva 2004/108/EC.
RoHS direktyva 2011/65/ES.
Produktai, kurie veikia maitinami iš elektros tinklo, skirti Europos rinkai, atitinka Žemos įtampos
direktyvą 2006/95/EB.
Komisijos reglamentas(-ai) dėl Direktyvos 2009/125/EB įgyvendinimo.
Europos Sąjungos rinkai skirti ryšių / radijo dažnių bevieliai gaminiai atitinka 1999/5/EB direktyvą „Dėl
radijo ryšio įrenginių ir telekomunikacijų galinių įrenginių bei abipusio jų atitikties pripažinimo“.
ATSARGIAI: Tam, kad šis prietaisas atitiktų Europos Sąjungos „CE“ reikalavimus, jis turi būti įdiegtas į
„CE“ sertifikuotą kompiuterinę įrangą, atitinkančią „B“ klasės ribas. Visi su šiuo prietaisu naudojami
laidai turi būti ekranuoti, įžeminti ir neviršyti 3 m ilgio. Nesertifikuotų kompiuterių ar netinkamų laidų
Regulatory Information 34
naudojimas gali tapti trikdžių kitiems prietaisams arba nepageidaujamų šio gaminio veikimo pasekmių
priežastimi.
MODIFIKAVIMAS: Bet kokie pakeitimai ar modifikavimai neturint aiškiai patvirtinto „Creative
Technology Limited“ ar vienos iš su ja susijusių bendrovių leidimo gali panaikinti vartotojo garantiją ir
garantijos teises.
[SK] Dodržiavanie predpisov Európskej únie
Tento výrobok spĺňa nasledujúce normy:
Smernica EMC 2004/108/ES.
Smernica RoHS 2011/65/EÚ.
Výrobky napájané zo siete určené na európsky trh sú v súlade so smernicou o harmonizácii právnych
predpisov členských štátov týkajúcich sa elektrického zariadenia určeného na používanie v rámci
určitých limitov napätia 2006/95/ES a s nariadeniami Komisie, ktorými sa vykonáva smernica
2009/125/ES.
Bezdrôtové komunikačné/RF výrobky určené na európsky trh sú v súlade so smernicou R&TTE
1999/5/ES.
VAROVANIE: Toto zariadenie musí byť nainštalované s počítačovým zariadením s certifikáciou CE,
ktoré spĺňa limity triedy B, aby bolo v súlade s európskymi požiadavkami CE. Všetky káble použité na
pripojenie tohto zariadenia musia byť tienené, uzemnené a nie dlhšie ako 3 m. Prevádzka pomocou
necertifikovaných počítačov alebo nesprávnych káblov môže mať za následok rušenie iných zariadení
alebo nežiaduce účinky na výrobok.
ÚPRAVY: Akékoľvek zmeny alebo úpravy, ktoré neboli výslovne odsúhlasené spoločnosťou Creative
Technology Limited alebo jednou z jej sesterských spoločností, môžu zrušiť platnosť záruky a záručných
práv používateľa.
[RU] Соответствие европейским нормам
Данное изделие соответствует следующим стандартам:
EMC Директива 2004/108/EC.
RoHS директива 2011/65/EU.
Продукция с питанием от сети, поставляемая на европейский рынок, соответствует Директиве по
низковольтному оборудованию 2006/95/EC и Имплементирующей директиве постановления (- й)
комиссии 2009/125/EC.
Коммуникационное/радио- беспроводное оборудование, поставляемое на европейский рынок,
соответствует Директиве по оконечному радио- и телекоммуникационному оборудованию
1999/5/EC.
ВНИМАНИЕ! Для обеспечения соответствия европейским требованиям CE, это устройство должно
устанавливаться с компьютерным оборудованием, сертифицированным по стандарту CE и
удовлетворяющим нормам класса B. Все кабели, используемые для подключения данного
устройства, должны быть экранированы, заземлены и иметь длину не более 3 м. Работа с
несертифицированными компьютерами или неподходящими кабелями может привести к
возникновению помех другим устройствам или негативному влиянию на работу самого изделия.
ИЗМЕНЕНИЯ КОНСТРУКЦИИЛюбые изменения конструкции, на которые не было получено
прямое разрешение компании Creative Technology Limited или ее дочерней компании, может
привести к аннуляции гарантии и связанных с нею прав.
[TR] Avrupa Uyumu
Bu ürün aşağıdakilere uygundur:
Regulatory Information 35
2004/108/EC EMC (Elektromanyetik Uyumluluk) Yönetmeliği.
2011/65/EU RoHS (Tehlikeli Maddelerin Kısıtlanması) Yönetmeliği
Avrupa piyasasına yönelik, elektrik şebekesi tarafından çalıştırılan ürünler 2006/95/EC Alçak Gerilim
Yönetmeliği (LVD ) ve 2009/125/EC Enerji ile İlgili Ürünlerin Çevreye Duyarlı Tasarımına İlişkin
Yönetmeliğe uygundur.
Avrupa piyasasına yönelik İletişim / RF kablosuz ürünleri Yönetmelik R&TTE 1999/5/EC ile uyumludur.
DİKKAT: Avrupa CE gereksinimleriyle uyumlu olması için bu cihazın, B Sınıfı sınırlarına uygun olan CE
sertifikalı bilgisayar donanımları ile birlikte kurulması gerekir. Bu cihazı bağlamak için kullanılan tüm
kabloların koruyuculu ve topraklanmış olması ve 3 metreden uzun olmaması gerekir. Sertifikalı
olmayan bilgisayarlarla veya yanlış kablolarla birlikte kullanılması, diğer cihazların düzgün
çalışmamasına veya üründe istenmeyen etkiler görülmesine neden olabilir.
DEĞİŞİKLİKLER: Creative Technology Limited veya bağlı şirketlerinden biri tarafından açıkça
onaylanmamış tüm değişiklikler kullanıcının garanti ve teminat haklarını geçersiz kılabilir.
Regulatory Information 36
Notice for Singapore
Notice for Japan
Recycling Rechargeable Battery
Lithium rechargeable battery is a resource that can be recycled.
lFor recycling of embedded lithium rechargeable batteries inside Creative products, please do not
attempt to remove the battery from the device. For recycling information and instruction, please go
to Creative Media K K customer support at http://jp.creative.com/support/contact/ (in Japanese)
lFor recycling of replaceable (removable) lithium rechargeable batteries:
oIt is recommended to remove the rechargeable batteries when they are fully
discharged.
oPrecaution needs to be taken on metal parts of the battery by covering them with
isolation materials such as scotch tape.
oRefer to the homepage of JBRC for information on recycling and recovery of
rechargeable batteries and supporting shops. (http://www.jbrc.com/)
Notice for Korea
B급기기
(가정용방송통신기자재)
이기기는가정용(B급)전자파적합기기로서주로가정에서사용하는것을목적으로하며
,모든지역에서사용할수있습니다.
Regulatory Information 37
DECLARATION OF CONFORMITY
According to the FCC96 208 and ET95-19
Manufacturer/Importer’s Name: Creative Labs, Inc.
Manufacturer/Importer’s Address: 1901 McCarthy Boulevard
Milpitas, CA. 95035
Tel: (408)428-6600
declares under its sole responsibility that the product
Trade Name: Creative
Model Numbers: SB1660
has been tested according to the FCC / CISPR22/97 requirement for
Class B devices and found compliant with the following standards:
EMI/EMC: ANSI C63.4 2003, FCC Part 15 Subpart B & C
Complies with Canadian ICES-003 Class B & RSS-210 standards
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
Interference that may cause undesirable operation.
Ce matériel est conforme à la section 15 des régles FCC.
Son Fonctionnement est soumis aux deux conditions suivantes :
(1) Le matériel ne peut étre source D’interférences et
(2) Doit accepter toutes les interférences reques, Y compris celles
pouvant provoquer un fonctionnement indésirable.
Supplementary Information:
Compliance Manager
Creative Labs, Inc.
June 2015
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric shock,
short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may void the
warranty for your product. For more information, read the warranty available with your product.
lDo not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
lDo not expose your product to temperatures outside the range of 0°C to 45°C (32°F to 113°F).
lDo not pierce, crush or set fire to your product.
lKeep your product away from strong magnetic objects.
lDo not subject your product to excessive force or impact.
lDo not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or expose it to
rain.
lUse a mains plug that is appropriate for your country or region.
lTo be completely disconnected from the power input, the mains plug has to be disconnected /
detached from the mains.
lDisconnect the mains plug when the device is expected to be unused for several days.
lPlace the product near a socket outlet, which is easily accessible.
Bluetooth Product
lThe short wave radio frequency signals of a Bluetooth device may impair the operation of other
electronic and medical devices.
lSwitch off the device where it is prohibited. Do not use the device in medical facilities, aircraft,
refueling points, close to automatic doors, automatic fire alarms or other automatically controlled
devices.
lKeep this device at least 20 cm from pacemakers and other medical devices. Radio waves may
impair the operation of pacemakers and other medical devices.
Embedded Battery
lDo not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations. To replace the
battery, return your product to your regional support office. For product service information, go to
www.creative.com.
lDo not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
Safety Information 38

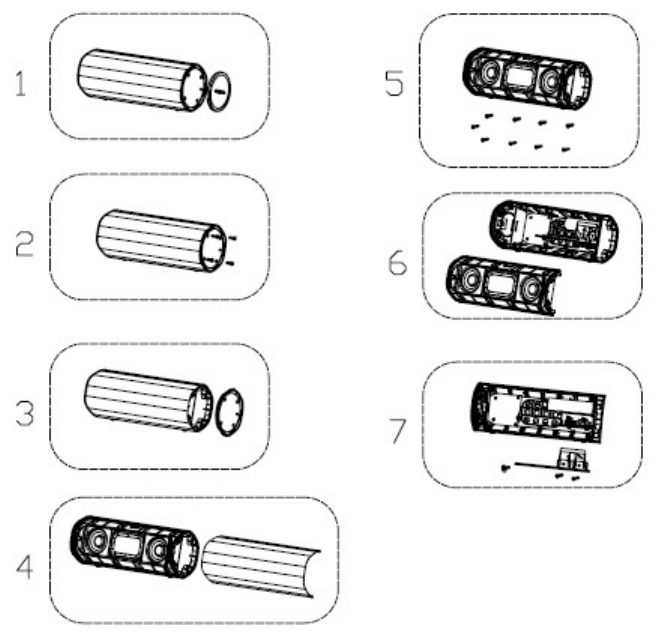

Safe Removal of Built-in Battery
This product contains an integrated battery which should ONLY be removed by service centers or
recycling facilities with reference to the instructions herein. Creative and its affiliates will not be liable
for any damages resulting from attempting to remove and/or tampering with the battery or any part of
the product by an end user.
CAUTION:
"Make sure the product is disconnected from the charging cable before removing the battery"
"Cover one of the battery terminals with insulation tape to prevent short circuit" - not applicable to
battery with connector
Battery removal instruction:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[FR] Démontage sécurisé de la batterie intégrée
Ce produit contient une batterie intégrée qui ne devrait être démontée que par des centres de services
ou des installations de recyclage en référence aux instructions indiquées dans ce document. Creative et
Safety Information 39
ses sociétés affiliées ne seront pas responsables de tout dommage résultant de votre essai de démonter
et / ou altérer la batterie ou une partie du produit par un utilisateur final.
ATTENTION:
« Assurez-vous que le produit est déconnecté du câble de chargement avant de démonter la batterie ».
« Couvrez une des bornes de la batterie avec du ruban isolant pour éviter un court-circuit » - Cela ne
s'applique pas à la batterie avec connecteur.
Instructions du démontage de la batterie:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[IT] Rimozione sicura della batteria integrata
Il prodotto contiene una batteria integrata che deve essere rimossa SOLO dai centri di assistenza o dai
centri adibiti al riciclaggio, con riferimento alle presenti istruzioni. Creative e le società affiliate non
saranno ritenute responsabili per eventuali danni derivanti dal tentativo da parte dell'utente finale di
rimuovere e/o manomettere la batteria o parti del prodotto.
ATTENZIONE:
"Prima di rimuovere la batteria, accertarsi che il prodotto sia scollegato dal cavo di carica"
"Coprire uno dei terminali della batteria con nastro isolante per evitare cortocircuiti" (non applicabile
alle batterie con connettore)
Istruzioni di rimozione della batteria:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[DE] Sicherer Ausbau des integrierten Akkus
Dieses Produkt enthält einen integrierten Akku, der NUR durch Service-Center oder Recycling-Stellen
unter Befolgung der hier enthaltenen Anleitung entfernt werden darf. Creative und dessen Partner
haften nicht für eventuelle Schäden, die aus dem Versuch entstehen, den Akku oder beliebige andere
Teile des Produkts auszubauen oder zu manipulieren.
VORSICHT:
"Stellen Sie sicher, dass das Produkt vom Ladekabel getrennt wurde, bevor Sie den Akku ausbauen"
"Überkleben Sie einen der Akku-Pole mit Isolierband, um einen Kurzschluss zu verhindern" - gilt nicht
für Akkus mit Stecker
Ausbauanleitung des Akkus:
Safety Information 40
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[ES] Extracción de seguridad de la batería integrada
Este producto contiene una batería integrada que SOLAMENTE debe ser extraída por centros de servicio
o instalaciones de reciclaje con referencia a estas instrucciones. Creative y sus filiales no serán
consideradas responsables por cualquier daño resultante del intento de extracción o alteración de la
batería o de cualquier otra pieza del producto por parte del usuario final.
PRECAUCIÓN:
"Asegúrese de que el cable de carga del producto está desconectado antes de la extracción de la
batería"
"Cubra uno de los terminales de la batería con cinta aislante para prevenir cortocircuitos" - no aplicable
a baterías con conectores
Instrucciones para la extracción de la batería:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[NL] Veilige verwijdering van ingebouwde batterij
Dit product bevat een ingebouwde batterij en mag alleen worden verwijderd door servicecentra of
recyclingfaciliteiten met verwijzing naar de hieronder beschreven aanwijzingen. Creatieve en haar
gelieerde bedrijven zijn niet aansprakelijk voor schade die veroorzaakt wordt door het verwijderen
en/of modificeren van de batterij of een deel van het product door een eindgebruiker.
LET OP:
"Zorg ervoor dat het apparaat wordt losgekoppeld van de oplaadkabel voordat u de batterij verwijdert"
"Één van de terminals van de batterij afplakken met isolatietape om kortsluiting te voorkomen" - niet
van toepassing op batterij met een connector
Aanwijzingen voor het verwijderen van de batterij:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
Safety Information 41
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[PT] Remoção em segurança da bateria integrada
Este produto contém uma bateria integrada que APENAS deve ser removida pelos centros de serviço ou
instalações de reciclagem com referência às instruções deste documento. A Creative e as suas afiliadas
não podem ser consideradas responsáveis por quaisquer danos resultantes da tentativa para remover
e/ou adulterar a bateria ou qualquer peça do produto por parte de um utilizador final.
CUIDADO:
"Certifique-se de que o cabo de carregamento do produto está desligado antes de remover a bateria"
"Tape um dos terminais da bateria com fita isoladora para prevenir um curto-circuito" - não aplicável a
baterias com conector
Instruções para remoção da bateria:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[DK] Sikker fjernelse af indbygget batteri
Dette produkt indeholder et indbygget batteri, som KUN må fjernes af servicecentre eller
genbrugsanlæg, i overensstemmelse med de medfølgende vejledninger. Creative og dets associerede
selskaber, kan ikke holdes ansvarlige for skader forårsaget af forsøg på at fjerne og/eller ændre
batteriet, eller nogle andre dele af produktet, på vegne af en slutbruger.
FORSIGTIG:
"Kontroller at produktet er afbrudt fra opladerkablet, før batteriet fjernes"
"Tildæk en af batteripolerne med isoleringstape for at forhindre en kortslutning" - ikke gældende for
batteri med konnektor
Vejledning til fjernelse af batteri:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[SV] Säker borttagning av inbyggt batteri
Denna produkt innehåller ett integrerat batteri som bör tas bort ENDAST av personal på servicecenter
eller återvinningsanläggningar vilka tar hänsyn till instruktionerna här nedan. Creative och dess
Safety Information 42
dotterbolag ansvarar inte för skador som uppkommit på grund av att slutanvändaren har försökt att ta
ur och/eller manipulera batteriet eller någon annan produktdel.
VARNING!
"Säkerställ att produkten inte är ansluten med nätkabeln innan du tar ur batteriet."
"Täck en av batteriterminalerna med isoleringstejp för att förhindra kortslutning" – gäller ej för
batterier med anslutning
Instruktioner för borttagning av batteri:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[NO] Sikker fjerning av innebygd batteri
Dette produktet har et integrert batteri som KUN skal fjernes av servicesentre eller gjenbruksanlegg
med referanse til instruksjonene heri. Creative og deres samarbeidspartnere vil ikke være ansvarlige
for noen skader oppstått ut fra forsøk på å fjerne og/eller tukle med batteriet eller noen del av
produktet av en sluttbruker.
FORSIKTIG:
«Påse at produktet er koblet fra ladekabelen før batteriet fjernes»
«Dekk til en av batteriterminalene med isolasjonstape for å forhindre kortslutning» - gjelder ikke for
batteri med kobling
Instruksjoner for fjerning av batteri:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[FI] Sisäänrakennetun akun turvallinen poistaminen
Tässä tuotteessa on sisäänrakennettu akku, jonka saavat poistaa VAIN huoltokeskukset tai
kierrätyskeskukset tässä mainittuja ohjeita noudattaen. Creative ja sen tytäryritykset eivät ole
vastuussa mistään vahingoista, jotka johtuvat siitä, että loppukäyttäjä yrittää poistaa ja/tai peukaloida
akkua tai muuta tuotteen osaa.
VAROITUS:
"Varmista, että tuote on irrotettu latausjohdosta ennen akun poistamista."
"Peitä yksi akun terminaaleista eristysteipillä, jotta estetään oikosulku" - ei koske akkua, jossa on liitin
Akun irrotusohjeet:
Safety Information 43
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[EL] Ασφαλής αφαίρεση της ενσωματωμένης μπαταρίας
Αυτό το προϊόν περιέχει ενσωματωμένη μπαταρία η οποία πρέπει να αφαιρείται ΜΟΝΟ από εξειδικευμένα
κέντρα ή εγκαταστάσεις ανακύκλωσης με καθοδήγηση από τις παρούσες οδηγίες. Η Creative και οι
συνεργάτες της δε φέρουν καμία ευθύνη για φθορές λόγω απόπειρας αφαίρεσης της μπαταρίας ή άλλου
εξαρτήματος του προϊόντος από τον τελικό χρήστη.
ΠΡΟΣΟΧΗ:
"Σιγουρευτείτε ότι έχετε αφαιρέσει το καλώδιο φόρτισης προτού αφαιρέσετε την μπαταρία"
"Καλύψτε ένα από τα τερματικά της μπαταρίας με μονωτική ταινία ώστε να αποφύγετε τυχόν
βραχυκύκλωμα" - δεν ισχύει για μπαταρίες με βύσμα
Οδηγίες αφαίρεσης της μπαταρίας:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[PL] Bezpieczne usuwanie wbudowanej baterii
Ten produkt zawiera zintegrowaną baterię, którą należy usuwać TYLKO w punktach serwisowych lub
zakładach recyklingowych oraz zgodnie z zamieszczonymi instrukcjami. Firma Creative i jej partnerzy
nie ponoszą odpowiedzialności za jakiekolwiek szkody wynikające z podejmowania prób wyjęcia baterii
i/lub manipulowania baterią lub jakąkolwiek częścią produktu przez użytkownika końcowego.
UWAGA:
"Przed przystąpieniem do wyjęcia baterii upewnić się, że produkt jest odłączony od kabla ładującego."
"Osłonić jeden ze styków baterii taśmą izolacyjną, aby zapobiec wystąpieniu zwarcia." - nie dotyczy
baterii wyposażonych w złącze
Instrukcja wyjmowania baterii:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
Safety Information 44
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[CZ] Bezpečné vyjmutí zabudované baterie
Produkt obsahuje integrovanou baterii, kterou mohou vyjímat POUZE pracovníci servisních center nebo
recyklačních zařízení dle zde uvedených pokynů. Společnost Creative a její přidružené společnosti
nebudou odpovídat za žádné škody vyvstávající z nedovolené manipulace nebo pokusu o vyjmutí baterie
či jakékoli součásti produktu koncovým uživatelem.
UPOZORNĚNÍ:
„Než se pokusíte vyjmout baterii, ujistěte se, že je produkt odpojen od napájecího kabelu.“
„Jeden z pólů baterie zakryjte izolační páskou, čímž zabráníte zkratování“ – tento pokyn se netýká
baterie s konektorem
Pokyny k vyjmutí baterie:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[SK] Bezpečné vyberanie vstavanej batérie
Tento výrobok obsahuje integrovanú batériu, ktorú môžu vybrať IBA v servisných strediskách alebo v
organizáciách určených na zber a recykláciu odpadu v súlade s pokynmi v tomto dokumente. Spoločnosť
Creative a jej pobočky nenesú zodpovednosť za žiadnu škodu, ak koncový používateľ vyberie batériu
alebo ak manipuluje s touto batériou alebo s ktorýmkoľvek z dielov v tomto výrobku.
UPOZORNENIE:
„Pred vyberaním batérie sa uistite, že nabíjací kábel je odpojený od výrobku.“
„Na jeden kontakt batérie založte izolačnú pásku, aby sa zabránilo skratu“ - neplatí pre batériu s
konektorom
Pokyny týkajúce sa vyberania batérie:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[HU] Az elem biztonságos eltávolítása
Ez a termék elemet is tartalmaz, amelyet azonban CSAK szervizekben vagy újrahasznosító telepeken
távolíthatnak el a készülékből az erre vonatkozó utasítások betartása mellett. A Creative vállalat és
Safety Information 45
annak leányvállalatai nem tehetőek felelőssé semminemű olyan kárért, amelyet egy végfelhasználó
okozott az elem vagy a termék bármely részének eltávolításával és/vagy megrongálásával.
FIGYELEM!
„Az elem eltávolítása előtt győződjön meg arról, hogy a termék le van-e csatlakoztatva a töltőkábelről.”
„Rövidzárlat megakadályozása érdekében ragassza le az elem egyik pólusát szigetelőszalaggal” – erre
nincs szükség csatlakozóval ellátott elemek esetén
Az elem eltávolításának lépései:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[LT] Saugus integruotos baterijos išėmimas
Šiame produkte yra integruota bateriją, kurią galima išimti TIK aptarnavimo centre arba perdirbimo
įstaigoje laikantis čia pateiktų instrukcijų. „Creative“ ir jos padaliniai neprisiima atsakomybės už žalą,
patirtą galutiniam vartotojui bandant išimti ir / arba ardyti bateriją ar bet kurią produkto dalį.
PERSPĖJIMAS:
„Prieš išimdami bateriją įsitikinkite, kad produktas yra atjungtas nuo elektros laido“
„Uždenkite vieną baterijos gnybtą lipnia juostele, kad neįvyktų trumpas jungimasis“ – netaikoma
baterijoms su jungikliu
Baterijos išėmimo instrukcija:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
[RU] Безопасное извлечение встроенной аккумуляторной
батареи
Настоящий продукт содержит встроенную аккумуляторную батарею, которую разрешается
извлечь ТОЛЬКО в сервисном центре или на объекте по утилизации с соблюдением приведенных в
настоящем документе инструкций. Компания Creative и ее дочерние компании не несут
ответственности за любые повреждения, нанесенные в результате попытки извлечения и/или
нарушения целостности аккумуляторной батареи или любой части изделия конечным
пользователем.
ВНИМАНИЕ:
«Перед извлечением аккумуляторной батареи убедитесь, что изделие отсоединено от зарядного
кабеля»
Safety Information 46
«Накройте одну из клемм аккумуляторной батареи изоляционной лентой, чтобы предотвратить
короткое замыкание» - не применимо для аккумуляторной батареи с соединителем
Инструкция по извлечению аккумуляторной батареи:
1. Remove rubber pad from the right side of the speaker.
2. Unfasten the screws on the red cover.
3. Remove the red cover.
4. Slide the metal grill out from the right side.
5. Unfasten the screws on the front cover.
6. Remove the front cover.
7. Pull out the battery cable outlet from the main PCBA. Unfasten the screws and remove the main
PCBA. Then, remove the battery.
Safety Information 47
License and Copyright
Information in this document is subject to change without notice and does not represent a commitment
on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for any purpose
without the written permission of Creative Technology Ltd.
Copyright © 2015 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, Sound
Blaster, the Sound Blaster logo, SBX Pro Studio and the SBX logo are trademarks or registered
trademarks of Creative Technology Ltd. in the United States and/or other countries. iPhone is a
trademark of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google
Inc. Windows is a registered trademark of Microsoft Corporation in the United States and other
countries. The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Creative Technology Ltd is under license. Other trademarks and trade
names are those of their respective owners. All specifications are subject to change without prior
notice. Use of this product is subject to a limited hardware warranty. Actual contents may differ slightly
from those pictured. The software included in this packaging may not be used separately from the
hardware. Before using the software, you must agree to be bound by the terms and conditions of the
end user license agreement.
Version 1.0
March 2015
License and Copyright 48

Navigation menu
