Congratulations on purchasing the ZiiSound DSx Wireless
Subwoofer, a perfect complement to the ZiiSound series of
wireless speaker systems featuring SLAM (Symmetrically
Loaded Acoustic Module) Technology. Experience a whole
new definition of freedom in placement for that perfect
acoustic projection with our wireless systems.
Additional ZiiSound D5x, D3x or DSx shown here and throughout the user manual are
for illustration purposes only. Sold separately. Not included.
For detailed product information, instructions or
to find out more about our speakers, visit
www.creative.com/speakers
Safety Instruction
Please read the following before using the Creative Products:
• Use a mains plug that is appropriate for your country or region.
• To be completely disconnected from the power input, the mains plug has to be disconnected
/detached from the mains.
• Disconnect the mains plug when the device is expected to be unused for several days.
Additional guidelines for wireless devices
• The short wave radio frequency signals of a wireless device may impair the operation of other
electronic and medical devices
• Switch off the device where it is prohibited. Do not use the device in medical facilities, aircraft,
refueling points, close to automatic doors, automatic fire alarms or other automatically controlled
devices
• Keep this device at least 20 cm from pacemakers and other medical devices. Radio waves may
impair the operation of pacemakers and other medical devices
EN
4
5
2
1
3

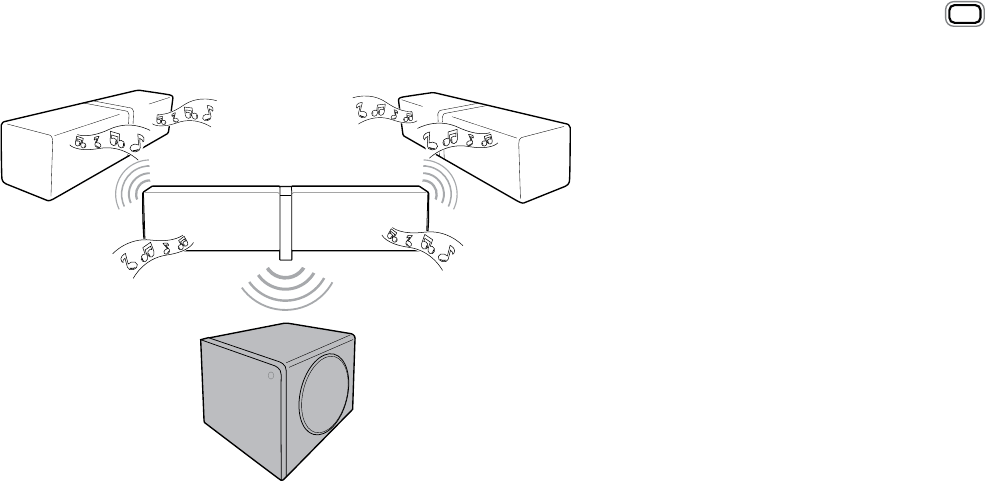

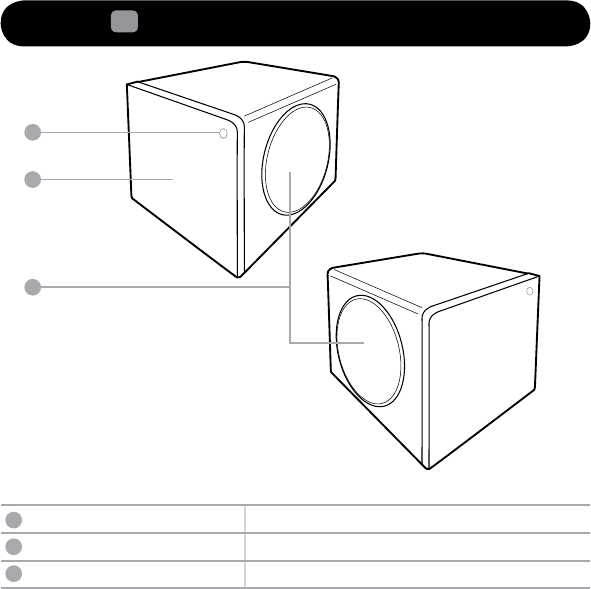

1 Product Overview / Connectivity Diagram
Technical Specifications
• Input Rating: 100-240V~ 50/60Hz 300mA
• Operating Frequency : 5725 – 5850 Mhz
• Supported Speaker models : ZiiSound D5x , ZiiSound D3x
• Operating Range: Up to 30 meters (Measured in open space. Walls and structures may affect
range of device.)
Note: Compliance markings are located at the back of this product.
Compatibility Disclaimer
• Every electronic device is subjected to radio frequency (RF) interference from external sources.
These include the connection between linked ZiiSound D5x, D3x and wireless subwoofer.
• Creative will not be liable for any loss of data or leakage resulting from the use of these devices.
1
2
3
ZiiSound DSx LED Status Indicator LED lights up to indicate active wireless link status
SLAMTM Master driver Do not poke objects into these areas
SLAMTM Pressure drivers Do not poke objects into these areas
6
7
4
5
6
4 5 6
LED Status Subwoofer Status
Off Standby
(Mains Powered ON, not connected to any speaker)
LINK discoverable mode
LED blinks twice and goes off Restored to Factory default setting
LED stays ON Linked to speaker
Rapid blinking LED
LINK Button For various actions to LINK and connect to ZiiSoundD5x or D3x
Bass Level Control To Increase or decrease the bass level
AC IN Attach supplied AC cord into AC IN, then into mains
2 To Power ON the ZiiSound DSx
Plug in the AC cord into the AC IN and switch on the mains. The ZiiSound DSx is powered ON and in
standby mode.
8
9
Link discoverable mode
Rapid blinking LED
Link established with Master Speaker
LED lit steady
3 To link up with the ZiiSound D5x or D3x
To link to the ZiiSound D5x or D3x master speaker unit, the ZiiSound DSx needs to be in LINK
Discoverable mode for the master speaker unit to establish a link to ZiiSound DSx. To activate LINK
discoverable mode, follow the instructions below.

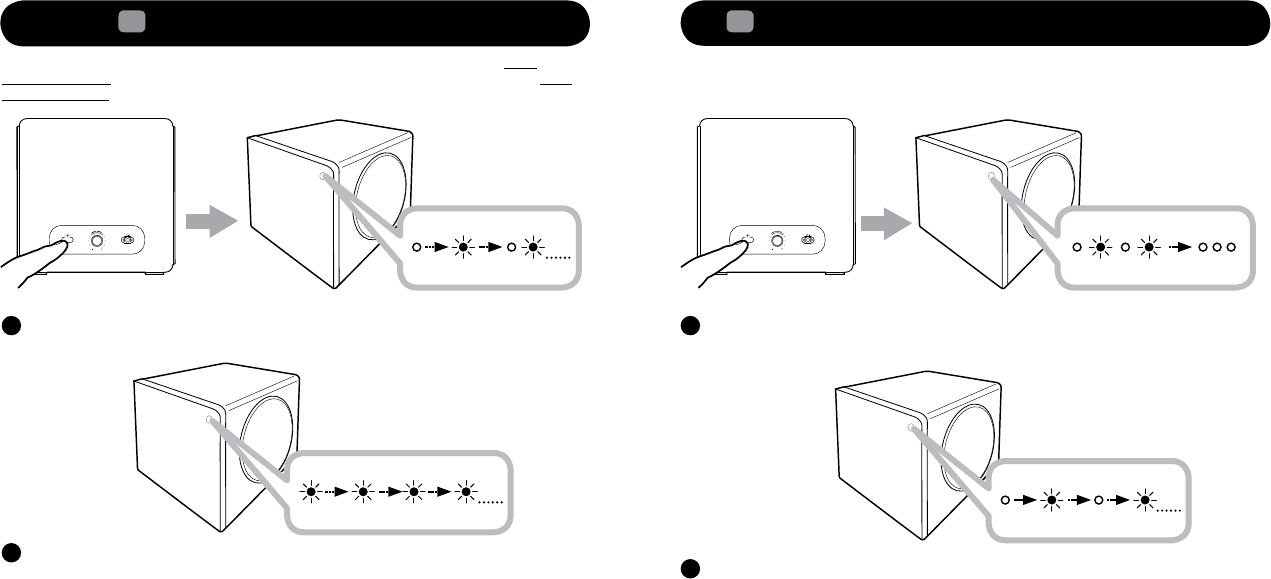

With the Subwoofer mains powered ON, press and hold the Link button for 4 Seconds until the
LED is blinking rapidly. Subwoofer is now ready to receive connection from a master speaker unit.
A
When the Wireless Subwoofer is successfully linked up, the Led Status indicator will be lit steady.
B
Note: At any one time, the ZiiSound DSx can only remember one device in its memory bank.
Return to Factory default
Two Led Flashes and Led stops blinking
LINK discoverable mode
Rapid blinking LED
4 To de-link the ZiiSound DSx from any master speaker unit
To de-link the ZiiSound DSx from any master speaker unit for linking to another master speaker unit,
perform the following instructions below.
With the Subwoofer is powered ON, press and hold the Link button for 10 Seconds until 2
flashes of LED is seen and the LED stops blinking. Subwoofer is cleared of memory and in
standby mode.
A
Press and hold the Link button for 4 Seconds until the LED is rapidly blinking. Subwoofer is
ready to receive connection from another master speaker unit.
B
10
11
5 Return to factory default setting
Follow these steps to return to factory setting.
Action LED Status
Press and hold the LINK button for 10
seconds when the subwoofer is powered ON
Two Led Flashes and Led
stops blinking
Wireless subwoofer is
cleared of memory and
in standby mode. Ready
for next user action.
6 Frequently Asked Questions (FAQ)
Perform the following trouble-shooting steps before sending it for servicing.
For more information, please refer to support.creative.com
The ZiiSound DSx cannot be Powered ON. What should I do?
• Make sure that the power cords are firmly connected to the unit and that the power outlet is
turned on.
• Press the LINK Button at the rear of the Subwoofer. The LED status indicator should blink.
This indicates that the Subwoofer is powered ON and in standby.
There’s no wireless link between the ZiiSound DSx and ZiiSound D5x or D3x. What should I do?
• Check to see if there is a broken link in the ecosystem. A broken link in the ecosystem will
stop the link from functioning until the link is restored.
• Perform Steps 3. To link up with the ZiiSound D5x or D3x to put the wireless Subwoofer
into LINK Discoverable mode and refer to the ZiiSound D5x or D3x user manual for further
linking instructions. Upon successful link, the LED status indicator on the DSx will be lit up
steady.
I am having difficulty in linking up the ZiiSound DSx with the ZiiSound D5x or D3x.
• Ensure that you have the master speaker defined
• Make sure that your Master speaker LINK discoverable mode is enabled
• Position them within 1 meter or closer to each other if you experience linking difficulties
• Ensure that both, your ZiiSound DSx and your ZiiSound D5x or D3x are not connected to any
other devices
• Should the problem persist, return the ZiiSound DSx, D5x or D3x to factory default setting by
referring to section 5, Reset to factory setting
What’s the optimal operating distance between ZiiSound D5x or D3x with the ZiiSound DSx?
• The optimal operating distance is within 30 meters. They work best when there are no
obstructions (e.g. walls, large metal structures or other electronic devices). If they are too
far apart, you may hear some cracking sounds
My ZiiSound DSx does not go into power standby mode.
• The ZiiSound DSx can only go into standby mode when the master speaker unit is in standby
mode or when it is not linked with any master speaker unit. Control of the ZiiSound DSx is
given to the master speaker when both units are linked up.
12
13
