Creative Labs MF8235 Creative X-Fi Sonic Carrier Subwoofer User Manual
Creative Labs Inc Creative X-Fi Sonic Carrier Subwoofer
Contents
- 1. User Manual
- 2. Users Manual
User Manual
![](/img.php?id=3378249&img=bg1.png)
THE AUDIO OF TOMORROW
Creative X-Fi Sonic Carrier (Model MF8235)
For the latest information, visit: www.creative.com/support/soniccarrier
USER’S MANUAL
![](/img.php?id=3378249&img=bg2.png)
Package Contents
- Main unit
- Subwoofer
- Insert Batteries to your Remote Control (AAA Battery X 2)
Wall Mount Your Sonic Carrier
Discover the core elements that make Sound BlasterX H5
Tournament Edition the gaming headset for professional gamers.
Setting Up the Wireless Subwoofer Connection
Connecting Electrical Power
Connect Your Sonic Carrier
Overview
- Main unit
- Subwoofer
- Remote Control
Product Specification
page 4
page 6
page 9
page 8
page 10
page 14
page 18
Contents
![](/img.php?id=3378249&img=bg3.png)
Package Contents
Main Unit
• Warranty/TechSupportbooklet
• Safetyandregulatoryleaets
• UserManual
Accessories box
x8
IR remote control AAABatteryx2forIR
remote control
Wall mount brackets +
thumbscrew
Driver décor rings x 8
Power cable IRTransmitter HDMI Cable
![](/img.php?id=3378249&img=bg4.png)
4
Insert Batteries to your Remote Control (AAA Battery X 2)
1. Slide the battery cover in the direction of the arrow until it is completely removed.
2. Insert 2 AAA batteries (1.5V) in the correct +/- polarity.
3. Slide the battery cover back into position.
xxxxxxxx
1. xxxxxxxxxx
Setup App
![](/img.php?id=3378249&img=bg5.png)
5
Setup Recommendation
The Sonic Carrier main unit is designed to be placed on top of a console or wall mounted. For optimum performance,
please observe the setup recommendation below.
1. In order to reproduce an immersive sound experience, the Sonic Carrier main unit radiates sound from the front,
top and sides. Ensuring that these sound waves are not obstructed by objects placed in their path would yield
the best sound experience. Do not place your Sonic Carrier within an enclosed fixture (Cabinet, Shelving unit,
etc.), and make sure nothing is obstructing the sides. The top firing speakers needs to have a clear line of sight
to the ceiling as well.
2. Locate the Sonic Carrier at least 10cm away from the bottom of your TV, to avoid obstructing the top firing speakers
3. For the best listening experience, the listening position should be at least 3ft away from the Sonic Carrier
4. The subwoofer unit produces non-directional sound and thus could be placed at your convenience around the
room. For optimum results, it would be best to locate the subwoofer equidistant to the main unit when measured
from the listening position, and to keep the subwoofer within 3M of the main unit.
5. The subwoofer is equipped with a pair of ports that augments the sound output of the dual subwoofer drivers at
the lowest frequencies. A distance of 10cm between the rear of the subwoofer enclosure and the adjacent wall
has to be maintained in order to avoid turbulence or air chuffing noises.
6. Room acoustics has a major influence on sound quality. The ear is particularly troubled by standing waves and
echoes which can be identified by moving around your room and loudly clapping your hands. Parallel surfaces
such as opposite walls, floor and ceiling encourage and sustain these problems. However, rearranging curtains, thick
carpets, rugs, furniture and bookcases can make a dramatic improvement as the sound waves are partially
absorbed and diffused. As far as possible, the Sonic Carrier main unit should also be setup such as to maintain
symmetry in the room, with equal distance from the main unit to the left and right wall.
Care for your Sonic Carrier
Cabinet
Your Sonic Carrier is finely crafted to last a lifetime from select metal alloys, engineering polymers; and should be treated
as you would furniture with similar materials and finishes. Dust lightly with a soft lint-free cloth, avoiding abrasives and spirit
based cleaners. If necessary, wipe carefully with a cloth slightly dampened with glass cleaner to remove stubborn soil
and marks.
Grilles
The acoustically transparent fabric midrange driver grilles help protect the driver uits, and could be left in place during
listening with negligible acoustic effect. These could be taken off and cleaned using a lint brush. Should you choose to
clean the grilles in place, be careful not to press in and deform the drivers under the grille.
Drivers
Avoid touching the speaker diaphragms, particularly tweeters. The surface of the midrange driver could be dusted very
carefully with a soft dry brush.
General care information
Avoid damp, direct sunlight and temperature extremes. The ventilation and ports should not be impeded by covering the
ventilation openings with items, such as newspapers, table-cloths, curtains, etc. No naked flame sources, such as lighted
candles, should be placed on the apparatus
Care and Setup Information
![](/img.php?id=3378249&img=bg6.png)
6
Preparation Materials
* Screw and wall plugs are not supplied for mounting the unit. We recommended the Hilti (HUD-16 x 30) for the mounting.
Wall Mounting The Main Unit
A
Concrete Wall Hollow&Drywall
M5 Screw
x8
Lock Washer
x8
Plain Washer
x8
Screw Driver Hammer HandDrill
CavityAnchor
x8
Lock Washer
x8
Plain Washer
x8
Screw Driver Hammer HandDrill
CavityAnchor
Application
25 cm
89 CM
TV
Wall mount
brackets
Warning! Improper installation could lead to damage of the
wall and to equipment, and might lead to injury. The following
information does not constitute a complete set of wall
mounting instruction, and are provided for use by qualified
installers only.
![](/img.php?id=3378249&img=bg7.png)
7
Concrete Wall
Anchor Plug
Concrete Wall
Wall mount brackets
Lock Washer
Plain Washer
CavityAnchor
Wall mount brackets
Lock Washer
Plain Washer
Hollow&Drywall
Recommended bolt
mounting positions
B
C
Determine the mounting position of the
Sonic Carrier main unit, ensuring that
the position is properly centered relative
to the TV and leveled horizontally. Note
the recommended bolt locations, mark
out and drill accordingly. Please ensure
that the wall is able to bear the weight
of the sonic carrier with adequate safety
margins before proceeding. Please also
note the location of buried pipes, conduits
or cabling within the wall before drilling.
Place and center the sonic carrier main
unit on the wall mount brackets and
attach the thumbscrews.
Wall Mounting The Main Unit
![](/img.php?id=3378249&img=bg8.png)
8

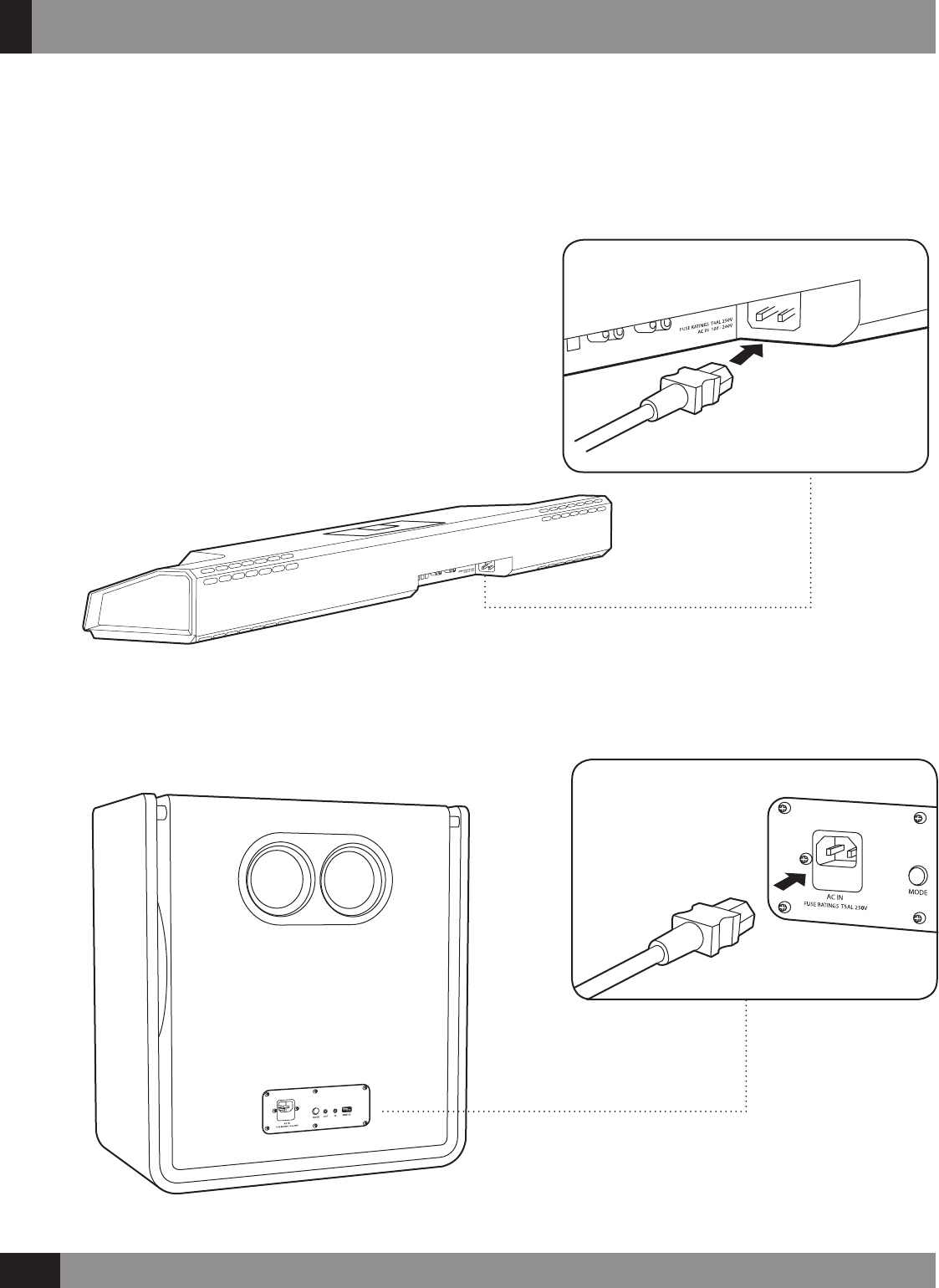

Connect the power cords to the main unit and subwoofers, socket location are located at the back of the units and are
marked below. Connect power cords to the mains socket.
For more information about the power supply and power consumption, refere to the label attached to the product.
(Main Unit : Bottom panel, Subwoofer : Rear panel)
Main Unit
Subwoofer
Connecting Electrical Power
![](/img.php?id=3378249&img=bg9.png)
9

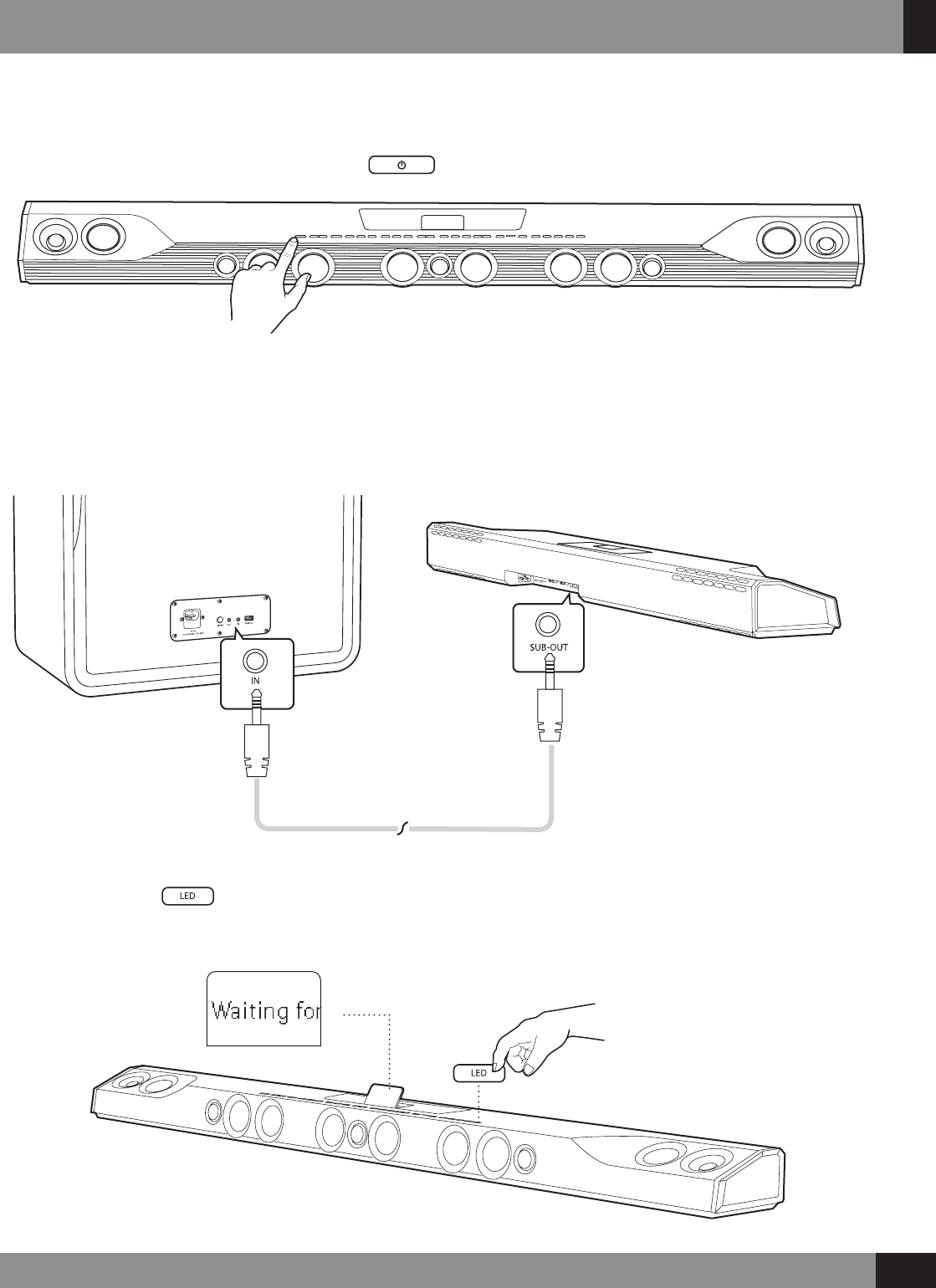

1. Ensure the Main unit and Subwoofer are placed within 3 metre for the setup process.
2. Ensure mains power is connected and switched on.
3. Power on the Main unit by pressing the power ( ) button. The boot up process may take around a minute.
4. Connect the link cable (bundled with the subwoofer) between the main unit and the subwoofer. On the Main unit,
the cable should be plugged into the Sub-Out connector. On the Subwoofer, the other end of the cable should be
plugged into the In connector.
Setting Up the Wireless Subwoofer Connection
5. Press and hold the “ ” button until the main display shows a “Waiting for subwoofer connection” message is
shown. Upon successful setup, a message indicating “Subwoofer Connected” would be displayed.
![](/img.php?id=3378249&img=bga.png)
10

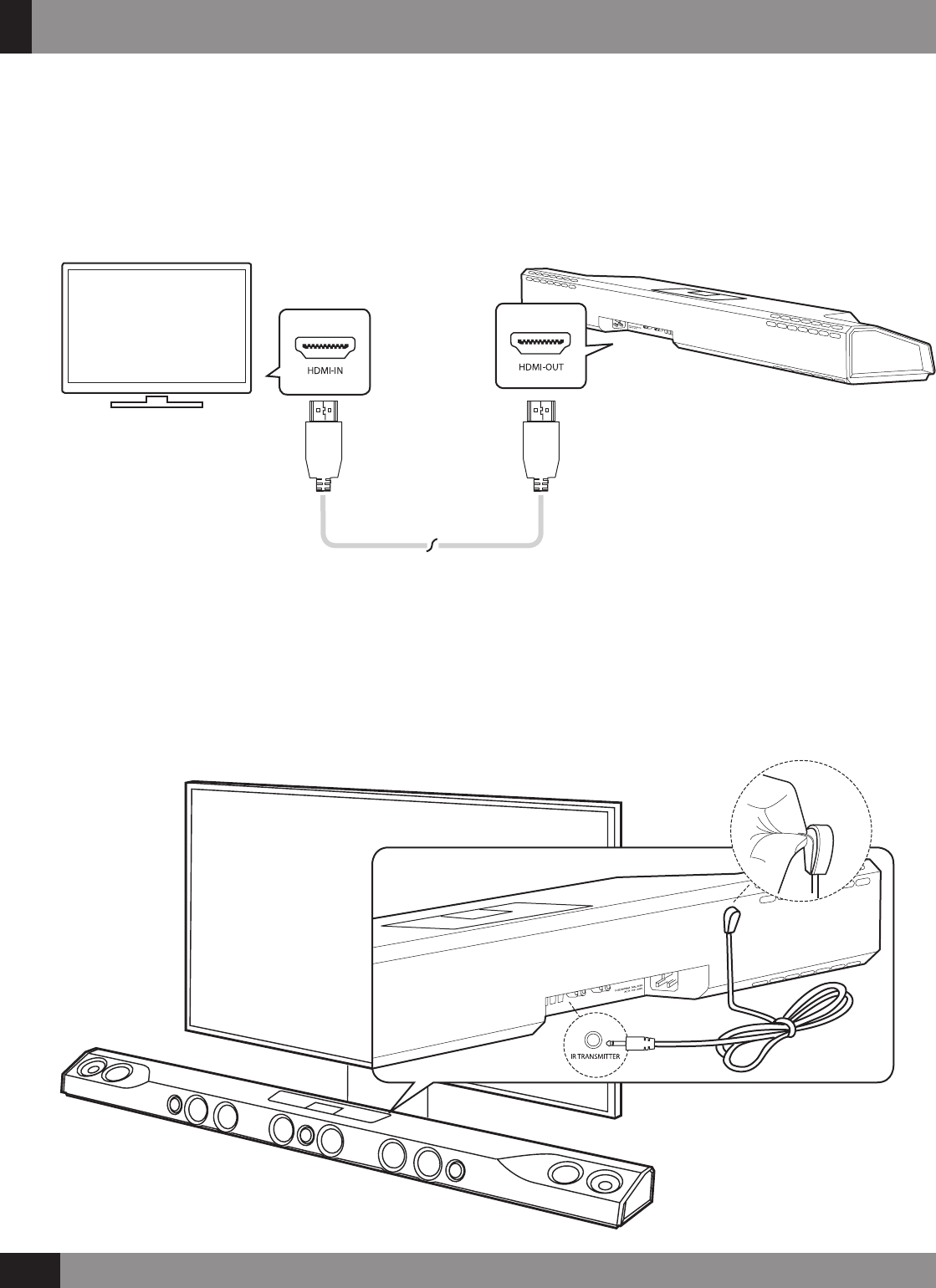

Connecting Sonic Carrier to your TV
1. Connect the HDMI cable as shown in the illustration below
2. When TV sound is present, it is output automatically. On Certain TV sets, it might be necessary to press and hold the
“HDMI” button on the remote control to enable TV sound output from the Sonic Carrier.
3. If you are placing the Sonic Carrier on a console, and it is blocking the IR remote control sensor of the TV, please in-
stall the bundled IR transmitter as shown. The transmitter should face the IR remote control sensor of the TV set. Please
note that the IR transmitter requires the Sonic Carrier to be powered On or on Standby mode to work. Do not discon-
nect the Sonic Carrier from mains power.
Connecting Your Sonic Carrier
IR Transmitter for TV
![](/img.php?id=3378249&img=bgb.png)
11

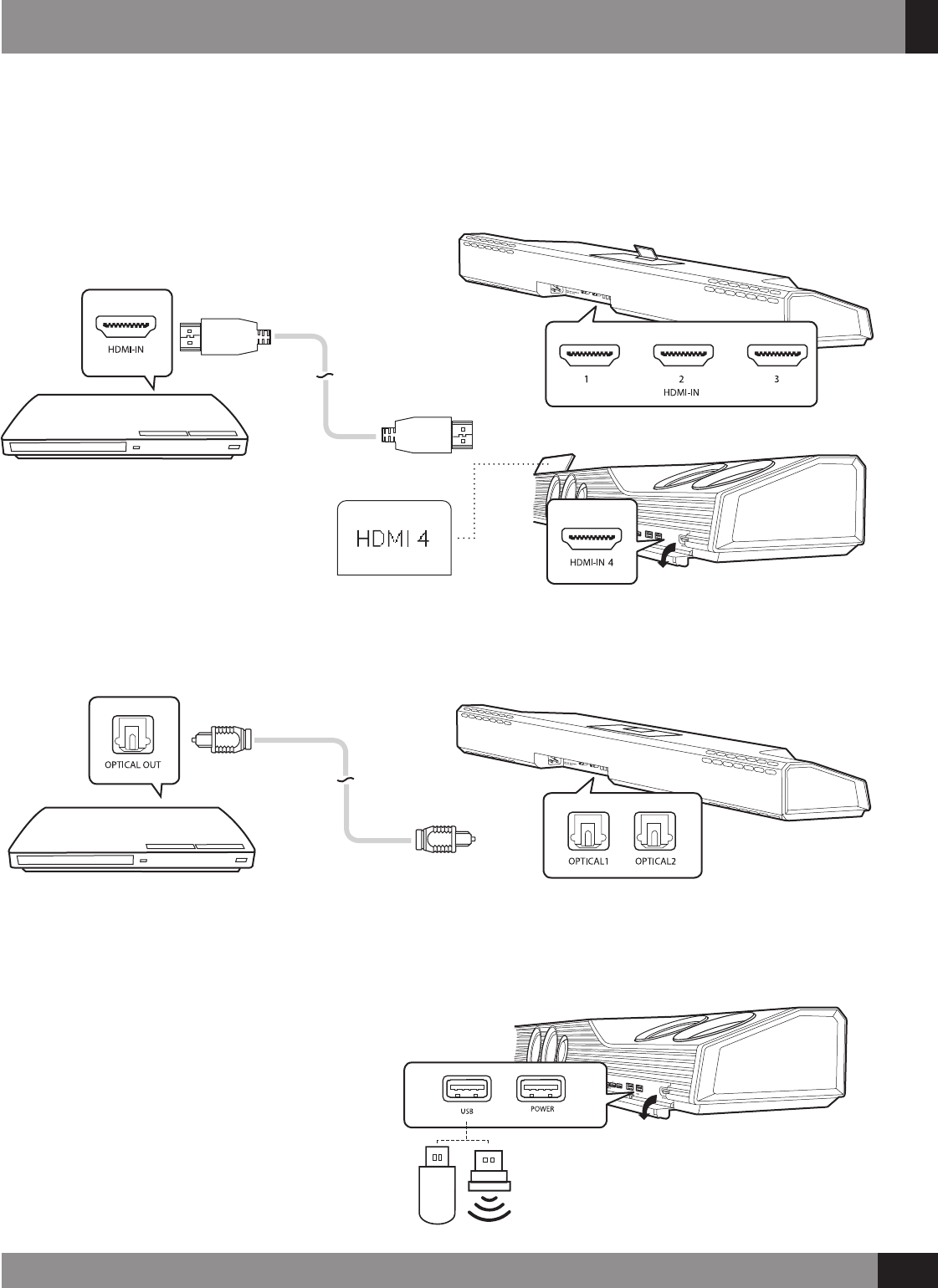

Connecting external devices
The sonic carrier is equipped with a wide range of connectivity options. The following connection map illustrates the
possibilities of connection, cable type needed, as well as the corresponding
1. HDMI Connection
2. Optical Connection
3. USB Connection
Front and Rear USB ports could be used to
connect to USB flash drives or USB Hard disk
drives.
The USB port labeled “Power” does not support
data transfer, but could be used to provide power
(Maximum: 5V 2A) to devices such as TV sticks.
OR
Connecting Your Sonic Carrier
When a Dolby encoded input signal is
detected, it is automatically decoded
and a status indication is displayed on
the main display.
![](/img.php?id=3378249&img=bgc.png)
12

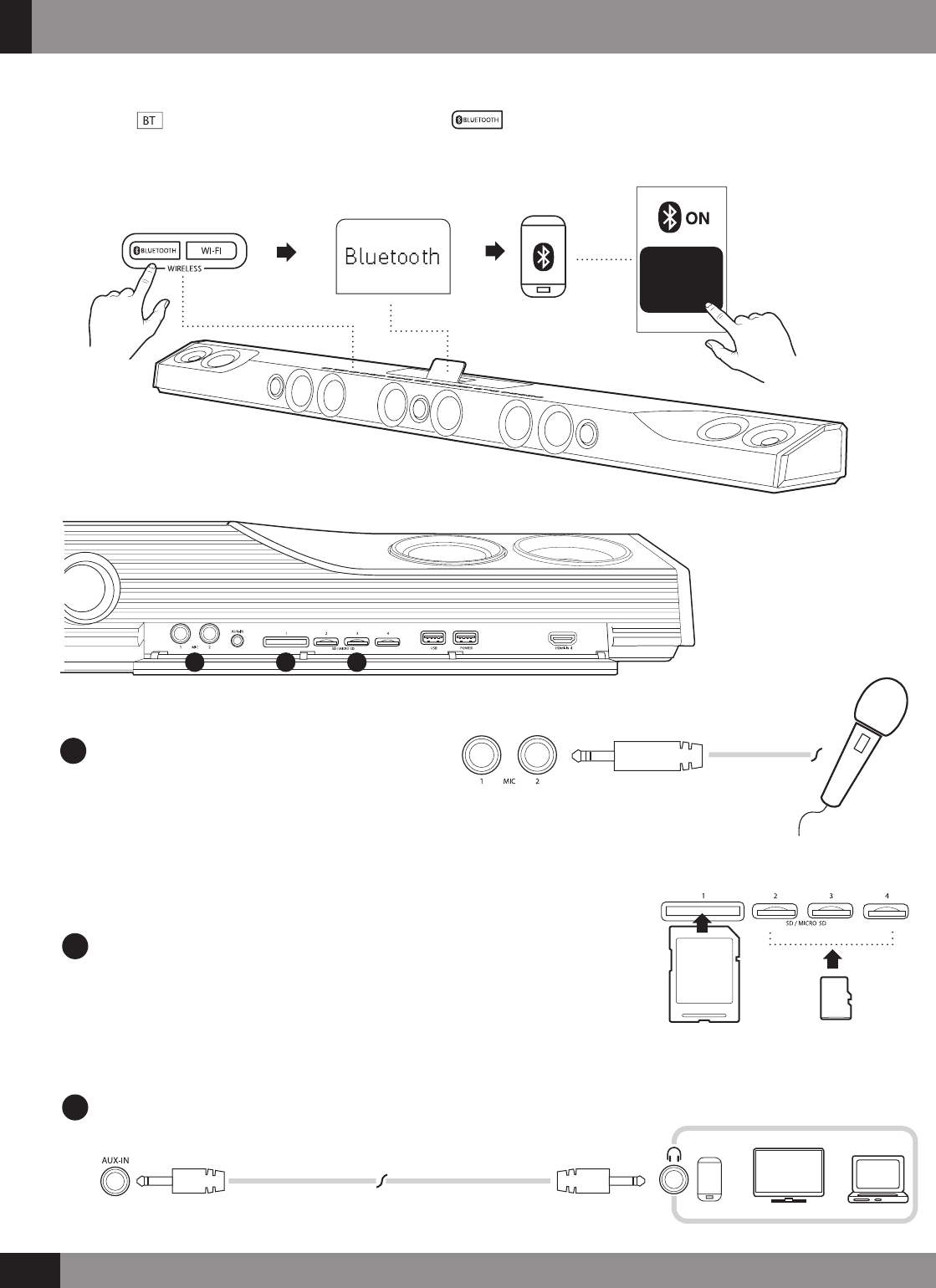

4 .
Bluetooth
Connection
Press the “ ” button on the remote control, or the “
” button on the main unit to switch to Bluetooth input.
Hold the main unit’s “
Bluetooth
” button till the display indicates BT Pairing to pair with your
Bluetooth
device.
Connecting Your Sonic Carrier
X-Fi
Sonic Carrier
A
A 3.5mm stereo input (Aux-In) is located on the front
panel for easy access.
7. Analog Connections
c
BC
6. SD Cards
B1 SD and 3 Micro-SD card slots are located at the front of the
main unit. Only the selected card would be readable by the
Android video engine. SD
Micro
SD
A pair of ¼” microphone inputs
(Mic In 1, 2) is also located on the front
panel, and supports most cardioid type
dynamic microphones.
A
5. Microphone Connections
![](/img.php?id=3378249&img=bgd.png)
13
Connecting to your WiFi network
Video Tutorials
1. Ensure the sonic carrier is turned on and connected to your TV
2. Press “Home” to display the android video engine home screen
3. Select (Gear icon) from the top right corner of the home screen using the cursor and OK keys of the remote control
4. Select (Wi-Fi)
5. select the desired Wi-Fi network to connect to, enter the password and click on “Connect”
Hit the “Home” button on the remote control to access a series of video tutorials, with step-by-step instructions on how to
best use the Sonic Carrier.
Wi-Fi Setup
Wi-Fi audio and Video
After the Wi-Fi network has been set up, select “WI-FI” to enjoy high quality audio over DLNA or to use Spotify Connect, or
select “Home” to acccess the Android Video Engine.
How to use Connect (...insert from the spotify connect marketing requirements)
![](/img.php?id=3378249&img=bge.png)
14
Overview
Main unit Top Panel
Button Action
Volume Control - Volume Down
Press-Hold to mute.
Turn On/Off main power
Power
Volume Control + Volume Up
Press and Hold to volume up quickly.
X-Fi Turns on and off X-Fi SuperWide processing
Previous Previous track.
Play/Pause
A/D
B/E
C/F
Bluetooth
WIFI
Home
Out
Mic
HDMI
SD
USB
OPT
L-In
Aux
LED
Mic Control -
Mic Control +
Next
Toggles between play and pause.
Custom buttons that can be assigned to web services. Short press to trigger A,
Press and Hold to trigger D.
Custom buttons that can be assigned to web services. Short press to trigger B,
Press and Hold to trigger E.
Custom buttons that can be assigned to web services. Short press to trigger C,
Press and Hold to trigger F.
Switch to Bluetooth mode
Press and Hold to go to
Bluetooth
Pairing
Switch to Wifi mode
Switch to Android OTT mode, and show home screen.
Switch between available outputs like Speaker, Output or BT headphone
Switch between available microphone adjustment mode, Mic Vol, Mic Key, Mic Reverb.
Switch between available HDMI Inputs. LED 1-4 will be lighted to indicate input source.
Switch between available SD Inputs. LED 1-4 will be lighted to indicate input source.
Switch between available USB inputs.
Switch between available Optical Inputs
Switch to Line Input.
Switch to Aux Input.
Cycle LED patterns on Subwoofer. Press and Hold to enter subwoofer pairing mode.
Decrease the vol, key or reverb for both the microphones, depending on the
microphone adjustment mode. In volume mode, press and hold button to mute.
Increase the vol, key or reverb for both the microphones, depending on the
microphone adjustment mode.
Next track.
![](/img.php?id=3378249&img=bgf.png)
15
Front Panel
Connector Description
Microphone Input (1/4”)
Auxilary Input (3.5mm 4-pole)
SD Card Slot
microSD Card Slots
USB Host (external hard disk, flash drive), Keyboard/mouse dongle
USB Power (5V 2A)
HDMI 2.0a Input
![](/img.php?id=3378249&img=bg10.png)
16
Rear Panel
Overview
HDMI 2.0a Outputs
HDMI 2.0a Inputs
USB Host (external HDD, flash drive) , Keyboard/mouse dongle
Service Port. No user accessible features.
Gigabit Ethernet
Optical Inputs
RCA Input
RCA Output
Subwoofer Out
IR Transmitter
Fuse Ratings T4AH 250V AC IN 100-240V
Connector Description
![](/img.php?id=3378249&img=bg11.png)
17
Button Action
Turn On/Off main power
Cycles to the next LED preset on all the subwoofer
Switch to Bluetooth In
Bass Boost
Switch between microphone adjustment modes -
Mic Volume, Key and Reverb
Adjusts levels for Mic Volume, Key or Reverb
Toggles On/Off mouse mode
Display any info or menu for the
Android Video Engine
Display any info or menu for the Android Video
Engine
Reserved for future use
Stop playback
Custom buttons reserved for future use
Toggle between shuffle and repeat playback mode
Navigation and selection keys for the Android
Video Engine
Navigation and selection keys for the Android
Video Engine/option
Navigation and selection keys for the Android
Video Engine
Increase/decrease volume
Mute/Unmute control
Turns on and off X-Fi SuperWide processing
Reserved for future use
Switch to WIFI audio
Switch to Aux In
Press to switch to the last asscessed HDMI source,
Press and hold to playback TV sound.
Press to switch to the last asscessed SD card, or to
cycle between available SD card.
Press to switch to the last asscessed USB drive, or
to cycle between available USB drives.
Press to switch to the last asscessed Optical Input,
or to cycle between available Optical Input.
Select sound output from main unit,
mute Line-Out and BT headphone out
Select sound output from Line-output, mutes main
unit and Bt headphone out
Previous track
Toggle between play and pause
Next track
Select sound output from connected BT
headphone, mutes main unit and Line-Out
Switch to Line In
Power
LED
BT
Bass+
Mic
Key/Reverb -/+
Mouse
Home
Info
Like
Stop
QuickPlay A-F
Shuffle
Cursor & OK
Return
Exit
VOL + /-
Mute
X-Fi
CH +/-
WIFI
Aux
HDMI
SD
USB
OPT
SPK
L-Out
Rewind/Previous
Play / Pause
Forward / Next
Bt-HP
L-In
3
4
12
7
8
6
5
10
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
11
12
15
16
14
13
17
9
18 19
20
21 21
23
24
26
25
33
27
28
30
29
32
31
Remote Control
![](/img.php?id=3378249&img=bg12.png)
18
DIMENSIONS AND WEIGHT
MAIN UNIT
Product name : CREATIVE X-FI SONIC CARRIER
Model Number : MF8235
Input rating : 100-240V 50/60Hz 120W
Operating temperature range : 0°C to 45°C
Dimensions (L x W x H) : 1521 x 151 x 96mm (59.9” x 5.9” x 3.8”)
Weight : 16kg (35.3 lbs)
ELECTRONICANDACOUSTICSPECIFICATIONS
• Amplifertype:ClassD
• Systempower:1000WRMS,2000Wpeak
• Mainunit:400WRMS,800Wpeak
• Subwoofer:600WRMS,1200Wpeak
ANDROIDVIDEOPLAYBACKENGINE
• Quad-core64-bithighperformanceARMCortexA-53withNEONprocessor2GHz
• MaliT720GPUwithOPENGLES3.1support
• 2GBRAM,16GBbuilt-inashstorage
• Supports4K60fpsvideoplayback
• SupportsH.265/HEVCCodec
WI-FI AUDIO
• SupportsDLNA,TidalandSpotifyConnect
DRIVERSANDACOUSTICS
• SonicCarrierMainUnitDrivers
- Five 1” coated aluminum alloy tweeters, capable of 40kHz high frequency reproduction
- Eight2.75”aluminum-magnesiumalloymidbassdriverswithindividuallysealedenclosures
- Two 2.25” aluminum-magnesium alloy full-range drivers for surround channel reproduction with individually sealed enclosures
WIRELESSANDWIREDCONNECTIVITY
•
Bluetooth
version: 4.1
Bluetooth
- Bluetooth version: 4.1
- Operating Frequency: 2402-2480MHz
- RF Output Power: <4dBm
- Bluetooth version: 4.0+EDR
- Operating Frequency: 2402-2480MHz
- RF Output Power: <4dBm
Wi-Fi 2.4GHz
- 802.11b/g/n
- Operating Frequency: 2412-2462MHz
- RF Output Power: <20dBm
Wi-Fi 5GHz
- 802.11a/n/ac
- Operating Frequency: 5180-5825MHz
- RF Output Power: <18dBm
Wireless audio link
- Operating Frequency: 2412 – 2464MHz
- RF Output Power: <17dBm
• OperatingFrequency:2402-2480MHz
• Bluetoothcodec:aptX®, aptX Low Latency, AAC, SBC
• Bluetoothprolesandfeatures:A2DPreceiverforaudioplaybackonSonicCarrier,A2DPtransmissionforaudioplaybackonBluetoothheadphones,
AVRCP (Bluetooth remote control)
• Bluetoothoperatingrange:Upto10M,measuedinopenspace
• BluetoothRFOutputPower:<4dBm
• Wi-Fi:802.11a/b/g/n/ac2.4GHz&5GHz
• Speaker-Speakerwirelesslink:2.4Ghz.Supportsupto4wirelesssubwoofers
• Speaker-Speakerwirelesslinkoperatingrange:Upto10M,measuredinopenspace.
• Linelevelinput:Stereo2VrmsanalogRCAconnectors
• Linelevelouput:Stereo2VrmsanalogRCAconnectors
• Auxiliaryinput:Stereo1Vrmsanalog3.5mmconnector
• Microphoneinputs:2x¼”microphoneconnectorsupportingmostdynamicmicrophones
• USBhost:2xUSB2.0typeAconnectorforUSBashdrivesandHDDs
• USBpower:USBtypeAconnectorforprovidingpowertoperipheraldevices(Rated5V2A)
• SDcardslots:1xSDcardslot,3xMicroSDcardslots
• HDMIinputs:4xHDMI2.0awithHDCP2.2
• HDMIoutput:1xHDMI2.0awithHDCP2.2andARC
• Opticalinputs:2xToslinksupportingupto24Bit/96Khz
• Ethernet:1xGigabitEthernet
• Decodersupport:DolbyAtmos,DolbyTrueHD,DolbyDigitalPlus™,DTS:Xupgradeableviarmwareupdate
• Powersupply:Auto-switching100-240V,50-60HzACuniversalinput
Wireless performance is dependent on your device’s Bluetooth or WiFi wireless technology. Refer to your device manufacturer’s manual. Creative will not be
liable for any lost of data or leakages resulting from the use of these devices.
Walls and structures may also affect range of device.
Product Registration
Registering your product ensures you receive the most appropriate service and product support available. You can register your product during
installation or at http://www.creative.com/register.
Please note that your warranty rights are not dependent on registration.
Specifications
![](/img.php?id=3378249&img=bg13.png)
19
Warranty
Creative X-Fi Sonic Carrier- Limited Hardware Warranty
Creative Labs Pte Ltd and its aliates (“Creative”) warrants that the retail purchased Creative-branded hardware product herein (“Product”) is free of material defects in
materials and workmanship (“Defect(s)”) that result in Product failure during normal consumer usage for the Warranty Period, according to the following terms and conditions:
1. This limited hardware warranty extends only to the original end-user purchaser and holder of this warranty (“You” or “Your”) and is not transferable or assignable to
any subsequent purchaser.
2. You must provide proof of original purchase of the Product by a dated itemized receipt to be eligible for this limited warranty.
3. The limited warranty is ONLY applicable in the country or territory where the Product was purchased from an authorized retailer/reseller and excludes any product that
has not been purchased as new or is obtained as a result of the purchase of a non-Creative product.
4. If a Defect arises and a valid claim is received during the Warranty Period (as provided below), Creative will at its sole option, service the Product at no charge using new
or refurbished replacement parts at our sole discretion. Please note that:
a. The limited warranty for the Product is for twenty-four (24) months (excluding all wear and tear), subject to certain exceptions as stated in the EU Directive 1999/44/
EC**) from the date of delivery (“Warranty Period”). The Warranty Period will be extended by each whole day that the Product is out of Your possession for repair under
this warranty.
b. Creative will cover the labor charges incurred by Creative in repairing or replacing the defective parts during the Warranty Period from the date of your purchase.
c. You will not have to pay for any such replacement parts.
d. Creative also warrants that the repaired or replaced parts will be free from defects in material and workmanship for the remainder of the Warranty Period.
e. For the limited warranty of the Product’s Liquid Crystal Display, please refer to the Creative Support Web Page at www.creative.com/support.
5. This warranty gives You specific legal rights. You may also have other rights, which vary from state to state and country to country. The terms of this warranty do
not exclude such rights or limit them. Your statutory rights are unaected. Some states and countries do not allow (i) exclusions of, or limitations on, certain liabilities
or warranties, including but not limited to how long a warranty lasts, the exclusion or limitation of incidental or consequential damages, or the exclusion of liability for
injury (including death) caused by negligence, (ii) the inclusions of certain asymmetrical terms in warranties, or (iii) the expiration of all legal claims after a fixed time,
so certain of the above limitations, exclusions or asymmetrical terms may not apply to You depending on the relevant jurisdiction. If adjudged invalid, such term(s) would
be severable without aecting the validity of the other terms.
6. Creative does not warrant uninterrupted or error-free operation of the Product. Creative is not responsible for damage arising from failure to follow all or any instructions
relating to the Product’s use. Creative is not under any obligation to support the Product for all operating environments, including but not limited to, interoperability
with both current and future versions of software or hardware.
7. For Products that are capable of storing data: Creative is not responsible or liable for any data stored on the Product that is lost, deleted or becomes otherwise inaccessible.
All data may be deleted from the Product during servicing. You should remove or make a backup copy of any data stored on the Product before sending the Product
to Creative.
8. If a problem develops during the Warranty Period, please refer to www.creative.com/support or contact Your retailer/reseller. Please note that: (i) You must provide proof
of original purchase of the Product by a dated itemized receipt; (ii) You shall bear the cost of shipping (or otherwise transporting) the Product to Creative. Creative will bear
the cost of shipping (or otherwise transporting) the Product back to You after completing the warranty service; (iii) Before You send the Product to Creative, You must be
issued a Return Merchandise Authorisation (“RMA”) number from www.creative.com/support. Clearly write the RMA number on the outside of the package containing the
Product being sent to Creative. Creative will not accept a return that does not have a RMA number on the outer packaging; and (iv) You can only return the defective
Product(s) not excluded under Section 9 below. Creative is not responsible for other products or accessories returned with the defective Product(s). Creative reserves the
right to change the method by which Creative may provide warranty service to you, and your Product’s eligibility to receive a particular method of service. Service will be
limited to the options available in the country where service is requested. Service options, parts availability and response times may vary according to country. For further
details on Creative Warranty terms, Product returns and repair procedure, Creative customer support services and contact information, please refer to the support section
of Creative’s web site at www.creative.com/support.
9. The limited warranty does not apply to:
a. Consumable parts, such as batteries or protective coatings that, due to their nature, tend to diminish over time, unless failure has occurred due to a defect in materials
or workmanship;
b. Damage caused by normal wear and tear, abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, defects or damages resulting
from service, testing, adjustment, installation, maintenance, alteration, including without limitation, software changes, or modification in any way by someone other
than Creative or its authorised service centres, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with
instructions or other acts which are not the fault of Creative, including damage or loss during shipment or transit.
c. Damage from external causes such as floods, storms, fires, sand, dirt, earthquakes, an Act of God, exposure to sunlight, weather, moisture, heat, vibration or corrosive
environments, electrical surges, battery leakage, theft, or damage caused by the connection to other products not recommended for interconnection.
d. Damage or loss of data due to (i) interoperability with either or both current and future versions of operating systems or other current or future software and
hardware, (ii) a computer virus, worm, spyware, Trojan horse or memory content corruption, or (iii) malfunction or defect of the Product.
e. Counterfeit products/parts or any accompanying products/parts that are incompatible with the Product.
f. Any Product that: (i) has had its serial number altered, defaced or removed; (ii) shows evidence of tampering; (iii) mismatched board serial numbers; or (iv) has non-
conforming or non-Creative housing or casing.
g. Any accessories including but not limited to disposable alkaline batteries, removable fuses, screen protectors, plugs and pouches.
h. Any defect occurring after the expiration of the Warranty Period or where Creative was not advised in writing of an alleged defect or malfunction within seven (7) days
after the expiration of the Warranty Period.
10. Any Product determined by Creative to be warranty-expired, warranty-void or not in need of repair will be subject to a minimum non-refundable diagnostic and handling
fee. In the event that You fail to make the payment, Creative may, at its sole discretion, dispose of the Product without notice and liability to You.
11. Subject to any non-excludable limit under applicable law, the maximum liability under this limited warranty is the original price paid for the Product (excluding any shipping
and additional charges). Creative and its aliated companies will not be liable for any other losses or damage unless liability is non-excludable under applicable law. The
remedy stated is Your exclusive remedy for breach of warranty. Any action or lawsuit for breach of this limited warranty must be commenced within eighteen (18) months
following the original purchase of the Product or within the limitation period under applicable law.
12. INSOFAR AS PERMITTED BY LAW, THE PRODUCT AND THE SERVICED PRODUCT IS PROVIDED “AS IS”. TO THE EXTENT PERMITTED BY APPLICABLE LAW, CREATIVE AND ITS
AFFILIATED COMPANIES HEREBY DISCLAIM THE APPLICABILITY OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR
THE PRODUCT AND/OR THE SERVICED PRODUCT. CREATIVE AND ITS AFFILIATED COMPANIES WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOST PROFITS, SAVINGS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO PROPERTY
OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR RELATING TO THE USE OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH
OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF CREATIVE OR ANY OF ITS AFFILIATED COMPANIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
13. For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure. Goods presented for repair may be replaced by refurbished goods of the same type rather than being
repaired. Refurbished parts may be used to repair the goods. (Creative Technology Ltd, 31 International Business Park, #03-01 Creative Resource, Singapore 609921.
Telephone: +65 6895 4433 (standard international call charges apply.))
14. This is the entire warranty and supersedes all prior and contemporaneous agreements or understandings, oral or written, relating to warranty coverage for the Product,
and no representation, promise or condition not contained herein will modify these terms.
15. Update(s) of this Limited Hardware Warranty may be posted at www.creative.com/support. An Update will replace any earlier version upon posting on the web site. You
are advised to check for Update(s).
** A seller in the European Union (EU) may be entitled to refuse to repair or replace the goods if it is (i) impossible or (ii) disproportionate (eg. where the costs are unreasonably
high for the seller) to do so, taking into account the value the goods would have had (if there were no lack of conformity), the significance of the lack of conformity and where
an alternative remedy would be completed without significant inconvenience to the consumer. In such cases, the consumer may ask for an appropriate reduction of the price
or have the contract rescinded. The consumer is not entitled to have the contract rescinded if the lack of conformity (or defect or fault) is minor. In which case, the seller is
entitled to turn down a request for rescission of the contract in such a situation. For further details, please refer to Articles 3(3), 3(5) and 3(6) of the EU Directive 1999/44/EC.
![](/img.php?id=3378249&img=bg14.png)
©2017CreativeTechnologyLtd.Allrightsreserved.Creative,theCreativelogo,X-Fi,theX-Filogo,SonicCarrierandSuperWideX-FiaretrademarksorregisteredtrademarksofCreative
Technology Ltd in the United States and/or other countries. Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories. Wi-Fi is a trademark of Wi-Fi
Alliance. Android is a trademark of Google Inc. The
Bluetooth
® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Creative
Technology Ltd is under license. Other trademarks and trade names are those of their respective owners. All specifications are subject to change without notice. Actual product may
differ from slightly from images shown. All images are for illustration purposes only. State of California Proposition 65 WARNING: This product may expose you to chemicals known to
the State of California to cause cancer and birth defects or other reproductive harm. Explanatory Note: To meet the requirements of Proposition 65, it is our responsibility to notify
consumers in the State of California that they may be exposed to chemicals that are known to cause cancer and/or reproductive toxicity. It does not mean that the product is in
violation of any product-safety standards or requirements. The exposure may be below the level of concern, or even zero. For additional information, visit www.P65Warnings.ca.gov.
PN03MF823500000RevA
soniccarrier.com
Complies with
IMDA Standards
DA107311
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
