Creatix 802.11g Adapter
CTX405 Vx
User Manual
2
Safety instructions for Creatix 802.11g Adapter
This equipment has been designed and tested in accordance with the requirements of Standard
EN60950.
Extracts from these requirements according Standard EN60950: 2000
• The Creatix 802.11g Adapter was evaluated for use in maximum ambient temperature of 40 °C.
• The Creatix 802.11g Adapter may only be used in countries where the modem is certified.
Regulatory Statements
FCC Certification
The United States Federal Communication Commission and the Canadian Department of
Communication have established certain rules governing the use of electronic equipment.
Part 15, Class B
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device must not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution:
1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
3. Changes or modifications made to this equipment not expressly approved by Creatix Polymedia
GmbH may void the FCC authorization to operate this equipment.
3

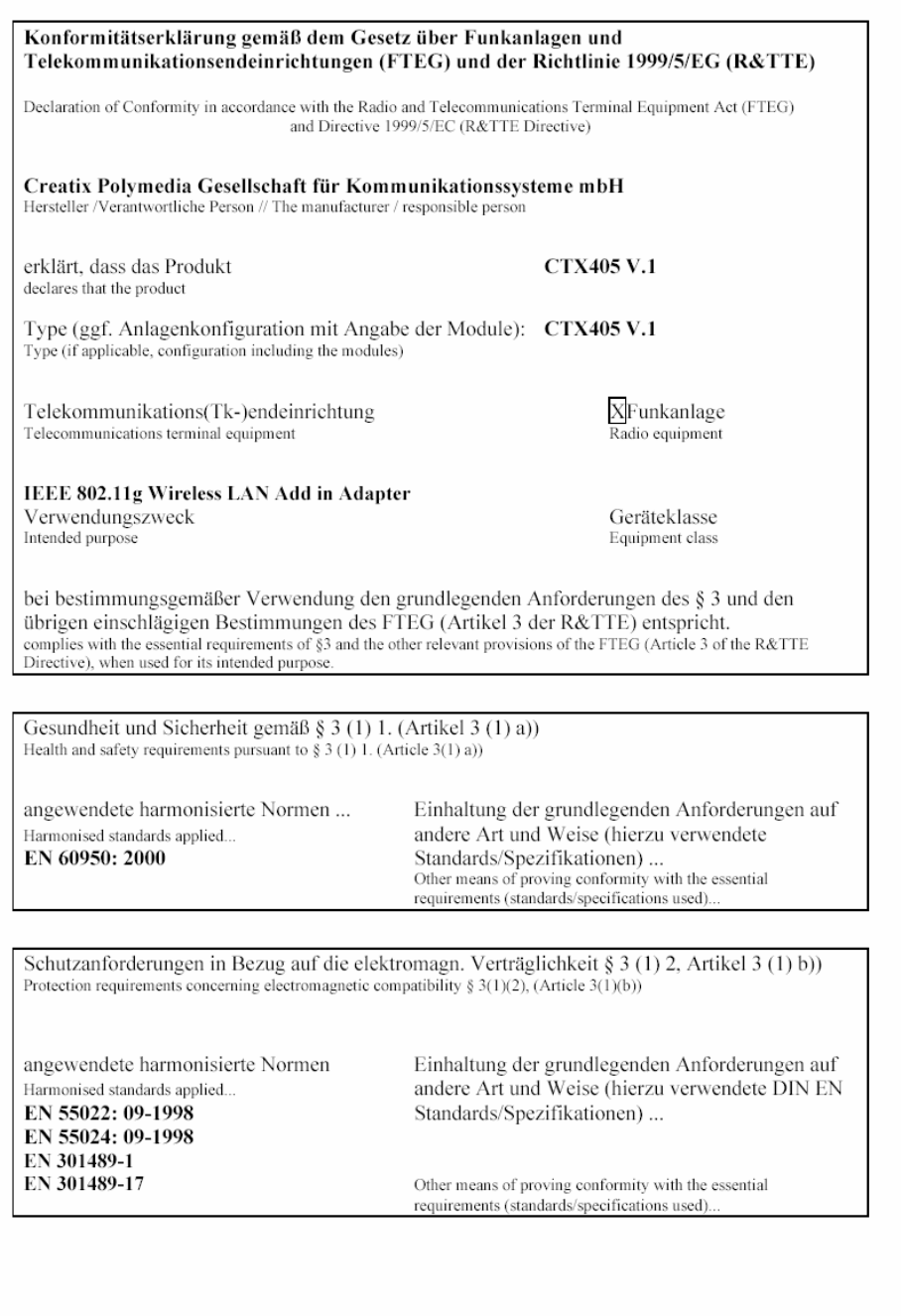

4

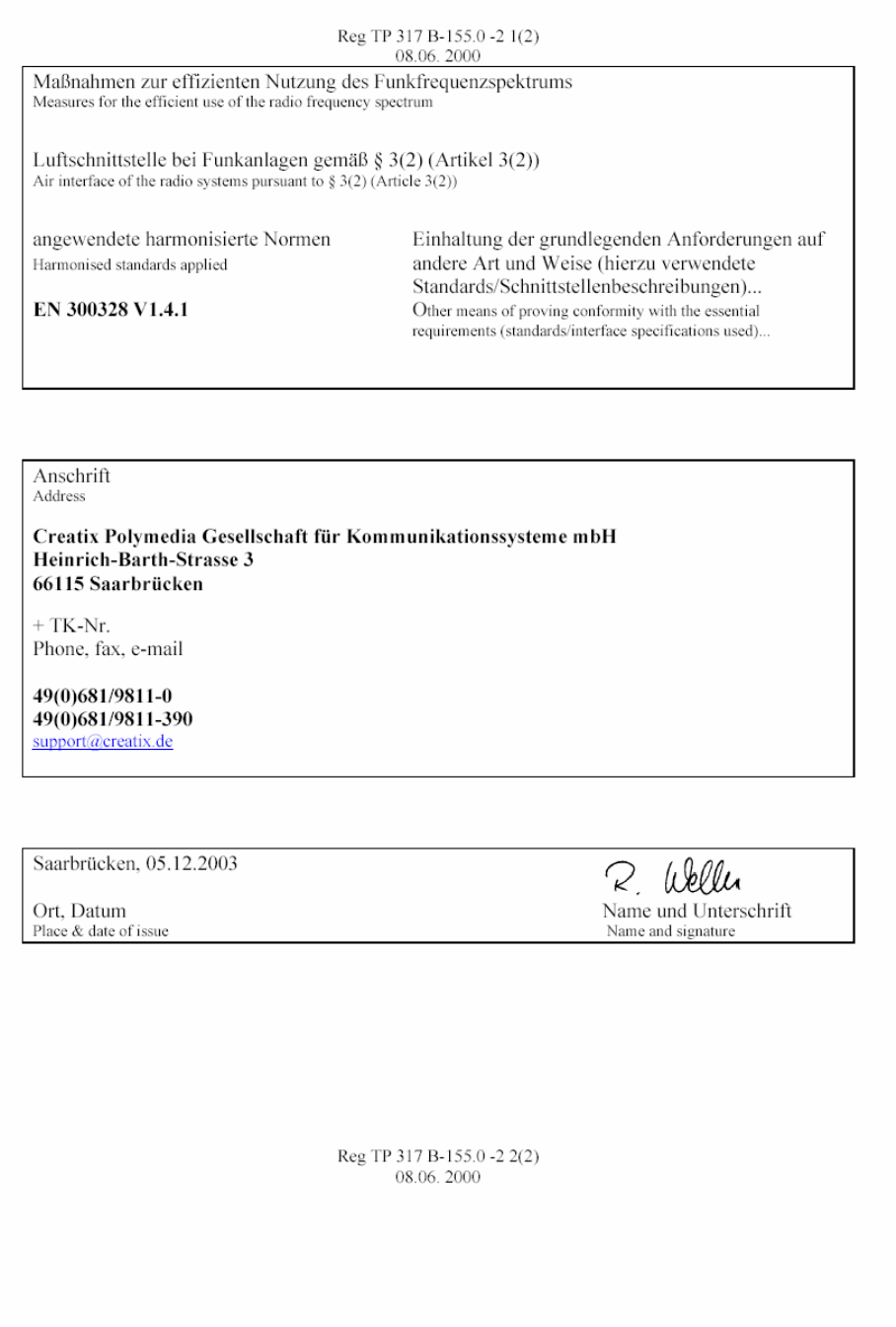

5
International Notification of the Creatix 802.11g Adapter (CTX405 Vx)
The Creatix Wireless LAN Card can be used with the provided antenna (=2,4 GHz Swivel Antenna
Type IW-241RS-332) in the following countries:
Austria Belgium
Denmark Finland
France Germany
Greece Iceland
Ireland Italy
Liechtenstein Luxembourg
Netherlands Norway
Spain Sweden
Switzerland United Kingdom
6
Table of Contents
Safety Instructions .................................................................. 2
Regulatory Statement .................................................................. 2
Introduction .................................................................. 7
Options
- Peer to Peer .................................................................. 7
- Access Point .................................................................. 8
Installation Windows XP .................................................................. 9
Installation Windows 2000 .................................................................. 11
Configuration Windows Utility .................................................................. 14
Configuration Driver Utility .................................................................. 15
Uninstall .................................................................. 20
7
INTRODUCTION
The Creatix 802.11g Adapter is a powerful 32-bit PCI Card that plugs quickly and easily into your
Desktop PC for wireless network applications without wires or cables. Based on the IEEE 802.11g
standard, it offers a transfer data rate up to 54Mbps in a wireless LAN environment. Once connected
with other networked PC’s, it allows you to share hard disk drives, DVD drives, CD drives, printers and
the likes.
The Creatix 802.11g Adapter allows you to take full advantage of your PC’s mobility with access to
real-time information and online services anytime and anywhere. Plus, with the network installation
simplicity and flexibility, you can eliminate the need to pull cable through walls and ceilings.
FEATURES:
- Compliant with IEEE 802.11g standard for 2.4GHz Wireless LAN
- Compliant with PCI Standard
- Capable of up to 128-Bit WEP Encryption Protocol
- Up to 54 Mbps High-Speed Transfer Rate
- Easy to install and configure
OPTIONS:
The Peer-to-Peer (ad-hoc mode) Network
This network installation lets you set a small wireless workgroup easily and quickly. Equipped with
wireless PCI or wireless PC Cards, you can share files and printers between each PC and laptop.
8
Or you can use one computer as an Internet Server to connect to a wired global network and share
files and information with other PCs via a wireless LAN.
The Access Point Network (infrastructure mode)
The network installation allows you to share files, printers and Internet access much more
conveniently. With wireless PCI Cards, you can connect wireless LAN to a wired global network via an
Access Point.
9
INSTALLATION
Windows XP
Step-by-step installation of the Creatix 802.11g Adapter
• Power off your PC, unplug the power cord and open the cover. Install the Creatix Wireless LAN
PCI Card in an available PCI slot, close the cover and plug back the power cord.

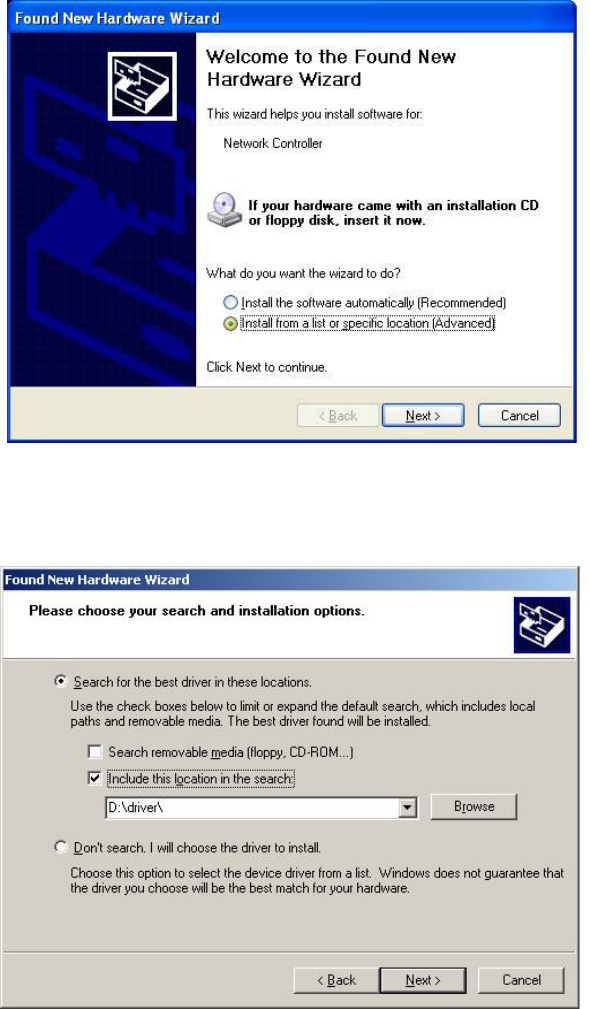

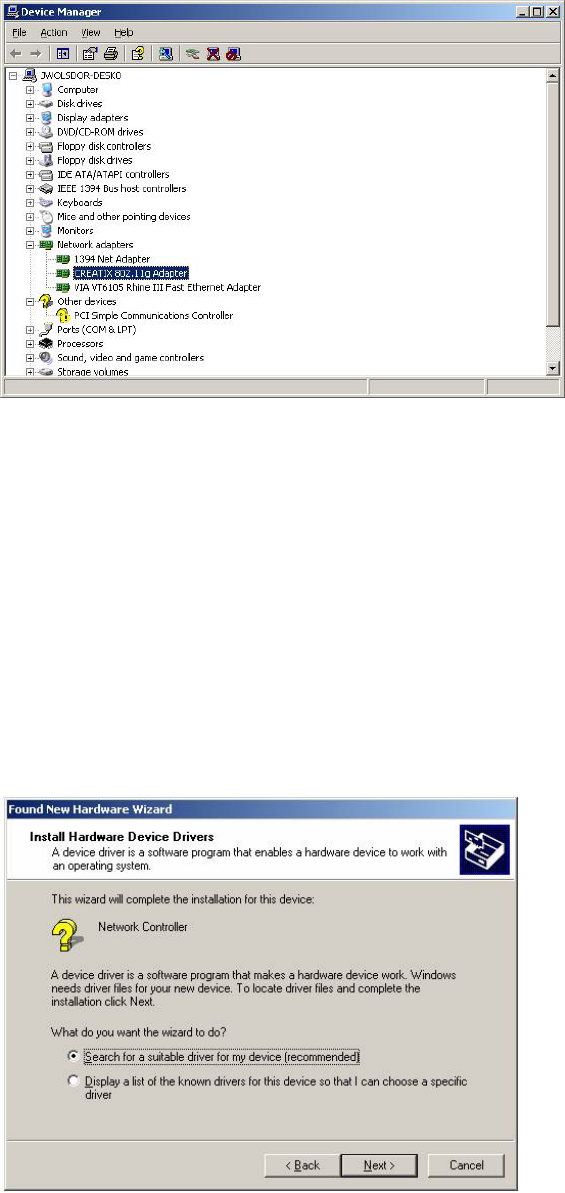

• The Windows will auto-detect the Creatix Wireless LAN PCI Card and a “Found New Hardware
Wizard” window will show up. Select “Install from a list or specific (Advanced)” to install the
driver.
• Insert the Product CD-ROM into the appropriate drive. Click on “Next>” to install the driver.
10

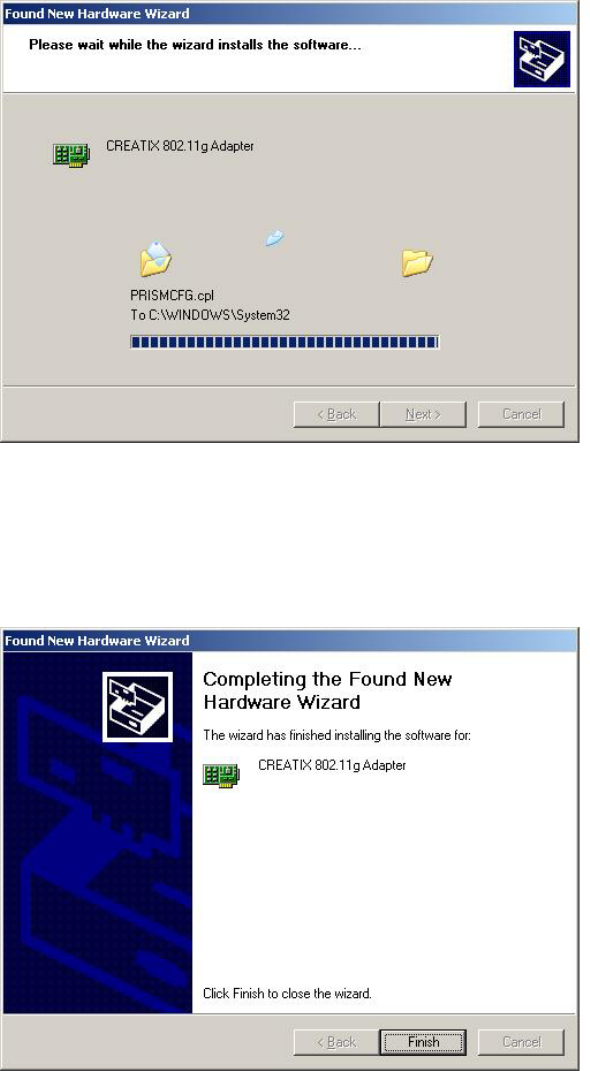

• The wizard will find “Creatix 802.11g Adapter” and start copying corresponding files into the
system. Click on “Next>” to continue.
• Click “Finish” to complete the installation.
11
• Right click “My Computer”, select “Properties”, go to the “Hardware” tab and click the “Device
Manager” button to see if any exclamation mark (!) appears next to the “Network Adapter/Creatix
802.11g Adapter”. If not, your Creatix 802.11g Adapter is working well.
Windows 2000
Step-by-step installation of the Creatix 802.11g Adapter
• Power off your PC, unplug the power cord and open the cover. Install the Creatix Wireless LAN
PCI Card in an available PCI slot, close the cover and plug back the power cord.
• The Windows will auto-detect the Creatix 802.11g Adapter and a “Found New Hardware Wizard”
window will show up. Select “Search for a suitable driver for my device” to install the driver.
12

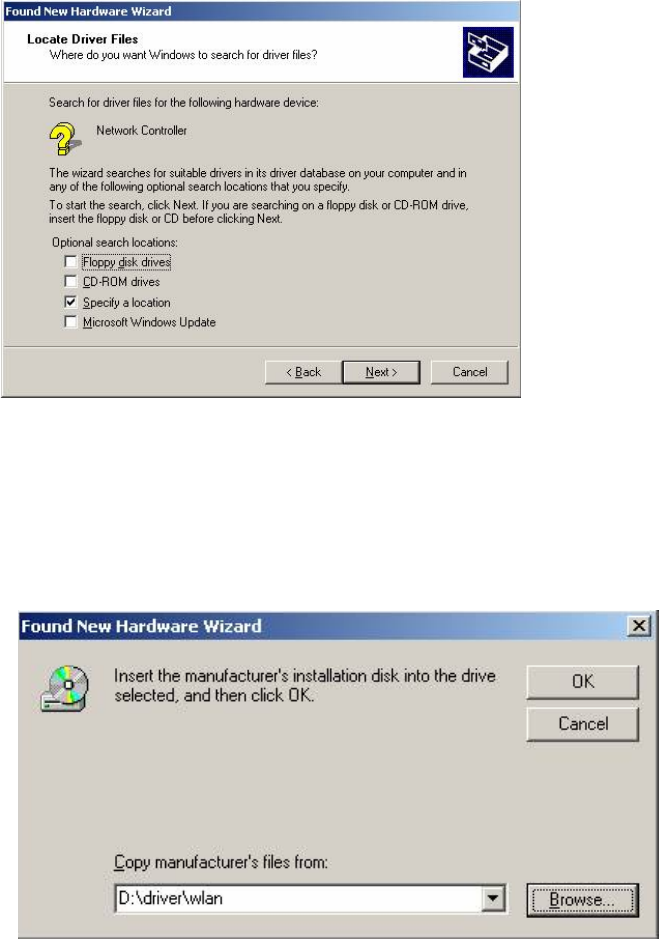

• Specify the location where the wizard should search for a suitable driver. Click on “Next>”.
• Insert the Product CD-ROM into the appropriate drive. Click on “OK” to install the driver.
13

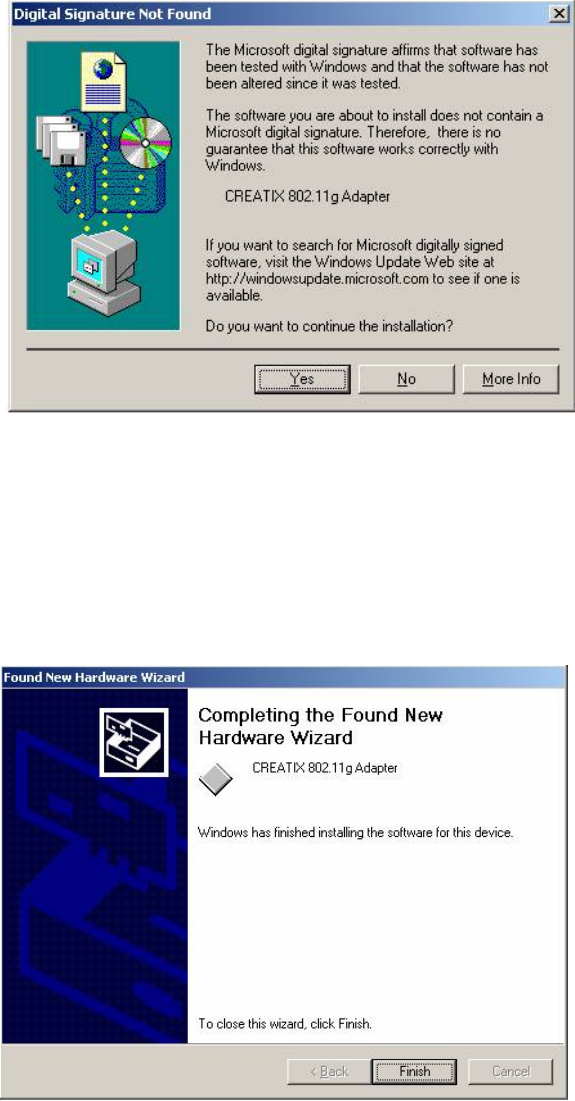

• The window will appear the message about the Creatix 802.11g Adapter has not passed
Windows Logo testing to verify its compatibility with Windows XP. Click on the “Yes” button to
continue the installation.
• Click “Finish” to complete the installation.
14
CONFIGURATION
Windows XP Utility

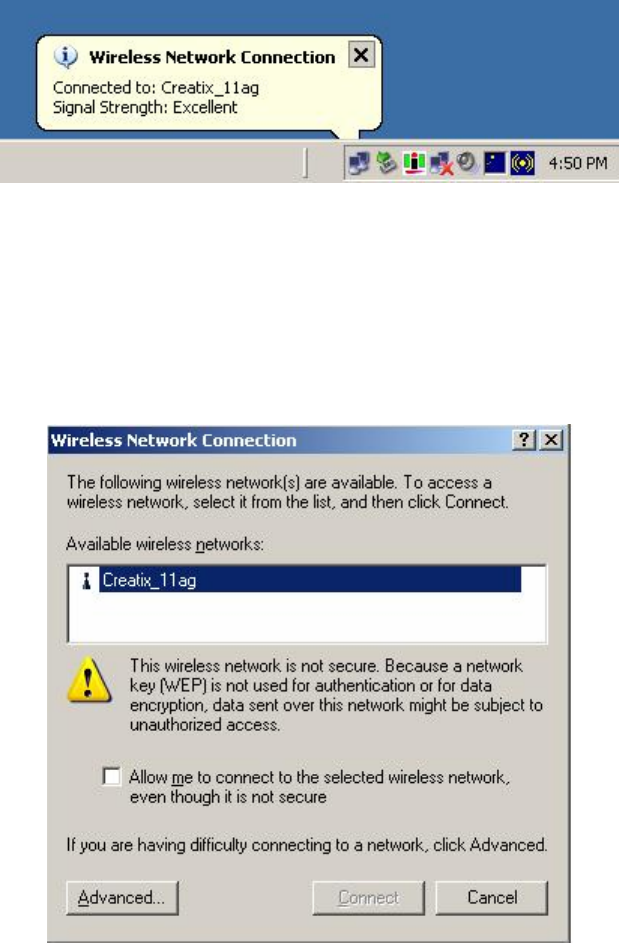

After installing the Creatix 802.11g Adapter, the Windows XP will display a “Wireless Network
Connection #” message.
Click on the message and the “Automatic Wireless Network Configuration” will then appear
automatically. You may click on the “Connect” button to connect to an available wireless infrastructure
network (Access Point). You may also click the “Advanced” button to make advanced configuration
for the Creatix Wireless LAN PCI Card, shown as below.
15
CONFIGURATION
Driver Utility

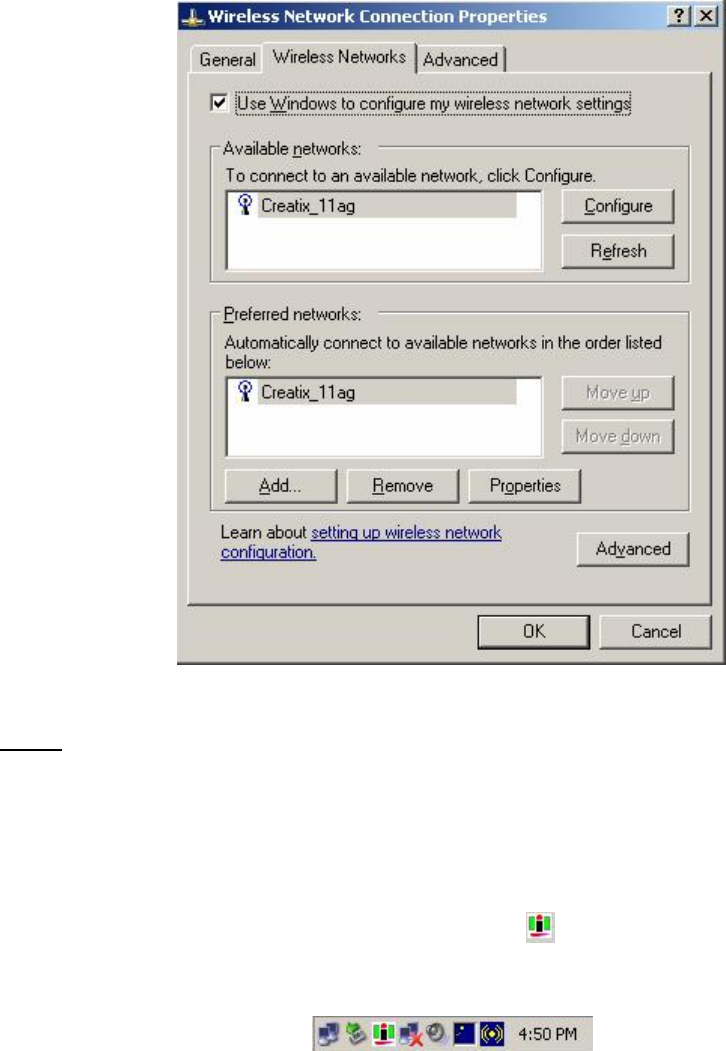

To use the WLAN utility under Windows XP, you need to disable the “Automatic Wireless Network
Configuration” first. Steps are described as follows:
• Right click to the “Network Connections” icon. Select “Properties”.
• Go to the “Wireless Networks” tablet.
• Uncheck the “Use Windows to configure my wireless network settings” check box and click the
“OK” button (see the picture above).
NOTE: You have to choose one way to configure Creatix 802.11g Adapter either of using the
driver utility by unmark “Use Windows to configure my wireless network settings” or using
Windows XP “Automatic Wireless Network Configuration” first by checking “Use Windows to
configure my wireless network settings”.
• Double-Click on the green (or red if not connected) Icon in the task bar to open the wireless
settings
16

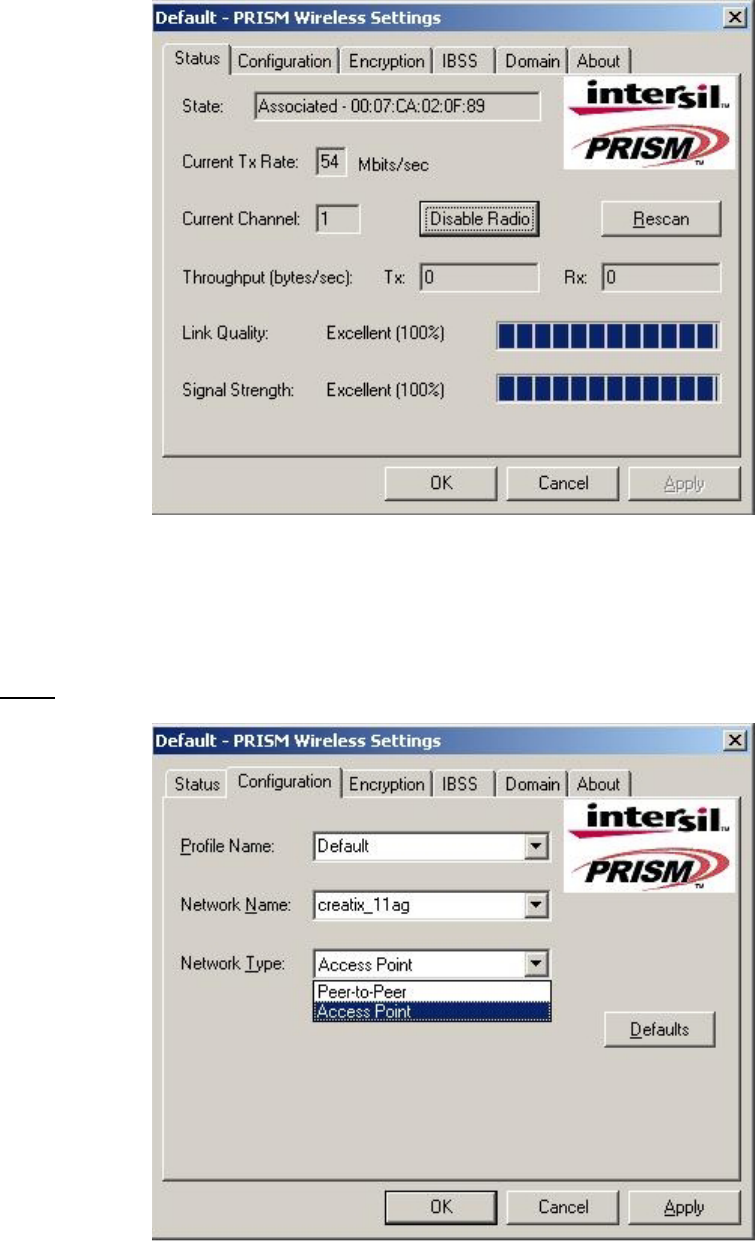

Status
• The utility will come up with the status window. Here you can check your current TX-rate, the
current channel, the link quality and the signal strength. Also you can enable or disable radio.
Use the rescan button to refresh the available WLAN`s.
Configuration
• Here you can setup different profiles. Each profile has to contain a valid Network Name. The
Network Type has to be configured either as Access Point or as Peer-to-Peer.
NOTE: Be sure that the Network Name matches the Network Name given by your Access Point.
17

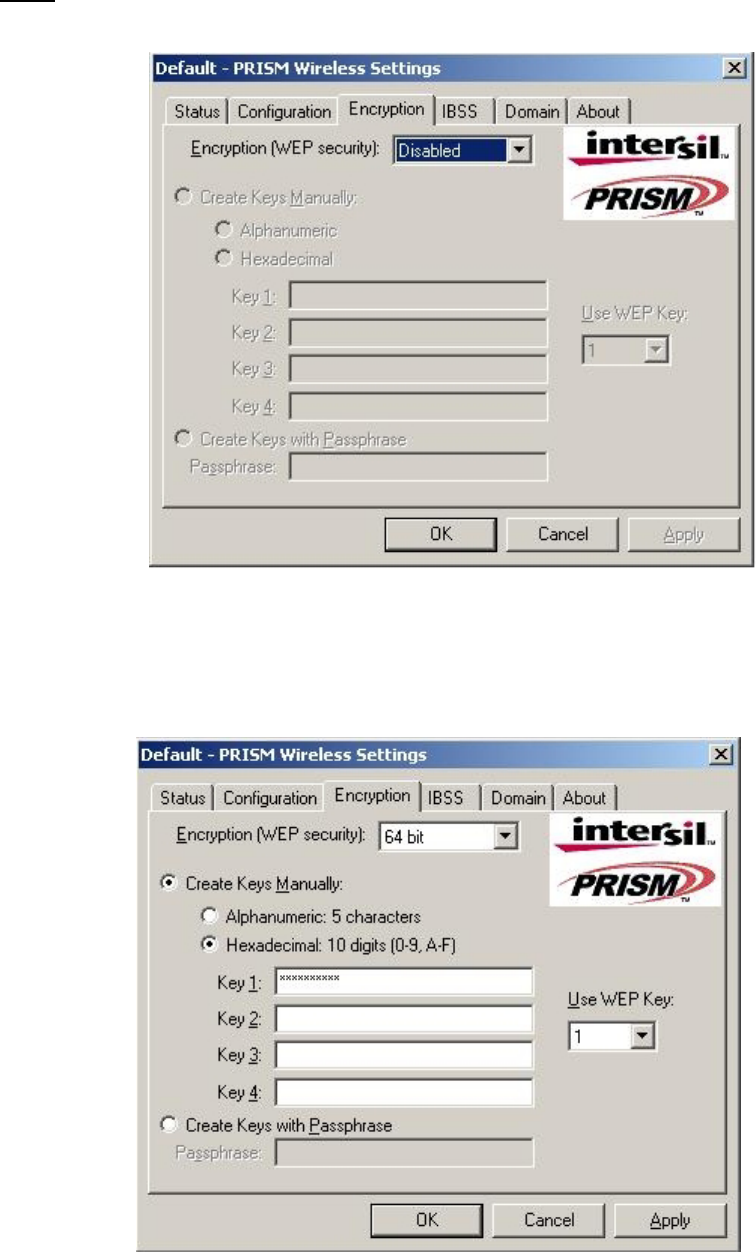

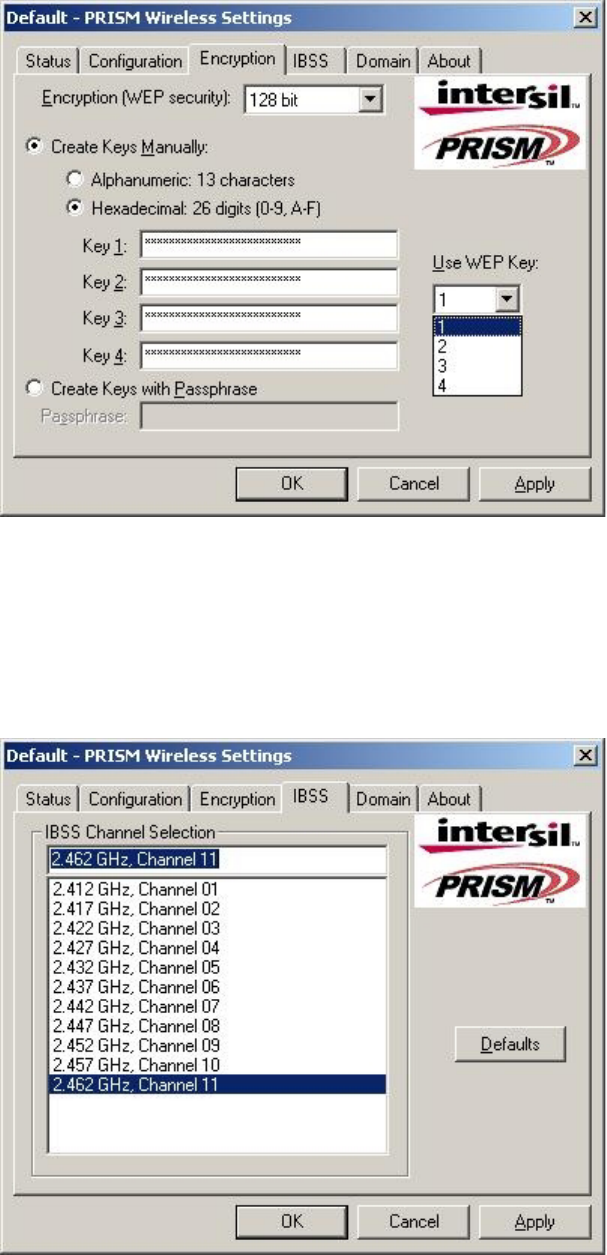

Encryption
Disabled
Here you have 3 options to use the encryption; disabled, 64bit, 128bit. Default setting is disabled.
NOTE: It is strongly recommended to use 128bit encryption to protect your network.
64bit Encryption
If 64bit encryption is enabled, you have the option to create the keys manually (alphanumeric or
hexadecimal) or to create the key with Passphrase.
18
128bit encryption (recommended option)
If 128bit encryption is enabled, you have the option to create the keys manually (alphanumeric or
hexadecimal) or to create the key with Passphrase.
IBSS
Here you can select your favorite channel in Peer-to-Peer mode. The Access Point will provide the
Access Point mode channel.
19

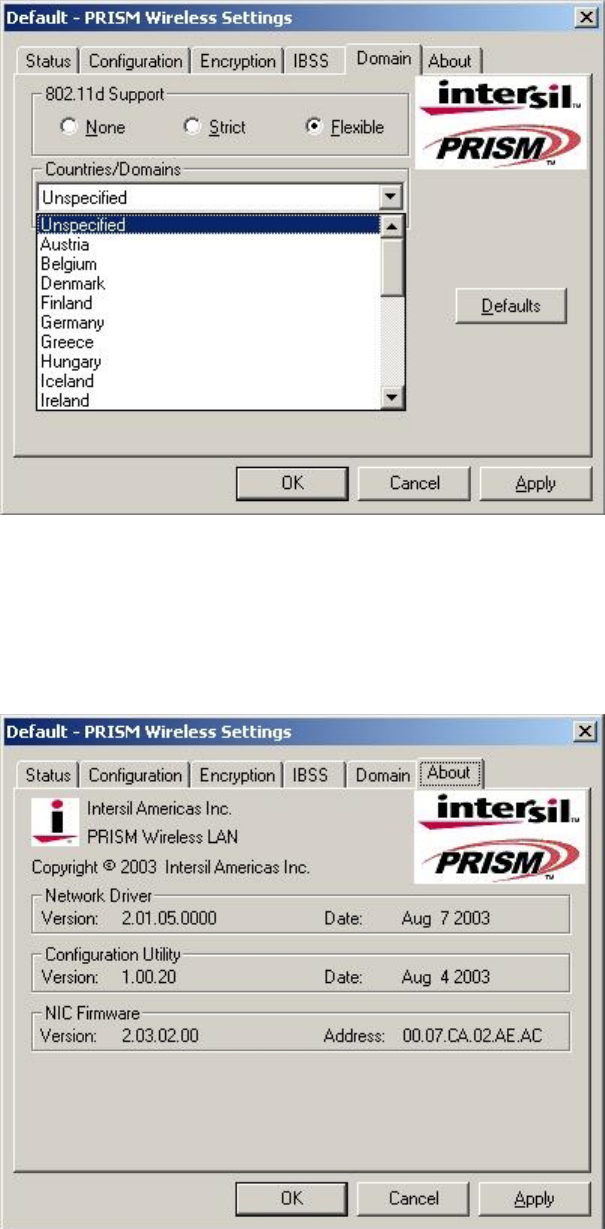

Domain
Here you can select your country. Depending on your selection, the available channels may change.
About
Here you can see versions and corresponding date.
20
UNINSTALL
Go to the Control Panel < System – Hardware – Device Manager>
Click with the right mouse button to the Creatix 802.11g Adapter and click uninstall.
21

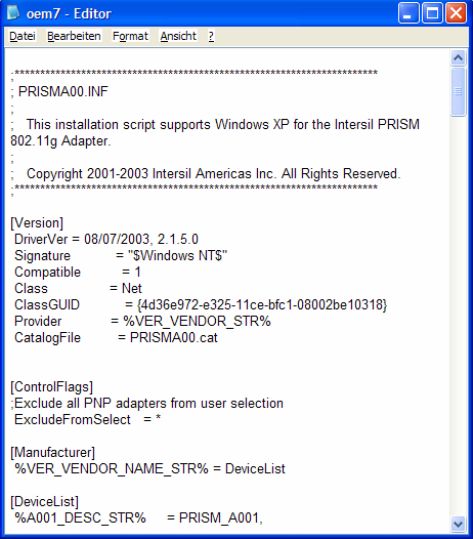

Go into the hidden directory \ Windows \ Inf
Check all “oem.inf“ files (they can be opened by a double click) to find the oem.inf file
“PRISMA00.INF”
Delete this file.
After deleting the file shut down your PC to remove the card or restart to install a new update for the
driver.
