Creatix Polymedia CTX712AV2 802.11b WLAN miniPCI Card User Manual Installation of the Wireless LAN card ctx 712A

Creatix Polymedia GmbH 802.11b WLAN miniPCI Card Installation of the Wireless LAN card ctx 712A

Users Manual

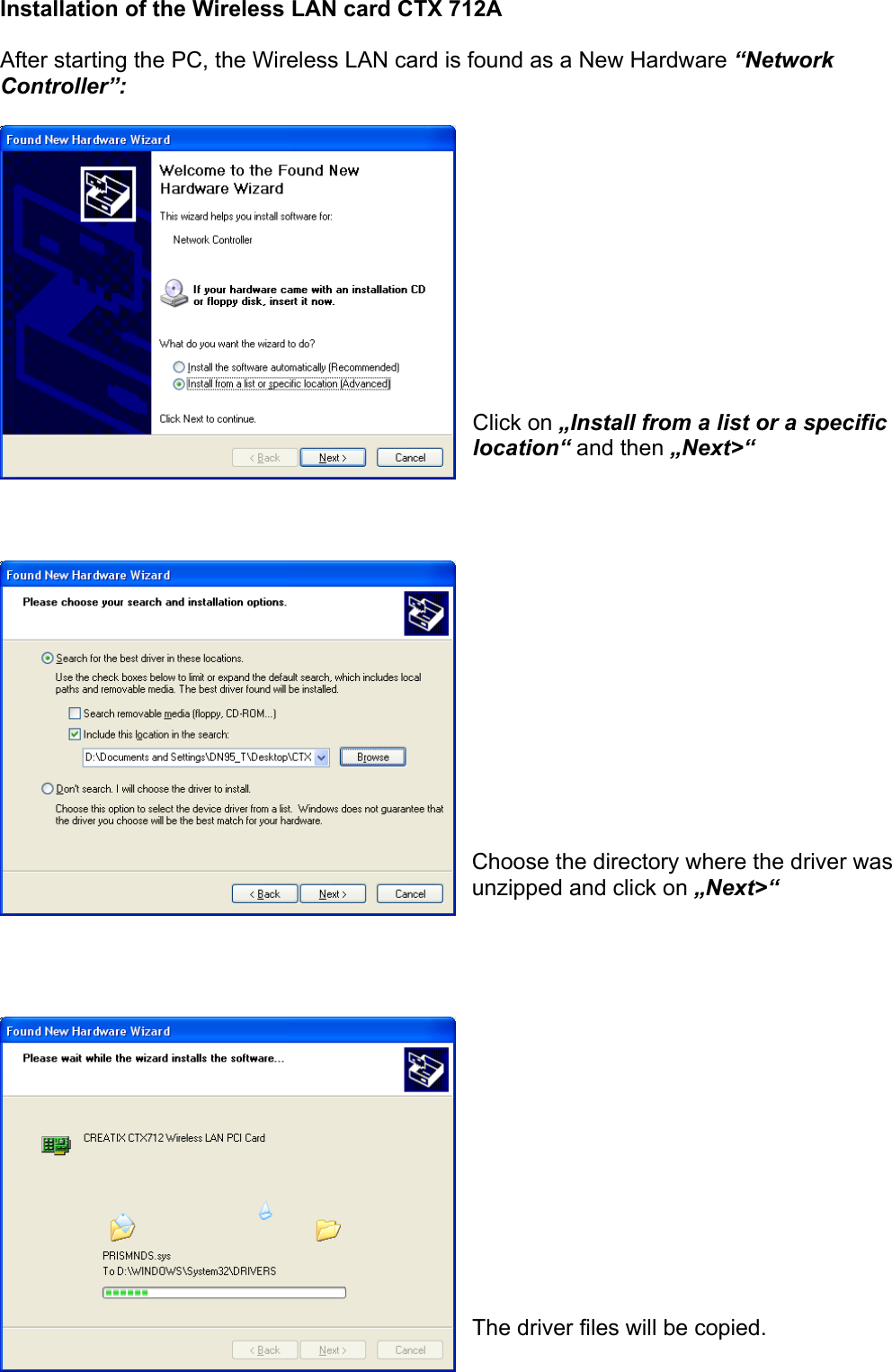

Installation of the Wireless LAN card CTX 712A  After starting the PC, the Wireless LAN card is found as a New Hardware “Network Controller”:             Click on „Install from a list or a specific location“ and then „Next>“                Choose the directory where the driver was unzipped and click on „Next>“                 The driver files will be copied.

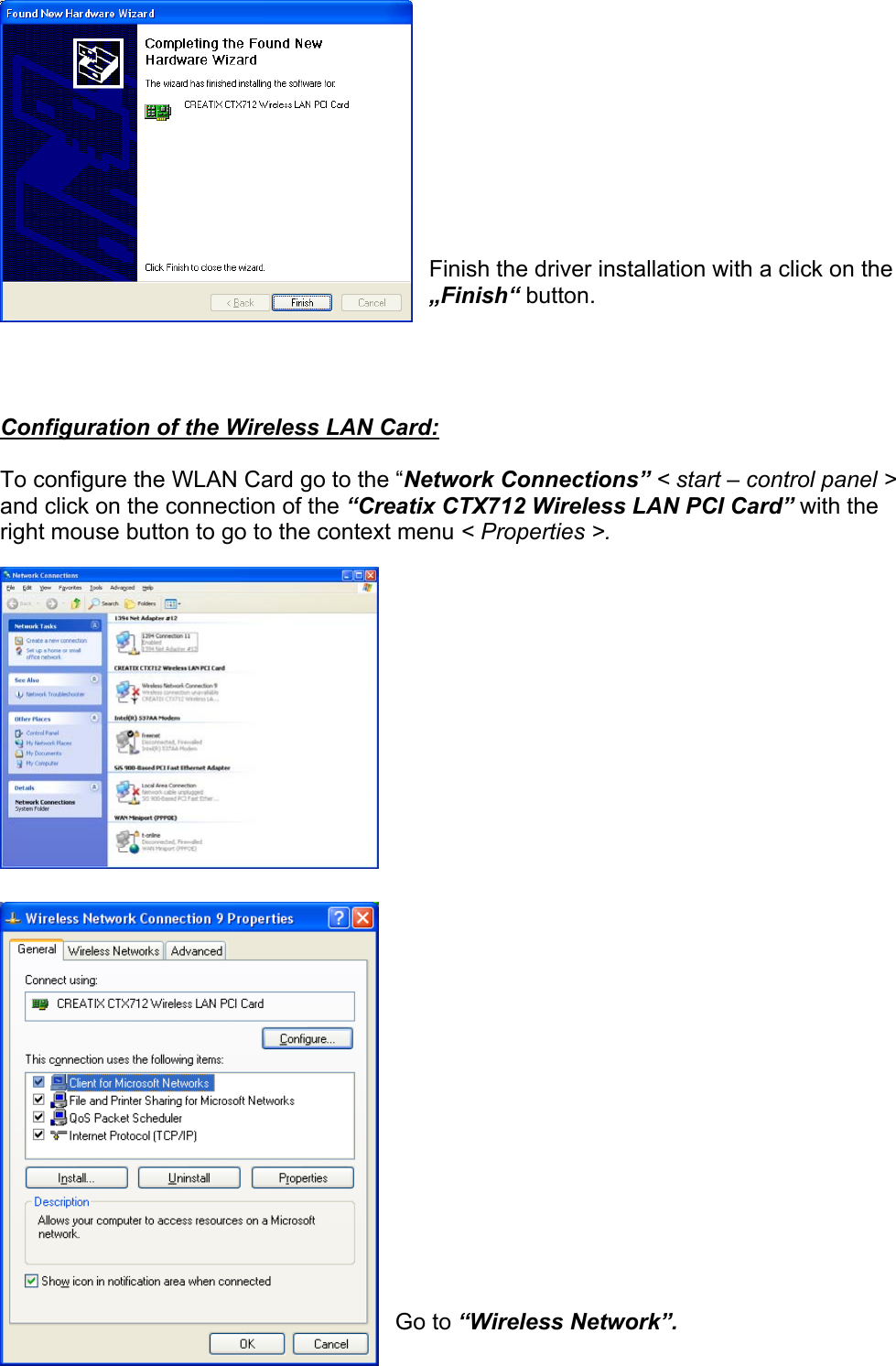

           Finish the driver installation with a click on the „Finish“ button.     Configuration of the Wireless LAN Card:  To configure the WLAN Card go to the “Network Connections” < start – control panel > and click on the connection of the “Creatix CTX712 Wireless LAN PCI Card” with the right mouse button to go to the context menu < Properties >.                              Go to “Wireless Network”.

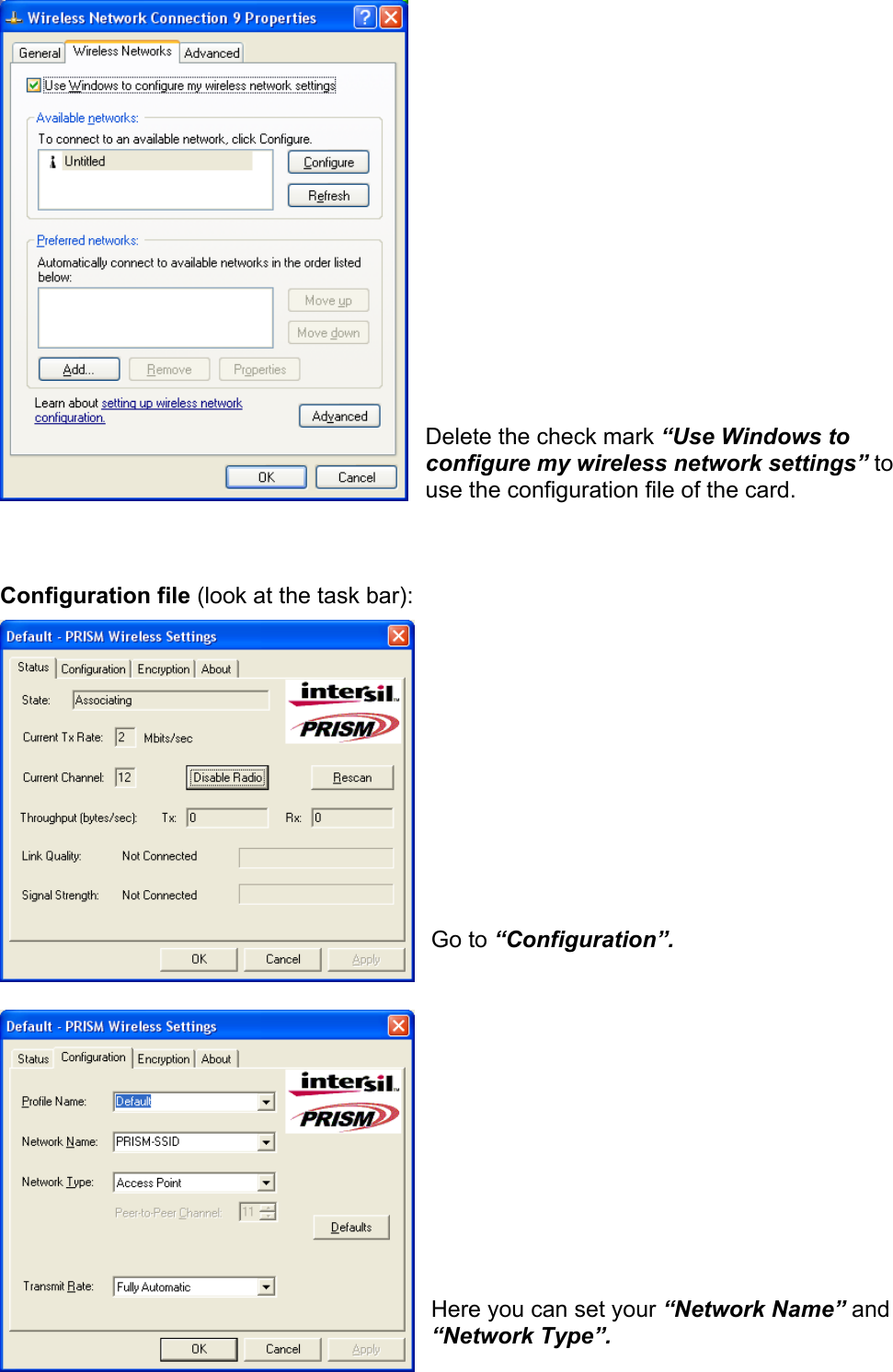

                 Delete the check mark “Use Windows to configure my wireless network settings” to use the configuration file of the card.    Configuration file (look at the task bar):             Go to “Configuration”.              Here you can set your “Network Name” and “Network Type”.
            In this Window you can set the “WEP encryption”.               This Window gives you information about the driver version and the firmware.        Deinstallation of the Wireless LAN card CXT 712A  Go to the Control Panel “<System – Hardware – Device Manager>”:          Click on the icon Creatix CTX712 Wireless LAN PCI Card under Network Adapters and delete this entry.
         Press the button „OK“ to remove the driver.         Go into the hidden directory \Windows\Inf.  Check all “oem*.inf” files (they can be opened by double click) to find the oem*.inf file “Prismnic.inf” (Wireless LAN Card):        “Delete” this file.  After deleting the file shut down your PC to remove the card or restart to install a new update for the driver.

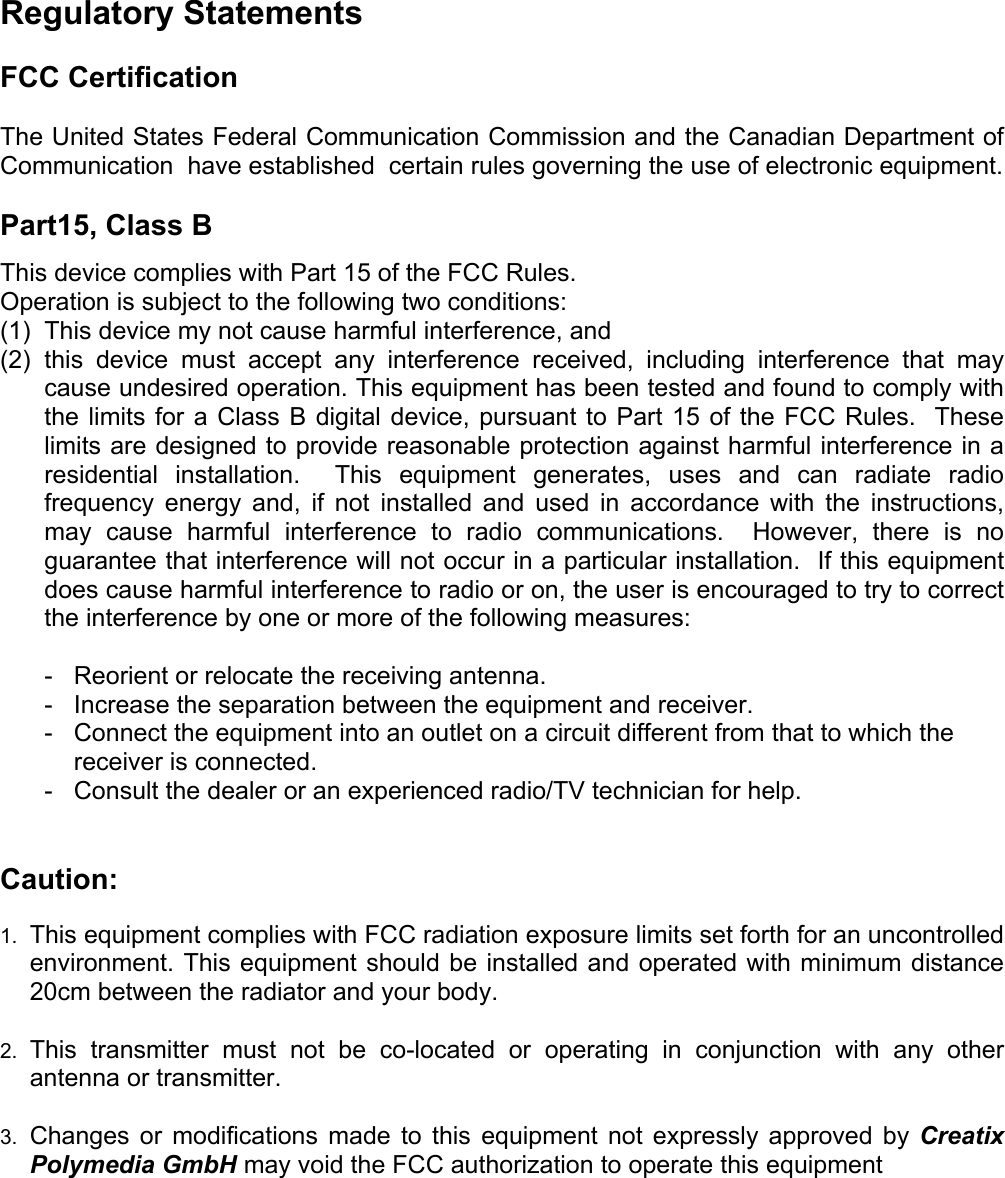

Regulatory Statements  FCC Certification  The United States Federal Communication Commission and the Canadian Department of Communication  have established  certain rules governing the use of electronic equipment.  Part15, Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)  This device my not cause harmful interference, and  (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation.  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or on, the user is encouraged to try to correct the interference by one or more of the following measures:    -  Reorient or relocate the receiving antenna.   -   Increase the separation between the equipment and receiver.   -   Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   -   Consult the dealer or an experienced radio/TV technician for help.   Caution:  1. 2. 3. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Changes or modifications made to this equipment not expressly approved by Creatix Polymedia GmbH may void the FCC authorization to operate this equipment
