CS Series With Cree SmartCast™ Technology
CS14™, CS18™ LED Linear Luminaire
8' and 4' Luminaires
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION
• The CS Series LED linear luminaire is for
suspended, with cable or threaded rod, or
surface mount applications using appropriate
tong hangers. Reference individual mounting
accessory installation instructions for specific
mounting types.
• Designed for use in 120–277V, 50-60 Hertz
protected circuit (fuse box, circuit breaker) and
supply wire shall be rated minimum 12AWG,
600V, 90 C rated).
TO INSTALL:
NOTE: When removing luminaire from packaging, keeping
protective plastic wrap on fixture during installation and
construction.

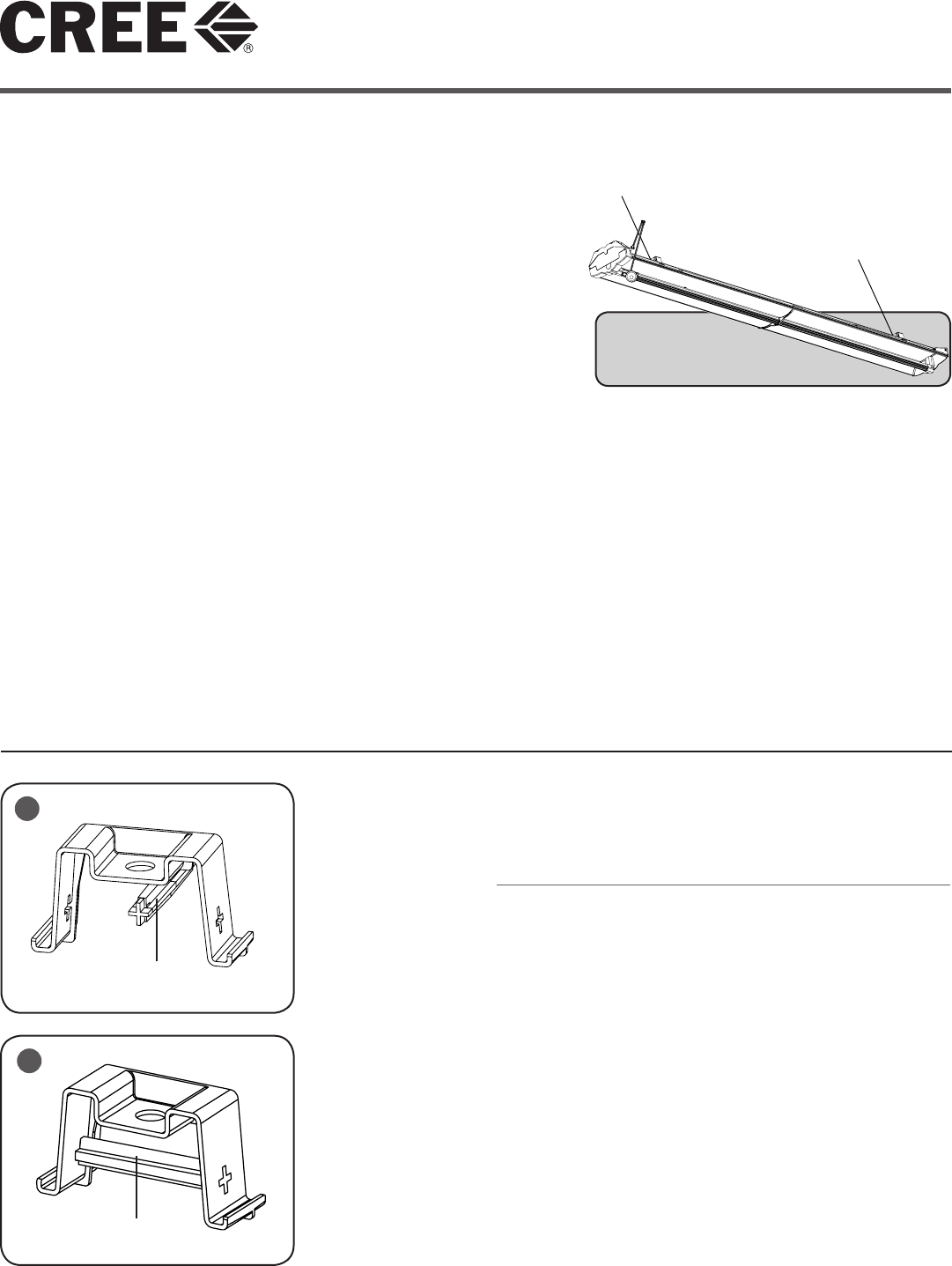

FOR PLASTIC TONG HANGERS (TM):
NOTE: Center hole can accommodate 1/2" diameter rod
maximum.
STEP 1:
Remove cross brace and securely insert it into the “+” shaped
openings in the plastic tong hanger. See Figures 1 & 2. For single
units or end row fixtures, place the plastic tong hanger assembly
into center spine no more than 18" from each end of fixture and
twist approximately 45 degrees until the plastic tong hanger
assembly is securely in place and approximately 90 degrees to
the length of fixture. See Figure 3.
STEP 2:
For continuous row installation, continue with next fixture using
a minimum of one tong hanger per unit. Each bracket should be
properly snug and be difficult to slide along the back spine.
1
2
Cross Brace
Cross Brace
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l’alimentation avant
l’installation.
2. This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualied electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n’êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualié.
3. Check to make sure that all the xture connections have been properly
made and the xture is grounded to avoid potential electrical shocks.
4. Do not handle energized module with wet hands or when standing on
wet or damp surfaces, or in water.
5. Suitable for damp locations.
Convient aux emplacements humides.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
WARNING - Maximum connected load with a single power supply shall
not exceed maximum ampacity rating of #12 AWG THHN through-wire
conductors. Use only lighting controls with relay or FET-based outputs,
or lighting controls with neutral connection. Reference www.cree.com/
lighting for recommended dimming control options. Avoid handling
LEDs directly. Not intended for use in environments containing airborne
corrosive agents such as chemical solvents, cleaners, or cutting uids
2 of 4 LPN00212X0003A7
FOR OPTIONAL METAL TONG HANGERS
(TMM):
NOTE: Center hole can accommodate 3/8" diameter
rod maximum. Recommended for surface mount
installations.
STEP 1:
For single units or end row fixtures, place metal
tong hanger bracket over center spine no more
than 18" from each end of fixture. See Figure
3. Insert supplied bolt through the metal tong
hanger and secure with lock washer and nut,
tightening to secure spine to the metal tong
hanger. See Figure 4 & 5. Additional suspension
points are optional depending on field
conditions.
STEP 2:
For continuous row installation, continue with
next fixture using a minimum of one tong hanger
per unit. Each bracket should be properly snug
and be difficult to slide along the back spine.
FOR SUSPENDED MOUNTING:
STEP 1:
For suspended individual mount luminaires, one
Power Feed with Cable Support and one Cable
Support is required.
STEP 2:
For continuous row installation, begin row
(luminaire #1) with one Power Feed with
Cable Support and one Cable Support. Each
subsequent luminaire, one Cable Support is
required; not to exceed 18" from end of luminaire.
For environments that do not allow proper
spacing of cable support, Unistrut may be
required, supplied by others.
ELECTRICAL CONNECTIONS
STEP 1:
For powering the fixture(s), open wiring
compartment swing door on end of the luminaire
and extend wiring in preparation for connections.
See Figure 6.
STEP 2:
Bring AC feed into wiring compartment
through conduit hole on left side. Remove black
connector and terminate leads according to local
codes.
STEP 3:
Make electrical connections referring to Figure 7.
STEP 4:
Close swing door assuring no leads are pinched.
See Figure 6.
LINE
DRIVER ASSEMBLY
BLACK
WHITE
NEUTRAL
AC Power
Compartment
Knockout
6
7
18"18"
3
4
5
3 of 4 LPN00212X0003A7
ELECTRICAL CONNECTIONS FOR
CONNECTING MULTIPLE LUMINAIRES
TOGETHER:
STEP 1:

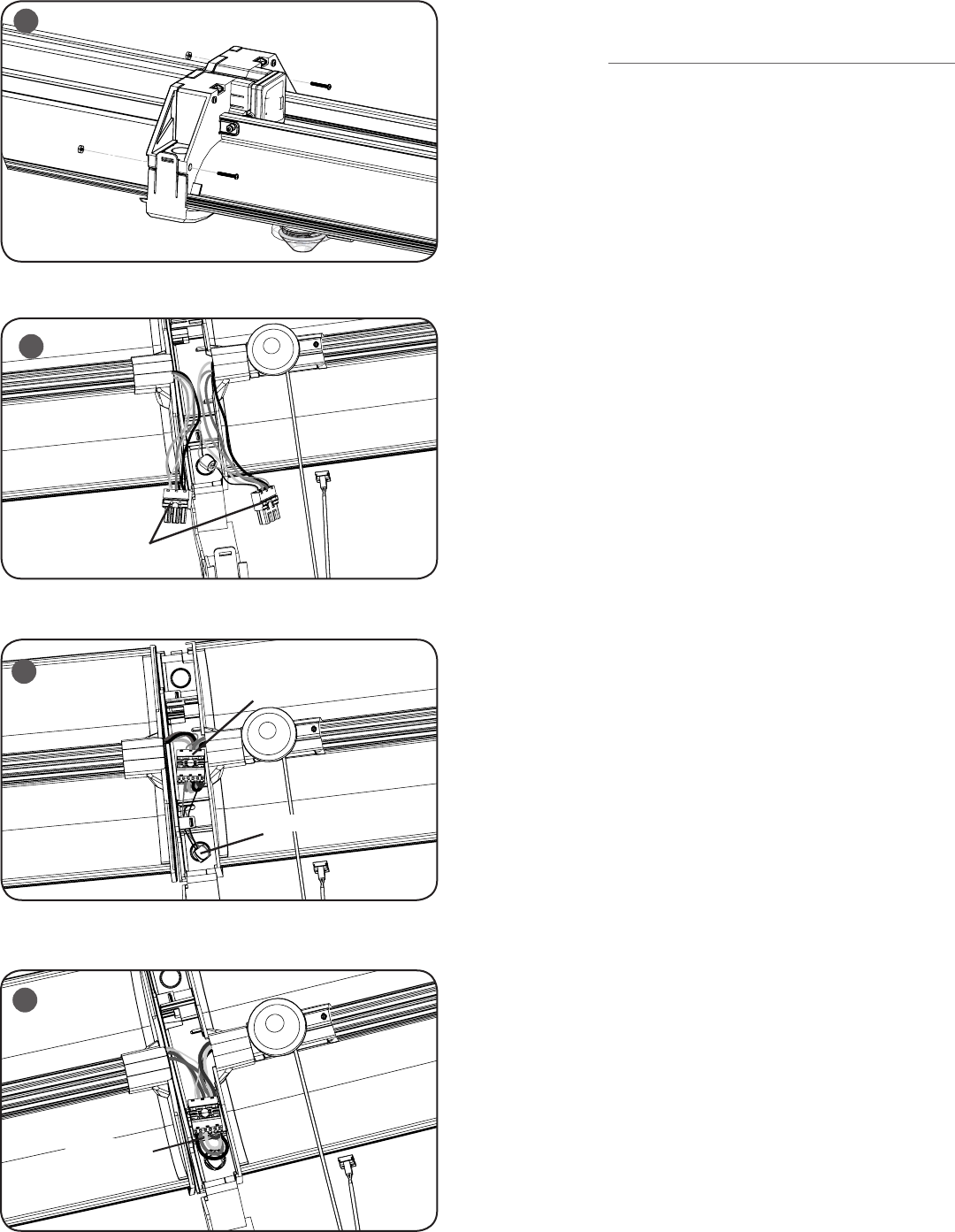

Attach two fixtures together with screws & nuts
provided. See Figure 8.
STEP 2:
Remove endcap cover of first fixture to reveal
through-wiring plug. Open swing door of
connecting fixture and remove knockout and
extend wiring in preparation for connections. See
Figure 9.
STEP 3:
Carefully feed AC and dimming plugs into wiring
compartment through knockout opening. Remove
black connector and terminate leads according
to local codes.
STEP 4:
Connect male and female AC connectors.
See Figure 10.
STEP 5:
Tuck lead ferrite into far AC wiring compartment
as shown in Figure 10.
STEP 6:
Place AC connector assembly flat into AC wiring
compartment as shown in Figure 11.
STEP 7:
Close swing door assuring no leads are pinched.
Continue powering fixtures until entire row is
complete.
STEP 8:
Remove protective plastic wrap and wire tie from
center stiffener.
8
9
10 AC
Connector
Ferrite
AC
Connectors
AC Wiring
Compartment
11
4 of 4 LPN00212X0003A7
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See www.cree.com/lighting/
products/warranty for warranty and specifications. Cree®, and the Cree logo are registered trademarks and SmartCast ™, CS14 ™,
and CS18 ™ are trademark of Cree, Inc.
www.cree.com/lighting
RESET RF MODULE
NOTE: The Blue LED is located behind the CREE logo on the
RF Module. The CREE logo with illuminate blue when the Blue
LED is active.
STEP 1:
Actuate RESET button through the access hole. Push and hold
until LED on RF Module begins blinking rapidly (approximately
6-7 seconds). See Figure 12.
STEP 2:
Release for 1 sec.
STEP 3:
Press/Hold RESET button for 0.5 sec. Light will turn off for a
few seconds then go to full bright and the Blue LED on the RF
Module should begin a 2 blink sequence. See Figure 12.
LED LUMINAIRE MAINTENANCE
Cleaning Instructions:
Regular cleaning of the light LED fixture is required to keep
the LED fixture operating at optical performance. Prior to
cleaning fixtures, turn power OFF to the fixture. Dust fixture
regularly with a hand held vacuum with a clean, non-lead,
soft bristle brush to remove any dust accumulation on the
LED source on the LED and reflector surfaces. Cleaning
intervals to be no more than twelve months for clean category
environments and more frequently for dirtier conditions. Care
should be taken as to not damage the LED stick and/or the
interior reflective surface as these components are critical for
optimal performance. DO NOT use any type of cleaners or stiff
brushes on the LED fixture.
TROUBLESHOOTING:
Out of the box, if the light does not turn on when power is
applied:
• Check Wiring with power off
• If wired correctly, check to see if Blue LED blinking
on the RF Module.
• If Blue LED is blinking, then perform a RESET (See
RESET RF MODULE section).
• If Blue LED is on solid or off, call Cree Customer
Service.
• If you have done a RESET, and the light is still off,
call Cree Customer Service.
If light is unresponsive, use Cree Configuration Tool to verify
configuration.
FCC NOTICE
To comply with the FCC RF exposure compliance
requirements, this device and its antenna must not be co-
located or operating to conjunction with any other antenna or
transmitter.
This equipment should be installed and operated with
minimum distance 5cm between the radiator & your body.
FCC COMPLIANCE STATEMENT
CAUTION: Changes or modifications not expressly approved
could void your authority to use this equipment.
This device complies with Part 15 of the FCC Rules. Operation
to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation
This device has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the device is
operated in a commercial environment. This device generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this device in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
The LED in the front of this device operates within Risk Group
1 levels per IEC 62471.
INDUSTRY CANADA STATEMENT
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the device.
In addition, this device complies with ICES-003 of the Industry
Canada (IC) Regulations.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le
fonctionnement.
12
RF
Module
Access Hole, Reset
Button Inside
Blue LED
Placement
