5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

INSTALLATION, OPERATION and MAINTENANCE

MANUAL for Cres Cor A

QUA

T

EMP

HUMIDITY

CONVECTION and RETHERM OVENS with

MICROPROCESSOR CONTROLS

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 1 of 14

RO151FW1332B-Q1

CO151FWUA12B-Q1

RO151FWUA18B-Q1

CO151XWUA5B-Q1

CO151HWUA6B-Q1 CO151FPWUA12B-Q1

RO151FPWUA18B-Q1

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 2 of 14

SUBJECT PAGE

INSTALLATION INSTRUCTIONS….........................…...…………….....…...……..…...…..3

OPERATING INSTRUCTIONS…………………………..……………....…………..….4, 5, 6

Illustration, Figure 1………………………………..……………........……….………...4

MAINTENANCE INSTRUCTIONS

How to Clean the Unit………………………………....…………........………..…...…..7

Trouble Shooting Guide……………………………...……….....…....……...….……8, 9

Replacement Parts………………………………………....…….…......……….…...9, 10

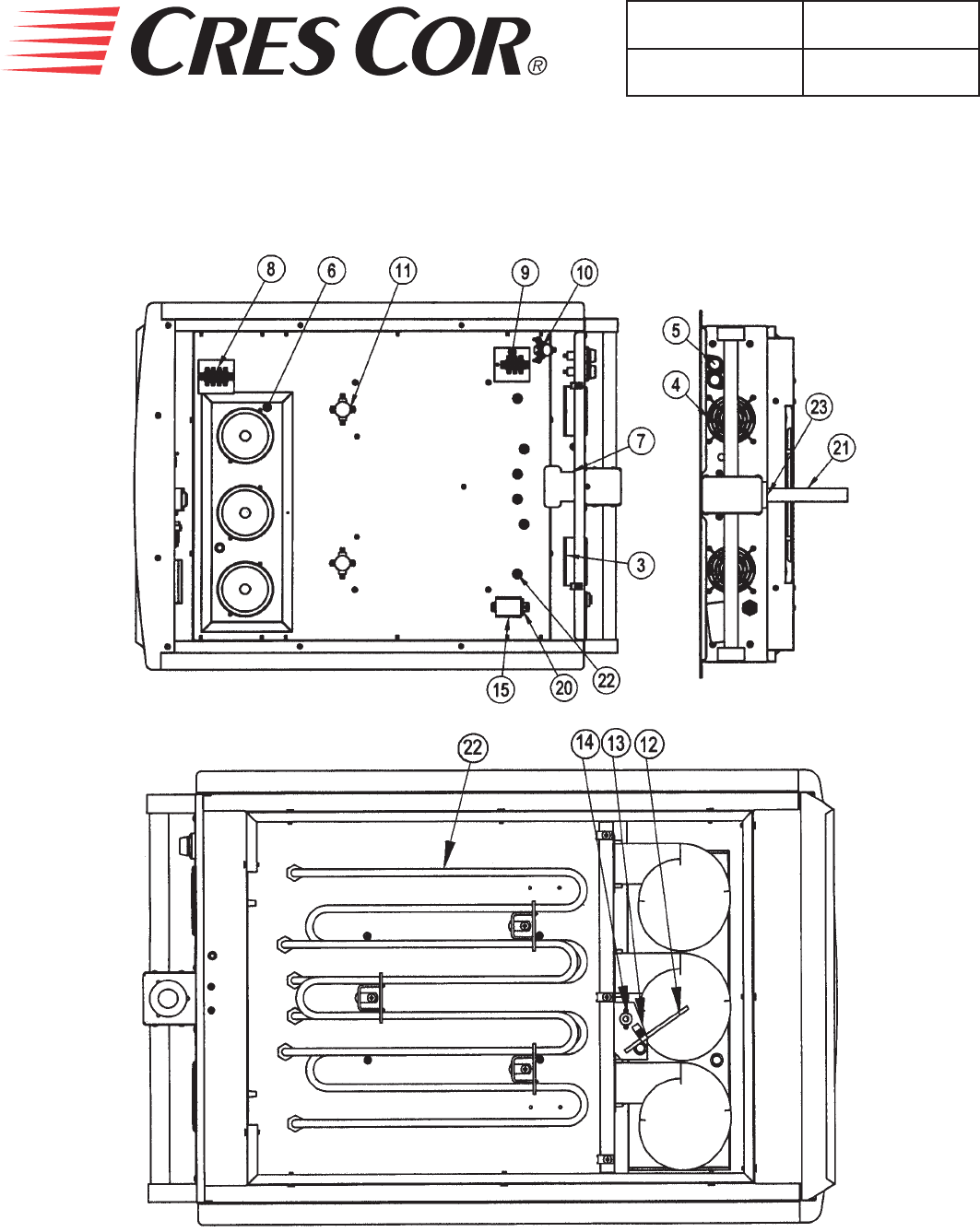

Illustrations; Hot Unit…………….………………………...……....…………........11, 12

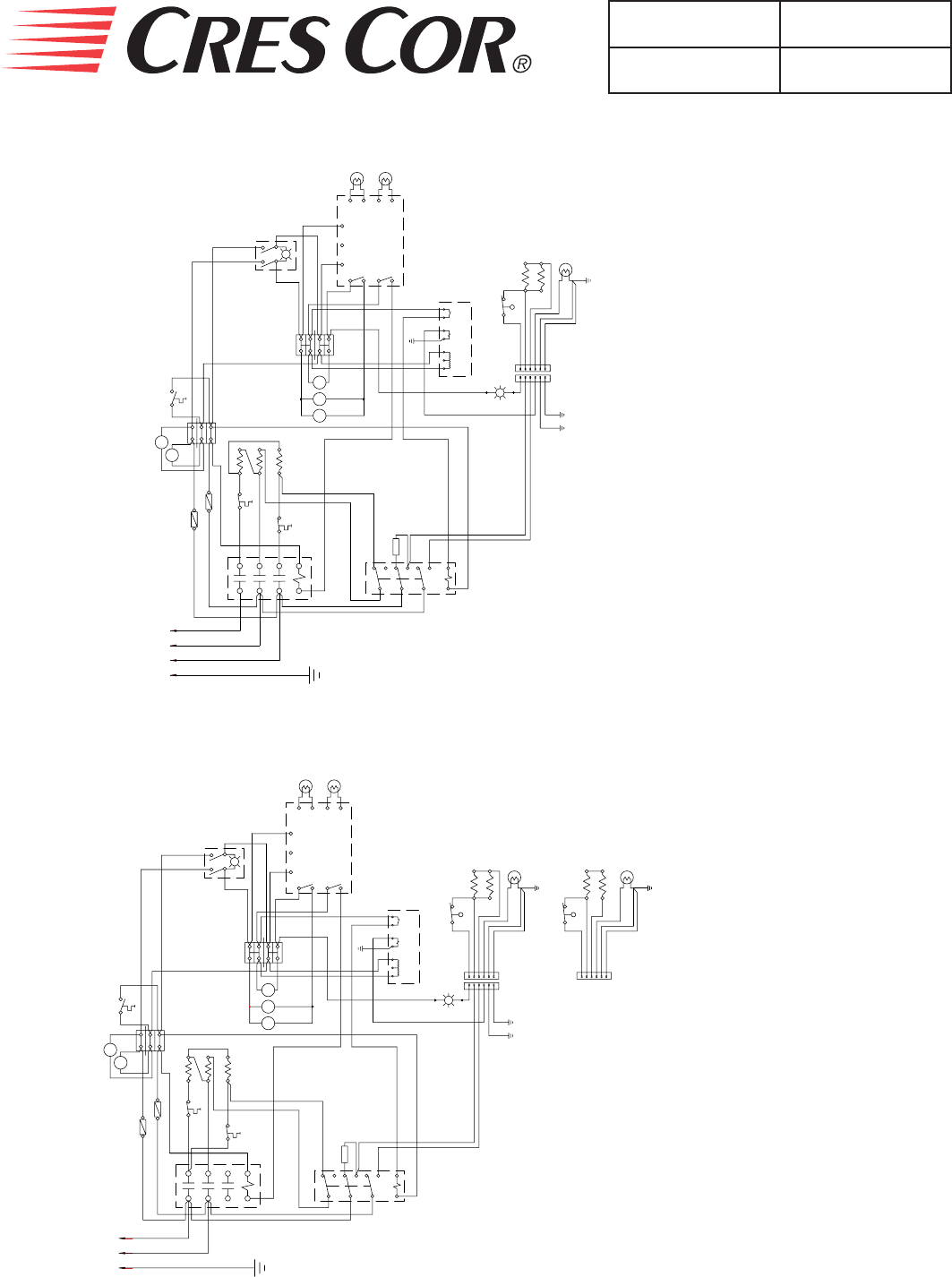

Wiring Diagrams………………………...…………………..…......……....…………..13

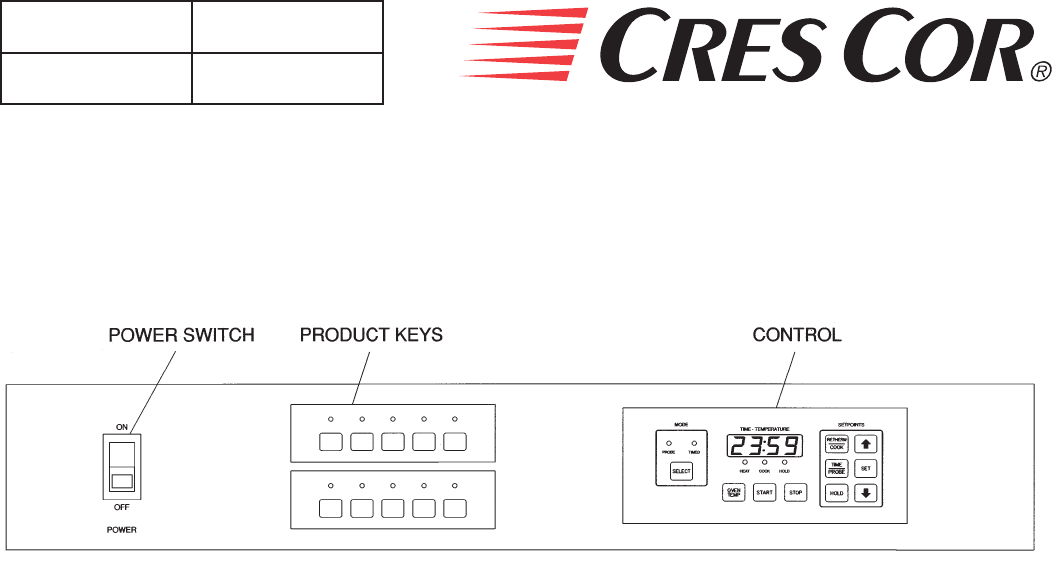

OPTIONAL PRODUCT KEYS…………………...……………..….........……..........………14

TIMER PROGRAMMING…….……………………………………..………...……...FL-2222

SERVICE POLICY and AGENCY LIST…………………………….….....….……….FL-1400

TABLE OF CONTENTS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE

PERSONNEL ONLY

RISK OF FIRE OR ELECTRIC SHOCK

DO NOT OPEN

WARNING

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 3 of 14

HOW TO INSTALL CABINETS:

Remove all packing material from inside and outside

of cabinet.

Position cabinet on level fl oor; install the cabinet

interior (pan slides) if not already installed.

Plug power cord into proper wall receptacle.

Fill water pan with three (3) gallons of HOT water

(see CAUTION).

1.

2.

3.

4.

LOW WATER LIGHT:

When water needs to be added to the pan, the Low Water

Light will stay on until the pan is refi lled.

INSTALLATION INSTRUCTIONS

VENTING YOUR OVEN:

The purpose of ventilating hoods is to direct and

capture smoke, grease-laden vapors, heat, odors, or

fumes.

Low temperature equipment (maximum temperature

250°F/121°C) does not produce heat, odors, fumes,

grease-laden vapors or smoke and is not required to be

vented.

1.

2.

Most jurisdictions consider our low-temperature ovens

(maximum temperature is 350°F/177°C) as low-heat

appliances not requiring vent hoods.

Installation must conform with local codes. The

authority having jurisdiction of enforcement of

the codes will have the responsibility for making

interpretations of the rules.

3.

4.

UNIT SPECIFICATIONS: All units use three (3) elements (2670 watts each).

All units are rated 8200 watts. Water units have one (1) immersion element (1850 watts).

MODEL NOS. ELECTRICAL SPECS

(AC SERVICE) ELEC. LOAD POWER SUPPLY REQUIREMENT

ALL 3 PHASE IS 3 WIRE +

GROUND

CONVECTION OVENS Volts Ph Hz. Amps Volts Amps Ph Volts NEMA

CO151FWUA12B2081Q1

CO151FWUA12B2401Q1 208

240 1

160

60 39

34 208

240 50

50 1

1208

240 6-50P

6-50P

CO151FWUA12B2083Q1

CO151FWUA12B2403Q1 208

240 3

360

60 23

20 208

240 30

30 3

3208

240 L15-30P

L15-30P

RETHERM OVENS

RO151FWUA18B2081Q1

RO151FWUA18B2401Q1 208

240 1

160

60 39

34 208

240 50

50 1

1208

240 6-50P

6-50P

RO151FWUA18B2083Q1

RO151FWUA18B2403Q1 208

240 3

360

60 23

20 208

240 30

30 3

3208

240 L15-30P

L15-30P

RO151FW1332B2081Q1

RO151FW1332B2401Q1 208

240 1

160

60 39

34 208

240 50

50 1

1208

240 6-50P

6-50P

RO151FW1332B2083Q1

RO151FW1332B2403Q1 208

240 3

360

60 23

20 208

240 30

30 3

3208

240 L15-30P

L15-30P

HALF-SIZE OVENS Are rated at 4950 watts (three [3] heaters at 1470 watts each)

CO151HWUA6B2081Q1

CO151HWUA6B2401Q1 208

240 1

160

60 24

21 208

240 30

30 1

1208

240 6-30P

6-30P

CO151HWUA6B2083Q1

CO151HWUA6B2403Q1 208

240 3

360

60 15

13 208

240 20

20 3

3208

240 L15-20P

L15-20P

CO151XWUA5B2081Q1

CO151XWUA5B2401Q1 208

240 1

160

60 24

21 208

240 30

30 1

1208

240 6-30P

6-30P

CO151XWUA5B2083Q1

CO151XWUA5B2403Q1 208

240 3

360

60 15

13 208

240 20

20 3

3208

240 L15-20P

L15-20P

Use of treated water is recommended for

proper operation and to maintain warranty.

It will reduce scaling.

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 4 of 14

OPERATING INSTRUCTIONS

HOW TO START UNIT:

(for fi rst-time operation only)

A new oven needs to “burn off” factory oils and glue

before it’s fi rst use. Do NOT load food into oven until this

has been done!

Push power switch to “ON”.

Press the SELECT button; choose the TIMED mode.

Press the COOK button and set the temperature to

350°F/177°C.

Press the HOLD button and set the temperature to

150°F/66°C.

Press the PROBE/TEMP button and set the timer to

one (1) hour.

Allow oven to run automatically for one (1) hour of

COOK/RETHERM cycle and 30 minutes of HOLD

cycle.

HOW TO SET THE CONTROL

FOR TIMED COOK OPERATION:

Press the SELECT button to choose the TIMED mode.

COOKING TIME:

Press the PROBE/TIME button. The display will show

the cook/retherm time.

Use the UP and DOWN arrows to set the desired time.

Press the SET button to enter the time into the control.

NOTE: Cold food is NOT to be added when unit is

operating in HOLD mode.

1.

2.

3.

4.

5.

6.

1.

2.

3.

COOKING TEMPERATURE:

Press the COOK button and the display will show the

cook/retherm temperature.

Use the UP and DOWN arrows to set the desired

temperature.

Press the SET button to enter the temperature into the

control.

NOTE: Press the OVEN TEMP button at any time to

view the actual oven temperature.

HOLDING TEMPERATURE:

Press the HOLD button; the display will show the

holding temperature.

Use the UP and DOWN arrows to set the desired

temperature.

NOTE: Proper food holding temperature is 140°F/60°C

or higher.

3. Press the SET button to enter the temperature into the

control.

4. Press the START button and the display shows the

remaining time in the cook/retherm cycle.

NOTE: The control will beep after it times down to zero;

it will then automatically switch to the HOLD

mode. The display will then show the hold

setpoint temperature. For HOLD mode, preheat

unit to 180°F/82°C for 60 minutes.

1.

2.

3.

1.

2.

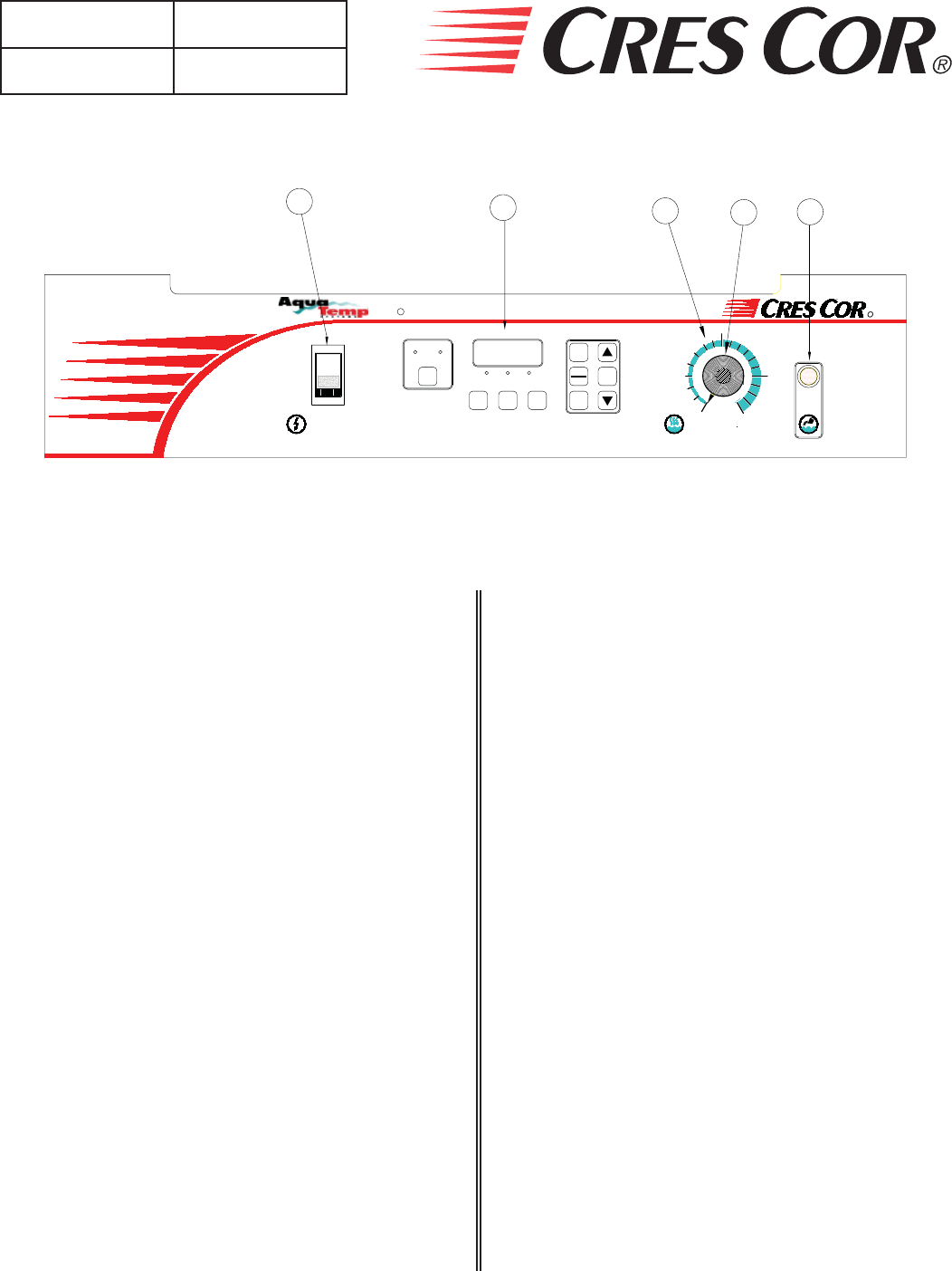

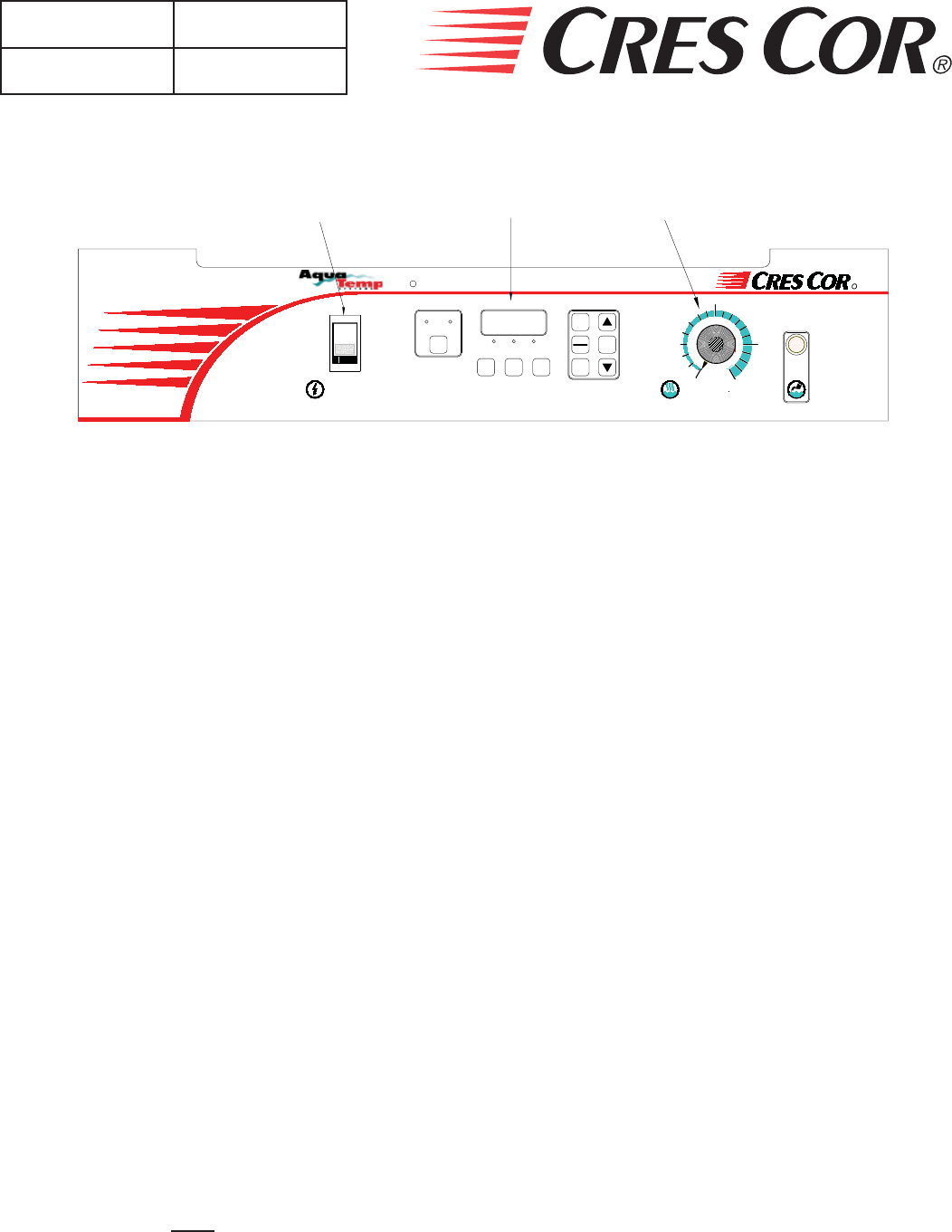

Figure 1: Control Panel

HUMIDITY

Roast-N-Hold +

OFF ( 0 )

POWER

TM

ON ( I )

LOW

2

1

DRY

3

4

8

WATER

LOW

MOIST

10

HIGH

9

5

6

MEDIUM

7

R

HOLD

TIME / TEMPERATURE

TIMED

PROBE

SELECT

MODE

HEAT

OVEN

COOK

START

COOK

PROBE

HOLD

STOP

TIME SET

SETPOINTS

TEMP

POWER SWITCH CONTROL

HUMIDITY

CONTROL

COOKING/HOLDING

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 5 of 14

HOW TO SET THE CONTROL, continued

FOR PROBE COOK OPERATION:

Press the SELECT button to choose the probe mode.

PROBE TEMPERATURE:

Press the PROBE/TIME button. The display will show

the probe setpoint temperature.

Use the UP and DOWN arrows to set the desired

temperature.

Press the SET button to enter the temperature into the

control.

NOTE: Press the OVEN TEMP button at any time to

view the actual oven temperature. Press the

START button and the display will show the

actual probe temperature.

NOTE: The control will beep when the probe setpoint

temperature has been reached and then will

automatically switch to HOLD mode. The

display will then show the hold setpoint

temperature.

To manually end the COOK/RETHERM, PROBE,

or HOLD mode:

Press the STOP button during any of the above modes and

the control will end that mode. If in the Cook/Retherm or

Probe mode, the control will automatically switch into the

HOLD mode.

HOW TO OPERATE WITH FOOD:

Manual (Timed mode) Operation

See “HOW TO SET THE CONTROL” (on page 4) for

programming instructions.

Push power switch to “ON”.

Press the SELECT button and choose the TIMED

mode.

Press the COOK button and set to desired temperature.

Press the PROBE/TIME button and set to the desired

time.

Press the HOLD button; set desired temperature.

1.

2.

3.

1.

2.

3.

4.

5.

Place the food into oven. Close door and double

check cooking time and temperatures. Then press the

START button to start the cooking/retherm cycle and

the Cook LED will light up.

The oven will beep and automatically switch to the

HOLD mode at the end of the cooking cycle. The

Cook lamp will go out and the Hold lamp will light

up.

Probe Cooking

See “HOW TO SET THE CONTROL” (on page 5) for

programming instructions.

Push power switch to “ON”.

Press the SELECT button and choose the Probe mode.

Insert the probe jack into the receptacle located inside

the oven top, near the fans. The probe temperature

display will show the digital temperature of the probe.

Put sanitized probe into center of food product. Make

sure food is in the center of the pan and the pan is

centered in the oven.

Press the start button. The cook lamp will light up and

the display will show the internal temperature of the

food being cooked.

NOTE: Do NOT change the mode of the controls (probe

or timed) while oven is operating in a Cook/

Retherm cycle. Oven must be in the HOLD cycle

to change the timer or probe operation.

6.

7.

1.

2.

3.

4.

5.

OPERATING INSTRUCTIONS, continued

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 6 of 14

HOW TO OPERATE WITH FOOD, continued

HOW TO SET HOLD-ONLY MODE:

Push power switch to “ON”.

Press the STOP button and oven will switch to HOLD

cycle.

Press the HOLD button and set the desired hold

temperature.

NOTE: Cold food is NOT to be added when unit is

operating in HOLD mode.

For HOLD mode, preheat unit to 180°F/82°C for

60 minutes.

HOW TO SHUT DOWN OVEN:

Push switch to “OFF”.

1.

2.

3.

TEMPERATURE / HUMIDITY SETTINGS

HOLD

Dial Setting HUMIDITY

Dial Setting

Temp.,°F/°C 1 2 3 4 5 6 7 8 9 10

140/60 15 20 25 35 50 65 85 100 100 100

150/66 10 15 20 25 35 55 70 100 100 100

160/71 5 10 15 20 30 40 60 80 100 100

180/82 5 5 10 15 20 25 30 50 70 95

200/93 5 5 5 10 15 20 25 35 50 75

Values Listed are % Relative Humidity.

OPERATING INSTRUCTIONS, continued

Ventilating fans will continue to run until the cabinet is

cool. Do NOT disconnect the power supply to the cabinet

while the ventilating fan is still operating.

Air is VERY HOT when door is opened.

 Humidity control is on the right of the control panel

(see Figure 1).

 Humidity may be used in all control modes.

 Turn control knob to extreme counter-clockwise

position when humidity is not needed.

 Make sure there is water in the water pan.

HOW TO PROOF:

Fill the water pan with three (3) gallons of HOT water.

Set the humidity control at low to mid-range.

Set the Hold control to Nominal 120°F/49°C.

Preheat the oven at this setting for ½ hour.

Put in product. DO NOT use frozen product.

1.

2.

3.

4.

5.

HOW TO OPERATE WITH HUMIDITY:

WARNING

Listed below are typical thermostat settings. Experiment with different settings to get the

temperature and humidity you need.

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 7 of 14

MAINTENANCE: CABINET

1. Wipe the inside of cabinet after daily use.

2. Leave doors slightly open to fully dry interior.

HOW TO CLEAN THE UNIT:

SOIL CLEANER METHOD

CABINET

Inside and Outside

(Stainless Steel)

ROUTINE CLEANING Soap, ammonia or mild

detergent* and water. 1. Sponge on with cloth

2. Rinse

STUBBORN SPOTS,

STAINS Mild abrasive made for

Stainless Steel. 1. Apply with damp sponge or cloth.

2. Rub lightly.

BURNT ON FOODS OR

GREASE Chemical oven cleaner

made for Stainless Steel. Follow oven cleaner manufacturer’s

directions.

HARD WATER SPOTS &

SCALE Vinegar 1. Swab or wipe with cloth.

2. Rinse and dry.

* Mild detergents include soaps and non-abrasive cleaners

MAINTENANCE INSTRUCTIONS

HOW TO CLEAN THE UNIT

MAINTENANCE: WATER PAN

Drain, wipe and fi ll water pan daily.

(Clear vinyl drain-hose is provided).

Push hose onto drain nozzle under the base.

Turn knob to open the drain.

To Fully Dry Out:

Drain until 1/8” of water is left in pan bottom.

Turn humidity Thermostat to “High” until water is

gone.

Wipe out pan.

1.

2.

1.

2.

3. Unplug cord from wall. Allow cabinet to

cool.

Do NOT hose cabinet with water.

Do NOT get water on controls.

Do NOT use abrasives or harsh

chemicals.

1.

2.

3.

4.

BEFORE cleaning the cabinet:

Cleaning Hints:

Use the mildest cleaning procedure that will do the

job.

Always rub in the direction of the polish lines to avoid

scratching the surface.

1.

2.

Use only a soft cloth, sponge, fi brous brushes, plastic

or stainless steel pad for cleaning and scouring.

Rinse thoroughly with fresh water after every cleaning

operation.

Always wipe dry to avoid water marks.

3.

4.

5.

WARNING

Delime or descale water pan parts as required,

to prevent damaging build-up.

WARRANTY COVERAGE MAY BE AFFECTED

WITHOUT PROPER CLEANING.

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 8 of 14

PROBLEM POSSIBLE CAUSE SOLUTION

Cabinet does not heat, or doesn’t heat

properly

1. Fuse

2. Control

3. Sensor

4. Heater contactor

5. Loose wiring at heater contactor

6. On/Off Switch

1. Replace

2. Replace

3. Replace

4. Replace

5. Replace

6. Replace

Blowers do not operate

1. On/Off Switch

2. Fuse

3. Blower

4. Control

1. Replace

2. Replace

3. Replace

4. Replace

Heater will not shut off 1. Control defective 1. Replace

Vent fans do not shut off 1. Vent fan switch defective

2. Control compartment is still hot.

1. Replace

2. Wait until it cools

Check “Heater will not shut off”

Vent fans do not operate (See Note)

1. Fuse

2. Vent fan switch defective

3. Vent fan defective

1. Replace

2. Replace

3. Replace

Control will not switch from “COOK” to

“HOLD” (timer mode)

1. Oven is in “PROBE” mode.

2. Control defective

1. Switch to “TIMED” mode

2. Replace

Control will not switch from “COOK” to

“HOLD” (probe mode)

1. Oven is in the “TIMED” mode

2. Probe not plugged in

3. Control defective

1. Switch to “PROBE” mode

2. Plug in probe

3. Replace

Control will not switch to “COOK” (probe

mode)

1. Oven in “TIMED” mode

2. Probe temperature setting lower than

probe temperature

3. Probe not plugged in

4. Control defective

1. Switch to “PROBE” mode

2. Set probe temperature to desired

temperature

3. Plug in probe

4. Replace

No Humidity 1. Water element defective

2. Humidity control

1. Replace

2. Replace

MAINTENANCE INSTRUCTIONS

TROUBLE-SHOOTING GUIDE

WARNING

IF UNIT GETS TOO HOT OR WON’T SHUT OFF, DISCONNECT

POWER AT BRANCH PANEL. DO NOT UNPLUG CORD!

1. Cord is unplugged from wall outlet.

2. Circuit breaker/fuse to wall outlet is blown.

3. Switch is turned off.

4. Thermostat is turned off, or is set too low.

If hot unit is NOT working, fi rst check the following causes:

NOTE: Vent fans will not operate until the control compartment requires ventilation to limit temperatures. Replacement

of electrical components must be done by a qualifi ed electrician.

Refer to our Service Agency list, FL-1400 (found in the back of this manual), of authorized service centers.

Instructions for replacing parts are included in replacement parts list.

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 9 of 14

MAINTENANCE INSTRUCTIONS

TROUBLE-SHOOTING GUIDE, continued

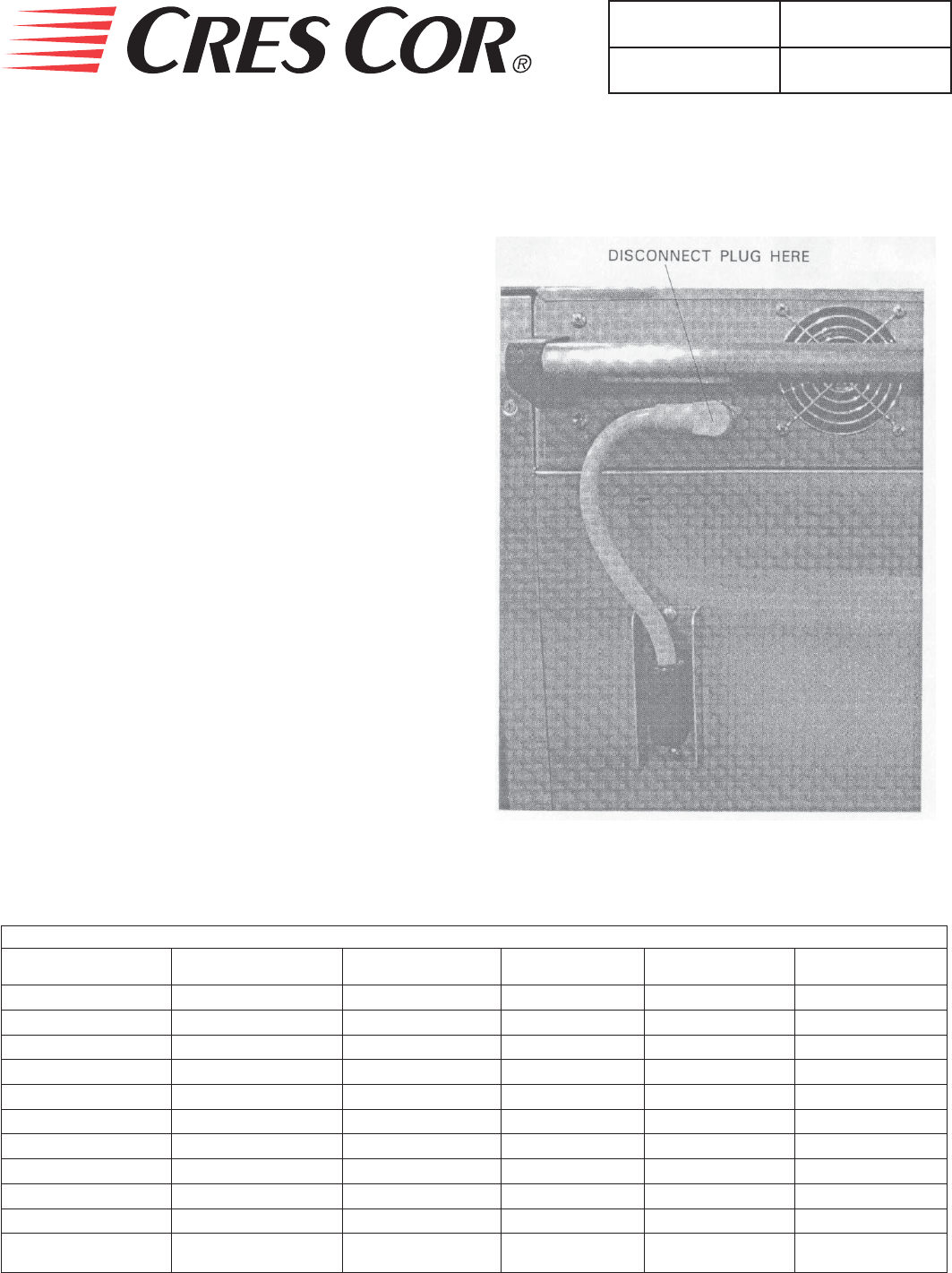

FIGURE 2

HOT UNIT REMOVAL

HOW TO ADJUST THE DOOR LATCH:

For vertical (up and down movement) adjustment:

Loosen (2) screws located in magnetic strike.

Move strike up or down for alignment to magnet on

latch.

Tighten screws to secure

2. For horizontal (greater or lesser magnetic draw)

adjustment:

Loosen (4) screws in door latch.

Move latch forward or backward to adjust

magnetism.

Tighten screws to secure.

HOT UNIT REMOVAL:

Disconnect power cord from wall outlet.

For half-size model: CO151HW Series, remove

screws around top cover.

Disconnect the yellow cord between top and bottom,

in the back of the cabinet (see Figure 2).

Lift off Hot Unit.

1.

a.

b.

c.

a.

b.

c.

1.

2.

3.

4.

REPLACEMENT PARTS: Include all information on nameplate when ordering parts.

Cabinet Replacement Parts

MODEL PREFIX CO-151, RO-151 (“Q” SERIES)

DESCRIPTION -FPWUA (12), (18) -FWUA (12), (18) -FW1332 -HWUA6 -XWUA5

Hot Unit, 208V, 1 Ph HU675013Q1 HU675025Q1 HU675029Q1 HU675037Q1 HU675037Q1

Hot Unit, 208V, 3 Ph HU675015Q1 HU675027Q1 HU675031Q1 HU675039Q1 HU675039Q1

Hot Unit, 240V, 1 Ph HU675014Q1 HU675026Q1 HU675030Q1 HU675038Q1 HU675038Q1

Hot Unit, 240V, 3 Ph HU675016Q1 HU675028Q1 HU675032Q1 HU675040Q1 HU675040Q1

Door Latch Kit 1006-120-001-K 1006-120-01-K 1006-120-001-K 1006-120-01-K 1006-120-01-K

Door Strike 1006-120-02-K 1006-120-02-K 1006-120-02-K 1006-120-02-K 1006-120-02-K

Door Hinge 0519-074-K 0519-074-K 0519-074-K 0519-074-K 0519-074-K

Door Assembly 1221-525-K 1221-525-K 1221-543 1221-525-K 1221-545-K

Door Gasket 0861-185-K 0861-185-K 0861-184 0861-185-K 0861-250-K

Angles or Racks 0621-281-SS-K 0621-281-SS-K 1104-108 0621-281-SS-K 0621-281-SS-K

Side Handles (2),

Black Recessed 0911-102 0911-102 0911-102 0911-102 0911-102

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 10 of 14

ITEM DESCRIPTION Part No.

PARTS for 8200W, 1-PH UNITS

21. Power Cord 0810-124

Power Cord (Pass-thru) 0810-161

22. Heater Kit, 208V 0811-261

Heater Kit, 240V 0811-262

23. Strain Relief 0818-061

PARTS for 8200W, 3-PH UNITS

21. Power Cord 0810-132

Power Cord (Pass-thru) 0810-162

22. Heater Kit, 208V 0811-261

Heater Kit, 240V 0811-262

23. Strain Relief 0818-050

PARTS for 4950W, 1-PH UNITS

21. Power Cord 0810-163

22. Heater Kit, 208V 0811-020-K

Heater Kit, 240V 0811-020-01-K

23. Strain Relief 0818-050

PARTS for 4950W, 3-PH UNITS

21. Power Cord 0810-164

22. Heater Kit, 208V 0811-020-K

Heater Kit, 240V 0811-020-01-K

23. Strain Relief 0818-050

FIGURE 2: CONTROL PANEL

REPLACEMENT PARTS

Include all information on nameplate when ordering parts

ITEM DESCRIPTION Part No.

1. Switch (On/Off) 0808-113-01-K

2. Thermostat/Timer, Cooking/ 0848-070-03

Holding

3. Vent Fan 0769-174

4. Fan Guard 0769-167

5. Fuse 0807-058

Fuse Holder 0807-048

6. Blower Kit 0769-182-01-SSK

7. Contactor 0857-026

8. Terminal Block, front 0852-096

9. Terminal Block, rear 0852-091

10. Switch, Fan 0848-034

11. Hi Limit Switch (Pass-thru) 0848-077

Hi Limit Switch 0848-079

12. Sensor 0848-073-01

13. Sensor Bushing 0818-014

14. Connector, probe 0848-059-01

Probe 1.5” long 0848-059-02

Probe 6” long 0848-059-04

15. Relay 0857-125-K

16. Thermostat, Humidity 0848-008-1-AC

17. Knob, Humidity Thermostat 0595-061

18. Pilot Light 0766-095

19. Receptacle (6 pin) 0810-154-02

20. Resistor (For Relay) 0857-129

• Float Switch 0857-122

• Water Pan Kit, 208V 0756-030-K

• Heater, 208V 0811-278

• Water Pan Kit, 240V 0756-031-K

• Heater, 240V 0811-271

Hot Unit Replacement Parts

HUMIDITY

Roast-N-Hold +

OFF ( 0 )

POWER

TM

ON ( I )

LOW

2

1

DRY

3

4

8

WATER

LOW

MOIST

10

HIGH

9

5

6

MEDIUM

7

R

HOLD

TIME / TEMPERATURE

TIMED

PROBE

SELECT

MODE

HEAT

OVEN

COOK

START

COOK

PROBE

HOLD

STOP

TIME SET

SETPOINTS

TEMP

1216 18

17

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 11 of 14

FIGURE 3; Hot Unit w/o Top cover

(For parts description, refer to page 10.)

FIGURE 4; Bottom of Hot Unit, Cover Removed

(For parts description, refer to page 10.)

REPLACEMENT PARTS

for “PASS-THRU” OVENS CO or RO151FPUA SERIES

Include all information on nameplate when ordering parts

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 12 of 14

REPLACEMENT PARTS

for OVENS CO or RO151F SERIES

Include all information on nameplate when ordering parts

FIGURE 3;

Hot Unit w/o Top cover

(For parts description, refer to page 10.)

FIGURE 4;

Bottom of Hot Unit, Cover Removed

(For parts description, refer to page 10.)

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 13 of 14

WIRING DIAGRAM

A

A

1

H3

H2

H1

A

38

RELAY

8

5

14

2

6

7

7

2

14

4

13

8

10

11

12

24

9

20 22

13

17

17

13

24

33

32

38

18

7

1

6

19

18

15

16

19 213637

39

38

R=47K

GREEN

RED

ORANGE

BLACK

WHITE

BLUE

AB

A

10 98 45 67

WHITE

BLACK

ORANGE

8

9

6

3

5

2

4

L1GL3L2

3 PHASE

8

5

14

2

1

6

7

2

14

4

13

8

10

11

12

9

20 22

13

17

24

HEATER

CONTACTOR

FUSE

HIGH LIMIT

FUSE

HIGH TEMP

5

35

32

34

25

Temp. Control

Board 23

SENSOR

PROBE

SENSOR

OVEN

30 31

27 26

AC-N

HEAT

FAN

RTD2

RTD1

220v110v

t°

18

HIGH LIMIT

RELAY

19

18

17

13

15

16

AB

8

5

4

2

7

1

R=47K

BLACK

WHITE

9

6

3

HEATER

WATE R

208V

5

35

34

24

25

23

SENSOR

SENSOR

OVEN

30 31

28

27 26

19 213637

39

10 98 45 67

FAN

HEAT

AC-N 110v

RTD2

RTD1

220v

FLOAT

SWITCH

SENSOR

WATE R

GREEN

RED

ORANGE

BLACK

WHITE

BLUE

32

33

32

38

ORANGE

7

FLOAT

SWITCH

SENSOR

WATER

HEATER

WATER

208V

FLOAT

SWITCH

SENSOR

WATER

HEATER

WATER

240V

WHITE

BLUE

GREEN

RED

ORANGE

BLACK

1 PHASE

29 28

HIGH LIMIT

CONTACTOR

HEATER

FUSE

LR

BM BM

C

BM

FUSE

HIGH TEMP

POWER

SWITCH

t°

Water Thermostat

HIGH LIMIT

THREE PHASE

SINGLE PHASE

GL1L2

V

V

L1

t°

t°

L1

29

Temp. Control

Board PROBE

t°

t°

SWITCH

POWER

V

V

Water Thermostat

t°

RL

BM BM

C

BM

H3

H2

H1

5925 Heisley Road • Mentor, OH 44060-1833

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com

Ovens Humidity with

Microprocessor Controls FL-2267

Rev. 13 (3/08) Page 14 of 14

The Product Keys provide automatic menu selections

(arranged in banks of 5 keys, max. 10 keys). Each Product

Key can be user programmed for desired mode (PROBE or

TIMED) and the required COOK, HOLD, and PROBE or

TIME setpoints.

Each Product Key Lights up when pressed “ON”.

The Product Key Light will go “OFF” when pressed a

second time or when changing any setpoint value. This

returns the control to manual operation.

Product Key Programming

Press the desired Product Key.

Press and hold the SET key until the Product Key light

begins to fl ash.

Enter the desired Mode, Cook, Hold and Probe/Time

values.

NOTE: Press the SET key after each value is changed or

added to accept and store a new setpoint.

4. To exit; Press the SET key for a few seconds until the

Product Key light is extinguished.

Extra Replacement Parts:

Product Key (5 Keys) 0848-072

For Hot Unit Replacement, See Page 9:

The Hot Unit suffi x number will be Q5 (5 Keys)

or Q10 (10 Keys) instead of Q1

1.

2.

3.

OPERATING INSTRUCTIONS

FOR OVENS WITH OPTIONAL PRODUCT KEYS

CONTROL PANEL
