Crestron CWD7191 Two-Way RF Transceiver Module
Operations Guide - DOC. 7439C Contents i
Contents
Two-Way RF Transceiver Module: CWD7191 .............................................. 1
Functions and Features .............................................................................................................. 1
Specifications ............................................................................................................................. 2
Physical Description – CWD7191 with a SMD Antenna .......................................................... 3
Physical Description – CWD7191 with a Dipole Antenna ........................................................ 4
Connectors ................................................................................................................................. 5
Ports ............................................................................................................................. 5
Power/I-O .................................................................................................................... 5
Setup .......................................................................................................................................... 7
Labeling ..................................................................................................................................... 7
Documentation ........................................................................................................................... 7
Crestron CWD7191 Two-Way RF Transceiver Module
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 1
2.4 GHz frequency band, IEEE 802.15.4 specification
Range from 3 feet to 550 ft.
Operates on one of sixteen available channels to establish optimal signal
quality
Two-Way RF Transceiver Module:
CWD7191
Functions and Features
The CWD7191 (hereafter referred to as “module”), with a dipole antenna or an integrated SMD
antenna, is a two-way radio frequency (RF) module that utilizes the 2.4 GHz frequency band to
communicate with other devices.
The module operates according to the IEEE 802.15.4 specification and can be configured to minimize
the possibility of interference with other devices.
The module receives RF signals from one or more Crestron devices and can transmit these signals over
the air for further processing (depending on the application).
Functional Summary
Two-Way RF Transceiver Module Crestron CWD7191
2 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Specifications
The table below is a summary of specifications for the CWD7191.
Specifications of the CWD7191
SPECIFICATION DETAILS
Power Requirements 1.3 W (5 Vdc @ 0.26 A)
Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant)
Operating Ranges*
Minimum Distance
Maximum Distance Indoors
(without repeater device)
3 ft
550 ft
Available Channels 16 (numbered 11 through 26 per 802.15.4)
Antenna (External) Gain: 2.0±0.5 dBi max.
Type: Sleeve Dipole Antenna
Frequency: 2.4 GHz to 2.5 GHz
Connector Type: SMA Plug Reverse
Polarity Connector with ¼-36 UNS2B Screw
Antenna (Internal) Max. Gain: 1.8 dBi
Average Gain: -1.9 dBi
Type: SMD
Frequency: 2.4 GHz to 2.5 GHz
Dimensions Width: 1.80 in (4.57 cm)
Height: 2.00 in (5.08 cm)
Depth: 0.45 in (1.14 cm)
* The location and orientation of the module are important factors in the RF performance. With the unit located outside of
any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the
building in which it is used. The construction of the building, obstructions, and RF interference from other devices are
factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at
the same frequencies should not be installed within 3 – 5 feet of each other.
Crestron CWD7191 Two-Way RF Transceiver Module
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 3
Physical Description – CWD7191 with a SMD Antenna

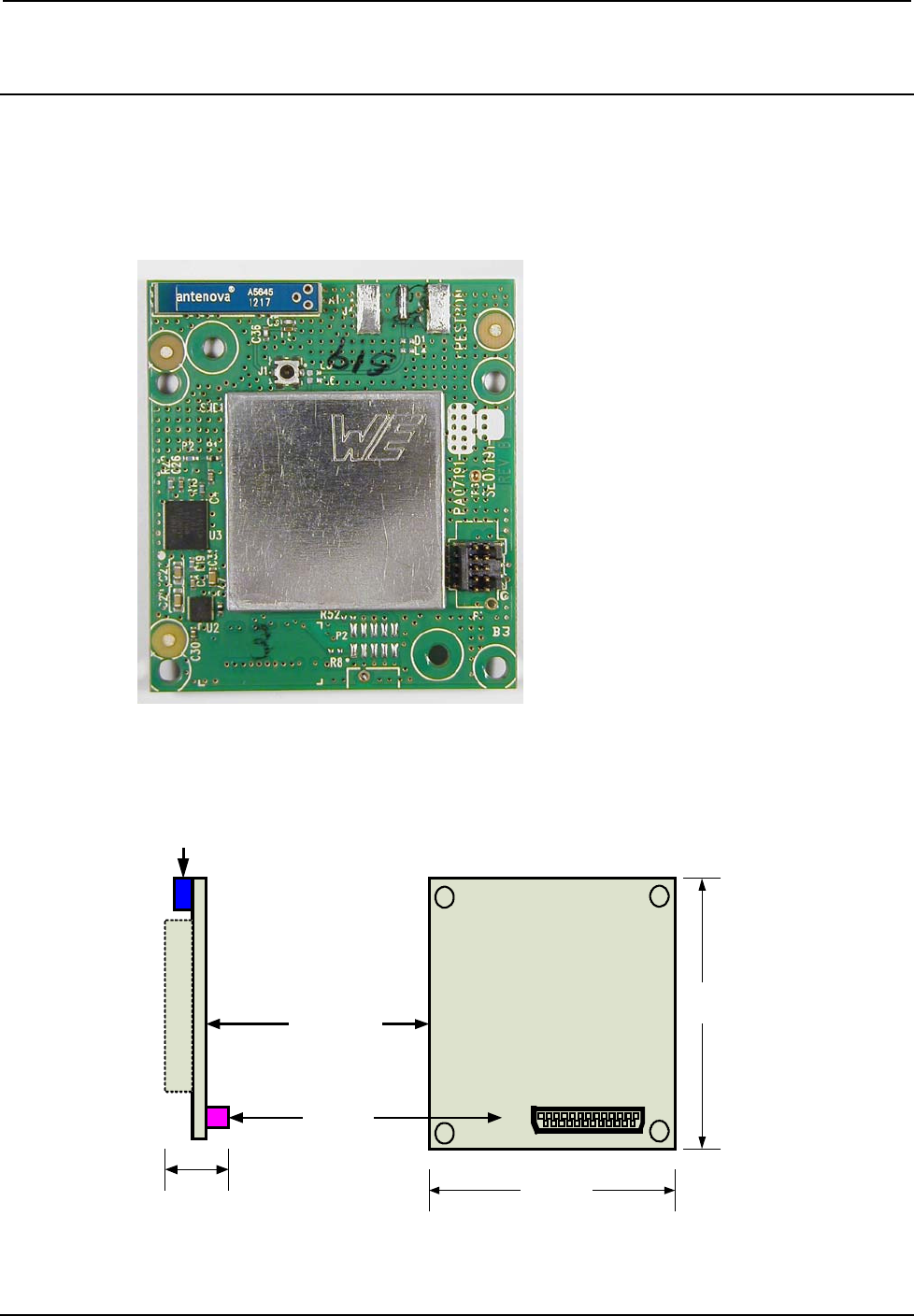

The module, shown below, consists of various components attached to a printed circuit board. The
circuit board attaches an intended SMD mounting antenna while a 25-pin D-SUB male connector is for
the application-specific installation.
Physical View of CWD7191 (SMD Antenna)
CWD7191 Detail Views
SIDE BACK
P
C
B
RF SHIELD
SMD ANTENNA
D-SUB 25 PIN
MALE CONNECTOR
PCB WITH RADIO
1.80 inch
4.57 cm
2.00 inch
5.08 cm
0.45 inch
1.14 cm
PIN 1 PIN 25
PIN 24
PIN 2
P1
Two-Way RF Transceiver Module Crestron CWD7191
4 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Physical Description – CWD7191 with a Dipole Antenna

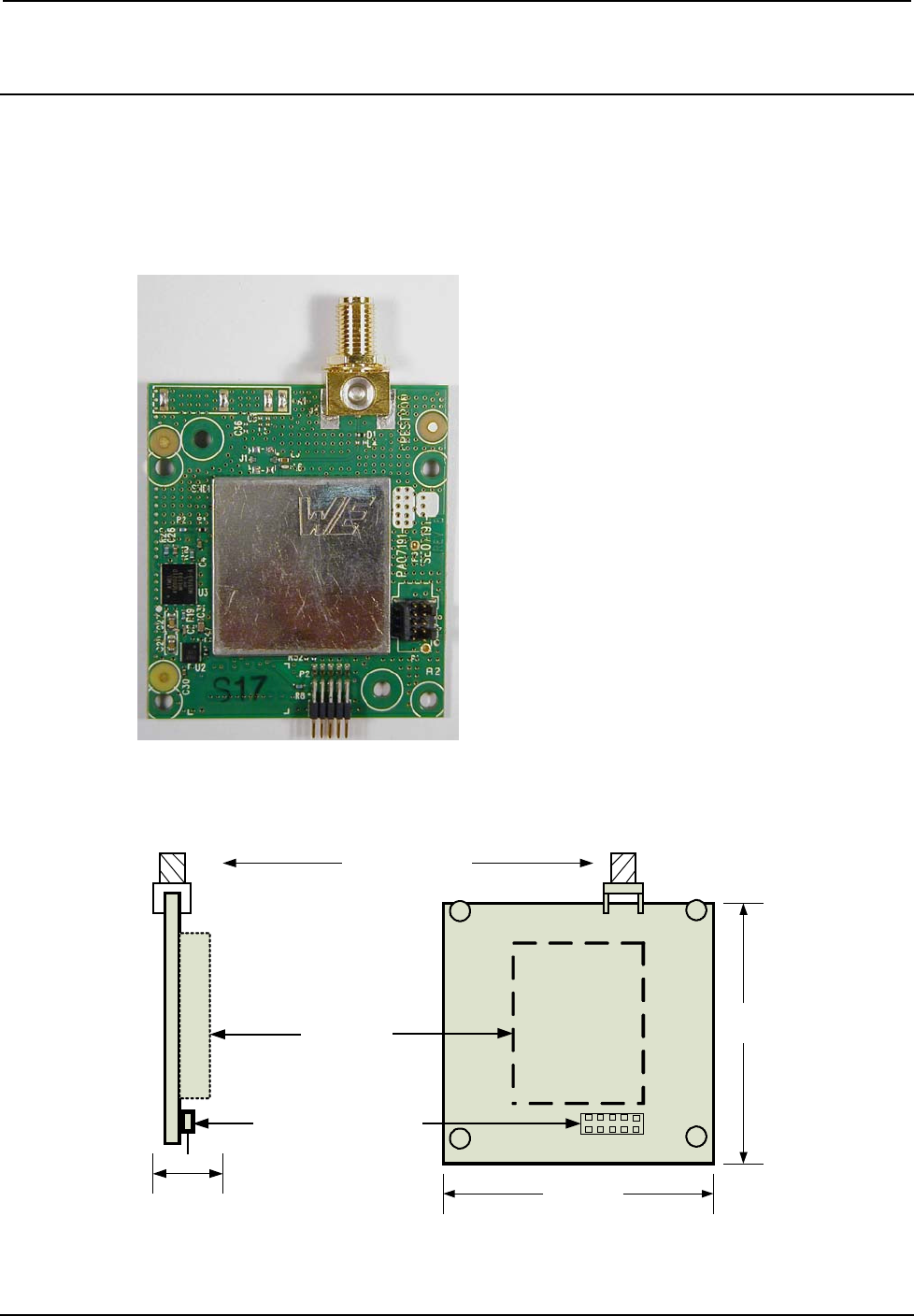

The module, shown below, consists of various components attached to a printed circuit board. A SMA
reverse polarity female antenna port is located at the edge of the circuit board for the attaching of a
dipole antenna while a 5-pin double row male connector is for the application-specific installation.
Physical View of CWD7191 (Dipole Antenna)
CWD7191 Detail Views
SIDE BACK
P
C
B
RF SHIELD
SMA PLUG REVERSE
POLARITY CONNECTOR
RF SHIELD
1.5" X 1.0" X 0.24"
2.50 inch
6.35 cm
inch
5.08 cm
0.40 inch
1.02 cm
PIN 1
PIN 10
PIN 9
PIN 2
RF SHIELD
P2
HEADER, 5PIN, DBL ROW
0.050" X 0.05"LS, RT ANGLE, SM
2.00
Crestron CWD7191 Two-Way RF Transceiver Module
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 5
Connectors
Ports
For the CWD7191 with a SMD antenna, the module contains a 25-pin D-SUB male connector and a
10-pin debug header.
For the CWD7191 with a dipole antenna, the module contains a 5-pin double row male connector, a
10-pin debug header, and one antenna port.
The diagrams and descriptions of the 25-pin D-SUB male connector and the 5-pin double row male
connector are shown in the “Power/I-O” section.
Power/I-O

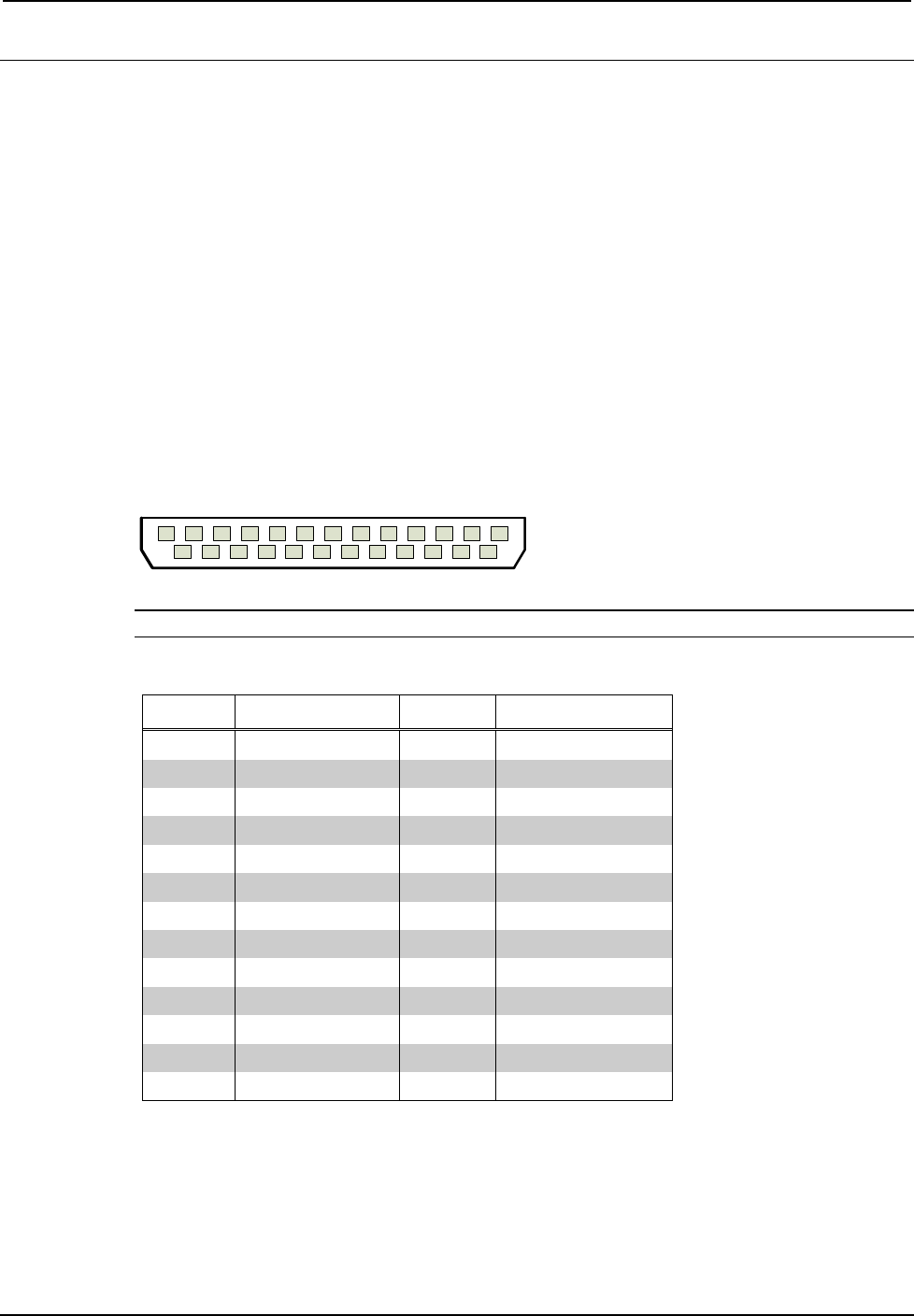

The 25-pin D-SUB male connector provides power to the module as well as the communication
between the module and wired devices. Refer to the following table for pin assignments of the module
interface connector.
1
108
97
6
5
4
3
2
17151311
18
232119
161412
25
242220
NOTE: Pins 8, 10 and 12 provide power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1 PA7 2 PC7
3 PB3 4 PC6
5 PB4 6 RESET
7 SPI MOSI 8 5V
9 SPI MISO 10 5V
11 SPI CLK 12 5V
13 PA4 14 GND
15 PA5 16 GND
17 PA6 18 GND
19 PB1/TXD 20 PB5
21 PB2/RXD 22 PB6
23 PB0 24 PB7
25 PC1
Two-Way RF Transceiver Module Crestron CWD7191
6 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
The 5-pin double row male connector provides power to the module as well as the communication
between the module and wired devices. Refer to the following table for pin assignments of the module
interface connector.

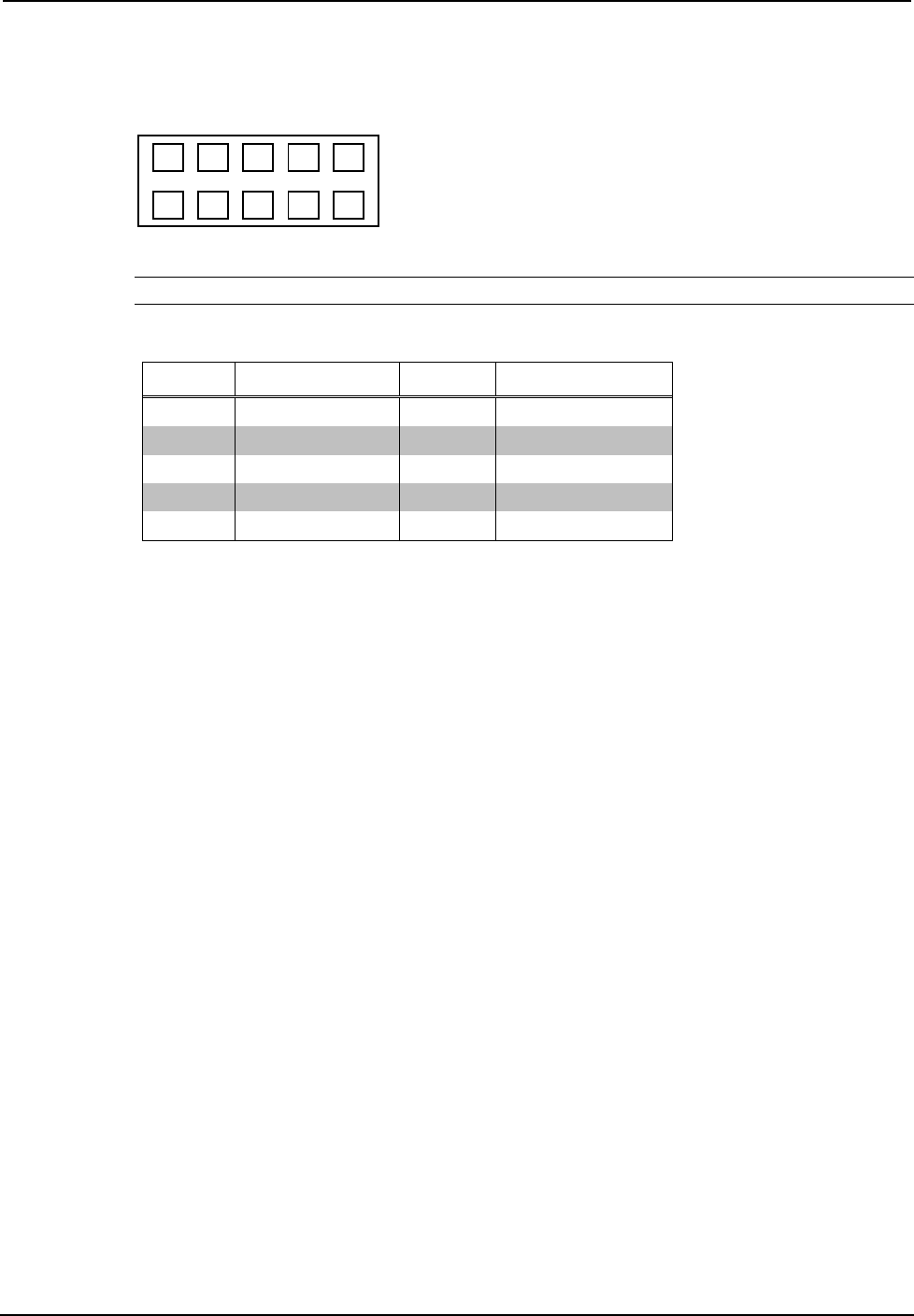

246810
P2
13579
(Top View)
NOTE: Pin 3 provides power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1 PB2/RXD 2 PB1/TXD
3 5V 4 GND
5 SPI MISO 6 GND
7 SPI MOSI 8 GND
9 RESET 10 SPI CLK
Crestron CWD7191 Two-Way RF Transceiver Module
Operations Guide - DOC. 7439C Two-Way RF Transceiver Module: CWD7191 7
Setup

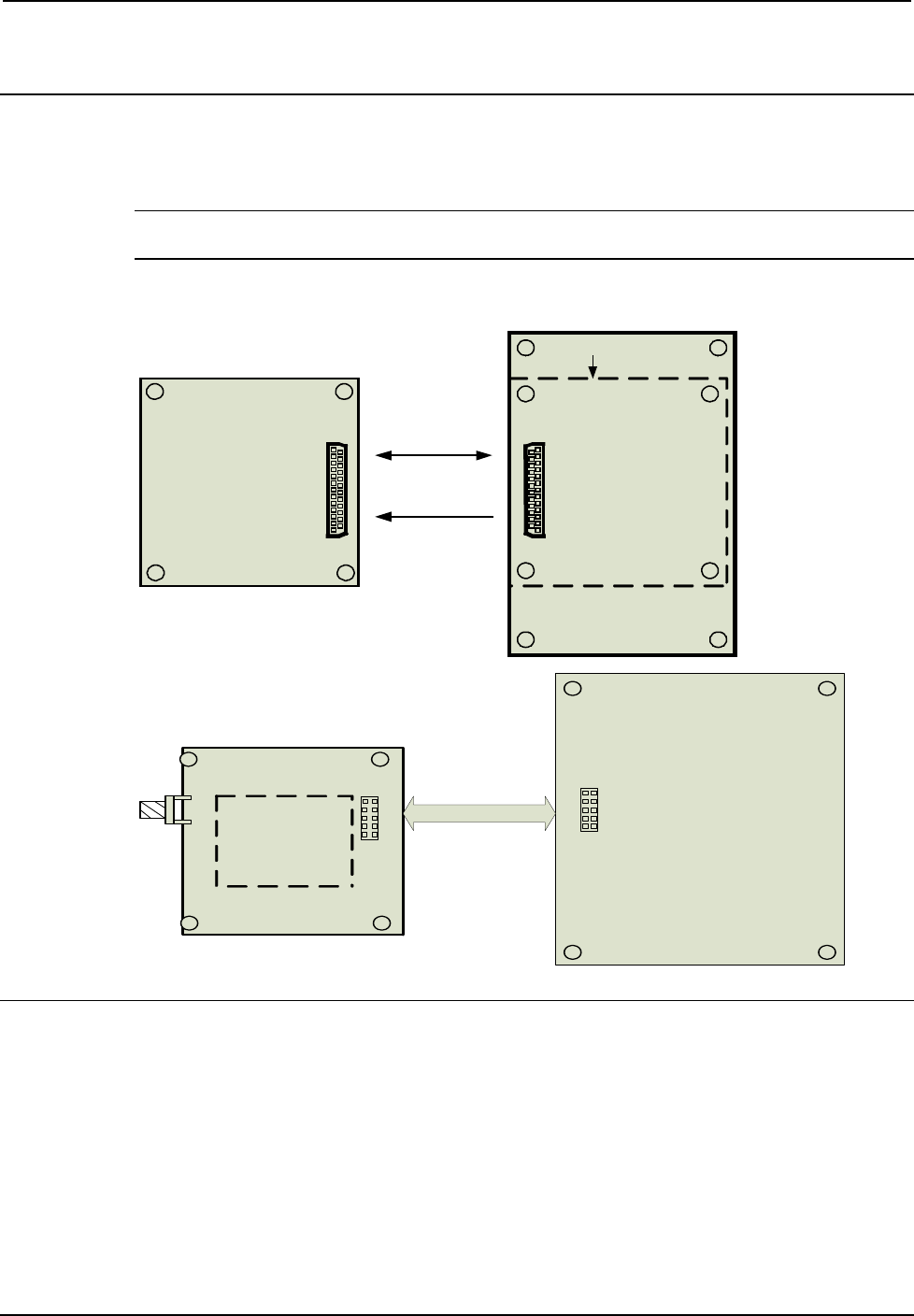

Refer to the hookup diagram below, which shows the connections made to the module. Complete the
connections in any order.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies
should not be installed within three to five feet of each other.
Hardware Hookup
PIN 1 PIN 25
PIN 24
PIN 2
HOST PCB
PIN 1
PIN 24
PIN 25
PIN 2
+5V
CONTROL
P1
J5
CWD7191
RADIO MODULE
HOST PCB
PIN 1
PIN 10
PIN 9
PIN 2
PIN 1
PIN 10
PIN 9
PIN 2
RF SHIELD
P2
J3
CABLE ASSY,
2.5 INCH
5 PIN DBL ROW
FEMALE, CONNC.
Labeling Requirements for the Host Device
The host device shall be properly labeled to identify the modules within the host device.
The FCC and Industry Canada certification label of a module shall be clearly visible at all times when
installed in the host device, otherwise the host device must be labeled to display the FCC and Industry
Canada certification numbers of the module, proceeded by the words “Contains Transmitter Module”,
or the word “Contains”, or similar wording expressing the same meaning as follows:
Contains FCC ID: EROCWD7191
Contains IC: 5683C-CWD7191
Two-Way RF Transceiver Module Crestron CWD7191
8 Two-Way RF Transceiver Module: CWD7191 Operations Guide - DOC. 7439C
Documentation
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user manual of the end product.
The user manual for OEM integrators must include the following information in a prominent location.
“IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.”
