Crestron Electronics STRFGWX GATEWAY User Manual Strfgwx
Crestron Electronics Inc GATEWAY Strfgwx
Manual
![](/img.php?id=175791&img=bg1.png)
![](/img.php?id=175791&img=bg2.png)
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
![](/img.php?id=175791&img=bg3.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Contents •• i
Contents
Two-Way RF Transceiver: STRFGWX 1
Description 1
Functional Description 1
Physical Description 1
Leading Specifications 4
Setup 6
Network Wiring 6
Preparation for Use 7
Identity Codes 7

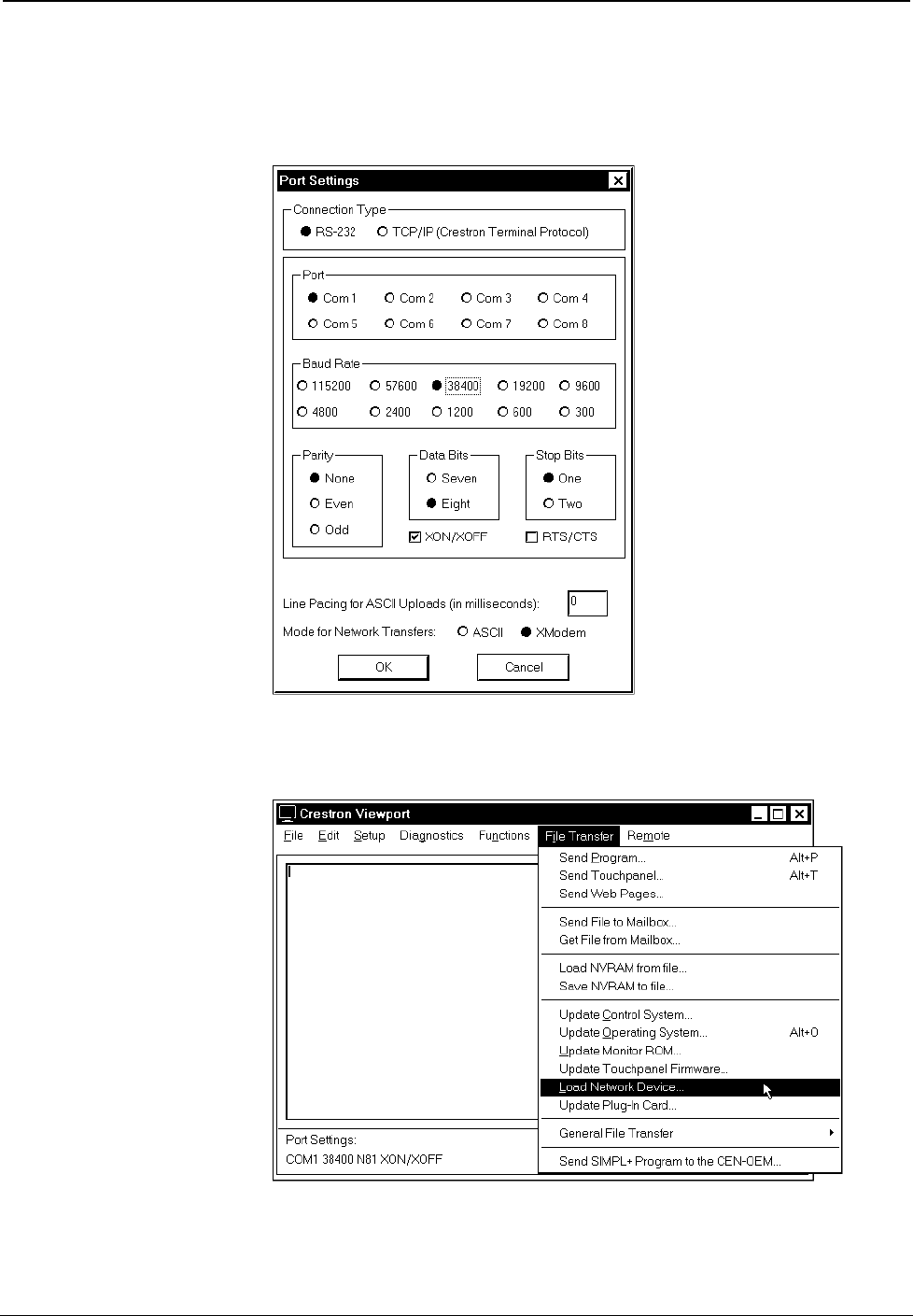

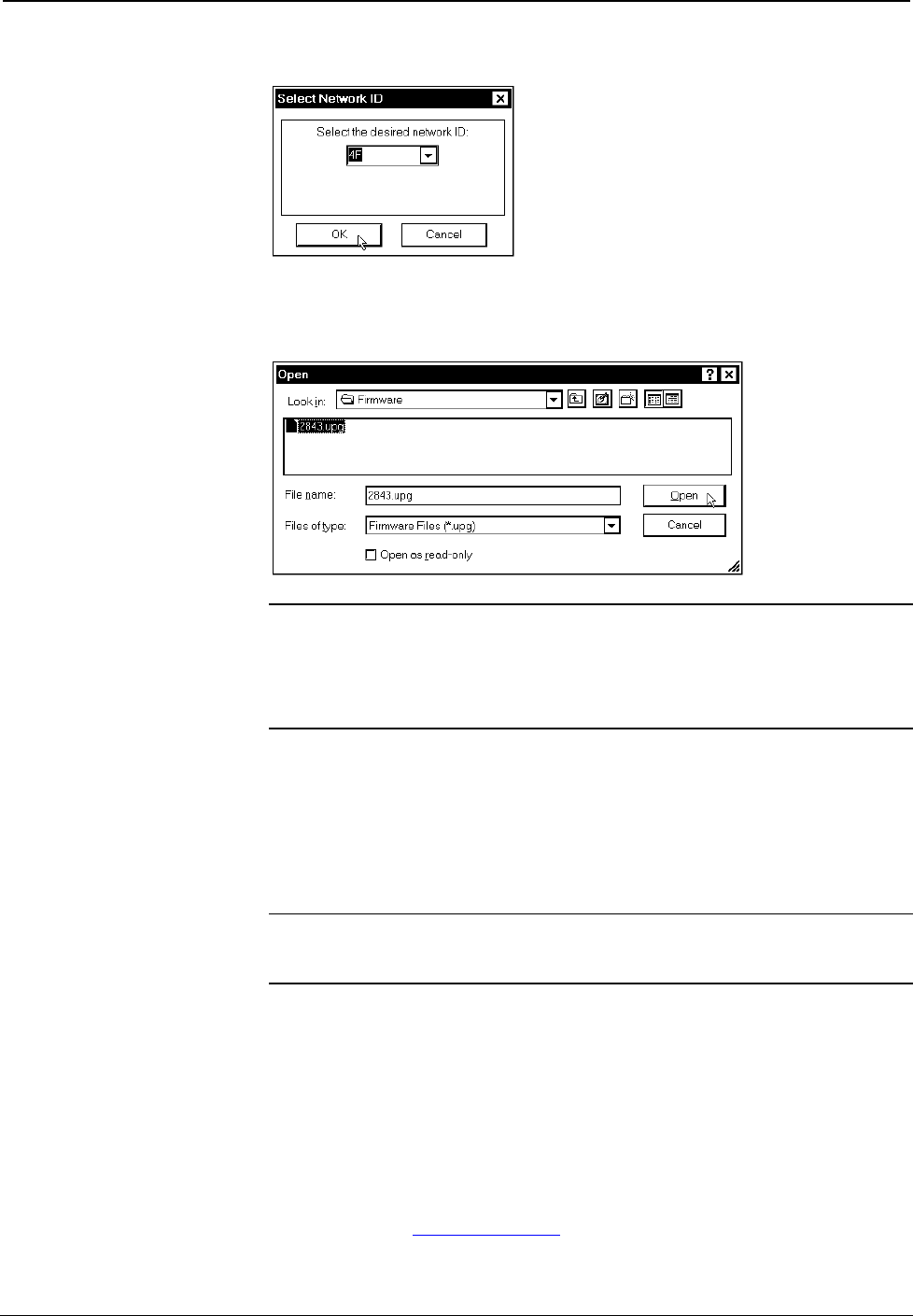

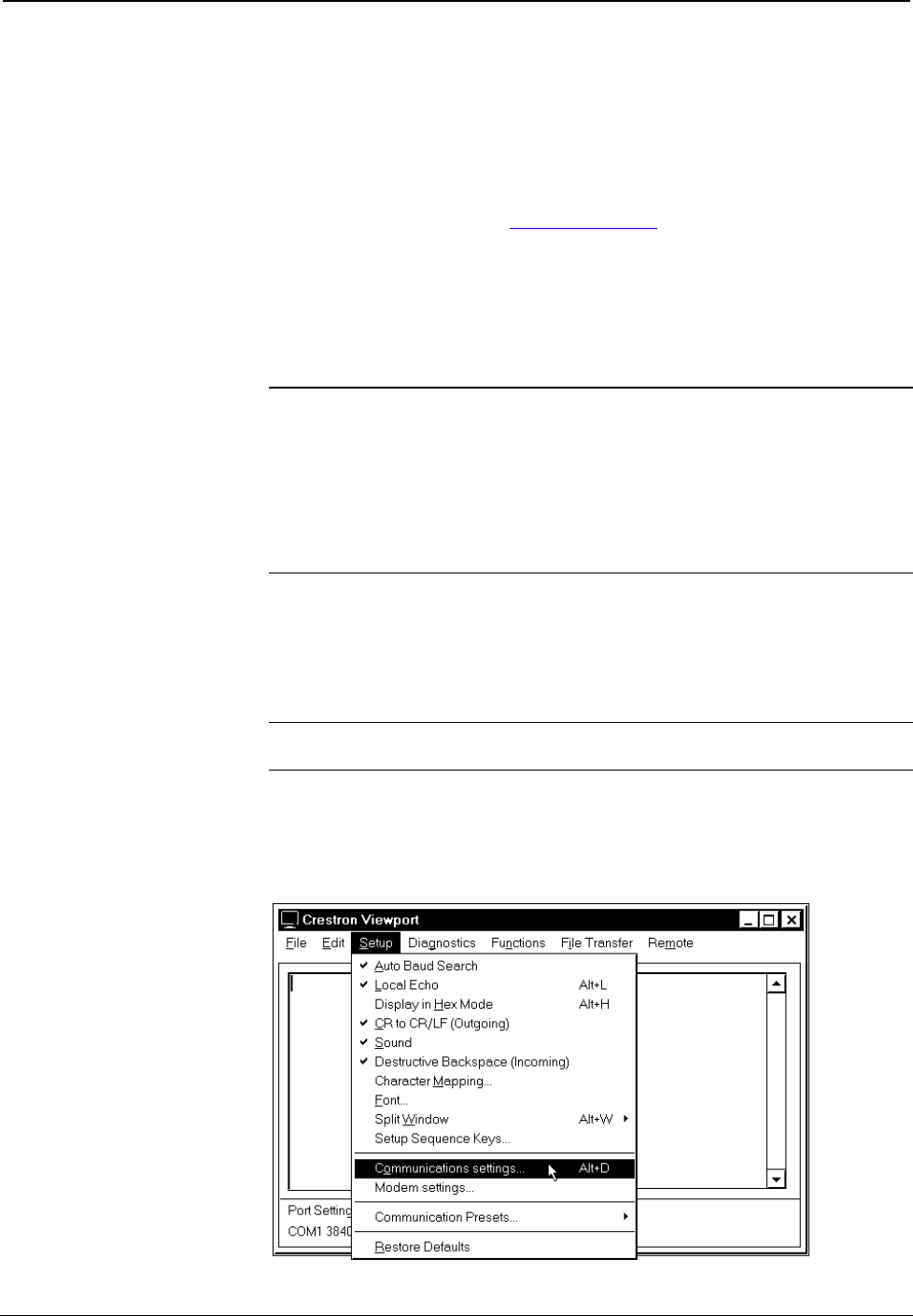

Firmware Upgrade 9
Programming with SIMPL Windows 12
Configure STRFGWX Program 12
Example Program 13
Problem Solving 13
Troubleshooting 13
Further Inquiries 14
Future Updates 15
Future Firmware Upgrades 15
Return and Warranty Policies 16
Merchandise Returns / Repair Service 16
Crestron Limited Warranty 16
![](/img.php?id=175791&img=bg5.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 1
Two-Way RF Transceiver:
STRFGWX
Description
Functional Description
The STRFGWX is a two-way radio frequency (RF) gateway/transceiver that
communicates with Crestron’s wireless STX-1550C 2-Way RF Compact Color and
STX-1550CW Wall Mount 2-Way RF Compact Color Touchpanels. The
STRFGWX receives RF signals from one or more touchpanels (sold separately) and
translates the signals into commands for transmission over the Crestron remote
control system (herein referred to as the Cresnet system). Feedback signals from the
Cresnet system are transmitted from the STRFGWX to the touchpanel(s) for real-
time confirmation of commands. Up to 15 touchpanels can communicate with one
STRFGWX and, if more touchpanels are needed, more STRFGWXs may be added
to the control system.
The RF signals can travel from a minimum of three feet up to a maximum of 50 - 75
feet. Additional range can be obtained by using multiple STRFGWX units
distributed throughout any particular area or installation. The location of the
STRFGWX and the orientation of the antenna are important factors in the RF
performance. With the unit located outside of any metal enclosures and the antenna
positioned horizontally, pointing straight out of the unit, adjust the antenna to
achieve the best range. The range of the unit is also dependent on its placement and
the construction of the building in which it is used.
Included with the STRFGWX is a 4-pin connector plug to connect to other Cresnet
system devices. Also included is an external power pack (PW-1205 for domestic use
or PWI-1210 for international use).
Physical Description
The STRFGWX, shown on the next page, is housed in a black enclosure with silk-
screened labels on the front and rear panels. On the front of the unit are five light-
emitting diodes (LEDs) for indicating the unit’s status and the RF antenna (not
shown for clarity). All other connections are made on the back of the unit. There are
four rubber feet on the base of the unit for stability and to prevent slippage.
![](/img.php?id=175791&img=bg6.png)
Two-Way RF Transceiver Crestron STRFGWX
2 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A

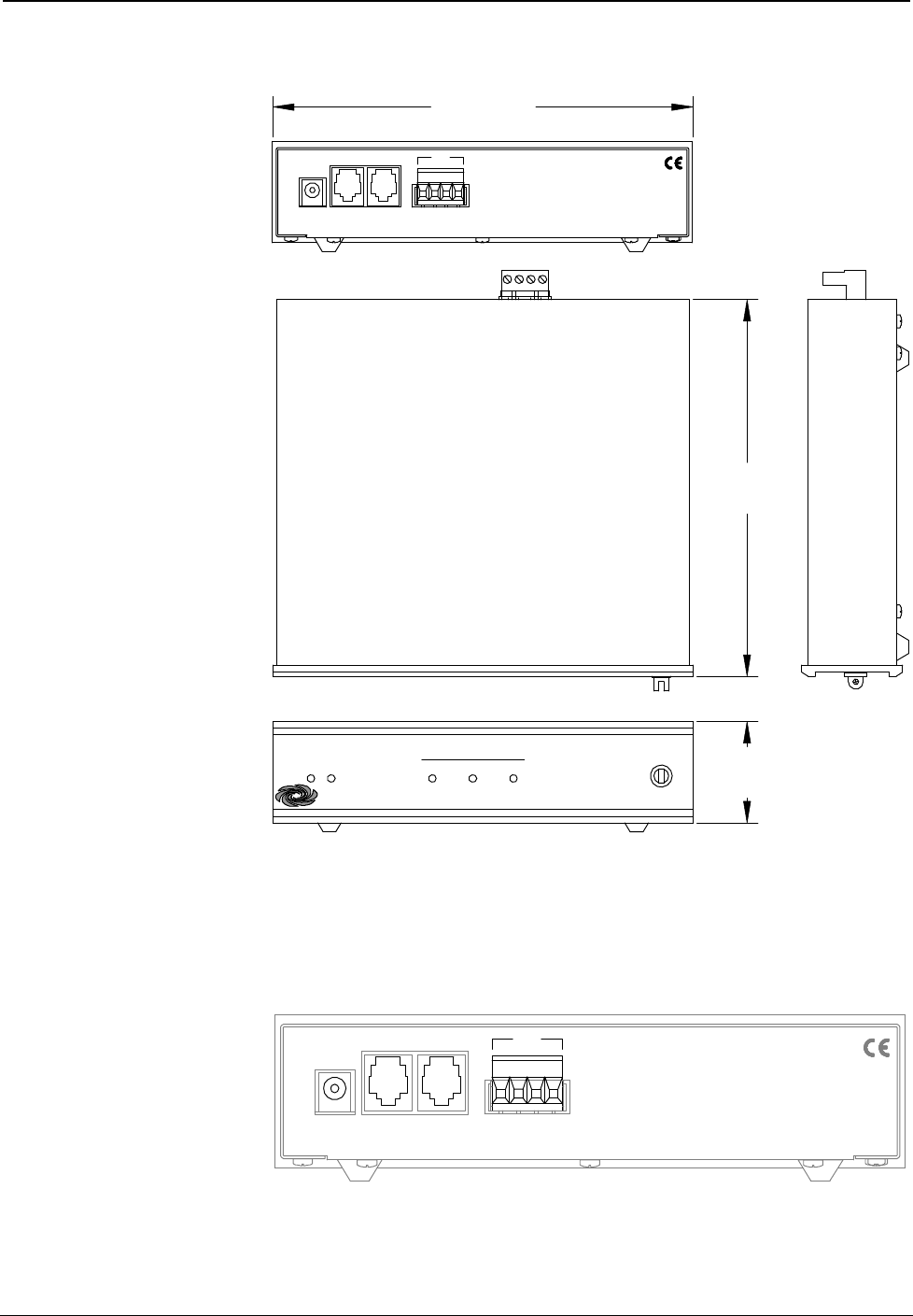

STRFGWX Physical Views
RF GATEWAY - 2 WAYRF GATEWAY - 2 WAY
PWR NET RxSIG
RF
Tx
STRFGWXSTRFGWX
ANTENNA
24 NET GZY
NETNET
.5A
12VDC
1.70 in
(4.32 cm)
6.32 in
(16.06 cm)
7.07 in
(17.95 cm)
CRESTRONCRESTRON
CRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USACRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USA
STRFGWX Ports

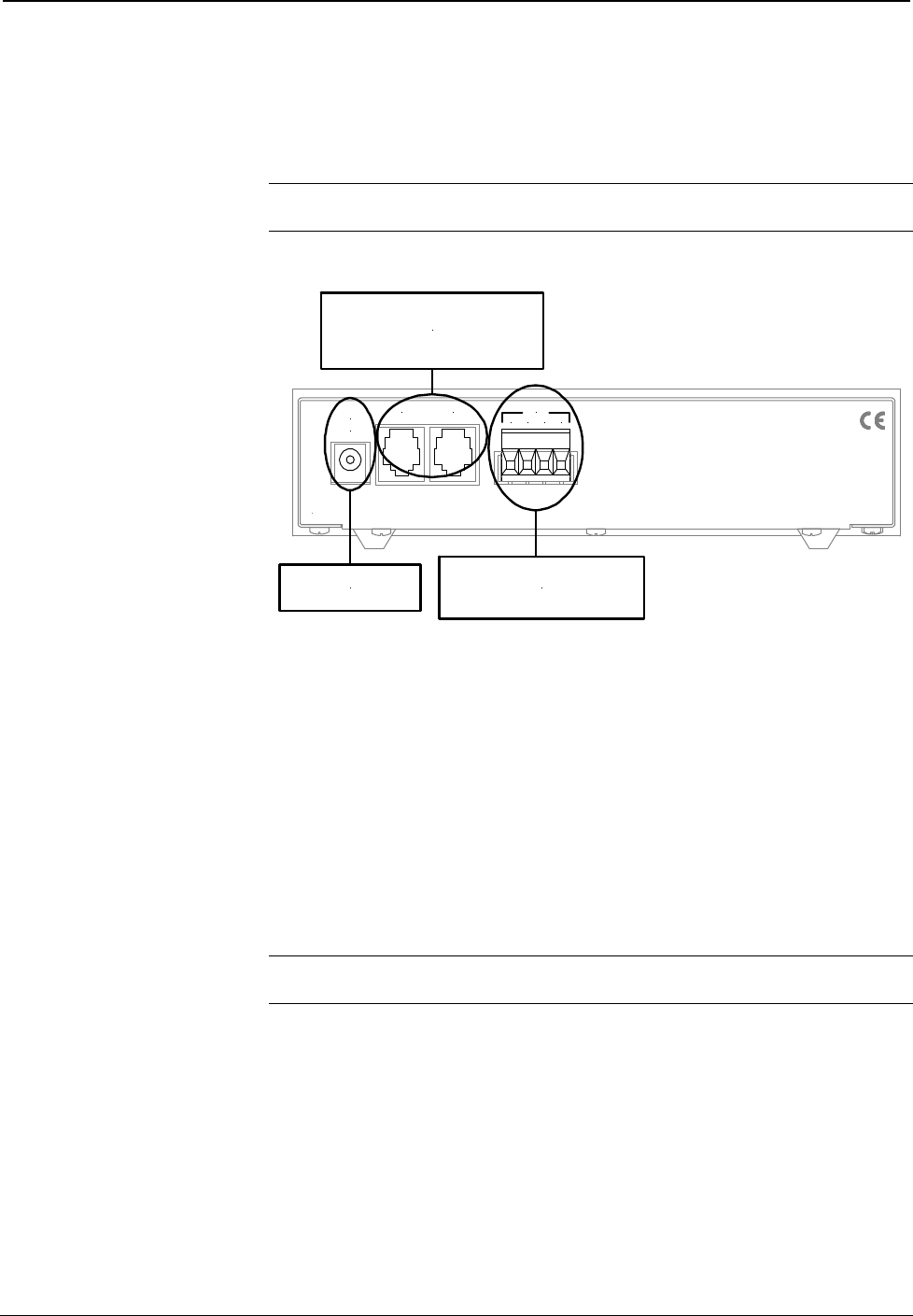

The rear panel of the STRFGWX contains the port for operating power and three
Cresnet ports. Each has a silk-screened label. Refer to the diagram below and the
following descriptions.
STRFGWX Rear Panel Ports
24 NET GZY
NETNET
.5A
12VDC
CRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USACRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USA
![](/img.php?id=175791&img=bg7.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 3
12 VDC .5 A
This direct current (DC) power socket connector is used to supply power via the
external power pack. Crestron recommends specific power packs for its devices. The
supplied power pack for the STRFGWX is Crestron part number PW-1205 (PWI-
1210 for international use). If a power pack other than this Crestron model is
obtained, verify that it meets the required specifications and polarity as shown after
this paragraph.

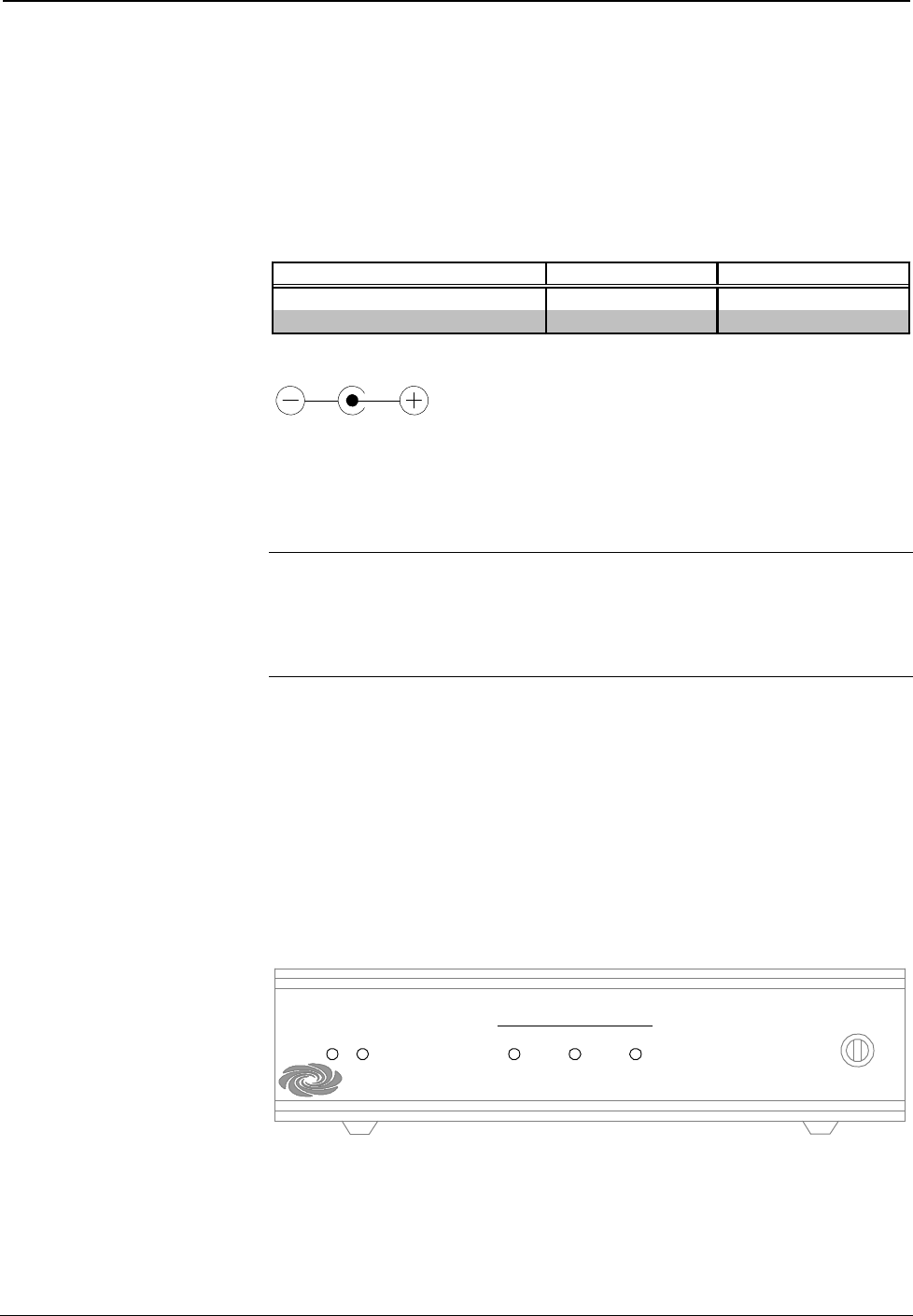

Power Pack Specifications
CRESTRON POWER PACK INPUT SPECS OUTPUT SPECS
PW-1205 120VAC~60 hertz (Hz) 12VDC .5A
PWI-1210 230VAC~50Hz 12VDC 1A
Power Pack Output Connector Polarity
NET (Modular Cresnet)
These two 6-pin, 6-position RJ11 modular jacks are used to connect the STRFGWX
to modular devices in the Cresnet system. Two NET ports are available so that
network units can be daisy-chained together.
NOTE: Most 6-conductor telephone cables are wired in a crisscross fashion and are
not compatible with Crestron equipment.
NOTE: All NET connectors, the two modular and the four-wire, can be used
simultaneously.
NET (Four-Wire Cresnet)
This 4-pin connector is used to connect the STRFGWX to other four-wire devices in
the Cresnet system.
STRFGWX Indicators
There are five LED indicators located on the front panel of the STRFGWX. Refer to
the diagram below and the descriptions on the next page. The front panel also has a
connector where the supplied antenna is attached. The antenna transmits and receives
the touchpanel RF signals.
STRFGWX Indicators
RF GATEWAY - 2 WAYRF GATEWAY - 2 WAY
PWR NET RxSIG
RF
Tx
STRFGWXSTRFGWX
ANTENNA
CRESTRONCRESTRON
![](/img.php?id=175791&img=bg8.png)
Two-Way RF Transceiver Crestron STRFGWX
4 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
PWR
This LED (green) illuminates when power is supplied to the STRFGWX.
NET
This LED (yellow) illuminates when communication with the Cresnet system and the
STRFGWX is established. Illumination indicates that the SIMPL program currently
loaded has a network device defined at the same NET ID code as the STRFGWX.
RF
These three red LEDs monitor the RF communications of the STRFGWX. The SIG
LED illuminates when the STRFGWX is in communication with a touchpanel. If
multiple units have been installed to expand the roaming capabilities of a touchpanel,
the SIG LED of the STRFGWX that is in communication with the touchpanel will be
illuminated, all others are out. The Rx LED illuminates when a command is received
from a touchpanel and Tx illuminates when a command is transmitted to a touchpanel.
Leading Specifications
The table below provides a summary of leading specifications for the STRFGWX.
Dimensions and weight are rounded to the nearest hundredth unit.
Leading Specifications of the STRFGWX
SPECIFICATION DETAILS
Power Requirements 12VDC, external power pack or
24VDC, 0.125 amps, 3W, network
Default NET ID
4F
1
RF Communications 2-Way, 418MHz
Operating Ranges
Minimum Distance 3 ft
2
Maximum Distance Indoor 50 to 75 ft
2
Maximum Distance Outdoor 150
ft
SIMPL Windows Version 1.30.01 or later 3
with the addition of
smwlib70.exe and smwlib70.txt. 3 OR
version 1.40.02 or later. 3
Crestron Database Version 12.1.4 or later 3 for SmarTouch
Wizard support or 12.1.3 later 3 for regular
support (use a CT-1600 model).
Firmware
STRFGWX Version 2.4.1 or later. 4 & 5
Touchpanel Version 5.077.0 or later. 4 & 5
CEN/CN-TVAV Update File Version 51205V.UPZ or later.
6
CNMSX-AV/Pro Update File Version 51020X.UPZ or later.
6
CNRACKX/-DP Update File Version 51020W.UPZ or later.
6
ST-CP Update File
Version 40104S.UPZ or later.
6
Dimensions & Weight
Height: 1.70 in
(4.32 cm)
Width: 7.07 in
(17.95 cm)
Depth: 6.32 in
(16.06 cm)
Weight: 2.10 lb (0.95 kg)
7
1 If changing the default NET ID, do NOT set the NET ID to 1B or the unit will have to
be returned to Crestron.
![](/img.php?id=175791&img=bg9.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 5
2 The location of the STRFGWX and the orientation of the antenna are important
factors in the RF performance. Locate the unit outside of any metal enclosures and
position the antenna horizontally, pointing straight out of the unit. Adjust the
antenna to achieve the best range. The range of the unit is also dependent on its
placement and the construction of the building in which it is used.
Installers can run multiple STRFGWX units which have built-in intelligence so that
if both (or several) gateways receive a button press from the touchpanel, only the
strongest signals produce an action in the control system. Crestron recommends that
the latest firmware be loaded into the STRFGWX and associated touchpanel(s). If
the firmware of the STRFGWX is upgraded, the associated touchpanel(s) must also
be upgraded at the same time.
3 The latest software version can be obtained from the What’s New page (SIMPL
Windows and Crestron Database sections) or Downloads page (SIMPLWIN and
CRESDB Libraries) of Crestron’s website.
4 STRFGWXs and touchpanels with later versions of firmware may include features
not mentioned in this guide. Newer versions of this guide can be obtained from the
Downloads page (MANUAL Library) of Crestron’s website.
5 To utilize firmware upgrade files, a STRFGWX with a firmware version earlier than
1.5.0 must be returned to Crestron. The upgrade files can be obtained from the
What’s New page (Touchpanels section) or the Downloads page (TOUCHPNL and
UPGRADES Libraries) of Crestron’s website (www.crestron.com). New users are
required to register in order to obtain access to the FTP site. Crestron recommends
that the latest firmware be loaded into the STRFGWX and associated touchpanel(s).
If the firmware of the STRFGWX is upgraded, the associated touchpanel(s) must
also be upgraded at the same time.
6 CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP.
Filenames for CNX update files have a UPZ extension and SmarTouch files are in
one EXE or zipped UPZ file. All can be obtained from the What’s New page
(Control Systems Update Files section) or Downloads page (OPSYS Library) of
Crestron’s website.
7 The weight listed is for the STRFGWX and does not include 4-pin connector plug or
external power pack.
NOTE: Equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. The equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
n Consult the dealer or an experienced radio/TV technician for help.
As of the date of manufacture, the unit has been tested and found to comply with
specifications for CE marking.
![](/img.php?id=175791&img=bga.png)
Two-Way RF Transceiver Crestron STRFGWX
6 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
Setup
Network Wiring
NOTE: If making category 5 connections to the Cresnet peripherals, refer to the
latest revision of the Cresnet Mini Network CAT 5 Interconnect Drawing (Doc.
5819). This document can be obtained from the Downloads page (CABLES and
MANUAL Libraries) of Crestron’s website (www.crestron.com). Search for
CAT5.PDF. New users are required to register in order to obtain access to the site.
NOTE: Review the latest revision of the Network Modular Cable Requirements
(Doc. 5682). This document can be obtained from the Downloads page (CABLES
and MANUAL Libraries) of Crestron’s website (www.crestron.com). Search for
MODULAR.PDF.
When calculating the wire gauge for a particular Cresnet run, the length of the run
and the load factor of each network unit to be connected must be taken into
consideration. If Cresnet units are to be daisy-chained on the run, the load factor of
each unit to be daisy-chained must be added together to determine the load factor of
the entire chain. If the unit is a home-run from a Crestron system power supply
network port, the load factor of that unit is the load factor of the entire run. The
length of the run in feet and the load factor of the run should be used in the resistance
equation on the next page to calculate the value on the right side of the equation.
Resistance Equation
R = Resistance (refer to next table).
L = Length of run (or chain) in feet.
LF = Load factor of entire run (or chain).
R < L x LF
40,000 Where:
The required wire gauge should be chosen such that the resistance value is less than
the value calculated in the resistance equation. Refer to the table below.
Wire Gauge Values
RESISTANCE (R) WIRE GAUGE
416
618
10 20
15 22
13 24 (Double-CAT 5)
NOTE: All Cresnet wiring must consist of two twisted-pairs. One twisted pair is the
+24V conductor and the GND conductor and the other twisted pair is the Y
conductor and the Z conductor.
NOTE: When daisy-chaining Cresnet units, always twist the ends of the incoming
wire and outgoing wire which share a pin on the network connector. After twisting
the ends, tin the twisted connection with solder. Apply solder only to the ends of the
twisted wires. Avoid tinning too far up the wires or the end becomes brittle. After
tinning the twisted ends, insert the tinned connection into the Cresnet connector and
tighten the retaining screw. Repeat the procedure for the other three conductors.
![](/img.php?id=175791&img=bgb.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 7
Preparation for Use
Refer to the hookup diagram below which shows the STRFGWX connections to the
Cresnet system. Other than making the power connection last, complete the
connections in any order.
NOTE: Refer to “Network Wiring” on page 6 when making connections to the
ports labeled NET.
Cresnet System Hookup Connections for STRFGWX
24 NET GZY
NETNET
.5A
12VDC
CRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USACRESTRON ELECTRONICS INC. ROCKLEIGH, N.J. 07647 USA
FROM EXTERNAL
POWER PACK
TO CONTROL SYSTEM
FOR NORMAL OPERATION
OR PROGRAMMING
TO ANY STS OR CRESNET
NETWORK DEVICES FOR
NORMAL OPERATION OR
FOR PROGRAMMING
Identity Codes
The STRFGWX possesses two distinct types of identity codes: NET ID and RF
CHANNEL. These codes are assigned to the unit from Crestron software.
Identity Code
Every equipment and user interface within the Cresnet system requires a unique NET
ID. These codes are recognized by a two-digit hexadecimal number from 03 to FE.
The NET ID of the unit must match an ID code specified in the SIMPL Windows
program. The NET ID of the STRFGWX is factory set to 4F. The NET IDs of
multiple STRFGWXs must all be unique and changed from a personal computer
(PC) via SIMPL Windows or VT Pro-e.
NOTE: VT Pro-e is a Windows compatible software package for creating Crestron
touchpanel screen designs.
The method for changing the unit’s NET ID is identical regardless of the software
chosen. Complete the following steps to change the NET ID.
1. Attach one of the STRFGWXs to the control system (verify that the
software is running).
2. From the SIMPL Windows or VT Pro-e menu, select Tools | Viewport
to open the Crestron Viewport.
3. From the Viewport menu, select Functions | Set Network ID. The
software checks the baud rate and then opens the “Set Network ID”
dialog box.
![](/img.php?id=175791&img=bgc.png)
Two-Way RF Transceiver Crestron STRFGWX
8 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
4. In the “Set Network ID” dialog box, select the STRFGWX from the
Current Network Devices text window.
CAUTION: If changing the default NET ID, do NOT set the NET ID to 1B or the
unit will have to be returned to Crestron.
5. From the Choose the new network ID for the selected device (Hex): text
box, select the new Net ID for the STRFGWX.
6. Click Set ID to initiate the change. This will display the “ID command
has been sent” dialog box.
7. In the “Command Complete” dialog box, click OK.
8. In the Current Network Devices text window, verify the new NET ID
code.
9. In the “Set Network ID” dialog box, click Close.
NOTE: The new NET ID code may also be verified by selecting Diagnostic |
Report Network Devices in the Viewport.
10. Repeat this procedure for each STRFGWX to be added to the Cresnet
system.
RF Channel
Each STRFGWX communicating to a STX-1550C touchpanel must have a RF
CHANNEL that matches the RF CHANNEL of the touchpanel. There are 16
possible channels ranging from 0 to F (hexadecimal number). The same channel may
be used for more than one STRFGWX when used to expand the roaming capabilities
of a touchpanel within any particular area(s) or installation.
The RF channel is set from a PC via SIMPL Windows or VT Pro-e but the method
for changing the unit’s RF channel is identical regardless of the software chosen.
Complete the following steps to set the RF channel.
1. Attach one of the STRFGWXs to the control system (verify that the
software is running).
2. From the SIMPL Windows or VT Pro-e menu, select Tools | Viewport
to open the Crestron Viewport.
3. From the Viewport menu, select Functions | Set RFGWX Channel.
The software checks the baud rate and then opens the “RFGWX
Channel ID” dialog box.
4. In the top-portion of the “RFGWX Channel ID” dialog box, select the
NET ID of the STRFGWX that requires the RF channel set.
5. In the bottom-portion of the “RFGWX Channel ID” dialog box, select
the desired RF channel then click OK.
6. In the “Success” window, click OK.
7. From the Viewport menu, select Diagnostics | Report Network
Devices and verify that the unit has the desired RF channel.
8. Repeat this procedure for each STRFGWX to be added to the Cresnet
system.
![](/img.php?id=175791&img=bgd.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 9
Firmware Upgrade
To upgrade the firmware of the STRFGWX, a local PC that contains the Crestron
Viewport (available in SIMPL Windows or VT Pro-e) is required. To connect the PC
to the control system, refer to the “Obtaining Communications” section of the
Operators Guide supplied with the appropriate control system. The latest version of
the Operations Guides can be obtained from the Downloads page (MANUAL
Library) of Crestron’s website (www.crestron.com). New users are required to
register in order to obtain access to the FTP site.
Firmware upgrade files are obtained from the What’s New page (Touchpanels
section) or the Downloads page (TOUCHPNL and UPGRADES Libraries) of
Crestron’s website. There have been two releases of STRFGWX firmware 1.5.0, PIC
Ver 15 and 1.66 PIC Ver 19. Both versions may be directly upgraded to [2.4.1] PIC
Ver 22. To upgrade the STRFGWX firmware, complete the following steps.
CAUTION: To utilize firmware upgrade files, a STRFGWX with a firmware
version earlier than 1.5.0 must be returned to Crestron. Refer to “Merchandise
Returns / Repair Service” on page 16 for further information. Do NOT attempt to
upgrade those firmware versions.
CAUTION: Do NOT disconnect power from the STRFGWX until the firmware
upgrade is complete and the RX and TX front panel LEDs remain unlit for
approximately 50 seconds. Otherwise, unit will have to be returned to Crestron.
1. Make sure that no programs accessing the COM port of the PC.
2. At the PC, start SIMPL Windows or VT Pro-e.
3. From the SIMPL Windows or VT Pro-e menu bar, select Tools |
Viewport to open the Crestron Viewport.
NOTE: SIMPL Windows may open with an opening splash screen and may display
the “What do you want to do?” dialog box. If so, close the dialog box and continue.
4. Refer to figure below. From the Viewport menu, select Setup |
Communications settings (alternatively, depress Alt+D) to open
the Port Settings dialog box.
Accessing the Port Settings Dialog Box
![](/img.php?id=175791&img=bge.png)
Two-Way RF Transceiver Crestron STRFGWX
10 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
5. Refer to the dialog box shown below and verify the
communications settings. Make sure that parity is set to None, data
bits to Eight, and XModem is selected.
Port Settings Dialog Box
6. As shown below, select File Transfer | Load Network Device
from the Viewport menu.
Select Load Network Device
7. As shown on the next page, select the NET ID of the STRFGWX
and then click OK.
![](/img.php?id=175791&img=bgf.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 11
“Select Network ID” Dialog Box
8. As shown below, select the downloaded firmware (UPG) file and
click Open. The transfer will complete automatically.
“Select Firmware” Dialog Box
NOTE: During the next step, do not interrupt power until the message is displayed.
If the LEDs blink sporadically and the unit does NOT report the new version,
disconnect the power and contact a Crestron customer support representative.
NOTE: In the message in the next step, 7D and chan a have been user defined.
9. When the transfer is complete, observe the blinking RX and TX
front panel LEDs. The LEDs will blink for 20 seconds, turn off for
10 seconds, and blink again for 20 seconds. Press F4 to verify
completion of the process. The unit will report the message below
in the Viewport.
7D: STRFGWX [2.4.1] RF chan a PIC Ver 22.
NOTE: When the firmware of the STRFGWX is upgraded, the associated
touchpanel(s) must also be upgraded. The units will not function properly if not
upgraded with compatible firmware.
10. If the touchpanel firmware upgrade HAS been completed, close
the Viewport, exit SIMPL Windows or VT Pro-e, and disconnect
the programming cable from the PC and the control system.
If NOT completed, perform the touchpanel firmware upgrade
utilizing the firmware (CSF) file included with the download.
Refer to the latest revision of the Operations Guide for the
appropriate touchpanel for the firmware upgrade procedure. The
latest version of the Operations Guides can be obtained from the
Downloads page (MANUAL Library) of Crestron’s website
(www.crestron.com). New users are required to register in order to
obtain access to the FTP site.
![](/img.php?id=175791&img=bg10.png)
Two-Way RF Transceiver Crestron STRFGWX
12 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
Programming with SIMPL Windows
SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use
programming language that is completely integrated and compatible with all
Crestron system hardware. The objects that are used in SIMPL are called symbols.
SIMPL Windows offers drag and drop functionality in a familiar Windows®
environment.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system.
The next two sections describe a STRFGWX within SIMPL Windows. The first
section provides initial configuration information and the second section provides the
location of example programs.
NOTE: The following descriptions assume that the reader has knowledge of SIMPL
Windows. If not, refer to the extensive help information provided with the software.
Configure STRFGWX Program
To create a program with a STRFGWX, refer to the table on the next page for initial
configuration information.
CAUTION: If changing the default NET ID, do NOT set the NET ID to 1B or the
unit will have to be returned to Crestron.
Configure STRFGWX Program
SYMBOL
SYMBOL
DROP
ADDITIONAL
FOLDER REQUIRED WHERE SETUP
Device Library,
Control
Systems
Desired control
system System Views Refer to the documentation
supplied with the specific control
system for additional setup
information.
Device Library,
Wireless
Receivers (RF)
STRFGWX System Views,
Cresnet Units CHANGE NET ID (OPTIONAL) -
Double-click on STRFGWX (or
single-click then right mouse-
click) on STRFGWX. Select
Configure. Select NET ID then
select desired hexidecimal ID.
CHANGE RF ID (OPTIONAL) -
Single-click on STRFGWX. In the
System Views Detail Window,
double-click (or single-click then
right mouse-click, select
Configure) on name of touch-
panel in STRF Address text
window. Select Configure.
Select RF ID then select desired
hexidecimal ID.
System Views,
STRFGWX
STX-1550C
(also used for
STX-1550CW)
Device Library,
Touchpanels
(Wireless)
![](/img.php?id=175791&img=bg11.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 13
Example Program
The STRFGWX resides on the Cresnet system and communicates to the STX-1550C
or STX-1550CW touchpanels (sold separately). For a description of an example
SIMPL Windows program that utilizes a STRFGWX and a STX-1550C touchpanel,
refer to the latest revision of the STX-1550C Operations Guide (Doc. 5812). This
document can be obtained from the Downloads page (MANUAL Library) of
Crestron’s website (www.crestron.com). Search for STX1550C.ZIP. New users are
required to register in order to obtain access to the FTP site.
Problem Solving
Troubleshooting
The table below and continued on the next page provides corrective action for
possible trouble situations. If further assistance is required, please contact a Crestron
customer service representative.
STRFGWX Troubleshooting
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
PWR LED does
not illuminate.
STRFGWX is not
receiving power.
Verify that power is supplied to the unit
via external power pack or network.
STRFGWX NET ID is not
set to match the NET ID
of the SIMPL program.
Enter Viewport and poll the network.
Verify that the NET ID for the
STRFGWX is properly set to match the
SIMPL program. (Note that NET ID and
RF ID are separate parameters.)
NET ID setting changes
after STRFGWX is
powered up.
Power down STRFGWX. Power up to
reset NET ID.
Unit is not comm-
unicating on network.
Check network cabling for solid
connections and correct pinouts.
STRFGWX RF ID does
not match the RF ID of
the SIMPL program.
Enter Viewport and poll the network.
Verify that the RF ID for the STRFGWX
is properly set to match the SIMPL
program. (Note that NET ID and RF ID
are separate parameters.)
Touchpanel is set to
wrong RF ID.
Verify that touchpanel RF ID is properly
set to match the RF ID set in the
Viewport. Refer to the "Setup Menu"
section in the latest revision of the
Operations Guide for the touchpanel.
STRFGWX NET ID is not
unique, two or more units
share the same NET ID.
Verify that the NET IDs for all
STRFGWXs are unique when multiple
STRFGWs are used.
Touchpanel has never
operated.
Operate touchpanel. LED will remain
illuminated after first communication
with touchpanel.
Multiple STRFGWXs are
being used.
None required. Only the indicator of the
STRFGWX in communication with a
touchpanel will illuminate, all others will
not be illuminated.
NET LED does
not illuminate.
SIG LED does
not illuminate.
NET LED is on,
but unit does not
provide control.
![](/img.php?id=175791&img=bg12.png)
Two-Way RF Transceiver Crestron STRFGWX
14 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
STRFGWX Troubleshooting (continued)
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
Touchpanel is out of
range. Position the touchpanel to within
operating range. Refer to "Leading
Specifications" on page 4 for details.
Verify that the STRFGWX and
touchpanel are on the same RF
CHANNEL. Refer to "RF Channel" that
begins on page 7 for details.
Refer to the "Setup Menu" section in the
latest revision of the Operations Guide
for the touchpanel.
Roaming area is too
large and touchpanel
becomes out of range.
Install an additional STRFGWX in area
to expand roaming area.
STRFGWX is in vicinity
of metal.
Verify that large amount of metal is not
in vicinity of transmission.
Touchpanel is too close
to STRFGWX. Position the touchpanel to within
operating range. Refer to "Leading
Specifications" on page 4 for details.
Network wiring is
incorrect. Check network cabling for solid
connections and correct pinouts.
STRFGWX is damaged. Contact a Crestron customer service
representative.
Intermittent
response from
STRFGWX
during
communication
with touchpanel.
Rx LED does not
illuminate when
operating
touchpanel or Tx
LED illuminates
when active, but
touchpanel does
not respond.
STRFGWX does
not report NET
ID when polling
the network
through
Viewport. Other
devices are
reported.
STRFGWX and
touchpanel is not on
same RF CHANNEL.
Further Inquiries
If after reviewing this Operations Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning customer service
team by calling:
• In the US and Canada, call Crestron’s corporate headquarters at
1-888-Crestron [1-888-273-7876] or 1-201-767-3400.
• In Europe, call Crestron International at +32-15-50-99-50.
• In Asia, call Crestron Asia at +852-2341-2016.
• In Latin America, call Crestron Latin America at +525-260-4336.
For local support from exclusive Crestron factory-trained personnel call:
• In Australia, call Soundcorp at +613-9488-1555.
• In New Zealand, call Amber Technologies at +649-410-8382.
![](/img.php?id=175791&img=bg13.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 15
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of
the STRFGWX, additional information and programming examples may be made
available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation
revision.
The Downloads page of the Crestron website (www.crestron.com) directs the reader
to the location and description of each update. Check the site periodically for update
availability and its subjective value. New users are required to register in order to
obtain access to the FTP site.
Future Firmware Upgrades
As Crestron improves functions, adds new features, and extends the capabilities of
the STRFGWX, firmware upgrades may be made available.
The upgrade files can be obtained from the What’s New page (Touchpanels section)
or the Downloads page (TOUCHPNL and UPGRADES Libraries) of Crestron’s
website. To utilize firmware upgrade files, a STRFGWX with a firmware version
earlier than 1.5.0 must be returned to Crestron. If the firmware of the STRFGWX is
upgraded, the associated touchpanel(s) must also be upgraded.
![](/img.php?id=175791&img=bg14.png)
Two-Way RF Transceiver Crestron STRFGWX
16 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or service
without prior authorization from Crestron. To obtain warranty service
for Crestron products, contact the factory and request an RMA (Return
Merchandise Authorization) number. Enclose a note specifying the
nature of the problem, name and phone number of contact person,
RMA number, and return address.
2. Products may be returned for credit, exchange, or service with a
Crestron Return Merchandise Authorization (RMA) number.
Authorized returns must be shipped freight prepaid to Crestron,
Cresskill, N.J., or its authorized subsidiaries, with RMA number clearly
marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. Crestron
reserves the right in its sole and absolute discretion to charge a 15%
restocking fee, plus shipping costs, on any products returned with an
RMA.
3. Return freight charges following repair of items under warranty shall
be paid by Crestron, shipping by standard ground carrier. In the event
repairs are found to be non-warranty, return freight costs shall be paid
by the purchaser.
Crestron Limited Warranty
Crestron ELECTRONICS, Inc. warrants its Cresnet products, denoted by a "CN"
prefix model number, to be free from manufacturing defects in materials and
workmanship for a period of three (3) years from the date of shipment to purchaser.
Disk drives and any other moving or rotating mechanical parts are covered for a
period of one (1) year. Crestron warrants all its other products for a period of one
year from the defects mentioned above, excluding touchscreen display components
which are covered for 90 days. Incandescent lamps are completely excluded from
Crestron's Limited Warranty. Crestron shall, at its option, repair or replace any
product found defective without charge for parts or labor. Repaired or replaced
equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Crestron shall not be liable to honor warranty terms if the product has been used in
any application other than that for which it was intended, or if it has been subjected
to misuse, accidental damage, modification, or improper installation procedures.
Furthermore, this warranty does not cover any product that has had the serial number
altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the purchaser. In no event
shall Crestron be liable for incidental or consequential damages of any kind
(property or economic damages inclusive) arising from the sale or use of this
equipment. Crestron makes no other warranties nor authorizes any other party to
offer any warranty, expressed or implied, including warranties of merchantability for
this product. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their respective
owners. Windows is a registered trademark of Microsoft Corporation. Windows 95/98/Me and
Windows NT/2000 are trademarks of Microsoft Corporation.
![](/img.php?id=175791&img=bg15.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 17
This page intentionally left blank.
![](/img.php?id=175791&img=bg16.png)
Two-Way RF Transceiver Crestron STRFGWX
18 •• Two-Way RF Transceiver: STRFGWX Operations Guide - DOC. 5811A
This page intentionally left blank.
![](/img.php?id=175791&img=bg17.png)
Crestron STRFGWX Two-Way RF Transceiver
Operations Guide - DOC. 5811A Two-Way RF Transceiver: STRFGWX •• 19
This page intentionally left blank.
![](/img.php?id=175791&img=bg18.png)
Crestron Electronics, Inc. Operations Guide – DOC. 5811A
15 Volvo Drive Rockleigh, NJ 07647 04.01
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
