Cross Point XM1356 Inductive proximity card reader User Manual

Cross Point b.v. Inductive proximity card reader

user manual

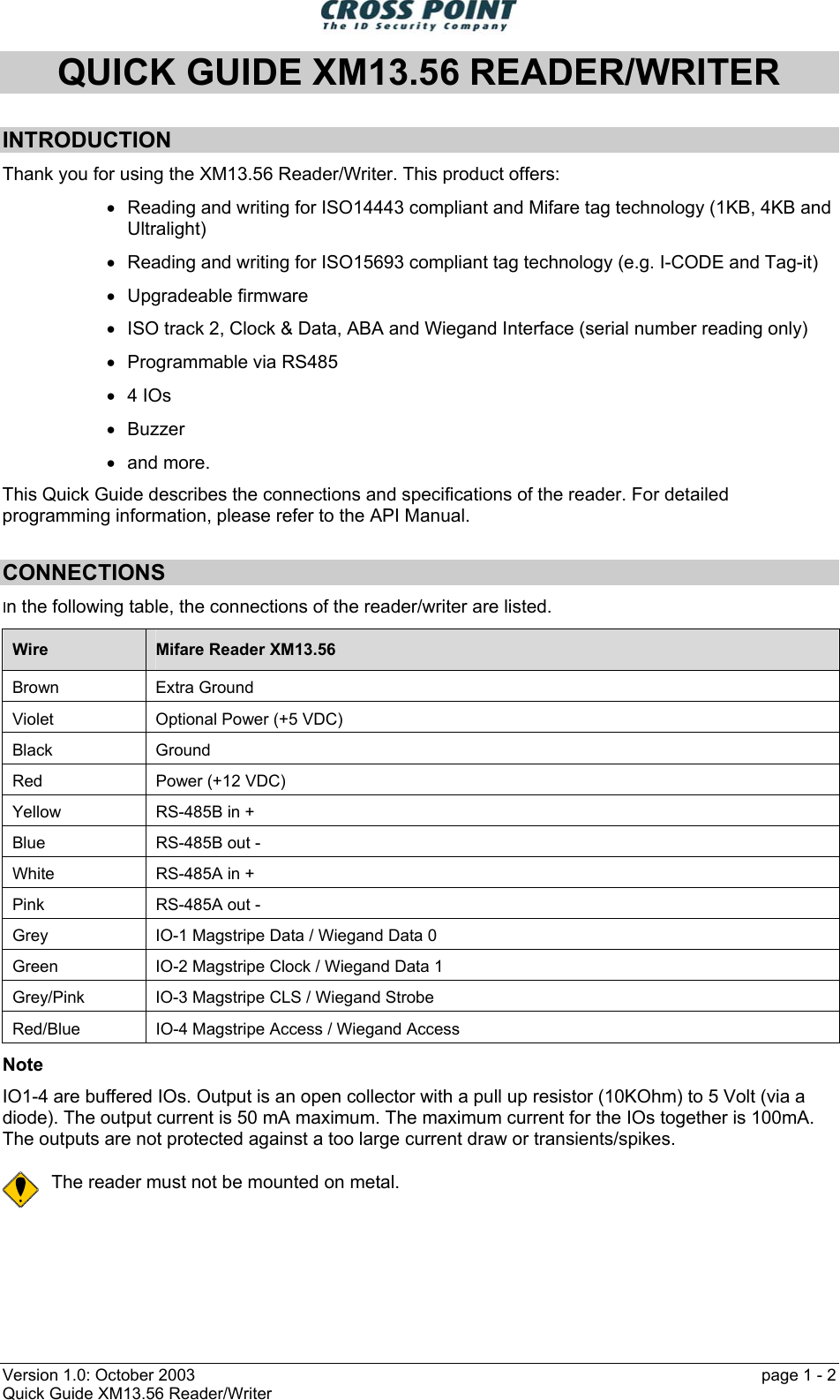

Version 1.0: October 2003 page 1 - 2 Quick Guide XM13.56 Reader/Writer QUICK GUIDE XM13.56 READER/WRITER INTRODUCTION Thank you for using the XM13.56 Reader/Writer. This product offers: • Reading and writing for ISO14443 compliant and Mifare tag technology (1KB, 4KB and Ultralight) • Reading and writing for ISO15693 compliant tag technology (e.g. I-CODE and Tag-it) • Upgradeable firmware • ISO track 2, Clock & Data, ABA and Wiegand Interface (serial number reading only) • Programmable via RS485 • 4 IOs • Buzzer • and more. This Quick Guide describes the connections and specifications of the reader. For detailed programming information, please refer to the API Manual. CONNECTIONS In the following table, the connections of the reader/writer are listed. Wire Mifare Reader XM13.56 Brown Extra Ground Violet Optional Power (+5 VDC) Black Ground Red Power (+12 VDC) Yellow RS-485B in + Blue RS-485B out - White RS-485A in + Pink RS-485A out - Grey IO-1 Magstripe Data / Wiegand Data 0 Green IO-2 Magstripe Clock / Wiegand Data 1 Grey/Pink IO-3 Magstripe CLS / Wiegand Strobe Red/Blue IO-4 Magstripe Access / Wiegand Access Note IO1-4 are buffered IOs. Output is an open collector with a pull up resistor (10KOhm) to 5 Volt (via a diode). The output current is 50 mA maximum. The maximum current for the IOs together is 100mA. The outputs are not protected against a too large current draw or transients/spikes. The reader must not be mounted on metal.

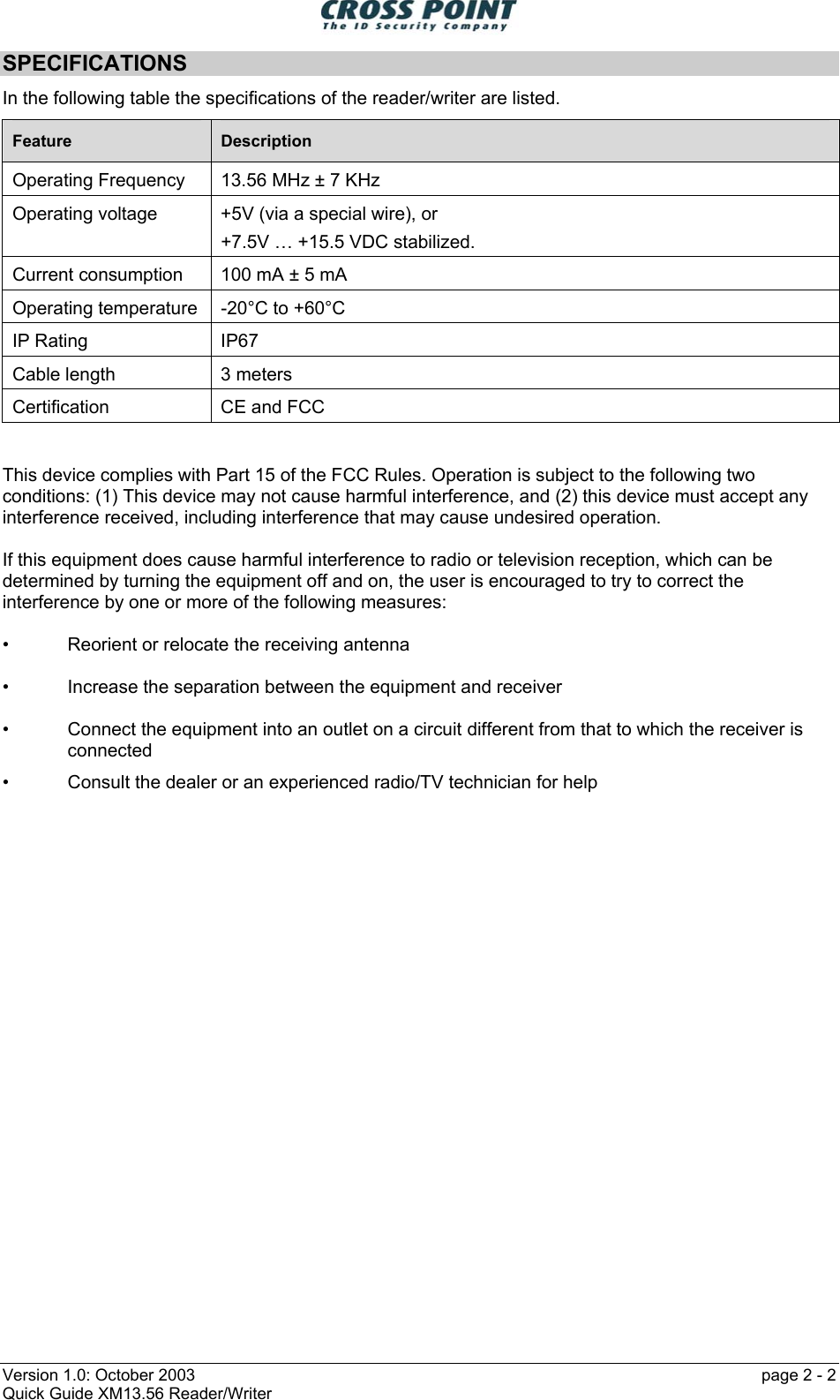

Version 1.0: October 2003 page 2 - 2 Quick Guide XM13.56 Reader/Writer SPECIFICATIONS In the following table the specifications of the reader/writer are listed. Feature Description Operating Frequency 13.56 MHz ± 7 KHz Operating voltage +5V (via a special wire), or +7.5V … +15.5 VDC stabilized. Current consumption 100 mA ± 5 mA Operating temperature -20°C to +60°C IP Rating IP67 Cable length 3 meters Certification CE and FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help
