Cubix Latin America QSPR-303BT Bluetooth Speaker User Manual QSPR 303BT

Cubix Latin America, LLC Bluetooth Speaker QSPR 303BT

Users Manual

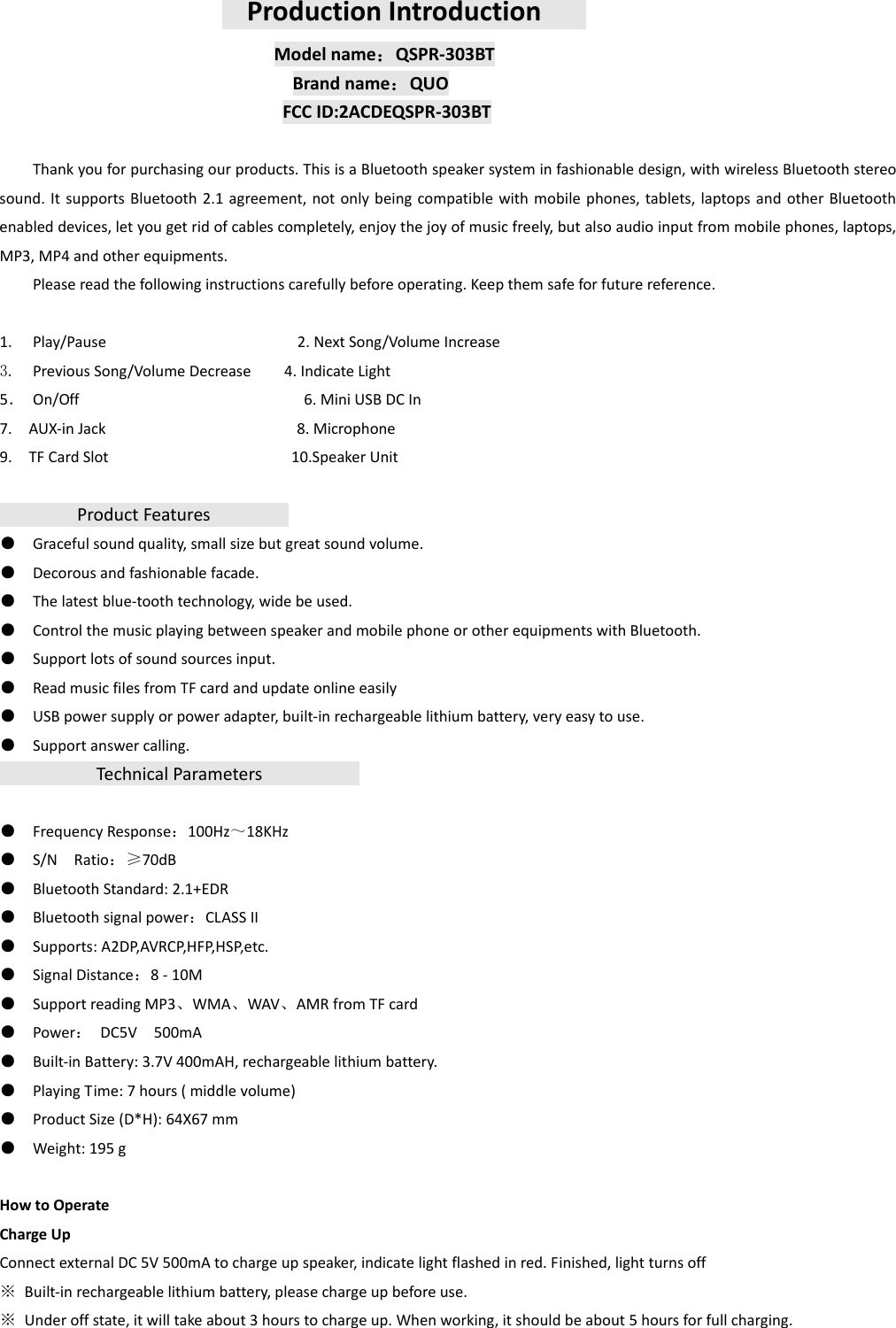

ProductionIntroductionModelname：QSPR‐303BTBrandname：QUOFCCID:2ACDEQSPR‐303BTThankyouforpurchasingourproducts.ThisisaBluetoothspeakersysteminfashionabledesign,withwirelessBluetoothstereosound.ItsupportsBluetooth2.1agreement,notonlybeingcompatiblewithmobilephones,tablets,laptopsandotherBluetoothenableddevices,letyougetridofcablescompletely,enjoythejoyofmusicfreely,butalsoaudioinputfrommobilephones,laptops,MP3,MP4andotherequipments.Pleasereadthefollowinginstructionscarefullybeforeoperating.Keepthemsafeforfuturereference.1. Play/Pause2.NextSong/VolumeIncrease3. PreviousSong/VolumeDecrease4.IndicateLight5．On/Off  6.MiniUSBDCIn7.AUX‐inJack8.Microphone9.TFCardSlot10.SpeakerUnit ProductFeatures● Gracefulsoundquality,smallsizebutgreatsoundvolume.● Decorousandfashionablefacade.● Thelatestblue‐toothtechnology,widebeused.● ControlthemusicplayingbetweenspeakerandmobilephoneorotherequipmentswithBluetooth.● Supportlotsofsoundsourcesinput.● ReadmusicfilesfromTFcardandupdateonlineeasily● USBpowersupplyorpoweradapter,built‐inrechargeablelithiumbattery,veryeasytouse.● Supportanswercalling.TechnicalParameters ● FrequencyResponse：100Hz～18KHz● S/NRatio：≥70dB● BluetoothStandard:2.1+EDR● Bluetoothsignalpower：CLASSII● Supports:A2DP,AVRCP,HFP,HSP,etc.● SignalDistance：8‐10M● SupportreadingMP3、WMA、WAV、AMRfromTFcard● Power：DC5V500mA● Built‐inBattery:3.7V400mAH,rechargeablelithiumbattery.● PlayingTime:7hours(middlevolume)● ProductSize(D*H):64X67mm● Weight:195gHowtoOperateChargeUpConnectexternalDC5V500mAtochargeupspeaker,indicatelightflashedinred.Finished,lightturnsoff※Built‐inrechargeablelithiumbattery,pleasechargeupbeforeuse.※Underoffstate,itwilltakeabout3hourstochargeup.Whenworking,itshouldbeabout5hoursforfullcharging.

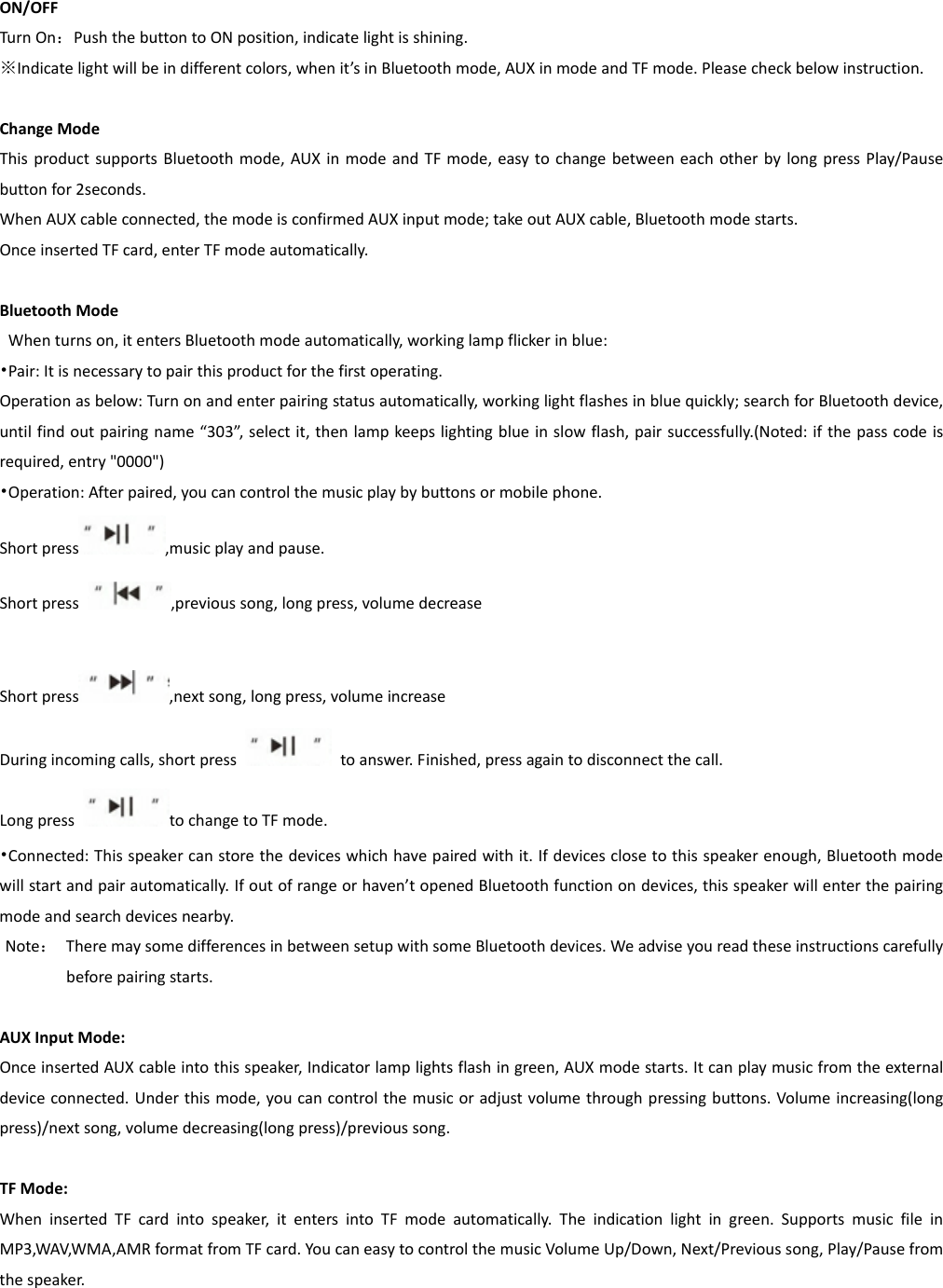

ON/OFFTurnOn：PushthebuttontoONposition,indicatelightisshining.※Indicatelightwillbeindifferentcolors,whenit’sinBluetoothmode,AUXinmodeandTFmode.Pleasecheckbelowinstruction.ChangeModeThisproductsupportsBluetoothmode,AUXinmodeandTFmode,easytochangebetweeneachotherbylongpressPlay/Pausebuttonfor2seconds.WhenAUXcableconnected,themodeisconfirmedAUXinputmode;takeoutAUXcable,Bluetoothmodestarts.OnceinsertedTFcard,enterTFmodeautomatically. BluetoothModeWhenturnson,itentersBluetoothmodeautomatically,workinglampflickerinblue:•Pair:Itisnecessarytopairthisproductforthefirstoperating.Operationasbelow:Turnonandenterpairingstatusautomatically,workinglightflashesinbluequickly;searchforBluetoothdevice,untilfindoutpairingname“303”,selectit,thenlampkeepslightingblueinslowflash,pairsuccessfully.(Noted:ifthepasscodeisrequired,entry"0000")•Operation:Afterpaired,youcancontrolthemusicplaybybuttonsormobilephone.Shortpress ,musicplayandpause.Shortpress,previoussong,longpress,volumedecreaseShortpress ,nextsong,longpress,volumeincreaseDuringincomingcalls,shortpresstoanswer.Finished,pressagaintodisconnectthecall.LongpresstochangetoTFmode.•Connected:Thisspeakercanstorethedeviceswhichhavepairedwithit.Ifdevicesclosetothisspeakerenough,Bluetoothmodewillstartandpairautomatically.Ifoutofrangeorhaven’topenedBluetoothfunctionondevices,thisspeakerwillenterthepairingmodeandsearchdevicesnearby.Note：TheremaysomedifferencesinbetweensetupwithsomeBluetoothdevices.Weadviseyoureadtheseinstructionscarefullybeforepairingstarts.AUXInputMode:OnceinsertedAUXcableintothisspeaker,Indicatorlamplightsflashingreen,AUXmodestarts.Itcanplaymusicfromtheexternaldeviceconnected.Underthismode,youcancontrolthemusicoradjustvolumethroughpressingbuttons.Volumeincreasing(longpress)/nextsong,volumedecreasing(longpress)/previoussong.TFMode:WheninsertedTFcardintospeaker,itentersintoTFmodeautomatically.Theindicationlightingreen.SupportsmusicfileinMP3,WAV,WMA,AMRformatfromTFcard.YoucaneasytocontrolthemusicVolumeUp/Down,Next/Previoussong,Play/Pausefromthespeaker.

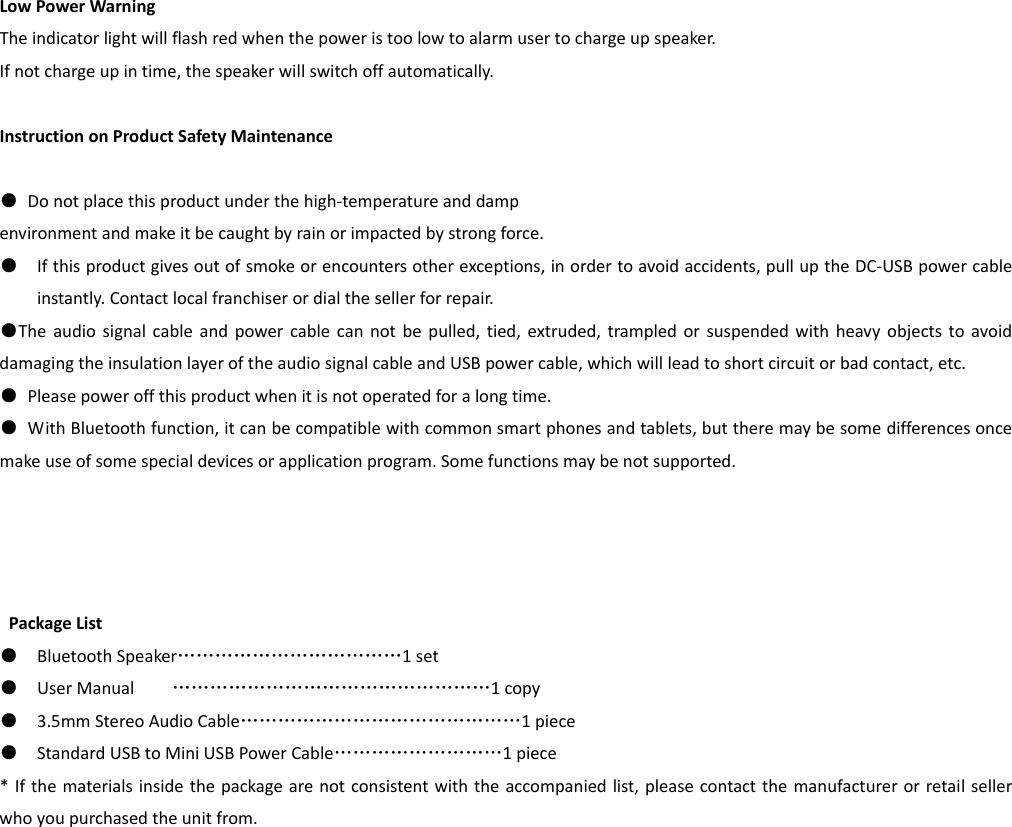

LowPowerWarningTheindicatorlightwillflashredwhenthepoweristoolowtoalarmusertochargeupspeaker.Ifnotchargeupintime,thespeakerwillswitchoffautomatically.InstructiononProductSafetyMaintenance●Donotplacethisproductunderthehigh‐temperatureanddampenvironmentandmakeitbecaughtbyrainorimpactedbystrongforce.● Ifthisproductgivesoutofsmokeorencountersotherexceptions,inordertoavoidaccidents,pulluptheDC‐USBpowercableinstantly.Contactlocalfranchiserordialthesellerforrepair.●Theaudiosignalcableandpowercablecannotbepulled,tied,extruded,trampledorsuspendedwithheavyobjectstoavoiddamagingtheinsulationlayeroftheaudiosignalcableandUSBpowercable,whichwillleadtoshortcircuitorbadcontact,etc.●Pleasepoweroffthisproductwhenitisnotoperatedforalongtime.●WithBluetoothfunction,itcanbecompatiblewithcommonsmartphonesandtablets,buttheremaybesomedifferencesoncemakeuseofsomespecialdevicesorapplicationprogram.Somefunctionsmaybenotsupported.PackageList● BluetoothSpeaker………………………………1set● UserManual……………………………………………1copy● 3.5mmStereoAudioCable………………………………………1piece● StandardUSBtoMiniUSBPowerCable………………………1piece*Ifthematerialsinsidethepackagearenotconsistentwiththeaccompaniedlist,pleasecontactthemanufacturerorretailsellerwhoyoupurchasedtheunitfrom.

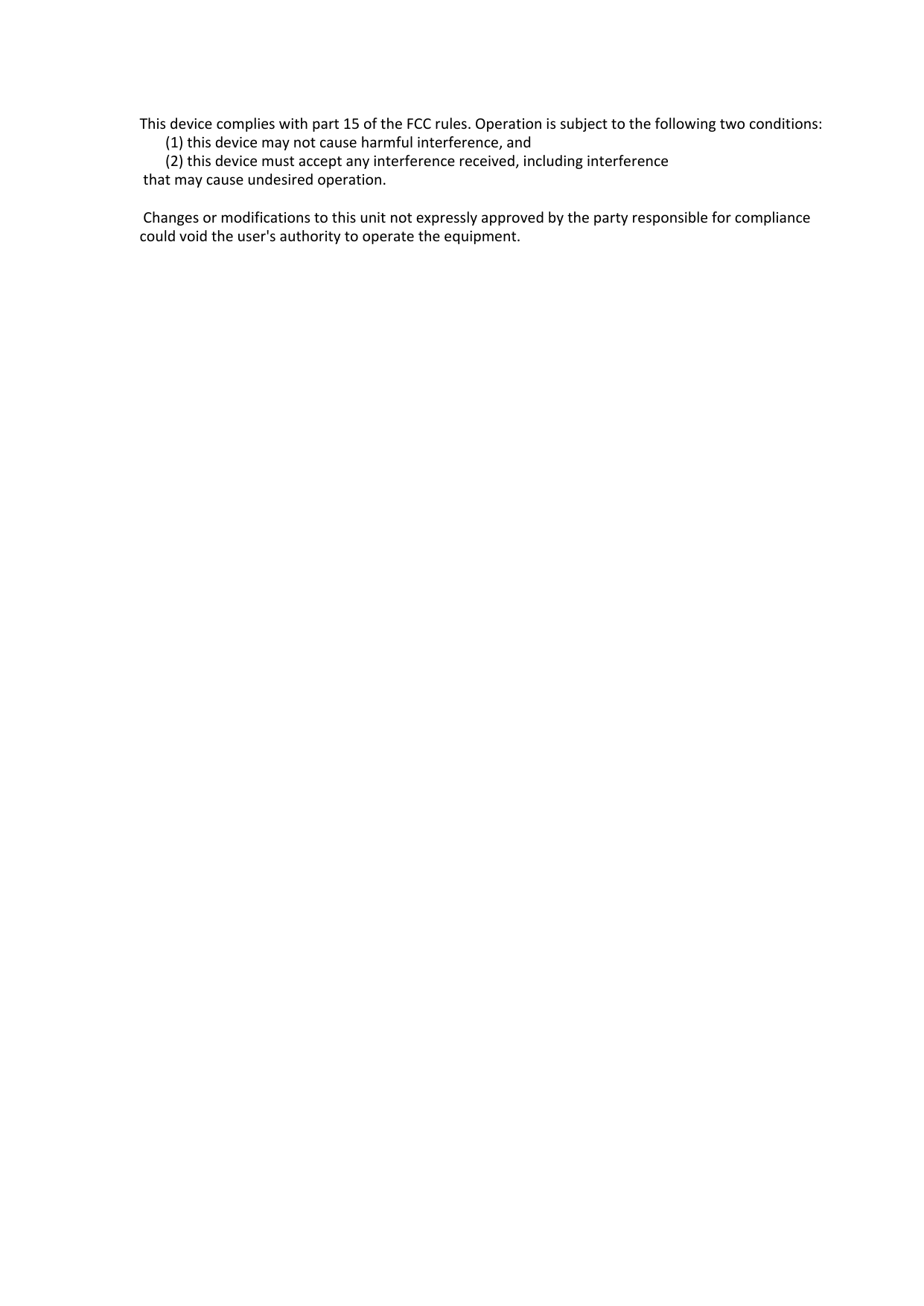

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
