Cyber Blue BTOES BToes 2.1 EDR Micro Dongle User Manual
Cyber Blue (HK) Limited BToes 2.1 EDR Micro Dongle Users Manual
User Manual
BLUETOOTH DONGLE
Specification:
Bluetooth Standard Bluetooth 2.1＋EDR
Solution CSR ：BC0401PC08
Host Interface USB 1.1 Compliance
USB 2.0 Compatibility
Frequency band 2.4G ISM band
Spectrum FHSS
Modulation GFSK，π/4 DQPSK，8DPSK
Antenna PCB antenna
Sensitivity -80dBm typical
RF Specification
power Class2, 4dBm
Topology Piconet / Scatter net
Link mode ACL, SCO,
Data Rate 3M bps
Operating Distance 10 meters
LED Indication Power on, Standby,
OS Windows 2000/XP/Vista/ 7
Software Ivt,tosshiba
Power Supply 5V USB power
Support Profile Serial Port / Object Push
File Transfer
LAN Access
Personal Area Network
Audio Geteway / Heatset HID / Keyboard,
Mouse
HCRP(Printer Cable Replacement)
PIM Synchronization Profile,
Advanced Audio Distribution Profile(A2DP),
Audio Video Remote Control
Profile(AVRCP)
Current Consumption 20mA Active Model

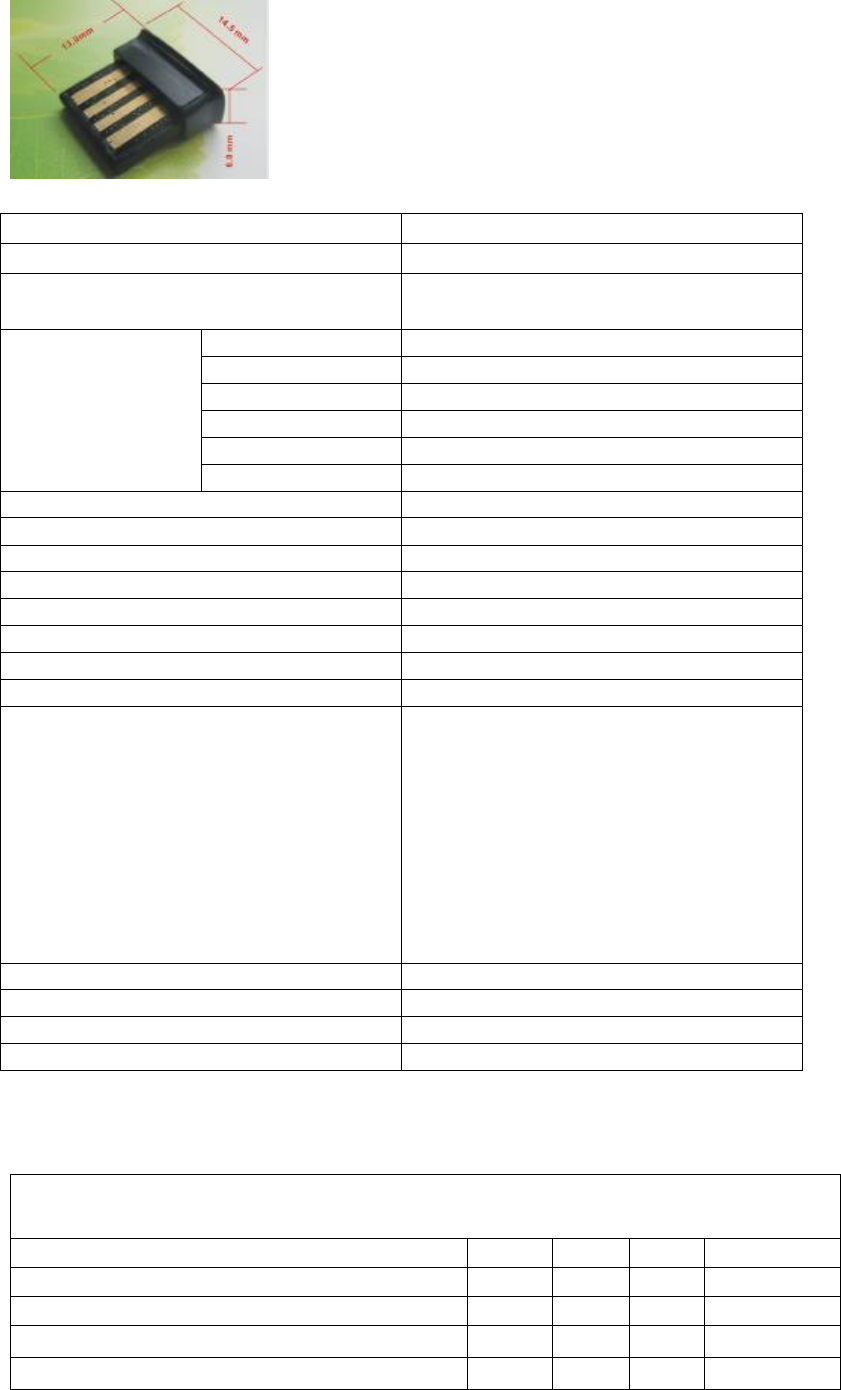

Dimension (PCBA) 11.8(L) mm * 11.5mm (W)
Dimension (Product) 13(L) *14.5 (W) *6mm(H)
Certification
Electrical Characteristics:
Electrical Characteristics
Min Typ Max
Unit
TX mode current 40 mA
RX mode current 15 mA
Standby mode current 1.8
mA
RF/Frequency Range 2.402
2.480
GHZ
RF/ Transmitter power -3 0 4 dBm
RF/Initial carrier -75
75 KHZ
RF/Single slot sensitivity BER 80
dbm
Transmission speed of 10 meters 100 KB/S
Operating Temperature -10 60 ℃
Storage Temperature -25 80 ℃
Operating humidity 75 %
Storage humidity 85 %
