CyberTAN Technology BU064 Bluetooth V2.1+EDR User Manual BT manual

CyberTAN Technology Inc. Bluetooth V2.1+EDR BT manual

User Manual

BU064-A-IN Module USB Manual
1
BU064-A-IN
Bluetooth v2.1+EDR USB Module
User Manual
Rev 0.1
BU064-A-IN Module USB Manual
2
Installation and Set up guide
After installing the Bluetooth module and driver to a computer, the user is able to send
content between computer and another Bluetooth device by using Bluetooth wireless
technology.
To connect your computer and phone using Bluetooth wireless technology
1. Turn on the Bluetooth function on computer and phone.

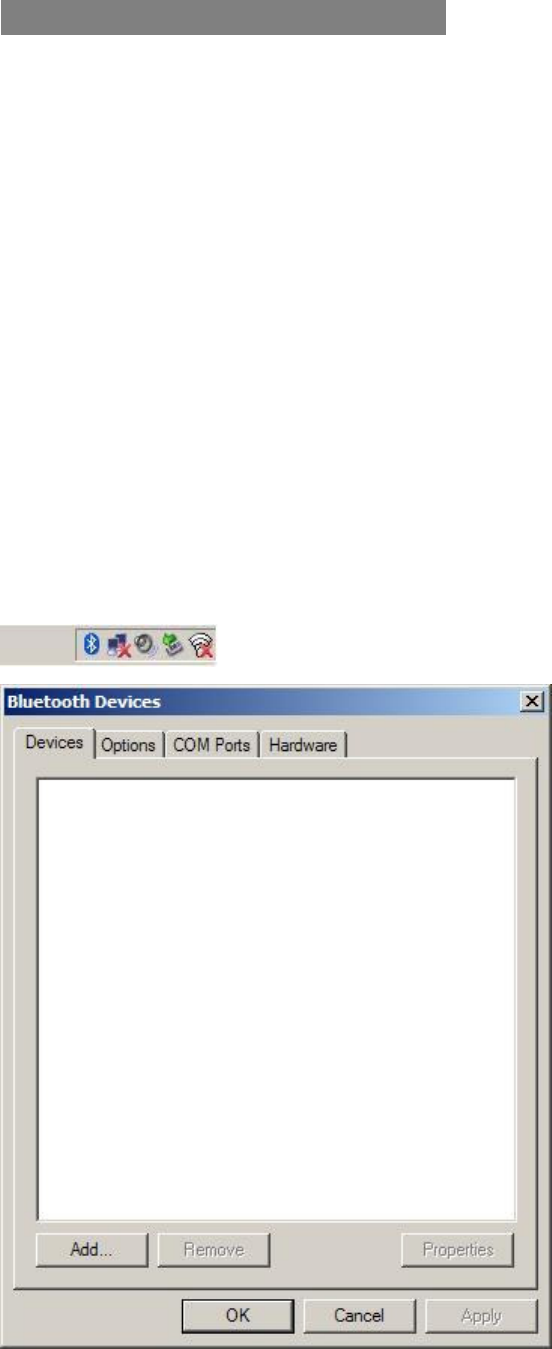

2. Double-click the Bluetooth icon on you computer.
3. Click “Add”

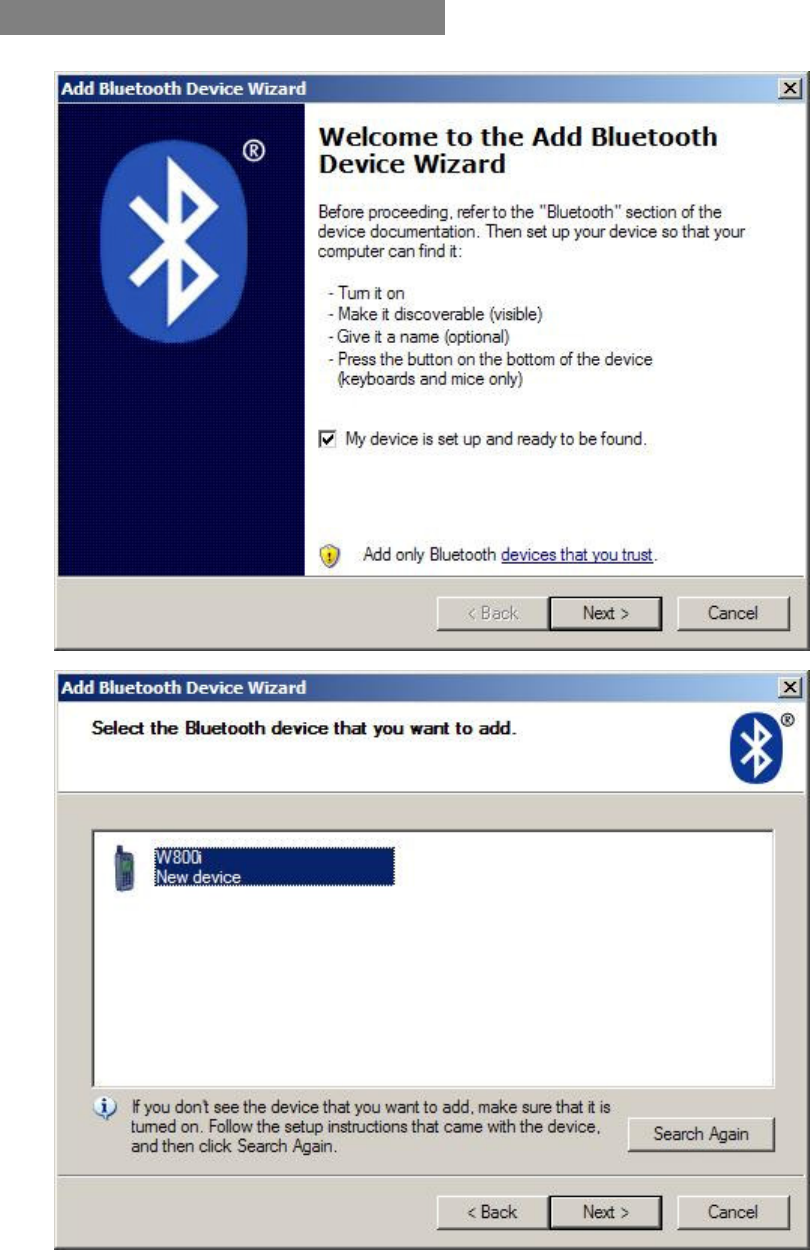

4. Select the box of “My device is set up and ready to be found” then click
“Next”.
5. Select the device you want to add and click “Next”.

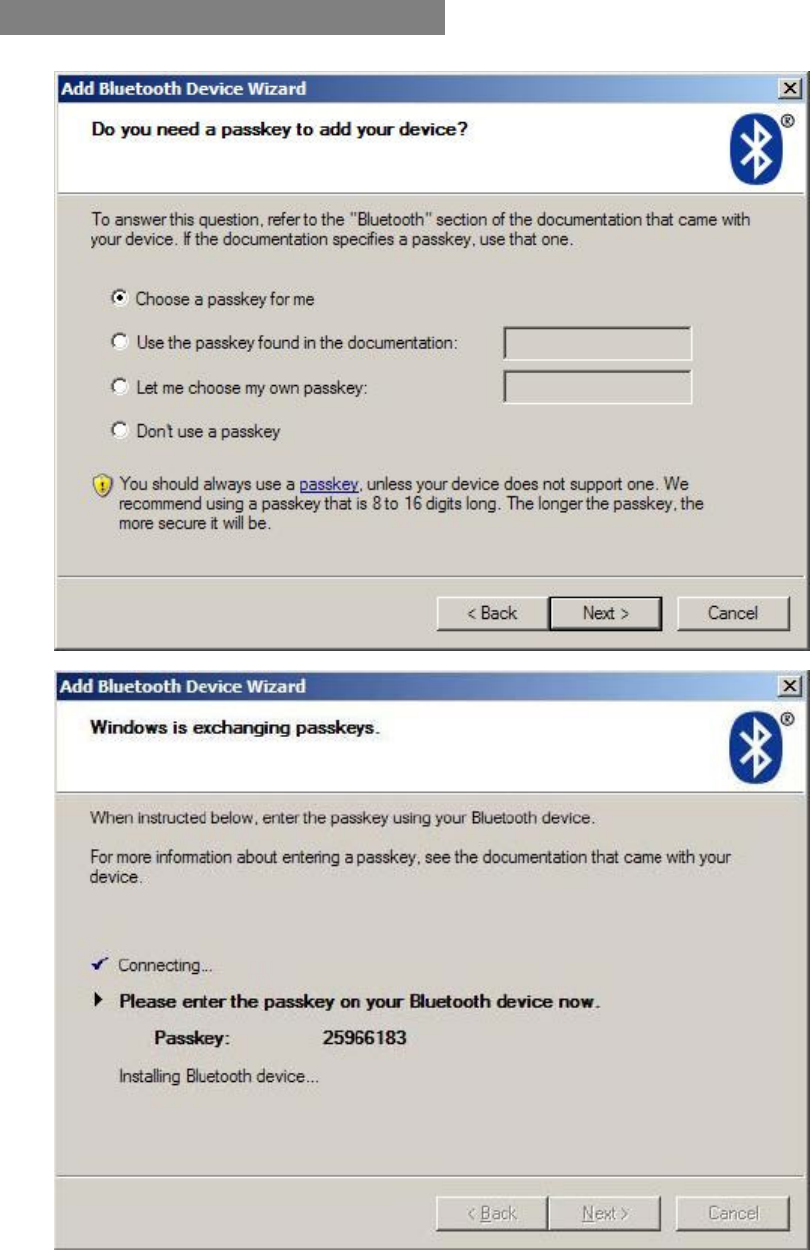

6. Select “Choose a passkey for me” the click “Next”.
7. The wizard will off a passkey and please enter the passkey on your phone.
8. The wizard will pop up a window and inform you the Bluetooth connection
established. Click “Finish” to close the wizard.
BU064-A-IN Module USB Manual
3
BU064-A-IN Module USB Manual
4
BU064-A-IN Module USB Manual
5
To send a file using Bluetooth wireless connection.

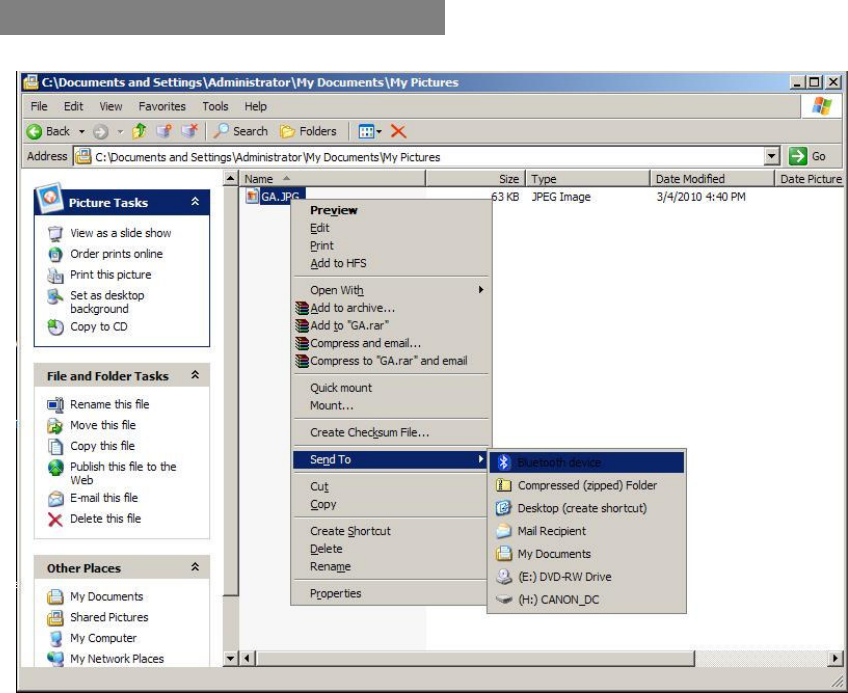

1. Select the file you want to transfer.

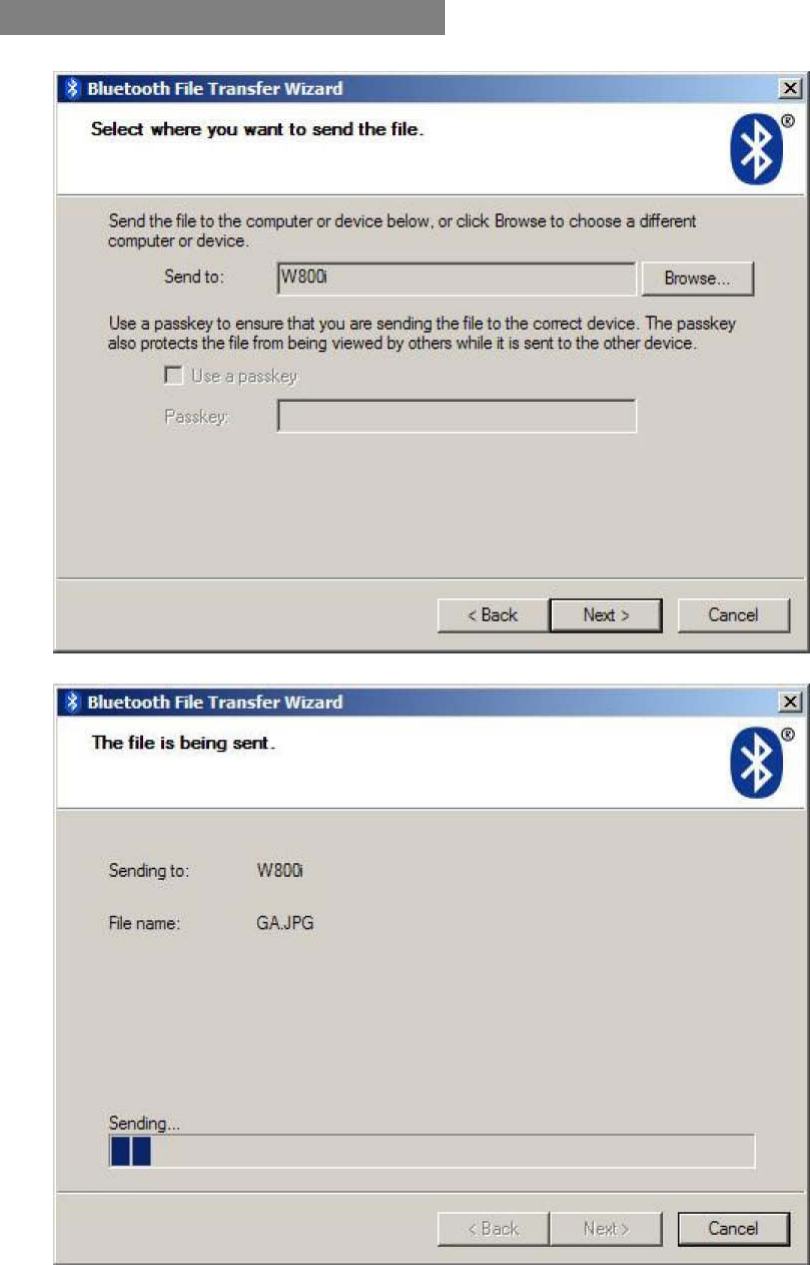

2. Select where you want to send the file then click “Next”.

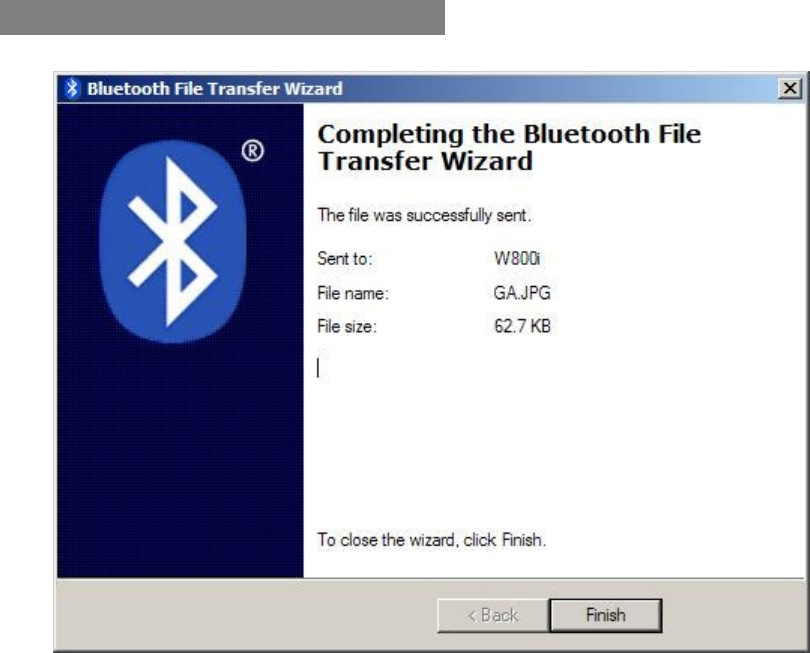

3. The wizard will inform you when file transfer completed. Click “Finish” to
close the wizard.
BU064-A-IN Module USB Manual
6
BU064-A-IN Module USB Manual
7
BU064-A-IN Module USB Manual
8
BU064-A-IN Module USB Manual
8
