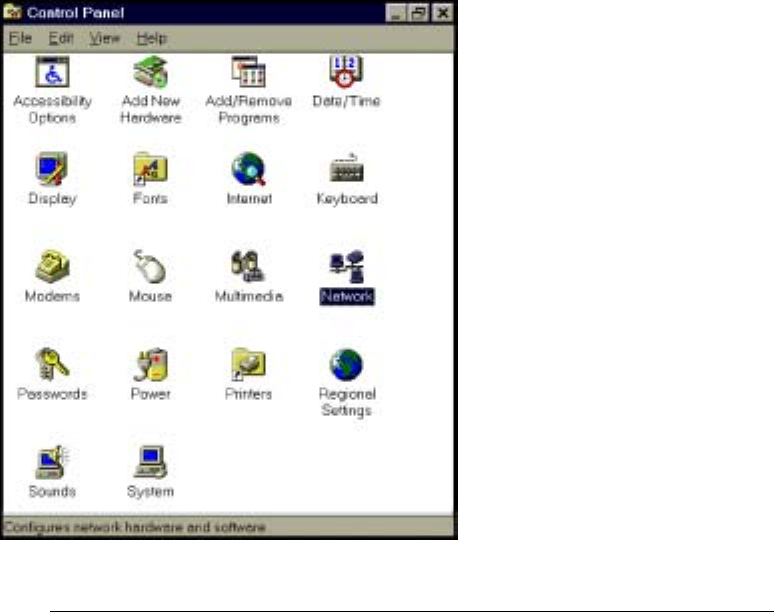

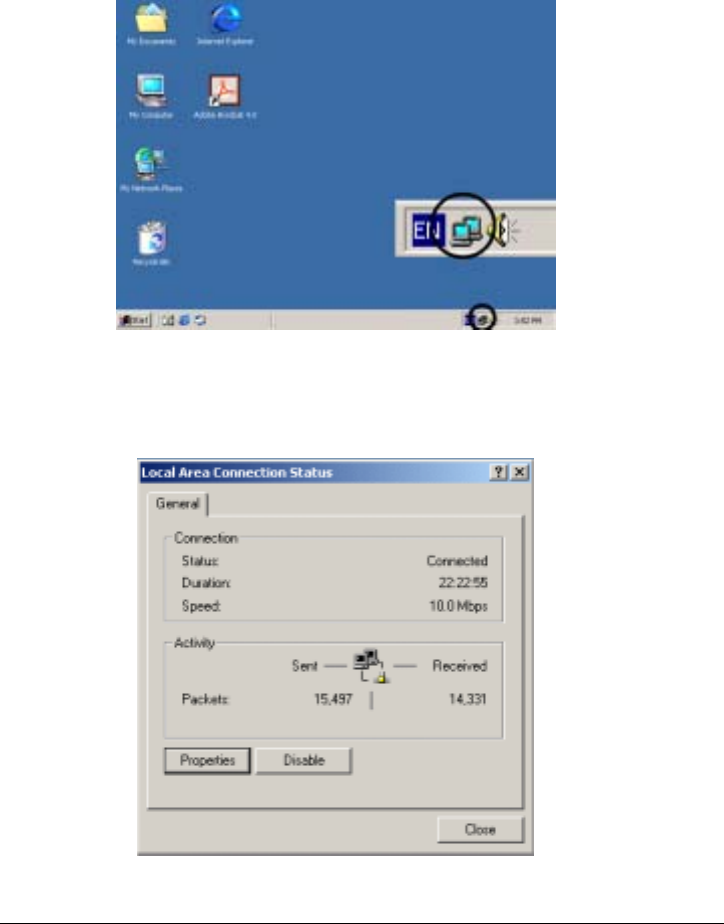

Setting Up the TCP/IP Protocol...........................................................................14
Fixed IP Addresses Configuration ...............................................................17
Chapter 3: Internet Access........................................................................................20
Prepare your network information.......................................................................20
Web-based User Interface....................................................................................20
Basic Configuration – Setup................................................................................21
Wireless................................................................................................................21

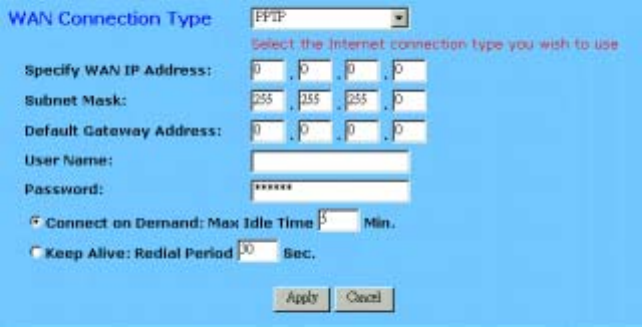

WAN Connection Type........................................................................................25
Obtain IP automatically ...............................................................................26
Static IP........................................................................................................26
4

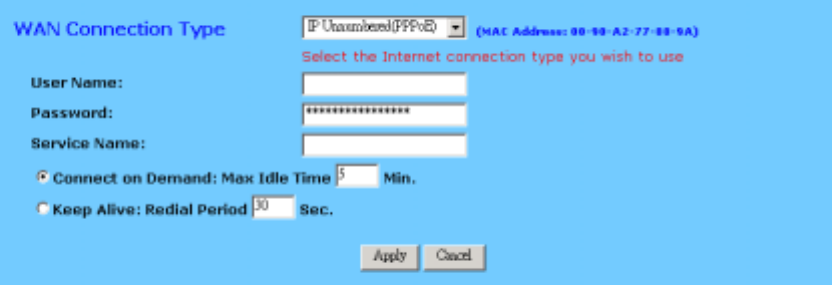

PPPoE ..........................................................................................................26
Chapter 4: Advanced Applications ..........................................................................34
4-1 DHCP Configuration .....................................................................................34
4-2 Access Control...............................................................................................35
Access Control.....................................................................................................35
IP Access Setting..........................................................................................36
URL Access Setting .....................................................................................37
MAC Access Setting....................................................................................38
4-3 Virtual Server Settings...................................................................................39
4-4 DMZ Host......................................................................................................44

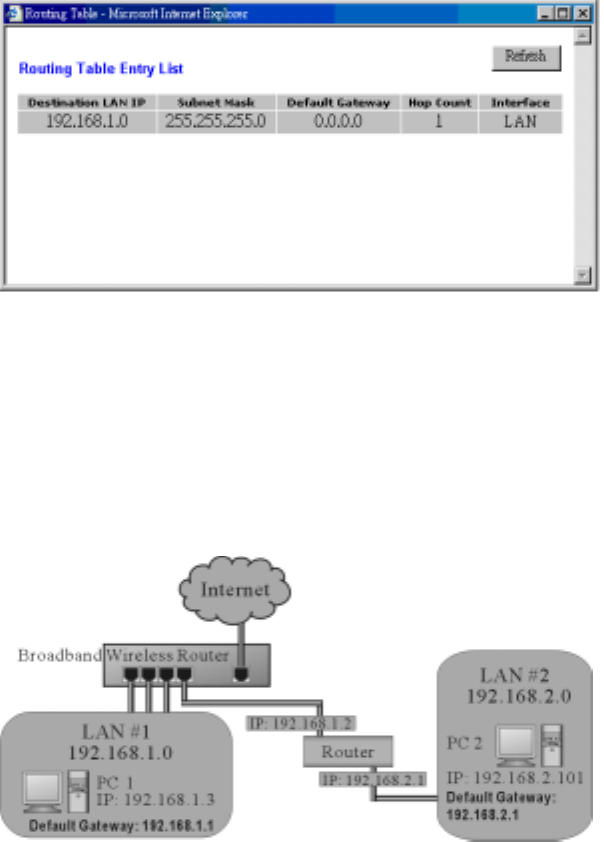

4-5 Dynamic Routing...........................................................................................45
4-6 Static Routing ................................................................................................46
4-7 Special Applications ......................................................................................48

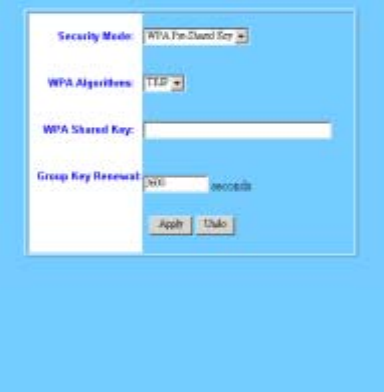

4-8 Wireless Setting.............................................................................................49
4-9 DDNS ............................................................................................................52
Chapter 5: Management............................................................................................55

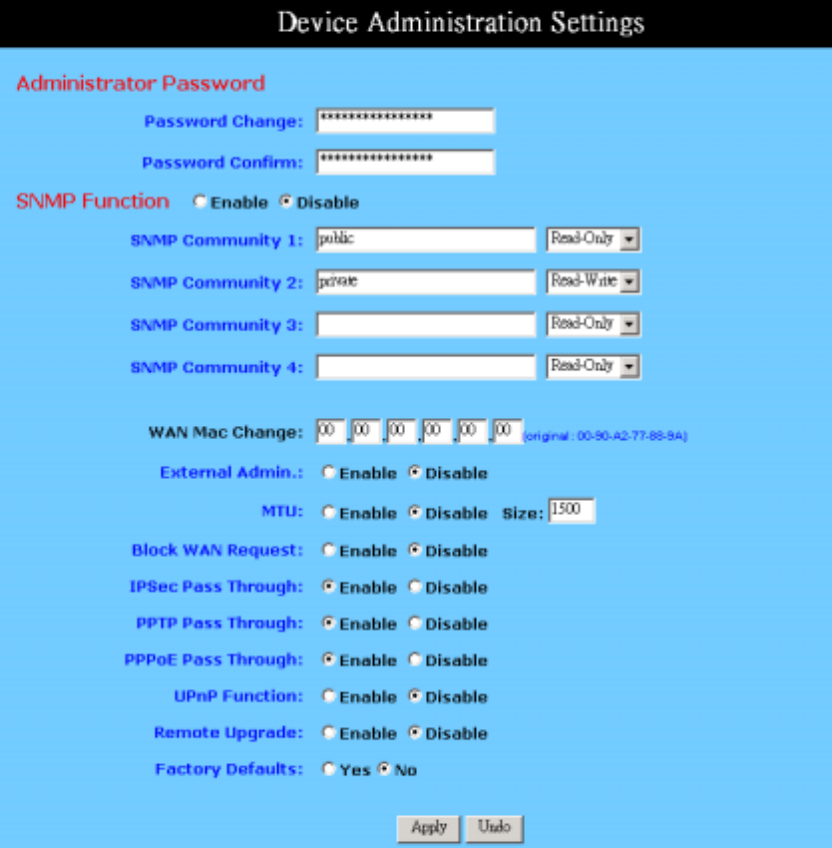

5-1 Device Administration Settings.....................................................................55
5-2 Status Monitor ...............................................................................................57
5-3 Log.................................................................................................................59
5-4 Backup & Restore..........................................................................................60
5-5 Upgrade Firmware.........................................................................................60
5-6 Diagnostic-Ping/Tracert.................................................................................61
Ping ..............................................................................................................61

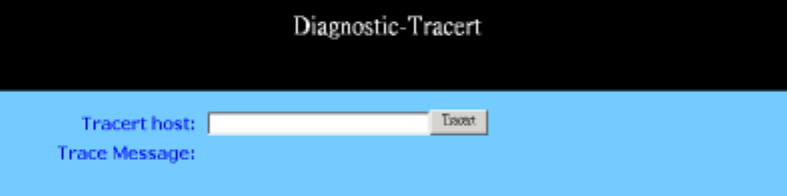

Tracert ..........................................................................................................62
Chapter 6: Macintosh Setup .....................................................................................64
6-1 Hardware Connections ..................................................................................64
6-2 Computer Network Configuration.................................................................64
6-2.1 Dynamic IP Addressing using DHCP Server......................................64
6-2.2 Manual Configuration of Fixed IP Addresses ....................................64
6-3 11g Wireless Broadband router Configuration..............................................65
6-4 Adding 11g Wireless Broadband router to Existing Network .......................65
Chapter 7: Trouble Shooting....................................................................................67
Hardware..............................................................................................................67
Client Side (Computers) ......................................................................................68
Appendix A: Frequently Asked Questions..............................................................69
5
Appendix B: Technical Specifications......................................................................71
Appendix C: Glossary ...............................................................................................73
6
Preface
Congratulations on your purchase of this 11g Wireless Broadband Router. This
router is the perfect design product combining wireless and Ethernet network
technology together. Fully compatible with IEEE 802.11g wireless standard,
this device not only allows you to take advantage of mobility, but also to have
fast Ethernet connection with built-in four 10/100 auto-sensing switch Ethernet
ports. Users on wireless and Ethernet LAN can share files, printers, and other
networking resource each other at a blazing speed. Best of all, with NAT
technology, all users can share single account of Internet access by having this
device connect to a DSL/Cable modem.
Integrated 802.11b/g wireless AP, it is quick and easy to deploy wireless LAN
without spending extra cost of a wireless access point. The wireless Router’s
efficient antenna offers a covered range up to 30 meters indoor (150 meters
outdoor) and seamless roaming throughout wireless LAN infrastructure. More
over, the wireless operation provides 64 bit and 128 bit WEP data encryption
for high-level security.
With built-in NAT, this device not only provides natural firewall, protecting
your network from access by outside users but also extends your LAN
connection. Users on the LAN can share a single account of Internet access by
having this device connect to a DSL/Cable modem. This Wireless Router
allows up to 253 users on the Ethernet LAN simultaneously but makes IP
configuration simple and easy. Configured as a DHCP server, the 11g Wireless
Broadband Router assigns an IP Address to every connected PC on Ethernet
LAN automatically. Also, DHCP client helps WAN port obtain IP address
dynamically assigned by ISP.
With a web-based UI (User Interface), this 11g Wireless Broadband Router is
easy to setup and maintain. With this exclusive user-friendly interface, all
functions can be configured easily via a web browser such as Netscape
Communicator and Internet Explorer.
About this Guide
This manual contains information about installing and configuring your 11g
Wireless Broadband Router. It is designed to guide users through the correct
setup procedures for appropriate hardware installation and basic configuration.
Later, it shows how to complete advanced configurations to get the best
7
operating performance from this 11g Wireless Broadband Router.
Chapter 1: Introduction
This chapter describes the package contents and provides a list of features and
applications illustrations of the 11g Wireless Broadband Router.
Chapter 2: Hardware Installation & Setup
This chapter describes the steps for the hardware installation of the 11g
Wireless Broadband Router.
Chapter 3: Internet Access
This chapter describes the steps for the basic configuration and start up of the
11g Wireless Broadband Router.
Chapter 4: Advanced Applications
This chapter describes how to configure advanced functions in order to get the
most from your 11g Wireless Broadband Router.
Chapter 5: Management Applications
This chapter describes how to configure Management functions for
administration.
Chapter 6: Macintosh Setup
This chapter provides instructions on how to set up your Macintosh computers
in your network.
Chapter 7: Trouble Shooting
This chapter describes any potential problems you may encounter and the
suggested remedies.
Conventions
The following explains the conventions used throughout this document.
Italics New words, terms, or special emphasis. E.g. Getting to
know your 11g Wireless Broadband Router.
“Boldface” Buttons, checkboxes, or items that you can select from
screens, menus, or dialog boxes. E.g. Click “OK” to restart
8
Boldface Italics Items in Bold Italics are samples only and you should enter
other names, numbers, or words to substitute.
9
Chapter 1: Introduction
This chapter describes the package contents and provides a list of features and application
illustrations of the 11g Wireless Broadband Router.
1-1 About The 11g Wireless Broadband Router
The 11g Wireless Broadband Router is a hybrid design product which combines Ethernet
technology and wireless access into a single stand-alone unit. The device allows you take
advantages of both mobility and fast connection. All PCs whenever on wireless LAN or
Ethernet LAN can share files, printers and other network resource. Moreover, all users can
share single account of Internet access by having this device connect to a DSL/Cable modem.
Ethernet / Fast Ethernet
Ethernet is the most widely-used network access method, especially in a Local Area Network
(LAN) and is defined by the IEEE as the 802.3 standard. Normally, Ethernet is a shared media
LAN. All stations on the segment share the total bandwidth, which could be 10Mbps (Ethernet),
100Mbps (Fast Ethernet), With a switched Ethernet, each sender and receiver has the full
bandwidth.
Fast Ethernet is defined as IEEE 802.3u standard, a high-speed version of Ethernet with
100Mbps transmission rate.
Wireless LAN
Wireless Local Area Network systems (WLANs) transmit and receive data through the air by
using radio frequency (RF). This offers some advantages like mobility, ease of installation, and
scalability over traditional wired systems.
Mobility: WLANs combine data connectivity with user mobility. This provides users with
access to network anywhere in their organization. For example, users can roam from a
conference room to their office without being disconnected from the LAN. This is impossible
with wired networks.
Ease of Installation: Eliminating the need to deploy network cable on walls and ceilings,
Installing WLANs is easy for novice and expert users alike.
Scalability: WLAN topologies are easy to change in various ways from peer-to-peer networks
for a small group of users to full infrastructure networks for hundreds of users roaming over a
broad area.
Wireless LAN is suitable for difficult-to-wire and frequently changing environments. It’s also
an ideal solution for mobile workers to access network resource and for setting a temporary
LAN when necessary
Wireless LANs can be set as “Ad-hoc” network and “Infrastructure” network. Unlike the
“Ad-hoc network”, where users on the LAN send data directly to each other, the
“Infrastructure” network includes an access point and users on the “Infrastructure” network
send data to that dedicated access point. 11g Wireless Broadband Router uses “Infrastructure”
network as Wireless LANs. Each wireless LAN PC within the range of the access point can
communicate with other wireless LAN PCs within the range.
10
1-2 Contents of the 11g Wireless Broadband Router Package
After carefully unpacking the shipping carton, check the contents listed below.
1. 11g Wireless Broadband Router.
2. Power Adapter.
3. User’s Manual
1-3 Features of the 11g Wireless Broadband Router
Your 11g Wireless Broadband Router contains the following features that make it excellent for
network connections.
Allows multiple users to access the Internet at the same time by providing
maximum Internet utilization to multiple users sharing a single public IP
Address.
Allows users on Ethernet LAN and Wireless LAN to transfer data to each
other through wireless-to-wire bridge.
Provides wireless access roaming, best access point selection, loading
balance, network traffic filtering included in wireless roaming function.

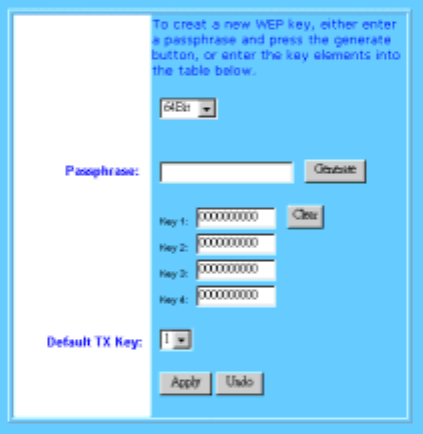

Provides 64bits/128bits key WEP (Wired Equivalent Privacy) wireless
data encryption to secure wireless communication.
Fully supports 802.11 open and shared key authentications.
Integrates four 10/100BASE-T/TX auto-sensing switch ports.
Uses NAT to allow your entire network’s PCs to connect to the Internet
using only one (purchased) IP address.
Supports PPPoE that enable user to seamlessly connect to ISPs with the
familiar “dial-up” connection interface.
Built-in web-based user interface for easy configuration and management
through common web browsers such as Netscape Communication 6.0 or
later and Internet Explorer 5.0 or later.
Supports DHCP client to receive both a dynamic IP Address and a fixed IP
Address from ISP.

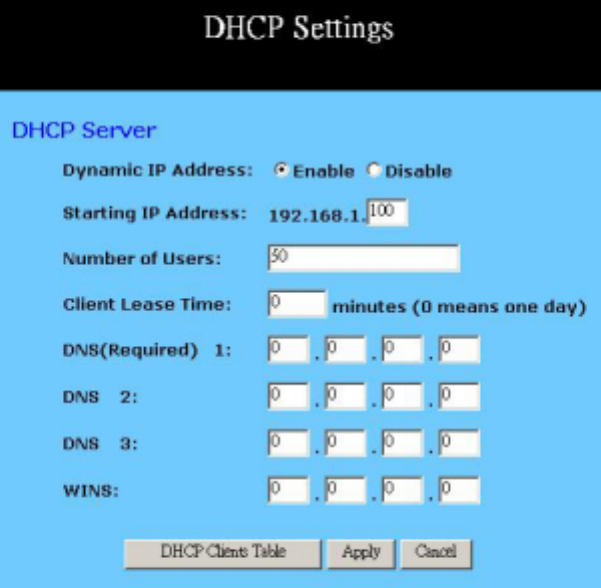

Built-in DHCP server to automatically assign and manage LAN IP
addresses.
11

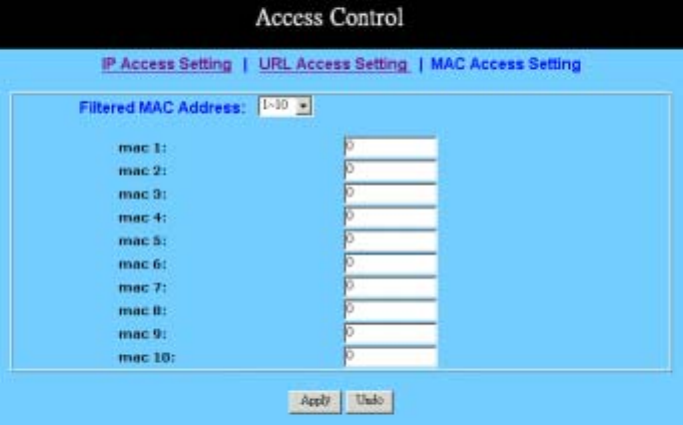

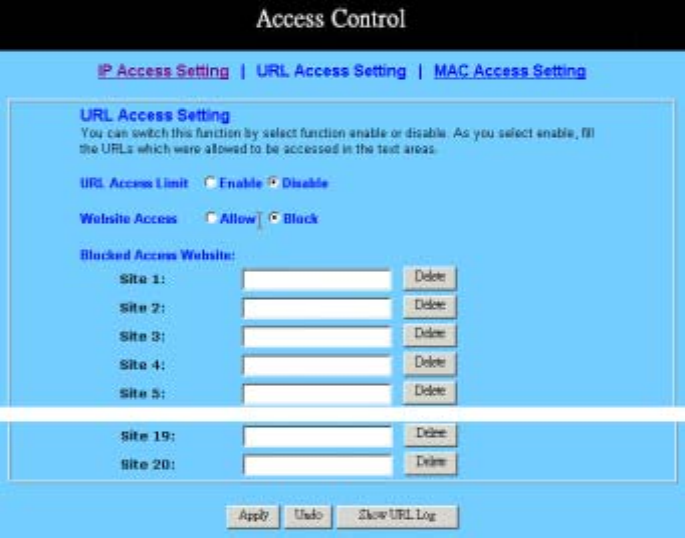

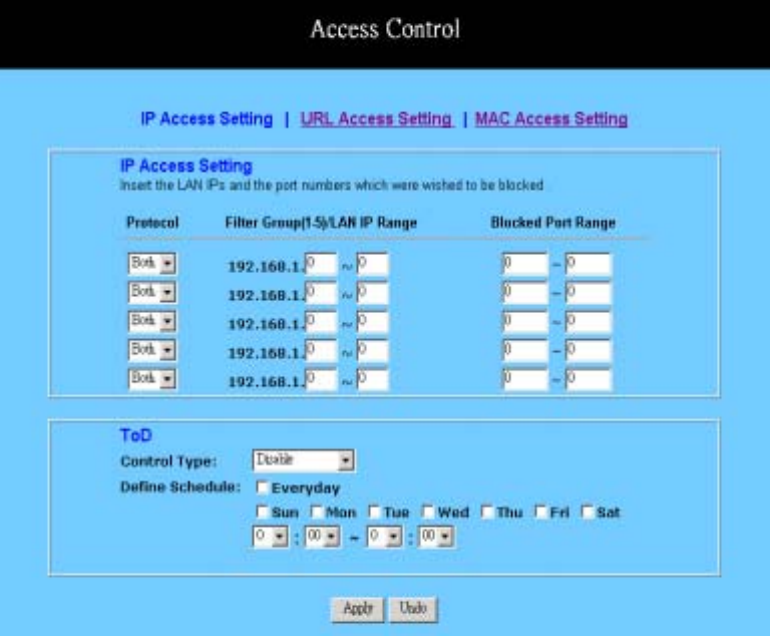

Allow administrators to block specific internal users from accessing
specified applications or services.
Allows external Internet users to access information from the internal
target host by setting the Virtual Server.

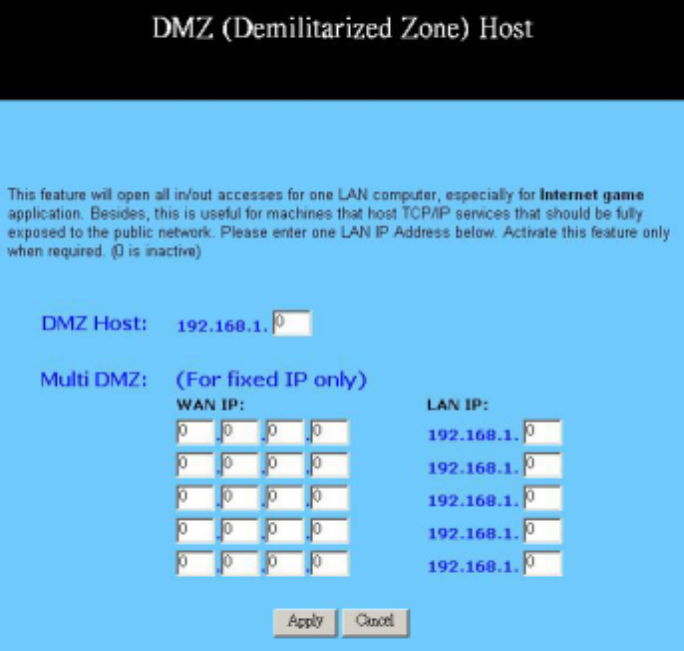

Provides unrestricted two-way communication between one PC on your
LAN and certain Internet services such as conferencing, video and gaming
applications.

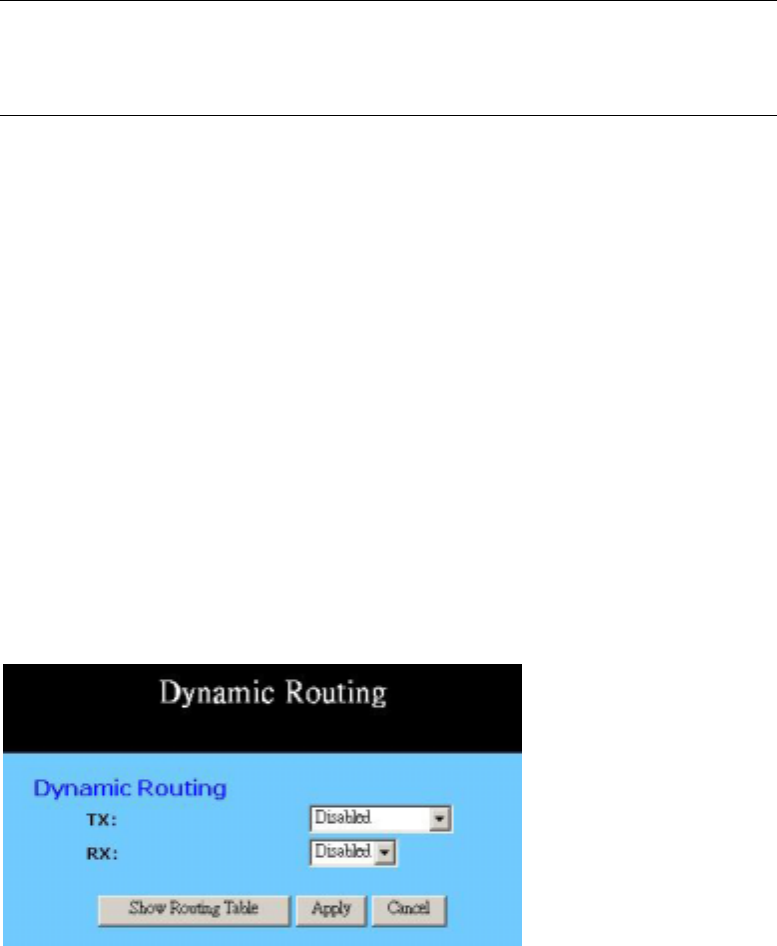

Enhances routing performance by using Dynamic and Static routing
settings.
Allow administrators to change the WAN MAC address of the router.
Compatible with all popular Internet applications.
12
Chapter 2: Installation
This chapter provides information about your 11g Wireless Broadband Router’s
physical features and gives step-by-step installation instructions for hardware
installation and software configuration.
Front Panel
The following figure shows the front view of the 11g Wireless Broadband
Router. The LEDs on the front panel indicate the status of the unit. You can
easily view the operation of your 11g Wireless Broadband Router from this
panel.
Note: Please refer to the model on your hand to find proper description.
LED Status Description
Power: Green Steady on when the power is on.
Diag: Red Lights up during system checking connections and
internal operation when the power is first switched
on. If the device works properly, the light should
switch off automatically.
WLAN
Link/Act:
Green Steady on when the wireless AP is enabled.
When the wireless AP is disabled (through the
web-based utility), the LED should remain off.
Blinking when data is flowing through Wireless
AP.
WAN
Link/Act:
Green Steady on when the Ethernet link exists.
Blinking when data is flowing through this port.
13
LAN 1~4
Link/Act:
Green Steady on when the Ethernet link exists.
Blinking when data is flowing through this port.

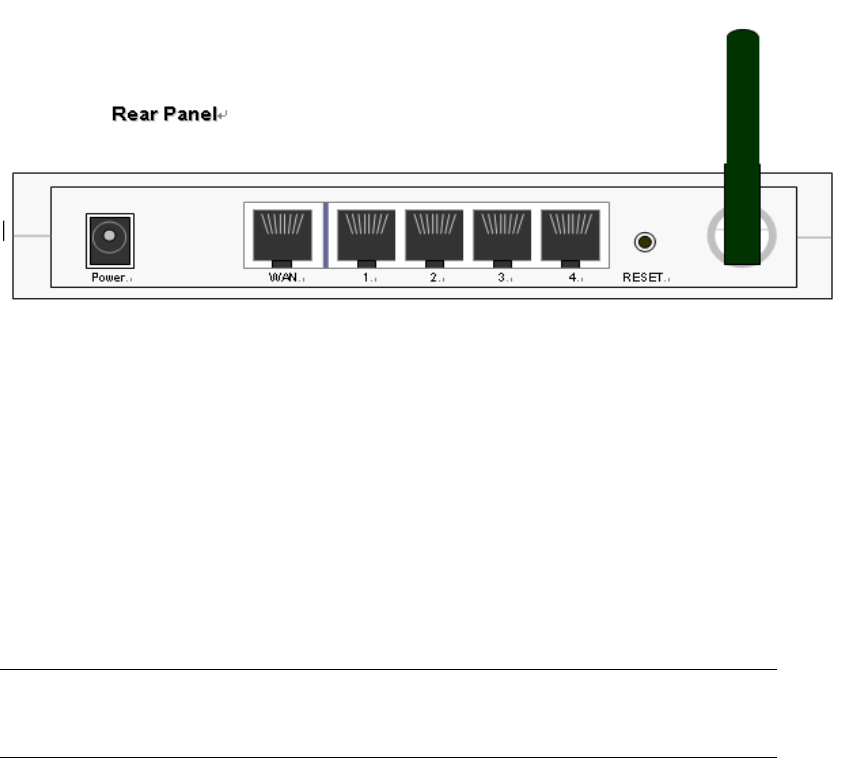

Rear Panel & Connections
The following figure shows the rear view of the 11g Wireless Broadband
Router and illustrates how the cables connect to the interfaces on the rear panel.
1. Plug one end of the UTP cable into the WAN port, the other into the RJ45
Ethernet jack on your ADSL or Cable modem.
2. Connect a PC, which must has an Ethernet NIC (Network Interface Card)
installed, to one of the LAN Ports.
3. Connect the external power supply to the 11g Wireless Broadband Router.
4. The Reset button is used to reboot and re-initialize the device (press once
quickly), or for clearing configuration settings back to factory default
values (press for longer than 3 seconds).
Note: If you are Macintosh users, please refer to Chapter 6 Macintosh Setup
for more detailed information about configuring TCP/IP, hardware installation
and so on..
System Requirements
To connect to the Internet, an external ADSL or Cable modem and an Internet
access account from an ISP is required. In order to operate with the 11g
Wireless Broadband Router, each PC that is to be connected to the 11g Wireless
Broadband Router should have the following things installed:
Ethernet NIC (Network Interface Card: a 10Base-T or 10/100Base-T/TX
Ethernet card), or wireless client card for wireless connection
Standard twisted-pair Ethernet cable (UTP network cable) with RJ-45
14
connectors
System OS: Windows 95/98, Windows NT4.0, or Windows 2000/XP
TCP/IP network protocol
Web browser, such as Microsoft Internet Explorer 5.0 or later, or Netscape
Navigator 6.0 or later
Setting Up the TCP/IP Protocol
If you are not sure whether the TCP/IP Protocol has been installed, follow these
steps to check, and if necessary, install TCP/IP onto your PCs.
1. Click the “Start” button. Choose “Settings”, then “Control Panel”.
Double-click the “Network” icon. Your Network window should appear
as follows:
2. Select the “Configuration” tab.
Important:
For Windows 2000 & Windows XP Setting, you will find that they differs
with Windows 98/ME/NT slightly. See the following for reference.
Click the “Local Area Connection” icon on the lower right hand side of
your desktop screen.
15
In the “Local Area Connection Status” window, click the “Properties”
button then your Network window will appear.
There is only one tab, “General”, in the Network window.
3. Check whether the TCP/IP Protocol has already been installed onto your
computer’s Ethernet card. Note that TCP/IP Protocol can be installed for a
computer’s Dial-Up Adapter as well as for the Ethernet card.
- If yes, go to step 7.
- If no, click the “Add” button.
16
4. Double-click “Protocol” in the Select Network Component Type or
highlight “Protocol” then click “Add”.
5. Highlight “Microsoft” under the list of manufacturers.
Double-click “TCP/IP” from the list on the right or highlight “TCP/IP”
then click “OK” to install TCP/IP.
6. After a few seconds, you will be returned to the Network window. The
TCP/IP Protocol should now be on the list of installed network
components (see 3 above).
17

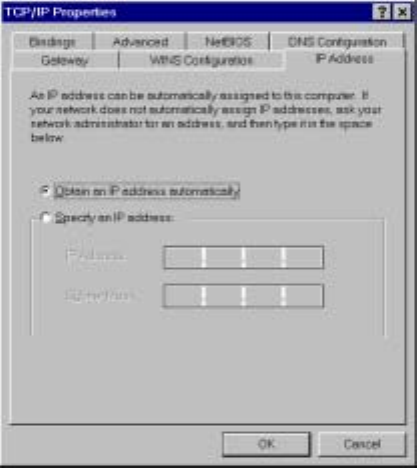

7. Click the “Properties” button. The TCP/IP Properties window consists of
several tabs. Choose the “IP Address” tab.
8. Select “Obtain an IP address automatically”. Click “OK”. Restart your
PC to complete the TCP/IP installation.
Fixed IP Addresses Configuration
Fixed IP addresses may be assigned to network devices for many reasons, such
as the server PCs or printers which are consistently accessed by multiple users.
To set up computers with fixed IP Addresses, go to the “IP Address” tab of the
“TCP/IP Properties” window as shown above.
Select “Specify an IP address” and enter “192.168.1.xxx” in the “IP
Address” location (where xxx is a number between 2 and 254 used by the 11g
Wireless Broadband Router to identify each computer), and the default “Subnet
Mask” 255.255.255.0”. Note that no two computers on the same LAN can have
the same IP address.
18
Click on the “DNS Configuration” tab and select “Enable DNS”. Enter the
“DNS IP Address” obtained from your ISP in the “Server Search Order”
location. Then click the “Add” button.

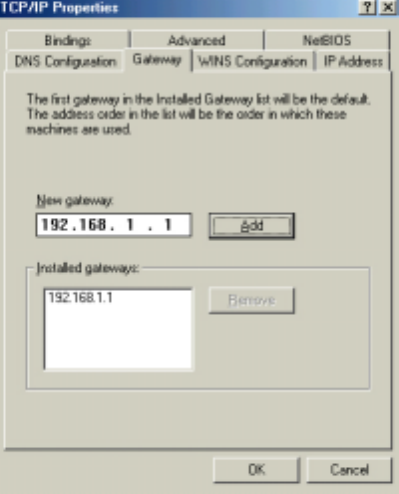

Click on the “Gateway” tab and enter the 11g Wireless Broadband Router’s
default gateway value 192.168.1.1 in the “New gateway” field, then click
“Add” Button.
19
Click “OK”. Restart your PC to complete the TCP/IP installation.
20
Chapter 3: Internet Access
This chapter describes the procedures necessary to configure the basic functions
and begin using your 11g Wireless Broadband Router. If you follow these
procedures correctly, there should be no problem in accessing the Internet via
your 11g Wireless Broadband Router.
Prepare your network information
In order to allow quick referencing when setting up your 11g Wireless
Broadband Router, it is suggested you complete the table below with the
necessary information. It should be supplied by your ISP.
Provided by some ISPs Host Name:
Domain Name:
IP address given by ISP: Obtain IP Address automatically

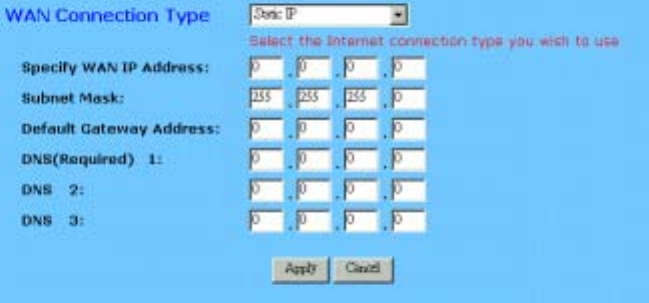

Static IP
IP Address: ____.____.____.____
Subnet Mask: ____.____.____.____
Default Gateway: ____.____.____.____
DNS Server Primary: ____.____.____.____
DNS Server Secondary: ____.____.____.____
DNS Server Third: ____.____.____.____
PPP authentication: PPPoE
PPTP
Login Name:
Password: ________________
Web-based User Interface
Your 11g Wireless Broadband Router is designed to use a Web-based User
Interface for configuration. After connecting your router and your computer,
please open your web browser and type http://192.168.1.1 in the browser’s
address box. This address is the factory set IP Address of your 11g Wireless
Broadband Router. Press “Enter”.
21
The “Username and Password Required” prompt box will appear. Leave the
Username field empty and type “admin” (default password) in the Password
field. Click “OK”. The setup screen will then appear.

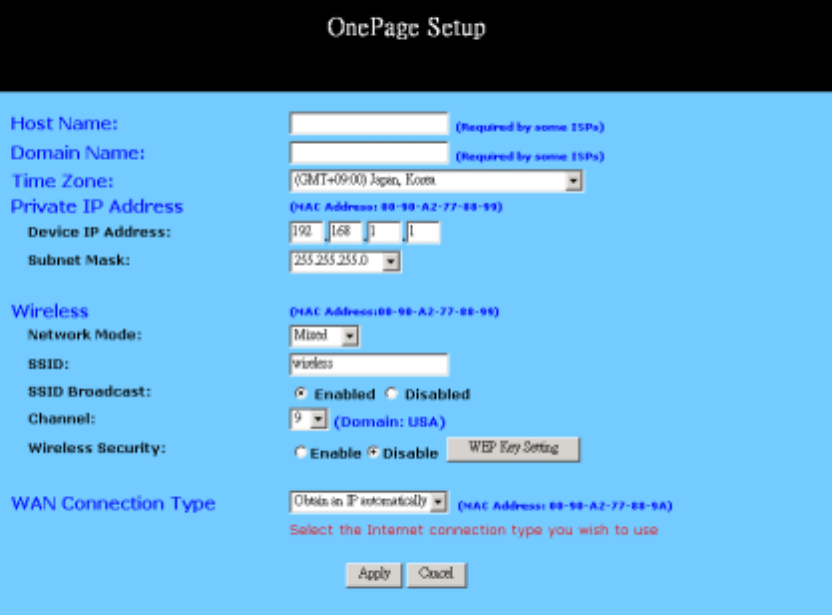

Basic Configuration – Setup
The “OnePage Setup” screen is the first screen you will see when you access
the Utility. If the router has already been successfully installed and set up, this
screen’s values will already be properly configured.
Host Name: This entry is required by certain ISPs.
Domain Name: This entry is required by certain ISPs.
Time Zone: Select the time zone of your location from the drop
down list.
Private IP Address: The “Device IP Address” and “Subnet Mask” of the
router are used for the internal LAN. The default values are
192.168.1.1 for the IP Address and 255.255.255.0 for the
Subnet Mask.
Wireless
Check “Enable” or “Disable” to make the wireless LAN function active or
22
inactive.
Network Mode Select “B-only” , “G-only” or “Mixed(as default)”,for
network type.
SSID: As the acronym for Extend Service Set Identifier,
ESSID is the unique name shared among all clients
and Wireless Broadband Router in a same wireless
network. The ESSID must be identical for all points
and must not exceed 32 characters.
SSID Broadcast: Router will broadcast the SSID to let WLANs clients
easily search and connect to this wireless router by
leaving this item as default setting “Enable”. Click
“Disable” to disable the broadcast.
Channel: Select the appropriate channel number from the
drop-down. The permissible channels are different
from Regulatory Domains. Make sure that all nodes in
the same wireless LAN network use the same channel,
or the channel usage is automatic when a connection
between client and access point are made.
WEP: As the acronym for Wired Equivalent Privacy, WEP
is an encryption mechanism used to protect your
wireless data communications. WEP uses a
combination of 64-bit/128-bit keys to encrypt data that
is transmitted between all points in a wireless network
to insure data security. To code/decode the data
transmission, all points must use the identical key. To
make the WEP encryption active or inactive, select
“Mandatory” or “Disable”.
WEP Key Setting: WEP
As the WEP is active, click the button of “WEP Key
Setting” to go to the setting page. Select “64Bit” or
“128Bit” encryption algorithm from the drop-down
list. There are two ways to generate WEP key:
23
Passphrase Enter a alphanumeric text string in this
column then click “Generate” button, and four 64-bit
encryption key will be created automatically. Note that
only one 128-bit key will be generated in 128-bit
encryption mode.
Manually You may need to enter the WEP key
manually in case to join the existing wireless network.
However, if not, the Pass phrase method is
recommended. If you are not sure which way to use,
check with your network administrator.
Default TX Key Select one of the four keys to be the
encryption key you are going to use in the wireless
network. To be sure that all the points in a same
wireless network have to have the same encryption
key.
WPA Shared Key
As the WPA Shared Key is active, Select the type of
algorithm (currently, only TKIP is supported), Enter
shared key and a Group Key Renewal period.
WPA Algorithm
Select TKIP (AES is not supported) as the type of
WPA algorithm
24
WPA Shared Key
Enter a Shared Key of 8-32 characters
Group Key Renewal
Enter a Group Key Renewal Period, the router will
renew the group key again when time is up.
WPA RADIUS
WPA used in coordination with a RADIUS server, This
should only be used when a RADIUS server is
connected to the Router)
25
WPA Algorithm
Select TKIP (AES is not supported) as the type of
WPA algorithm.
RADIUS Server Address
Enter the RADIUS server’s IP Address
RADIUS Port
Enter the RADIUS port number
Shared Key
Enter a key shared between the Router and the sever
Group Key Renewal
Enter a Group Key Renewal Period, the router will
renew the group key again when time is up.
WAN Connection Type
There are eight options for WAN connection types, Obtain IP automatically,
Static IP, PPPoE,RAS(for SingTel),PPTP,L2TP,HBS,IP Unnumbered(PPPoE)
The connection type you need to choose is dependent upon the settings
assigned by your ISP. Which connection type you need to choose may differ
from ISPs as well as the service you applied for. It depends on your ISP’s
assignment. If you are unsure which connection type you currently use, contact
your ISP to obtain the correct information.
26
Obtain IP automatically
It is the default option for the router. If your ISP automatically assigns an IP
address and other values to the 11g Wireless Broadband Router, leave them
there without making any changes.
Static IP
The WAN IP Address and Subnet Mask of the router entered here are used by
external users of the Internet (including your ISP). If your ISP assigned a fixed
IP address, select this item and enter the IP Address and Subnet Mask provided
by your ISP.
Specify WAN IP
Address: Enter the IP address provided by your ISP.
Subnet Mask: Enter the subnet mask values provided by your ISP.
Default Gateway IP
Address:
Your ISP will provide you with the Default Gateway
IP Address.
Domain Name Server
(DNS):
Your ISP will provide you with at least one DNS IP
Address. Multiple DNS IP settings are common. The
first available DNS entry is used in most cases.
PPPoE
PPPoE is a dial-up connection type provided by some ISPs. It is a
cost–effective way for a user to access this connection type. If your ISP
provides PPPoE connectivity, you should choose this item from the drop-down
list. Note that if you select PPPoE, please remove any existing PPPoE
application on any PCs on your LAN. Sometimes you have more than one
PPPoE available to be accessed concurrently
27
User Name: Enter the user name your ISP provides you.
Password: Enter the password your ISP provides you.
Connect-on-demand: It is a utility used to trigger the PPPoE session
when there is a packet being sent through the
WAN port while it is on disconnected situation.
Check the radio button to make this function
active, and then you must enter the number of
minutes you wish the network to remain idle
before disconnection occurs in the “Max Idle
Time” location.
Service Name Fill in this if it’s required by your ISP
Keep Alive: This function keeps your PPPoE connection
enable even if it remains idle. However, in some
situation, PPPoE session cannot be established
immediately after disconnection. This is because
the system on the ISP’s site may need a little time
to restore itself. You may need to check with your
ISP to obtain detail of how long you need to wait
before re-establish the PPPoE session. Enter this
28
information in the “Redial Period” field.
2nd PPPOE connection The advantage of multiple PPPoE sessions is that
it provides the Service Provider with the ability to
offer additional, revenue-enhanced access to
content providers. Each connection has it's own
specific authentication process, a unique set of IP,
gateway and Domain Name Servers addresses. If
you have another PPPoE connection for specific
internet access requirement, you are supposed to
fill in the required information.
User Name: Enter the user name your ISP provides you.
Password: Enter the password your ISP provides you.
Connect-on-demand: It is a utility used to trigger the PPPoE session
when there is a packet being sent through the
WAN port while it is on disconnected situation.
Check the radio button to make this function
active, and then you must enter the number of
minutes you wish the network to remain idle
before disconnection occurs in the “Max Idle
Time” location.
Service Name Fill in this if it’s required by your ISP.
URL trigger This is for user to be directed to the specific
service provided by other ISP.you are supposed to
follow your ISP’s instruction to fill in appropriate
information.
Keep Alive: This function keeps your PPPoE connection
enable even if it remains idle. However, in some
situation, PPPoE session cannot be established
immediately after disconnection. This is because
the system on the ISP’s site may need a little time
to restore itself. You may need to check with your
ISP to obtain detail of how long you need to wait
before re-establish the PPPoE session. Enter this
information in the “Redial Period” field.
29

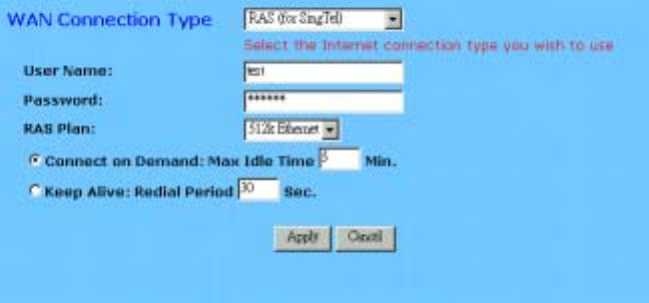

RAS(for SingTel)
If your ISP uses RAS to establish the connection, you should select this item
and follow the steps below.
User Name: Enter the user name your ISP provides you.
Password: Enter the password your ISP provides you.
RAS Plan: Choose the connection method that you want to
use.
Connect-on-demand: It is a utility used to trigger the RAS session when
there is a packet being sent through the WAN port
while it is on disconnected situation. Check the
radio button to make this function active, and then
you must enter the number of minutes you wish
the network to remain idle before disconnection
occurs in the “Max Idle Time” location.
Keep Alive: This function keeps your RAS connection enable
even if it remains idle. However, in some
situation, RAS session cannot be established
immediately after disconnection. This is because
the system on the ISP’s site may need a little time
to restore itself. You may need to check with your
ISP to obtain detail of how long you need to wait
before re-establish the RAS session. Enter this
information in the “Redial Period” field.
PPTP
PPTP is the acronym of Point to Point Tunneling Protocol. Usually, it is used to
encapsulate other protocols’ packets for transmission over IP network. Some
30
ISPs use this protocol as way to establish the initial connection between the
CPE (end-user side) and DSLAM (ISP side). If your ISP uses PPTP to establish
the connection, you should select this item and follow the steps below.
Specify WAN IP Address: Enter the IP address provided by your ISP. If your
ISP provides you an Alcatel Speed TouchTM
modem, it is suggested that you enter 10.0.0.150
in this column.
Subnet Mask: Enter the subnet mask values provided by your
ISP.
Default Gateway IP
Address:
Your ISP will provide you with the Default
Gateway IP Address. If your ISP provides you an
Alcatel Speed TouchTM modem, it is suggested
that you enter the 10.0.0.138 in this column.
User Name: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Connect-on-demand: It is a utility used to trigger the PPTP session
when there is packet being sent through the WAN
port while it is on disconnected situation. Check
the radio button to make this function active, and
then you must enter the number of minutes you
wish the network to remain idle before
disconnection occurs in the “Max Idle Time”
location.
Keep Alive: This function keeps your PPTP connection enable
even if it remains idle. However, in some
31
situation, PPTP session cannot be established
immediately after disconnection. This is because
the system on the ISP’s site may need a little time
to restore itself. You may need to check with your
ISP to obtain detail of how long you need to wait
before re-establish the PPTP session. Enter this
information in the “Redial Period” field.

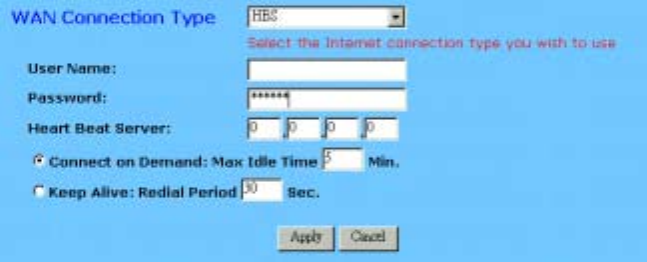

HBS
If your ISP uses HBS to establish the connection, you should select this item
and follow the steps below.
User Name: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Heart Beat Server: Enter the IP address provided by your ISP. This
setting is available only for some areas. Check
your ISP for more detailed information.
Connect-on-demand: It is a utility used to trigger the HBS session when
there is packet being sent through the WAN port
while it is on disconnected situation. Check the
radio button to make this function active, and then
you must enter the number of minutes you wish
the network to remain idle before disconnection
occurs in the “Max Idle Time” location.
Keep Alive: This function keeps your HBS connection enable
even if it remains idle. However, in some
situation, HBS session cannot be established
immediately after disconnection. This is because
the system on the ISP’s site may need a little time
32
to restore itself. You may need to check with your
ISP to obtain detail of how long you need to wait
before re-establish the HBS session. Enter this
information in the “Redial Period” field.
When you have properly configured the Setup page, click “Apply”. You can
now test to see if the settings are all correct by attempting to connect to the
Internet.
IP Unnumbered(PPPOE)
IP unnumbered allows you to do IP processing on a serial interface without
assigning an explicit IP address for point-to-point links. If your ISP uses IP
Unnumbered(PPPOE) to establish the connection, you should select this item
and follow the steps below.
User Name: Enter the user name your ISP provides you.
Password: Enter the password your ISP provides you.
Connect-on-demand: It is a utility used to trigger the IP Unnumbered
(PPPoE) session when there is a packet being sent
through the WAN port while it is on disconnected
situation. Check the radio button to make this
function active, and then you must enter the
number of minutes you wish the network to
remain idle before disconnection occurs in the
“Max Idle Time” location.
Keep Alive: This function keeps your IP Unnumbered
(PPPoE) connection enable even if it remains idle.
33
However, in some situation, PPPoE session
cannot be established immediately after
disconnection. This is because the system on the
ISP’s site may need a little time to restore itself.
You may need to check with your ISP to obtain
detail of how long you need to wait before
re-establish the PPPoE session. Enter this
information in the “Redial Period” field.
34
Chapter 4: Advanced Applications
This chapter provides information on how to set up and use the advanced
functions of your 11g Wireless Broadband router .
4-1 DHCP Configuration
A DHCP (Dynamic Host Configuration Protocol) Server can automatically assign IP Addresses
to each computer in your network. Unless you already have one in you LAN, it is highly
recommended that you set your router to act as a DHCP server.
Dynamic IP Address: Select “Enable” to use the DHCP server option of the
router. If you already have a DHCP server in your
network, set the router's DHCP option to “Disable”.
Starting IP Address: Enter a numerical value, from 2 to 254, for the DHCP
server to start at when assigning IP Addresses.
Number of Users: Enter the maximum number of PCs that you want the
DHCP server to assign IP Addresses to, with the
absolute maximum being 253.
Client Lease Time: Enter the number of time that DHCP clients (The PCs
LAN id ) h IP Add i d b
35
on LAN side) can use the IP Addresses assigned by
Router’s DHCP server. Before the time is up, DHCP
clients have to request to renew the DHCP information.
DNS: The IP Address of the Domain Name Server, which is
currently used. Multiple DNS IP settings are common.
The first DNS entry will be use in most cases.
WINS: Windows Internet Naming Service converts NETBIOS
name to IP address. The Windows based PCs are
assigned NETBIOS names, which have to be transfer
into IP addresses if the network transport is TCP/IP.
For example, through WINS the two PCs that belong to
different subnet can locate each other by name. Enter
the IP address of WINS server and it will be assigned
to DHCP clients.
DHCP Clients Table Click the DHCP Clients Table button to show current
DHCP client information.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
4-2 Access Control
The Access Control feature allows administrators to set up to 20 access policies to block or
allow certain users from accessing the Internet or specific applications. Before using this
function, the network PCs which you want to control the access limitation should be assigned
fixed IP Addresses.
Access Control
The Access Control feature allows administrators to block certain users from
accessing the Internet or specific applications. Before using this function, the
network PCs which you want to control the access limitation should be assigned
fixed IP Addresses.
36
IP Access Setting
This function allows network administrators to restrict up to five groups of
specified network users/computers from accessing the certain applications
Protocol: Select the protocol type as “TCP” or “UDP” from the
drop down list. If you are not sure which one to
choose, select “Both”.
Filter Group/LAN IP
Range:
Enter the range of IP addresses which you want them
to be a controlled group to have the same access
limitation.
Block Port Range: Enter the range of port numbers which are used by the
applications you wish to be blocked.
Here is an example for the IP Access Setting. Enter the range of 51~80 in the
Filter Group column and 20~80 in the Block port Range column, then click
“Apply” button. As the result, the user’s computers which have IP Addresses in
the range of 192.168.1.51 to 192.168.1.80 will not be able to use the
applications which use port numbers from 20 to 80, such as FTP, Telnet and
37
web browsing.
TOD
Control Type: Select the control type from the drop down list and
make this function active. Select “Block Outbound”
to restrict the connection to the Internet from your
LAN. Select “Block Inbound” to restrict any external
connections from Internet to your LAN servers that
were set as virtual servers or as DMZ host. Select
“Block Both” to restrict both incoming and outgoing
connections. Select “Disable” to turn off this function.
Define Schedule: Set a period of time with beginning and ending from
the drop down list.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
URL Access Setting
To shift to URL Access Setting, click on the bold type word to hyperlink to the
setting page.
This function allows network administrators to restrict or allow all LAN users
to access the web sites that the addresses have been enter to the columns.
38
URL Access Limit: Check “Enable” or “Disable” to make this function
active or inactive.
Website Access: Check “Allow” to allow users on the network to access
specific website listed on the location only. In contrast,
to restrict users on the network to access the website
listed on the location, check “Block” in this item.
Block Access Website: Enter the website addresses to be accessed/blocked on
the locations. Up to twenty website addresses can be
entered into the locations.
Show URL Log: URL Log allows network administrators to check the
URL access records. Click the button of “Show URL
Log” to go to the URL Filter Log table. This table lists
the users/computers by their IP Addresses, the access
status, and their URL Access destinations.
MAC Access Setting
This function allows network administrators to use the MAC addresses of PCs
to restrict users/computers from accessing the Internet.
39
Filtered MAC
Address:
There are fifty sets divided into five groups in this
function. You can choose each group by selecting from
the pop-down list. Enter the MAC addresses of the
computers you wish to block in the columns, and then
those users/computers cannot access Internet at all.
4-3 Virtual Server Settings
The Virtual Server Settings application allows you to set up a maximum of ten public services
that can be accessed by external users of the Internet, such as a Web Address, Email, FTP etc..
Each service is provided by a dedicated network computer (server) configured with a fixed IP
Address. Although the internal service addresses are not directly accessible to the external user,
the Wireless Broadband router is able to identify the service requested by the service port
number and redirects the request to the appropriate internal IP Address/server. To use this
application, it is recommended you use a fixed Public IP Address from your ISP. Note that your
Wireless Broadband router supports only one server of any particular type.
This router also support UPnP Forwarding. You can use either Virtual Server Settings or UPnP
Forwarding by clicking the button to change setting page. Please note that do not set the same
function server to different IP Address in different setting pages.
40
Set up individual network computers to act as servers and configure each with a
fixed IP Address.
Note: In the “One Page Setup” screen, ensure the “Private IP Address” is set
to the Wireless Broadband router’s default setting of 192.168.1.1. If a fixed
Public IP Address is to be used, select “Specify an IP address” and enter the
IP Address and other necessary information provided by your ISP.
Ports: Enter the desired service port numbers in the “Ports”
fields. You can specify the protocol type as “TCP” or
“UDP” from the drop-down list. If you are not sure
which one to select, choose “Both”. A selection of
well-known service port numbers is provided on this
screen.
Redirect IP Address: Enter the appropriate IP Addresses of the service
computers in the “Redirect IP Address” locations.
Passive FTP Virtual
Server:
When there is firewall filtering in your network, the
Internet user may not be able to access FTP server you
set in the LAN side. Setting FTP server at passive
mode will be necessary.
Enable/Disable - Click to enable/disable passive FTP
41
function.
FTP Port - Enter the port number (> 1024) that the
FTP server will use as data connection port number.
The client side should select passive mode and use the
same port number entered here.
Server IP Address - Enter the appropriate IP
Addresses of the service computer.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
Example:
If the service port number 80~80 (representing an HTTP web address) is
entered in “Ports” and 192.168.1.100 is entered in “Redirect IP Address”,
then all HTTP requests from external Internet users will be directed to the
PC/server with the 192.168.1.100 fixed IP Address.
Below is a list of the protocol and port ranges that are used by some common
applications.
Application Protocol Port Range
FTP Server TCP 21
Half Life UDP 6003, 7002, 27010, 27015, 27025
MSN Messenger TCP
TCP
UDP
UDP
UDP
TCP
6891-6900 (File-send)
1863
1863
5190
6901 (Voice)
6901 (Voice)
PC Anywhere host TCP
UDP
5631
5632
Quake 2 UDP 27910
Quake III UDP 27660 (first player)
27661 (second player)
Telnet Server TCP 23
Web Server TCP 80
42
UPnP Forwarding
UPnP (Universal Plug and Play) is a standard introduced from Microsoft and
UPnP Forum for interoperability. Currently, this function supported by this
device allows you to set virtual server from Windows OS that supports UPnP,
such as Windows XP.
UPnP Function: Check “Enable” will allow LAN side PCs that support
UPnP to set virtual server.
Before you enable the UPnP Forwarding, you have to
set up individual network computers to act as servers
and configure each with a fixed IP Address.
In the “One Page Setup” screen, ensure the “Private
43
IP Address” is set to the Router’s default setting of
192.168.1.1. If a fixed Public IP Address is to be used,
select “Specify an IP address” and enter the IP
Address and other necessary information provided by
your ISP.
UPnP Control: Check “Enable” will allow LAN side PCs that support
UPnP to directly configure the settings provided in this
page.
Application Name UPnP has ten pre-setting forwarding rules, which are
well-known applications. You can enter any name to
present the additional settings beside those pre-setting
rules.
Ext. Port Most of applications usually use their individual port
number for its incoming and outgoing data packets.
However, some of the application may use different
port number for incoming and outgoing data packets.
In this case, you have to enter the port number used by
incoming data packets here.
Protocol Specify the protocol type as “TCP” or “UDP” which
is used by specific service.
Int. Ports Most of applications usually use their individual port
number for its incoming and outgoing data packets.
However, some of the application may use different
port number for incoming and outgoing data packets.
In this case, you have to enter the port number used by
outgoing data packets here.
IP Address Enter the appropriate IP Addresses of the service
computers in the “IP Address” locations.
Enable Check to make this forwarding setting active.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
Example: If the service port number 80~80 (representing an HTTP web address)
44
is entered in “Ports” and 192.168.1.100 is entered in “IP Address”, then all
HTTP requests from external Internet users will be directed to the PC/server
with the 192.168.1.100 fixed IP Address.
4-4 DMZ Host
The DMZ Host application allows unrestricted 2-way communication between a single LAN
PC and other Internet users or servers. This application is useful for supporting special-purpose
services such as video-conferencing and gaming, that require proprietary client software and/or
2-way user communication.
To use this application, you must first obtain a fixed Public IP Address from your ISP. Note that
in order to provide unrestricted access, the Firewall provided by the Wireless Broadband router
to protect this port is disabled, thus creating a potentially serious security risk.
It is recommended that this application is disabled when it is not in use by entering “0” in the
“DMZ Host”field.
The Multi DMZ allows you to map the public IP addresses to your LAN PCs, should you get
more than one public IP address from your ISP. This function is useful to set up your servers,
such as an FTP server, web server, and so on, with public IP addresses, but still keep them
within your LAN group.
With the public IP addresses, Internet users will access your servers more easily and those
servers can still communicate with other PCs in you LAN by using Network Neighborhood.
Before setting up a LAN PC to act as a DMZ Host, you should configure it
45
using a fixed IP Address.
Note: In the “One Page Setup” screen, ensure the Private IP Address is set to
the Wireless Broadband router’s default setting of 192.168.1.1. In the Public IP
Address area, select “Specify an IP Address”, and then enter the IP Address
and other necessary information provided by your ISP.
Click the “DMZ Host” option in the Advanced Menu and enter the fixed IP
Address of the Exposed Host PC in the “DMZ Host” IP Address location.
Remember, entering “0” will disable this application.
Multi DMZ
1. Enter the valid public IP address in “WAN IP” column. Next, enter the
private IP address of the PC that you wish to map to in “LAN IP” field.
Up to five public IP addresses can be entered.
2. Click the “Apply” button after making any changes, or click the “Cancel”
button to exit the screen without saving any changes.
4-5 Dynamic Routing
The Dynamic Routing feature allows your Wireless Broadband router to exchange routing
information with other routers in the network. Enabling this feature is likely to enhance
performance of your Wireless Broadband router.
TX: From the drop-down list, select one of the routing
information types, “RIP-1”, “RIP-1 Compatible”, or
“RIP-2”, to enable the “TX” (transmit) function.
“RIP-1” is the protocol used by older routers. Newer
routers should use “RIP-2”. “RIP-1 Compatible”
servers to broadcast RIP-1 and multicast RIP-2.
RX: From the drop-down list, select one of the routing
information types, “RIP-1” or “RIP-2”, to enable the
46
“RX” (receive) function.
Show Routing Table: Click this button after clicking Apply to see current
routing information.
Apply: Click this button after making any changes for
activating the settings.
Undo: Click this button if you are not satisfied with the
settings in this page before clicking Apply.
Below is Routing Table Entry List. This table shows the status for routing information. You can
click Refresh to update the table information.
4-6 Static Routing
The Static Routing feature allows PCs that are connected to the Wireless Broadband router,
either directly or through a hub/switch (in the immediate LAN), to communicate with other PCs
in the respective LAN segment which are connected to the Wireless Broadband router through
another router (destination LAN). Up to 20 route entries may be input into the Wireless
Broadband router. The diagram below gives an example of the physical connections required to
use Static Routing.
In the above diagram, PC2 in LAN#2 is connected to the Wireless Broadband router via another
router while PC1 in LAN#1 is connected to the Wireless Broadband router directly. Without
configuring the Static Routing function, the two PCs would not be able to communicate with
each other.
47
Select Route entry: Select the route entry number from 1 to 20 that you
wish to configure.
Delete this entry Delete the selected route entry information.
Destination LAN IP
and Subnet Mask:
Enter the IP Address and Subnet Mask of the
destination LAN that the immediate LAN is to
communicate with. Taking the above diagram as an
example, enter 192.168.2.0 in the “Destination LAN
IP” field and 255.255.255.0 in the “Subnet Mask”
field.
Default Gateway: Enter the IP Address of the router that forwards data
packets to the destination LAN. For the above
example, enter 192.168.1.2 in the “Default Gateway”
field.
Hop Count: Enter the number of hops required between the LANs
to be connected. The Hop Count represents the “cost”
of the routing transmission. The default value is 1.
Interface: Choose LAN if the Destination LAN is on your
Router’s LAN side and choose WAN if the Destination
LAN is on the Router’s WAN side.
Show Routing Table Click this button after clicking Apply to see current
routing information.
48
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
Referring back to the above diagram, with the proper settings, PC1 would be
able to access LAN 1, LAN 2 and the Internet while PC2 can only access LAN
2, LAN1.
4-7 Special Applications
Some applications use multiple TCP/UDP ports to transmit data. Due to the
NAT, these applications cannot work with the Wireless Broadband router. Port
Triggering allows some of these applications to work properly. Note that only
one PC can use each Port Triggering setting at any time.
Application name: Enter the name of application you wish to configure in
the Name column to identify this setting.
Outgoing Port Range: Enter the port number or range numbers this
li i h i d k b d Th
49
application uses when it sends packets outbound. The
Outgoing Port Numbers act as the trigger. When the
Wireless Broadband router detects the outgoing
packets with these port numbers, it will allow the
inbound packets with the Incoming Port Numbers that
you set in the next column to pass through the Wireless
Broadband router.
Incoming Port Range: Enter the port number or range numbers the inbound
packets carry.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
The following is a list of port numbers used on some popular applications:
Application Outgoing Control Incoming Data
Battle.net 6112 6112
DialPad 7175 51200, 51201,51210
ICU II 2019 2000-2038, 2050-2051
2069, 2085,3010-3030
MSN Gaming Zone 47624 2300-2400, 28800-29000
PC to Phone 12053 12120,12122, 24150-24220
Quick Time4 554 6970-6999
wowcall 8000 4000-4020
4-8 Wireless Setting
This setting page allows you to configure advanced wireless functions. To set
those items needs more technology background. Unless you really understand
those technical terms, it would be better to leave them as default setting.
50
Beacon Interval: It’s the signal sent periodically by wireless access point to
provide synchronization among the stations in wireless
LAN.
RTS Threshold: RTS packet is use to account for potential hidden stations.
This feature allows you to set the size of RTS packet.
Fragmentation
Threshold:
If the length of data frame needing transmission exceeds
the fragmentation threshold you set in the column, the data
frame will be fragmented. If there is significant
interference or high utilization in your wireless network,
the smaller fragmentation value can increase the reliability
transmission. However, it is more efficient to set the large
fragment size.
DTIM Interval: DTIM is the acronym of Delivery Traffic Indication
Message. It determines how often the MAC Layer forward
multicast traffic.
Transmission Rate: Leave “Auto” setting as default or select other speed you
wish to use.
Preamble Type: Leave “Long Preamble” as default setting or select other
type to compatible with special setting your client devices
use.
Authentication Type: Select either Open System or Shared Key as authentication
If l b h
51
type. If you are not sure, select both.
Station MAC Filter This function allows you to restrict wireless users to access
Internet. As for the MAC table, you need to click” Active
MAC Table” button, entering to the “Wireless Active
MAC table” page, press “Update Filter List” button and
update the list again.

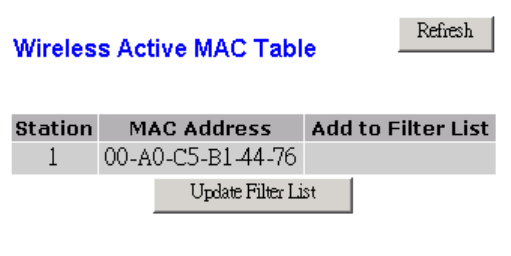

Active MAC Table The “Active MAC Table” shows the MAC addresses of
wireless clients, which have the same ESSID and WEP key
with Wireless Broadband router. When the “MAC Filter”
function is disabled, the background color is gray.
Click the “Active MAC Table” button will display all
MAC addresses of wireless nodes on your WLAN.
If the MAC Filter function is enabled and the MAC
addresses showing in this table have been entered into the
“Update Filer List” table, the background color of those
MAC addresses will be green. Otherwise, it should be red.
If the MAC addresses have been blocked (check the Filter
field beside the MAC address in Update Filter List table),
the background color will be yellow.
Update Filter List: This function allows you to restrict wireless users to access
Internet.
Click “Update Filter List” button to open the edit table.
52
Wireless MAC Entry There are 32 sets divided into four
groups in this function. You can choose each group by
selecting from the pop-down list. Enter the MAC addresses
of the computers you wish to block in the columns and
click the Filter field beside the MAC address, and then that
user will be blocked to link to WLAN and Internet. If the
“Filter” field isn’t checked, that MAC address won’t be
blocked. The MAC address entered here should be 12
continue alphanumeric digits without “-“ in between. Click
“Apply” to save these changes.
Apply Click this button after making any changes for activating
the settings.
Cancel Click this button if you are not satisfied with the settings in
this page before clicking Apply.
4-9 DDNS
“DDNS” is an acronym for Dynamic Domain Name Service. Whenever you set up the web
servers, mail servers, or sometimes ftp servers, you need “Domain Name” to help Internet
users reach your servers easily.
Internet actually runs on IP Addresses which are numerical order, for example “66.37.215.53”.
These IP Address identify the location of each device connected to Internet. However, the
human brain does not easily remember this numbering system, so a system that allocate domain
name such as “www.dyndns.org” provides an easier method. If you type “66.37.215.53” or
“www.dyndns.org” in the web browser’s address bar, the browser will show the same web page.
This is because both methods relate to the same web server. The “Domain Name Servers”
used to manage the Internet will translate “www.dyndns.org” into the IP Address
“66.37.215.53” in order to allow your browser to find the web server and display the correct
web page in your browser.
53
If your “WAN Connection Type”, as shown in One Page Setup section, is “Obtain IP Address
Automatically”, “PPPoE”, or “PPTP” with dynamic IP address assigned by ISP, it will cause an
error when you set up the public computer servers in your LAN side PCs. Internet users may
not be able to reach your servers because your WAN side IP address may change each time you
initiate the connection to your ISP. The DDNS function will help to map your IP address to your
domain name when your ISP assigns a new dynamic IP Address.
Note that this DDNS function acts as the client appliance of DDNS service and is only able to
be use in conjunction with the service provided by DynDNS.org. Before you begin using this
function, you will need to apply to DynDNS.org (or 3322.org)to be able to use the service.
Please visit www.dyndns.org (or www.3322.org) for further information.
DDNS Server Select Check the “DDNS Server”(dyndns.org or 3322.org)
you register the domain name
DDNS Service: Check the “Enable” option if you wish to activate this
function.
Username: After you have applied for the DDNS service from
DynDNS.org, you will be issued with a Username.
Enter this username in the “Username” field.
Password: DynDNS.org, will also issue you with a password.
Enter the detail in the “Password” field.
Host Name: DynDNS.org, will provide you with a Host Name.
Enter this name in the “Host Name” field.
54
Your IP Address It displays the IP Address currently assigned by your
ISP.
Status: This displays the current status of the DDNS function.
Apply Click this button after making any changes for
activating the settings.
Update After clicking Apply to invoke the DDNS settings, you
have to click this button to refresh the settings..
55
Chapter 5: Management
This chapter provides information on using Macintosh computers in your network. The
instructions given here are for system software version 8.0 or above, which comes with the
TCP/IP Protocol preloaded and supports DHCP Addressing.
5-1 Device Administration Settings
This feature allows the administrator to manage the Wireless Broadband router by setting
certain parameters. For security reasons, it is strongly recommended that you set Passwords and
so that only authorized persons are able to manage this Wireless Broadband router. If the
Password is left blank, all users on your network can access this router simply by entering the
unit’s IP Address into their web browser’s location window.
56
Administrator
Password:
Enter the password you want to use into the
“Password Change” field and re-enter it into the
“Password Confirm” field for confirmation. Be sure
that the password is less than 64 characters long and
without any special characters or spaces..
SNMP Function: As with the Password, SNMP community allows
authorized persons to access this router through the
SNMP Management tool. The Wireless Broadband
router provides three fields to enter these communities.
The default words Public and Private are well-known
communities that allow authorized persons who know
the IP Address of this router to access the read-only
information about this router or have the authority to
change the configuration. Also, the administrator can
define any specific community and configure its limits
as Read-Only or Read-Write from the right side
drop-down box.
WAN MAC Change: The WAN MAC address can be changed from the
original values if necessary. Some ISPs require users
to change the WAN MAC address to a registered one
when users change their access equipment.
External Admin.: Check “Enable” to allow you to configure the
Wireless Broadband router from the WAN side. To
access the setting page from the external side, enter
“http://<WAN IP Address>:8080” into the web
browser address bar and press the “Enter” key.
MTU: Check Enable if you want to set a maximum
limitation for incoming and outgoing packet size.
Enter the maximum packet size you wish to set in the
“Size” column.
Block WAN Request: To prevent hacker intruding your network, check the
Enable option to enable this function to reject all the
unauthorized requests from WAN side.
IPSec Pass Through: Check the Enable to allow the IPSec packets to pass
through the Wireless Broadban
d router if there is LAN
57
through the Wireless Broadband router if there is LAN
PC using IPSec for data communication with other
Internet device.
PPTP Pass Through: Check the Enable to allow the PPTP packets to pass
through the Wireless Broadband router if there is LAN
PC using PPTP for data communication with other
Internet device.
PPPoE Pass Through: Check the Enable to allow the PPPoE packets to pass
through the Wireless Broadband router if there is LAN
PC using PPPoE for data communication with other
Internet device.
Remote Upgrade: Check Enable if you want to allow the authorized
remote users to upgrade firmware from WAN side.
Reset Device: Select “Yes” if you want to clear a connection, reboot,
and re-initialize the unit without affecting any of your
configuration setting.
Factory Defaults: Select “Yes” if you want to return all the router’s
current settings to their factory defaults. Note that do
not restore the factory defaults unless it is absolutely
necessary.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking Apply.
5-2 Status Monitor
This screen shows the router’s current status. All of the information provided is read-only.
58
Product Name: This field shows the name of this router.
Firmware Version: This field shows the installed version of the firmware.
Login: This column shows the login information of PPPoE or
PPTP. You can manually initiate the connection or
make a disconnection by clicking the appropriate
buttons. Be aware that, if you make a disconnection
here, “Connect-on- demand” will not function until
the connection button is clicked. Note that “Login”
won’t show any information if you selected “Obtain
IP automatically” or “Static IP” on the OnePage
Setup page.
Internet: This section shows the WAN Connection Type settings
status of the router as seen by external users of the
Internet. If you selected “Get IP Address
Automatically”, “PPPoE”, or “PPTP” in the
OnePage Setup, the “ IP Address”, “Subnet Mask”,
“Default Gateway”, and “Domain Name Server”
(DNS) will show the information retrieved from the
DHCP server or ISP which is currently being used. If
59
you selected “ Static IP” in “One Page Setup: Public
IP Address”, the information will be the same as your
input.
DHCP Release: Click this button to eliminate the IP address obtained
from DHCP server.
DHCP Renew: Click this button to refresh the IP address from DHCP
server.
Note that the “DHCP Release” and “DHCP Renew”
button only show up when you select “Get IP Address
Automatically” in the OnePage Setup.
Intranet: This section displays the current “Private IP Address”
and “Subnet Mask” of the router, as seen by users of
your internal network.
DHCP Clients Table: If the router is setup to act as a DHCP server, the LAN
side IP Address distribution table will appear by
clicking this button.

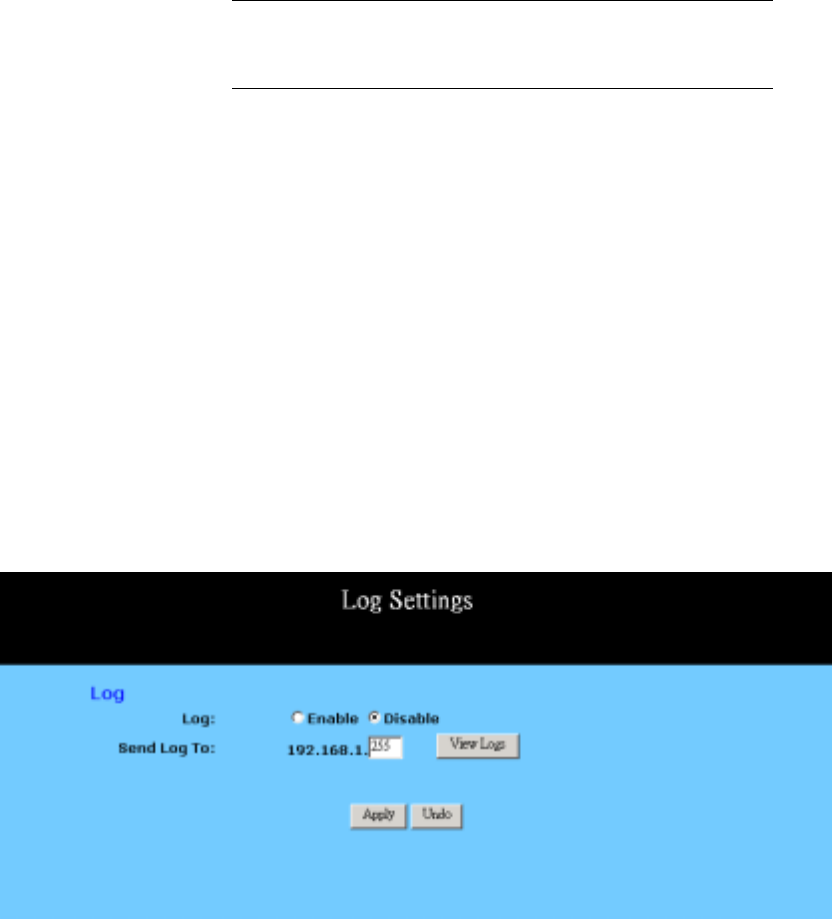

5-3 Log
The Log application provides the administrator with the ability to trace Internet connection.
With viewing the Log information, an administrator can send the record to a specific LAN PCs
to have the real time monitor.
Log: Check the “Enable” option if you want to activate this
function.
Send Log To: Enter the IP address of the PC that you wish to use to
ihLif i
60
view the Log information.
View Log: Click this button to view the log on-line.
Apply Click this button after making any changes for
activating the settings.
Cancel Click this button if you are not satisfied with the
settings in this page before clicking “Apply”.

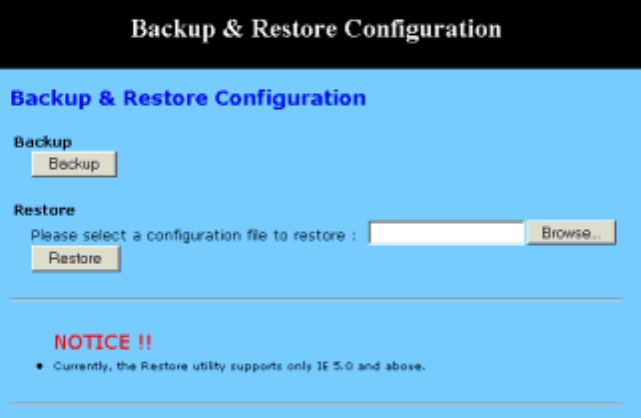

5-4 Backup & Restore
This function allows you to save router’s configuration as backup, or retrieve the configuration
file you saved before to turn the setting back.
Backup: Click “Backup” button save the current configuration
as a backup file in your hard disk.
Restore: Enter path of the configuration file you saved on the
PC. You can click “Browse” to view the folders and
select the file. Click “Restore” to retrieve it.
5-5 Upgrade Firmware
This setting page allows you to upgrade the latest version firmware to keep your router
up-to-date. Before you upgrade the firmware, you have to get the latest firmware and save it on
the PC you use to configure the router.
61
Browse..
Browse.. To select a file to upgrade, you have to enter path of the
latest firmware you saved on the PC. You can choose
“Browse” to view the folders and select the firmware.
After you enter or select the path, click “Upgrade” to
start the firmware upgrade process.
Upgrade
Note that don’t power off the router during the
f
irmware upgrading, otherwise the incompletion of
firmware upgrading will cause serious damage to the
integrity of the router’s firmware that will lead to fail to
boot the router again.
5-6 Diagnostic-Ping/Tracert
This function allows you to test the connection between router and LAN or between router and
Internet.
Ping
62
Source IP: You can chose to issue the ping test from the LAN side
by selecting Router’s private IP Address or from the
WAN side by selecting Router’s WAN IP Address.
Destination IP: Enter the IP Address of destination device you want to
ping. If Router’s LAN IP address is selected as Source
IP, you only can ping LAN side device and vice versa.
Packet Number: Enter the packet numbers you wish to use to ping the
destination device. The maximum numbers are four.
Packet Size: Enter the numbers of packet size you wish to use to
ping the destination device. The maximum packet sizes
are 1514.
Time Between Enter the numbers of time between two packets.
Time out: Enter the number of time regarding as no response
after starting to ping the destination device.
Start: Click this button to begin the ping test.
Ping Result: The result will show the numbers of sending packet,
numbers of packet receiving, and the average return
time.
Tracert
Tracert Host: Enter the IP Address of destination device that you
wish to trace the route between Router and that device.
Trace Message: The result shows the routing information between
Rddiidi
63
Router and destination device.
Tracert: Click “Tracert” to start this test.
64
Chapter 6: Macintosh Setup
This chapter provides information on using Macintosh computers in your network. The
instructions given here are for system software version 8.0 or above, which comes with the
TCP/IP Protocol preloaded and supports DHCP Addressing.
6-1 Hardware Connections
Connect your Macintosh computer to your 11g Wireless Broadband router . If you have a newer
computer, there will be a Ethernet port on the back. Older computers will need to have an
Ethernet card installed. See your computer’s User’s Manual for instructions on Ethernet card
installation.
6-2 Computer Network Configuration
It is assumed that your computer’s system software already has TCP/IP installed. You may
manually configure your computer with a fixed IP Address or have an IP Address dynamically
assigned to it by the 11g Wireless Broadband router ’s DHCP server.
6-2.1 Dynamic IP Addressing using DHCP Server.
4. From the “Apple” menu, select “Control Panel” and click on
“TCP/IP”.
5. In the “TCP/IP (A New Name For Your Configuration)” window,
select “Ethernet” in the “Connect via” location from the
drop-down list.
6. In the “Setup” area:
- Select “Using DHCP Server” in the “Configure” location from
the drop-down list.
- No other data needs to be entered.
- Close the window.
7. Click “Save” from the file menu, then “Quit” TCP/IP.
8. Restart the computer.
6-2.2 Manual Configuration of Fixed IP Addresses
9. From the “Apple” menu, select “Control Panel” and click on
“TCP/IP”.
10. In the “TCP/IP (A New Name For Your Configuration)” window,
65
select “Ethernet” in the “Connect via” location from the
drop-down list.
11. In the “Setup” area:
- Select “Manually” in the “Configure” location from the
drop-down list.
- In the “IP Address” location, enter the IP Address that you want
to assign to the computer. (see the notes on Fixed IP Addresses
2-4 above).
- Enter “255.255.255.0” in the “Subnet Mask” location.
- Enter “192.168.1.1” (the 11g Wireless Broadband router ’s
default IP Address) in the “Router Address” location.
- Enter the ISP’s IP Address in the “Name Server” location if your
ISP has provided the information.
- Close the window.
12. Click “Save” from the file menu then “Quit” TCP/IP.
13. Restart the computer.
6-3 11g Wireless Broadband router Configuration
To configure your 11g Wireless Broadband router , use your Web Browser and follow the
instructions given in Chapter 3: Internet Access, section 3.3. To configure advanced settings,
see Chapter 4: Advanced Applications.
6-4 Adding 11g Wireless Broadband router to Existing Network
If the 11g Wireless Broadband router is to be added to an existing Macintosh computer
network, the computers will have to be configured to connect to the Internet via the 11g
Wireless Broadband router .
1. From the “Apple” menu, select “Control Panel” and click on
“TCP/IP”.
2. From the “File” menu, select “Configurations” and select your
existing network configuration. Click “Duplicate”.
3. Rename your existing configuration. Click “OK”, and “Make
Active”.
4. In the Setup area:
- Select “Manually” in the “Configure” location from the
drop-down list.
- In the “IP Address” location, enter the IP Address that you want
to assign to the computer. (see the note on fixed IP Addresses
2-4 above).
66
- Enter “255.255.255.0” in the “Subnet Mask” location.
- Enter “192.168.1.1” (the 11g Wireless Broadband router ’s
default IP Address) in the “Router Address” location.
- Enter the ISP’s IP Address in the “Name Server” location if your
ISP has provided the information.
- Close the window.
5. Click “Confirm”. TCP/IP is now configured for manual IP
Addressing.
6. Configure your 11g Wireless Broadband router (see Chapter).
67
Chapter 7: Trouble Shooting
This chapter provides solutions to problems you may encounter during installation and
operation of your 11g Wireless Broadband router .
Hardware
Q: The Power LED is off.
Check that the power cable is properly connected to the 11g Wireless Broadband router , the
power adapter and the socket.
Q: The LAN Link LED is off.
Check that the computer, hub or switch is properly connected to the 11g Wireless Broadband
router .
Check that the computer’s Ethernet card is properly installed.
Check that the 11g Wireless Broadband router and the computer are on the same network
segment. If you are not sure, initiate the DHCP function (4-1) and set your computer to obtain
an IP address automatically (3-3).
Check that the computer is using an IP address in the range of 192.168.1.2 ~ 192.168.1.254 and
is therefore compatible with the 11g Wireless Broadband router ’s default IP address of
192.168.1.1 (3-3). Check also the Subnet Mask is set to 255.255.255.0
Q: The DIAG LED stays lit.
The DIAG LED should light up when the device is first powered up to indicate it is checking
for proper operation. After a few seconds, the LED should go off. If it stays lit, the device is
experiencing a problem. Please contact your dealer.
Q: Why can’t I configure the 11g Wireless Broadband router ?
First, check whether the 11g Wireless Broadband router is properly installed or not, including
the LAN and WAN connections, and that all devices are switched on.
Next, check the IP configuration of your PC:
For Windows 95/98 users: run winipcfg.exe or winipcfg from Run on
the Start menu. If there are no IP addresses shown, click Release All
and then click Renew All to get the IP addresses.
For Windows NT 4.0 users: run ipconfig.exe or ipconfig from Run on
the Start menu and follow the instruction as above.
Ensure that your PC and the 11g Wireless Broadband router are on the same
network segment. If you are not sure, initiate the DHCP function and set you
PC to obtain an IP address automatically.
Ensure that your PC is using an IP Address within the range 192.168.1.2 to
192.168.1.254 and thus compatible with the 11g Wireless Broadband router
68
default IP address of 192.168.1.1
Finally, use the Ping command in MS-DOS mode to verify the network
connection:
Ping 127.0.0.1 to check the TCP/IP stack of your computer
Ping gateway IP (Default: 192.168.1.1) to check the internal link of
network.
Note if you’re not able to view the web configuration screen for the 11g Wireless Broadband
router , make sure that you remove any proxy setting within your Internet browser, or remove
the dial-up settings within your browser.
Q: What can I do if I have forgotten the password for the 11g Wireless Broadband
router ?
You have to reset the Wireless Broadband router back to the factory default setting by pushing
the Reset button for longer than 3 seconds. Refer to the user’s manual to re-configure the
settings.
Q: I cannot access my ISP’s home page, why?
Some ISPs, such as @Home, require that their host name be specifically configured into your
computer before you can surf their local web pages. If you are unable to access your ISP’s
home page, enter your ISP’s Domain Name into the OnePage Setup (3-3) to enable all
computers in your LAN access to it. If you only want to allow computers to access these home
pages, open the TCP/IP Properties window (2-4) on these computers, click the “DNS
Configuration” tab and enter your ISP’s Domain Name in the “Domain Name Search Suffix”
location.
Client Side (Computers)
Q: I can’t browse in the Internet via the 11g Wireless Broadband router
A: Check the following:
Check that the LAN Link/ACT LED on the front panel is lit to indicate proper connection
between the computer and the 11g Wireless Broadband router .
Check if both ends of the network cable are properly connected.
Check that TCP/IP is installed on your computer (2-4).
For Windows 95/98, use a MS-Dos prompt to run “winipcfg” (“Ipconfig” for Windows NT).
Check that the computer’s IP Address is within the range of 192.168.1.2 ~ 192.168.1.254 and
the Subnet Mask is 255.255.255.0. If you are using a fixed IP address, also check the Default
Gateway IP Address and DNS address in “More”.
Check that the values as stated above are the same in Status Monitor (4-7).
Q: I get a time out error when I enter a URL or IP address.
A: Check whether other computers work. If they do, ensure the computer’s IP settings are
correct (IP Address, Subnet Mask, Gateway IP Address and DNS) (3-3). Then check whether
the 11g Wireless Broadband router ’s settings are correct (3-3).
69
Appendix A: Frequently Asked Questions
Q: What is the maximum number of IP Addresses the 11g Wireless Broadband router
can support?
The 11g Wireless Broadband router can support up to 253 IP Addresses in the range of
192.168.1.2~192.168.1.254.
Q: Where should the 11g Wireless Broadband router be installed on the network?
In a typical environment, the 11g Wireless Broadband router should be installed between the
ADSL/Cable modem and your LAN. Connect the 11g Wireless Broadband router to the
Ethernet port of the ADSL/Cable modem, and connect your PCs to the RJ45 jack on the LAN
side.
Q: Does the 11g Wireless Broadband router support IPX or AppleTalk?
No. The 11g Wireless Broadband router was designed to provide a multiple user LAN with
shared Internet access and supports only the TCP/IP Protocol. If your Novell or Apple system is
configured with TCP/IP, the 11g Wireless Broadband router can support them.
Q: Does the 11g Wireless Broadband router support 100Mb Ethernet?
Yes, the 11g Wireless Broadband router supports both 10Mb & 100Mb Ethernet on the LAN
side.
Q: What is “NAT” and what is it used for?
The Network Address Translation (NAT) Protocol translates multiple IP Addresses on a private
LAN into a single public IP Address that is accessible to the Internet. NAT not only provides the
basis for multiple IP Address sharing but also adds to the LAN’s security since the multiple IP
Addresses of LAN computers are never transmitted directly to the Internet.
Q: How can 11g Wireless Broadband router share single user account to multiple users?
11g Wireless Broadband router combines the following technologies to enable this function.
NAT (Network Address Translation): NAT is a technology which can create a private network
domain behind a public IP. It is usually used as a firewall. It can also be used when there are not
enough IP Address.
DHCP (Dynamic Host Configuration Protocol): DHCP is a protocol used to assign IP Address
to internal computers automatically. It can save a lot of IP configuration. This protocol is
supported by Windows 95/NT, Mac OS, and many other popular OS.
DNS (Domain name service): DNS is a protocol which translates a Domain Name to IP
Addresses that Internet host can handle. Addressing systems using Domain name, like
www.yahoo.com, is easier to use than an IP address, such as 204.71.177.70.
Q: What operating systems does 11g Wireless Broadband router series support?
11g Wireless Broadband router uses standard TCP/IP protocol, it can be operated as long as
you have the TCP/IP protocol installed in your operating system (For example: Windows 9x,
Windows NT, Windows 2000, etc.)
Q: Can I use multiple E-mail accounts if I use 11g Wireless Broadband router ?
70
Yes, you can. Some people think having one Internet account mean that they can only have one
E-mail account. However, E-mail is set by mailbox accounts and is different to the account you
use to connect to your ISP. If you want more E-mail accounts, you should contact your ISP or
you can browse the Internet to apply for a free E-mail account.
Q: Can Internet users access LAN computers?
11g Wireless Broadband router uses NAT to route all in/out packets. All external users can
only see the IP of the 11g Wireless Broadband router but cannot access LAN computers. The
LAN computers are well protected with the 11g Wireless Broadband router ’s natural firewall.
Q: When should I use DMZ host?
Enable DMZ host when you want to have unrestricted communication between your PC and the
Internet, for example, playing Internet games (i.e. Ages of Empire) or having multimedia
conferences (i.e. NetMeeting).
Q: Does the 11g Wireless Broadband router support PPTP of VPN packets pass
through?
Yes. 11g Wireless Broadband router supports single session PPTP pass through.
Q: Does the 11g Wireless Broadband router series support IPsec?
Yes. 11g Wireless Broadband router supports single session IPsec pass through.
71
Appendix B: Technical Specifications
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.11g Wireless
Interface
One 10/100Mbps Ethernet RJ45 port on WAN
Four 10/100Mbps auto-sensing Ethernet RJ-45 ports and one uplink port on
LAN
Wireless access point
Management
Web-based UI Management
LED Display
Power
DIAG
Enable/Activity for Wireless interface
Link/Activity for both WAN and LAN port(s)
Environment
Operation Temperature: 0 ~ 40 degrees C (32 ~ 104 degrees F)
Storage Temperature: -20 ~ 60 degrees C (-4 ~ 140 degrees F)
Humidity: Operating 10 ~ 85% non-condensing
Storage 5% ~ 90% non-condensing
Dimension
122 (L) x 175 (W) x 31 (H) mm
72
Power
External, DC 12V, 1A
Mounting
Desktop / Wall-mounting
73
Appendix C: Glossary
10Base-T / 100Base-T
The adaptation of the Ethernet standard for Local Area Networks (LANs). 10Base-T uses a
twisted pair cable with maximum lengths of 100 meters and transmits data at 10Mbps
maximum. 100Base-T is similar, but uses two different twisted pair configurations and
transmits at 100Mbps maximum.
Ad-hoc Network
Also known as the peer-to-peer network, an ad-hoc network allows all PCs participating in a
wireless network and being within range, to communicate with each other. User’s in the same
ad-hoc network can share files, printers, and other network resources.
Adapter
A device that makes the connection to a network segment, such as Ethernet and modem cards
and adapters.
ADSL
Asymmetric Digital Subscriber Line (ADSL), as it’s name indicates, is an asymmetrical data
trasmission technology with higher traffic rate downstream and lower traffic rate upstream.
ADSL technology satisfies the bandwidth requirements of applications which demand
“asymmetric” traffic, such as web surfing, file downloads and telecommuting.
Bandwidth
The amount of data that can be transmitted in a fixed amount of time.
Browser
A software application used to locate and display Web pages. Examples include Netscape
Navigator and Microsoft Internet Explorer.
BSS
BSS is the acronym of Basic Service Set that consists of a wireless access point and a group of
wireless client PCs.
Communication Protocols
Communication between devices requires they agree on the format in which the data is to be
transmitted, sent and received. The communication protocols are a set of rules that define the
data format.
Cookie
A Cookie is a piece of data stored on your PC that a web server can retrieve later to identify
your machine. It is normally a text with ID number, but can include other information.
DHCP
DHCP, short for Dynamic Host Configuration Protocol, is a protocol for assigning dynamic IP
Addresses to devices on a network. Dynamic Addressing means that a device can have a
different IP Address each time it connects to the network.
Domain Name
A name that identifies one or more IP Addresses. For example, the domain name microsoft.com
74
represents about a dozen IP Addresses. Domain names are used in URLs to identify particular
Web pages. For example, in the URL http://www.pcwebopedia.com/index.html, the domain
name is pcwebopedia.com.
DoS
DoS is the abbreviation for Denial of Service. This occurs when a computer or network is
overwhelmed to the point that it can no longer function normally. For example, a hacker may
use fake IP addresses to accumulate numerous connections to flood the server he wants to
attack.
DDNS
DDNS is an acronym for Dynamic Domain Name Service. It helps map the domain name of a
host which has a dynamic public IP address to the IP address that is allocated each time the ISP
assigns a new IP address.
DNS
Short for Domain Name Server, DNS translates domain names into IP Addresses and help us
recognize and remember domain names as they are alphabetic in form. The Internet actually
runs on numbered IP Addresses. DNS servers translate domain names into their respective IP
Addresses.
DSSS
Also known as Direct Sequence Spread Spectrum, it is a radio transmission method that
continuously changes frequencies.
Ethernet
One of the most common Local Area Network (LAN) protocols. Ethernet uses a bus topology
which supports a data transfer rate of 10 Mbps.
ESS
ESS is an acronym for Extend Service Set that consists of several BSS’s.
Firewall
A security system used to enforce an access control policy between an organization’s networks
and the Internet.
IEEE
Short for Institute of Electrical and Electronics Engineers, an organization best known for
developing standards for the computer and electronics industry.
Internet
A global network connecting millions of computers for the exchange of data, news and
opinions.
Intranet
A network based on the TCP/IP Protocol (an internet) belonging to an organization, and
accessible only by that organization's members, employees, or others with authorization.
Infrastructure Network
Unlike “Ad-hoc” network, where users on a wireless LAN send data to each other directly,
users’ on an “Infrastructure” network send data to the other point through a dedicated access
point. Additionally, the access point enables users on a wireless LAN to access an existing
wired network to take advantage of sharing the wired networks resources, such as files, printers,
and Internet access.
IP Address
An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP
75
Protocol route messages based on the IP Address of the destination. The format of an IP address
is a 32-bit numeric address written as four numbers separated by periods. Each number can be
from zero to 255.
IPSec
Internet Protocol Security is a security standard for network transmission. It provides
authentication and packet encryption over the Internet.
ISP
Short for Internet Service Provider, a company that provides access to the Internet, usually for a
monthly fee. The ISP provides a software package, username, password and access phone
number allowing users to log on to the Internet, browse the World Wide Web and send and
receive e-mail.
Local Area Network (LAN)
A computer network that spans a relatively small area. Most LANs are confined to a single
building or group of buildings. However, one LAN can be connected to other LANs over any
distance via telephone lines and radio waves. A system of LANs connected in this way is called
a wide area network (WAN)
MAC Address
Short for Media Access Control Address and in a hardware address that uniquely identifies each
node of a network.
NAT
Short for Network Address Translation, a routing protocol that allows global IP Addresses to be
translated into multiple private IP Addresses for use on internal LAN networks. The explosion
in the use of the Internet has created a critical problem for the Internet Assigned Numbers
Authority (IANA) which is in charge of assigning IP Addresses to Internet users, ISPs etc.. NAT
is a technology that has been introduced to help maximize the utilization of assigned IAN and
global IP Addresses.
Network Protocol
Network protocols encapsulate and forward data packets from one interface to another.
PAP/CHAP ISP
Short for Password Authentication Protocol and Challenge Handshake Authentication Protocol.
Most ISPs use either one for user identification. If your ISP doesn’t support these two protocols,
contact your ISP for an authentication script.
PPP
Short for Point-to-Point Protocol, a communications protocol for transmitting information over
standard telephone lines between devices from different manufacturers.
PPPoE
Short for PPP over Ethernet, relying on two widely accepted standards, Ethernet and the
Point-to-Point Protocol. It’s a communications protocol for transmitting information between
devices from different manufacturers over an Ethernet.
PPTP
Short for Point to Point Tunneling Protocol, PPTP encapsulates the packet for transmission over
the Internet. It is similar to creating a private “tunnel” over a large public network and has
almost equal security to a private network without actually leasing a private line.
Protocol
An agreed format for transmitting, sending and receiving data between two devices.
76
Roaming
The ability for a wireless device moving from one access point’s range to another without
losing the connection.
Router
An Internet device that routes requests for information to other routers until the information’s
location is found and the data can be transmitted back to the origin of the request.
SPI
SPI is an acronym for Stateful Packet Inspection. The SPI engine examines not just the headers
of the packet, but also the packet contents, it can then determine more about the packet than just
its source and destination information. Moreover, stateful inspection firewalls also close off
ports until a connection to the specific port is requested.
TCP/IP
Short for Transmission Control Protocol and Internet Protocol, the suite of communications
protocols that enable hosts on the Internet to connect and exchange streams of data.
VPN
VPN is an acronym for Virtual Private Network. Via access control and encryption, VPN brings
the same security to data transmission through the Internet as if it being transmitted through a
private network. It not only takes advantage of economies of scale but also ensures high level
security while the packet is sent over the large public network.
Wide Area Network (WAN)
A system of LANs being connected by telephone lines and radio waves. Although some WANs
may be privately owned, they are usually considered a means of public access.
WEP
An acronym for Wired Equivalent Privacy. It is an encryption mechanism used to protect
your wireless data communications. WEP uses a combination of 64-bit/128-bit keys to encrypt
data that is transmitted between all points in a wireless network to insure data security. It is
described in the IEEE 802.11 standard.
