CyberTAN Technology WM141 2.4GHz Draft 802.11n 2*2 miniCard Module User Manual WD 615 Product Specification
CyberTAN Technology Inc. 2.4GHz Draft 802.11n 2*2 miniCard Module WD 615 Product Specification
User Manual
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
WM141
2.4GHz Draft 802.11n 2*2 miniCard Module
PRODUCT SPECIFICATION
Revision 1.0.0
Initialized Document Date: March 06, 2009
Revision Document Date: March 06, 2009
This document contains confidential proprietary information and is the property of CyberTAN
Technology Inc.The contents of this document may not be disclosed to any unauthorized person
without the written consent of CyberTAN.
CyberTAN Technology inc. Proprietary & Confidential Information
1
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
Table of Contents
1 DOCUMENT REVISION HISTORY....................................................................................................................................... 3
2 PRODUCT INTRODCUTION ................................................................................................................................................ 4
3 FEATURES............................................................................................................................................................................... 5
4 PRODUCT FEATURES............................................................................................................................................................ 6
4.1 RADIO SPECIFICATIONS ............................................................................................................................................ 6
4.2 DRIVER RELEASE PLAN ............................................................................................................................................... 7
4.3 CERTIFICATION/APPROVAL/WARRANTY (PRE-SCAN).......................................................................................... 8
7 COMPLIANT PTT APPROVAL ......................................................................................................................................... 9
8 WARRANTY ........................................................................................................................................................................... 9
CyberTAN Technology inc. Proprietary & Confidential Information
2
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
1DOCUMENT REVISION HISTORY
Revision Date Author Remark
1.0.0 March 06, 2009 Bryan Chou Initialize.
CyberTAN Technology inc. Proprietary & Confidential Information
3
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
2PRODUCT INTRODCUTION
The WM141 is a Draft IEEE802.11n-compatible half miniCard module in a 2x2 configuration and
operating in the 2.4GHz band. This module allows an embedded host to use its PCI-E base 1.1
compatible interface to connect to a Draft IEEE802.11n compatible access point at unprecedented
speeds.
The WM141 half miniCard module is based on Atheros’s AR9283 chipset. It provides greater than
150Mbps real world throughput using high-speed spatial multiplexing modes. Configuration and testing of
this module must be done on the host via Broadcom provided software tools.
CyberTAN Technology inc. Proprietary & Confidential Information
4
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
3 FEATURES
yPCI-E v1.0 compatible.
yminiCard connector to the host PCB’s needs.
yDraft IEEE 802.11n version 2.0 compatible.
yBackward compatible with IEEE 802.11b/g standards.
yWire-free access to networked resources from anywhere beyond the DUT.
yDelivers data rate up to 270 Mbps.
y802.11n: Dynamically shifts among 130, 117, 104, 78, 52, 39, 26 and 13Mbps in a 20MHz bandwidth
and 300, 270, 243, 216, 162, 108, 81, 54 and 27Mbps in a 40MHz bandwidth, based on signal strength,
for maximum availability and reliability of connection.
y802.11b: Dynamically shifts among 11M, 5.5M, 2M, and 1 Mbps network speed, based on signal
strength, for maximum availability and reliability of connection.
˄˄́ʳ
˅˃ˠ˛̍ʳ˕˪ˍʳ˄ˆ˃ʿʳ˄˄ˊʿʳ˄˃ˇʿʳˊˋʿʳˈ˅ʿʳˆˌʿʳ˅ˉʿʳ˄ˆ˴́˷ʳˉˁˈˠ˵̃̆ʳ
ˇ˃ˠ˛̍ʳ˕˪ˍʳ˅ˊ˃ʿʳ˅ˇˆʿʳ˅˄ˉʿʳ˄ˉ˅ʿʳ˄˃ˋʿʳˋ˄ʿʳˈˇʿʳ˅ˊ˴́˷ʳ˄ˆˁˈˠ˵̃̆ʳ
ʳʳ
y
yUses 2.4GHz frequency band, which complies with worldwide non-license bands.
yEnsures great security by providing the 64/128 bits Wired Equivalent Privacy (WEP) and WiFi Protected
Access
yProtected Access (WPA) defined in the IEEE standard
CyberTAN Technology inc. Proprietary & Confidential Information
5
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
4 PRODUCT FEATURES

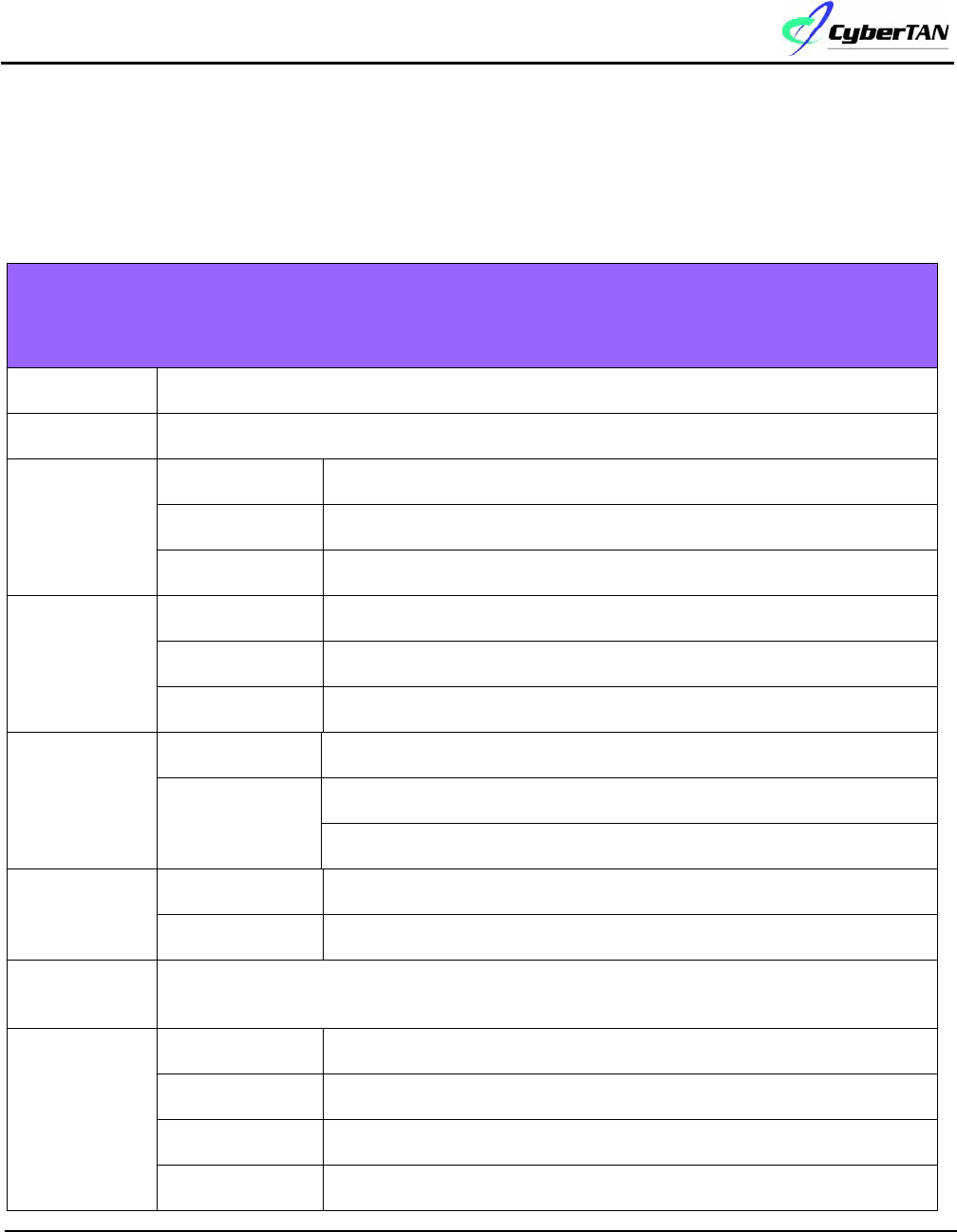

4.1 RADIO SPECIFICATIONS
Solution Vendor Atheros 11b/g/n solution, AR9283
WLAN Standard Draft IEEE802.11n and 11b/g -compliant
North American 2.412 - 2.462 GHz
Europe
Operating
Frequency
Other domain By request
11b Mode 1~11 for American; 1~13 for Europe (ETSI)
11g/n Mode 1~11 for American; 1~13 for Europe (ETSI)
Operating
Channels
Other domain By request
11b/g Mode 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2,1 Mbps
20MHz BW: 130, 117, 104, 78, 52, 39, 26, and 13Mbps (Ian to update)
Data Rate
Shifting 11n Mode 40MHz BW: 270, 243, 216, 162, 108, 81, 54, and 27Mbps(Ian to
update)
11b Mode CCK (5.5, 11Mbps), QPSK (2Mbps), BPSK (1Mbps)
Modulation
Technique 11g/n Mode OFDM (54, 48, 36, 24, 12, 9, 6Mbps)
Wireless
Distribution
System
AP mode only
WEP Support 64-bit & 128-bit Encryption, Passphrase, Manual key for Hex
TKIP Required for Wi-Fi WPA stage 1 certificate
AES Required for Wi-Fi WPA stage 2 certificate
Security
WPA Support both personal mode and enterprise mode
CyberTAN Technology inc. Proprietary & Confidential Information
6
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
WPA2 Support both personal mode and enterprise mode
802.1x EAP-MD5, EAP-TLS, EAP-TTLS
Support Wireless MAC address filtering
SSID broadcast enable/disable supported
QoS WMM
Output Power
Need to double
check with
Atheros
16 dBm +/- 1.5dBm (2.4GHz, 11Mbps, CCK)
13.5 dBm +/- 1.5dBm (2.4GHz, 54Mbps. OFDM)(TBD)
13.5 dBM +/- 1.5dBm ( 11 dBm +/-1.5)
Receive
Sensitivity
-60 dBm @ 270Mbps (1RX 11n OFDM with 40MHz BW, 10% PER)
-68 dBm @ 130Mbps (1RX 11n OFDM with 20MHz BW, 10% PER)
-70 dBm @ 54Mbps (1RX 11n OFDM, 10% PER)
-70 dBm @ 54Mbps (1RX 11n OFDM, 10% PER)
-85 dBm @ 11Mbps (CCK, 10% PER)
Antenna I-PEX connector * 2 (Detachable Antenna) ;2dbi
LED N/A
Coverage Area Indoor: 20M@54 Mbps, 35M@24Mbps, 60M@6Mbps, 100M@11 Mbps
Power
Consumption
TX Power consumption: < ?? mA
RX Power consumption: < ?? mA
Operation
requirements
Operating Temp. 0ºC to 40ºC (32ºF to 104ºF)
Storage Temp. –20ºC to 60ºC (-4ºF to 140ºF)
Operating Humidity 10% to 80% relative humidity,
Non-Condensing
Storage Humidity 5% to 90% Non-Condensing
Dimension
Weight (g) ?? g
Voltage 3.3V
4.2 DRIVER RELEASE PLAN
RTOS Driver Release Item Utility Tools Release time
CyberTAN Technology inc. Proprietary & Confidential Information
7
1.8dBi
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
Windows 2000
Windows XP
Linux
VxWorks
4.3 CERTIFICATION/APPROVAL/WARRANTY (Pre-Scan)
North America FCC Part 15 Class A
EMI
European Union EN55022 Class A
EMS European Union CE mark EN55024
CyberTAN Technology inc. Proprietary & Confidential Information
8
Product Specification of the WM141
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
7COMPLIANT PTT APPROVAL
Supported by customer request: USA, CE
8Warranty
One year limited warranty.
CyberTAN Technology inc. Proprietary & Confidential Information
9
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by
supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory
Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is
still responsible for testing their end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with the
following: “Contains FCC ID: N89-WM140”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the
device
This device has been designed to operate with an antenna having a maximum gain of 1.8dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
EIRP is not more than required for successful communication.
9. Warning statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 o
f
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied
firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain
change.
A
s long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed
(for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not
be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end
product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may
be maintained between the antenna and users. The final end product must be labeled in a visible area with the
following: “Contains FCC ID: N89-WM141”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this
RF module in the user's manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators
under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna.
As long as conduction above is met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not
be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the
end product (including the transmitter) and obtaining a separate IC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX IC : 5005A-WM140”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove.
This RF module in the user’s manual of the end product which integrates this module.
The user’s manual for OEM Integrators must include the following information in a prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be
co-located or operating in conjunction with any other antenna or transmitter”.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 1.8dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is
not more than required for successful communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators
under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna.
As long as conduction above is met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed (fo
r
example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not be used on
the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate IC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX IC : 5005A-WM141”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove.
This RF module in the user's manual of the end product which integrates this module.
The user's manual for OEM Integrators must include the following information in a prominent location “IMPORTANT
NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in
conjunction with any other antenna or transmitter”.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 1.8dBi.
A
ntenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
!
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is
not more than required for successful communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators
under the following conditions:
2/!The antenna must be installed such that 20 cm is maintained between the antenna and users, and
3/!The transmitter module may not be co-located with any other transmitter or antenna,
4/!For all products market in CANADA, OEM has to limit the operation channels in CH1 to CH11 for 2.4GHz band by
supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory
Domain change.
A
s long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still
responsible for testing their end-product for any additional compliance requirements required with this module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not be used on
the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate IC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX IC : 5005A-WM141”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove.
This RF module in the user's manual of the end product which integrates this module.
The user's manual for OEM Integrators must include the following information in a prominent location “IMPORTANT
NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in
conjunction with any other antenna or transmitter”.
