31
Networking Basics

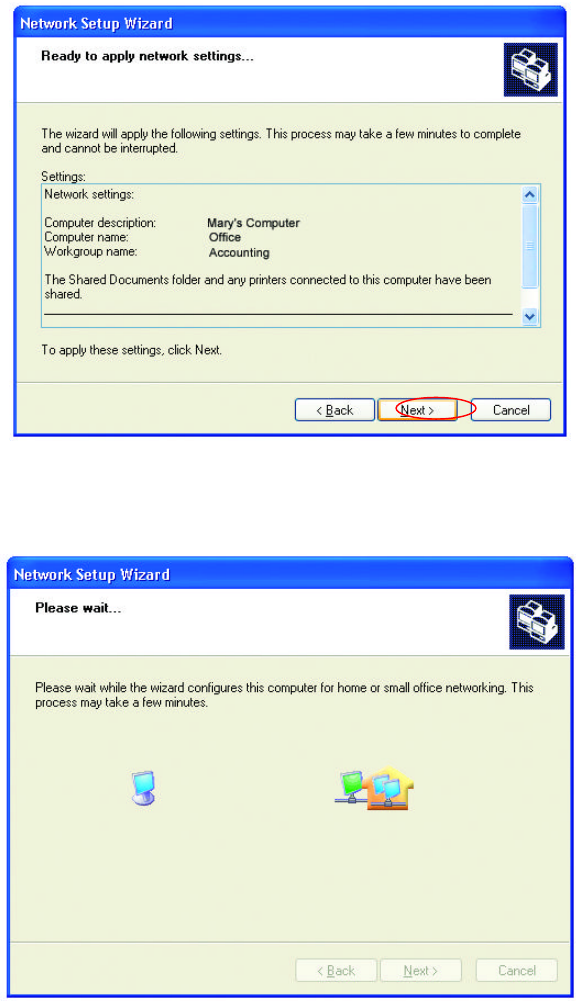

Please wait while the wizard applies the changes.
When the changes are complete, click Next.
Please wait while the wizard configures the computer.
This may take a few minutes.
32
Networking Basics

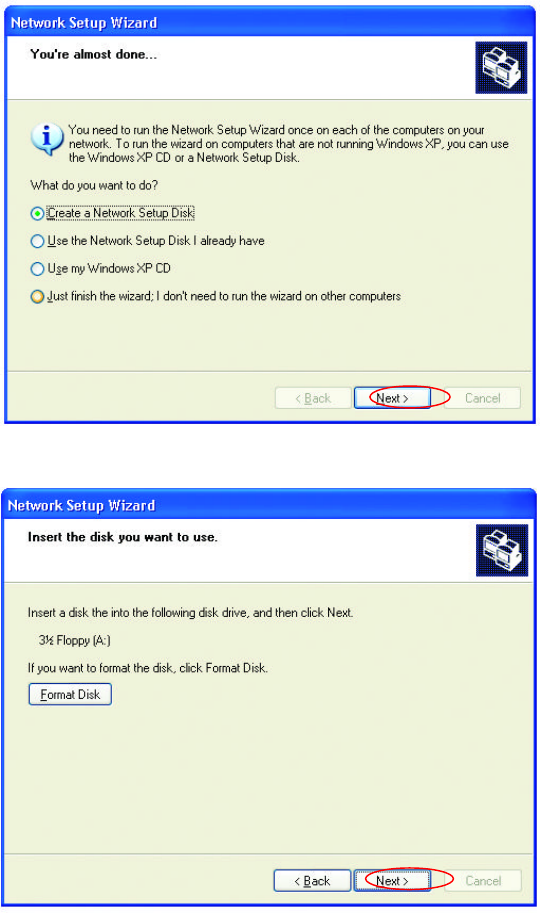

In the window below, select the best option. In this example, Create a
Network Setup Disk has been selected. You will run this disk on each
of the computers on your network. Click Next.
Insert a disk into the Floppy Disk Drive, in this case drive A:
Format the disk if you wish, and click Next.
33
Networking Basics

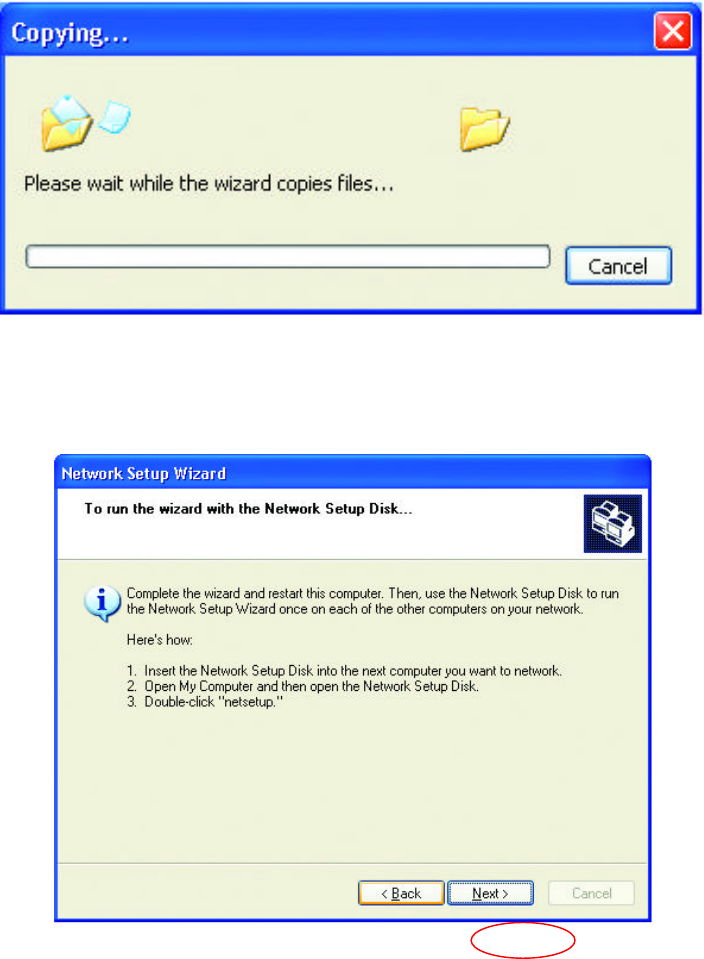

Please wait while the wizard copies the files.
Please read the information under Here’s how in the screen below.
After you complete the Network Setup Wizard you will use the Network
Setup Disk to run the Network Setup Wizard once on each of the
computers on your network. To continue, click Next.
34
Networking Basics

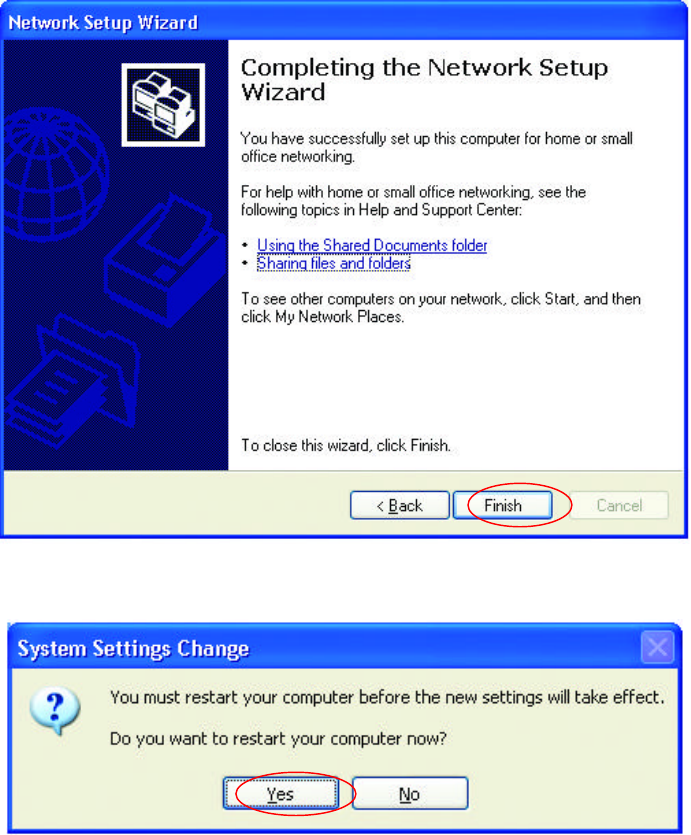

Please read the information on this screen, then click Finish to complete
the Network Setup Wizard.
The new settings will take effect when you restart the computer. Click
Yes to restart the computer.
You have completed configuring this computer. Next, you will need to
run the Network Setup Disk
on all the other computers on your network.
After running the Network Setup Disk on all your computers, your new
wireless network will be ready to use.
35
Networking Basics
Naming your Computer
Naming your computer is optional. If you would like to name your
computer please follow these directions:
In
Windows XP
:

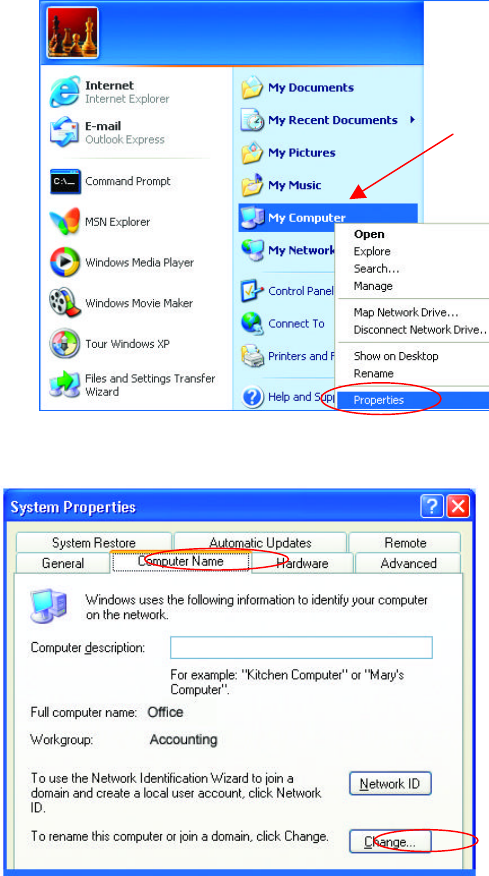

• Click Start (in the
lower left corner of
the screen)
• Right-click on My
Computer
• Select Properties
and Click
•
Select the
Computer Name
Tab in the System
Properties window.
You may enter a
Computer description
if
you wish, this field is
optional.
To rename the computer
and join a domain,
• Click Change
36
Networking Basics
Naming your Computer (continued)
Checking the Installation of the Drivers for the Wireless
Adapter

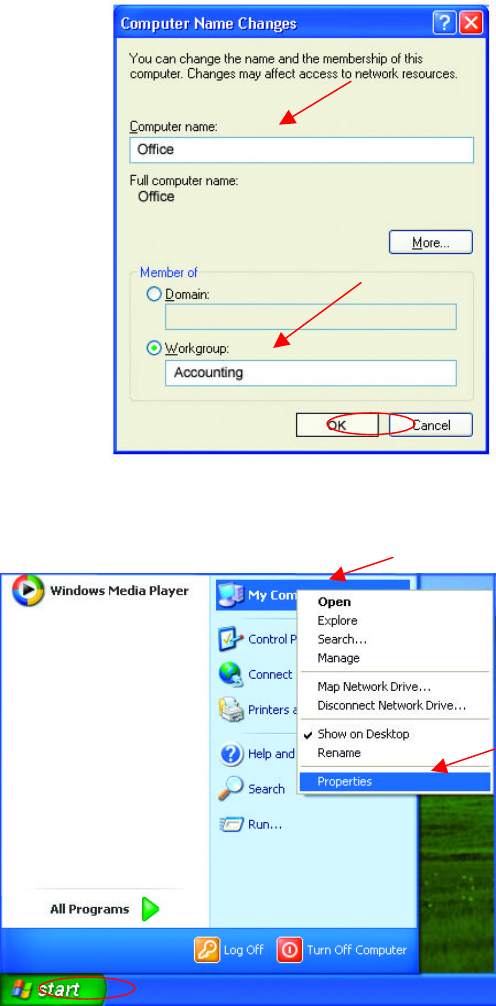

• In this window, enter
the Computer
name.
• Select Workgroup
and enter the name
of the Workgroup.
• All computers on
your network must
have the same
Workgroup name.
• Click OK
•
Go to Start
• Right-click on
My Computer
• Click Properties
37
Networking Basics
Checking the Installation of the Drivers for the Wireless
Adapter
•

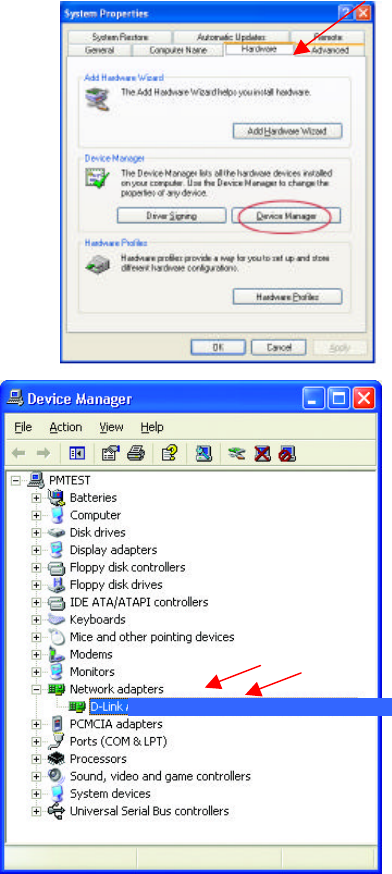

Select the Hardware Tab
• Click Device Manager
•
Click on Network
Adapters
• Right-click on D-Link
DWL-
AB520 Wireless PCI
Adapter
• Select Properties
to check
that the drivers are
installed properly.
D-Link AirPro DWL-
AB520 Wireless PCI
Adapter
38
Networking Basics
Checking the Installation of the Drivers for the Wireless
Adapter
Checking the Wireless Configuration
•

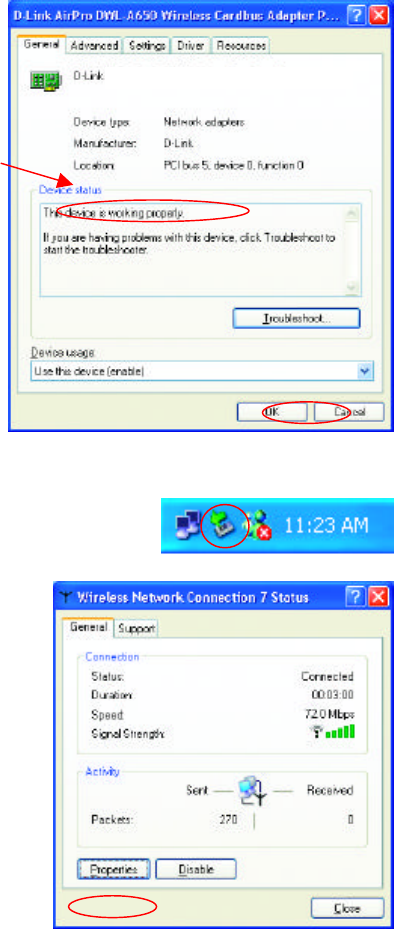

Look under
Device
Status
to check that the
device is working
properly.
• Click OK
•
Double-click on the Networking
Icon in the taskbar.
In this window you will see
the Signal Strength
and the
Status of the DWL-AB520.
In this case the Status and
the Signal Strength are fine.
For more information:
• Click Properties
D-Link AirPro DWL-AB520 Wireless PCI Adapter
39
Networking Basics
Checking the Wireless Configuration
•

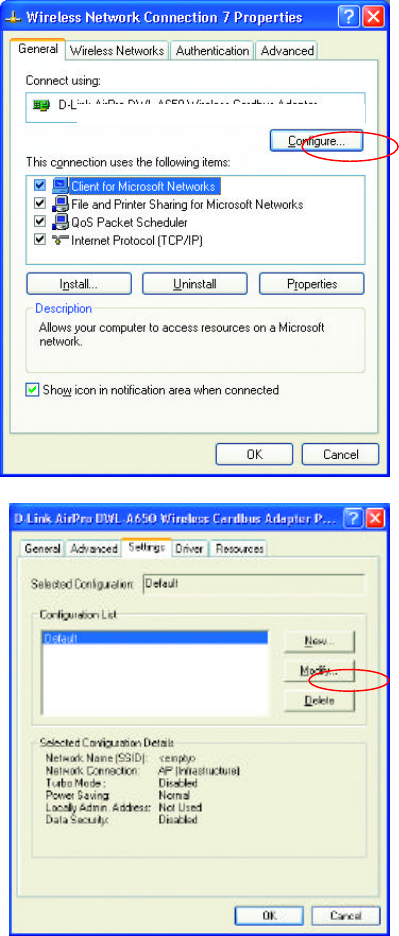

Click Configure to
access more
information.
•

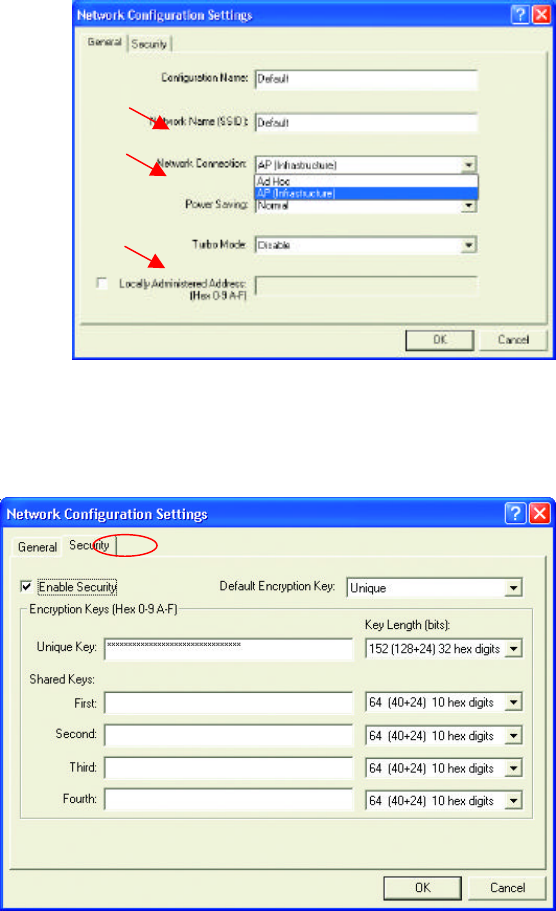

Select Settings
This screen shows the
wireless configuration.
• Click Modify to
check on the
configuration.
D-Link AirPro DWL-AB520 Wireless PCI Adapter
40
Networking Basics
Checking the Wireless Configuration
•
Check to see that your IP Address and your Subnet Mask
are in the correct
range. See the Networking Basics sections: Checking the IP Address
and
Assigning a Static IP Address.
41
Networking Basics

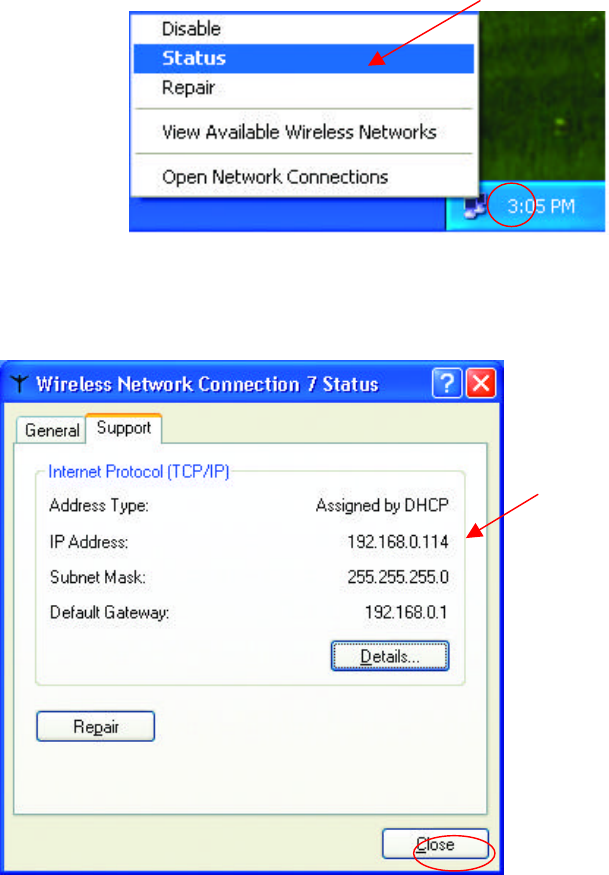

Checking the IP Address in Windows XP
The following window will display
•• Click the Support tab.
• Click Close
• Right-click on the
Networking Icon in
the task bar
• Click on Status
42
Networking Basics
Assigning a Static IP Address
Note: Residential Gateways/Broadband Routers will automatically assign IP
Addresses to the computers on the network, using DHCP (Dynamic Host
Configuration Protocol) technology. If you are using a DHCP-capable
Gateway/Router you will not need to assign Static IP Addresses.
If you are not using a DHCP capable Gateway/Router, or you need to assign a
Static IP Address, please follow these instructions:
•

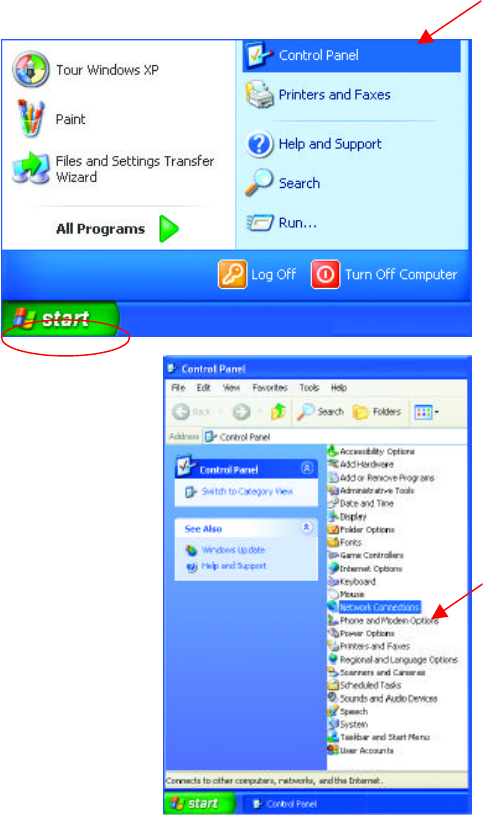

Go to Start
• Double-click on
Control Panel
•
Double-click on
Network Connections
43
Networking Basics
Assigning a Static IP Address
•

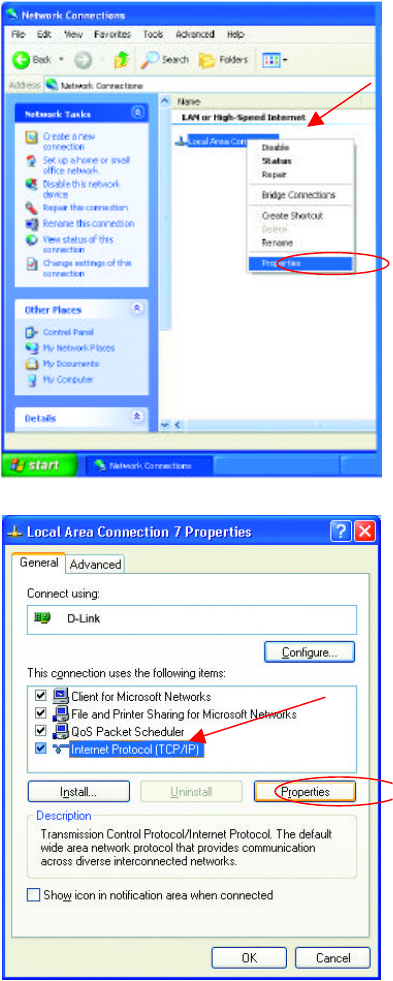

Right-click on Local
Area Connections.
• Double-click
Properties
•
Highlight Internet
Protocol (TCP/IP)
• Click Properties
D-Link AirPro DWL-AB5
20 Wireless PCI
Adapter
44
Networking Basics
Assigning a Static IP Address

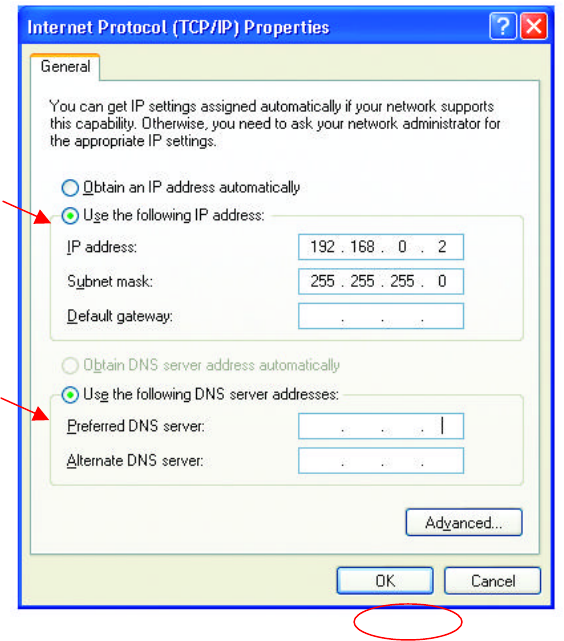

• Select Use the following IP address
in the Internet Protocol (TCP/IP) Properties window,
• Input your IP address and subnet mask. (The IP Addresses on your
network must be within the same range. For example, if one
computer has an IP Address of 192.168.0.2, the other computers
should have IP Addresses that are sequential, like 192.168.0.3 and
192.168.0.4. The subnet mask must be the same for all the
computers on the network.)
• Input your DNS server addresses.
The DNS server information will be provided by your ISP (Internet
Service Provider.)
• Click OK
You have completed the assignment of a Static IP Address. (You do not need
to assign a Static IP Address if you have a DHCP-capable Gateway/Router.)
45
Networking Basics
Adding and Sharing Printers in Windows XP
After you have run the Network Setup Wizard on all the computers in
your network (please see the Network Setup Wizard section at the
beginning of Networking Basics,) you can use the Add Printer Wizard
to add or share a printer on your network.
Whether you want to add a local printer (a printer connected directly to
one computer,) share an LPR printer (a printer connected to a print
server) or share a network printer (a printer connected to your network
through a Gateway/Router,) use the Add Printer Wizard. Please follow
the directions below:
First, make sure that you have run the Network Setup Wizard on all
of the computers on your network.
We will show you 3 ways to use the Add Printer Wizard
1. Adding a local printer
2. Sharing an network printer
3. Sharing an LPR printer
Adding a local printer
(A printer connected directly to a computer)
A printer that is not shared on the network and is connected directly to
one computer is called a local printer. If you do not need to share your
printer on a network, follow these directions to add the printer to one
computer.
•

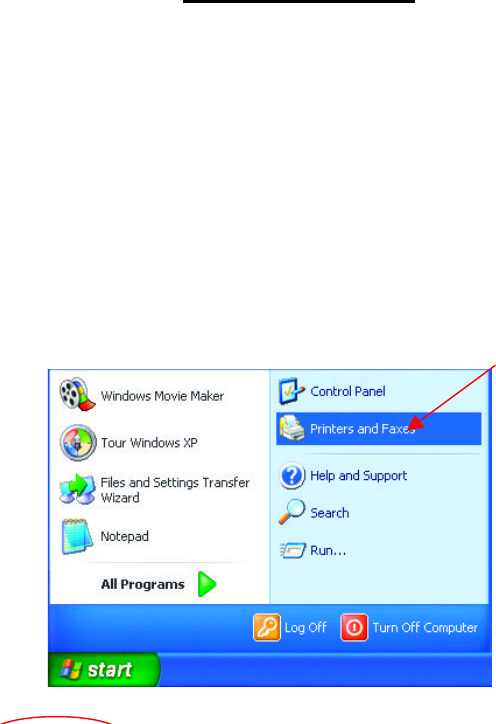

Go to Start>
Printers and
Faxes
46
Networking Basics
Adding a local printer
•

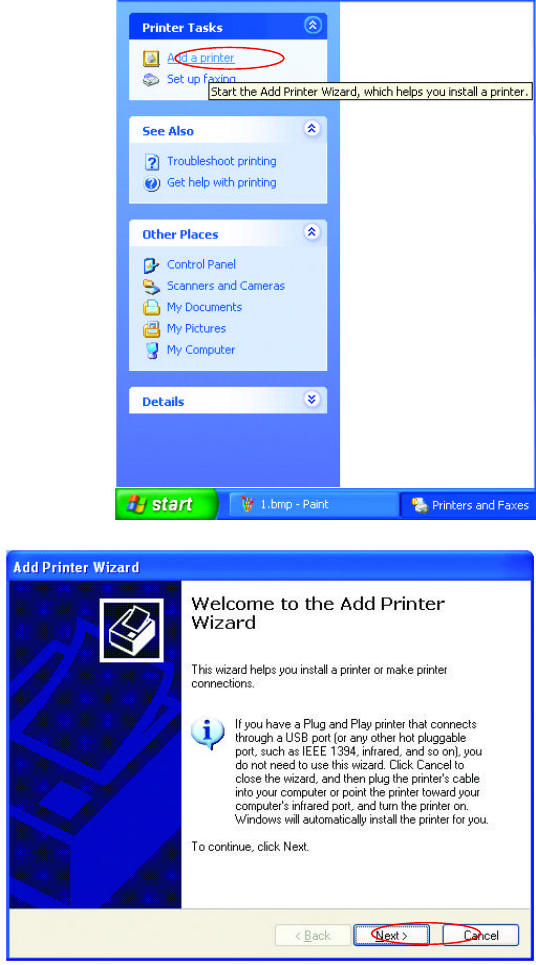

Click on Add a printer
•
Click Next
47
Networking Basics
Adding a local printer
•

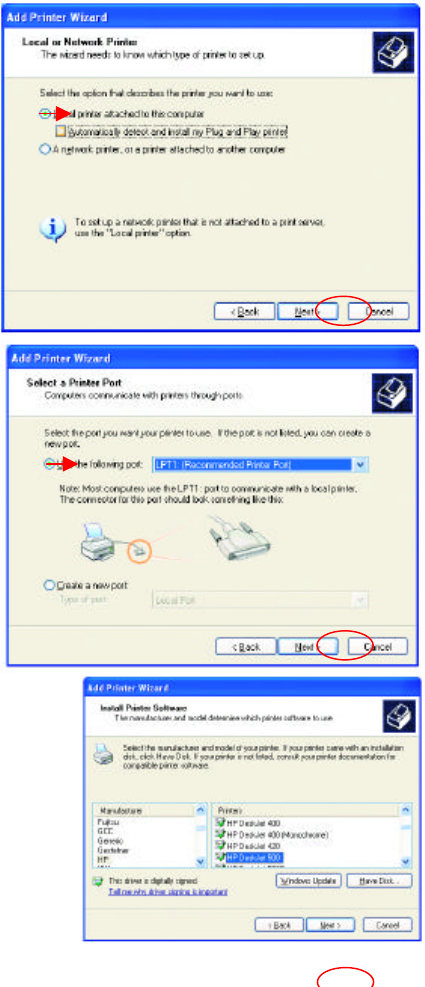

Select Local printer
attached to this computer
• (Deselect Automatically detect
and install my Plug and Play
printer if it has been selected.)
• Click Next
•
Select Use the
following port:
• From the pull-down
menu select the
correct port for your
printer
(Most computers use the
LPT1: port, as shown in
the illustration.)
• Click Next
•
Select and highlight the
correct driver for your
printer.
• Click Next
(If the correct driver is not
displayed, insert the CD or
floppy disk that came with your
printer and click Have Disk.)
48
Networking Basics
Adding a local printer
•

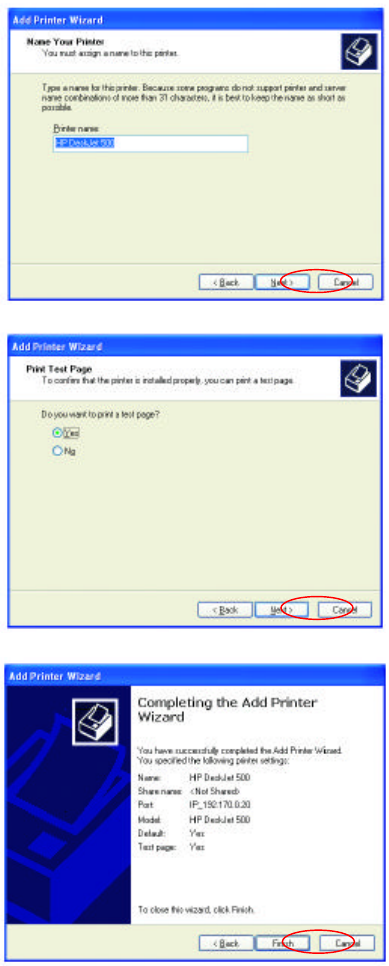

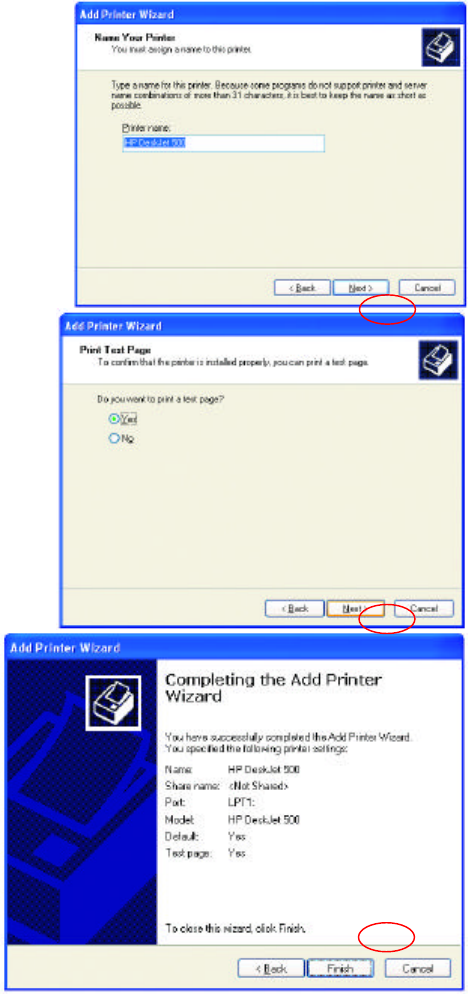

At this screen, you can
change the name of the
printer (optional.)
• Click Next
•
Select Yes, to print a
test page. A
successful printing will
confirm that you have
chosen the correct
driver.
• Click Next
This screen gives you
information about your
printer.
• Click Finish
49
Networking Basics
Adding a local printer

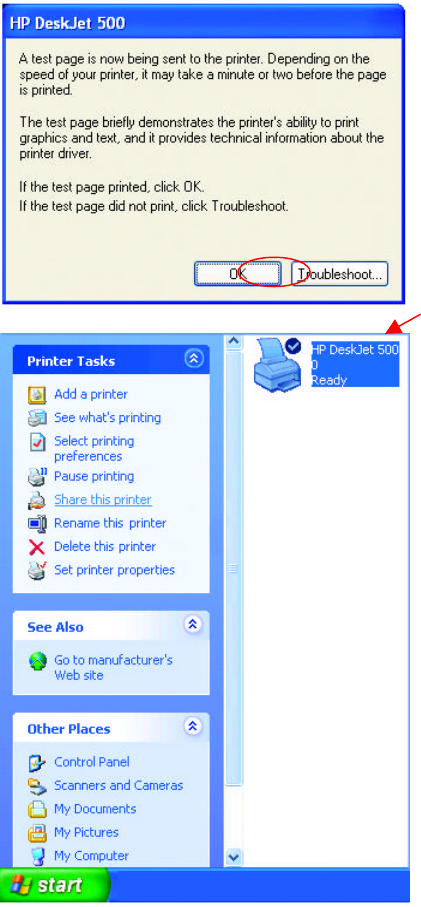

When the test page has
printed,
• Click OK
•

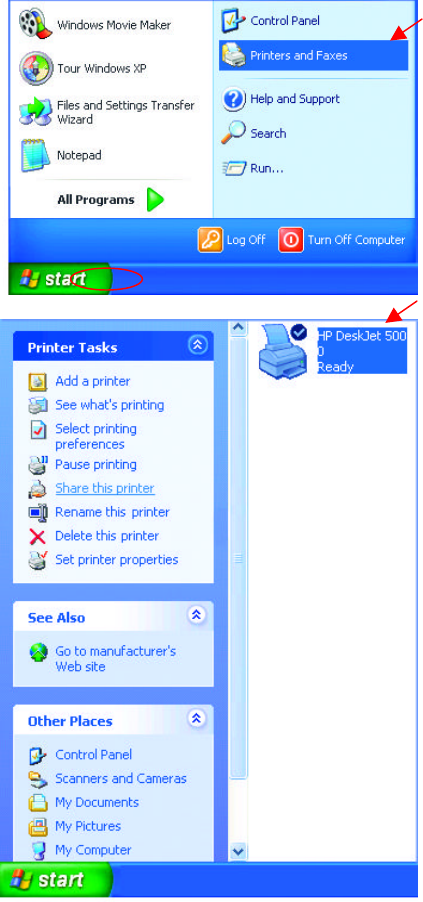

Go to Start>
Printers and
Faxes
A successful installation will
display the printer icon as
shown at right.
You have successfully added a
local printer.
50
Networking Basics
Sharing a network printer
After you have run the Network Setup Wizard on all the computers on
your network, you can run the Add Printer Wizard on all the computers
on your network. Please follow these directions to use the Add Printer
Wizard to share a printer on your network:
•

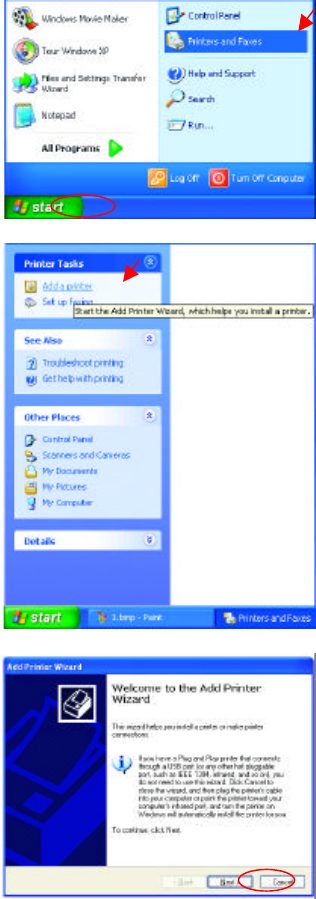

Go to Start>
Printers and Faxes
•
Click on Add a Printer
•
Click Next
51
Networking Basics
Sharing a network printer
•

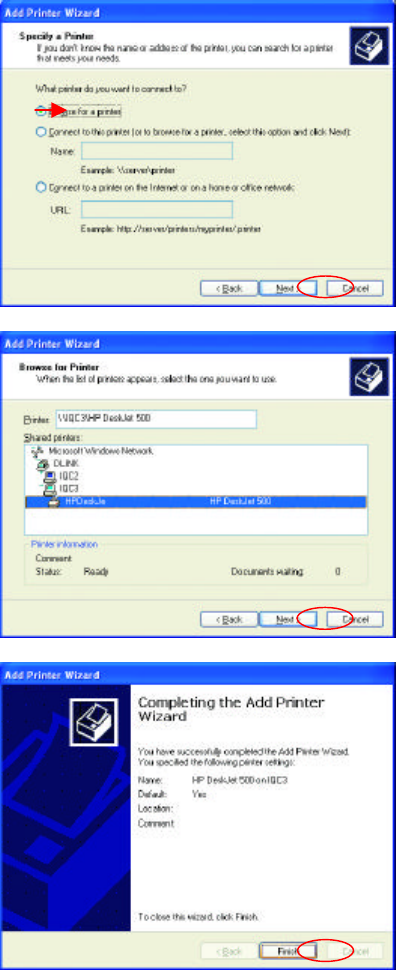

Select Browse for a printer
• Click Next
•
Select the printer
you
would like to share.
• Click Next
•
Click Finish
52
Networking Basics
Sharing a network printer
To check for proper installation:
•
Go to Start>
Printers and Faxes
The printer icon will appear
at right, indicating proper
installation.
You have completed
adding the printer.
To share this printer on
your network:
• Remember the
printer name
• Run the Add Printer
Wizard on all the
computers on your
network.
• Make sure you have
already run the
Network Setup
Wizard on all the
network computers.
After you run the Add
Printer Wizard on all the
computers in the
network, you can share
the printer.
53
Networking Basics
Sharing an LPR printer
To share an LPR printer (using a print server,) you will need a Print Server
such as the DP-101P+ or the DP-313 or a Gateway/Router with a printer port
such as the DI-713P. Please make sure that you have run the Network Setup
Wizard on all the computers on your network. To share an LPR printer, please
follow these directions:
•
Go to Start>
Printers
and Faxes

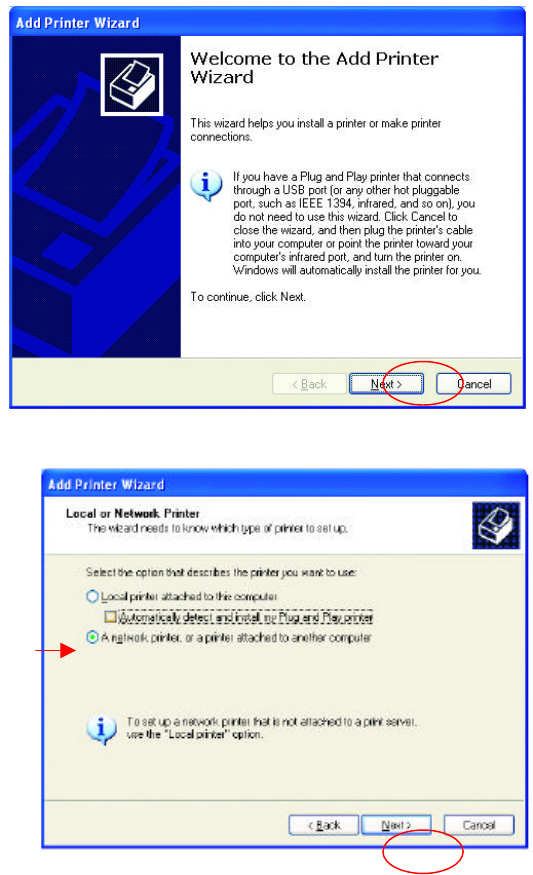

• Click on
Add a Printer
The screen to the
right will display.
• Click Next
•
Select
A Network
Printer
• Click Next
54
Networking Basics
Sharing an LPR printer
•

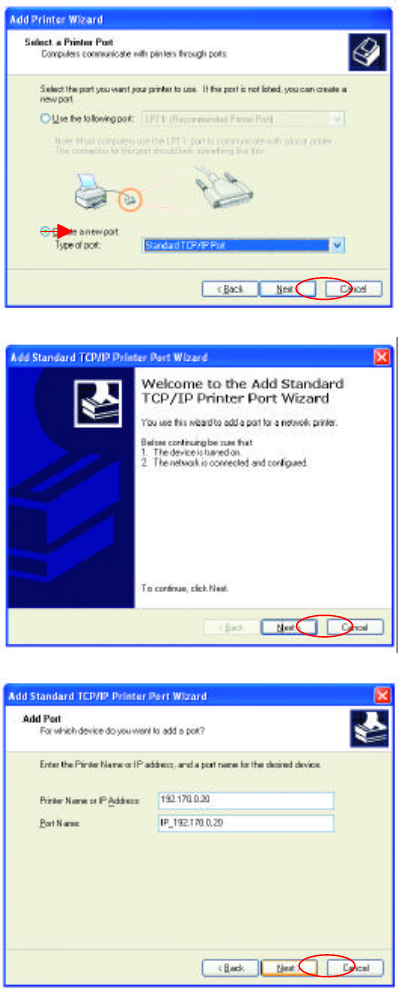

Select Create a new port
• From the pull-down menu,
select Standard TCP/IP
Port, as shown.
• Click Next
• Please read the instructions
on this screen.
• Click Next
•
Enter the Printer IP
Address and the Port
Name, as shown.
• Click Next
55
Networking Basics
Sharing an LPR printer

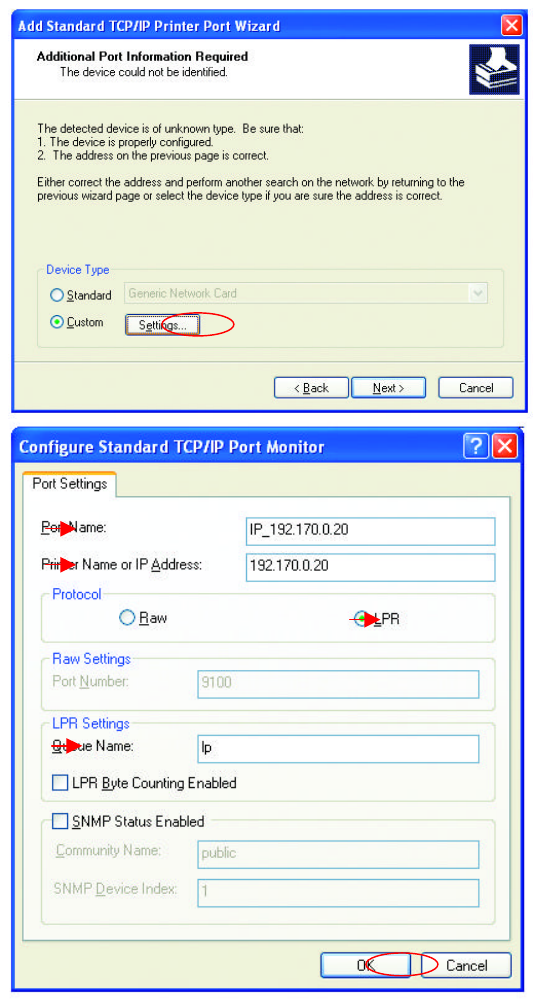

• In this screen,
select Custom.
• Click Settings
•
Enter the Port
Name and the
Printer Name
or
IP Address.
• Select LPR
• Enter a Queue
Name of your
choice.
• Click OK
56
Networking Basics
Sharing an LPR printer

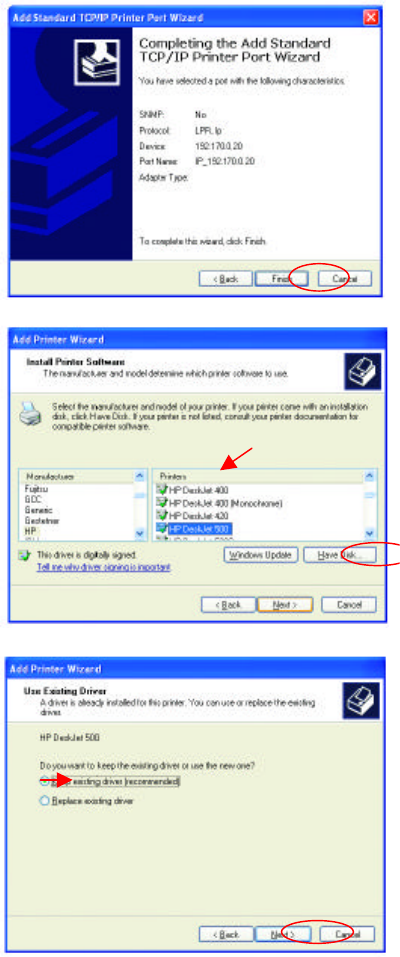

• This screen will show
you information
about your printer.
• Click Finish
•
Select the printer
you
are adding from the
list of Printers.
• Insert the printer
driver disk that came
with your printer.
• Click Have Disk
If the printer driver is already
installed,
• Select Keep existing
driver
• Click Next
57
Networking Basics
Sharing an LPR printer
•
You can rename your
printer if you choose. It
is optional.
Please remember the name of
your printer. You will need this
information when you use the
Add Printer Wizard
on the
other computers on your
network.
• Click Next
•
Select Yes,
to print a
test page.
• Click Next
This screen will display
information about your
printer.
• Click Finish to
complete the
addition of the
printer.
• Please run the
Add Printer
Wizard on all the
comput
ers on your
network in order to
share the printer.
Note: You must run the
Network Setup Wizard
on all the computers on your network before you
run the Add Printer Wizard.
58
Networking Basics
Other Tasks
For help with other tasks in home or small office networking, see Using
the Shared Documents folder and Sharing files and folders in the
Help and Support Center in Microsoft Windows XP.
59
Technical Specifications
Standards
• IEEE 802.11a/b (Wi-Fi5)
Adapter Type
• PCI 2.2 compliant
• PCI 32-bit interface
Supported OS
• Windows XP
• Windows 2000
• Windows ME
• Windows 98SE
Frequency Range
• 5.150-5.350 GHz
• 2.4~2.5GHz
Data Rates
Ÿ 54, 48, 36, 24, 18, 12, 9, and 6Mbps
Ÿ 72, 96, 108 Mbps for turbo mode
Modulation Technology
• Orthogonal Division Frequency Multiplexing (OFDM)
Modulation Techniques
• BPSK (Binary Phase Shift Keying)
• QPSK (Quadrature Phase Shift Keying)
• 16 QAM (Quadrature Amplitude Modulation)
• 64 QAM (Quadrature Amplitude Modulation)
Data Security
• 64, 128, 154-bit WEP (Wired Equivalent Privacy)
Encryption
Media Access Control
• CSMA/CA
Diagnostic LED
• Power
• Link
60
Current Consumption
• Sleep mode - <40mW
• Transmit mode - 1650mW
• Receive mode – 1250mW
Operating Voltage
• 3.3V± -10%
Network Architecture
• Ad-Hoc Mode (Peer-to-Peer without Access Point)
• Infrastructure Mode (Communications to wired networks
via Access Points with Roaming)
Antenna Type
• External Antenna with 5.6dBi gain
• Option:
Internal Antenna with 3.25 or 5.0dBi gain
Available Channels:
• Eight non-overlapping channels for North America
MBTF (Mean Time Between Failure)
• 30,000 hours
Physical Dimensions
• L ~ 5.24 inches (133 mm)
• W ~ 4.76 inches (121 mm)
• H ~ 0.71 inches (18mm)
Temperature
• Operating: 0ºC to 60ºC (32ºF to 140ºF)
• Storing: -20ºC to 85ºC (-4ºF to 185ºF)
Humidity:
• 5%-95%, non-condensing
Emissions:
• FCC part 15b
• UL1950-3
61
Warranty
• Three Years
• Contacting Technical Support
You can find the most recent software and user documentation on the D-
Link website.
D-Link provides free technical support for customers within the United
States for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web
site,
or by phone.
D-Link Technical Support over the Telephone:
(800) 758-5489
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
When contacting technical support, please provide the following
information:
• Serial number of the unit
• Model number or product name
• Software type and version number
62
Limited Warranty and Registration
D-Link Systems, Inc. (“D-Link”) provides this 3-Year warranty for its product only to the person or
entity who originally purchased the product from:
• D-Link or its authorized reseller or distributor.
• Products purchased and delivered with the fifty United States, the District of Columbia,
US Possessions or Protectorates, US Military Installations, addresses with an APO or
FPO.
3-Year Limited Hardware Warranty: D-Link warrants that the hardware portion of the D-Link
products described below (“Hardware”) will be free from material defects in workmanship and
materials from the date of original retail purchase of the Hardware, for the period set forth below
applicable to the product type (“Warranty Period”).
3-Year Limited Warranty for the Product(s) is defined as follows
• Hardware (excluding power supplies and fans)
• Spare parts and spare kits Ninety (90) days.
D-Link’s sole obligation shall be to repair or replace the defective Hardware at no charge to the
original owner. Such repair or replacement will be rendered by D-Link at an Authorized D-Link
Service Office. The replacement Hardware need not be new or of an identical make, model or part;
D-Link may in its discretion replace the defective Hardware (or any part thereof) with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in
all material respects to the defective Hardware. The Warranty Period shall extend for an additional
ninety (90) days after any repaired or replaced Hardware is delivered. If a material defect is
incapable of correction, or if D-Link determines in its sole discretion that it is not practical to repair or
replace the defective Hardware, the price paid by the original purchaser for the defective Hardware
will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware (or part
thereof) that is replaced by D-Link, or for which the purchase price is refunded, shall become the
property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set
forth in the applicable documentation, from the date of original delivery of the Software for a period
of ninety (90) days (“Warranty Period”), if the Software is properly installed on approved hardware
and operated as contemplated in its documentation. D-Link further warrants that, during the
Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical
defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for the Software.
Except as otherwise agreed by D-Link in writing, the replacement Software is provided only to the
original licensee, and is subject to the terms and conditions of the license granted by D-Link for the
Software. The Warranty Period shall extend for an additional ninety (90) days after any replacement
Software is delivered. If a material non-conformance is incapable of correction, or if D-Link
determines in its sole discretion that it is not practical to replace the non-conforming Software, the
price paid by the original licensee for the non-conforming Software will be refunded by D-Link;
provided that the non-conforming Software (and all copies thereof) is first returned to D-Link. The
license granted respecting any Software for which a refund is given automatically terminates.
What You Must Do For Warranty Service:
Registration is conducted via a link on our Web Site (http://www.dlink.com/). Each product
purchased must be individually registered for warranty service within ninety (90) days after it is
purchased and/or licensed.
FAILURE TO PROPERLY TO REGISTER MAY AFFECT THE WARRANTY FOR THIS PRODUCT.
Submitting A Claim. Any claim under this limited warranty must be submitted in writing before the
end of the Warranty Period to an Authorized D-Link Service Office.
• The customer must submit as part of the claim a written description of the Hardware
defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same.
• The original product owner must obtain a Return Material Authorization (RMA) number
from the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the warranty
service is provided.
• After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and the
RMA number must be prominently marked on the outside of the package.
• The customer is responsible for all shipping charges to and from D-Link (No CODs
allowed). Products sent COD will become the property of D-Link Systems, Inc. Products should
63
be fully insured by the customer and shipped to D-Link Systems Inc., 53 Discovery Drive,
Irvine CA 92618.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with
the foregoing requirements, or for which an RMA number is not visible from the outside of the
package. The product owner agrees to pay D-Link’s reasonable handling and return shipping
charges for any product that is not packaged and shipped in accordance with the foregoing
requirements, or that is determined by D-Link not to be defective or non-conforming.
What Is Not Covered:
This limited warranty provided by D-Link does not cover: Products that have been subjected to
abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of
reasonable care, repair or service in any way that is not contemplated in the documentation for the
product, or if the model or serial number has been altered, tampered with, defaced or removed;
Initial installation, installation and removal of the product for repair, and shipping costs; Operational
adjustments covered in the operating manual for the product, and normal maintenance; Damage
that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage; and
Any hardware, software, firmware or other products or services provided by anyone other than D-
Link.
Disclaimer of Other Warranties: EXCEPT FOR THE 3-YEAR LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. IF ANY IMPLIED
WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH
IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED
WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE
PRODUCT IS WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY
CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE
PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE,
COMPUTER FAILURE OR MALFUNCTION, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED
WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT,
RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING
LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT.
GOVERNING LAW: This 3-Year Warranty shall be governed by the laws of the state of California. Some states do not allow exclusion
or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations
and exclusions may not apply. This limited
warranty provides specific legal rights and the product owner may also have other rights which vary from state to state.
Trademarks
Copyright® 2002 D-Link Corporation. Contents subject to change without prior notice. D-Link is a registered trademark of D-Link
Corporation/D-Link Systems, Inc. All other trademarks belong to their respective proprietors.
Copyright Statement
No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems Inc., as stipulated by the United States
Copyright Act of 1976.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be
required to take adequate measures.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications to this device are not authorized, may violate FCC regulation Part 15.407, and will void
the warranty for this product. This device is intended to operate in the frequency band of 5.15 to
64
5.25 GHz under all conditions of normal operation. According to FCC 15.407 (e), normal operation
of this device is restricted to indoor use only to reduce any potential harmful interference to co-
channel Mobile Satellite Systems, or radar systems that use 5.25 to 5.35 GHz and 5.65 to 5.85 GHz
frequency bands. This interference could also damage this device.
*FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
Uncontrolled environment. This equipment should be installed and operated with a
Minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
Antenna or transmitter.
Registration: Register your D-Link AirPro DWL-AB520 online at http://www.dlink.com/sales/reg

Navigation menu
