D Link AP1360B1 Wireless N Access Point/Wireless N Range Extender User Manual

D Link Corporation Wireless N Access Point/Wireless N Range Extender

User Manual

2D-Link DAP-1360 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction ..............................................................5
Features .................................................................. 6
Hardware Overview ................................................. 7
Connections ....................................................... 7
LEDs ..................................................................8
Wireless Installation Considerations....................... 10
Seven Conguration Operation Modes ................... 11
Access Point Mode ................................................11

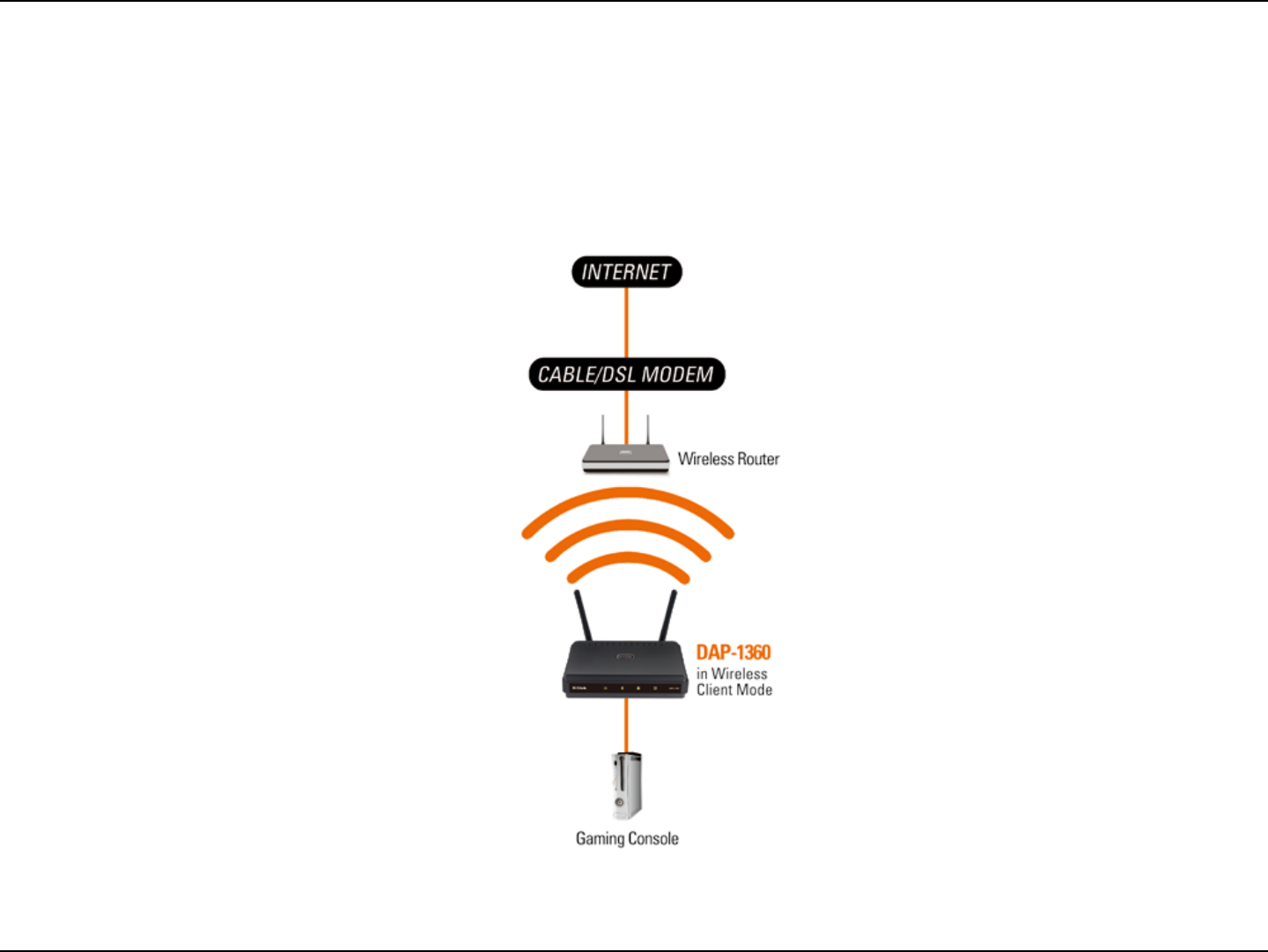

Wireless Client Mode ............................................. 12

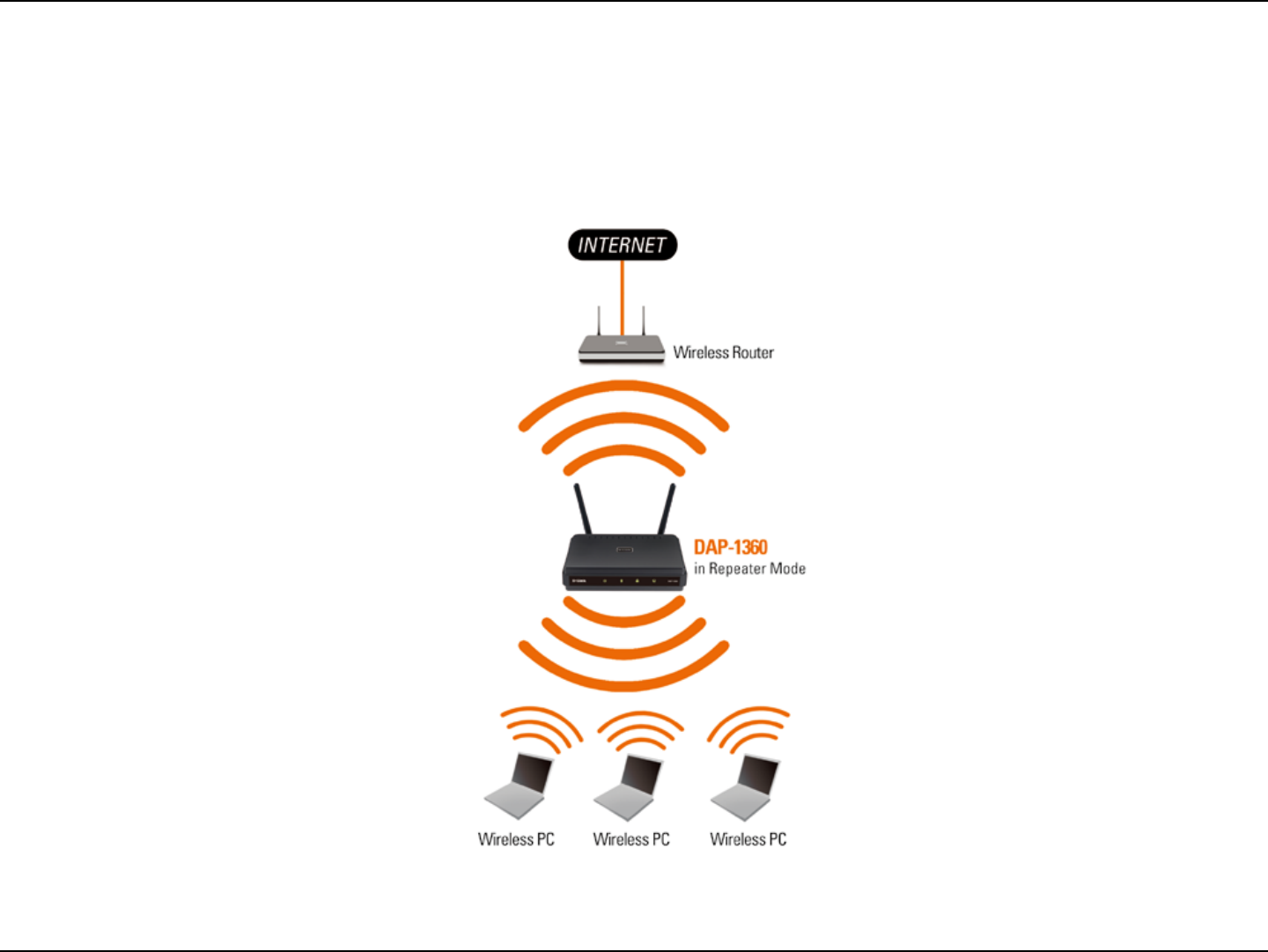

Repeater Mode ......................................................13
Bridge Mode .......................................................... 14

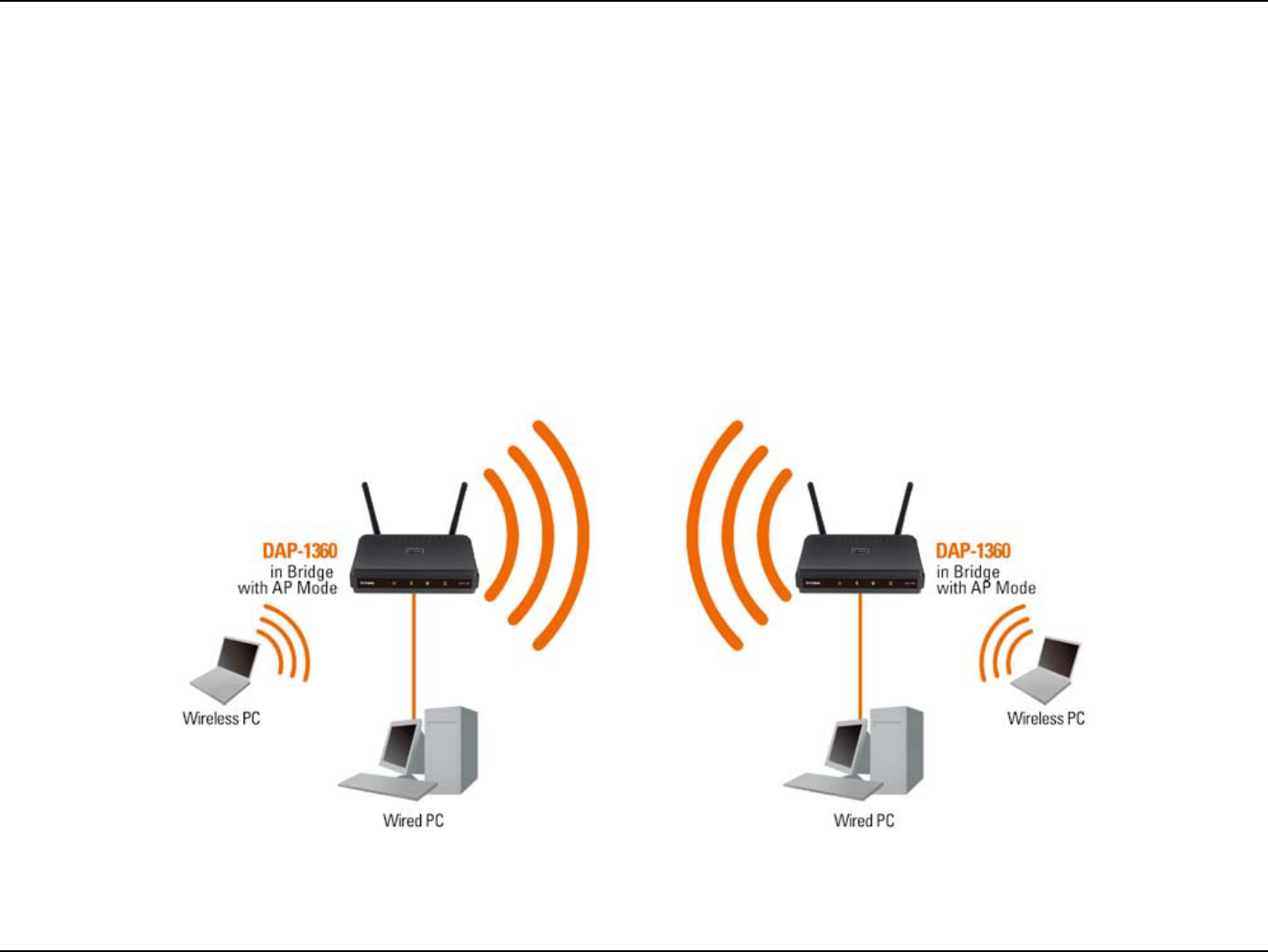

Bridge with AP Mode ............................................. 15

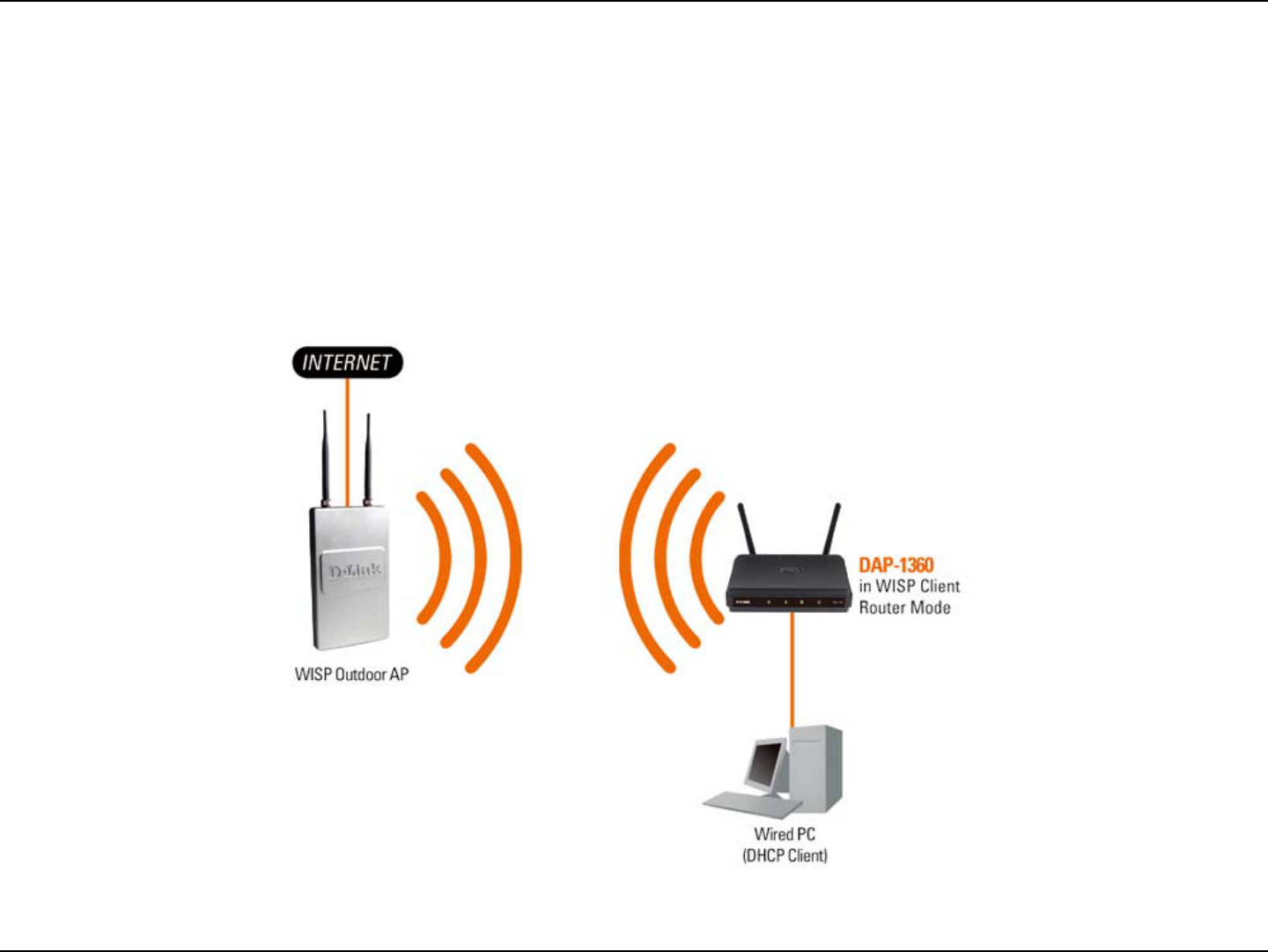

WISP Client Router mode .....................................16

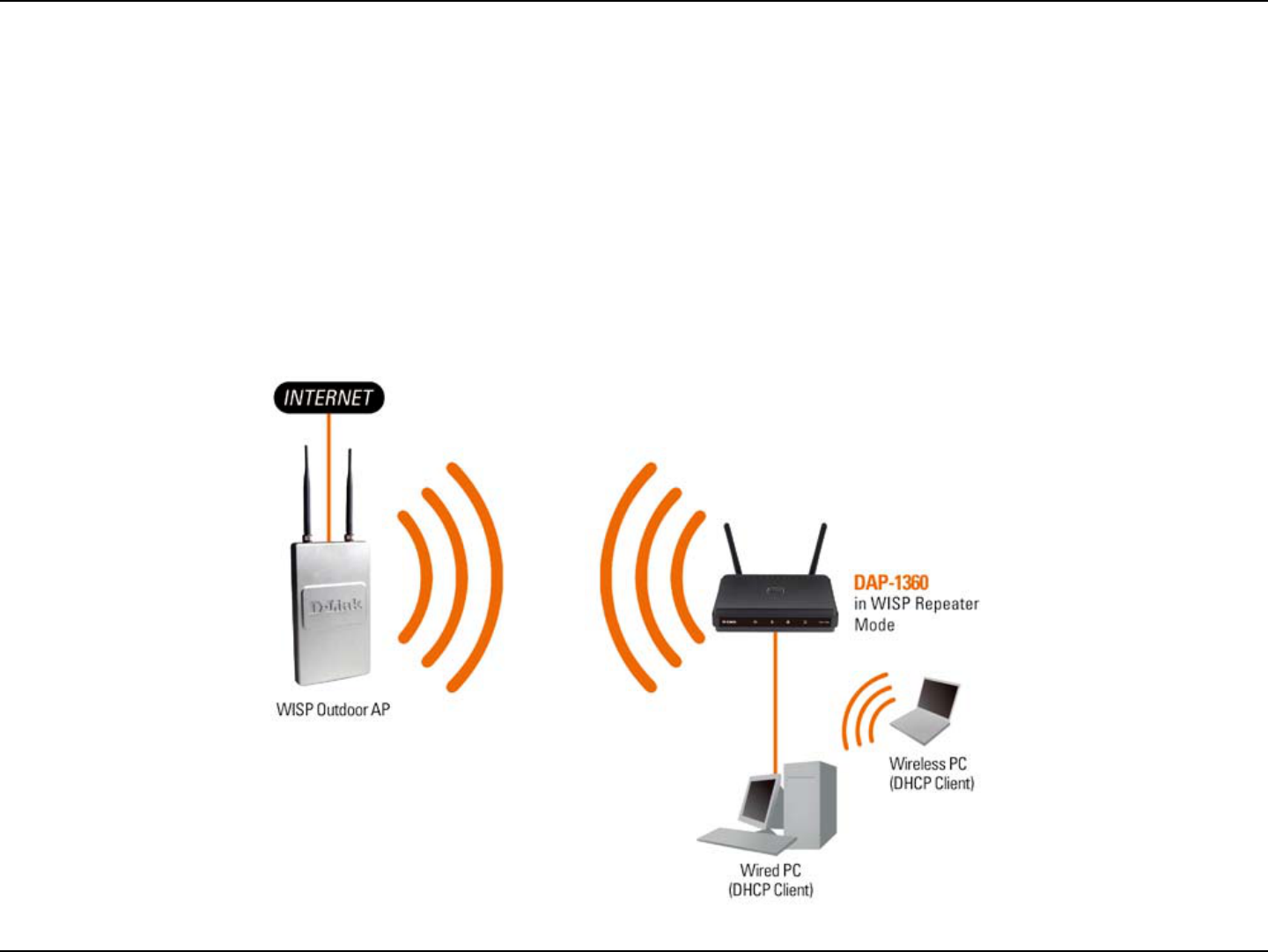

WISP Repeater mode ............................................ 17
Conguration ............................................................. 18
Web-based Conguration Utility ............................ 18

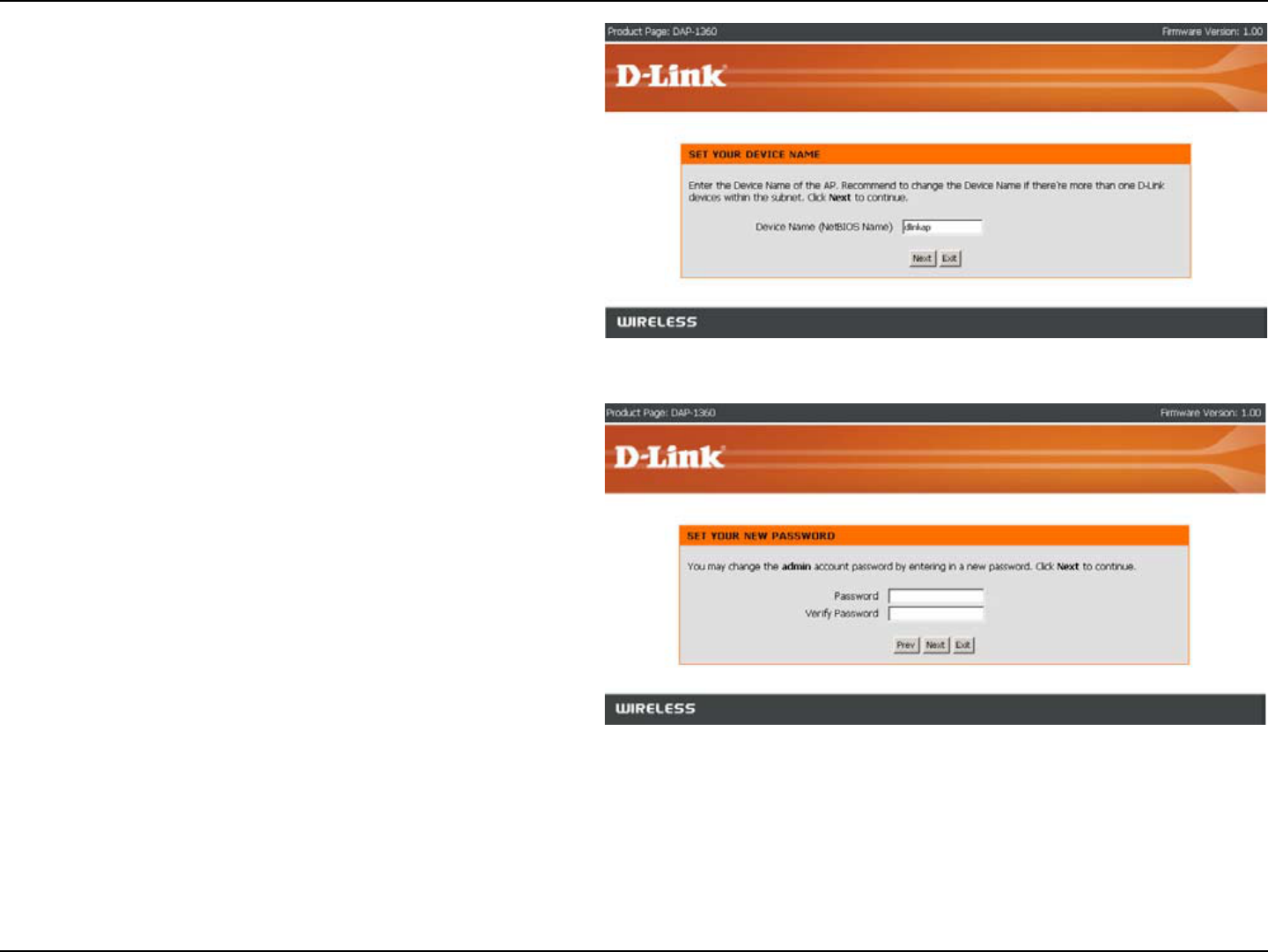

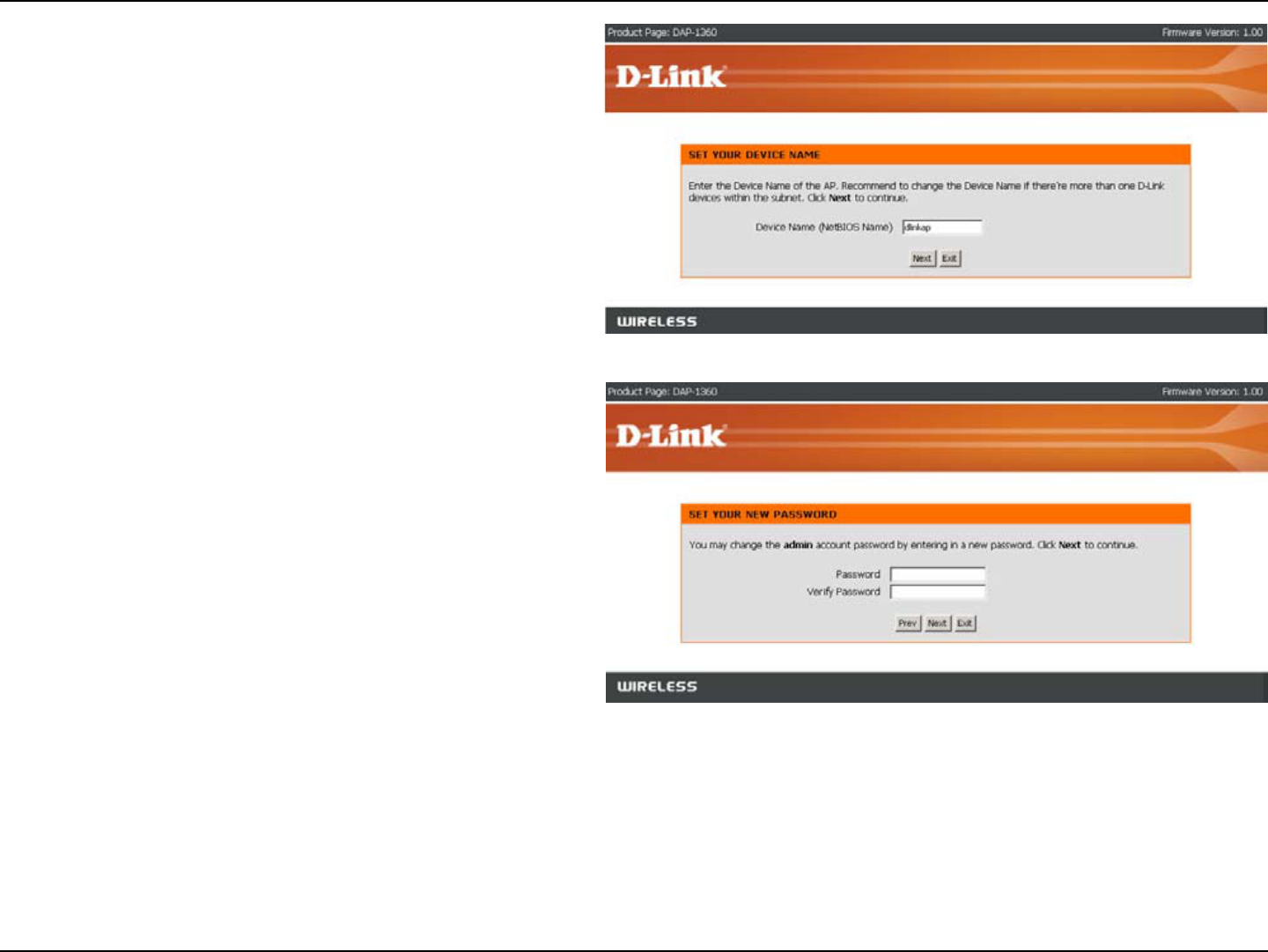

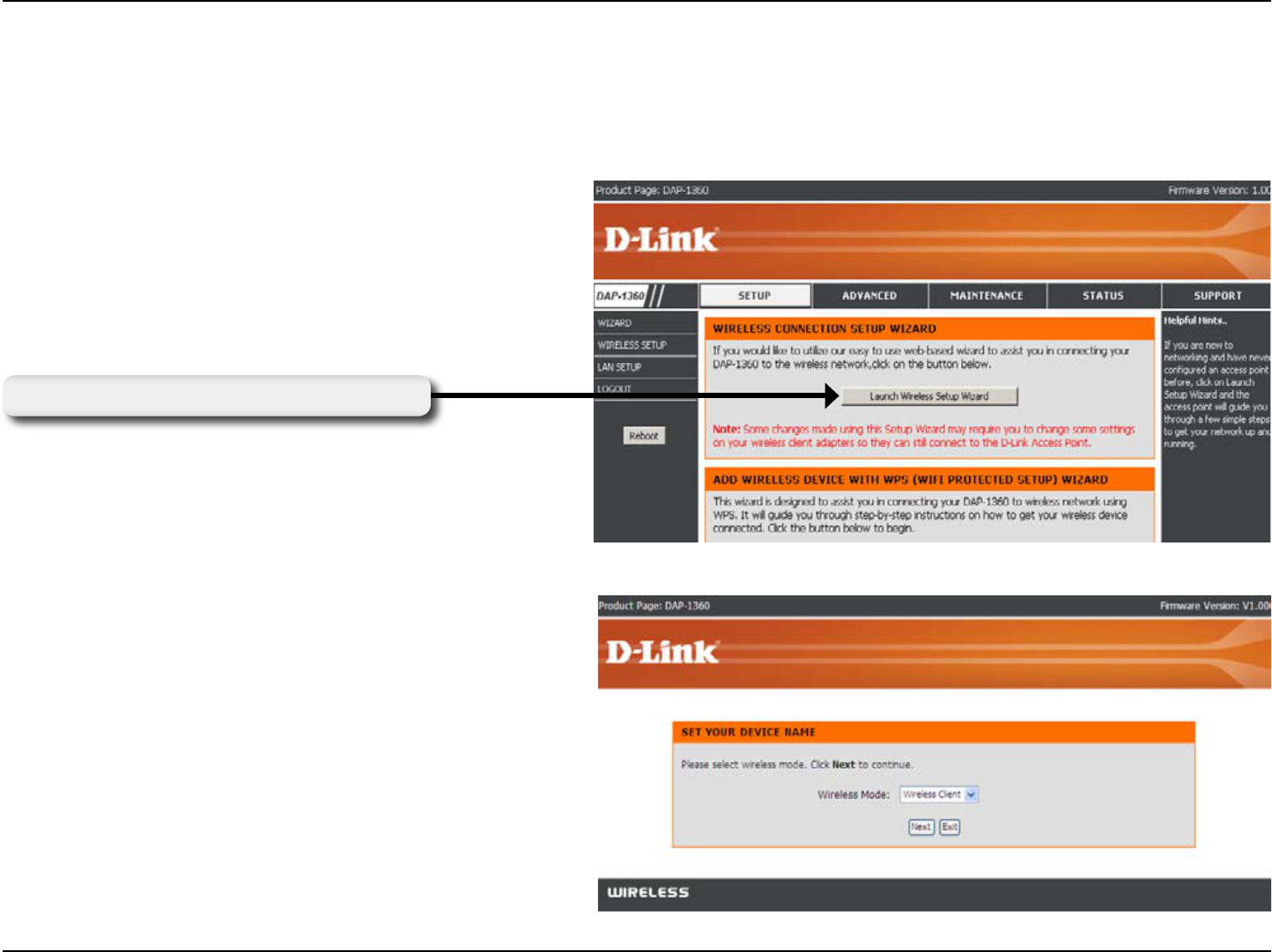

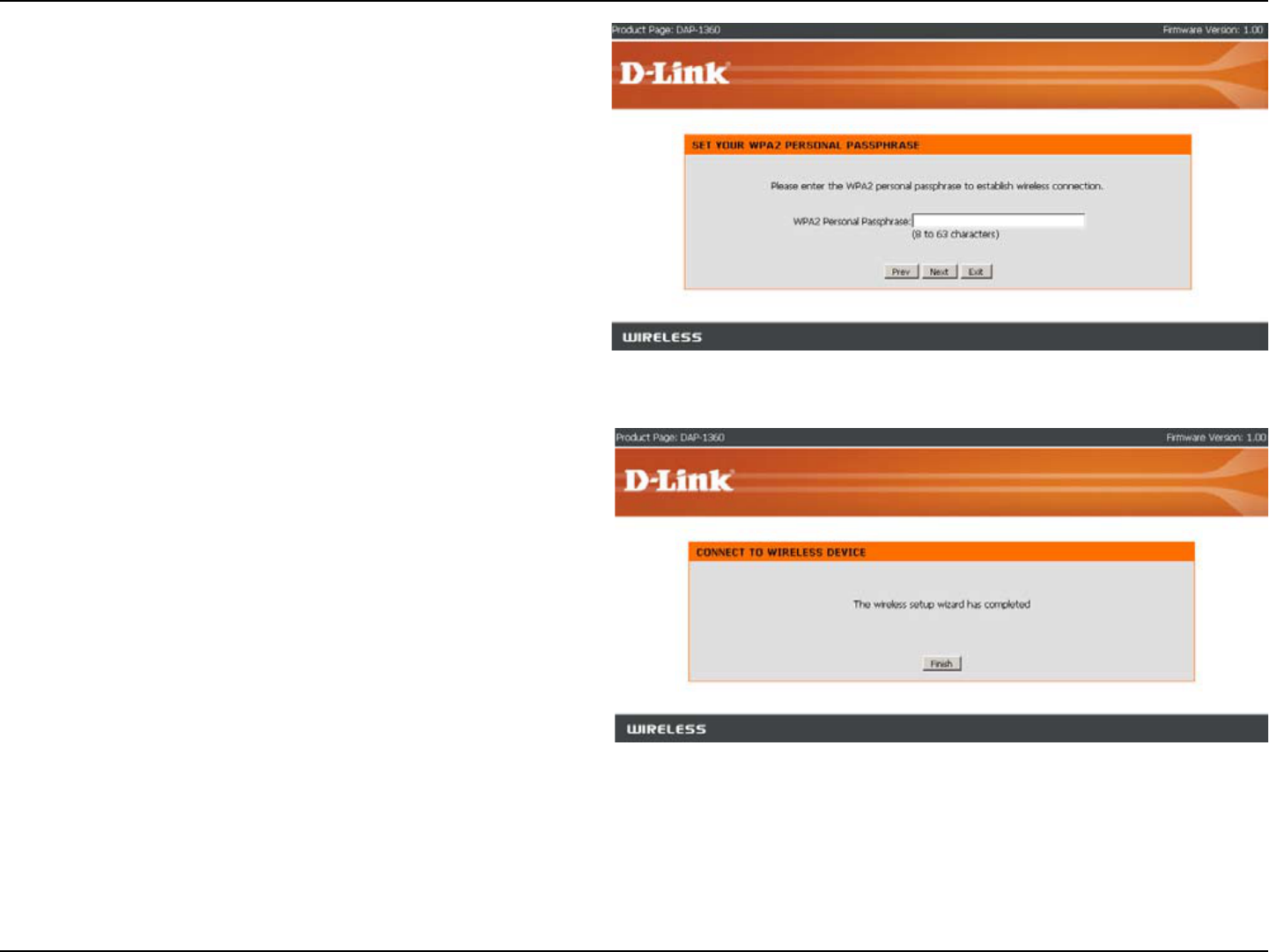

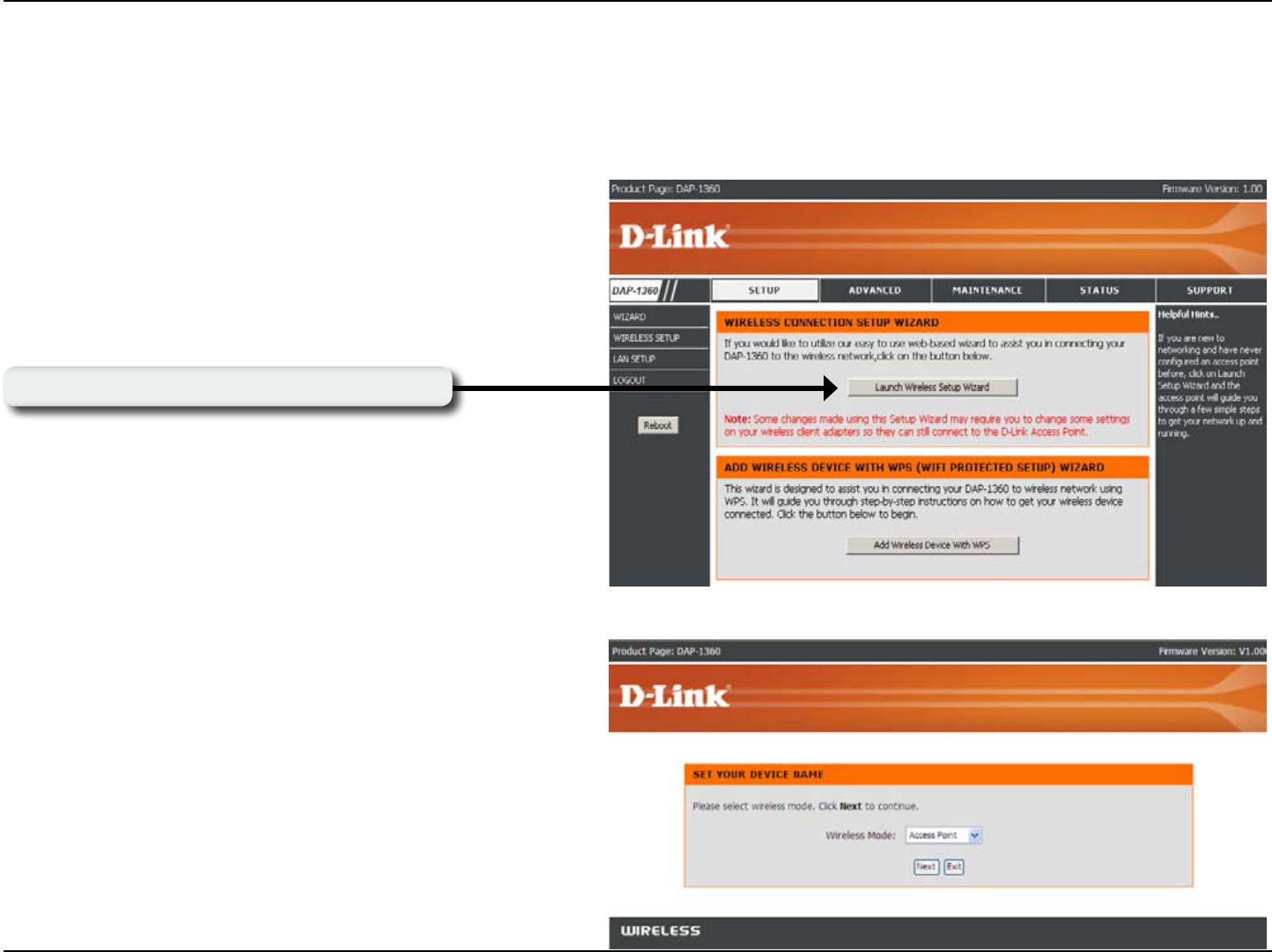

Setup Wizard .........................................................19

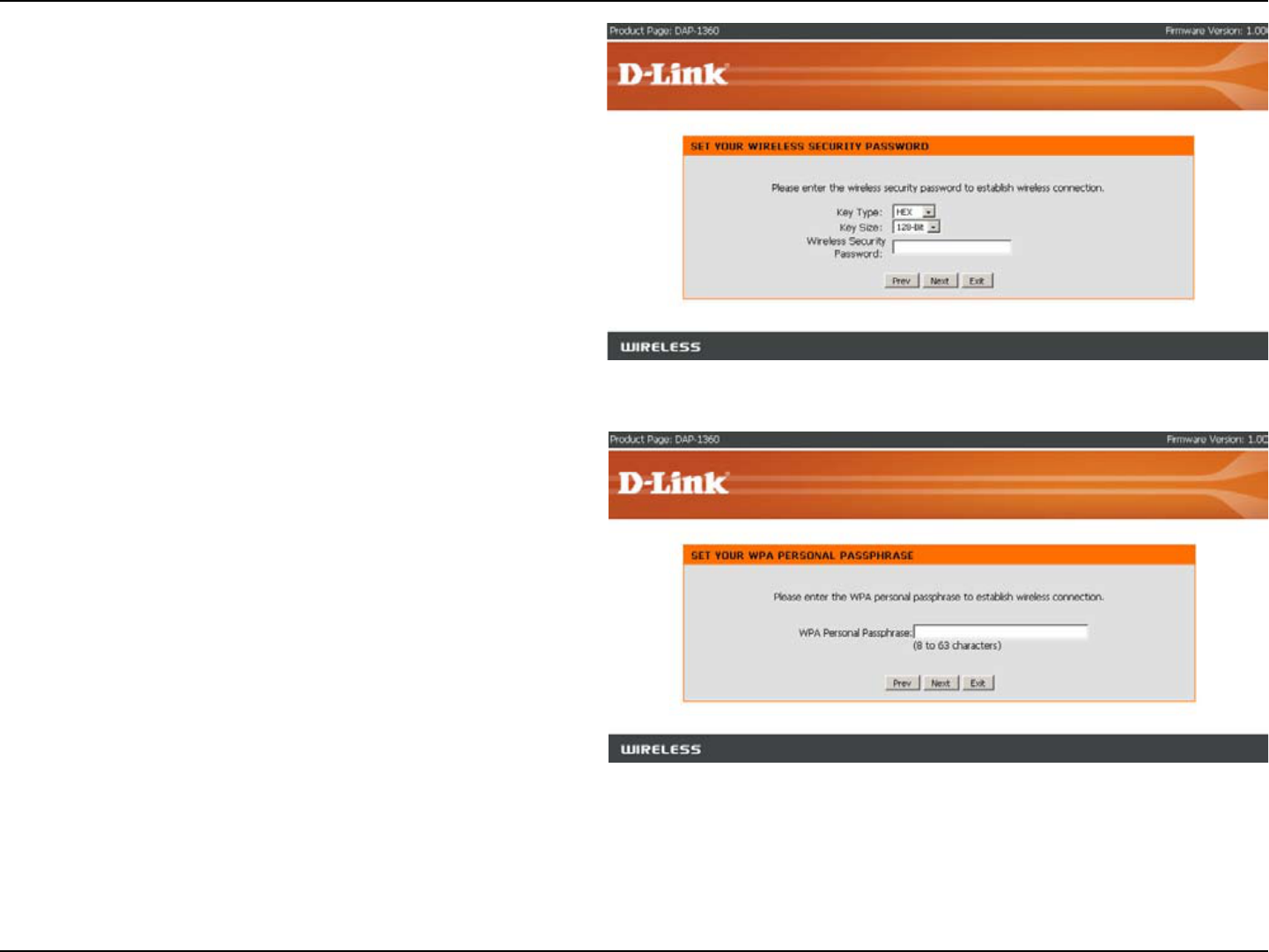

Setup Wizard for AP Mode .................................... 20

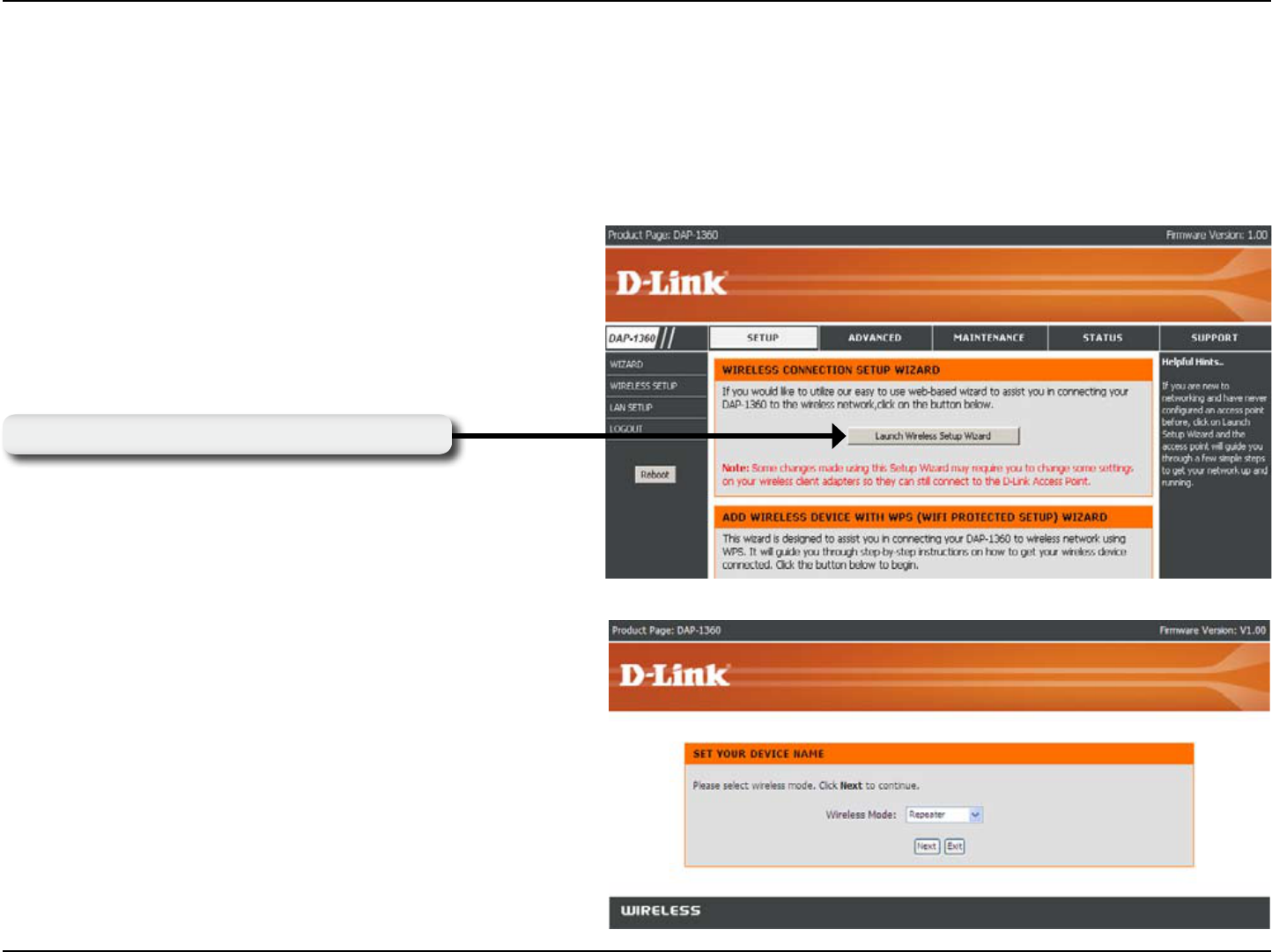

Setup Wizard for Repeater Mode .......................... 27
Setup Wizard for Wireless Client Mode .................35

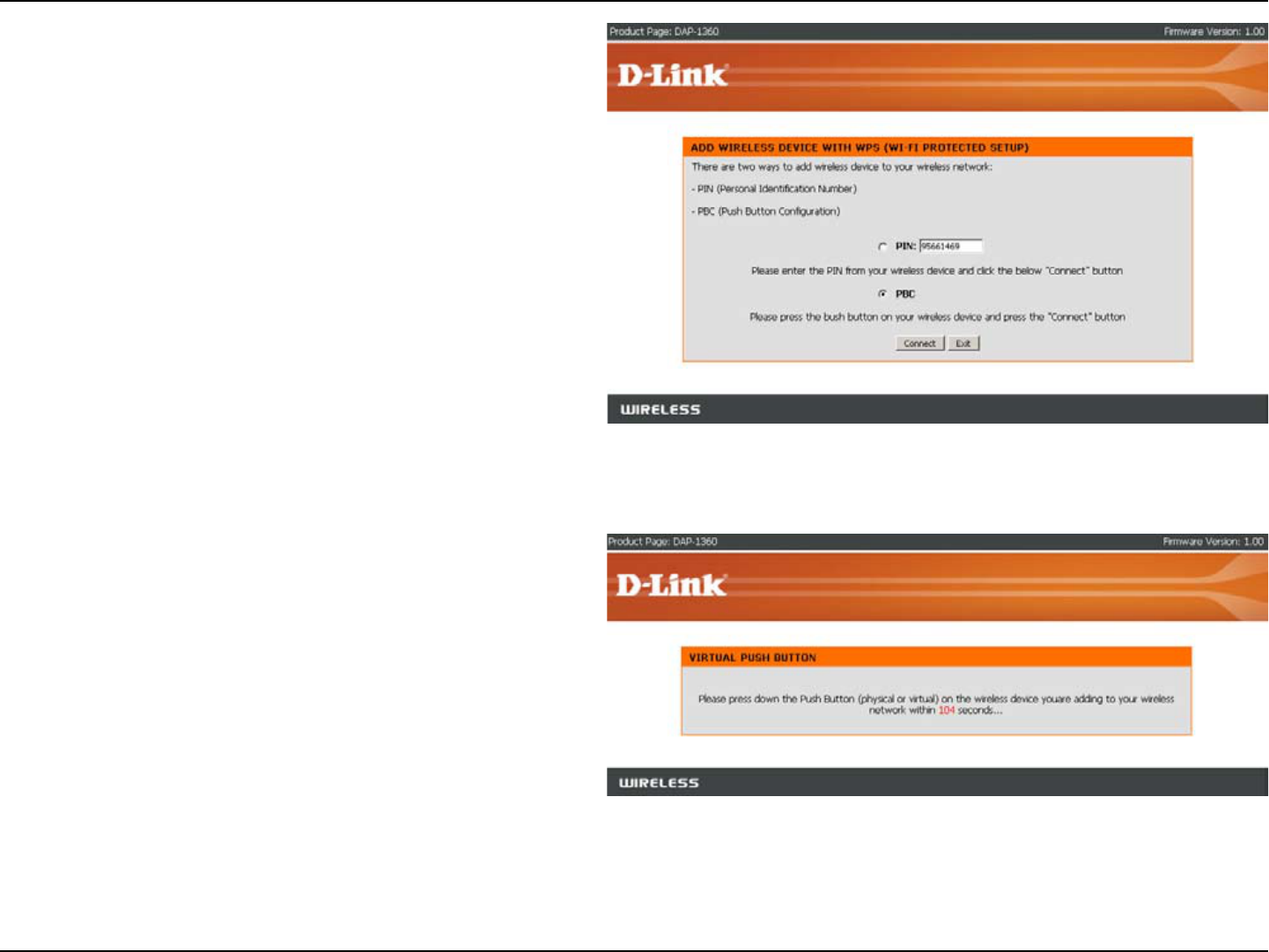

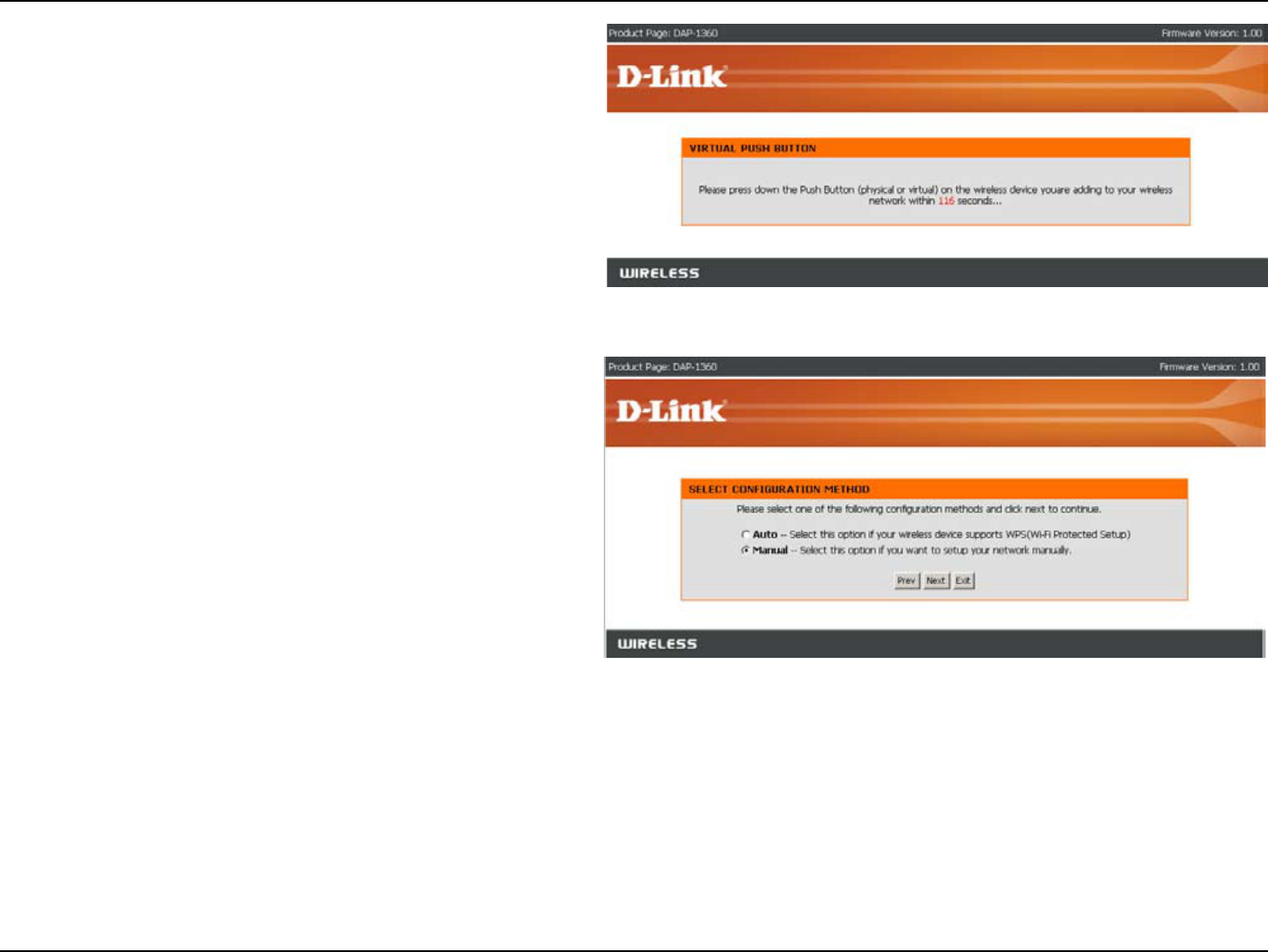

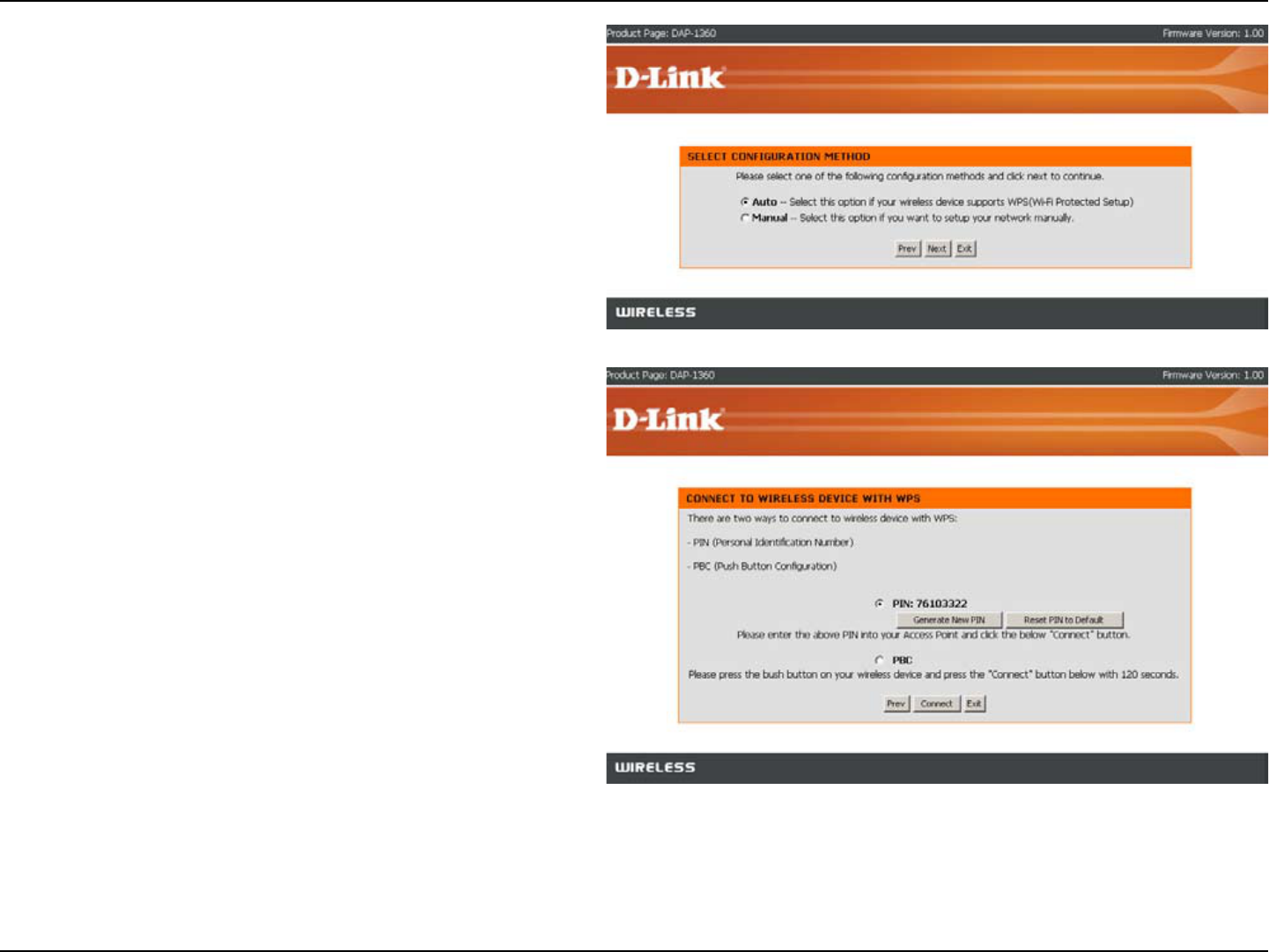

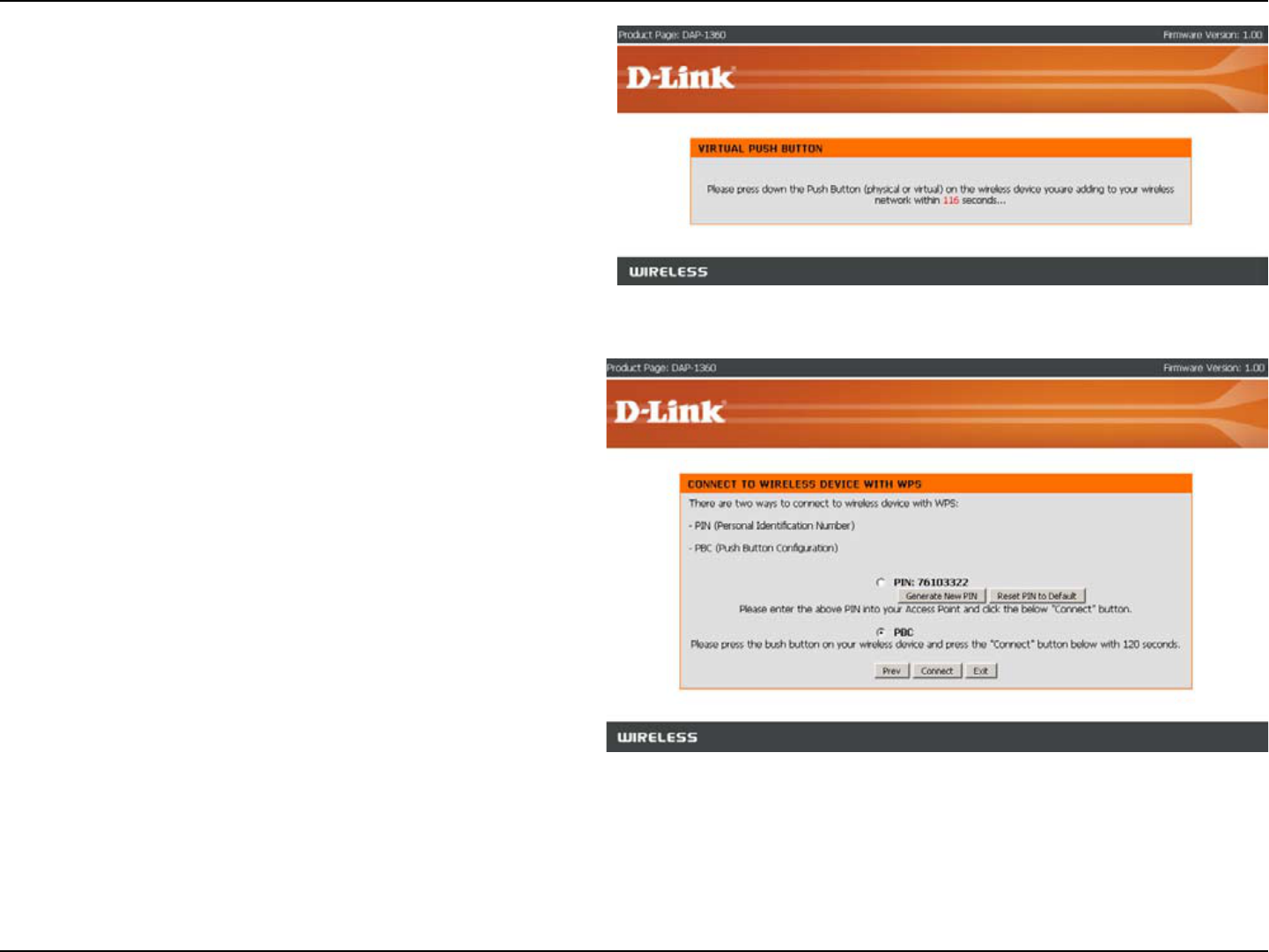

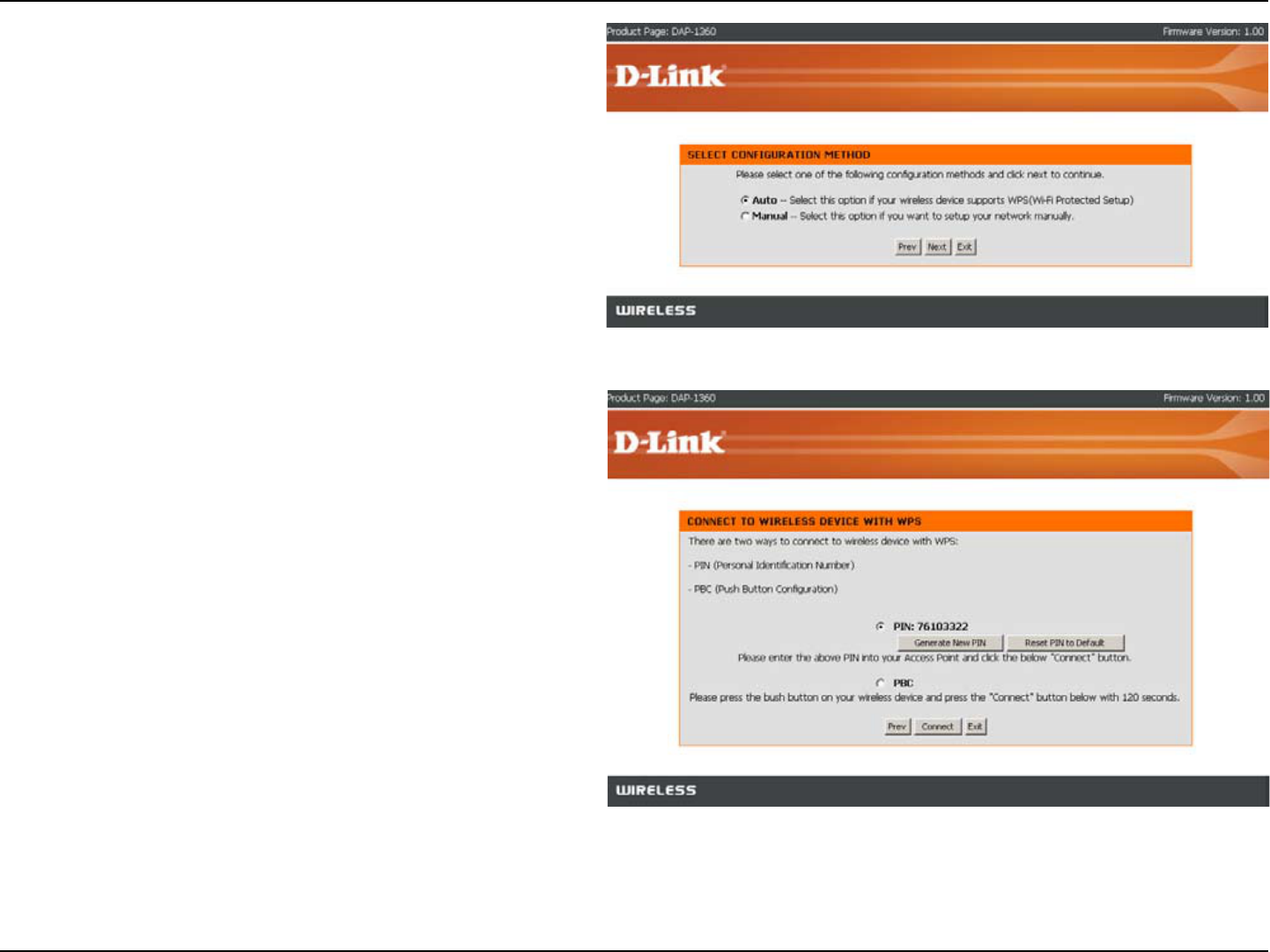

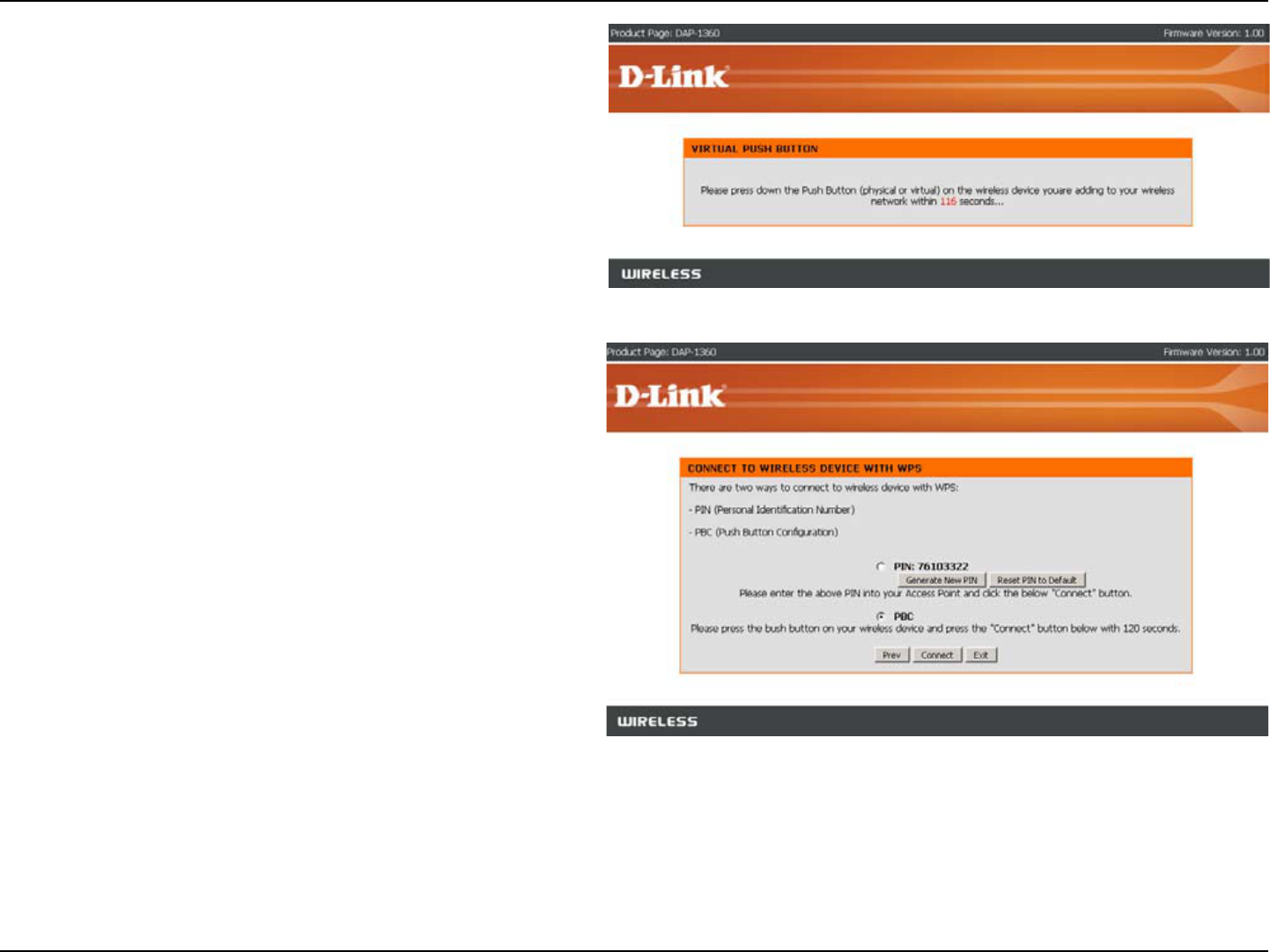

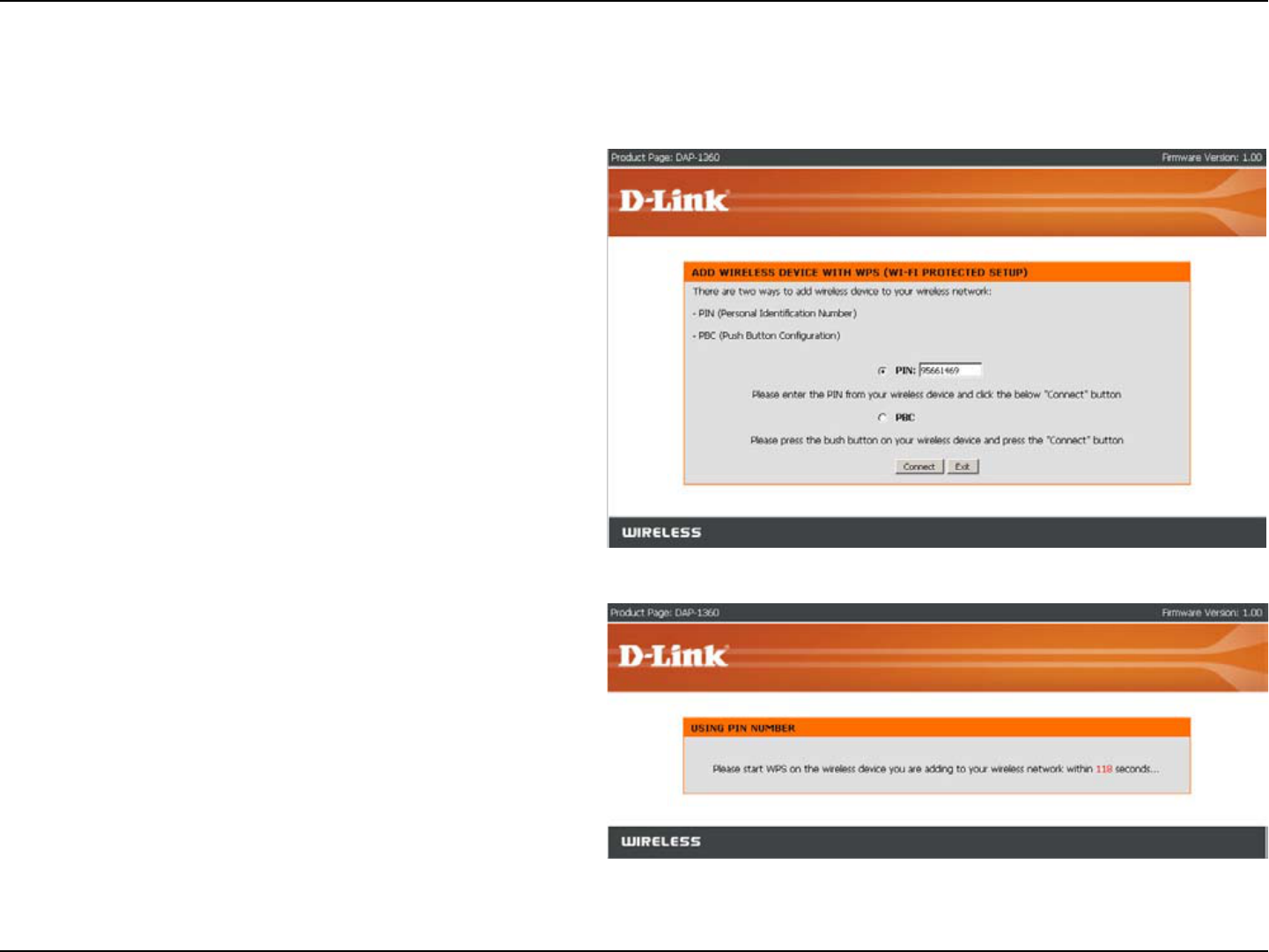

Add Wireless Device With WPS ............................ 43

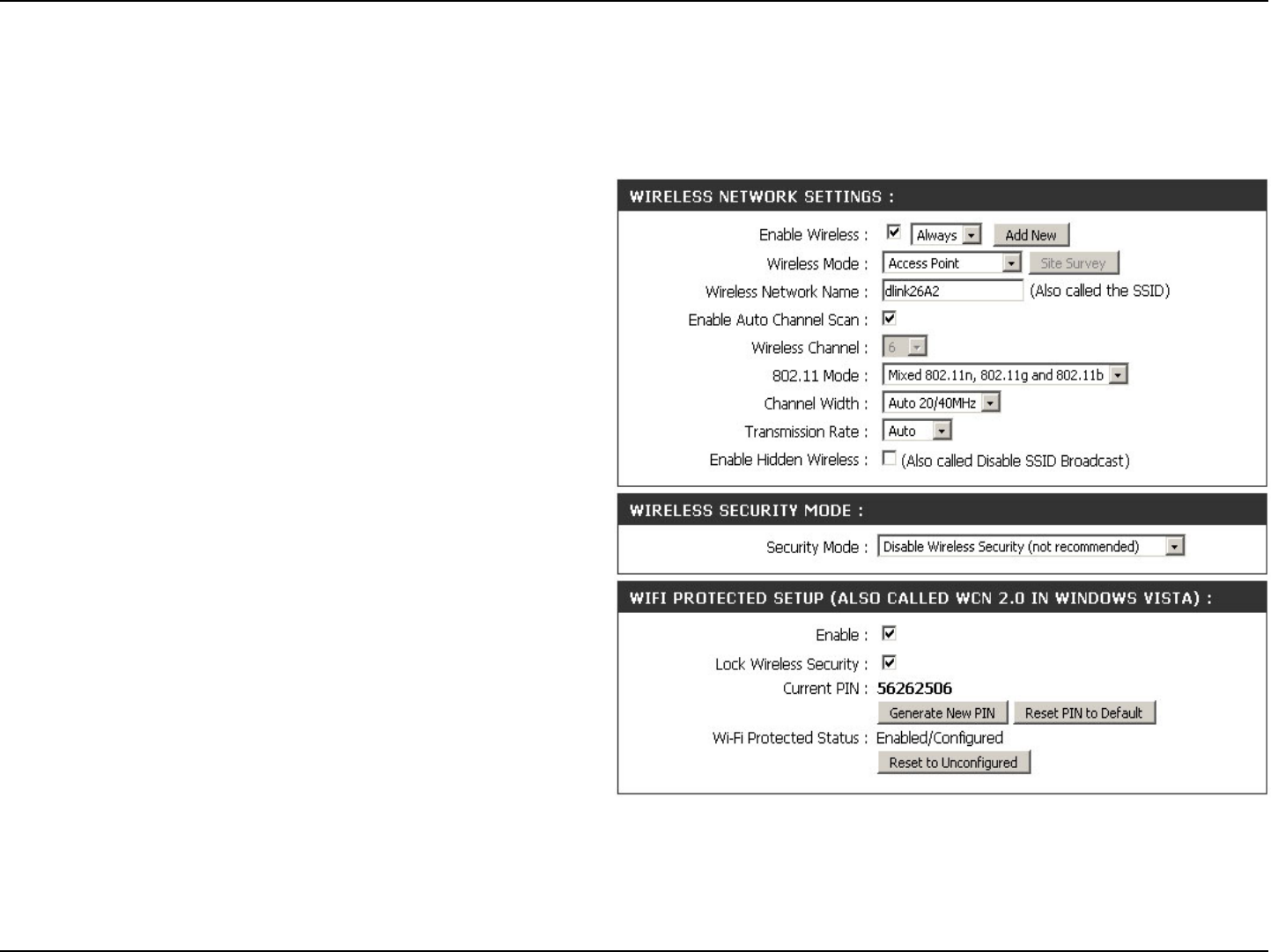

Wireless Setup .....................................................45
Access Point ....................................................45

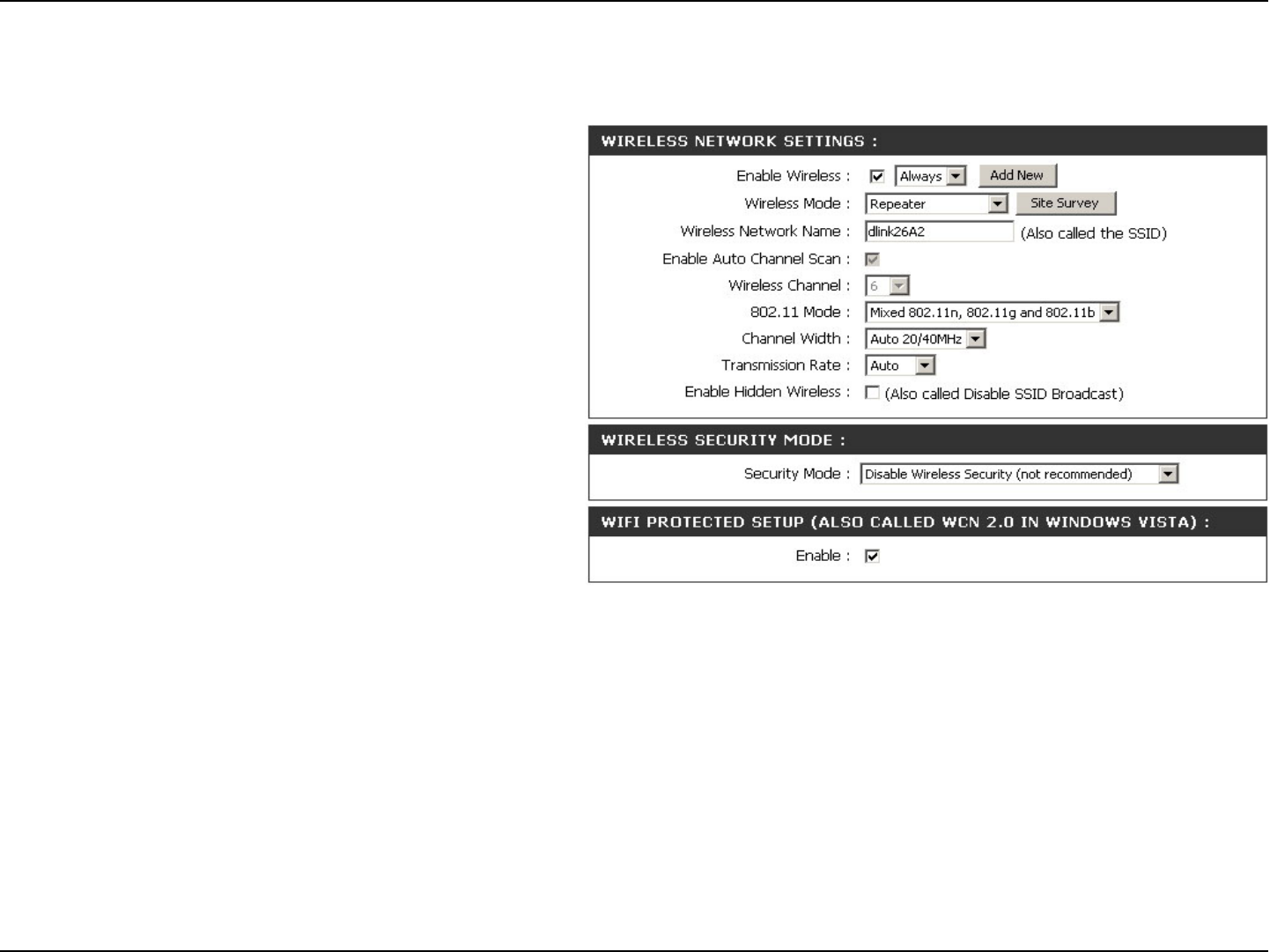

Repeater ..........................................................47
Wireless Client ................................................. 48

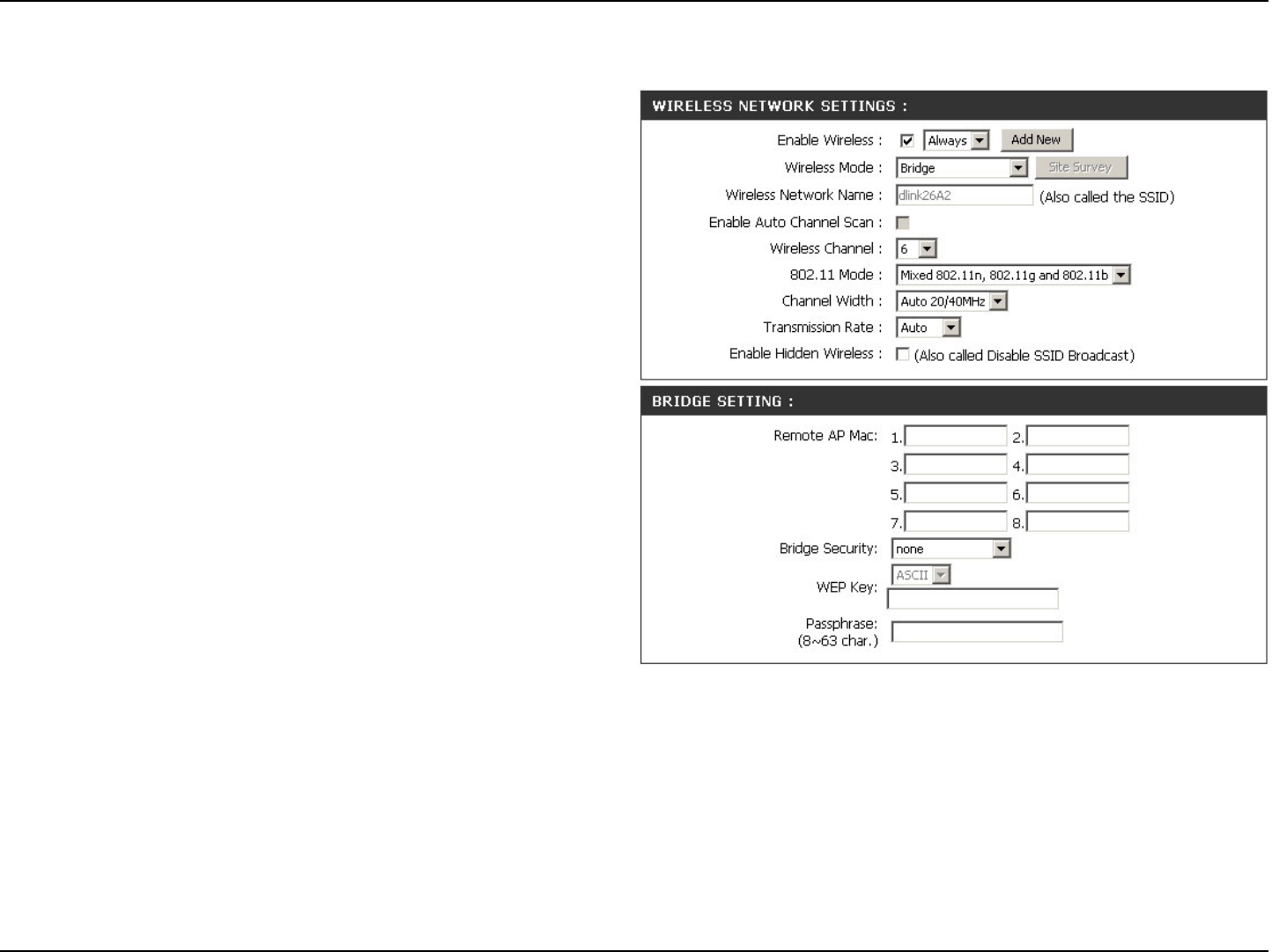

Bridge ............................................................. 49

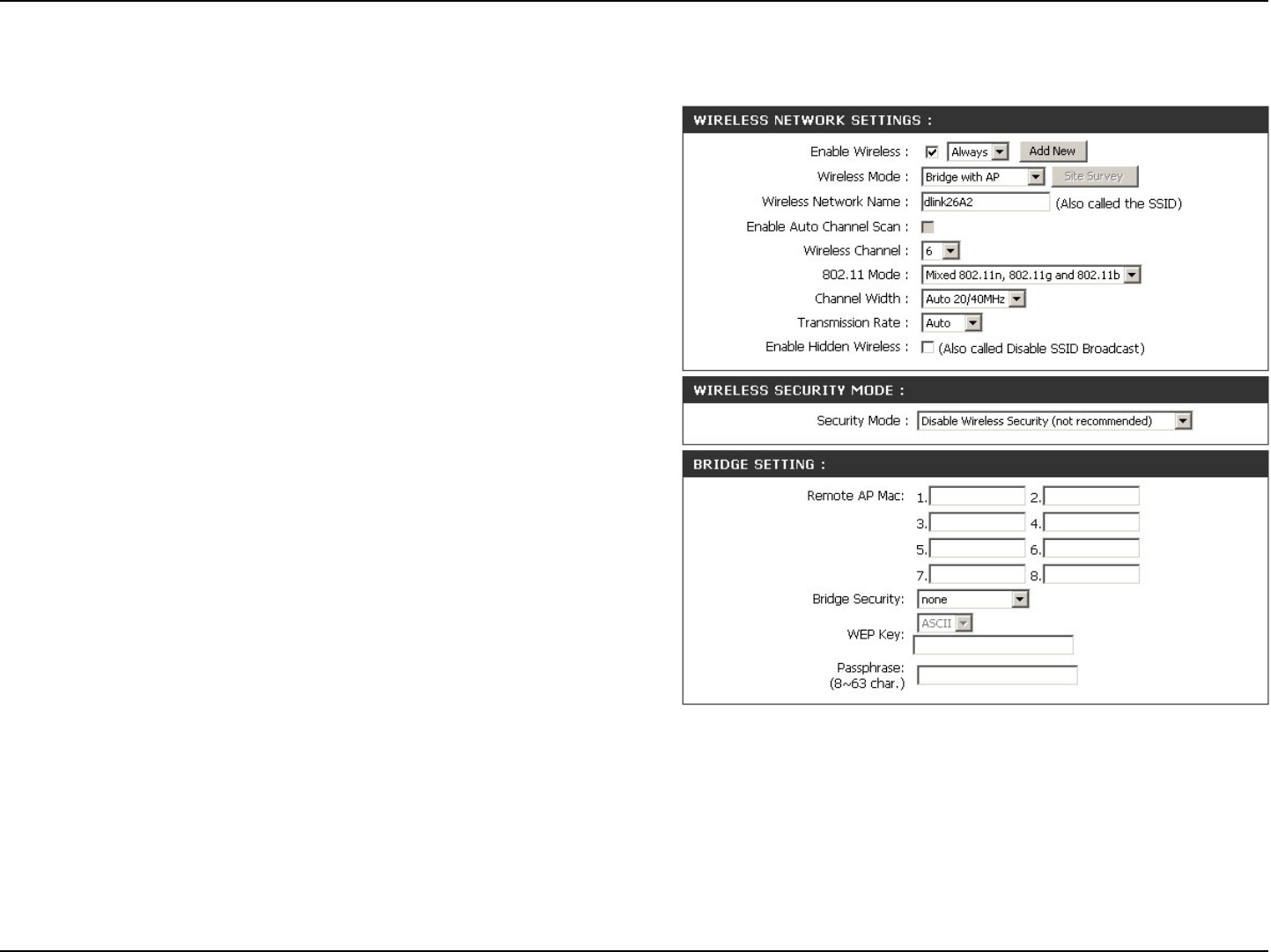

Bridge with AP .................................................50

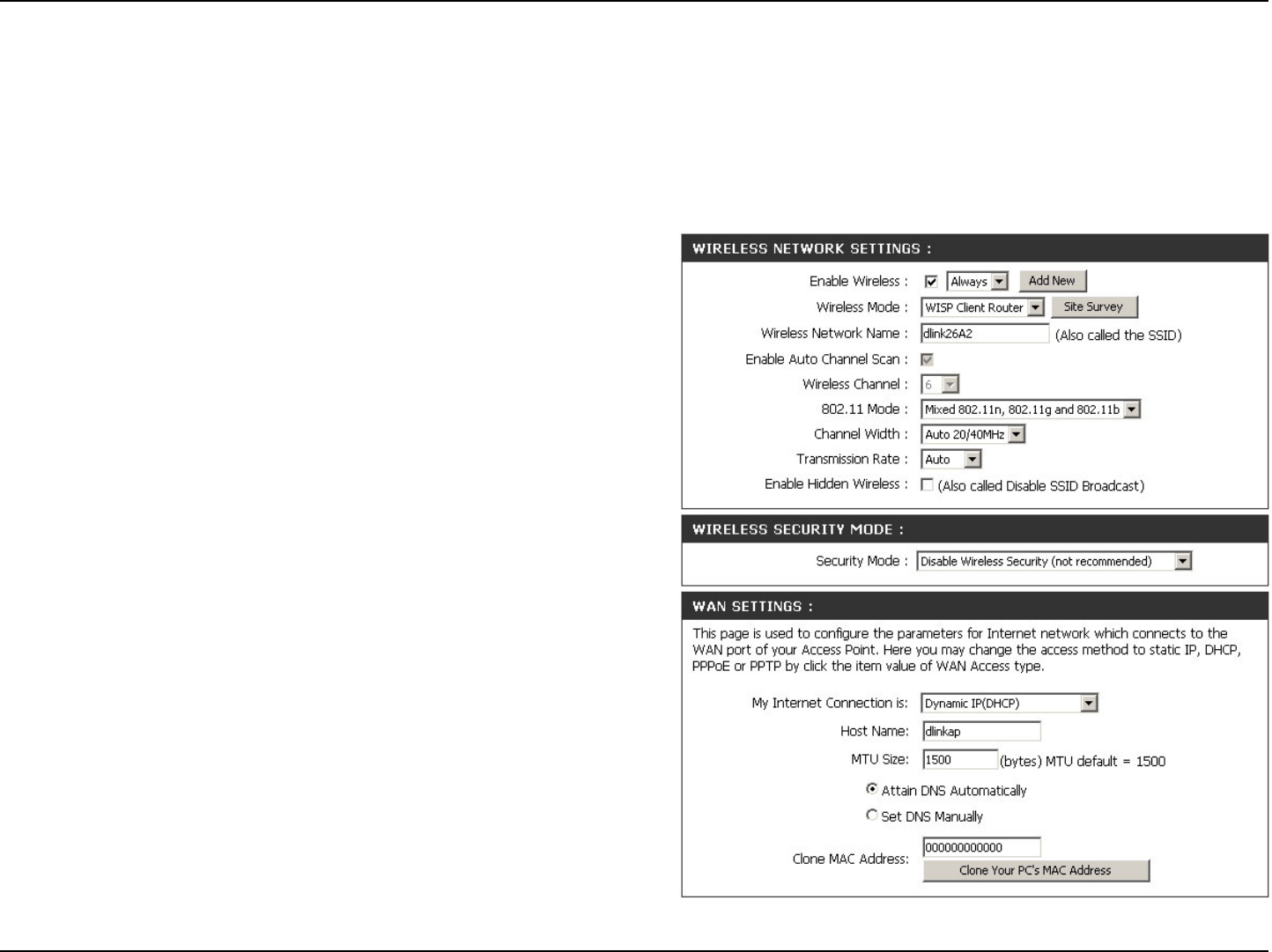

WISP Client Router and WISP Repeater .........51
WAN Settings ........................................................ 52
Dynamic IP (DHCP) ......................................... 52
Static IP ........................................................... 53
PPPoE .............................................................54
PPTP ............................................................... 55
LAN Setup ....................................................... 56

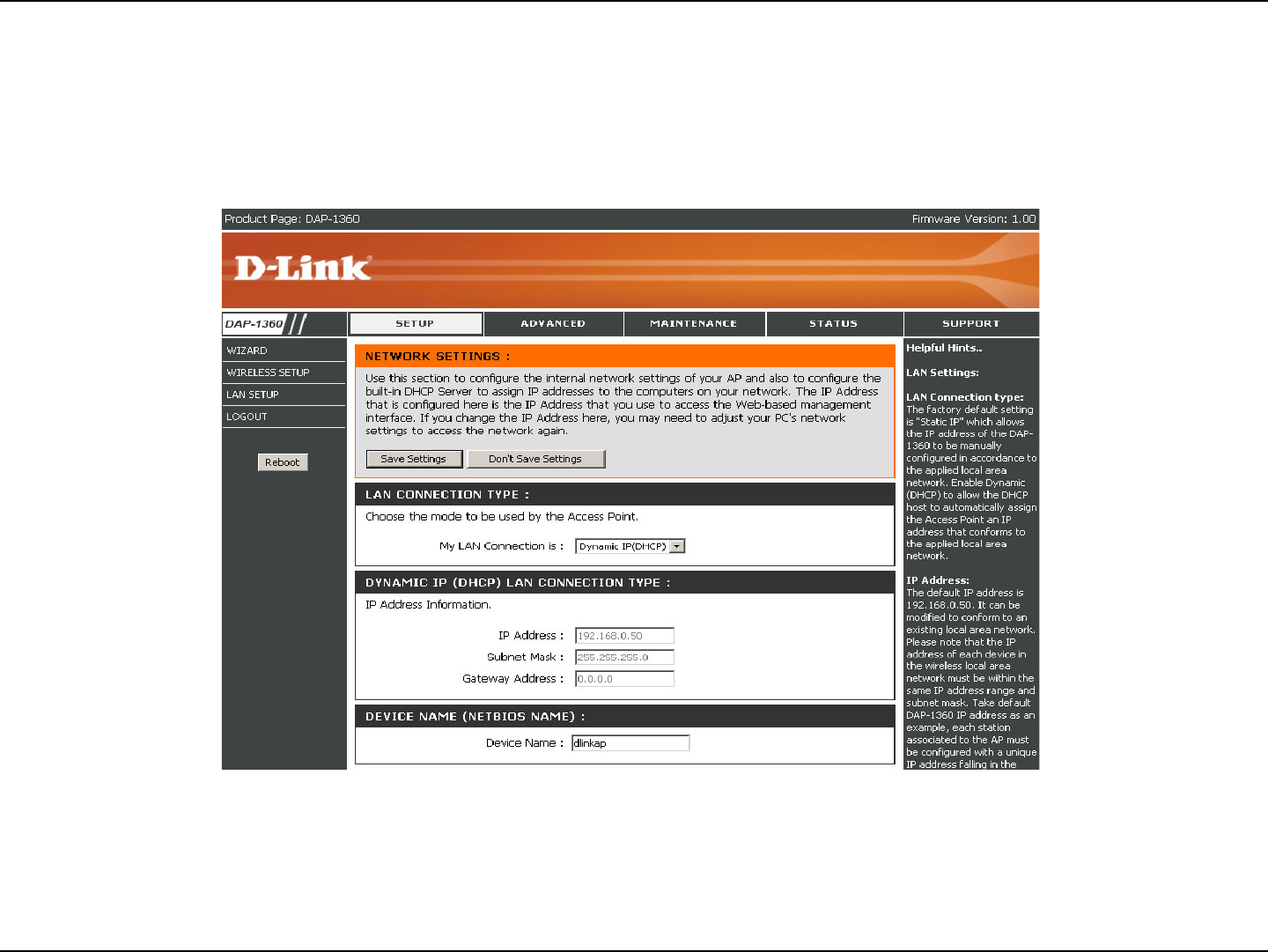

LAN Settings .................................................... 57
Advanced ...............................................................58

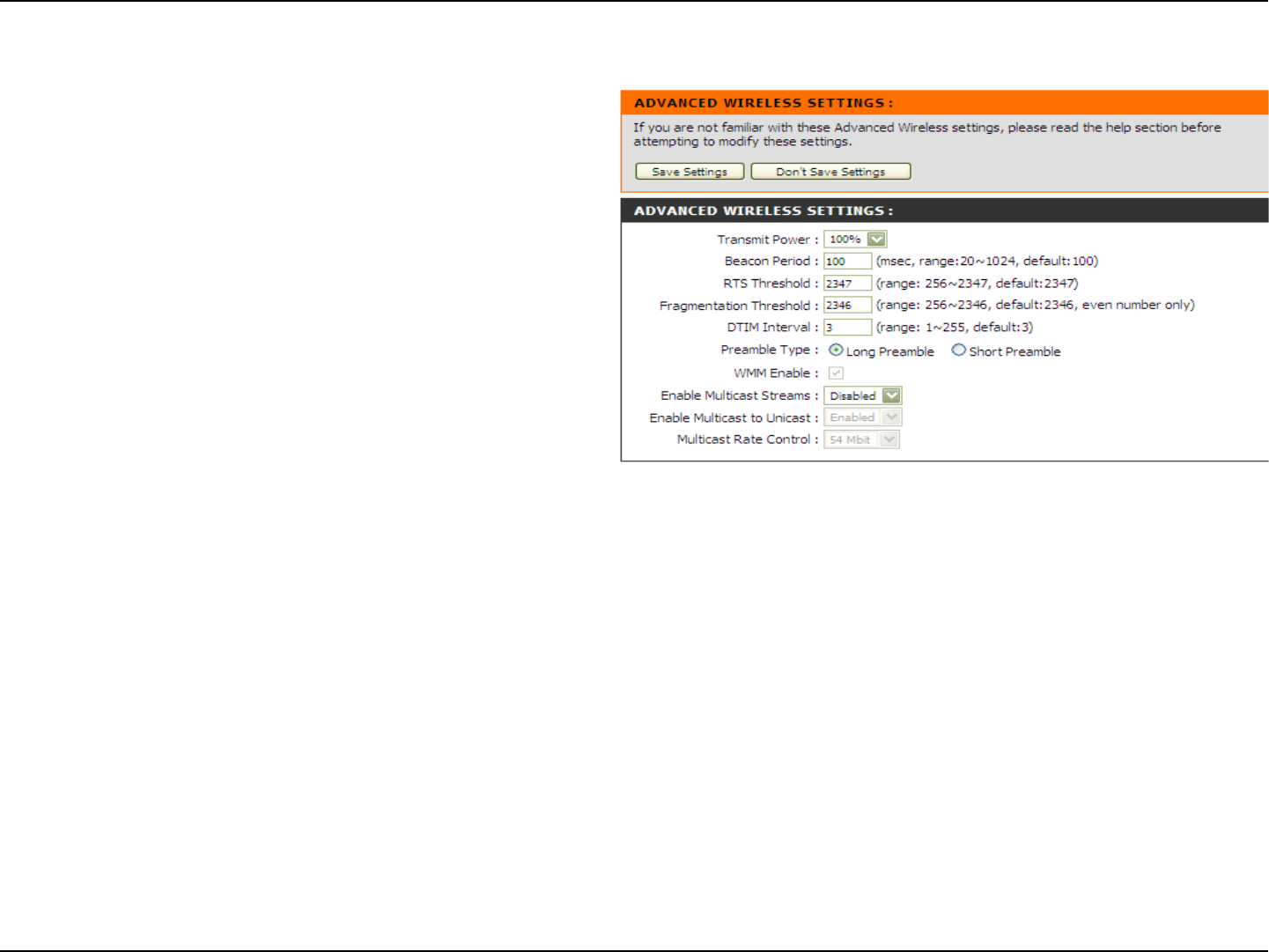

Advanced Wireless ..........................................58

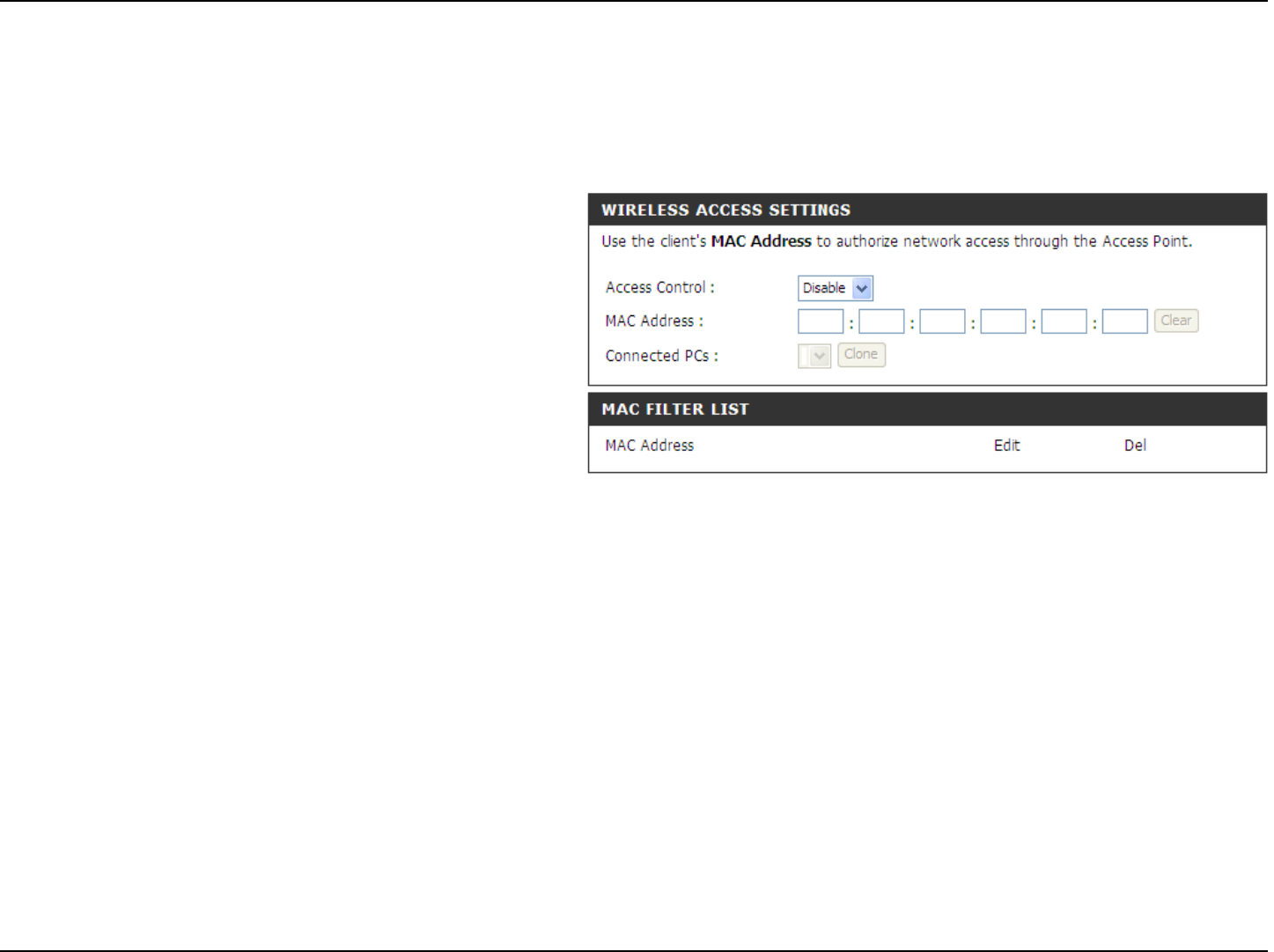

Access Control .................................................59

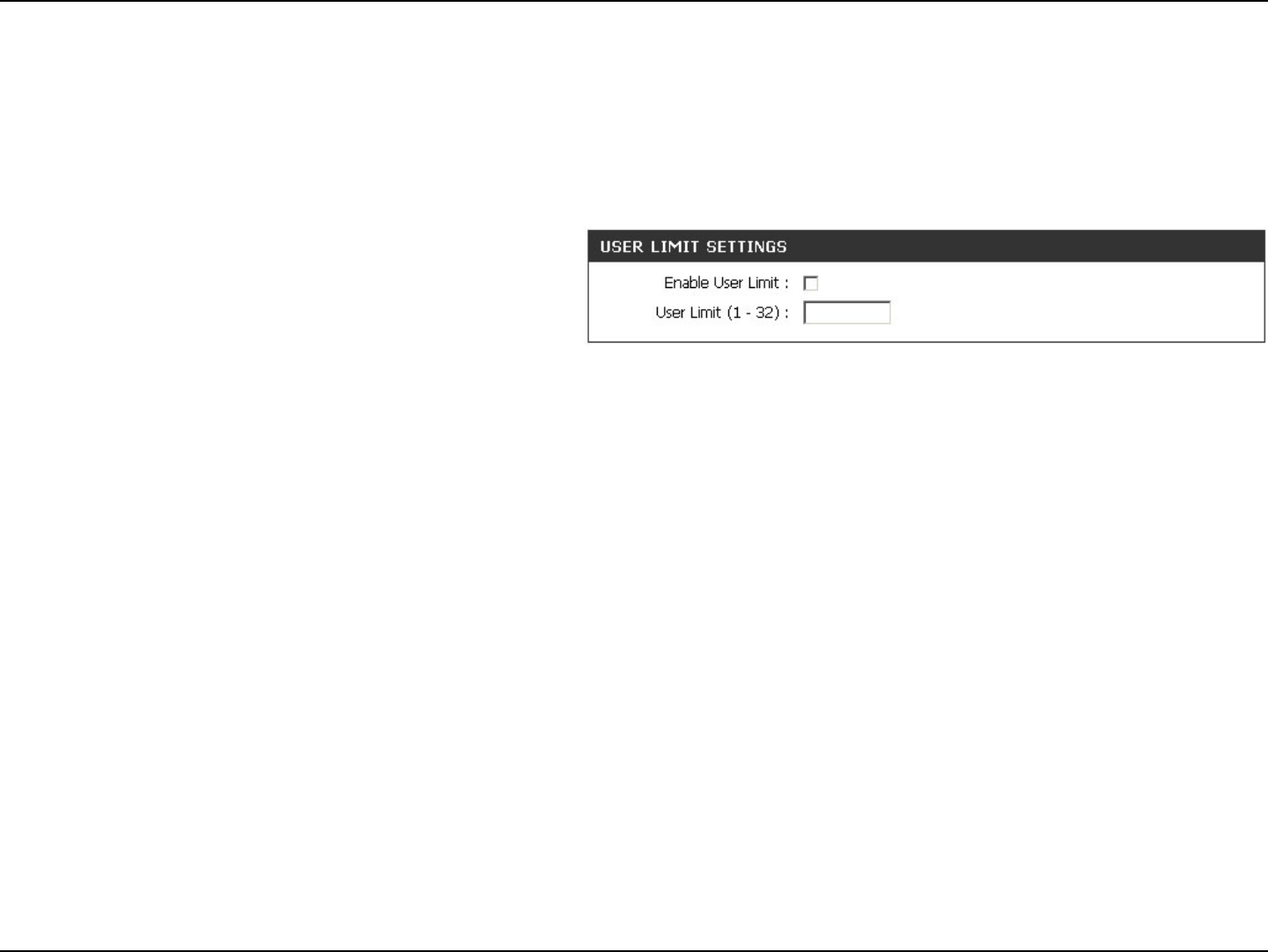

User Limit .........................................................60
Port Forwarding ...............................................61

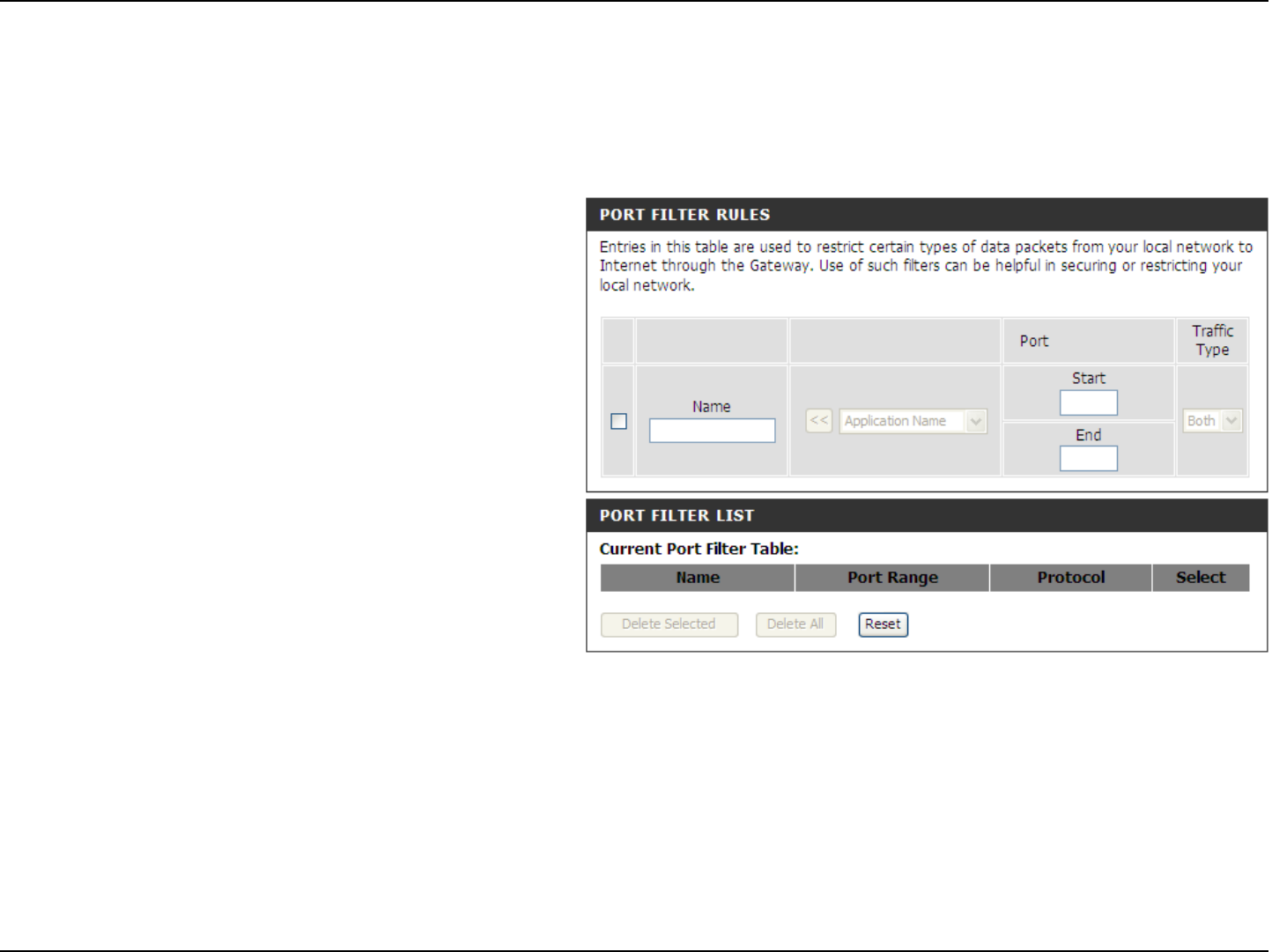

Port Filter .........................................................62
DMZ .................................................................63

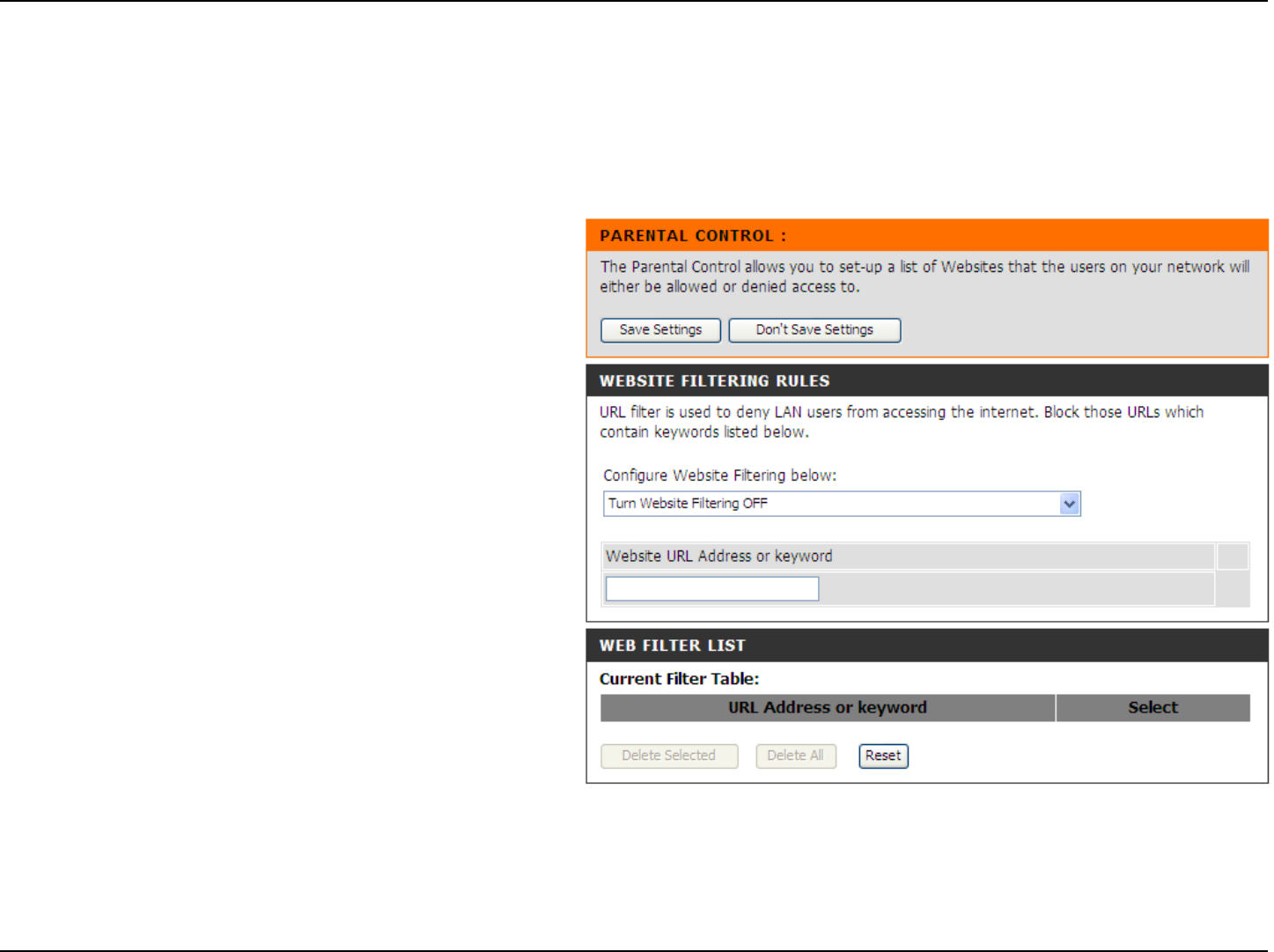

Parental Control ............................................... 64

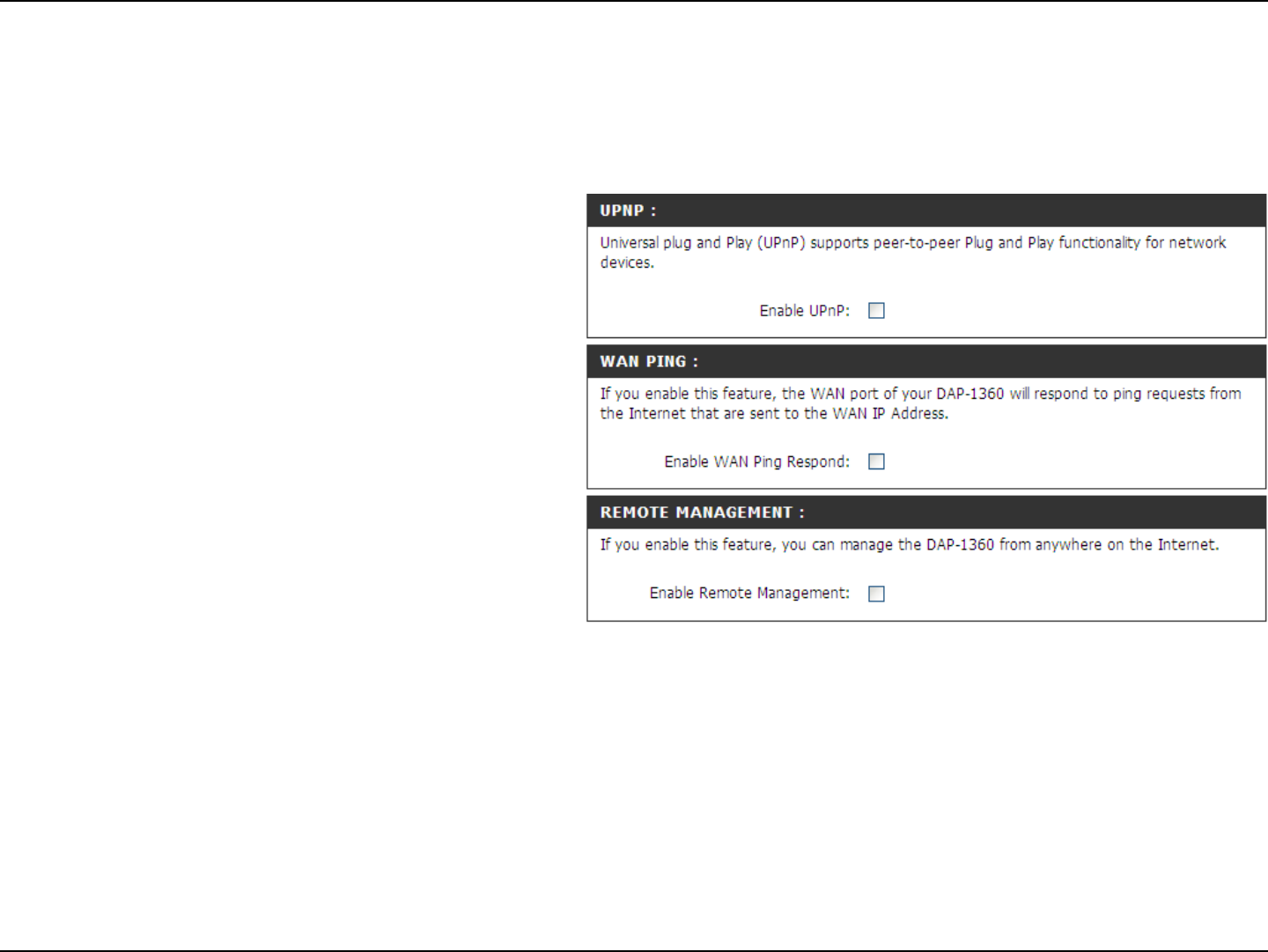

Advanced Network ...........................................65
Maintenance ..........................................................66
Device Administration .....................................66

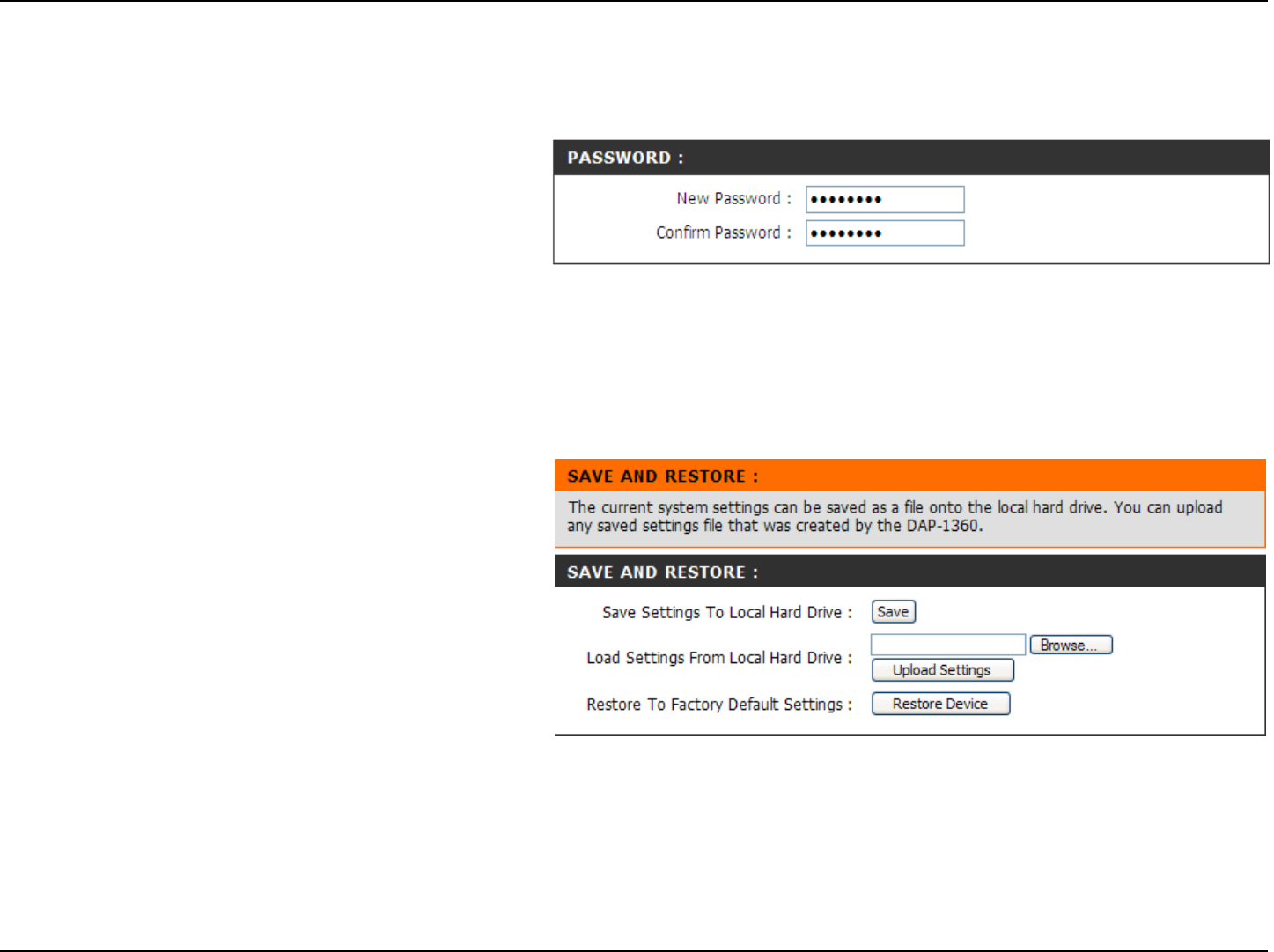

Save and Restore ...........................................66
Table of Contents
3D-Link DAP-1360 User Manual
Table of Contents

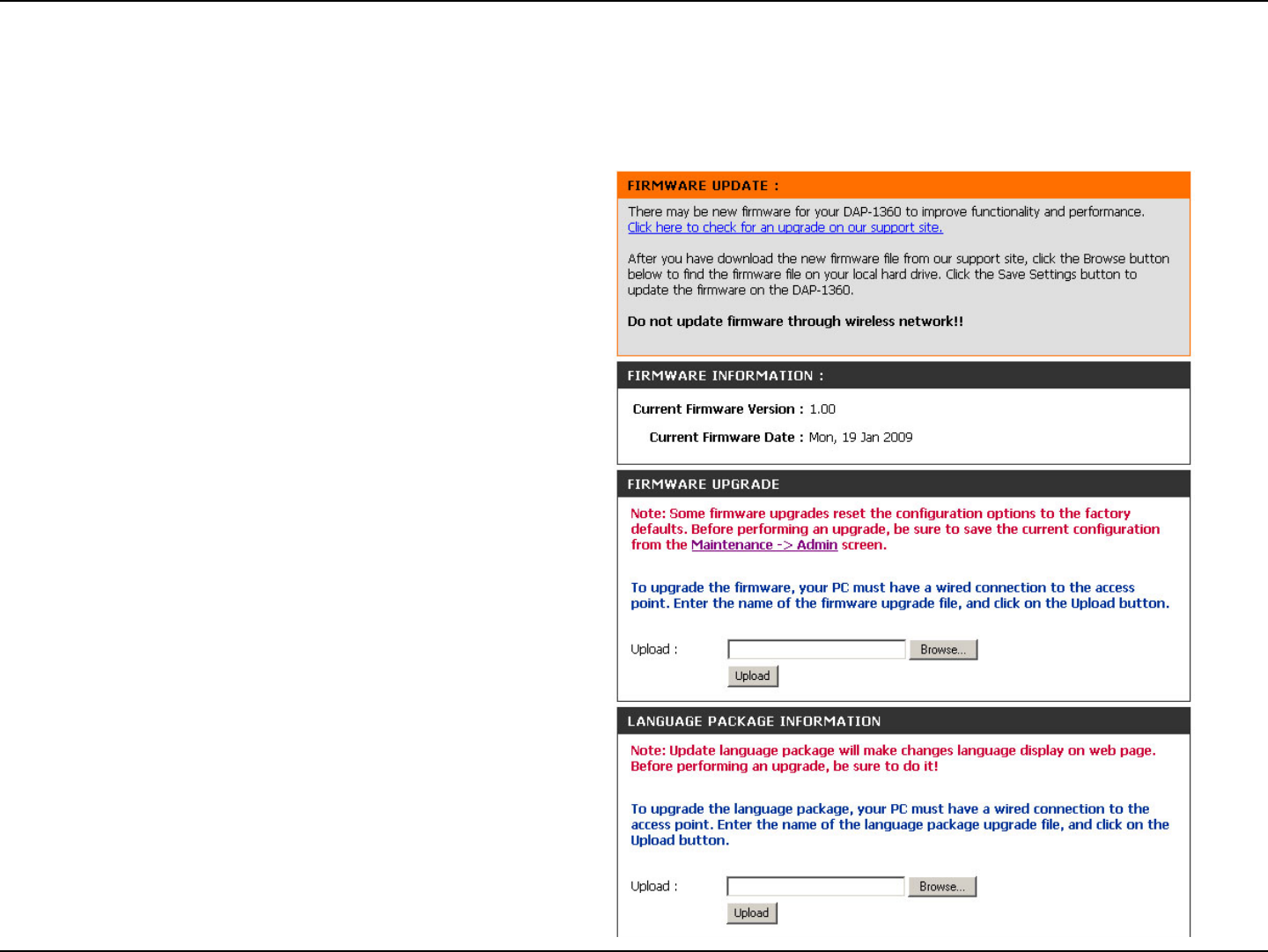

Firmware ......................................................... 67

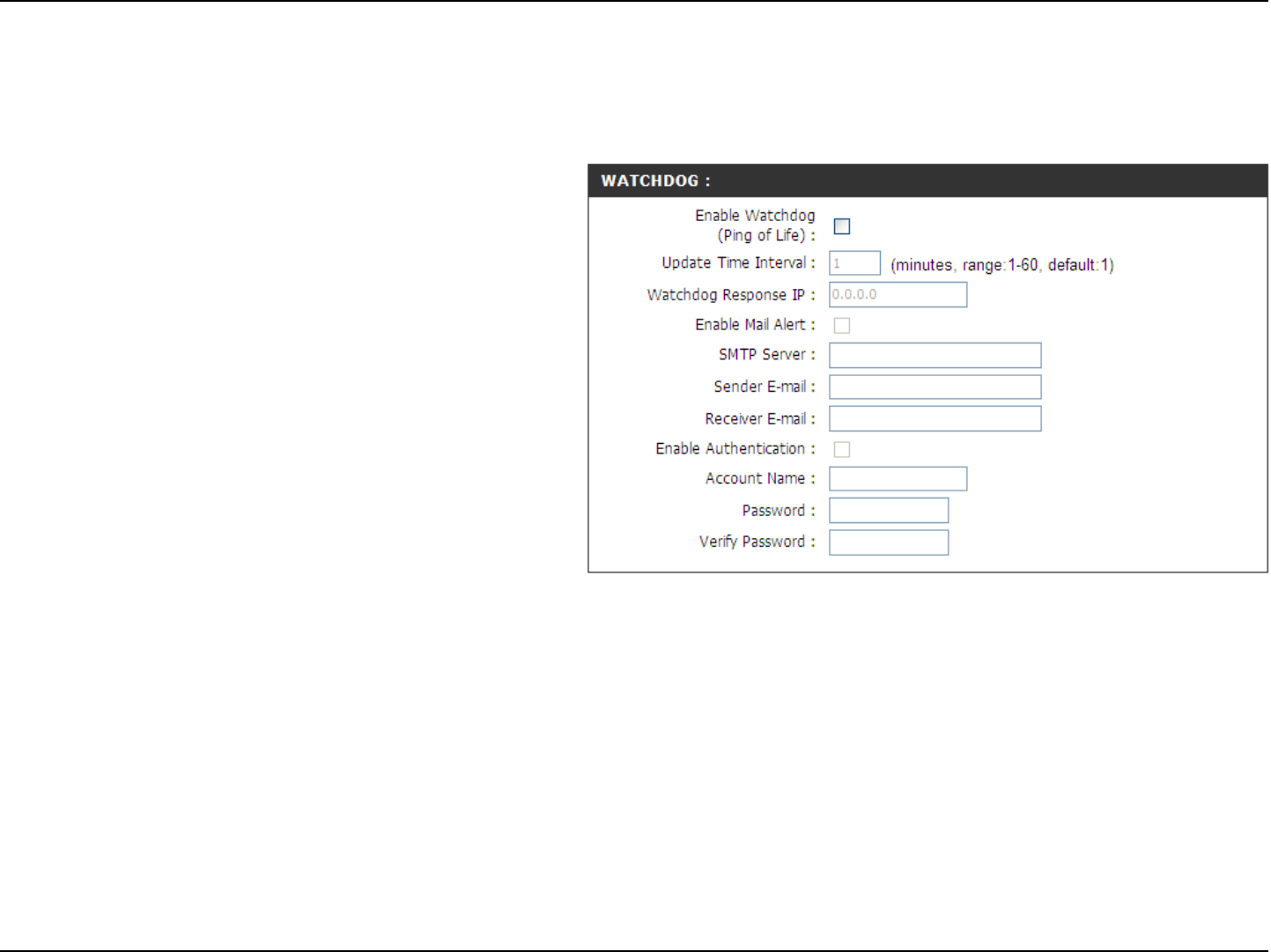

Watchdog (Ping of Life) ...................................68

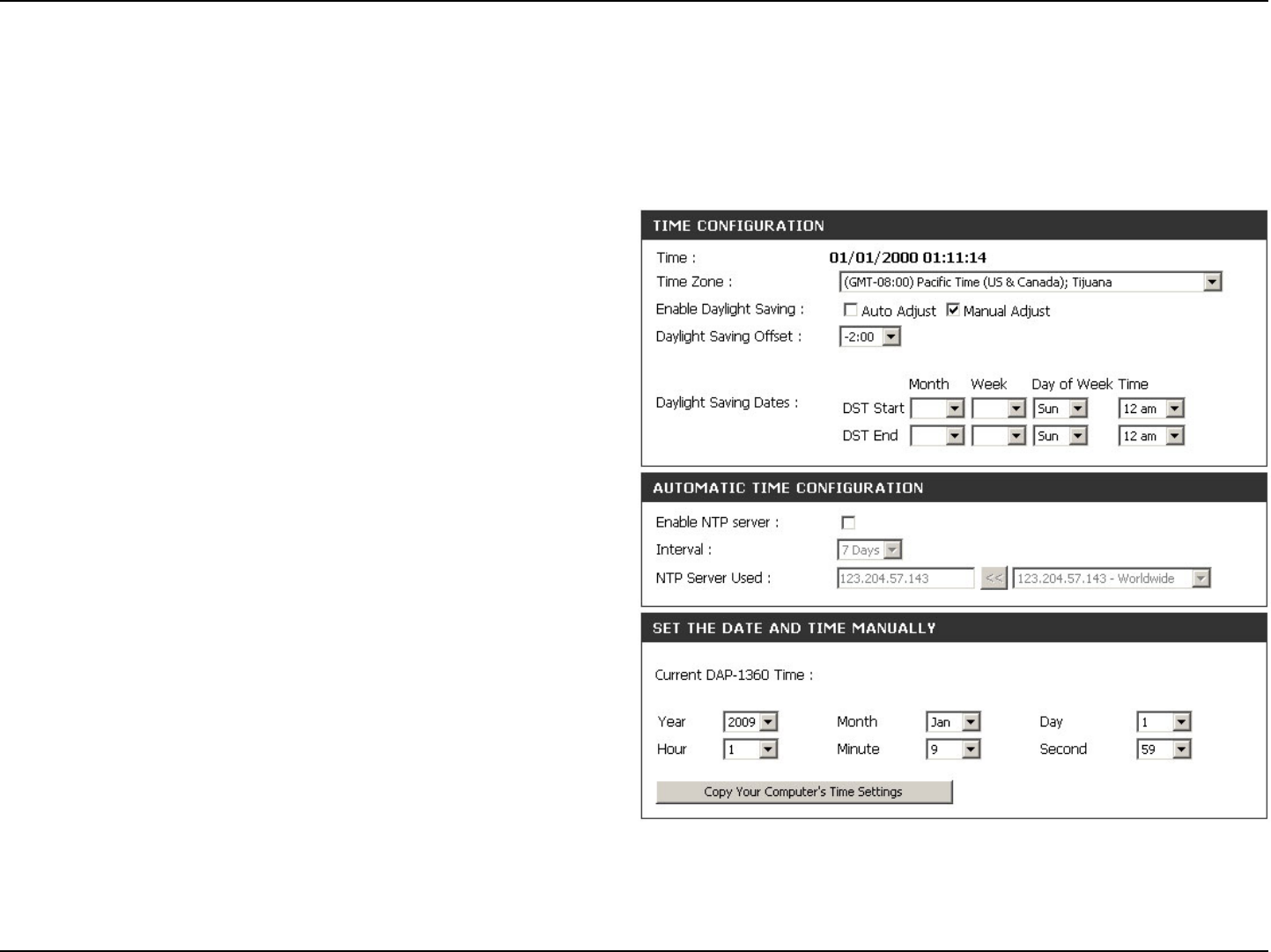

Time ................................................................. 69

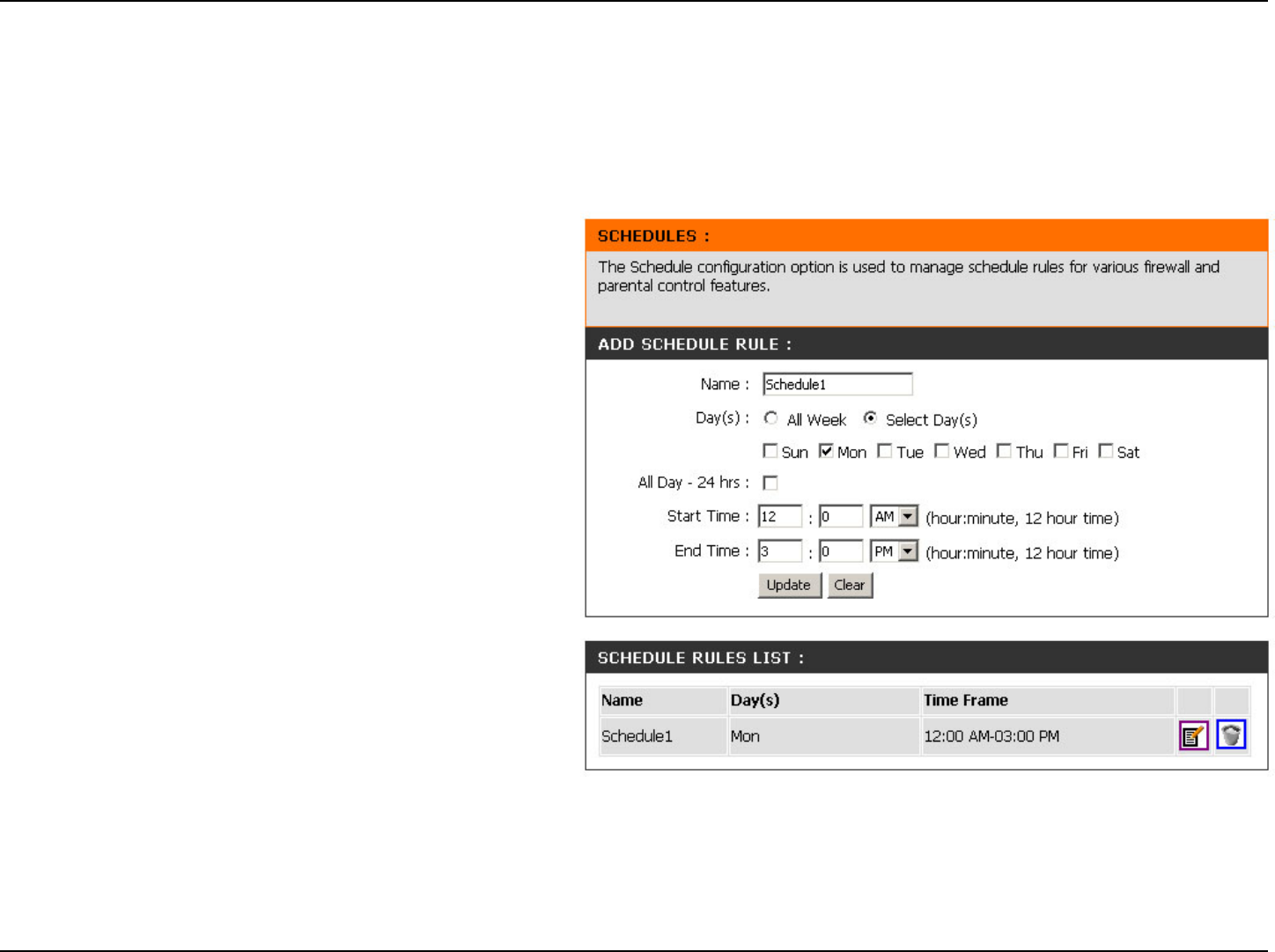

Schedules ........................................................70
Status .................................................................... 71

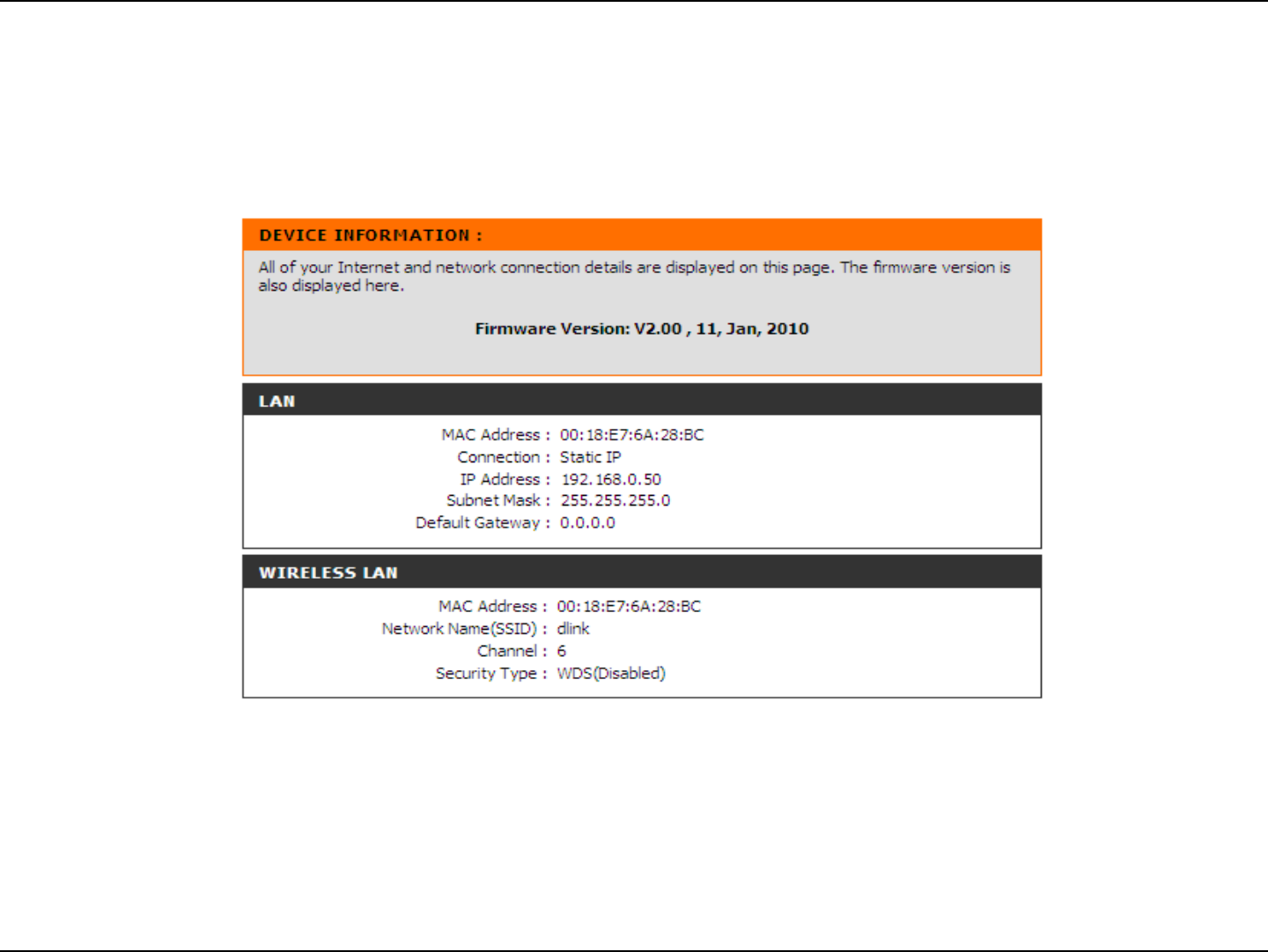

Device Info ....................................................... 71

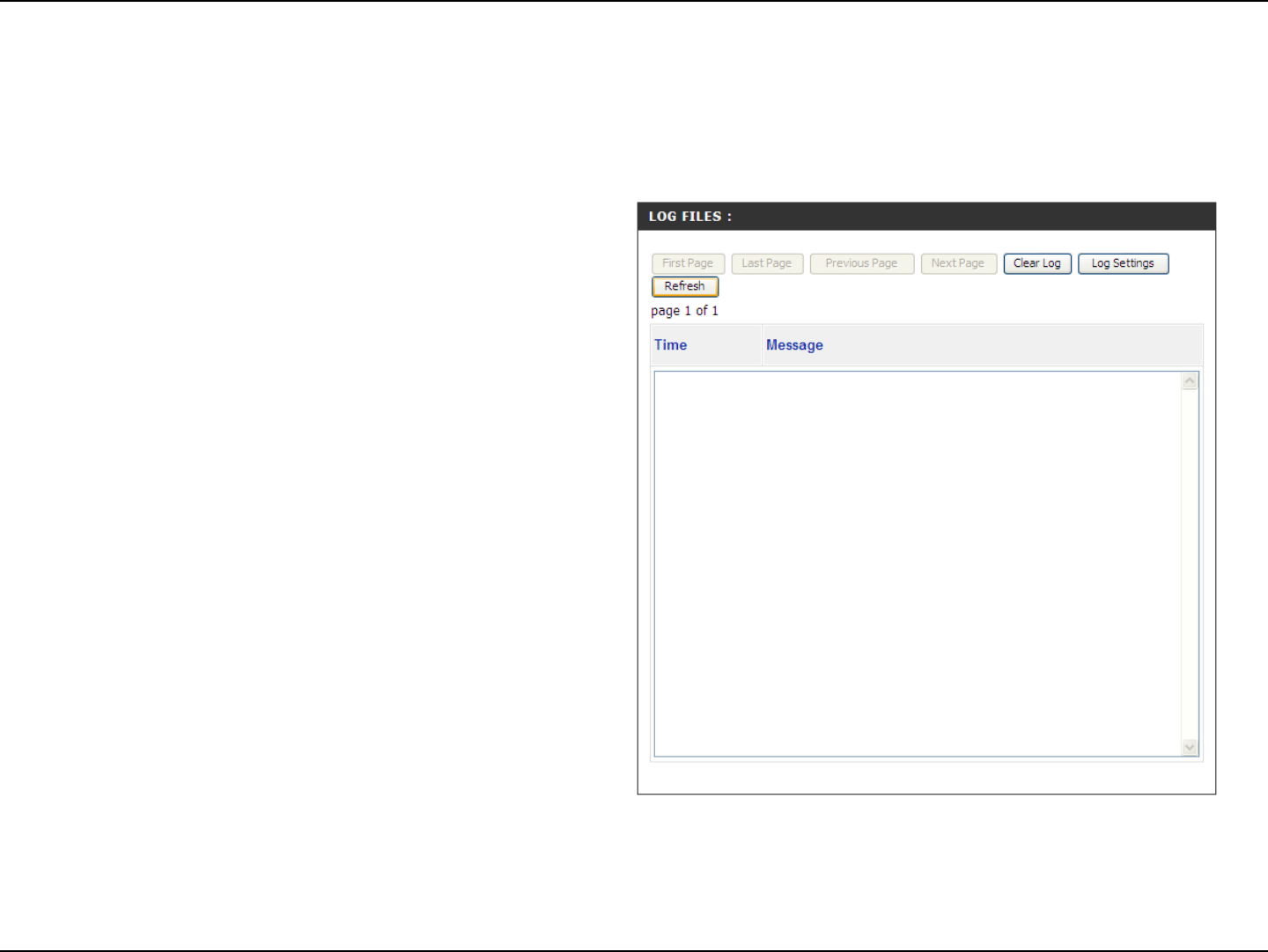

Log ................................................................... 72

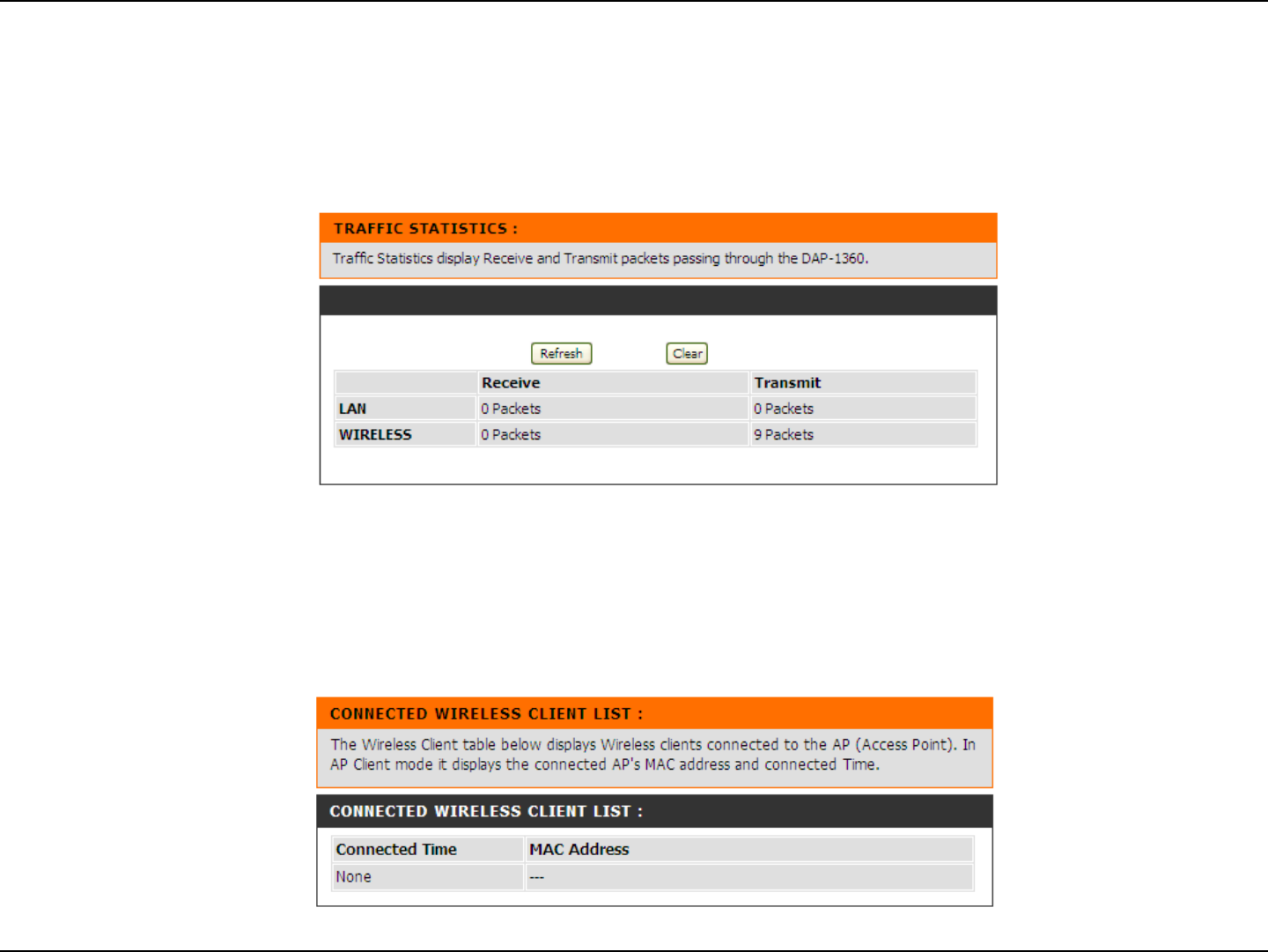

Statistics .......................................................... 73
Wireless ...........................................................73
Help ............................................................................. 74
Wireless Security.......................................................75
What is WEP? ......................................................75

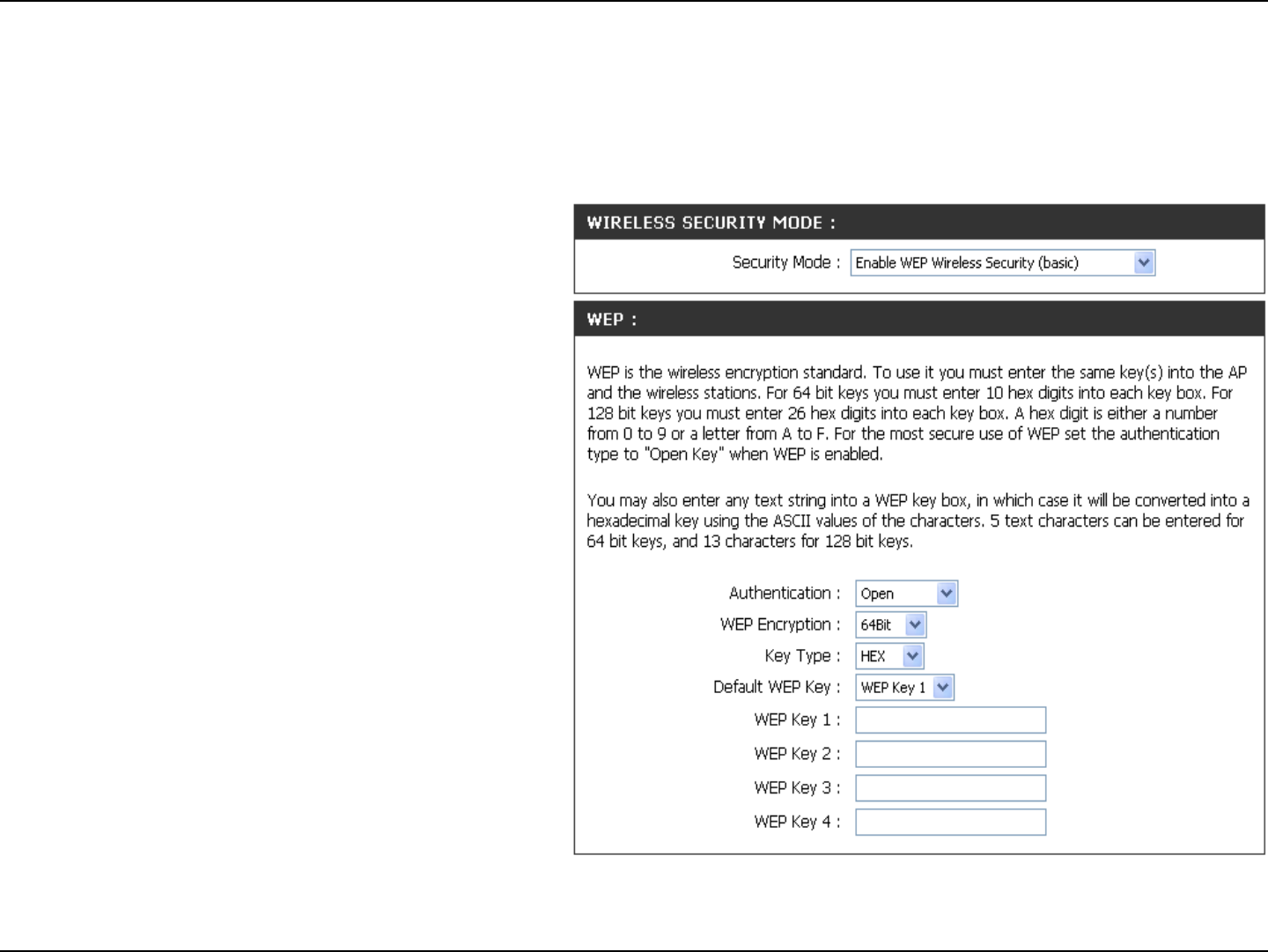

Congure WEP ......................................................76
What is WPA? .......................................................77
Congure WPA-PSK, WPA2-PSK, and WPA2-Auto-
PSK (Personal) .....................................................78

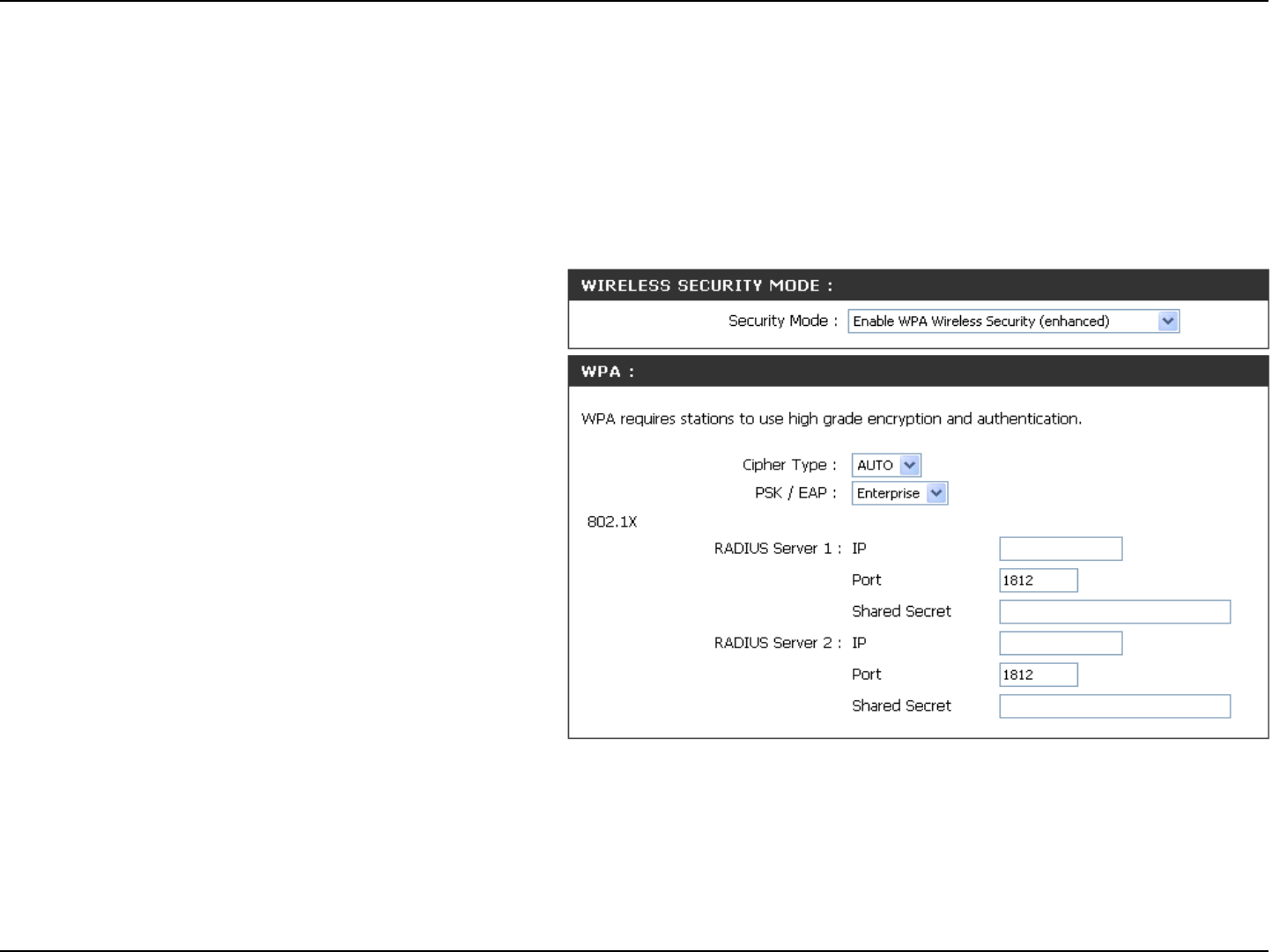

Congure WPA-EAP, WPA2-EAP, and WPA2-Auto-
EAP (Enterprise) .................................................... 79
Connect to a Wireless Network ...........................................80

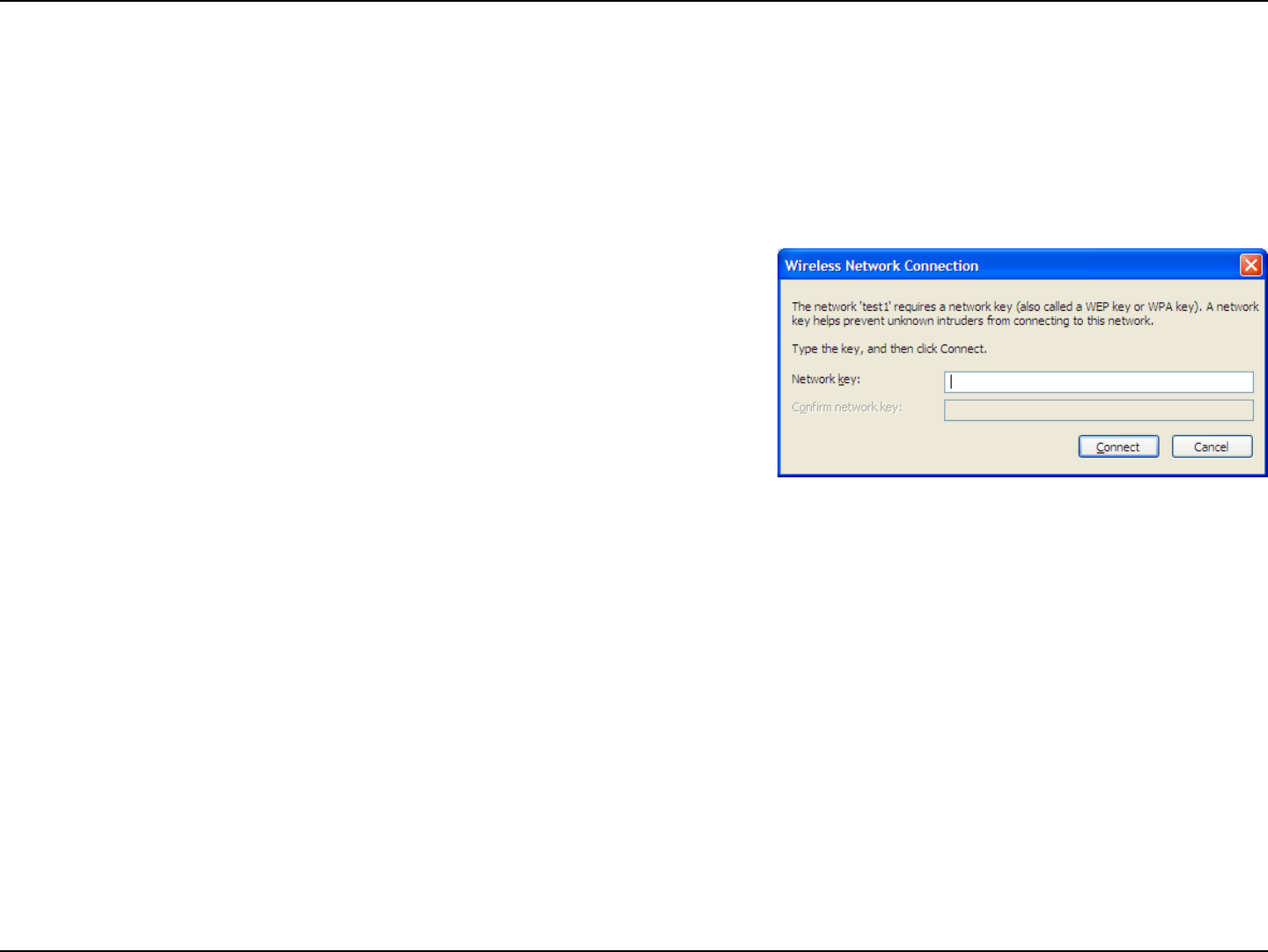

Using Windows® XP .............................................80

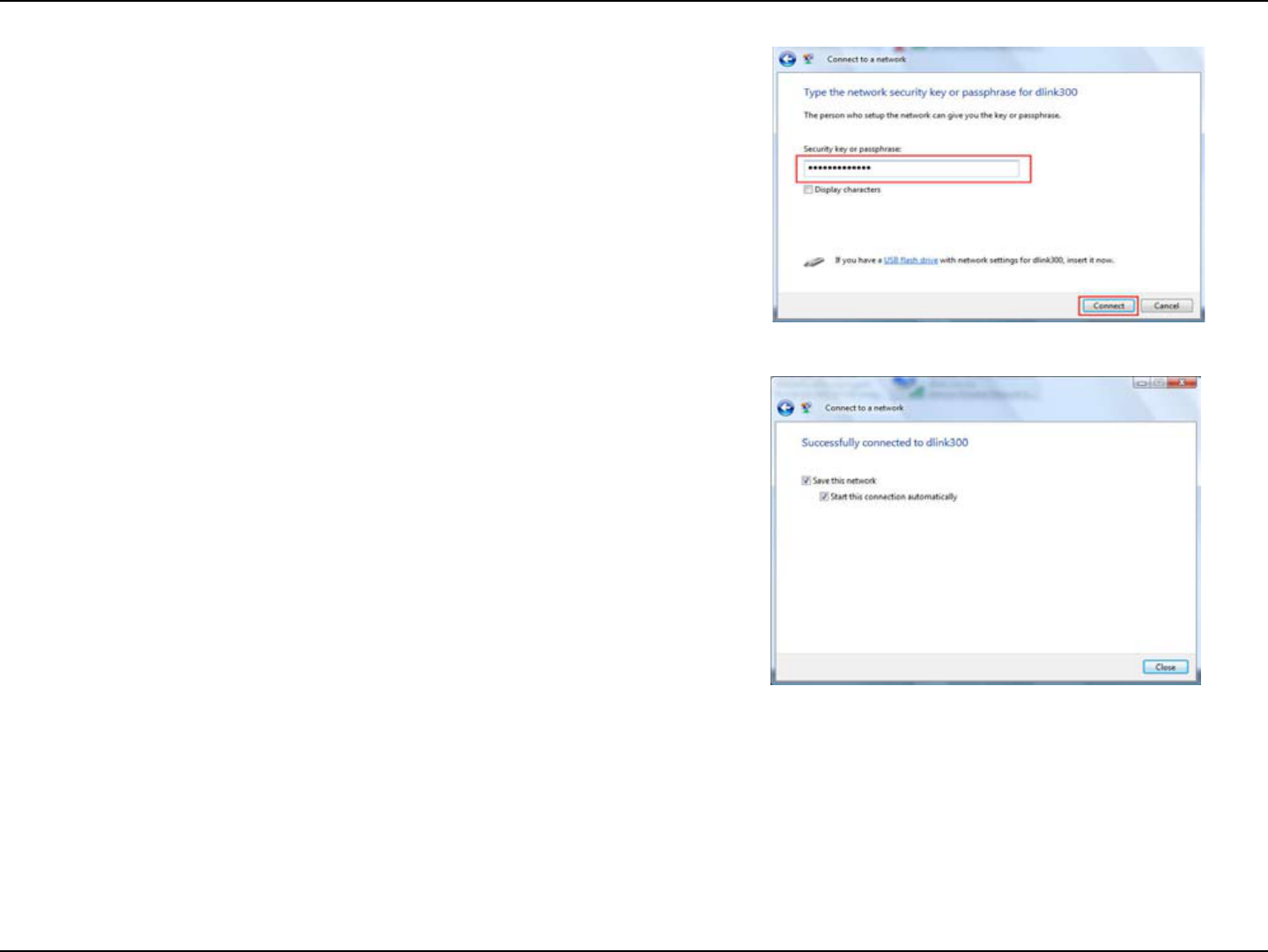

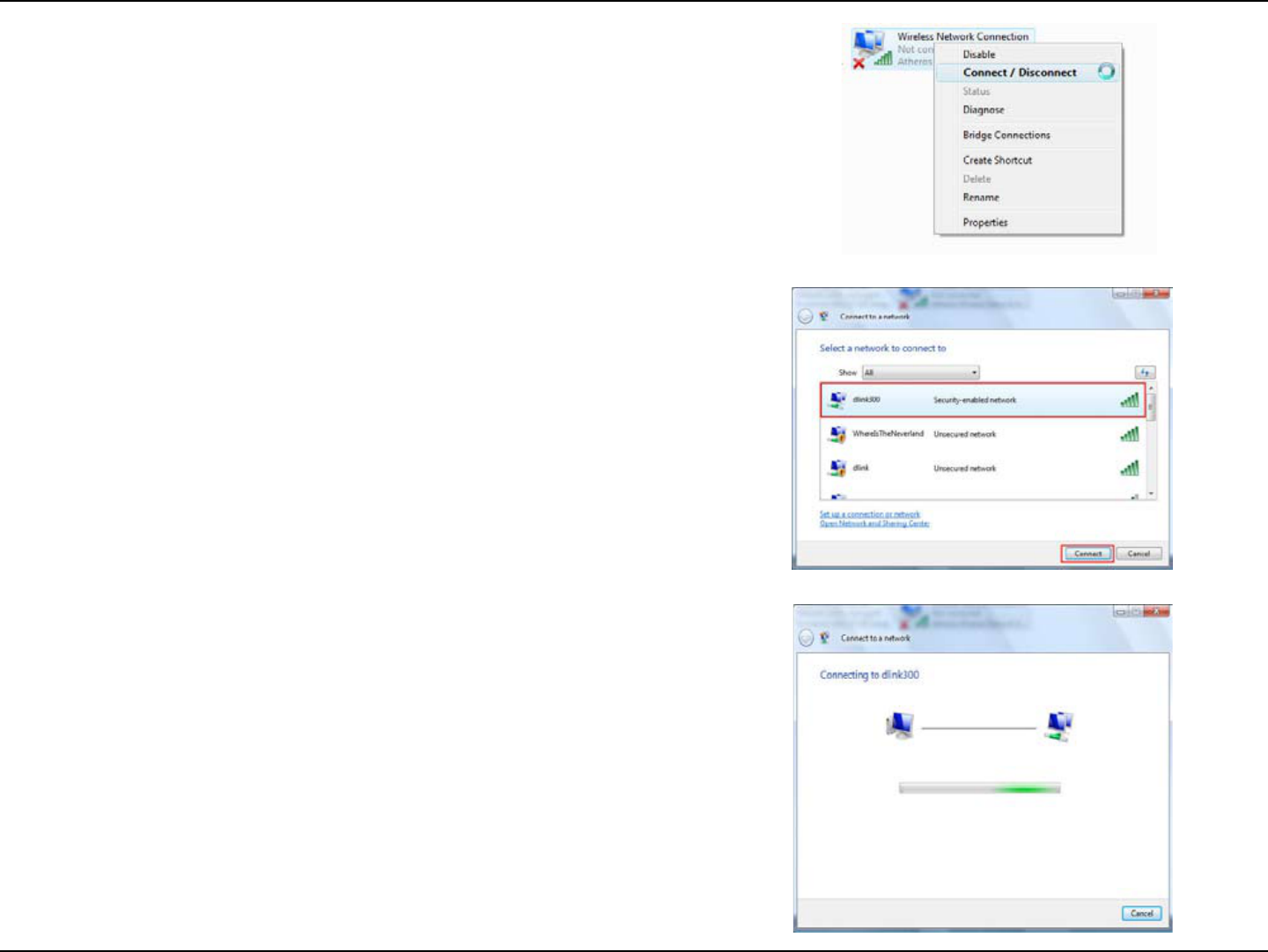

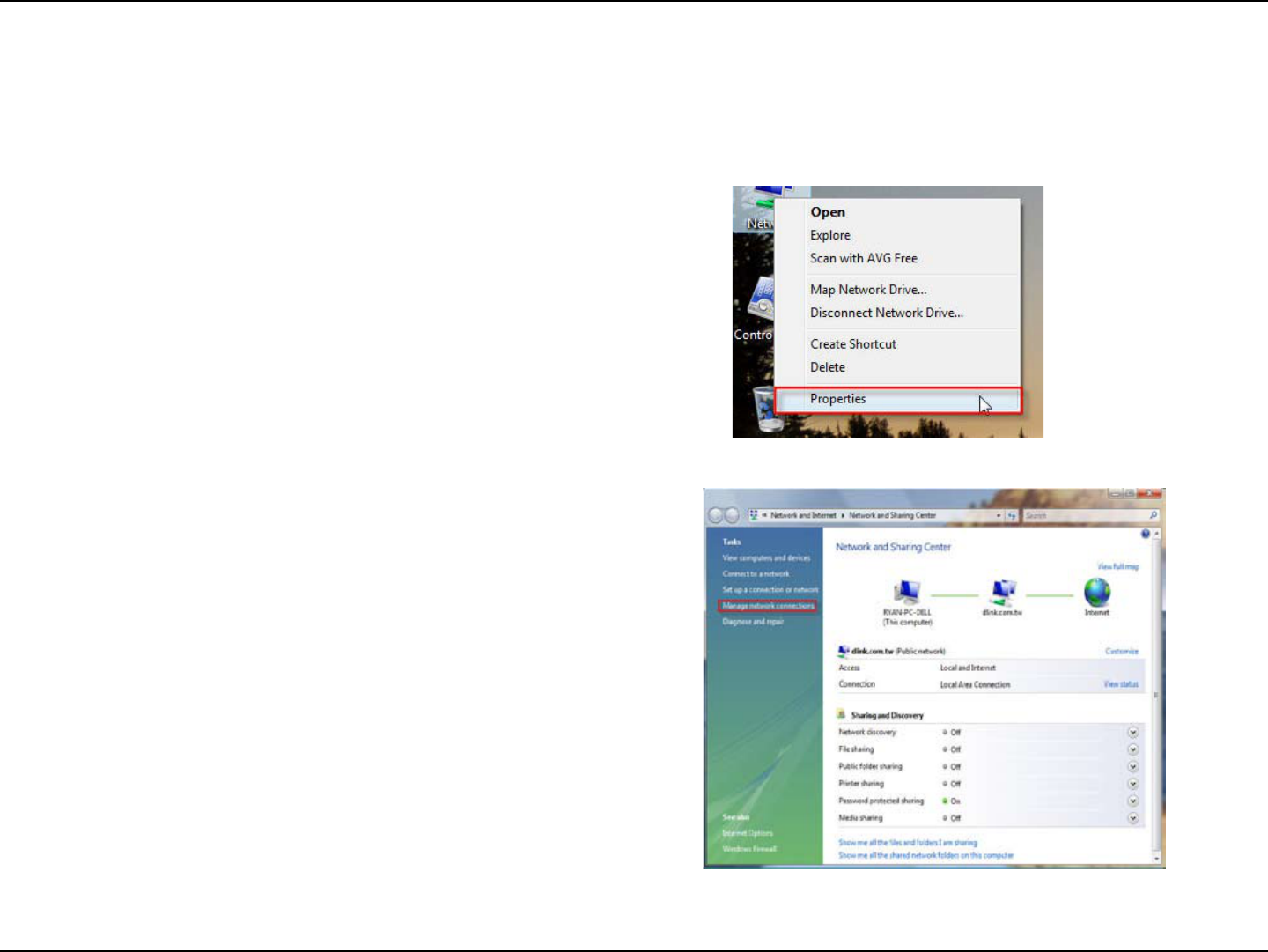

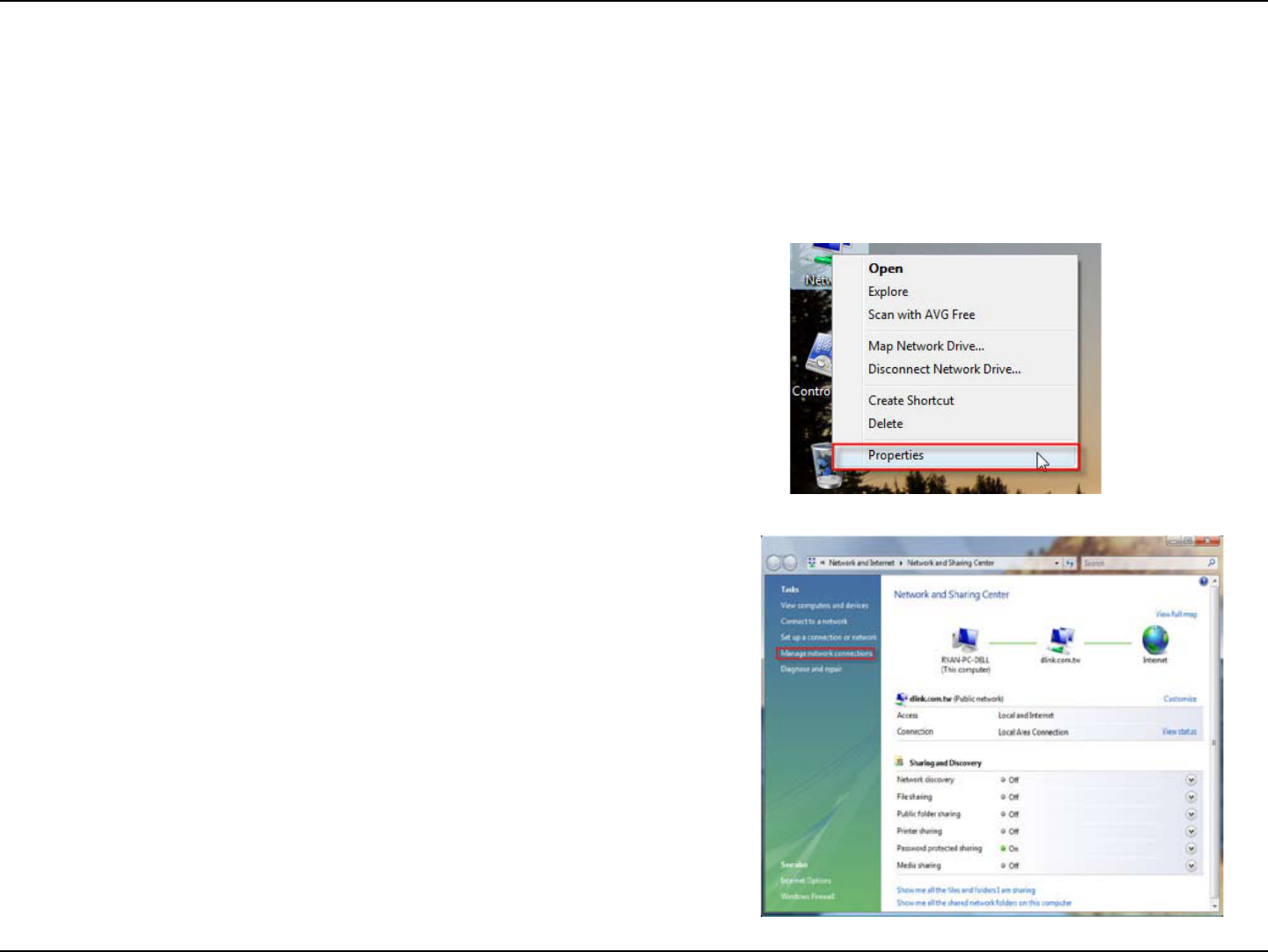

Using Windows® Vista (Secured Network) ...........82

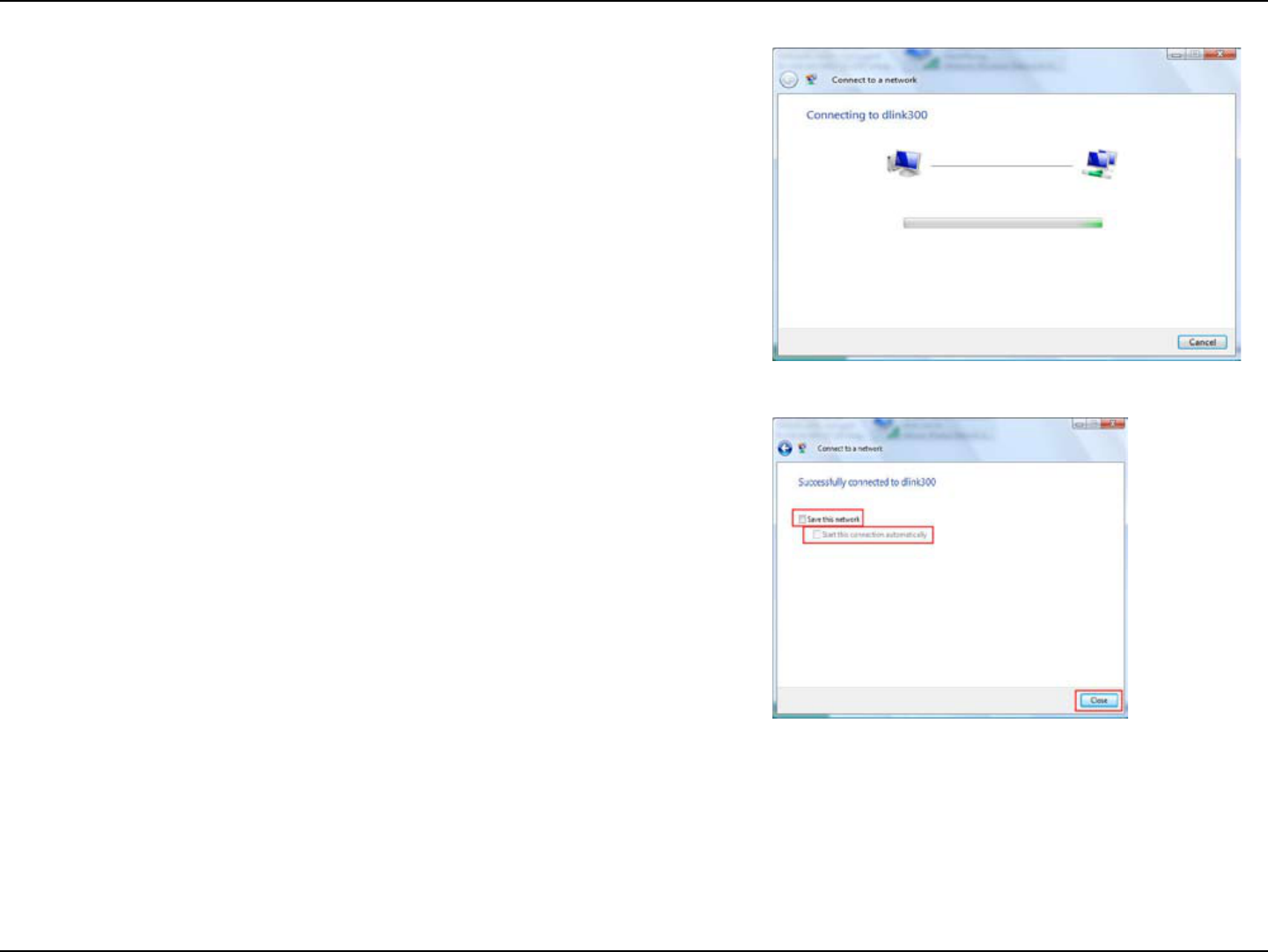

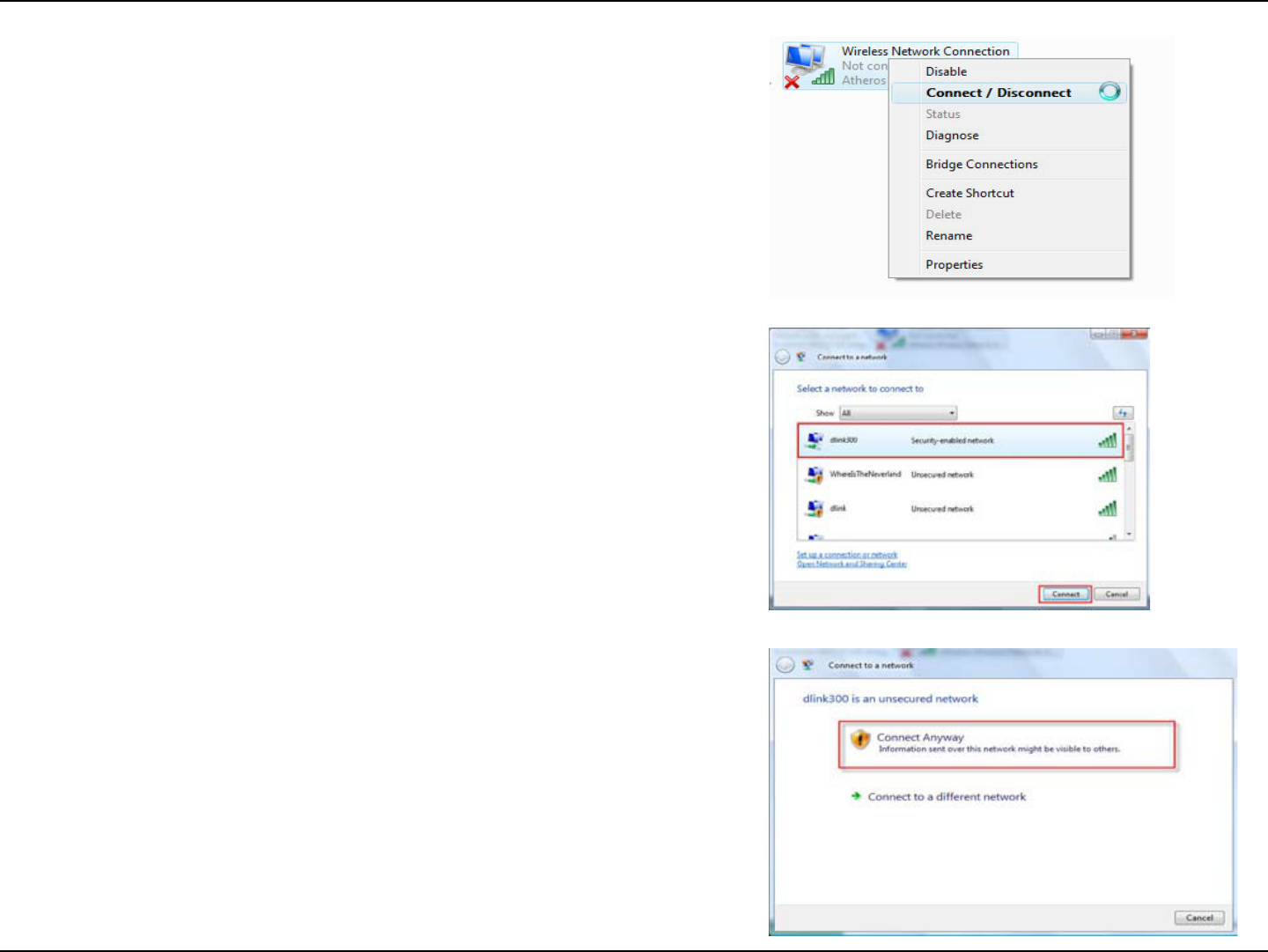

Using Windows® Vista (Unsecured Network) ......85
Troubleshooting ..............................................................88
Wireless Basics ........................................................ 90
Wireless Modes ......................................................... 94
Networking Basics .................................................... 95
Technical Specications........................................... 97
Warranty ..................................................................... 99
4D-Link DAP-1360 User Manual
Section 1 - Product Overview

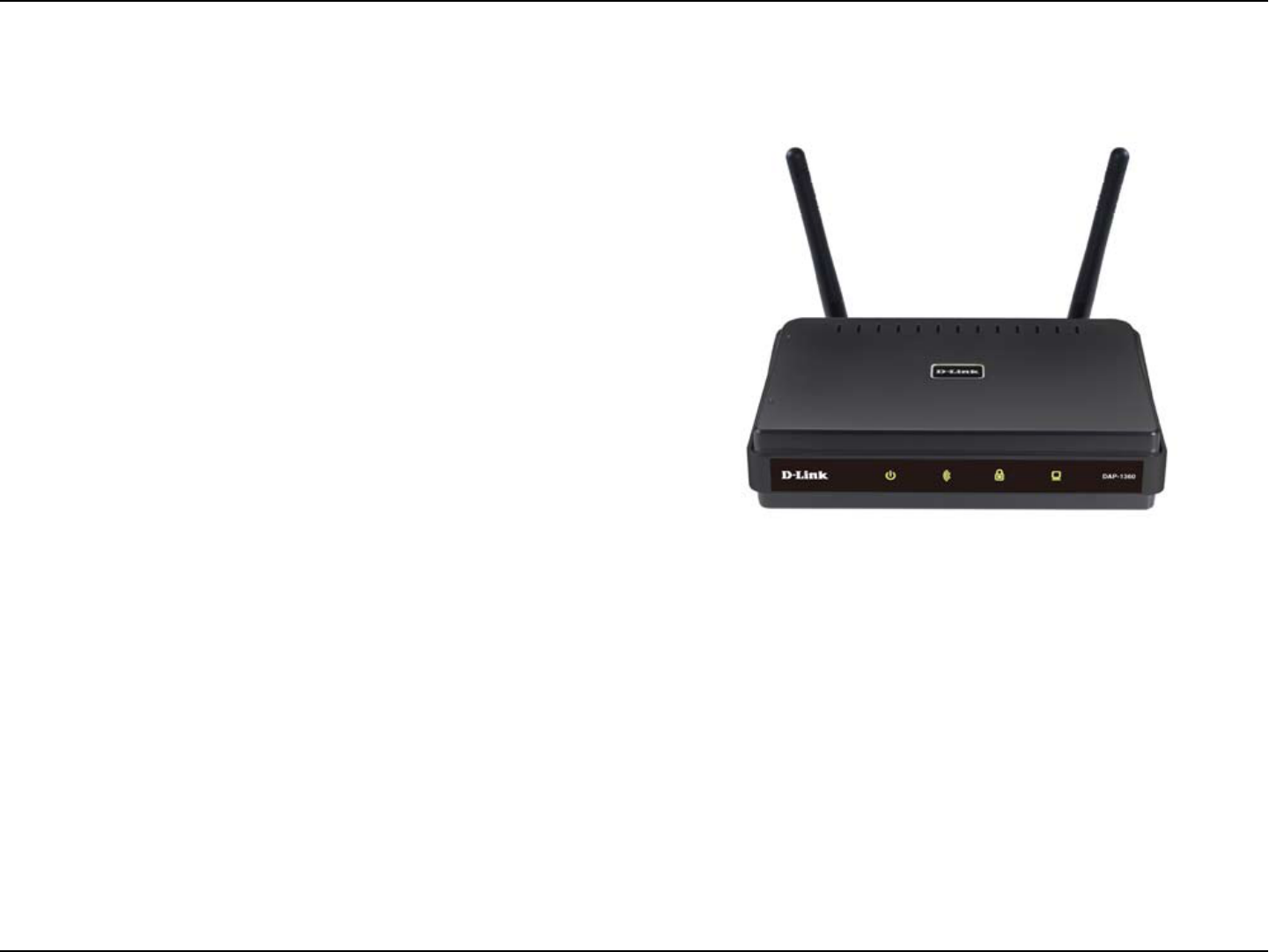

• D-Link DAP-1360 Wireless N Access Point
• Power Supply
• Manual on CD
• Quick Installation Guide
• Ethernet Cable
System Requirements
To congure this device, you will need the following:
• A computer equipped with an Ethernet interface and operating under Windows Vista, XP or 2000,
Mac OS 10.X or above, or Linux
• Internet Explorer or Netscape Navigator version 6.0 or above, with JavaScript enabled
Product Overview
Package Contents
WARNING: Using a power supply with a different voltage rating
than the one included with the DAP-1360 will cause
damage and void the warranty for this product.
Your DAP-1360 package should contain the following items. If any of the items are missing, please contact
your reseller.
5D-Link DAP-1360 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link Wireless N Access Point(DAP-1360). With the
ability to transfer les with a maximum wireless signal rate of up to 300Mbps1, the DAP-1360 gives you high-speed
wireless network access for your home or ofce.
The DAP-1360 is Wi-Fi IEEE 802.11n compliant, meaning that it can connect and interoperate with other 802.11n
compatible wireless client devices. The DAP-1360 is also backwards compatible with 802.11b/g. It can be exibly
congured to operate in 7 different modes Access Point, Wireless Client, Bridge, Bridge with AP, Repeater, WISP
Client Router or WISP Repeater.With its Setup Wizard, the DAP-1360 Access Point ensures that you will be up and
running on a wireless network in just a matter of minutes.
The DAP-1360 Access Point features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) and 64/128-bit WEP Encryption
to provide an enhanced level of security for wireless data communications. The DAP-1360 also includes additional
security features to keep your wireless connection safe from unauthorized access.
The DAP-1360 supports WPS on the AP, repeater and wireless client operation modes,with each capable of being
conveniently set up by using the PIN method or Push Button.
1 Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafc, building materials and construction,
and network overhead, lower actual data throughput rate.
6D-Link DAP-1360 User Manual
Section 1 - Product Overview
• Connects homes and small ofces to a high-speed wireless network - This AP provides better wireless signals
for your computers than earlier generation wireless 802.11g technology. Adding this wireless AP to your home and
ofce provides an excellent solution for doing everyday activities such as transferring les, browsing the Internet, and
downloading music. This AP uses Intelligent Antenna technology to transmit multiple streams of data, which enable
you to receive wireless signals in the farthest corners of your home or ofce. Not only does it extend your wireless
range, it also works with your existing 802.11g devices.
• Multiple operation modes – The AP can be exibly congured to operate as an Access Point, Wireless Client,
Bridge, Bridge with AP, Repeater, WISP Client Router or WISP Repeater.
• Total security – Complete set of security features including WEP encryption and WPA/WPA2 to protect network
against outside intruders.
• WPS (Wi-Fi Protected Setup) – This AP supports WPS in the AP, Repeater and Wireless Client operation
modes.
• Protect wireless network and data – The DAP-1360 provides 64/128-bit WEP encryption and WPA/WPA2 security
to protect your network and wireless data. In addition, it also provides MAC address ltering and the Disable SSID
Broadcast function to limit outsiders’ access to your home and ofce network.
• Easy to install and use – With D-Link's Setup Wizard, you can set up your wireless network in minutes. It congures
your DAP-1360's operation mode, makes it easy to add new wireless devices onto the network, and helps you create
a simple wireless network for your home and ofce.
* Maximum wireless signal rate based on IEEE Standard 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, 
Features
7D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
RESET:
Restores the access point’s
conguration to its original
factory default settings.
LAN Port:
Connects to an Ethernet-enabled
device such as a computer,
switch or router.
Power Socket:
Connects to the power
adapter.
8D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview

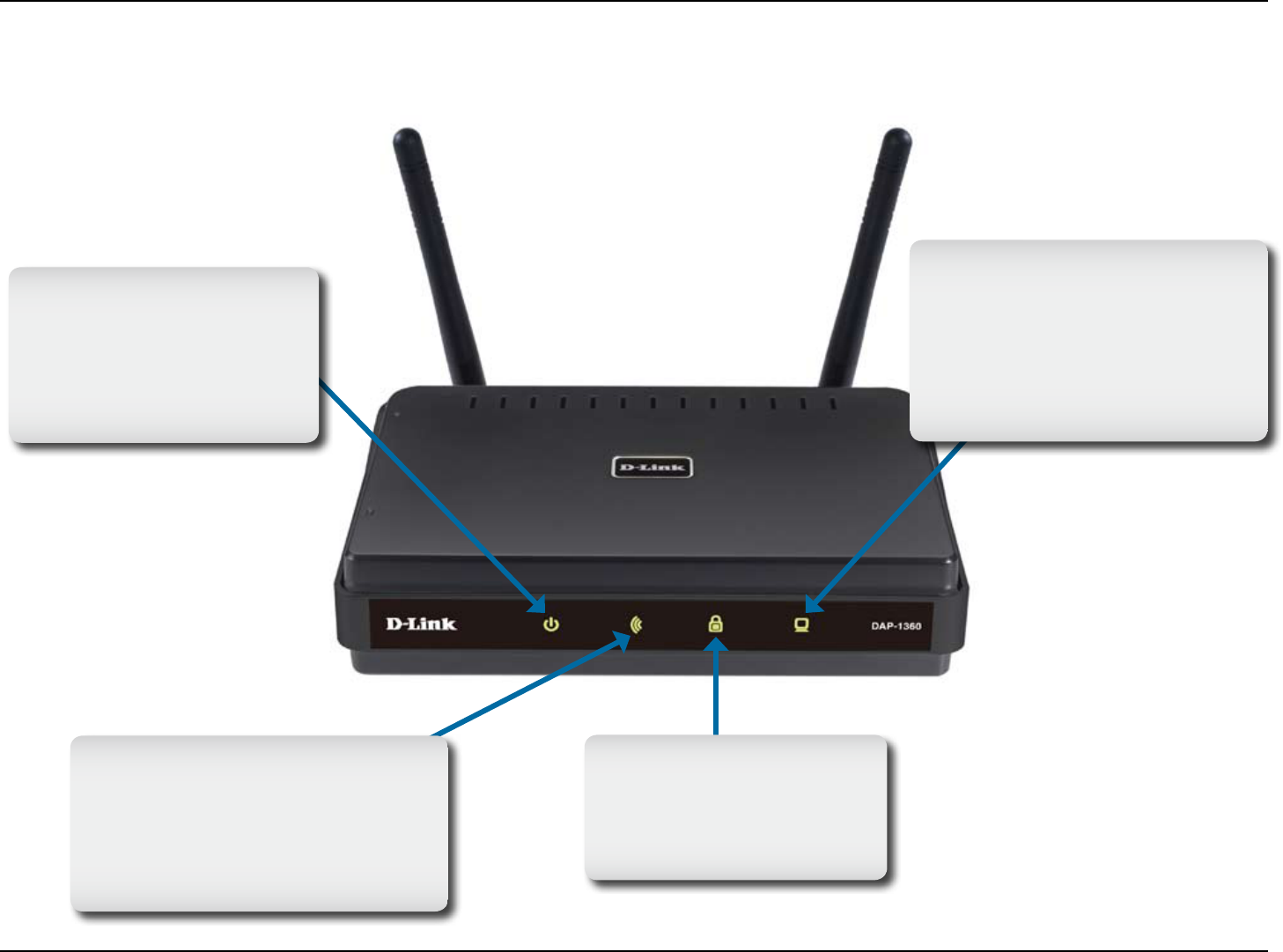

LEDs
Power: A solid green
condition indicates
the device has been
successfully connected
to a power source.
WLAN: A blinking green condition
indicates wireless activity is
taking place; a solid green
condition indicates wireless
connections are OK.
LAN: A blinking green
condition indicates data is
being transferred through
the LAN port; a solid green
condition indicates the LAN
port connection is OK.
Security: A solid green
condition indicates
wireless security has been
enabled.
9D-Link DAP-1360 User Manual
Section 1 - Product Overview
LEDs

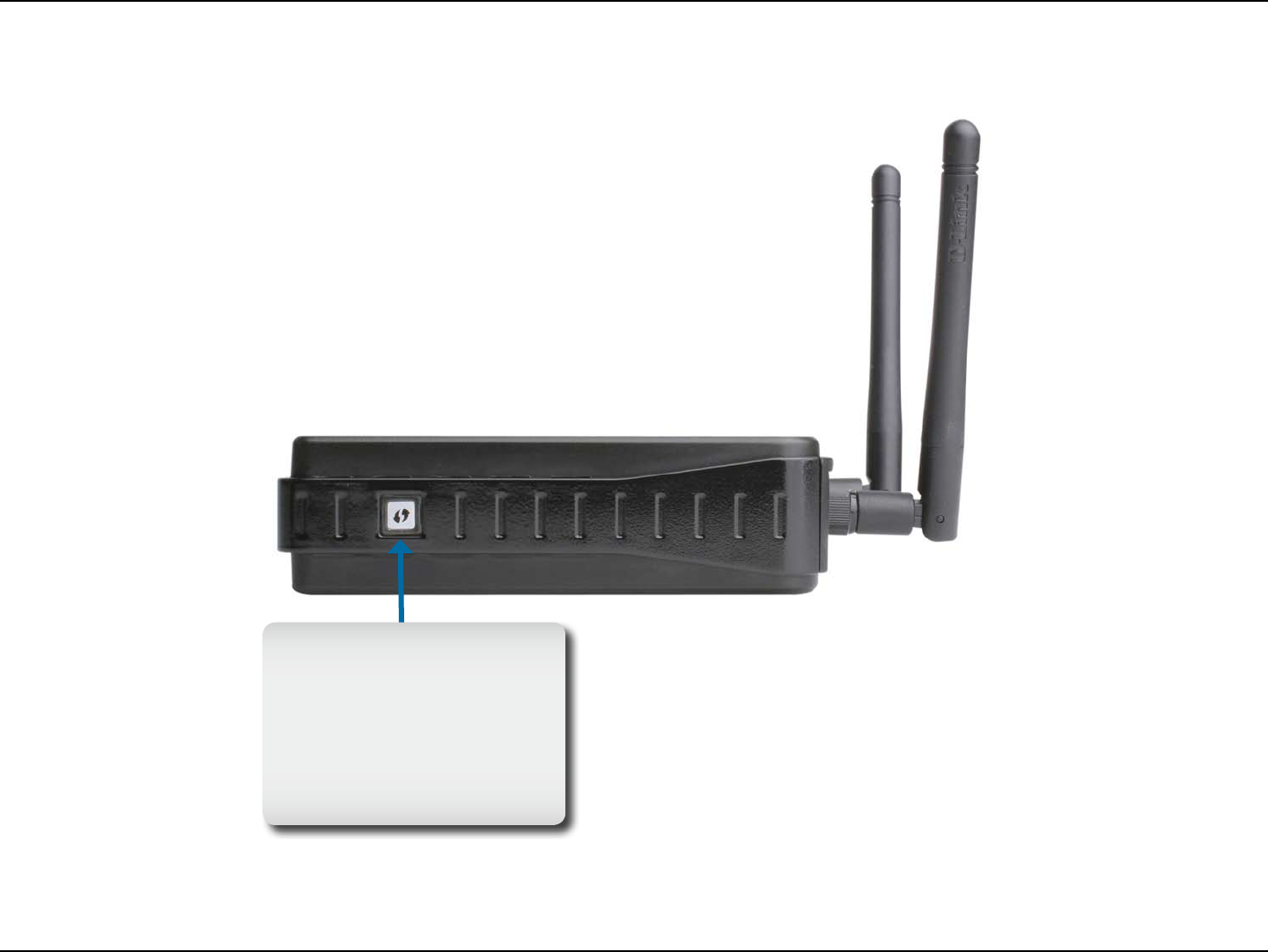

WPS LED: A solid light
indicates a successful
WPS connection. A
blinking light indicates
the device is trying to
establish a connection.
10D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle)
for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect
on range. Try to position access points, wireless access points, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate
RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your
2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal
even if the phone in not in use.
Wireless Installation Considerations
11D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
How your AP will operate depends on which operation mode you select. This section will help you gure out which
setting works for different requirements.
Seven Configuration Operation Modes
Access Point Mode
In the Access Point mode, the DAP-1360 acts as a central connection point for any computer (client) that has a 802.11n
or backward-compatible 802.11b/g wireless network interface and is within range of the AP. Clients must use the same
SSID (wireless network name) and channel as the AP in order to connect. If wireless security is enabled on the AP,
the client will need to enter a password to connect to the AP. In the Access Point mode, multiple clients can connect
to the AP at the same time.
Wireless PCs Using the DAP-1360 as a Central Connection Point
12D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
Wireless Client Mode
In the Wireless Client mode, the DAP-1360 acts as a wireless network adapter for your Ethernet-enabled device (such
as a game console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The
AP Client mode can support multiple wired clients. If you are going to connect several Ethernet-enabled devices to your
DAP-1360, connect the LAN port of the DAP-1360 to an Ethernet switch, then connect your devices to this switch.
Ethernet-enabled Gaming Console Using the DAP-1360 as a Wireless Interface to Access the Internet
13D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
Repeater Mode
In the Repeater mode, the DAP-1360 increases the range of your wireless network by extending the wireless coverage
of another AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure
that all clients, APs, and the wireless router all use the same SSID (wireless network name) and channel.
Extending the Wireless Coverage of a Wireless Router Using the DAP-1360
14D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
Bridge Mode
In the Bridge mode, the DAP-1360 wirelessly connects seperate LANs that can’t easily be connected together with a
cable. For example, if there are two wired LANs separated by a small courtyard, it would be expensive to bury cables
to connect between the two sides together. A better solution is to use two DAP-1360 units to wirelessly connect the
two LANs. In the Bridge mode, both DAP-1360 units do not act as APs.
Note: The Bridge mode is not specied in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360
units. Communication with other APs (even other D-Link APs) is not guaranteed.
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Cannot Access the DAP-1360 Units)
LAN 1 LAN 2
15D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
Bridge with AP Mode
The Bridge with AP mode is the same as the Bridge mode, but in this case, the DAP-1360 also acts as an AP. Clients
with wireless interfaces can wirelessly connect to the DAP-1360 and then connect to the other LAN that the DAP-1360
bridges to.
Note: The Bridge with AP mode is not specied in the Wi-Fi or IEEE standards. This mode will only work using two
DAP-1360 units. Communication with other APs (even other D-Link APs) is not guaranteed.
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Can Access the DAP-1360 Units)
LAN 1 LAN 2
16D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
WISP Client Router Mode
In the WISP Client Router mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP.
In this mode, the DAP-1360 also acts as a router for wired clients on your LAN and provides NAT (Network Address
Translation) and a DHCP server to generate IP addresses for wired clients only. NAT and the DHCP server allow many
computers to share the same wireless Internet connection.
If you are a WISP subscriber and want to access your WISP account using wired computers, connect your computers
to the DAP-1360 to get NAT, and then connect them to the WISP AP.
Connecting Wired PCs to the Internet Using the DAP-1360
17D-Link DAP-1360 User Manual
Section 2 - Wireless Installation
WISP Repeater Mode
In the WISP Repeater mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In
this mode, the DAP-1360 also acts as a router for both wireless and wired clients on your LAN. The WISP Repeater
mode provides NAT (Network Address Translation) and a DHCP server to generate IP addresses for both wireless
and wired clients. NAT and the DHCP server allow many computers to share the same wireless Internet connection.
If you are a WISP subscriber and want to use your WISP account in your house, but the signals from the outdoor WISP
AP are not strong enough to reach all of the areas in the house, use the DAP-1360 to can extend the signals from the
outdoor WISP AP and provide access to wireless clients in your house. Using this mode, wireless as well as wired
clients can connect to the outdoor WISP AP through the DAP-1360.
Connecting Wired and Wireless PCs to the Internet Using the DAP-1360
18D-Link DAP-1360 User Manual
Section 3 - Conguration
Configuration
Web-based Configuration Utility

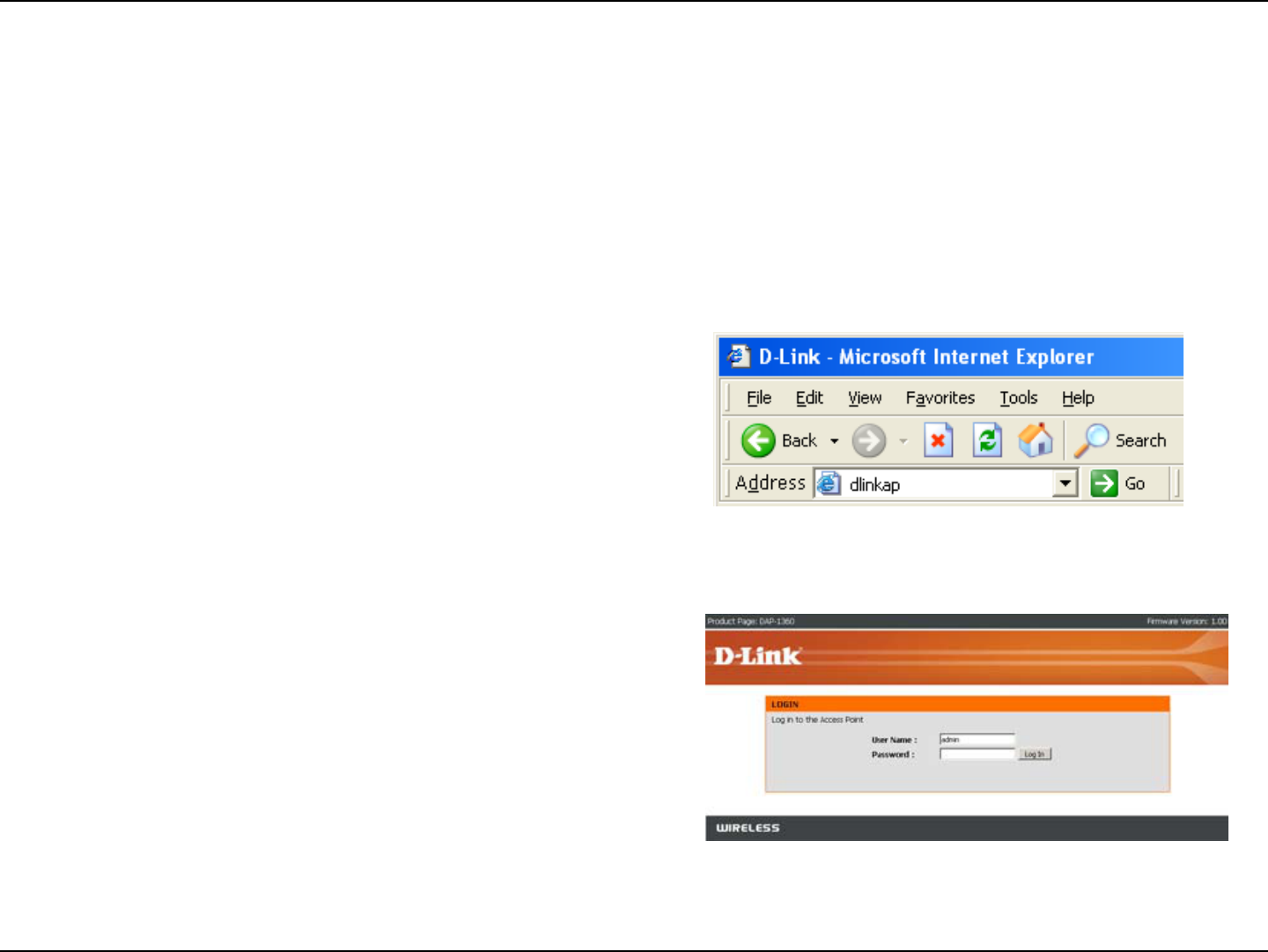

1. Open the web browser
2. Type in the device
name (dlinkap) or ip
address (192.168.0.50)
of the DAP-1360.
If you wish to change the default settings or optimize the performance of the DAP-1360, you may use the configuration
utility that D-Link has included a configuration utility for this purpose.
After you have completed the initial installation, you can access the configuration menu, at any time, by opening the
web-browser and typing in the device name of the DAP-1360. The DAP-1360’s default device name is shown below:
Note: If you have changed the default device name assigned to the DAP-1360, make sure to enter the correct device name.
3. Type admin in the User Name
eld
4. Leave the Password blank
5. Click OK
19D-Link DAP-1360 User Manual
Section 3 - Conguration

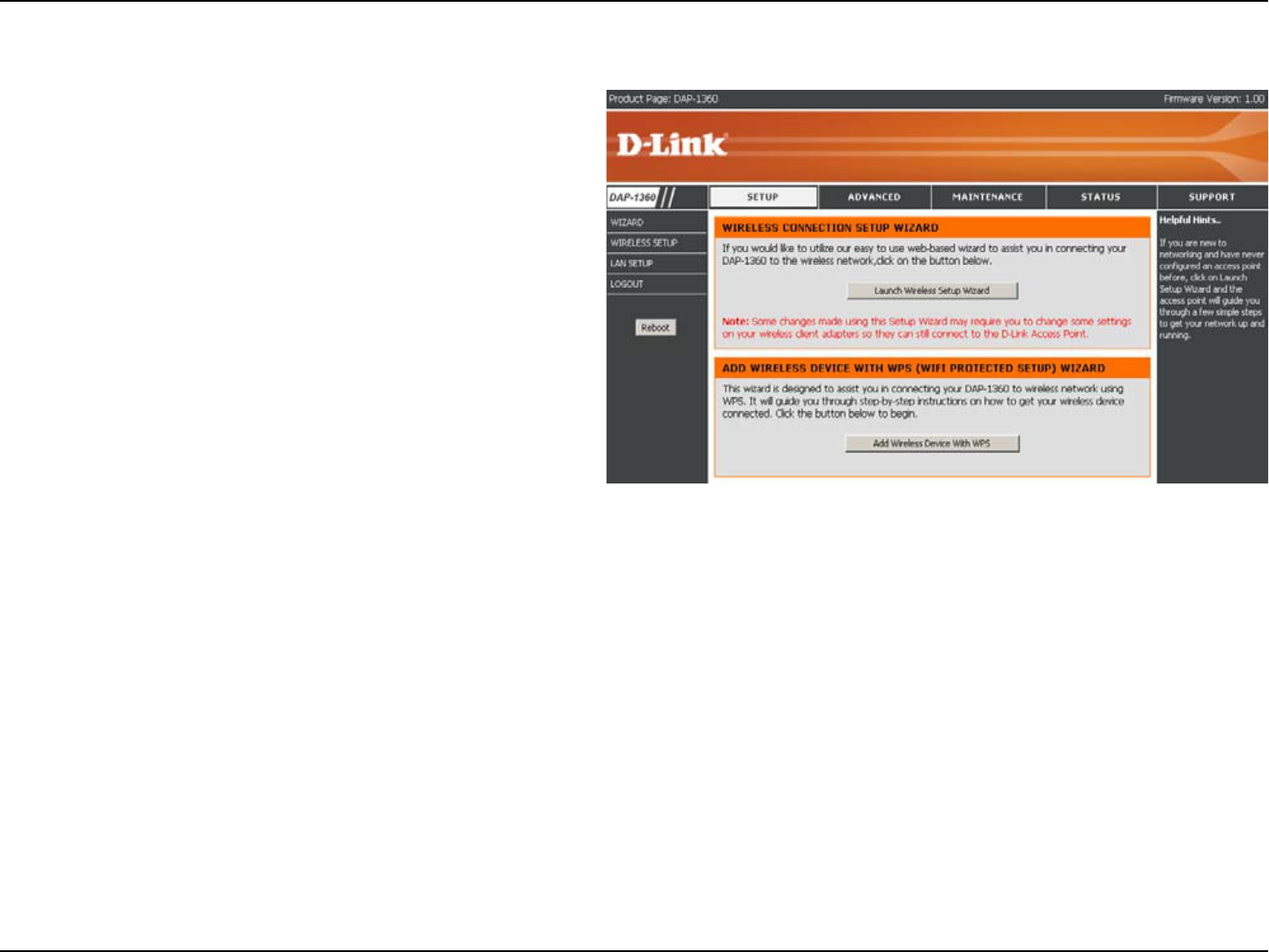

Click Launch Wireless Setup Wizard to quickly
congure your access point.
To setup your wireless network using WPS, you can
click Add Wireless Device With WPS and skip to page
43.
Setup Wizard
20D-Link DAP-1360 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in connecting you wireless device to your access point. It will guide you through
step-by-step instructions on how to get your wireless device connected.
Setup Wizard for AP Mode
Click Launch Wireless Setup Wizard to begin.
Select the wireless mode Access Point.
Click Launch Wireless Setup Wizard
21D-Link DAP-1360 User Manual
Section 3 - Conguration
Enter the Device Name of the AP and click Next to
continue. It is recommended to change the Device
Name if there is more than one D-Link device within
the subnet.
If you want to change the admin account password,
enter a new password and click Next.
Select Auto as the conguration method only if your
wireless device supports Wi-Fi Protected Setup.
Skip to next page for Manual conguration.
Click Next to continue.
22D-Link DAP-1360 User Manual
Section 3 - Conguration

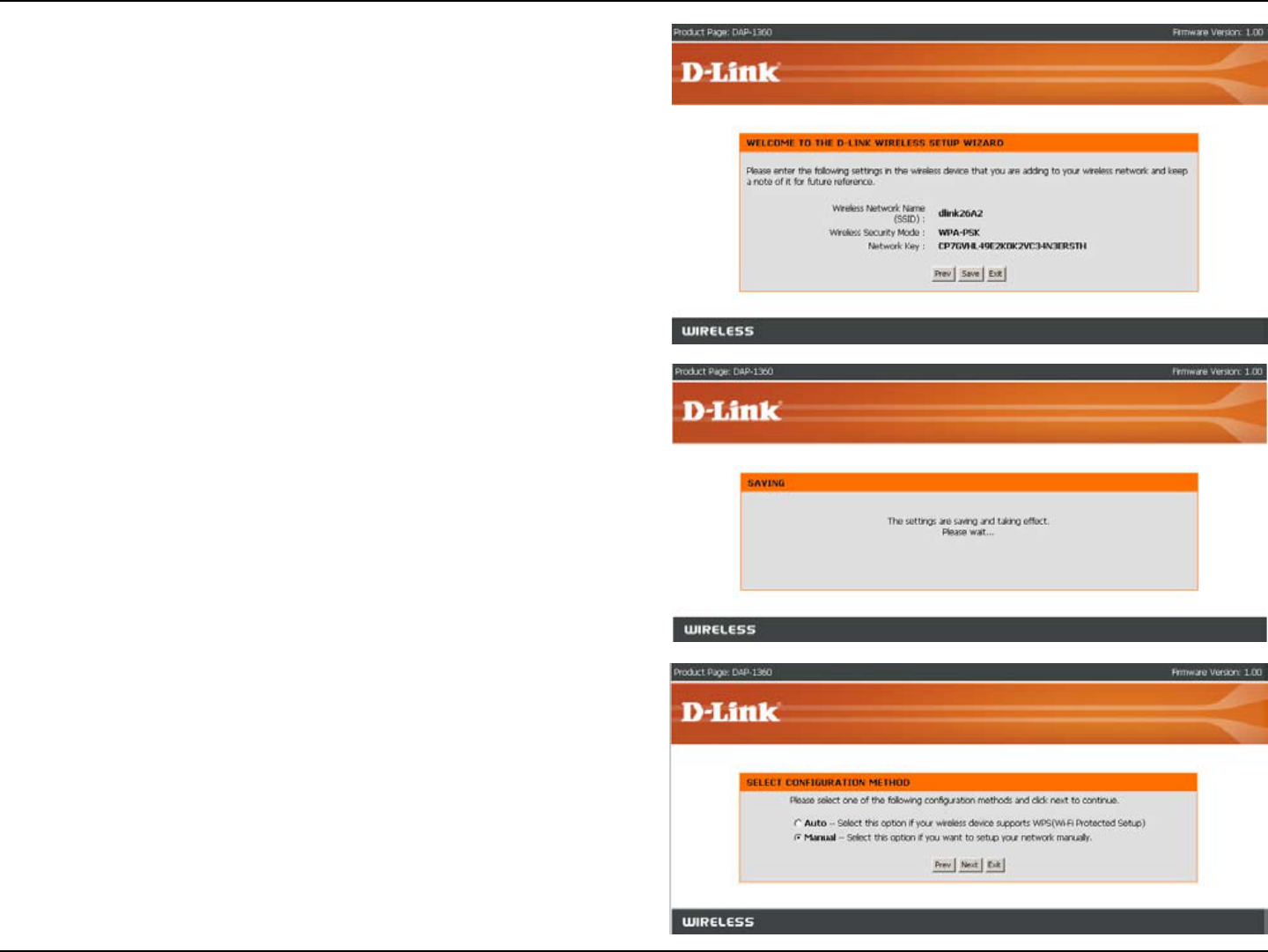

Click Save to save your network settings.
In order for your network settings to take effect AP will
reboot automatically.
When the device has nished rebooting the main screen
will display.
Select Manual as the conguration method to setup
your network manually.
Click Next to continue.
23D-Link DAP-1360 User Manual
Section 3 - Conguration

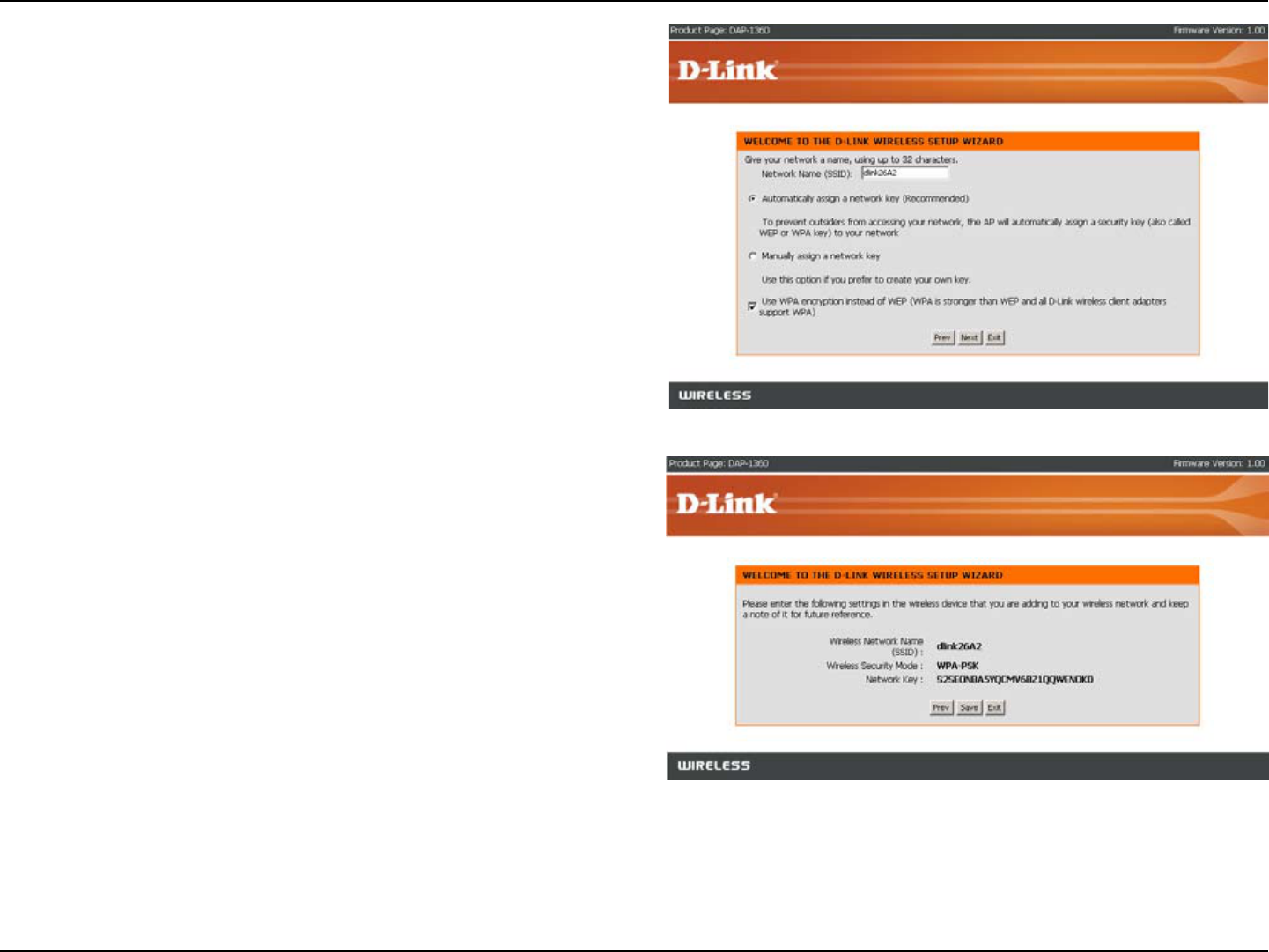

If you choose WPA-PSK encryption, the following
screen will show you your Network Key to enter on your
wireless clients.
Click Save to nish the Setup Wizard.
Enter a network name and choose Automatically
assign a network key.
To Manually assign a network key, skip this step.
Click Next to continue.
24D-Link DAP-1360 User Manual
Section 3 - Conguration
Choose Manually assign a network key to create
your own key.
Click Next to continue.
If you choose WEP encryption, the following screen will
show you your Network Key to enter on your wireless
clients.
Click Save to nish the Setup Wizard.
25D-Link DAP-1360 User Manual
Section 3 - Conguration
If you select WPA encryption, the following screen will
show you your network key to enter on your wireless
clients.
Click Save to nish the Setup Wizard.
For WPA encryption, enter a Network Key between 8
and 63 characters long or enter exactly 64 characters
using 0-9 and A-F.
Click Next to continue.
26D-Link DAP-1360 User Manual
Section 3 - Conguration

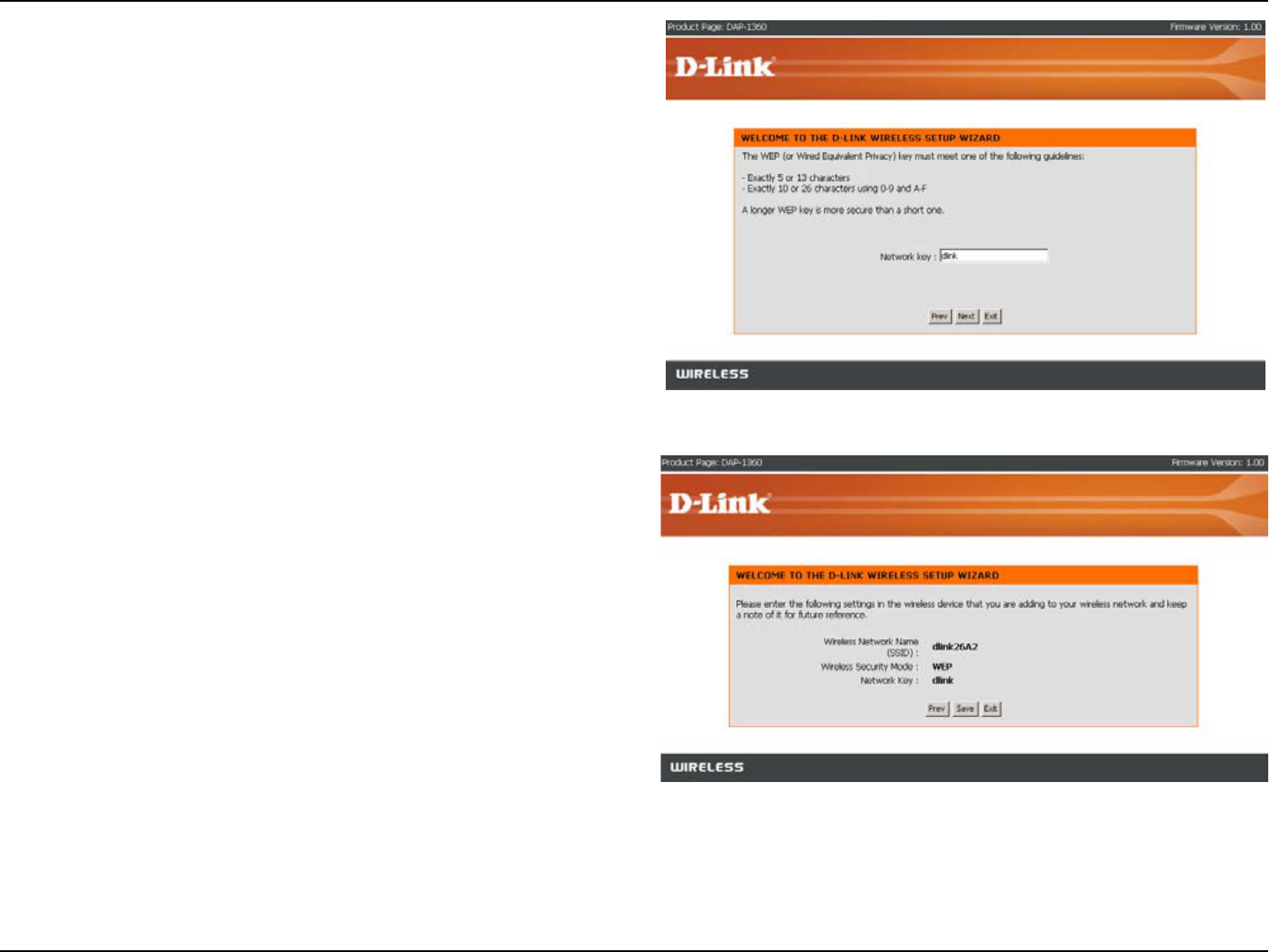

If you select WEP encryption, the following screen will
show you your network key to enter on your wireless
clients.
Click Save to nish the Setup Wizard.
For WEP encryption, enter a Network Key exactly 5 or
13 characters long or exactly 10 or 26 characters using
0-9 and A-F.
Click Next to continue.
27D-Link DAP-1360 User Manual
Section 3 - Conguration
This wizard is designed to assist you in conguring the wireless settings for your DAP-1360 with repeater mode. It
will guide you through step-by-step instructions on how to setup your wireless network. You can click launch wireless
setup wizard to quickly congure your access point. If DAP-1360 successfully connect to the AP or Wireless router
with repeater mode, you can also click add wireless device with WPS to setup your wireless network using WPS.
Click Launch Wireless Setup Wizard to begin.
Setup Wizard for Repeater Mode
Select the wireless mode Repeater.
Click Launch Wireless Setup Wizard
28D-Link DAP-1360 User Manual
Section 3 - Conguration
Enter the Device Name of the AP and click Next to
continue. It is recommended to change the Device
Name if there is more than one D-Link device within
the subnet.
If you want to change the admin account password,
enter a new password and click Next.
29D-Link DAP-1360 User Manual
Section 3 - Conguration
Select Auto configuration if you want to use Wi-Fi
Protected Setup.
If you want to setup your network manually, skip this
step.
Click Next to continue.
Select PIN to connect your wireless device with WPS.
For PBC conguration, skip to next page.
Enter the PIN number used into your access point and
click Connect.
30D-Link DAP-1360 User Manual
Section 3 - Conguration
Start WPS on the wireless device you are adding to
your wireless network to complete the setup.
Select PBC to use the Push Button Conguration to
connect to your network.
Click Connect to continue.
31D-Link DAP-1360 User Manual
Section 3 - Conguration

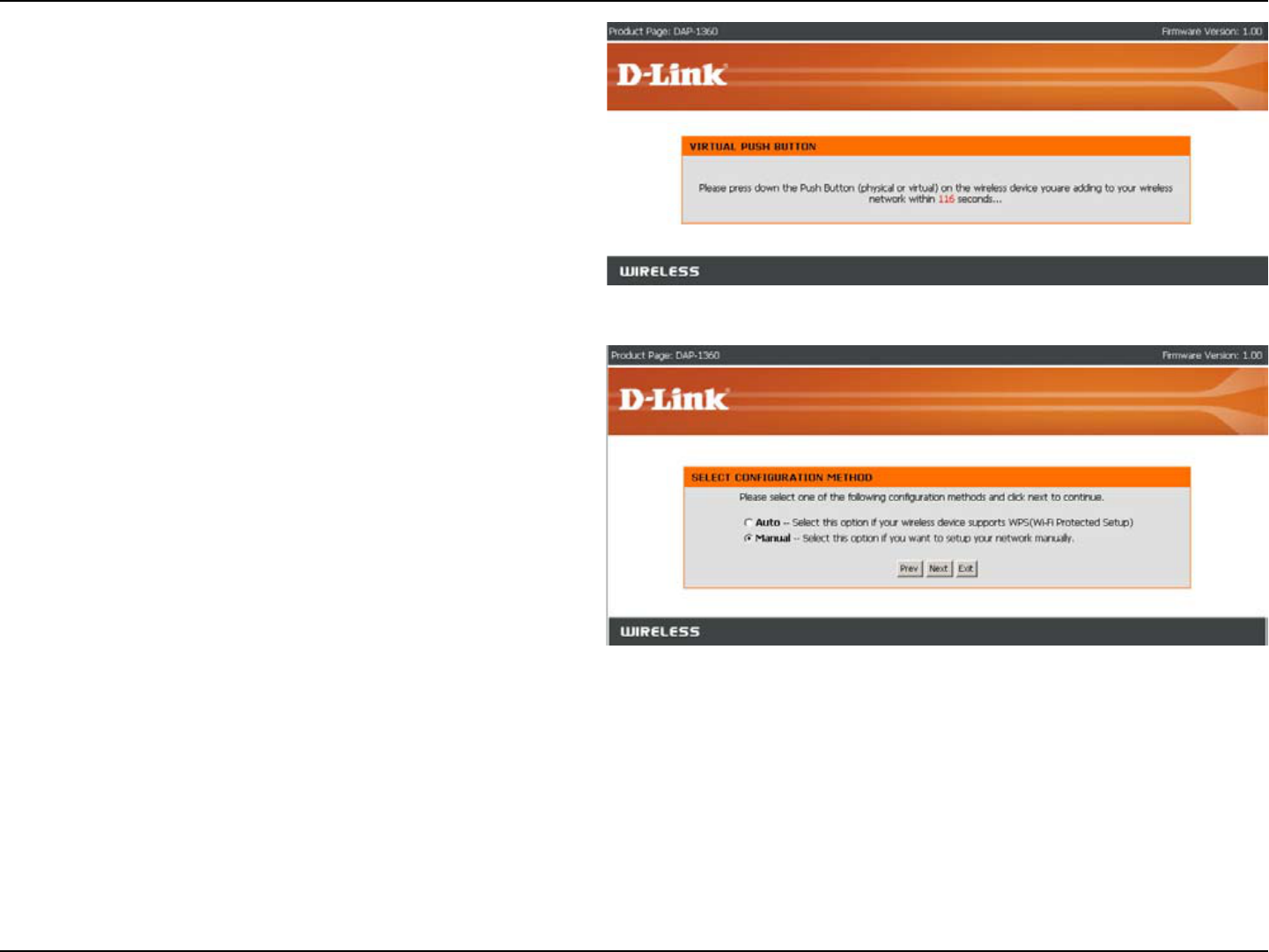

Press down the Push Button on the wireless device you
are adding to your network to complete the setup.
Select Manual conguration to setup your network
manually.
Click Next to continue.
32D-Link DAP-1360 User Manual
Section 3 - Conguration

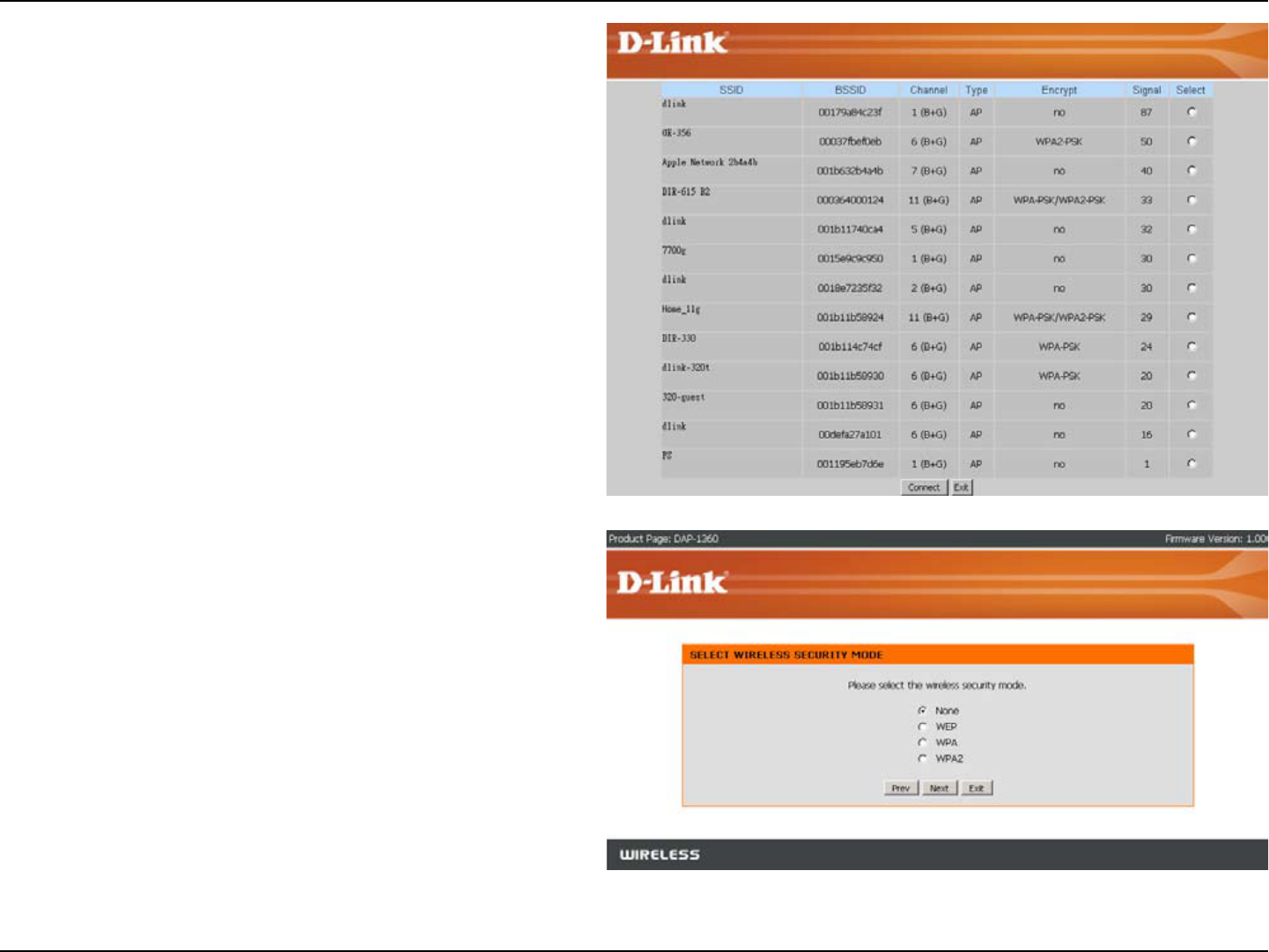

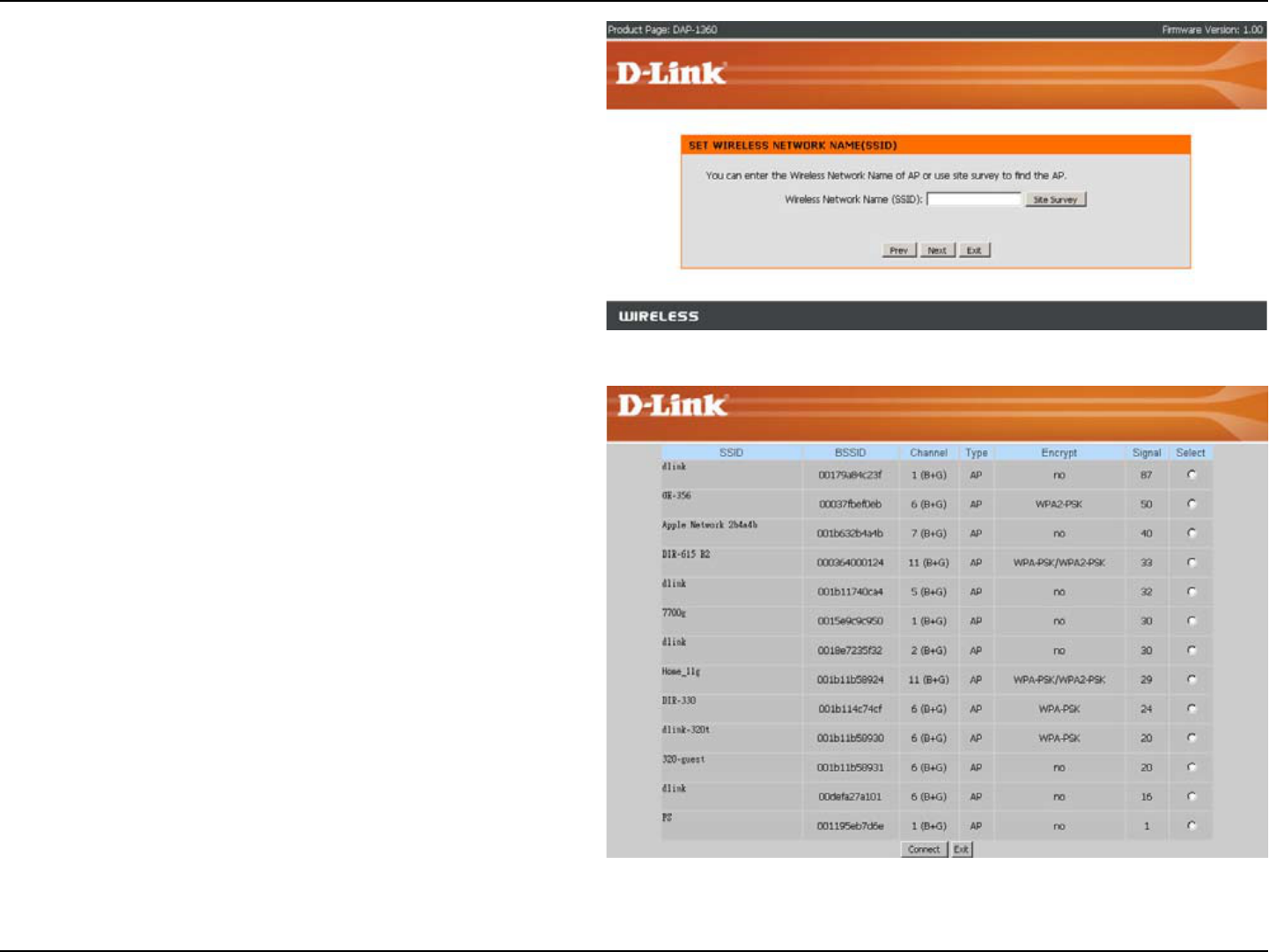

If you clicked on Site Survey to following screen will
be displayed.
Find your access point from the list and click Connect
to complete the Setup Wizard.

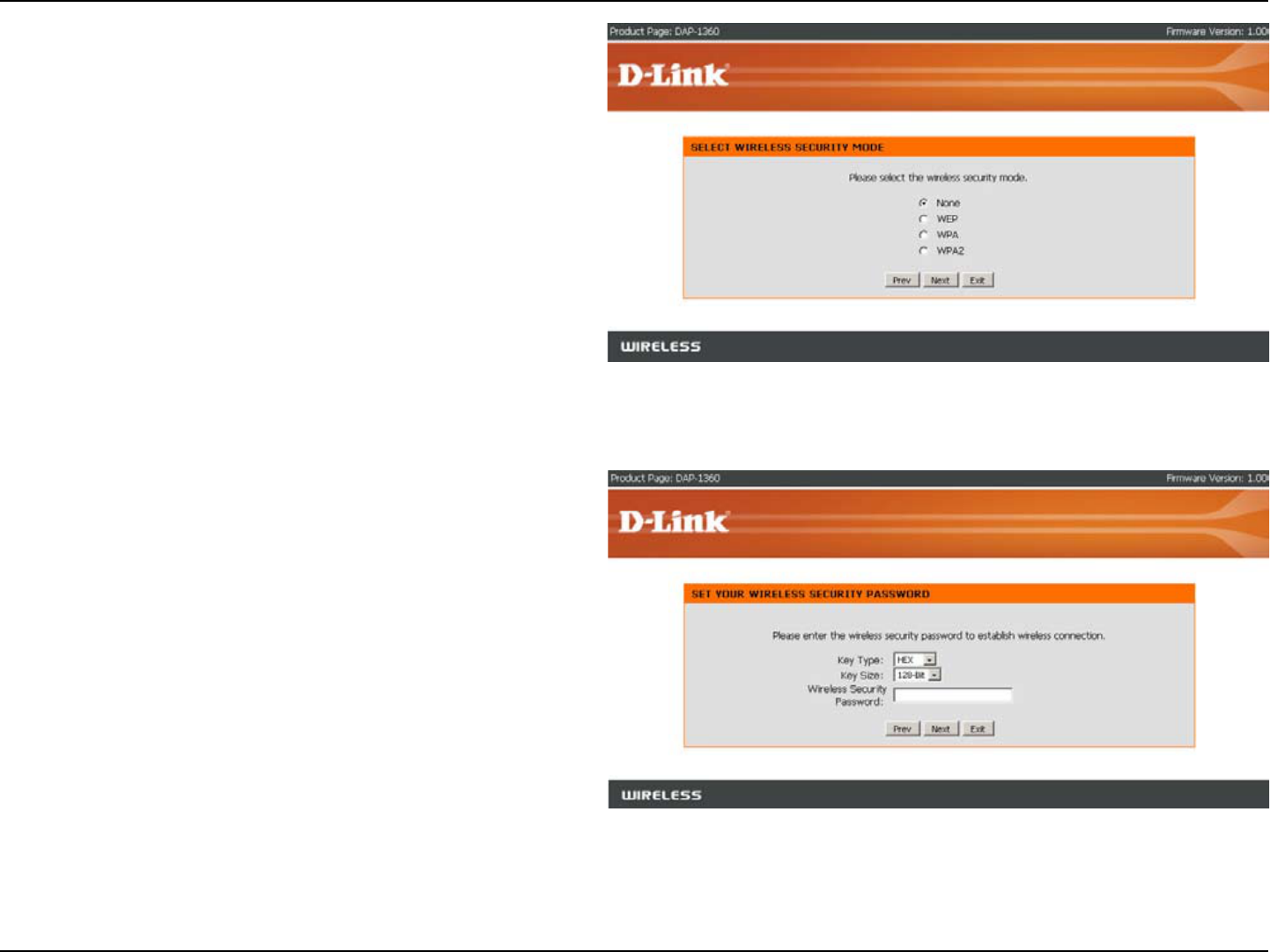

Choose which Security Mode you want to use and click
Next to continue.
33D-Link DAP-1360 User Manual
Section 3 - Conguration
If you choose WEP, enter the wireless security password
and click Next to complete the Setup Wizard.

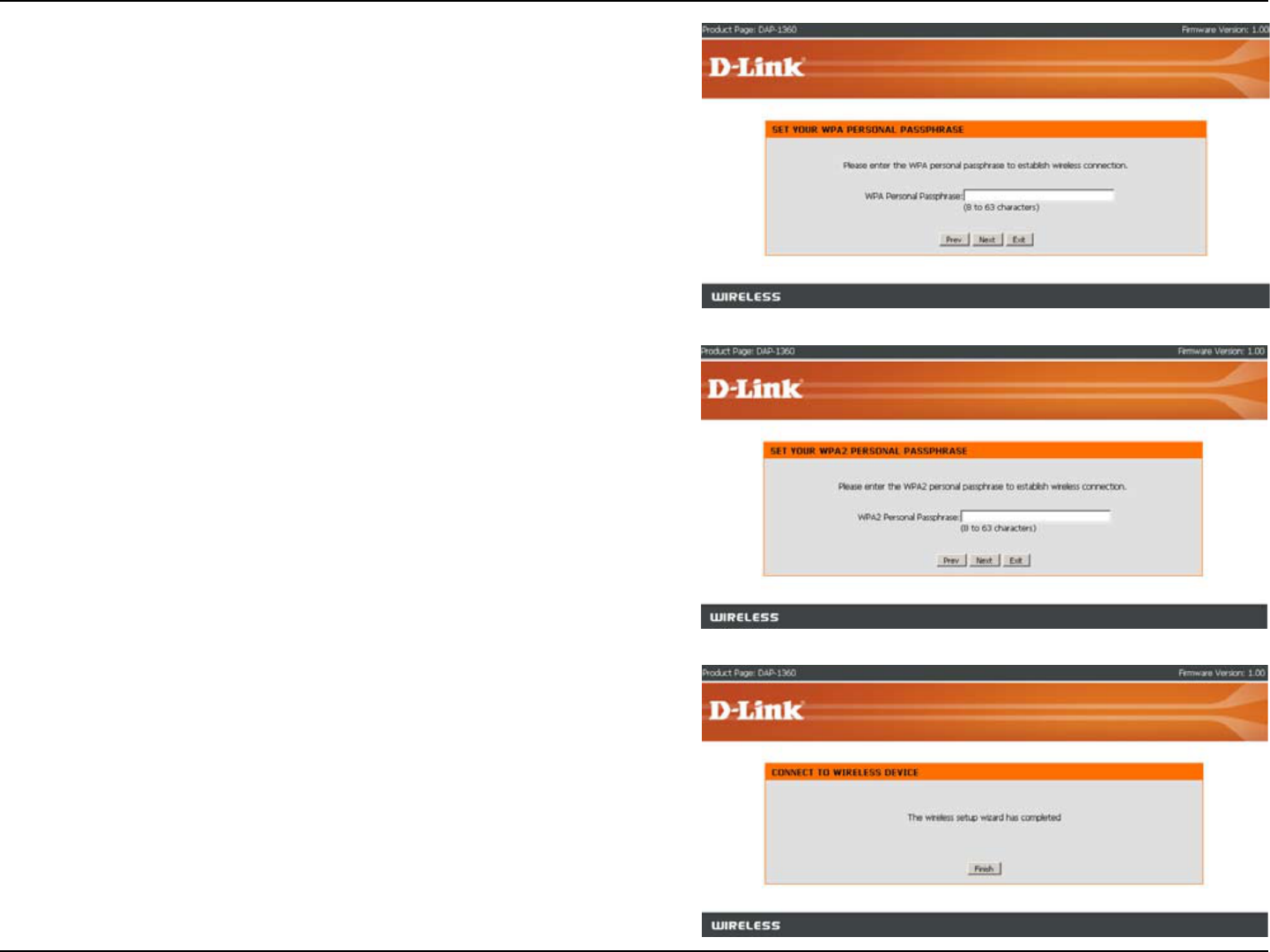

If you choose WPA, enter the WPA Personal Passphrase
and click Next to complete the Setup Wizard.
34D-Link DAP-1360 User Manual
Section 3 - Conguration
The Wireless Setup Wizard is complete.
Click Finish to reboot the device.
If you choose WPA2, enter the WPA2 Personal
Passphrase and click Next to complete the Setup
Wizard.
35D-Link DAP-1360 User Manual
Section 3 - Conguration
To congure the wireless client mode, follow these instructions.
Click Launch Wireless Setup Wizard to begin.
Setup Wizard for Wireless Client Mode
Select the wireless mode Wireless Client.
Click Launch Wireless Setup Wizard
36D-Link DAP-1360 User Manual
Section 3 - Conguration
Enter the Device Name of the AP and click Next to
continue. It is recommended to change the Device
Name if there is more than one D-Link device within
the subnet.
If you want to change the admin account password,
enter a new password and click Next.
37D-Link DAP-1360 User Manual
Section 3 - Conguration
Select Auto Conguration if you want to use Wi-Fi
Protected Setup.
If you want to setup your network manually, skip this
step.
Click Next to continue.
Select PIN to connect your wireless device with WPS.
For PBC conguration, skip to next page.
Enter the PIN number used into you access point and
click Connect.
38D-Link DAP-1360 User Manual
Section 3 - Conguration
Start WPS on the wireless device you are adding to you
wireless network to complete the setup.
Select PBC to use the Push Button Conguration to
connect to your network.
Click Connect to continue.
39D-Link DAP-1360 User Manual
Section 3 - Conguration
Press down the Push Button on the wireless device you
are adding to your network to complete the setup.
Select Manual conguration to setup your network
manually.
Click Next to continue.
40D-Link DAP-1360 User Manual
Section 3 - Conguration
Enter the Wireless Network Name of the AP or use
site survey to nd the AP.
Click Next to continue.
If you clicked on Site Survey, the following screen will
be displayed.
Find your access point from the list and click Connect
to complete the Setup Wizard.
41D-Link DAP-1360 User Manual
Section 3 - Conguration
If you choose WEP, enter the wireless security password
and click Next to complete the Setup Wizard.
Choose which Security Mode you want to use and click
Next to continue.
42D-Link DAP-1360 User Manual
Section 3 - Conguration
The Wireless Setup Wizard is complete.
Click Finish to reboot the device.
If you choose WPA2, enter the WPA2 Personal Passphrase
and click Next to complete the Setup Wizard.
If you choose WPA, enter the WPA Personal Passphrase
and click Next to complete the Setup Wizard.
43D-Link DAP-1360 User Manual
Section 3 - Conguration
To add a windows device to your network using the Push Button Conguration Wi-Fi Protected Setup(WPS), follow
these instructions:
Select PIN to use your PIN number from your wireless
device to connect to your network.
For PBC conguration, skip to next page.
Click Connect to continue.
Start WPS on the wireless device you are adding to you
wireless network to complete the setup.
Add Wireless Devices With WPS
44D-Link DAP-1360 User Manual
Section 3 - Conguration
Press down the Push Button on the wireless device you
are adding to your network to complete the setup.
Select PBC to use the Push Button Conguration to
connect to your network.
Click Connect to continue.
45D-Link DAP-1360 User Manual
Section 3 - Conguration
Access Point
Wireless Network
Name (also called
the SSID):
The Wireless Network Name is a unique name
that identies a network. All devices on a network
must share the same wireless network name
in order to communicate on the network. If you
decide to change the wireless network name
from the default setting, enter your new wireless
network name in this eld.
Wireless Channel:
Enable Auto
Channel Scan:
Auto channel selection is the default setting. First
disable Auto Channel Scan (see below) and you
will be able to select a wireless channel.
Check the box to enable Auto Channel Scan.
Enable this feature to auto-select the channel
for the best wireless performance.
In the AP mode, the DAP-1360 acts as a central connection point for any computer (client) that has an 802.11n or backward-compatible
802.11b/g wireless network adapter and is within range of the AP.
Wireless Setup
Enable Wireless: Select this to turn Wi-Fi on and off. Use the drop-
down box to select if you want to use a schedule.
Click Add New to add or change a schedule.
Wireless Mode: Select the wireless mode from Access Point,
Wireless Client, Repeater, Bridge, Bridge
with AP mode, WISP Client Router and WISP
Repeater.
802.11 Mode: Select the appropriate 802.11 mode based on the wireless clients in your network. The drop-down menu options are
802.11g Only, Mixed 802.11b/g, 802.11b Only, 802.11n Only, or Mixed 802.11b/g/n.
46D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable or disable the Wi-Fi protected setup feature.
Locking the wireless security prevents the settings from being changed by any new external registar using its PIN. Devices
can still be added to the wireless network using Wi-Fi Protected Setup. It is still possible to change wireless network settings
with Manual Wireless Network Setup, Wireless Network Setup Wizard, or an existing external WLAN Manager Registar.
Shows the current value of the access point’s PIN.
Create a random number that is a valid PIN. This becomes the access point’s PIN. You can then copy this PIN to the
user interface of the registrar.
Restore the default PIN of the access point.
Resets the Wi-Fi Protected Status to Not Congured. Vista WPS icon will only be displayed when the Wi-Fi Protected
Status is Not Congured.
Wi-Fi Protected
Setup:
Lock Wireless
Security:
Current PIN:
Generate New PIN:
Reset PIN to
Default:
Reset to
Unconfigured:
Channel Width:
Select a wireless security setting. Options are None, WEP, WPA, WPA2, or WPA2-Auto. See P.75, Wireless Security,
of this manual for a detailed explanation of the wireless security options.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen
by site survey utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to
connect to it.
Select the appropriate channel width between 20MHz or Auto 20/40MHz from the pull-down menu.
Transmission
Rate:
Enable Hidden
Wireless:
Wireless Security
Mode:
Select the transmission rate. It is strongly suggested to use the Auto setting for optimal performance.
47D-Link DAP-1360 User Manual
Section 3 - Conguration
Select this to turn the Wi-Fi module on and off. Use the drop-down box to select if you want to use a schedule. Click Add
New to add or change a schedule.
Click this button to choose the root AP from
an available connection list.
The Wireless Network Name is a unique
name that identies a network. All devices
on a network must share the same wireless
network name in order to communicate on the
network. If you decide to change the wireless
network name from the default setting, enter
your new wireless network name in this eld.
The channel will follow the root AP. The
channel used will be displayed.
Select the appropriate 802.11 mode based
on the wireless clients in your network. The
drop-down menu options are 802.11g Only,
Mixed 802.11b/g, 802.11b Only, 802.11n
Only, or Mixed 802.11b/g/n.
Select the appropriate channel width between 20MHz or Auto 20/40MHz from the pull-down menu.
Select the transmission rate. It is strongly suggested to use the Auto setting for optimal performance.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen
by site survey utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to
connect to it.
Select a wireless security setting. Options are None, WEP, WPA, or WPA2. See P.75, Wireless Security, of this manual
for a detailed explanation of the wireless security options.
Select enable if you want to congure 1360 with WPS.
Repeater
The Wireless Repeater mode extends the wireless coverage of another wireless AP or wireless router.
Enable Wireless:
Site Survey:
Wireless Network
Name (also called
the SSID):
Wireless Channel:
802.11 Mode:
Channel Width:
Transmission Rate:
Enable Hidden
Wireless:
Wireless Security
Mode:
Wi-Fi Protected
Setup:
48D-Link DAP-1360 User Manual
Section 3 - Conguration

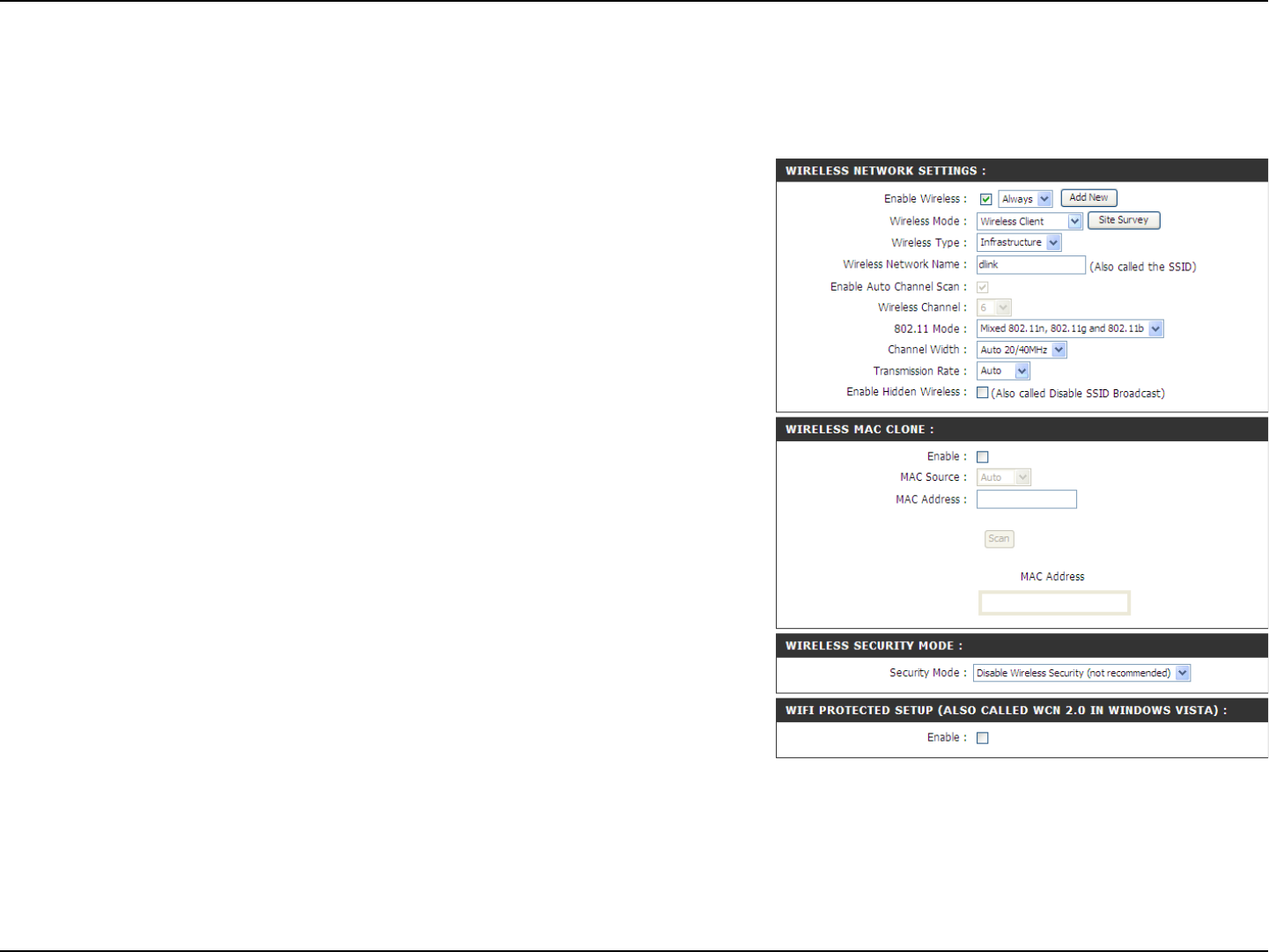

Wireless Client
Select this to turn the Wi-Fi module on and off. Use the drop-down
box to select if you want to use a schedule. Click Add New to add
or change a schedule.
Select Infrastructure if you only connect your DAP-1360 to other
wireless clients (as such wireless PCs). Select Ad-Hoc if you
connect your DAP-1360 to another DAP-1360 operating in the
Ad-Hoc mode.
You can input the wireless network name of the root AP or click
the Site Survey button to nd the root AP.
Click this button to choose the root AP from an available connection
list.
The channel used will be displayed.
The channel will follow the root AP.
Select the appropriate 802.11 mode based on the wireless clients
in your network. The drop-down menu options are 802.11g
Only, Mixed 802.11b/g, 802.11b Only, 802.11n Only, or Mixed
802.11b/g/n.
Select the appropriate channel width between 20MHz or Auto
20/40MHz from the pull-down menu.
Select the transmission rate. It is strongly suggested to use the
Auto setting for optimal performance.
If you disable this option, your DAP-1360 will ll the source MAC
address eld of all packets that it forwards with its own MAC
address. If you enable this option, manually type in a different scource MAC address for the DAP-1360 to use in all packets
that it forwards.
Select a wireless security setting. Options are None, WEP, WPA, or WPA2. See P.75, Wireless Security, of this manual
for a detailed explanation of the wireless security options.
Select enable if you want to congure 1360 with WPS.
Enable Wireless:
Wireless Type:
Wireless Network
Name (also called
the SSID):
Site Survey:
Wireless Channel:
802.11 Mode:
Channel Width:
Transmission Rate:
Wireless MAC
Clone :
Wireless Security
Mode:
Wi-Fi Protected
Setup:
In the Wireless Client mode, the DAP-1360 acts as a wireless network adapter for your Ethernet-enabled device (such as a game console
or a TV set-top box).
49D-Link DAP-1360 User Manual
Section 3 - Conguration
Select this to turn the Wi-Fi module on and off.
Use the drop-down box to select if you want to
use a schedule. Click Add New to add or change
a schedule.
The Wireless Network Name is a unique name that
identies a network. All devices on a network must
share the same wireless network name in order
to communicate on the network. If you decide to
change the wireless network name from the default
setting, enter your new wireless network name in
this eld.
All devices on the network must share the same
channel.
Select the appropriate 802.11 mode based on
the wireless clients in your network. The drop-
down menu options are 802.11g Only, Mixed
802.11b/g, 802.11b Only, 802.11n Only, or Mixed
802.11b/g/n.
Select the appropriate channel width between
20MHz or Auto 20/40MHz from the pull-down
menu.
Select the transmission rate. It is strongly suggested to use the Auto setting for optimal performance.
Enter the MAC addresses of the APs in your network that will serve as bridges to wirelessly connect multiple networks.
Select None to disable encryption to across the network. Select WEP 64bits or WEP 128bits to limit communication to
only those devices that share the same WEP settings. Select WPA-PSK or WPA2-PSK to secure your network using a
password and dynamic key changes (No RADIUS server required).
Bridge
Enable Wireless:
Wireless Network
Name (also called
the SSID):
Wireless Channel:
802.11 Mode:
Channel Width:
Transmission Rate:
Remote AP MAC:
Bridge Security:
Note: The Bridge mode is not completely specified in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360 units. Communication with other APs
(even other D-Link APs) is not guaranteed.
The Bridge mode connects 2 LANs together.
50D-Link DAP-1360 User Manual
Section 3 - Conguration
Select this to turn the Wi-Fi module on and off. Use the
drop-down box to select if you want to use a schedule.
Click Add New to add or change a schedule.
The Wireless Network Name is a unique name that
identies a network. All devices on a network must share
the same wireless network name in order to communicate
on the network. If you decide to change the wireless
network name from the default setting, enter your new
wireless network name in this eld.
Input a new number if you want to change the default
setting. All devices on the network must be set to the
same channel to communicate on the network.
Select the appropriate 802.11 mode based on the
wireless clients in your network. The drop-down menu
options are 802.11g Only, Mixed 802.11b/g, 802.11b
Only, 802.11n Only, or Mixed 802.11b/g/n.
Select the appropriate channel width between 20MHz or
Auto 20/40MHz from the pull-down menu.
Select the transmission rate. It is strongly suggested to
use the Auto setting for optimal performance.
Check the box if you do not want the SSID to be broadcast
by the DAP-1360. This prevents the SSID from being
seen by Site Survey utilities, so any wireless clients will
have to be pre-congured with the SSID of the DAP-1360
in order to connect to it.
Select a wireless security setting. Options are None, WEP, WPA, WPA2, or WPA2-Auto. See p.34 of this manual for a
detailed explanation of the wireless security options.
Enter the MAC addresses of the APs in your network that will serve as bridges to wirelessly connect multiple networks.
Select None to disable encryption to across the network. Select WEP 64bits or WEP 128bits to limit communication to only
those devices that share the same WEP settings. Select WPA-PSK or WPA2-PSK to secure your network using a password
and dynamic key changes (no RADIUS server required).
Bridge with AP
Enable Wireless:
Wireless Network
Name (also called
the SSID):
Wireless Channel:
802.11 Mode:
Channel Width:
Transmission Rate:
Enable Hidden
Wireless:
Wireless Security
Mode:
Remote AP MAC:
Bridge Security:
The Bridge with AP mode connects 2 LANs, while still functioning as a wireless AP for local wireless clients.
Note: The Bridge with AP mode is not completely specified in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360 units. Communication with
other APs (even other D-Link APs) is not guaranteed.
51D-Link DAP-1360 User Manual
Section 3 - Conguration
Select this to turn the Wi-Fi module on and off. Use the
drop-down box to select if you want to use a schedule.
Click Add New to add or change a schedule.
You can input the wireless network name of the root
AP or click the Site Survey button to nd the root AP.
Click this button to choose the root AP from an
available connection list. If the root AP has wireless
encryption, you have to use the same wireless security
mode to connect the root AP.
The channel used will be displayed. The channel will
follow the root AP.
Select the appropriate 802.11 mode based on the
wireless clients in your network. The drop-down menu
options are 802.11g Only, Mixed 802.11b/g, 802.11b
Only, 802.11n Only, or Mixed 802.11b/g/n.
Select the appropriate channel width between 20MHz or
Auto 20/40MHz from the pull-down menu.
Select the transmission rate. It is strongly suggested to
use the Auto setting for optimal performance.
This option is unavailable in WISP Client Router and
available in the WISP Repeater mode.
Select a wireless security setting. Options are None,
WEP, WPA, or WPA2. See P.75, Wireless Security,
of this manual for a detailed explanation of the wireless security options.
Enable Wireless:
Wireless Network
Name:
Site Survey:
Wireless Channel:
802.11 Mode:
Channel Width:
Transmission Rate:
Enable Hidden
Wireless:
Wireless Security
Mode:
WISP Client Router and WISP Repeater
In the WISP Router Client mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In this mode, the
DAP-1360 also acts as a router for wired clients on your LAN and provides NAT (Network Address Translation) and a DHCP server to generate
IP addresses for wired clients. NAT and the DHCP server allow many computers to share the same wireless Internet connection.
WISP Repeater wireless mode acts the same as WISP Client Router wireless mode, with the addition of a wireless signal for any wireless
clients on the LAN.
52D-Link DAP-1360 User Manual
Section 3 - Conguration
WAN Settings
WAN settings are only used in the WISP Client Router wireless mode and the WISP Repeater wireless mode. Choose Dynamic
IP(DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP number
to use. This option is commonly used for Cable modem services.
Dynamic IP (DHCP)
The Host Name is optional but may be
required by some ISPs.
Host Name:
You may need to change the MTU
(Maximum Transmission Unit) for optimal
performance with your specific ISP. The
default MTU size is 1500.
MTU Size:
Select this option if you want the DAP-1360
to get the DNS (Domain Name System)
server IP address automatically.
Attain DNS
automatically:
Select this option if you want to manually
enter the DNS Server IP address(es). The
elds to enter the Primary and Secondary
DNS server IP addresses will appear after
you have selected this option.
Set DNS manually:
Enter the Primary and Secondary DNS server IP address assigned by your ISP.
Primary/ Secondary
DNS Server:
The default MAC address is set to the Ethernet MAC address your DAP-1360. You can click the Clone Your PC's MAC
Address button to replace the AP's MAC address with the MAC address of the PC that you used to register with your
ISP. It is not recommended that you change the default MAC address unless required by your ISP.
Clone MAC address:
53D-Link DAP-1360 User Manual
Section 3 - Conguration

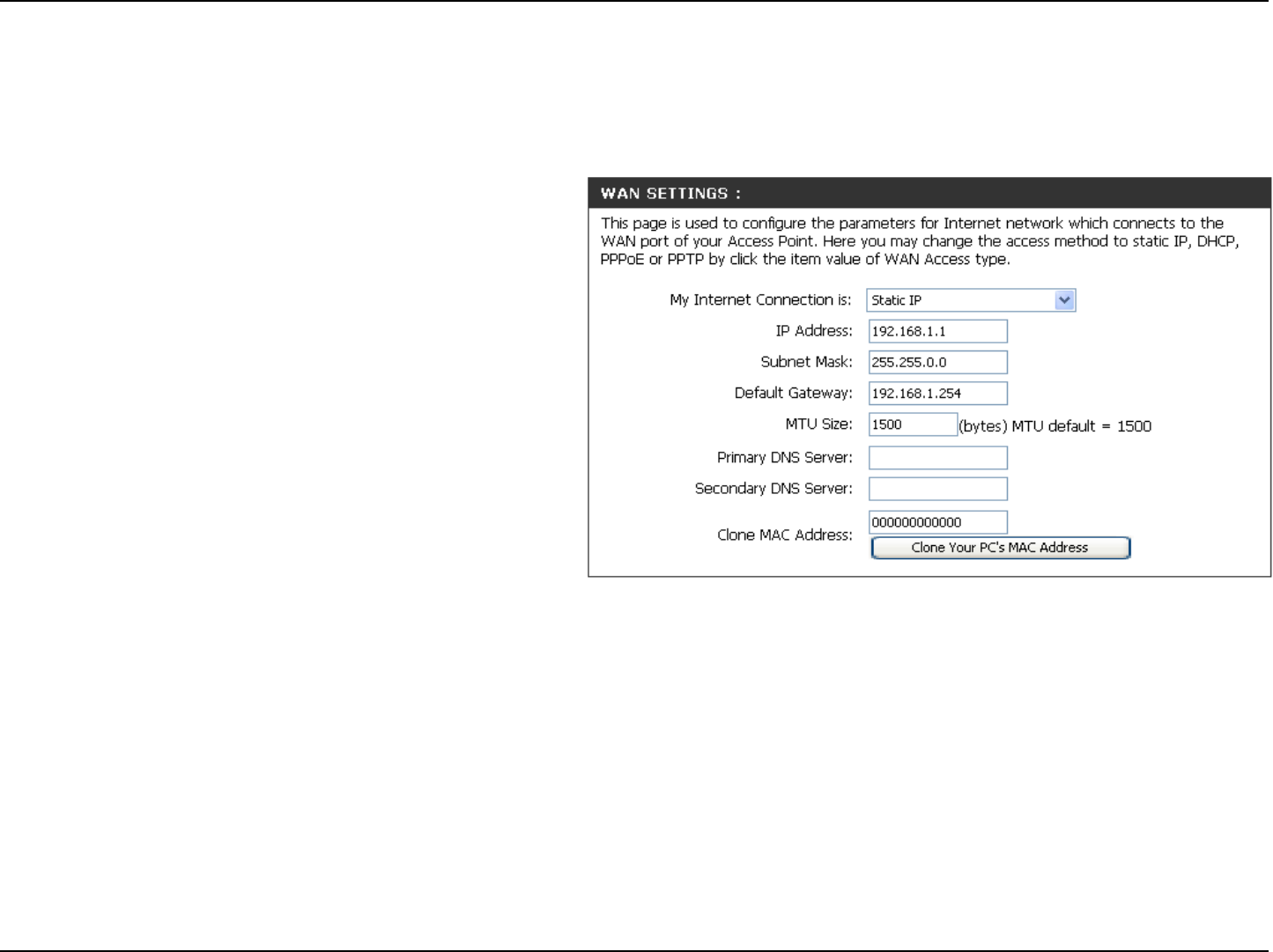

Static IP
Select Static IP if all WAN IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway
address, and DNS address(es) provided to you by your ISP.
192.168.1.1 is the default WAN IP Address
of the DAP-1360.
IP Address:
255.255.255.0 is the default subnet mask.
All devices on the network must have the
same subnet mask to communicate on the
network.
Subnet Mask:
Enter the IP Address of the gateway
in your network. The default setting is
192.168.1.254.
Default Gateway:
You may need to change the MTU
(Maximum Transmission Unit) for optimal
performance with your specific ISP. The
default MTU size is 1500.
MTU Size:
Enter the Primary and Secondary DNS (Domain Name System) server IP address assigned by your ISP.
Primary/ Secondary
DNS Server:
This is optional.
Secondary DNS
Server:
The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your
PC's MAC Address button to replace the AP's MAC address with the MAC address of your Ethernet card. It is not
recommended that you change the default MAC address unless required by your ISP.
Clone MAC address:
54D-Link DAP-1360 User Manual
Section 3 - Conguration
PPPoE
Choose PPPoE (Point-to-Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through the DAP-1360.
Enter your PPPoE user name.
User Name:
Enter your PPPoE password and then
retype the password in the next box.
Password:
Enter the ISP Service Name (optional).
Service Name:
Enter a maximum idle time during which
the Internet connection is maintained
during inactivity.
Maximum Idle time:
You may need to change the MTU
(Maximum Transmission Unit) for optimal
performance with your specific ISP. The
default MTU size is 1492.
MTU Size:
Select this option if you want the DAP-1360
to get the DNS (Domain Name System)
server IP address automatically.
Attain DNS
Automatically:
Select this option if you want to manually enter the DNS Server IP address(es). Fields to enter the Primary
and Secondary DNS server IP addresses will appear after you select this option.
Set DNS Manually:
Primary/ Secondary
DNS Server:
Enter the Primary and Secondary DNS server IP address assigned by your ISP.
Clone MAC Address: The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC's MAC
Address button to replace the AP's MAC address with the MAC address of your Ethernet card. It is not recommended
that you change the default MAC address unless required by your ISP.
Reconnection Type: Select Always on, On demand, or Manual.
55D-Link DAP-1360 User Manual
Section 3 - Conguration
PPTP
Choose PPTP (Point-to-Point Tunneling Protocol) if your ISP uses a PPTP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
PPTP IP Address: Enter the IP address (Static PPTP only).
PPTP Subnet Mask: Enter the subnet mask.
PPTP Server IP
Address:
Enter the Server IP Address provided by
your ISP.
Password: Enter your PPTP password and then
retype the password in the next box.
MTU Size: You may need to change the MTU
(Maximum Transmission Unit) for optimal
performance with your specific ISP. The
default MTU size is 1400.
Attain DNS
automatically:
Select this option if you want the DAP-1360
get DNS server IP address automatically.
Primary/ Secondary
DNS Server:
Enter the Primary and Secondary DNS (Domain Name System) server IP address assigned by your ISP.
Clone MAC address: The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC's MAC
Address button to replace the AP's MAC address with the MAC address of your Ethernet card. It is not recommended
that you change the default MAC address unless required by your ISP.
Username: Enter your PPTP account name.
Select this option if you want to manually
enter the DNS Server IP address(es).
Fields to enter the Primary and Secondary
DNS server IP addresses will appear after
you select this option.
Set DNS Manually:
56D-Link DAP-1360 User Manual
Section 3 - Conguration
LAN Setup
The LAN (Local Area Network) is your private, internal network. This page allows you to congure the IP settings of the
LAN interface for the DAP-1360. The IP address can be changed to your current network IP range. This IP address
cannot be seen from the Internet.
57D-Link DAP-1360 User Manual
Section 3 - Conguration
The DAP-1360 is set to Static IP by default.
Select this option if you do not have a DHCP
server on your network, or if you wish to assign
a static IP address to the DAP-1360.
Select this option if you are manually assigning
an IP Address.
LAN Settings
Enter the IP address of the access point.
My LAN
Connection is:
Static IP:
Dynamic IP:
IP Address:
Select this option if you would like to have an IP
Address automatically assigned to the DAP-1360
by a DHCP server in your network.
Subnet Mask:
Gateway address:
Enter the subnet mask of your access point.
Enter the IP Address of the router in your network.
Device Name
(NetBIOS Name):
Enable DHCP
Server:
DHCP IP Address
Range Lease Time:
This allows you to congure this device more
easily when your network using TCP/IP protocol.
You can enter the device name of the AP into
your web browser to access the instead of ip
address for conguration.If you are using the device name to connect, ensure that your PC and your DAP-1360 are on
the same network.
Select this to enable the DHCP server if static IP address is selected.
Enter the starting and ending IP addresses for the DHCP server’s IP assignment.
Enter the length of time for the IP address lease.
58D-Link DAP-1360 User Manual
Section 3 - Conguration
Advanced
Advanced Wireless
Transmit Power:
Beacon Period:
Fragmentation
Threshold:
DTIM Interval
(Beacon Rate):
Preamble Type:
RTS Threshold:
WMM:
Enable Multicast
Streams:
Enable Multicast to
Unicast:
Multicast Rate
Control:
Choose 100%, 50%(-3dB), 25% (-6dB), or
12.5% (-9dB).
This value should remain at its default setting of
2,346. If you experience a high packet error rate,
you may slightly decrease your fragmentation
threshold within the value range of 256 to 2,346.
Setting the fragmentation threshold too low may
result in poor performance.
Beacons are packets sent by an access point
to synchronize a wireless network. Specify a
beacon interval value. The default value 100 is
recommended.
A DTIM (Delivery Trafc Indication Message) is a countdown informing clients of the next window for listening to broadcast
and multicast messages. The default vaule is 3 and the possible range of vaules is between 1 and 255.
This value should remain at its default setting of
2,432. If you encounter inconsistent data ow,
only minor modications to the value range
between 256 and 2,432 are recommended.
Select Short or Long Preamble. The default setting in Long Preamble. The Preamble denes the length of the CRC block
(Cyclic Redundancy Check is a common technique for detecting data transmission errors) for communication between the
access point and roaming wireless network adapters. Note: High network trafc areas should use the short preamble type.
WMM (Wi-Fi Multimedia) is only available in the Access Point and Wireless Client Mode. WMM provides basic QoS (Quality
of Service) functions for wireless networks. WMM prioritizes trafc based on 4 AC (Access Categories) : voice, video, best
effort, and background. However, WMM does not provide guaranteed throughput.The QoS (WMM) is mandatory in 11n
mode, you can disable this feature when select 11g or 11b mode.
Select Enable to allow multicast trafc to pass through the AP.
Select Enable to convert multicast streams to unicast streams.
Congure the multicast data rate, the drop down manual options are 54Mbps, 48Mbps, 36Mbps, 24Mbps, 12Mbps, 9Mbps,
6Mbps, 11Mbps, 5.5Mbps, 2Mbps, 1Mbps and Auto.
59D-Link DAP-1360 User Manual
Section 3 - Conguration
MAC Filter List: This list will display the MAC addresses that
are in the selected lter.
Access Control
Use MAC Filters to allow or deny wireless clients, by their MAC addresses, from accessing the DAP-1360. You can manually add a MAC
address or select the MAC address from the list of clients that are currently connected to the AP (Connected PCs). The default setting is
Disable MAC Filters.
Access control is set to Disable by default.
Select Reject to deny access to the AP.
Select Accept to allow access to the AP.
Access Control:
Enter the MAC address of the client that you
want to allow or deny access to the AP.
MAC Address:
Select the MAC address of a computer from
the drop-down menu and click Clone to ll in
the MAC Address eld with that computer.
Connected PCs:
60D-Link DAP-1360 User Manual
Section 3 - Conguration
User Limit
Click this to enable the User Limit options
on this page.
Enable User Limit:
Type the maximum number of wireless
connections that can be made to the AP.
User Limit (1 - 32):
The D-Link DAP-1360 can set a limit upon the number of wireless clients. Using user limit, you can prevent scenarios
where the DAP-1360 in your network shows performance degradation because it is handling heavy wireless trafc.
61D-Link DAP-1360 User Manual
Section 3 - Conguration
Port Forwarding
This function is available if your DAP-1360 is in the WISP Client Router or WISP Repeater mode. This feature allows you to open a single
port or a range of ports. Click Save Settings and the port forwarding rule will be put into the Port Forwarding List.
Enter a name for the rule. You can select an
application name from the Application Name
drop-down menu. Click the << button to ll
in the Name eld with the application name
that you selected.
Name:
Enter the IP address of the computer on
your local network that you want to allow the
incoming service to.
IP Address:
Enter the port or ports that you want to open.
If you want to open one port, enter the same
port in both boxes.
Start Port/End
Port:
Select TCP, UDP, or Both.
Traffic Type:
Check the box to congure a port forwarding
rule.
Port Forwarding
Rules:
62D-Link DAP-1360 User Manual
Section 3 - Conguration
Port Filter
This function is available if the DAP-1360 is in WISP Client Router or WISP Repeater mode. This feature is used to secure or restrict your
local network. It will deny the ports that you enter from the local network to the Internet. Click Save Settings and the port lter rule will
be put into the Port Filter List.
Enter a name for the rule. You can select an
application name from the Application Name
drop-down menu. Click the << button to ll
in the Name eld with the application name
that you selected.
Name:
Enter the port or ports that you want to open.
If you want to open one port, enter the same
port in both boxes.
Start Port/End
Port:
Select TCP, UDP, or Both.
Traffic Type:
Check the box to congure a port lter rule.
Port Filter Rules:
63D-Link DAP-1360 User Manual
Section 3 - Conguration
DMZ
This function is available only if the DAP-1360 is in the WISP Client Router or WISP Repeater mode. This feature allows you to set up
a DMZ (Demilitarized Zone) host. If you have a client PC that cannot run Internet applications properly from behind the DAP-1360, then
you can set the client up for unrestricted Internet access. The DMZ allows a computer to be exposed to the Internet. This feature is useful
for gaming purposes. Enter the IP address of the computer that will be the DMZ host. Adding a client to the DMZ may expose your local
network to a variety of security risks, so only use this option as a last resort.
Check this box to enable DMZ.
Enable DMZ:
Enter the IP address of the computer you
would like to open all ports to. You can
select a computer from the Computer
Name drop-down menu and click << to enter
the computer name into the DMZ Host IP
Address eld.
DMZ Host IP
Address:
64D-Link DAP-1360 User Manual
Section 3 - Conguration
Parental Control
This function is available only if the DAP-1360 is in the WISP Client Router or WISP Repeater mode. This feature allows you to create a
list of websites that you want to deny users access.
Enter a keyword or URL that you want to
block and click Save Settings. Any URL that
contains the keyword will be blocked.
Website URL
Address:
Select Turn Website Filtering OFF or Turn
Website Filtering ON and DENY computers
access to ONLY these sites.
Configure Website
Filtering below:
65D-Link DAP-1360 User Manual
Section 3 - Conguration
Advanced Network
This function is available if the DAP-1360 is in WISP Client Router or WISP Repeater mode. This feature allows you to change the LAN
settings. Please be aware that any changes to the factory default settings may affect the behavior of your network.
Check this box to use the Universal Plug
and Play (UPnP™) feature. UPnP provides
compatibility with networking equipment,
software and peripherals.
Enable UPnP:
Check this box to allow the WAN port of the
DAP-1360 to be pinged. Unchecking the box
will not allow the DAP-1360 to respond to
pings. Blocking ping response may provide
some extra security from intruders.
Enable WAN
Ping Respond:
Remote management allows the DAP-1360
to be congured from the Internet by a web
browser. A username and password are still
required to access the Web-Management
interface. In general, only a member of your
network can browse the built-in web pages
to perform Administrator tasks. This feature
enables you to perform Administrator tasks
from the remote (Internet) host.
Remote
Management:
66D-Link DAP-1360 User Manual
Section 3 - Conguration
Maintenance
Device Administration
Enter a new password.
Re-enter the password to conrm it.
New Password:
Confirm Password:
Save and Restore
Click Save to save the current system
settings as a le onto your local hard
drive.
Save Settings To
Local Hard Drive:
Load Settings From
Local Hard Drive:
To load a system settings le, click on
Browse to browse the local hard drive
and locate the system settings le to be
used. Click Upload Settings when you
have selected the le to be loaded back
onto the access point.
Restore To Factory
Default Settings:
You can reset the DAP-1360 back to the
factory default settings by clicking on
Restore Device. Make sure to save the
current system settings before clicking
on Restore Device. You will lose your
current system settings after you click
Restore Device.
67D-Link DAP-1360 User Manual
Section 3 - Conguration
Firmware
This feature is used to update the rmware of the DAP-1360. The current rmware version and rmware date are displayed here. Please
check the D-Link support site for rmware or language package updates at http://support.dlink.com.tw.
Click this link and you will be connected to
D-Link’s support website where you can
download the latest rmware version to
your local hard drive.
Click here to check
for an update on our
support site:
Current Firmware
Info:
To update the rmware, click on Browse
to browse the local hard drive and locate
the updated firmware file. Click the
Upload button after you have selected
the updated rmware le.
Language Package
Information:
To change the web congurator language,
click on Browse to browse locate the
language package upgrade le and click
the Upload button.
68D-Link DAP-1360 User Manual
Section 3 - Conguration
Watchdog (Ping of Life)
The Watchdog feature pings a specied IP address. If the IP address stops responding to pings, your AP will be rebooted. You can also
select an option to have the DAP-1360 send an e-mail alert if the specied IP address stops responding to pings.
Check this box to enable the Watchdog (Ping
of Life) to check some host IP.
Enable Watchdog
(Ping of Life):
Update Time
Interval:
Enter the time interval of how often you would
like the Watchdog to ping the response IP
address.
Watchdog Response
IP:
Enable Mail Alert:
SMTP Server:
Receiver E-Mail:
Enable
Authentication:
Account Name:
Password:
Enter the IP address that the Watchdog will
ping.
Check this box to enable e-mail notication
for the Watchdog.
Enter the SMTP server IP address.
Enter the e-mail address which the notication
will be sent to.
Check the box to enable authentication that
is used with the SMTP server.
Enter your account name that is used with
the SMTP server.
Enter your password that is used with the
SMTP server and re-enter it in the next
box.
Sender E-Mail: Enter the e-mail address from which the
notication will be sent.
69D-Link DAP-1360 User Manual
Section 3 - Conguration
Time
Time Zone:
Daylight Saving:
Enable NTP Server:
NTP Server Used:
Manual:
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, select
enabled or disabled, and enter a start date and
an end date for daylight saving time.
NTP is short for Network Time Protocol. NTP
synchronizes computer clock times in a network
of computers. Check this box to use a NTP server.
This will only connect to a server on the Internet,
not a local server.
Enter the NTP server or select one from the
drop-down menu.
To manually input the time, enter the values
in these elds for the Year, Month, Day, Hour,
Minute, and Second and then click Save Settings.
You can also click Copy Your Computer’s Time
Settings.
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system
clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also
be congured to automatically adjust the time when needed.
70D-Link DAP-1360 User Manual
Section 3 - Conguration
Schedules
Enter a name for your new schedule.
Select a day, a range of days, or All Week to
include every day.
Check All Day - 24hrs or enter a start and
end time for your schedule.
Click Save to save your schedule. You
must click Save Settings at the top for your
schedules to go into effect.
The list of schedules will be listed here. Click
the Edit icon to make changes or click the
Delete icon to remove the schedule.
Name:
Days:
Time:
Save:
Schedule Rules
List:
Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from
3pm to 8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and
End Time of 8pm.
71D-Link DAP-1360 User Manual
Section 3 - Conguration
This screen displays the current rmware version and the current LAN, and Wireless LAN settings on your access
point.
Status
Device Info
72D-Link DAP-1360 User Manual
Section 3 - Conguration
Log
The DAP-1360 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are
automatically cleared. You can save the log les under Log Setting.
This button directs you to the rst page
of the log.
This button directs you to the last page
of the log.
This button directs you to the previous
page of the log.
This button directs you to the next page
of the log.
This button clears all current log
content.
This button opens a new menu where
you can congure the log settings.
This button refreshes the log.
First Page:
Last Page:
Previous Page:
Next Page:
Clear Log:
Log Settings:
Refresh:
73D-Link DAP-1360 User Manual
Section 3 - Conguration
Statistics
The DAP-1360 keeps statistics of the trafc that passes through it. You can view the amount of packets that pass
through the LAN and wireless portions of the network. The trafc counter will reset if the access point is rebooted.
Wireless
This list displays the MAC addresses of connected wireless clients and the length of time that they have been
connected.
74D-Link DAP-1360 User Manual
Section 3 - Conguration
Help
The Help menu contains an index of links to help topics for each feature of the DAP-1360.
75D-Link DAP-1360 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The
DAP-1360 offers the following types of security:
• WPA-Personal (Pre-Shared Key) • WPA-Enterprise (Extensible Authentication Protocol)
• WPA2-Personal (Pre-Shared Key 2) • WPA2-Enterprise (Extensible Authentication Protocol 2)
• WPA2-Auto-Personal • WPA2-Auto-Enterprise (Extensible Authentication Protocol 2 Auto)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption
algorithm. WEP provides security by encrypting data over your wireless network so that it is protected as it is transmitted
from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When
using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit
encryption requires a longer key than 64-bit encryption. Keys are dened by entering in a string in HEX (hexadecimal
- using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters)
format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be dened so that you can change keys easily.
76D-Link DAP-1360 User Manual
Section 4 - Security
Configure WEP
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please
establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption
due to the added overhead.
1. Log into the web-based conguration utility by
opening a web browser and entering the device
name of the access point (dlinkap). Click on
Wireless Setup on the left side.
2. Next to Security Mode, select Enable WEP
Wireless Security (Basic).
3. Next to Authentication, select Shared Key or
Open.
4. Next to WEP Encryption, select 64-bit or 128-bit
encryption.
5. Next to Key Type, select either Hex or ASCII.Hex
(recommended) - Letters A-F and numbers 0-9 are
valid. ASCII - All numbers and letters are valid.
6. Next to Key 1, enter a WEP key that you create.
Make sure you enter this key exactly on all your
wireless devices. You may enter up to 4 different
keys.
7. Click Save Settings to save your settings. If you are conguring the access point with a wireless adapter, you will lose
connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the access point.
77D-Link DAP-1360 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired
Equivalent Privacy).
There are 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys
using a hashing algorithm and by adding an integrity-checking feature ensures that the keys haven’t
been tampered with.
• User authentication, which is generally missing in WEP, is done through the Extensible Authentication
Protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-specic
MAC address, which is relatively simple to be sniffed out and stolen. EAP is built on a more secure public-
key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric
password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must
be the exact same key entered on your wireless router or access point.
WPA-EAP/WPA2-EAP incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP
is built on a more secure public key encryption system to ensure that only authorized network users can access the
network.
WPA2-Auto-PSK/WPA2-Auto-EAP accepts wireless clients that use WPA or WPA2. Authentication is sill necessary.
78D-Link DAP-1360 User Manual
Section 4 - Security

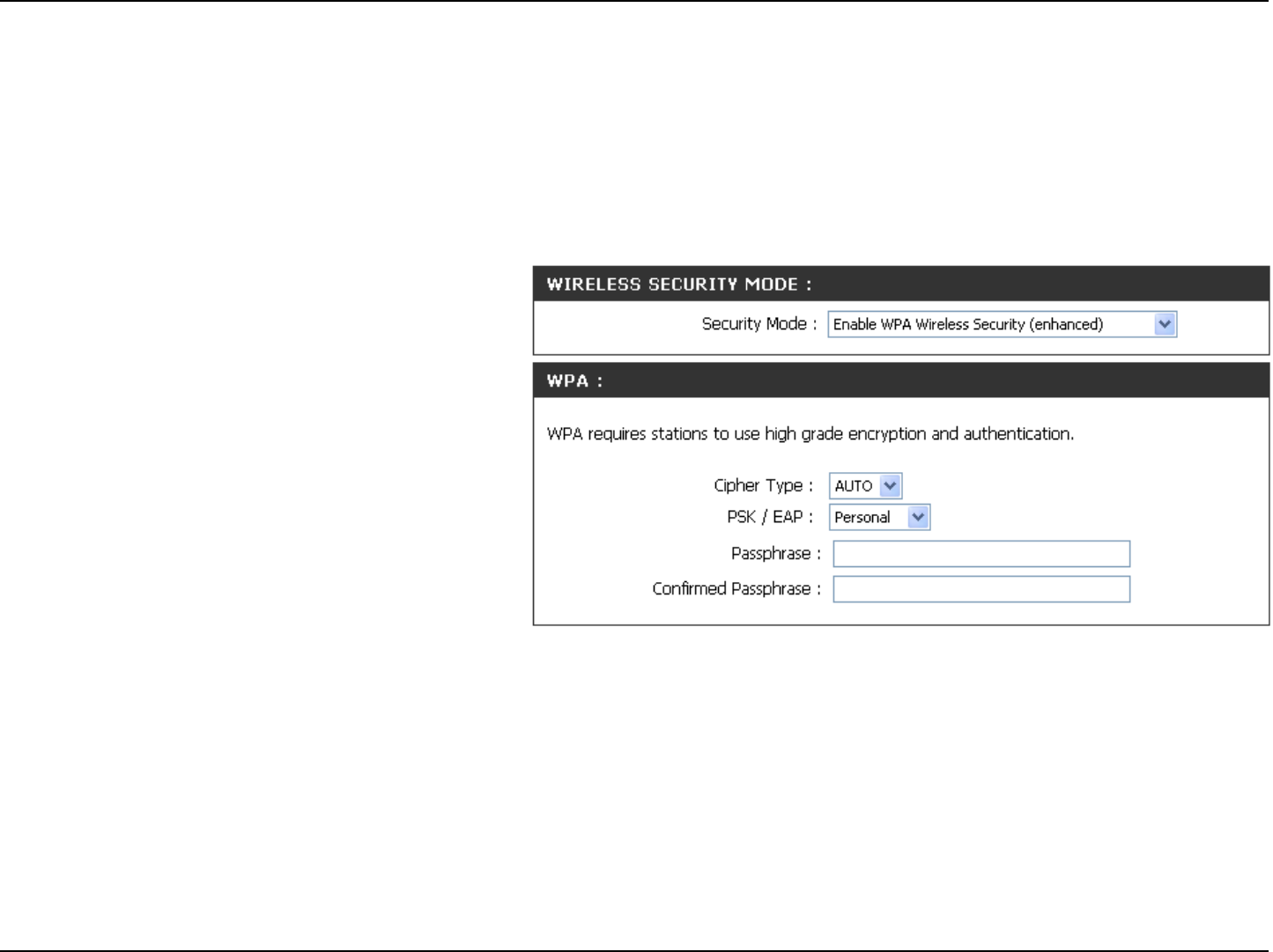

Configure WPA-PSK, WPA2-PSK, and
WPA2-Auto-PSK (Personal)
It is recommended to enable encryption on your wireless access point before your wireless
network adapters. Please establish wireless connectivity before enabling encryption. Your
wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration utility
by opening a web browser and entering the
device name of the access point (dlinkap).
Click on Wireless Setup on the left side.
2. Next to Security Mode, select Enable WPA
Wireless Security, Enable
WPA2 Wireless Security, or Enable
WPA2-Auto Wireless Security.
3. Next to Cipher Mode, select
TKIP, AES, or Auto.
4. Next to PSK / EAP, select Personal.
5. Next to Passphrase, enter a key (passphrase). The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. Make sure you enter this key
exactly the same on all other wireless clients. Enter the passphrase again next to Conrmed Passphrase.
7. Click Save Settings to save your settings. If you are conguring the access point with a wireless
adapter, you will lose connectivity until you enable WPA-Personal, WPA2-Personal, or WPA2-Auto-
Personal on your adapter and enter the same passphrase as you did on the access point.
79D-Link DAP-1360 User Manual
Section 4 - Security
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please
establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption
due to the added overhead.
1. Log into the web-based conguration utility by
opening a web browser and entering the device
name of the access point (dlinkap). Click on
Wireless Setup on the left side.
2. Next to Security Mode, select Enable WPA
Wireless Security, Enable
WPA2 Wireless Security, or Enable
WPA2-Auto Wireless Security.
3. Next to Cipher Mode, select
TKIP, AES, or Auto.
4. Next to Personal / Enterprise,
select Enterprise.
5. Next to RADIUS Server enter the IP Address of
your RADIUS server.
6. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port.
7. Next to Shared Secret, enter the security key.
8. Click Save Settings to save your settings.
Configure WPA-EAP, WPA2-EAP, and
WPA2-Auto-EAP (Enterprise)
80D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users can use the built-in wireless utility (Zero Conguration Utility) to connect to a wireless network.
The following instructions are for Service Pack 2 users. If you are using another company’s utility or Windows® 2000,
please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities
will have a “site survey” option similar to the Windows® XP utility as shown below.
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select View Available
Wireless Networks.
If you receive the Wireless Networks Detected bubble, click
on the center of the bubble to access the utility.
or
The utility will display all available wireless networks in your
area. Click on a network (displayed using the SSID) and click
the Connect button.
If you get a good signal but cannot access the Internet,
check the TCP/IP settings for your wireless adapter. Refer
to the Networking Basics section in this manual for more
information.
81D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Configure WEP/WPA-PSK
It is recommended to enable WEP or WPA-PSK on your wireless access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the WEP or WPA-PSK key being used.
Follow the steps on the previous page to connect to a wireless network
using Windows® XP. After you highlight a network and click Connect,
the Wireless Network Connection box will appear if the network
requires authentication. Enter the same WEP or WPA-PSK key that
is on your access point and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WEP or WPA-PSK settings are
correct. The WEP or WPA-PSK key must be exactly the same as on
the wireless access point.
82D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® Vista (Secured Network)
The following are step-by-step directions to connect to a secured wireless network using Windows® Vista.
2. Click the Manage network connections link in the Network
and Sharing Center window.
1. Right-click on Network and click on Properties.
83D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
4. Select a network to connect to in the Select a network to connect
to window and then click the Connect button.
5. The following window displays connection progress.
3. Right-click the Wireless Network Connection entry and then select
Connect/Disconnect from the drop-down menu.
84D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
7. The following Successfully connected to [SSID name] window
is displayed. Choose to save this network and/or start this new
connection automatically. When you are nished, click the Close
button.
6. Enter the network security key or passphrase for the AP in the textbox
provided in the Type the network security key or passphrase for
[SSID name] window. When you are nished, click the Connect
button.
85D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® Vista (Unsecured Network)
The following are step-by-step directions to set up a wireless connection on an unsecured network using Windows®
Vista.
2. Go to the Network and Sharing Center window and click
the Manage Network Connections link.
1. Right-click on Network and click on Properties.
86D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
3. Right-click the Wireless Network Connection entry and then select
Connect/Disconnect from the drop-down menu.
4. Select a network to connect to in the Select a network to connect
to window and then click the Connect button.
5. Conrm that you still want to connect on the following Network
Connection Status window by clicking on Connect Anyway.
87D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
6. The following Connect to a network wizard window displays the
connection progress.
7. The following Successfully connected to [SSID name] window
is displayed. Choose to save this network and/or start this new
connection automatically. When you are nished, click the Close
button.
88D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1360. Read
the following descriptions if you are having problems. The examples below use Windows® XP. If you have a different
operating system, the troubleshooting steps may be different from the following examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link access point (for example, dlinkap), you are not connecting to a website
on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device
itself. Your computer must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using
a different cable or connect to a different port on the device if possible. If the computer is turned off, the link light may
not be on.
• Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice,
Sygate, Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the
help les included with your rewall software for more information on disabling or conguring it.
89D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab,
click the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings
button. Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three
times.
• Close your web browser (if open) and open it.
• Access the web-based conguration utility. Open your web browser and enter the IP address of your D-Link access
point in the address bar. This should open the login page for your the web-based conguration utility.
• If you still cannot access the web-based conguration utility, unplug the power to the access point for 10 seconds
and plug back in. Wait about 30 seconds and try accessing the web-based conguration utility. If you have multiple
computers, try connecting using a different computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your access point. Unfortunately this process will change all your settings
back to the factory defaults.
To reset the access point, locate the reset button (hole) on the rear panel of the unit. With the access point powered
on, use a paperclip to hold the button down for 10 seconds. Release the button and the access point will go through
its reboot process. Wait about 30 seconds to access the access point. The default IP address is dlinkap. When logging
in, the username is admin and leave the password box empty.
90D-Link DAP-1360 User Manual
Appendix B - Wireless Basics
D-Link wireless products are based on the latest industry standards to provide easy-to-use and compatible high-speed
wireless connectivity within your home, business, or public wireless networks. Strictly adhering to IEEE standards, the
D-Link wireless family of products allows you to securely access the data you want, when and where you want it. You
will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. Wireless LANs are used increasingly in both home and ofce environments, and public areas such
as airports, coffee shops, and universities. Innovative ways to utilize WLAN technology are helping people to work
and communicate more efciently. Increased mobility and the absence of cabling and other xed infrastructure have
proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop
and desktop systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in
order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device
used to provide this link.
Wireless Basics
91D-Link DAP-1360 User Manual
Appendix B - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi
uses radio waves to connect wirelessly, so you have the freedom to connect computers anywhere in your home or
ofce network.
Why D-Link Wireless?
D-Link is a worldwide leader and an award winning designer, developer, and manufacturer of networking products.
D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your
network.
How does wireless work?
Wireless works similar to how a cordless phone works- using radio signals to transmit data from one point to another.
However, wireless technology has restrictions as to how you can access the network. You must be within the wireless
network range area to be able to connect your computer. There are two different types of wireless networks: a Wireless
Local Area Network (WLAN) and a Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a WLAN, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor AP, the
signal can travel up to 300 feet. With an outdoor AP the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other
outdoor venues.
92D-Link DAP-1360 User Manual
Appendix B - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPANs. Bluetooth devices in WPANs operate in a
range up to 30 feet away.
The speed and wireless operation range of a WPAN is less than of a WLAN, but it excels in its efcient consumption
of power. WPANs are ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and
other devices that operate on batteries.
Who uses wireless?
Wireless technology has become so popular in recent years that almost everyone is using it, at home and in the
ofce.
Home
• Gives everyone at home broadband access
• Surf the web, check email, get instant messages, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Ofce and Home Ofce (SOHO)
• Stay on top of everything at home as you would at the ofce
• Remotely access your ofce network from home
• Share an Internet connection and printer with multiple computers
• No need to dedicate ofce space
93D-Link DAP-1360 User Manual
Appendix B - Wireless Basics
Where is wireless used?
Wireless technology is quickly expanding beyond home and ofce use. The freedom of mobility it offers is becoming
so popular that more and more public facilities are now providing wireless access to attract people. Public places that
offer wireless access is usually called a “hotspot”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote
locations like airports, hotels, coffee shops, libraries, restaurants, and convention centers.
A wireless network is relatively easy to setup, but if you’re installing it for the rst time it could be quite a task not
knowing where to start. That’s why we’ve put together a few setup steps and tips to help you through the process of
setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your Access Point
Make sure you place the router/access point in a central location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If
you have a two-story home, you may need a repeater to boost the signal and extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the
router/access point. This will signicantly reduce any interference that the appliances might cause if operating on the
same frequency.
94D-Link DAP-1360 User Manual
Appendix B - Wireless Basics
Security
Don’t let your next-door neighbors or unwanted intruders connect to your wireless network. Secure your wireless
network by turning on the WEP or WPA security feature on the access point. Refer to the section “Wireless Security”
in this manual for detailed information on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless
network adapters on each computer.
An Infrastructure network contains an AP or a wireless router. All the wireless devices, or clients, will connect to the
wireless router or the AP.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in
Ad-Hoc mode to communicate.
Wireless Modes
95D-Link DAP-1360 User Manual
Appendix C - Networking Basics
Networking Basics
Check your IP address
After you install your network adapter, by default, the TCP/IP settings should be set to obtain an IP address from a
DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.

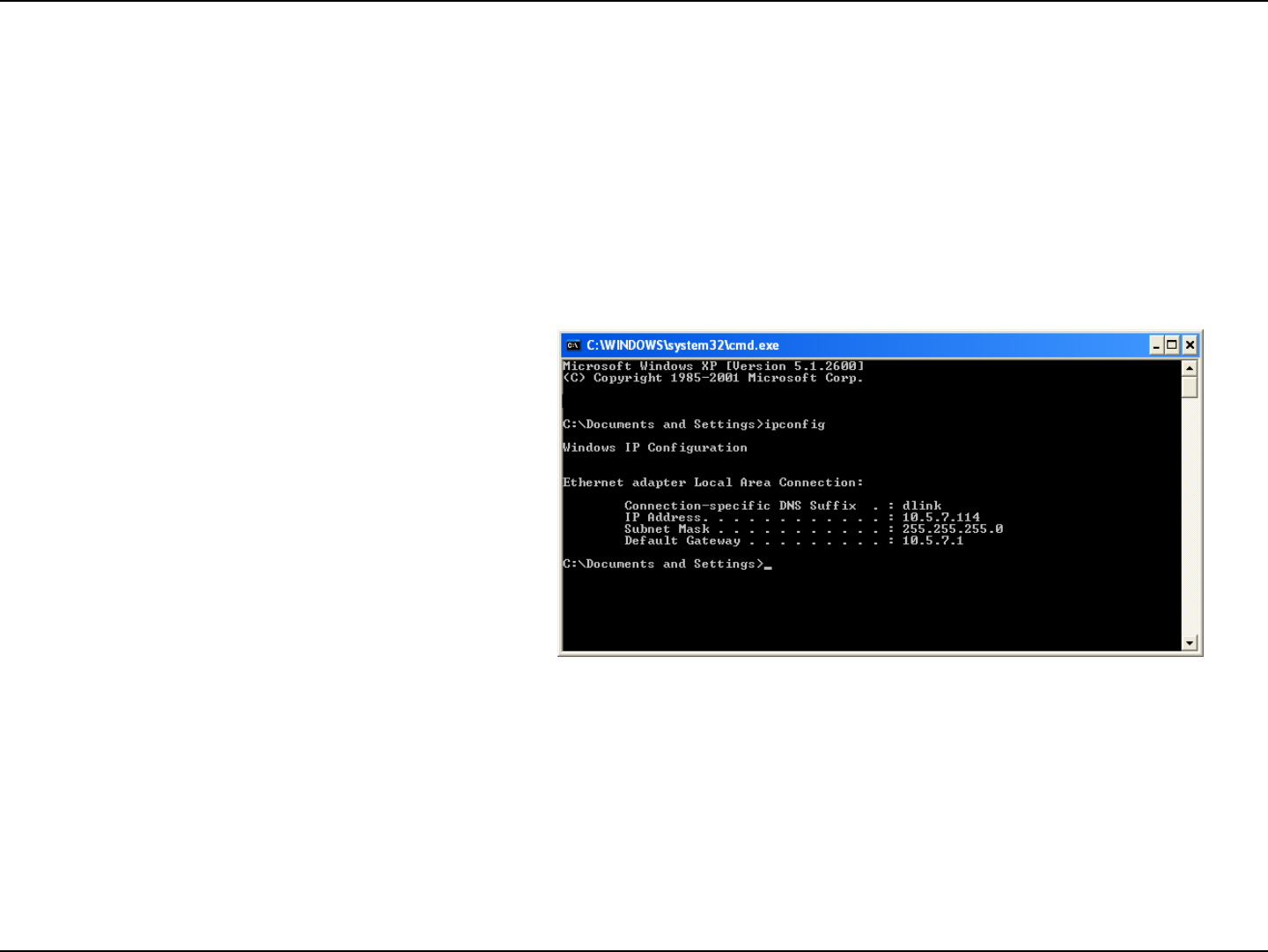

At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and
the default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings
on your router. Some rewall software programs
may block a DHCP request on newly installed
adapters.
If you are connecting to a wireless network at a
hotspot in a hotel, coffee shop, airport, or another public place, please contact an employee or administrator to verify
their wireless network settings.
96D-Link DAP-1360 User Manual
Appendix C - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps
below:
Step 1
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4

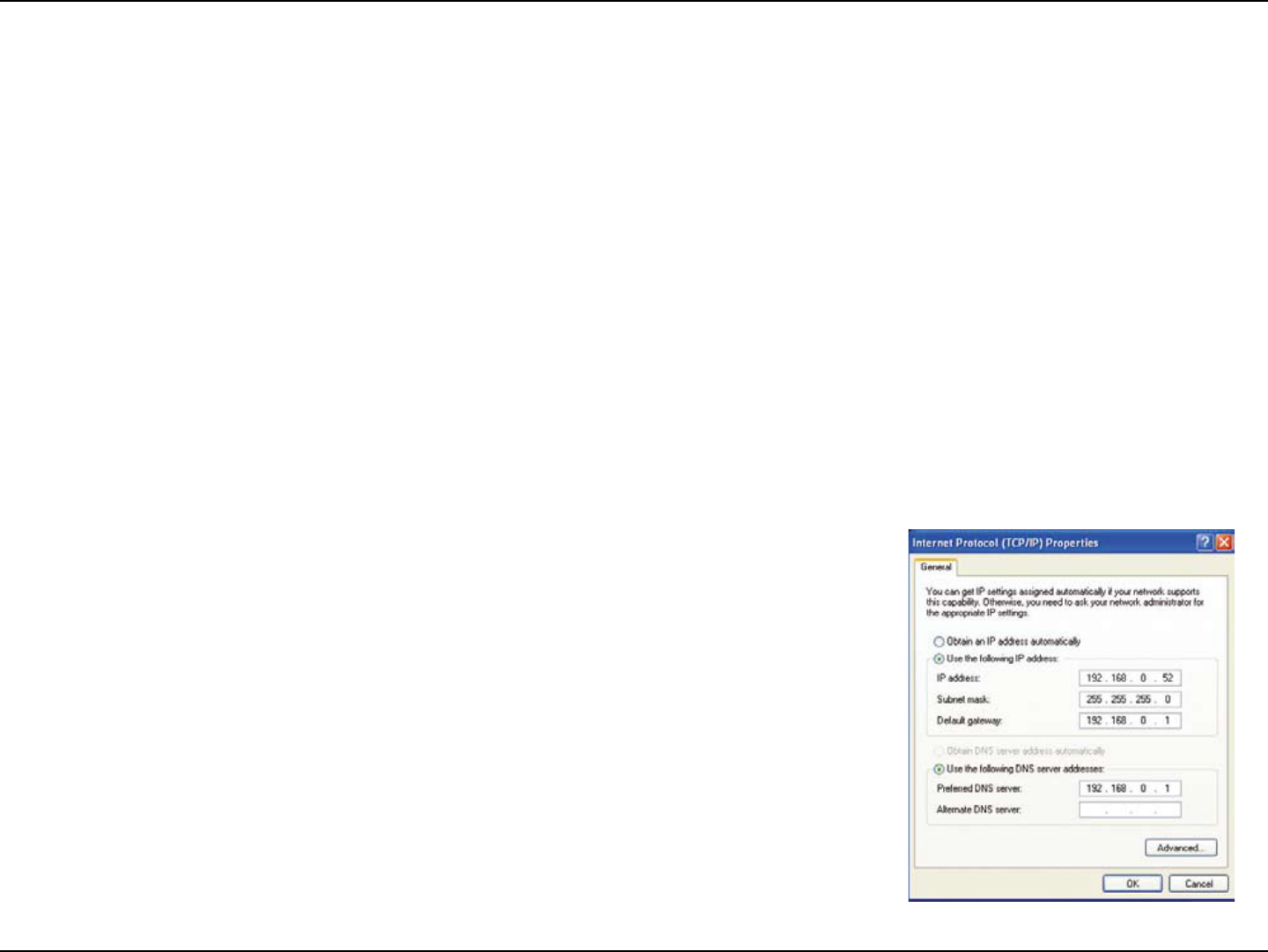

Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN
IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network. Set Default Gateway the same as the LAN
IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
97D-Link DAP-1360 User Manual
Appendix D - Technical Specications
Technical Specifications
NETWORK STANDARDS
- 802.11n wireless LAN
- 802.11g wireless LAN
- 802.11b wireless LAN
- 802.3/802.3u 10BASE-T/100BASE-TX Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
DEVICE INTERFACES
- 802.11n wireless LAN
- One 10/100BASE-TX Ethernet LAN port
OPERATING FREQUENCY
2.4 to 2.4835 GHz
OPERATING CHANNELS
- FCC: 11
- ETSI: 13
RADIO & MODULATION SCHEMES
DQPSK, DBPSK, CCK, OFDM
OPERATION MODES
- Access Point
- Repeater
- Wireless Client
- Bridge
- Bridge with AP
- WISP Client Router
- WISP Repeater
ANTENNA
Two 2dBi Gain detachable omni-directional antennas with RP-SMA
connector
SECURITY
- 64/128-bit WEP data encryption
- WPA-PSK, WPA2-PSK
- WPA-EAP, WPA2-EAP
- TKIP, AES
- MAC address ltering
- SSID broadcast disable function
QUALITY OF SERVICE (QoS)
Wi-Fi Multimedia (WMM)
DEVICE MANAGEMENT
- Web-based management through Internet Explorer v.6 or later,
Netscape Navigator v.6 or later or other Java-enabled browser
Diagnostic LED
- Power
- WLAN
- LAN
POWER INPUT
5VDC 1.2A
External power adapter
98D-Link DAP-1360 User Manual
Appendix D - Technical Specications
DIMENSIONS
144 (W) x 109 (D) x 30 (H) mm (5.67 x 4.29 x 1.18 inches)
WEIGHT
229grams
OPERATING TEMPERATURE
0°C to 55° C (32°F to 131° F)
STORAGE TEMPERATURE
-10°C to 70°C (14°F to 158°F)
OPERATING HUMIDITY
10% to 90% non-condensing
STORAGE HUMIDITY
5% to 95% non-condensing
Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafc, building materials and construction, and
network overhead lower actual data throughput rate.
99D-Link DAP-1360 User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor.
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in
workmanship and materials under normal use from the date of original retail purchase of the product, for the period set forth below
(“Warranty Period”), except as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the
actual purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Ofce. The replacement
hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part
thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects
to the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety
(90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if
D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for
the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware or part thereof that is
100D-Link DAP-1360 User Manual
Appendix E - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety
(90) days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated
in its documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the
Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under
this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially
conforms to D-Link’s functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable
to the Software. Except as otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and
is subject to the terms and conditions of the license granted by D-Link for the Software. Replacement Software will be warranted for the
remainder of the original Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable
of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by
the original licensee for the non-conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies
thereo
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover
any refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the
sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold
“As-Is” without any warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything
stated herein to the contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired
and the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sufcient detail to allow DLink to conrm the same, along with proof of purchase of the product (such
as a copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist
the customer in resolving any suspected defects with the product. If the product is considered defective, the customer must
obtain a Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID
Number at https://rma.dlink.com/.
101D-Link DAP-1360 User Manual
Appendix E - Warranty
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping
package to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside
of the package. Do not include any manuals or accessories in the shipping package. DLink will only replace the defective
portion of the product and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products
sent COD will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer
and shipped to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible
for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via
UPS Ground or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an
address in the United States, otherwise we will ship the product to you freight collect. Expedited shipping is available upon
request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product that is not
packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from
the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges
for any product that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by
D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty
installation, lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the
model or serial number has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for
repair, and shipping costs; Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage
that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other
products or services provided by anyone other than D-Link; and Products that have been purchased from inventory clearance or liquidation
sales or othe
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized
D-Link Service Ofce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY
OF ANY KIND WHATSOEVER INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT.
102D-Link DAP-1360 User Manual
Appendix E - Warranty
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF
SUCH IMPLIED WARRANTY SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO
THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT
LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR
DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT
LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR
MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED
WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO
D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR
ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR
REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM LIABILITY OF D-LINK UNDER THIS WARRANTY
IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS,
IMPLIED OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply.
This Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property
of their respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated
by the United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2009 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
103D-Link DAP-1360 User Manual
Appendix E - Warranty
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required
to take adequate measures.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is rmware-limited to channels 1 through 11.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at
the factory to match the intended destination. The rmware setting is not accessible by the end user.
104D-Link DAP-1360 User Manual
Appendix E - Warranty
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain of 2dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than
required for successful communication.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at
the factory to match the intended destination. The rmware setting is not accessible by the end user.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local
D-Link ofce.
Version 2.00
2010/01/22

Navigation menu
