Manual Part 1
2
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Table of Contents
Table of Contents
Package Contents 4
Introduction 5
Features and Benefits 6
Wireless Basics 7
Five Operational Modes 10
Getting Started 11
Using the Configuration Menu 14
Home > Basic Settings > Wireless > Access Point mode 16

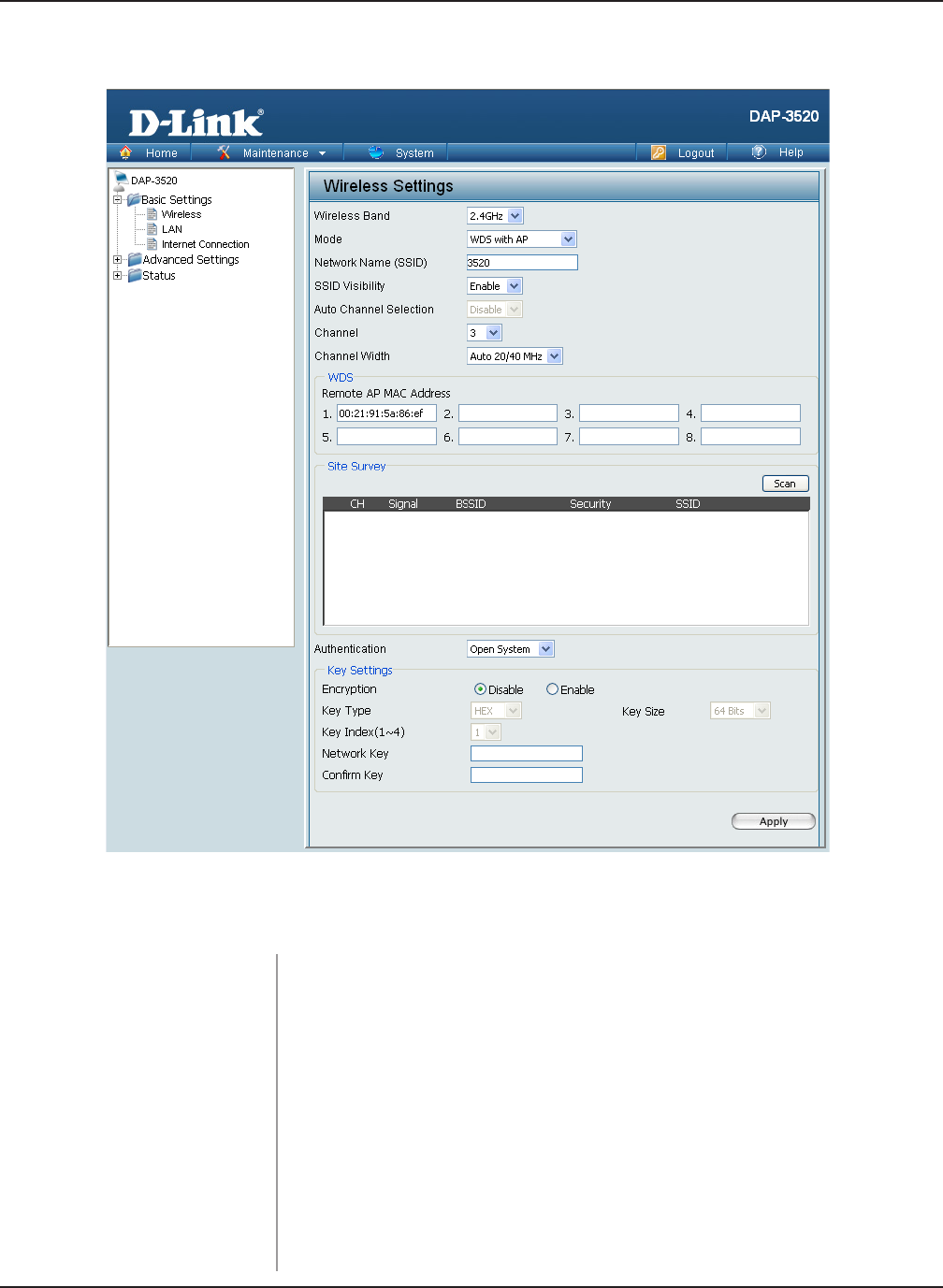

Home > Basic Settings > Wireless > WDS with AP mode 18

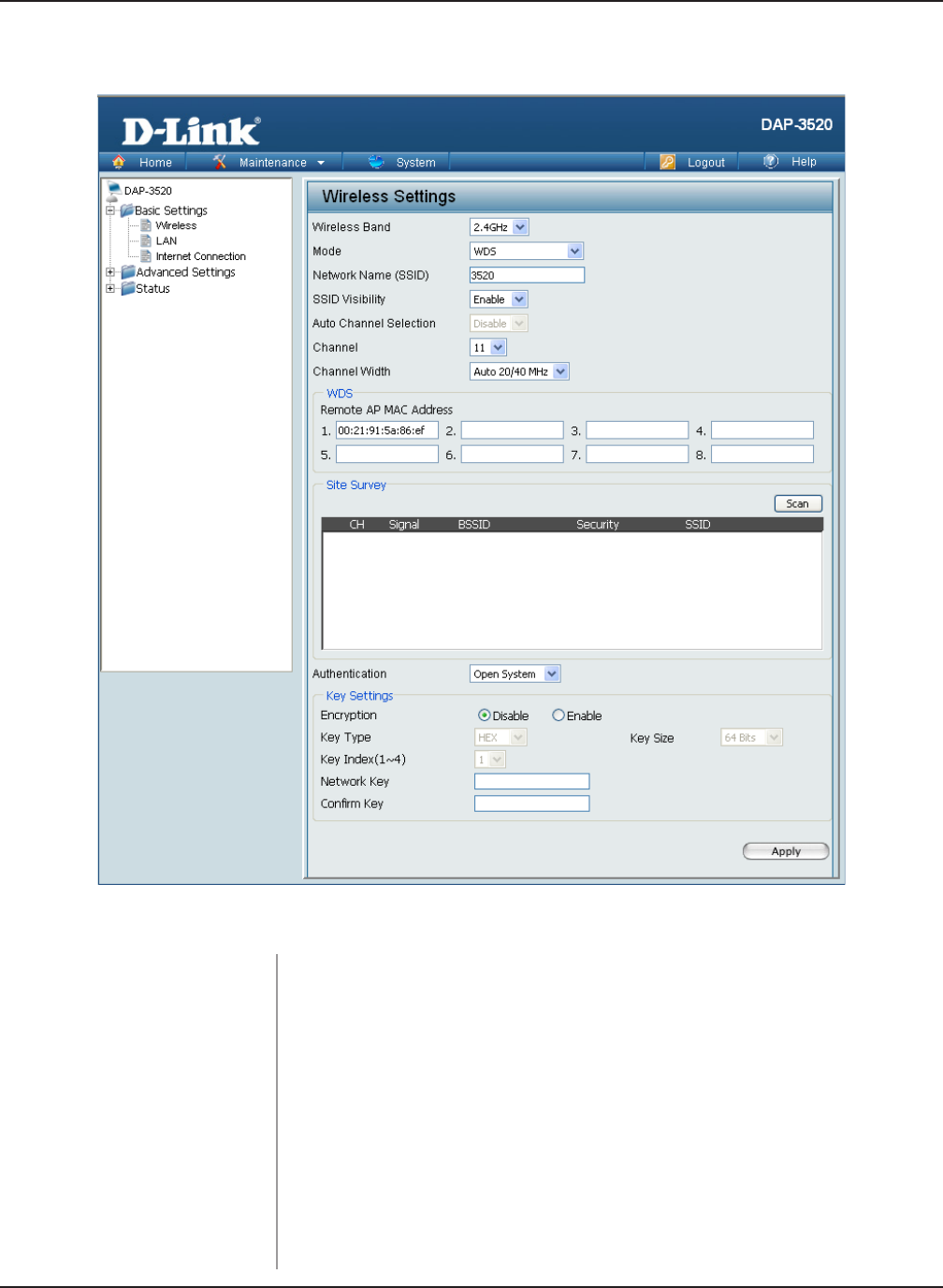

Home > Basic Settings > Wireless > WDS mode 20

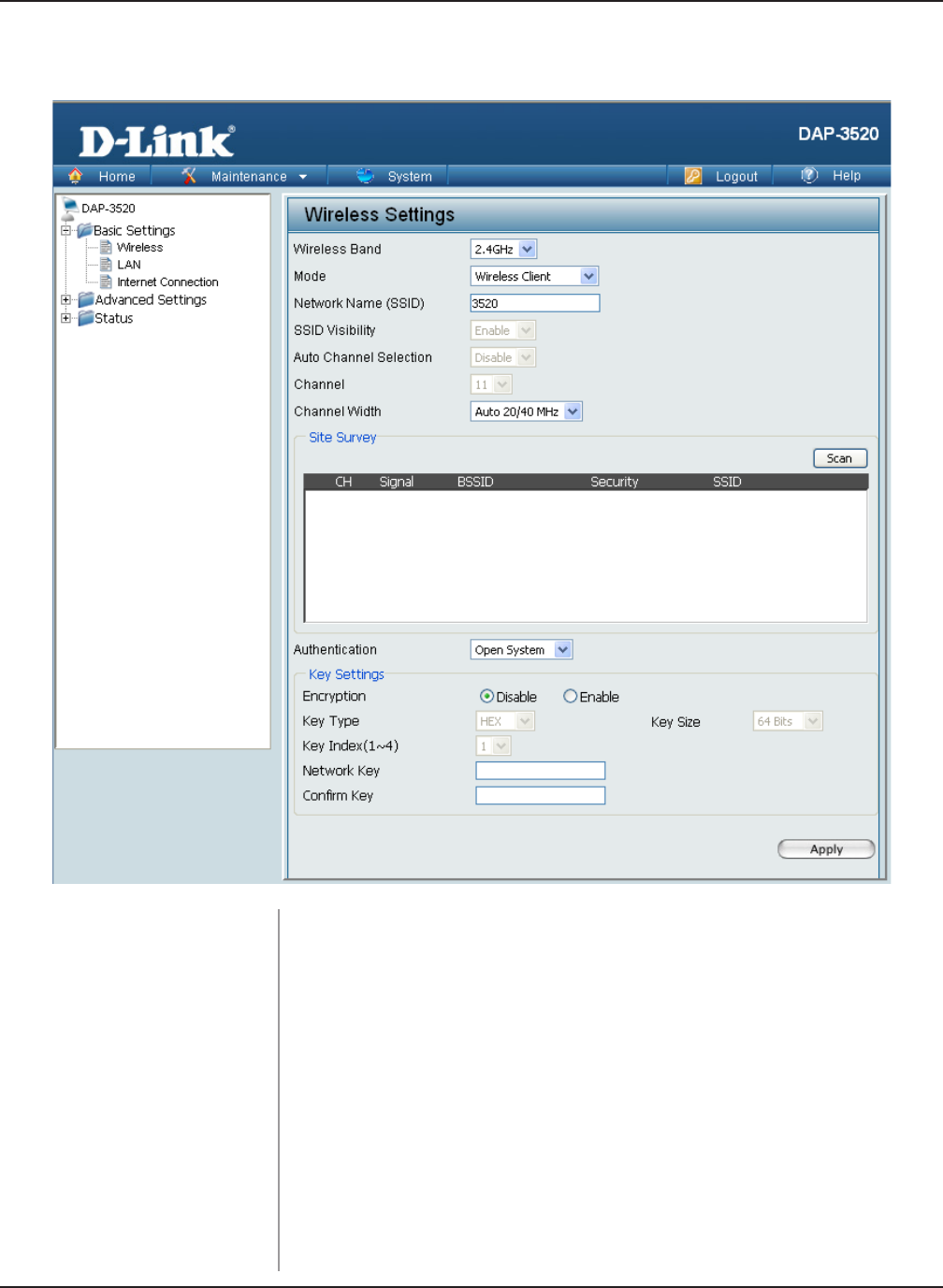

Home > Basic Settings > Wireless > Wireless Client mode 22
Home > Basic Settings > Wireless > WISP Client Router mode 24
Home > Basic Settings > Wireless > Open System or Shared Key authentication 26
Home > Basic Settings > Wireless > WPA-Personal authentication 27
Home > Basic Settings > Wireless > WPA-Enterprise authentication 28
Home > Basic Settings > LAN 30
Home > Basic Settings > Internet Connection > Static IP 31
Home > Basic Settings > Internet Connection > Dynamic IP (DHCP) 33
Home > Basic Settings > Internet Connection > PPPoE 35
Home > Basic Settings > Internet Connection > PPTP 37
Home > Advanced Settings > Performance 39
Home > Advanced Settings > Multi-SSID 42
Home > Advanced Settings > VLAN > VLAN List 45
Home > Advanced Settings > VLAN > Port List 46
Home > Advanced Settings > VLAN > Add/Edit VLAN 47
Home > Advanced Settings > VLAN > PVID Setting 48
Home > Advanced Settings > Intrusion 49
Home > Advanced Settings > Schedule 50
Home > Advanced Settings > QoS 51
Home > Advanced Settings > DHCP Server > Dynamic Pool Settings 53
Home > Advanced Settings > DHCP Server > Static Pool Setting 55
Home > Advanced Settings > DHCP Server > Current IP Mapping List 57
Home > Advanced Settings > Filters > Wireless MAC ACL 59
Home > Advanced Settings > Filters > WLAN Partition 60
Home > Advanced Settings > Router Settings > Parental Control 61
Home > Advanced Settings > Router Settings > Advance Port Forwarding 62
Home > Advanced Settings > Router Settings > MAC Filter 63
Home > Advanced Settings > Router Settings > Firewall & DMZ 64
3
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Advanced Settings > Router Settings > Advanced Network 66
Home > Status > Device Information 67
Home > Status > Client Information 68
Home > Status > WDS Information 69
Home > Status > Stats > Ethernet 70
Home > Status > Stats > WLAN 71
Home > Status > Log > View Log 72
Home > Status > Log > Log Settings 73
Maintenance > Administrator Settings 75
Maintenance > Administrator Settings > Limit Administrator 76
Maintenance > Administrator Settings > System Name Settings 77
Maintenance > Administrator Settings > Login Settings 78
Maintenance > Administrator Settings > Console Settings 79
Maintenance > Administrator Settings > SNMP Settings 80
Maintenance > Administrator Settings > Ping Control Setting 81
Maintenance > Firmware and SSL Certification Upload 82
Maintenance > Configuration File 83
Maintenance > Time and Date 84
System > System Settings 85
Help 86
Troubleshooting 87
Technical Specifications 90
Warranty 92
Registration 98
Technical Support 99
Table of Contents
4
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
D-Link DAP-3520 AirPremier N Dual Band Exterior PoE Access Point
Ethernet Cable
Manual on CD
Package Contents
Minimum System Requirements
If any of the above items are missing, please contact your reseller.
Computers with Windows®, Macintosh®, or Linux-based operating systems with
an installed Ethernet adapter
Internet Explorer version 7.0 and above or Firefox version 3.0 and above.
Package Contents
DC 48V, 0.4A Power Adapter
Installation Guide
5
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
The DAP-3520 802.11a/n or b/g/n switchable AP increases productivity by allowing you to work
faster and more efciently. With the DAP-3520, bandwidth-intensive applications like graphics or
multimedia will benet signicantly because large les are now able to move across the network
quickly.
The DAP-3520 is capable of operating in one of ve different wireless networking modes; access
point, WDS (Wireless Distribution System) with AP, WDS, Wireless Client, or WISP Client Router
mode.
Use less wiring, enjoy increased exibility, save time and money with PoE (Power over Ethernet).
With PoE, the DAP-3520 shares power and data over the CAT5 cable, making the setup of your
network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network (WLAN) in ofces
or other workplaces, trade shows, and special events, the DAP-3520 providing data transfers
rates up to 300Mbps. (The 802.11n standard is backwards compatible with 802.11a, 802.11g,
and 802.11b devices.)
Introduction
Introduction
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network
overhead can lower actual data throughout rate.
WPA/WPA2 is offered in two avors: Enterprise (used for corporations) and Personal (used for
home users).
WPA-Personal and WPA2-Personal are directed towards home users who do not have the
server-based equipment required for user authentication. The method of authentication is similar
to WEP because you dene a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared
key is conrmed and satised at both the client and access point, access is then granted. The
encryption method used is referred to as the Temporal Key Integrity Protocol (TKIP), which offers
per-packet dynamic hashing. It also includes an integrity checking feature which ensures that the
packets were not tampered with during wireless transmission.
WPA-Enterprise and WPA2-Enterprise are ideal for businesses that already have existing security
infrastructures established. Management and security implementation can now be centralized
on a server participating on the network. Utilizing 802.1x with a RADIUS (Remote Authentication
Dial-in User Service) server, a network administrator can dene a list of authorized users who
can access the wireless LAN. When attempting to access a wireless LAN with WPA-Enterprisee
congured, the new client will be requested to enter a username with a password.. If the new client
is authorized by the administration, and enters the correct username and password, then access
is then granted. In the case where an employee leaves the company, the network administrator
is able to remove the previous employee from the authorized list to avoid compromising the
EAP (Extensible Authentication Protocol) is available through the Windows® XP operating system.
You will need to use the same type of EAP protocol on all devices in your network when using
the 802.1x feature.
6
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Five different operation modes - Capable of operating in one of ve different opera-
tion modes to meet your wireless networking needs: Access Point, WDS with AP,
WDS, Wireless Client, or WISP Client Router.
Faster wireless networking with the 802.11n (draft) standard to provide a
maximum wireless signal rate of up to 300 Mbps*.
Compatible with the 802.11b standard to provide a wireless data rate of up to 11
Mbps, allowing you to migrate your system to the 802.11n (draft) and 802.11g
standards on your own schedule without sacricing connectivity.
Compatible with the 802.11g standard to provide a wireless data rate of up to 54
Mbps in the 2.4 GHz frequency range.
Compatible with the 802.11a standard to provide a wireless data rate of up to 54
Mbps in the 5 GHz frequency range.
Better security with WPA - The DAP-3520 can securely connect wireless clients
on the network using WPA (Wi-Fi Protected Access) to provide a much higher
level of security for your data and communications than its previous versions.
AP Manager II management software - The real-time display of the network's
topology and AP’s information makes network conguration and management
quick and simple.
SNMP for management - The DAP-3520 is not just fast, but also supports
SNMP v.3 for better network management. Superior wireless AP manager
software is bundled with the DAP-3520 for network conguration and rmware
upgrade. Systems administrators can also set up the DAP-3520 easily with the
Web-based conguration. A D-Link D-View 6.0 module will be downloadable
for network administration and real-time network trafc monitoring with D-Link
D-View 6.0 software.
Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
Supports 802.3af Power over Ethernet.
Supports one 10/100/1000M Ethernet port.
Operates in the 2.4~2.5 GHz and 5.15~5.85 GHz** frequency ranges.
Supports PPPoE on WAN interface (WISP Client Router mode).
Supports NAT mode and simple rewall (WISP Client Router mode).
Built-in heater.
Web-based interface for managing and conguring.
Features and Benefits
Features and Benefits
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network
overhead can lower actual data throughout rate.
**Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The
DAP-3520 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions.
7
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless
connectivity that is easy to use within your home, business or public access wireless networks.
D-Link wireless products provides you with access to the data you want, whenever and wherever
you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and ofce environments, but in public areas as well,
such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are
allowing people to work and communicate more efciently. Increased mobility and the absence
of cabling and other types of xed infrastructure have proven to be benecial to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards, allowing wireless users to use the same applications as those used on
a wired network.
People use WLAN technology for many different purposes:
Mobility - productivity increases when people can have access to data in any location within
the operating range of their WLAN. Management decisions based on real-time information can
signicantly improve the efciency of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks
that frequently change can benet from WLAN's ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and network expansion - by avoiding the complications of troublesome cables,
a WLAN system can be fast and easy during installation, especially since it can eliminate the
need to pull cable through walls and ceilings. Wireless technology provides more versatility by
extending the network beyond the home or ofce.
Inexpensive solution - wireless network devices are as competitively priced as conventional
Ethernet network devices. The DAP-3520 saves money by providing users with multi-functionality
congurable in four different modes.
Scalability - Congurations can be easily changed and range from Peer-to-Peer networks,
suitable for a small number of users to larger Infrastructure networks to accommodate hundreds
or thousands of users, depending on the number of wireless devices deployed.
Wireless Basics
8
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Standards-Based Technology
The DAP-3520 Wireless Access Point utilizes the 802.11a, 802.11b, 802.11g, and 802.11n (draft)
standards.
The IEEE 802.11n (draft) standard is an extension of the 802.11a, 802.11b, and 802.1g standards
that came before it. It increases the maximum wireless signal rate up to 300 Mbps* within both* within both
the 2.4 GHz and the 5 GHz bands, utilizing OFDM technology.
This means that in most environments - within the specied range of this device - you will be able
to transfer large les quickly, or even watch a movie in MPEG format over your network without
noticeable delays. This technology works by transmitting high-speed digital data over a radio
wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by
splitting the radio signal into multiple smaller sub-signals that are then simultaneously transmitted
at different frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in
signal transmissions.
The D-Link DAP-3520 will automatically sense the best possible connection speed to ensure the
greatest possible speed and range.
802.11n offers the most advanced network security features available today, including WPA.
Important Information
This product should ONLY be installed by an experienced installer who is familiar with local
building and safety codes and where ever applicable, is licensed by the appropriate authorities.
Failure to do so may void the D-Link product warranty and may expose the end user or the
service provider to legal and nancial liabilities. D-Link and its resellers or distributors are not
liable for injury, damage, or violation of regulations associated with the installation of outdoor
units or antennas.
A safety grounding system is necessary to protect your outdoor installation from lightning strikes
and the build-up of static electricity. The grounding system must comply with the National Electrical
Code and safety standards that apply in your country. Always check with a qualied electrician
if you are in doubt as to whether your outdoor installation is properly grounded.
Wireless Basics
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network overhead
can lower actual data throughout rate.
9
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Wireless Basics
The D-Link DAP-3520 lets you access your network, using a wireless connection, from virtually
anywhere within its operating range. Keep in mind, however, that the number, thickness and
location of walls, ceilings, or other objects that the wireless signals must pass through, may limit
the range. Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range is to follow
these basic guidelines:
Keep your product away - at least 3-6 feet or 1-2 meters - from electrical devices
or appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DAP-3520 and other network
devices to a minimum - each wall or ceiling can reduce your DAP-3520’s range
by 3-90 feet (1-30 meters). Position your devices so that the number of walls or
ceilings is minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle, the wall appears to be over 42 feet (14 meters) thick! Position
your devices so that the signal will travel straight through a wall or ceiling - instead
of at an angle - for better reception.
2
Building materials can impede the wireless signal - a solid metal door or aluminum
studs can have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or open
doorways, and not through other materials.
3
Installation Considerations
If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling
fans, lights, and home security systems), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away
from your wireless devices as possible. The base transmits a signal even when the
phone is not in use.
5
10
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Five Operational Modes
Five Operational Modes
Operation Mode
(Only supports 1 mode at a time)
Function
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still functioning
as a wireless AP
WDS Wirelessly connect multiple networks
Wireless Client AP acts as a wireless network adapter for your Ethernet-
enabled device
WISP Client Router Transforms your wireless AP into a WISP Client router
11
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Getting Started
Consult with your cable or DSL provider for proper installation of the modem.
Connect the cable or DSL modem to a router. See the printed Install Guide
included with your router
.
If you are connecting a desktop computer to your network, install a wireless
PCI adapter into an available PCI slot on your desktop computer.
Install the drivers for your wireless CardBus adapter into a laptop computer.
See the printed Install Guide included with the DAP-3520
.
2
3
4
5
6
You will need broadband Internet access.
1
Getting Started
12
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Getting Started

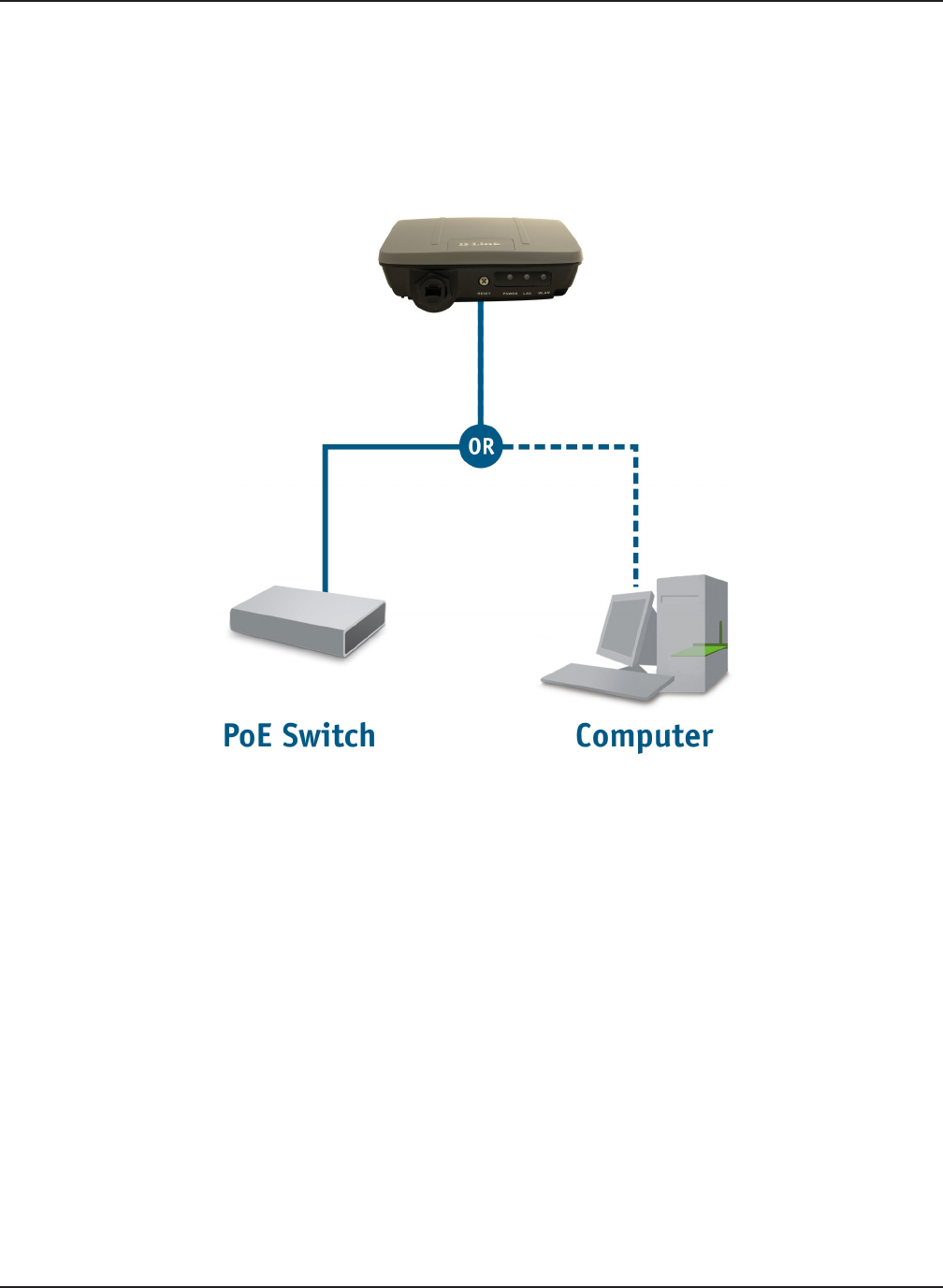

Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package) to the
LAN port on the DAP-3520 and the other end of the Ethernet cable to either
your computer or to your PoE switch. The AP can be powered on by a PoE
switch or by the power adapter shipped with the AP.
13
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Getting Started

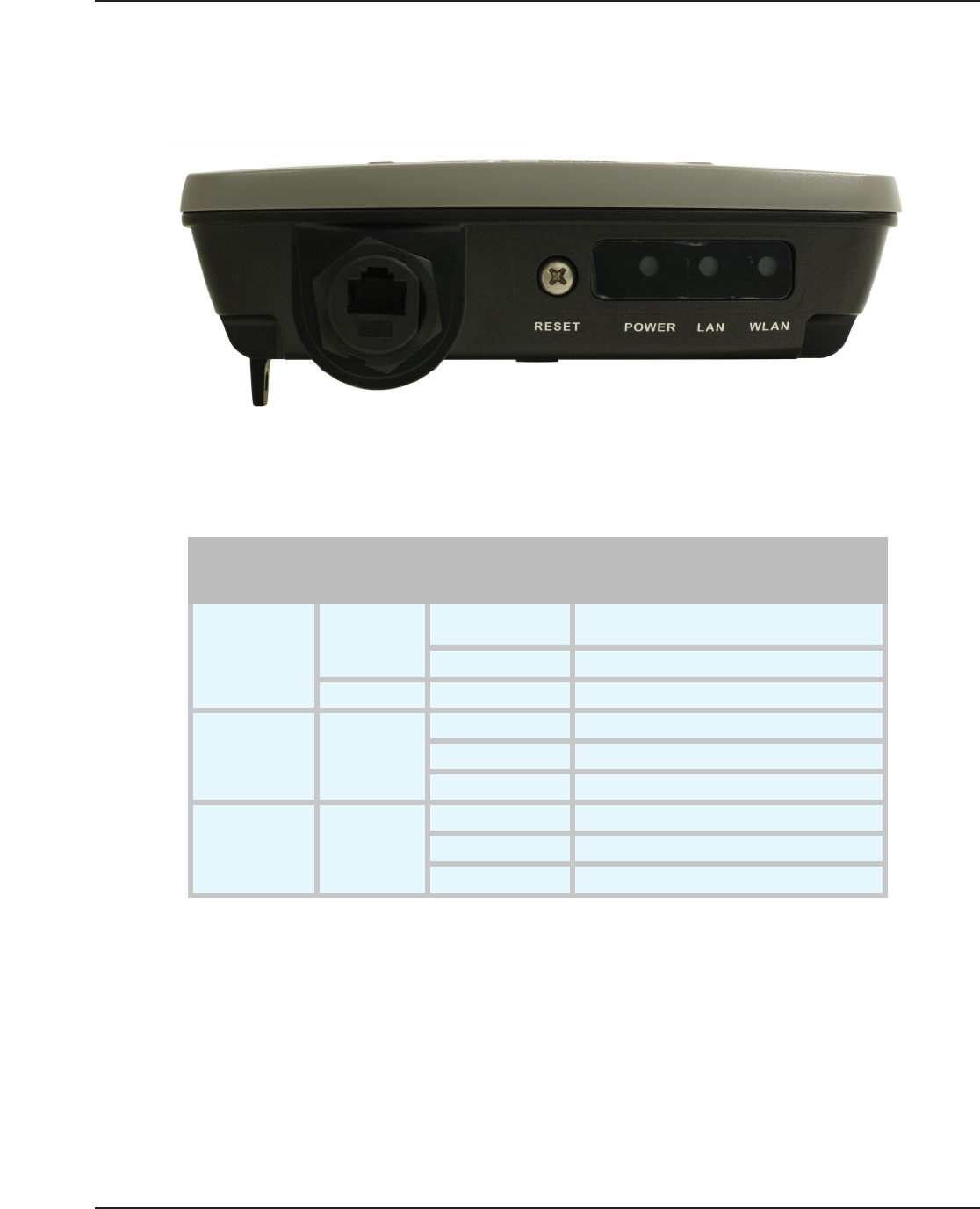

Reading the LEDs
LED Color Status Description
Power Green Solid Green The device is ready.
Light Off The device is powering off.
Red Blinking Red The device is booting up.
LAN Green Solid Green The link is up.
Blinking Green Data is being transmitted.
Light Off The link is down.
WLAN Green Solid Green Wireless is ready.
Blinking Green Data is being transmitted.
Light Off Wireless is off.
14
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Using the Configuration Menu

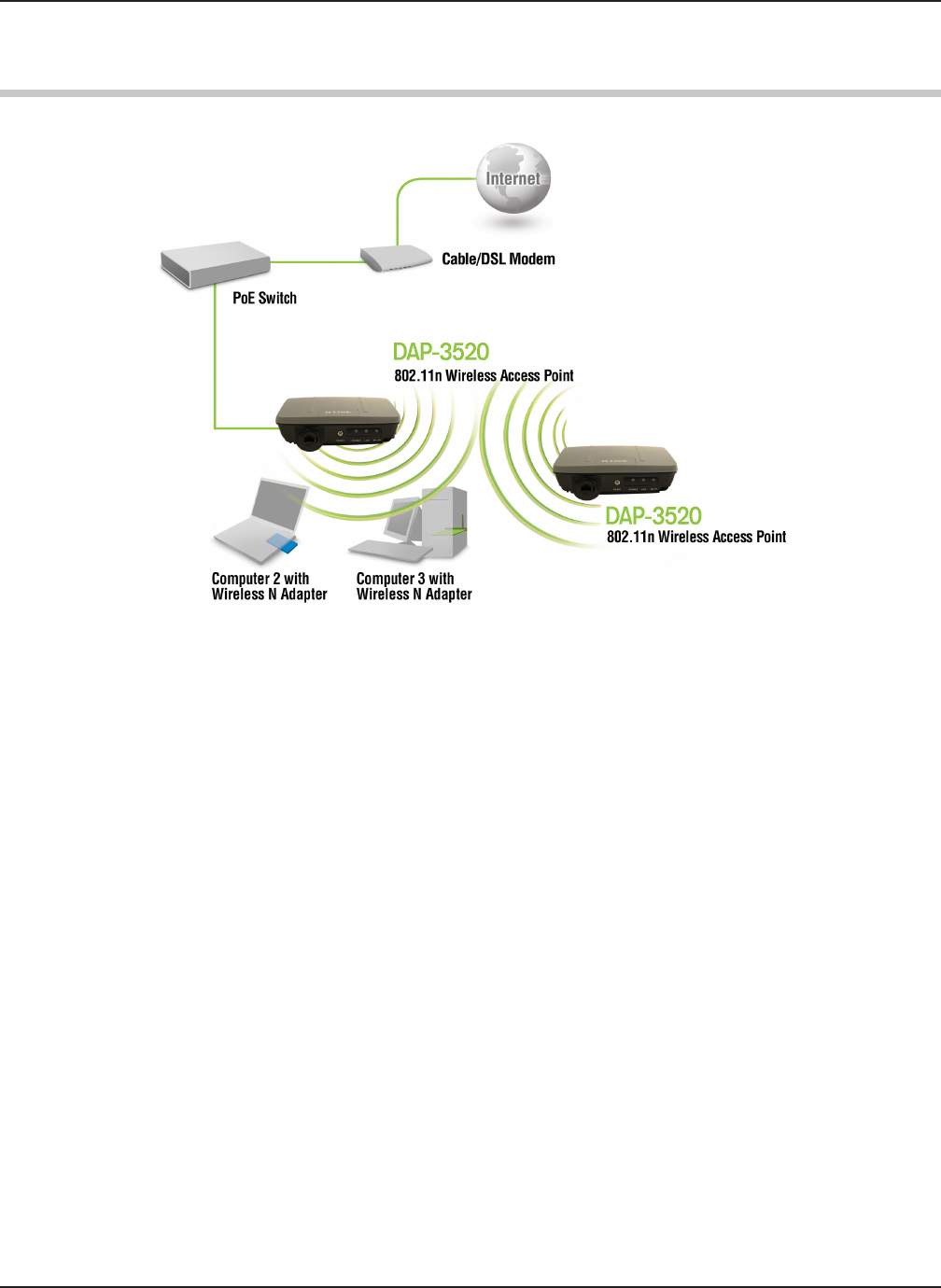

To congure the DAP-3520, use a computer that is connected to the DAP-3520 with an Ethernet
cable (see the
Network Layout diagram
).
First, disable the Access the Internet using a proxy server function. To disable this function,
go to Control Panel > Internet Options > Connections > LAN Settings and uncheck the
enable box.
Start your web browser program (Internet Explorer, Mozilla Firefox).
Type the IP address and http port of the DAP-3520 in the address eld
(http://192.168.0.50) and press Enter. Make sure that the IP addresses of the
DAP-3520 and your computer are in the same subnet.

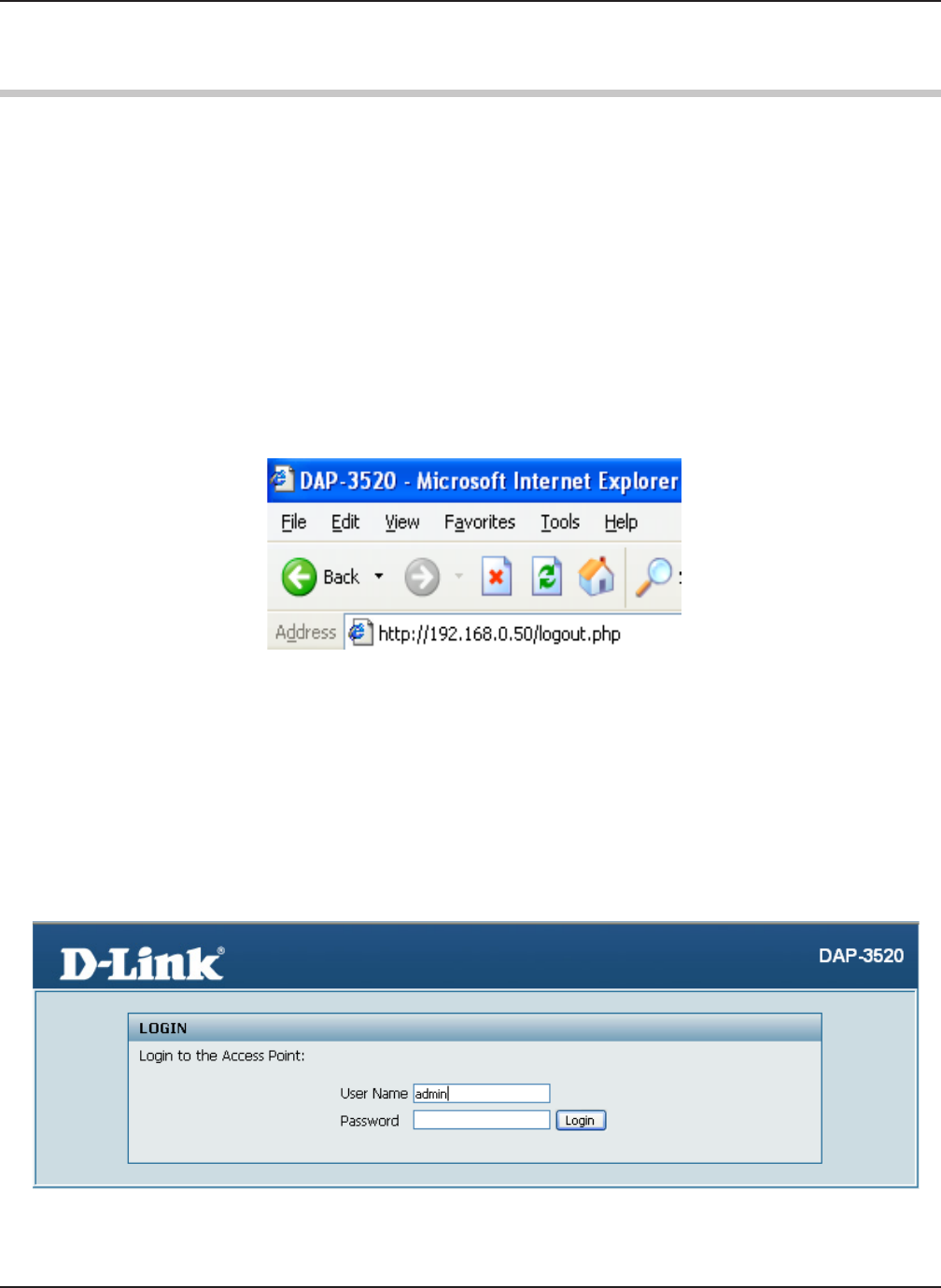

After the connection is established, you will see the user identication window as shown.
Note: If you have changed the default IP address assigned to the DAP-3520, make sure to enter
the correct IP address.
Type “admin” in the User Name eld.
Leave the Password eld blank.
Click the Login button.
Note: If you have changed the password, make sure to enter the correct password.
15
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu

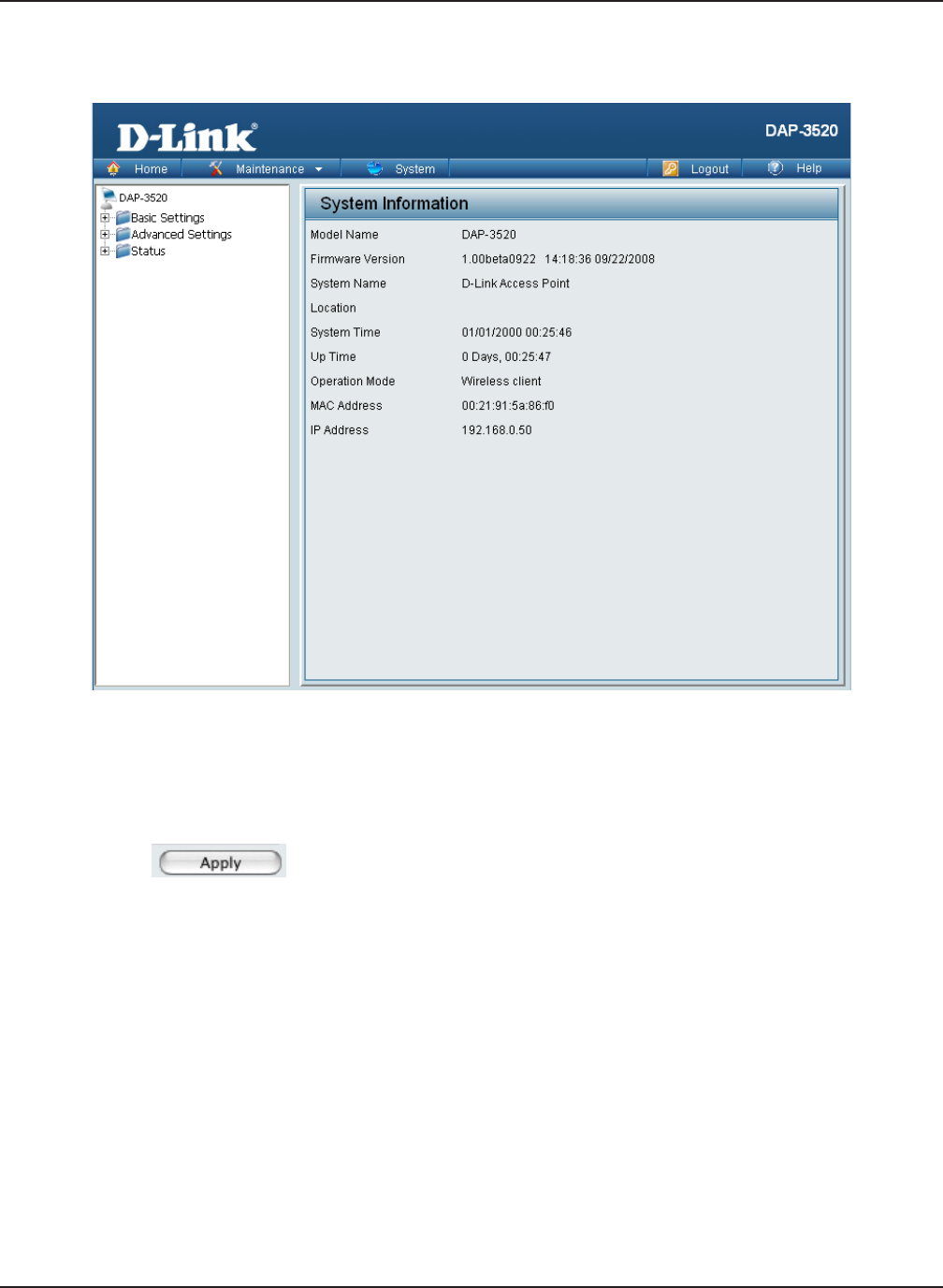

After successfully logging into the DAP-3520 the following screen will appear:
When making changes on most of the conguration screens in this section, use the Apply button
at the bottom of each screen to save your conguration changes.
Click the Apply button to congure changes.
16
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

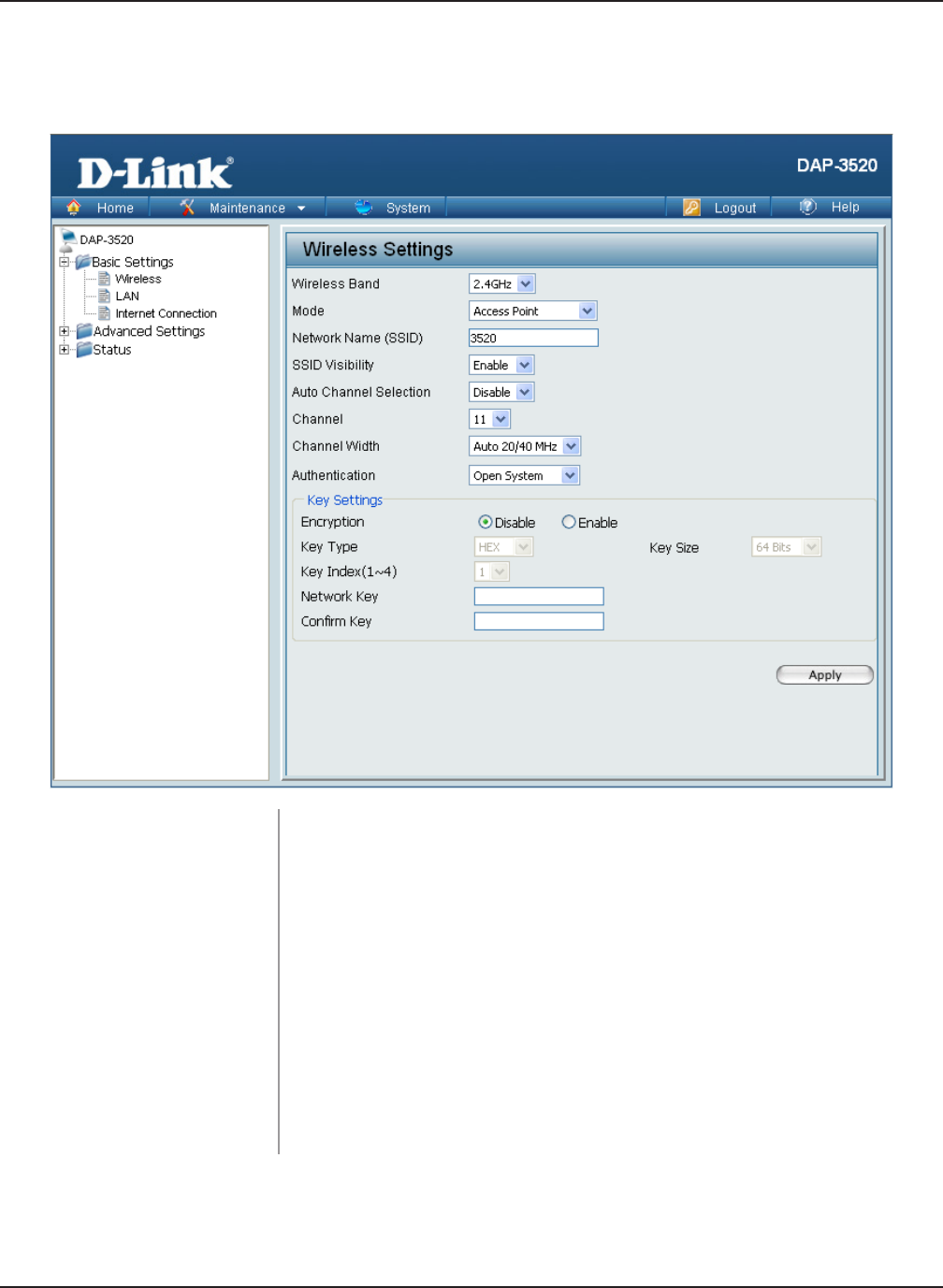

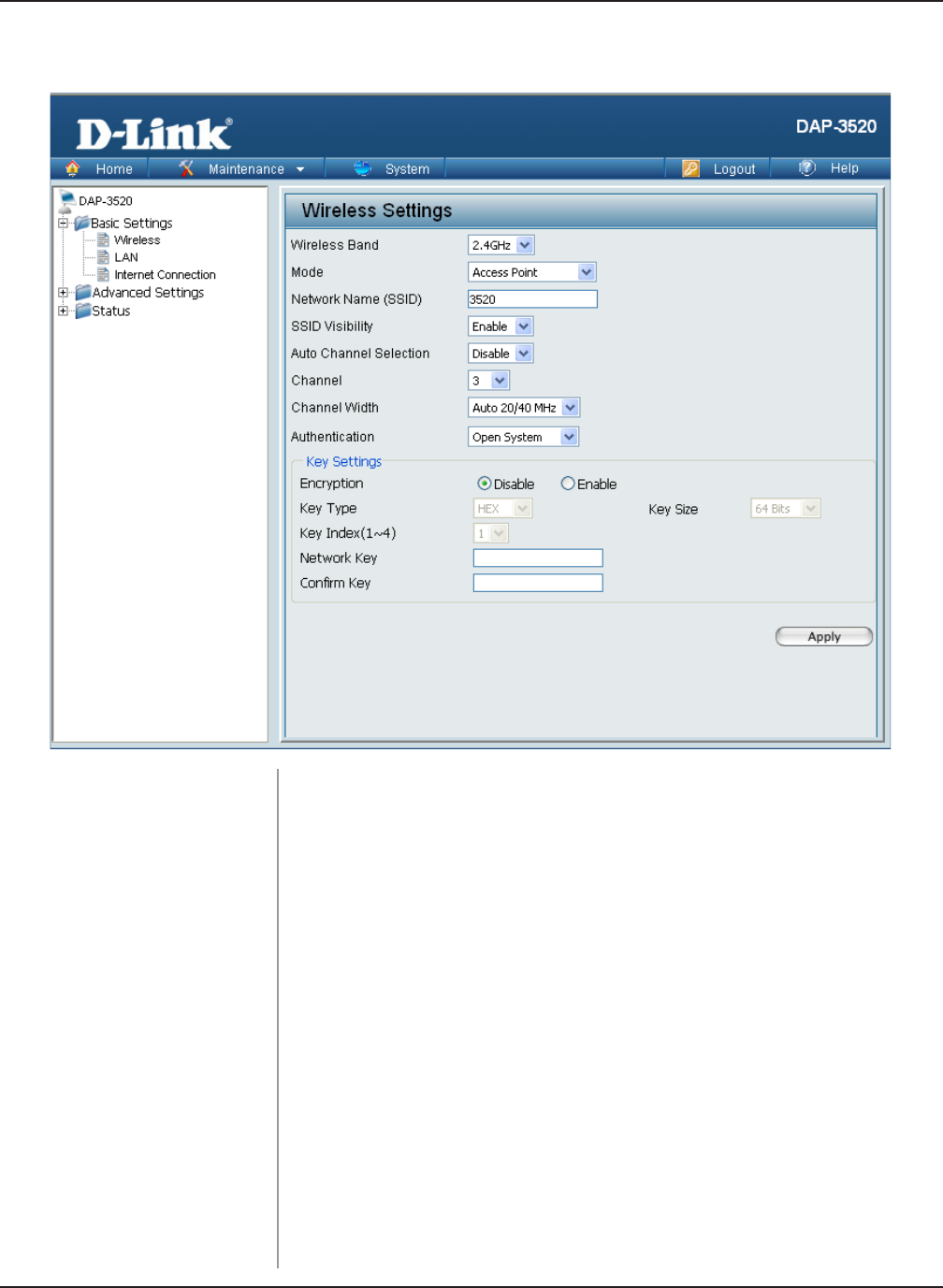

Home > Basic Settings > Wireless > Access Point mode
Select Access Point from the pull-down menu. The other four
choices are WDS with AP, WDS, Wireless Client, and WISP Client
Router.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
The SSID can be up to 32 characters and is case-sensitive.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
Enabling this feature automatically selects the channel that provides
the best wireless performance. Enable is set by default. The channel
selection process only occurs when the AP is booting up.
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu.
Using the Configuration Menu
17
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Channel: All devices on the network must share the same channel. To change
the channel, rst toggle the Auto Channel Selection setting to Dis-
able, and then use the pull-down menu to make the desired selec-
tion. (Note: The wireless adapters will automatically scan and match
the wireless settings.)
Allows you to select the channel width you would like to operate in.
Select 20 MHz if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to both 802.11n and non-802.11n wire-
less devices on your network.

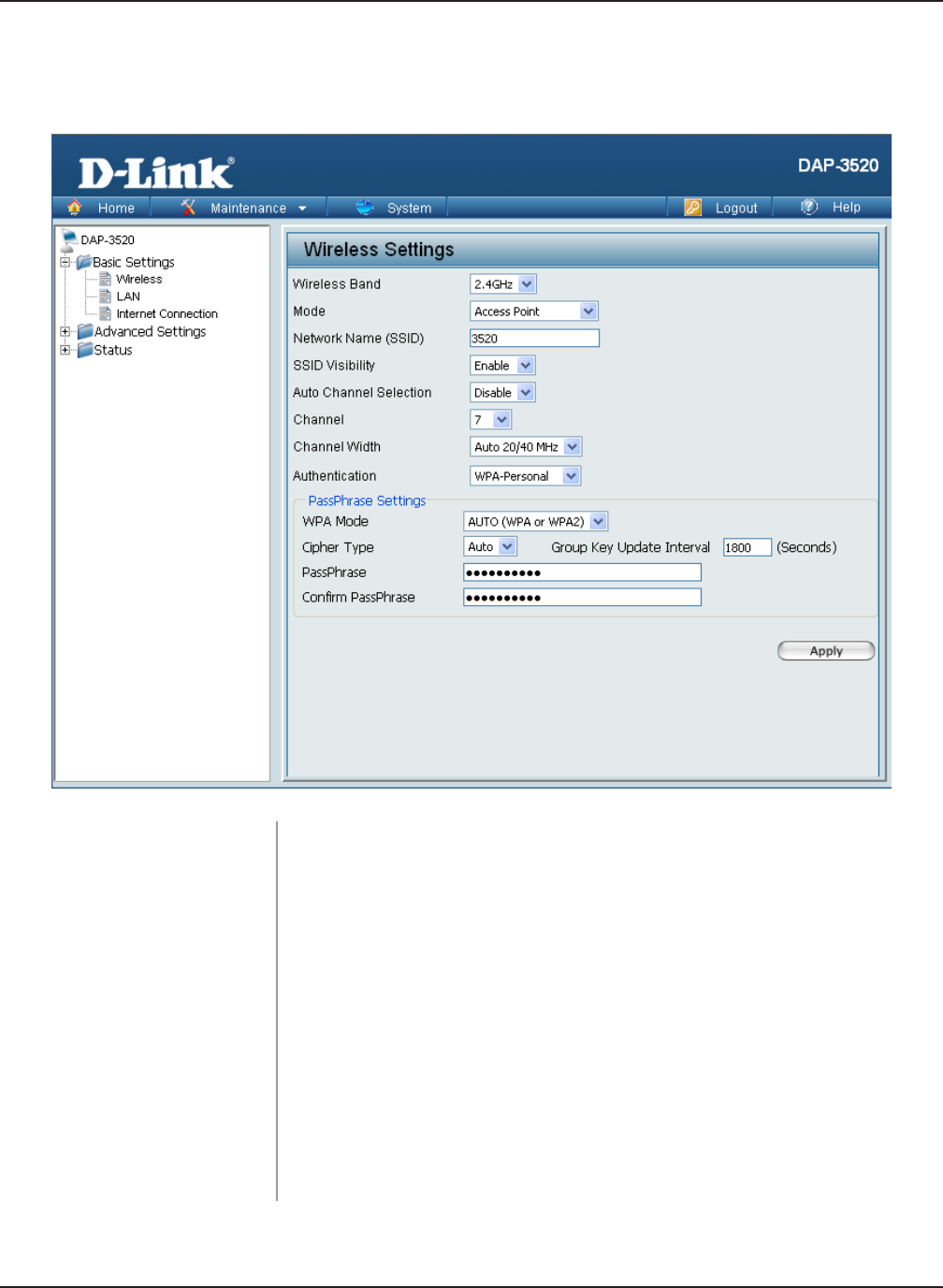

Use the pull-down menu to choose Open System, Shared Key,
WPA-Personal, or WPA-Enterprise.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion
of a RADIUS server.
Using the Configuration Menu
Channel Width:
Authentication:
18
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Wireless > WDS with AP mode
WDS with AP mode is selected from the pull-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band:
In WDS with AP mode, the DAP-3520 wirelessly connects multiple networks while still functioning
as a wireless AP.
Using the Configuration Menu
Select either 2.4 GHz or 5 GHz from the pull-down menu.
19
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Auto Channel
Selection:
Enter the MAC addresses of the APs on your network that will serve as
bridges to wirelessly connect multiple networks.
Using the Configuration Menu
Site Survey:
Remote AP MAC Address:
All devices on the network must share the same channel. To change
the channel, use the pull-down menu to make the desired selection.
(Note: The wireless adapters will automatically scan and match the
wireless settings.)
Channel:
Enabling this feature automatically selects the channel that will pro-
vide the best wireless performance. This feature is not supported
in WDS with AP mode. The channel selection process only occurs
when the AP is booting up.
Authentication:
Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with. .
Use the pull-down menu to choose Open System, Shared Key, or
WPA-Personal.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Allows you to select the channel width you would like to operate in.
Select 20 MHz if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to both 802.11n and non-802.11n wire-
less devices on your network.
Channel Width:
20
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Wireless > WDS mode
In WDS mode, the DAP-3520 wirelessly connects multiple networks, without functioning as a
wireless AP.
Using the Configuration Menu
WDS is selected from the pull-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu.
21
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Auto Channel
Selection:
Enter the MAC addresses of the APs on your network that will serve as
bridges to wirelessly connect multiple networks.
Site Survey:
Remote AP MAC Address:
All devices on the network must share the same channel. To change
the channel, use the pull-down menu to make the desired selec-
tion.
Channel:
Enabling this feature automatically selects the channel that will provide
the best wireless performance. This feature is not supported in WDS
mode.
Authentication:
Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the pull-down menu to choose Open System, Shared Key, or
WPA-Personal.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Channel Width: Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz.
22
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Wireless > Wireless Client mode
This option is unavailable in wireless client mode.
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band:
Using the Configuration Menu
Select either 2.4 GHz or 5 GHz from the pull-down menu.
Wireless Client is selected from the pull-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network.
Enabling this feature automatically selects the channel that will pro-
vide the best wireless performance. This feature is not supported in
Wireless Client mode.
Auto Channel
Selection:
23
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
The channel used will be displayed, and follow the root AP.
Authentication:
Channel:
Site Survey: Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the pull-down menu to choose Open System or WPA-Per-
sonal.
Select Open System to communicate the key across the
network.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz.
Channel Width:
Using the Configuration Menu
24
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

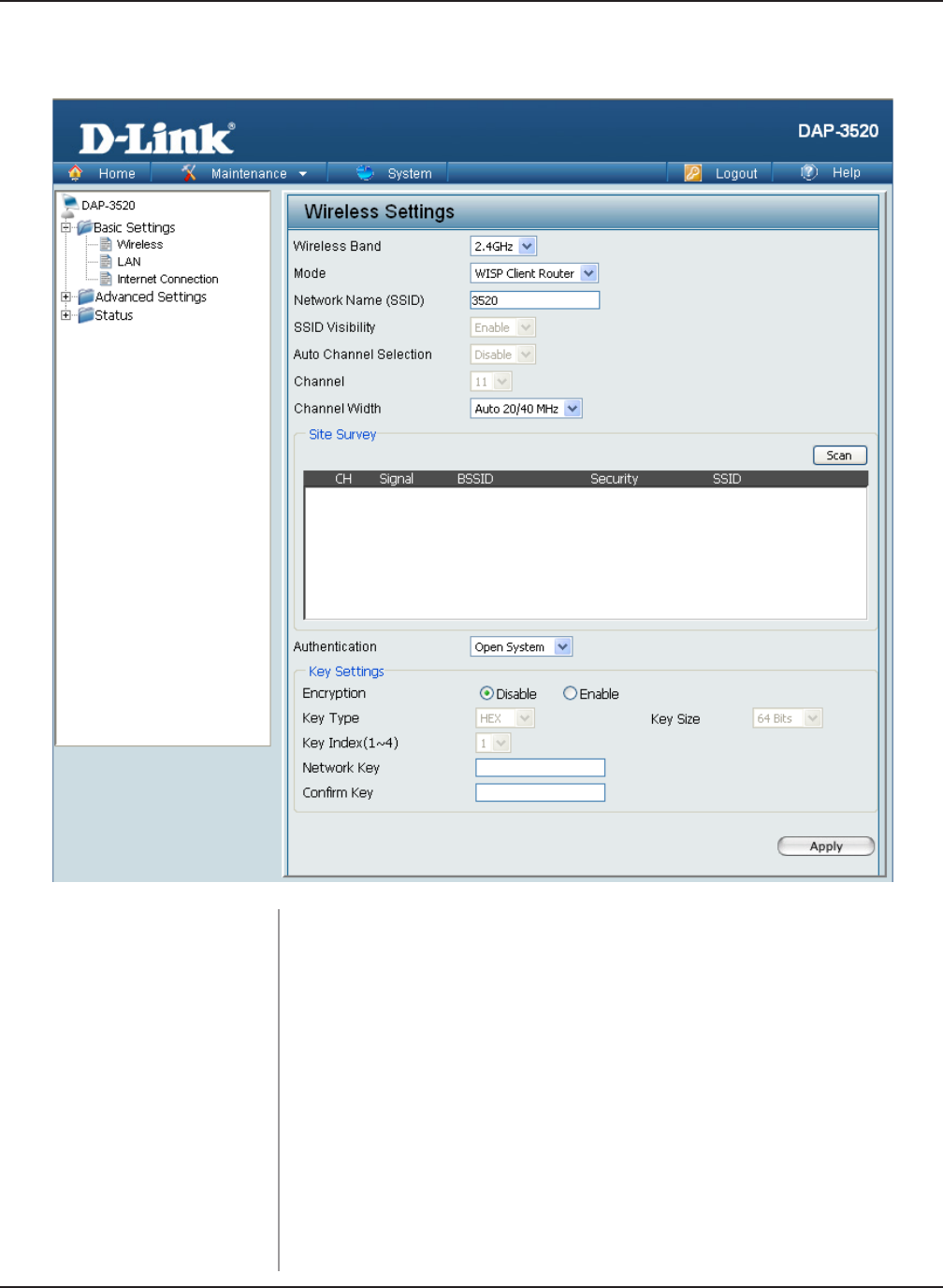

Home > Basic Settings > Wireless > WISP Client Router mode
This option is unavailable in wireless client mode.
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu.
WISP Client Router is selected from the pull-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network.
Enabling this feature automatically selects the channel that will pro-
vide the best wireless performance. This feature is not supported
in Wireless Client mode.
Auto Channel
Selection:
Using the Configuration Menu
25
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
The channel used will be displayed, and follow the root AP.
Authentication:
Channel:
Site Survey: Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the pull-down menu to choose Open System or WPA-Per-
sonal.
Select Open System to communicate the key across the
network.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz.
Channel Width:
Using the Configuration Menu
26
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Home > Basic Settings > Wireless > Open System or
Shared Key authentication
Key Index (1~4):
Key:
Encryption: Use the radio button to disable or enable encryption.
Key Type*:
Key Size:
Input up to four keys for encryption. You will select one of these
keys in the Key Index pull-down menu.
Enter a network key, otherwise known as a password.
Retype the network key.
**Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F.
*ASCII (American Standard Code for Information Interchange) is a code that represents
English letters using numbers ranging from 0-127.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select the 1st through the 4th key to be the active key.
Confirm Key:
Network Key:
27
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Wireless > WPA-Personal
authentication
Cipher Type:
Group Key Update
Interval:
Select the interval during which the group key will be valid. The
default value of 1800 is recommended.
When you select WPA-Personal, you must also select AUTO, AES,
or TKIP from the pull down menu.
PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the
corresponding eld.
Using the Configuration Menu
When WPA-Personal is selected for Authentication type, you must
also select a WPA mode from the pull-down menu: AUTO (WPA or
WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use different
algorithms. AUTO (WPA or WPA2) allows you to use both WPA
and WPA2.
WPA Mode:
Confirm PassPhrase: Retype the PassPhrase in the corresponding eld.
28
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Wireless > WPA-Enterprise
authentication
Cipher Type:
Group Key Update
Interval:
When WPA-Enterprise is selected, you must also select a cipher
type from the pull-down menu: Auto, AES, or TKIP.
Select the interval during which the group key will be valid.
1800 is the recommended value as a lower interval may reduce
data transfer rates.
Using the Configuration Menu
When WPA-Enterprise is selected, you must also select a WPA
mode from the pull-down menu: AUTO (WPA or WPA2), WPA2
Only, or WPA Only. WPA and WPA2 use different algorithms. AUTO
(WPA or WPA2) allows you to use both WPA and WPA2.
WPA Mode:
29
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Enable or disable Microsoft Network Access Protection.
Network Access Protection:
RADIUS Server: Enter the IP address of the primary RADIUS server. You must also
congure RADIUS port and RADIUS secret. In addition to a primary
RADIUS server, the AP allows you to set up an optional backup
RADIUS server.
RADIUS Port: Enter the RADIUS port.
RADIUS Secret:
Accounting Mode:
Accounting Server:
Enter the RADIUS secret.
Use the drop-down menu to Enable the accounting mode feature.
Enter the IP address of the primary accounting server. You must
also congure the accounting port and the accounting secret. In
addition, to a primary accounting server, the AP allows you to setup
an optional backup accounting server.
Enter the accounting port.
Enter the accounting secret.
Accounting Port:
Accounting Secret:
30
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Static IP (Manual) is chosen here. Choose this option if you do not
have a DHCP server in your network, or if you wish to assign a static
IP address to the DAP-3520. When Dynamic IP (DHCP) is selected,
the other elds here will be grayed out. Please allow about 2 minutes
for the DHCP client to be functional once this selection is made.
The default IP address is 192.168.0.50. Assign a static IP address
that is within the IP address range of your network.
Enter the subnet mask. All devices in the network must share the
same subnet mask.
Enter the IP address of the gateway in your network. If there is a
gateway in your network, please enter an IP address within the range
of your network.

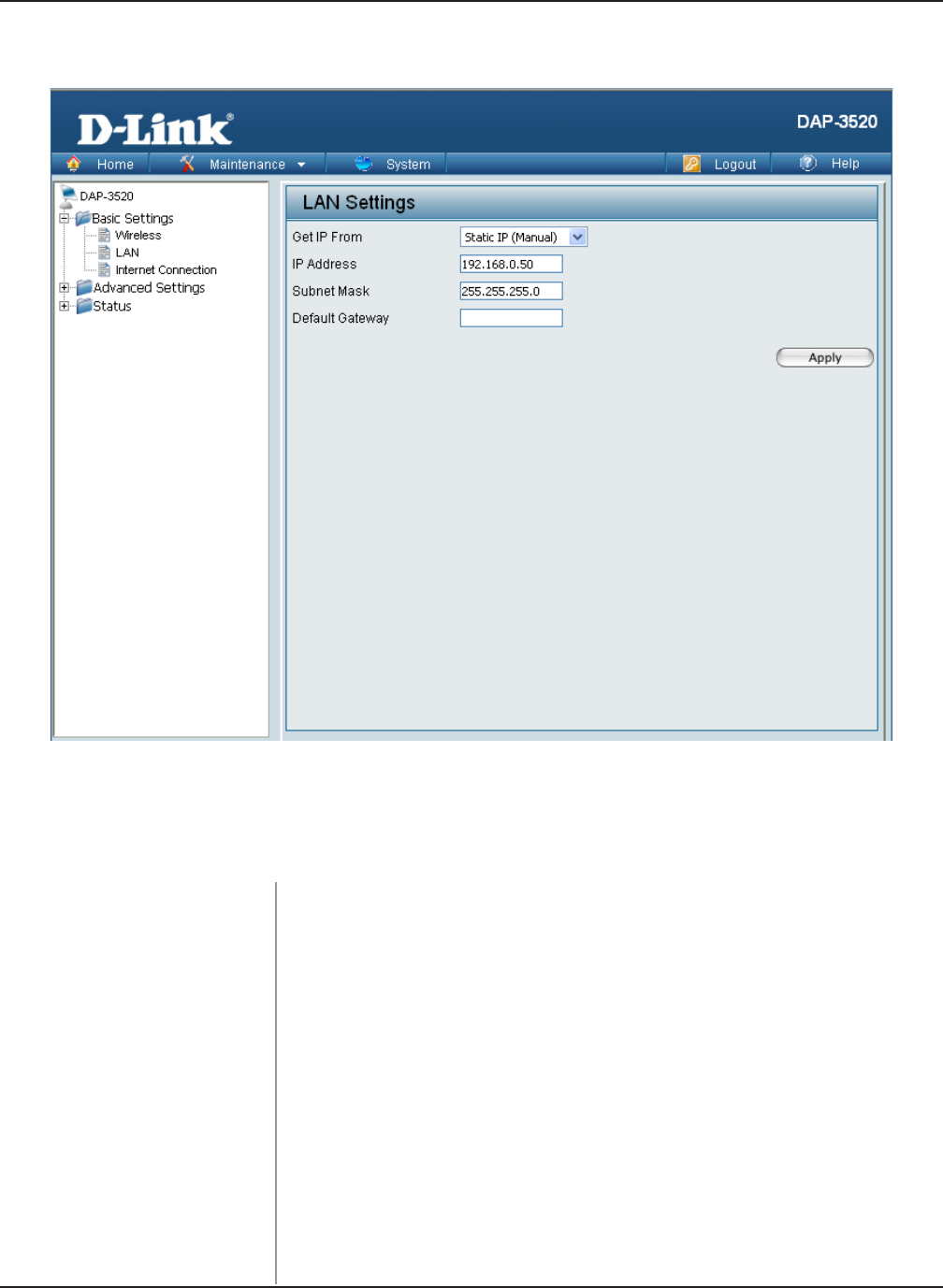

Home > Basic Settings > LAN
Using the Configuration Menu
Get IP From:
IP Address:
Subnet Mask:
Default Gateway:
LAN is short for Local Area Network. This is considered your internal network. These are the
IP settings of the LAN interface for the DAP-3520. These settings may be referred to as private
settings. You may change the LAN IP address if needed. The LAN IP address is private to your
internal network and cannot be seen on the Internet.
31
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

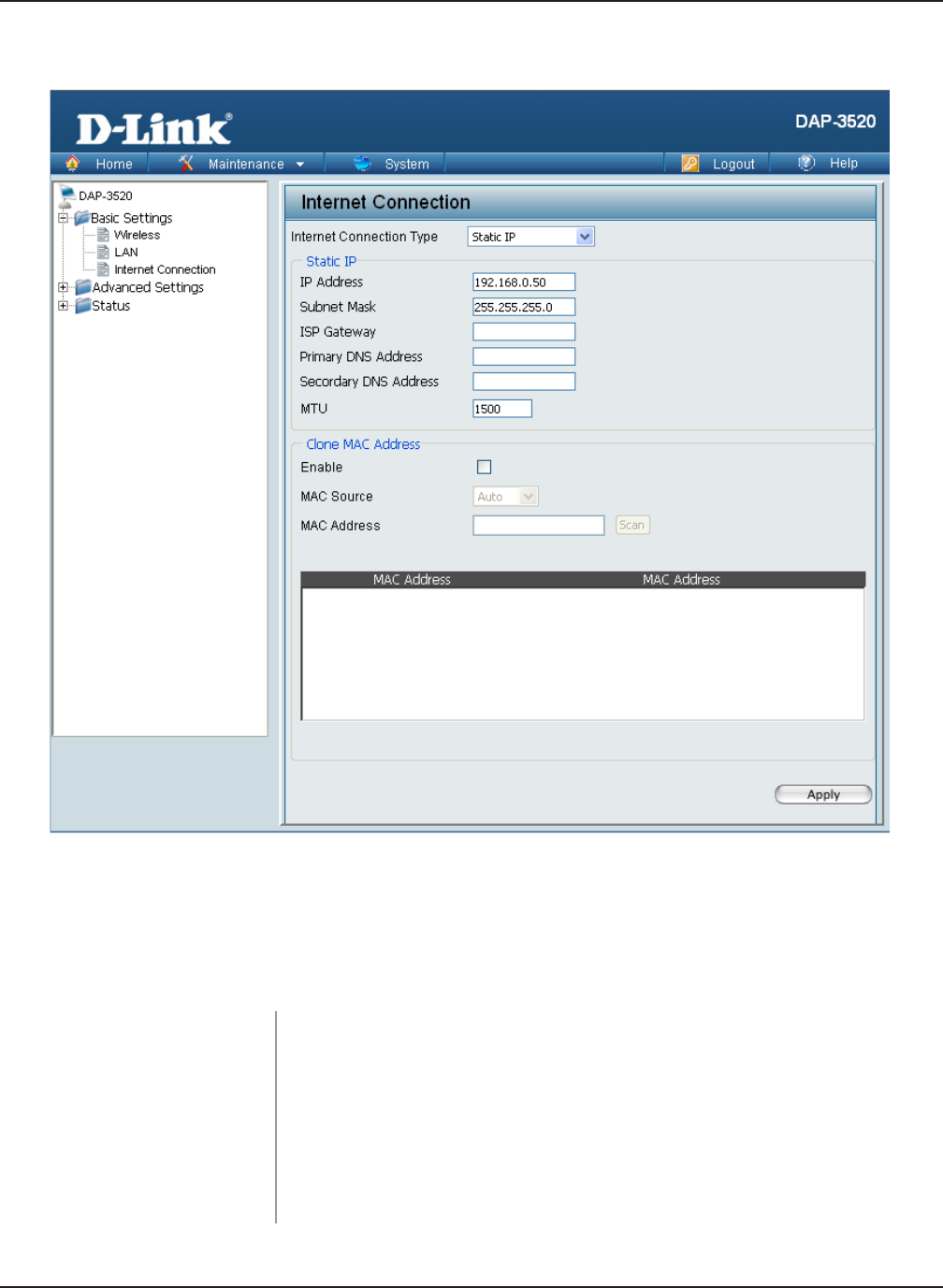

Home > Basic Settings > Internet Connection > Static IP
Use the drop-down menu to choose Static IP. The other three
choices are Dynamic IP (DHCP), PPPoE, and PPTP.
The default IP address is 192.168.0.50. Assign a static IP address
that is within the IP address range of your network.
Enter the subnet mask. All devices in the network must share the
same subnet mask.
Internet
Connection Type:
IP Address:
Subnet Mask:
Select Static IP if all WAN IP information is provided to you by your ISP. You will need to enter
in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by
your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are
four octets separated by a dot (x.x.x.x). The DAP-3520 will not accept the IP address if it is not
in this format.
Using the Configuration Menu
32
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Enter the IP address of the gateway in your network. If there is a
gateway in your network, please enter an IP address within the range
of your network.
Enter the Primary DNS server IP address assigned by your ISP.
Enter the Secondary DNS server IP address. This is optional.
You may need to change the Maximum Transmission Unit for optimal
performance with your specic ISP. The default MTU is 1500.
The default MAC address is set to the WAN’s physical interface MAC
address on the DAP-3520. You can tick this Clone MAC Address
Enable check box to copy the MAC address of the Ethernet Card
installed by your ISP and replace the WAN MAC address with the
MAC address of the DAP-3520. It is not recommended that you
change the default MAC address unless required by your ISP.
Use the drop-down menu to select Auto or Manual.
Manually enter an appropriate MAC address or click the Scan button
to search for a specic MAC address.
ISP Gateway:
Primary DNS
Address:
Secondary DNS
Address:
MTU:
Enable:
MAC Source:
MAC Address:
Using the Configuration Menu
33
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

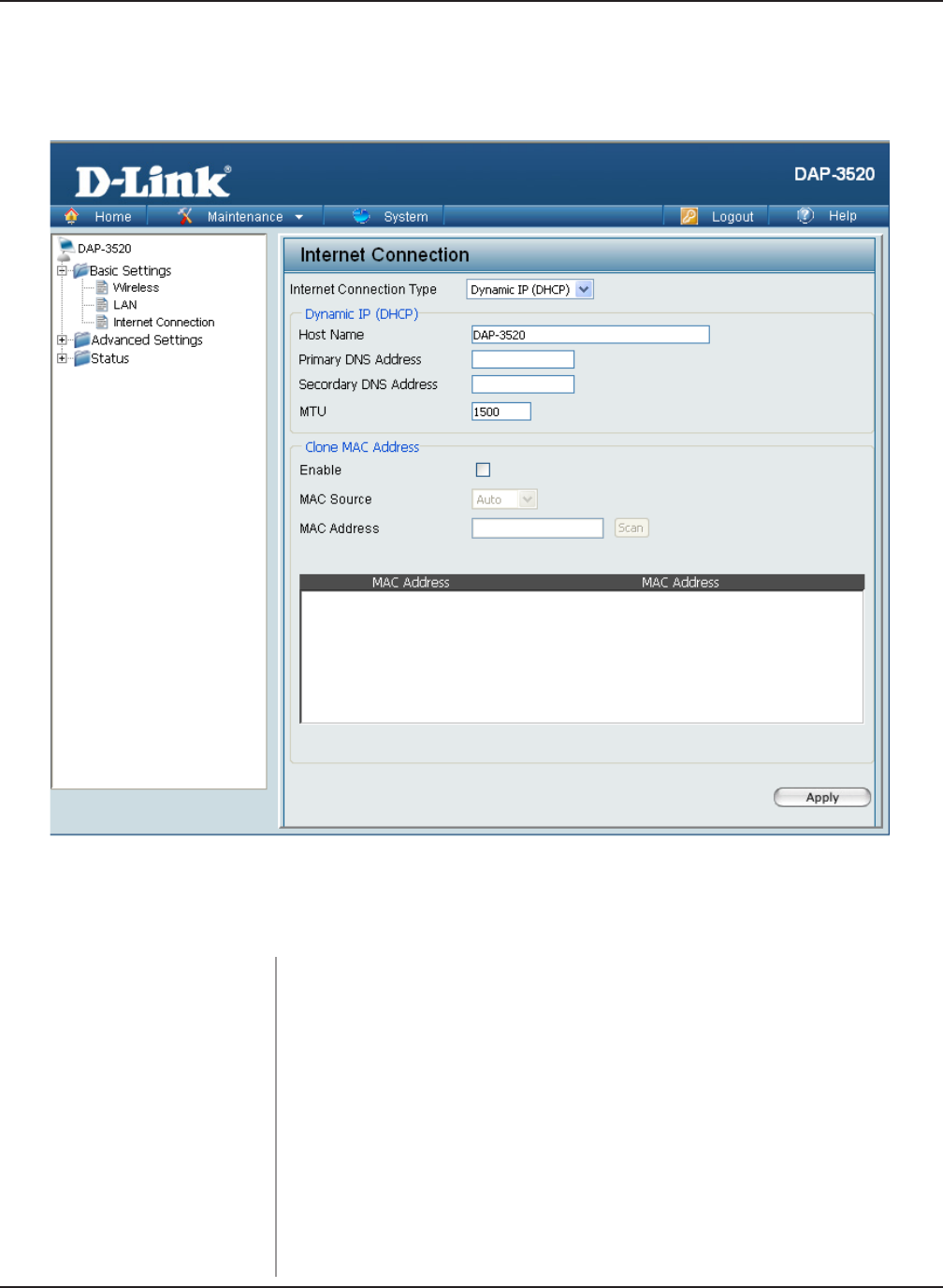

Home > Basic Settings > Internet Connection > Dynamic IP
(DHCP)
Use the drop-down menu to choose Dynamic IP (DHCP). The other
three choices are Static IP, PPPoE, and PPTP.
The host name is optional but may be required by some ISPs. The
default host name is the model name of the device and may be
changed.
Enter the primary DNS (Domain Name Server) server IP address
assigned by your ISP.
Enter the secondary DNS (Domain Name Server) server IP address
assigned by your ISP, if applicable.
Internet
Connection Type:
Host Name:
Primary DNS
Address:
Secondary DNS
Address:
Select Dynamic IP (DHCP) to obtain IP address information automatically from your ISP. Select
this option if your ISP does not give you any IP numbers to use. This option is commonly used
for Cable modem services.
Using the Configuration Menu
34
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
You may need to change the Maximum Transmission Unit for optimal
performance with your specic ISP. The default MTU is 1500.
The default MAC address is set to the WAN’s physical interface MAC
address on the DAP-3520. You can tick this Clone MAC Address
Enable check box to copy the MAC address of the Ethernet Card
installed by your ISP and replace the WAN MAC address with the
MAC address of the DAP-3520. It is not recommended that you
change the default MAC address unless required by your ISP.
Use the drop-down menu to select Auto or Manual.
Manually enter an appropriate MAC address or click the Scan button
to search for a specic MAC address.
MTU:
Enable:
MAC Source:
MAC Address:
Using the Configuration Menu
35
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

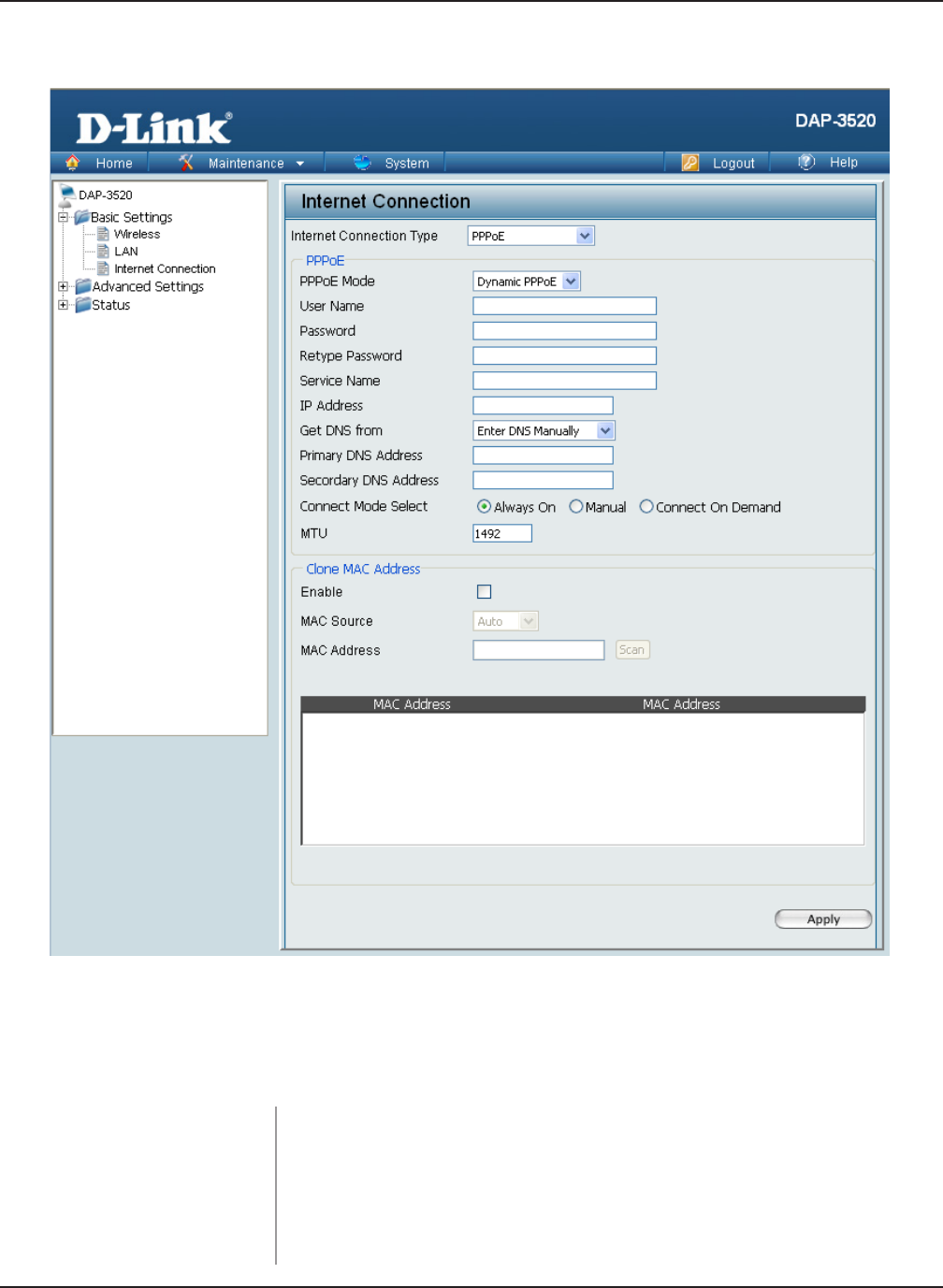

Home > Basic Settings > Internet Connection > PPPoE
Using the Configuration Menu
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection.
Your ISP will provide you with a username and password. This option is typically used for DSL
services. Make sure to remove your PPPoE software from your computer. The software is no
longer needed and will not work through a router.
Use the drop-down menu to choose PPPoE. The other three choices
are Static IP, Dynamic IP (DHCP), and PPTP.
Select Dynamic PPPoE (most common) or Static PPPoE. Use
Static PPPoE if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses.
Internet
Connection Type:
PPPoE Mode:
36
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Enter your PPPoE user name.
Enter your PPPoE password.
Retype your PPPoE password.
Enter the ISP Service Name (optional).
Enter the IP address (Static PPPoE only).
Toggle between Receive DNS from ISP and Enter DNS Manually
depending on how you will obtain your Domain Name Server
information.
Enter the primary DNS (Domain Name Server) server IP address
assigned by your ISP.
Enter the secondary DNS (Domain Name Server) server IP address
assigned by your ISP, if applicable.
Select either Always On, Manual, or Connect On Demand.
You may need to change the Maximum Transmission Unit for optimal
performance with your specic ISP. The default MTU is 1492.
The default MAC address is set to the WAN’s physical interface MAC
address on the DAP-3520. You can tick this Clone MAC Address
Enable check box to copy the MAC address of the Ethernet Card
installed by your ISP and replace the WAN MAC address with the
MAC address of the DAP-3520. It is not recommended that you
change the default MAC address unless required by your ISP.
Use the drop-down menu to select Auto or Manual.
Manually enter an appropriate MAC address or click the Scan button
to search for a specic MAC address
User Name:
Password:
Retype Password:
Service Name:
IP Address:
Get DNS from:
Primary DNS Address:
Secondary DNS Address:
Connect Mode Select:
MTU:
Enable:
MAC Source:
MAC Address:
37
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Basic Settings > Internet Connection > PPTP
Using the Configuration Menu
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP
will provide you with a username and password. This option is typically used for DSL services.
Use the drop-down menu to choose PPTP. The other three choices
are Static IP, Dynamic IP (DHCP), and PPPoE.
Select Dynamic IP (DHCP) (most common) or Static IP. Use Static
IP if your ISP assigned you the IP address, subnet mask, gateway,
and DNS server addresses.
Internet
Connection Type:
PPTP Mode:
38
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Enter the IP address (Static IP only).
Enter the subnet mask (Static IP only).
Enter the gateway IP address provided by your ISP.
The DNS server information will be supplied by your ISP (Internet
Service Provider).
Enter the server IP provided by your ISP (optional).
Enter your PPTP account name.
Enter your PPTP password.
Retype your PPTP password.
You may need to change the Maximum Transmission Unit for optimal
performance with your specic ISP. The default MTU is 1400.
The default MAC address is set to the WAN’s physical interface MAC
address on the DAP-3520. You can tick this Clone MAC Address
Enable check box to copy the MAC address of the Ethernet Card
installed by your ISP and replace the WAN MAC address with the
MAC address of the DAP-3520. It is not recommended that you
change the default MAC address unless required by your ISP.
Use the drop-down menu to select Auto or Manual.
Manually enter an appropriate MAC address or click the Scan button
to search for a specic MAC address.
IP Address:
Subnet Mask:
Gateway:
DNS Address:
Server IP/Name:
PPTP Acount:
PPTP Password:
PPTP Retype Password:
MTU:
Enable:
MAC Source:
MAC Address:
39
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu

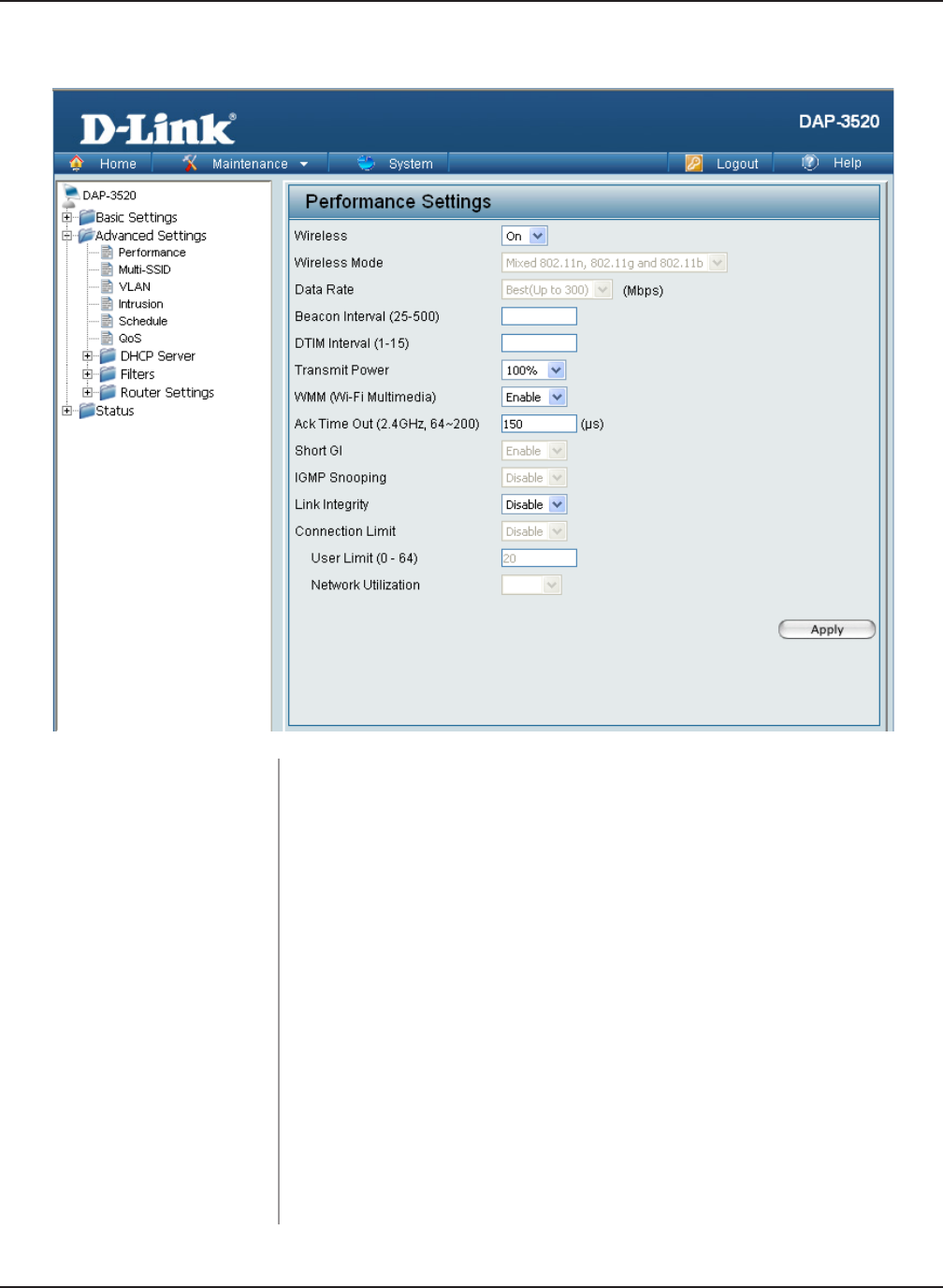

Home > Advanced Settings > Performance
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network overhead
can lower actual data throughout rate.
Wireless:
Wireless Mode:
Use the pull-down menu to turn the wireless function On or Off.
The different combination of clients that can be supported include
Mixed 802.11n, 802.11g and 802.11b, Mixed 802.11g and 802.11b
and 802.11n Only in the 2.4 GHz band and Mixed 802.11n, 802.11a,
802.11a only, and 802.11n Only in the 5 GHz band. Please note
that when backwards compatibility is enabled for legacy (802.11a/
g/b) clients, degradation of 802.11n (draft) wireless performance is
expected.
Indicate the base transfer rate of wireless adapters on the wireless
LAN. The AP will adjust the base transfer rate depending on the
base rate of the connected device. If there are obstacles or interfer-
ence, the AP will step down the rate. This option is enabled in Mixed
802.11g and 802.11b mode (for 2.4 GHz) and 802.11a only mode
(for 5 GHz). The choices available are Best (Up to 54), 54, 48, 36,
24, 18, 12, 9, 6 for 5 GHz and Best (Up to 54), 54, 48, 36, 24, 18,
12, 9, 6, 1111, 5.5, 2 or 1 for 2.4 GHz.
Data Rate*:
40
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
WMM (Wi-Fi
Multimedia):
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve
the user experience for audio and video applications over a Wi-Fi
network.
Short GI: Select Enable or Disable. Enabling a short guard interval can
increase throughput. However, be aware that it can also increase
the error rate in some installations due to increased sensitivity to
radio-frequency installations.
IGMP Snooping: Select Enable or Disable. Internet Group Management Protocol
allows the AP to recognize IGMP queries and reports sent between
routers and an IGMP host (wireless STA). When IGMP snooping
is enabled, the AP will forward multicast packets to an IGMP host
based on IGMP messages passing through the AP.
This setting determines the power level of the wireless transmission.
Transmitting power can be adjusted to eliminate overlapping of wire-
less area coverage between two access points where interference is
a major concern. For example, if wireless coverage is intended for
half of the area, then select 50% as the option. Use the pull-down
menu to select 100%, 50%, 25%, or 12.5%.
Transmit Power:
Ack Time Out (2.4 GHZ,
48~200) or Ack Time
Out (5 GHZ, 25~200):
To effectively optimize throughput over long distance links enter a
value for Acknowledgement Time Out between 25 and 200 micro-
seconds for 5 GHz or from 48 to 200 microseconds in the 2.4 GHz
in the eld provided.
DTIM Interval
(1-15):
Select a Delivery Trafc Indication Message setting between 1 and
15. 1 is the default setting. DTIM is a countdown informing clients of
the next window for listening to broadcast and multicast messages.
Beacons are packets sent by an access point to synchronize a
wireless network. Specify a value in milliseconds. The default (100)
is recommended. Setting a higher beacon interval can help to save
the power of wireless clients, while setting a lower one can help a
wireless client connect to an access point faster.
Beacon Interval
(25-500):
Select Enable or Disable. If the Ethernet connection between the
LAN and the AP is disconnected, enabling this feature will cause
the wireless segment associated with the AP to be disassociated
from the AP.
Link Integrity:
41
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu
Connection Limit:
User Limit (0 - 64): Set the maximum amount of users that are allowed access (0-64
users).To use this feature, the Connection Limit above must be
enabled. For most users, a limit of 10 is recommended. The default
setting is 20.
Select Enable or Disable. This is an option for load balancing.
This determines whether to limit the number of users accessing
this device. The exact number is entered in the User Limit eld
below. This feature allows the user to share the wireless network
trafc and the client using multiple APs. If this function is enabled,
when the number of users exceeds this value, the DAP-3520 will
not allow clients to associate with the AP.
Nework Utilization: Select a utilization percentage between 180, 60, 40, 20, or 0. When
this network utilization threshold is reached, the device will pause
one minute to allow for network congestion to dissipate..
42
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu

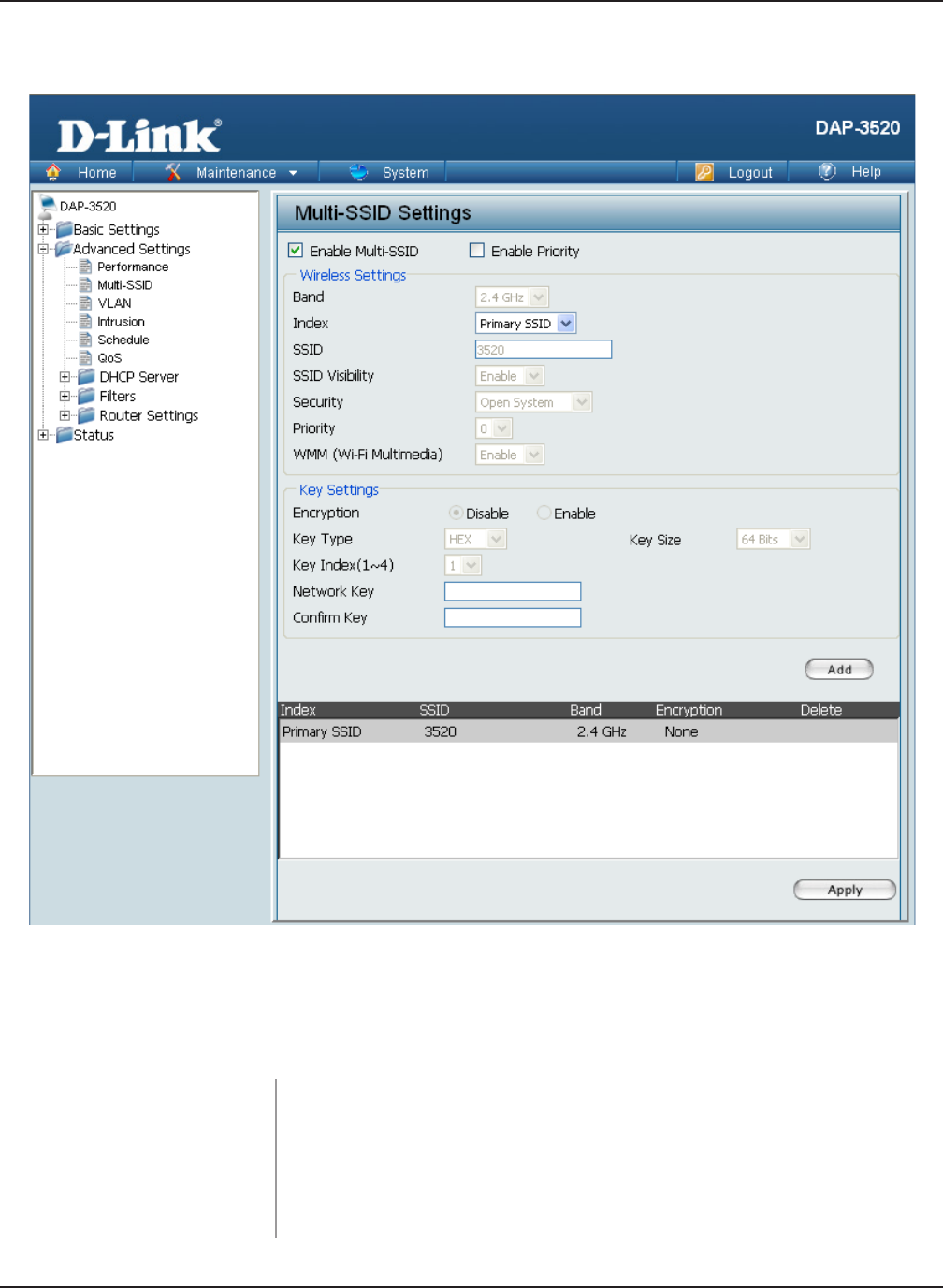

Home > Advanced Settings > Multi-SSID
The device supports up to eight multiple Service Set Identiers. You can set the Primary SSID in
the Basic > Wireless section. The SSID’s factory default setting is dlink. The SSID can be easily
changed to connect to an existing wireless network or to establish a new wireless network.
Check to enable support for multiple SSIDs.
This read-only value is the current band setting.
You can select up to seven multi-SSIDs. With the Primary SSID,
you have a total of eight multi-SSIDs.
Enable Multi-SSID:
Band:
Index:
43
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Select Enable or Disable.
When you select Open System, toggle between Enable and
Disable. If Enable is selected, the Key Type, Key Size, Key Index
(1~4), Network Key, and Conrm Keys must also be congured.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select from the 1st to the 4th key to be set as the active key.
Enter a network key, otherwise known as a password.
Retype the network key.
Key Type:
Key Size:
Key Index (1~4):
Network Key:
Confirm Key:
WMM (Wi-Fi Multimedia):
The Multi-SSID security can be Open System, WPA-Personal, or
WPA-Enterprise. For a detailed description of the Open System
parameters please go to page 26. For a detailed description of the
WPA-Personal parameters please go to page 27. For a detailed
description of the WPA-Enterprise parameters please go to pages
28-29.
Security:
Encryption:
Cipher Type:
Group Key Update
Interval:
Select the interval during which the group key will be valid. The
default value of 1800 seconds is recommended.
Select Auto, AES, or TKIP from the pull-down menu.
PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the
corresponding eld.
Using the Configuration Menu
SSID Visibility: Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
When you select either WPA-Personal or WPA-Enterprise, you
must also choose a WPA mode from the pull-down menu: AUTO
(WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use
different algorithms. AUTO (WPA or WPA2) allows you to use both
WPA and WPA2. In addition, you must congure Cipher Type, and
Group Key Update Interval.
WPA Mode:
Priority: Select the desired priority from the drop-down menu.
SSID: Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
44
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
RADIUS Server: When you select WPA-Enterprise, enter the IP address of the
primary RADIUS server. You must also congure RADIUS port and
RADIUS secret. In addition to a primary RADIUS server, the AP
allows you to set up an optional backup RADIUS server.
RADIUS Port: Enter the RADIUS port.
RADIUS Secret:
Accounting Mode:
Accounting Server:
Enter the RADIUS secret.
Use the drop-down menu to Enable the accounting mode feature.
When you select WPA-Enterprise, enter the IP address of the
primary accounting server. You must also congure the accounting
port and the accounting secret. In addition, to a primary accounting
server, the AP allows you to setup an optional backup accounting
server.
Enter the accounting port.
Enter the accounting secret.
Using the Configuration Menu
Confirm PassPhrase: When you select WPA-Personal, please re-enter the PassPhrase
entered in the previous item in the corresponding eld.
Accounting Port:
Accounting Secret:
45
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Advanced Settings > VLAN > VLAN List
The DAP-3520 supports VLANs. VLANs can be created with a Name and VID. Mgmt (TCP
stack), LAN, Primary/Multiple SSID, and WDS connection can be assigned to VLANs as they
are physical ports. Any packet which enters the DAP-3520 without a VLAN tag will have a VLAN
tag inserted with a PVID.
The VLAN List tab displays the current VLANs.
VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit
VLAN tab to add or modify an item on the VLAN List tab.
Using the Configuration Menu
46
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

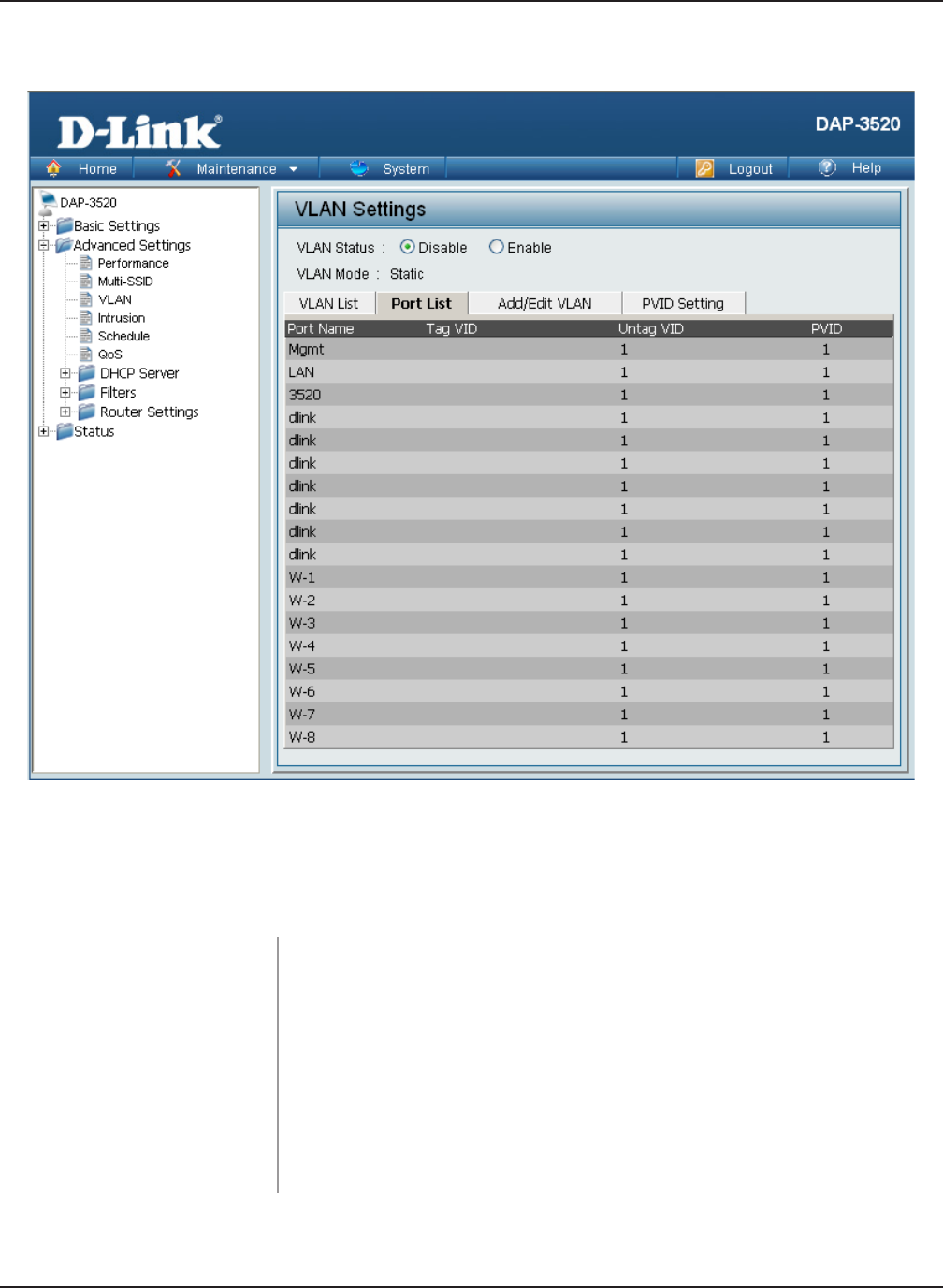

Home > Advanced Settings > VLAN > Port List
The Port List tab displays the current ports. If you want to congure the guest and internal networks
on a Virtual LAN (VLAN), the switch and DHCP server you are using must also support VLANs. As
a prerequisite step, congure a port on the switch for handling VLAN tagged packets as described
in the IEEE 802.1Q standard.
VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit
VLAN tab to add or modify an item on the VLAN List tab.
Using the Configuration Menu
The name of the port is displayed in this column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identier is displayed in this column.
Port Name:
Tag VID:
Untag VID:
PVID:
47
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Home > Advanced Settings > VLAN > Add/Edit VLAN
The Add/Edit VLAN tab is used to congure VLANs. Once you have made the desired changes,
click the Apply button to let your changes take effect.
Use the radio button to toggle to Enable.
Provide a number between 1 and 4094 for the Internal VLAN.
Enter the VLAN to add or modify.
VLAN Status:
VLAN ID (VID):
Using the Configuration Menu
VLAN Name:
48
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point

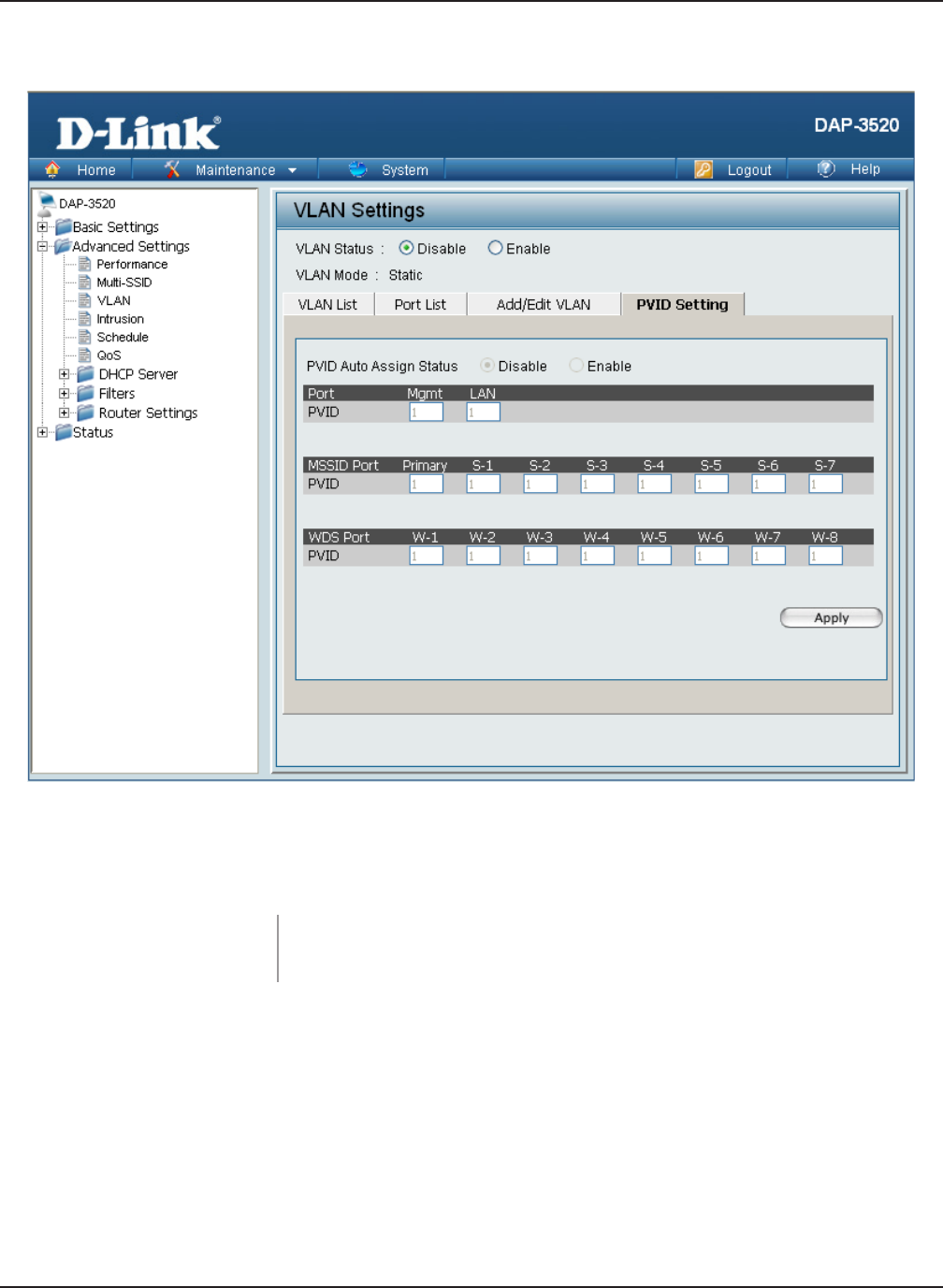

Home > Advanced Settings > VLAN > PVID Setting
The PVID Setting tab is used to enable/disable the Port VLAN Identier Auto Assign Status as
well as to congure various types of PVID settings. Click the Apply button to let your changes
take effect.
Using the Configuration Menu
Use the radio button to toggle to Enable.
VLAN Status:
Use the radio button to toggle PVID auto assign status to Enable.
PVID Auto Assign Status:
49
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu

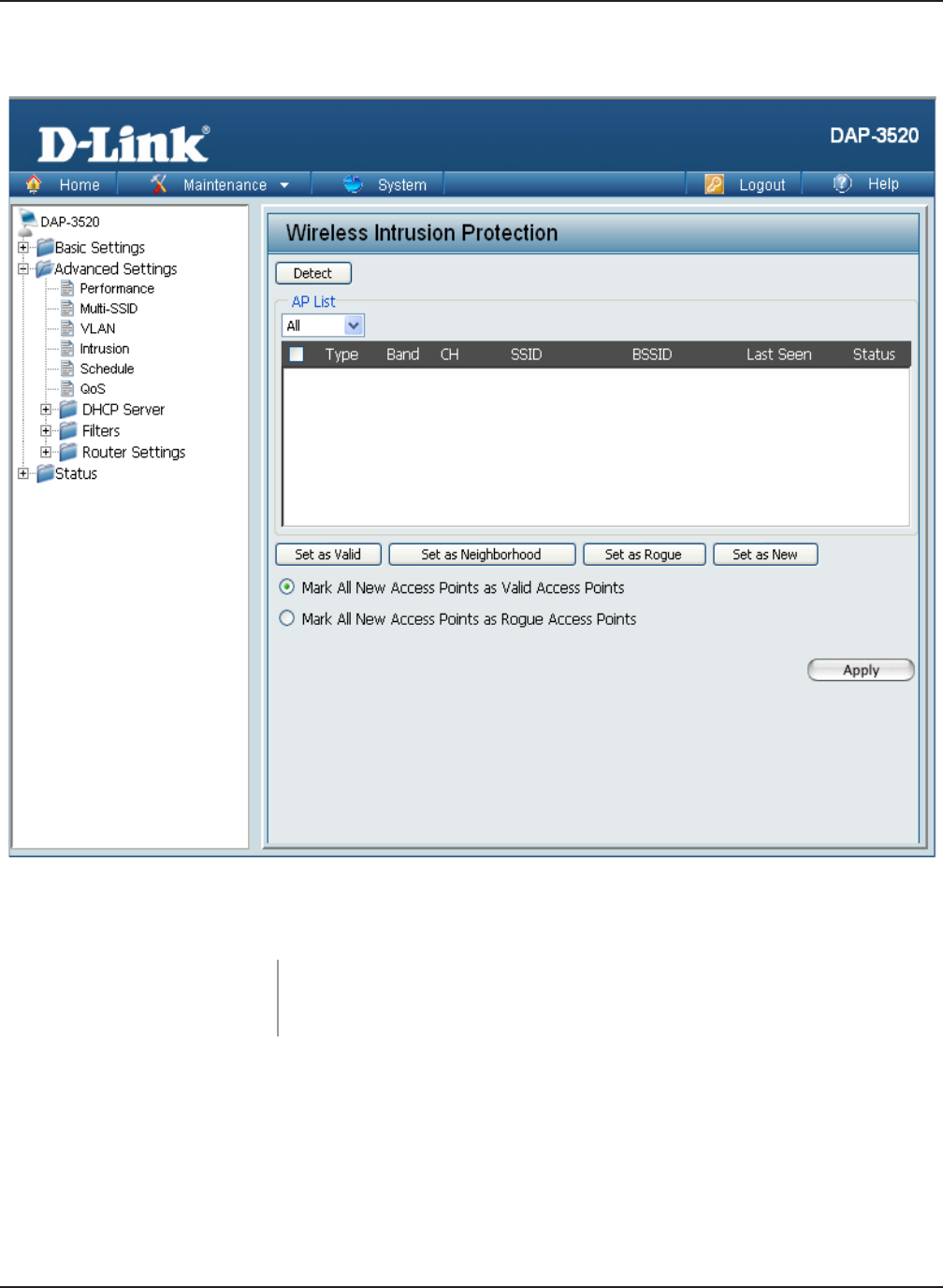

Home > Advanced Settings > Intrusion
The choices include All, Valid, Neighbor, Rogue, and New.
Click this button to initiate a scan of the network.
AP List:
Detect
The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue,
and New. Click the Apply button to let your changes take effect.
50
DAP-3520 User’s Manual
D-Link AirPremier N Dual Band Exterior PoE Access Point
Using the Configuration Menu

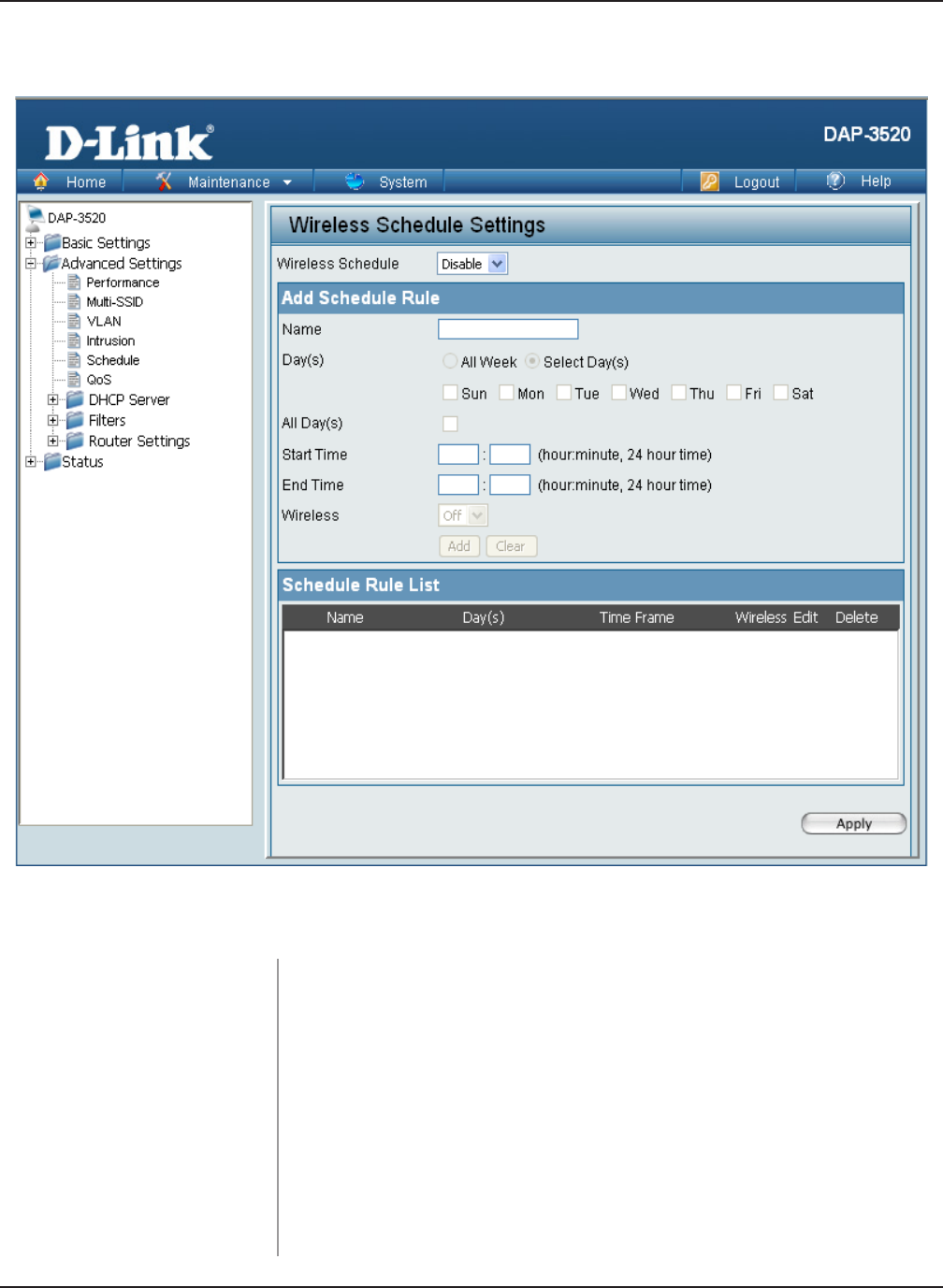

Home > Advanced Settings > Schedule
Use the pull-down menu to enable the device’s scheduling fea-
ture.
Wireless Schedule:
The Wireless Schedule Settings window is used to add and modify scheduling rules on the device.
Click the Apply button to let your changes take effect.
Enter a name for the new scheduling rule in the eld provided.
Toggle the radio button between All Week and Select Days(s). If
the second option is selected, check the specic days you want the
rule to be effective on.
Check this box to have your settings apply 24 hours a day.
Toggle the pull-down menu between Off and On.
Name:
Day(s):
All Days(s):
Wireless:
