DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Home > Advanced Settings > QoS

Enable this option if you want to allow QoS to prioritize your trafc

Priority Classiers.

Allows the access point to recognize HTTP transfers for many com-

mon audio and video streams and prioritize them above other trafc.

Such streams are frequently used by digital media players.

QoS (Quality of Service):

HTTP:

Using the Conﬁguration Menu

Quality of Service (QoS) enhances the experience of using a network by prioritizing the trafc of

different applications.

A QoS Rule identies a specic message ow and assigns a priority to that ow. For most applica-

tions, the priority classiers ensure the right priorities and specic QoS Rules are not required.

QoS supports overlaps between rules. If more than one rule matches a specic message ow,

the rule with the highest priority will be used.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

When enabled, this option causes the access point to automatically

attempt to prioritize trafc streams that it doesn’t otherwise recog-

nize, based on the behavior that the streams exhibit. This acts to

de-prioritize streams that exhibit bulk transfer characteristics, such

as le transfers, while leaving interactive trafc, such as gaming or

VoIP, running at a normal priority

Enter a name for the new QoS rule in the eld provided.

Use the pull-down menu to select the desired priority: Background

(BK), Best Effort (BE), Video (VI), or Voice (VO).

Use the pull-down menu to choose the appropriate protocol used by

the messages: Any, TCP, UDP, Both, IMCP, or Other.

The rule applies to a ow of messages for which one computer’s IP

address falls within the range set here.

The rule applies to a ow of messages for which host 1’s port number

is within the range set here when the Protocol is set to TCP, UDP,

or Both.

The rule applies to a ow of messages for which the other computer’s

IP address falls within the range set here.

The rule applies to a ow of messages for which host 2’s port number

is within the range set here when the Protocol is set to TCP, UDP,

or Both.

Automatic:

Name:

Priority:

Protocol:

Host 1 IP Range:

Host 1 Port Range:

Host 2 IP Range:

Host 2 Port Range:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Home > Advanced Settings > DHCP Server > Dynamic Pool

Settings

Function Enable/

Disable:

Dynamic Host Conguration Protocol (DHCP) assigns dynamic

IP addresses to devices on the network. This protocol simplies

network management and allows new wireless devices to receive

IP addresses automatically without the need to manually assign new

IP addresses. Select Enable to allow the DAP-3520 to function as

a DHCP server.

Enter the number of IP addresses available for assignment. IP

addresses are increments of the IP address specied in the “IP

Assigned From” eld.

The Range of Pool

(1-254):

Input the rst IP address available for assignment on your net-

work.

Subnet Mask: All devices in the network must have the same subnet mask to

communicate. Enter the submask for the network here.

The DHCP address pool denes the range of the IP address that can be assigned to stations in

the network. A Dynamic Pool allows wireless stations to receive an available IP with lease time

control.

IP Assigned From:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Specify the Windows Internet Naming Service (WINS) server address

for the wireless network. WINS is a system that determines the IP

address of a network computer that has a dynamically assigned IP

address.

Enter the IP address of the Domain Name System (DNS) server.

The DNS server translates domain names such as www.dlink.com

into IP addresses.

Enter the domain name of the network, if applicable. (An example

of a domain name is: www.dlink.com.)

The lease time is the period of time before the DHCP server will

assign new IP addresses.

Gateway:

WINS:

DNS:

Domain Name:

Lease Time

(60-31536000 sec):

Enter the IP address of the gateway on the network.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Home > Advanced Settings > DHCP Server > Static Pool

Setting

Function Enable/

Disable:

Assigned IP:

Dynamic Host Conguration Protocol (DHCP) assigns IP addresses

to wireless devices on the network. This protocol simplies network

management and allows new wireless devices to receive IP

addresses automatically without the need to manually assign IP

addresses. Select Enable to allow the DAP-3520 to function as a

DHCP server.

Use the Static Pool Settings to assign the same IP address to a

device every time you start up. The IP addresses assigned in the

Static Pool list must NOT be in the same IP range as the Dynamic

Pool. After you have assigned a static IP address to a device via its

MAC address, click Apply; the device will appear in the Assigned

Static Pool at the bottom of the screen. You can edit or delete the

device in this list.

The DHCP address pool denes the range of IP addresses that can be assigned to stations on the

network. A static pool allows specic wireless stations to receive a xed IP without time control.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Dene the submask of the IP address specied in the “IP Assigned

From” eld.

Specify the Gateway address for the wireless network.

Specify the Windows Internet Naming Service (WINS) server

address for the wireless network. WINS is a system that determines

the IP address of a network computer with a dynamically assigned

IP address, if applicable.

Enter the Domain Name System (DNS) server address for the

wireless network. The DNS server translates domain names such

as www.dlink.com into IP addresses.

WINS:

DNS:

Domain Name: Specify the domain name for the network.

Gateway:

Assigned MAC

Address:

Subnet Mask:

Enter the MAC address of the device requesting association here.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Home > Advanced Settings > DHCP Server > Current IP

Mapping List

These are IP address pools the DHCP server has assigned using

the dynamic pool setting.

This window displays information about the current assigned DHCP dynamic and static IP address

pools. This information is available when you enable DHCP server on the AP and assign dynamic

and static IP address pools.

Current DHCP Dynamic Pools:

Binding MAC Address:

Lease Time:

Current DHCP Static Pools:

The MAC address of a device on the network that is assigned an IP

address from the DHCP dynamic pool.

The current corresponding DHCP-assigned IP address of the

device.

The length of time that the dynamic IP address will be valid.

These are the IP address pools of the DHCP server assigned through

the static pool settings.

Assigned IP

Address:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Assigned IP Address: The current corresponding DHCP-assigned static IP address of

the device.

The MAC address of a device on the network that is assigned an

IP address from the DHCP dynamic pool.

Binding MAC Address:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Home > Advanced Settings > Filters > Wireless MAC ACL

Wireless Band:

Access Control List:

Displays the current wireless band rate.

Enter each MAC address that you wish to include in your lter list,

and click Apply.

When you enter a MAC address, it appears in this list. Highlight a

MAC address and click Delete to remove it from this list.

Select Disable to disable the lters function.

Select Accept to accept only those devices with MAC addresses

in the Access Control List. All other devices not on the list will be

rejected.

Select Reject to reject the devices with MAC addresses on

the Access Control List. All other devices not on the list will be

accepted.

MAC Address List:

MAC Address:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

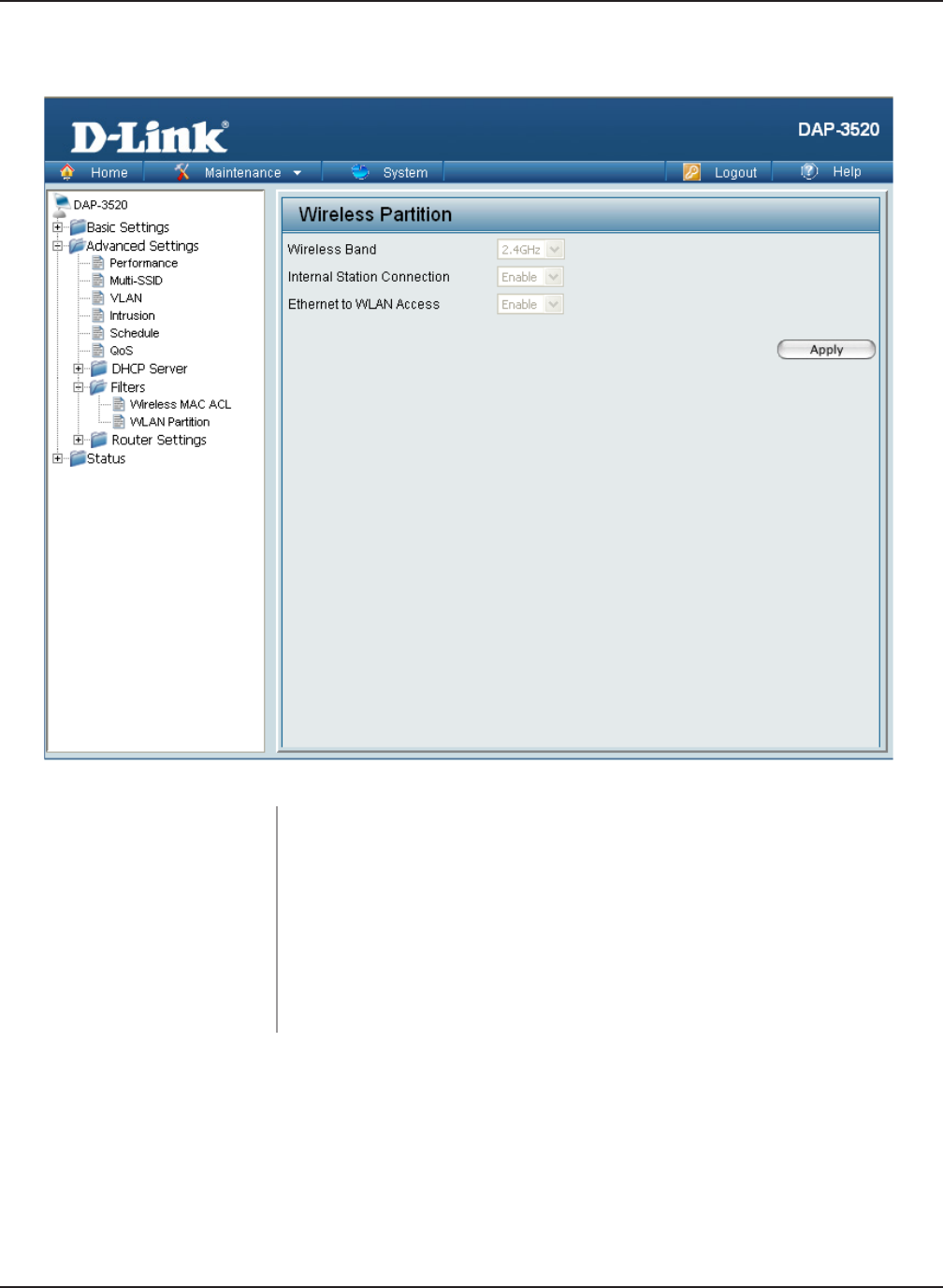

Home > Advanced Settings > Filters > WLAN Partition

Wireless Band:

Internal Station

Connection:

Displays the current wireless band rate.

The default value is Enable, which allows stations to inter-communi-

cate by connecting to a target AP. When disabled, wireless stations

cannot exchange data through the AP.

The default is Enable. When disabled, all data from the Ethernet to

associated wireless devices will be blocked. Wireless devices can

still send data to the Ethernet.

Ethernet to WLAN

Access:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

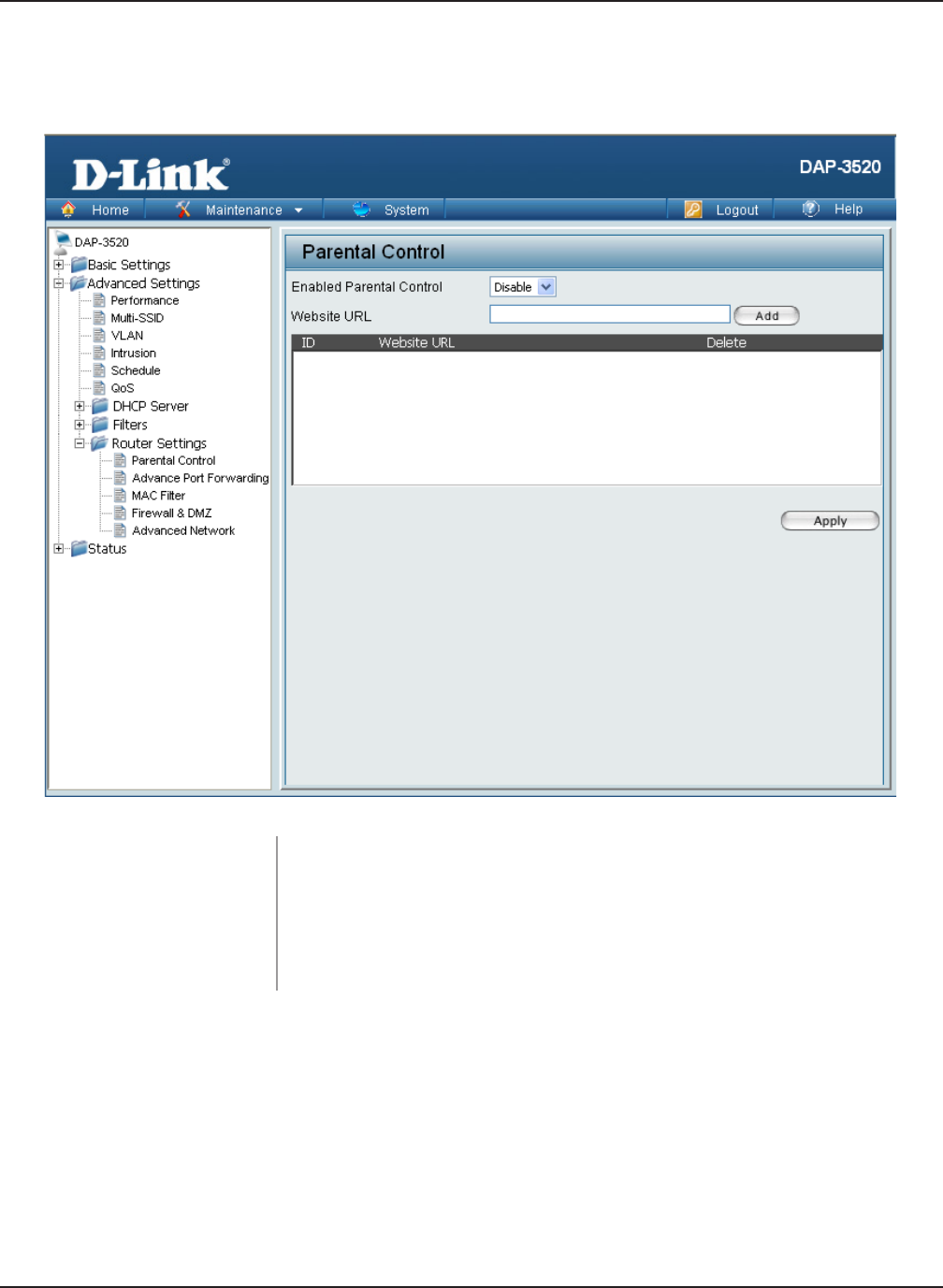

Home > Advanced Settings > Router Settings > Parental

Control

Enabled Parental

Control:

Website URL:

Select Allow to allow computers access to these sites only, select

Deny to deny computers access to these sites only, or Disable to

turn off the parental control feature.

Enter the keywords or URLs that you want to block (or allow). Any

URL with the keyword in it will be blocked.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

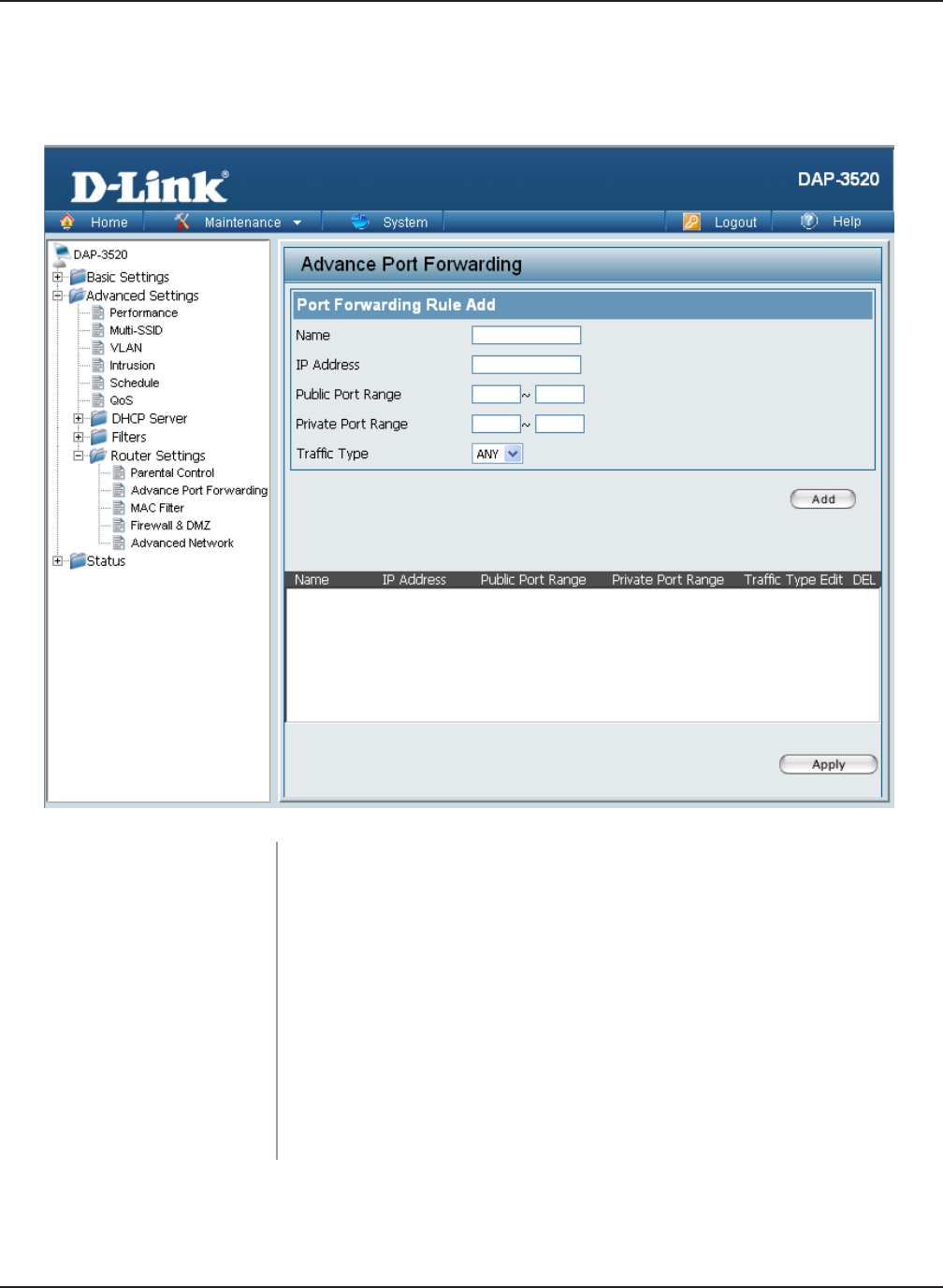

Home > Advanced Settings > Router Settings > Advance Port

Forwarding

Name:

IP Address:

Public Port Range:

Private Port Range:

Trafc Type:

Enter a name for the rule.

Enter the IP address of the computer on your local network that you

want to allow the incoming service to.

Enter the public port or ports that you want to open. If you want to

open one public port, enter the same port in both boxes.

Enter the private port or ports that you want to open. If you want to

open one private port, enter the same port in both boxes.

Select TCP, UDP, or ANY.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

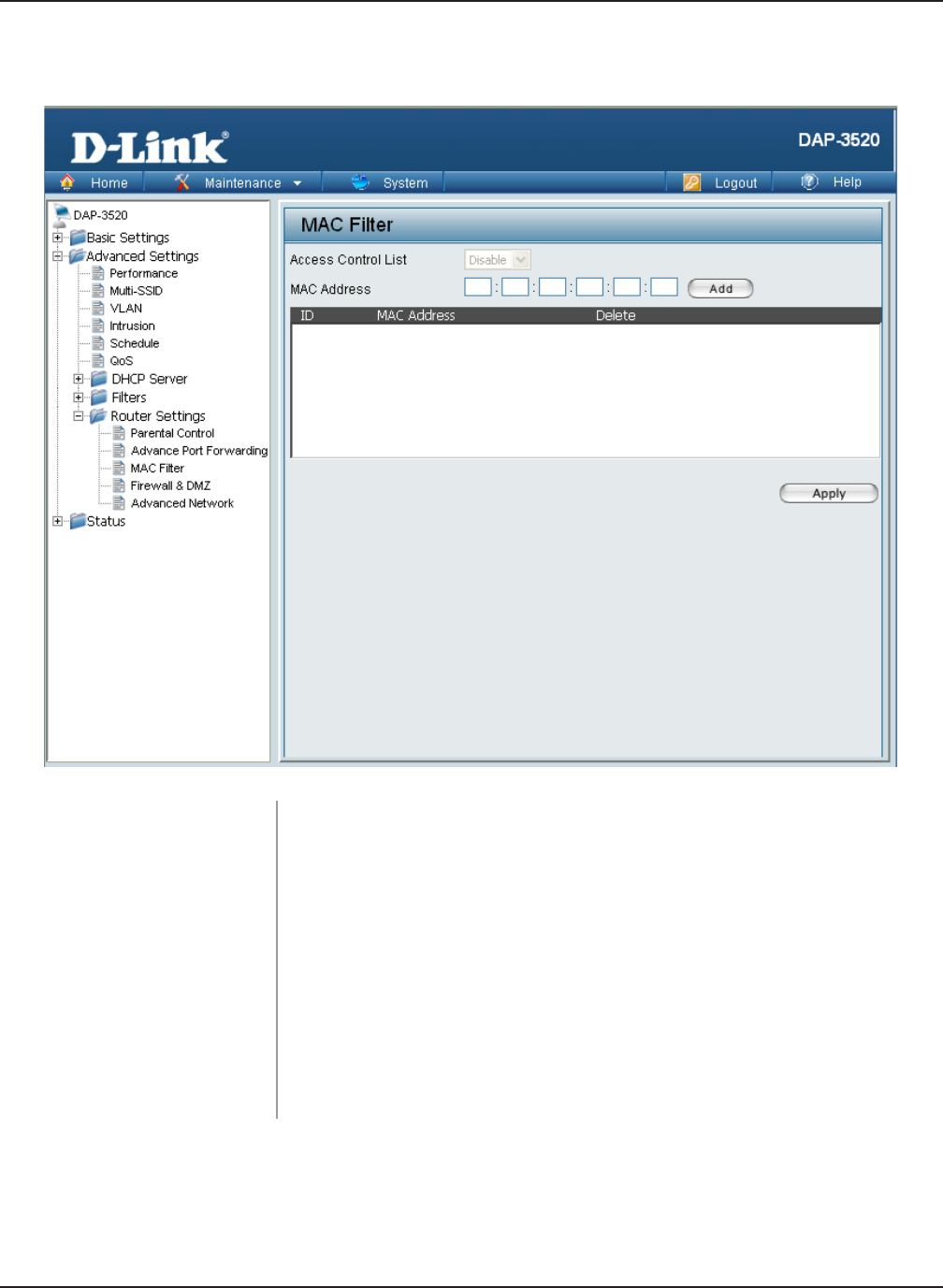

Home > Advanced Settings > Router Settings > MAC Filter

Name:

IP Address:

Public Port Range:

Private Port Range:

Trafc Type:

Enter a name for the rule.

Enter the IP address of the computer on your local network that you

want to allow the incoming service to.

Enter the public port or ports that you want to open. If you want to

open one public port, enter the same port in both boxes.

Enter the private port or ports that you want to open. If you want to

open one private port, enter the same port in both boxes.

Select TCP, UDP, or ANY.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

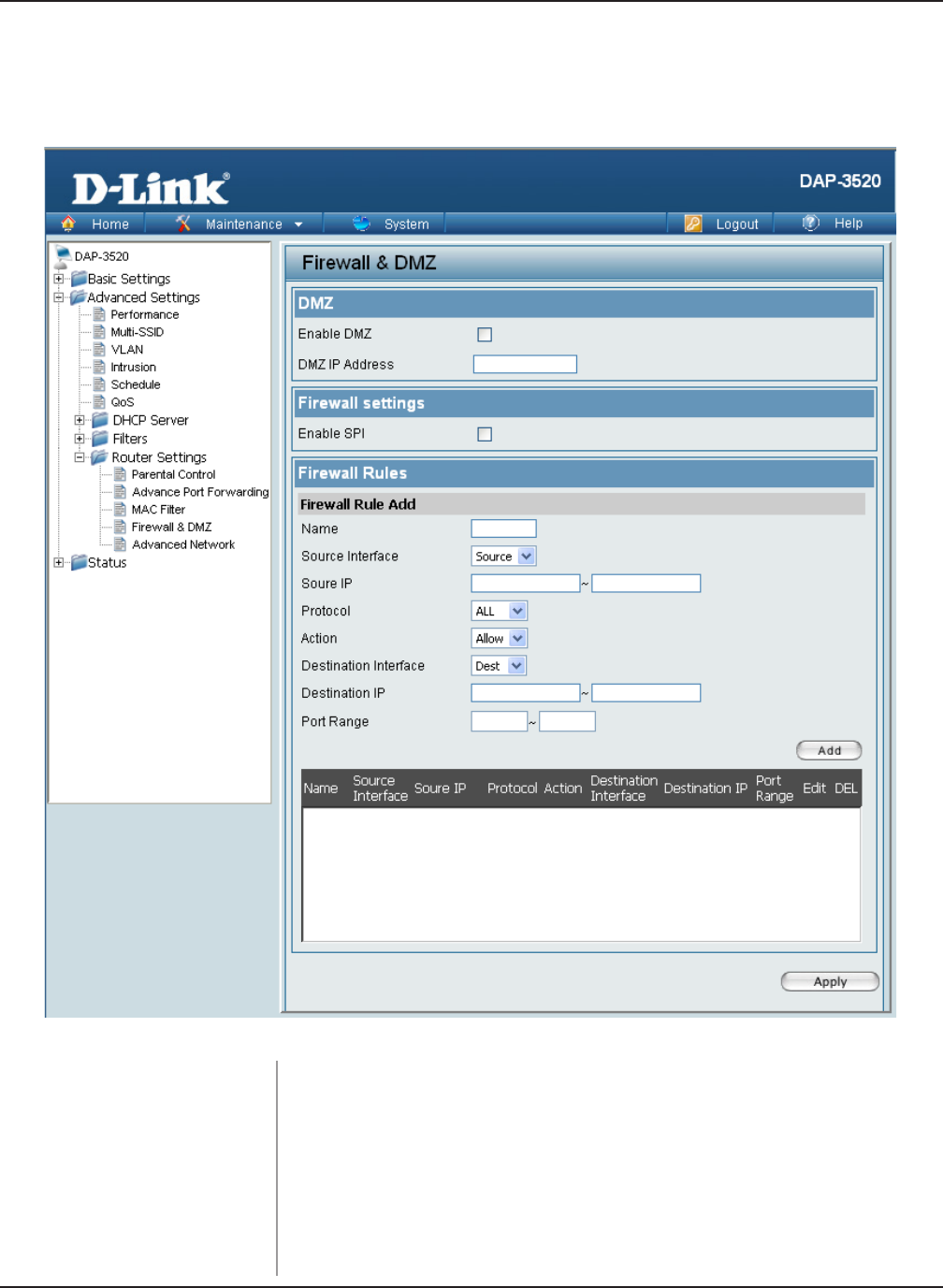

Home > Advanced Settings > Router Settings > Firewall &

DMZ

Enable DMZ:

DMZ IP Address:

Enable SPI:

Name:

Tick this check box to enable DMZ.

Enter the IP address of the computer you would like to open all

ports to.

Tick this check box to enable SPI.

Choose a name for the rewall rule.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Source Interface:

Source IP:

ProtocoI:

Action:

Destination Interface:

Destination IP:

Port Range:

Toggle among Source, LAN, and WAN. This is the TCP/UDP port

on either the LAN or WAN side.

Enter a beginning and ending source IP address.

Select the transport protocol that will be used for the lter rule.

Select to Allow or Deny transport of the data packets according to

the criteria dened in the rule.

Toggle among Dest, LAN, and WAN. This is the TCP/UDP port on

either the LAN or WAN side.

Enter a beginning and ending destination IP address.

Enter the desired port range for the lter rule.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

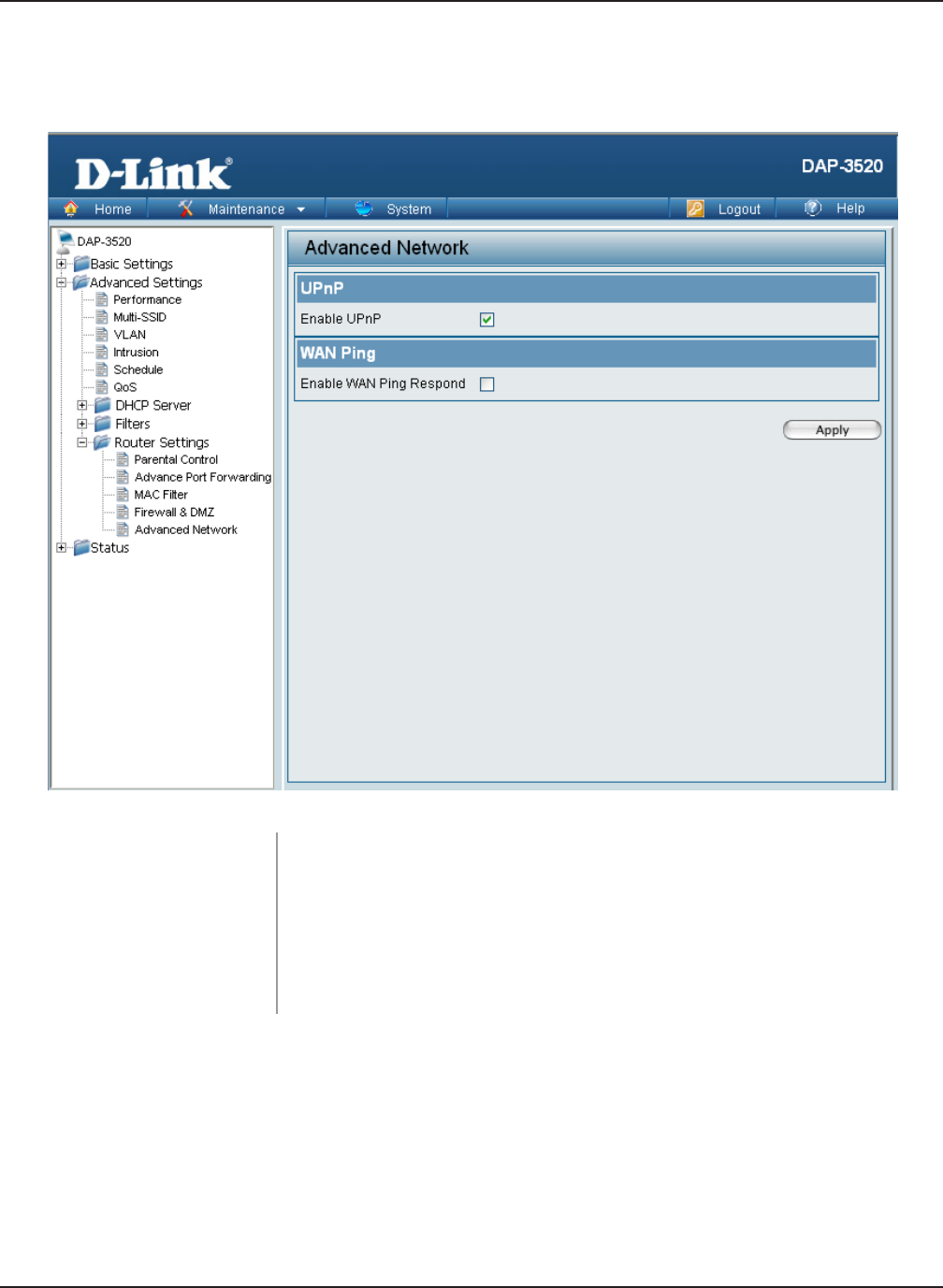

Home > Advanced Settings > Router Settings > Advanced

Network

Enable UPnP:

Enable WAN Ping

Respond:

To use the Universal Plug and Play (UPnP™) feature tick this check

box. UPNP provides compatibility with networking equipment,

software and peripherals.

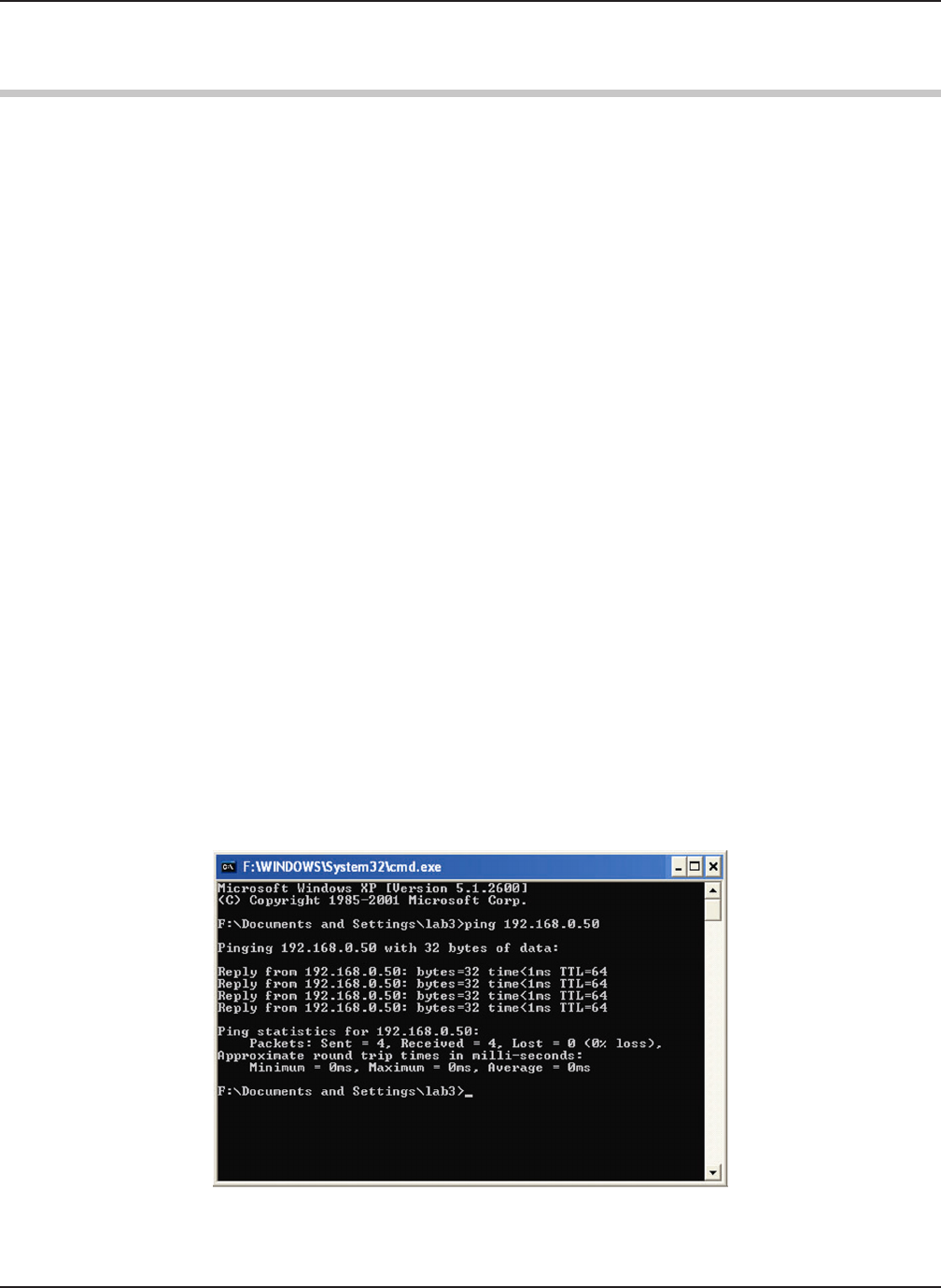

Unchecking the box will not allow the DAP-3520 to respond to Pings.

Blocking the Ping may provide some extra security from hackers.

Tick this check box to allow the WAN port to be “Pinged”.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

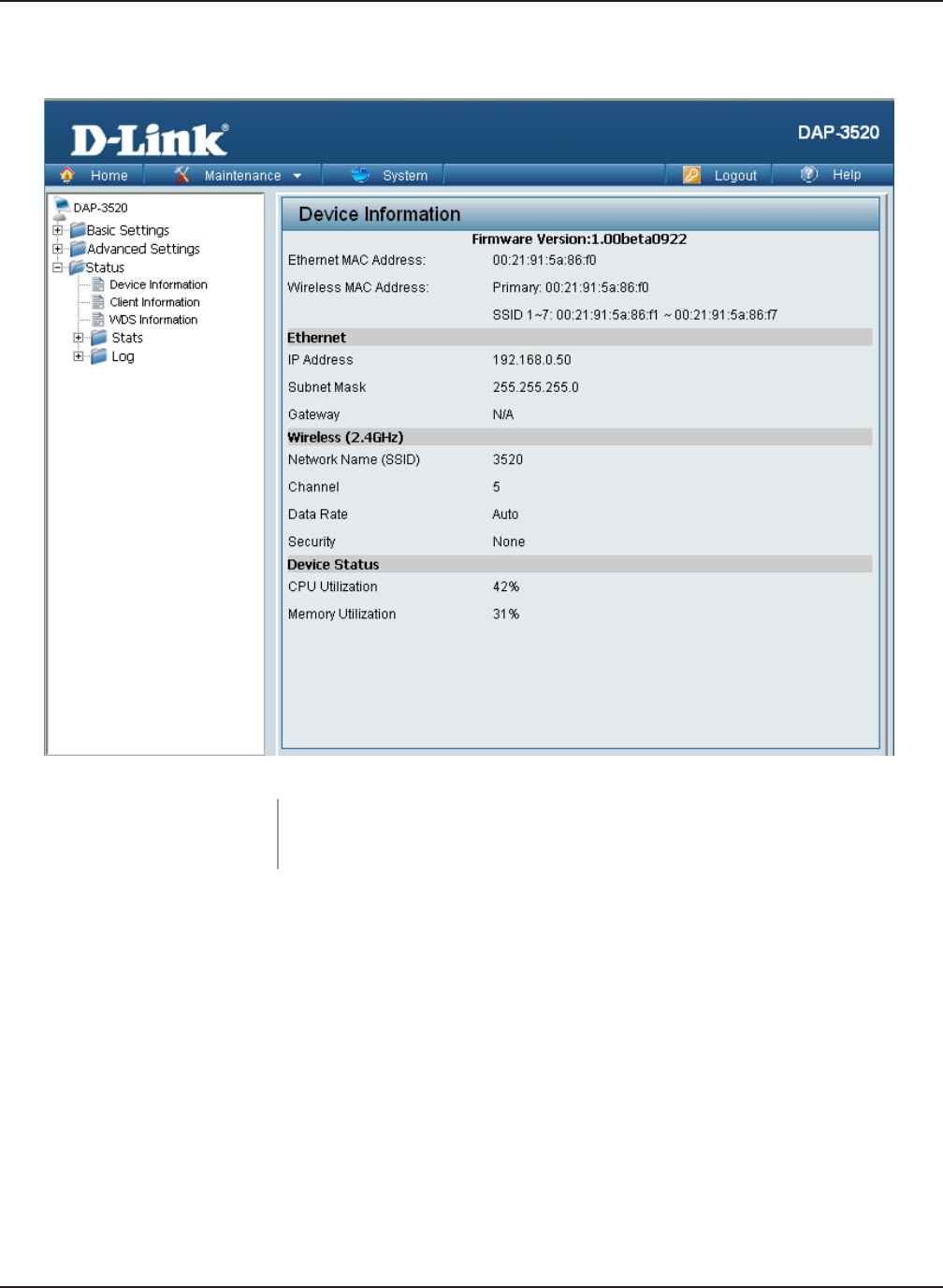

Home > Status > Device Information

Device Information: This read-only window displays the conguration settings of the

DAP-3520, including the rmware version and the device's MAC

address.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

Home > Status > Client Information

Client Information: This window displays the wireless client information for clients

currently connected to the DAP-3520.

The following information is available for each client communicating with the

DAP-3520.

Displays the MAC address of the client.

MAC:

Displays the wireless band that the client is connected to.

Band:

Displays the type of authentication being used.

Authentication:

Displays the client's signal strength.

Signal:

Displays the status of the power saving feature.

Power Saving

Mode:

Displays the SSID of the client.

SSID:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

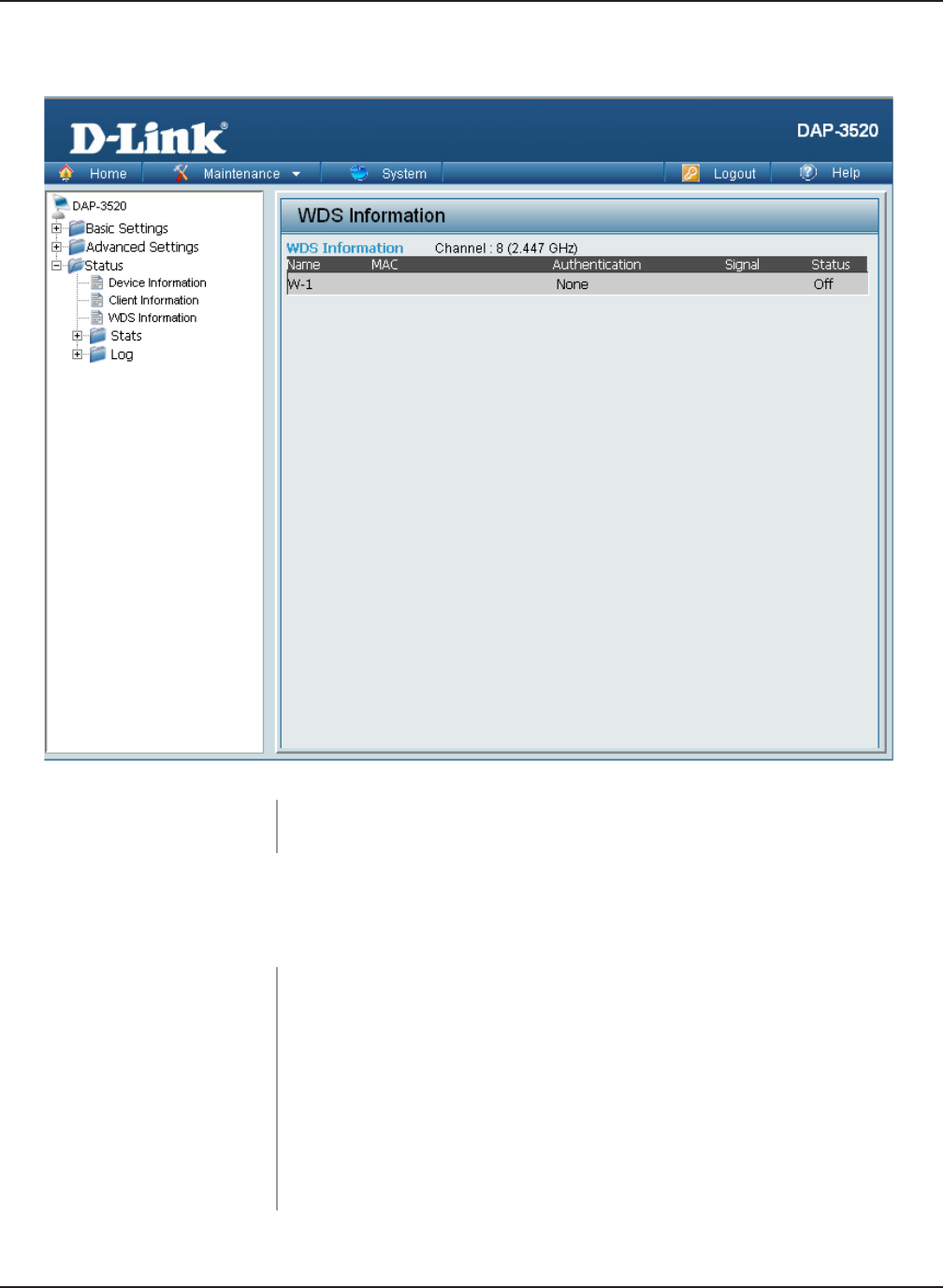

Home > Status > WDS Information

Name:

MAC:

Authentication:

Signal:

Status:

Displays the name of the client.

Displays the MAC address of the client.

Displays the type of authentication being used.

Displays the WDS link signal strength.

Using the Conﬁguration Menu

Displays the status of the power saving feature.

WDS Information: This window displays the Wireless Distribution System information

for clients currently connected to the DAP-3520.

The following information is available for each client communicating with the

DAP-3520.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

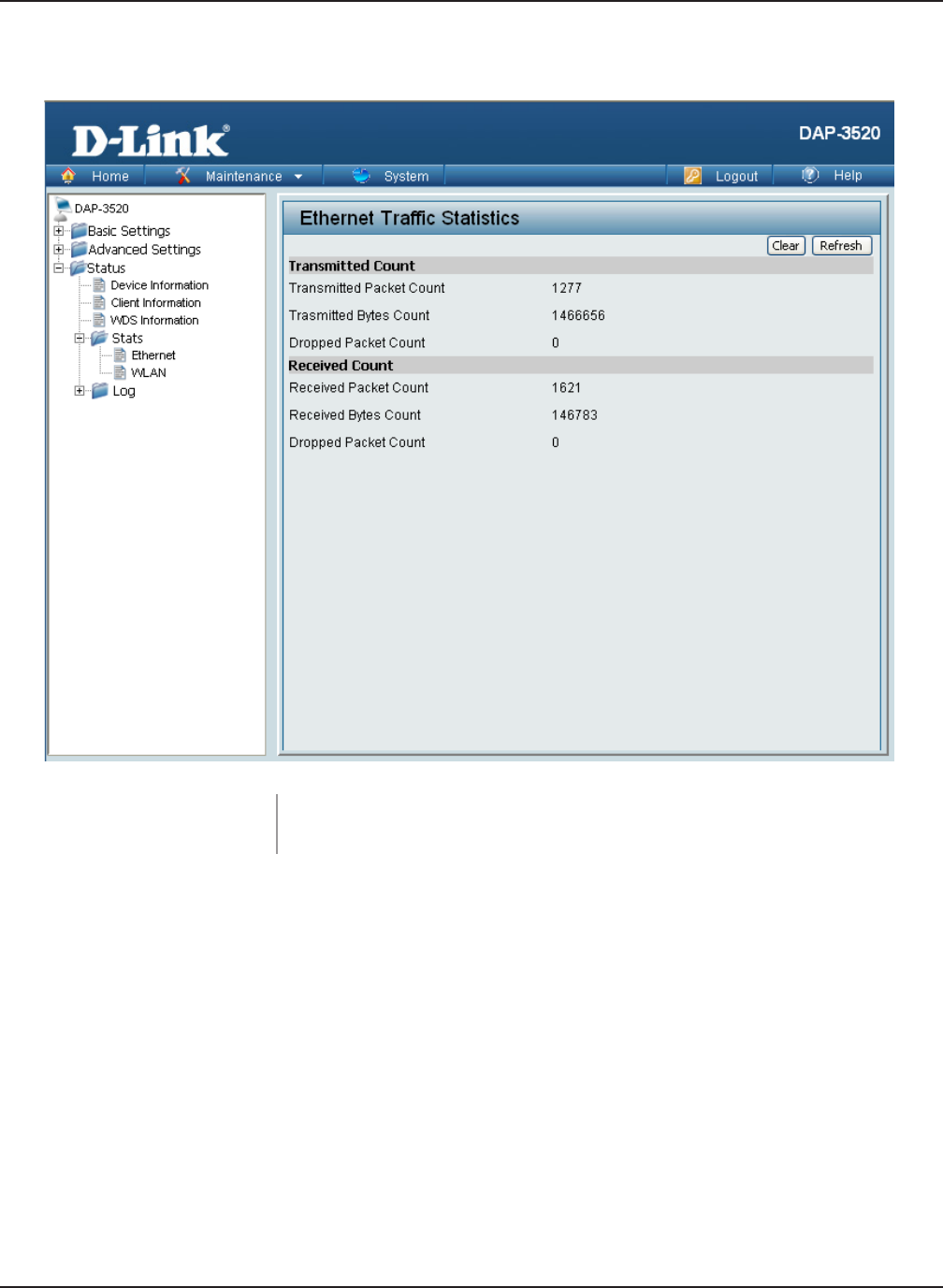

Home > Status > Stats > Ethernet

Ethernet Trafﬁc

Statistics:

This page displays transmitted and received count statistics for

packets and bytes.

Using the Conﬁguration Menu

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

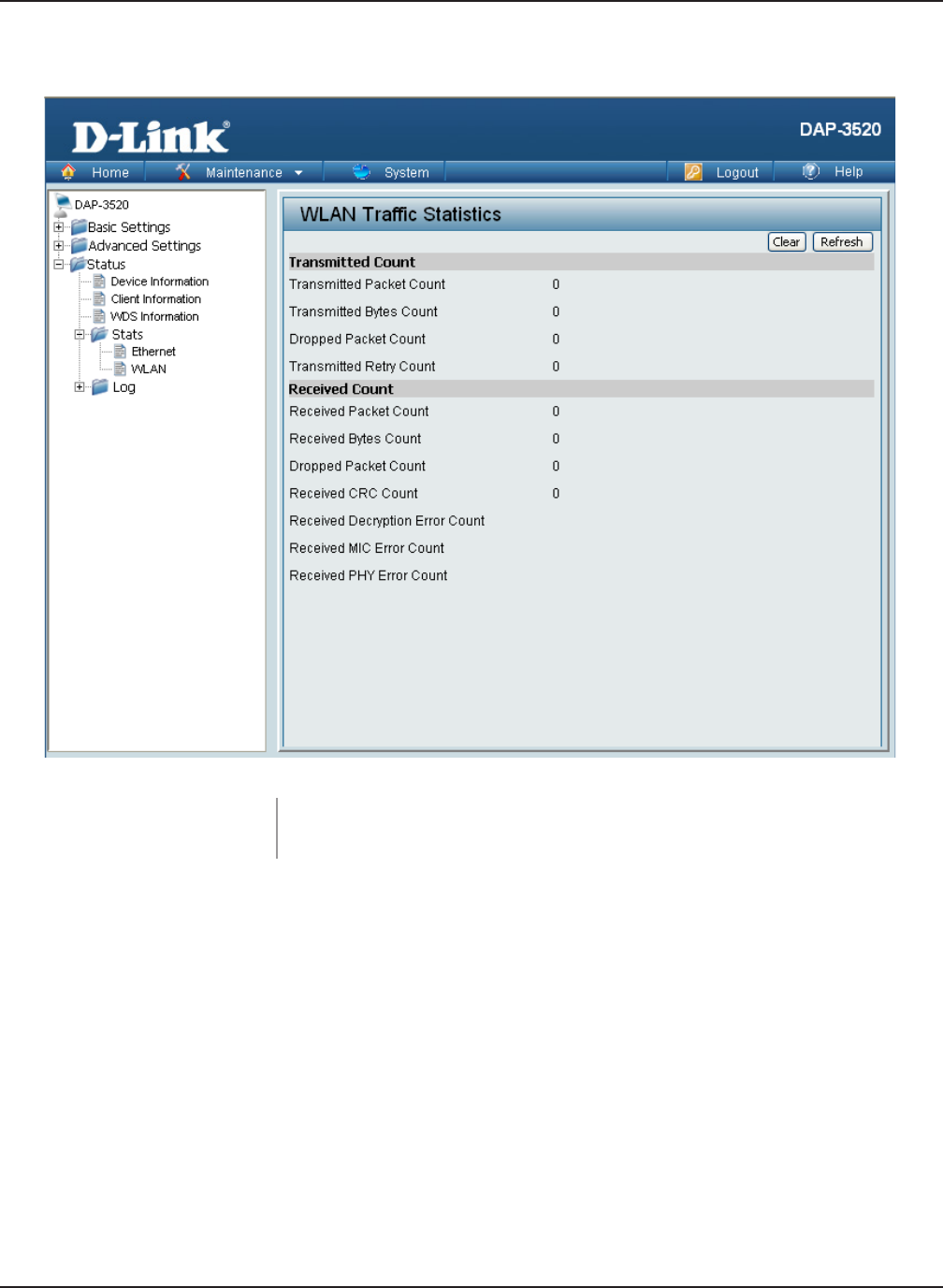

Home > Status > Stats > WLAN

WLAN Trafﬁc

Statistics:

This page displays wireless network statistics for data through-

put, transmitted and received frames, and frame errors.

Using the Conﬁguration Menu

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

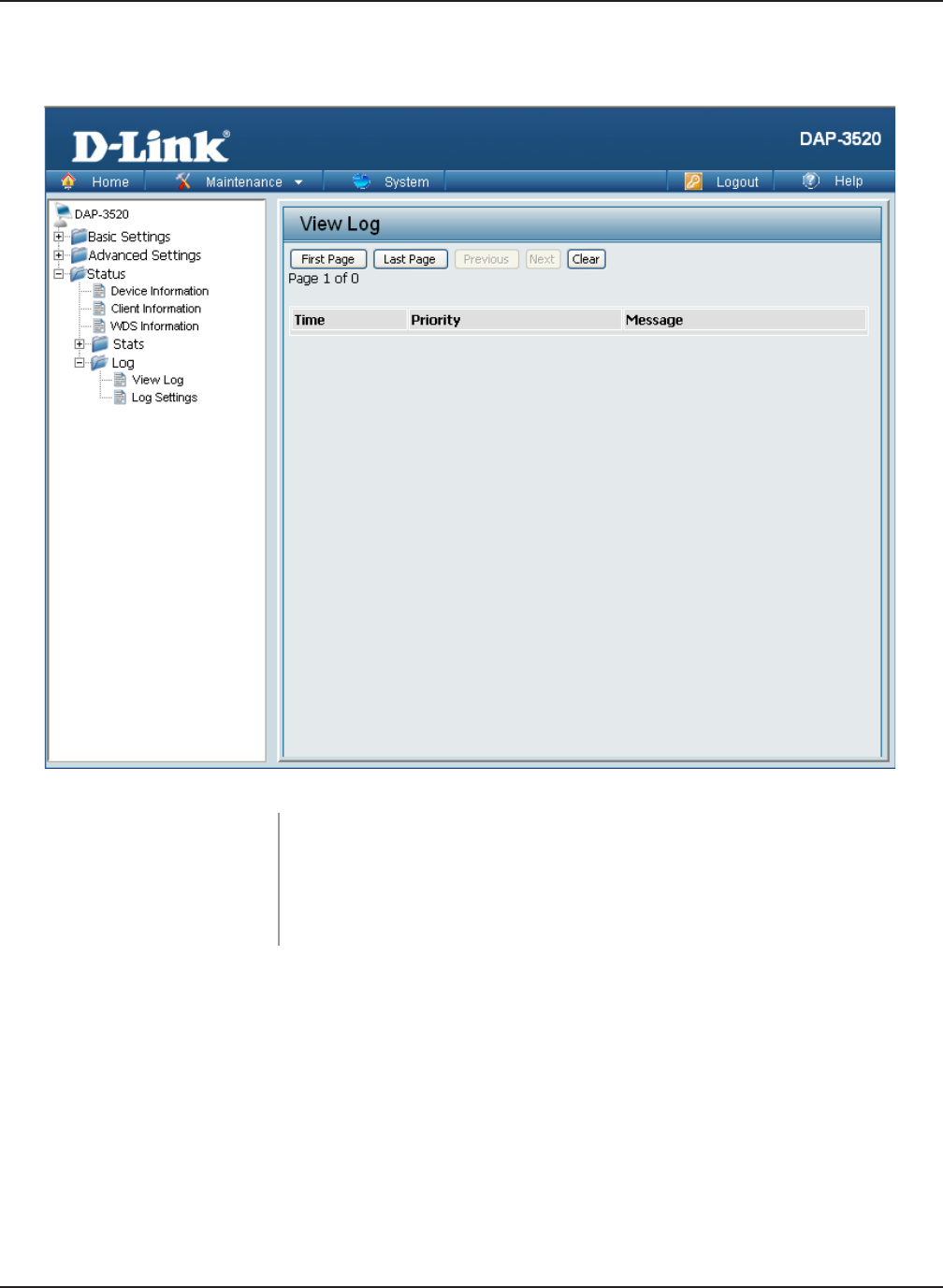

View Log: The AP’s embedded memory displays system and network

messages including a time stamp and message type. The log

information includes but is not limited to the following items: cold

start AP, upgrading rmware, client associate and disassociate with

AP, and web login. The web page holds up to 500 logs.

Home > Status > Log > View Log

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

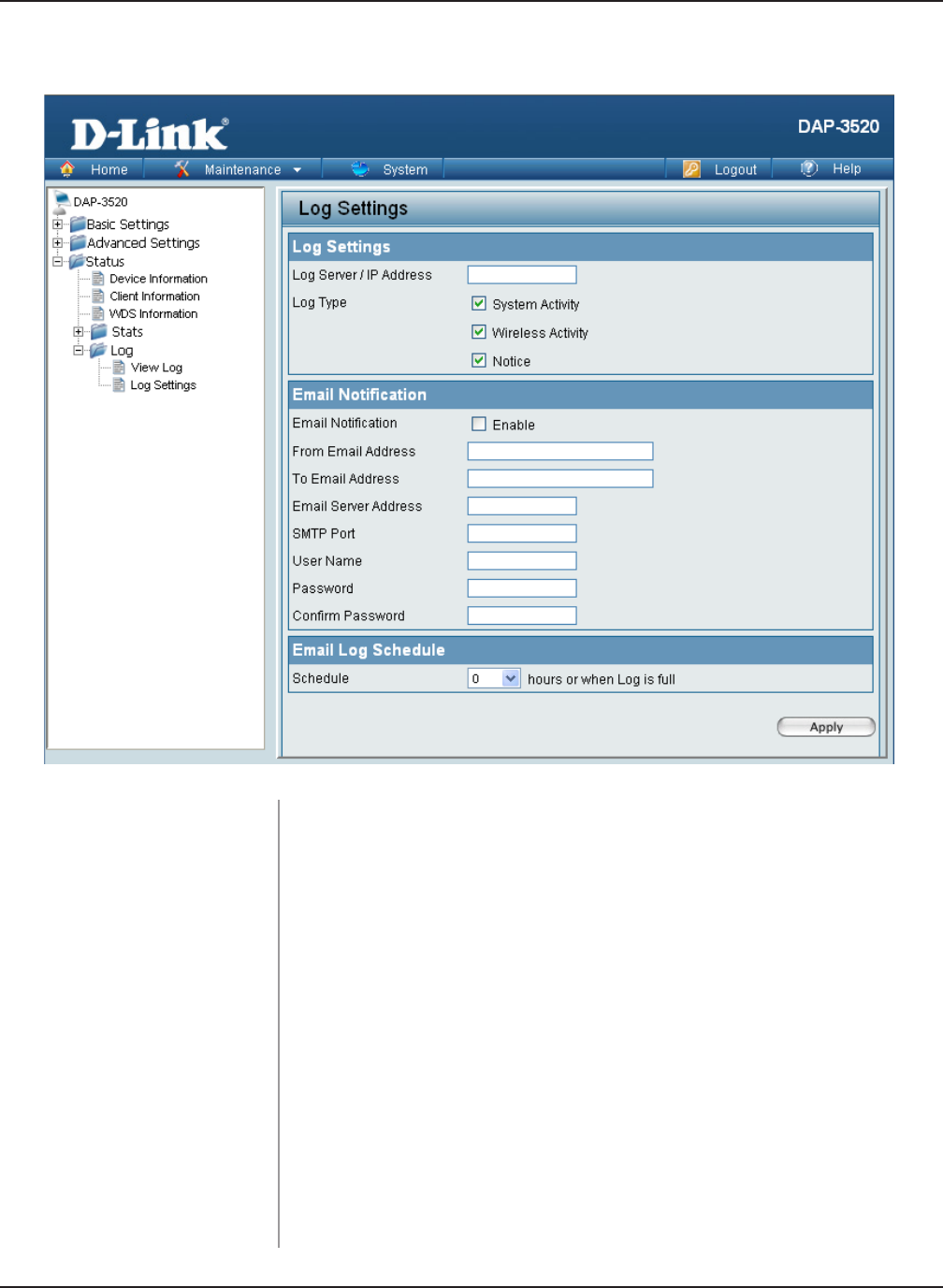

Home > Status > Log > Log Settings

Log Server/IP Address: Enter the IP address of the server you would like to send the

DAP-3520 log to.

Log Type:

Email Notiﬁcation:

From Email

Address:

To Email Address:

Email Server

Address:

Check the box for the type of activity you want to log. There are

three types: System Activity, Wireless Activity, and Notice.

Tick to Enable email notication.

Enter the e-mail address you want to send alerts to. This address

must correspond with the SMTP server congured above.

Enter the sender’s e-mail address. This eld does not require a

valid e-mail address. However, if your e-mail client is ltering spam,

make sure you allow this address to be received.

Enter the IP address of the server you would like to send the

DAP-3520 log to.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

SMTP Port:

User Name:

Password:

Conrm Password:

Schedule:

Enter a TCP port number to relay outbound mail to your mail server.

The default port is 25.

Enter an appropriate user name for your e-mail account.

Enter an appropriate password for your e-mail account.

Retype the password for your e-mail account.

Use the drop-down menu to select the number of hours before mail

will be sent to the server. For example, if a value of 2 is selected,

mail will be sent to ther server every two hours. However, if the log

entry is full between 0 and 2 hours, mail will also be sent to the server

and then the log entry will be automatically cleared.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

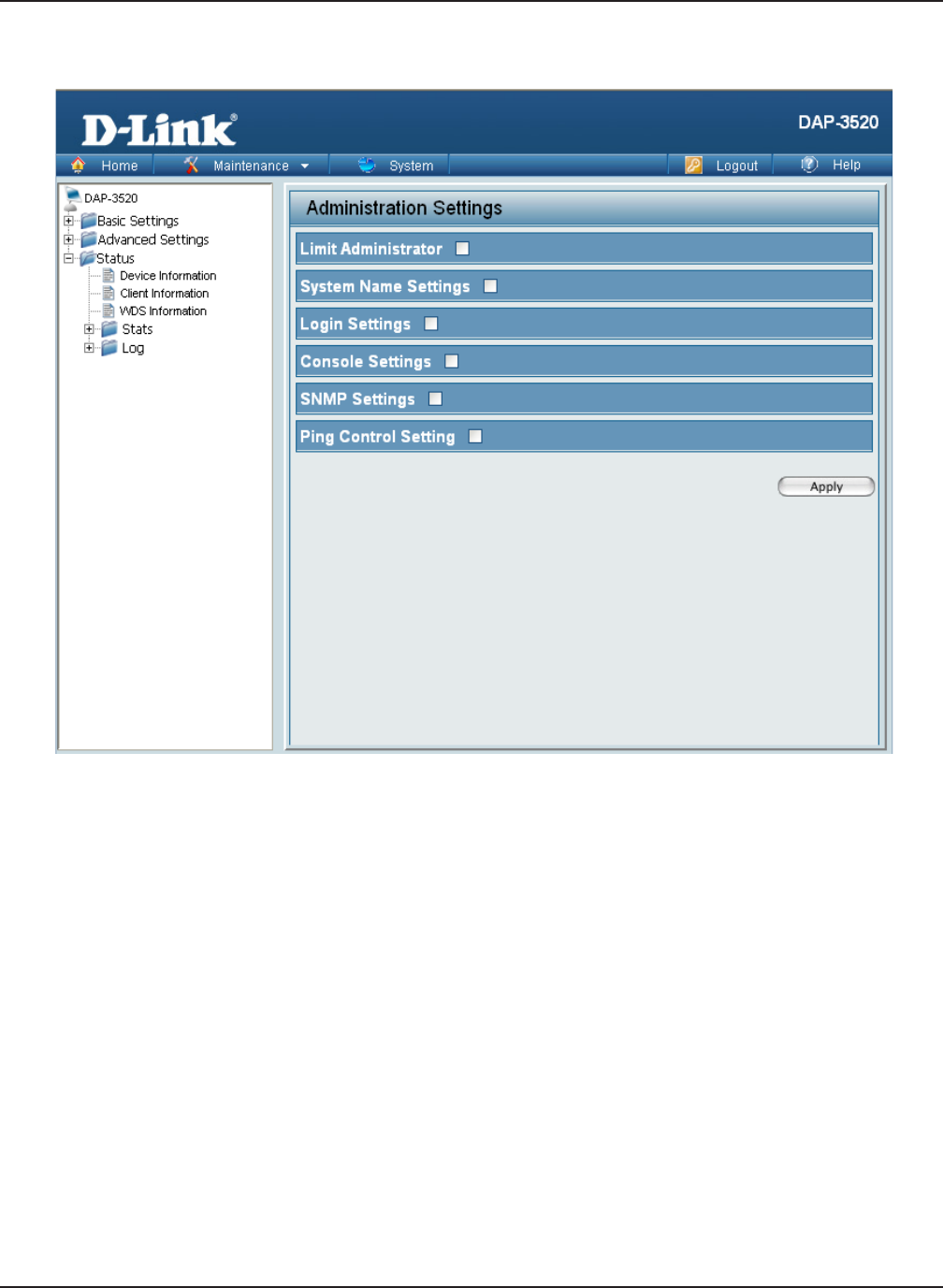

Maintenance > Administrator Settings Administrator Settings

Check one or more of the six main categories to display the various hidden administrator

parameters and settings displayed on the next ve pages.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

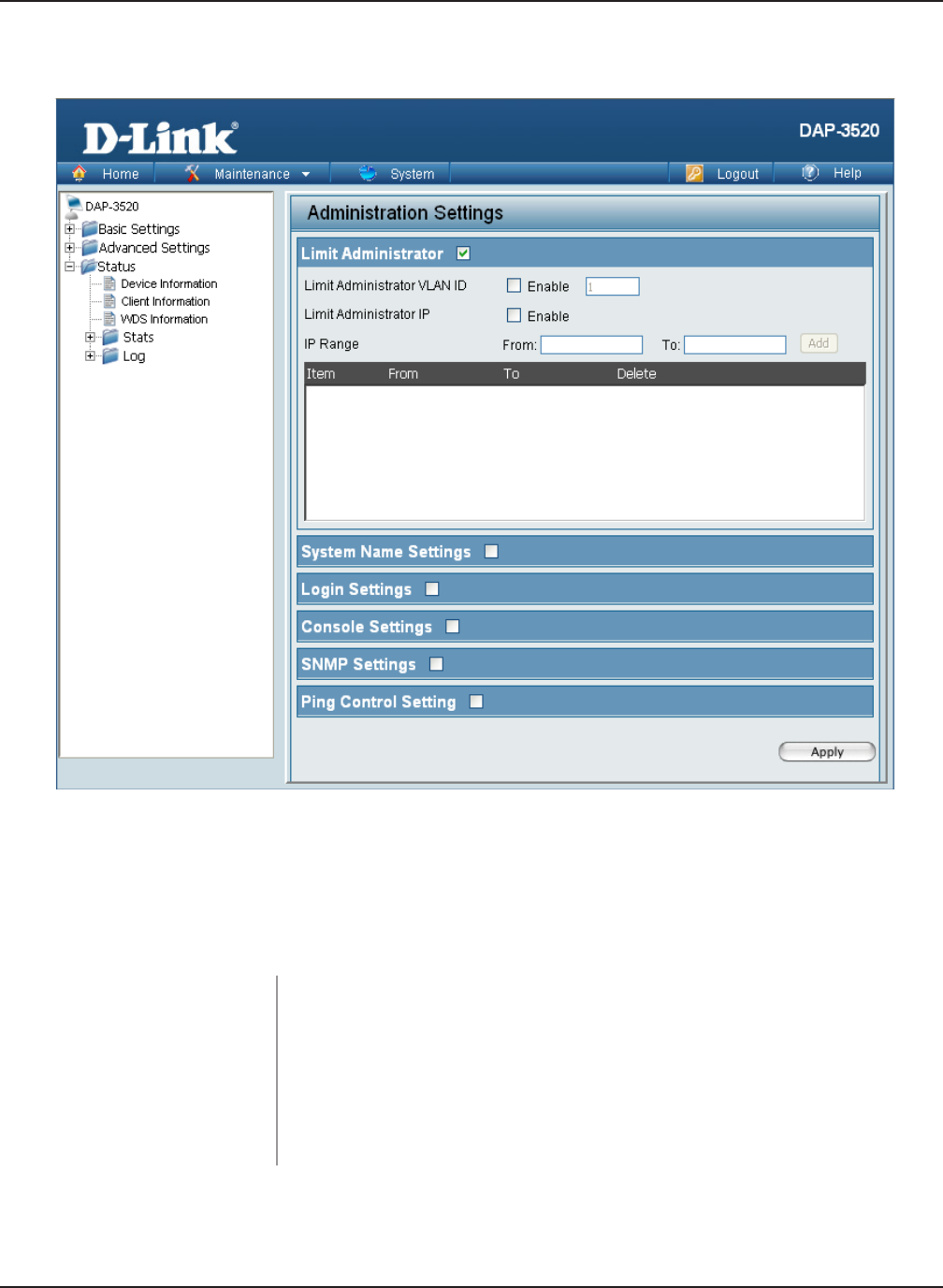

Limit Administrator VLAN ID: Check the box provided and the enter the specic VLAN ID that

the administrator will be allowed to log in from.

Limit

Administrator

Limit Administrator IP: Check to enable the Limit Administrator IP address.

Conﬁrm New

Password:

Conrm by re-entering your new password here.

Maintenance > Administrator Settings > Limit Administrator

Each of the six main categories display various hidden administrator parameters and settings.

IP Range: Enter the IP address range that the administrator will be allowed to log

in from and then click the Add button.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

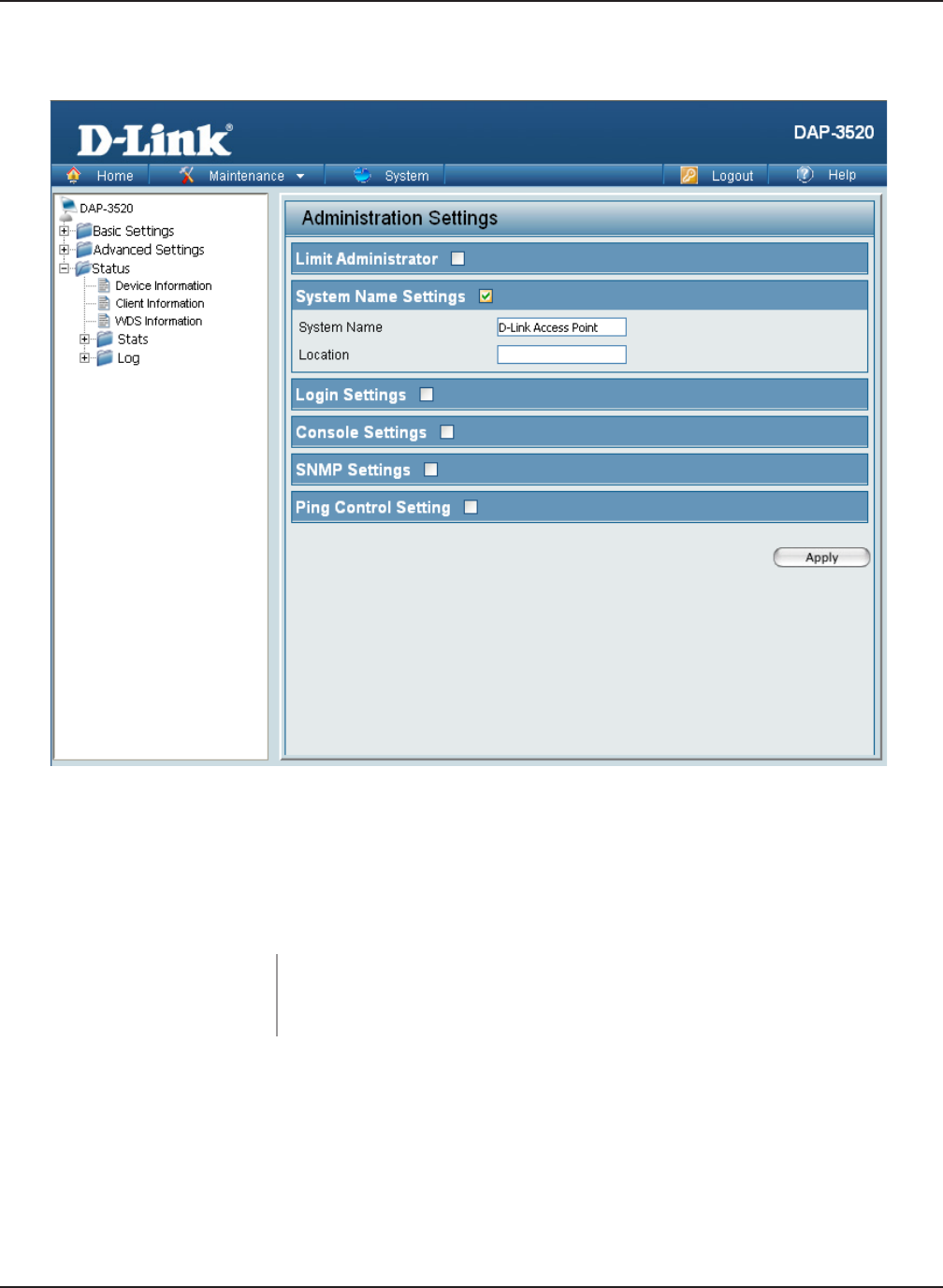

System Name: The name of the device. The default name is D-Link DAP-3520.

System Name

Settings

Location: The physical location of the device, e.g. 72nd Floor, D-Link HQ.

Conﬁrm New

Password:

Conrm by re-entering your new password here.

Maintenance > Administrator Settings > System Name

Each of the six main categories display various hidden administrator parameters and settings.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Conﬁrm New

Password:

Conrm by re-entering your new password here.

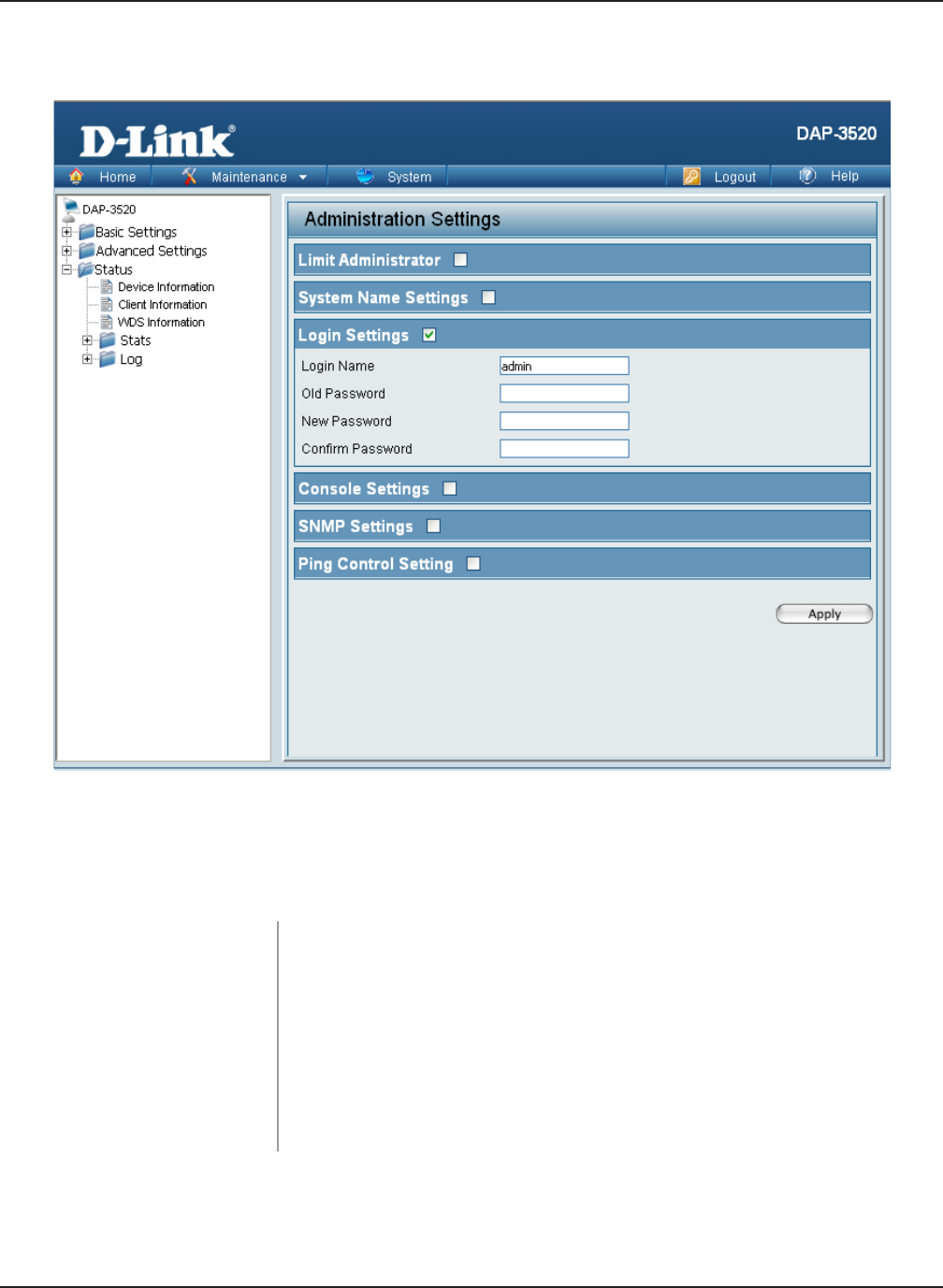

Maintenance > Administrator Settings > Login Settings

Each of the six main categories display various hidden administrator parameters and settings.

Using the Conﬁguration Menu

Old Password: When changing your password, enter the old password here.

User Name: Enter a user name. The default is admin.

New Password: When changing your password, enter the new password here. The

password is case-sensitive. “A” is a different character than “a.” The

length should be between 0 and 12 characters.

Conﬁrm Password: Enter the new password a second time for conrmation purposes.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Status: Status is enabled by default. Uncheck the box to disable the

console.

Console Settings

Console Protocol: Select the type of protocol you would like to use, Telnet or SSH.

Timeout: Set to 1 Min, 3 Mins, 5 Mins, 10 Mins, 15 Mins or Never.

Conﬁrm New

Password:

Conrm by re-entering your new password here.

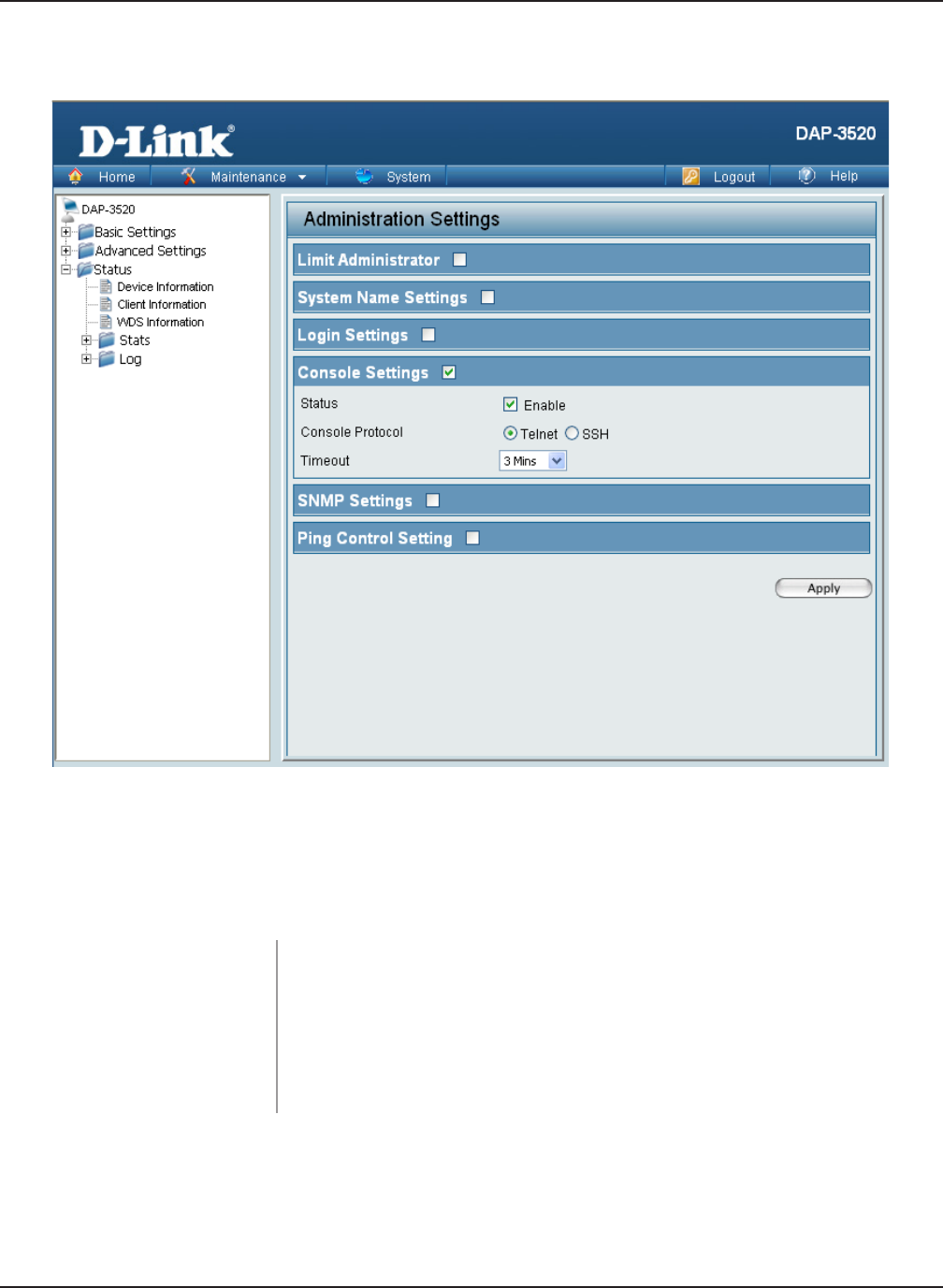

Maintenance > Administrator Settings > Console Settings

Each of the six main categories display various hidden administrator parameters and settings.

Using the Conﬁguration Menu

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

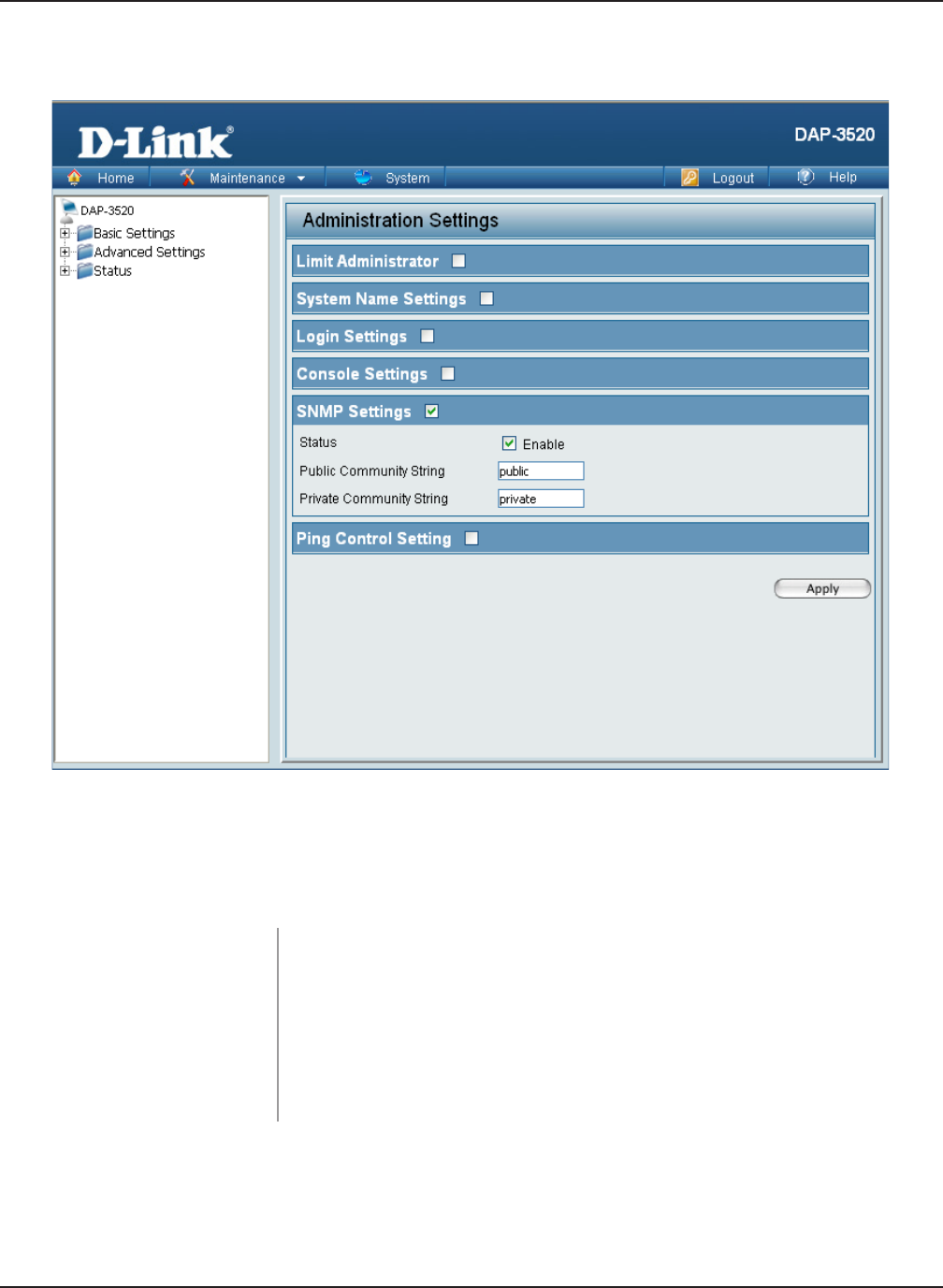

SNMP Settings

Public Community

String: Enter the public SNMP community string.

Status: Check the box to enable the SNMP functions. This is enabled by

default.

Private Community

String: Enter the private SNMP community string.

Conﬁrm New

Password:

Conrm by re-entering your new password here.

Maintenance > Administrator Settings > SNMP Settings

Each of the six main categories display various hidden administrator parameters and settings.

Using the Conﬁguration Menu

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

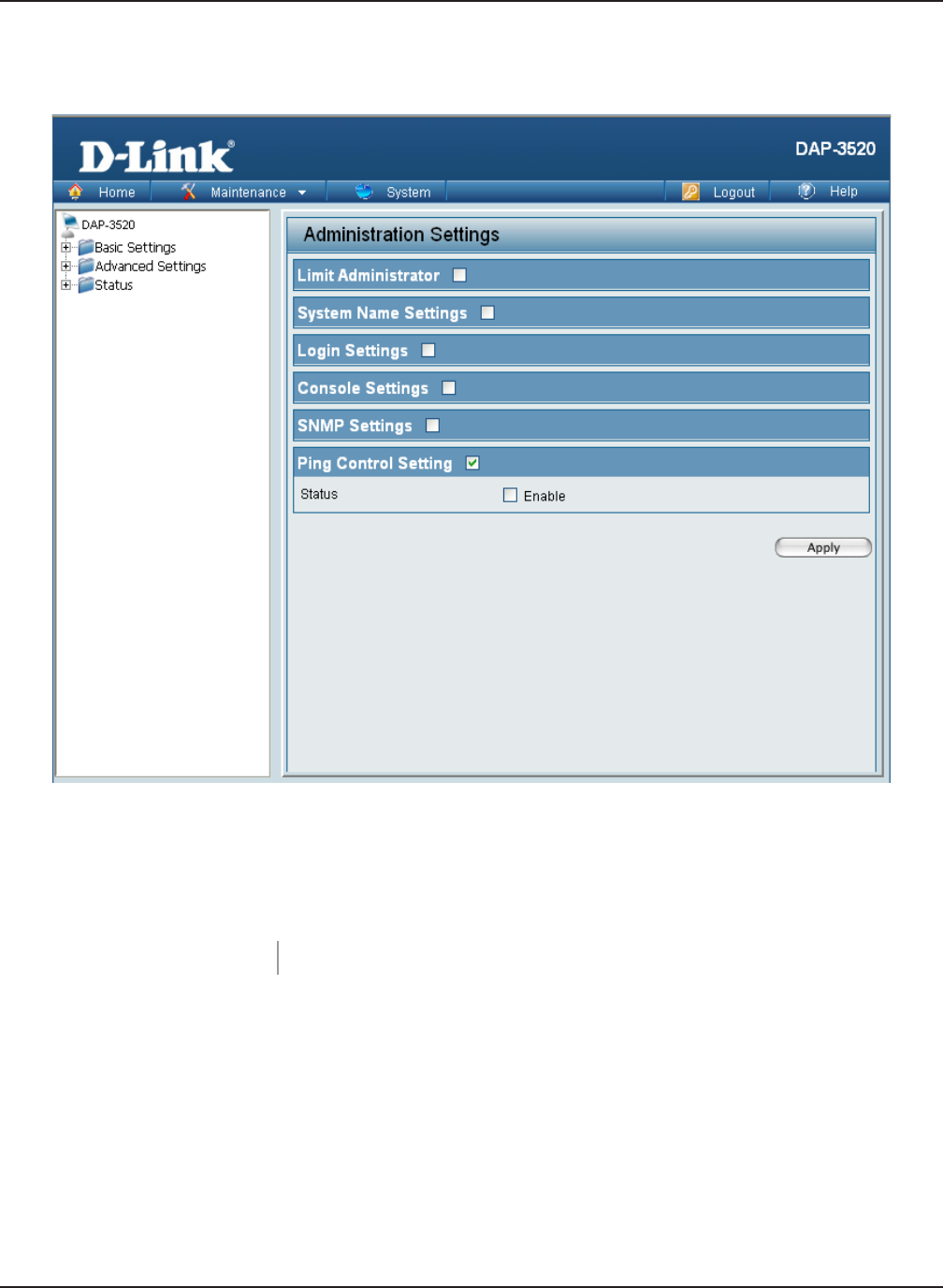

Ping Control

Setting

Status: Check the box to enable Ping control.

Conﬁrm New

Password:

Conrm by re-entering your new password here.

Maintenance > Administrator Settings > Ping Control Setting

Each of the six main categories display various hidden administrator parameters and settings.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

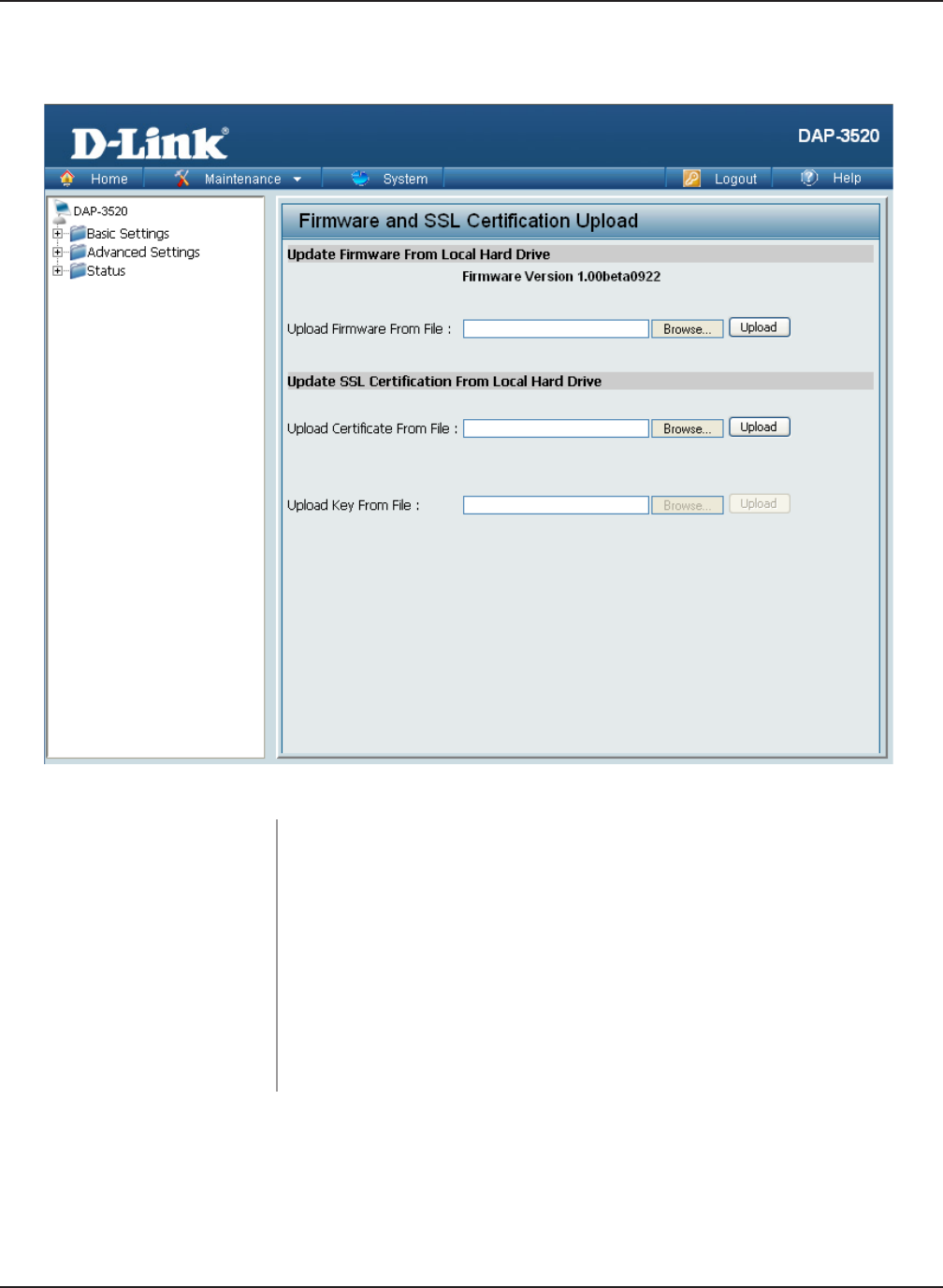

Maintenance > Firmware and SSL Certiﬁcation Upload Firmware and SSL Certiﬁcation Upload

Upload SSL

Certiﬁcation From

Local Hard Drive:

Click Browse to locate the SSL Certication le on your local

computer. After selecting and opening the le, click Upload to

upload the le to the DAP-3520.

Upload Firmware From

Local Hard Drive:

The current rmware version is displayed above the le location

eld. After downloading the most recent version of rmware for the

DAP-3520 from http://support.dlink.com to your local computer, use

the Browse button to locate the rmware le on your computer.

Click Upload to update the rmware version. Please don’t turn the

power off while upgrading.

Using the Conﬁguration Menu

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

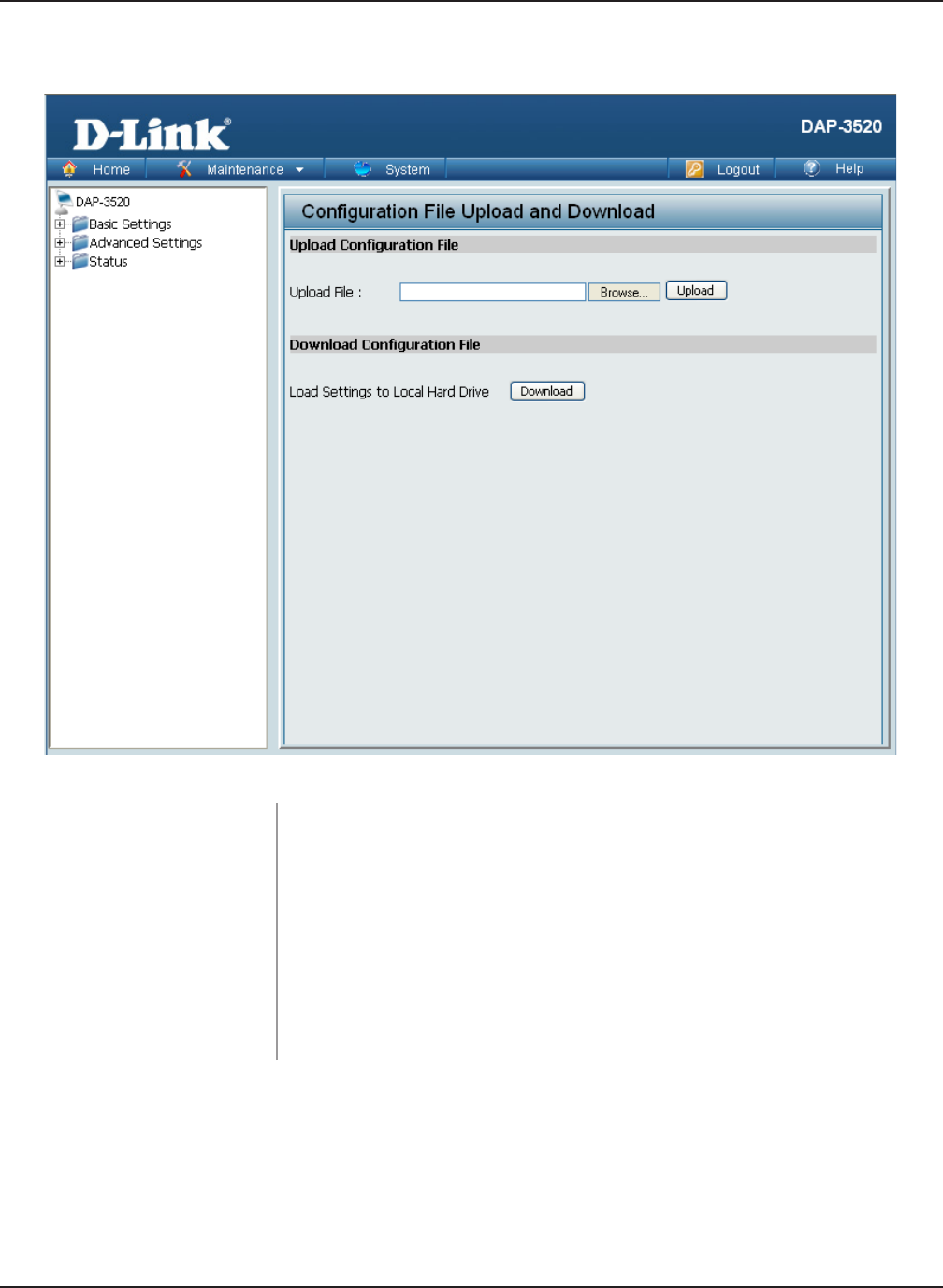

Maintenance > Conﬁguration File Conﬁguration File

Download

Conﬁguration File:

Click Download to save the current DAP-3520 conguration to

your local computer. Note that if you save one conguration with

the administrator’s password now, after resetting your DAP-3520,

and then updating to this saved conguration le, the password

will be gone.

Upload File: Click the Browse button to locate a previously saved conguration

le on your local computer. After selecting the le, click Upload to

apply the conguration settings to the DAP-3520.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

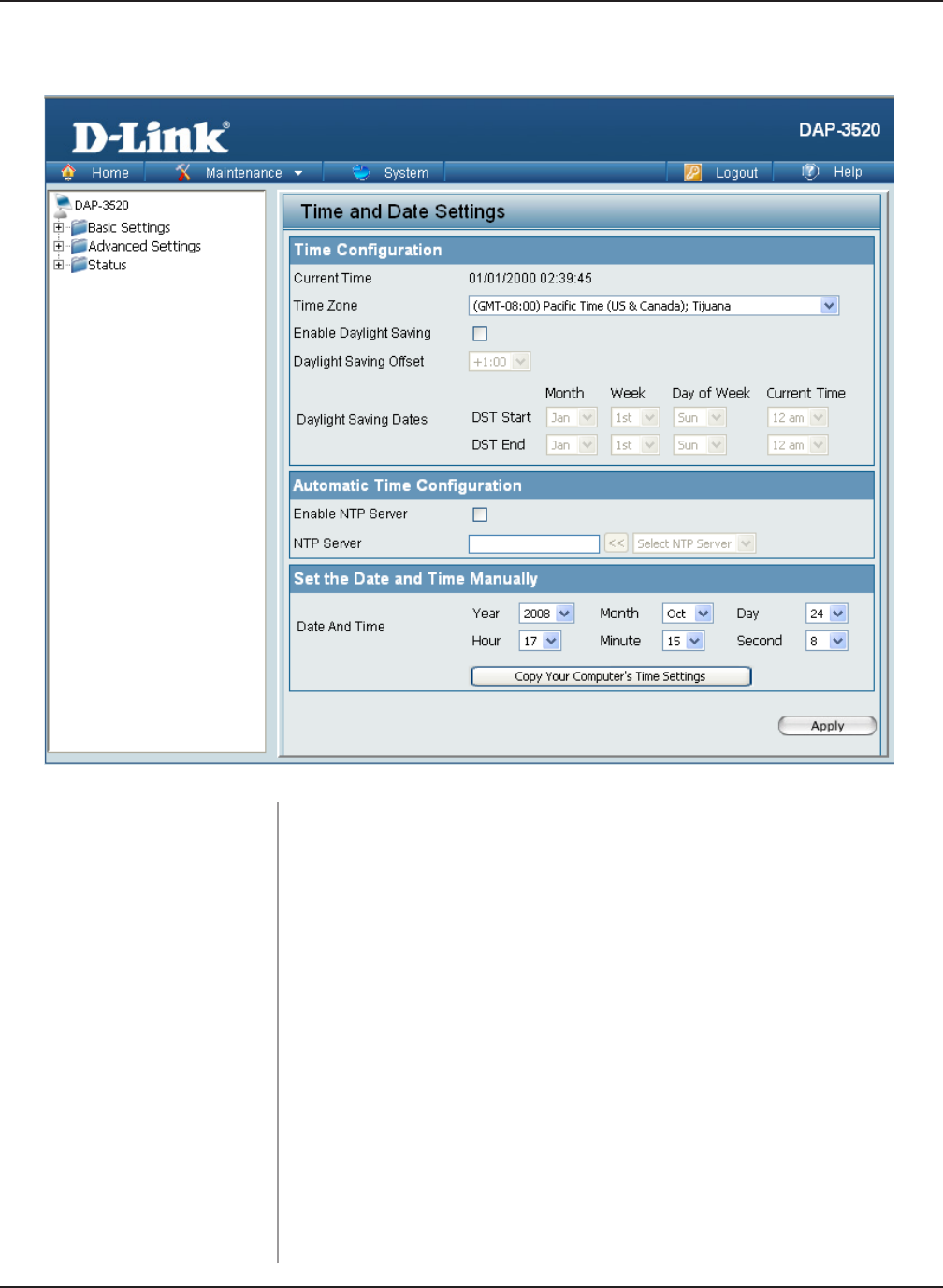

Maintenance > Time and Date

Current Time: Displays the current time and date settings.

NTP Server: Enter the NTP server IP address.

Time Zone: Use the pull-down menu to select your correct Time Zone.

Enable Daylight Saving: Check the box to Enable Daylight Saving Time.

Set the Date and

Time Manually::

You can either manually set the time for your AP here, or you can

click the Copy Your Computer’s Time Settings button to copy

the time from the computer you are using (Make sure that the

computer’s time is set correctly).

Use the pull-down menu to select the correct Daylight Saving offset.

Daylight Saving Offset:

Daylight Saving Dates: Use the pull-down menu to select the correct Daylight Saving offset.

Enable NTP Server: Check to enable the AP to get system time from an NTP server.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Using the Conﬁguration Menu

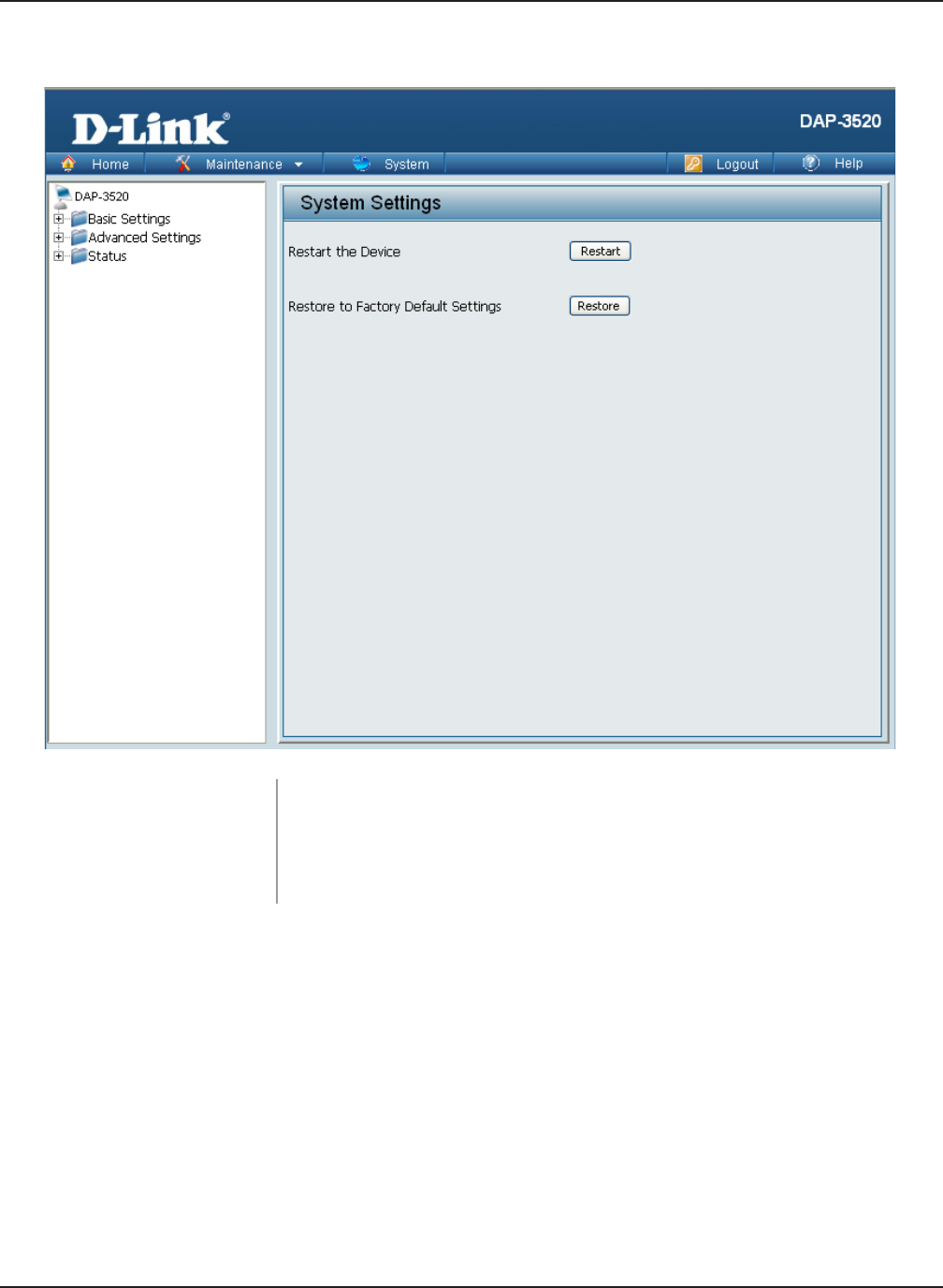

System > System Settings

Restart the

Device:

Click Restart to restart the DAP-3520.

Restore to Factory

Default Settings:

Click Restore to restore the DAP-3520 back to factory default

settings.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Help

Using the Conﬁguration Menu

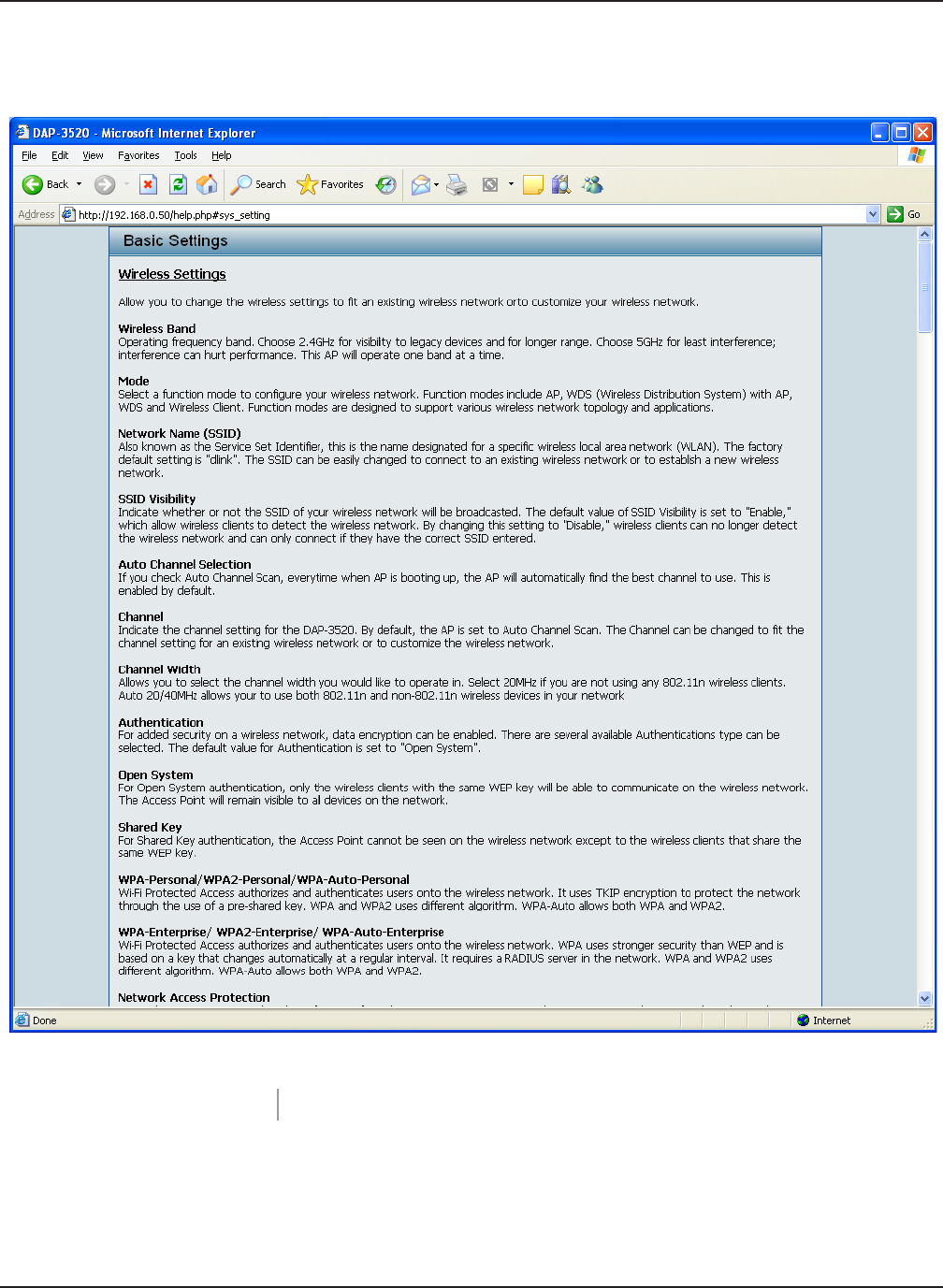

Scroll down the Help page for topics and explanations.

Help:

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and operation

of the DAP-3520 Wireless Access Point. We will cover various aspects of the network setup,

especially the network adapters. Please read the following if you are having any technical

difculties.

Note: It is recommended that you use an Ethernet connection to congure the DAP-3520.

1. The computer used to congure the DAP-3520 cannot access the Conguration

menu.

Check if the LAN LED on the DAP-3520 is ON. If the LED is not ON, check if the cable for

the Ethernet connection is securely inserted.

Check if the Ethernet adapter is working properly. Please see item 3 of this Troubleshooting

section to check that the drivers for the network adapters are loaded properly.

Check if the IP address is in the same range and subnet as the DAP-3520.

Note: The default IP address of the DAP-3520 is 192.168.0.50. All the computers on the network

must have a unique IP address in the same range, e.g. 192.168.0.x. Any computers that have

identical IP addresses will not be visible on the network. They must all have the same subnet

mask, e.g. 255.255.255.0.

Do a Ping test to make sure that the DAP-3520 is responding. Go to Start>Run>Type

Command>Type ping 192.168.0.50. A successful ping will show four replies.

Note: If you have changed the default IP address, make sure to ping the correct IP address

assigned to the DAP-3520.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Troubleshooting

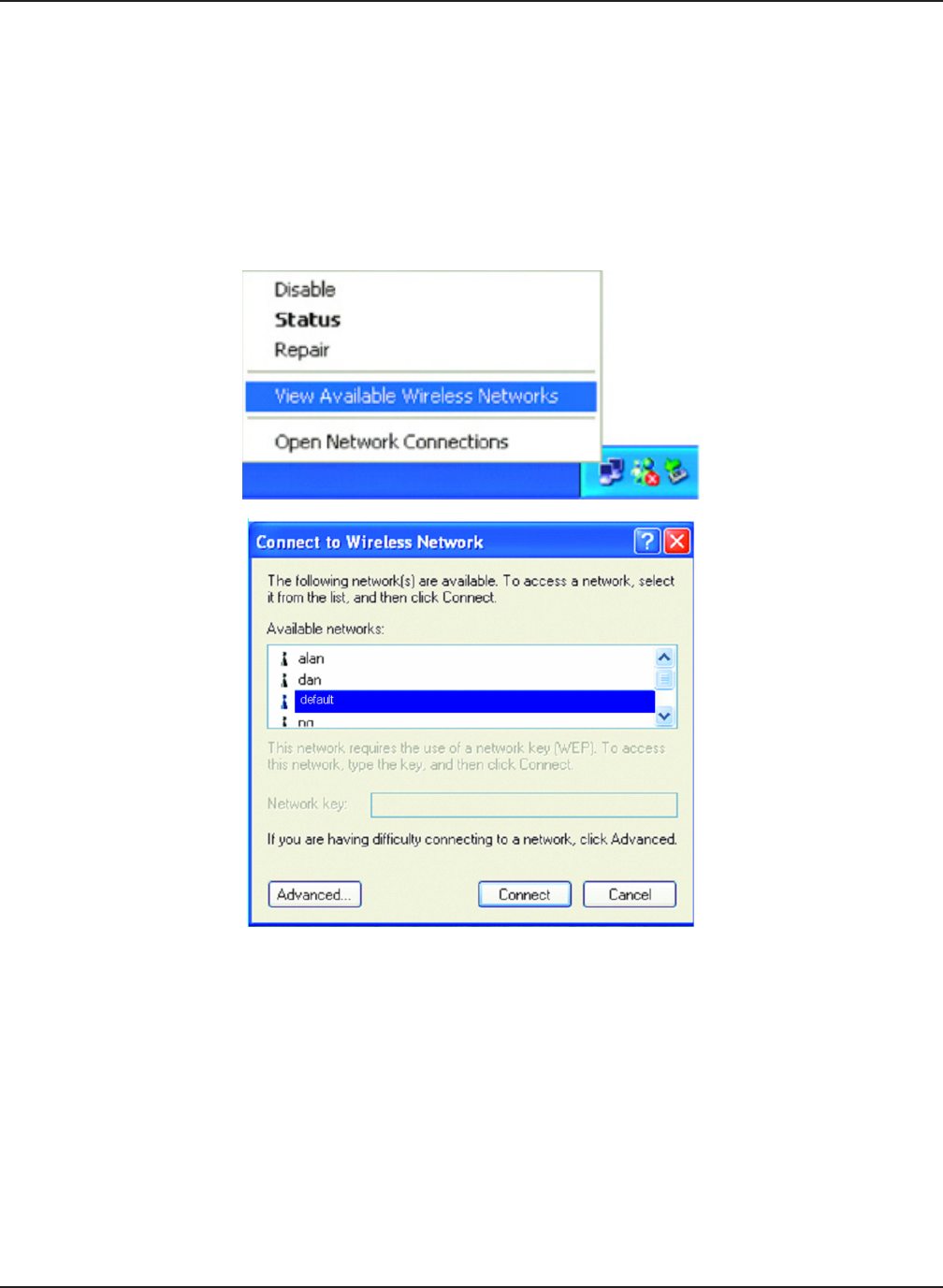

2. The wireless client cannot access the Internet within Infrastructure mode.

Make sure the wireless client is associated and joined with the correct access point. To check

this connection, right-click on the Local Area Connection icon in the taskbar and select View

Available Wireless Networks. The Connect to Wireless Network screen will appear. Please

make sure you have selected the correct available network, as shown in the illustrations below.

Check that the IP address assigned to the wireless adapter is within the same IP address range

as the access point and gateway. Since the DAP-3520 has an IP address of 192.168.0.50,

wireless adapters must have an IP address in the same range, e.g. 192.168.0.x. Each device

must have a unique IP address; there may be no two devices with the same IP address.

The subnet mask must be the same for all the computers on the network. To check the IP

address assigned to the wireless adapter, double-click the Local Area Connection icon in

the taskbar, then select the Support tab and the IP address will be displayed.

If it is necessary to assign a Static IP Address to the wireless adapter. If you are entering a

DNS Server address, you must also enter the Default Gateway Address.

Remember that if

you have a DHCP-capable router, you will not need to assign a static IP address.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Troubleshooting

3. What variables may cause my wireless products to lose reception?

D-Link products let you access your network from virtually anywhere you want, however, the

positioning of the products within your environment will affect its wireless range.

4. Why does my wireless connection keep dropping?

Antenna Orientation - try different antenna orientations for the DAP-3520. Try to keep the

antenna at least 6 inches away from the wall or other objects.

If you are using 2.4 GHz cordless phones, X-10 equipment or other home security systems,

ceiling fans, or lights, your wireless connection will degrade dramatically or even drop. Try

changing the channel of your router, access point and wireless adapter to a different channel

to avoid interference.

Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise

like microwaves, monitors, electric motors, etc.

5. Why can’t I get a wireless connection?

If you have enabled encryption on the DAP-3520, you must also enable encryption on all wireless

clients in order to establish a wireless connection.

Make sure that the SSID on the AP and the wireless client are exactly the same. If they are

not, wireless connection cannot be established.

Move the DAP-3520 and the wireless client into the same room and then test the wireless

connection.

Disable all security settings.

Turn off your DAP-3520 and the client. Turn the DAP-3520 back on again, and then turn

on the client.

Make sure that all devices are set to Infrastructure mode.

Check that the LED indicators are indicating normal activity. If not, check that the AC power

and Ethernet cables are rmly connected.

Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered

for the network.

If you are using 2.4 GHz cordless phones, X-10 equipment, or other home security systems,

ceiling fans, or lights, your wireless connection will degrade dramatically or drop altogether.

Try changing the channel on your DAP-3520, and on all the devices in your network to avoid

interference.

Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise

like microwaves, monitors, electric motors, etc.

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Warranty

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this

Limited Warranty:

• Only to the person or entity that originally purchased the product from D-Link or its authorized

reseller or distributor, and

•

Only for products purchased and delivered within the fty states of the United States, the

District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, or

addresses with an APO or FPO.

Limited Warranty:

D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will

be free from material defects in workmanship and materials under normal use from the date of

original retail purchase of the product, for the period set forth below (“Warranty Period”), except

as otherwise stated herein.

• Hardware (excluding power supplies and fans): One (1) year

• Power supplies and fans: One (1) year

• Spare parts and spare kits: Ninety (90) days

The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under

this Limited Warranty will be, at D-Link’s option, to repair or replace the defective Hardware during

the Warranty Period at no charge to the original owner or to refund the actual purchase price paid.

Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Ofce. The

replacement hardware need not be new or have an identical make, model or part. D-Link may, at

its option, replace the defective Hardware or any part thereof with any reconditioned product that

D-Link reasonably determines is substantially equivalent (or superior) in all material respects to

the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of

the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same

limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines

that it is not practical to repair or replace the defective Hardware, the actual price paid by the

original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of

the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the

purchase price is refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty:

D-Link warrants that the software portion of the product (“Software”) will substantially conform

to D-Link’s then current functional specications for the Software, as set forth in the applicable

documentation, from the date of original retail purchase of the Software for a period of ninety (90)

days (“Software Warranty Period”), provided that the Software is properly installed on approved

hardware and operated as contemplated in its documentation. D-Link further warrants that, during

the Software Warranty Period, the magnetic media on which D-Link delivers the Software will

be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of

Warranty

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the

non-conforming Software (or defective media) with software that substantially conforms to D-

Link’s functional specications for the Software or to refund the portion of the actual purchase

price paid that is attributable to the Software. Except as otherwise agreed by DLink in writing,

the replacement Software is provided only to the original licensee, and is subject to the terms

and conditions of the license granted by D-Link for the Software. Replacement Software will be

warranted for the remainder of the original Warranty Period and is subject to the same limitations

and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines

in its sole discretion that it is not practical to replace the non-conforming Software, the price paid

by the original licensee for the non-conforming Software will be refunded by D-Link; provided

that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license

granted respecting any Software for which a refund is given automatically terminates.

Non-Applicability of Warranty:

The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products

will not be applied to and does not cover any refurbished product and any product purchased

through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product and in

that case, the product is being sold “As-Is” without any warranty whatsoever including, without

limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to

the contrary.

Submitting A Claim:

The customer shall return the product to the original purchase point based on its return policy. In

case the return policy period has expired and the product is within warranty, the customer shall

submit a claim to D-Link as outlined below:

• The customer must submit with the product as part of the claim a written description

of the Hardware defect or Software nonconformance in sufcient detail to allow

DLink to conrm the same, along with proof of purchase of the product (such

as a copy of the dated purchase invoice for the product) if the product is not

registered.

• The customer must obtain a Case ID Number from D-Link Technical Support at 1-

877-354-6555, who will attempt to assist the customer in resolving any suspected

defects with the product. If the product is considered defective, the customer must

obtain a Return Material Authorization (“RMA”) number by completing the RMA

form and entering the assigned Case ID Number at https://rma.dlink.com/.

• After an RMA number is issued, the defective product must be packaged securely

in the original or other suitable shipping package to ensure that it will not be

damaged in transit, and the RMA number must be prominently marked on the

outside of the package. Do not include any manuals or accessories in the shipping

package. DLink will only replace the defective portion of the product and will not

ship back any accessories.

Warranty

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

• The customer is responsible for all in-bound shipping charges to D-Link. No Cash

on Delivery (“COD”) is allowed. Products sent COD will either be rejected by D-Link

or become the property of D-Link. Products shall be fully insured by the customer

and shipped to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA

92708. D-Link will not be held responsible for any packages that are lost in transit

to D-Link. The repaired or replaced packages will be shipped to the customer via

UPS Ground or any common carrier selected by D-Link. Return shipping charges

shall be prepaid by D-Link if you use an address in the United States, otherwise

we will ship the product to you freight collect. Expedited shipping is available upon

request and provided shipping charges are prepaid by the customer. D-Link may

reject or return any product that is not packaged and shipped in strict compliance

with the foregoing requirements, or for which an RMA number is not visible from

the outside of the package. The product owner agrees to pay D-Link’s reasonable

handling and return shipping charges for any product that is not packaged and

shipped in accordance with the foregoing requirements, or that is determined by

D-Link not to be defective or non-conforming.

What Is Not Covered:

The Limited Warranty provided herein by D-Link does not cover:

Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication,

tampering, negligence, misuse, faulty installation, lack of reasonable care, repair or service in any

way that is not contemplated in the documentation for the product, or if the model or serial number

has been altered, tampered with, defaced or removed; Initial installation, installation and removal

of the product for repair, and shipping costs; Operational adjustments covered in the operating

manual for the product, and normal maintenance; Damage that occurs in shipment, due to act of

God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or

other products or services provided by anyone other than D-Link; and Products that have been

purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product.

While necessary maintenance or repairs on your Product can be performed by any company,

we recommend that you use only an Authorized D-Link Service Ofce. Improper or incorrectly

performed maintenance or repair voids this Limited Warranty.

Disclaimer of Other Warranties:

EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED

“AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING, WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NONINFRINGEMENT.

IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A

PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO

THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT

AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE

ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT

IS WITH THE PURCHASER OF THE PRODUCT.

Warranty

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Limitation of Liability:

TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY

CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY

FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY

CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING,

BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR

PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER

EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED

WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED

WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING

FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING

OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE

FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE

DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM LIABILITY OF D-LINK UNDER

THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY

THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS,

IMPLIED OR STATUTORY.

Governing Law:

This Limited Warranty shall be governed by the laws of the State of California. Some states do

not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This

Limited Warranty provides specic legal rights and you may also have other rights which vary

from state to state.

Trademarks:

D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks

or registered trademarks are the property of their respective owners.

No part of this publication or documentation accompanying this product may be reproduced in

any form or by any means or used to make any derivative such as translation, transformation,

or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by

the United States Copyright Act of 1976 and any amendments thereto. Contents are subject to

change without prior notice.

CE Mark Warning:

This is a Class B product. In a domestic environment, this product may cause radio interference,

in which case the user may be required to take adequate measures.

Warranty

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

FCC Statement:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communication. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in

indoor environment only.

IMPORTANT NOTICE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

The availability of some specic channels and/or operational frequency bands are country

dependent and are rmware programmed at the factory to match the intended destination. The

rmware setting is not accessible by the end user.

For detailed warranty information applicable to products purchased outside the United States,

please contact the corresponding local D-Link ofce.

Warranty

DAP-3520 User’s Manual

D-Link AirPremier N Dual Band Exterior PoE Access Point

Industry Canada Notice:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the

radiator & your body.

Warranty

This device has been designed to operate with an antenna having a maximum gain of 8dB for

2.4G and 10dB for 5G. Antenna having a higher gain is strictly prohibited per regulations of

Industry Canada. The required antenna impedance is 50 ohms.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor

environment.

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited

to channels 1 through 11.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands

are country dependent and are firmware programmed at the factory to match

the intended destination. The firmware setting is not accessible by the end

user.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is

subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause

undesired operation of the device

This device has been designed to operate with an antenna having a maximum gain

of 8dB for 2.4G and 10dB for 5G.

Antenna having a higher gain is strictly prohibited per regulations of Industry

Canada. The required antenna

impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the EIRP is not more than required for successful

communication.

Caution:

The device for the band 5150-5250 MHz is only for indoor usage to reduce potential

for harmful interference to co-channel mobile satellite systems.

Because high power radars are allocated as primary users (meaning they have

priority) in 5250-5350 MHz and 5650-5850 MHz, these radars could cause

interference and/or damage to license exempt LAN devices.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an
