D Link CS2230LA1 Full HD Wireless Day/Night Network Camera User Manual

D Link Corporation Full HD Wireless Day/Night Network Camera

User Manual

User Manual
Full HD Wireless Day/Night Network Camera
Version 1.00 | 11/10/2014
DCS-2230L
2D-Link DCS-2230L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 November 10, 2014 Version A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2014 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.
Preface
3D-Link DCS-2230L User Manual
Table of Contents
Product Overview .............................................................. 5
Package Contents ................................................................. 5
System Requirements ......................................................... 6
Introduction ............................................................................ 7
Features .................................................................................... 8
Hardware Overview ............................................................. 9
Front View ............................................................................ 9
Rear View ...........................................................................10
Side View ............................................................................11
Installation .......................................................................12
Wireless Installation Considerations ............................12
Zero Conguration Setup ................................................13

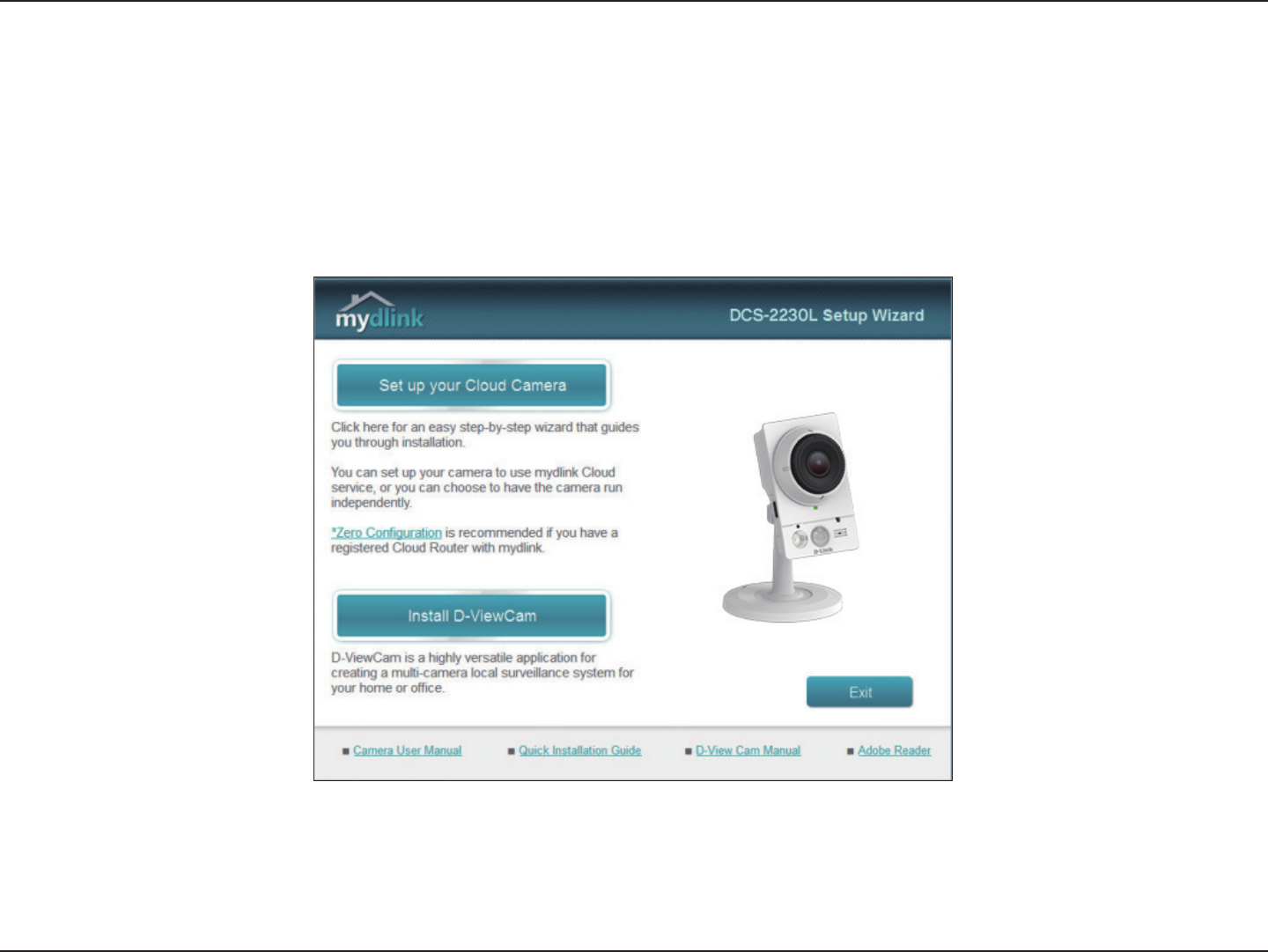

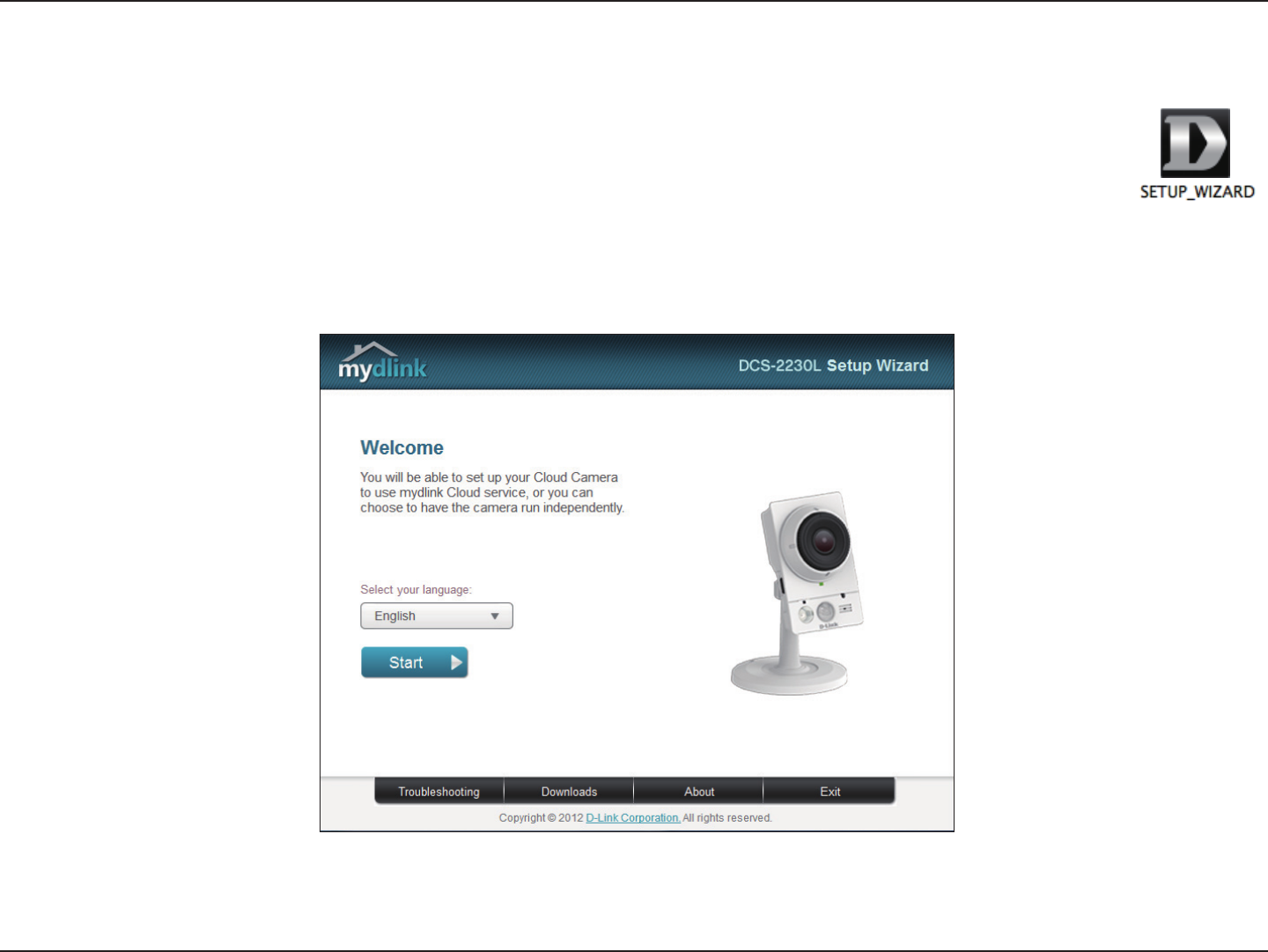

Camera Setup Wizard ........................................................17
Windows Users ....................................................................17
Mac Users...............................................................................18
Manual Hardware Installation ........................................20
WPS - Push Button Setup .................................................21

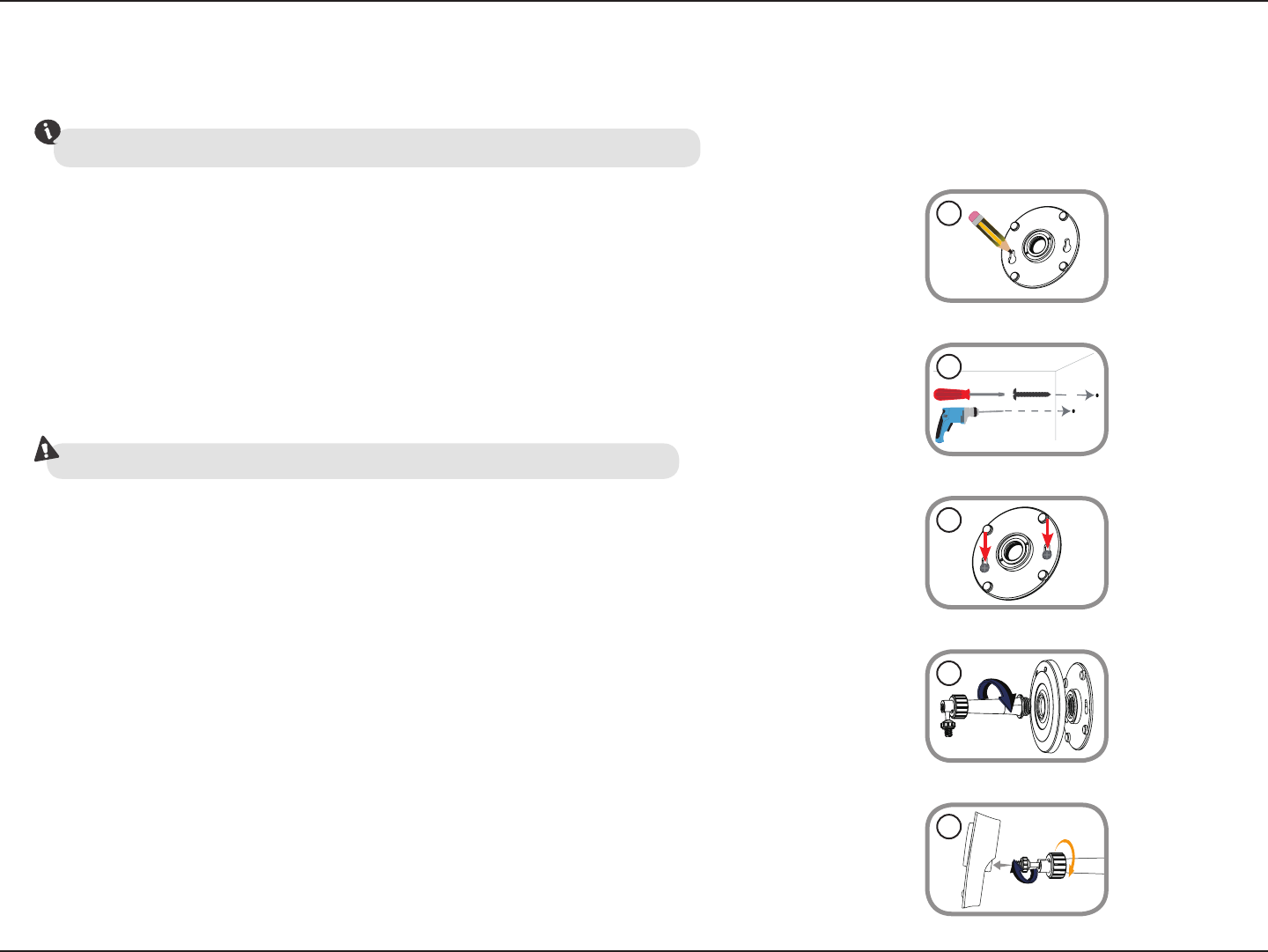

Mount the Camera .............................................................22

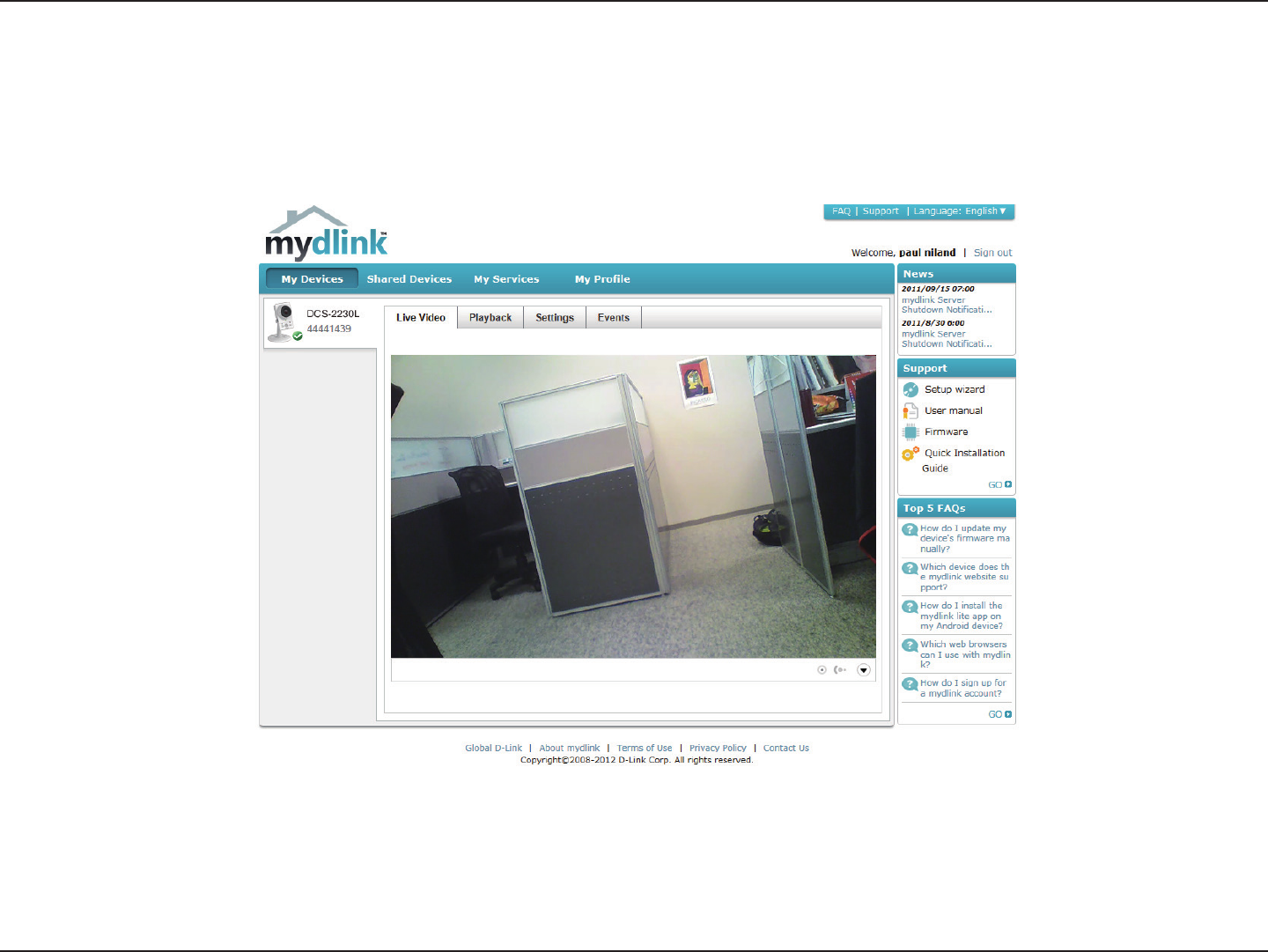

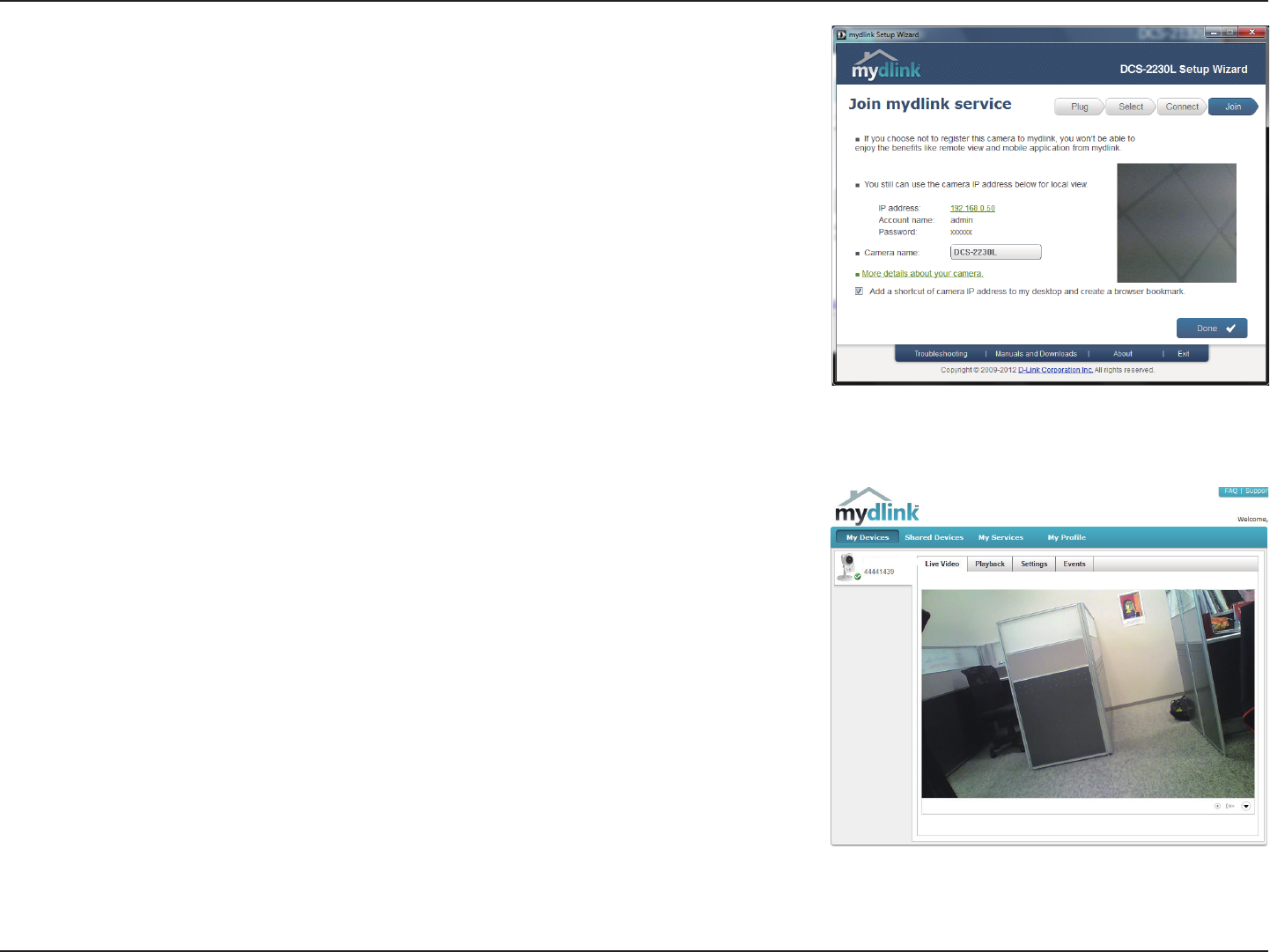

mydlink ...........................................................................................23
Conguration ...................................................................24
Using the Conguration Interface ................................24

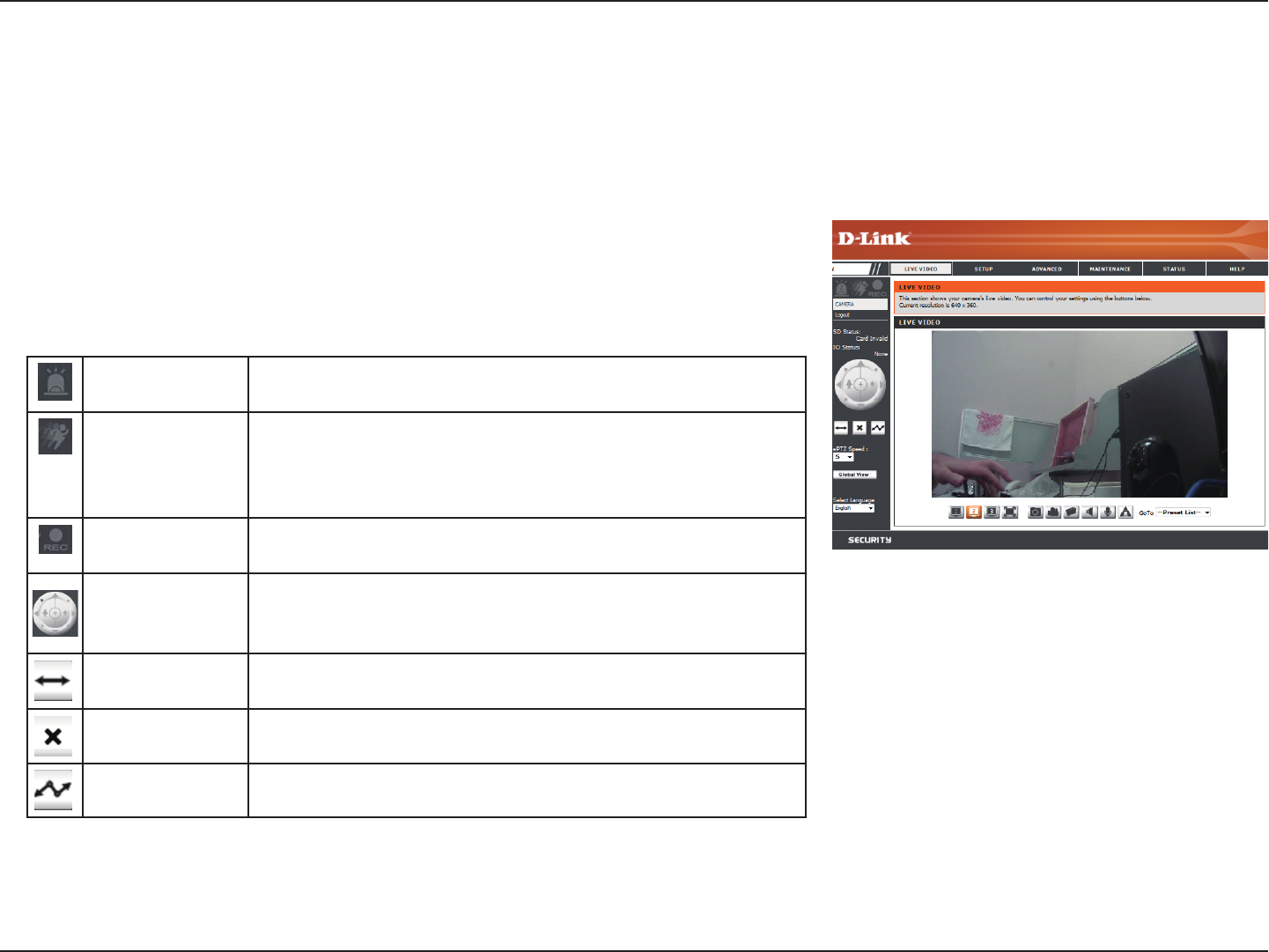

Live Video ..............................................................................25
Setup .......................................................................................27

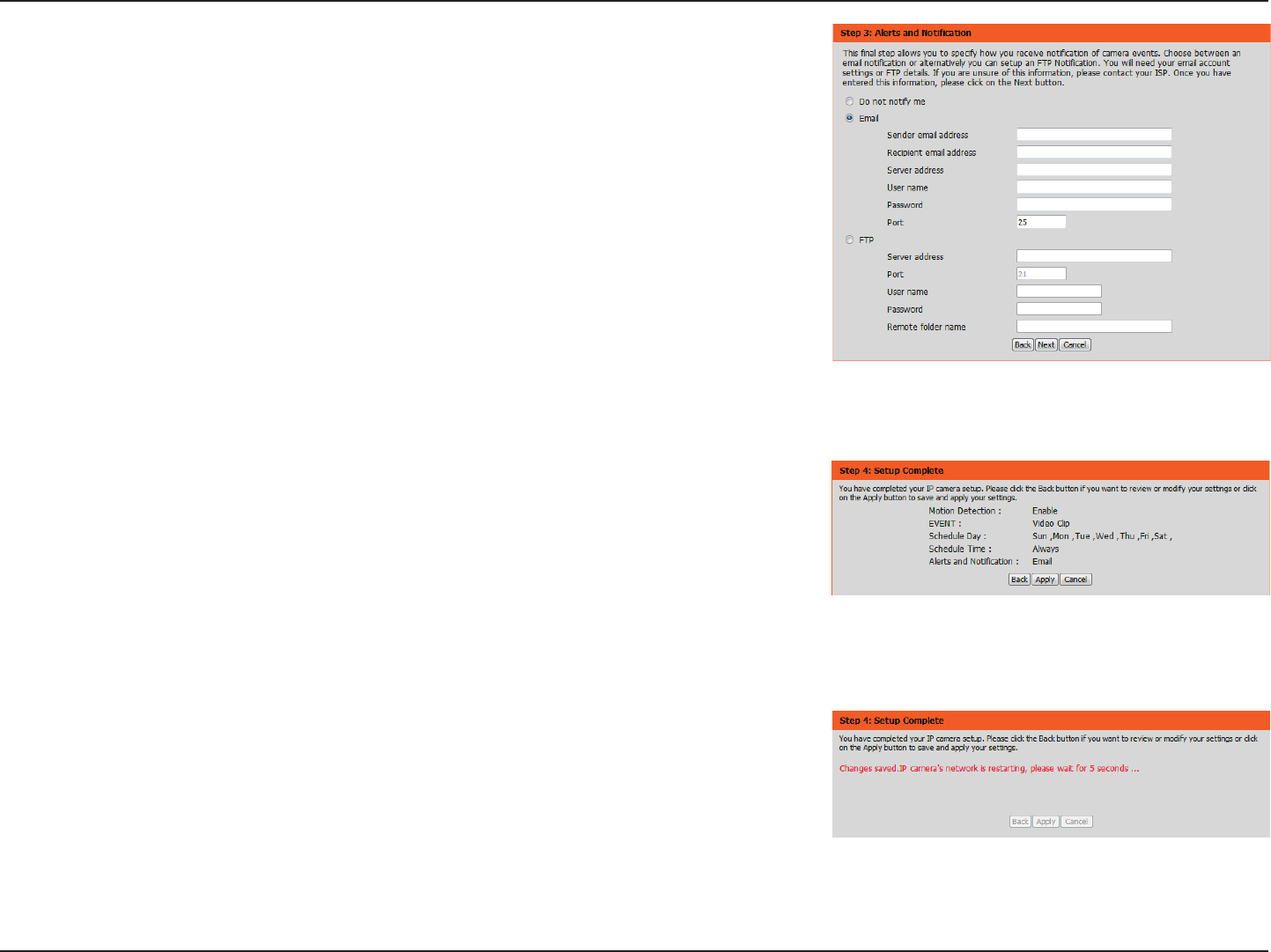

Setup Wizard ....................................................................27

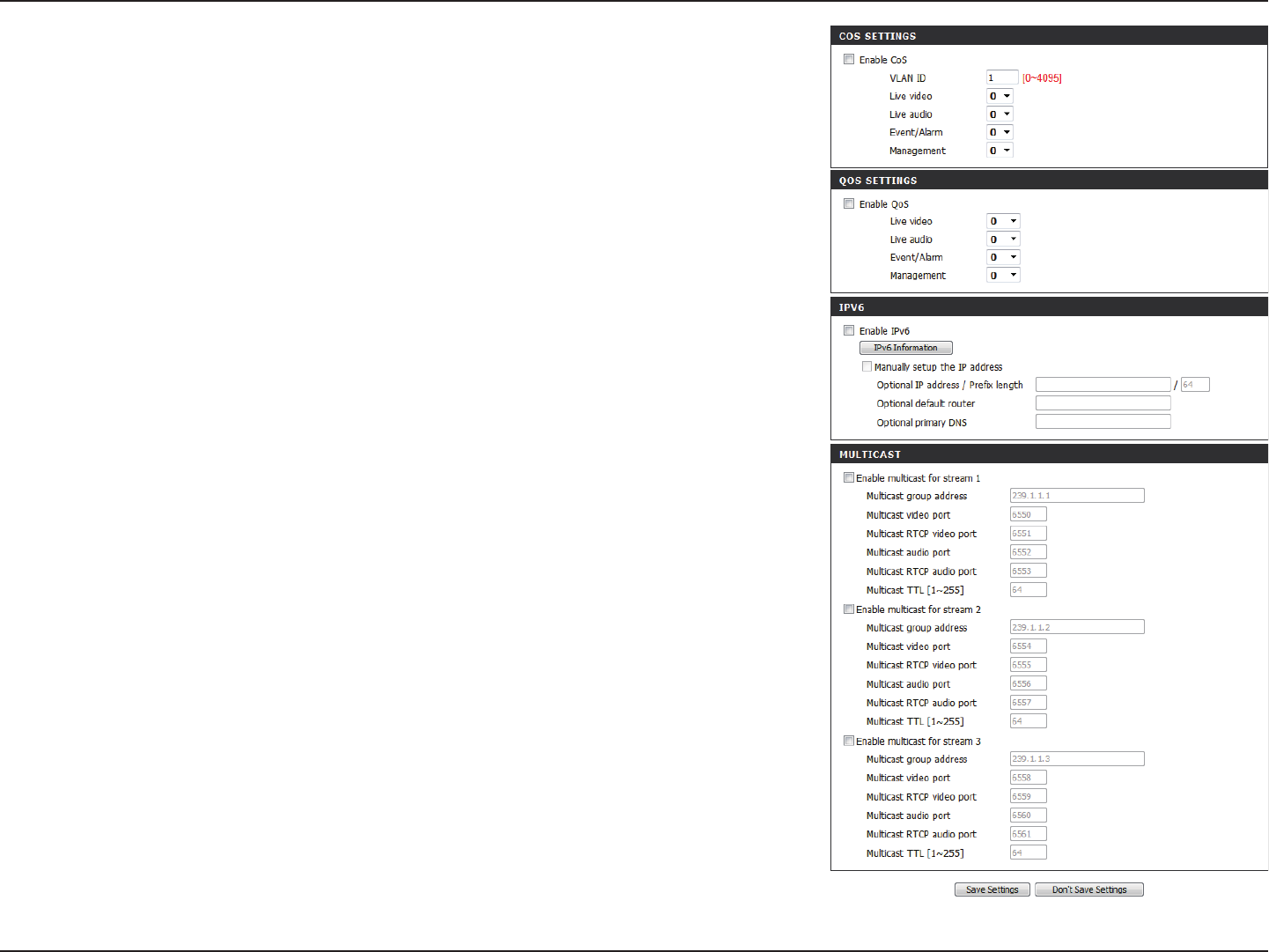

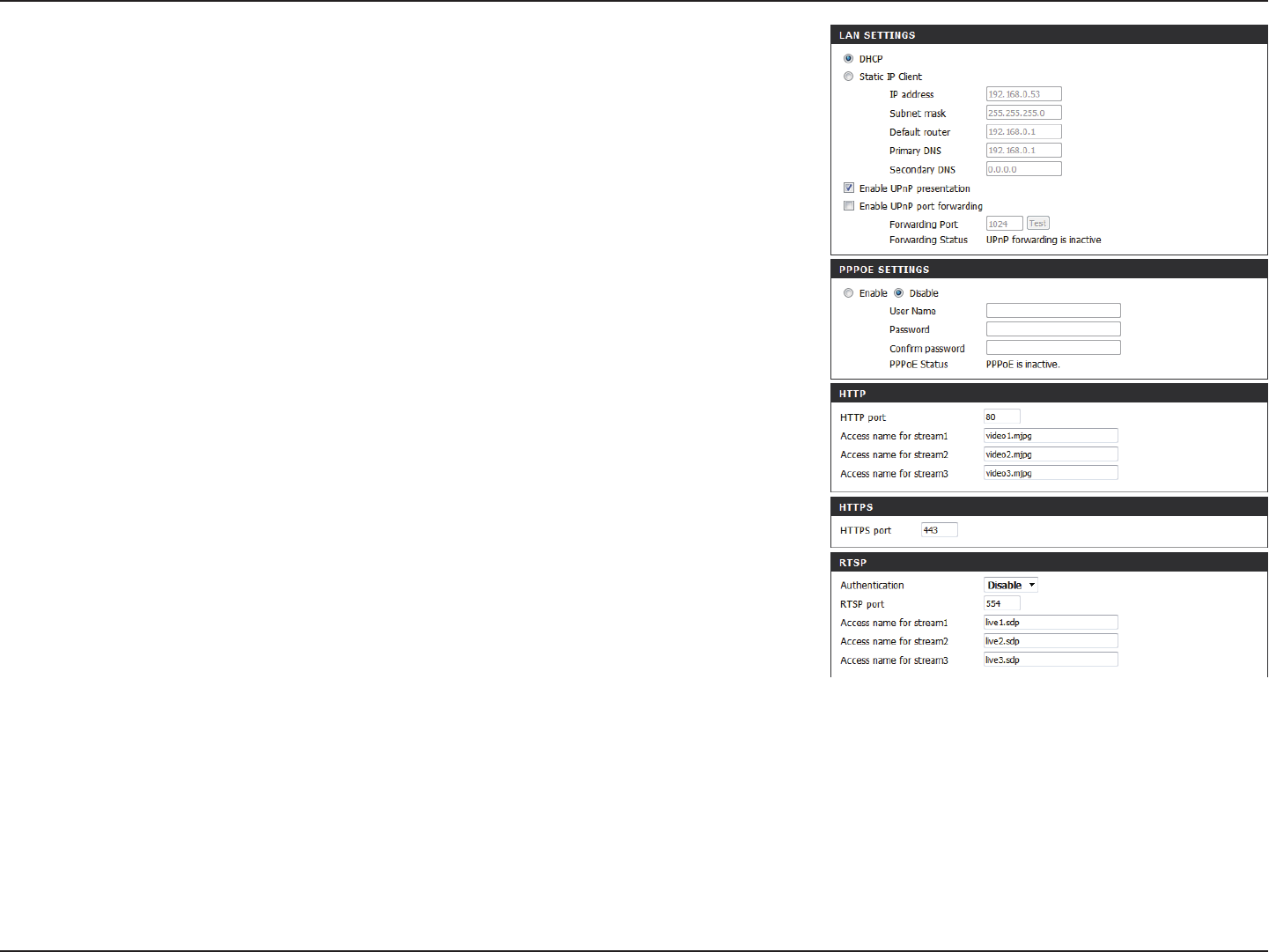

Network Setup .................................................................33

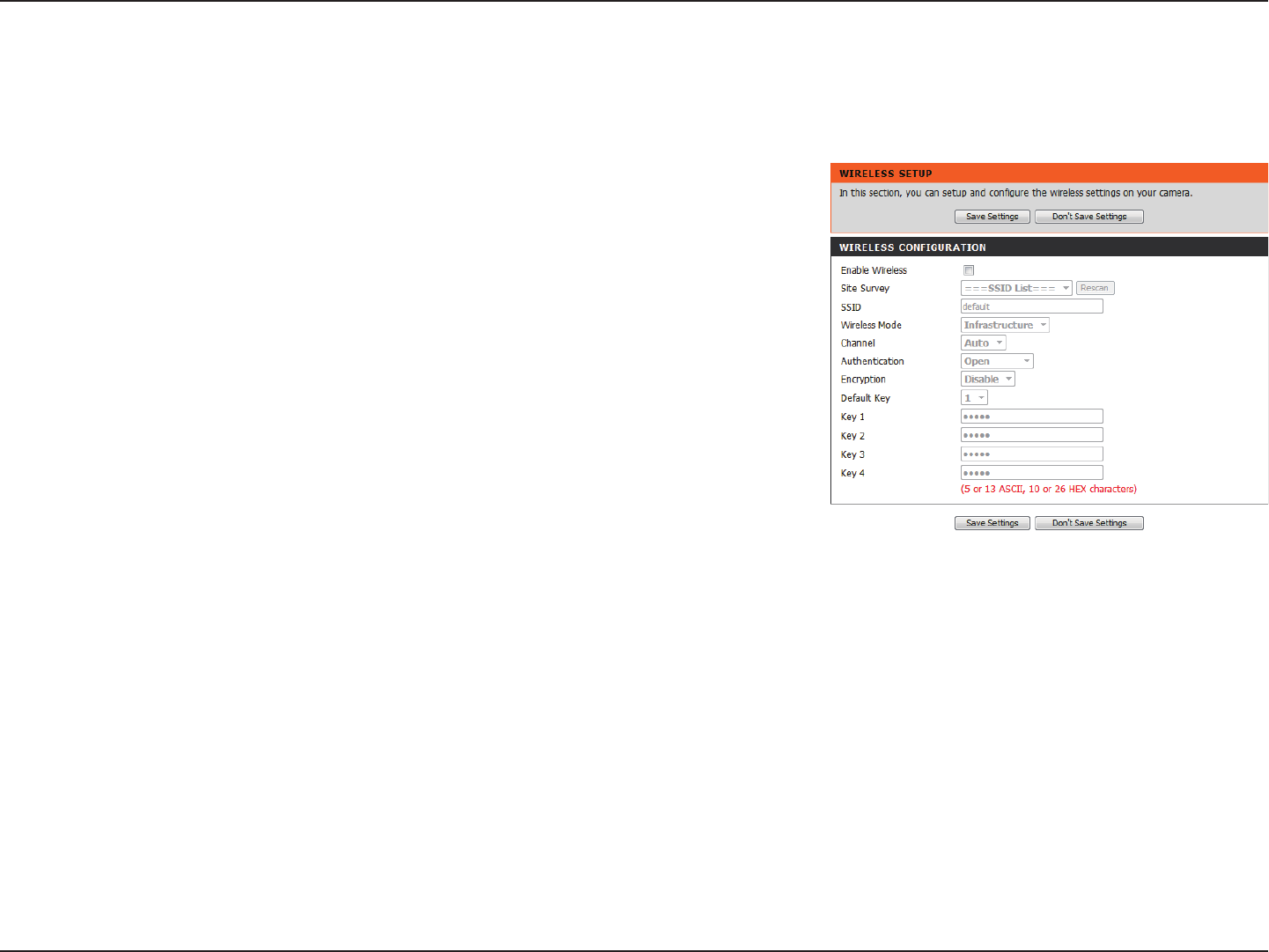

Wireless Setup .................................................................. 36

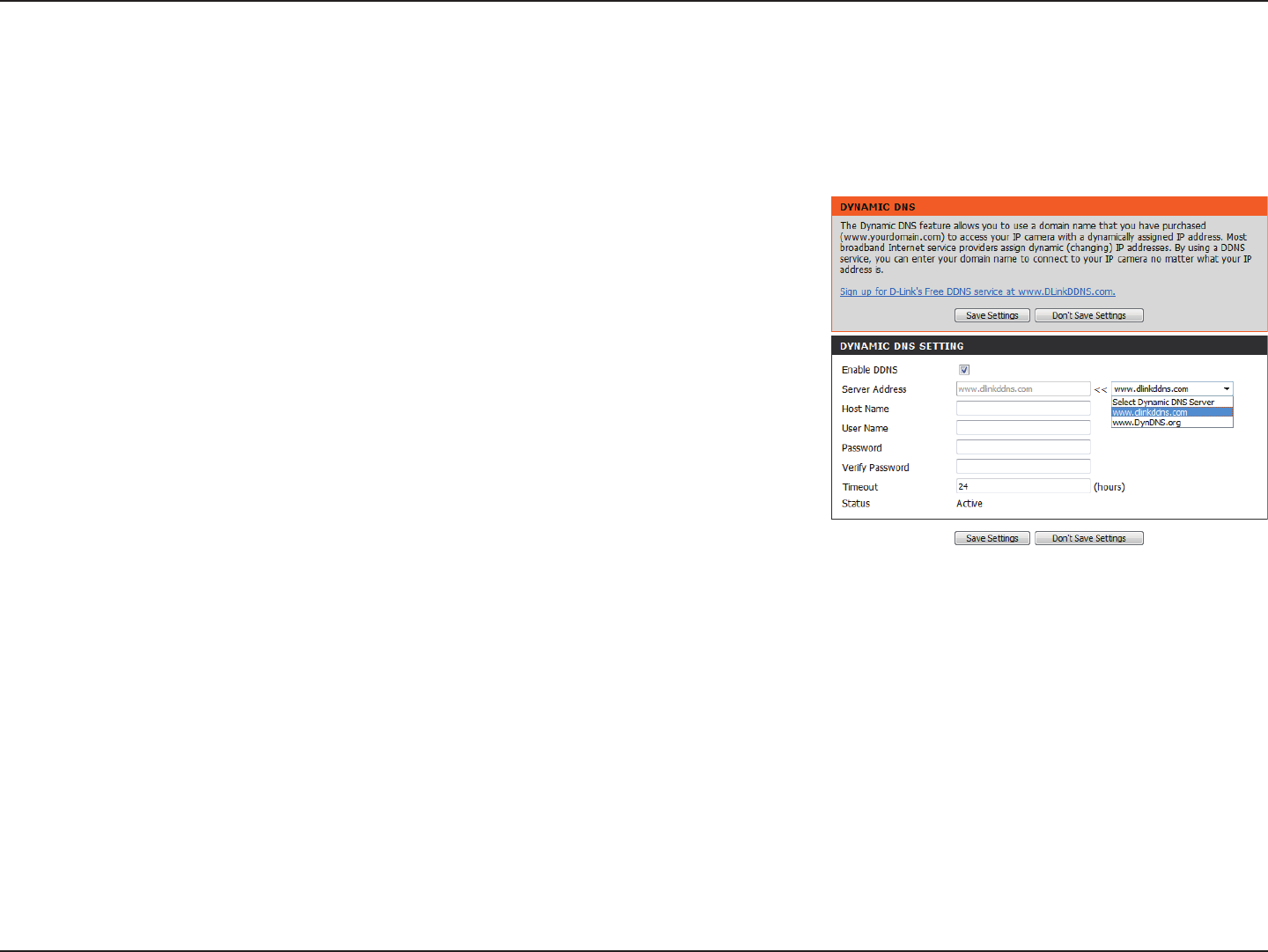

Dynamic DNS ...................................................................37

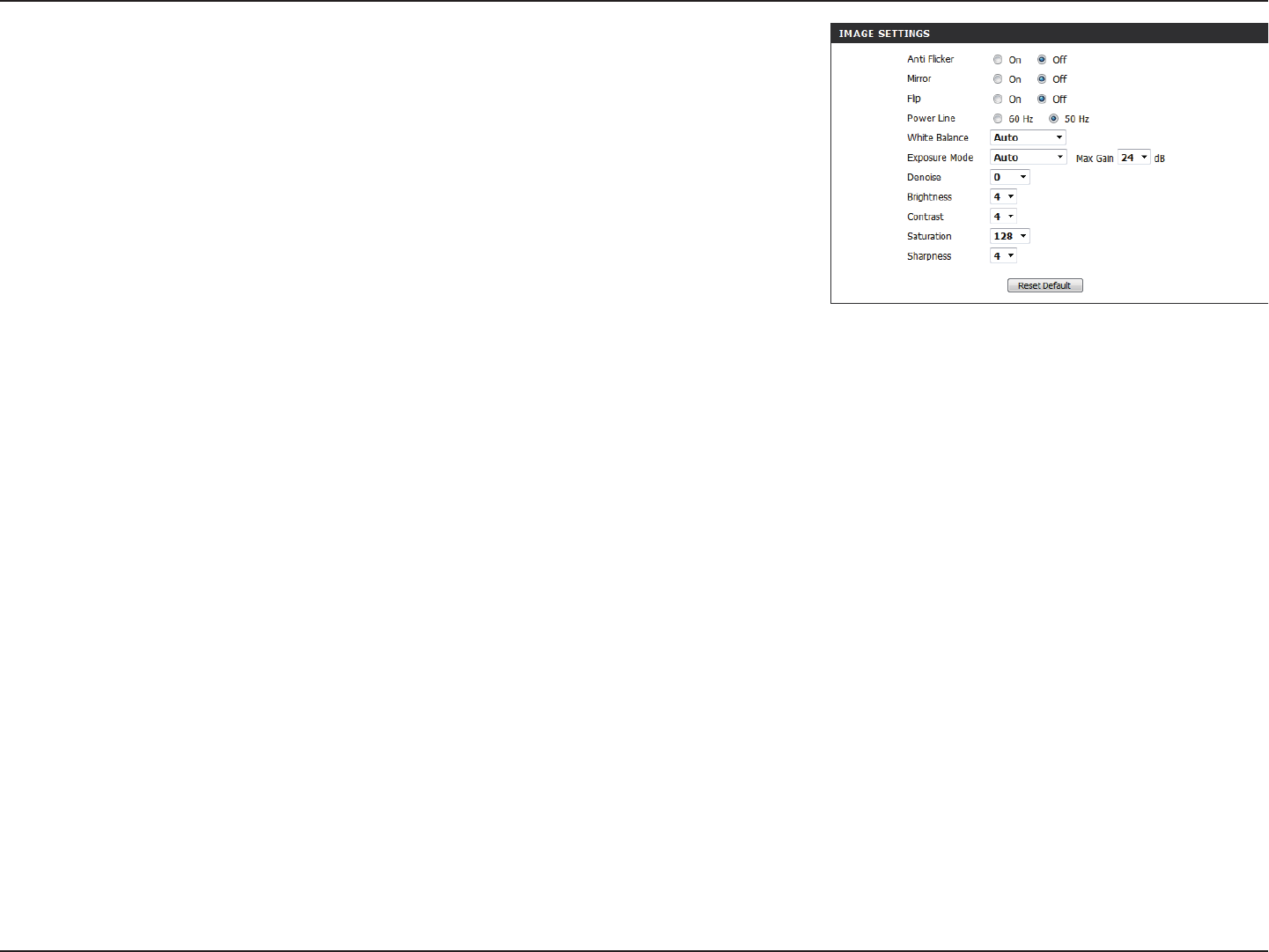

Image Setup .....................................................................38

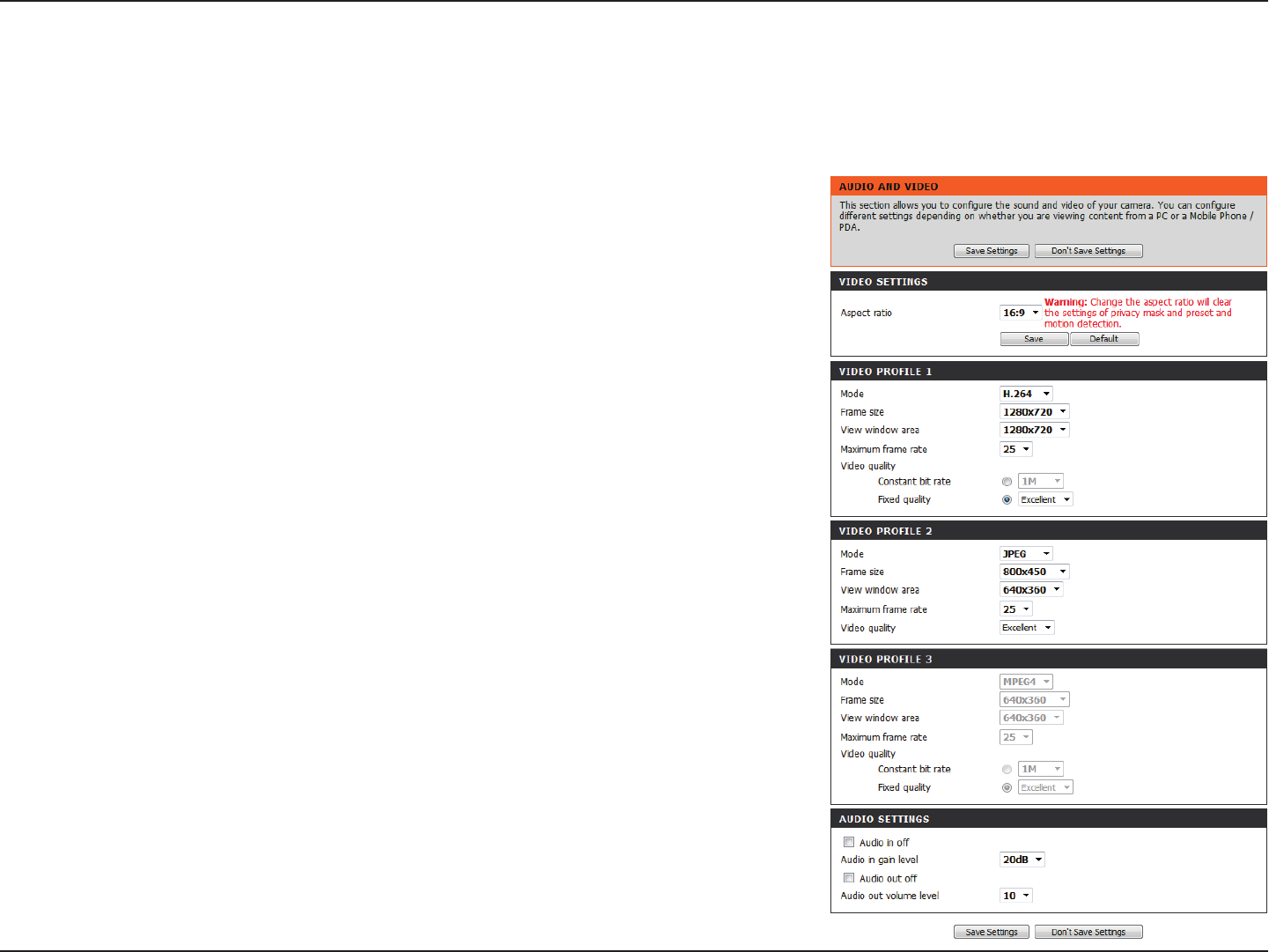

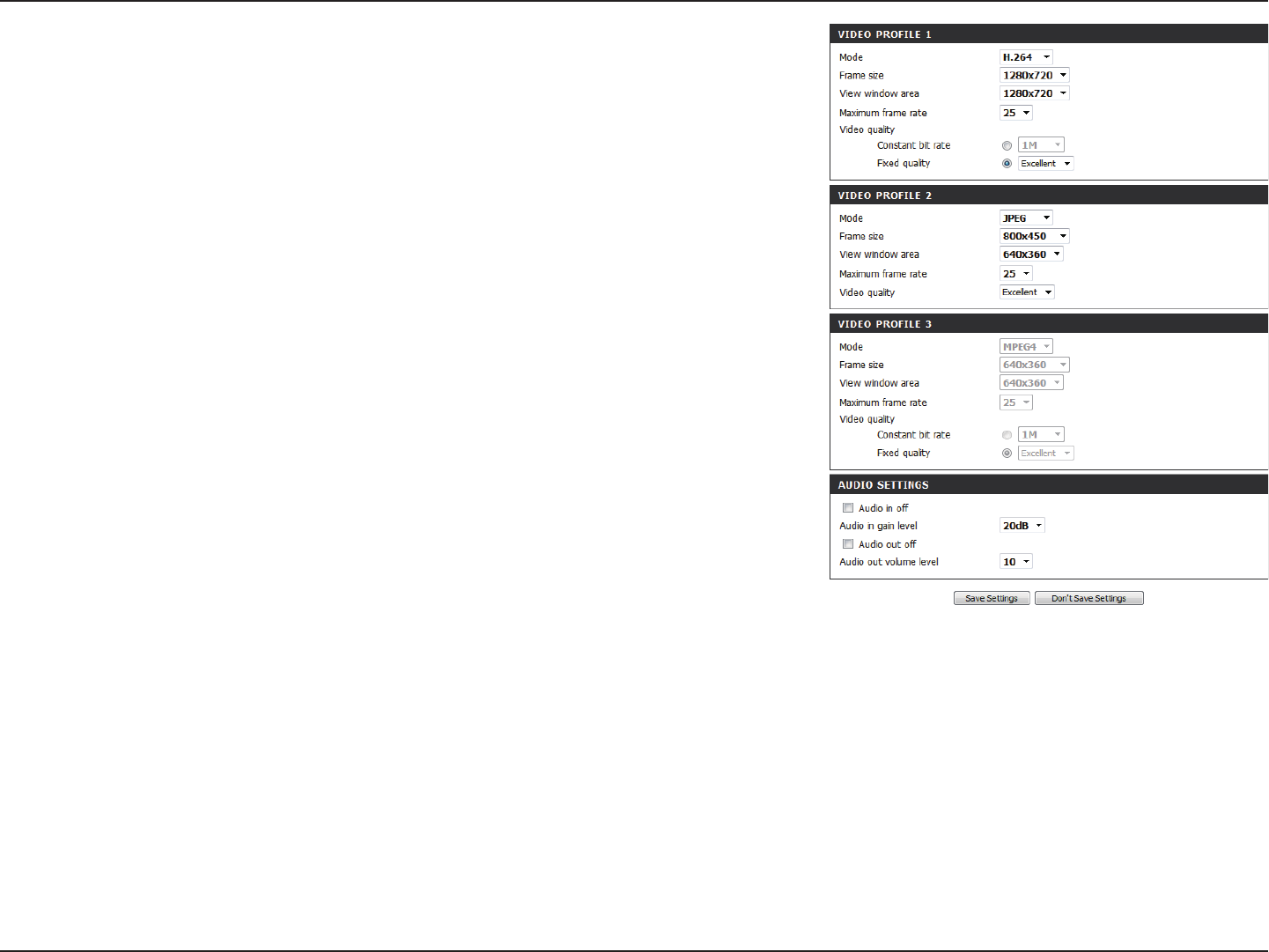

Audio and Video ..............................................................40

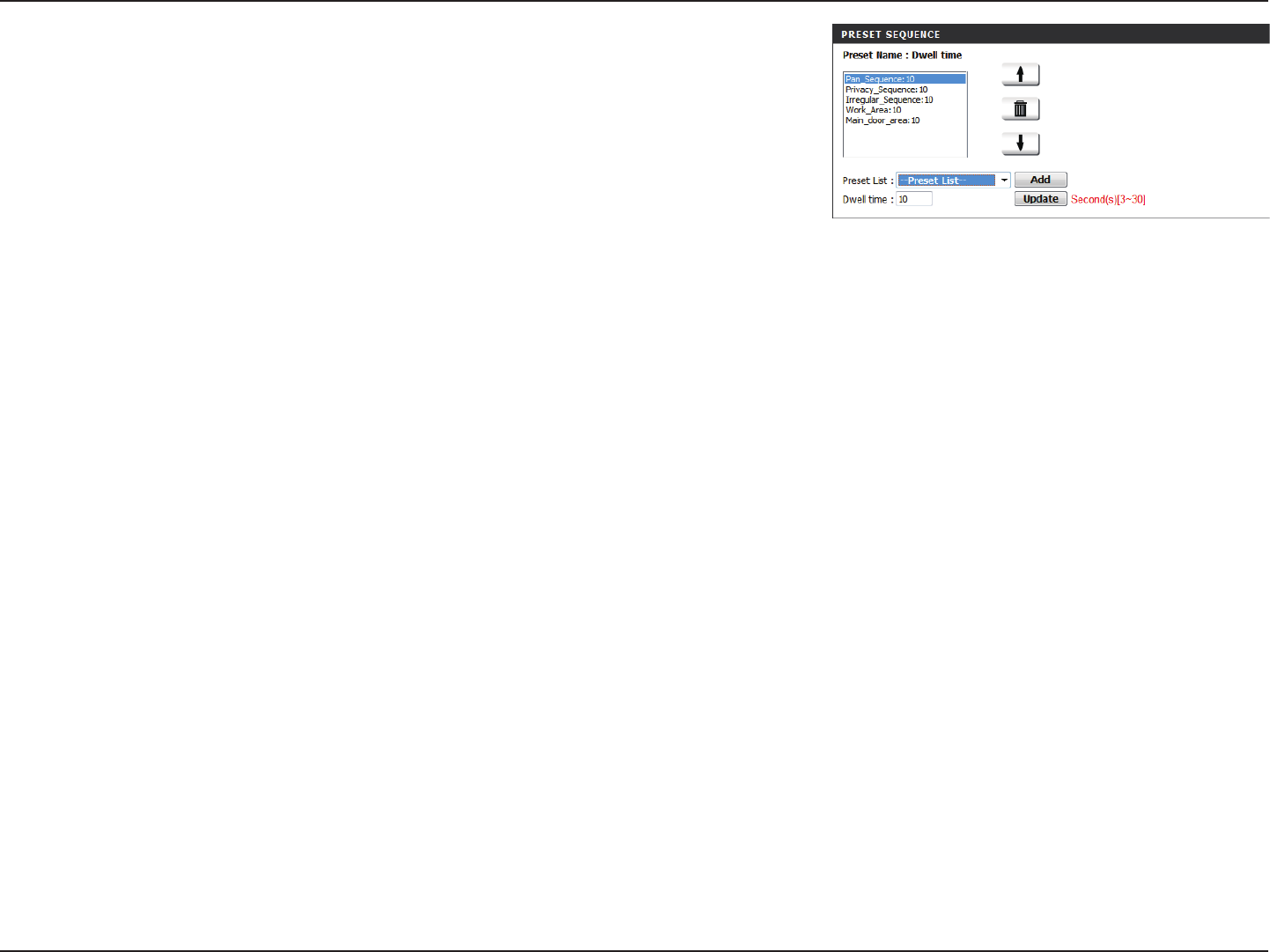

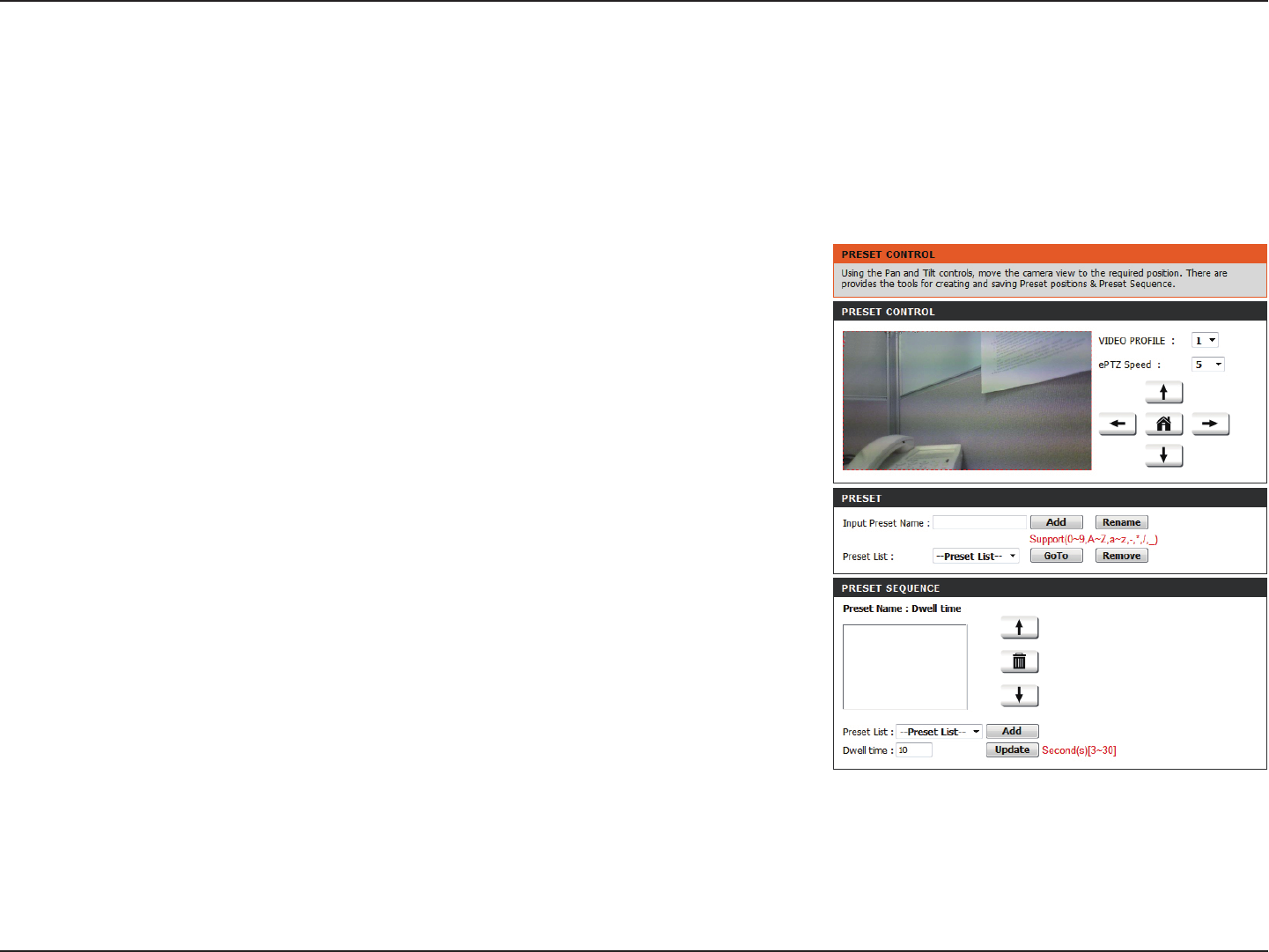

Preset ................................................................................... 42

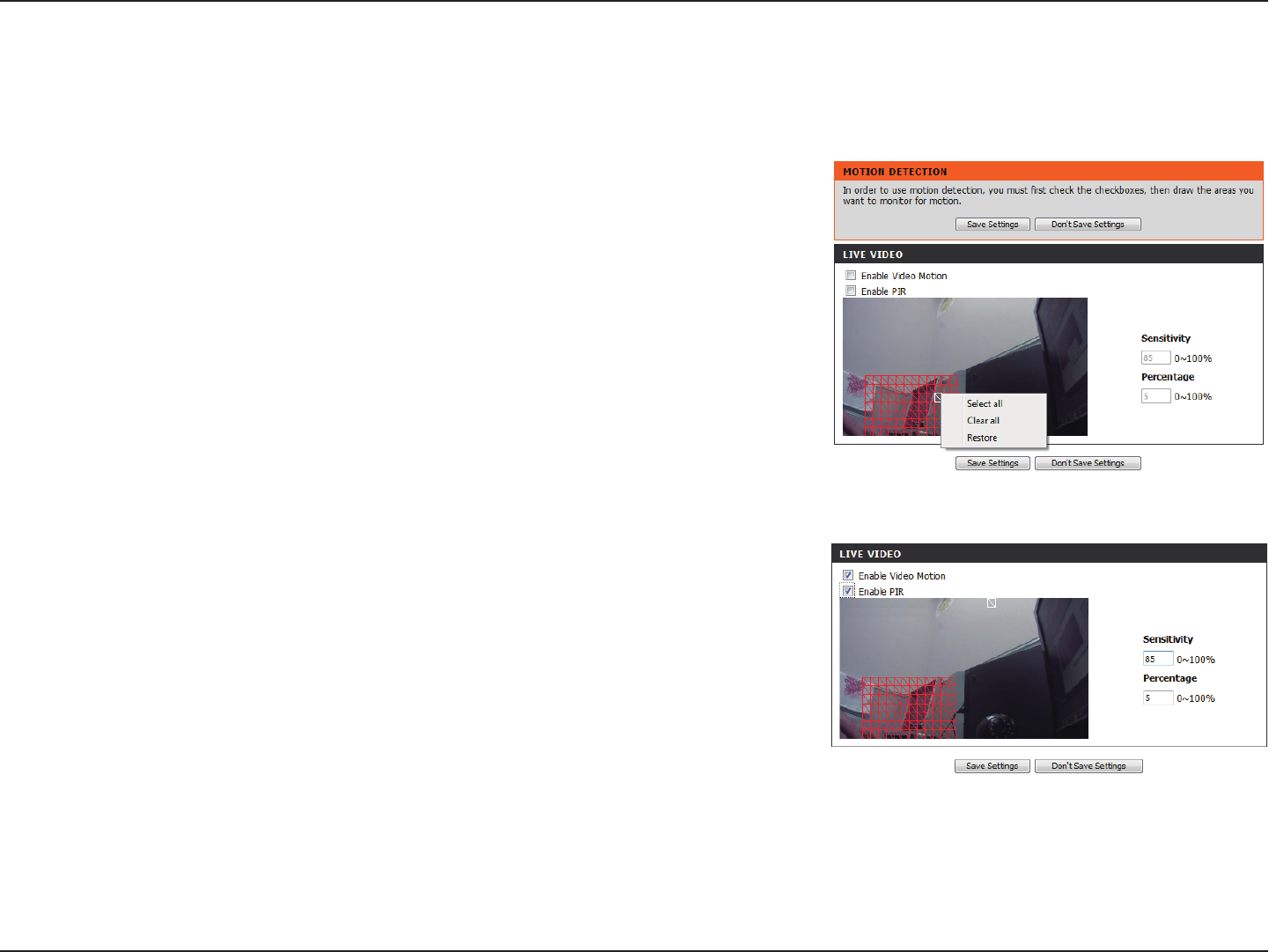

Motion Detection ...........................................................44

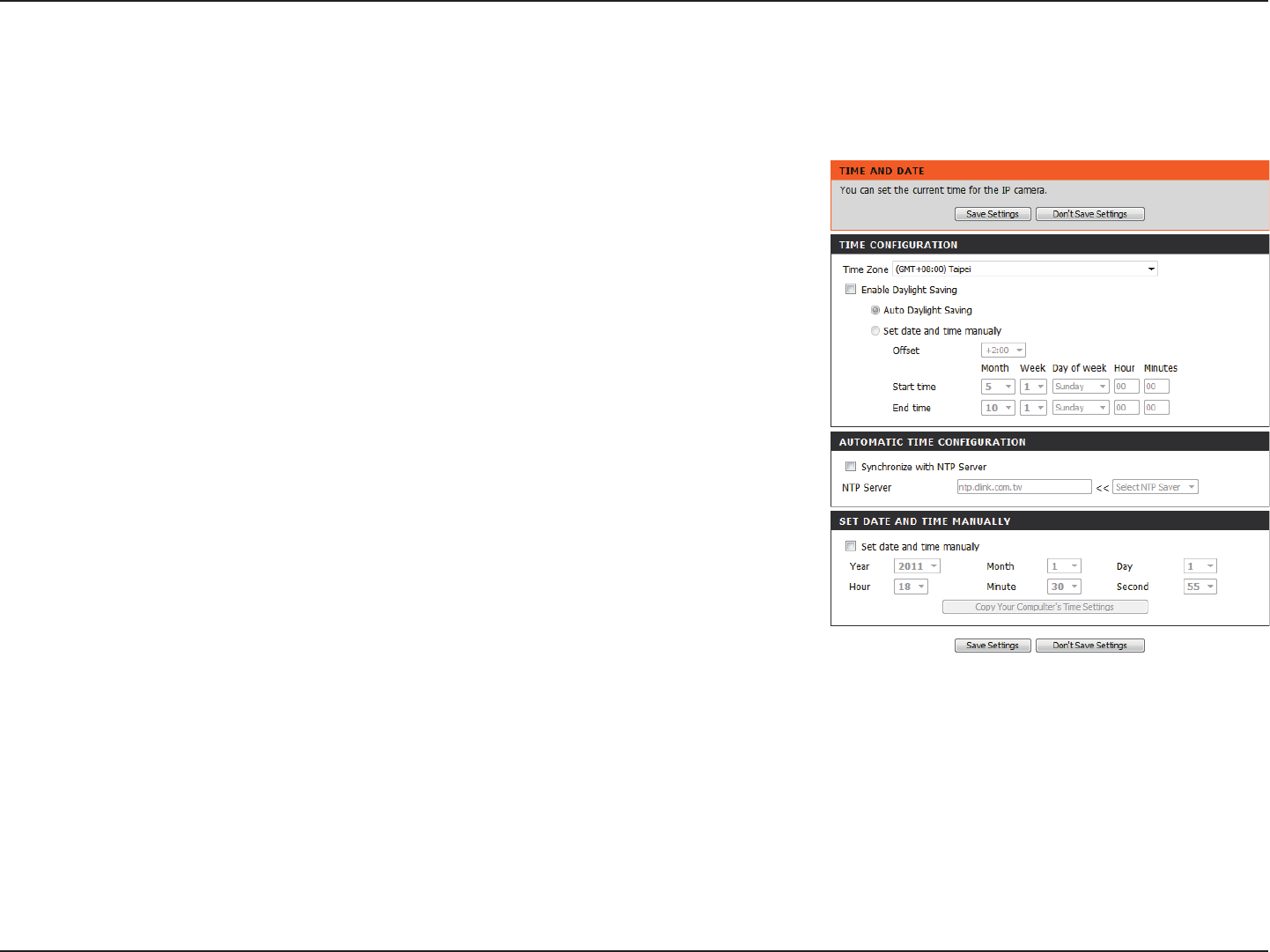

Time and Date .................................................................. 45

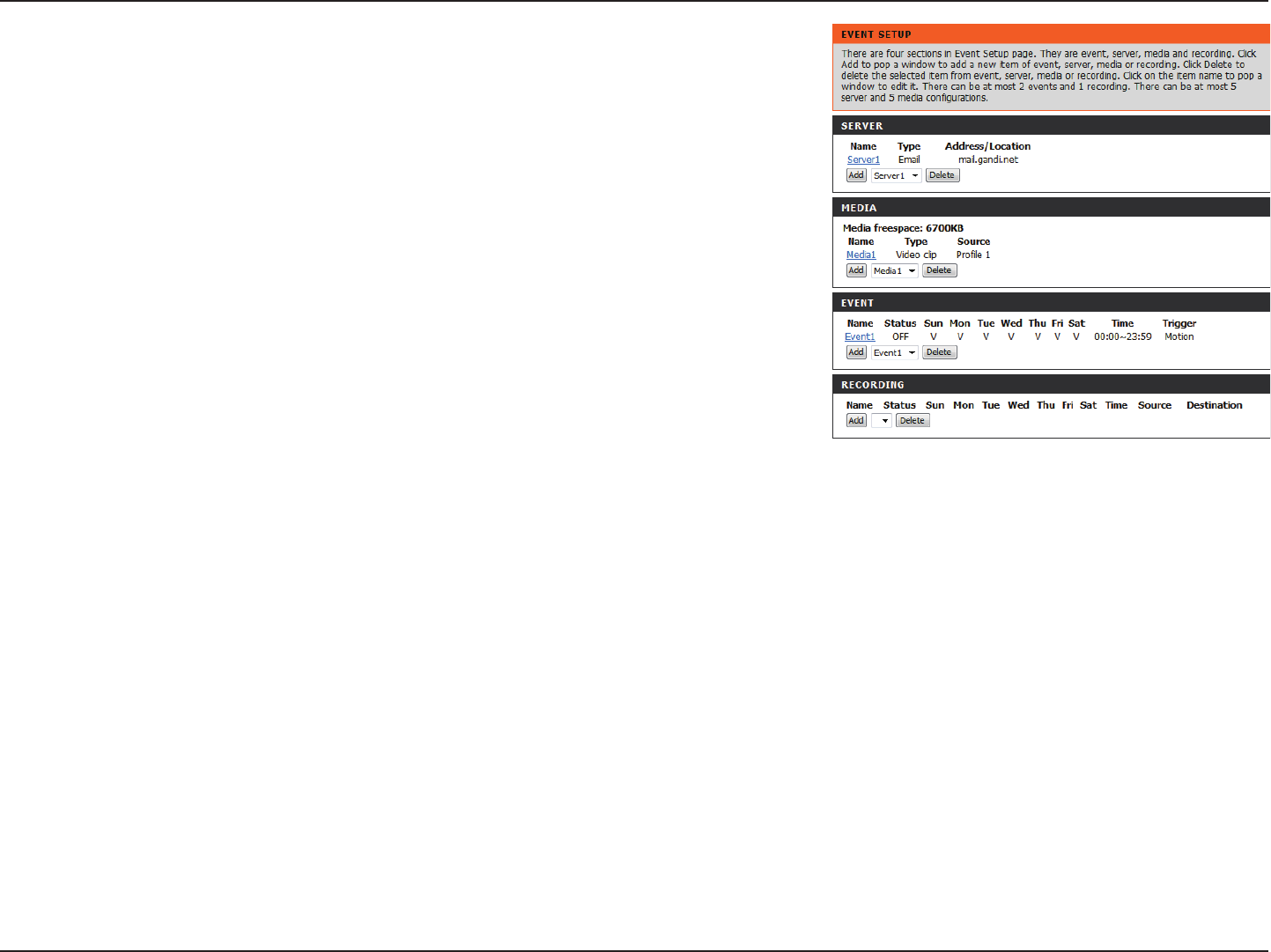

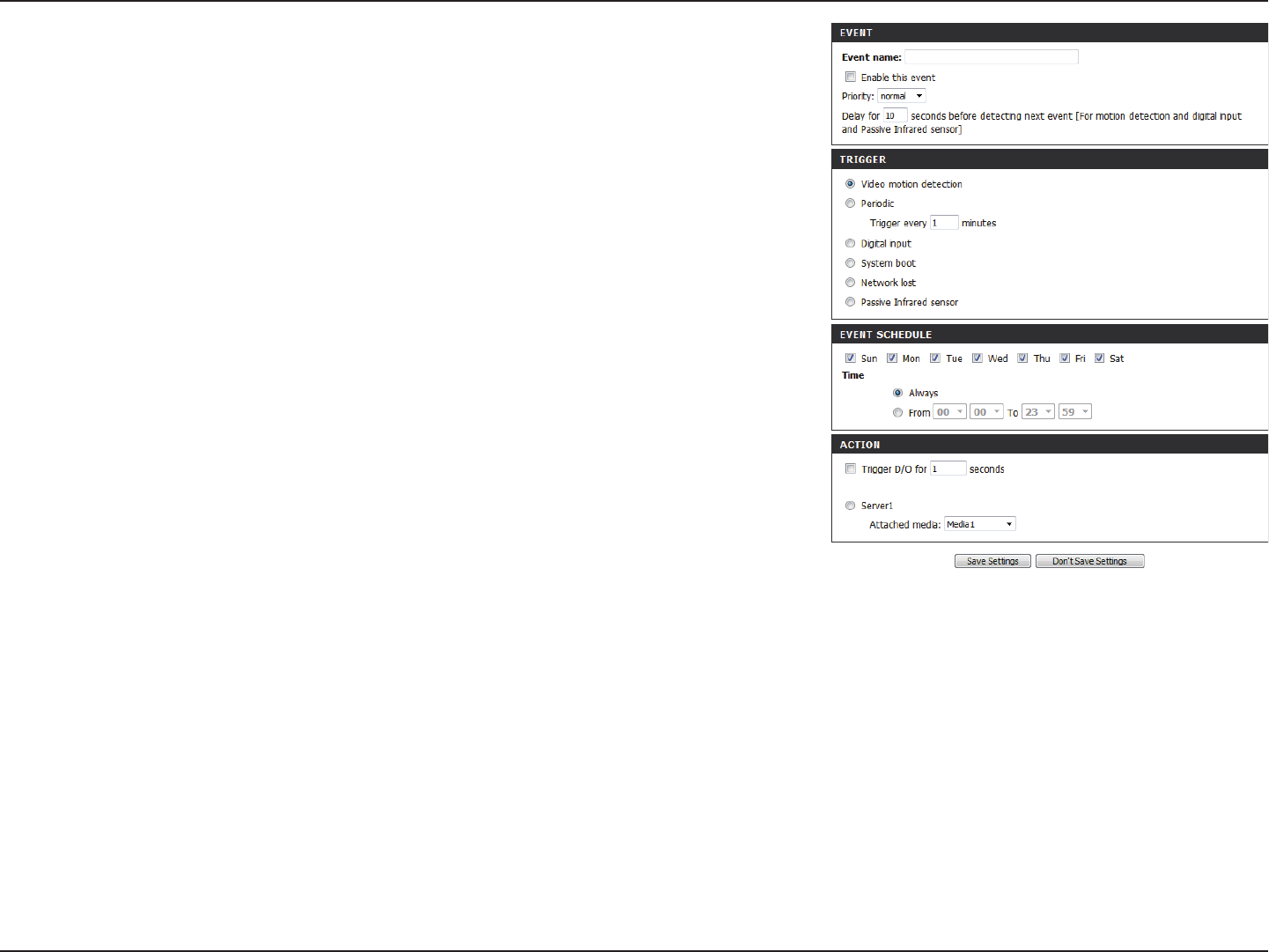

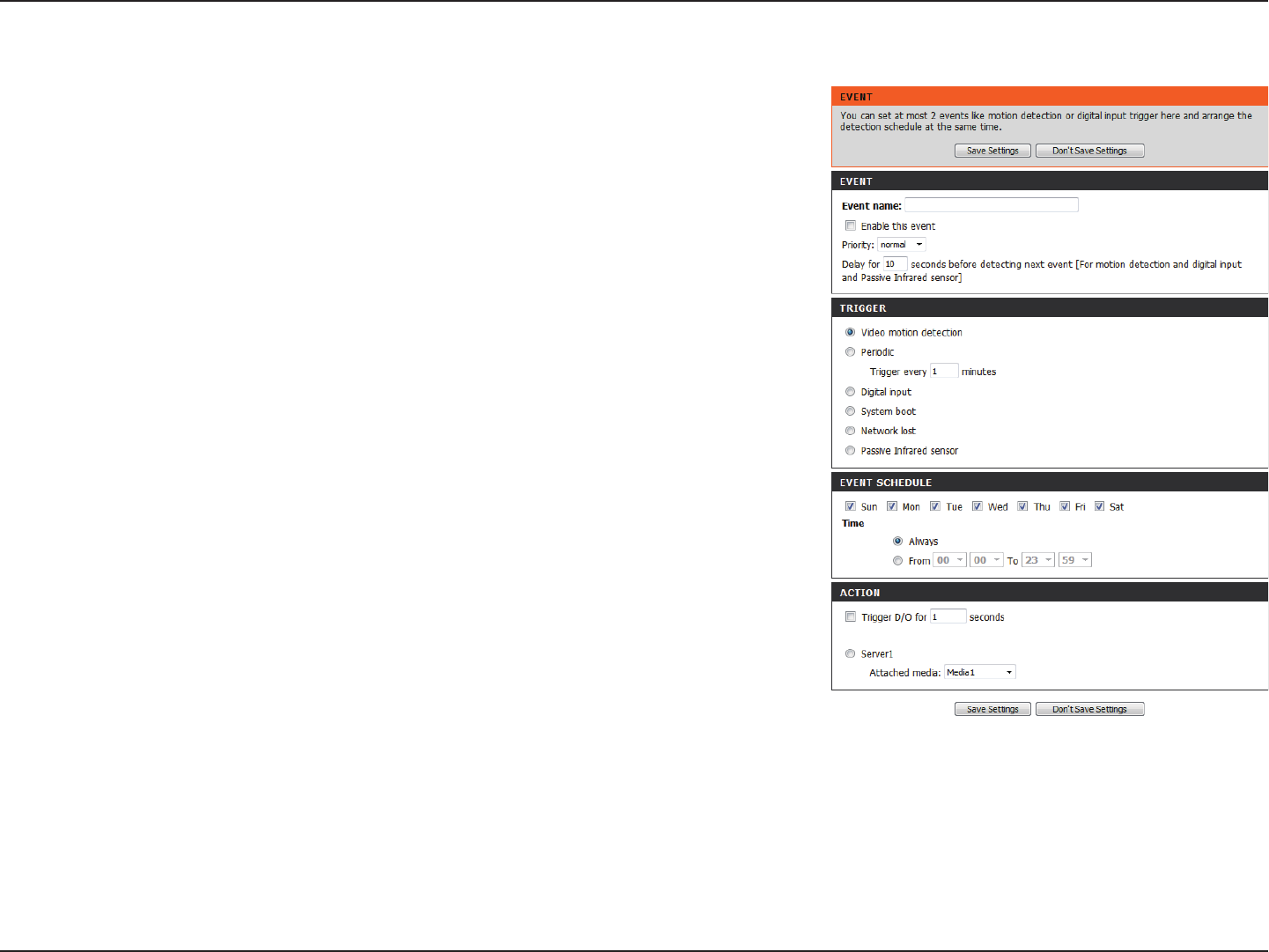

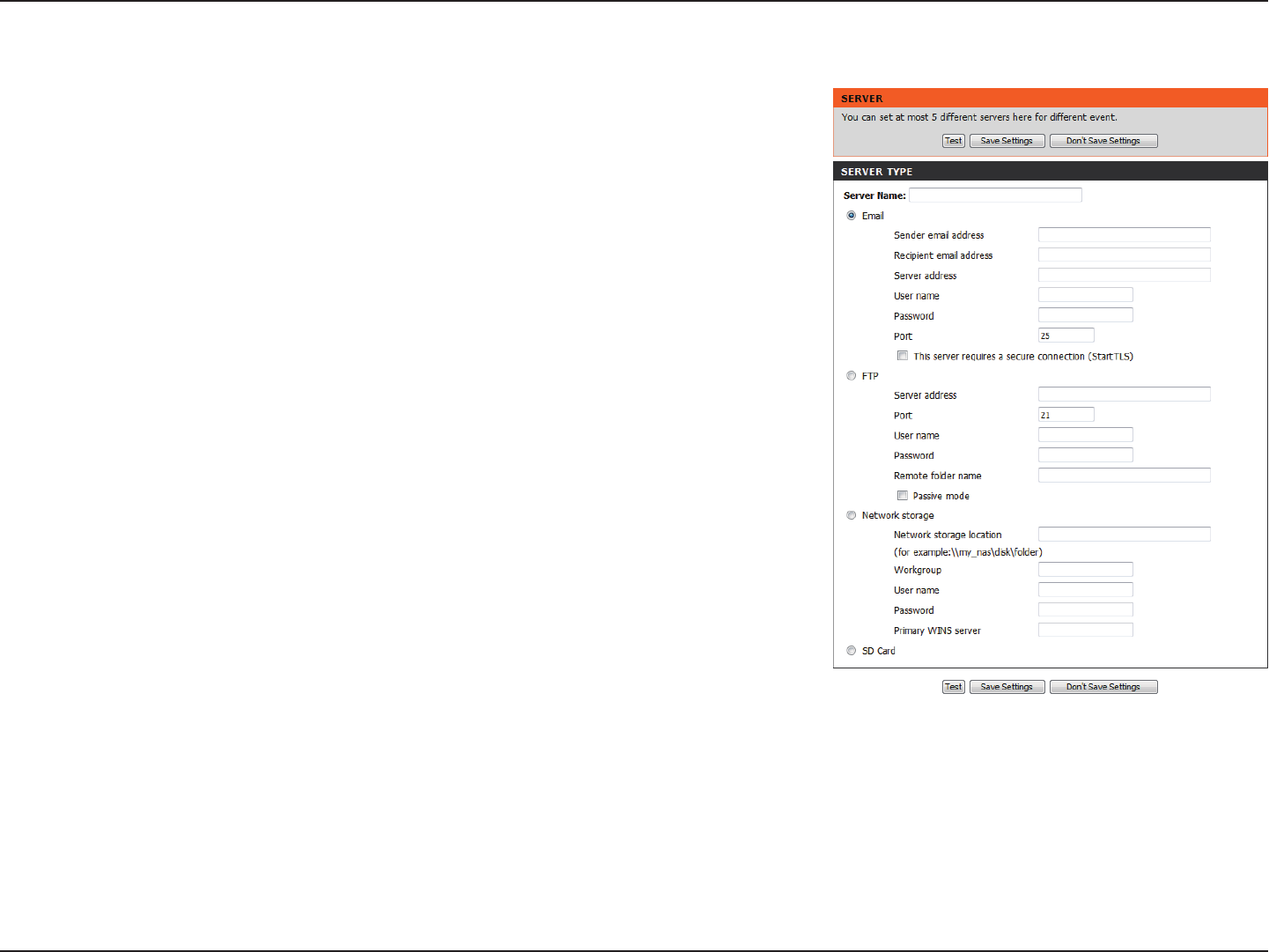

Event Setup .......................................................................46
SD Card ...............................................................................55
Advanced .........................................................................56

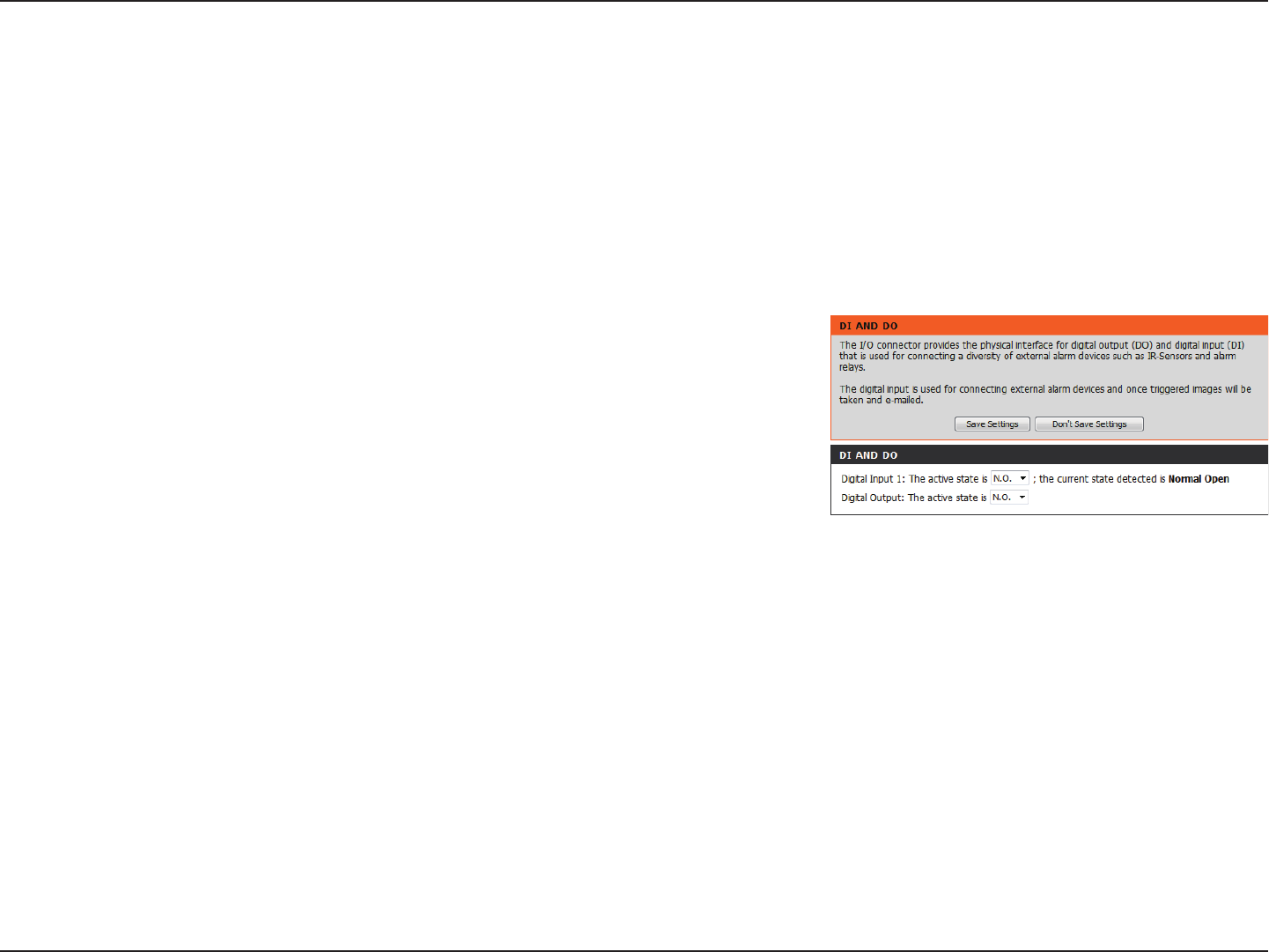

Digital Input/Output ......................................................56

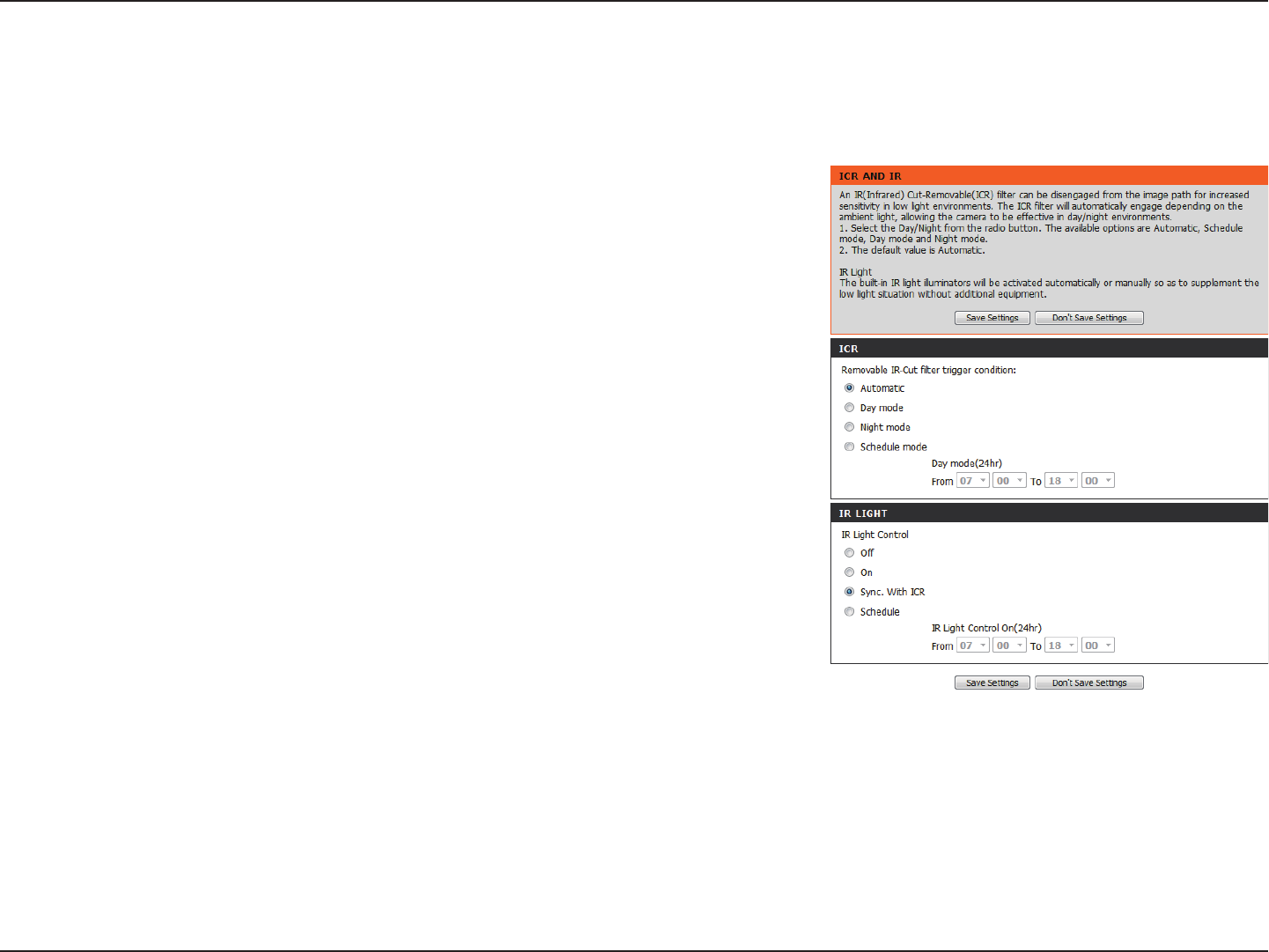

ICR and IR ...........................................................................57
HTTPS ..................................................................................58

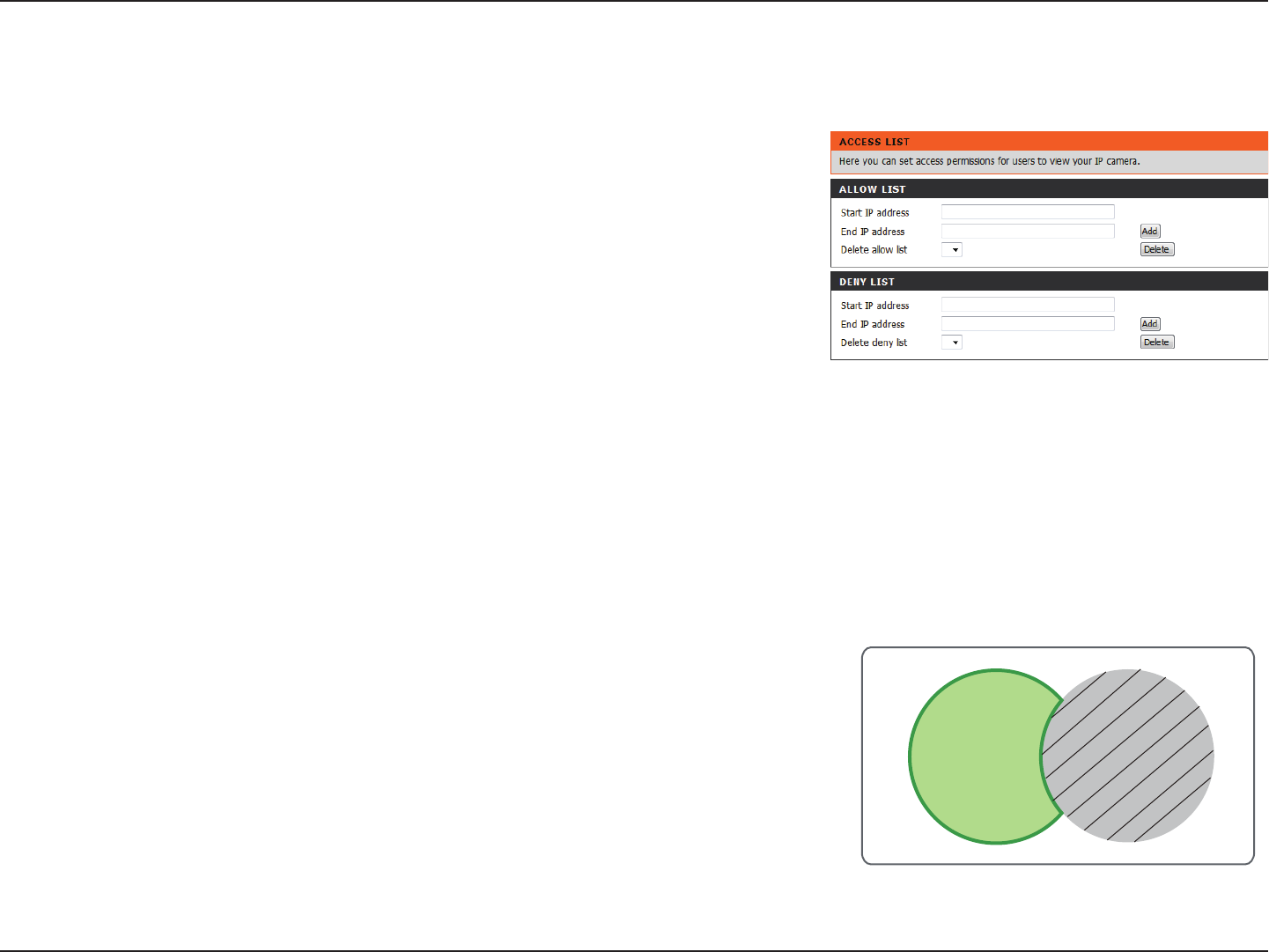

Access List .......................................................................... 59

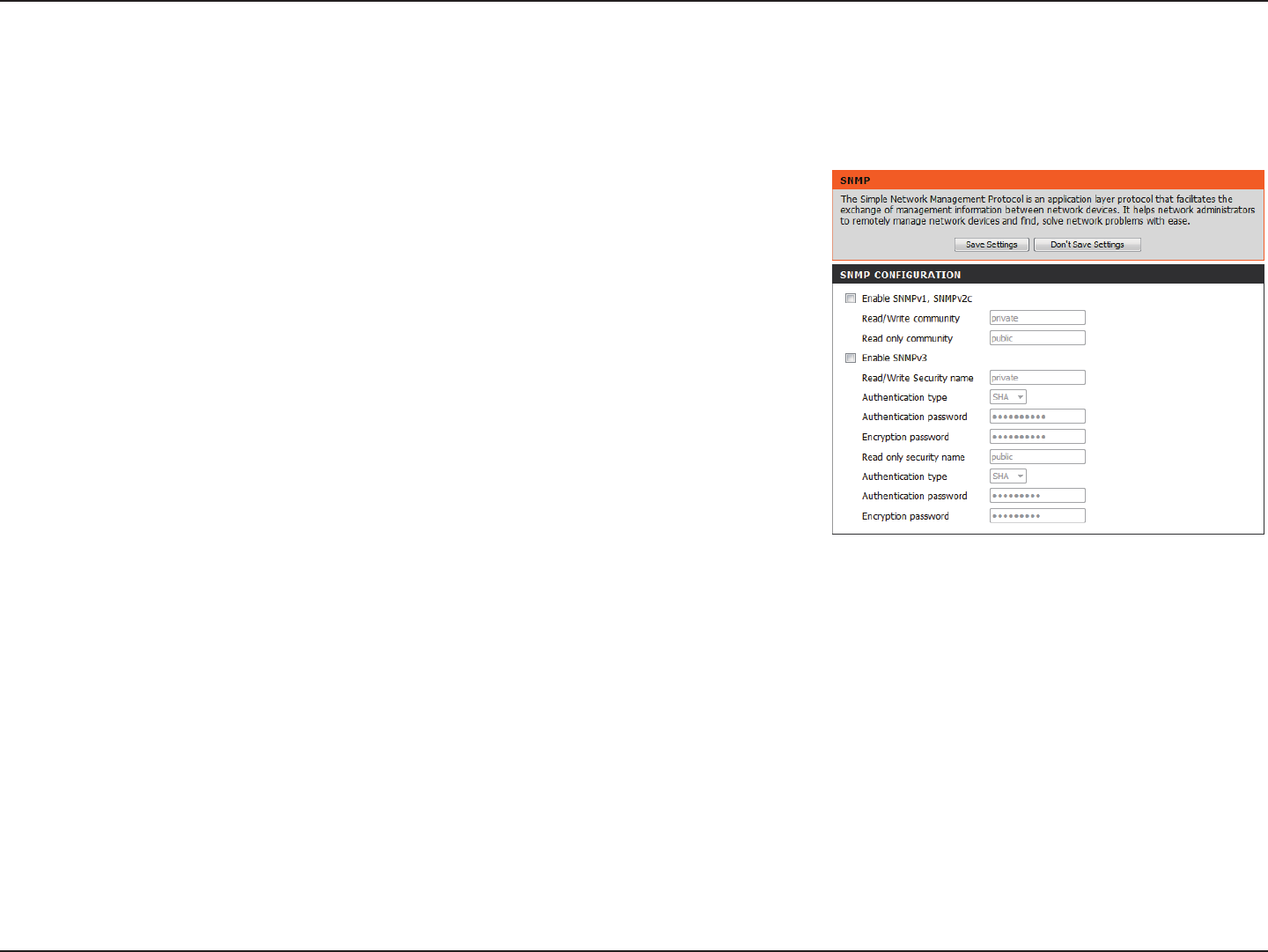

SNMP ...................................................................................60
Maintenance ....................................................................61
Admin..................................................................................61

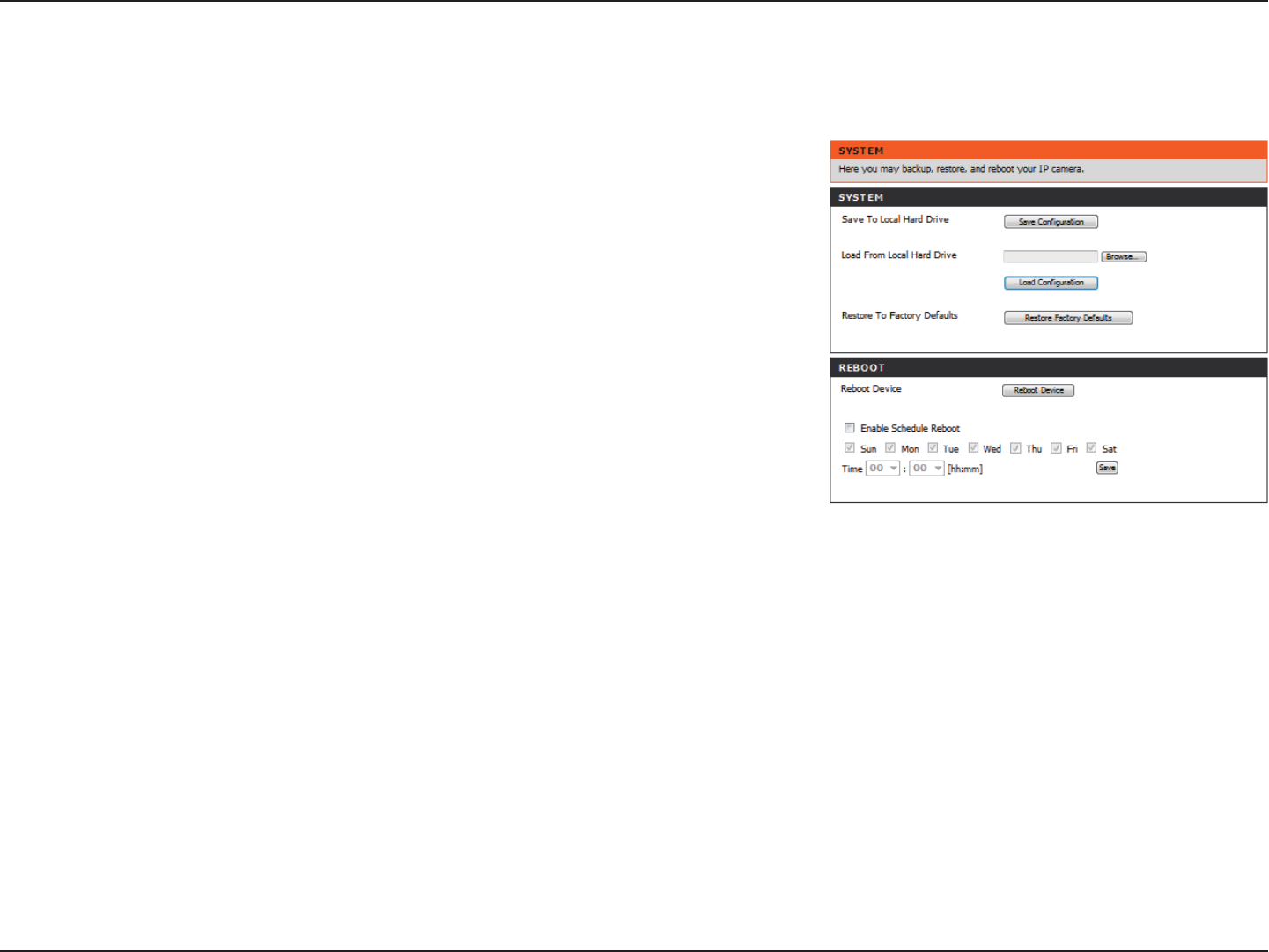

System ................................................................................62
Firmware Upgrade ..........................................................63
Status ................................................................................64
Device Info ........................................................................64

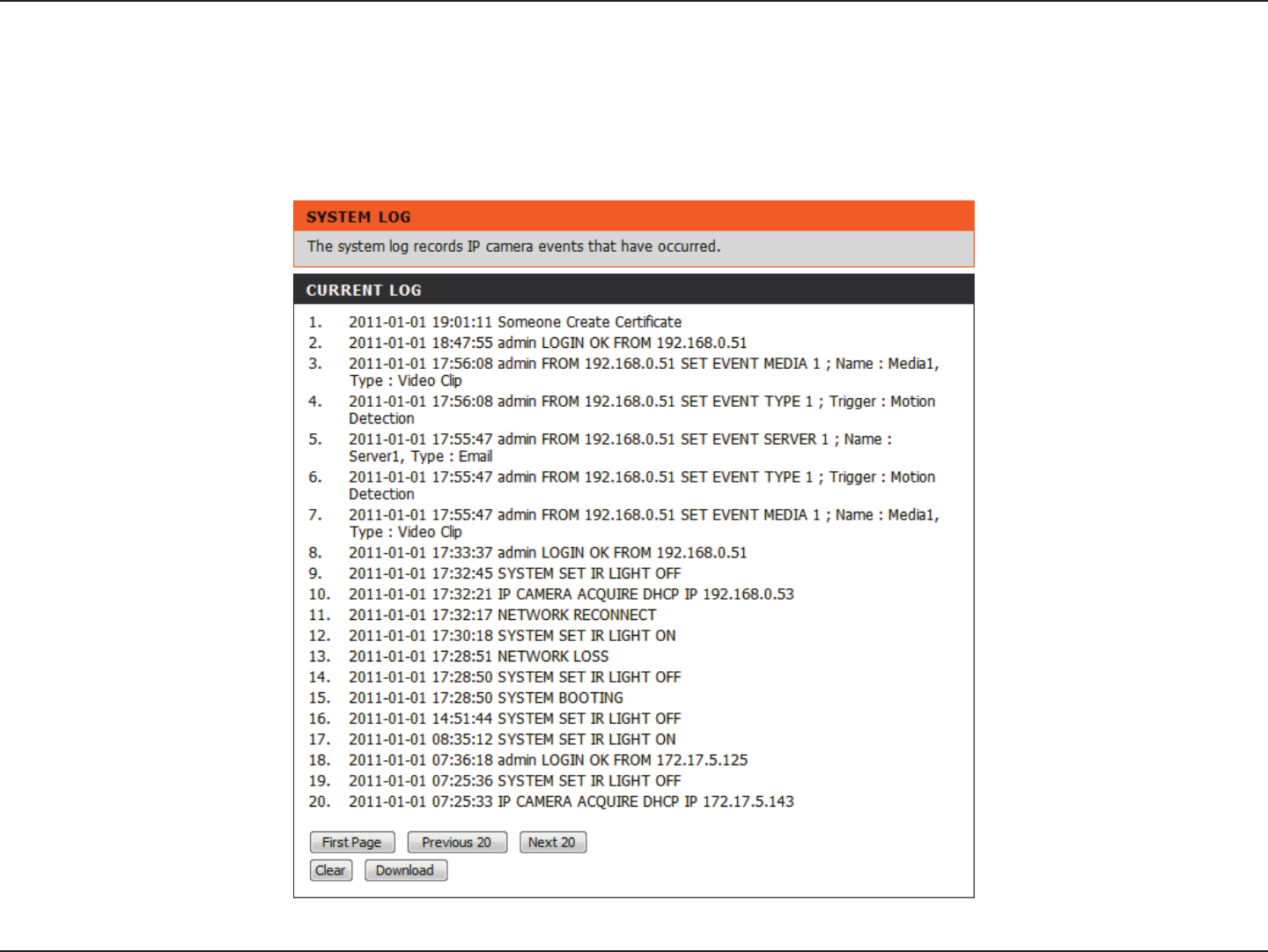

Logs .....................................................................................65

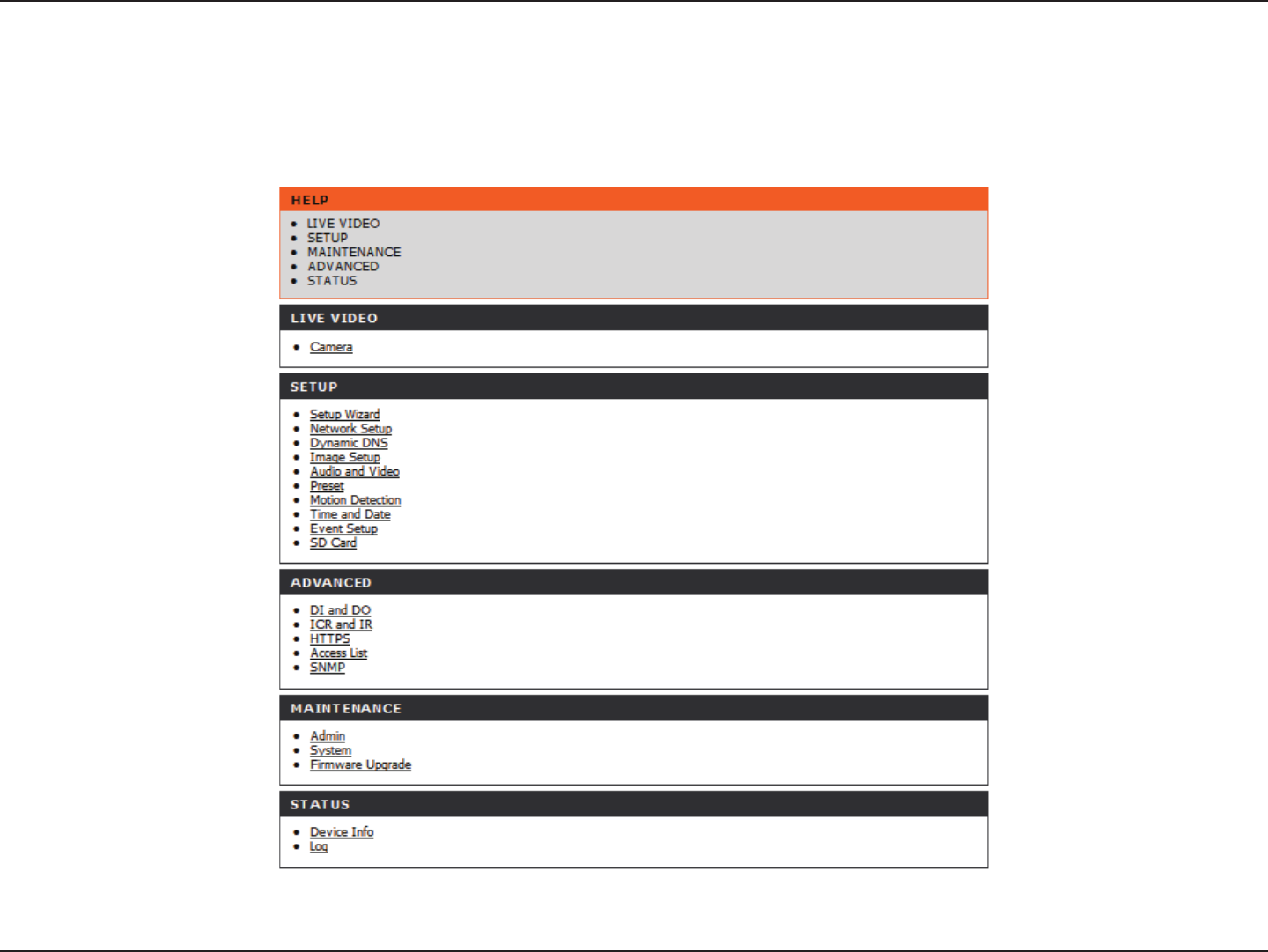

Help......................................................................................66
4D-Link DCS-2230L User Manual

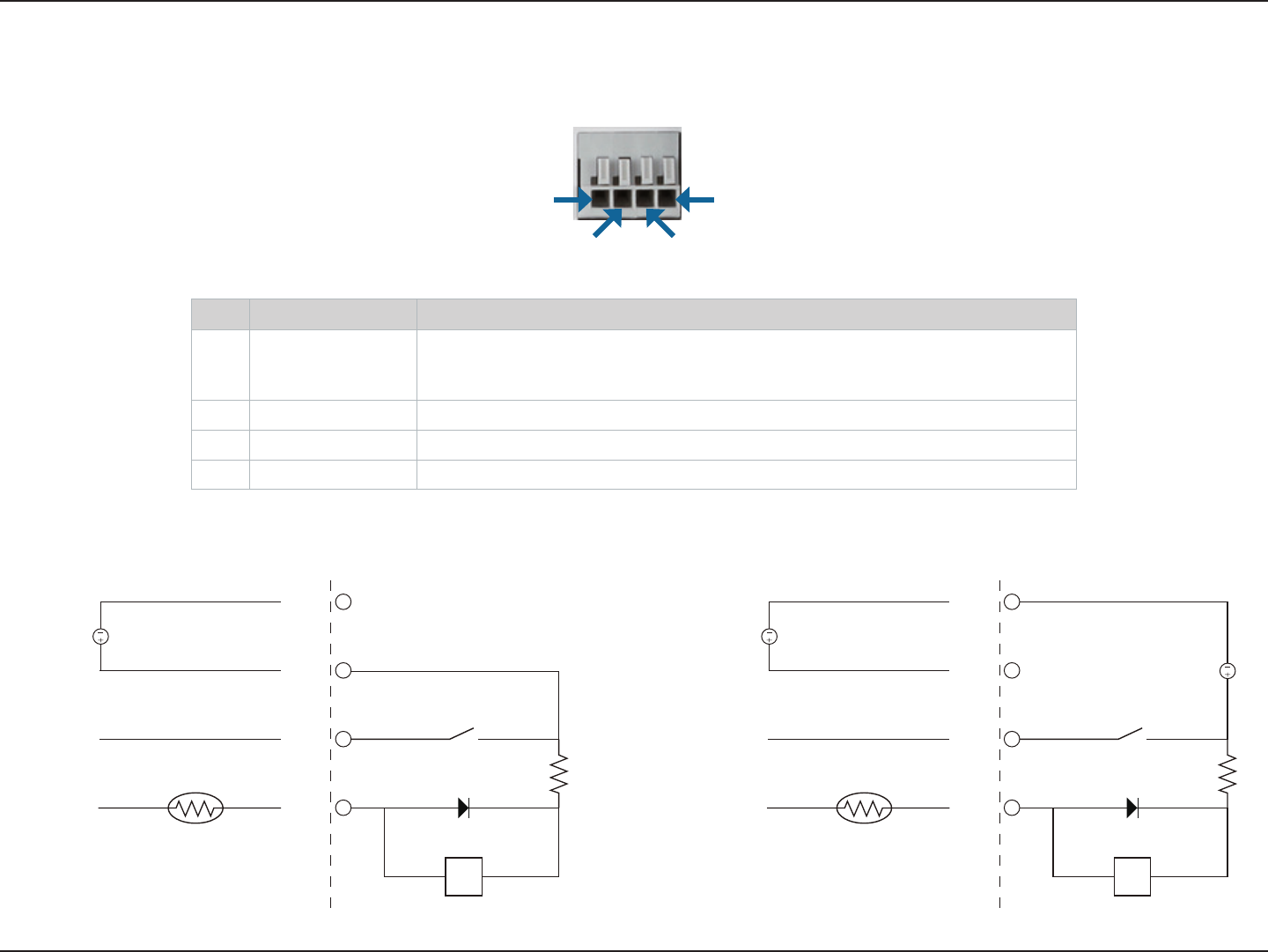

DI/DO Specications .......................................................67

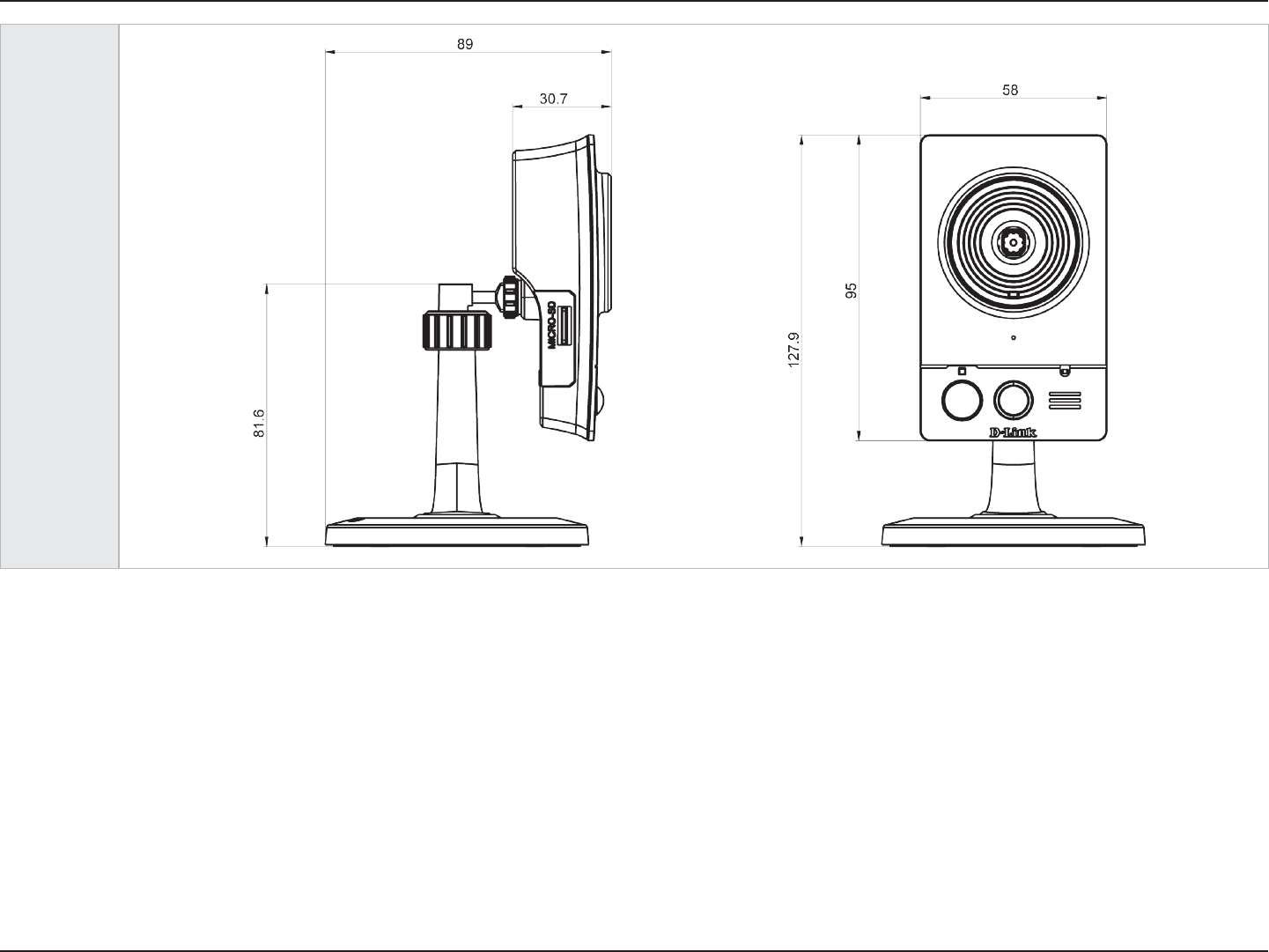

Technical Specications ..................................................68
Safety Statements ...........................................................71
5D-Link DCS-2230L User Manual
Section 1: Product Overview
Product Overview

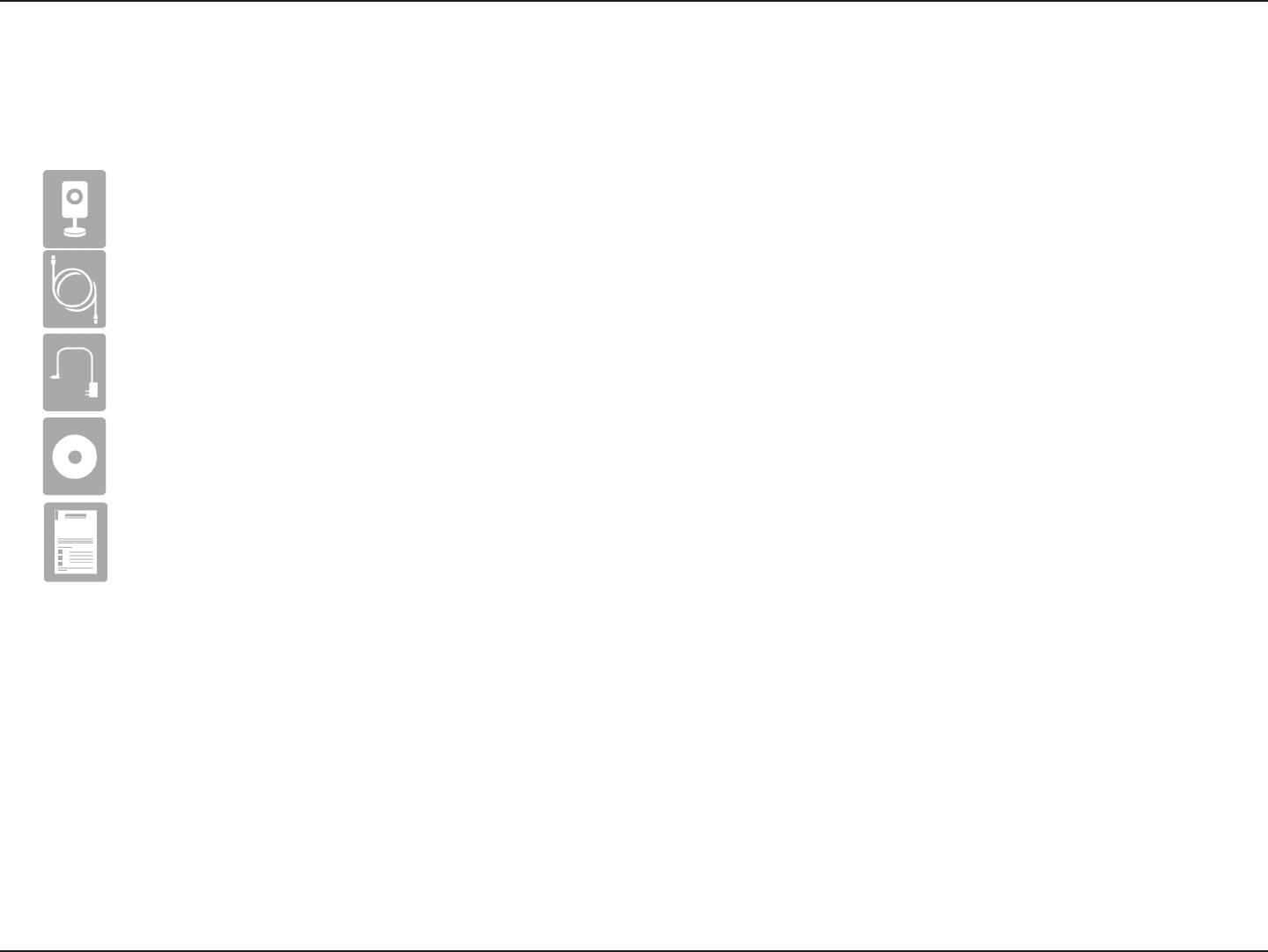

Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty
for this product.
DCS-2230L Full HD Wireless Day/Night Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Quick Installation Guide
6D-Link DCS-2230L User Manual
Section 1: Product Overview
System Requirements
Hardware Requirements
• A microSD memory card (optional) is required for
recording to onboard storage. SDHC Class 6 or
above is recommended.
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11n/g wireless clients
• 10/100 Ethernet
• Broadband Internet connection
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows® XP/Vista/7/8, Linux-based, or Mac with
OS X 10.6 or higher
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7.0 or higher
• Firefox 12 or higher
• Safari 6.0 or higher (with Java installed and enabled)
• Chrome 20 or higher
Windows® Users: Make sure you have the latest version of
Java installed. Visit www.java.com to download the latest
version.
7D-Link DCS-2230L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-2230L Full HD Wireless Day/Night Network Camera. The DCS-2230L is a versatile
surveillance solution for your small oce or home. The full HD 1920 x 1080 resolution 2 megapixel progressive scan CMOS
sensor lets you capture details like never before – especially important for face recognition. A built-in IR-cut lter and IR LED
makes sure you don't miss an event no matter how bright or dark your surroundings are. To make things convenient, support
for Wireless N means you can easily connect it to your network when setting up your camera on location.
Unlike a standard webcam, the DCS-2230L is a complete system with a built-in CPU and web server that transmits high quality
video images for security and surveillance. The DCS-2230L can be accessed remotely, and controlled from any PC over your
local network or through the Internet via a web browser. It also comes with the D-Link D-ViewCam™ software bundle that
allows you to manage multiple network cameras using remote monitoring, scheduling, recording, motion detection, and
notications for a complete and cost-eective home security solution.
8D-Link DCS-2230L User Manual
Section 1: Product Overview
Full HD Resolution
The DCS-2230L Full HD Wireless Day/Night Network Camera is equipped with a 2 megapixel progressive scan CMOS sensor that provides full HD
1920x1080 resolution, the video stream captures a larger scene and provides more details than an analog CCTV camera – so you can identify
criminals more easily in critical surveillance applications.
Wireless N for Convenience
The DCS-2230L supports Wireless N, which lets you connect your camera to your network without using an Ethernet cable. This feature lets you set
up your camera anywhere without worrying about running network cables to your location.
IR LED for Day and Night Functionality
The built-in IR-cut lter and IR LED enable night time viewing or recording in dark environments at ranges up to 16 feet (5 meters).
DI/DO for Connecting External Devices
Rounding out the exibility of the DCS-2230L, you can connect an alarm or trigger to its DI/DO port for integration into a surveillance solution.
Remote Monitoring Utility
The D-ViewCam™ application adds enhanced features and functionality for the DCS-2230L and allows administrators to congure and access the
DCS-2230L from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to
32 cameras on one screen, and taking snapshots.
Built-in Mic and Speaker
Covering all the visual components, the DCS-2230L also has a built-in microphone and speaker, so you can transmit two-way audio easily.
mydlink Support
Embrace the power of the cloud by adding your DCS-2230L to the list of devices manageable via the free mydlink web portal.
Web Conguration
Using a standard web browser, administrators can congure and manage the DCS-2230L directly from its own web page via Intranet or Internet.
This means you can access your DCS-2230L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the DCS-2230L can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The DCS-2230L allows remote access using a web browser for live image viewing, and allows the administrator to
manage and control the DCS-2230L anytime, anywhere in the world.
Features
9D-Link DCS-2230L User Manual
Section 1: Product Overview
Front View
Hardware Overview
1 Status LED Indicates the camera's current status
2 WPS Status LED Indicates the WPS connection status of the camera
3 Infrared LED Used to illuminate the camera's eld of view at night
4 PIR Sensor Passive Infrared sensor for motion detection
5 Camera Lens Records video of the surrounding area
6Light Sensor The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly
7 Microphone Records audio from the surrounding area
1
4
5
6
7
3
2
10D-Link DCS-2230L User Manual
Section 1: Product Overview

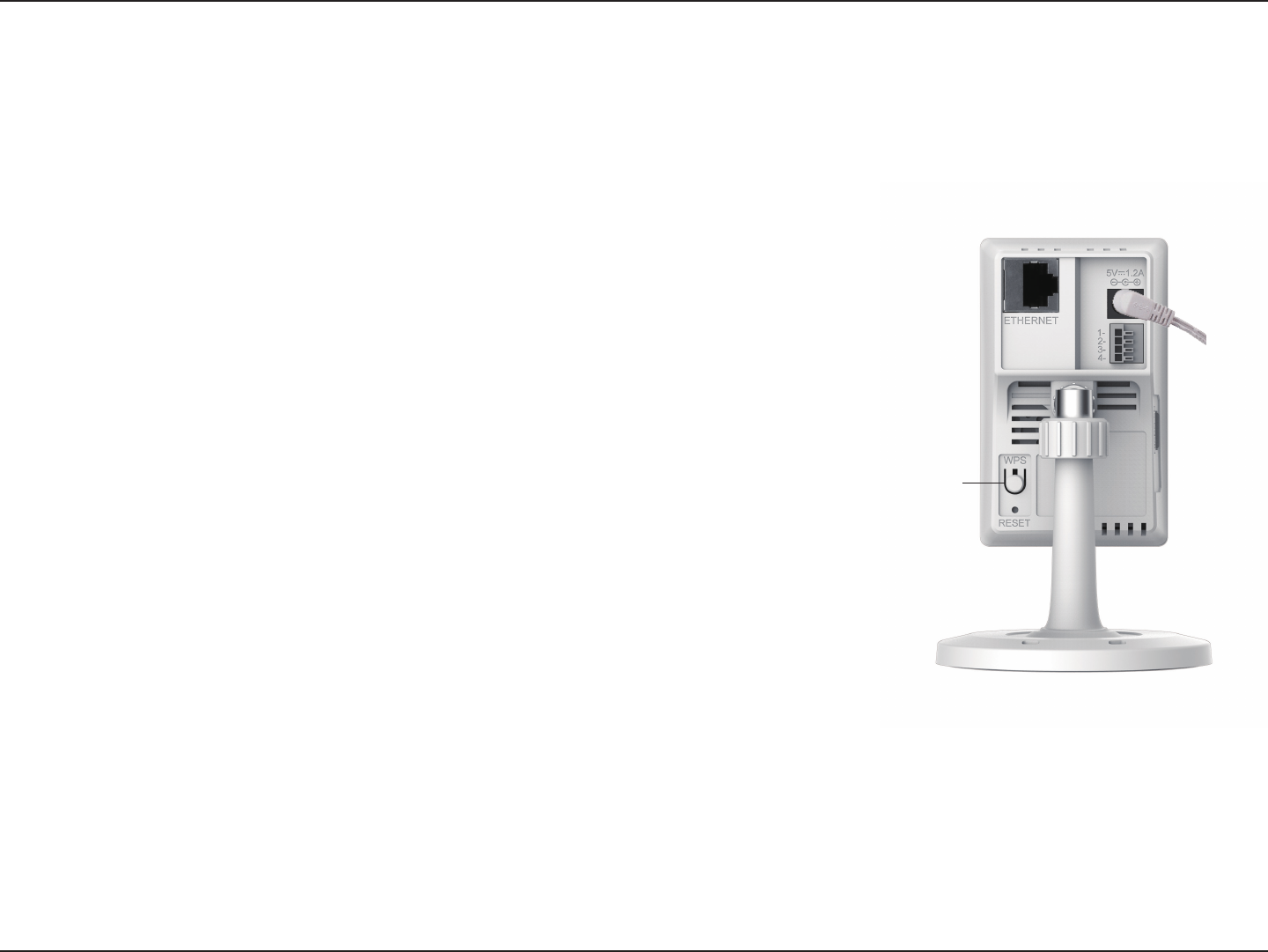

Rear View
1 Ethernet Port RJ45 connector for Ethernet
2 WPS Button Press this button, then press the WPS button for 5 seconds on your router to set up
a wireless connection automatically
3 Reset Button Press and hold this button for 10 seconds to reset the camera
4 Power Connector Connects to the included DC 5 V power adapter
5 DI/DO Connector I/O connectors for external devices
6 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
1
5
6
2
4
3
11D-Link DCS-2230L User Manual
Section 1: Product Overview

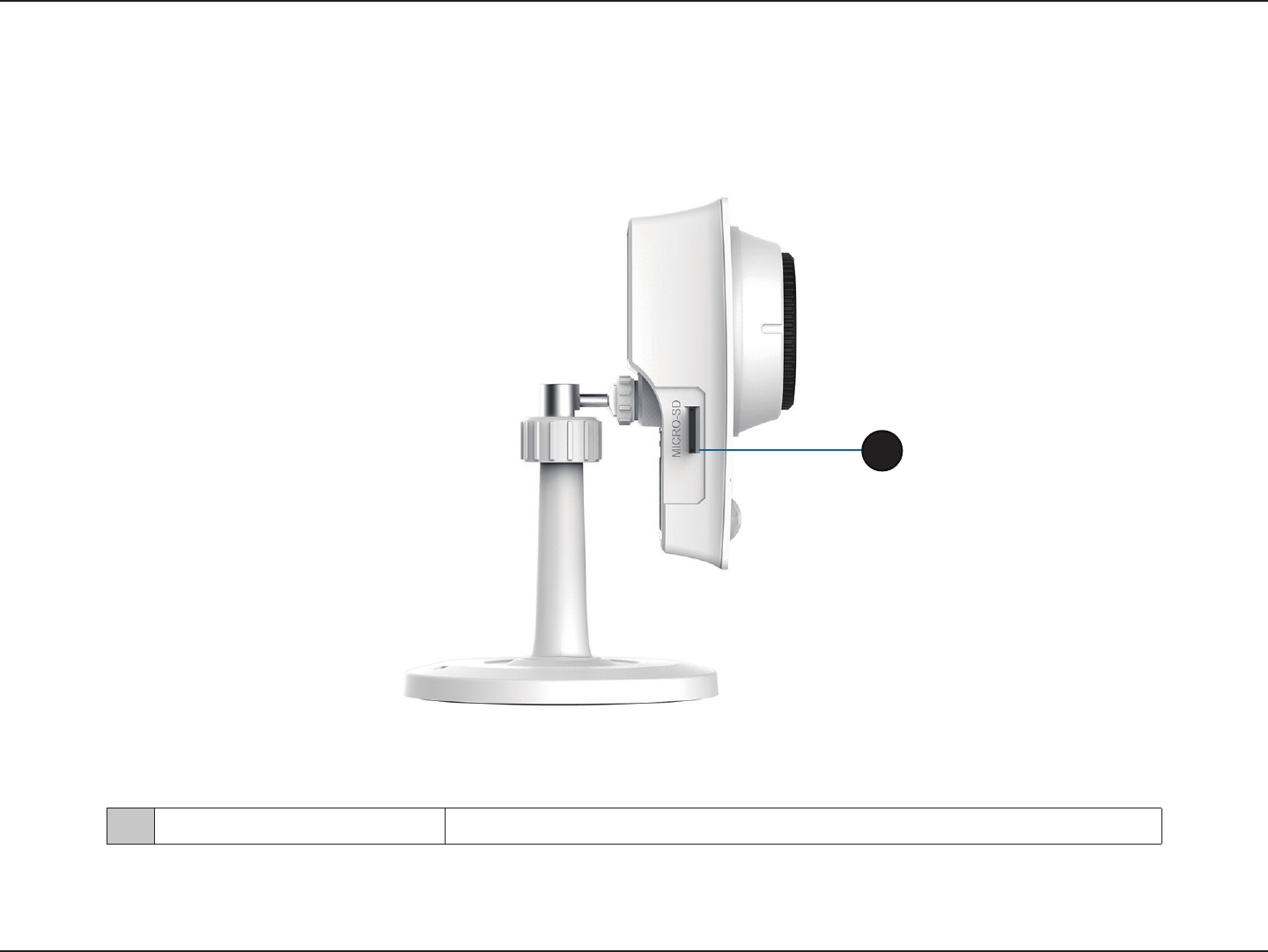

Side View
1 microSD Card Slot Insert a microSD card for Local storage for storing recorded image and video
1
12D-Link DCS-2230L User Manual
Section 2: Installation
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your DCS-2230L) - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
Installation
Wireless Installation Considerations
13D-Link DCS-2230L User Manual
Section 2: Installation
Zero Conguration Setup
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your
DCS-2230L and automatically add the camera to your mydlink account. You can now remotely access your camera from the
mydlink.com website to manage and monitor your DCS-2230L.

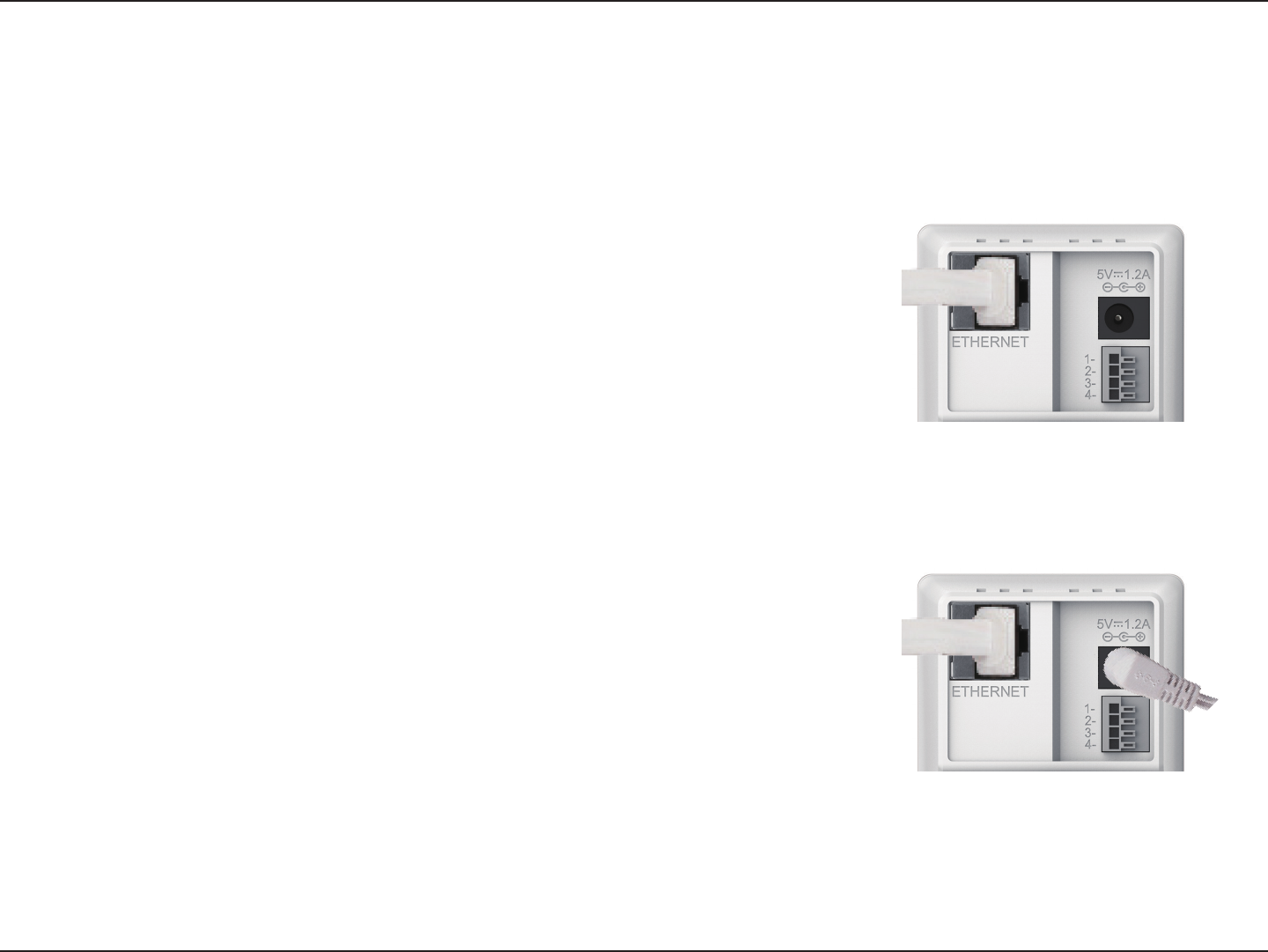

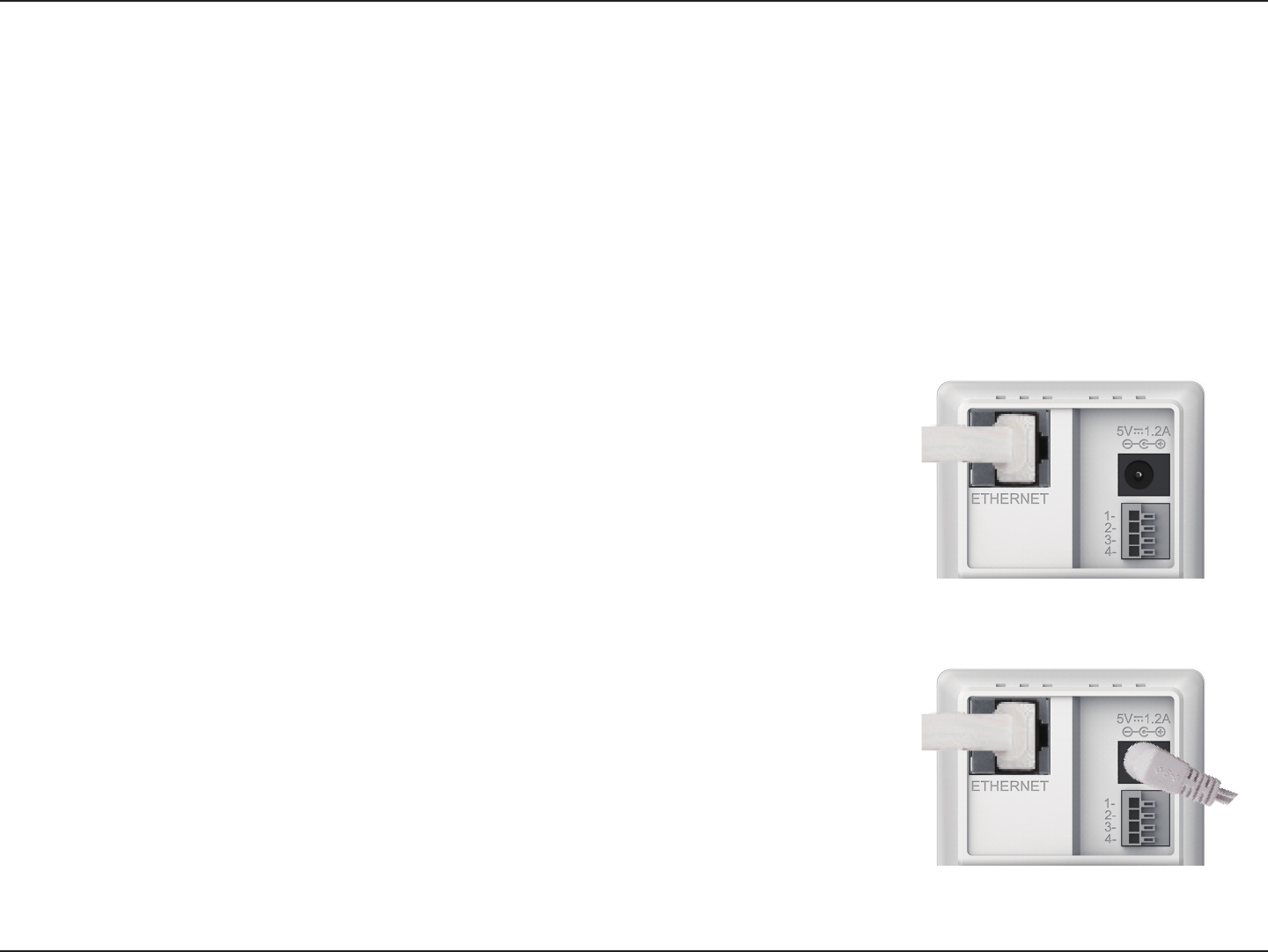

Connect the Ethernet Cable
If using an Ethernet connection: Connect the included Ethernet cable to the
Ethernet port located on the back of the DCS-2230L and connect it to your router.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2230L and connect it to your wall outlet or power strip.
14D-Link DCS-2230L User Manual
Section 2: Installation
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The blue WPS
status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you
may need to log in to the web interface and click on an on-screen button to
activate the WPS feature. If you are not sure where the WPS button is on your
router, please refer to your router’s User Manual.
The DCS-2230L will automatically create a wireless connection to your router.
While connecting, the status LED will ash. When the connection process is
complete, the status LED will turn solid.
Note: If your router does not support WPS, you can still use the wired connection
method on the previous page. After Zero Conguration setup is complete, your
router's wireless settings will be automatically transferred to the camera.
Optional: WPS Wireless Connection
Alternatively, if your router supports WPS, you can use the WPS button on the
camera to easily create a secure wireless connection to your network.
15D-Link DCS-2230L User Manual
Section 2: Installation
A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click OK to add the camera to
your account.
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log
into your account. Once mydlink detects your camera, a New Device Found!
notice will appear in the bottom-left corner. Click on the device name to continue.
DCS-2230L
DCS-2230L
16D-Link DCS-2230L User Manual
Section 2: Installation

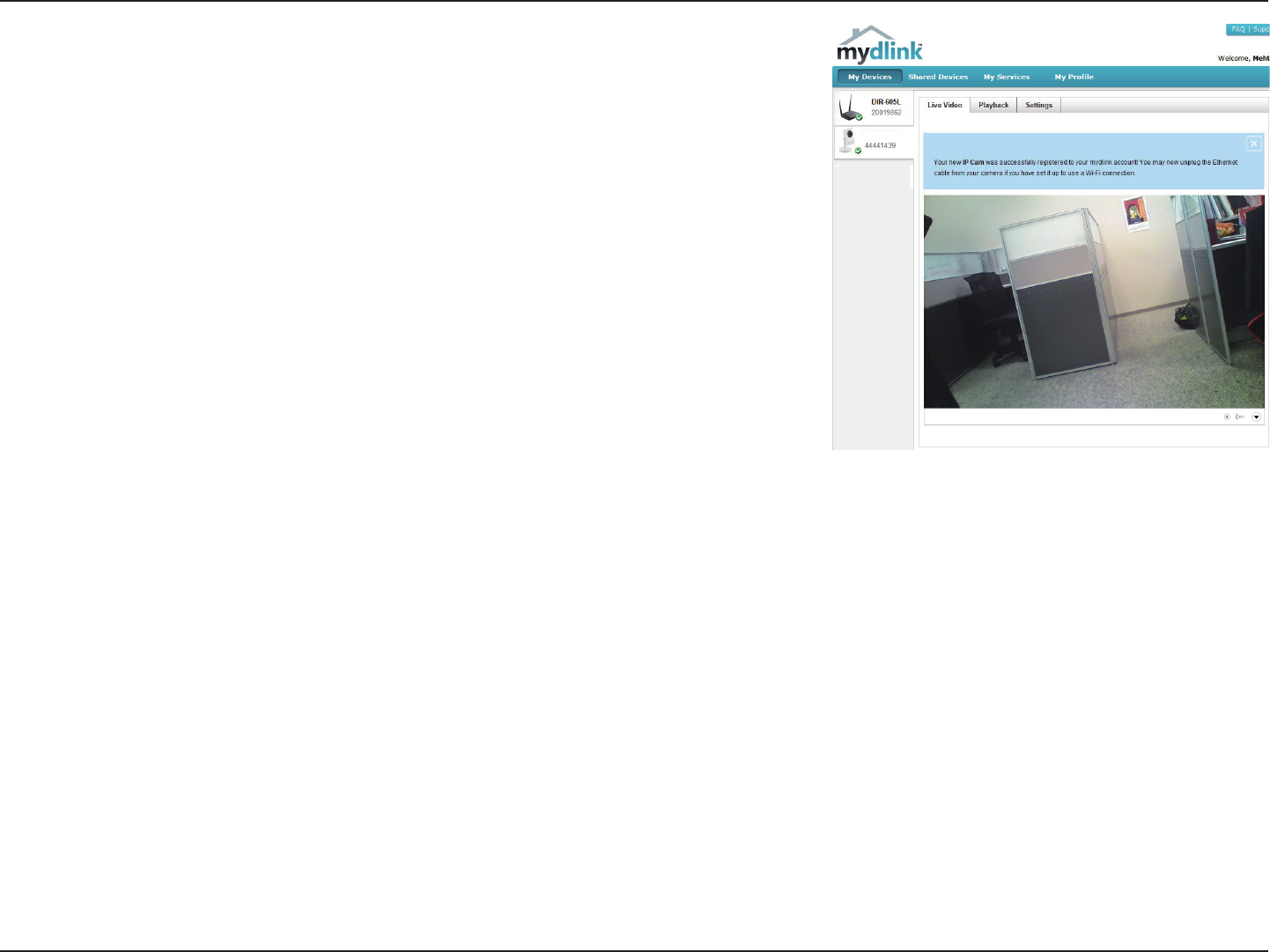

Zero Conguration is now complete and your camera has been added to your
mydlink account. You can now view your camera on the mydlink Live View tab.
Your camera is now set up, and you can skip to mydlink on page 23 to learn
more about the mydlink features of this camera, or to Conguration on page
24 for advanced conguration of your camera.
DCS-2230L
17D-Link DCS-2230L User Manual
Section 2: Installation
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the
installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Camera Setup Wizard
Windows Users
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.
18D-Link DCS-2230L User Manual
Section 2: Installation
Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and
double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation
process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Mac Users
19D-Link DCS-2230L User Manual
Section 2: Installation
Conrm your camera login details and IP address details and click Done.
Your DCS-2230L camera is now set up. Log on to your mydlink account and
explore the exciting benets available to you.
Your camera is now set up, and you can skip to mydlink on page 23 to learn
more about the mydlink features of this camera, or go to Conguration on page
24 for advanced conguration of your camera.
DCS-2230L
20D-Link DCS-2230L User Manual
Section 2: Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
If using an Ethernet connection: Connect the included Ethernet cable to the
Ethernet port located on the back of the DCS-2230L and connect it to your router.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2230L and connect it to your wall outlet or power strip.
21D-Link DCS-2230L User Manual
Section 2: Installation
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The blue WPS
status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you
may need to log in to the web interface and click on an on-screen button to
activate the WPS feature. If you are not sure where the WPS button is on your
router, please refer to your router’s User Manual.
The DCS-2230L will automatically create a wireless connection to your router.
While connecting, the status LED will ash. When the connection process is
complete, the status LED will turn solid.
WPS - Push Button Setup
If your router supports WPS, you can use the WPS button on the camera to easily create a secure wireless connection to your
network.
WPS Button
22D-Link DCS-2230L User Manual
Section 2: Installation
1. Place the mounting base where you want to position the camera and use a pencil
to mark the holes.
4. Place the base cover on the base and screw the camera stem clockwise into the
mounting base.
2. Depending on the material of the wall or ceiling, use proper tools to drill two
holes or screws where you marked. If the wall is made out of concrete, drill the
holes rst, insert the plastic anchors and then the screws.
3. Place the mounting base over the screw that is mounted on the wall. Make sure
to t the screw-heads over the big holes and slide it downward to lock rmly.
Lightly pull the base forward to make sure that it is locked.
Please refer to the steps below to assist you with mounting the camera.
The space between the camera and the screwheads should be 3mm.
We suggest that you congure the camera before mounting.
1
2
3
4
5. Adjust the angle of the camera as desired, then tighten the collar on the camera
stem to lock it in place.
5
Mount the Camera
23D-Link DCS-2230L User Manual
Section 3: mydlink
mydlink
After registering your DCS-2230L camera with a mydlink account in the Camera Installation Wizard. You will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
24D-Link DCS-2230L User Manual
Section 4: Conguration
Conguration
Using the Conguration Interface

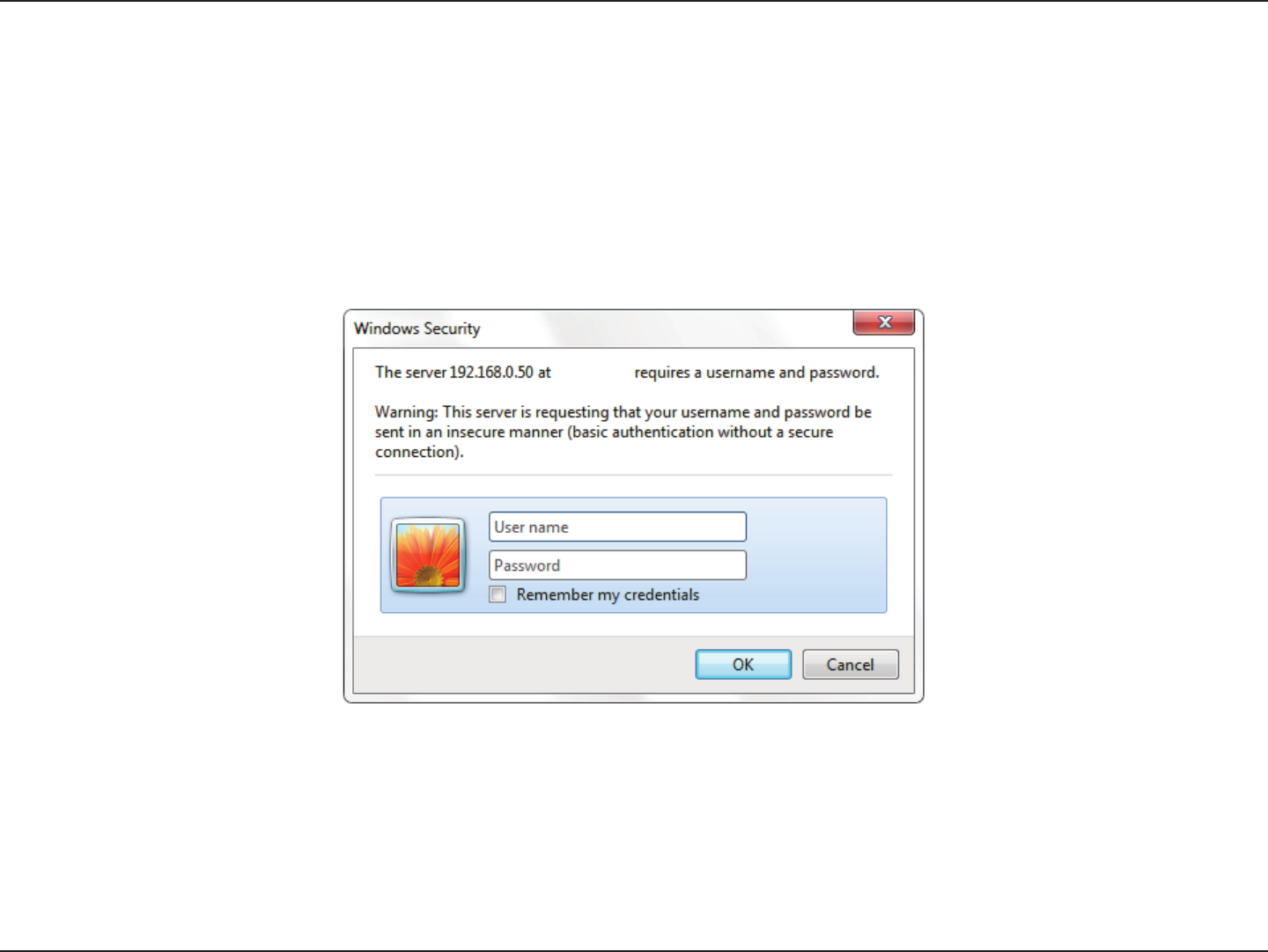

After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in web conguration utility is designed to
allow you to easily access and congure your DCS-2230L. At the end of the wizard, enter the IP address of your camera into a web browser, such as
Mozilla Firefox. To log in, use the username admin and the password you created in the Installation Wizard. If you did not create a password, the
default password is blank. After entering your password, click OK.
DCS-2230L
25D-Link DCS-2230L User Manual
Section 4: Conguration
Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
This indicator will change color when a digital input signal is
detected.
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Control Pad
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.
Auto Pan Starts the automatic panning function. The ROI will pan from
back and forth within the FOV.
Stop Stops automatic panning.
Preset Path Starts the camera's motion along the predened path.
You may select a value between 0 and 64. 0 is the slowest and 64 is the
fastest.
ePTZ Speed:
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has been
connected.
SD Status:
IO Status:
DCS-2230L
26D-Link DCS-2230L User Manual
Section 4: Conguration
If any presets have been dened, selecting a preset from this list will
display it.
Go To:
(Preset List)
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
Start/Stop Digital Output
This window indicates the total eld of view (FOV) of the camera. The
red box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
Global View:
Language:
27D-Link DCS-2230L User Manual
Section 4: Conguration

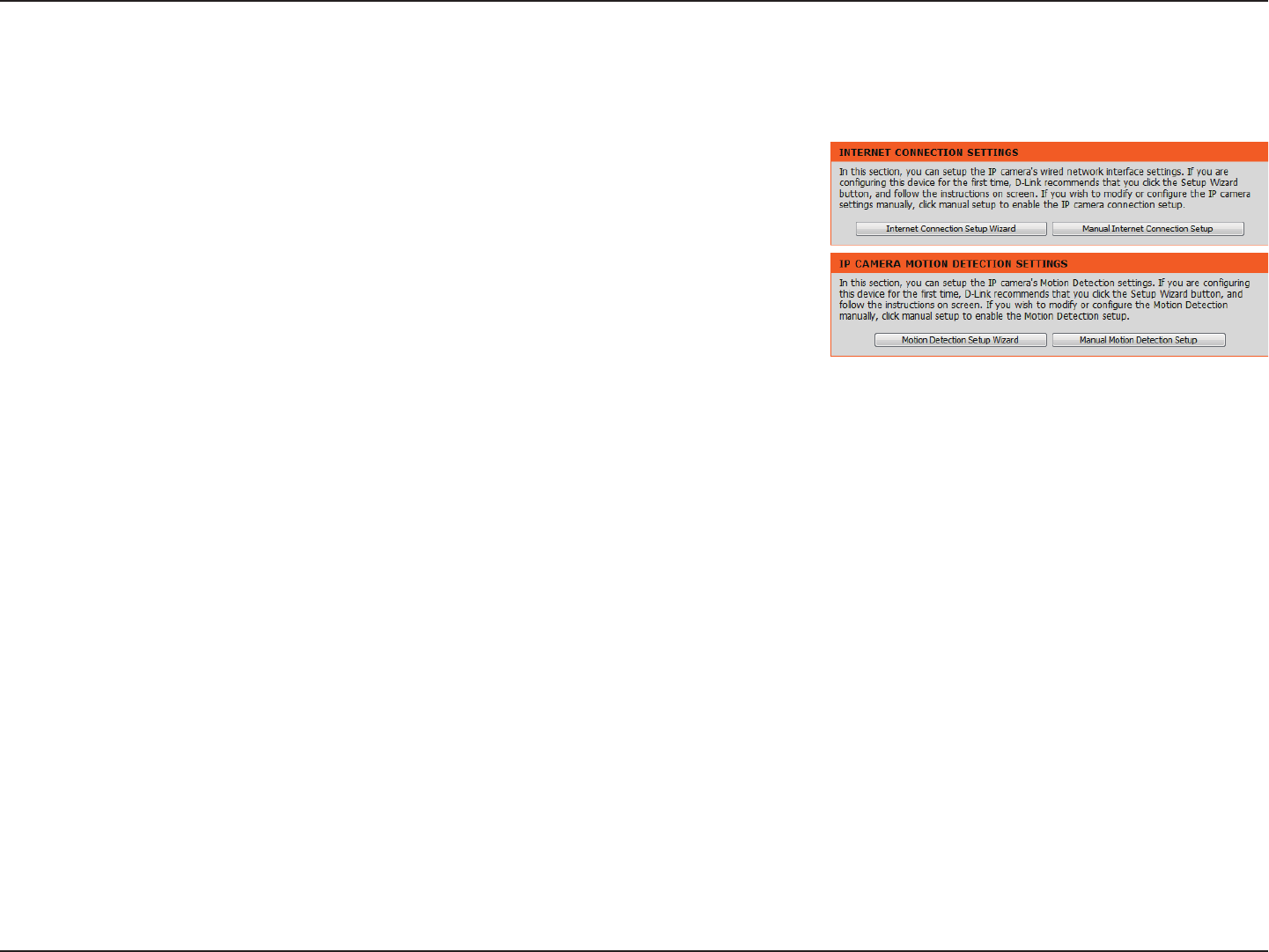

Setup
Setup Wizard
To congure your DCS-2230L, click Internet Connection Setup Wizard. Alternatively, you
may click Manual Internet Connection Setup to manually congure your DCS-2230L and
skip to Network Setup on page 33.
To quickly congure your DCS-2230L’s motion detection settings, click Motion Detection
Setup Wizard. If you want to enter your settings without running the wizard, click Manual
Motion Detection Setup and skip to Motion Detection on page 44.
28D-Link DCS-2230L User Manual
Section 4: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link
Camera and connect the camera to the Internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
29D-Link DCS-2230L User Manual
Section 4: Conguration

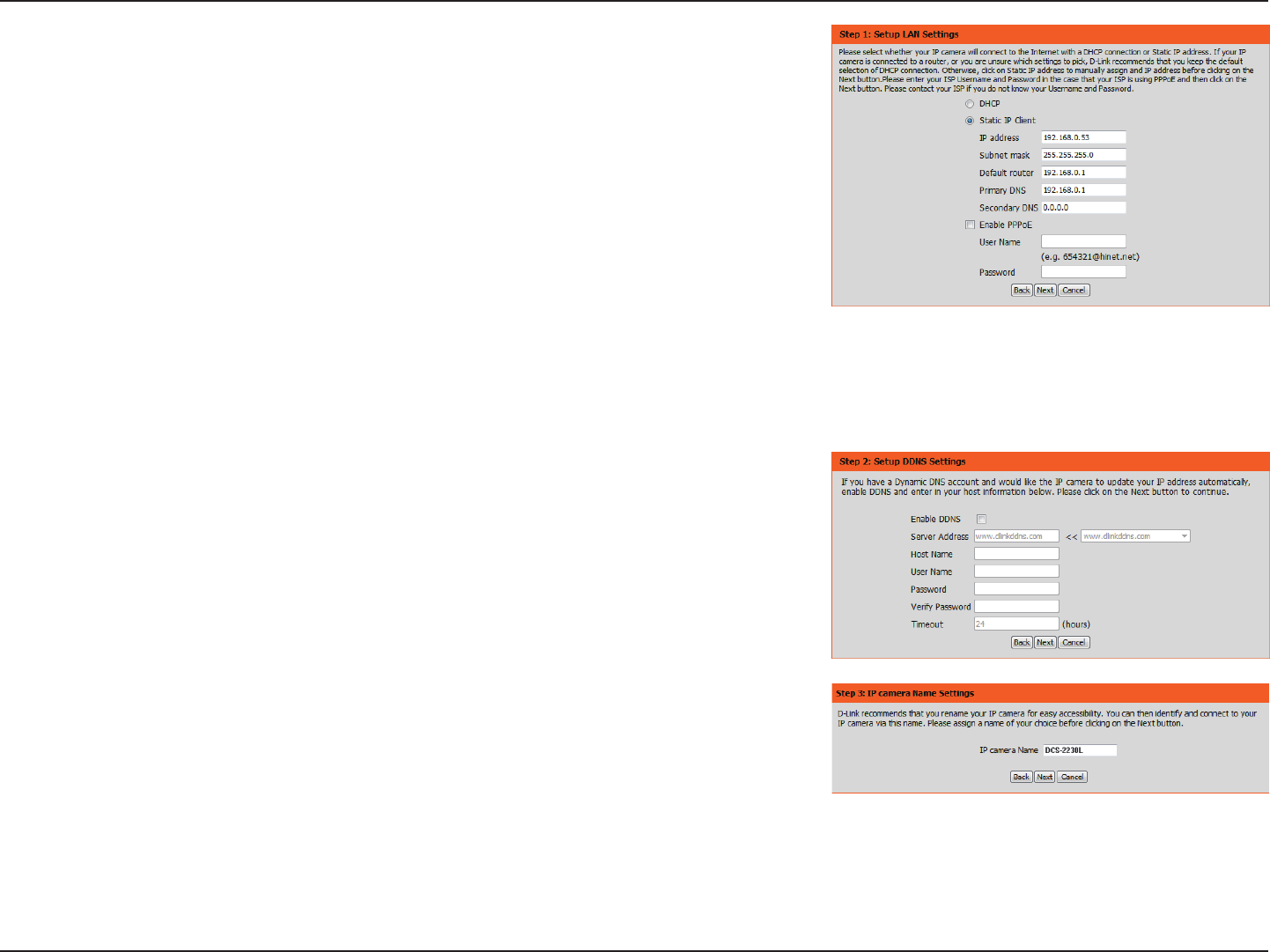

Select Static IP if your Internet Service Provider has provided you with connection settings, or
if you wish to set a static address within your home network. Enter the correct conguration
information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your User Name and Password,
otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update your IP address
automatically, Select Enable DDNS and enter your host information. Click Next to continue.
Enter a name for your camera and click Next to continue.
30D-Link DCS-2230L User Manual
Section 4: Conguration
Congure the correct time to ensure that all events will be triggered as scheduled. Click Next
to continue.
If you have selected DHCP, you will see a summary of your settings, including the camera's IP
address. Please write down all of this information as you will need it in order to access your
camera.
Click Apply to save your settings.
31D-Link DCS-2230L User Manual
Section 4: Conguration
This wizard will guide you through a step-by-step process to congure your camera's
motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection sensitivity,
and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip when motion
is detected.
Please see the Motion Detection section on Motion Detection on page 44 for information
about how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule. Specify the
day and hours. You may also choose to always record whenever motion is detected.
Motion Detection Setup Wizard
32D-Link DCS-2230L User Manual
Section 4: Conguration
Step 3
This step allows you to specify how you will receive event notications from your camera. You
may choose not to receive notications, or to receive notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and restarts.
33D-Link DCS-2230L User Manual
Section 4: Conguration
Network Setup
Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any
changes, click the Save Settings button to save your changes.
LAN Settings:
DHCP:
Static IP Address:
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS:
This section lets you congure settings for your local
area network.
Select this connection if you have a DHCP server running
on your network and would like your camera to obtain
an IP address automatically.
If you choose DHCP, you do not need to ll out the IP
address settings.
You may obtain a static or xed IP address and other
network information from your network administrator
for your camera. A static IP address may simplify access
to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in
the same subnet. The default value is 255.255.255.0.
The gateway used to forward frames to destinations in a
dierent subnet. Invalid gateway settings may cause the
failure of transmissions to a dierent subnet.
The primary domain name server translates names to IP
addresses.
The secondary DNS acts as a backup to the primary DNS.
34D-Link DCS-2230L User Manual
Section 4: Conguration
Enable UPnP Presentation:
Enable UPnP Port Forwarding:
Enable PPPoE:
User Name / Password:
HTTP Port:
Access Name for Stream 1~3:
HTTPS Port:
RTSP Port:
Enabling this setting allows your camera to be
congured as a UPnP device on your network.
Enabling this setting allows the camera to add port
forwarding entries into the router automatically on a
UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE
account. Re-enter your password in the Conrm
Password eld. You may obtain this information from
your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number
of the stream.
You may use a PC with a secure browser to connect to
the HTTPS port of the camera. The default port number
is 443.
The port number that you use for RTSP streaming to
mobile devices, such as mobile phones or PDAs. The
default port number is 554. You may specify the address
of a particular stream. For instance, live1.sdp can be
accessed at rtsp://x.x.x.x/video1.sdp where the x.x.x.x
represents the IP address of your camera.
35D-Link DCS-2230L User Manual
Section 4: Conguration
Enable CoS:
Enable QoS:
Enable IPV6:
Enable Multicast for stream:
Enable Bonjour:
Enabling the Class of Service setting implements a
best-eort policy without making any bandwidth
reservations.
Enabling QoS allows you to specify a trac priority
policy to ensure a consistent Quality of Service during
busy periods. If the DCS-2230L is connected to a router
that itself implements QoS, the router's settings will
override the QoS settings of the camera.
Enable the IPv6 setting to use the IPv6 protocol. Enabling
the option allows you to manually set up the address,
specify an optional IP address, specify an optional router
and an optional primary DNS.
The DCS-2230L allows you to multicast each of the
available streams via group address and specify the TTL
value for each stream. Enter the port and TTL settings
you wish to use if you do not want to use the defaults.
Enable Bonjour to broadcast to network devices
(such as iPhones) using this protocol. You can enter a
custom Bonjour Name for the router in the text box for
identication.
36D-Link DCS-2230L User Manual
Section 4: Conguration
Wireless Setup
This section allows you to set up and congure the wireless settings on your camera. After making any changes, click the Save Settings button to
save your changes.
Site Survey:
SSID:
Wireless Mode:
Channel:
Authentication:
Encryption:
Key:
Click the Rescan button to scan for available wireless
networks. After scanning, you can use the drop-down
box to select an available wireless network. The related
information (SSID, Wireless Mode, Channel, Authentication,
Encryption) will be automatically lled in for you.
Enter the SSID of the wireless access point you wish to
use.
Use the drop-down box to select the mode of the
wireless network you wish to connect to. Infrastructure
is normally used to connect to an access point or router.
Ad-Hoc is usually used to connect directly to another
computer.
If you are using Ad Hoc mode, select the channel of the
wireless network you wish to connect to, or select Auto.
Select the authentication you use on your wireless
network - Open, Shared, WPA-PSK, or WPA2-PSK.
If you use WPA-PSK or WPA2-PSK authentication, you
will need to specify whether your wireless network
uses TKIP or AES encryption. If you use Open or Shared
authentication, WEP encryption should be the setting.
If you use WEP, WPA-PSK, or WPA2-PSK authentication,
enter the Key (also known as password) used for your
wireless network.
37D-Link DCS-2230L User Manual
Section 4: Conguration
Dynamic DNS
DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied.
A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your
changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull down
menu or enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to your
DDNS account.
Enter the password used to connect to your DDNS
server account.
Enter the DNS timeout values you wish to use.
Indicates the connection status, which is automatically
determined by the system.
38D-Link DCS-2230L User Manual
Section 4: Conguration
Image Setup
In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking on the
camera image brings up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
Click Save for the mask to take eect.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.
39D-Link DCS-2230L User Manual
Section 4: Conguration
Exposure Mode:
Denoise:
Brightness:
Contrast:
Saturation:
Sharpness:
Reset Default:
Changes the exposure mode. Use the drop-down
box to set the camera for Indoor, Outdoor, or Night
environments, or to Moving to capture moving objects.
The Low Noise option will focus on creating a high-
quality picture without noise. You can also create 3
dierent custom exposure modes. The Max Gain setting
will allow you to control the maximum amount of gain
to apply to brighten the picture.
This setting controls the amount of noise reduction that
will be applied to the picture.
Adjust this setting to compensate for backlit subjects.
Adjust this setting to alter the color intensity/strength.
This setting controls the amount of coloration, from
grayscale to fully saturated.
Specify a value from 0 to 8 to specify how much
sharpening to apply to the image.
Click this button to reset the image to factory default
settings.
40D-Link DCS-2230L User Manual
Section 4: Conguration
Audio and Video
You may congure up to 2 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer and
mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save Settings
button to save your changes.
Aspect ratio:
Mode:
Frame size / View window area:
Maximum frame rate:
Set the aspect ratio of the video to 4:3 standard or 16:9
widescreen.
Set the video codec to be used to MJPEG or H.264. JPEG
can be selected for image mode.
Frame size determines the total capture resolution, and
View window area determines the Live Video viewing
window size. If the Frame size is larger than the Live
Video size, you can use the ePTZ controls to look around.
16:9 1920x1080, 1280x720, 800x450, 640x360,
480x270, 320x176
4:3 1920x1080, 1280x720, 800x450, 640x360,
480x270, 320x176
Note: If your View window area is the same as your Frame
size, you will not be able to use the ePTZ function.
A higher frame rate provides smoother motion for
videos, and requires more bandwidth. Lower frame
rates will result in stuttering motion, and requires less
bandwidth.
41D-Link DCS-2230L User Manual
Section 4: Conguration
Video Quality:
Constant bit rate:
Fixed quality:
Audio in o:
Audio in gain level:
Audio out o:
Audio out volume level:
This limits the maximum frame rate, which can be
combined with the "Fixed quality" option to optimize
the bandwidth utilization and video quality. If xed
bandwidth utilization is desired regardless of the video
quality, choose "Constant bit rate" and select the desired
bandwidth.
The bps will aect the bit rate of the video recorded
by the camera. Higher bit rates result in higher video
quality.
Select the image quality level for the camera to try to
maintain. High quality levels will result in increased bit
rates.
Selecting this checkbox will mute incoming audio.
This setting controls the amount of gain applied to
incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
This setting controls the amount of gain applied to
outgoing audio to increase its volume.
42D-Link DCS-2230L User Manual
Section 4: Conguration
Preset
This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by
using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset
sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.
Video Prole:
ePTZ Speed:
Arrow Buttons and Home Button:
Input Preset Name:
Preset List:
Preset Sequence:
This selects which video prole to use.
You may select a value between 1 and 10. 0 is the slowest
and 10 is the fastest.
Use these buttons to move to a specic part of the
viewing area, which you can then set as a preset. Click
the Home button to return to the center of the viewing
area.
Enter the name of the preset you want to create, then
click the Add button to make a new preset. If an existing
preset has been selected from the Preset List, you can
change its name by typing in a new name, then clicking
the Rename button.
Click this drop-down box to see a list of all the presets
that have been created. You can select one, then click
the GoTo button to change the displayed camera view
to the preset. Clicking the Remove button will delete
the currently selected preset.
This section allows you to create a preset sequence,
which automatically moves the camera's view between
a set of preset views.
43D-Link DCS-2230L User Manual
Section 4: Conguration
Preset List: To add a preset to the sequence, select it from the drop-
down box at the bottom of this window, set the Dwell
time to determine how long the camera view will stay at
that preset, then click the Add button. The preset name
will appear in the list, followed by the dwell time to view
that preset for.
You can rearrange your presets in the sequence by
selecting a preset in the sequence, then clicking the
arrow buttons to move it higher or lower in the current
sequence.
Clicking the trash can button will remove the currently
selected preset from the sequence.
If you want to change the dwell time for a preset, select
it from the list, enter a new dwell time, then click the
Update button.
44D-Link DCS-2230L User Manual
Section 4: Conguration
Motion Detection
Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for
monitoring. After making any changes, click the Save Settings button to save your changes.
Enable Video Motion:
Enable PIR:
Sensitivity:
Percentage:
Draw Motion Area:
Erase Motion Area:
Select this box to enable the motion detection feature
of your camera.
Select this box to enable Passive Infrared detection.
Species the measurable dierence between two
sequential images that would indicate motion. Please
enter a value between 0 and 100.
Species the amount of motion in the window being
monitored that is required to initiate an alert. If this is set
to 100%, motion is detected within the whole window
will trigger a snapshot.
Draw the motion detection area by dragging your mouse
in the window (indicated by the red square).
To erase a motion detection area, simply click on the red
square that you wish to remove.
Right clicking on the camera image brings up the
following menu options:
Select All: Draws a motion detection area over the
entire screen.
Clear All: Clears any motion detection areas that have
been drawn.
Restore: Restores the previously specied motion
detection areas.
45D-Link DCS-2230L User Manual
Section 4: Conguration
Time and Date
This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any
changes, click the Save Settings button to save your changes.
Time Zone:
Enable Daylight Saving:
Auto Daylight Saving:
Set Date and Time Manually:
Oset:
Synchronize with NTP Server:
NTP Server:
Set the Date and Time Manually:
Copy Your Computer's Time
Settings:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Select this option to allow your camera to congure the
Daylight Saving settings automatically.
Selecting this option allows you to congure the Daylight
Saving date and time manually.
Sets the amount of time to be added or removed when
Daylight Saving is enabled.
Enable this feature to obtain time automatically from an
NTP server.
Network Time Protocol (NTP) synchronizes the
DCS-2230L with an Internet time server. Choose the one
that is closest to your location.
This option allows you to set the time and date manually.
This will synchronize the time information from your PC.
46D-Link DCS-2230L User Manual
Section 4: Conguration
Event Setup

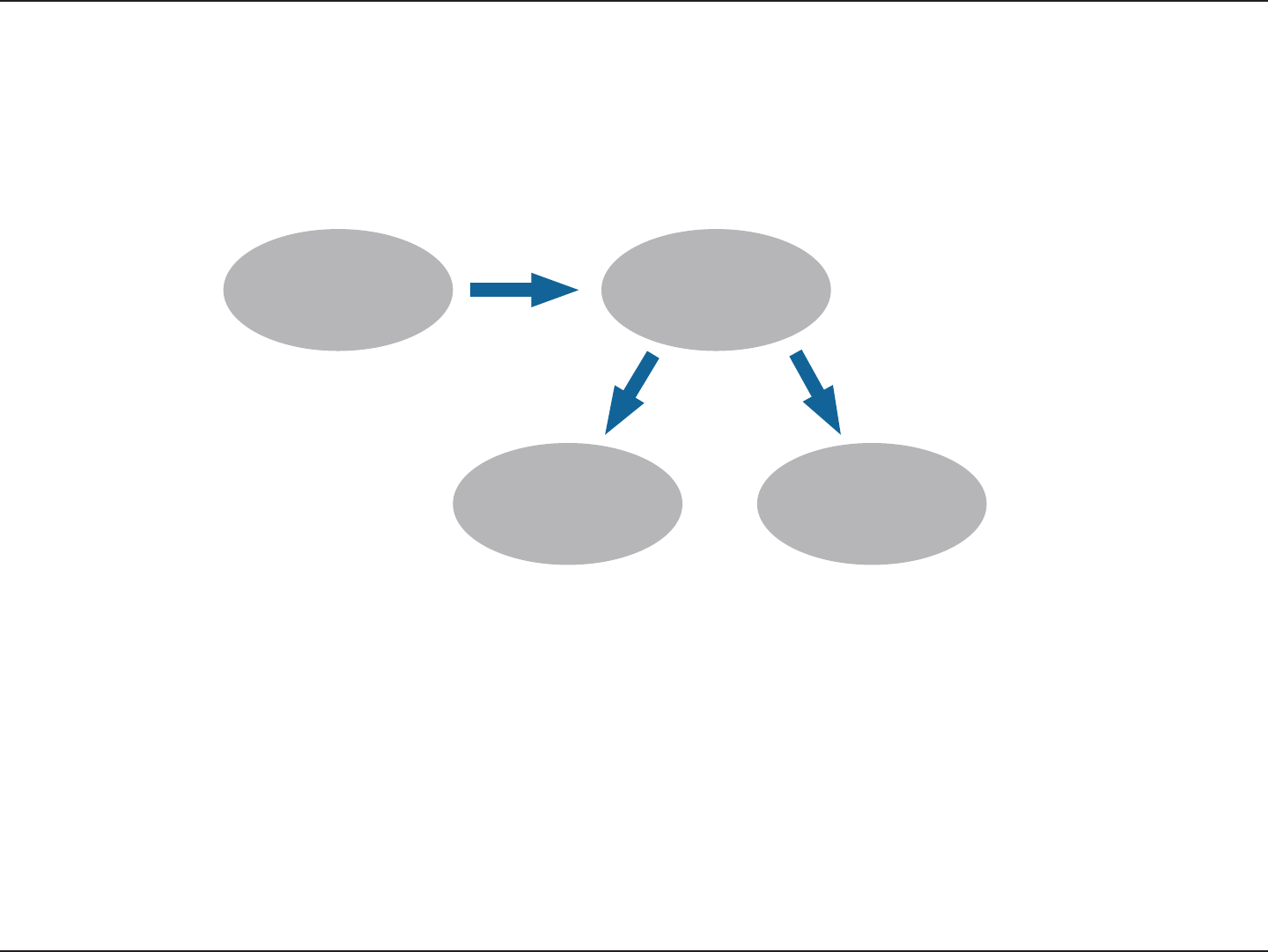

In a typical application, when motion is detected, the DCS-2230L sends images to a FTP server or via e-mail as notications. As shown in the
illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is
triggered, a specied action will be performed. You can congure the DCS-2230L to send snapshots or videos to your e-mail address or FTP site.
To start plotting an event, it is suggested to congure server and media columns rst so that the DCS-2230L will know what action shall be
performed when a trigger is activated.
Event
Condition Action
Media
(what to send)
Server
(where to send)
ex.
Motion Detection,
Periodically, Digital
Input, System Reboot
ex.
Snapshot, Video Clips
ex.
E-mail, FTP
47D-Link DCS-2230L User Manual
Section 4: Conguration
The Event Setup page includes 4 dierent sections:
• Server
• Media
• Event
• Recording
1. To add a new item - "event, server or media," click Add. A screen will appear and allow you
to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server or media, click Delete.
3. Click on the item name to pop up a window for modifying.
48D-Link DCS-2230L User Manual
Section 4: Conguration
Add Server
Server Name:
E-mail:
FTP:
Network Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server
account.
Enter the conguration for the target FTP server account.
Specify a network storage device. Only one network
storage device is supported.
Use the camera's onboard SD card storage.
You can congure up to 5 servers to save snapshots and/or video to. After making any
changes, click the Save Settings button to save your changes. You can click Test to test your
congurations.
49D-Link DCS-2230L User Manual
Section 4: Conguration

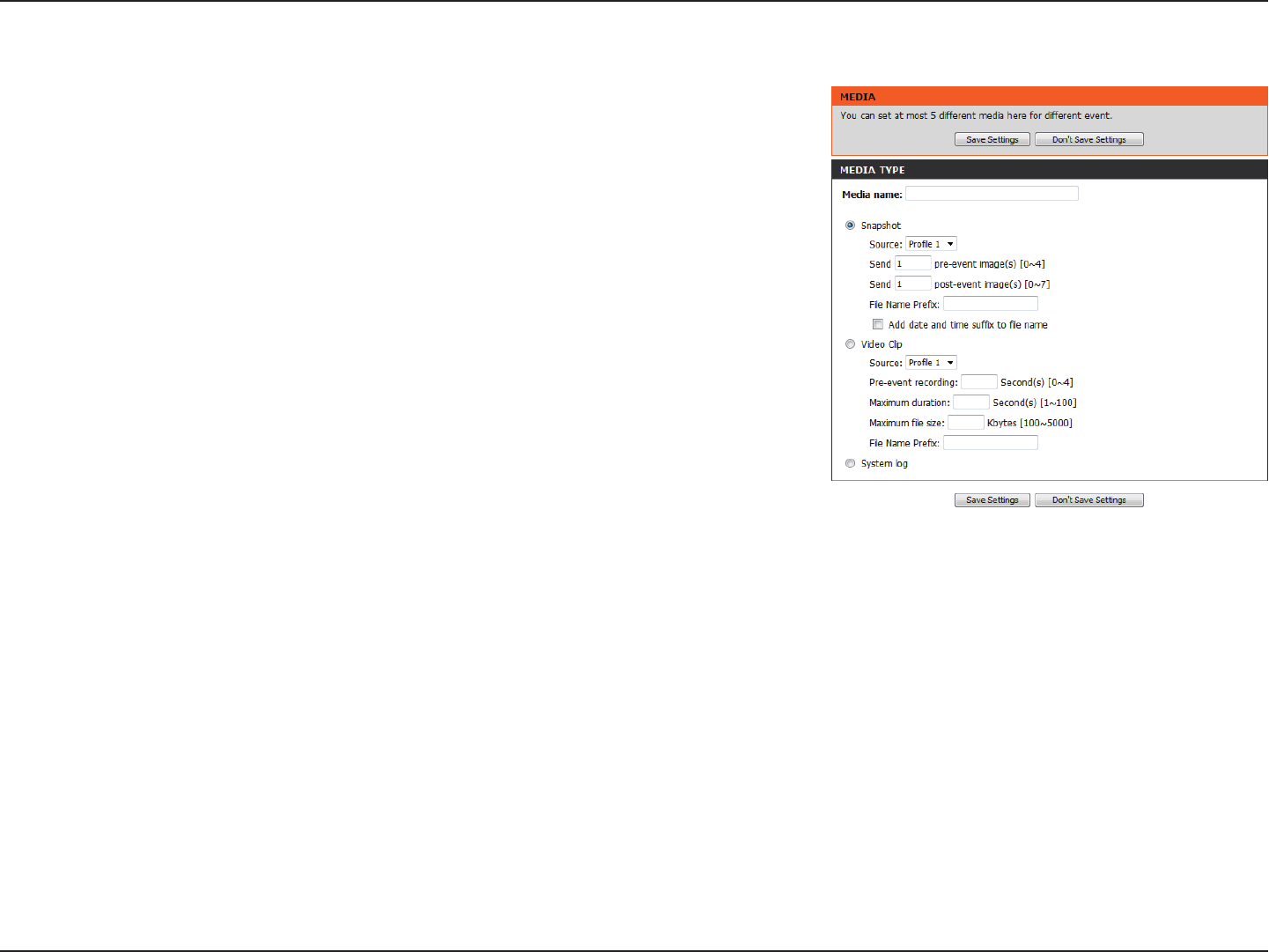

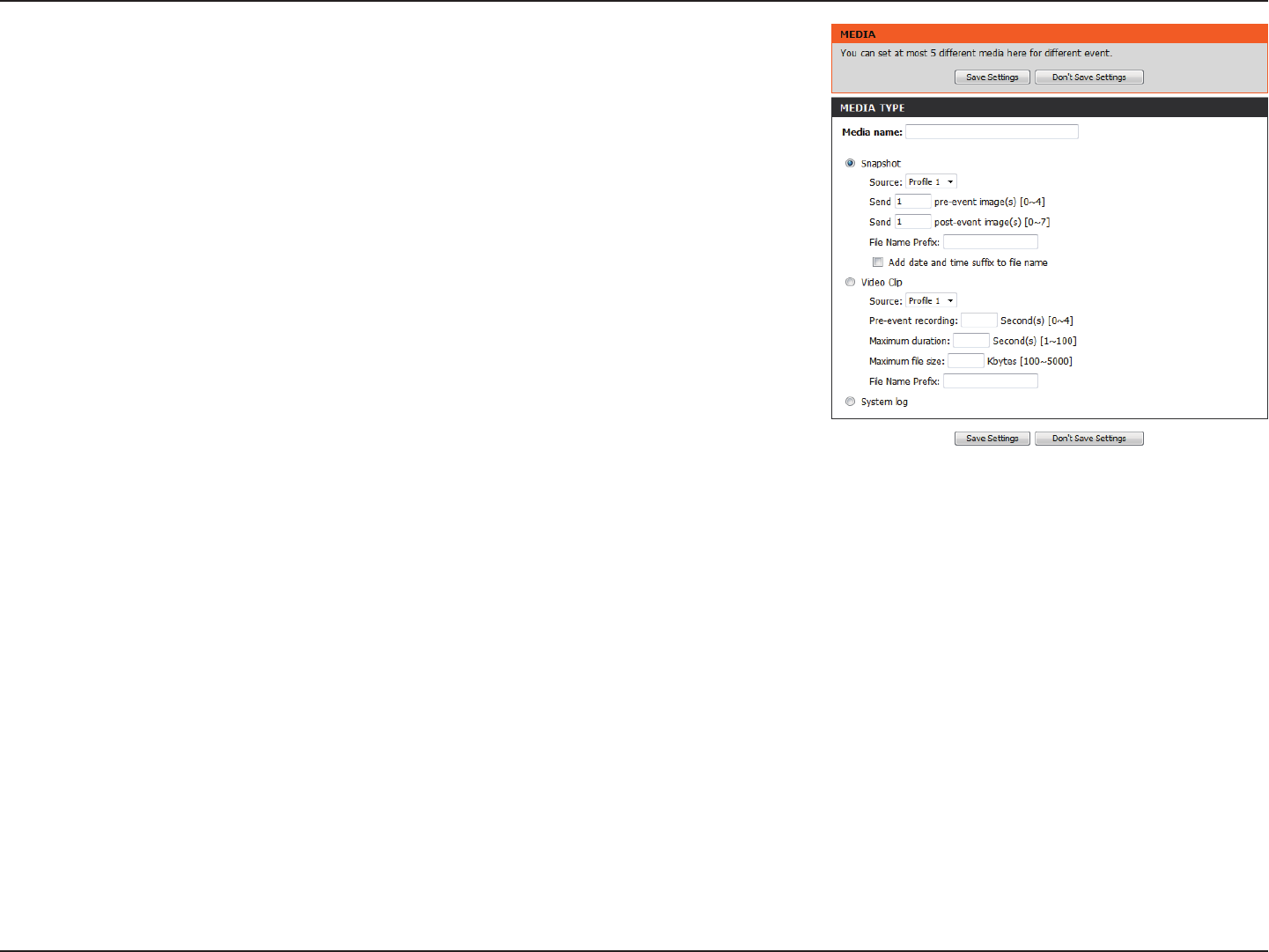

Add Media
Media Name:
Snapshot:
Source:
Send pre-event image(s) [0~4]:
Send post-event image(s) [0~7]:
File name prex:
Add date and time sux to le
name:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to
Audio and Video on Audio and Video on page 40
for more information on video proles.
Set the number of pre-event images to take. Pre-event
images are images taken before the main event snapshot
is taken.
Set the number of post-event images to take. Post-event
images are images taken after the main event snapshot
is taken. You can set up to 7 post-event images to be
taken.
The prex name will be added on the le name.
Check it to add timing information as le name sux.
There are three types of media, Snapshot, Video Clip, and System Log. After making any
changes, click the Save Settings button to save your changes.
50D-Link DCS-2230L User Manual
Section 4: Conguration
Video clip:
Source:
Pre-event recording:
Maximum duration:
Maximum le size:
File name prex:
System log:
Select this option to set the media type to video clips.
Set the video prole to use as the media source. Refer to
Audio and Video on page 40 for more information
on video proles.
This sets how many seconds to record before the main
event video clip starts. You can record up to 4 seconds of
pre-event video.
Set the maximum length of video to record for your
video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of
saved video clips.
Select this option to set the media type to system logs.
This will save the event to the camera system log, but
will not record any snapshots or video.
51D-Link DCS-2230L User Manual
Section 4: Conguration
Add Event
Create and schedule up to 3 events with their own settings here. After making any changes,
click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Video Motion Detection:
Periodic:
Digital input:
System Boot:
Network Lost:
Passive Infrared Sensor:
Time:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher
priority will be executed rst.
Select the delay time before checking the next event. It is
being used for events of motion detection, digital input,
and PIR triggers.
Motion is detected during live video monitoring. Select
the window that needs to be monitored.
The event is triggered in specied intervals. The trigger
interval unit is in minutes.
The external trigger input to the camera.
Triggers an event when the system boots up.
Triggers an event when the network connection is lost.
Triggers an event when the PIR sensor is activated by
moving infrared objects even in dark environment.
Select Always or enter the time interval.
Select the days and times when events will be detected.
52D-Link DCS-2230L User Manual
Section 4: Conguration
Trigger D/O:
Server:
Select to trigger the digital output for a specic number
of seconds when an event occurs.
Specify the location where the event information should
be saved to.
53D-Link DCS-2230L User Manual
Section 4: Conguration
Add Recording
Recording entry name:
Enable this recording:
Priority:
Source:
Recording schedule:
Recording settings:
Destination:
Total cycling recording size:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a higher
priority value will be executed rst.
The source of the stream.
Schedule the recording entry via days and times.
Conguring the setting for the recording.
Select the folder where the recording le will be stored.
Please input a HDD volume between 200 MB and 2 TB
for recording space. The recording data will replace the
oldest record when the total recording size exceeds this
value. For example, if each recording le is 6 MB, and the
total cyclical recording size is 600 MB, then the camera
will record 100 les in the specied location (folder) and
then will delete the oldest le and create a new le for
cyclical recording.
Please note that if the free HDD space is not enough, the
recording will stop. Before you set up this option please
make sure your HDD has enough space, and it is better to
not save other les in the same folder as recording les.
Here you can congure and schedule the recording settings. After making any changes,
click the Save Settings button to save your changes.
54D-Link DCS-2230L User Manual
Section 4: Conguration
Size of each le for recording:
Time of each le for recording:
File Name Prex:
If this is selected, les will be separated based on the le
size you specify.
If this is selected, les will be separated based on the
maximum length you specify.
The prex name will be added on the le name of the
recording le(s).
55D-Link DCS-2230L User Manual
Section 4: Conguration

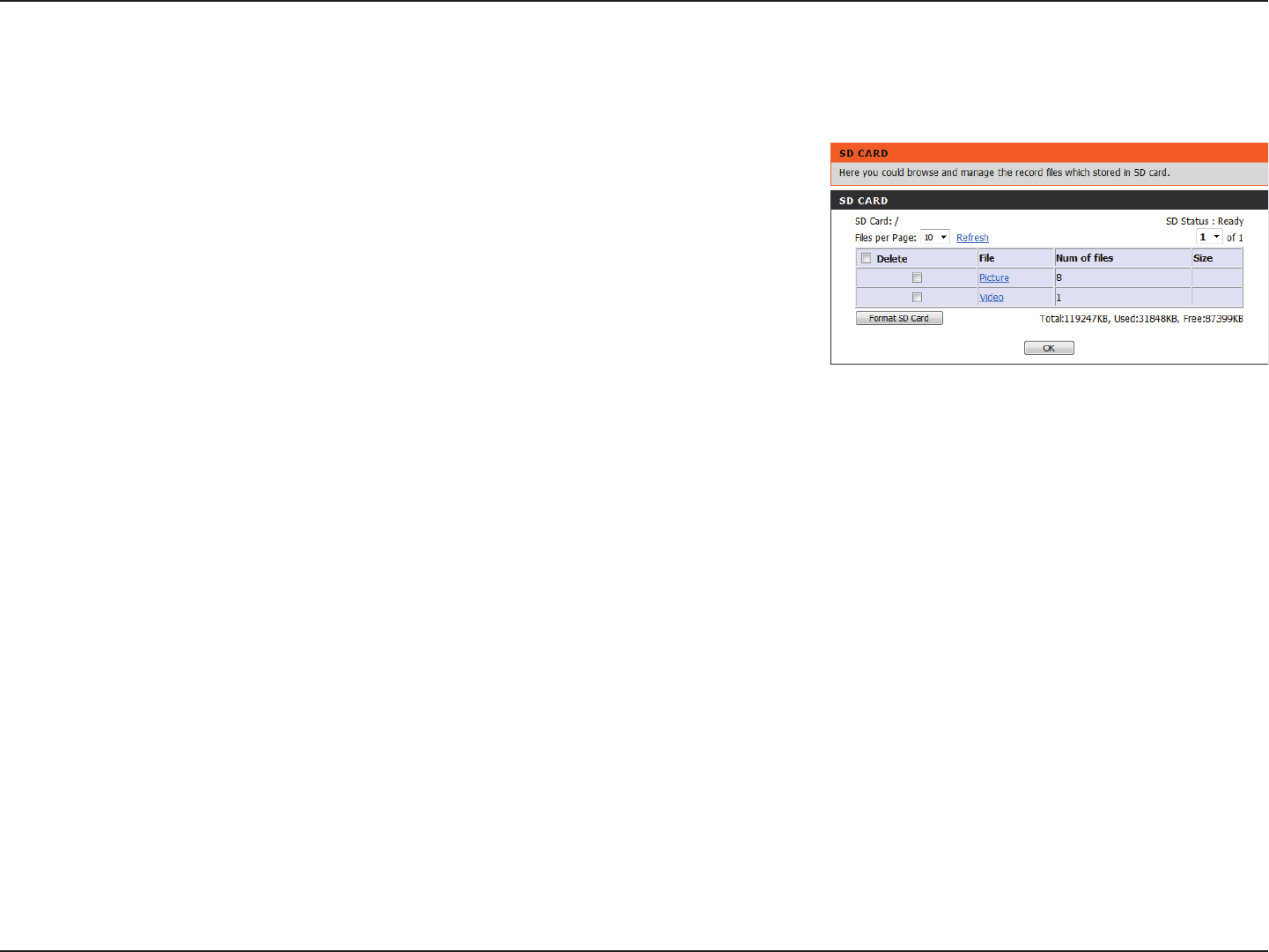

SD Card
Format SD Card:
View Recorded Picture:
Playback Recorded Video:
Refresh:
Click this icon to automatically format the SD card and
create "picture" & "video" folders.
If the picture les are stored on the SD card, click on the
picture folder and choose the picture le you would like
to view.
If video les are stored on the SD card, click on the video
folder and choose the video le you would like to view.
Reloads the le and folder information from the SD card.
Here you may browse and manage the recorded les which are stored on the SD card.
56D-Link DCS-2230L User Manual
Section 4: Conguration
Advanced
This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for
digital output (DO) and digital input (DI) that is used for connecting a variety of external alarm devices such as IR sensors and alarm relays. The
digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click
the Save Settings button to save your changes.
Digital Input/Output
Select D/I or D/O Mode: The camera will send a signal when an event is triggered,
depending upon the type of device connected to the DI
circuit.
N.C. stands for Normally Closed. This means that the
normal state of the circuit is closed. Therefore events are
triggered when the device status changes to "Open."
N.O. stands for Normally Open. This means that the
normal state of the circuit is open. Therefore events are
triggered when the device status changes to "Closed."
57D-Link DCS-2230L User Manual
Section 4: Conguration
ICR and IR
Here you can congure the ICR and IR settings. An IR(Infrared) Cut-Removable(ICR) lter can be disengaged for increased sensitivity in low light
environments.
Automatic:
Day Mode:
Night Mode:
Schedule Mode:
IR Light Control:
O:
On:
Sync:
Schedule:
The Day/Night mode is set automatically. Generally, the
camera uses Day mode and switches to Night mode
when needed.
Day mode enables the IR Cut Filter.
Night mode disables the IR Cut Filter.
Set up the Day/Night mode using a schedule. The camera
will enter Day mode at the starting time and return to
Night mode at the ending time.
The camera can enable or disable the IR (infrared) light
according to your preferences. This setting lets you
adjust IR strength depending on your specic application.
The IR light will always be o.
The IR light will always be on.
The IR light will turn on when the ICR sensor is on.
The IR light will turn on or o according to the schedule
that you specify below.
58D-Link DCS-2230L User Manual
Section 4: Conguration

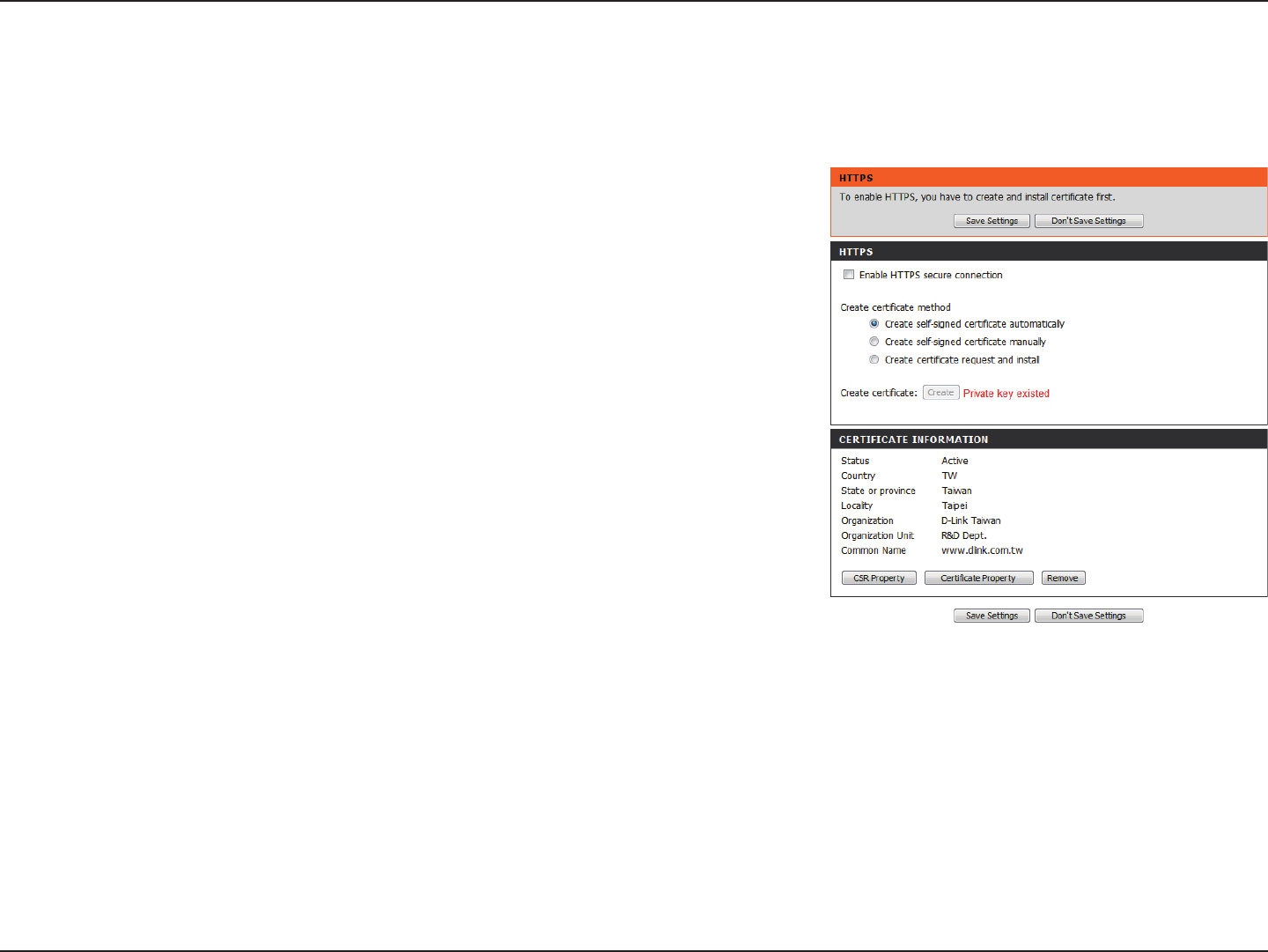

HTTPS
This page allows you to install and activate an SSL certicate for secure HTTPS access to your camera. After making any changes, click the Save
Settings button to save your changes.
Enable HTTPS Secure Connection:
Create Certicate Method:
Certicate Information:
Note:
Enable the HTTPS service.
Choose the way the certicate should be created. Three
options are available:
Create a self-signed certicate automatically
Create a self-signed certicate manually
Create a certicate request and install
Displays the status and details of the certicate. Click
on CSR Property and Certicate Property to view
details of the certicates.
The certicate cannot be removed while the HTTPS is
still enabled. To remove the certicate, you must rst
uncheck Enable HTTPS secure connection.
59D-Link DCS-2230L User Manual
Section 4: Conguration
Access List
Here you can set access permissions for users to view your DCS-2230L.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
Delete deny list:
The list of IP addresses that have the right to access the
camera.
The starting IP Address of the devices (such as a computer)
that have permission to access the video of the camera.
Note: A total of seven lists can be congured for both
columns.
The ending IP Address of the devices (such as a computer)
that have permission to access the video of the camera.
Click Add to save the changes made.
Remove the customized setting from the Allow List.
The list of IP addresses that have no access rights to the
camera.
Remove the customized setting from the Delete List.
For example:
When the range of the Allowed List is set from 1.1.1.0
to 192.255.255.255 and the range of the Denied List is
set from 1.1.1.0 to 170.255.255.255. Only users with IPs
located between 171.0.0.0 and 192.255.255.255 can
access the DCS-2230L.
Alowed
List
Denied
List
60D-Link DCS-2230L User Manual
Section 4: Conguration
SNMP
The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between
network devices. It helps network administrators to remotely manage network devices and nd, solve network problems with ease.
Enable SNMPv1, SNMPv2c:
Read/Write Community:
Read Only Community:
Enable SNMPv3:
Read/Write and Read Only
Security Names:
Authentication Type:
Authentication/Encryption
Password:
Select this to enable SNMPv1 and 2.
Enter a name for the read community of your SNMP
server.
Enter a name for the write community of your SNMP
server.
Select this to enable SNMPv3. You will need to ask your
network administrator for the SNMP authentication
information and input them into the elds below.
Enter custom names for your read/write and read only
SNMP accounts in the text boxes.
Select the authentication protocol used for SNMP
exchanges between this user and the local SNMP engine.
SHA and MD5 protocols are supported.
Enter the authentication and encryption passwords for
your read/write and read only SNMP accounts in these
boxes.
61D-Link DCS-2230L User Manual
Section 4: Conguration
Maintenance
You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera.
You may also use this section to create a unique name and congure the OSD settings for your camera.
Admin Password Setting:
Add User Account:
User Name:
Password:
User List:
IP Camera Name:
Enable OSD:
Label:
Show Time:
LED:
Set a new password for the administrator’s account.
Retype it and click Save for it to take eect.
Add new user account. Click Add to save the account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed here. You
may delete accounts included in the list, but you may
want to reserve at least one as a guest account.
Create a unique name for your camera that will be added
to the le name prex when creating a snapshot or a
video clip.
Select this option to enable the On-Screen Display
feature for your camera.
Enter a label for the camera, which will be shown on the
OSD when it is enabled.
Select this option to enable the time-stamp display on
the video screen. Click Save when you are done.
You may specify whether or not to illuminate the status
LED on the camera. Click Save when you are done.
Admin
DCS-2230L
DCS-2230L
62D-Link DCS-2230L User Manual
Section 4: Conguration
System
In this section, you may backup, restore and reset the camera conguration, or reboot the camera.
Save To Local Hard Drive:
Load From Local Hard Drive:
Restore to Factory Default:
Reboot Device:
Enable Schedule Reboot:
You may save your current camera conguration as a le
on your computer.
Locate a pre-saved conguration by clicking Browse and
then restore the pre-dened settings to your camera by
clicking Load Conguration.
You may reset your camera and restore the factory
settings by clicking Restore Factory Defaults.
This will restart your camera.
Check to enable this feature and select the days and
times your DCS-2230L will automatically reboot. Click
Save for it to take eect.
63D-Link DCS-2230L User Manual
Section 4: Conguration

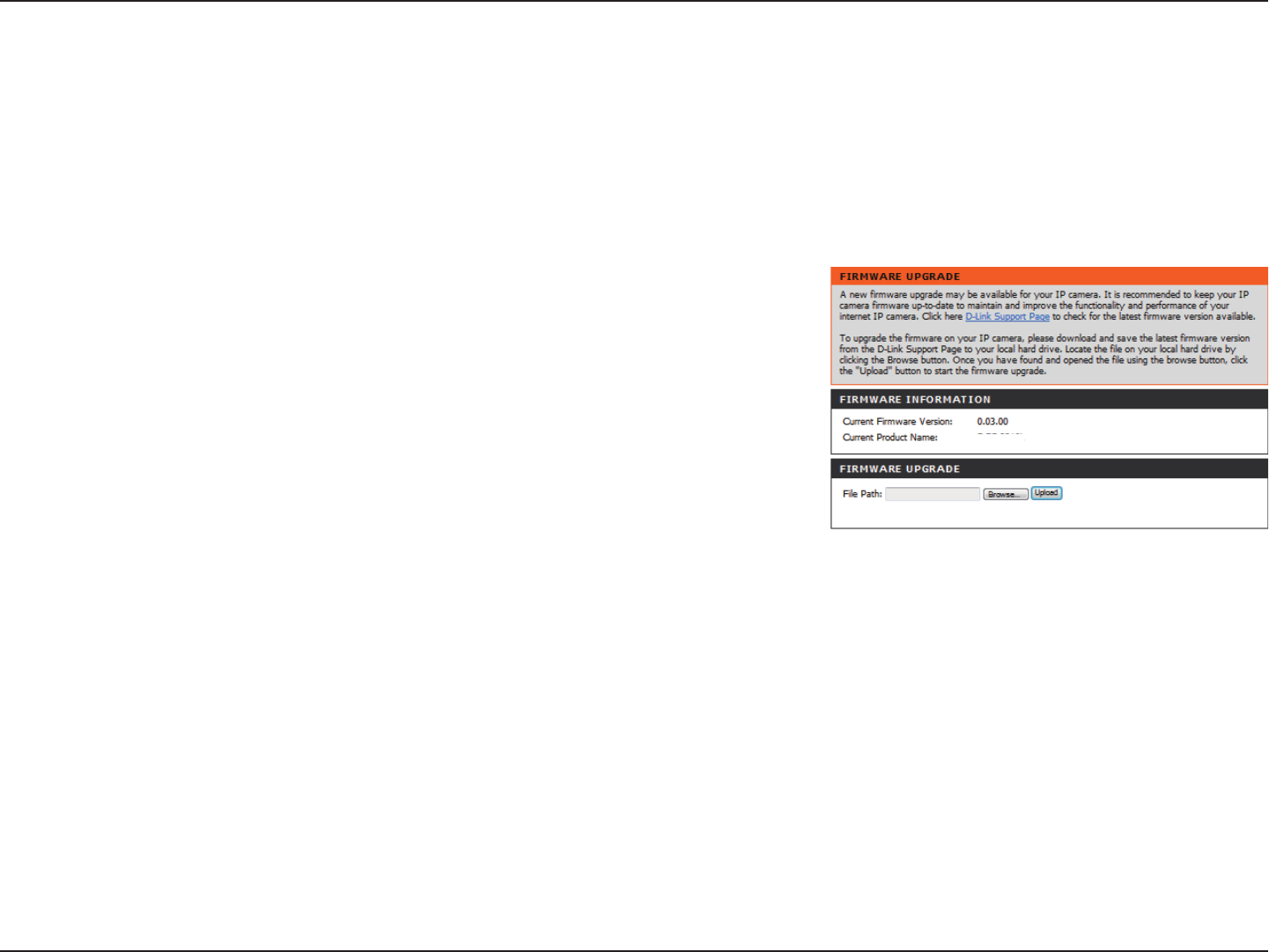

Firmware Upgrade
The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available
rmware version.
To upgrade the rmware on your DCS-2230L, please download and save the latest rmware version from the D-Link Support Page to your local
hard drive. Locate the le on your local hard drive by clicking the Browse button. Select the le and click the Upload button to start upgrading the
rmware.
Current Firmware Version:
Current Product Name:
File Path:
Upload:
Displays the detected rmware version.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard drive
by clicking Browse.
Uploads the new rmware to your camera.
DCS-2230L
64D-Link DCS-2230L User Manual
Section 4: Conguration
Status
This page displays detailed information about your device and network connection.
Device Info
DCS-2230L
65D-Link DCS-2230L User Manual
Section 4: Conguration
This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete
the saved log information.
Logs
66D-Link DCS-2230L User Manual
Section 4: Conguration
This page provides helpful information regarding camera operation.
Help
67D-Link DCS-2230L User Manual
Appendix A: DI/DO Specications
DI/DO Specications
Pin 1 Pin 4
Pin 3Pin 2
PIN FUNCTION NOTE
1 Digital Out (DO) Uses an open-drain NFET transistor with the source connected to GND in camera. If used
with an external relay, a diode must be connected in parallel with the load for protection
against voltage transients. Max loading is 100 mA.
2 Digital In (DI) A switch from DI to DC 5 V, activated by setting NO. or NC.
3 DC 5V OUTPUT DC 5 V Output / Max. 100 mA
4 GND GND
Internal 5V Power External 3~12V Power
DO
DI
5V
DND
N.C / N.O
100 mA
ALARM
Reed switch
Diode
DC Power 5V
R
DO
DI
5V
DND
N.C / N.O
ALARM
Reed switch
Diode
DC Power 5V
R
DC Power 3V~12V
100 mA
68D-Link DCS-2230L User Manual
Appendix B: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
1/2.7” 2 Megapixel CMOS sensor
5 meter IR illumination distance
Minimum illumination: 0 lux with IR LED on
Built-in Infrared-Cut Removable (ICR) Filter module
Built-in PIR sensor (5 meter)
Built-in microphone and speaker
10x digital zoom
Focal length: 2.8 mm
Aperture: F1.8
Angle of view:
(H) 103°
(V) 55°
(D) 118°
Image Features
Congurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Congurable motion detection windows
Congurable privacy mask zones
Congurable shutter speed, brightness, saturation, contrast,
and sharpness
Video Compression
Simultaneous H.264/MJPEG format compression
H.264 multicast streaming
JPEG for still images
Video Resolution 16:9 - Up to 30 fps at 1920 x 1080, 1280 x 720, 800 x 450, 640 x
360, 480 x 270
4:3 - Up to 30 fps at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x
600, 600 x 480, 320 x 240
Audio Support G.711, AAC
External Device
Interface
10/100 BASE-T Fast Ethernet port
802.3af PoE (DCS-2210L only)
IEEE 802.11n/b/g wireless with WPS (DCS-2230L only)
DI/DO port
microSD/SDHC card slot
Network Network Protocols IPv6 / IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
Bonjour
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP ltering
QoS
CoS
Multicast
IGMP
ONVIF compliant
Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
69D-Link DCS-2230L User Manual
Appendix B: Technical Specications
System
Management
System
Requirements for
Web Interface
Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista
(32/64-bit)/XP, Mac OS X 10.5 or above
Browser: Internet Explorer 7, Firefox 12, Safari 7 or above
Event Management
Motion detection, Periodic, Digital Input, System Boot, Network
Lost, PIR
Event notication and saving/uploading of snapshots/video
clips via e-mail, FTP, network storage, or SD card
Supports multiple SMTP and FTP servers
Multiple event notications
Multiple recording methods for easy backup
Remote
Management
Take snapshots/video clips and save to local hard drive or NAS
via web browser
Conguration interface accessible via web browser
Mobile Support mydlink mobile app for iOS and Android mobile devices
D-ViewCam™ System
Requirements
Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista
(32/64-bit)/XP
Protocol: Standard TCP/IP
D-ViewCam™
Software Functions
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options
General Weight DCS-2210L: 80 g
DCS-2230L: 75 g
External Power
Adaptor Input: 100 to 240 V AC, 50/60 Hz Output: 5 V DC, 1.2 A, 50/60 Hz
Power Consumption DCS-2210L: Max. 3.5 W
DCS-2230L: Max. 4 W
Temperature Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)
Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing
Certications CE
CE LVD
FCC
C-Tick
70D-Link DCS-2230L User Manual
Appendix B: Technical Specications
Dimensions
•
71D-Link DCS-2230L User Manual
Appendix C: Safety Statements
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Safety Statements
72D-Link DCS-2230L User Manual
Appendix C: Safety Statements
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory
to match the intended destination. The rmware setting is not accessible by the end user.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link
oce.
Industry Canada Notice:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The required antenna impedance is 50 ohms.

Navigation menu
