D Link CS930LA1 Wireless N Home Network Camera User Manual DCS 930 UserMan

D Link Corporation Wireless N Home Network Camera DCS 930 UserMan

(DCS-930)UserMan

2D-Link DCS-930 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ...................................................4
System Requirements .............................................4
Introduction ..............................................................5
Features .................................................................. 6
Hardware Overview .................................................7
Front View ..........................................................7
Rear View ..........................................................8
Hardware Installation ...............................................9
Installation ..................................................................10
Wireless Installation Considerations ...................... 10
Starting the Camera Installation Wizard ................11
WPS - Hardware Push Button Setup ............... 12
Using the Conguration Menu ...............................13
Conguration .........................................................15
Live Video ........................................................15
Setup > Wizard ................................................ 15
Internet Connection Setup Wizard .............. 16

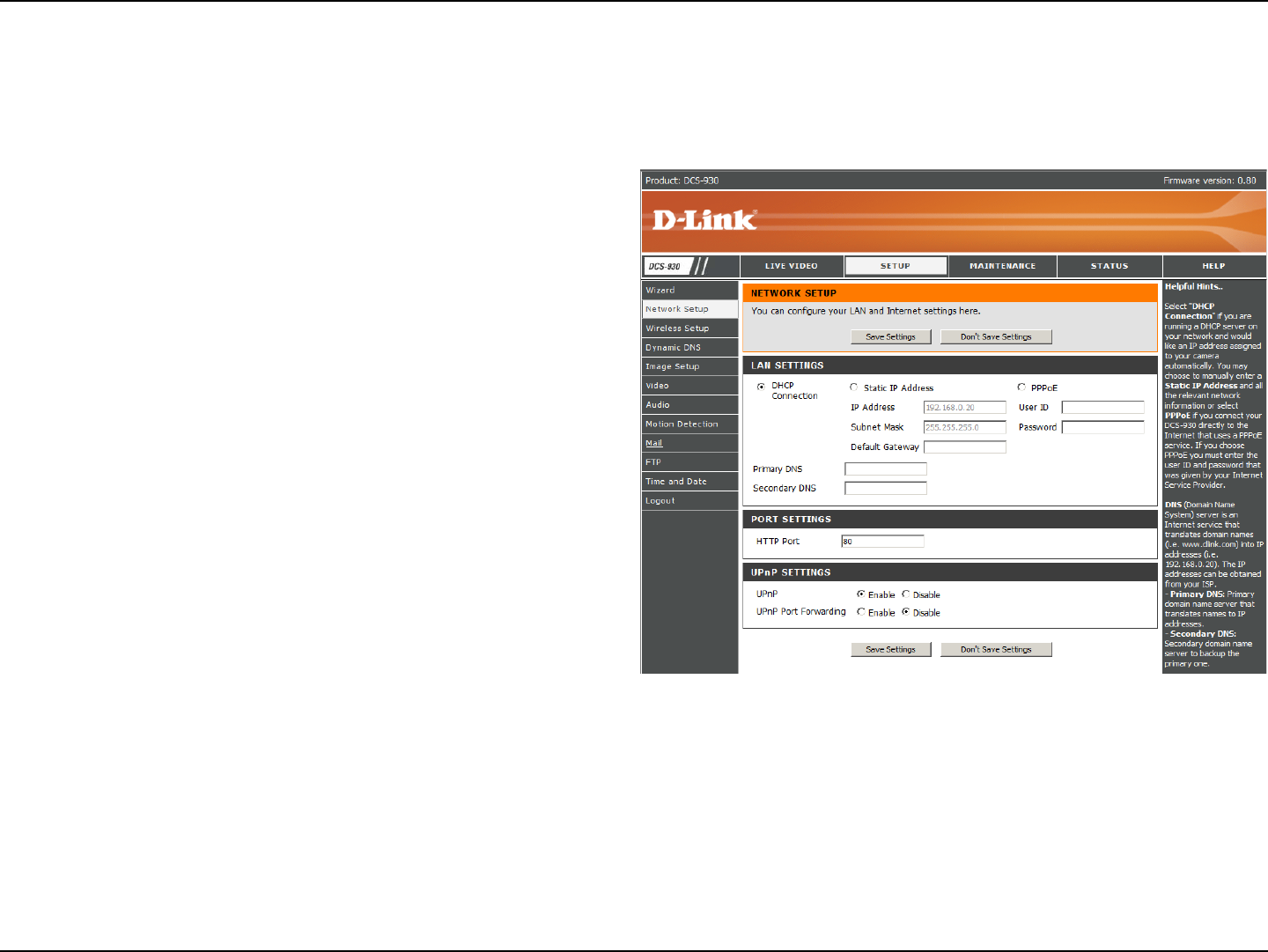

Network Setup ............................................18

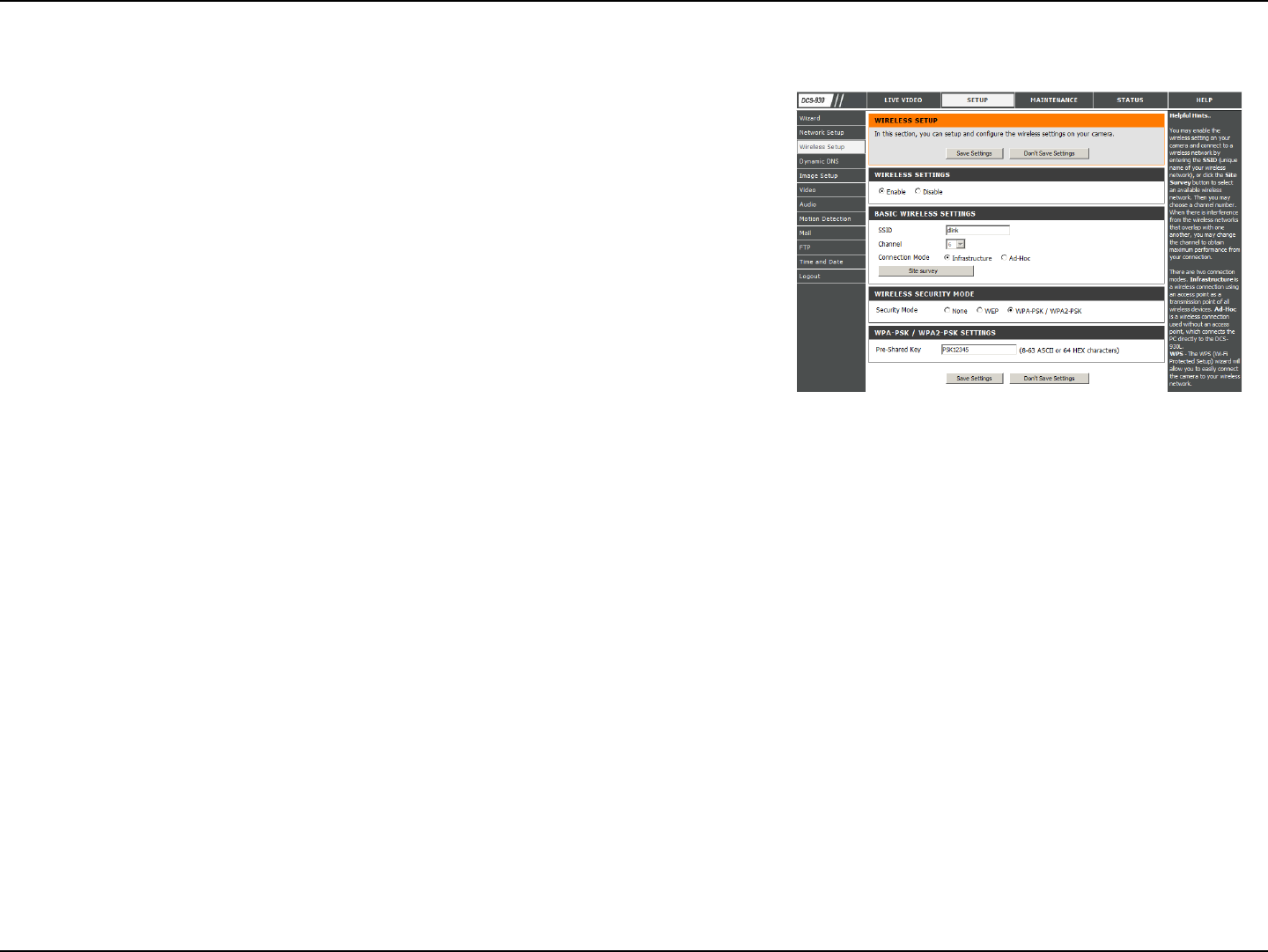

Setup > Wireless .............................................. 19
Wireless Interface ....................................... 19

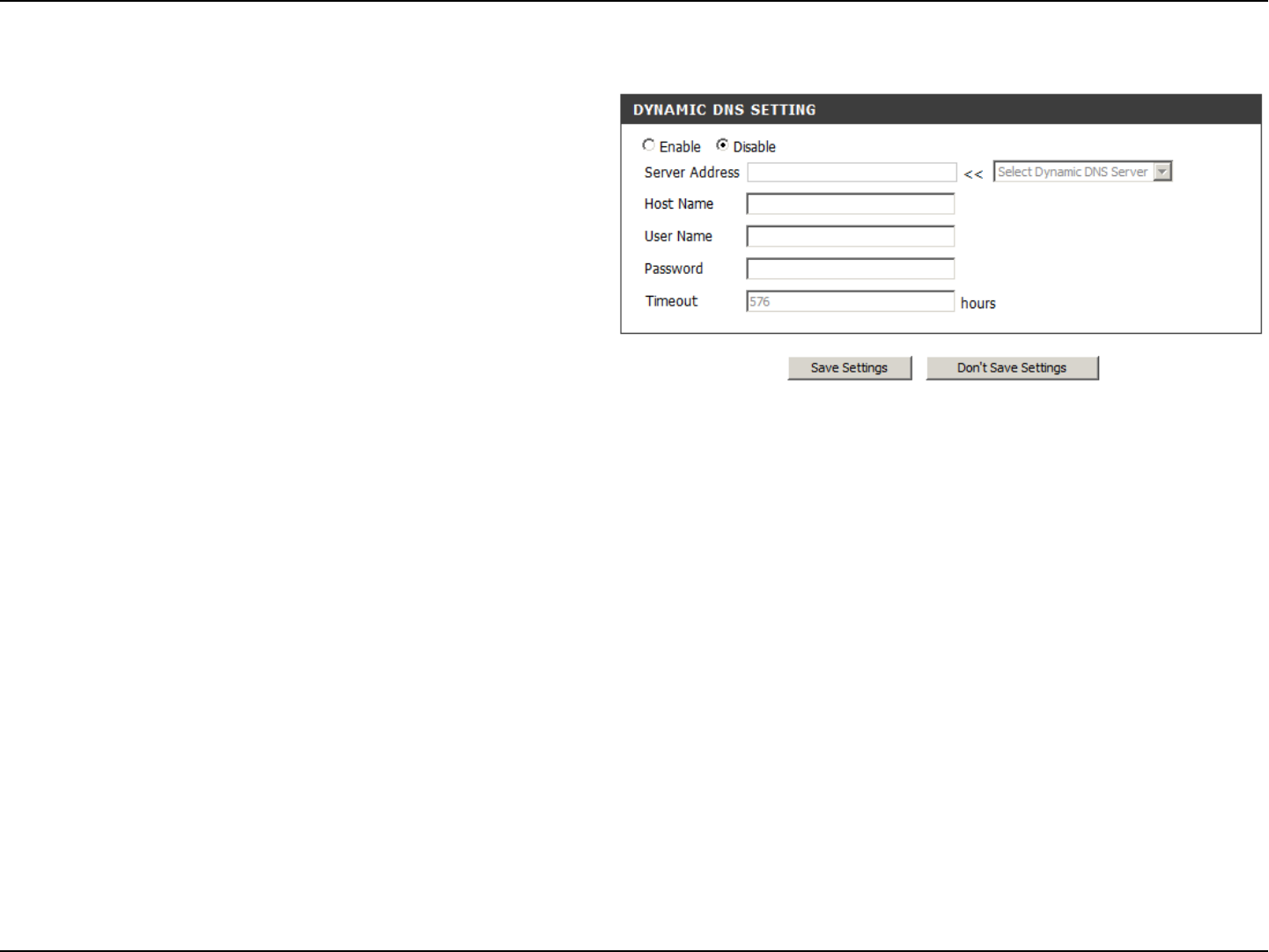

Setup > DDNS ................................................ 20

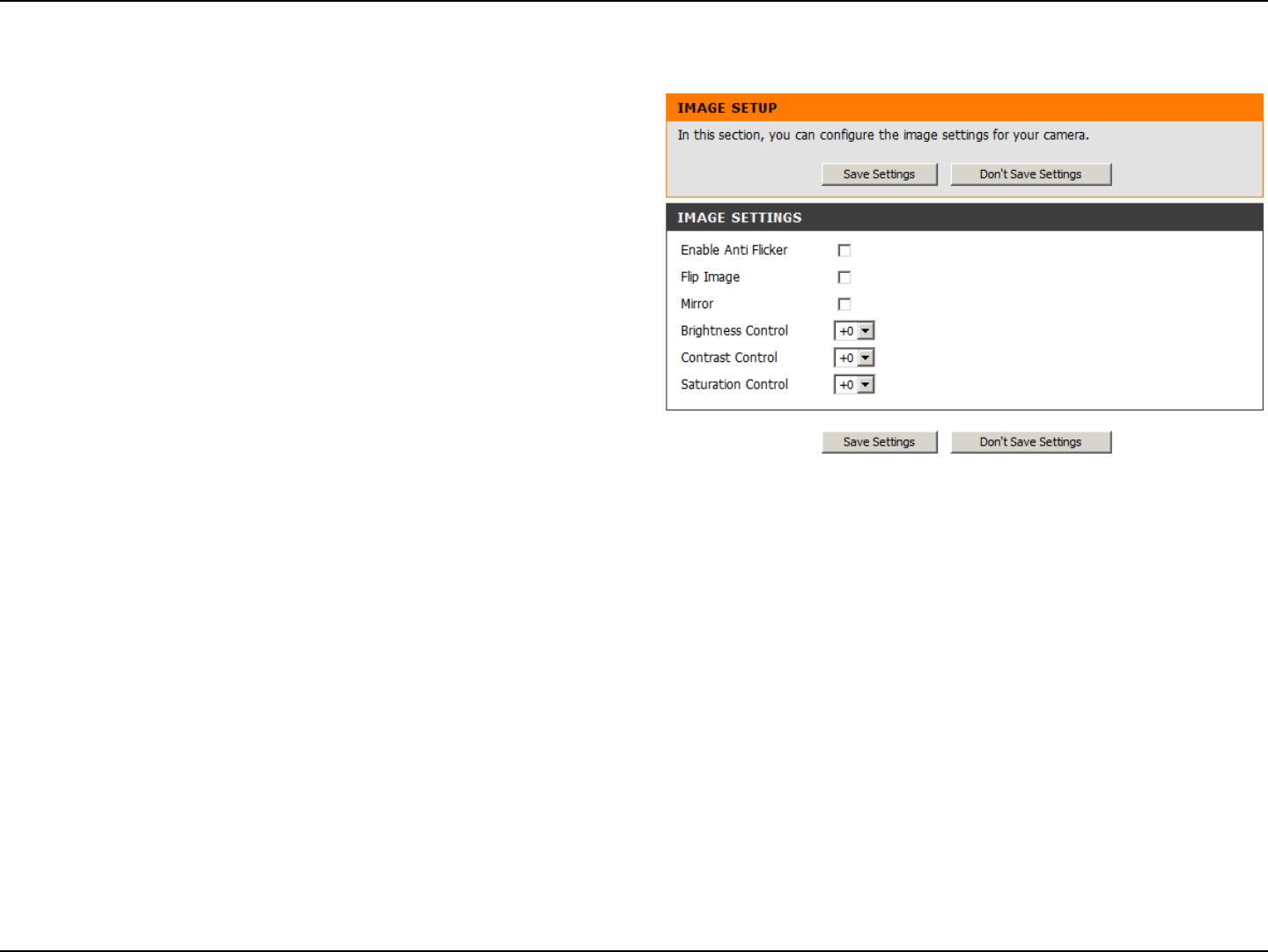

Setup > Image Setup ....................................... 21
Image Settings ............................................ 21

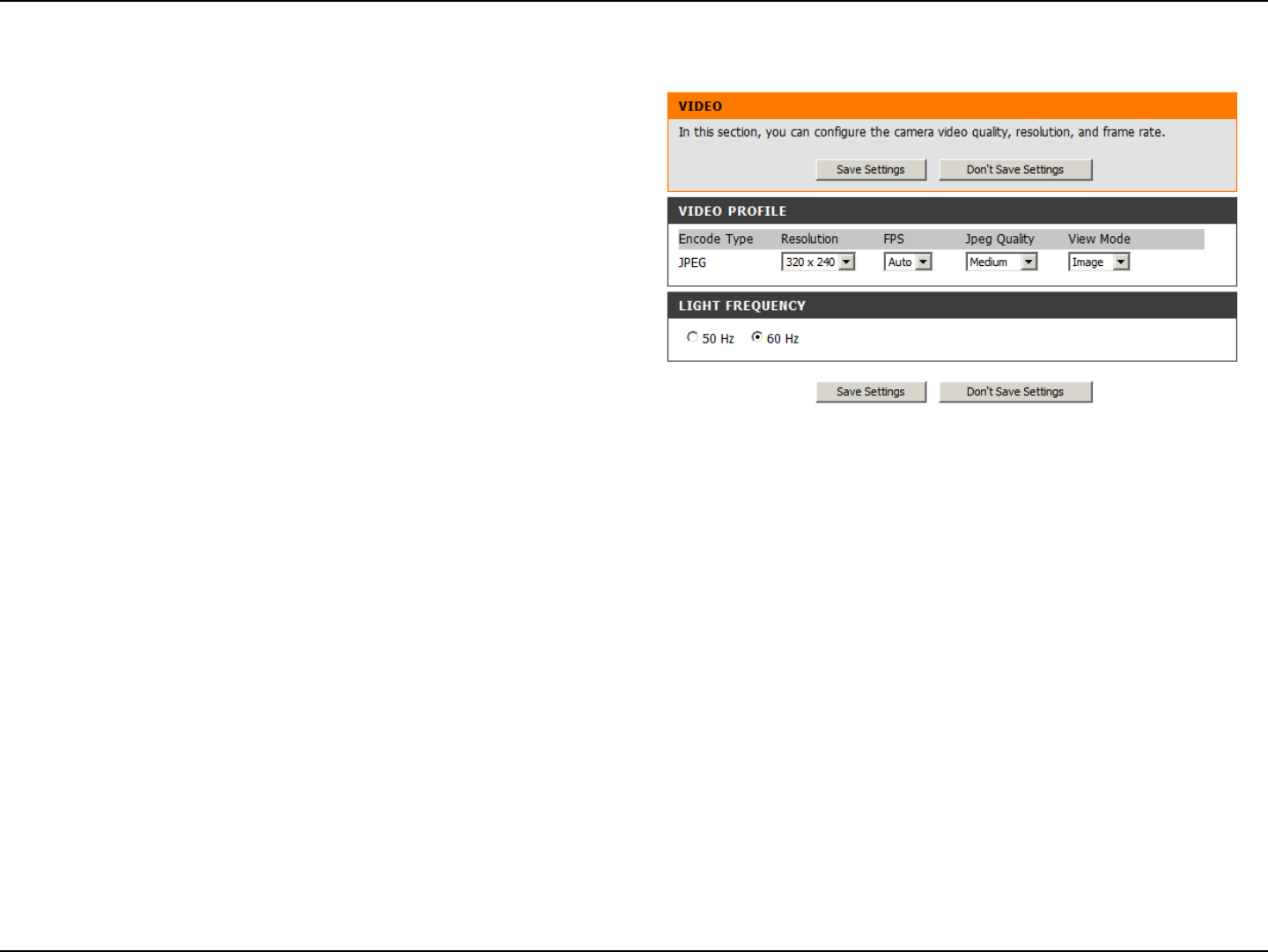

Setup > Video .................................................. 22
Video Conguration .................................... 22
Setup > Audio .................................................. 23

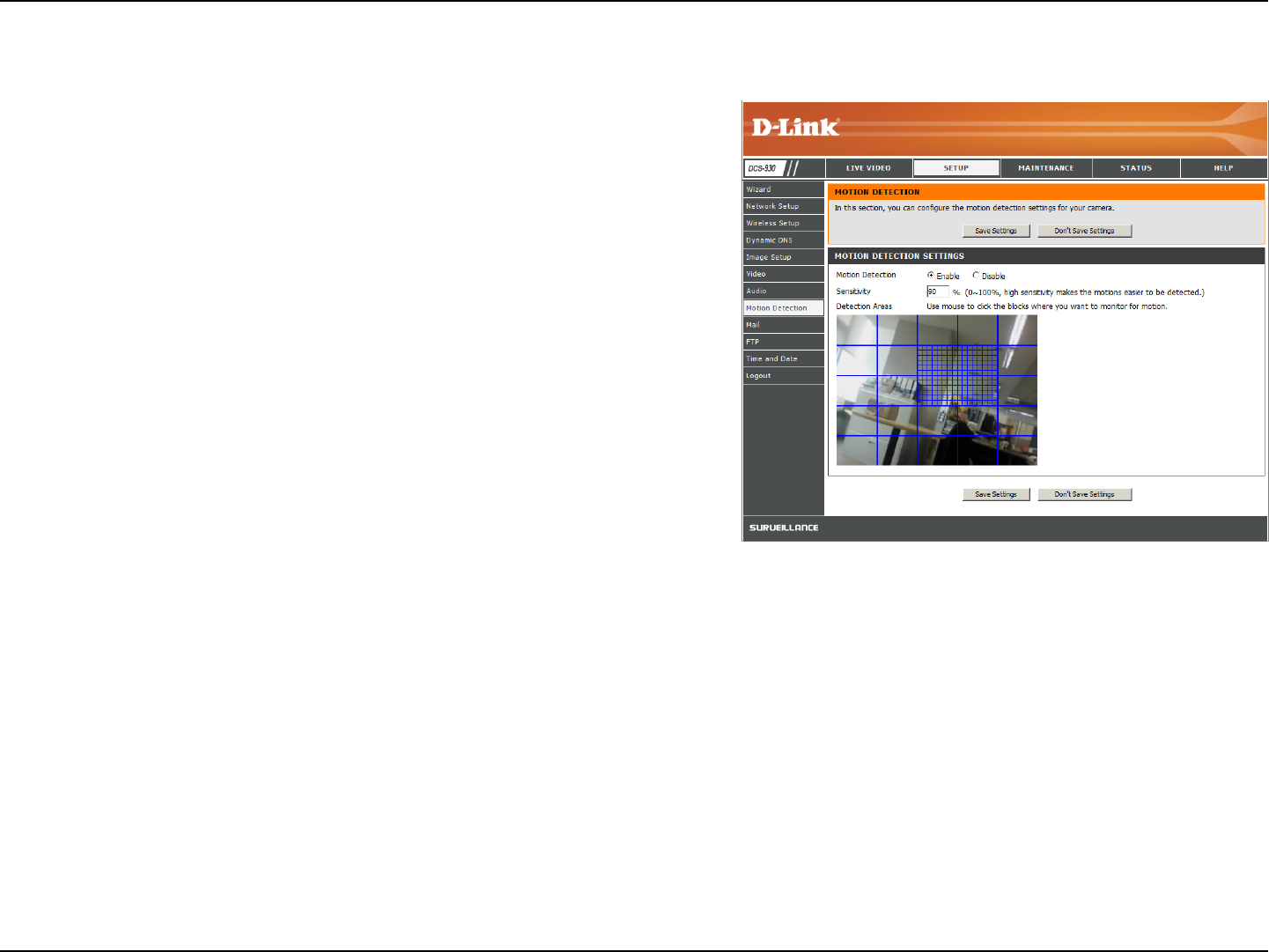

Setup > Motion Detect ..................................... 24

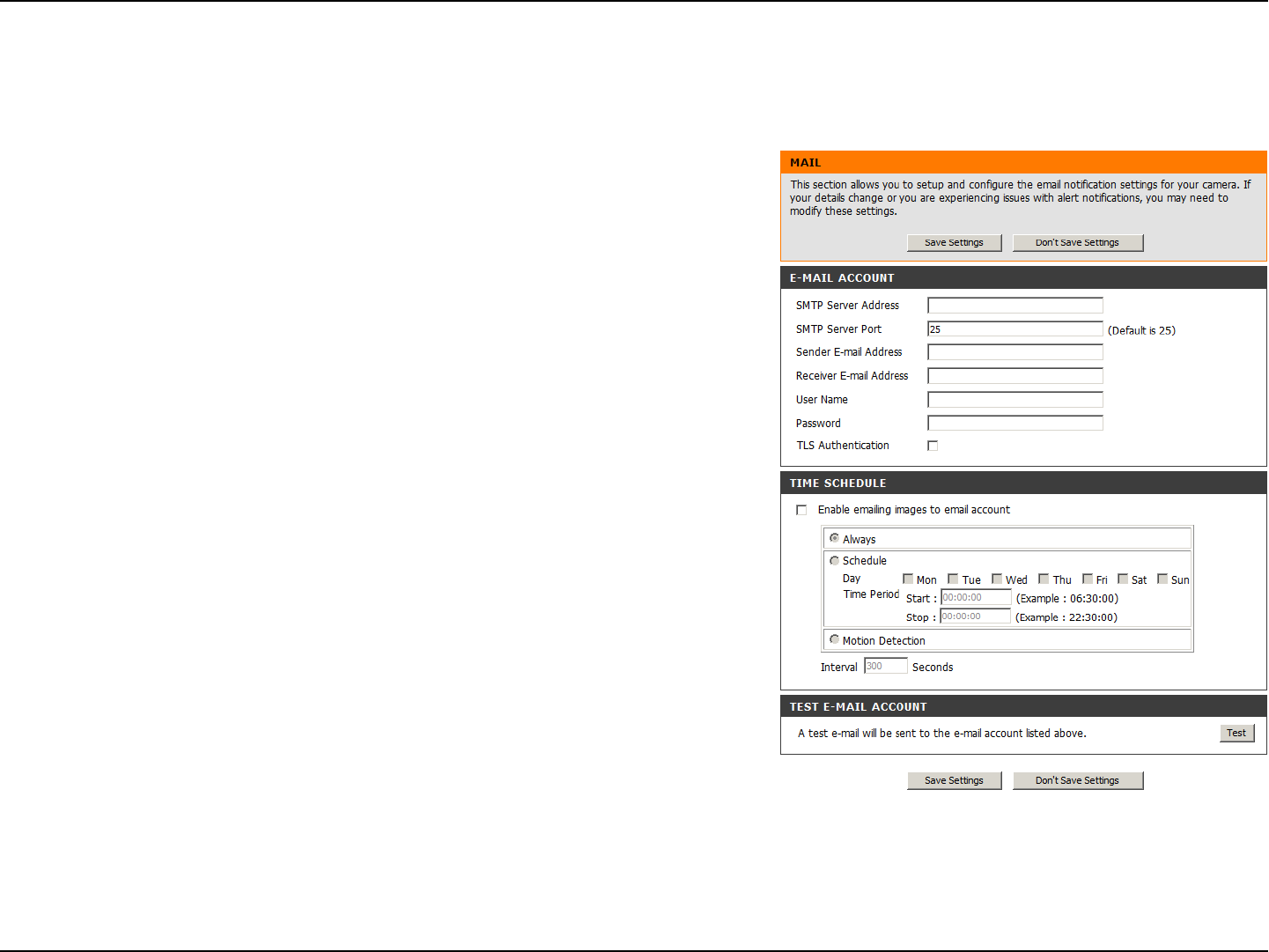

Setup > Mail ..................................................... 25
Email Account ............................................. 25
Time Schedule ............................................ 26

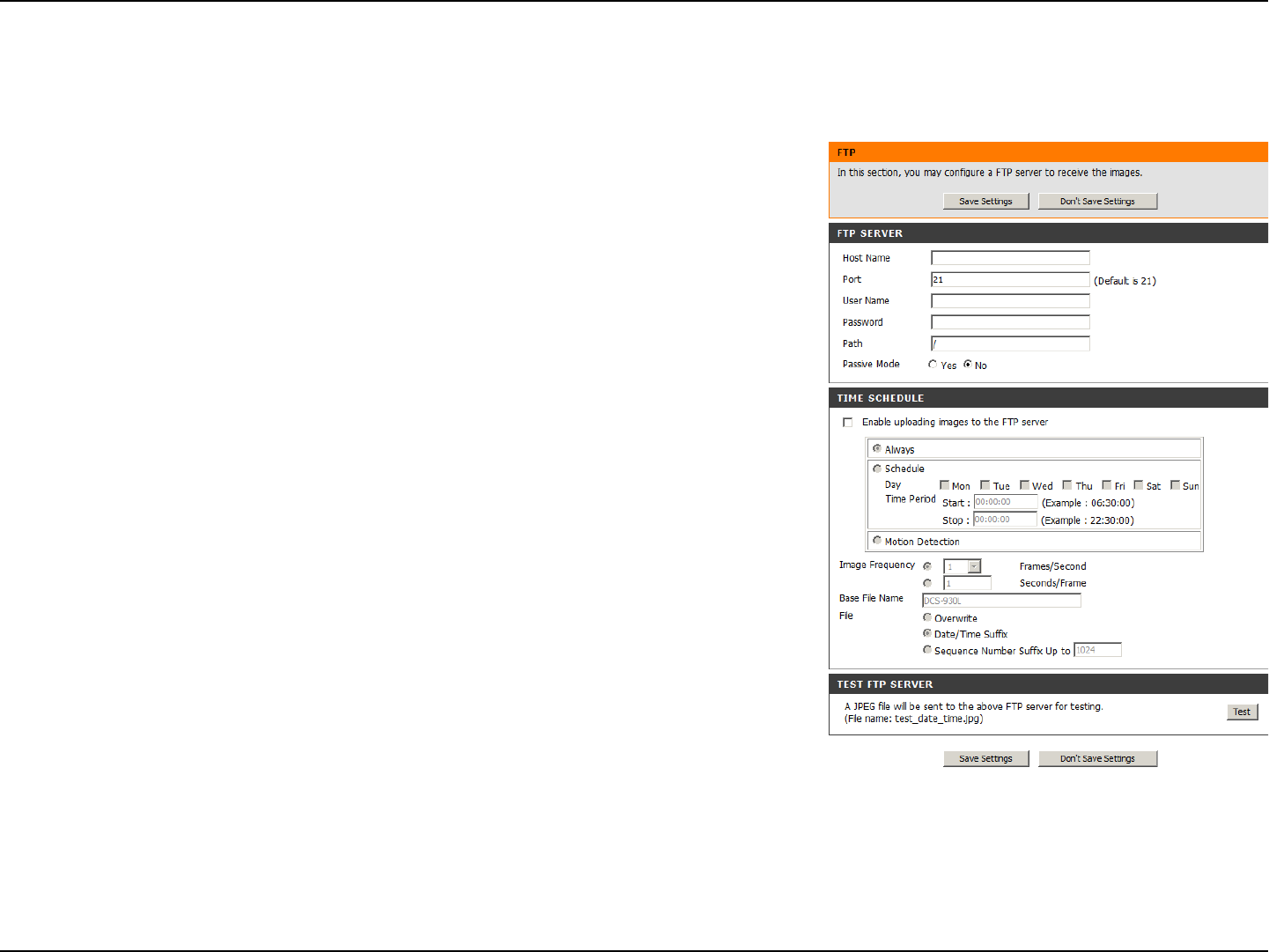

Setup > FTP ..................................................... 27
FTP Server .................................................27
Time Schedule ............................................ 28

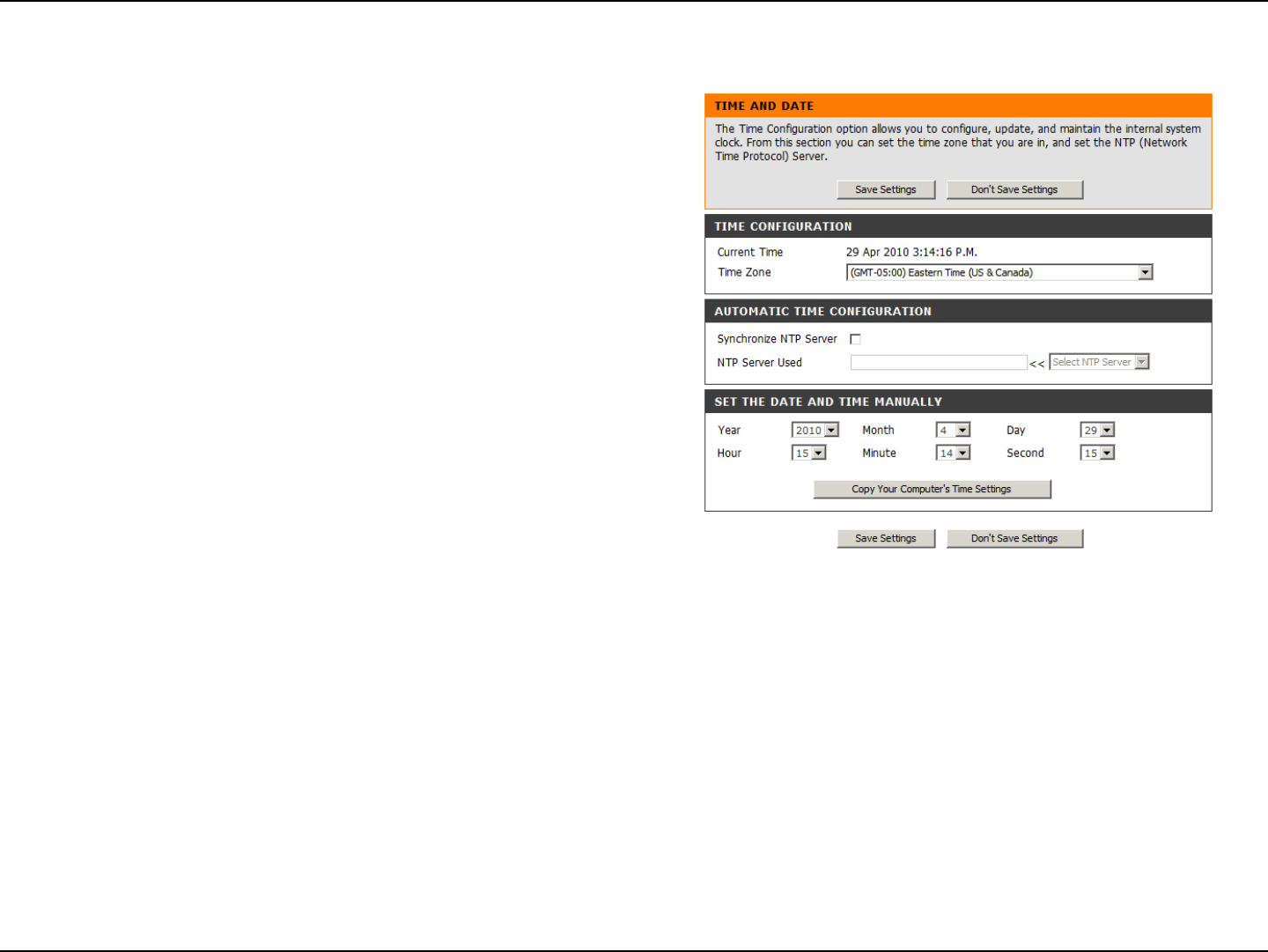

Setup > Time and Date .................................... 29

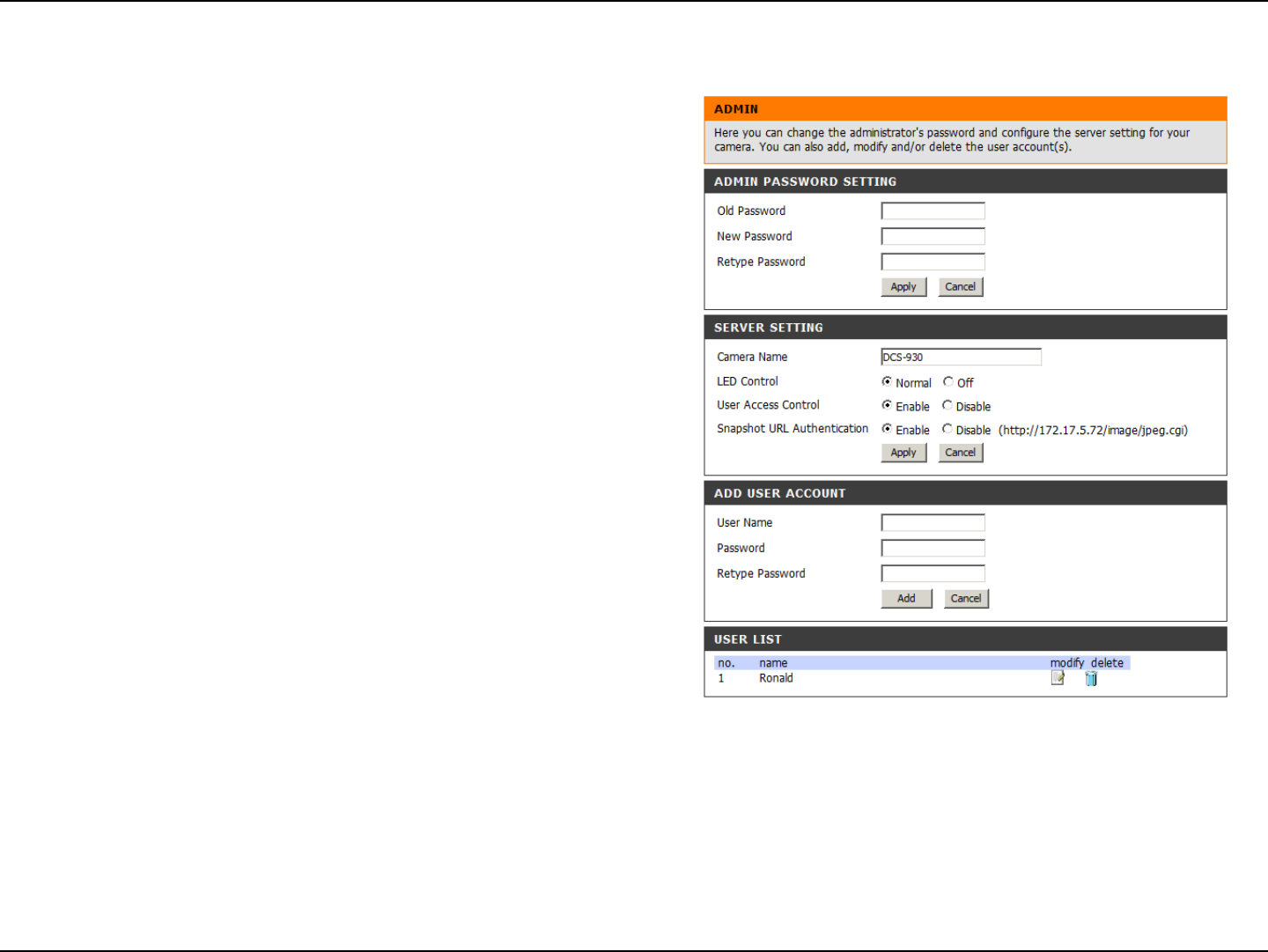

Maintenance > Admin ...................................... 30

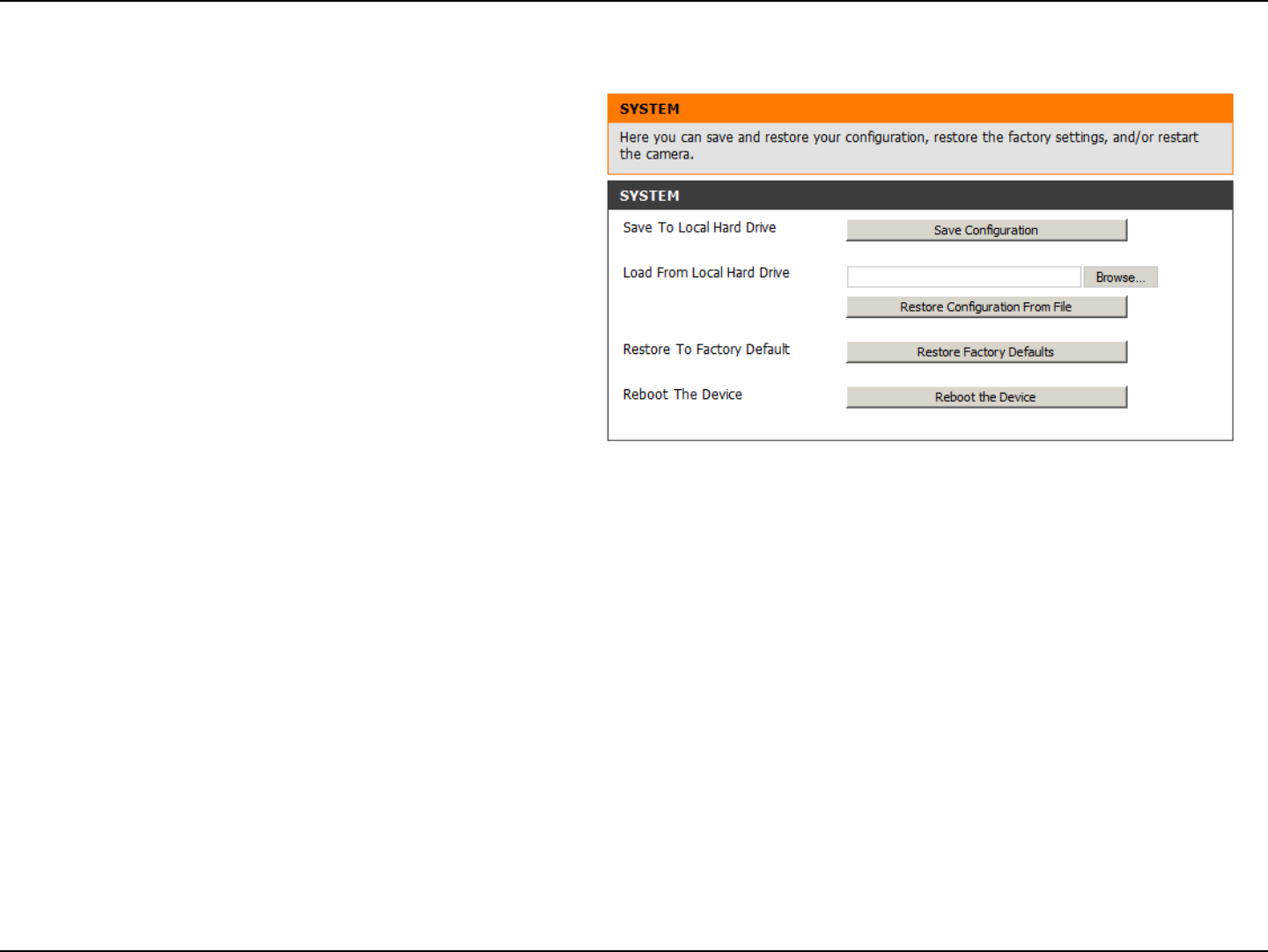

Maintenance > System .................................... 31
Maintenance > Firmware Upgrade .................. 32
Status > System ............................................... 33

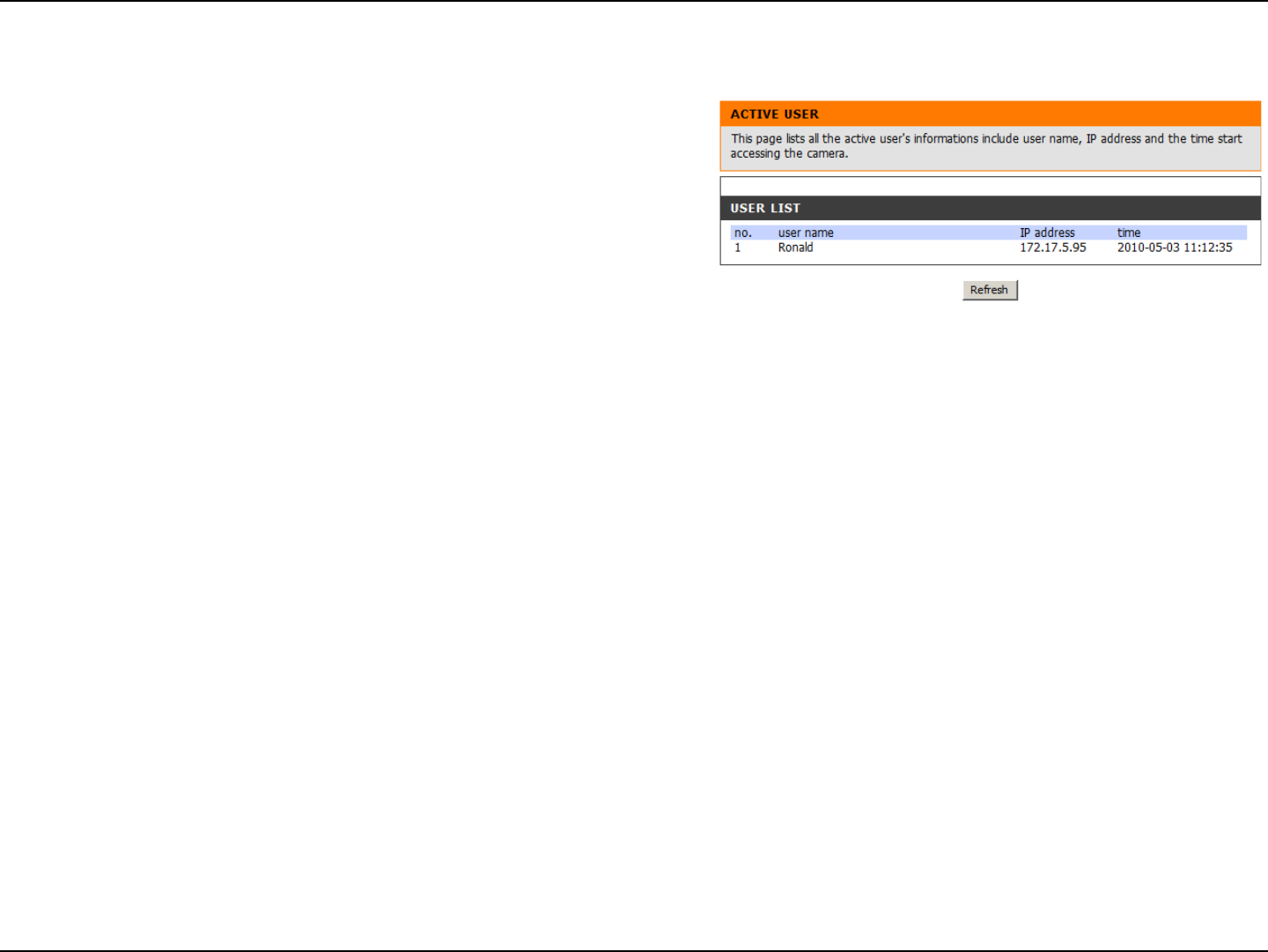

Status > Active User ........................................ 34
Wireless Security.......................................................35
What is WEP? .......................................................35
What is WPA? .......................................................36
Using & Conguring the DCS-930 ......................... 37
Wireless Security ................................................... 40
What is WEP? .......................................................40
What is WPA? .......................................................41
Using & Conguring the DCS-930 with a NAT
Router ..............................................................42
Table of Contents
3D-Link DCS-930 User Manual
Table of Contents
Wireless Basics ......................................................... 49
Networking Basics .................................................... 54
Check your IP address ..........................................54

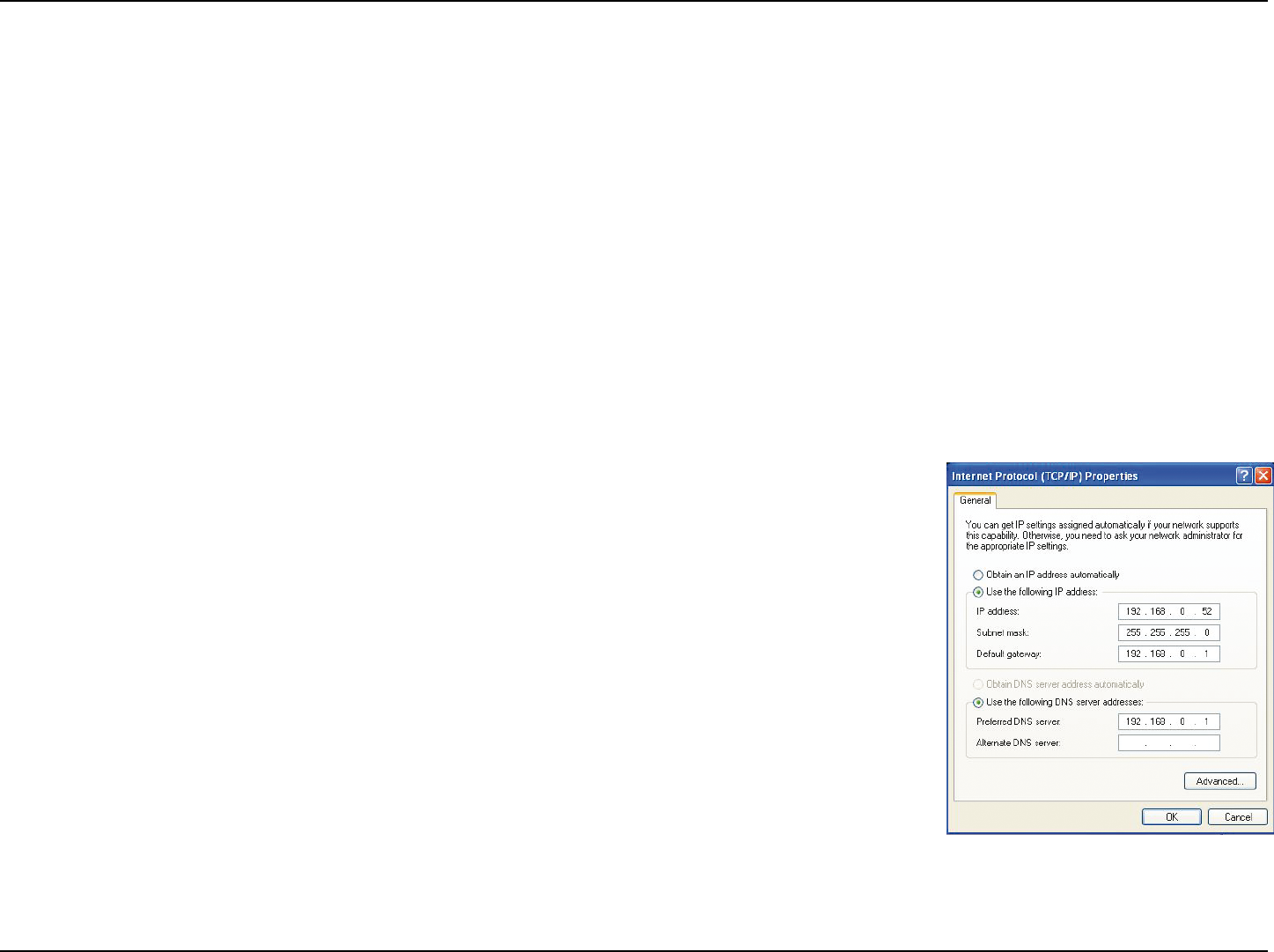

Statically Assign an IP address .............................55
Troubleshooting ........................................................ 56
Technical Specications........................................... 58
4D-Link DCS-930 User Manual
Section 1 - Product Overview
• DCS-930 Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Camera Stand
Note: Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Computer with Microsoft Windows® 7, XP®, or Vista®
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4
• Existing 10/100 Ethernet-based network or 802.11n wireless network
Product Overview
Package Contents
5D-Link DCS-930 User Manual
Section 1 - Product Overview

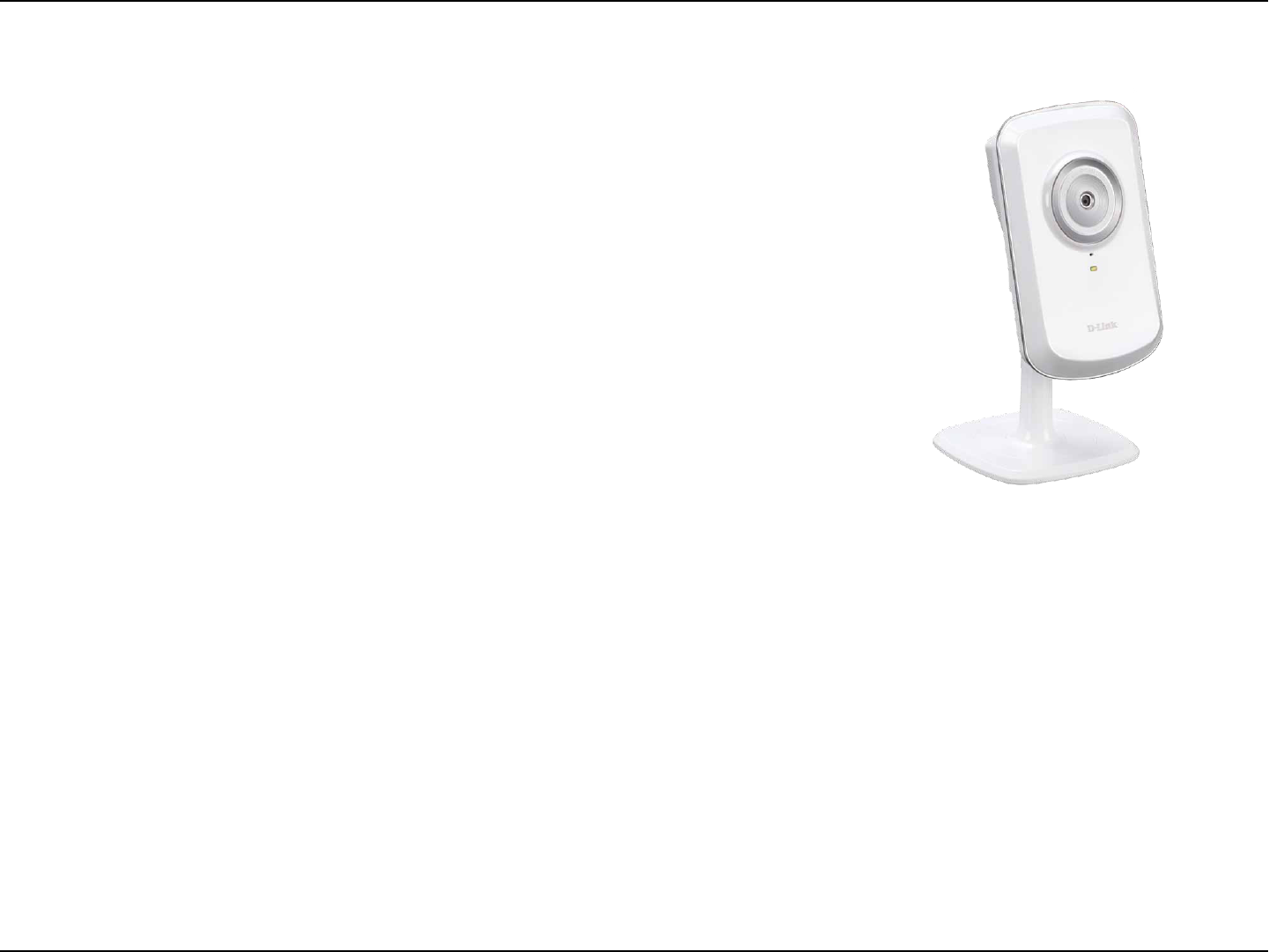

Introduction
Congratulations on your purchase of the DCS-930 Network Camera. The DCS-930 is a versatile and unique solution for your small
ofce or home. Unlike a webcam, the DCS-930 is a stand-alone system with a built-in CPU that transmits high quality video images
for monitoring. The DCS-930 can be remotely accessed, and controlled using a Web browser over the Intranet or Internet. The simple
installation procedure and intuitive Web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11n wireless
network. The DCS-930 also comes with remote monitoring capability for a complete and cost-effective home security solution.
6D-Link DCS-930 User Manual
Section 1 - Product Overview
Simple to Use
The DCS-930 is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards.
The DCS-930 supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-930 can also be integrated easily into other
Internet/Intranet applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-930 offers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-930 easy to integrate into your existing
network environment. The DCS-930 works with a 10 Mbps Ethernet based network or 100 Mbps Fast Ethernet based network for
traditional wired environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows
you to view and connect to any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via
Intranet or Internet. This means you can access your DCS-930 anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the
Intranet and Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing,
and allows the administrator to manage and control the Network Camera anytime, anywhere in the world. Many applications exist,
including industrial and public monitoring of homes, ofces, banks, hospitals, child-care centers, and amusement parks.
Features
7D-Link DCS-930 User Manual
Section 1 - Product Overview
Hardware Overview

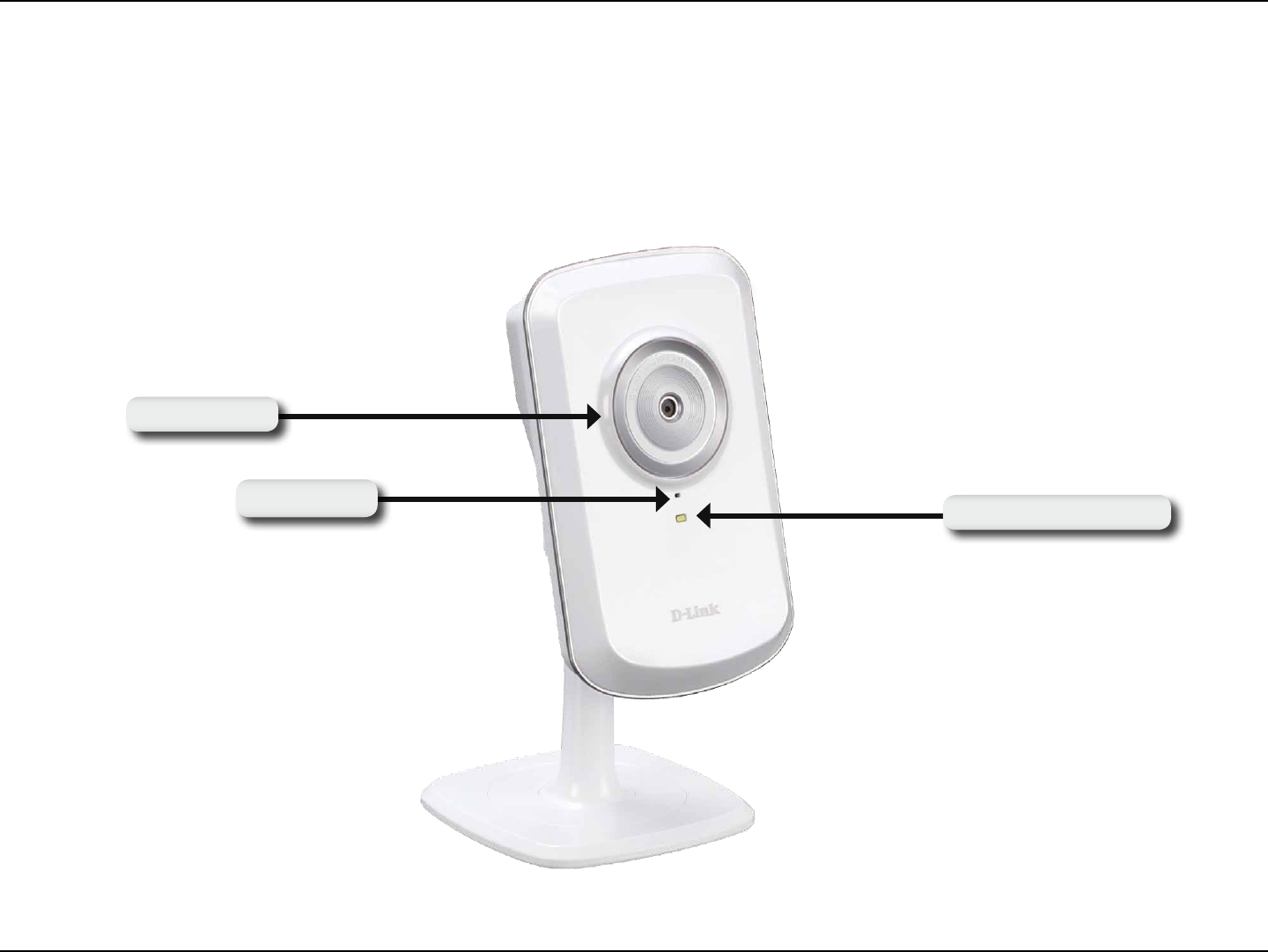

Front View
Power and Link LED
Camera Lens
Microphone
8D-Link DCS-930 User Manual
Section 1 - Product Overview
Rear View
Camera Stand
Ethernet Connector
Power Connector
WPS Button
WPS LED
Reset
9D-Link DCS-930 User Manual
Section 1 - Product Overview

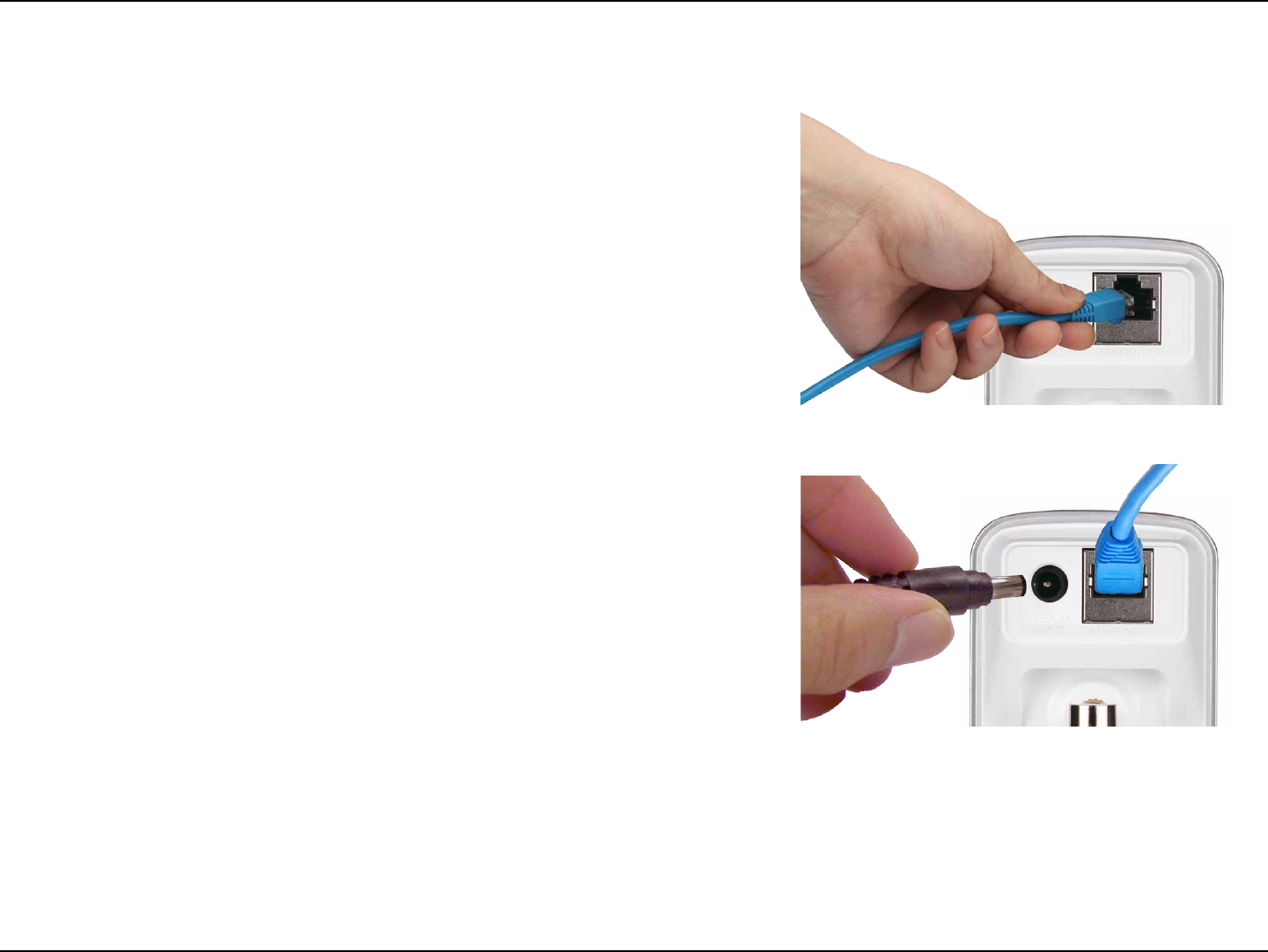

Hardware Installation
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector
located on the bottom panel of the DCS-930 and attach it to the
network.
Attach the External Power Supply
Attach the external power supply to the DC power input connector
located on the bottom panel of the DCS-930 and connect it to
your wall outlet or power strip. Power is conrmed when the green
LED Power Indicator located below the lens on the DCS-930 is
illuminated.
10D-Link DCS-930 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range
of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise
in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost
3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel
straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may
degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible.
The base transmits a signal even if the phone in not in use.
Installation
11D-Link DCS-930 User Manual
Section 3 - Installation

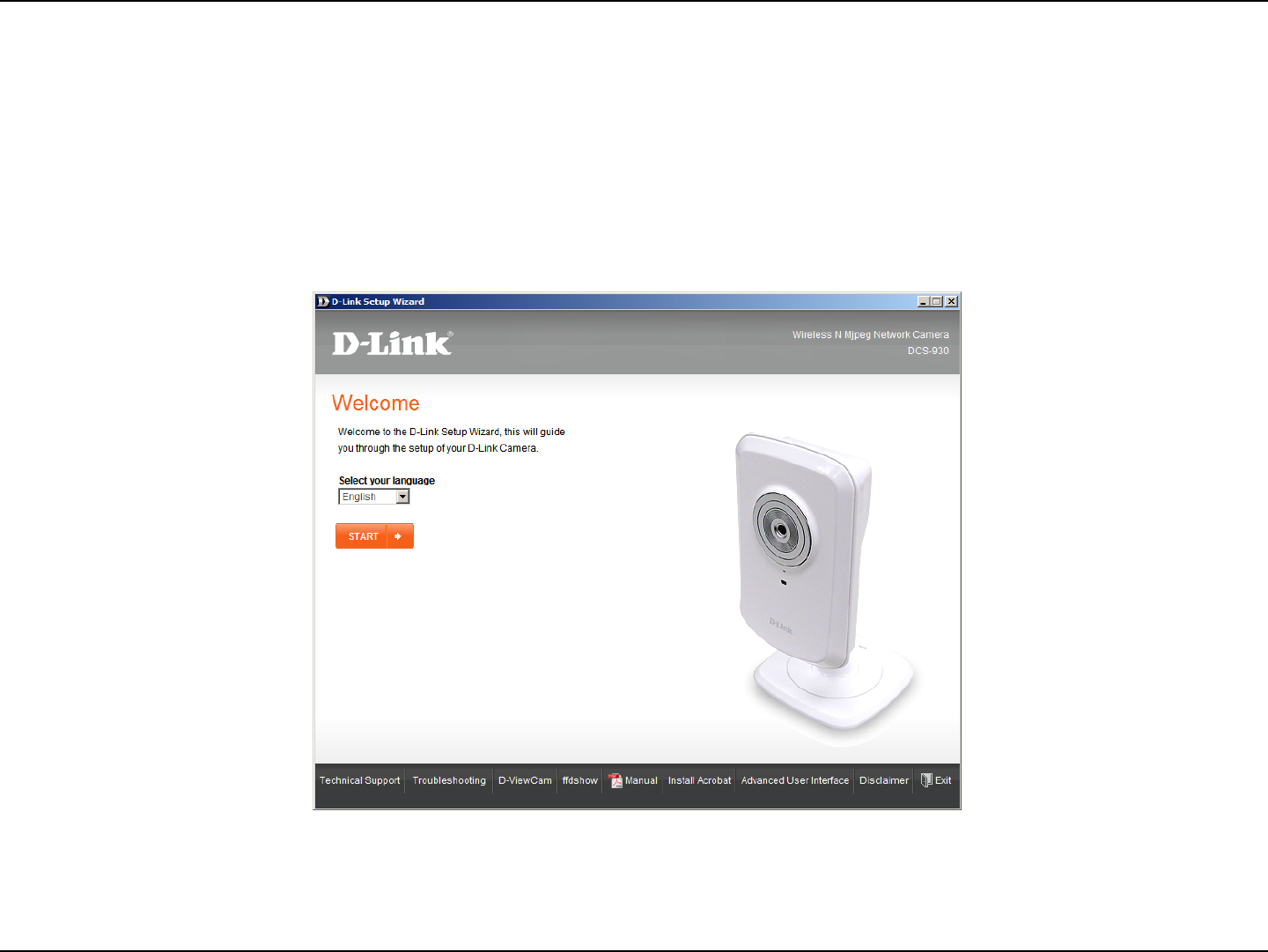

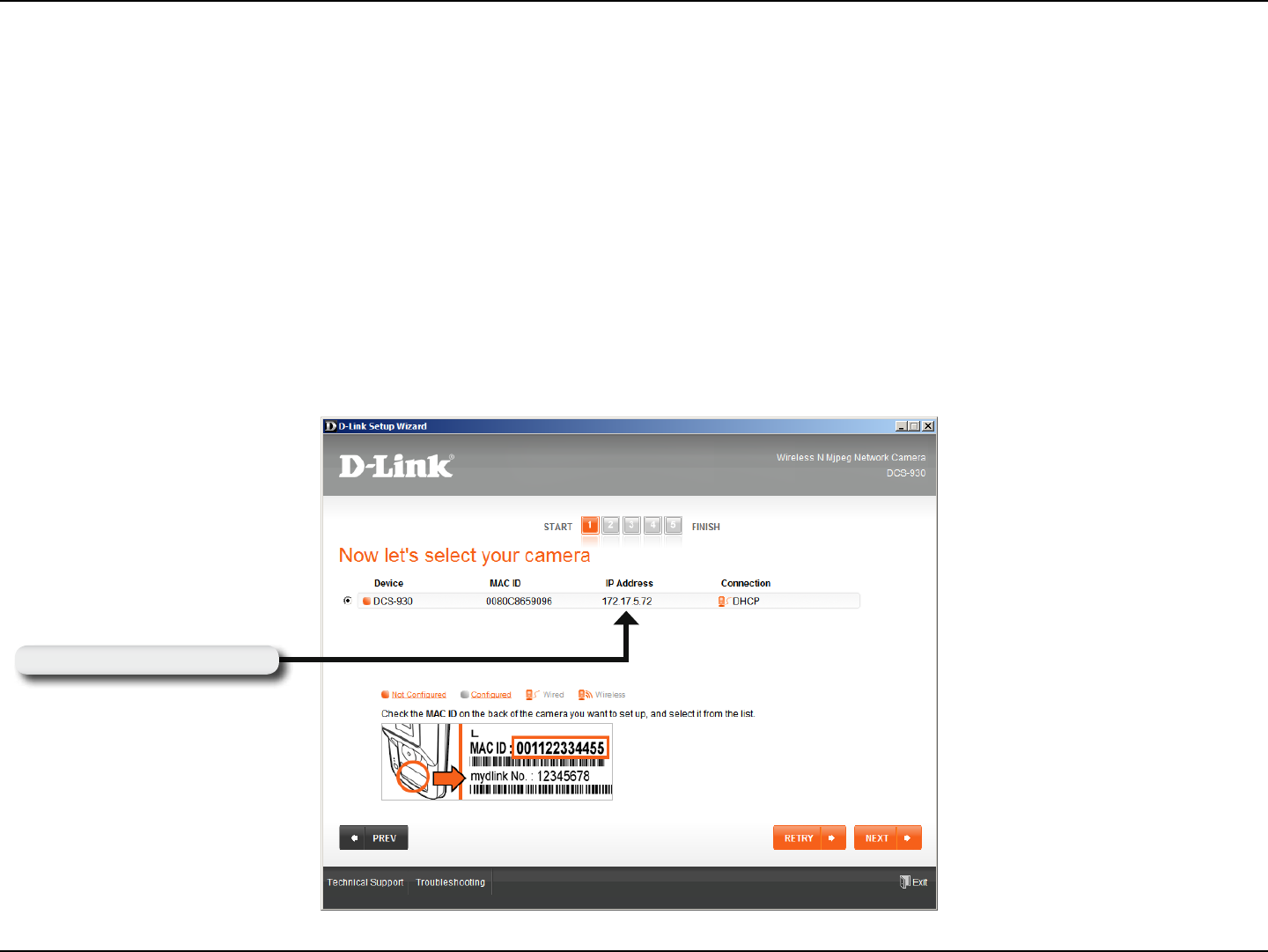

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
The CD-ROM will open the Camera Installation Wizard. Simply click Start to go through the Installation Wizard, which will guide you
through the installation process from connecting your hardware to conguring your camera.
Starting the Camera Installation Wizard
12D-Link DCS-930 User Manual
Section 3 - Configuration

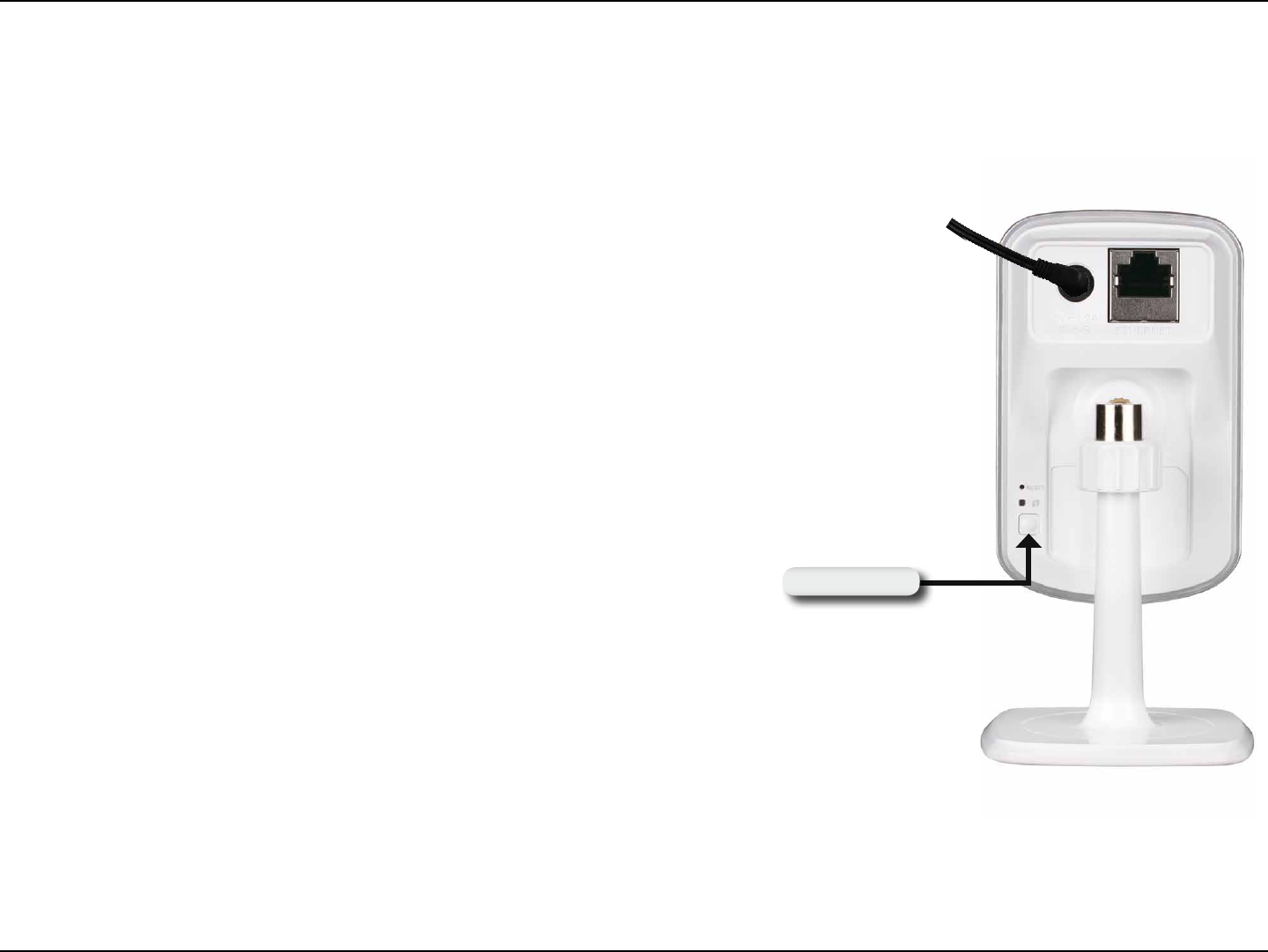

Alternatively, you may create a WPS connect using the WPS Button on the back
of the camera.
To create a WPS connection:
Step 1
Press and hold the WPS button on the side of the camera for three seconds.
The blue WPS status LED above the button will blink.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually on the front or side of your router. On some routers, you may need to log
in to the web interface and then click on an onscreen button to activate the WPS
feature. If you are not sure where the WPS button is on your router, please refer
to your router’s User Manual.
The DCS-930 will automatically create a wireless connection to your router.
While connecting, the green LED will ash and your camera will reboot.
WPS Button
WPS - Hardware Push Button Setup
13D-Link DCS-930 User Manual
Section 4 - Conguration

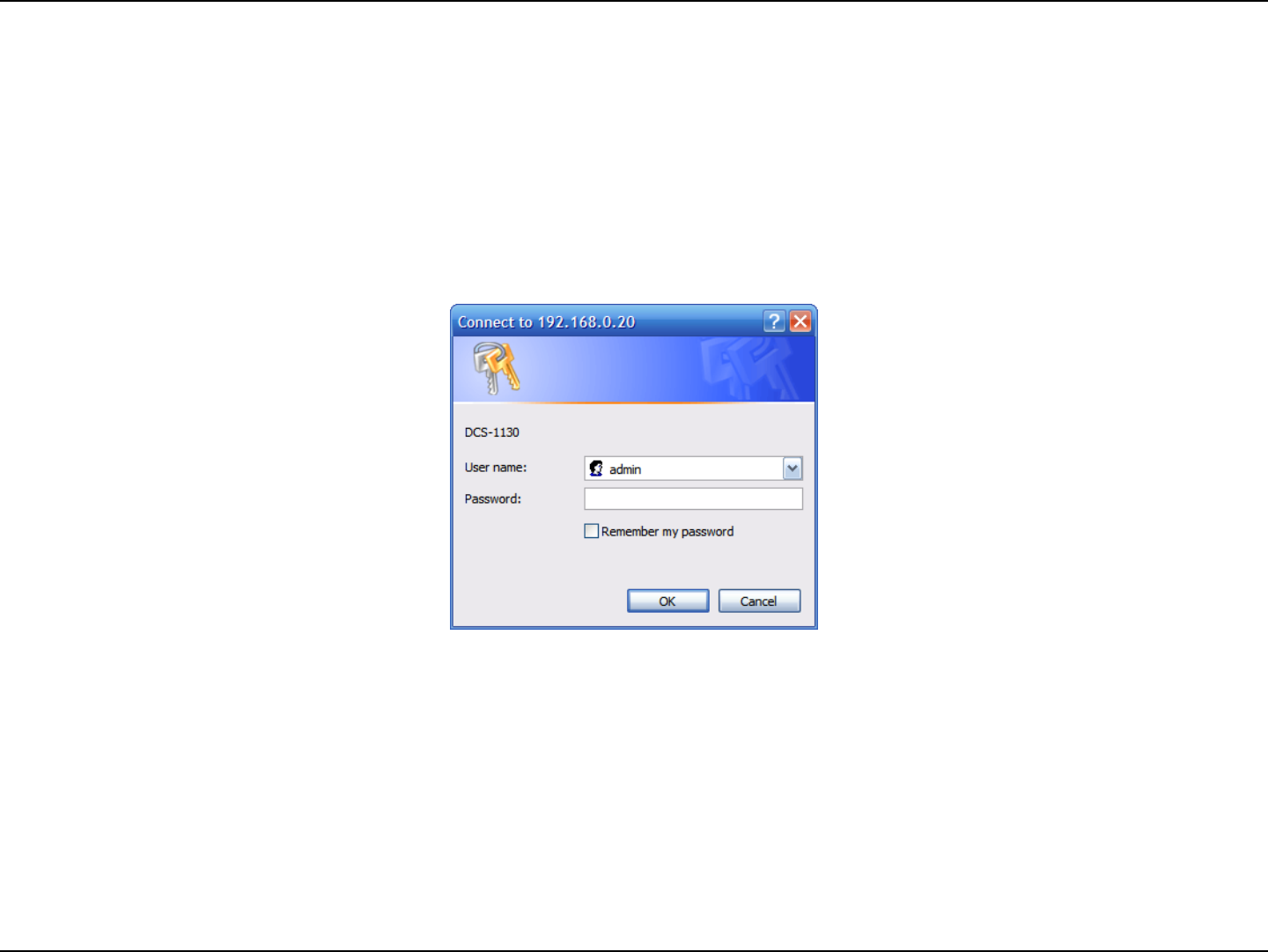

Using the Conguration Menu
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is
designed to allow you to easily access and congure your DCS-930. At the end of the wizard, click Go To Camera, or enter the IP address
of your camera into a web browser, such as Internet Explorer®. To log in, use the User name admin and the password you created in the
Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is 192.168.0.20.
14D-Link DCS-930 User Manual
Section 3 - Configuration

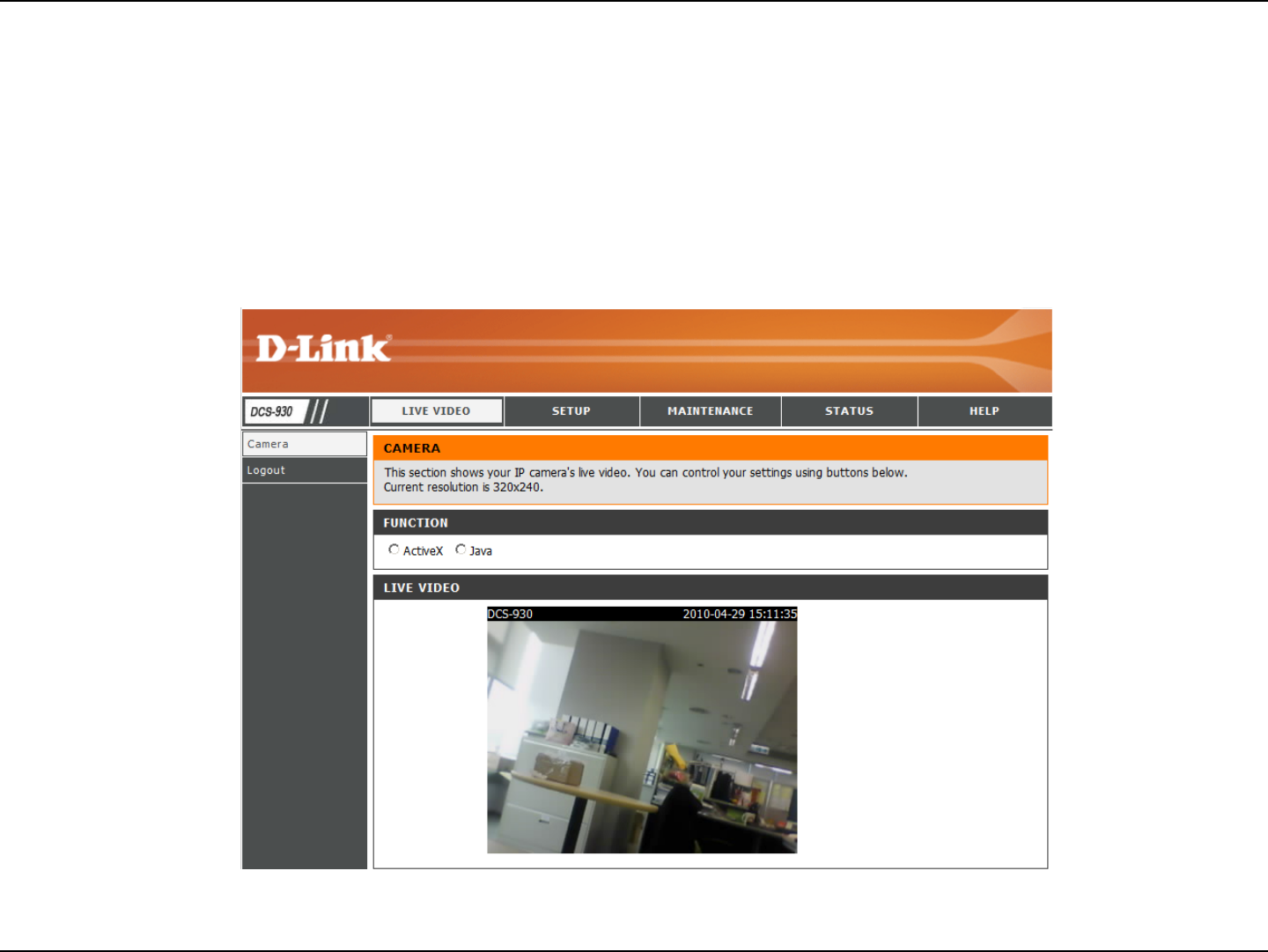

Click the ActiveX or Java radio button to view live video.
Please make sure that you have the latest version of Java application installed on your computer to ensure proper
operation when viewing the video in Java mode. The Java application can be downloaded at no cost from Sun’s web site.
(http://www.java.com)
When you connect to the home page of your camera, you will be prompted to download ActiveX. If you want to use ActiveX to view your
video images instead of Java, then you must download ActiveX.
15D-Link DCS-930 User Manual
Section 3 - Configuration
Conguration

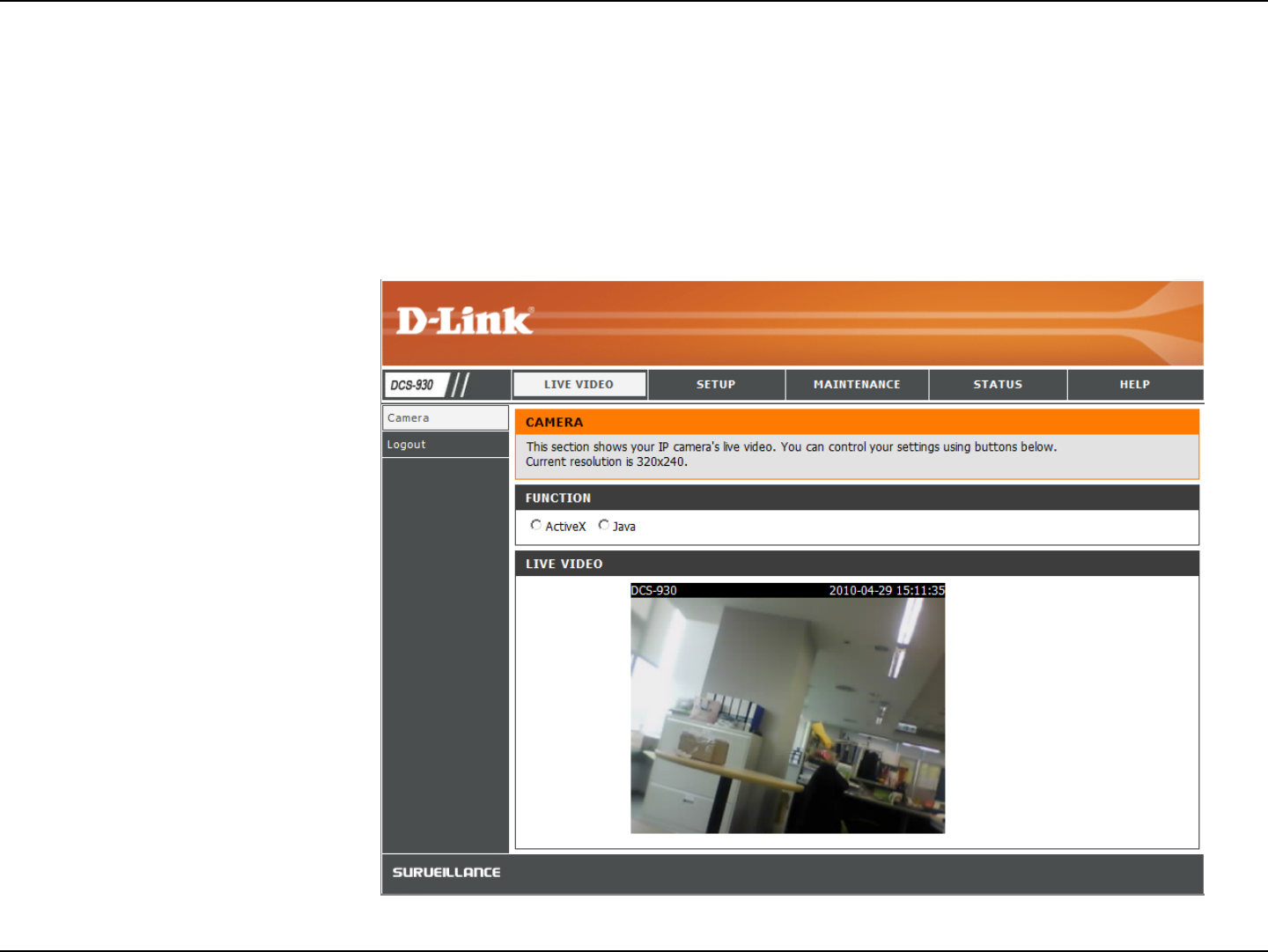

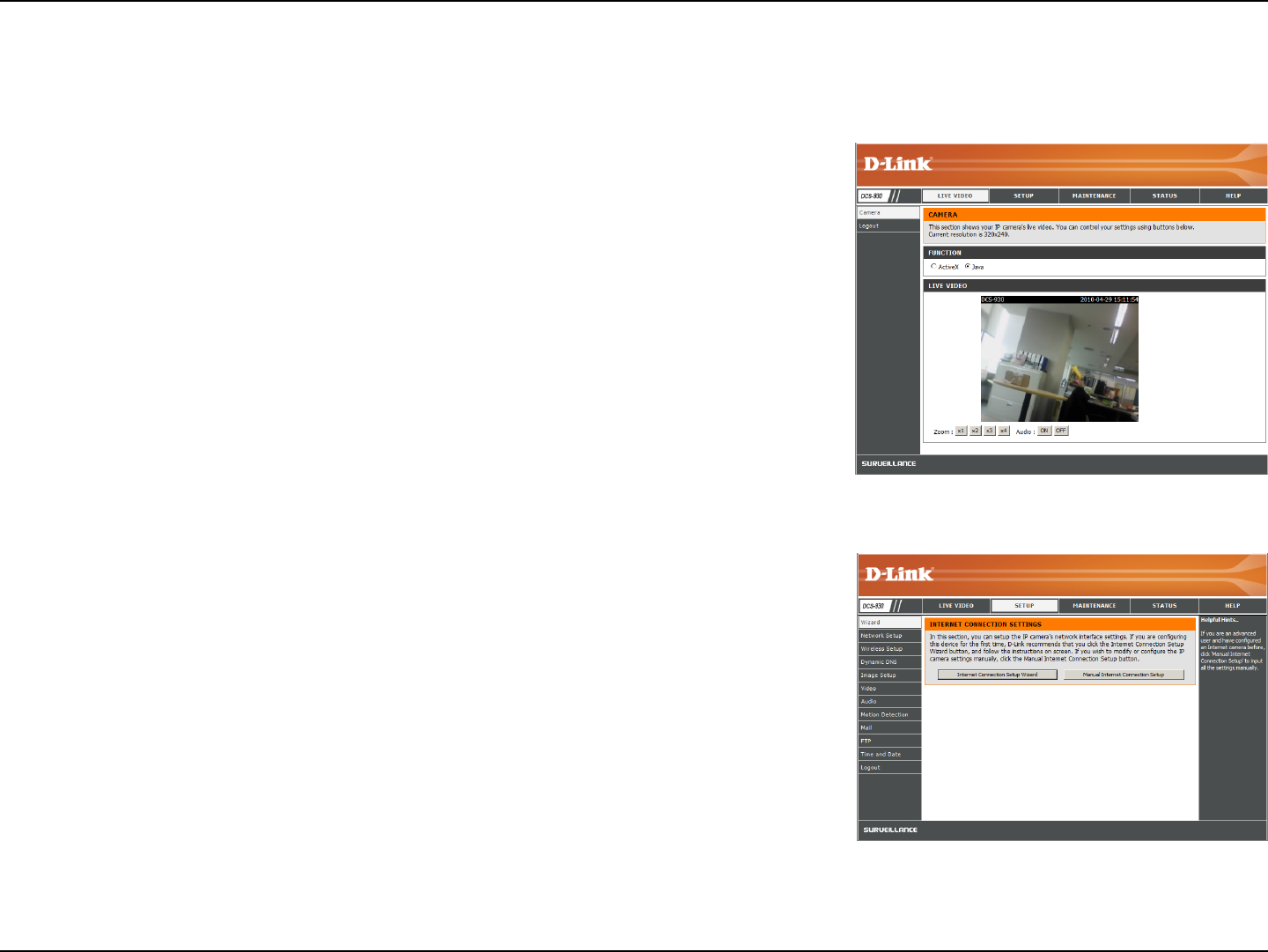

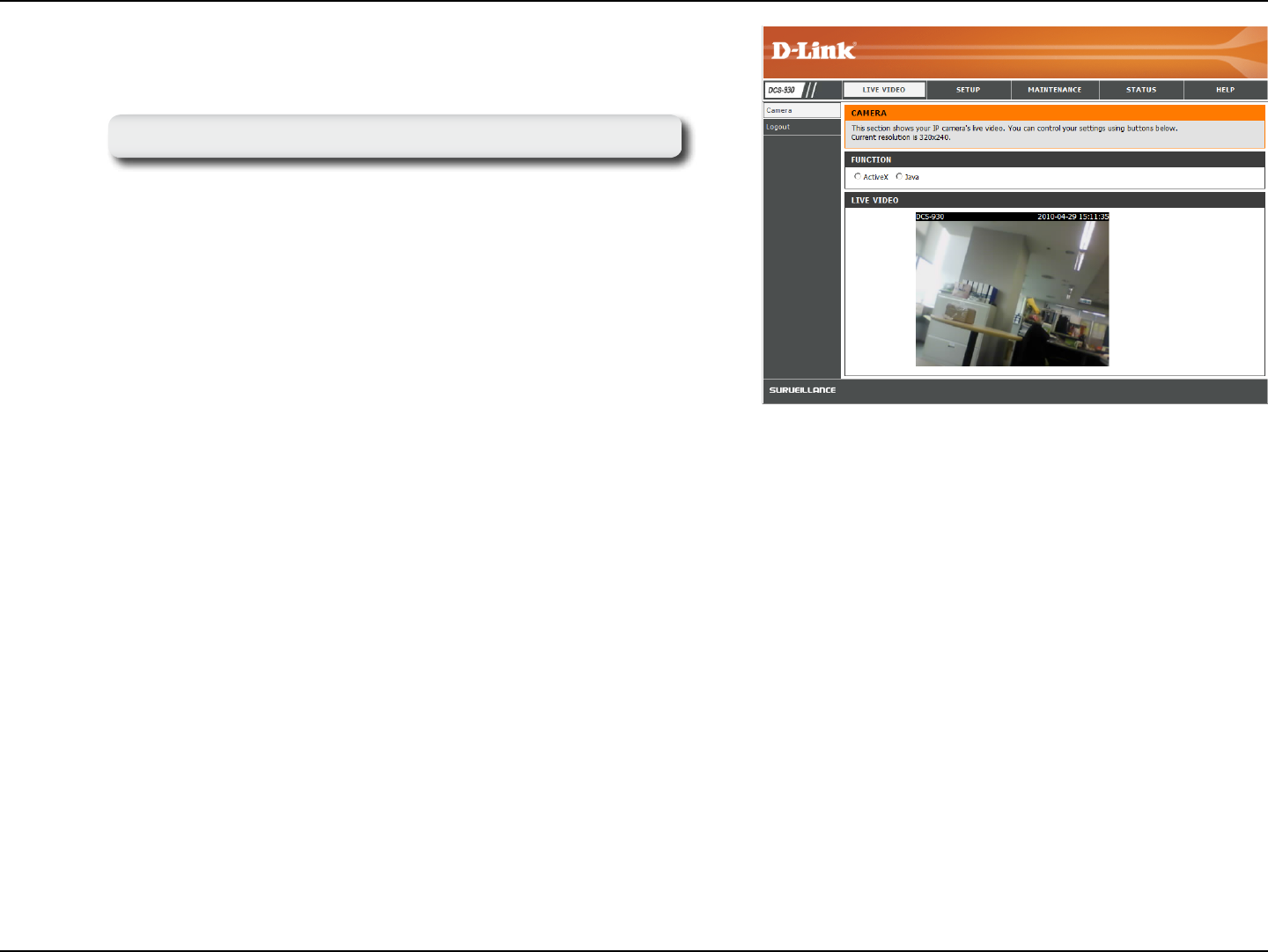

Live Video
ActiveX:
Java:
For Windows® Users that do not have Java installed, please choose this option
to view video streaming on the Home page.
For Windows® users that have Java installed, you can also use this for viewing
video. Mac users must choose this mode to view video.
Setup > Wizard
You may choose to congure your network by using the Internet Connection Setup
Wizard that includes step-by-step instructions. Otherwise, you may manually congure
your connection using the Manual Internet Connection Setup.
16D-Link DCS-930 User Manual
Section 3 - Configuration

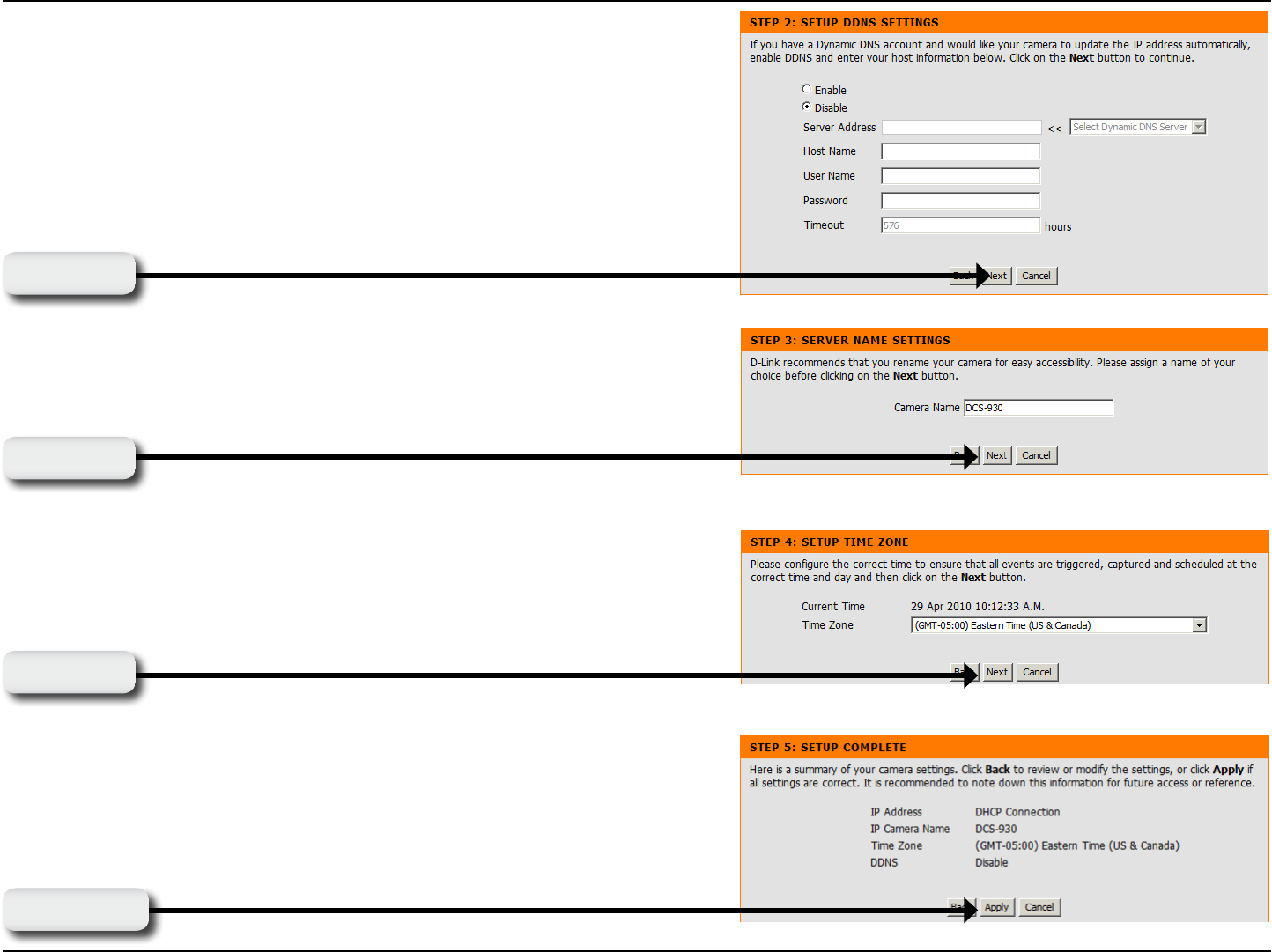

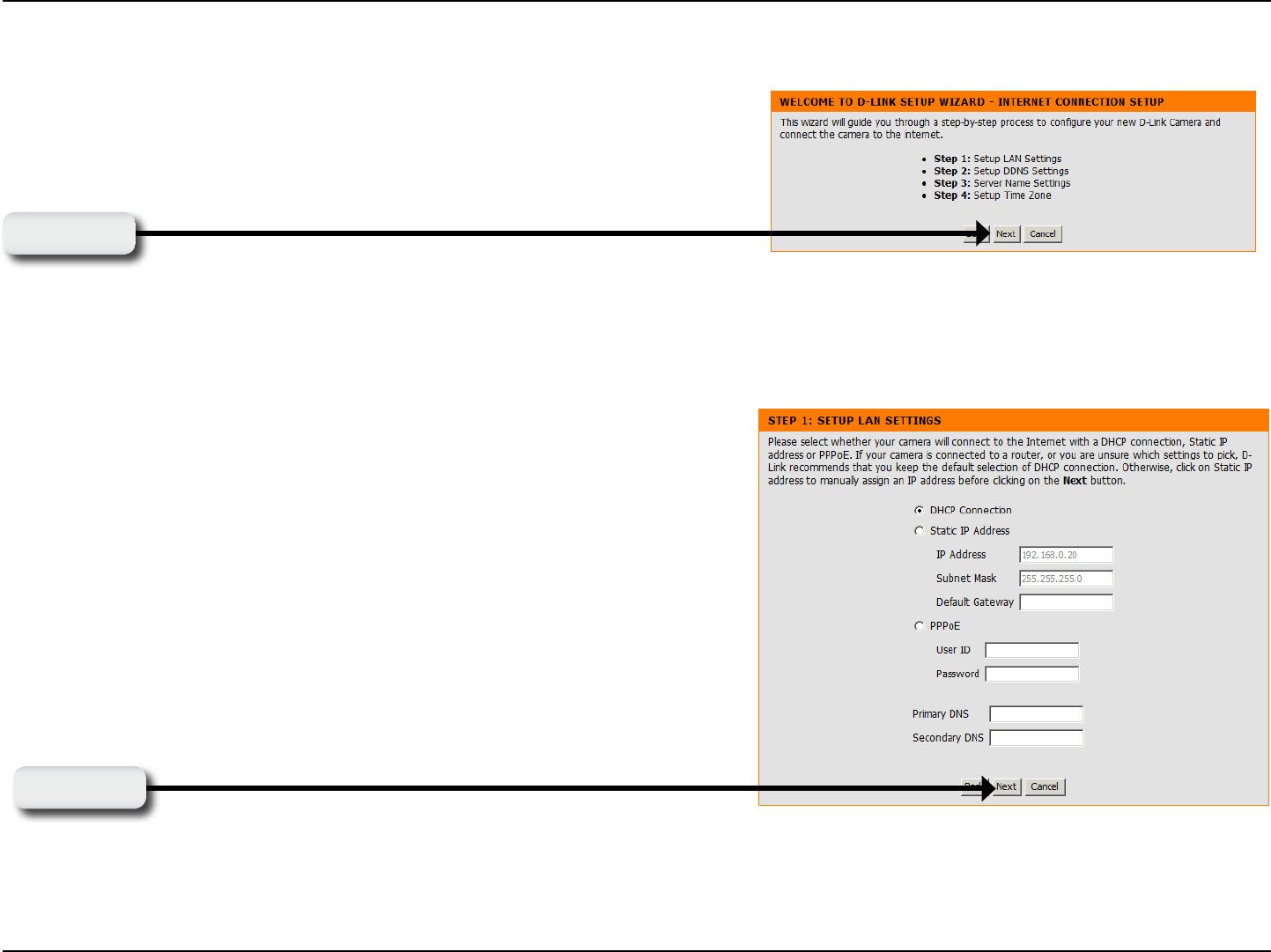

Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your
new D-Link Camera and connect the camera to the Internet.
You may congure your camera using
• DHCP Connection (by default), where your DHCP server will
automatically assign dynamic IP to your device.
• Static IP Address if your ISP has already assigned an IP address to
you.
• PPPoE connection, where your camera is directly connected to the
Internet through a DSL modem.
* Input the DNS information if you have chosen and assigned a Static IP
Address for your camera.
Click Next
Click Next
17D-Link DCS-930 User Manual
Section 3 - Configuration
Enter a name for your camera.
Congure the correct time to ensure that all events triggered, captured and
scheduled at the right time.
This page displays your congured settings. Click Apply to save and
activate the setting, or Back to change your settings.
If you have a Dynamic DNS account and would like the camera to
update your IP address automatically, enable DDNS and enter your host
information.
Click Next
Click Next
Click Next
Click Apply
18D-Link DCS-930 User Manual
Section 3 - Configuration
Network Setup
Select this connection if you have a DHCP server running on your
network and would like a dynamic IP address to be updated to your
camera automatically.
You may obtain a static or xed IP address and other network
information from your network administrator for your camera. A
static IP address will ease you for accessing your camera in the
future.
IP Address: The xed IP address
Subnet Mask: The default value is “255.255.255.0.” Used to
determine if the destination is the same subnet.
Default Gateway: The gateway used to forward frames to
destinations in a different subnet. Invalid gateway settings may
cause the failure of transmissions to a different subnet.
Primary DNS: Primary domain name server that translates names to IP addresses.
Secondary DNS: Secondary domain name server to backup the Primary DNS.
DHCP:
Static IP Client:
PPPoE Settings:
Port Settings:
UPnP Settings:
This section allows you to congure your network settings.
You may congure a Second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be
set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port
is changed to 1010, users must type in the web browser “http://192.168.0.100:1010” instead of “http://192.168.0.100”.
You may congure a Second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be
set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port
is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”.
Enable this setting to congure your camera as an UPnP device in the network.
19D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Wireless
Service Set Identier, an identier for your wireless network.
The default setting is channel 6. Select the same channel that is using by other wireless devices within your network. When
there is interference from the wireless networks that overlap with one another, you may change the channel to obtain maximum
performance for your connection.
Infrastructure is a wireless connection using an access point as a transmission point of all wireless devices. Ad-Hoc is a
wireless connection used without an access point, where your DCS-930 is directly connecting to your PC. This is done using
the on-board wireless adapter on the DCS-930 connected to a wireless adapter on the PC.
This page will allow you to select a wireless network that the DCS-930 was able to detect.
For security, there are three choices; None, WEP, and WPA-PSK / WPA2-PSK. Select the same encryption method that is being
used by your wireless device/ router.
An appropriate Preshared Key, which is needed in order to connect to the wireless network..
SSID:
Channel:
Connection Mode:
Site Survey:
Wireless Security
Mode:
WPA-PSK /
WPA2PSK
Settings:
Wireless Interface
This section allows you to setup and congure the wireless settings
on your camera.
20D-Link DCS-930 User Manual
Section 3 - Configuration
(Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it
has been modied. The username and password are required when using the DDNS service.
Click to enable the DDNS function.
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail used to connect to the DDNS.
Enter your password used to connect to the DDNS server.
DDNS:
Enable:
Server Address:
Host Name:
User Name:
Password:
Setup > DDNS
This section allows you to congure the DDNS setting for your
camera. DDNS will allow all users to access your camera using
a domain name instead of an IP address.
21D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Image Setup
Select this box to enable antiicker.
Select this box to vertically rotate the video. If the camera is installed upside down, Flip Image and Mirror should both be
checked.
Horizontally rotates the video.
Allows you to adjust the brightness level.
Allows you to adjust the contrast level.
Allows you to adjust the saturation level.
Enable
Antiicker:
Flip Image:
Mirror:
Brightness
Control:
Contrast
Control:
Saturation
Control:
Image Settings
This section allows you to congure the image settings for your
camera.
22D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Video
Video Prole:
Light
Frequency:
Video Conguration
Encode Type:
Resolution:
FPS:
JPEG Quality:
View Mode:
The compression format used when viewing your camera.
Select the desired video resolution from three formats: 640x480, 320x240, and 160x120. The higher setting can
obtain better quality. However, it will use more resource within your network.
Select the optimal setting depending on your network status. Please note that the higher setting can obtain better
quality. However, it will use more resources within your network.
Choose one of ve levels of image quality: Highest, High, Medium, Low, and Lowest.
Select the mode for viewing the camera image. Select Image for a still images, ActiveX for Internet Explorer, or
Java for other web browsers.
Select the proper frequency (50Hz or 60Hz) to reduce image icker.
This section allows you to congure the video settings for your
camera.
This section allows you to change the Encode Type, Resolution, FPS, and Quality.
23D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Audio
Enabling audio setting will allow you to listen to audio from the camera
through your PC’s audio output.
Note: Please wait a few seconds for the camera to adjust the audio
after the setting has been selected.
Audio Settings:
Volume
Settings:
You may Enable or Disable the camera audio feed.
Select the desired volume percentage level.
24D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Motion Detect
Enabling Video Motion will allow your camera to use the motion detection
feature. You may draw a nite motion area that will be used for monitoring.
Motion
Detection:
Sensitivity:
Detection
Areas:
Select this box to enable the motion detection feature of your
camera.
Species the measurable difference between two sequential
images that would indicate motion. Please enter a value
between 0 and 100.
Use your mouse to click on the blocks that you would like to
monitor for motion.
25D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Mail
Email Account
SMTP Server
Address:
Sender e-mail
Address:
Receiver e-mail
Address:
User Name:
Password:
This is the domain name or IP address of your external e-mail
server.
This is the e-mail address of the person sending the camera
snapshots.
This is the e-mail address of the recipient.
If the SMTP server uses authentication, you must enter your user
name here.
This is the password that corresponds to your user name to
connect to the SMTP server.
This section allows you to congure the email notication settings for your
camera.
26D-Link DCS-930 User Manual
Section 3 - Configuration
Time Schedule
Enable e-mail
image to e-mail
account:
Interval:
Test E-mail
Account:
Choosing Always will start sending snapshots to the recipient’s e-mail account right away. Choosing Schedule will allow you to
schedule when to start and stop the sending of snapshots to the recipient’s e-mail account.
The frequency of the snapshot interval can also be congured from 1 to 65535 seconds.
This will send a snapshot to the e-mail account that you have congured in the E-mail section. If you have congured the SMTP
account correctly, you will be able to send a test le to the e-mail account of the recipient.
27D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > FTP
FTP Server
Host Address:
Port Number:
User Name:
Password:
Directory Path:
Passive Mode:
This is the IP address of the FTP server that you will be connecting to.
Default is port 21. If changed, external FTP client program must change
the server connection port accordingly.
Species the user name to access the external FTP server. If you are
to upload snapshots to an FTP server you will need to ll in the Domain
name or IP address of your external FTP server. The following user
settings must be correctly congured for remote access.
Species the password to access the external FTP server.
Species the destination folder in the external FTP server.
Enabling passive mode will allow access to an external FTP server if
your camera is behind a router protected by a rewall.
This section allows you to congure a FTP server to receive images from the camera.
28D-Link DCS-930 User Manual
Section 3 - Configuration
Time Schedule
Enable upload image to
FTP server:
Always:
Schedule:
Video Frequency:
Base File Name:
File:
Test FTP Server:
Checking this box will enable video uploads to the FTP server you have selected.
Selecting this option allows snapshots to be uploaded to your FTP as soon as you click Apply.
Selecting this option allows you to congure specic times when you want the snapshots to be uploaded to your FTP
server.
Users can select in frames per second (1, 2, 3 or auto, in auto this could go to 4). The user can also select a duration for
each frame from 1 to 65535 seconds.
This will be the name that precedes the time, for example DCS9302010072116425101.jpg. This means that the camera
took a snapshot in the year 2010, July 21 at 16th hour (4 o’clock), 42 minutes and 51 seconds and it is picture number
one.
If Overwrite is selected, only a few images will be constantly refreshed, depending on how many snapshots you choose
to have sent. Select Date/Time Sufx and the pictures will be named with a date and time also. An example of this can
be seen above under the Base le name category. Select a Sequence Number Sufx up to 1024 and all the pictures
will be numbered from 1-1024. Up to 1024 pictures can be congured. Picture number 1025 will reset to number 1.
This will send a snapshot to the FTP server that you have congured in the Upload section. If you have congured the
FTP correctly, you will be able to see a test le on your FTP server.
29D-Link DCS-930 User Manual
Section 3 - Configuration
Setup > Time and Date
Test FTP Server:
Synchronize NTP Server:
Copy your Computer’s
Time Settings:
Set the Date and Time
Manually:
Select the time zone for your region from the pull-
down menu.
Network Time Protocol will synchronize your
camera with an Internet time server. Choose the
one that is closest to your camera.
Click to synchronize the time information from
your PC.
Select this to set the time manually.
This section allows you to congure the settings of the internal system
clocks for your camera.
30D-Link DCS-930 User Manual
Section 3 - Configuration
Maintenance > Admin
This section allows you to change the administrator’s password and
congure the server settings for your camera. You can also manage
the user account(s) that access to your camera.
Camera Name:
LED Control:
User Access Control:
Snapshot URL
Authentication:
Add User Account:
User List:
Specity a name for your camera
Select Normal to enable the LED on the front of
the device, or select off to disable the LED.
Select Enable to enable user access control or
Disable to allow only the administrator account to
access the camera.
Select Enable to allow access to the current
camera snapshot via the web address indicated.
Create new user for accessing the video image.
Enter the user name, password, and password
conrmation, and click Add. A maximum of 8
user accounts can be added into the user list.
Displays the account names of authorized users.
31D-Link DCS-930 User Manual
Section 3 - Configuration
Maintenance > System
This section allows you to save and restore your conguration,
restore the factory settings, and/or restart the camera.
32D-Link DCS-930 User Manual
Section 3 - Configuration
Maintenance > Firmware Upgrade
Your current rmware version and date will be displayed on your
screen. You may go to the D-Link Support Page to check for the
latest rmware versions available.
To upgrade the rmware on your DCS-930, please download
and save the latest rmware version from the D-Link Support
Page to your local hard drive. Locate the le on your local hard
drive by using the Browse button. Then, open the le and click
the “Upload” button to start the rmware upgrade.
33D-Link DCS-930 User Manual
Section 3 - Configuration

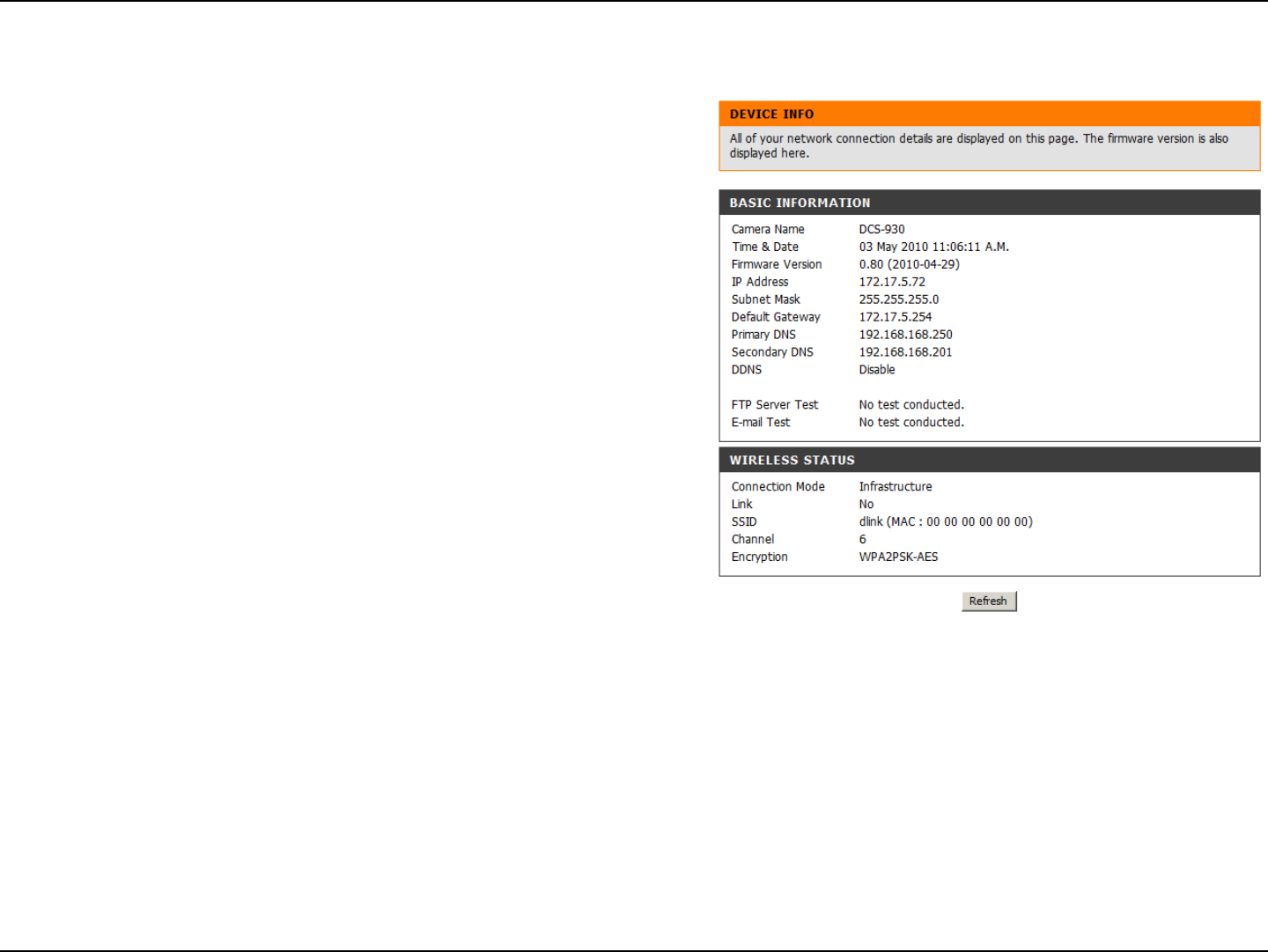

Status > Device Info
This section displays all the details information about your
device and network settings.
34D-Link DCS-930 User Manual
Section 3 - Configuration
Status > Active User
This page lists all the active user’s information including the User
Name, IP address, and the time that camera access began.
35D-Link DCS-930 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders.
The DCS-930 offers the following types of security:
• WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides
security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must
determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-
bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard
Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to
remember. The ASCII string is converted to HEX for use over the network. Four keys can be dened so that you can change keys easily.
36D-Link DCS-930 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses
Advanced Encryption Standard instead of TKIP.
User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be sniffed out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
37D-Link DCS-930 User Manual
Section 4 - Security
D-Link’s DCS-930 is a versatile and cost effective Network Camera for video monitoring. It can also serve as a powerful surveillance
system in security applications. The DCS-930 can be used with any wired or 802.11n wireless router. This section explains how to view
the camera from either the Internet or from inside your internal network.
Materials Needed:
• 1 DCS-930 Network Camera
• 1 Ethernet Cable
• A Wired or Wireless router such as the D-Link DI-624 Wireless Router
• Ethernet based PC for system conguration
Setting Up the DCS-930 For Use Behind a Router
Installing a DCS-930 Network Camera on your network is an easy 4–step procedure:
1. Assign a Local IP Address to Your Network Camera
2. View the Network Camera Using Your Internet Explorer Web Browser
3. Access the Router with Your Web Browser
4. Open Virtual Server Ports to Enable Remote Image Viewing
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video
viewing. For the basic setup of the DCS-930, follow the steps outlined in the Quick Installation Guide.
Using & Conguring the DCS-930
38D-Link DCS-930 User Manual
Section 4 - Security
Run the Setup Wizard program from the CD included with the DCS-930. Follow the steps in the Quick Installation Guide to congure the
DCS-930. The camera will be assigned a local IP Address that allows it to be recognized by the router. Write down this IP Address for
future reference.
1. Assign a Local IP Address to Your Camera
After you have completed the setup of the DCS-930 outlined in the Quick Installation Guide you will have an operating camera that has
an assigned IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the
Network Camera will be a local IP Address. This allows viewing within your Local Area Network (LAN) until the router is congured to
allow remote viewing of the camera over the Internet.
This is the IP Address assigned to your camera (192.168.0.120 is only an example). You will probably have a different IP Address.
Your Camera’s IP Address
39D-Link DCS-930 User Manual
Section 4 - Security
Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the Network Camera by the
Installation Wizard program. The DCS-930 Home Page appears with a window displaying live video from the camera. You are able to
view this screen from any PC running Internet Explorer on your LAN.
Click on the Conguration button on the left side of the display. Scroll to the bottom of the Network Conguration page to display the ports
used by HTTP and Streaming video.
2. View the Network Camera Using Your Internet Explorer Web Browser
40D-Link DCS-930 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders.
The DCS-930 offers the following types of security:
• WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides
security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must
determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-
bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard
Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to
remember. The ASCII string is converted to HEX for use over the network. Four keys can be dened so that you can change keys easily.
41D-Link DCS-930 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i
and uses Advanced Encryption Standard instead of TKIP.
User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates
access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be sniffed
out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can
access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
42D-Link DCS-930 User Manual
Section 4 - Security
D-Link’s DCS-930 is a versatile and cost effective Network Camera offering both video and audio monitoring. It can also serve as a powerful
surveillance system in security applications. The DCS-930 can be used with any wired or 802.11n/g wireless router. This section explains
how to view the camera from either the Internet or from inside your internal network.
Materials Needed:
• 1 DCS-930 Network Camera
• 1 Ethernet Cable
• A Wired or Wireless router such as the D-Link DIR-655 Wireless Router
• Ethernet based PC for system conguration
Setting up the DCS-930 for Use Behind a Router
Installing a DCS-930 Network Camera on your network is an easy 4–step procedure:
1. Assign a Local IP Address to Your Network Camera
2. View the Network Camera Using Your Internet Explorer Web Browser
3. Access the Router with Your Web Browser
4. Open Virtual Server Ports to Enable Remote Image Viewing
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video viewing. For
the basic setup of the DCS-930, follow the steps outlined in the Quick Installation Guide.
After you have completed the setup of the DCS-930 outlined in the Quick Installation Guide you will have an operating camera that has an assigned
IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the Network Camera will be
a local IP Address. This allows viewing within your Local Area Network (LAN) until the router is congured to allow remote viewing of the camera
over the Internet.
Using & Conguring the DCS-930 with a NAT Router
43D-Link DCS-930 User Manual
Section 4 - Security
1. Assign a Local IP Address to Your Camera
Run the setup wizard from the CD included with the DCS-930. Follow the steps in the Quick Installation Guide to congure the DCS-930.
The camera will be assigned a local IP Address that allows it to be recognized by the router. Write down this IP Address for future reference.
44D-Link DCS-930 User Manual
Section 4 - Security
Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the Network Camera by the DCC
program. The DCS-930 Live Video Page appears with a window displaying live video from the camera. You are able to view this screen
from any PC running Internet Explorer on your LAN.
Click on the Setup button on the left side of the display. Scroll to the bottom of the Network Setup page (see page 18) to display the ports
used by HTTP and Streaming audio and video.
2. View the Network Camera Using Your Internet Explorer Web Browser
45D-Link DCS-930 User Manual
Section 4 - Security
The Setup > Network Setup page displays the port settings for your camera. If necessary, these ports can be changed if they are already
in use by other devices (e.g. in a multiple camera environment).
Note: Both the HTTP port and RTSP port are required to be
opened for the DCS-930.
46D-Link DCS-930 User Manual
Section 4 - Security
The following steps generally apply to any router that you have on your network. The D-Link DIR-655 is used as an example to clarify the
conguration process. Congure the initial settings of the DIR-655 by following the steps outlined in the DIR-655 Quick Installation Guide.
3. Access the Router with Your Web Browser
If you have cable or DSL Internet service, you will most likely have a dynamically
assigned WAN IP Address. ‘Dynamic’ means that your router’s WAN IP address
can change from time to time depending on your ISP. A dynamic WAN IP Address
identies your router on the public network and allows it to access the Internet. To
nd out what your router’s WAN IP Address is, go to the Status menu on your router
and locate the WAN information for your router (as shown on the next page). The
WAN IP Address will be listed. This will be the address that you will need to type in
your Web browser to view your camera over the Internet.
Router Set-Up and Installation

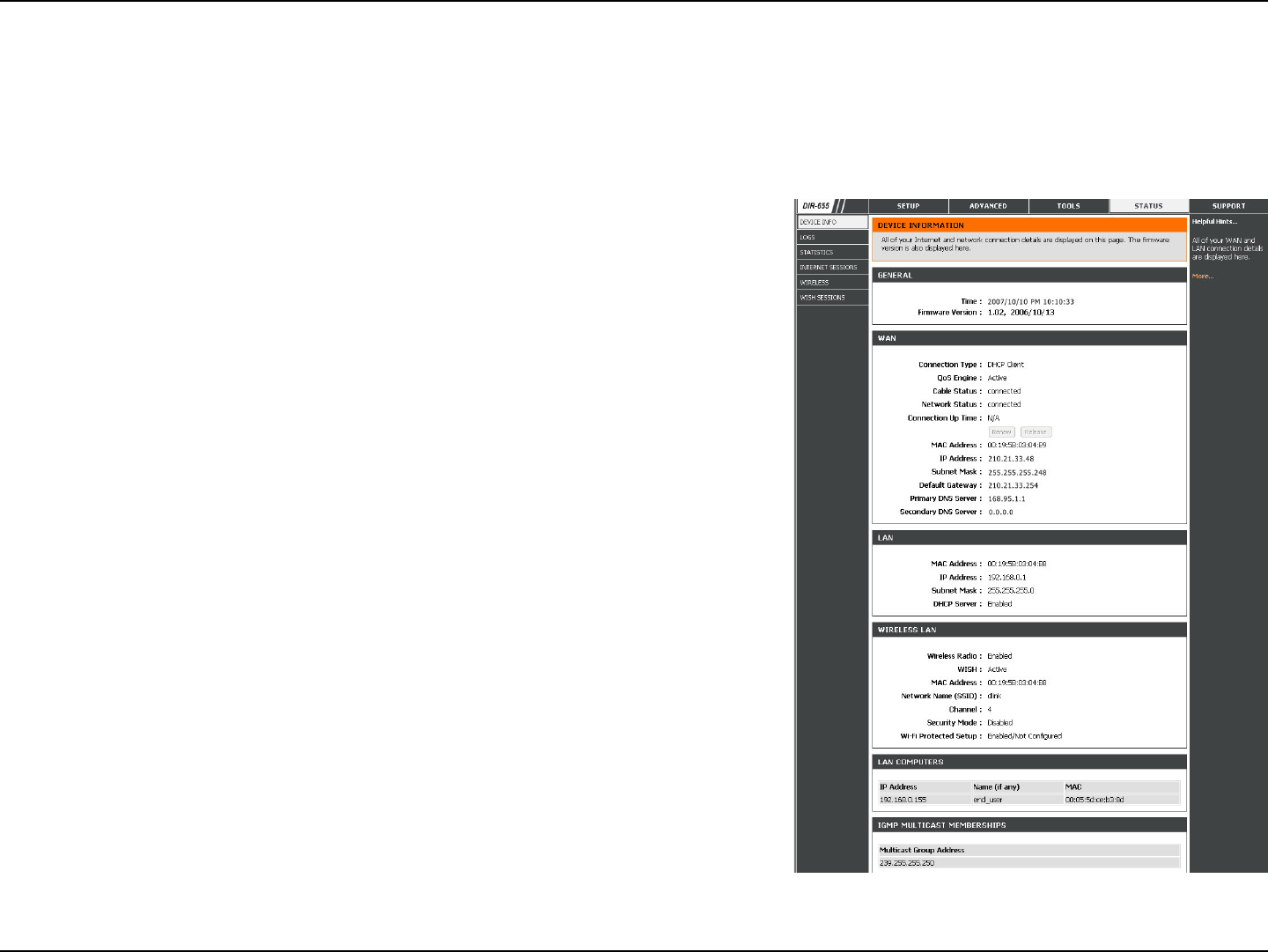

Your WAN IP Address will be listed on the router’s
Status > Device Info page.
47D-Link DCS-930 User Manual
Section 4 - Security
Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from
your ISP. A Static IP address is a xed IP address that will not change over time and will be more convenient for you to use to access your
camera from a remote location. The Static IP Address will also allow you to access your camera attached to your router over the Internet.
4. Open Virtual Server Ports to Enable Remote Image Viewing
The rewall security features built into the DIR-655 router prevent users from accessing the video from the DCS-930 over the Internet. The
router connects to the Internet over a series of numbered ports. The ports normally used by the DCS-930 are blocked from access over
the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function
on the DIR-655 router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera.
Virtual Server is accessed by clicking on the Advanced tab of the router screen.
1. Click Enabled.
2. Enter a different name for each entry.
3. Enter your camera’s local IP Address (e.g., 192.168.0.120) in the Private IP eld.
4. Select TCP for HTTP port, both (TCP and UDP) for RTSP and both (TCP and UDP) for 5556 - 5559 ports.
5. If you are using the default camera port settings, enter 80 into the Public and Private Port section, click Apply.
6. Scheduling should be set to Always so that the camera images can be accessed at any time.
Follow these steps to congure your router’s Virtual Server settings:
48D-Link DCS-930 User Manual
Section 4 - Security
Repeat the above steps adding the port 554 to both the Public and Private Port sections. A check mark appearing before the entry name
will indicate that the ports are enabled.
Important: Some ISPs block access to port 80 and other commonly used Internet ports to conserve bandwidth. Check with your ISP so
that you can open the appropriate ports accordingly. If your ISP does not pass trafc on port 80, you will need to change the port the
camera uses from 80 to something else, such as 800. Not all routers are the same, so refer to your user manual for specic instructions
on how to open ports.
Enter valid ports in the Virtual Server section of your router. Please make sure to check the box next to the camera name on the Virtual
Server List to enable your settings.
49D-Link DCS-930 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless* connectivity within
your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products
will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless
networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires.
Wireless LANs are used increasingly in both home and ofce environments, and public areas such as airports, coffee shops and universities.
Innovative ways to utilize WLAN technology are helping people to work and communicate more efciently. Increased mobility and the
absence of cabling and other xed infrastructure have proven to be benecial for many users.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers,
printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
Wireless Basics
50D-Link DCS-930 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or WiFi technology is another way of connecting your computer to the network without using wires. WiFi uses radio frequency to
connect wirelessly, so you have the freedom to connect computers anywhere in your home or ofce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the
performance you need at a price you can afford. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able to
connect your computer. There are two different types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal
Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture,
the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing
plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
51D-Link DCS-930 User Manual
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, ofce, business, D-Link
has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the Web, check email, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Ofce and Home Ofce
• Stay on top of everything at home as you would at ofce
• Remotely access your ofce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate ofce space
52D-Link DCS-930 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or ofce. People like the freedom of mobility and it’s becoming so popular
that more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually
called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports,
Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s why
we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/
access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may
need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as away as possible from the router/access point. This
would signicantly reduce any interfere that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or
WEP security feature on the router. Refer to product manual for detail information on how to set it up.
53D-Link DCS-930 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as
two or more DCS-930 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or
access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to
communicate.
Wireless Modes
54D-Link DCS-930 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e.
wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router. Some
rewall software programs may block a DHCP request on
newly installed adapters.
If you are connecting to a wireless network at a hotspot (e.g.
hotel, coffee shop, airport), please contact an employee or administrator to verify their wireless network settings.
55D-Link DCS-930 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows XP - Click on Start > Control Panel > Network Connections.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your
network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X
is a number between 2 and 99. Make sure that the number you choose is not in use on the network.
Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS
is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
56D-Link DCS-930 User Manual
Section 5 - Troubleshooting
Troubleshooting
1. Why does the LED not light up?
The power supply might be faulty. Conrm that you are using the provided DC 5V power supply for this network camera. Verify that the
power supply is correctly connected. If the camera is functioning normally, the LED may have been disabled. See page 30 for information
about how to enable the LED.
2. Why is the camera’s network connection unreliable?
There might be a problem with the network cable. To conrm that the cables are working, PING the address of a known device on the
network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning
properly. Please conrm the power for the devices are well connected and functioning properly.
3. Why does the Network Camera work locally but not remotely?
This might be caused by the rewall protection. Check the Internet rewall with your system administrator. The rewall may need to have
some settings changed in order for the Network Camera to be accessible outside your local LAN. For more information, please refer to
the section about installing your camera behind a router.
Make sure that the Network Camera isn’t conicting with any Web server you may have running on your network.
The default router setting might be a possible reason. Check that the conguration of the router settings allow the Network Camera to be
accessed outside your local LAN.
4. Why does a series of broad vertical white lines appear through out the image?
It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital
format so your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to
bright lights such as direct exposure to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately
as prolonged exposure to bright lights will damage the CMOS sensor.
57D-Link DCS-930 User Manual
Section 5 - Troubleshooting
5. The camera is producing noisy images. How can I solve the problem?
The video images might be noisy if the Network Camera is used in a very low light environment.
6. The images are poor quality, how can I improve the image quality?
Make sure that your computer’s display properties are set to at least 6-bit color. Using 16 or 256 colors on your computer will produce
dithering artifacts in the image, making the image look as if it is of poor quality.
The conguration on the Network Camera image display is incorrect. The Web Conguration Video section of the Web management allows
you to adjust the related-parameters for improved images such as: brightness, contrast, hue and light frequency. Please refer to the Web
Conguration section for detailed information.
7. Why are no images available through the Web browser?
ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options
menu. You may also need to change the security settings on your browser to allow the ActiveX plug-in to be installed.
If you are using Internet Explorer with a version number lower than 6, then you will need to upgrade your Web browser software in order
to view the streaming video transmitted by the Network Camera.
58D-Link DCS-930 User Manual
Appendix C - Technical Specifications
Technical Specications
SYSTEM REQUIREMENTS
• Operating System: Microsoft Windows XP, Vista, Windows 7
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4
NETWORKING PROTOCOL
• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (Dyndns and D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP Port Forwarding
• LLTD
• UPnP-X1
BUILT-IN NETWORK INTERFACE
• 10/100BASE-TX Fast Ethernet
• 802.11b/g/n WLAN
WIRELESS CONNECTIVITY
• 802.11b/g/n Wireless with WEP/WPA/WPA2 security
WIRELESS TRANSMIT OUTPUT POWER
• 16 dbm for 11b, 12 dbm for 11g,
12 dbm for 11n (typical)
SDRAM
• 32 MB
FLASH MEMORY
• 4 MB
RESET BUTTON
• Reset to factory default
VIDEO CODECS
• MJPEG
• JPEG for still images
VIDEO FEATURES
• Adjustable image size and quality
• Time stamp and text overlay
• Flip and Mirror
RESOLUTION
• 640 x 480 at up to 20 fps
• 320 x 240 at up to 30 fps
• 160 x 120 at up to 30 fps
59D-Link DCS-930 User Manual
Appendix C - Technical Specifications
LENS
• Focal length: 5.01 mm, F2.8
SENSOR
• VGA 1/5 inch CMOS Sensor
MINIMUM ILLUMINATION
• 1 lux @ F2.8
VIEW ANGLE
• Horizontal: 45.3°
• Vertical: 34.5°
• Diagonal: 54.9°
DIGITAL ZOOM
• Up to 4x
3A CONTROL
• AGC (Auto Gain Control)
• AWB (Auto White Balance)
• AES (Auto Electronic Shutter)
POWER
• Input: 100-240 V AC, 50/60 Hz
• Output: 5 V DC, 1.2 A
• External AC-to-DC switching power adapter
DIMENSIONS (W X D X H)
• Including the bracket and stand:
65.8 x 65 x 126 mm
• Camera only:
27.2 x 60 x 96 mm
WEIGHT
• 76.9 g (without bracket and stand)
MAX POWER CONSUMPTION
• 2 W
OPERATION TEMPERATURE
• 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
STORAGE TEMPERATURE
• -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)
HUMIDITY
• 20-80% RH non-condensing
EMISSION (EMI), SAFETY & OTHER CERTIFICATIONS
• FCC Class B
• IC
• C-Tick
• CE
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance."
Canada Notices
Industry Canada regulatory information
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
The user is cautioned that this device should be used only as specified within this
manual to meet RF exposure requirements. Use of this device in a manner
inconsistent with this manual could lead to excessive RF exposure conditions.

Navigation menu
