Section 1 - Product Overview
• DCS-932L Wireless N IR Home Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Mounting Kit
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Computer with Microsoft Windows® 7, Vista®, or XP
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4 and Chrome
• Existing 10/100 Ethernet-based network or 802.11n wireless network
Product Overview
Package Contents
6D-Link DCS-932L User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-932L Wireless N IR Home Network Camera. The DCS-932L is a versatile and unique
solution for your small oce or home. Unlike a standard webcam, the DCS-932L is a complete system with a built-in CPU and
web server that transmits high quality video images for security and surveillance. The DCS-932L can be accessed remotely, and
controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation
and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet or 802.11n/g wireless network. The
DCS-932L also comes with remote monitoring and motion detection features for a complete and cost-eective home security
solution.
7D-Link DCS-932L User Manual
Section 1 - Product Overview
Simple to Use
The DCS-932L is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards. The DCS-932L
supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-932L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-932L oers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-932L easy to integrate into your existing network
environment. The DCS-932L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired environments,
and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows you to view and connect to any available
wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-932L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for night mode Day and night functionality
The built-in infrared LEDs enables night time viewing of up to 16 feet (5 meters).
Features
8D-Link DCS-932L User Manual
Section 1 - Product Overview
Hardware Overview

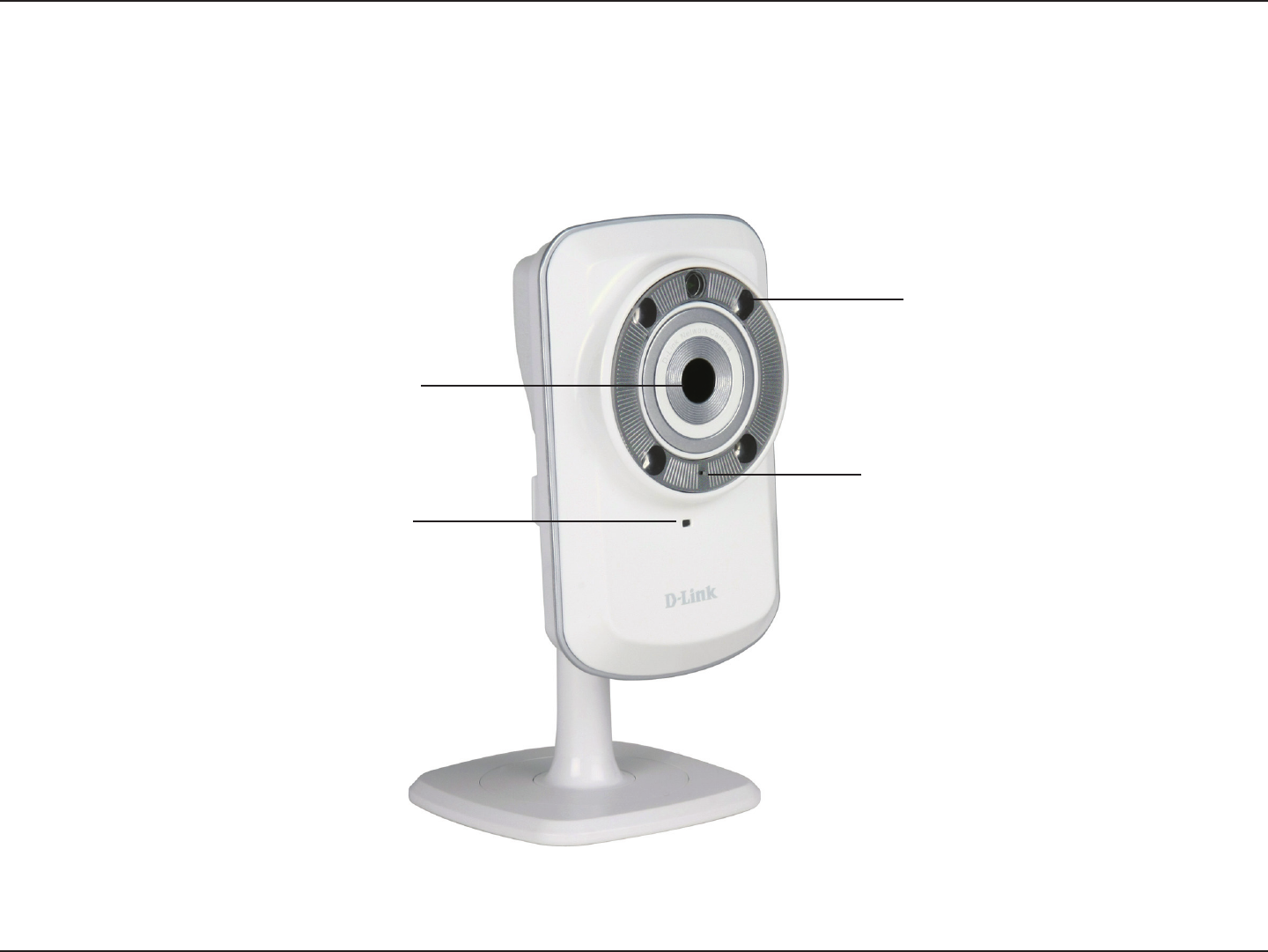

Front View
Power and Link LED
Camera Lens
Microphone
IR LED
9D-Link DCS-932L User Manual
Section 1 - Product Overview

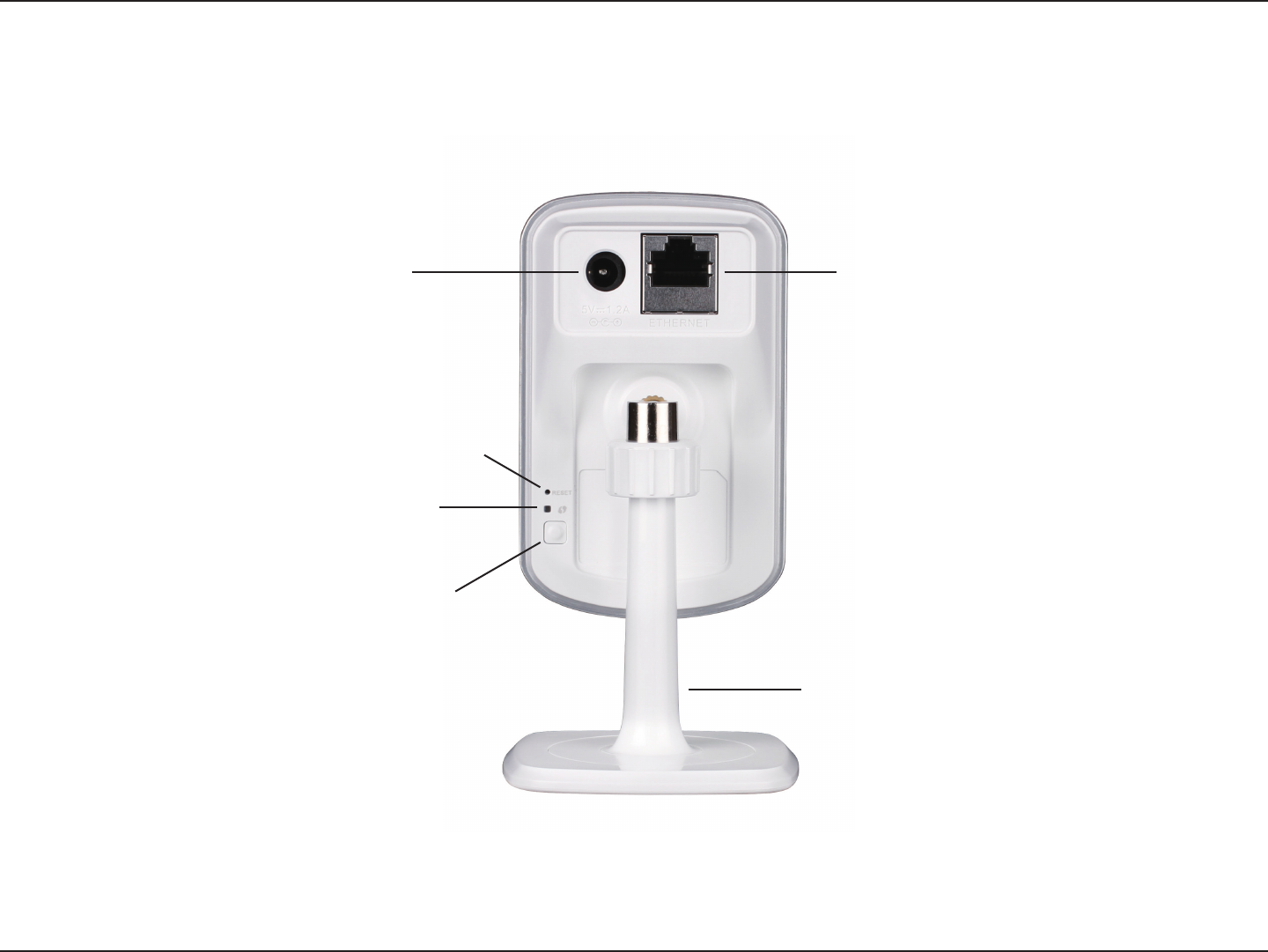

Rear View
Power Receptor Ethernet Port
Reset
WPS LED
WPS Button
Camera Stand
10D-Link DCS-932L User Manual
Section 2 - Installation
Hardware Installation

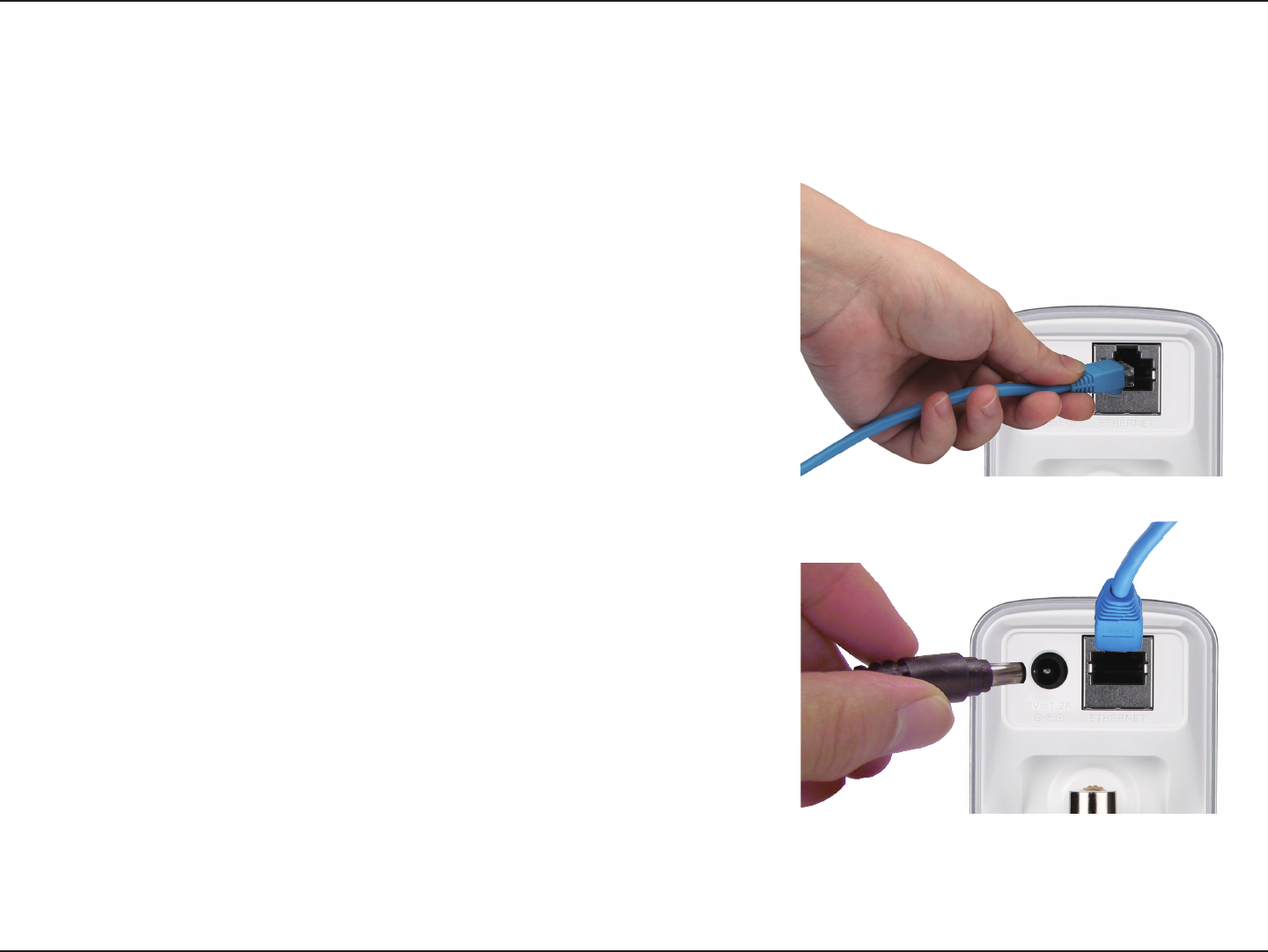

Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector
located on the bottom panel of the DCS-932L and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on
the rear back panel of the DCS-932L and connect it to your wall outlet
or power strip. Power is conrmed when the green LED Power Indicator
located below the lens on the DCS-932L is illuminated.
Installation
11D-Link DCS-932L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your
wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may
limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The
key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.
12D-Link DCS-932L User Manual
Section 2 - Installation

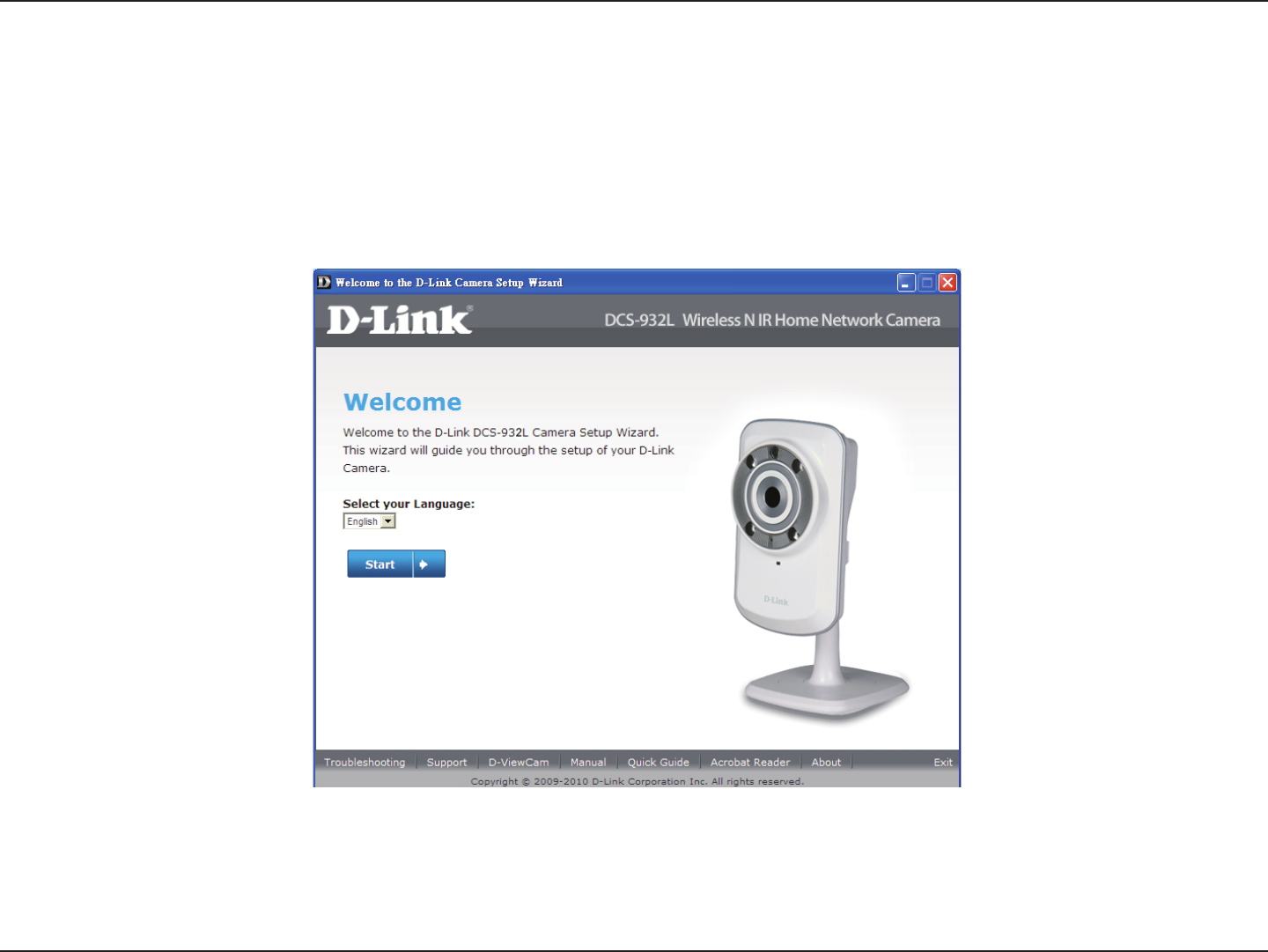

Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
The CD-ROM will open the Camera Installation Wizard. Simply click Start to go through the Installation Wizard, which will guide you through the
installation process from connecting your hardware to conguring your camera.
Camera Installation Wizard
13D-Link DCS-932L User Manual
Section 2 - Installation

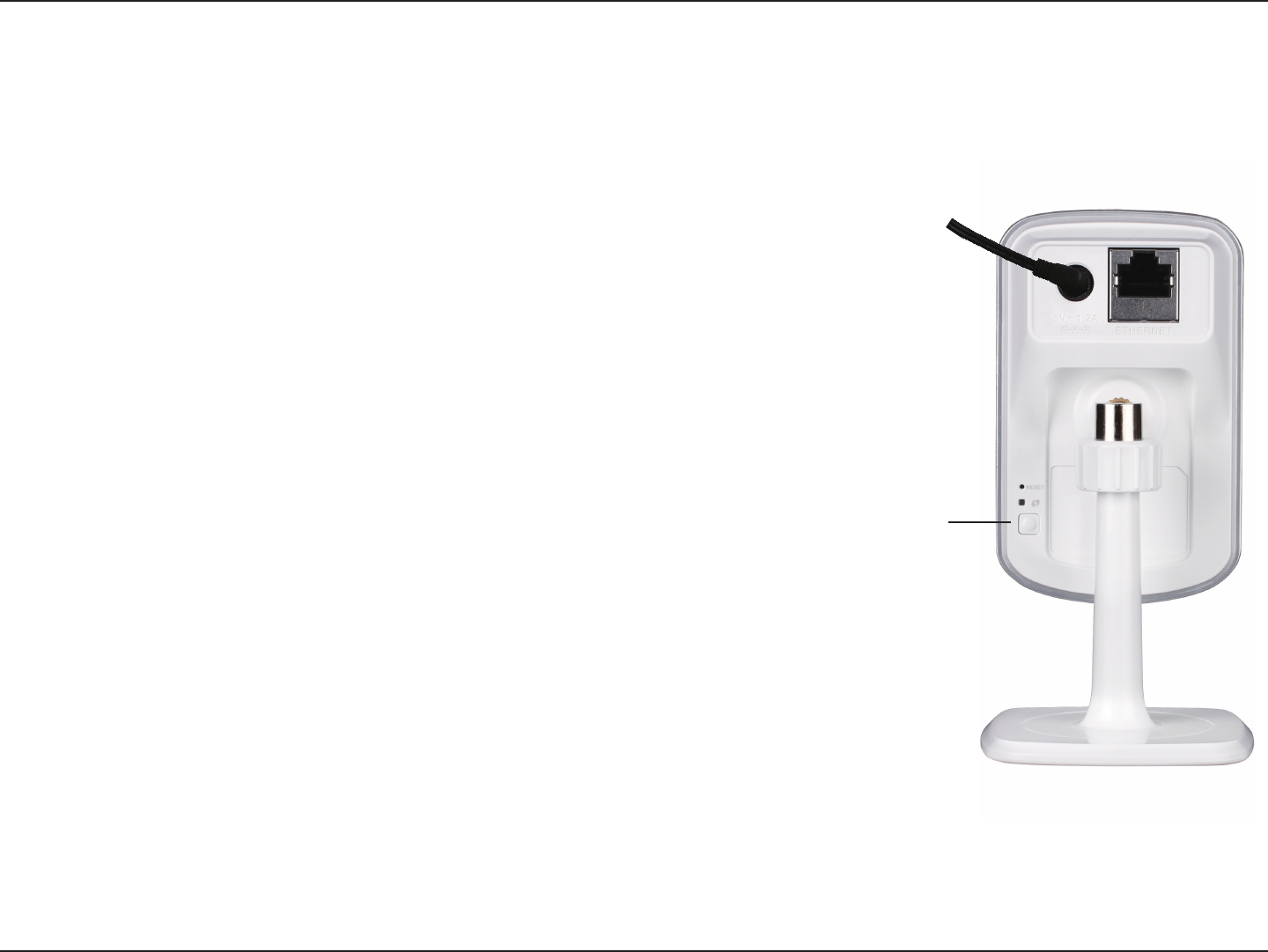

To create a WPS connection:
Step 1
Press and hold the WPS button for three seconds. The blue WPS status LED above the
button will blink.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is usually on the
front or side of your router. On some routers, you may need to log in to the web interface
and click on an on-screen button to activate the WPS feature. If you are not sure where the
WPS button is on your router, please refer to your router’s User Manual.
The DCS-932L will automatically create a wireless connection to your router. While
connecting, the green LED will ash and your camera will reboot.
WPS - Push Button Setup
WPS Button
Alternatively, you may create a WPS connect using the WPS Button on the back of the camera.
14D-Link DCS-932L User Manual
Section 3 - mydlink Portal
mydlink Portal

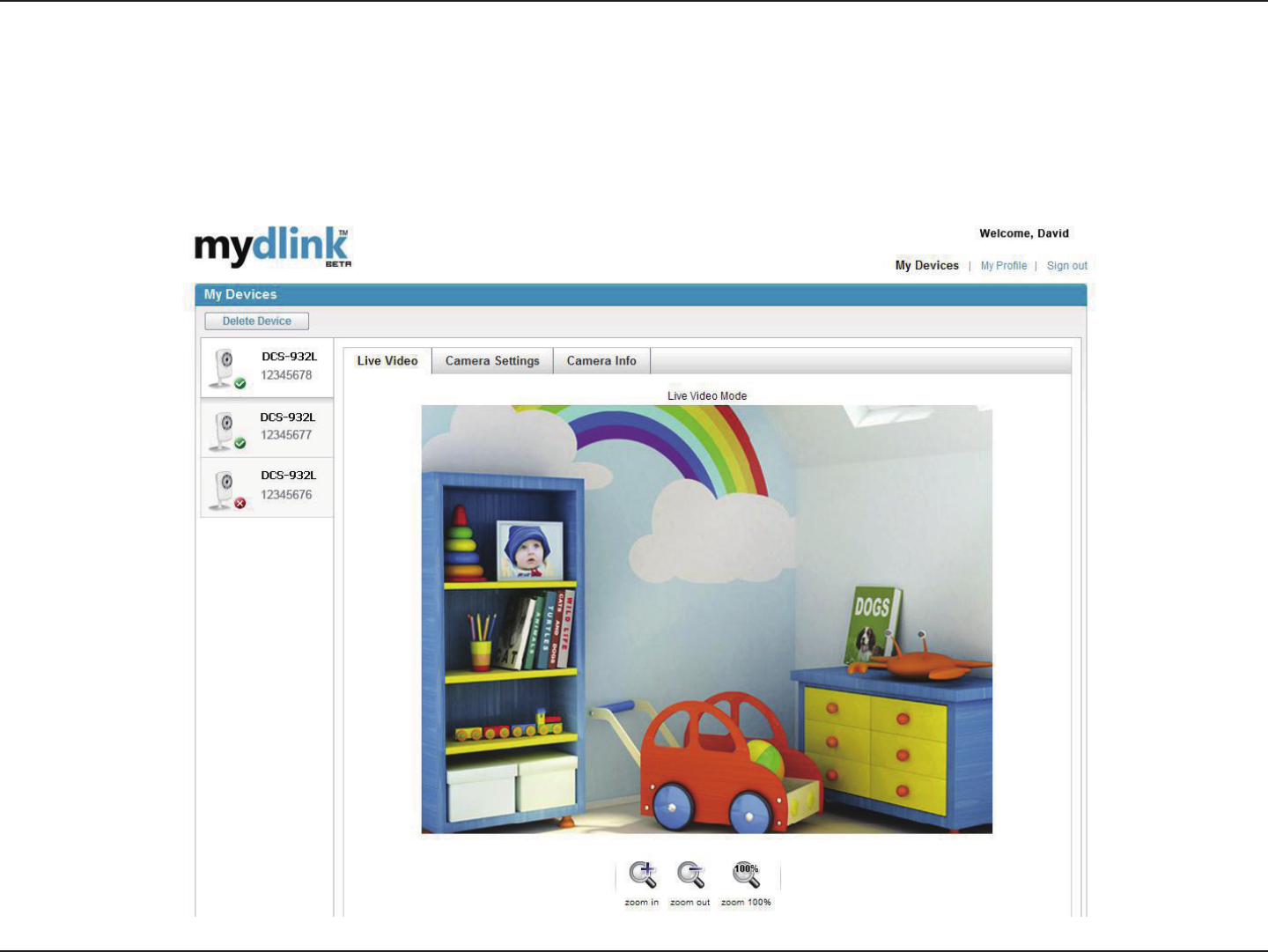

After registering your DCS-932L camera with a mydlink account in the Camera Installation Wizard. You will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
15D-Link DCS-932L User Manual
Section 3 - mydlink Portal
Camera Status
If your camera is oine, try the following:
• Check to make sure that the Internet connection to your camera is working properly.
• Try restarting your Internet router.
• Check your camera’s cable connections and make sure they are secure.
• Check to make sure that the LED on your camera is lit solid green.
If you still cannot access your camera, reset your camera and run the Camera Installation Wizard again from the CD-ROM
included in your package.

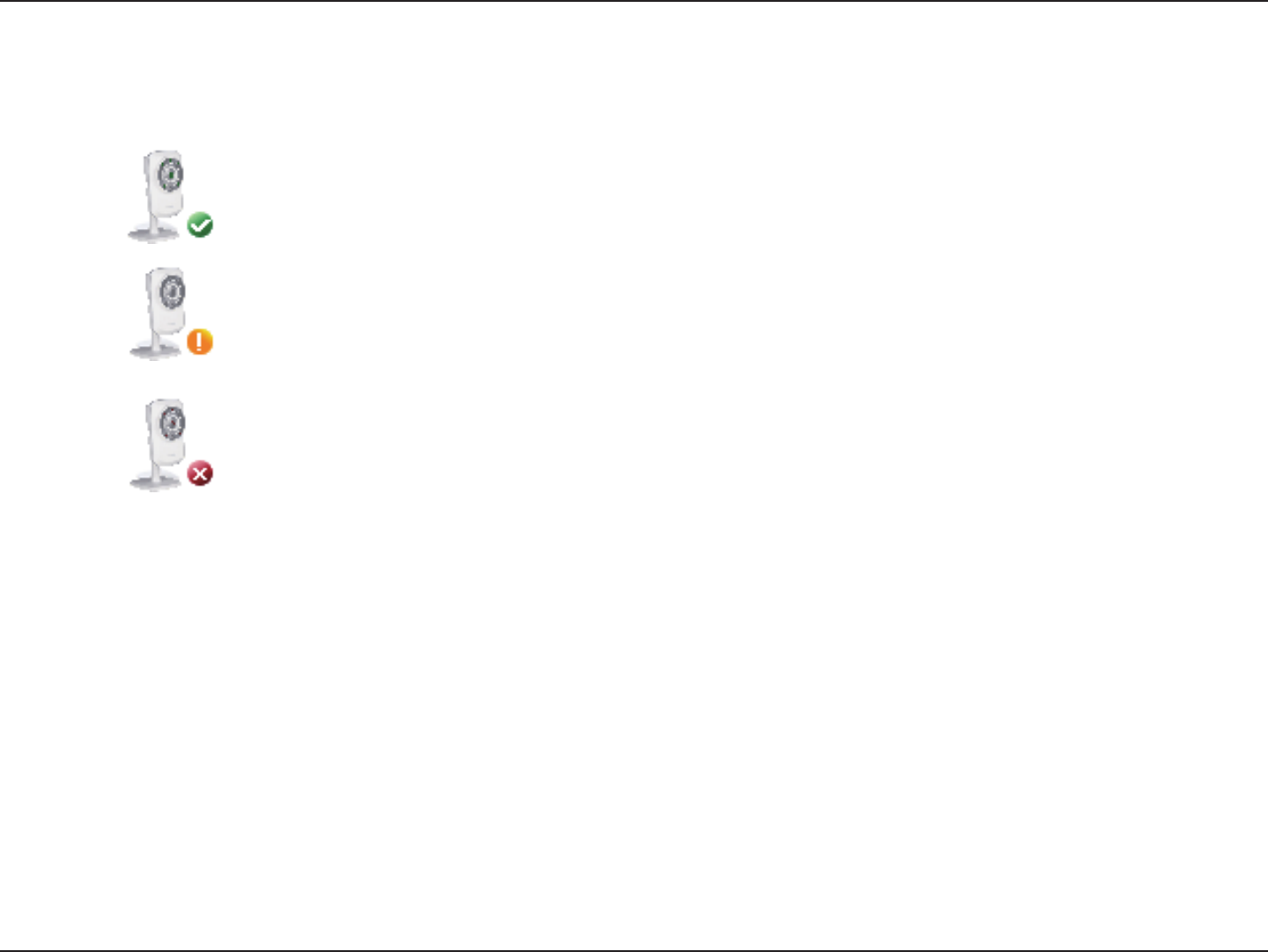

Here, you can see the online status of each of your cameras. Your online status may be one of the following:
A green checkmark indicates that your camera is online and ready to use.
A yellow exclamation point indicates that your camera is online, but the
camera password has changed. You will need to enter your new camera
password to access your camera again.
A red x indicates that your camera is oine and currently cannot be
accessed remotely.
