Section 3 - mydlink Portal
Live Video
In the main part of the screen, the Live Video tab will be selected by default. If the camera is available, a Live Video feed will be
displayed. Video will be shown at VGA resolution (640x480) if viewing your camera from a PC on the same local network, or at
QVGA resolution (320x240) if viewing your camera from a PC on a remote network.
17D-Link DCS-932L User Manual
Section 3 - mydlink Portal

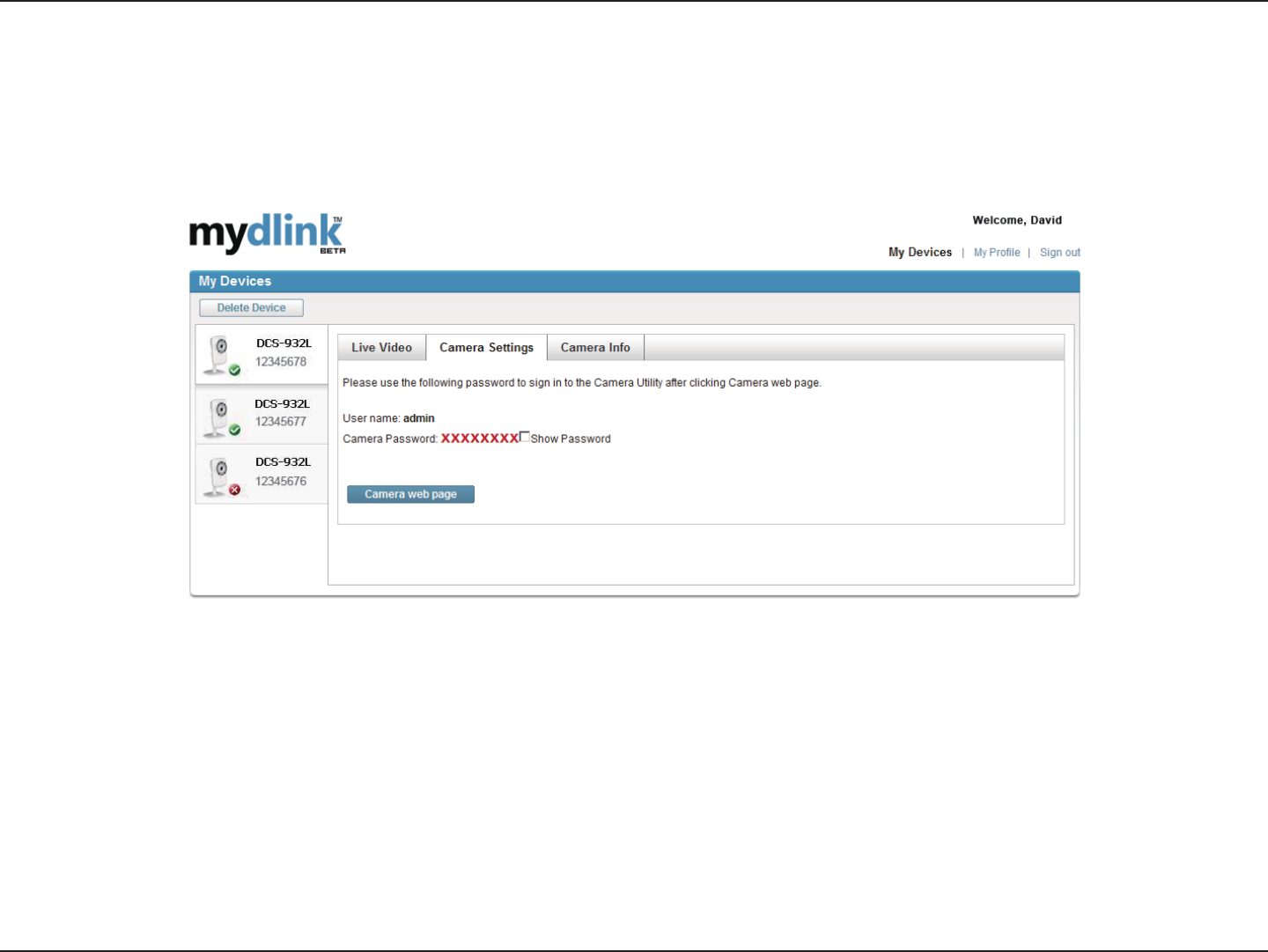

Camera Settings
The Camera Settings tab allows you to access your camera’s conguration interface. To open your camera’s conguration
interface, click Camera web page and enter the password exactly as listed on the Camera Settings page.
18D-Link DCS-932L User Manual
Section 3 - mydlink Portal
Device Name: The Device Name is a unique name that you can give to
your device to help you identify it. Clicking on the Device Name will open
a window for you to log in to your camera’s conguration interface. Then,

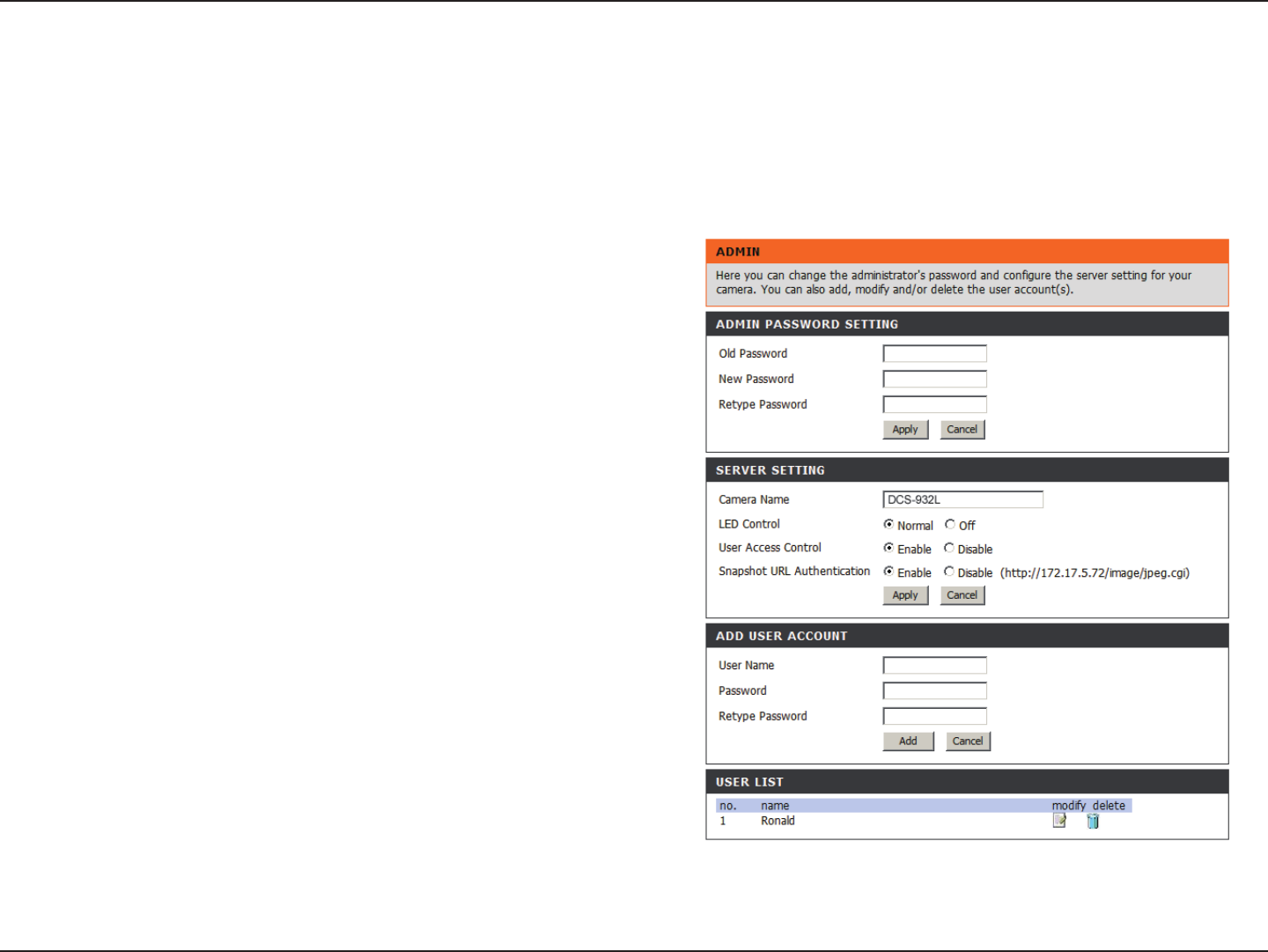

it will open the Maintenance > Admin page where you can change your
Device Name.
Camera Password: Displays the current password for your camera’s
conguration interface. Clicking on the Show Password checkbox will
either show or hide the password. Clicking on the Password will open a
window for you to log in to your camera’s conguration interface. Then,
it will open the Maintenance > Admin page where you can change your
Password.
mydlink No.: Displays the mydlink number of your device.
Model Name: Displays the model name of your device.
MAC Address: Displays the MAC address of your device.
Device activated On: Displays the time and date that your device was
added to mydlink.
Support: This section provides you with links to various support websites
and downloads related to your product.

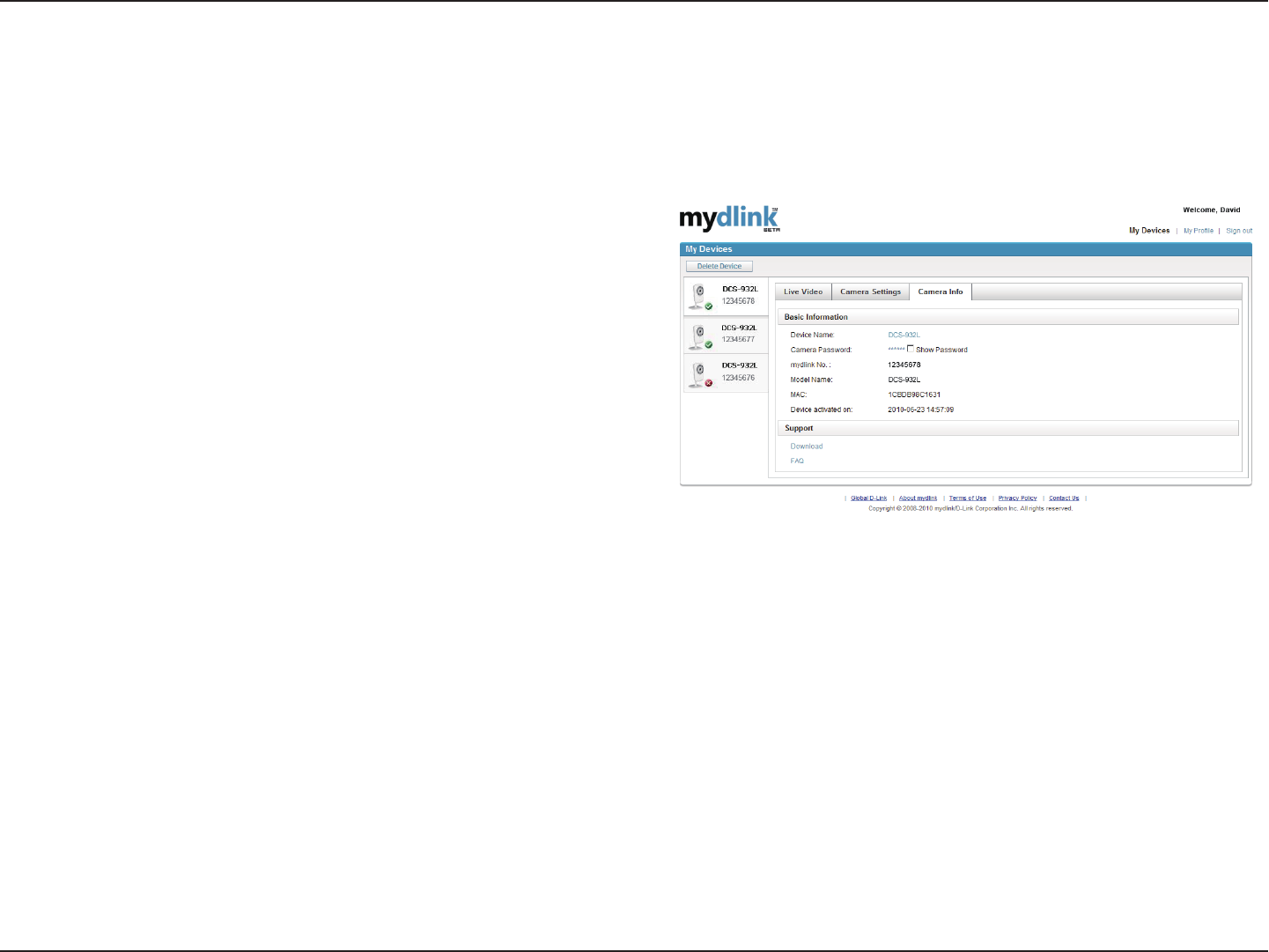

Camera Info
The Camera Info tab shows you various information about your camera.
19D-Link DCS-932L User Manual
Section 4 - Conguration
Conguration
Using the Conguration Menu
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to
allow you to easily access and congure your DCS-932L. At the end of the wizard, click Go To Camera, or enter the IP address of your camera into

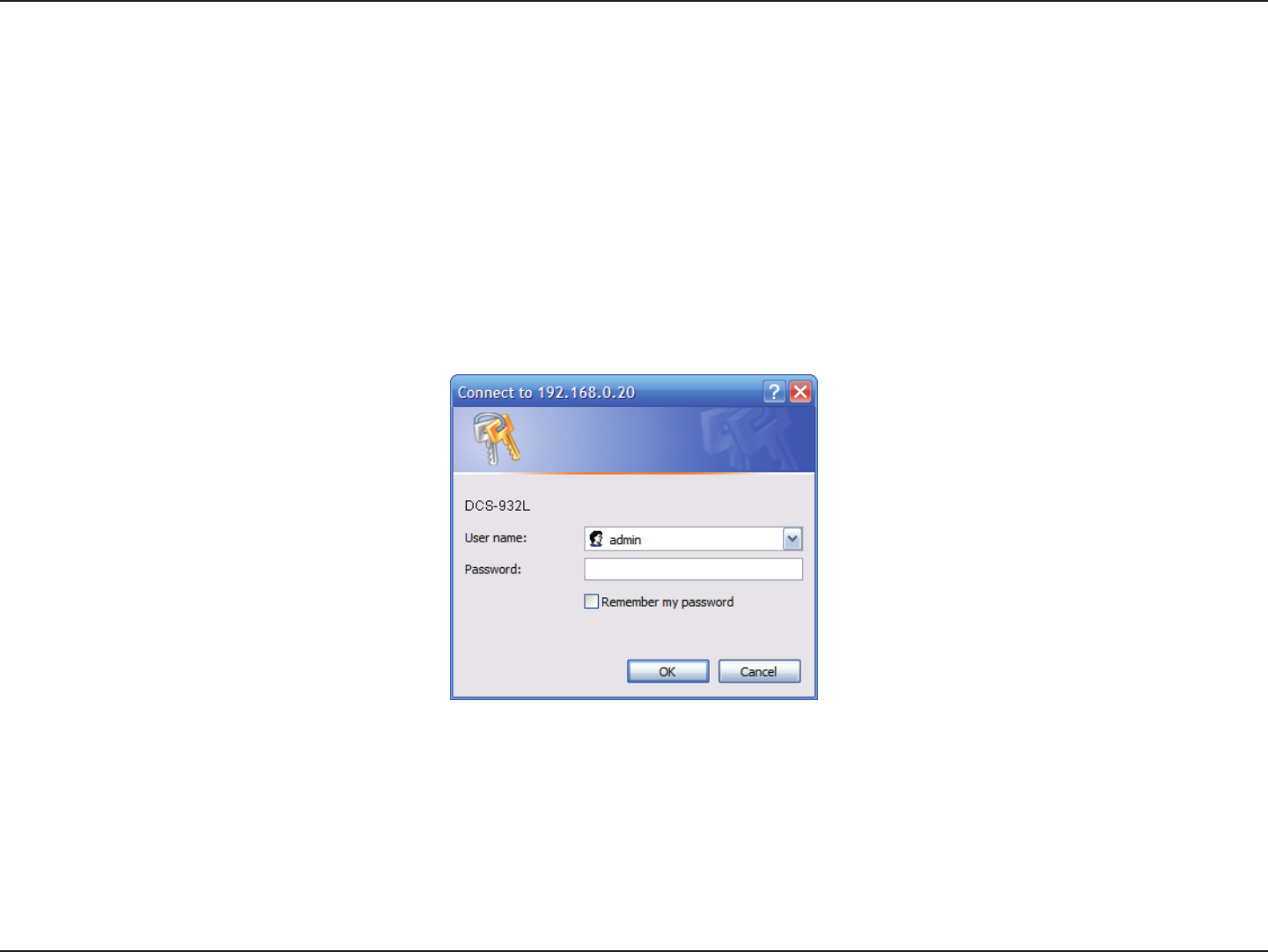

a web browser, such as Internet Explorer®. To log in, use the User name admin and the password you created in the Installation Wizard. If you did
not create a password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is 192.168.0.20.
20D-Link DCS-932L User Manual
Section 4 - Conguration

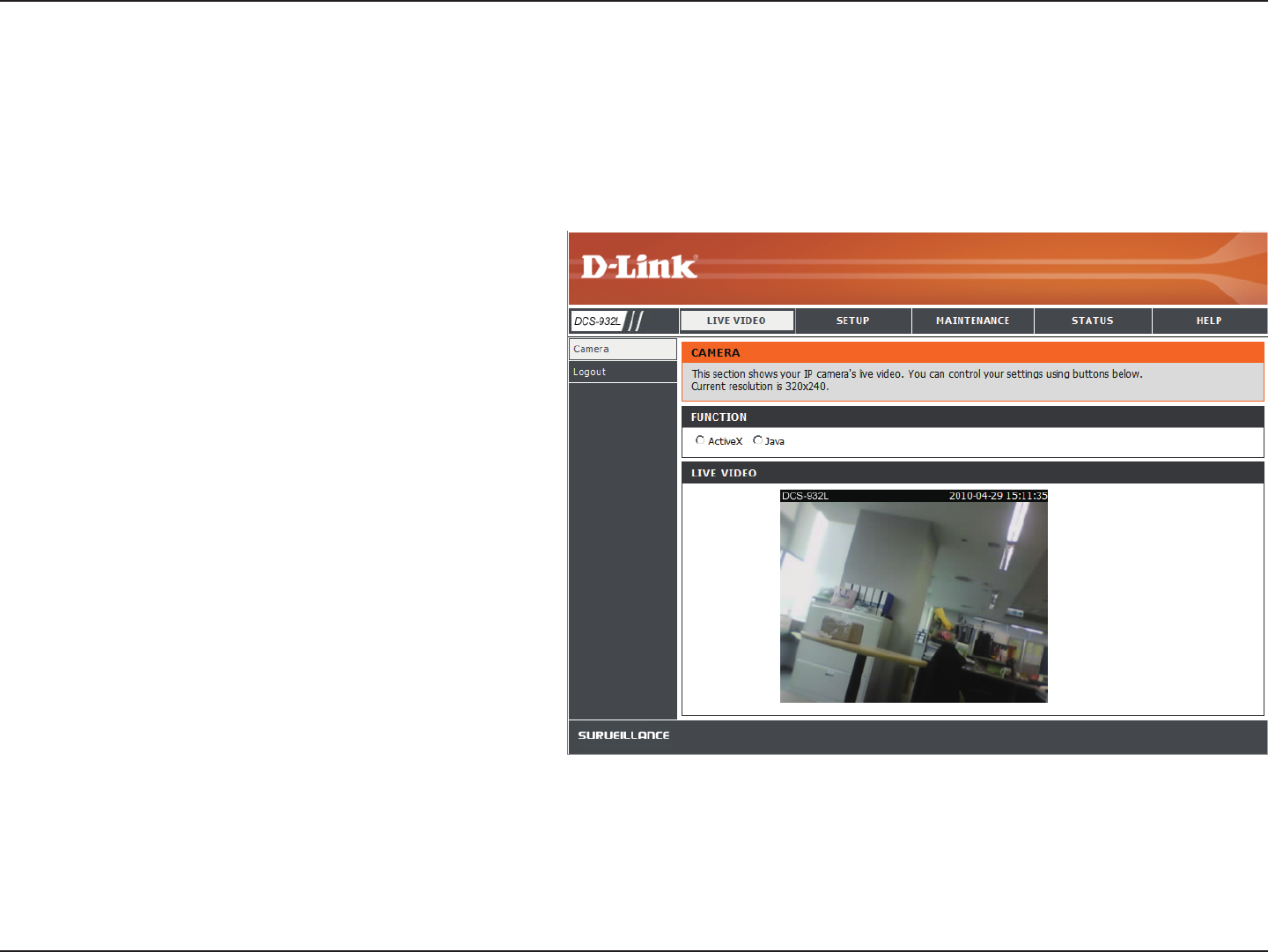

Function: Click the ActiveX or Java radio button to view live
video.
Please make sure that you have the latest version of Java application installed on your computer to ensure proper operation when viewing the
video in Java mode. The Java application can be downloaded at no cost from Sun’s web site (http://www.java.com).
When you connect to the home page of your camera, you will be prompted to download ActiveX. If you want to use ActiveX to view your video
images instead of Java, then you must download ActiveX.
21D-Link DCS-932L User Manual
Section 4 - Conguration

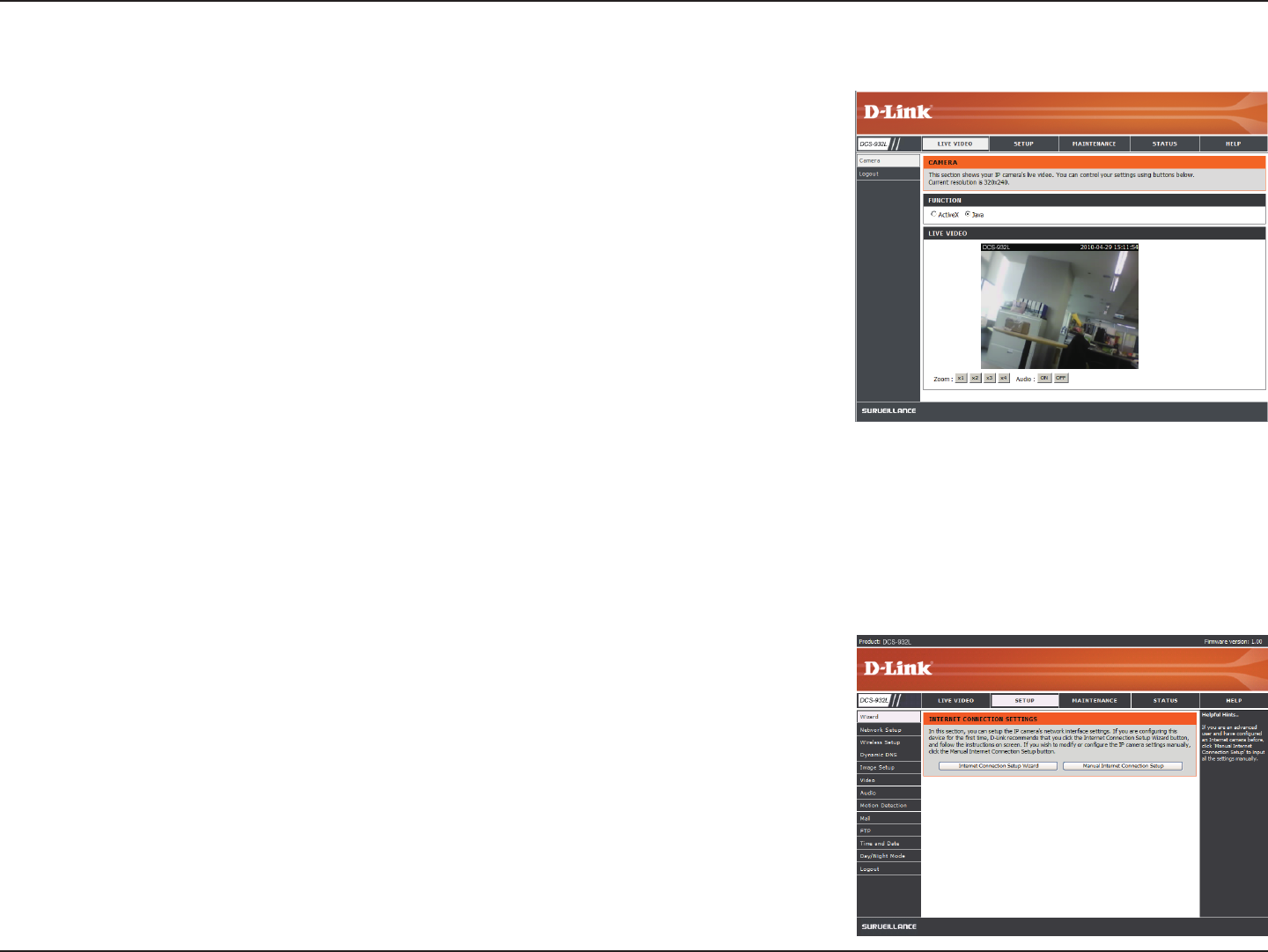

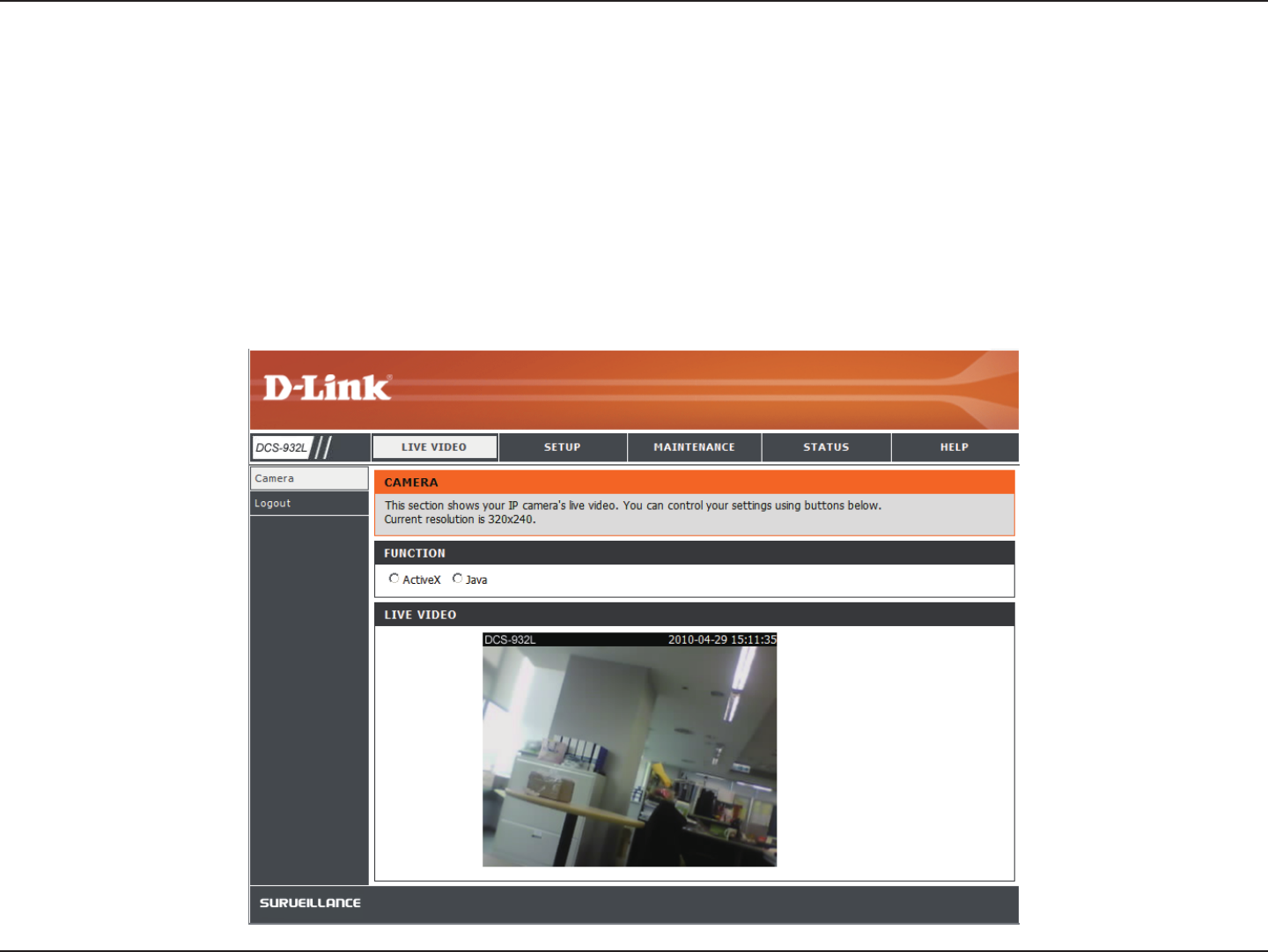

Live Video
ActiveX:
Java:
For Windows® Users that do not have Java installed, please choose this option to
view video streaming on the Live Video page.
For Windows® users that have Java installed, you can also use this for viewing video.
Mac users must choose this mode to view video.
Setup
You may choose to congure your network by using the Internet Connection Setup Wizard
that includes step-by-step instructions. Otherwise, you may manually congure your connection
using the Manual Internet Connection Setup.
Wizard
22D-Link DCS-932L User Manual
Section 4 - Conguration

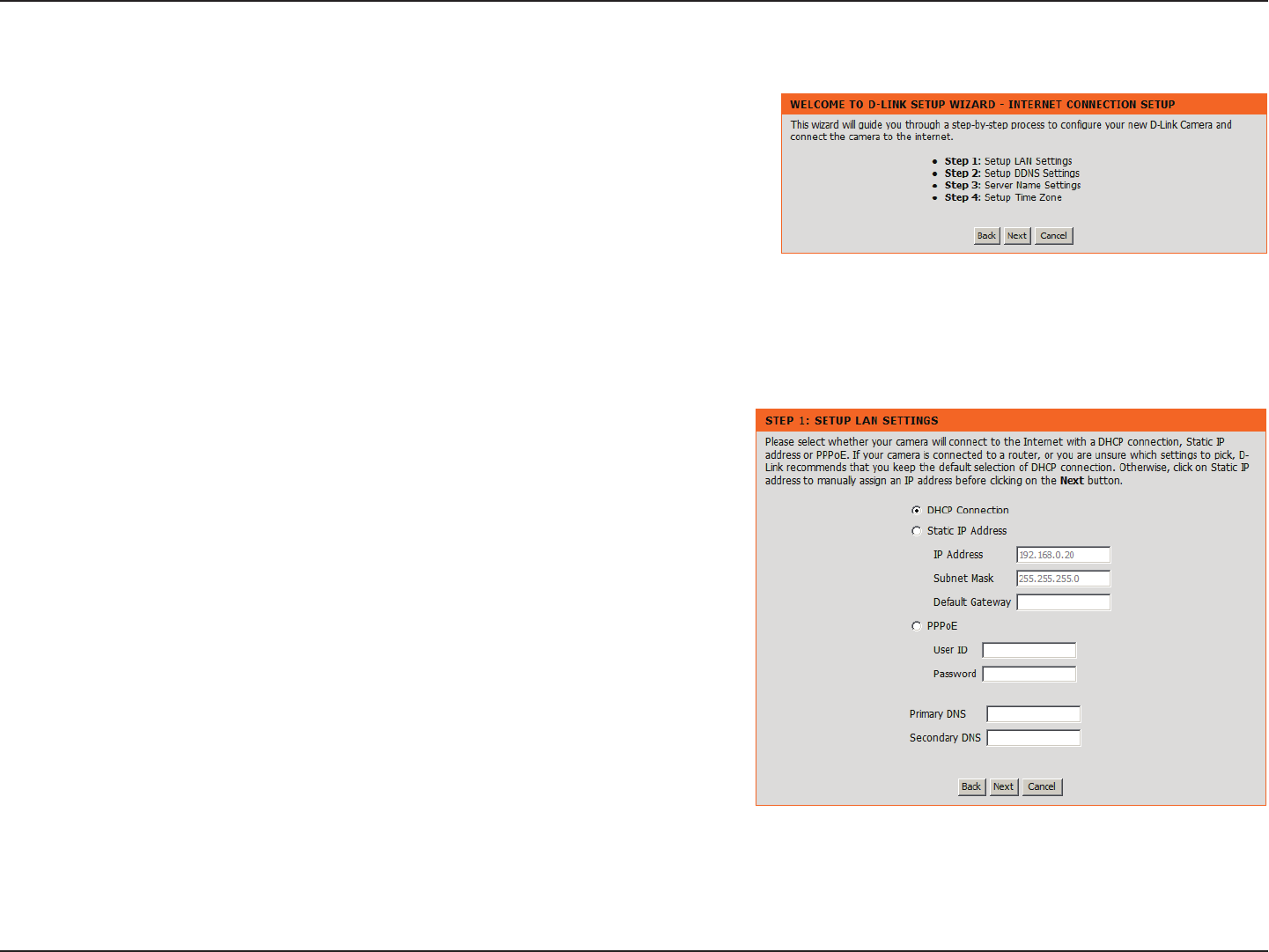

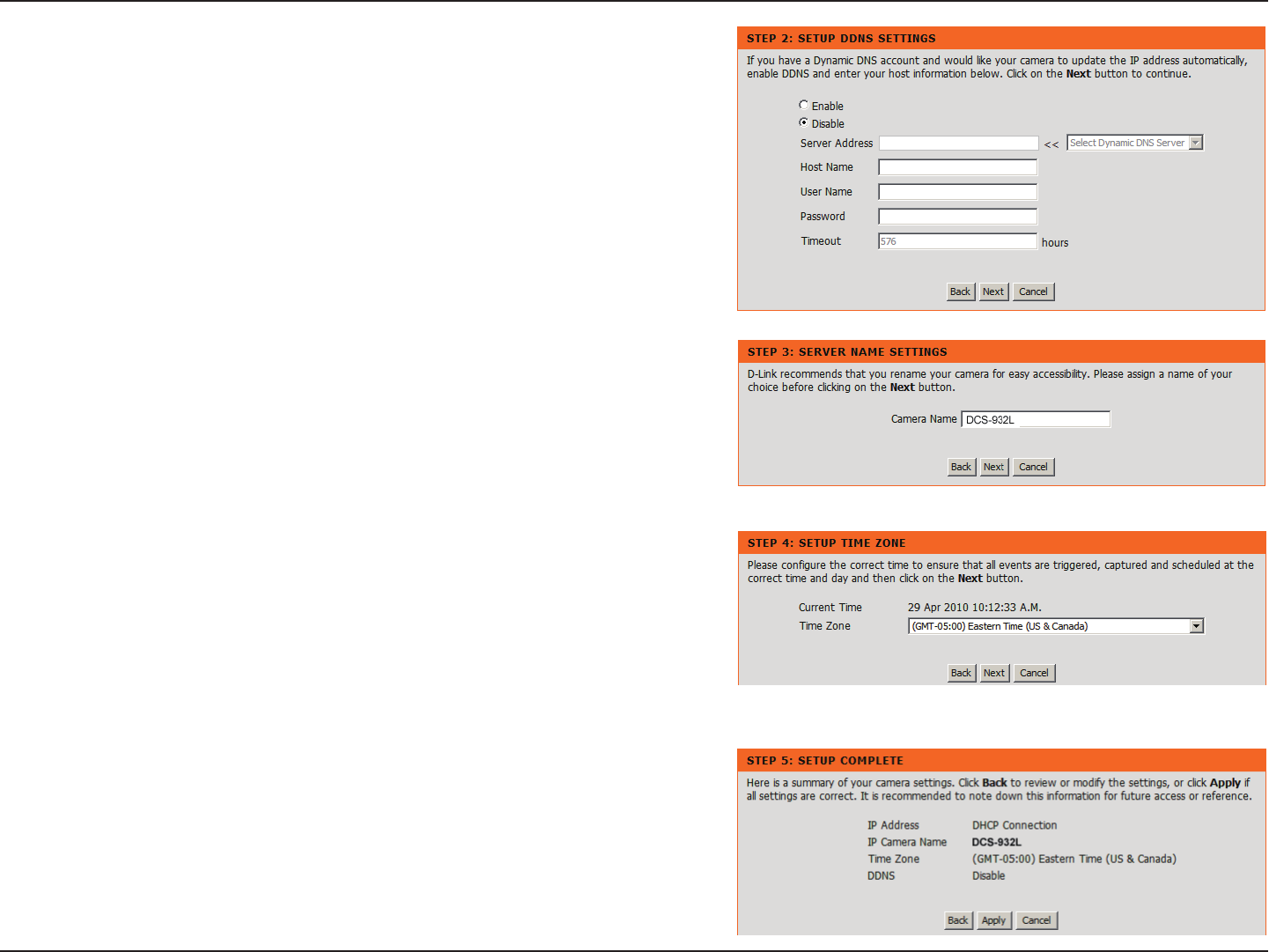

Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new
D-Link Camera and connect the camera to the Internet.
Click Next to continue.
• DHCP Connection (by default), where your DHCP server will automatically
assign dynamic IP to your device.
• Static IP Address allows you to manually enter your network settings for
the camera.
• PPPoE connection, where your camera is directly connected to the Internet
through a DSL modem.
Note: Input the DNS information if you have chosen and assigned a Static IP
Address for your camera.
23D-Link DCS-932L User Manual
Section 4 - Conguration
Enter a name for your camera. Click Next to continue.
Congure the correct time to ensure that all events triggered, captured and
scheduled at the right time. Click Next to continue.
This page displays your congured settings. Click Apply to save and activate the
setting, or Back to change your settings.
Click Next to continue.
If you have a Dynamic DNS account and would like the camera to update your IP
address automatically, enable DDNS and enter your host information.
Click Next to continue.
24D-Link DCS-932L User Manual
Section 4 - Conguration

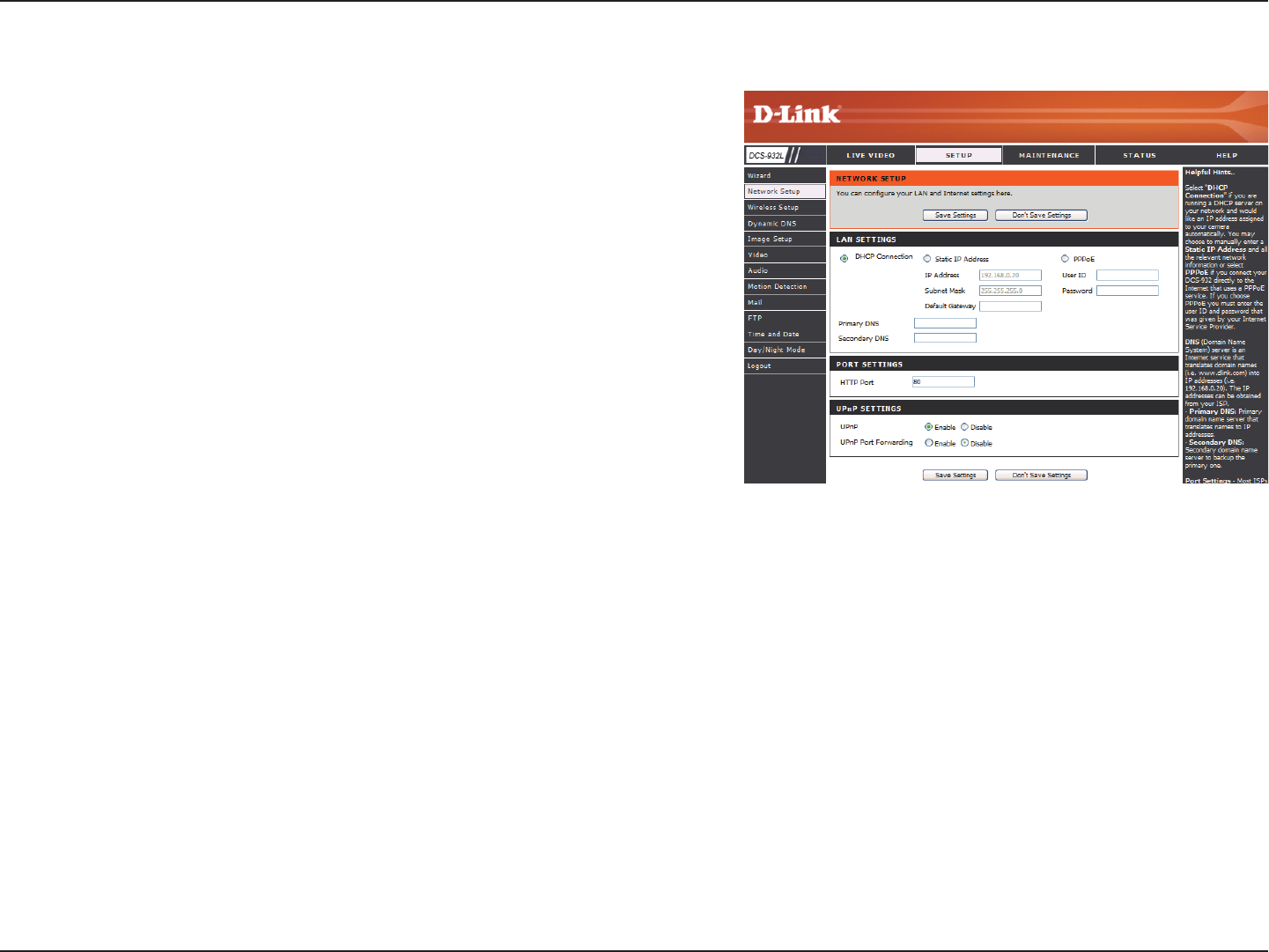

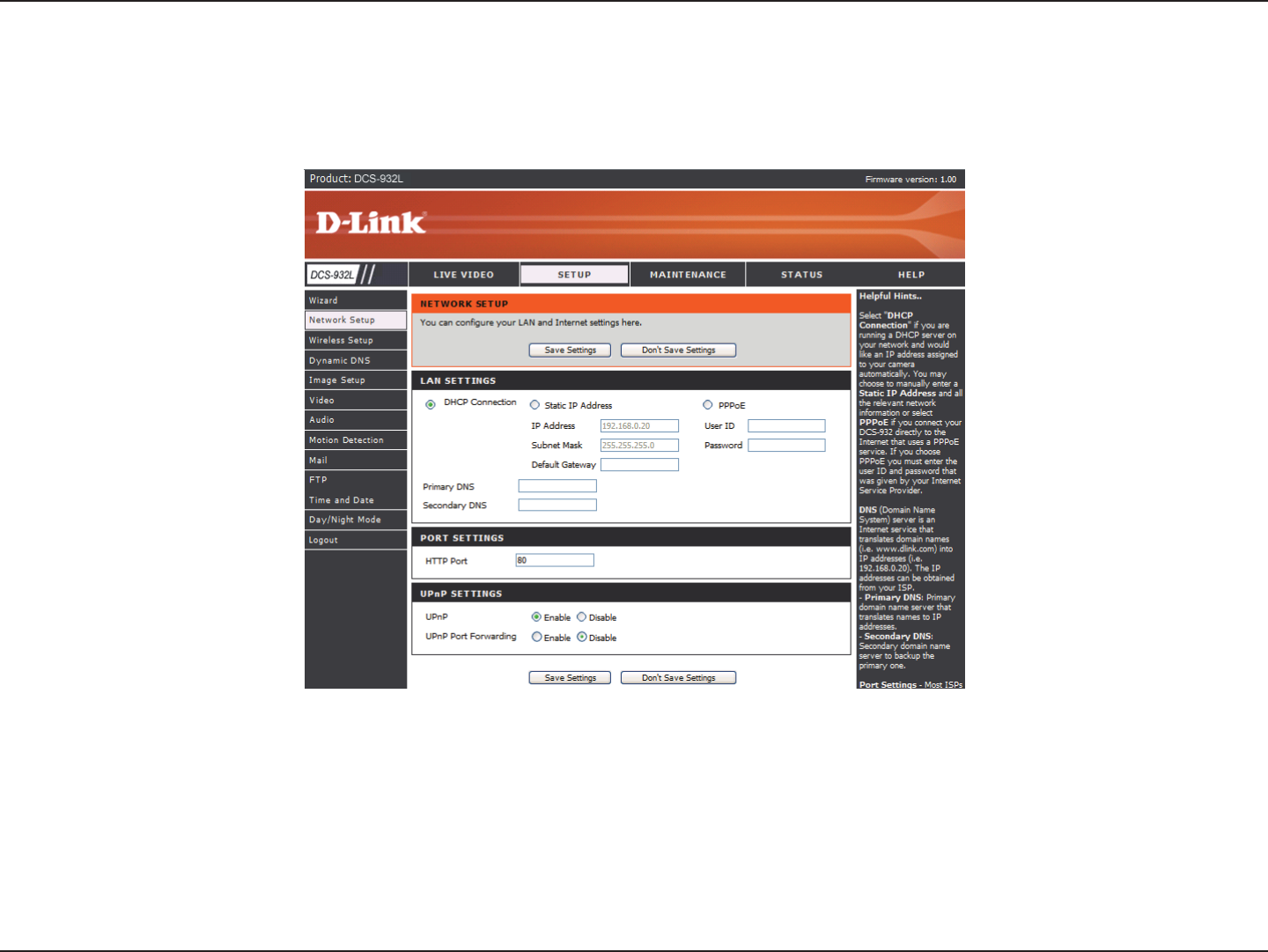

Network Setup
Select this connection if you have a DHCP server running on your
network and would like a dynamic IP address to be updated to your
camera automatically.
You may obtain a static or xed IP address and other network
information from your network administrator for your camera. A static
IP address will ease you for accessing your camera in the future.
IP Address: The xed IP address

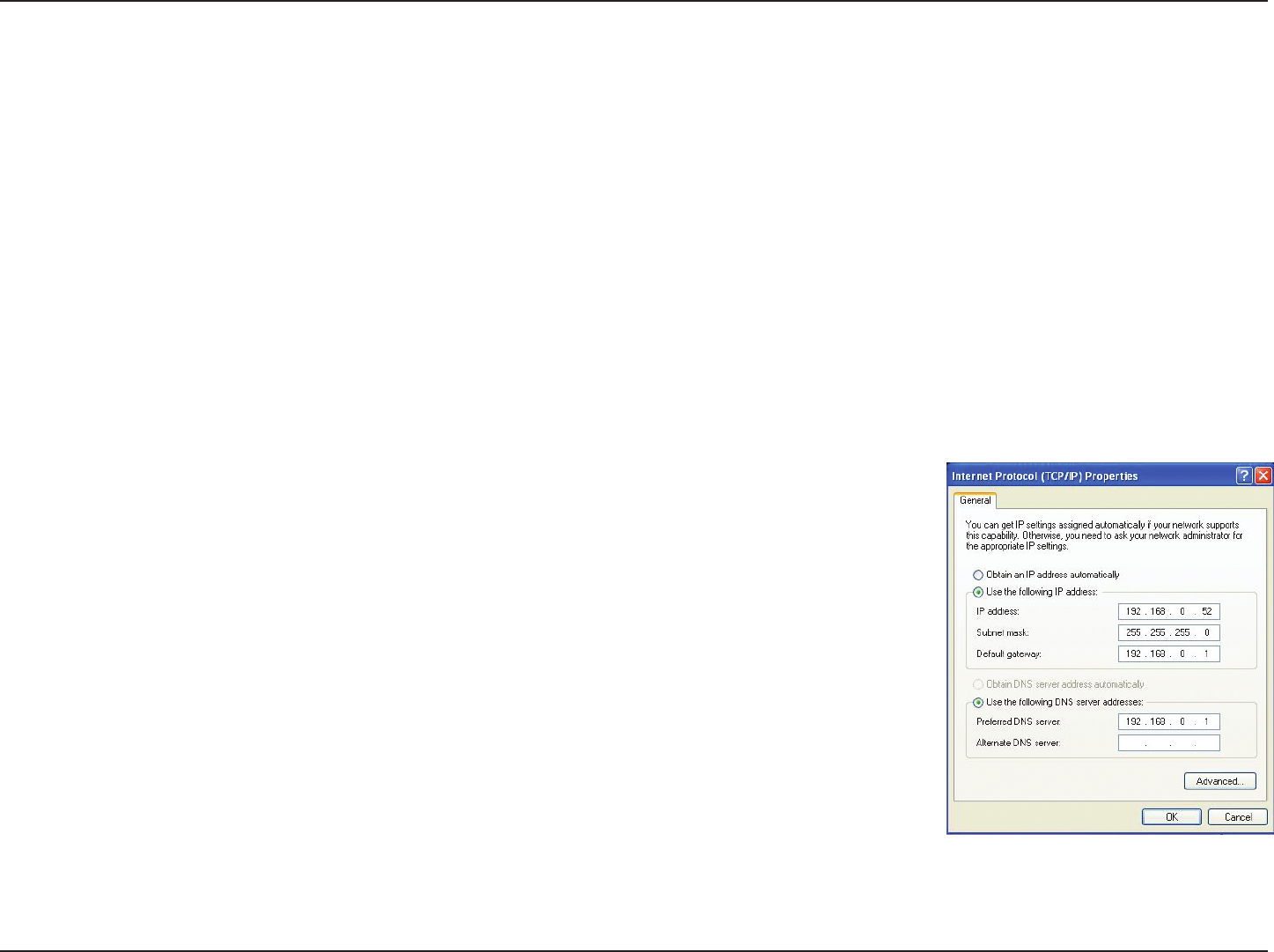

Subnet Mask: The default value is “255.255.255.0.” Used to determine
if the destination is the same subnet.
Default Gateway: The gateway used to forward frames to destinations
in a dierent subnet. Invalid gateway settings may cause the failure of
transmissions to a dierent subnet.
Primary DNS: Primary domain name server that translates names to
IP addresses.
Secondary DNS: Secondary domain name server to backup the
Primary DNS.
DHCP:
Static IP Client:
PPPoE Settings:
Port Settings:
UPnP Settings:
This section allows you to congure your network settings.
If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account. You can get this information
from your Internet service provider (ISP).
You may congure a Second HTTP port that will allow you to connect to the camera via a standard web browser. The port can be set to a
number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port is changed to
1010, users must type http://192.168.0.100:1010 instead of only “http://192.168.0.100”.
Enable this setting to congure your camera as an UPnP device in the network.
25D-Link DCS-932L User Manual
Section 4 - Conguration

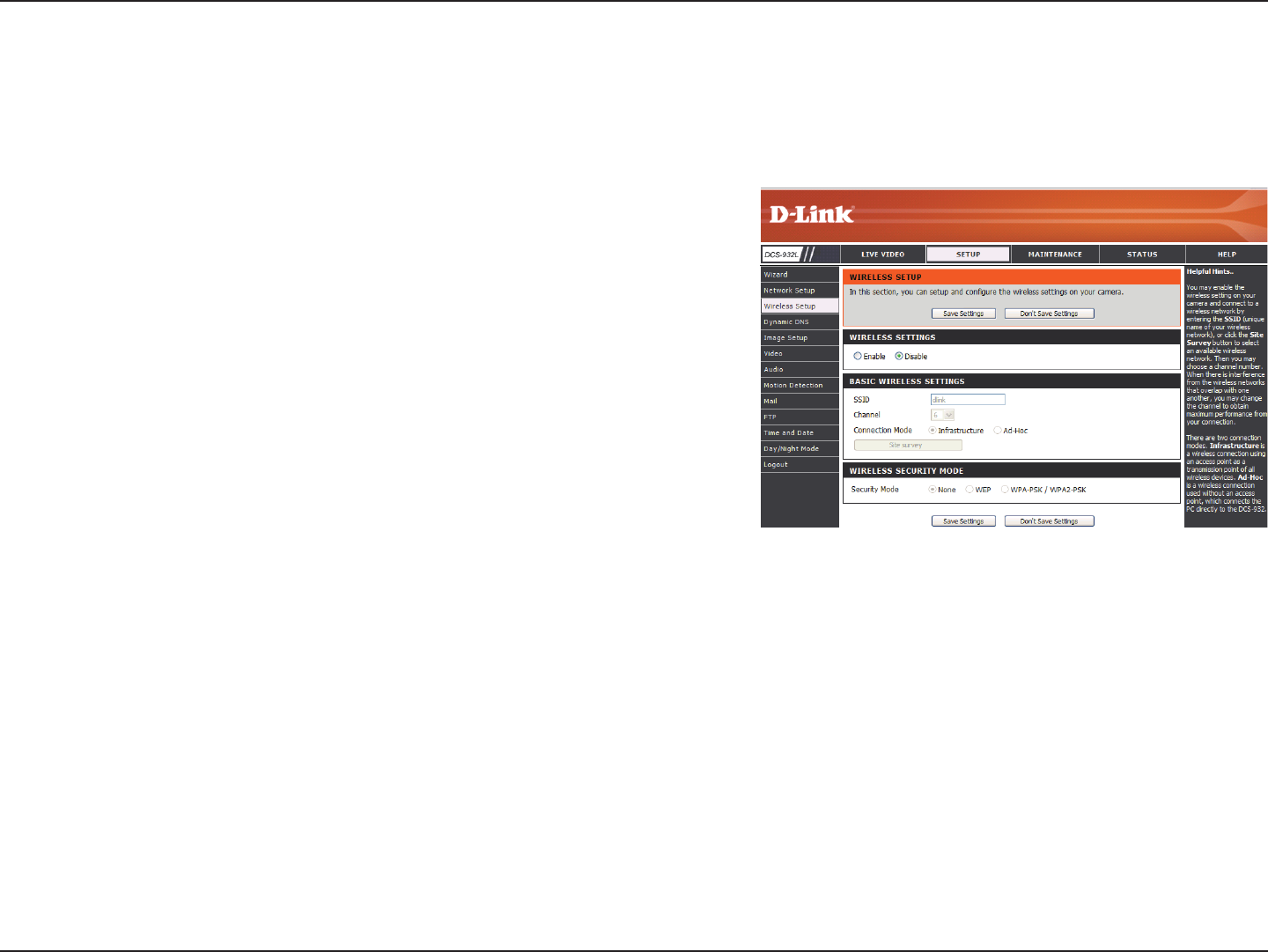

Wireless
Service Set Identier, an identier for your wireless network.
The default setting is channel 6. Select the same channel that is being
used by other wireless devices within your network. When there is an
interference from the wireless networks that overlap with one another,
you may change the channel to obtain maximum performance for your
connection.
Infrastructure is a wireless connection using an access point as a
transmission point of all wireless devices. Ad-Hoc is a wireless connection
used without an access point, where your DCS-932L is directly
connecting to your PC. This is done using the on-board wireless
adapter on the DCS-932L connected to a wireless adapter on the PC.
This page will allow you to select a wireless network that the DCS-932L
was able to detect.
For security, there are three choices; None, WEP, and WPA-PSK / WPA2-
PSK. Select the same encryption method that is being used by your wireless device/ router.
WEP provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to
another. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you
must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than
64-bit encryption.
An appropriate Preshared Key, which is needed in order to connect to the wireless network.
SSID:
Channel:
Connection Mode:
Site Survey:
Wireless Security
Mode:
WEP:
WPA-PSK / WPA2PSK
Settings:
This section allows you to setup and congure the wireless settings on your camera.
26D-Link DCS-932L User Manual
Section 4 - Conguration

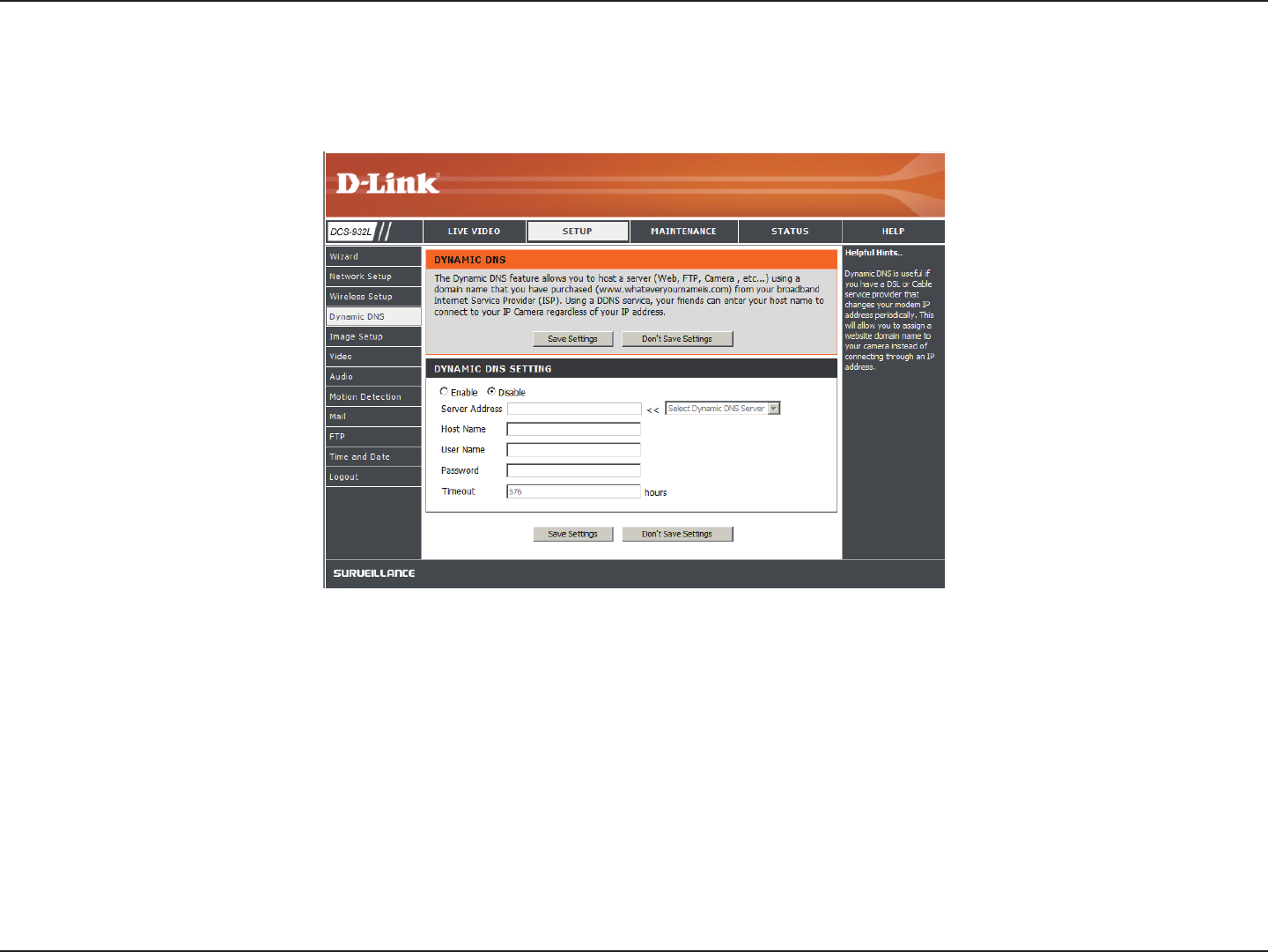

(Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been
modied. The username and password are required when using the DDNS service.
Click to enable the DDNS function.
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail used to connect to the DDNS.
Enter your password used to connect to the DDNS server.
DDNS:
Enable:
Server Address:
Host Name:
User Name:
Password:
DDNS
This section allows you to congure the DDNS setting for your camera. DDNS will allow all users to access your camera using a domain name instead
of an IP address.
27D-Link DCS-932L User Manual
Section 4 - Conguration

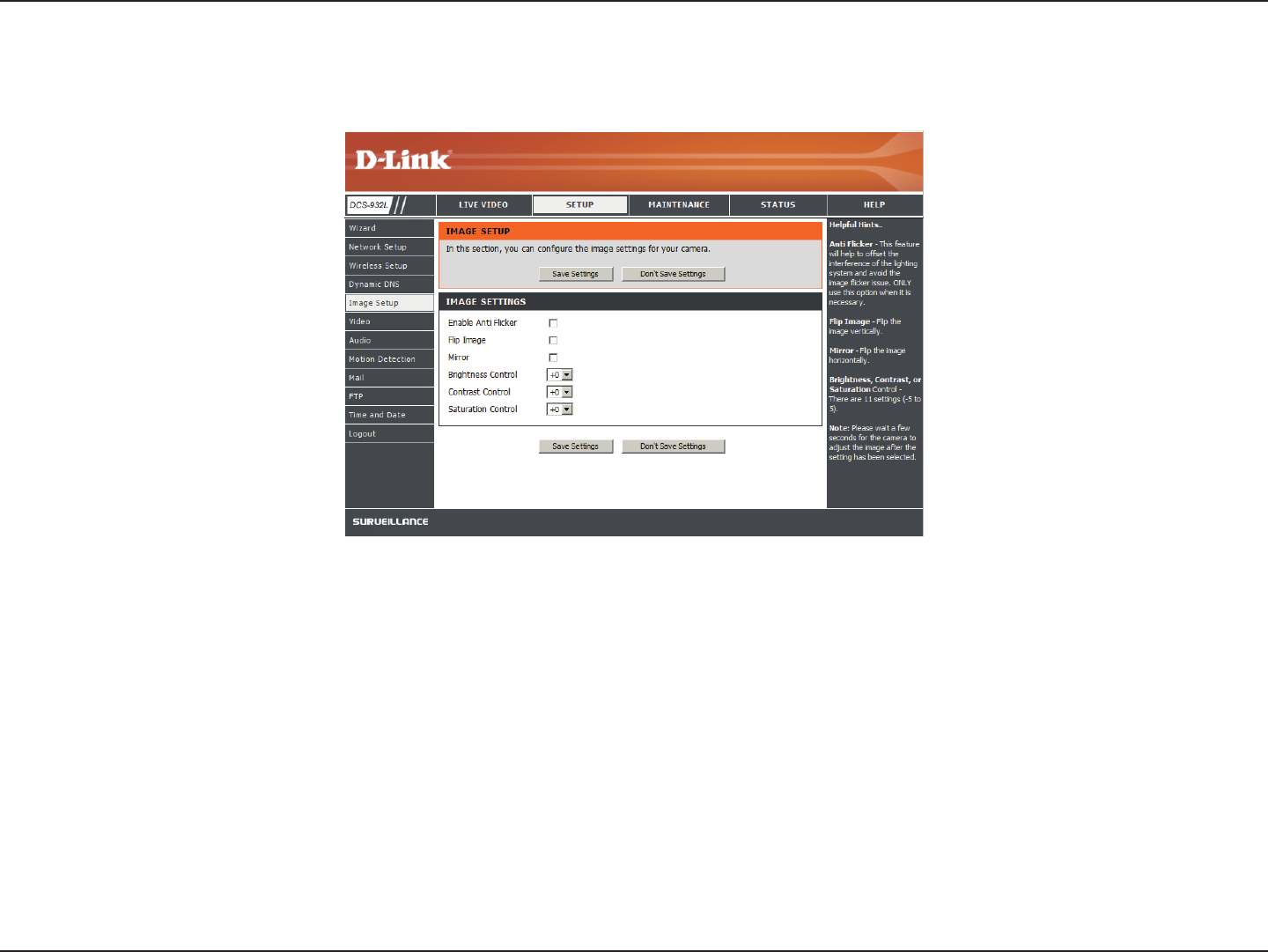

Image Setup
Select this box to enable antiicker.
Select this box to vertically ip the video. If the camera is installed upside down, Flip Image and Mirror should both be checked.
Horizontally ip the video.
Allows you to adjust the brightness level.
Allows you to adjust the contrast level.
Allows you to adjust the saturation level.
Enable Antiicker:
Flip Image:
Mirror:
Brightness Control:
Contrast Control:
Saturation Control:
This section allows you to congure the image settings for your camera.
28D-Link DCS-932L User Manual
Section 4 - Conguration
Video
Video Prole:
Encode Type:
Resolution:
FPS:
JPEG Quality:
View Mode:
Light Frequency:

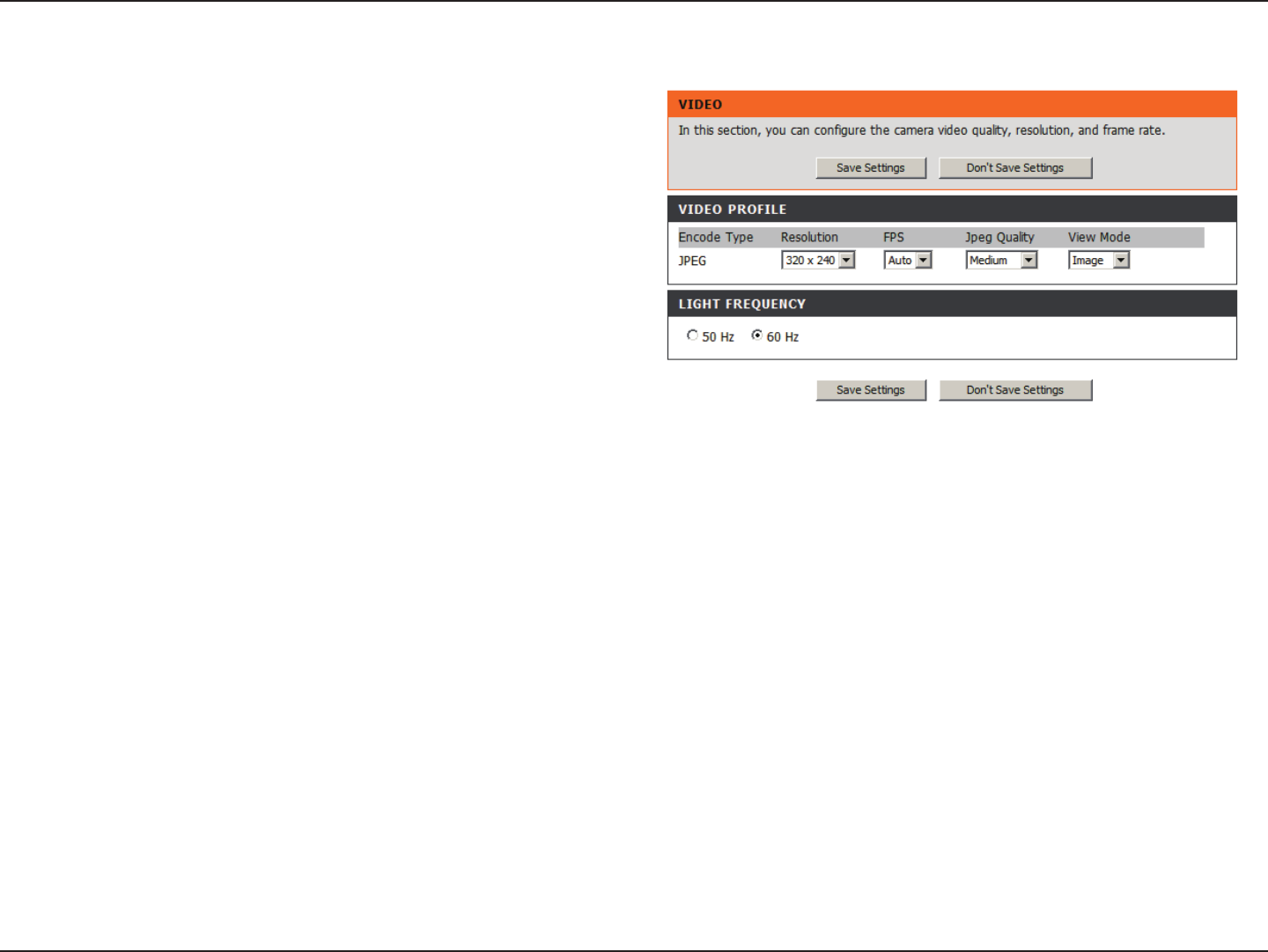

Video Conguration
This section allows you to congure the video settings for your camera.
This section allows you to change the Encode Type, Resolution, FPS, and Quality.
The compression format used when viewing your camera.
Select the desired video resolution from three formats: 640x480, 320x240, and 160x120. The higher setting can obtain better quality.
However, it will use more resource within your network.
Select the optimal setting depending on your network status. Please note that the higher setting can obtain better quality. However, it will
use more resources within your network.
Select one of ve levels of image quality: Highest, High, Medium, Low, and Lowest.
Select the mode for viewing the camera image. Select Image for a still images, ActiveX for Internet Explorer, or Java for other web browsers.
Select the proper frequency (50Hz or 60Hz) to reduce image icker.
29D-Link DCS-932L User Manual
Section 4 - Conguration

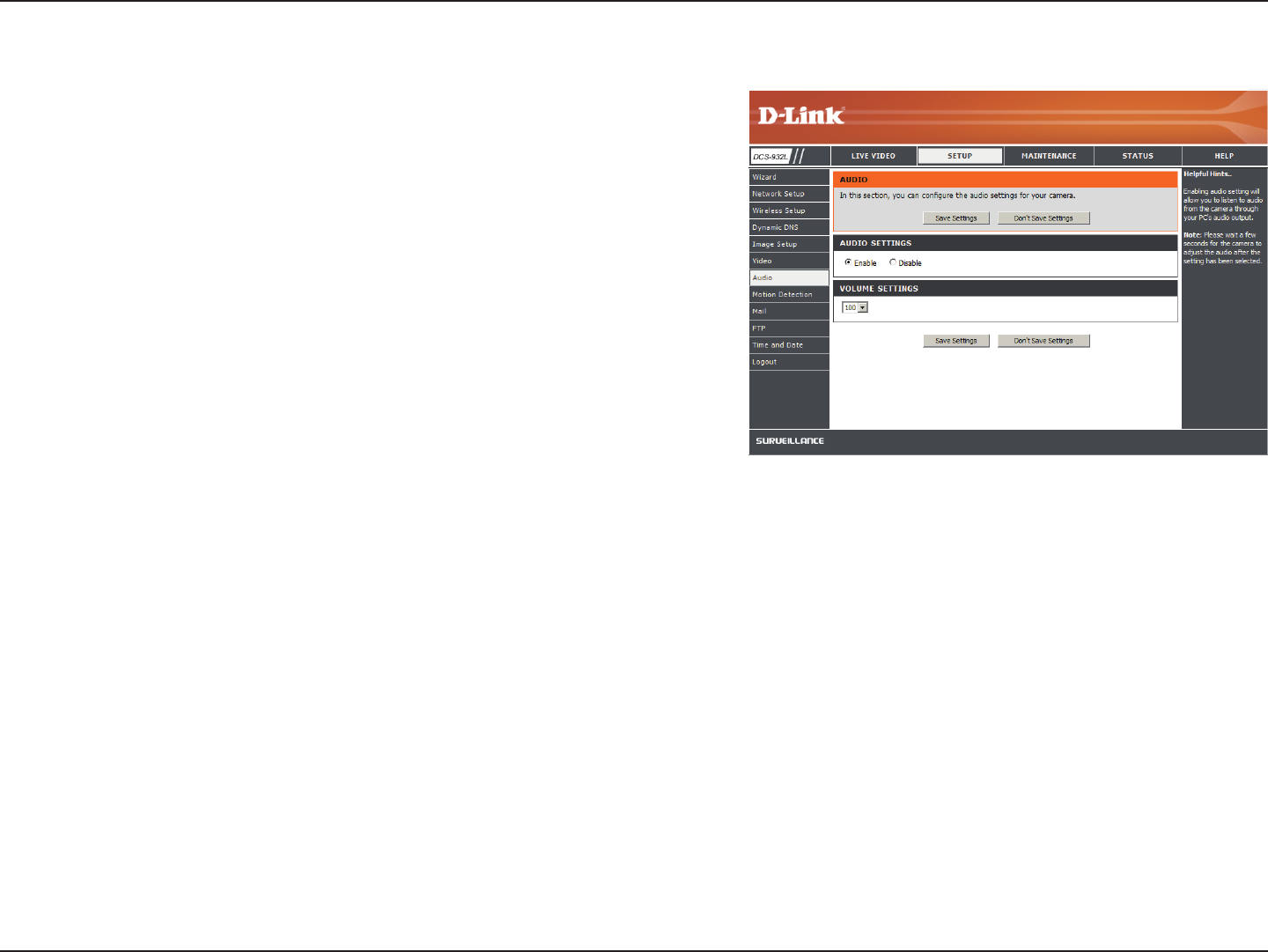

Audio
Enabling audio setting will allow you to listen to audio from the camera
through your PC’s audio output.
Note: Please wait a few seconds for the camera to adjust the audio after the
setting has been selected.
Audio Settings:
Volume Settings:
You may Enable or Disable the camera audio feed.
Select the desired volume percentage level.
30D-Link DCS-932L User Manual
Section 4 - Conguration

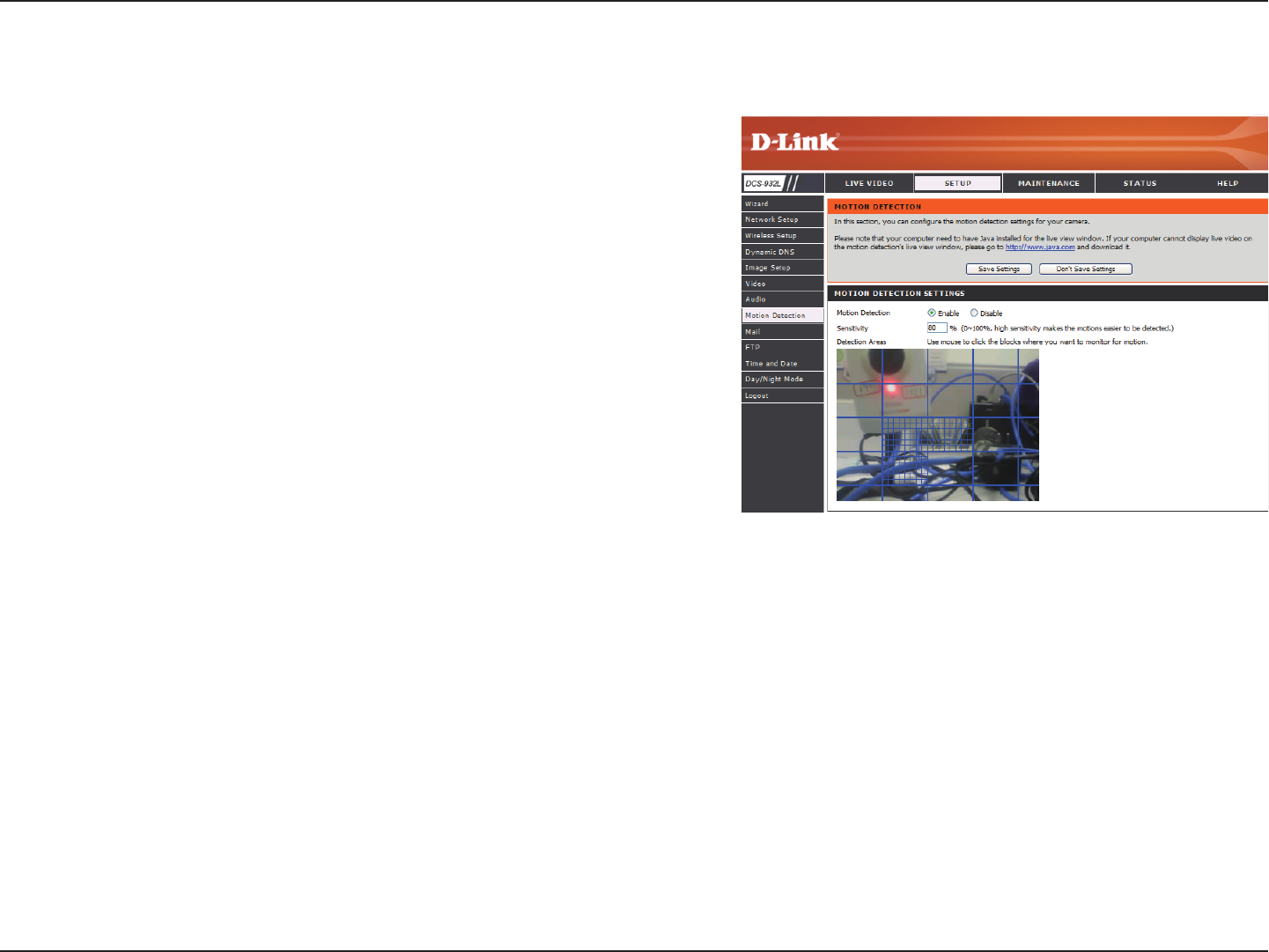

Motion Detect
Enabling Video Motion will allow your camera to use the motion detection
feature. You may draw a nite motion area that will be used for monitoring.
Motion
Detection:
Sensitivity:
Detection Areas:
Select this box to enable the motion detection feature of your
camera.
Species the measurable dierence between two sequential
images that would indicate motion. Please enter a value between
0 and 100.
Use your mouse to click on the blocks that you would like to
monitor for motion.
31D-Link DCS-932L User Manual
Section 4 - Conguration
Mail
SMTP Server Address:
Sender e-mail Address:
Receiver e-mail Address:
User Name:
Password:
This is the domain name or IP address of your external e-mail server.
This is the e-mail address of the person sending the camera snapshots.
This is the e-mail address of the recipient.
If the SMTP server uses authentication, you must enter your user
name here.
This is the password that corresponds to your user name to connect
to the SMTP server.

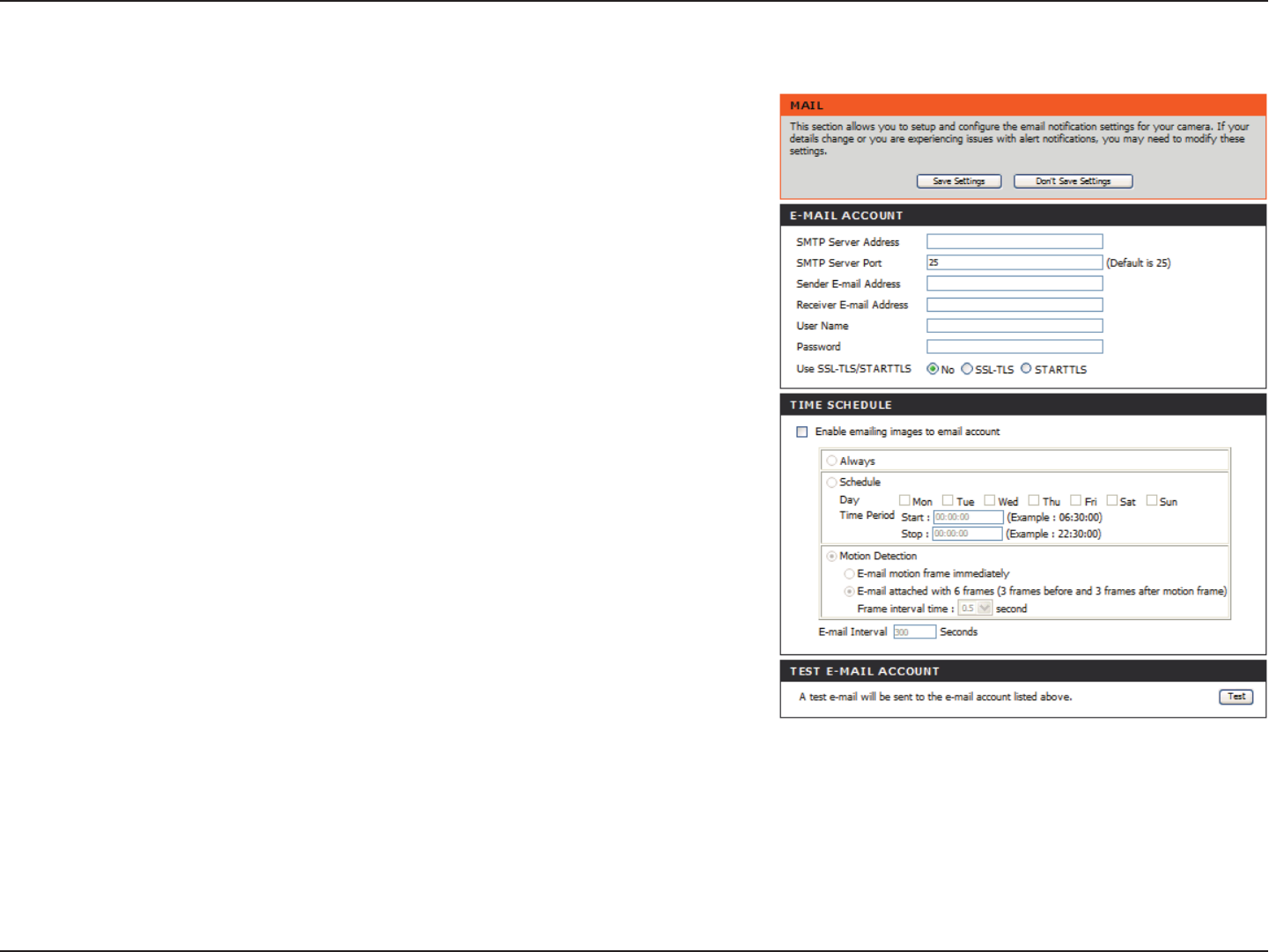

This section allows you to congure the email notication settings for your camera.
For example, if you want to use Gmail by SSL-TLS for the e-mail notication, you can follow the
setup procedure as below:
Step 1 - Enter “smtp.gmail.com” in SMTP Server Address.
Step 2 - Change the SMTP server port number from 25 to 465.
Step 3 - Enter your gmail E-mail address in Sender E-mail Address.
Step 4 - Enter the destination E-mail address in Receiver E-mail Address.
Step 5 - Enter the user name required to access the SMTP server.
Step 6 - Enter the password required to access the SMTP server.
Step 7 - Select SSL-TLS and then click Save Settings.
Step 8 - Click the Test button to send a test e-mail will be sent to the e-mail account listed above.
Note: You can also use STARTTLS which will use SMTP server port number 587.
Note: If you want to use the Yahoo SMTP server, the SMTP server address will be dierent between each registered region. And it only supports the SMTP server
port number 465 for the SSL-TLS.
32D-Link DCS-932L User Manual
Section 4 - Conguration
Time Schedule
Enable e-mail image
to e-mail account:
Interval:
Test E-mail
Account:
Choosing Always will start sending snapshots to the recipient’s e-mail account right away. Choosing Schedule will allow you to schedule
when to start and stop the sending of snapshots to the recipient’s e-mail account.
Select Motion Detection if you would like the camera to send images to the recipient’s e-mail account when the motions are detected.
The frequency of the snapshot interval can also be congured from 1 to 65535 seconds.
This will send a snapshot to the e-mail account that you have congured in the E-mail section. If you have congured the SMTP account
correctly, you will be able to send a test le to the e-mail account of the recipient.
33D-Link DCS-932L User Manual
Section 4 - Conguration
FTP
Host Address:
Port Number:
User Name:
Password:
Directory Path:
Passive Mode:
This is the IP address of the FTP server that you will be connecting to.
Default is port 21. If changed, external FTP client program must change the server
connection port accordingly.
Species the user name to access the external FTP server. If you are to upload
snapshots to an FTP server you will need to ll in the Domain name or IP address of
your external FTP server. The following user settings must be correctly congured
for remote access.
Species the password to access the external FTP server.
Species the destination folder in the external FTP server.
Enabling passive mode will allow access to an external FTP server if your camera is
behind a router protected by a rewall.

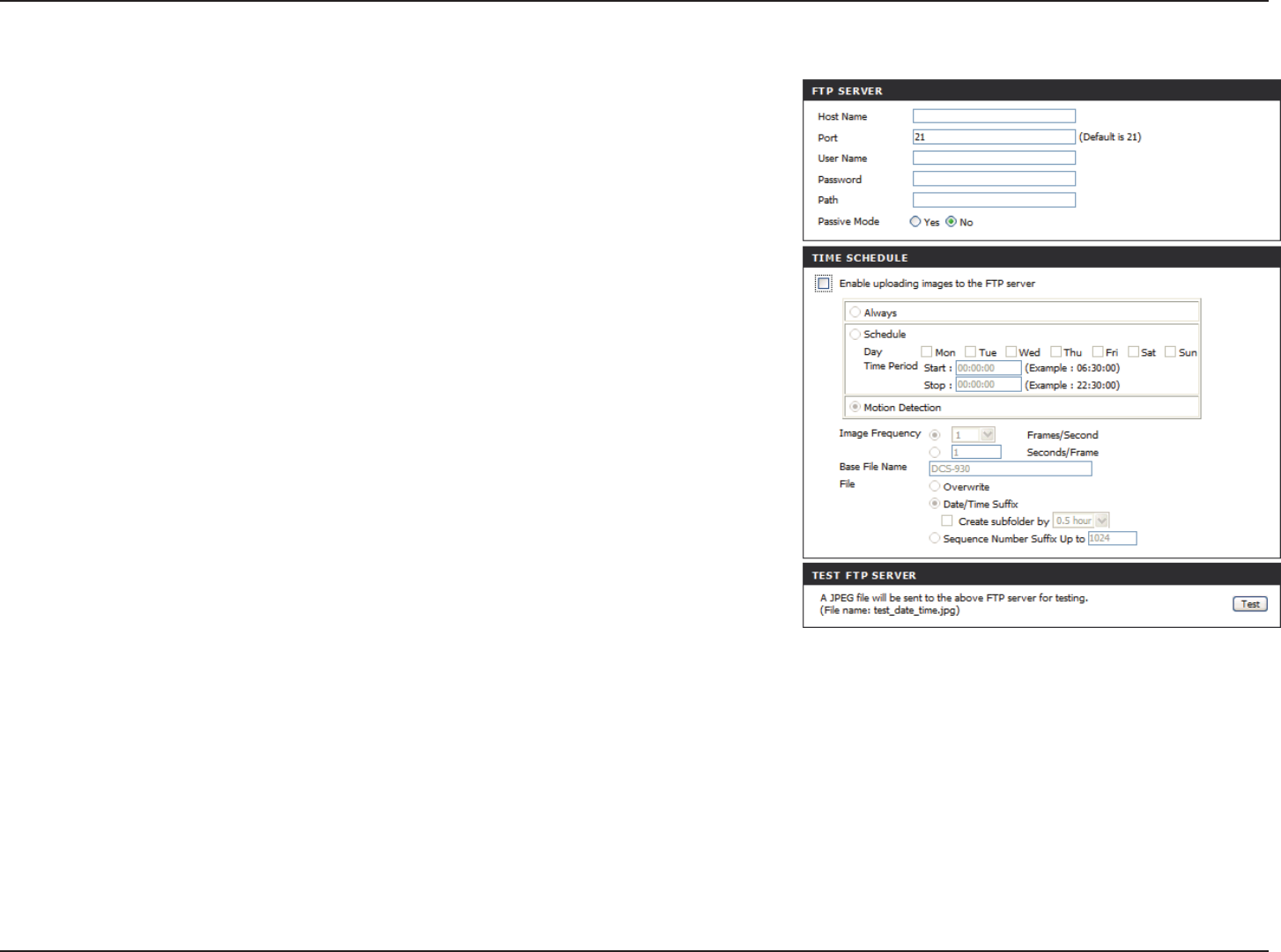

This section allows you to congure a FTP server to receive images from the camera.
34D-Link DCS-932L User Manual
Section 4 - Conguration
Time Schedule
Enable upload image to
FTP server:
Always:
Schedule:
Image Frequency:
Base File Name:
File:
Test FTP Server:
Checking this box will enable video uploads to the FTP server you have selected.
Selecting this option allows snapshots to be uploaded to your FTP as soon as you click Apply.
Selecting this option allows you to congure specic times when you want the snapshots to be uploaded to your FTP server.
Users can select in frames per second (1, 2, 3 or auto, in auto this could go to 4). The user can also select a duration for each frame
from 1 to 65535 seconds.
This will be the name that precedes the time, for example DCS9302010072116425101.jpg. This means that the camera took a
snapshot in the year 2010, July 21 at 16th hour (4 o’clock), 42 minutes and 51 seconds and it is picture number one.
Select Overwrite and there will be only one images that are constantly refreshed. Select Date/Time Sux and the pictures will be
named with a date and time (may refer to Base File Name). Enable the Create subfolder function, the system will auto create the
subfolder by 0.5 hour, 1 hour or 1 day. An example of this can be seen above under the Base le name category. Select Sequence
Number Sux up to 1024 and all the pictures will be numbered from 1-1024. The total amount of pictures can be congured up
to 1024 pictures.
This will send a snapshot to the FTP server that you have congured in the Upload section. If you have congured the FTP correctly,
you will be able to see a test le on your FTP server.
35D-Link DCS-932L User Manual
Section 4 - Conguration
Time and Date
Time Zone:
Synchronize NTP Server:
Copy your Computer’s Time
Settings:
Set the Date and Time Manually:
Select the time zone for your region from the drop
down menu.
Network Time Protocol will synchronize your
camera with an Internet time server. Choose the
one that is closest to your camera.
Click to synchronize the time information from
your PC.
Select this to set the time manually.
This section allows you to congure the settings of the internal system
clocks for your camera.
36D-Link DCS-932L User Manual
Section 4 - Conguration
Day/Night Mode

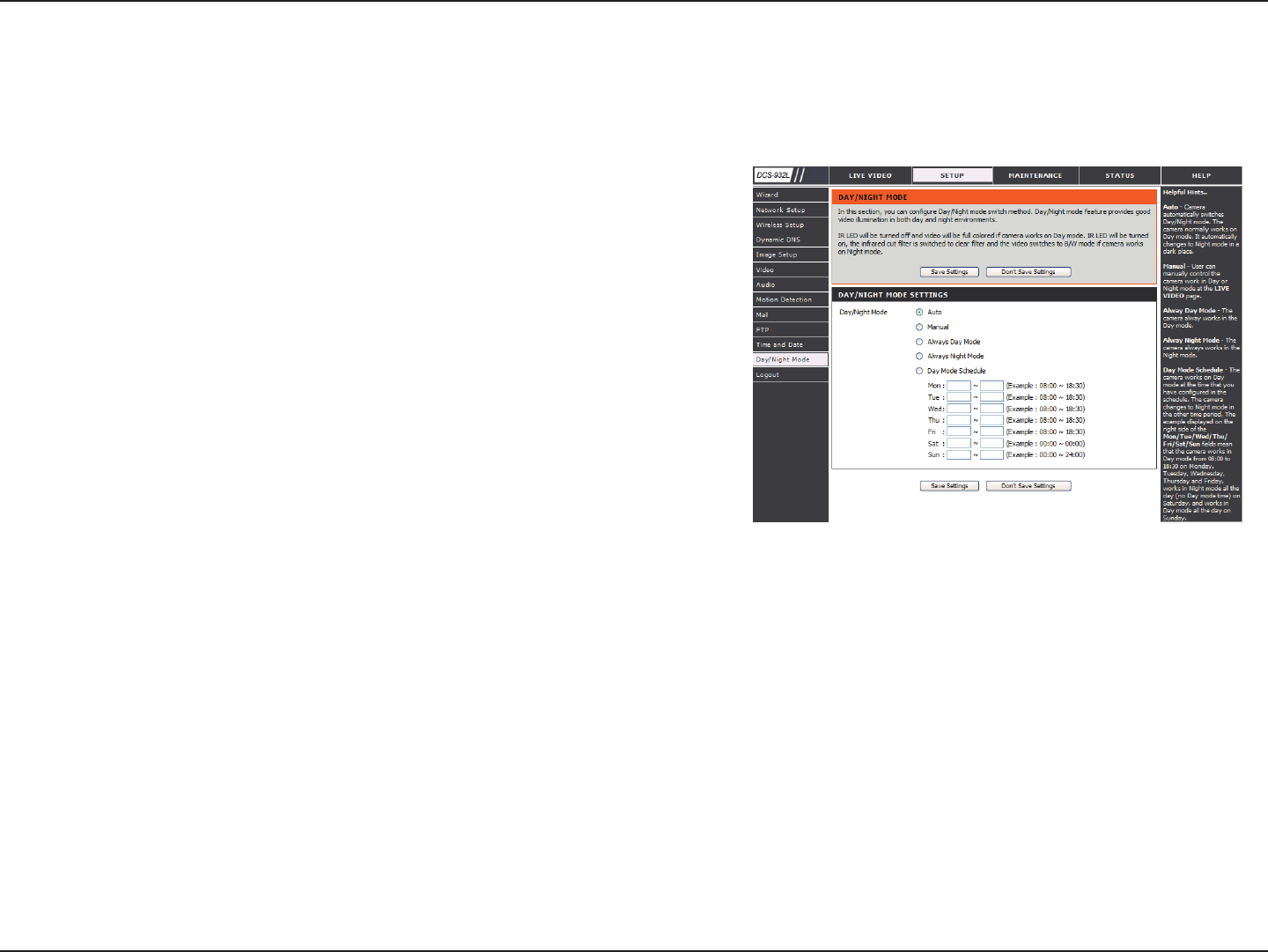

This section allows you to congure the settings of Day/Night mode switch method. Day/Night mode feature provides good video illumination in
both day and night environments.
Auto:
Manual:
Alway Day Mode:
Alway Night Mode:
Day Mode Schedule:
Camera automatically switches Day/Night mode. The camera
normally works on Day mode. It automatically changes to
Night mode in a dark place.
User can manually control the camera work in Day or Night
mode at the LIVE VIDEO page.
The camera alway works in the Day mode.
The camera always works in the Night mode.
The camera works on Day mode at the time that you have
congured in the schedule. The camera changes to Night mode
in the other time period. The example displayed on the right
side of the Mon/Tue/Wed/Thu/Fri/Sat/Sun elds mean that the
camera works in Day mode from 08:00 to 18:30 on Monday,
Tuesday, Wednesday, Thursday and Friday, works in Night mode
all the day (no Day mode time) on Saturday, and works in Day
mode all the day on Sunday.
37D-Link DCS-932L User Manual
Section 4 - Conguration
Maintenance
This section allows you to change the administrator’s password and congure the server settings for your camera. You can also manage the user
account(s) that access to your camera.
Camera Name:
LED Control:
User Access Control:
Snapshot URL
Authentication:
Add User Account:
User List:
Specity a name for your camera
Select Normal to enable the LED on the front of the
device, or select o to disable the LED.
Select Enable to enable user access control or Disable
to allow only the administrator account to access the
camera.
Select Enable to allow access to the current camera
snapshot via the web address indicated.
Create new user for accessing the video image. Enter
the user name, password, and password conrmation,
and click Add. A maximum of 8 user accounts can be
added into the user list.
Displays the account names of authorized users.
Admin
38D-Link DCS-932L User Manual
Section 4 - Conguration
System

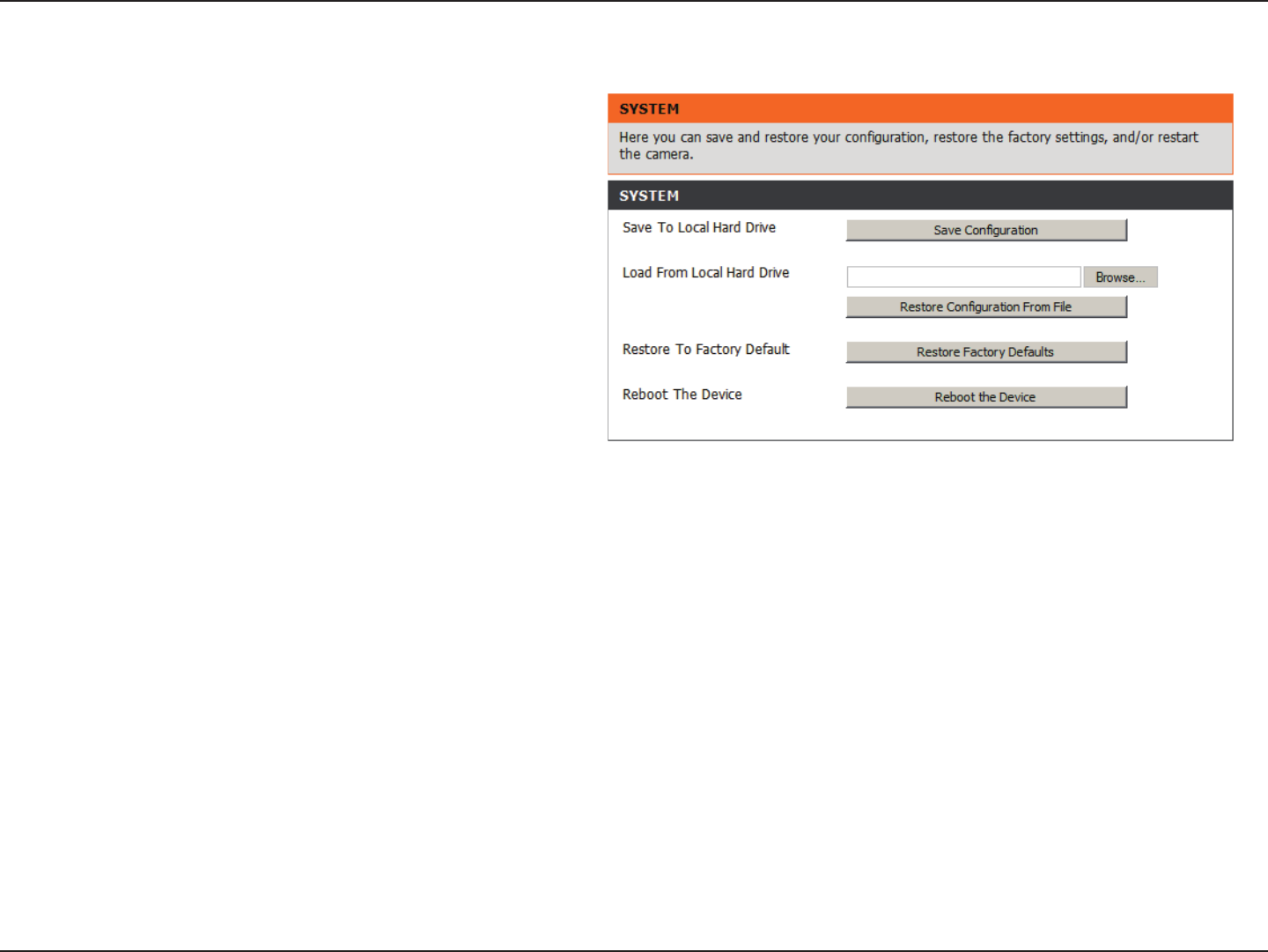

This section allows you to save and restore your conguration,
restore the factory settings, and/or restart the camera.
39D-Link DCS-932L User Manual
Section 4 - Conguration
Firmware Upgrade

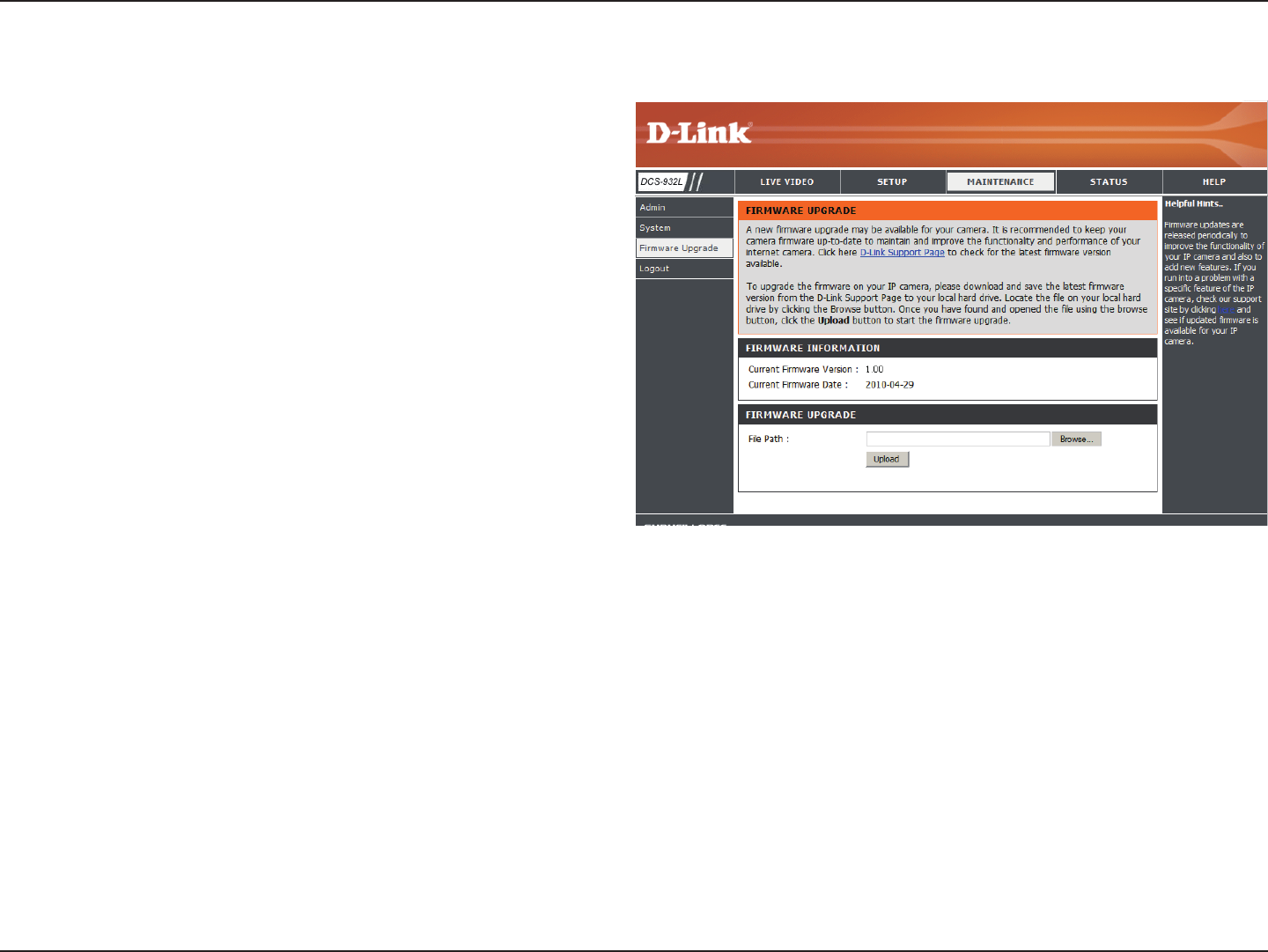

Your current rmware version and date will be displayed on your
screen. You may go to the D-Link Support Page to check for the latest
rmware versions available.
To upgrade the rmware on your DCS-932L, please download and
save the latest rmware version from the D-Link Support Page to your
local hard drive. Locate the le on your local hard drive by using the
Browse button. Then, click the “Upload” button to start the rmware
upgrade.
40D-Link DCS-932L User Manual
Section 4 - Conguration
Device Info

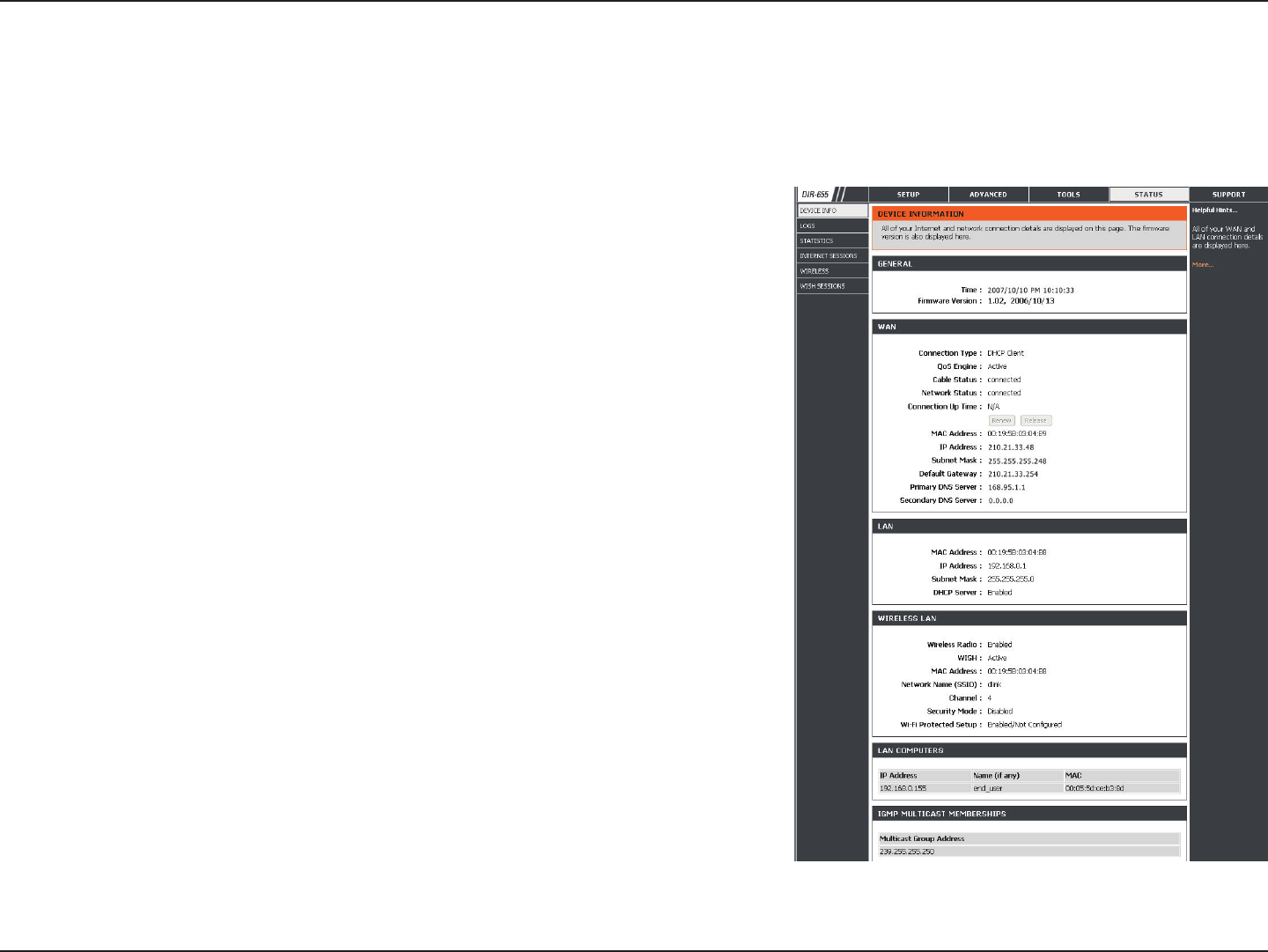

This section displays all the details information about your device
and network settings.
41D-Link DCS-932L User Manual
Section 4 - Conguration
Active User

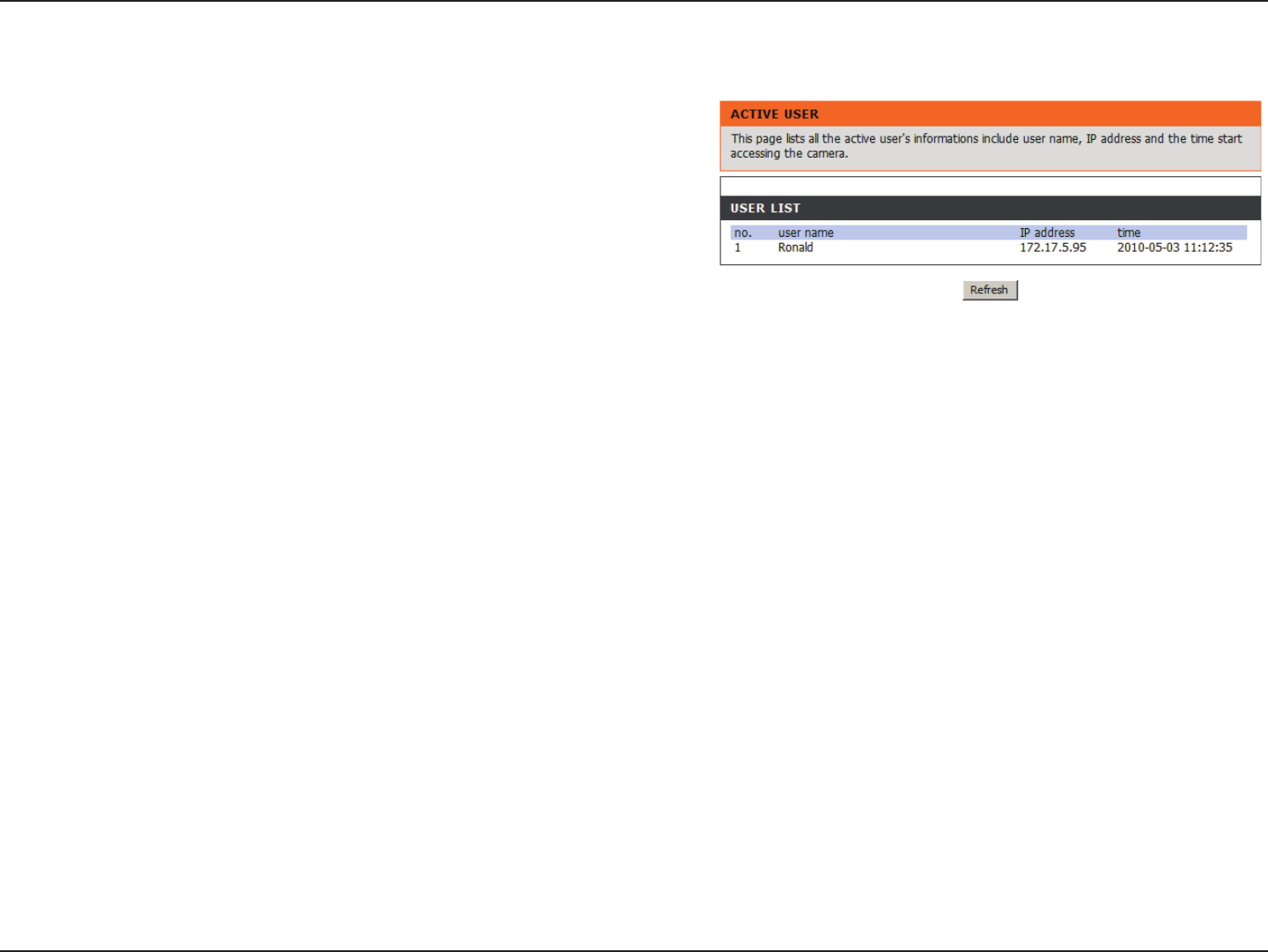

This page lists all the active user’s information including the User Name,
IP address, and the time that camera access began.
42D-Link DCS-932L User Manual
Section 5 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders.
The DCS-932L oers the following types of security:
• WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by
encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine
the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys
are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange
– alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be dened so that you can change keys easily.
43D-Link DCS-932L User Manual
Section 5 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by
adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced
Encryption Standard instead of TKIP.
User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to
a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen. EAP is
built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
44D-Link DCS-932L User Manual
Section 5 - Security
D-Link’s DCS-932L is a versatile and cost eective Network Camera oering both video and audio monitoring. It can also serve as a powerful
surveillance system in security applications. The DCS-932L can be used with any wired or 802.11n/g wireless router. This section explains how to
view the camera from either the Internet or from inside your internal network.
Components Needed:
• 1 DCS-932L Network Camera
• 1 Ethernet Cable
• A Wired or Wireless router such as the D-Link DIR-655 Wireless Router
• Ethernet based PC for system conguration
Setting up the DCS-932L for Use Behind a Router
Installing a DCS-932L Network Camera on your network is an easy 4–step procedure:
1. Assign a local IP address to your network camera.
2. View the network camera using your Internet Explorer web browser.
3. Access the router with your web browser.
4. Open virtual server ports to enable remote image viewing.
Note: These are manual steps; however, if you decide to use the wizard, it will perform every step automatically.
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video viewing. For
the basic setup of the DCS-932L, follow the steps outlined in the Quick Installation Guide.
After you have completed the setup of the DCS-932L outlined in the Quick Installation Guide you will have an operating camera that has an assigned
IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the Network Camera will be a
local IP Address. This allows viewing within your Local Area Network (LAN) until the router is congured to allow remote viewing of the camera
over the Internet.
Conguring the DCS-932L with a Router
45D-Link DCS-932L User Manual
Section 5 - Security
1. Assign a Local IP Address to Your Camera

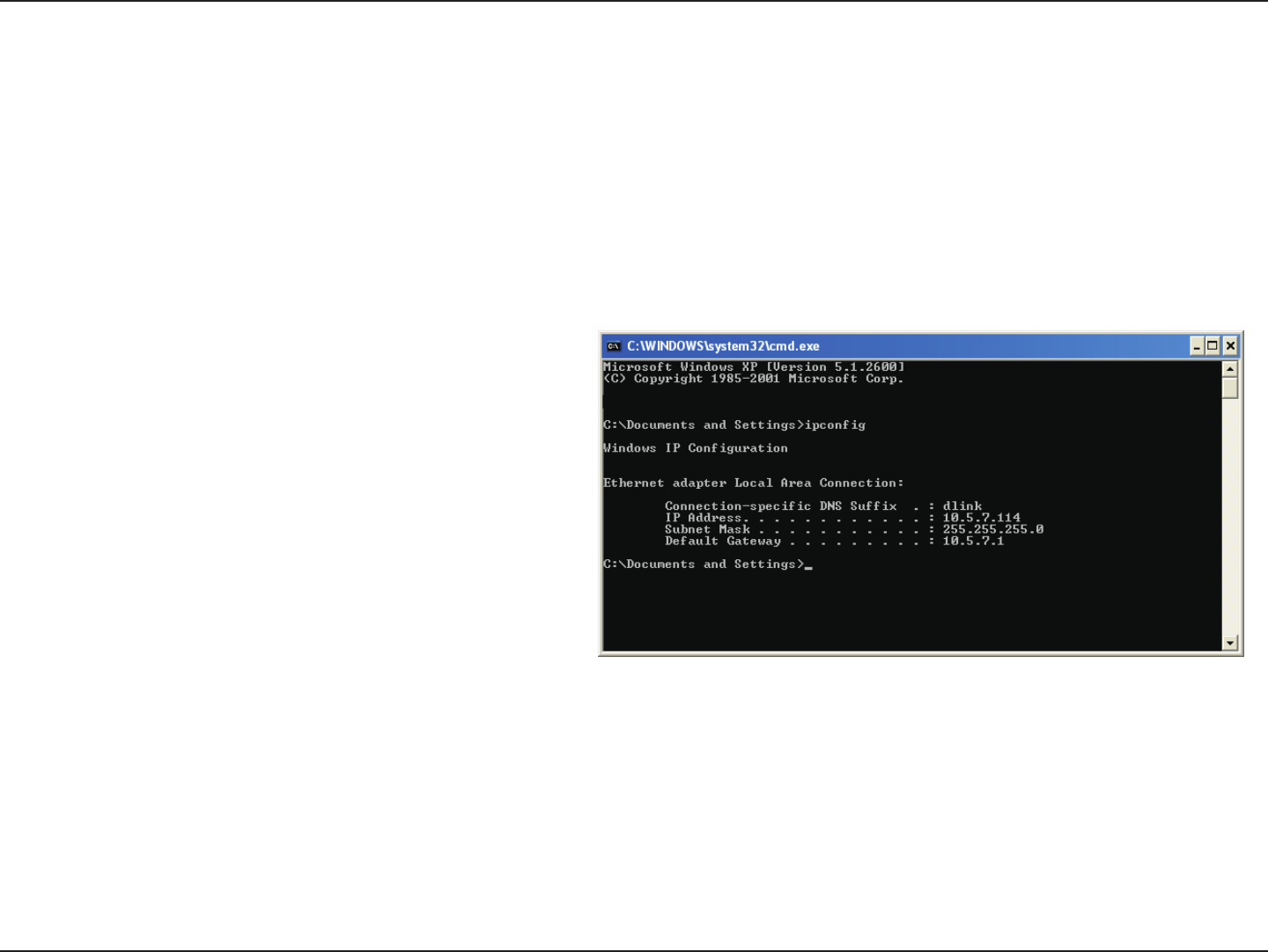

Run the setup wizard from the CD included with the DCS-932L. Follow the steps in the Quick Installation Guide to congure the DCS-932L. The
camera will be assigned a local IP Address that allows it to be recognized by the router. Write down this IP Address for future reference.
Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the Network Camera by the DCC program.
The DCS-932L Live Video Page appears with a window displaying live video from the camera. You are able to view this screen from any PC running
Internet Explorer on your LAN.
Click on the Setup button on the left side of the display. Scroll to the bottom of the Network Setup page to display the ports used by HTTP and
Streaming audio and video.
2. View the Network Camera Using Your Internet Explorer Web Browser
46D-Link DCS-932L User Manual
Section 5 - Security
The Setup > Network Setup page displays the port settings for your camera. If necessary, these ports can be changed if they are already in use by
other devices (e.g. in a multiple camera environment).
Note: Both the HTTP port and RTSP port are required to be opened for the DCS-932L.
47D-Link DCS-932L User Manual
Section 5 - Security
The following steps generally apply to any router that you have on your network. The D-Link DIR-655 is used as an example to clarify the conguration
process. Congure the initial settings of the DIR-655 by following the steps outlined in the DIR-655 Quick Installation Guide.
3. Access the Router with Your Web Browser
If you have cable or DSL Internet service, you will most likely have a dynamically assigned
WAN IP Address. ‘Dynamic’ means that your router’s WAN IP address can change from
time to time depending on your ISP. A dynamic WAN IP Address identies your router
on the public network and allows it to access the Internet. To nd out what your
router’s WAN IP Address is, go to the Status menu on your router and locate the WAN
information for your router (as shown on the next page). The WAN IP Address will be
listed. This will be the address that you will need to type in your Web browser to view
your camera over the Internet.
Router Set-Up and Installation
Your WAN IP Address will be listed on the router’s
Status > Device Info page.
48D-Link DCS-932L User Manual
Section 5 - Security
Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A
Static IP address is a xed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote
location. The Static IP Address will also allow you to access your camera attached to your router over the Internet.

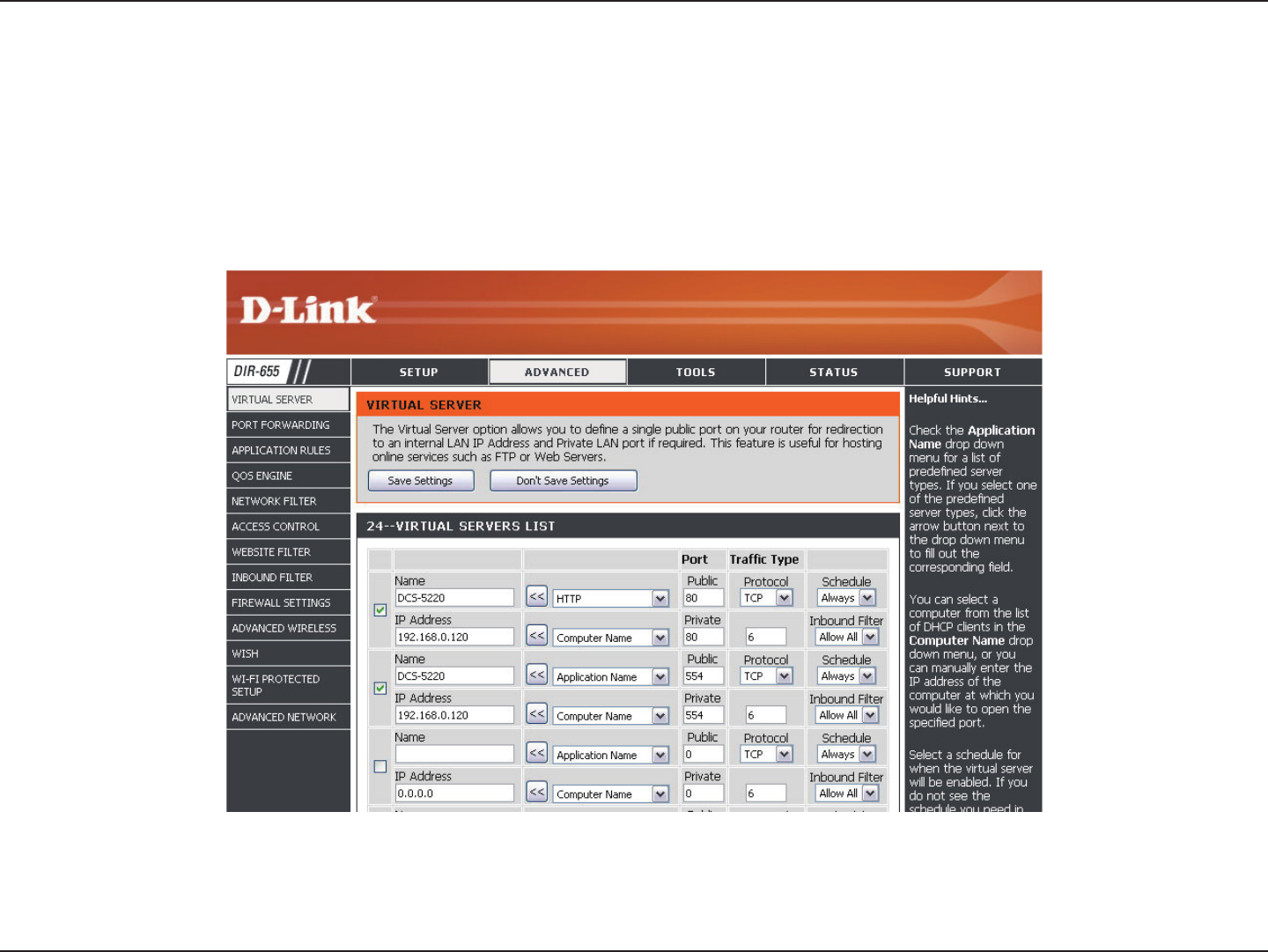

4. Open Virtual Server Ports to Enable Remote Image Viewing
The rewall security features built into the DIR-655 router prevent users from accessing the video from the DCS-932L over the Internet. The router
connects to the Internet over a series of numbered ports. The ports normally used by the DCS-932L are blocked from access over the Internet.
Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the DIR-655 router.
The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by
clicking on the Advanced tab of the router screen.
1. Click Enabled.
2. Enter a dierent name for each entry.
3. Enter your camera’s local IP Address (e.g., 192.168.0.120) in the Private IP eld.
4. Select TCP for HTTP port, both (TCP and UDP) for RTSP and both (TCP and UDP) for 5556 - 5559 ports.
5. If you are using the default camera port settings, enter 80 into the Public and Private Port section, click Apply.
6. Scheduling should be set to Always so that the camera images can be accessed at any time.
Follow these steps to congure your router’s Virtual Server settings:
49D-Link DCS-932L User Manual
Section 5 - Security
Repeat the above steps adding the port 554 to both the Public and Private Port sections. A check mark appearing before the entry name will
indicate that the ports are enabled.
Important: Some ISPs block access to port 80 and other commonly used Internet ports to conserve bandwidth. Check with your ISP so that you can
open the appropriate ports accordingly. If your ISP does not pass trac on port 80, you will need to change the port the camera uses from 80 to
something else, such as 800. Not all routers are the same, so refer to your user manual for specic instructions on how to open ports.
Enter valid ports in the Virtual Server section of your router. Please make sure to check the box next to the camera name on the Virtual Server List
to enable your settings.
50D-Link DCS-932L User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DCS-932L.
Read the following descriptions if you are having problems. (The examples below are illustrated in Windows Vista® and XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.)
1. What is Remote Access? How do I enable it?
Remote Access allows you to access your camera from any PC connected to the Internet through a web browser. This lets you view your camera
feed and manage your camera’s settings when you’re away from home.
To enable Remote Access, simply go through the Camera Installation Wizard included on the Installation CD that came in your package. You can
also download the wizard from the following websites:
DCS-932L: http://DCS-932L.mydlink.com
After going through the wizard, you should see Remote Status: Enabled on the summary page.
If you see Remote Status: Disabled, make sure that:
...the front LED on your camera is lit solid green
...your Internet connection is working
...your router’s LAN & WAN connections are working properly
...your router has UPnP enabled (if your router does not support UPnP, please refer to Appendix A)
...your router can get a public IP
...your router is upgraded to the latest rmware
...you have tried rebooting your router by unplugging it, then plugging it back in
After checking the above items, you can click the Retry button to refresh the summary screen to see if Remote Access has been enabled.
2. What can I do if I forget my password?
If you forget your password, you will need to perform a hard reset of your camera. This process will change all your settings back to the factory
defaults.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 3 seconds while your camera is plugged in.
3. In addition to using mydlink.com, is there another way to access my camera remotely over the Internet?
51D-Link DCS-932L User Manual
Section 6 - Troubleshooting
Yes, you can access your camera over the Internet through the following URL after successfully installing your camera through the Camera Installation
Wizard:
http://[mydlink No.].mydlink.com
For example, if your camera’s mydlink No. was 12345678, you would be able to access your camera remotely by opening your web browser and
going to http://12345678.mydlink.com
This URL will open a webpage where you will be asked to log in by entering your camera’s password. After entering your password, your camera’s
Live View window will open, and you will be able to congure your camera as well.
4. Why does the LED not light up?
The power supply might be faulty. Conrm that you are using the provided DC 5V power supply for this network camera. Verify that the power
supply is correctly connected. If the camera is functioning normally, the LED may have been disabled. See page 36 for information about how to
enable the LED.
5. Why is the camera’s network connection unreliable?
There might be a problem with the network cable. To conrm that the cables are working, PING the address of a known device on the network. If
the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly.
Please conrm the power for the devices are well connected and functioning properly.
6. Why does the Network Camera work locally but not remotely?
This might be caused by the rewall protection. Check the Internet rewall with your system administrator. The rewall may need to have some
settings changed in order for the Network Camera to be accessible outside your local LAN. For more information, please refer to the section about
installing your camera behind a router.
Make sure that the Network Camera isn’t conicting with any Web server you may have running on your network.
The default router setting might be a possible reason. Check that the conguration of the router settings allow the Network Camera to be accessed
outside your local LAN.
52D-Link DCS-932L User Manual
Section 6 - Troubleshooting
7. Why does a series of broad vertical white lines appear through out the image?
It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital format so
your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to bright lights such
as direct exposure to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately as prolonged exposure to
bright lights will damage the CMOS sensor.
8. The camera is producing noisy images. How can I solve the problem?
The video images might be noisy if the Network Camera is used in a very low light environment.
9. The images are poor quality, how can I improve the image quality?
Make sure that your computer’s display properties are set to at least 6-bit color. Using 16 or 256 colors on your computer will produce dithering
artifacts in the image, making the image look as if it is of poor quality.
The conguration on the Network Camera image display is incorrect. The Web Conguration Video section of the Web management allows you to
adjust the related-parameters for improved images such as: brightness, contrast, hue and light frequency. Please refer to the Web Conguration
section for detailed information.
10. Why are no images available through the Web browser?
ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu.
You may also need to change the security settings on your browser to allow the ActiveX plug-in to be installed.
If you are using Internet Explorer with a version number lower than 6, then you will need to upgrade your Web browser software in order to view
the streaming video transmitted by the Network Camera.
53D-Link DCS-932L User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless* connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other
xed infrastructure have proven to be benecial for many users.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
Wireless Basics
54D-Link DCS-932L User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or WiFi technology is another way of connecting your computer to the network without using wires. WiFi uses radio frequency
to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the
performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able to
connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal
Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the
picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
55D-Link DCS-932L User Manual
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business, D-Link has a
wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the Web, check email, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
56D-Link DCS-932L User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming so popular that
more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels,
Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s why we’ve put
together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access
point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater
to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as away as possible from the router/access point. This would
signicantly reduce any interfere that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP
security feature on the router. Refer to product manual for detail information on how to set it up.
57D-Link DCS-932L User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two
or more DCS-932L wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
Wireless Modes
58D-Link DCS-932L User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some rewall software
programs may block a DHCP request on newly installed adapters.
If you are connecting to a wireless network at a hotspot (e.g.
hotel, coee shop, airport), please contact an employee or
administrator to verify their wireless network settings.
59D-Link DCS-932L User Manual
Appendix B - Networking Basics
Statically Assign an IP Address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows XP - Click on Start > Control Panel > Network Connections.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or
the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number
between 2 and 99. Make sure that the number you choose is not in use on the network. Set Default Gateway
the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
60D-Link DCS-932L User Manual
Appendix C - Technical Specications
Technical Specications
SYSTEM REQUIREMENTS
• Operating System: Microsoft Windows XP, Vista, Windows 7
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4
NETWORKING PROTOCOL
• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (Dyndns and D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP Port Forwarding
BUILTIN NETWORK INTERFACE
• 10/100BASE-TX Fast Ethernet
• 802.11b/g/n WLAN
WIRELESS CONNECTIVITY
• 802.11b/g/n Wireless with WEP/WPA/WPA2 security
WIRELESS TRANSMIT OUTPUT POWER
• 16 dbm for 11b, 12 dbm for 11g,
12 dbm for 11n (typical)
SDRAM
• 32 MB
FLASH MEMORY
• 4 MB
RESET BUTTON
• Reset to factory default
VIDEO CODECS
• MJPEG
• JPEG for still images
VIDEO FEATURES
• Adjustable image size and quality
• Time stamp and text overlay
• Flip and Mirror
RESOLUTION
• 640 x 480 at up to 20 fps
• 320 x 240 at up to 30 fps
• 160 x 120 at up to 30 fps
LENS
• Focal length: 5.01 mm, F2.8
SENSOR
• VGA 1/5 inch CMOS Sensor
MINIMUM ILLUMINATION
• 1 lux @ F2.8
VIEW ANGLE
• Horizontal: 45.3°
• Vertical: 34.5°
• Diagonal: 54.9°
61D-Link DCS-932L User Manual
Appendix C - Technical Specications
DIGITAL ZOOM
• Up to 4x
3A CONTROL
• AGC (Auto Gain Control)
• AWB (Auto White Balance)
• AES (Auto Electronic Shutter)
POWER
• Input: 100-240 V AC, 50/60 Hz
• Output: 5 V DC, 1.2 A
• External AC-to-DC switching power adapter
DIMENSIONS W X D X H
• Including the bracket and stand:
65.8 x 65 x 126 mm
• Camera only:
27.2 x 60 x 96 mm
WEIGHT
• 76.9 g (without bracket and stand)
MAX POWER CONSUMPTION
• 2 W
OPERATION TEMPERATURE
• 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
STORAGE TEMPERATURE
• -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)
HUMIDITY
• 20-80% RH non-condensing
EMISSION EMI, SAFETY & OTHER CERTIFICATIONS
• FCC Class B
• IC
• C-Tick
• CE
62D-Link DCS-932L User Manual
Appendix C - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DCS-932L)
• Hardware Revision (located on the label on the bottom of the Network Camera (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the Network Camera).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and
answers to technical issues.
For customers within the United States:
Phone Support:
(877) 453-5465
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 361-5265
Internet Support:
http://support.dlink.ca
63D-Link DCS-932L User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
64D-Link DCS-932L User Manual
Appendix E - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty
will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s
functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as
otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions
of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is
subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion
that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any
warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim (USA):
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and
the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow DLink to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-354-6555, who will attempt to assist the
customer in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain
a Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at
https://rma.dlink.com/.
65D-Link DCS-932L User Manual
Appendix B - Technical Specications
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. DLink will only replace the defective portion of the product
and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
Submitting A Claim (Canada):
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and
the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• Customers need to provide their receipt (proof of purchase) even if the product is registered. Without a receipt, no warranty service will
be done. The registration is not considered a proof of purchase.
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance
in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a copy of the dated purchase
invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-800-361-5265, who will attempt to assist the customer
in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a Return Material
Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://rma.dlink.ca/.
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package to
ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package. Do not
include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product and will not ship
back any accessories.
66D-Link DCS-932L User Manual
Appendix B - Technical Specications
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD will
be rejected by D-Link. Products shall be fully insured by the customer and shipped to D-Link Networks, Inc., 2525 Meadowvale Boulevard
Mississauga, Ontario, L5N 5S2 Canada. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired
or replaced packages will be shipped to the customer via Purolator Canada or any common carrier selected by D-Link. Return shipping
charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited
shipping is available upon request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product
that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from
the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by D-Link not to be defective or
non-conforming.
• RMA phone number: 1-800-361-5265 Hours of Operation: Monday-Friday, 9:00AM – 9:00PM EST
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act
of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other products or services provided by anyone
other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link
Service Oce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
67D-Link DCS-932L User Manual
Appendix B - Technical Specications
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
68D-Link DCS-932L User Manual
Appendix E - Warranty
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory
to match the intended destination. The rmware setting is not accessible by the end user.
.
69D-Link DCS-932L User Manual
Appendix E - Warranty
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link
oce.
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator and your body.
This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The required antenna impedance is 50 ohms.
Appendix E - Registration
70
D-Link DCS-932L User Manual
Version 1.0
November 04, 2010
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Registration
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance."
Canada Notices
Industry Canada regulatory information
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
The user is cautioned that this device should be used only as specified within this
manual to meet RF exposure requirements. Use of this device in a manner
inconsistent with this manual could lead to excessive RF exposure conditions.
