User Manual

D-Link

DIR-410

M2M 3G VPN Router

User Manual

The contents of this publication may not be reproduced in any part or as a whole, stored,

transcribed in an information retrieval system, translated into any language, or transmitted in any

form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or

otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered trademarks of their respective

companies. They are used for identification purpose only. Specifications are subject to be changed

without prior notice.

FCC Interference Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of

other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction with any other

antenna or transmitter.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN

55022/A1 Class B.

TABLE OF CONTENTS

COPYRIGHT ......................................................................................................................... 2

FCC INTERFERENCE STATEMENT ................................................................................... 2

CHAPTER 1. INTRODUCTION ............................................................................................ 4

1.1 PACKAGE LIST .............................................................................................................. 4

1.2 HARDWARE INSTALLATION ....................................................................................... 4

CHAPTER 2. GETTING STARTED ...................................................................................... 8

2.1 EASY SETUP BY WINDOWS UTILITY .......................................................................... 8

2.2 EASY SETUP BY CONFIGURING WEB PAGES ........................................................ 16

CHAPTER 3. MAKING CONFIGURATION ........................................................................ 21

3.1 BASIC SETTING ........................................................................................................... 21

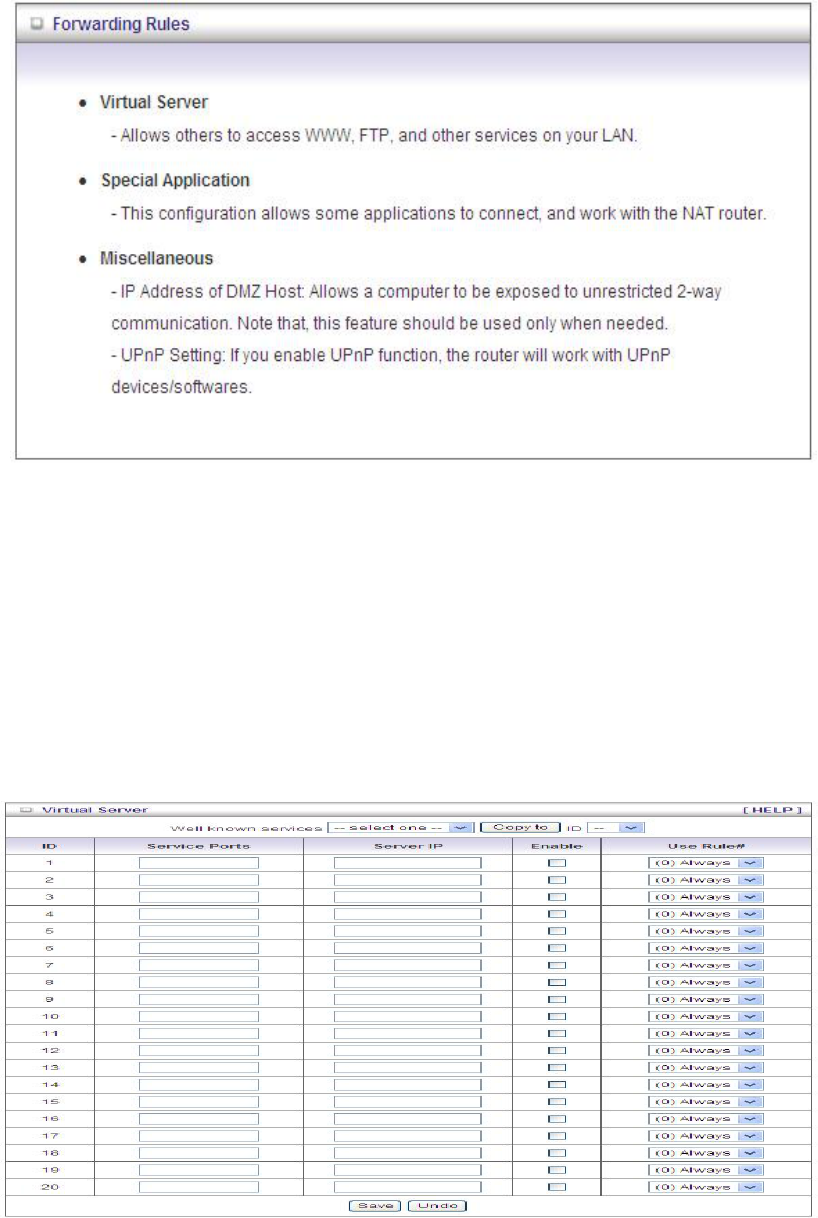

3.2 FORWARDING RULES ................................................................................................ 40

3.3 SECURITY SETTING .................................................................................................... 43

3.4 ADVANCED SETTING ................................................................................................. 59

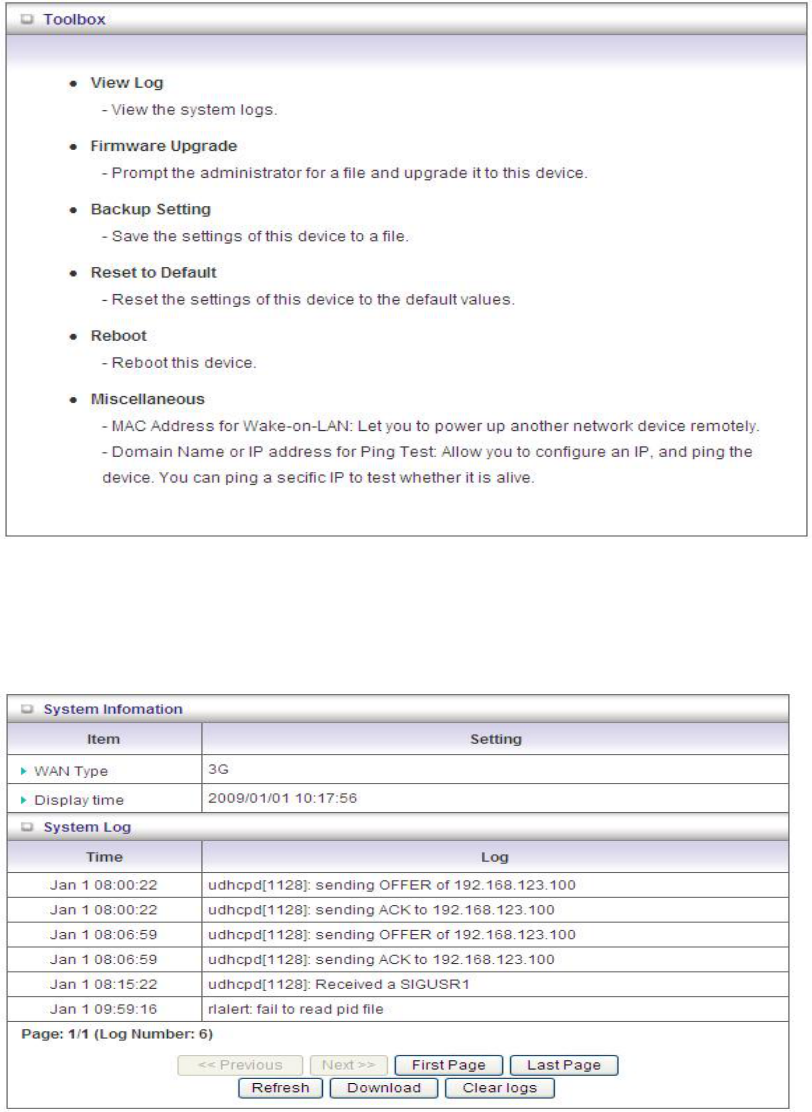

3.5 TOOL BOX .................................................................................................................... 66

CHAPTER 4. TROUBLESHOOTING ................................................................................. 70

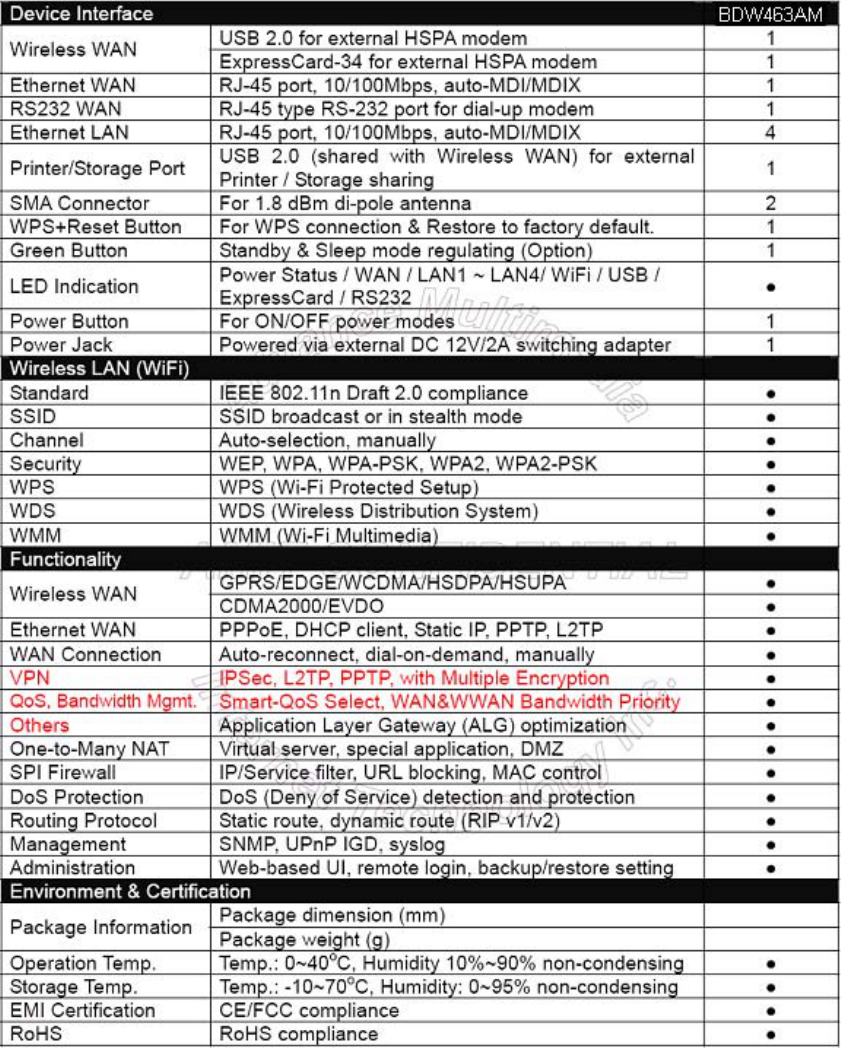

APPENDIX A. SPEC SUMMARY TABLE .......................................................................... 74

APPENDIX B. LICENSING INFORMATION ...................................................................... 75

CHAPTER 1. Introduction

Congratulations on your purchase of this outstanding product: DIR-410 M2M 3G VPN Router. This

product is specifically designed for Office needs. It provides a complete solution for Internet surfing,

3G backup, and VPN tunneling. Instructions for installing and configuring this product can be

found in this manual. Before you install and use this product, please read this manual carefully for

fully exploiting the functions of this product.

1.1 Package List

Items Description Contents Quantity

1 M2M 3G VPN Router 1

Power adapter 12V 2A

1.2 Hardware Installation

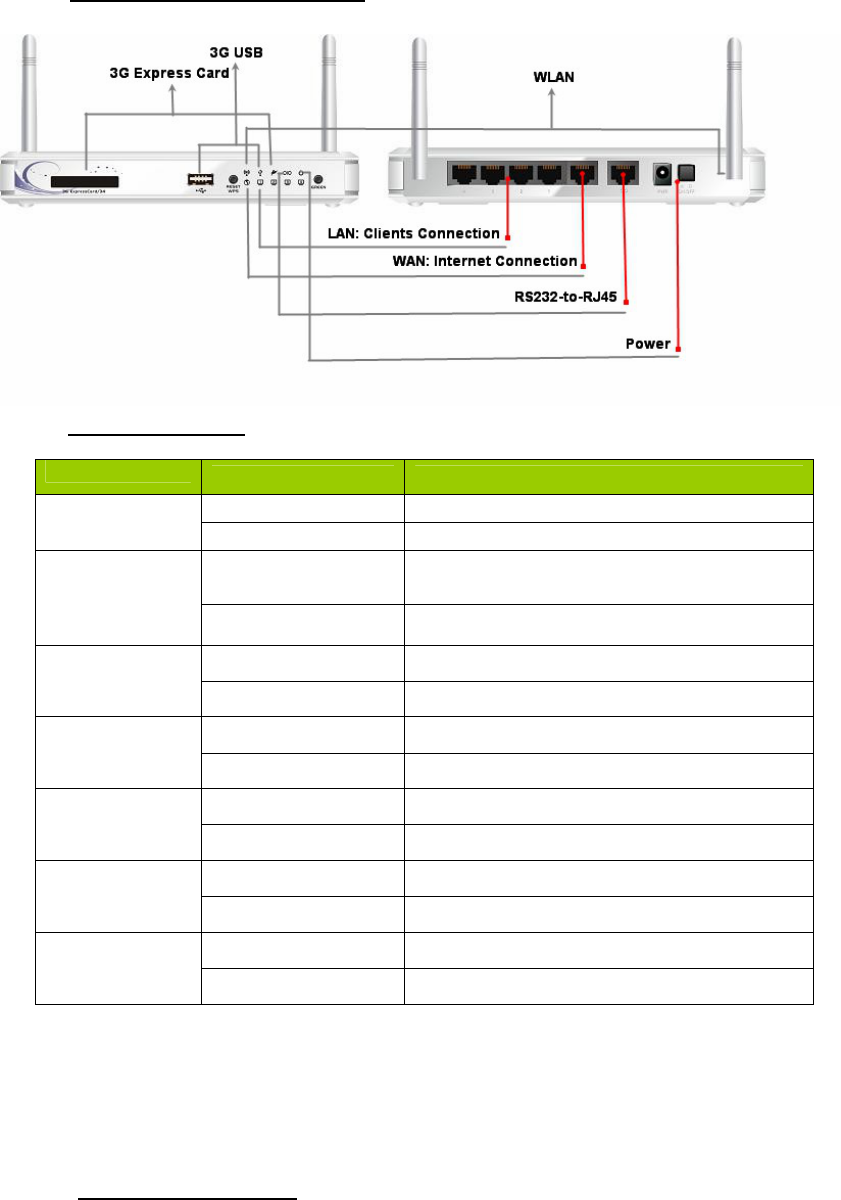

1.2.1 Hardware configuration

1.2.2 LED indicators

LED color Description

WAN Green It is connected to Internet.

Green in flash Data access

LAN Green RJ45 cable is plugged, and Ethernet

connection is established.

Green in flash Data access

WLAN Green WiFi is on.

Green in flash Data access

3G USB Amber 3G/3.5G is on.

Amber in flash Data access

3G Express

Card Amber Connection established

Amber in flash Data access

RS232 Amber Serial port connection established

Amber in flash Data access

Power Green in flash Normal mode (The power is on.)

Green in fast flash Reset mode

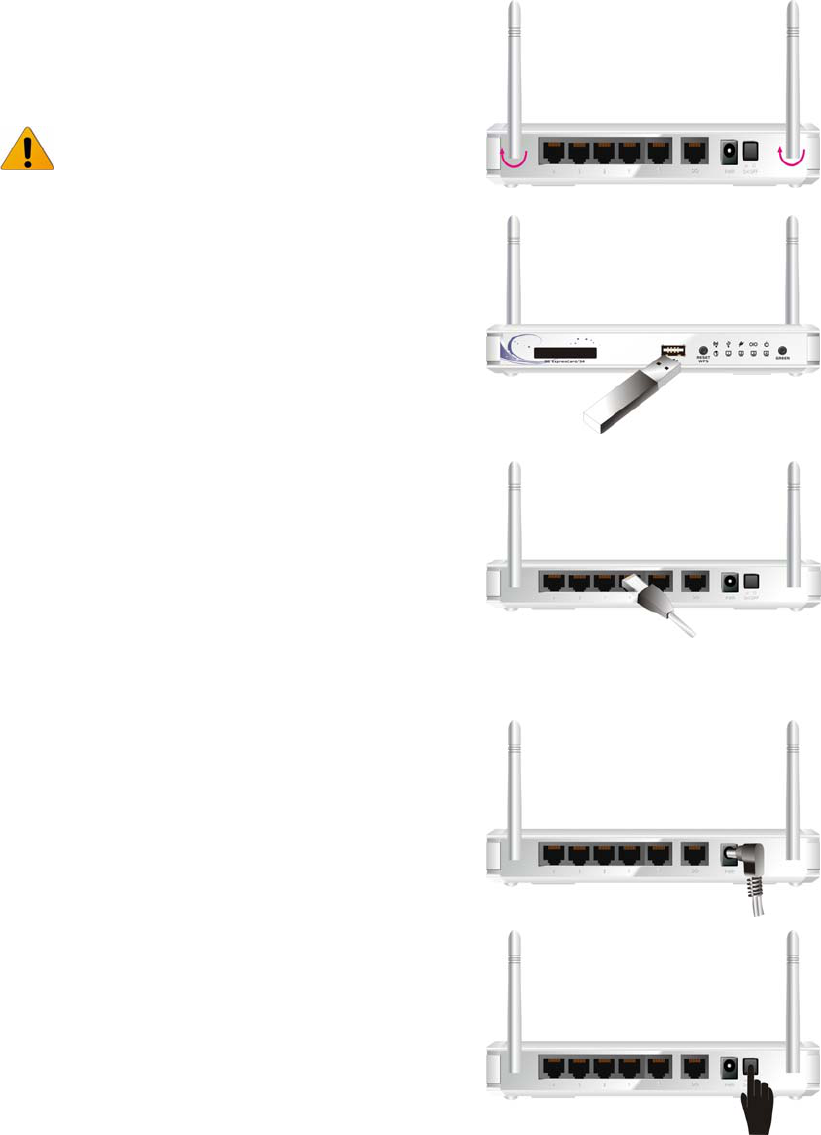

1.2.3 Installation Steps

Step 1. Attach the antenna:

Screw the antenna in a clockwise direction to the back

panel of the unit.

DO NOT connect M2M 3G VPN Router to

power before performing the installation

steps below.

Step 2. Insert the 3G USB to the router:

Plug your USB modem which is with activated SIM

card provided by your 3G service provider.

to the USB interface.

Step 3. Connect with the Ethernet patch cable:

Insert the Ethernet cable into RJ45 Ethernet Port on

the back panel. And then plug the other end of RJ45

into the computer or Laptop computer. The LED of

Internet connection will show green color if the

Ethernet connection is normally connected.

Step 4. Connect the power adapter:

Plug the other end of the power adapter into a wall

outlet.

Step 5. Press the power button

Step 6. Start to configure the device:

You can start to configure the device via the Easy

Setup.

(see Easy Setup Utility)

CHAPTER 2. Getting Started

2.1 Eas

Setup b

Windows Utilit

Step 1:

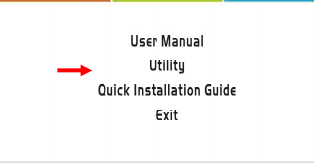

Install the Easy Setup

Utility from CD then

follow the steps to

configure it.

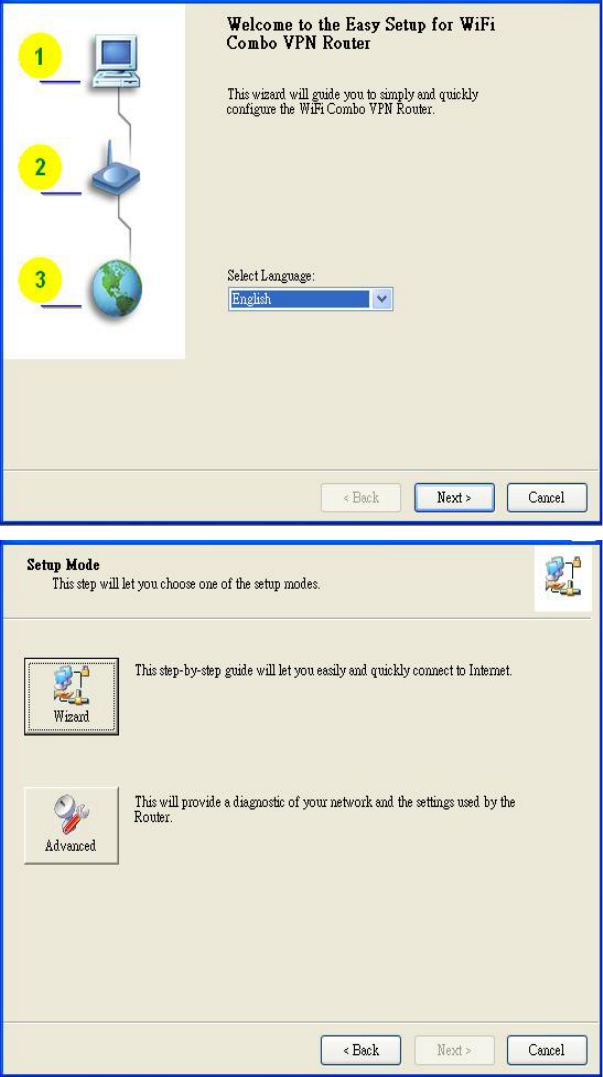

Step 2:

Select Language then

click “Next” to continue.

Step 3:

Then click the “Wizard”

to continue.

Or click “advanced” to

run advanced mode for

more detailed setting.

(See User Manual)

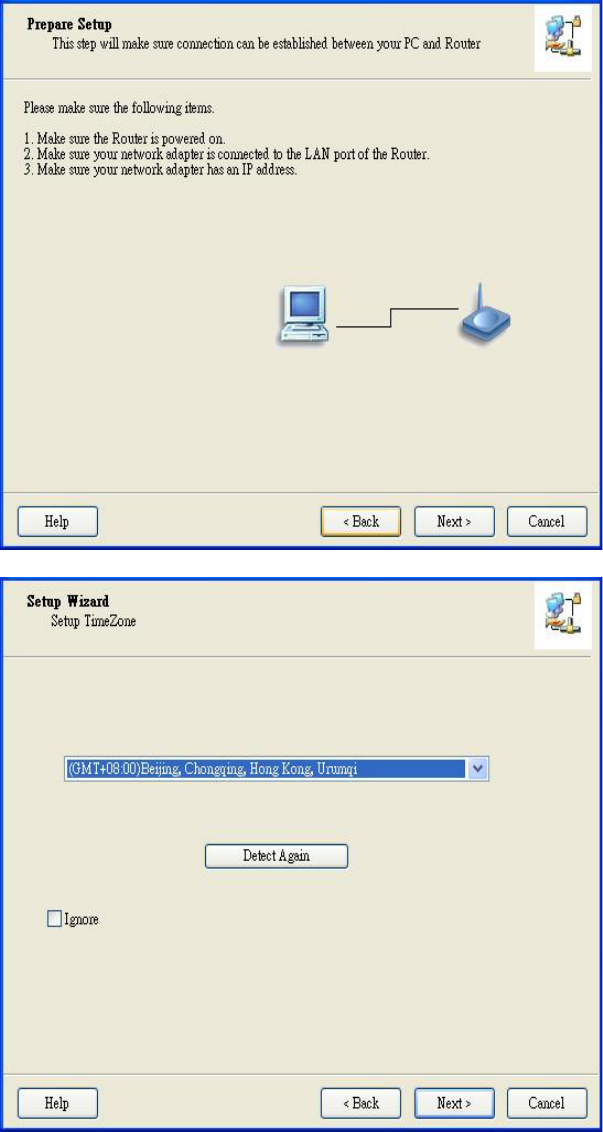

Step 4:

Click “Next” to continue.

Step 5:

Select time zone. It can

help us to synchronize

the system time with

network time server.

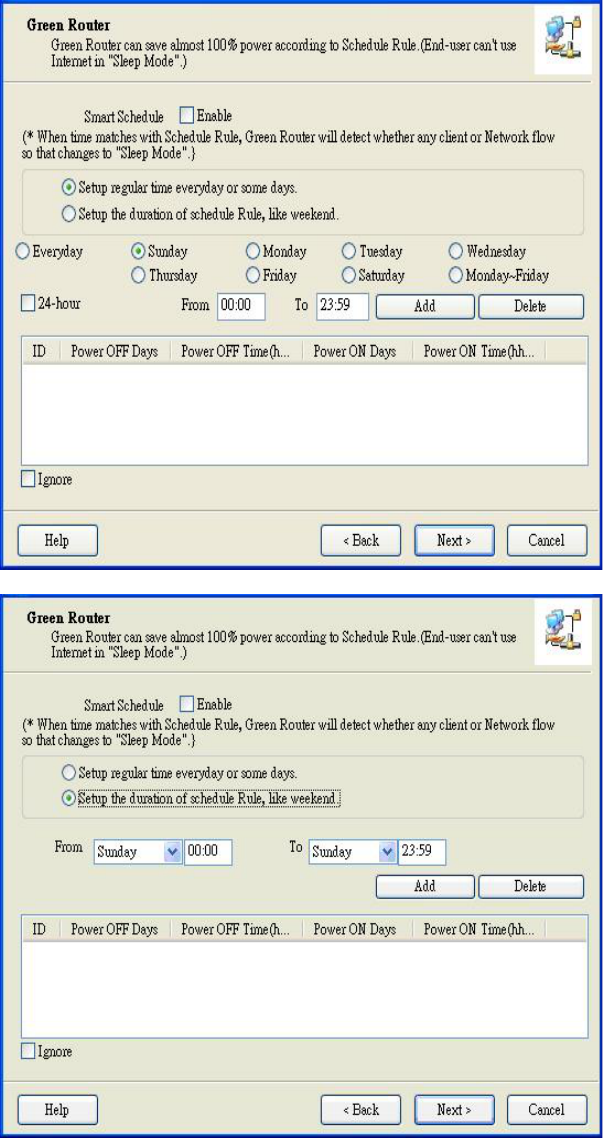

Step 6-1:

Configure the schedule

setting for Green

function. You can set

the schedule for turning

on or turning off this

device automatically.

Step 6-2:

Click SMART

Schedule setting for

Green function. The

device would check the

packet flow before the

power is turned off.

For instance, if the

router is on the sleeping

mode, you could surf

the Internet at that time.

Afterwards, if there are

not any packet flows,

the router would be

turned off automatically.

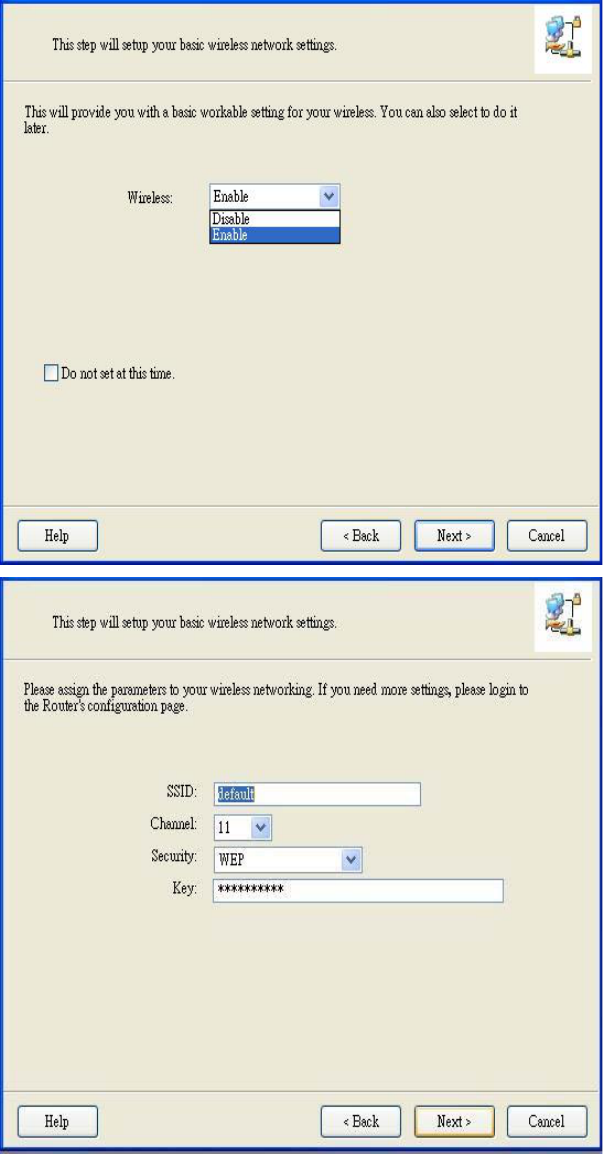

Step 7:

Configure your wireless

interface.

Step 8:

Insert SSID, Channel

and Security options,

and then click “Next” to

continue.

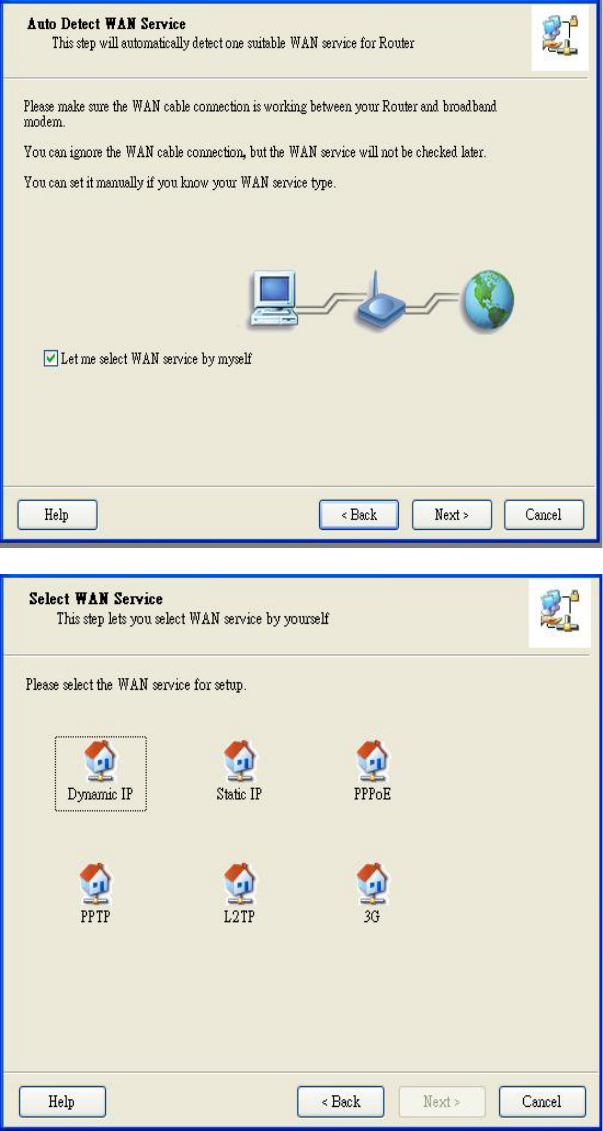

Step 9:

Auto detect the WAN

service, just click the

[Next] button.

Or you could select the

WAN type by yourself

via select the check box

[Let me select WAN

service by myself] Æ

jump to Step 10.

Step 10:

Select the WAN type by

yourself. You can get

this information by

asking your ISP.

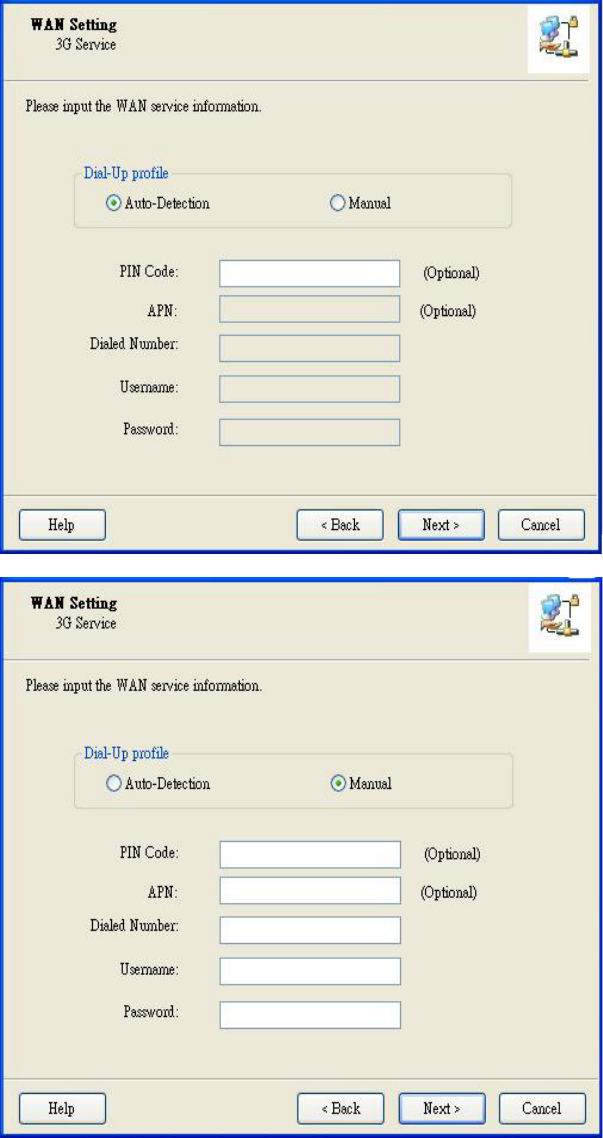

Step 11-1：

Select “Auto-Detection”,

and the Utility will try to

detect and configure

the required 3G service

settings automatically.

Click “Next” to continue.

Default PIN Code is

empty, if you have PIN

Code, you must enter it.

For example “0000”. If

no, just Click “Next” to

continue.

Step 11-2：

Or you can select

“Manual” and manually

fill in the required 3G

service settings

provided by your ISP.

Click “Next” to continue.

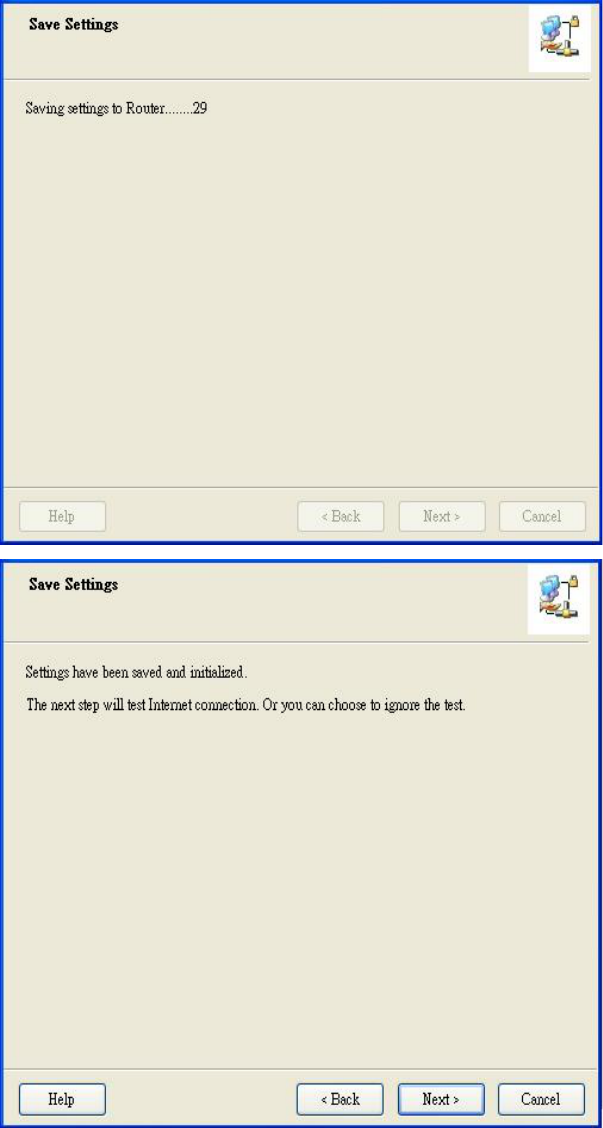

Step 12：

The M2M 3G VPN

Router is rebooted to

make your entire

configuration take

effect.

Step 13：

Click “Next” to test the

Internet connection.

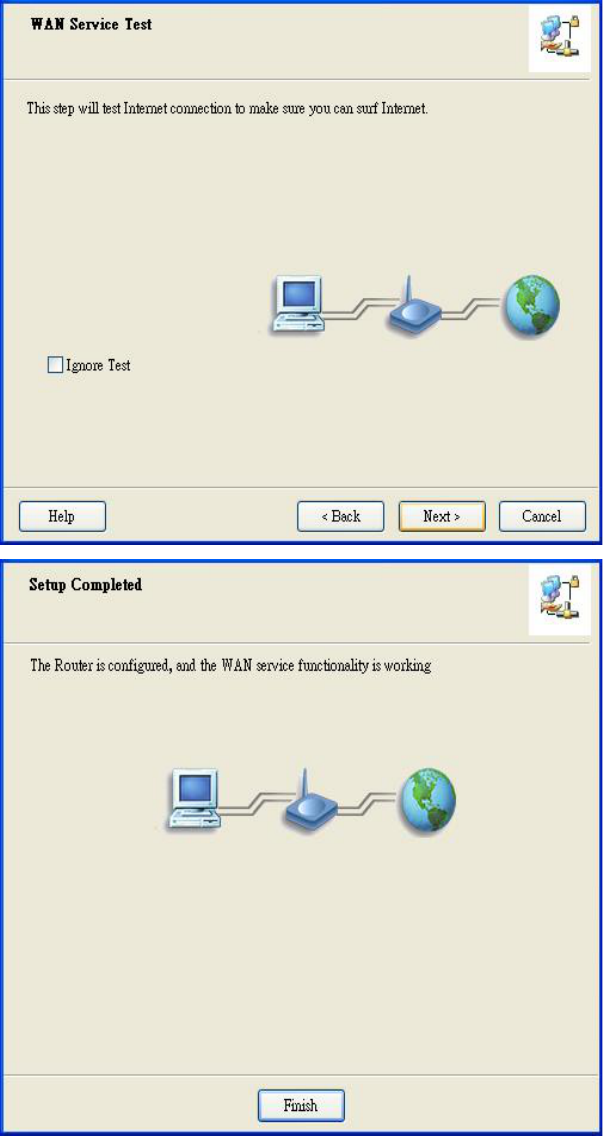

Step 14：

Click “Next” to test

WAN Networking

service or you can

ignore test.

Step 15：

Congratulations!

Setup is completed.

Now you have already

connected to Internet

successfully.

2.2 Easy Setup by Configuring Web Pages

You can also browse UI of the web to configure the device.

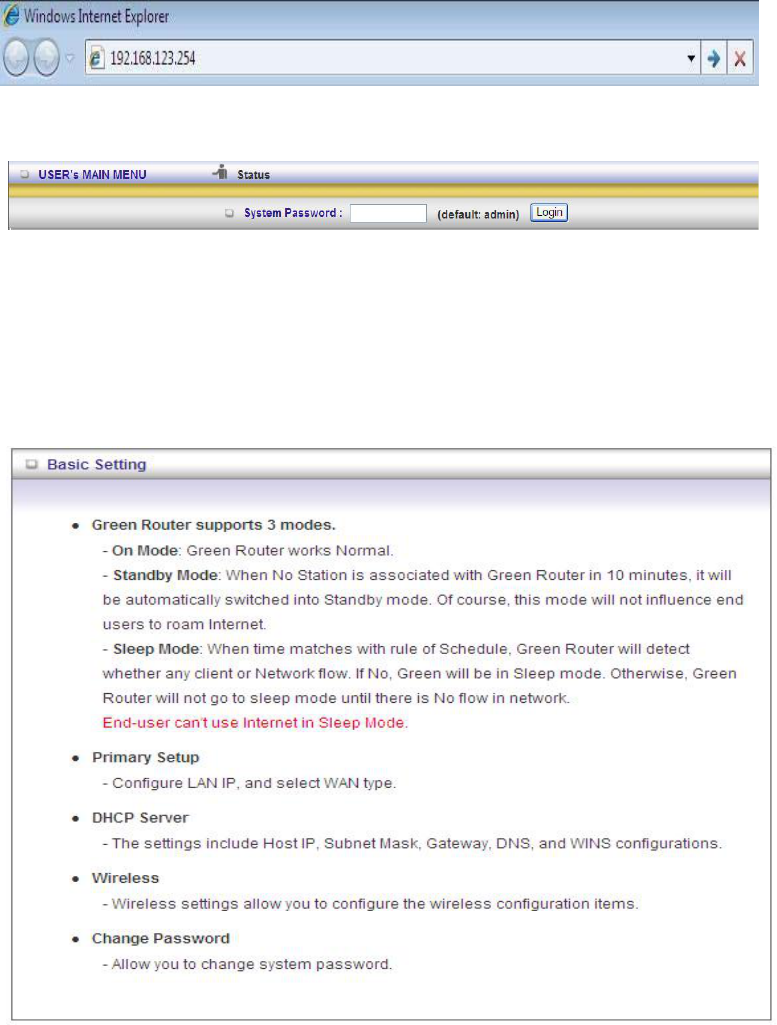

Browse to Activate the Setup Wizard

Type in the IP Address

(http://192.168.123.254 )

Type the default

password ‘admin’ in the

System Password and

then click ‘login’ button.

Select “Wizard” for basic

settings in simple way.

Press “Next” to start the

Setup Wizard.

Configure with the Setup Wizard

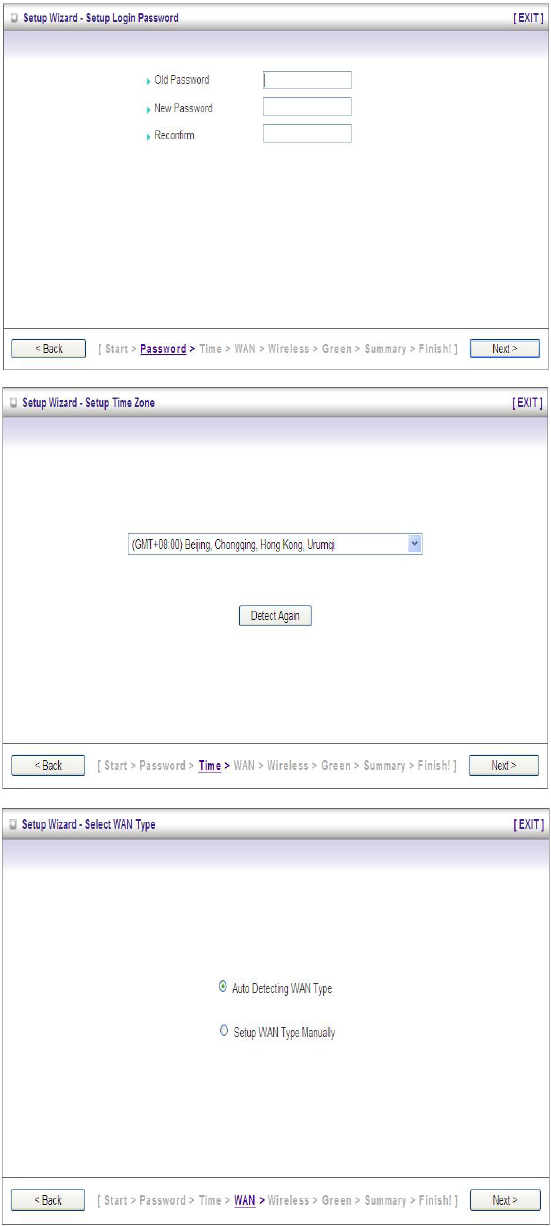

Step 1:

Setup login password.

Enter your system

password.

Step 2:

Select Time Zone.

Step 3:

Setup Wan Type.

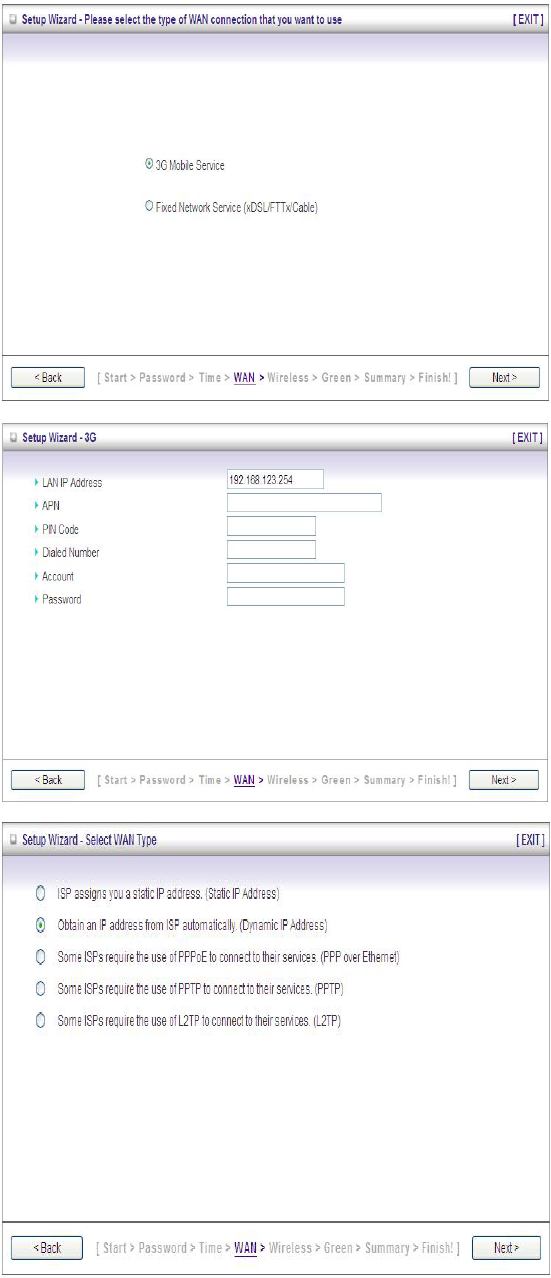

Step 4:

Select the WAN type you

would like to use.

If you select “3G Mobile

Service, please jump to

step 5-1. However, if you

click “Fixed Network

Service, please jump to

step 5-2.

Step 5-1:

Set up 3G Dial-up profile.

Step 5-2:

Select WAN type by

yourself. Afterwards,

please fill in necessary

information.

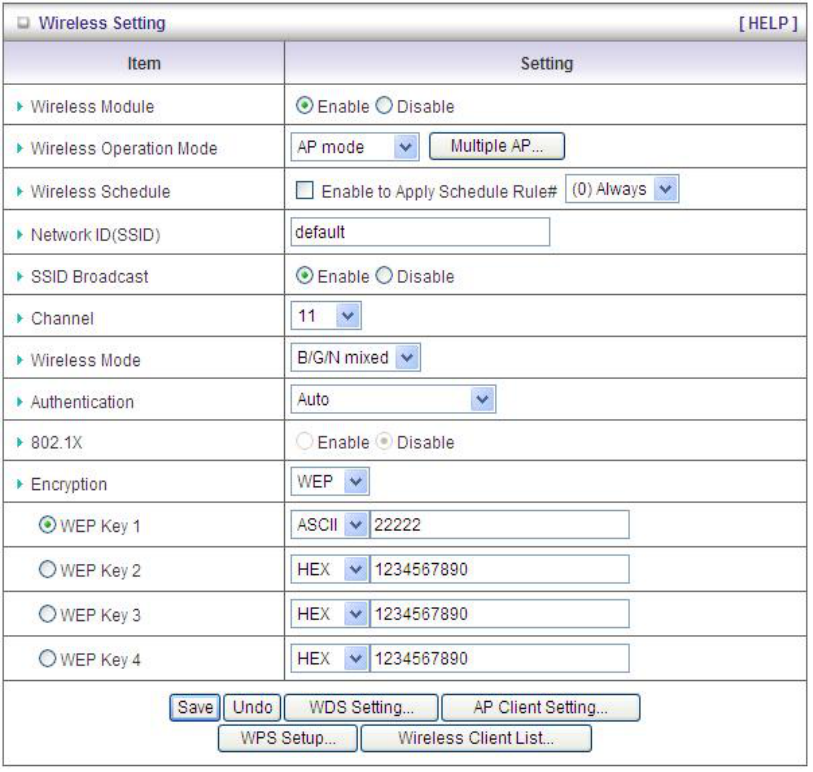

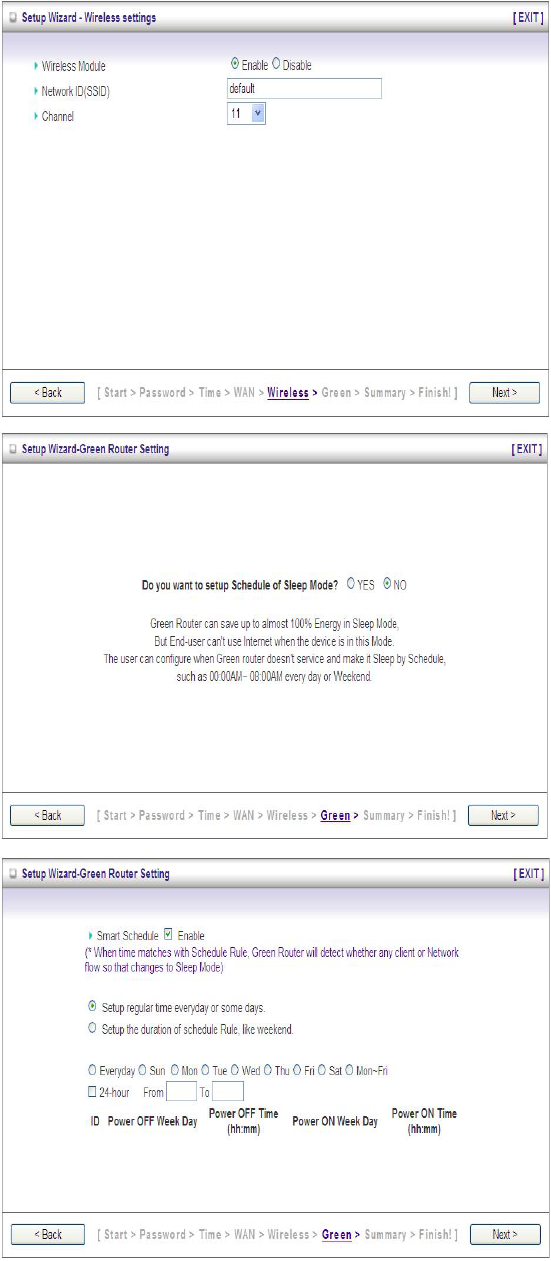

Step 6:

Set up your Wireless

Settings.

Type your network ID in

the blank of SSID.

Step 7:

You could choose

whether to configure

Sleep Mode. If you would

like to trigger the sleep

mode, please click “YES”.

If not, please click “NO”

and jump to step 8.

Step 8

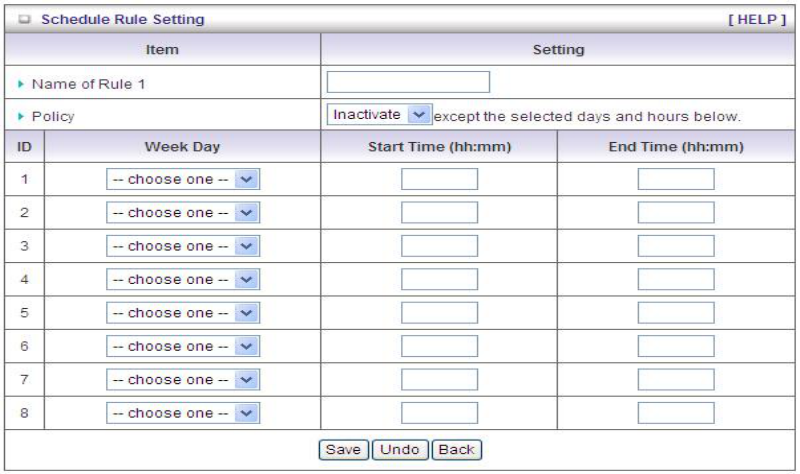

Configure the schedule

setting for Green function.

You can set the schedule

for turning on or turning

off this device

automatically.

As for the Smart

Schedule, the device

would check the packet

flow before the power is

turned off.

For instance, if the router

is on the sleeping mode,

you could surf the Internet

at that time. Afterwards, if

there are not any packet

flows, the router would be

turned off automatically.

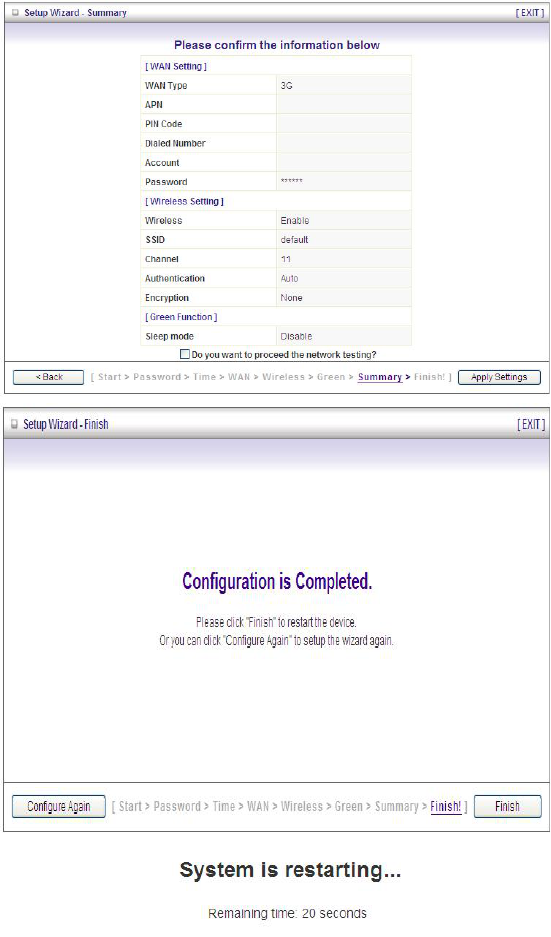

Step 9:

Confirm the information

you set up in User

Interface. If it is correct,

please click ‘Apply

settings’.

Step 10:

Click Finish to complete it.

Step 11:

The system is restarting

to make sure your

configuration take effect.

CHAPTER 3. Making Configuration

Whenever you want to configure your network or this device, you can access the

Configuration Menu by opening the web-browser and typing in the IP Address of the

device. The default IP Address is: 192.168.123.254

Enter the default password “admin” in the System Password and then click ‘login’ button.

Afterwards, select ‘Advanced’ indicated in the user interface for further configuring this

device. In the “Advanced” page, it could be categorized four sections, respectively Basic

Setting, Forwarding Rules, Security Setting, and Advanced Setting.

3.1 Basic Setting

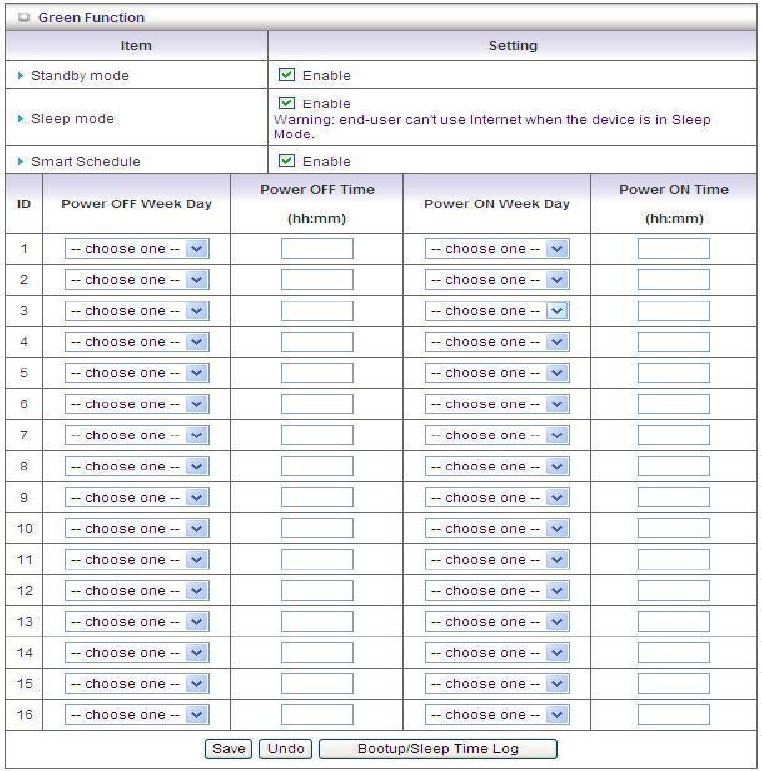

3.1.1 Green Function

1. Standby mode: The device will be automatically switched into standby mode if

there are no packets in ten minutes.

2. Sleep mode: End user can not use Internet when the device is in sleep mode.

3. Smart Schedule: The device would check the packet flow before the power is

turned off. For instance, if the router is on the sleeping mode, you could surf the

Internet at that time. Afterwards, if there are not any packet flows, the router

would be turned off automatically.

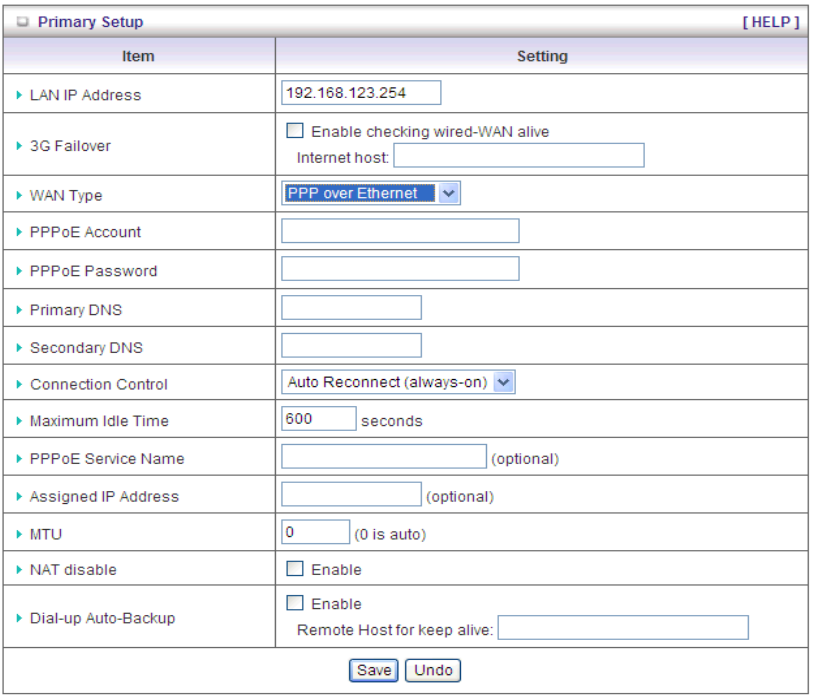

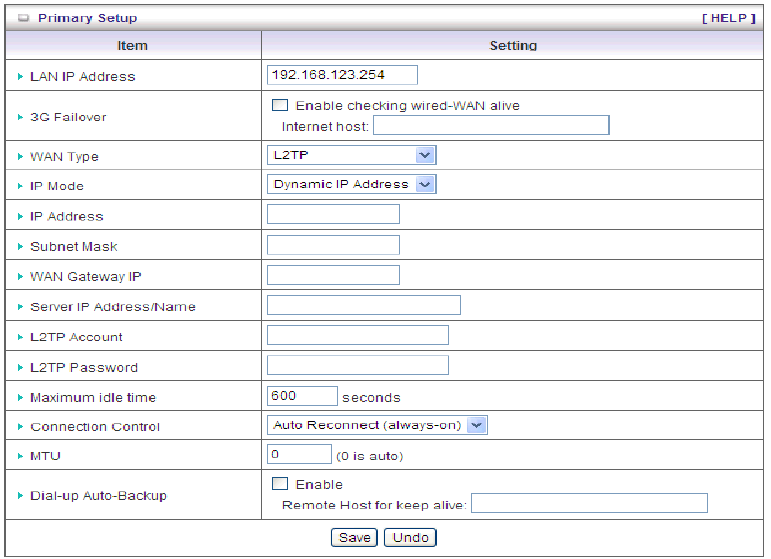

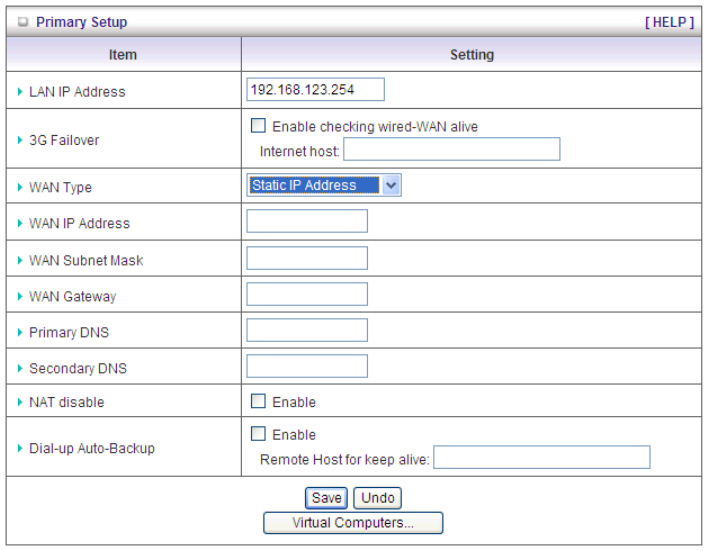

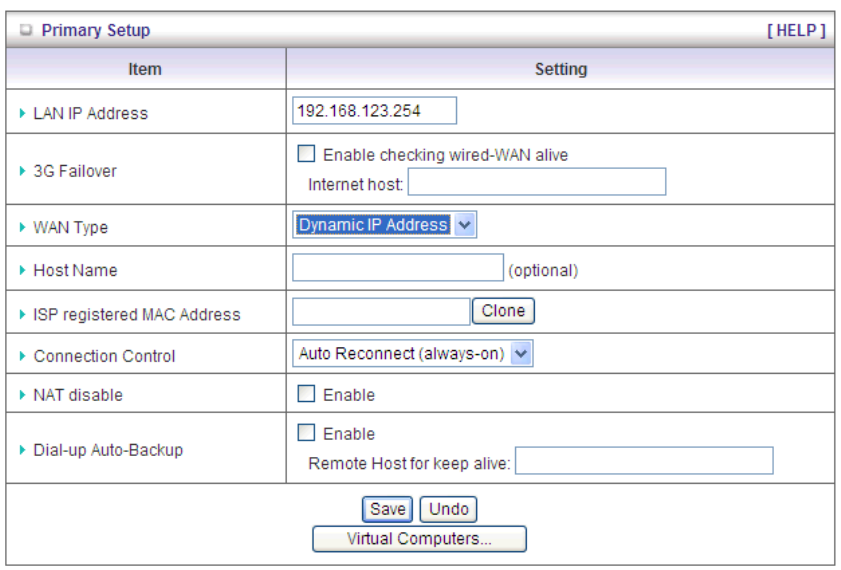

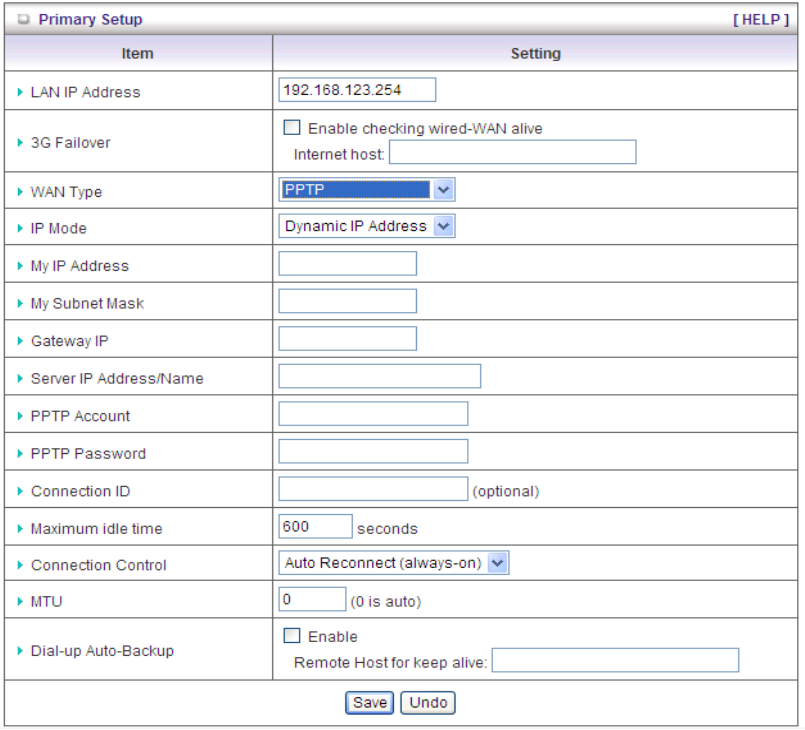

3.1.2 Primary Setup

First of all, you are supposed to select the WAN type and then configure the setting.

A. 3G

For 3G WAN Networking. The WAN fields may not be necessary for your connection. The

information on this page will only be used when your service provider requires you to enter

a User Name and Password to connect with the 3G network.

Please refer to your documentation or service provider for additional information.

1. LAN IP Address: The local IP address of this device. The computer on your network

must use the LAN IP address of this device as their Default Gateway. You can change it

if necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. WAN Type: WAN connection type of your ISP. You can click WAN Type combo button

to choose a correct one from the following options:

4. APN: Enter the APN for your PC card here.(Optional)

5. Pin Code: Enter the Pin Code for your SIM card. (Optional)

6. Dial-Number: This field should not be altered except when required by your service

provider.

7. Account: Enter the new User Name for your PC card here, you can contact to your ISP

to get it. (Optional)

8. Password: Enter the new Password for your PC card here, you can contact to your ISP

to get it. (Optional)

9. Authentication: Choose your authentication.

10. Primary DNS: This feature allows you to assign a Primary DNS Server, contact to your

ISP to get it. (Optional)

11. Secondary DNS: This feature allows you to assign a Secondary DNS Server, you can

contact to your ISP to get it. (Optional)

12. Connection Control: Select your connection control. There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button

in the Status-page.

10. Maximum Idle Time: The time of no activity to disconnect your 3G session. Set it to

zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled, this

device will connect with ISP automatically after system is restarted or connection is

dropped.

11. Keep Alive: This feature must collocate with the function "Auto" of "Auto Connect".

Enable it to keep the connection always be established.

Use Ping: Keep connection alive by sending ICMP ping request to specified IP

address

Use LCP Echo Request: Keep connection alive by sending LCP echo request,

unless you know the detailed or not change the default value.

B. Static IP Address

1. LAN IP Address: The local IP address of this device. The computer on your network

must use the LAN IP address of this device as their Default Gateway. You can change it

if necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS:

Enter the proper settings provided by your ISP.

4. NAT disable: The device would send private IP to other LAN PC if you select

enable.

C. Dynamic IP Address

1. LAN IP Address: The local IP address of this device. The computer on your network must

use the LAN IP address of this device as their Default Gateway. You can change it if

necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. Host Name: Optional, required by some ISPs, for example, @Home.

4. ISP registered MAC Address: Enter MAC address of your ISP. (Optional)

5. Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

6. NAT disable: The device would not send private IP to other LAN PC if you select disable.

D. PPP over Ethernet

1. LAN IP Address: The local IP address of this device. The computer on your network must

use the LAN IP address of this device as their Default Gateway. You can change it if

necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. PPPoE Account: The account your ISP assigned to you. For security, this field appears

blank. If you don't want to change the password, leave it blank.

4. PPPoE Password: The password your ISP assigned to you. For security, this field

appears blank. If you don't want to change the password, leave it blank.

5. Primary DNS: This feature allows you to assign a Primary DNS Server, contact to your

ISP to get it. (Optional)

6. Secondary DNS: This feature allows you to assign a Secondary DNS Server, you can

contact to your ISP to get it. (Optional)

7. Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

8. Maximum Idle Time: The amount of time of inactivity before disconnecting your PPPoE

session. Set it to zero or enable “Auto-reconnect＂ to disable this feature.

9. PPPoE Service Name: Optional. Input the service name if your ISP requires it. Otherwise,

leave it blank.

10. Assigned IP Address: It is required by some ISPs. (Optional)

11. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default

MTU value is 0 (auto).

12. NAT disable: The device would not send private IP to other LAN PC if you select disable.

E. PPTP

1. LAN IP Address: The local IP address of this device. The computer on your network must

use the LAN IP address of this device as their Default Gateway. You can change it if

necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address” or

“Dynamic IP Address”.

4. My IP Address and My Subnet Mask: The private IP address and subnet mask your ISP

assigned to you.

5. Gateway IP and Server IP Address/Name: The IP address of the PPTP server and

designated Gateway provided by your ISP.

6. PPTP Account and Password: The account and password your ISP assigned to you. If

you don't want to change the password, keep it blank.

7. Connection ID: Optional. Input the connection ID if your ISP requires it.

8. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to

zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled, this

device will connect with ISP automatically after system is restarted or connection is

dropped.

9. Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

10. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default

MTU value is 0 (auto).

F. L2TP

1. LAN IP Address: The local IP address of this device. The computer on your network must

use the LAN IP address of this device as their Default Gateway. You can change it if

necessary.

2. 3G Failover: When the 3G connection is interrupted, the connection of router would

automatically shift to wired line.

3. IP Mode: Please check the IP mode your ISP assigned, and select “Static IP Address” or

“Dynamic IP Address”.

4. IP Address and Subnet Mask: The private IP address and subnet mask your ISP

assigned to you.

5. WAN Gateway IP and Server IP Address/Name: The IP address of the L2TP server and

designated Gateway provided by your ISP.

6. L2TP Account and Password: The account and password your ISP assigned to you. If

you don't want to change the password, keep it blank.

7. Maximum Idle Time: The time of no activity to disconnect your L2TP session. Set it to

zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is enabled, this

device will connect with ISP automatically, after system is restarted or connection is

dropped.

8. Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

9. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default

MTU value is 0 (auto).

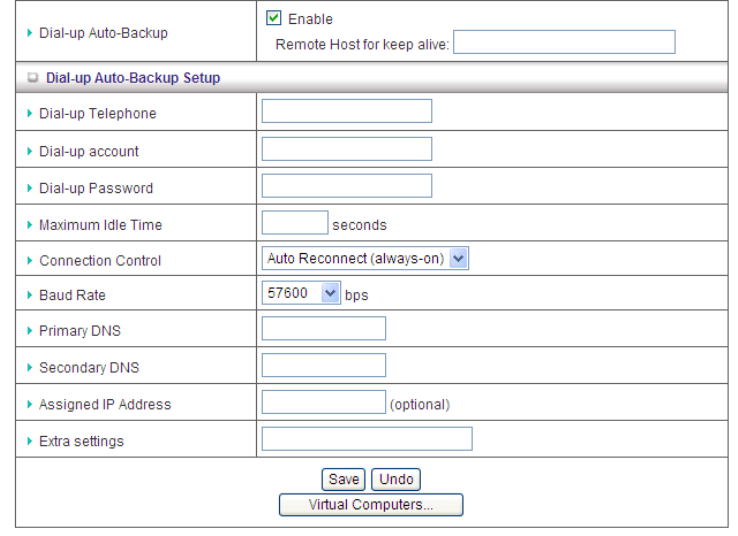

Click to enable “Dial-up Auto-Backup” and you can find Dial-up Auto-Backup setting.

1. Dial-up Telephone Input the dial-up telephone provided by ISP.

2. Dial-up account: Input the account provided by your ISP.

3. Dial-up Password: Input the password provided by your ISP.

4. Maximum Idle Time: The time of no activity to disconnect your Dial-up Network session.

Set it to zero or enable “Auto-reconnect” to disable this feature. If Auto-reconnect is

enabled, this device will connect with ISP automatically, after system is restarted or

connection is dropped.

5. Connection Control: There are 3 modes to select:

Connect-on-demand: The device will link up with ISP when the clients send outgoing

packets.

Auto Reconnect (Always-on): The device will link with ISP until the connection is

established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

6. Baud Rate: The rate of packet transmitting.

7. Primary DNS: This feature allows you to assign a Primary DNS Server, contact to your

ISP to get it. (Optional)

8. Secondary DNS: This feature allows you to assign a Secondary DNS Server, you can

contact to your ISP to get it. (Optional)

9. Assigned IP Address: If your ISP gave you a specified IP address, fill it here.

10. Extra Settings: Sometimes you have to add some extra AT commands to improve your

modem connection, fill it here.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the

changes.

3.1.3 DHCP Server

1. DHCP Server: Choose either Disable or Enable. If you enable the DHCP Server function,

the following settings will be effective.

2. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server will

automatically allocate an unused IP address from the IP address pool to the requesting

computer. You must specify the starting / ending address of the IP address pool.

3. Lease Time: DHCP lease time to the DHCP client.

4. Domain Name: This information will be passed to the clients. (Optional)

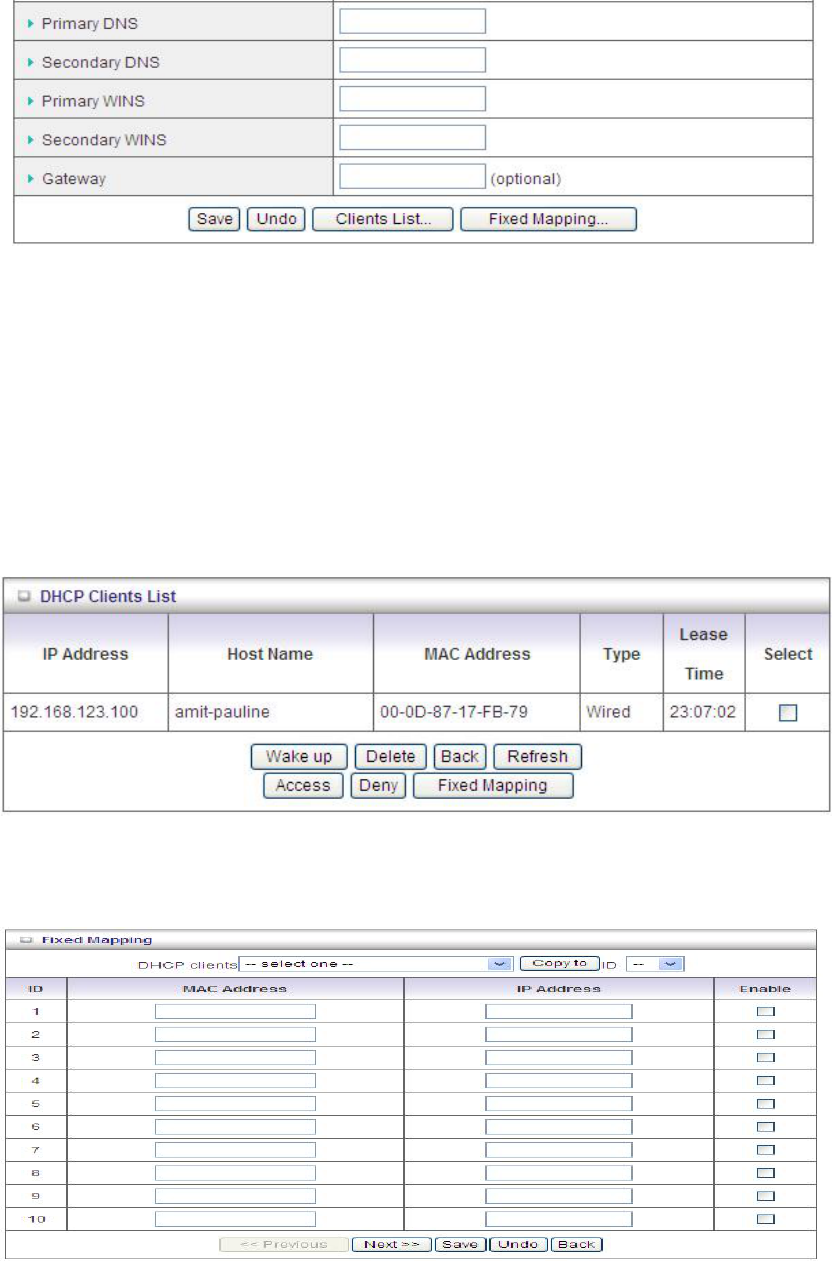

Press “More>>” and you can find more settings.

1. Primary DNS/Secondary DNS: Optional. This feature allows you to assign a DNS

Servers

2. Primary WINS/Secondary WINS: Optional. This feature allows you to assign a WINS

Servers

3. Gateway: Optional. Gateway Address would be the IP address of an alternate

Gateway. This function enables you to assign another gateway to your PC, when

DHCP server offers an IP to your PC.

Press “Clients List” and the list of DHCP clients will be shown consequently.

Press “Fixed Mapping” and the DHCP Server will reserve the special IP for designated MAC

address.

3.1.4 Wireless Settings

Wireless settings allow you to set the wireless configuration items.

1. Wireless Module: You can enable or disable wireless function.

2. Wireless Operation Mode: Choose appropriate wireless operation mode.

3. Wireless Schedule: Click ‘’enable” to apply schedule rule.

4. Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client

stations can roam freely over this device and other Access Points that have the same

Network ID. (The factory default setting is “default”)

5. SSID Broadcast: The router will broadcast beacons that have some information,

including SSID so that wireless clients can know how many AP devices by scanning the

network. Therefore, if this setting is configured as “Disable”, the wireless clients can not

find the device from beacons.

6. Channel: The radio channel number. The permissible channels depend on the

Regulatory Domain. The factory default setting is as the following: channel 6 for North

America; channel 7 for European (ETSI); channel 7 for Japan.

7. Wireless Mode: Choose “B/G mixed”, “B only”, “N only”, or “B/G/N mixed”. The factory

default setting is “B/G/N mixed”.

8. 802. 1X: Click “enable” to enable the function of 802.1X.

9. Authentication mode: You may select one of the following authentications to secure

your wireless network: Open, Shared, Auto, WPA-PSK, WPA, WPA2-PSK, WPA2,

WPA-PSK/WPA2-PSK, or WPA /WPA2.

z Open

Open system authentication simply consists of two communications. The first is an

authentication request by the client that contains the station ID (typically the MAC

address). This is followed by an authentication response from the AP/router containing a

success or failure message. An example of when a failure may occur is if the client's MAC

address is explicitly excluded in the AP/router configuration.

z Shared

Shared key authentication relies on the fact that both stations taking part in the

authentication process have the same "shared" key or passphrase. The shared key is

manually set on both the client station and the AP/router. Three types of shared key

authentication are available today for home or small office WLAN environments.

z Auto

The AP will Select the Open or Shared by the client’s request automatically.

z WPA-PSK

Select Encryption and Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

If you select ASCII, the length of pre-share key is from 8 to 63.

Fill in the key, Ex 12345678

z WPA

Check Box was used to switch the function of the WPA. When the WPA function is

enabled, the Wireless user must authenticate to this router first to use the Network

service. RADIUS Server IP address or the 802.1X server’s domain-name.

Select Encryption and RADIUS Shared Key.

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

If you select ASCII, the length of pre-share key is from 8 to 63.

Key value shared by the RADIUS server and this router. This key value is consistent with

the key value in the RADIUS server.

z WPA2-PSK

WPA2-PSK user AES and TKIP for Same the encryption, the others are same as the

WPA2-PSK.

z WPA-PSK/WPA2-PSK

Another encryption options for WPA-PSK-TKIP and WPA2-PSK-AES, the others are same

as the WPA-PSK.

z WPA/WPA2

Another encryption options for WPA-TKIP and WPA2-AES, the others are same the WPA.

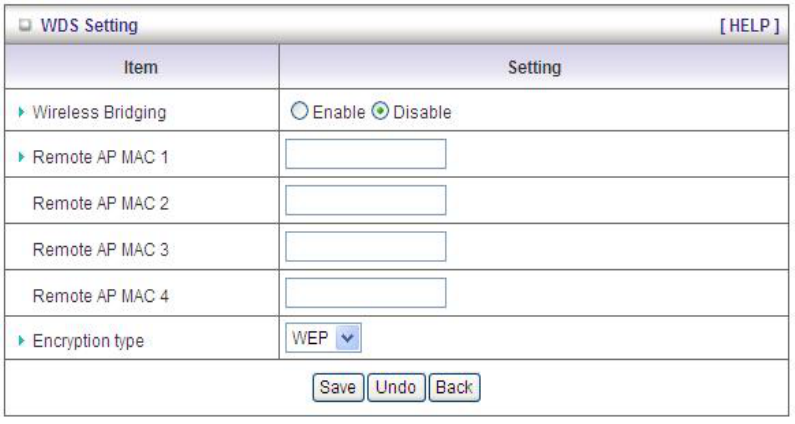

Press “WDS Setting” and It allows PC to get connected to wireless network within the area.

1. Wireless Bridging: You could enable this function by selecting “Enable”.

2. Remote AP MAC 1~Remote AP MAC 4: Enter the wireless MAC into the blank.

3. Encryption type: Select the appropriate category. Once you set up that type of encryption,

second LAN PC must enter the same encryption type as the first one.

4. Encryption key: Set up encryption key based on the rule of encryption type. Once you

set up encryption, second LAN PC must enter the same encryption type as the first one.

Press “AP Client Setting”

1. AP Client mode: You could enable this function by selecting “Enable”.

2. Network ID(SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client

stations can roam freely over this device and other Access Points that have the same

Network ID. (The factory default setting is “default”)

3. Authentication: Choose your authentication.

4. Encryption type:

z Auto

The AP will Select the Open or Shared by the client’s request automatically.

z WPA-PSK

Select Encryption and Pre-share Key Mode

If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits.

If you select ASCII, the length of pre-share key is from 8 to 63.

Fill in the key, Ex 12345678

z WPA2-PSK

WPA2-PSK user AES and TKIP for Same the encryption, the others are same as the

WPA2-PSK.

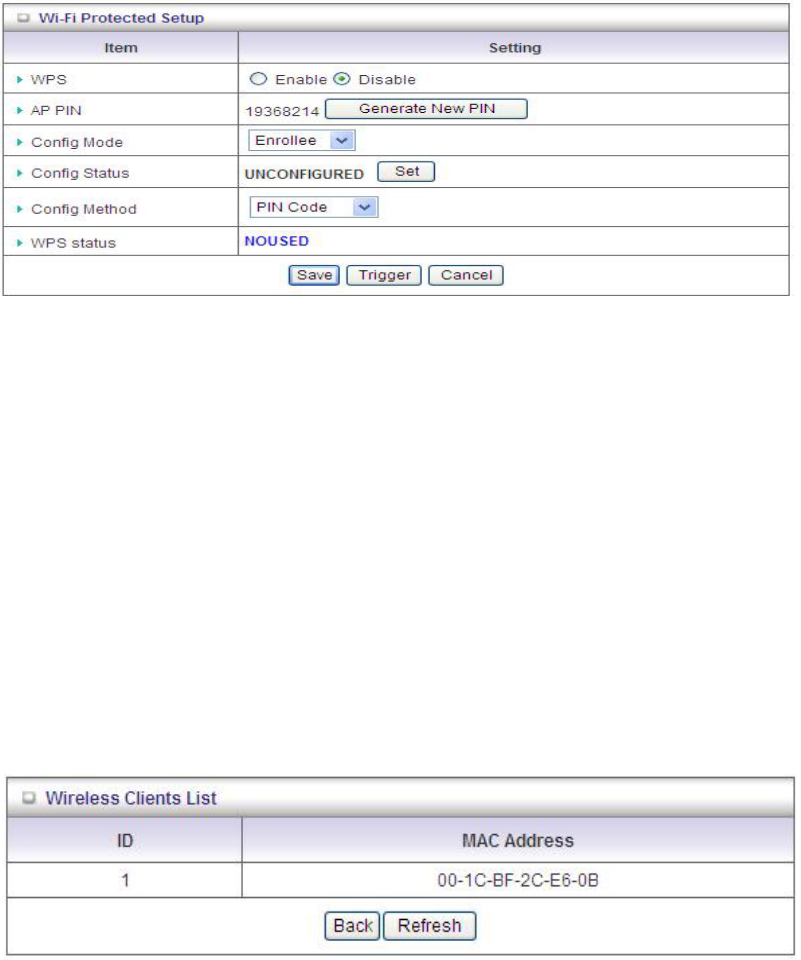

Press “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi

Protection Setup) for your wireless network.

1. WPS:.You can enable this function by selecting “Enable”. WPS offers a safe and easy

way to allow the wireless clients connected to your wireless network.

2. AP PIN: You can press Generate New Pin to get an AP PIN.

3. Config Mode: Select your config Mode from “Registrar” or “Enrollee”.

4. Config Status: It shows the status of your configuration.

5. Config Method: You can select the Config Method here from “Pin Code” or “Push

Button”.

6. WPS status: According to your setting, the status will show “Start Process” or “No

used”.

Press “Wireless Clients List” and the list of wireless clients will be shown consequently.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the

changes.

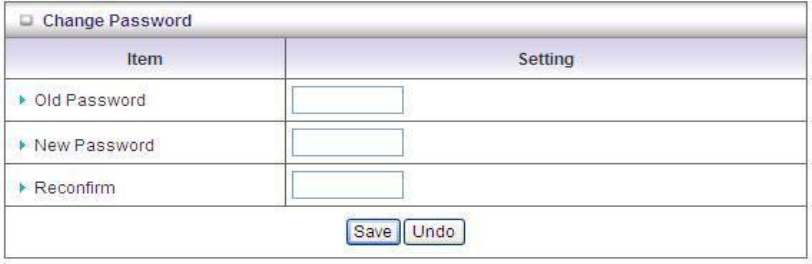

3.1.5 Change Password

You can change the System Password here. We strongly recommend you to change

the system password for security reason. Click on “Save” to store your settings or

click “Undo” to give up the changes.

3.2 Forwarding Rules

3.2.1 Virtual Server

This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all

hosts behind this product are invisible to the outside world. If you wish, you can make some of

them accessible by enabling the Virtual Server Mapping.

A virtual server is defined as a Service Port, and all requests to this port will be redirected to

the computer specified by the Server IP. Virtual Server can work with Scheduling Rules,

and give user more flexibility on Access control. For the details, please refer to Scheduling

Rule.

For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80) at

192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the following

virtual server mapping table:

Service Port Server IP Enable

21 192.168.123.1 V

80 192.168.123.2 V

1723 192.168.123.6 V

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

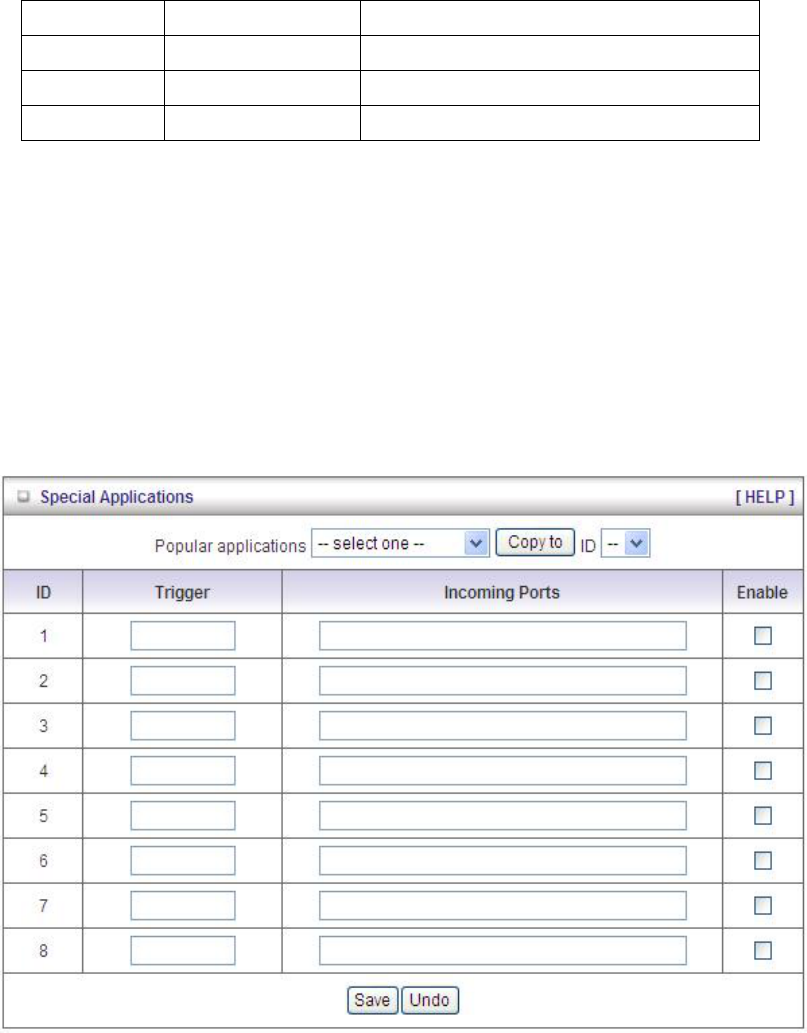

3.2.2 Special AP

Some applications require multiple connections, like Internet games, Video conferencing,

Internet telephony, etc. Because of the firewall function, these applications cannot work with a

pure NAT router. The Special Applications feature allows some of these applications to work

with this product. If the mechanism of Special Applications fails to make an application work,

try setting your computer as the DMZ host instead.

This device provides some predefined settings. Select your application and click “Copy to” to

add the predefined setting to your list.

1. Trigger: The outbound port number issued by the application.

2. Incoming Ports: When the trigger packet is detected, the inbound packets sent to the

specified port numbers are allowed to pass through the firewall.

Afterwards, Click on “Save” to store your settings or click “Undo” to give up the changes.

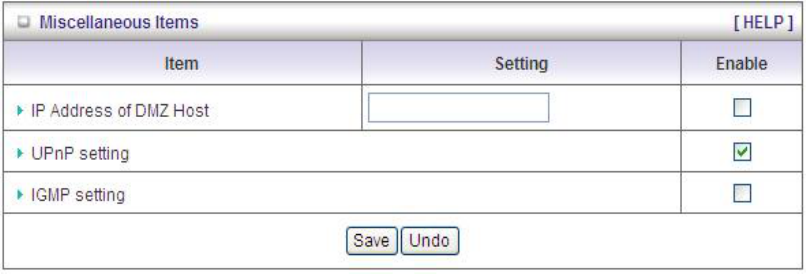

3.2.3 Miscellaneous

1. IP Address of DMZ Host: DMZ (Demilitarized Zone) Host is a host without the protection

of firewall. It allows a computer to be exposed to unrestricted 2-way communication for

Internet games, Video conferencing, Internet telephony and other special applications.

2. UPnP Setting: The device supports the UPnP function. If the OS of your client computer

supports this function, and you enabled it, like Windows XP, you can see the following icon

when the client computer gets IP from the device.

3. IGMP setting: IGMP is Internet Group Management Protocol. It could transmit message to

groups of computers.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

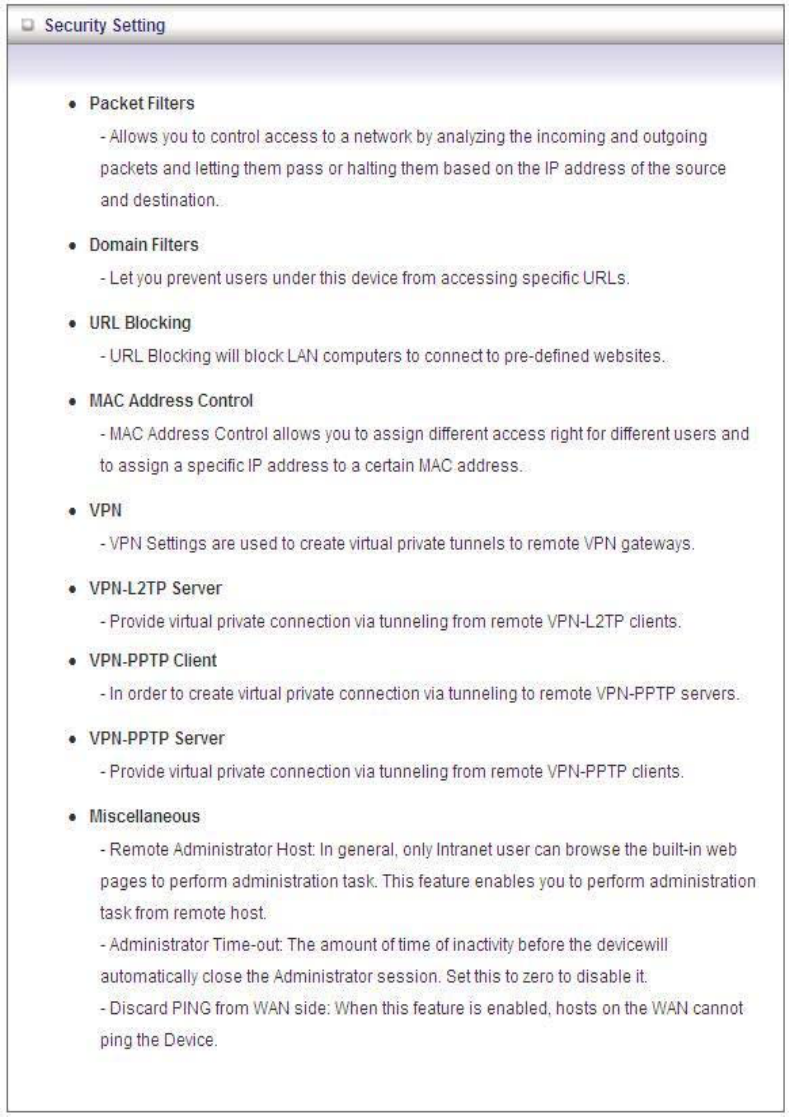

3.3 Security Setting

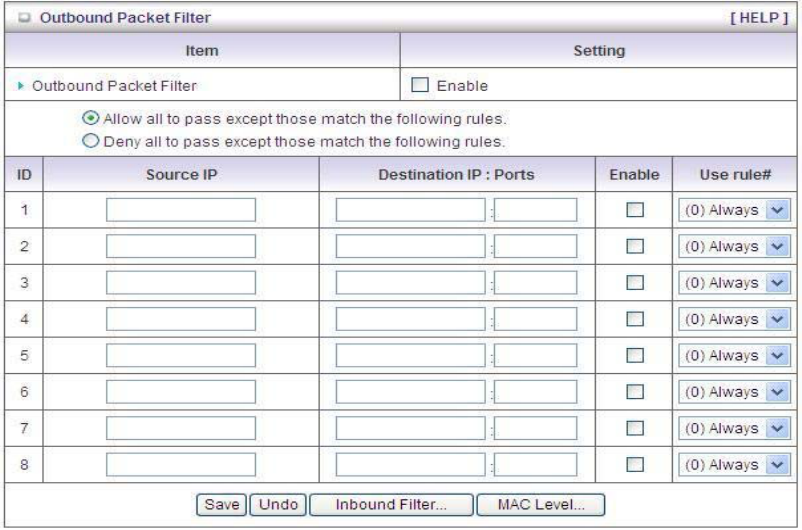

3.3.1 Packet Filters

Packet Filter includes both outbound filter and inbound filter. And they have same way to

setting. It enables you to control what packets are allowed to pass the router. Outbound filter

applies on all outbound packets. However, inbound filter applies on packets that destined to

Virtual Servers or DMZ host only. You can select one of the two filtering policies:

1. Allow all to pass except those match the specified rules.

2. Deny all to pass except those match the specified rules.

You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define

the following:

• Source IP address

• Source port

• Destination IP address

• Destination port

• Protocol: TCP or UDP or both.

• Use Rule#

For source or destination IP address, you can define a single IP address (4.3.2.1) or a range

of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.

For source or destination port, you can define a single port (80) or a range of ports

(1000-1999). Add prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53,

U2000-2999, No prefix indicates both TCP and UDP are defined. An empty implies all port

addresses. Packet Filter can work with Scheduling Rules, and give user more flexibility on

Access control. For Detail, please refer to Scheduling Rule.

Each rule can be enabled or disabled individually.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

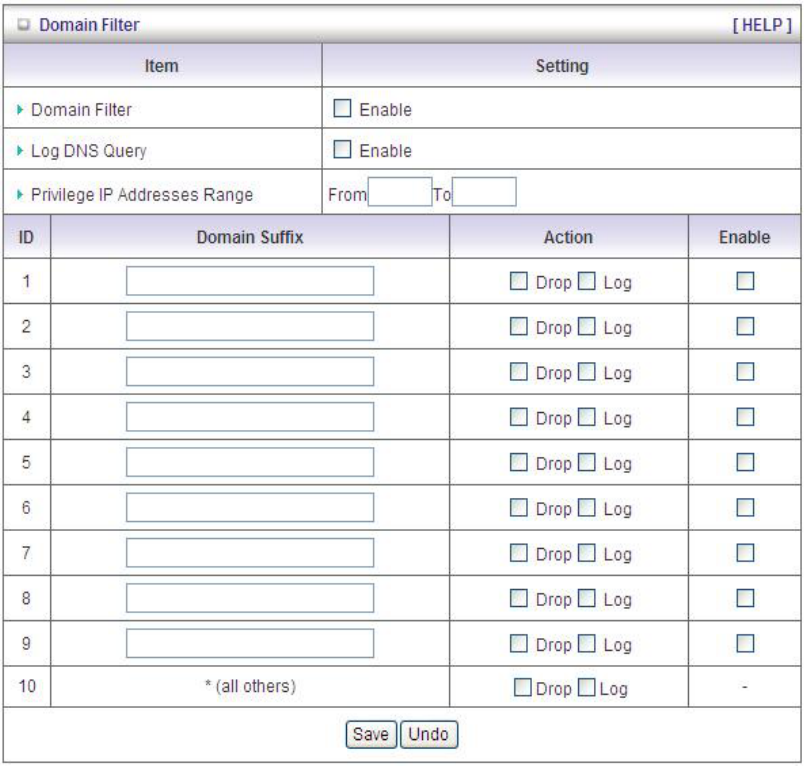

3.3.2 Domain Filters

Domain Filter prevents users under this device from accessing specific URLs.

1. Domain Filter: Check if you want to enable Domain Filter.

2. Log DNS Query: Check if you want to log the action when someone accesses the specific

URLs.

3. Privilege IP Address Range: Setting a group of hosts and privilege these hosts to access

network without restriction.

4. Domain Suffix: A suffix of URL can be restricted, for example, ".com", "xxx.com".

5. Action: When someone is accessing the URL met the domain-suffix, what kind of action

you want.

Check “Drop” to block the access. Check “Log” to log these access.

6. Enable: Check to enable each rule.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

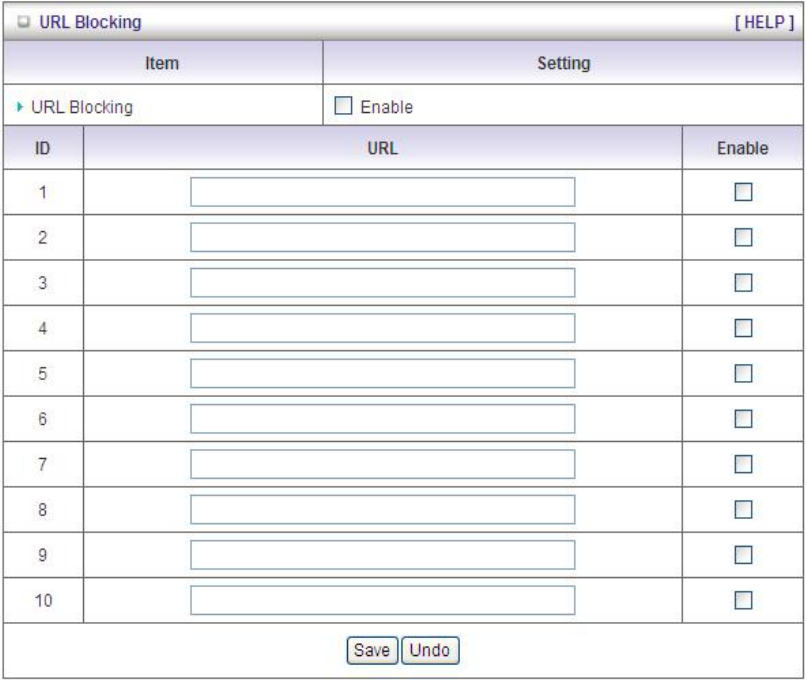

3.3.3 URL Blocking

URL Blocking will block LAN computers to connect with pre-define Websites. The major

difference between “Domain filter” and “URL Blocking” is Domain filter requires user to input

suffix (like .com or .org, etc), while URL Blocking requires user to input a keyword only. In

other words, Domain filter can block specific website, while URL Blocking can block hundreds

of websites by simply a keyword.

1. URL Blocking: Check if you want to enable URL Blocking.

2. URL: If any part of the Website's URL matches the pre-defined word, the connection will

be blocked. For example, you can use pre-defined word "sex" to block all websites if their

URLs contain pre-defined word "sex".

3. Enable: Check to enable each rule.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

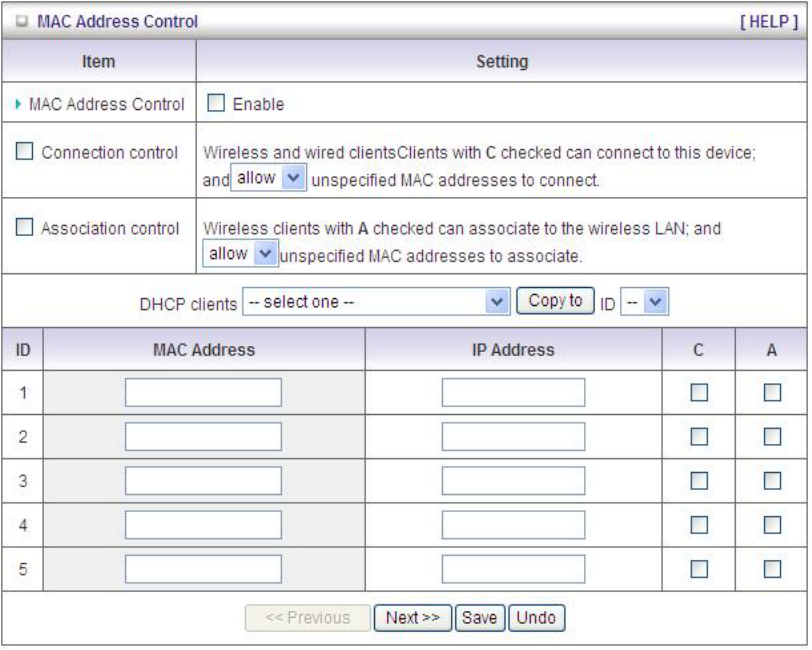

3.3.4 MAC Control

MAC Address Control allows you to assign different access right for different users and to

assign a specific IP address to a certain MAC address.

1. MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of the

settings in this page will take effect only when “Enable” is checked.

2. Connection control: Check "Connection control" to enable the controlling of which wired

and wireless clients can connect with this device. If a client is denied to connect with this

device, it means the client can't access to the Internet either. Choose "allow" or "deny" to

allow or deny the clients, whose MAC addresses are not in the "Control table" (please see

below), to connect with this device.

3. Association control: Check "Association control" to enable the controlling of which

wireless client can associate to the wireless LAN. If a client is denied to associate to the

wireless LAN, it means the client can't send or receive any data via this device. Choose

"allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the

"Control table", to associate to the wireless LAN.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

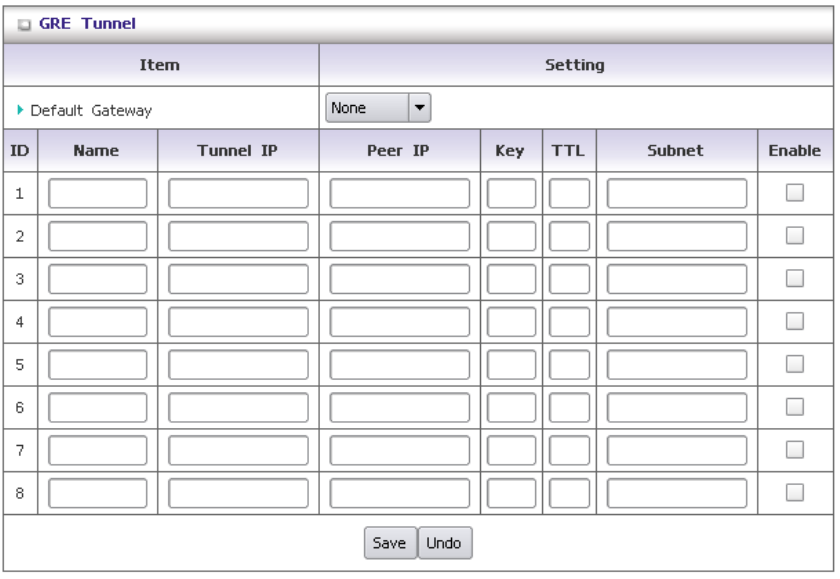

3.3.5 GRE Tunnel

The GRE tunnel could bridge two LAN subnets, all packets with IP header could pass it, no

matter it is unicast, broadcast, or multicast.

1. Name: Tunnel name, it is used for identifying each tunnel interface.

2. Tunnel IP: WAN side IP.

3. Peer IP: Remote Gateway IP.

4. Key: This value is used for tunnel priority. The tunnel with no key has the highest priority,

and the priority is lower if the value is larger.

5. TTL: TTL for packets. Usually, we use the value 255.

6. Subnet: Remote subnet.

3.3.6 VPN-IPSEC

VPN Settings are used to create virtual private tunnels to remote VPN.

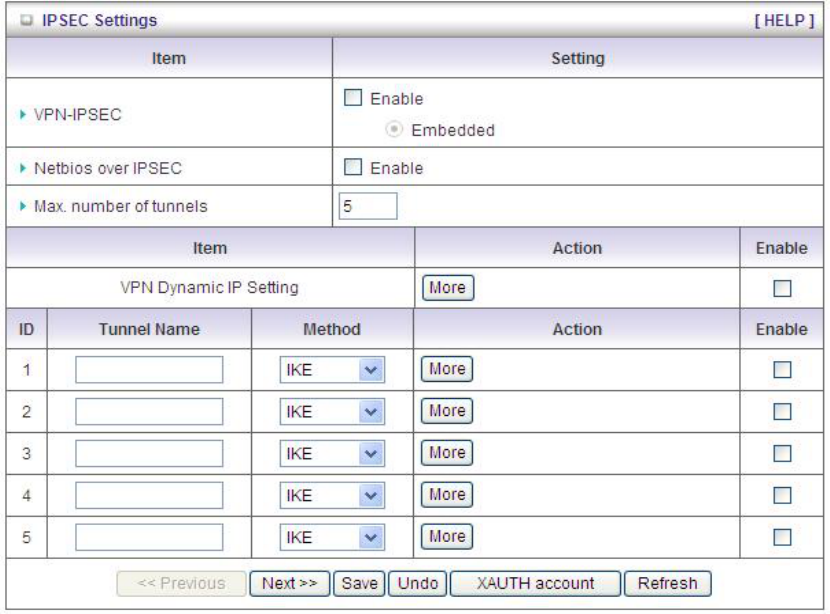

3.3.6.1 IPSEC Settings

1. VPN-IPSEC: You could trigger the function of VPN-IPSEC if you click “enable”.

2. Netbios over IPSEC: If you would like two LAN to receive the Netbios from Network

Neighborhood, you have to click “enable”.

3. Max. number of tunnels: The device supports 1~20 tunnels.

4. Tunnel Name: Indicate which tunnel that is focused now.

5. Method: IPSec VPN supports two kinds of key-obtained methods: manual key and

automatic key exchange. Manual key approach indicates that two end VPN router setup

authenticator and encryption key by system managers manually. However, IKE

approach will perform automatic Internet key exchange. System managers of both end

gateways only need set the same pre-shared key. To setup more details configuration of

IKE and manual key, please press “more”.

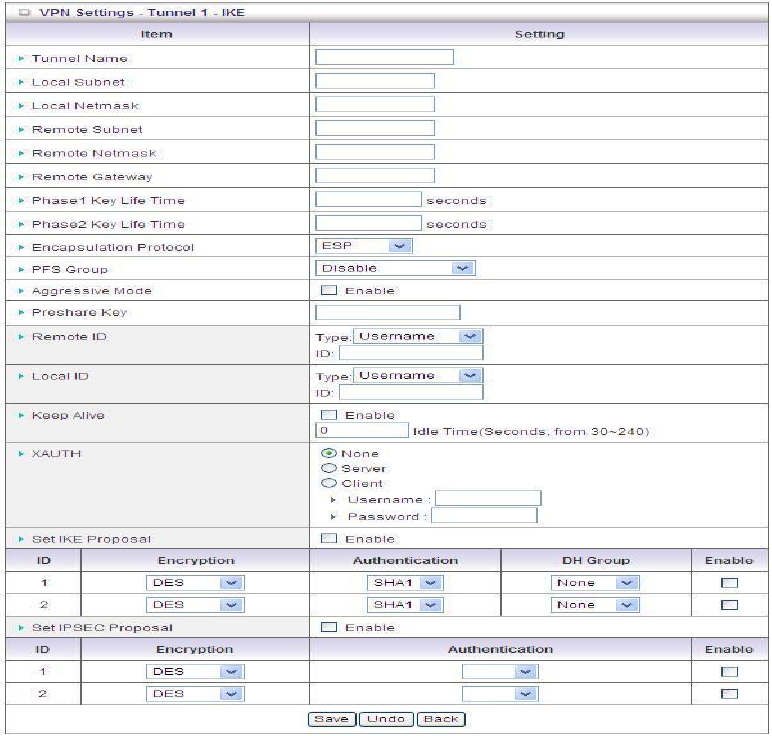

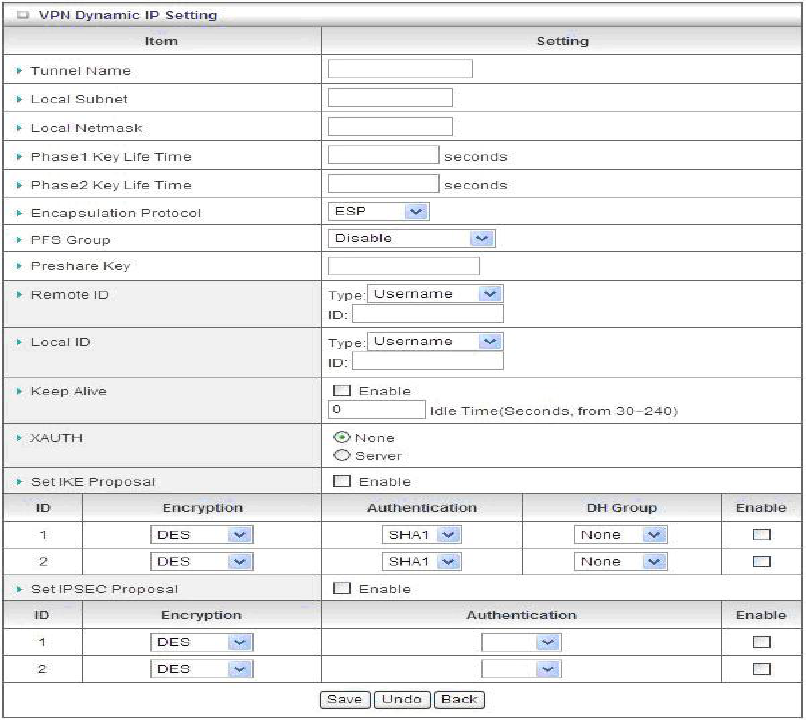

3.3.6.2 VPN Settings-IKE

1. Tunnel Name: Indicate which tunnel that is focused now

2. Local subnet: The subnet of LAN site of local VPN router. It can be a host, a partial

subnet, and the whole subnet of LAN site of local router.

3. Local Netmask: Local netmask combined with local subnet to form a subnet domain.

4. Encapsulation Protocol: There are three protocols to select : ESP, AH, ESP+AH.

5. PFS Group: There are five options can be selected: Disable, Group 1, Group 2, Group 5,

and Same as phase 1. You can select a DH Group for Phase 2 Key exchanging, or use

the same DH Group as Phase 1, or, disable PFS option.

6. Aggressive Mode: Enabling this mode will accelerate establishing tunnel, but the

devicewill suffer from less security in the meanwhile. Hosts in both ends of the tunnel

must support this mode so as to establish the tunnel properly.

7. Preshare Key: The first key that supports IKE mechanism of both VPN router and VPN

client host for negotiating further security keys. The pre-shared key must be same for

both VPN router and client

8. Remote ID: The Type and the Value are the same as the Type and the Value of the

Local ID of the remote VPN router.

9. Local ID: The Type and the Value are the same as the Type and the Value of the

Remote ID of the remote VPN gateway.

10. Keep Alive: Click “enable” to keep VPN connection alive. Otherwise, if there are no

packets transmitting, the VPN tunnel would disconnect.

11. Xauth: If you click “Xauth”. It means that it is without Extended Authentication(xAuth). If

you. However, if you choose “Server”, it will verify the legality of user information from

VPN client. The user information that is provided by VPN client needs to match to user

information that is in local user database of VPN server.

12. Set IKE Protocol: Click “enable” to set IKE Protocol. The default value will be used if

this option is disabled.

13. Encryption/Authentication/DH Group: Select appropriate encryption, authentication

and DH Group

3.3.6.3 VPN Dynamic IP Setting

If client side could not receive the fixed IP and need to have connection established, please

configure VPN Dynamic IP Setting. For instance, the business traveler would like to use

laptop to get connected to the company’s internal website.

1. Tunnel Name: Indicate which tunnel that is focused now

2. Local subnet: The subnet of LAN site of local VPN router. It can be a host, a partial

subnet, and the whole subnet of LAN site of local router.

3. Local Netmask: Local netmask combined with local subnet to form a subnet domain.

4. Encapsulation Protocol: There are three protocols to select : ESP, AH, ESP+AH.

5. PFS Group: There are five options can be selected: Disable, Group 1, Group 2, Group 5,

and Same as phase 1. You can select a DH Group for Phase 2 Key exchanging, or use

the same DH Group as Phase 1, or, disable PFS option.

6. Preshare Key: The first key that supports IKE mechanism of both VPN router and VPN

client host for negotiating further security keys. The pre-shared key must be same for

both VPN router and client.

7. Remote ID: The Type and the Value are the same as the Type and the Value of the Local

ID of the remote VPN router.

8. Local ID: The Type and the Value are the same as the Type and the Value of the

Remote ID of the remote VPN gateway.

9. Keep Alive: Click “enable” to keep VPN connection alive. Otherwise, if there are no

packets transmitting, the VPN tunnel would disconnect.

10. Xauth: If you click “Xauth”. It means that it is without Extended Authentication(xAuth). If

you. However, if you choose “Server”, it will verify the legality of user information from

VPN client. The user information that is provided by VPN client needs to match to user

information that is in local user database of VPN server.

11. Set IKE Protocol: Click “enable” to set IKE Protocol. The default value will be used if this

option is disabled.

12. Encryption/Authentication/DH Group: Select appropriate encryption, authentication

and DH Group

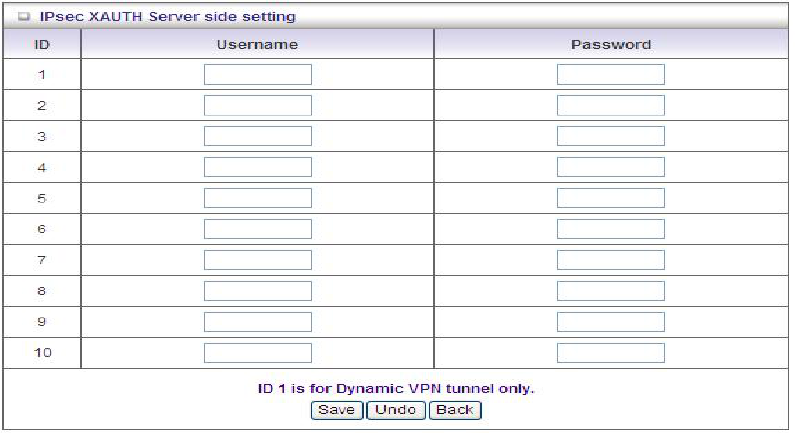

Press “XAUTH” account and you could configure Xauth account and password in this

section.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes or click

“back” to go back to the original page.

3.3.7 VPN-L2TP Client

1. VPN-L2TP Client: Click “enable” to enable VPN-L2TP Client function.

2. Name: The name of tunnel.

3. Peer IP/Domain: Input the L2TP Server IP or domain name.

4. User Name: The account your ISP assigns to you.

5. Password: The password your ISP assigns to you.

6. Peer Subnet: Enter peer subnet.

7. Connect: The way of triggering VPN connection. There are three modes to select:

On-demand: The device will link up with ISP when the clients send outgoing packets.

Auto (Always-on): The device will link with ISP until the connection is established.

Manually: The device will not make the link until someone clicks the connect-button

in the Status-page.

8. Option:

MPPE: The MPPE encryption supports.

NAT: The Nat Traversal supports.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

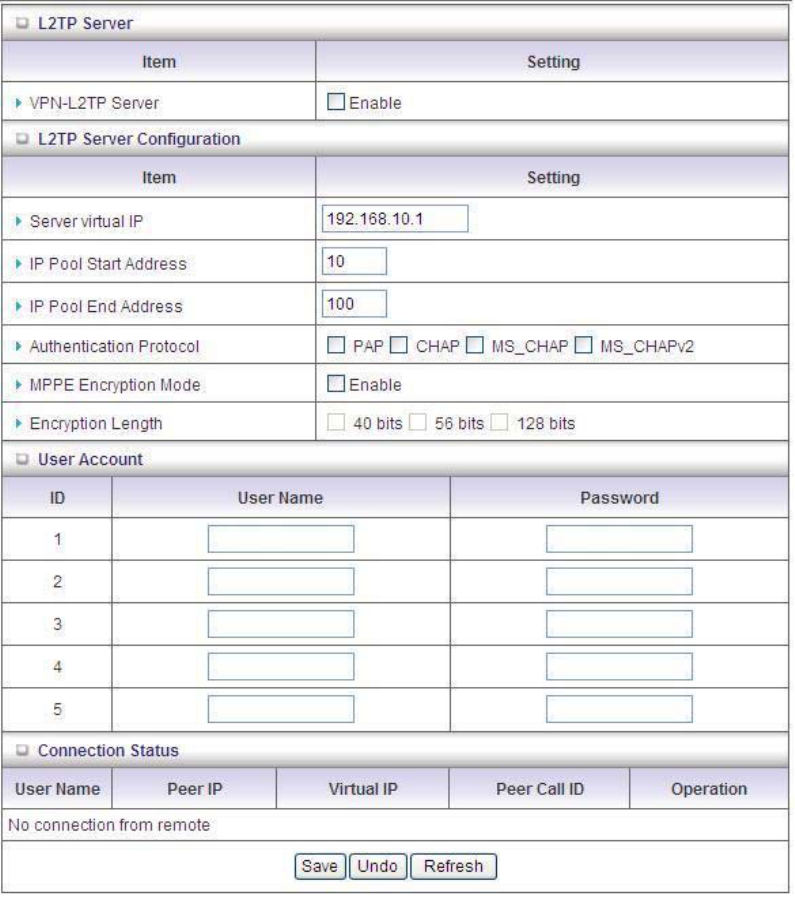

3.3.8 VPN-L2TP Server

1. VPN-L2TP Server: Click “enable” to enable the function of VPN-L2TP Server.

2. Server Virtual IP: The IP address of L2TP server. This IP address should be different

from IP address of PPTP server and LAN subnet of VPN gateway.

3. IP Pool Start Address: The start virtual IP Address that sends to the client.

4. IP Pool End Address: The end virtual IP Address that sends to the client.

5. Authentication Protocal: User can choose authentication protocol such as PAP,

CHAP,MS_CHAP and MS_CHAPv2.

6. MPPE Encryption Mode: Click checkbox to enable MPPE Encryption Mode. Please

note that MPPE needs to work with MSCHAP authentication method.

7. Encryption length: There are three kinds of encryption length, respectively 40 bits, 56

bits, and 128 bits.

8. User Name: Input the account of L2TP client.

9. Password: Input the password of L2TP password.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

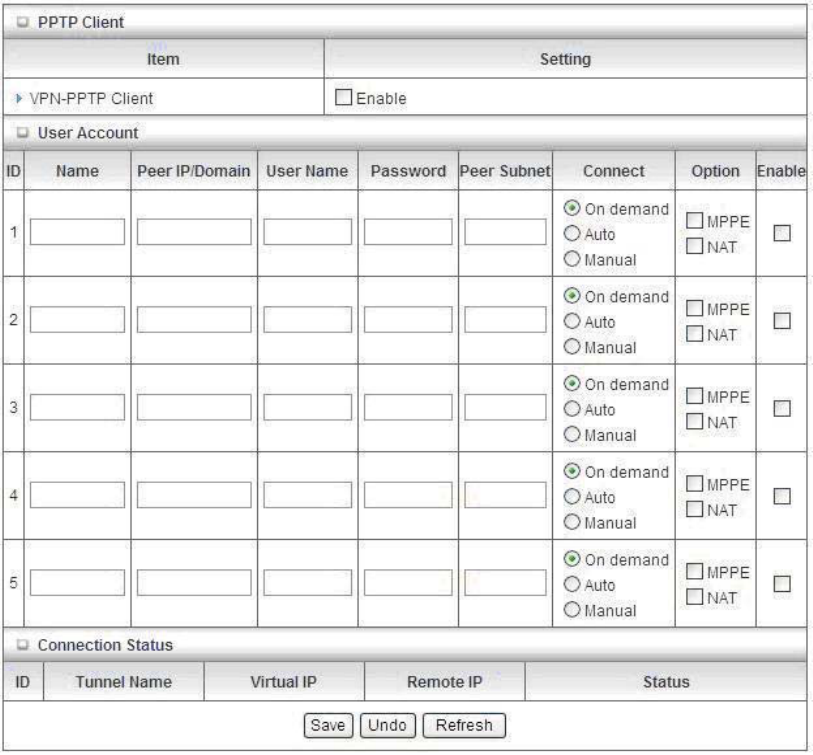

3.3.9 VPN-PPTP Client

It is different from L2TP.

1. VPN-PPTP Client: Click “enable” to enable the function of VPN-PPTP Client.

2. Name: The name of tunnel.

3. Peer IP/Domain: Input the PPTP Server IP or domain name.

4. User Name: The account your ISP assigns to you.

5. Password: The password your ISP assigns to you.

6. Peer Subnet: Enter the peer subnet.

7. Connect: The way of triggering VPN connection. There are three modes to select:

On-demand: The device will link up with ISP when the clients send outgoing packets.

Auto (Always-on): The device will link with ISP until the connection is established.

Manually: The device will not make the link until someone clicks the connect-button in

the Status-page.

8. Option:

MPPE: The MPPE encryption supports.

NAT: The Nat Traversal supports.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

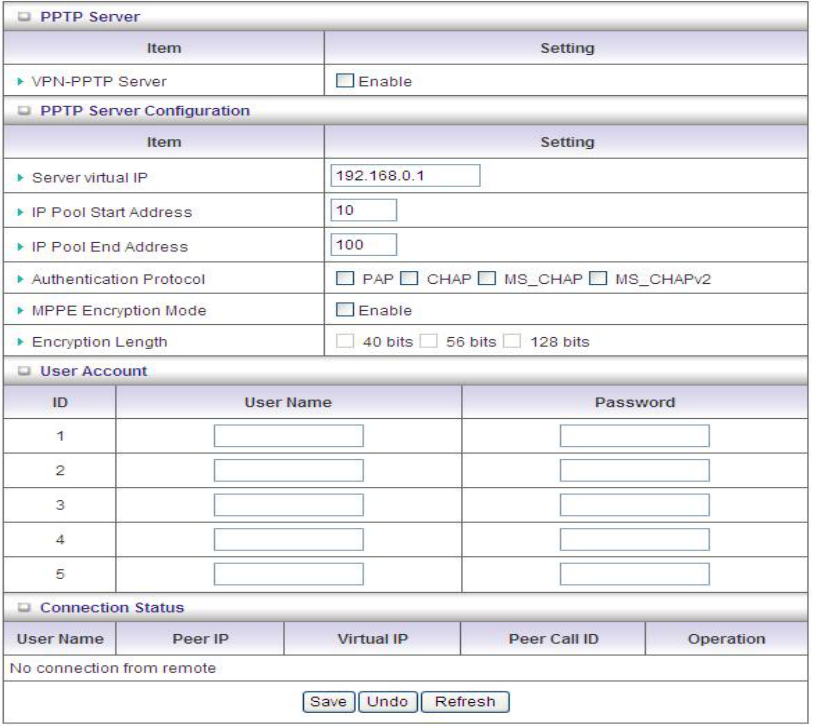

3.3.10 VPN-PPTP Server

The configuration is the same as L2TP.

1. VPN-PPTP Server: Click “enable” to enable the function of VPN-PPTP Server.

2. IP Pool Start Address: The start virtual IP Address that sends to the client.

3. IP Pool End Address: The end virtual IP Address that sends to the client.

4. Authentication Protocal: User can choose authentication protocol such as PAP,

CHAP,MS_CHAP and MS_CHAPv2.

5. MPPE Encryption Mode: Click ‘’enable” to enable MPPE Encryption Mode. Please note

that MPPE needs to work with MSCHAP authentication method.

6. Encryption length: There are three kinds of encryption length, respectively 40 bits, 56

bits, and 128 bits.

7. User Name: Input the account of PPTP client.

8. Password: Input the password of PPTP password.

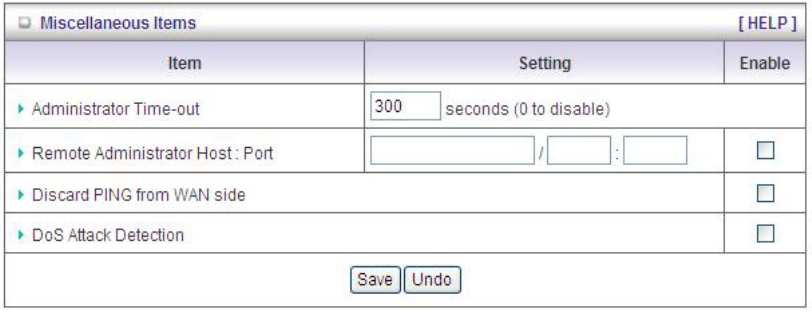

3.3.11 Miscellaneous Items

1. Administrator Time-out: The time of no activity to logout automatically, you may set it to

zero to disable this feature.

2. Remote Administrator Host/Port

In general, only Internet user can browse the built-in web pages to perform administration

task. This feature enables you to perform administration task from remote host. If this

feature is enabled, only the specified IP address can perform remote administration. If the

specified IP address is 0.0.0.0, any host can connect with this product to perform

administration task. You can use subnet mask bits "/nn" notation to specified a group of

trusted IP addresses for example, "10.1.2.0/24".

NOTE: When Remote Administration is enabled, the web server port will be shifted to 80.

You can change web server port to other port, too.

3. Discard PING from WAN side: When this feature is enabled, any host on the WAN

cannot ping this product.

4. DoS Attack Detection: When this feature is enabled, the router will detect and log the

DoS attack coming from the Internet. Currently, the router can detect the following DoS

attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

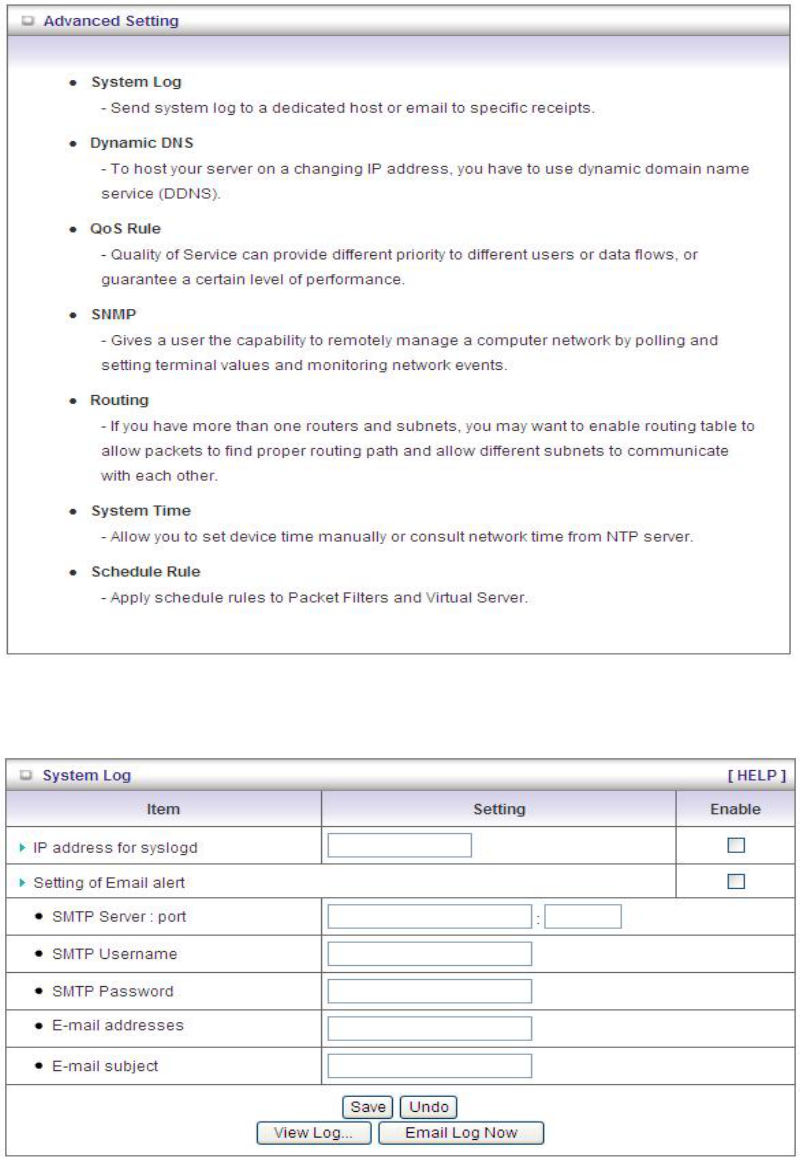

3.4 Advanced Setting

3.4.1 System Log

This page supports two methods to export system logs to specific destination by means of

syslog (UDP) and SMTP(TCP). The items you have to setup include:

1. IP Address for Syslog: Host IP of destination where syslog will be sent to. Check Enable

to enable this function.

2. Setting of Email alert: Check if you want to enable Email alert (send syslog via email).

3. SMTP Server: Port: Input the SMTP server IP and port, which are connected with ':'. If

you do not specify port number, the default value is 25.

For example, "mail.your_url.com" or "192.168.1.100:26".

4. SMTP Username: Enter the Username offered by your ISP.

5. SMTP Password: Enter the User name offered by your ISP.

6. E-mail Addresses: The recipients are the ones who will receive these logs. You can

assign more than 1 recipient, using ';' or ',' to separate these email addresses.

7. E-mail Subject: The subject of email alert is optional.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

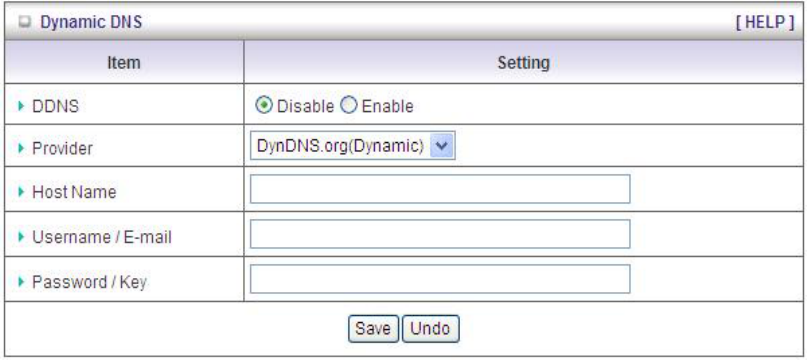

3.4.2 Dynamic DNS

To host your server on a changing IP address, you have to use dynamic domain name service

(DDNS). Therefore, anyone wishing to reach your host only needs to know the name of it.

Dynamic DNS will map the name of your host to your current IP address, which changes each

time you connect your Internet service provider.

Before you enable Dynamic DNS, you need to register an account on one of these Dynamic

DNS servers that we list in Provider field.

1. DDNS: Select enable if you would like to trigger this function.

2. Provider: The DDNS provider supports service for you to bind your IP(even private IP)

with a certain Domain name. You could choose your favorite provider.

3. Host Name: Register a domain name to the DDNS provider. The fully domain name is

concatenated with hostname(you specify) and a suffix(DDNS provider specifies).

4. Username/E-mail: Input username or E-mail based on the DDNS provider you select.

5. Password/Key: Input password or key based on the DDNS provider you select.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

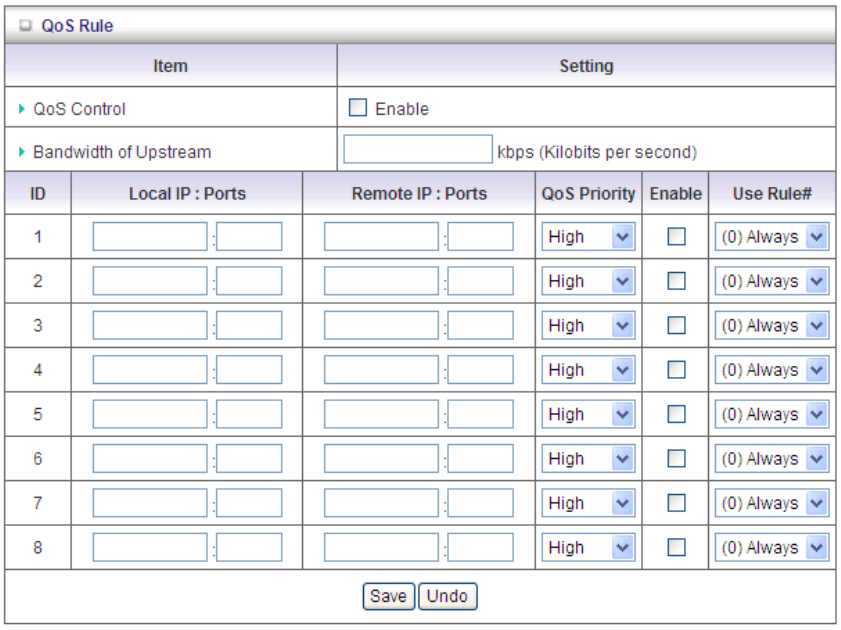

3.4.3 QoS

This device supports QoS function. User could set specified upstream connection with

different priority. There are three priorities could be selected. The packets with High priority

would be processed first.

1. QoS: Quality of Service.

2. Local IP/Ports: The IP and ports that LAN side PC used. The value 0 means don’t care.

3. Remote IP/Ports: The IP and ports that Remote Server used. The value 0 means don’t

care.

For example, if you want to guarantee the HTTP bandwidth, you could keep Local

IP/Port as 0/0, Remote IP/Port as 0/80.

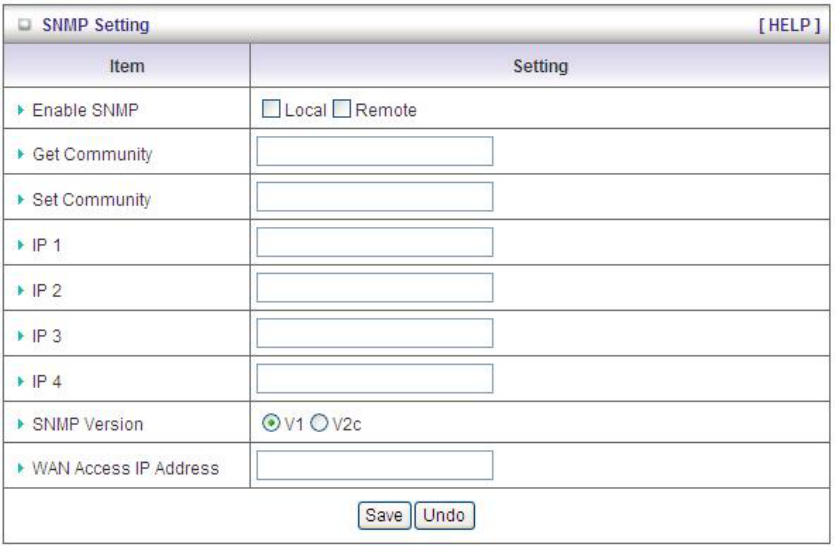

3.4.4 SNMP

In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a

user the capability to remotely manage a computer network by polling and setting terminal

values and monitoring network events.

1. Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If

“Local” is checked, this device will respond request from LAN. If “Remote” is checked, this

device will respond request from WAN.

2. Get Community: The community of GetRequest is that this device will respond.

3. Set Community: The community of SetRequest is that this device will accept.

4. IP 1, IP 2, IP 3, IP 4: Enter the IP addresses of your SNMP Management PCs. User has to

configure where this device should send SNMP Trap message.

5. SNMP Version: Select proper SNMP Version that your SNMP Management software

supports.

6. WAN Access IP Address: If you want to limit the remote SNMP access to specific

computer, please enter the PC’s IP address. The default value is 0.0.0.0, and it means

that any Internet connected computer can get some information of the device with SNMP

protocol.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

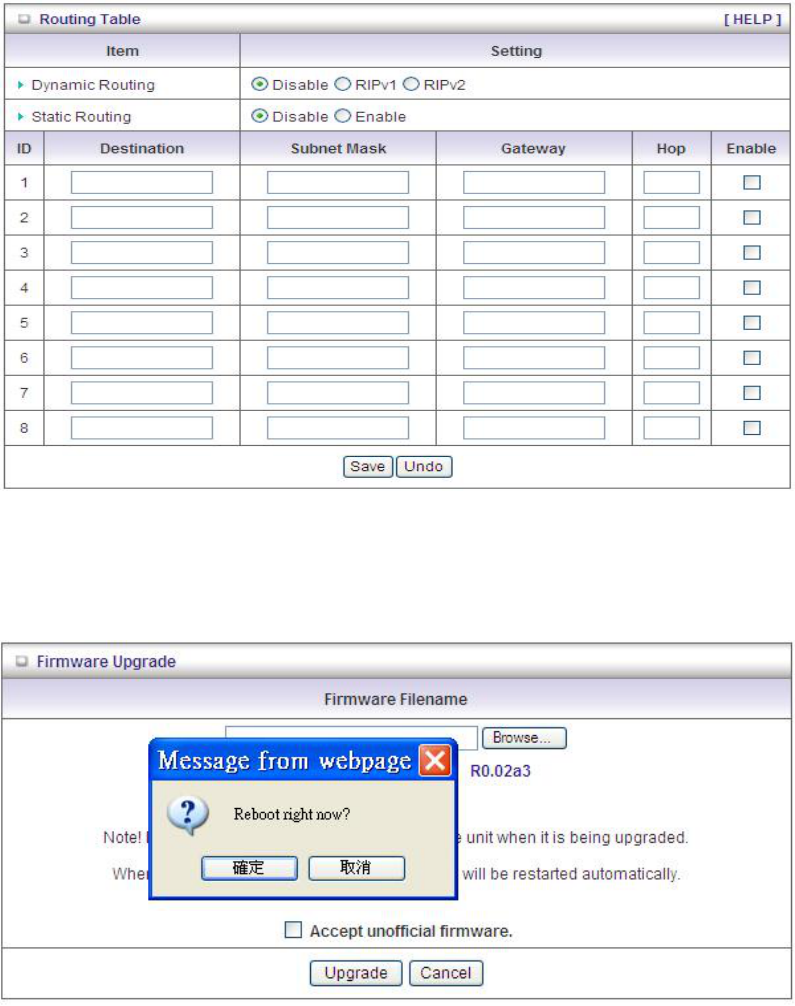

3.4.5 Routing

If you have more than one routers and subnets, you will need to enable routing table to allow

packets to find proper routing path and allow different subnets to communicate with each other.

The routing table allows you to determine which physical interface addresses are utilized for

outgoing IP data grams.

1. Dynamic Routing: Routing Information Protocol (RIP) will exchange information about

destinations for computing routes throughout the network. Please select RIPv2 only if you

have different subnets in your network. Otherwise, please select RIPv1 if you need this

protocol.

2. Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the

destination IP address, subnet mask, gateway, and hop for each routing rule, and then

enable or disable the rule by checking or un-checking the Enable checkbox.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

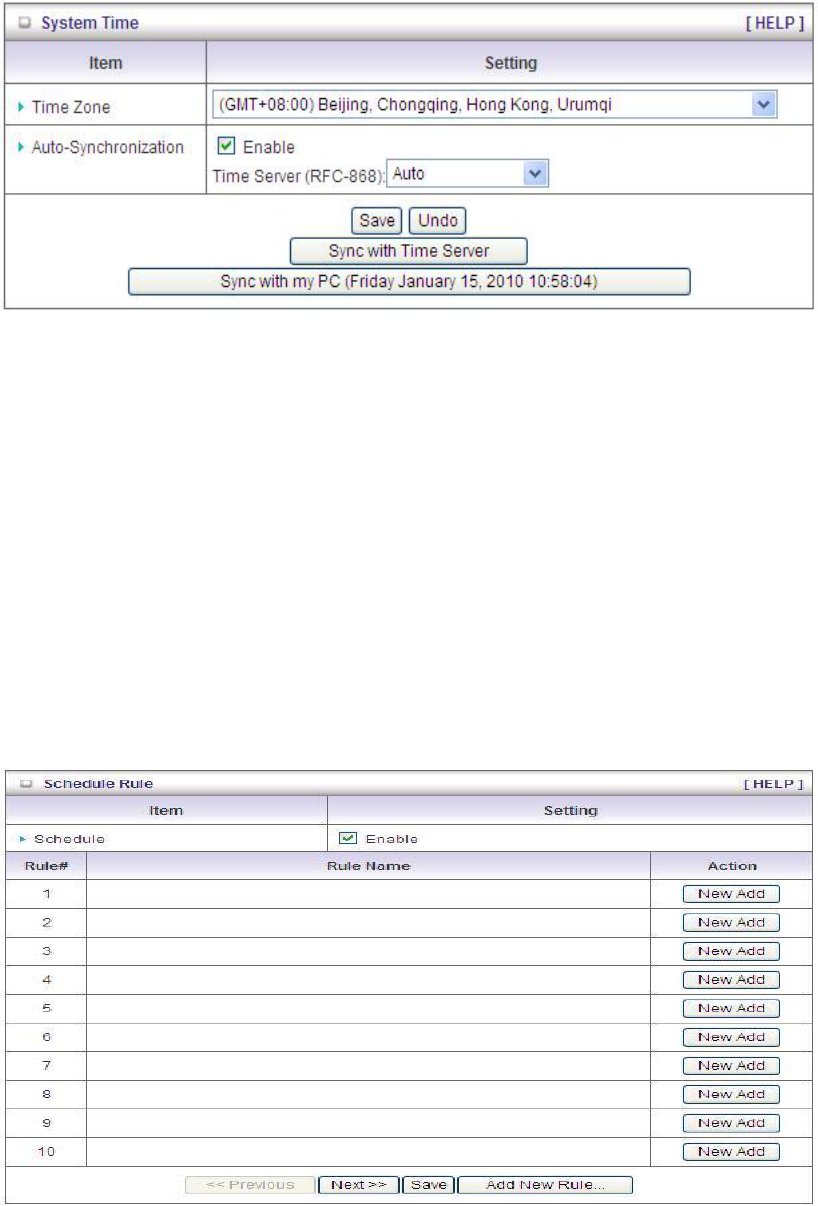

3.4.6 System Time

1. Time Zone: Select a time zone where this device locates.

2. Auto-Synchronization: Check the “Enable” checkbox to enable this function. Besides,

you can select a NTP time server to consult UTC time.

3. Sync with Time Server: Click on the button if you want to set Date and Time by NTP

Protocol .

4. Sync with my PC: Click on the button if you want to set Date and Time using PC’s Date

and Time.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

3.4.7 Scheduling

You can set the schedule time to decide which service will be turned on or off.

1. Schedule: Check to enable the schedule rule settings.

2. Add New Rule: To create a schedule rule, click the “New Add” button. You can edit the

Name of Rule, Policy, and set the schedule time (Week day, Start Time, and End Time).

The following example configures “wake-up time“ everyday from 06:00 to 07:00.

Afterwards, click save” to store your settings or click “Undo” to give up the changes.

3.5 Tool Box

3.5.1 System Info

You can view the System Information and System log, and download/clear the System log, in

this page.

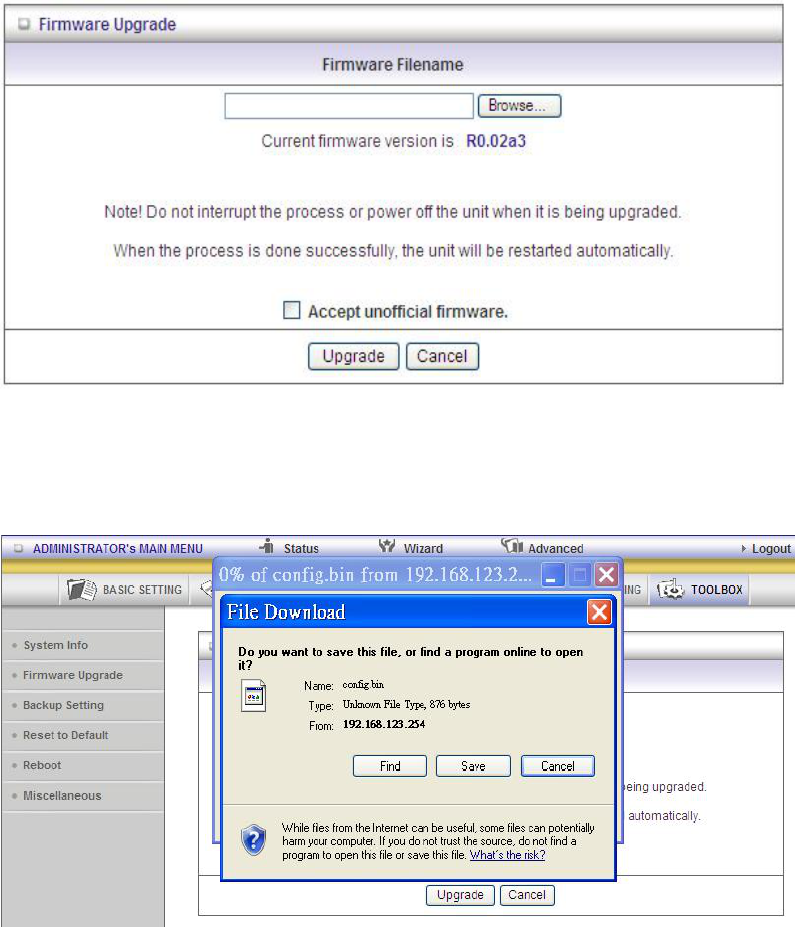

3.5.2 Firmware Upgrade

You can upgrade firmware by clicking “Upgrade” button.

3.5.3 Backup Setting

You can backup your settings by clicking the “Backup Setting” function item and save it as a

bin file. Once you want to restore these settings, please click Firmware Upgrade button and

use the bin file you saved.

3.5.4 Reset to Default

You can also reset this device to factory default settings by clicking the Reset to default

function item.

3.5.5 Reboot

You can also reboot this device by clicking the Reboot function item.

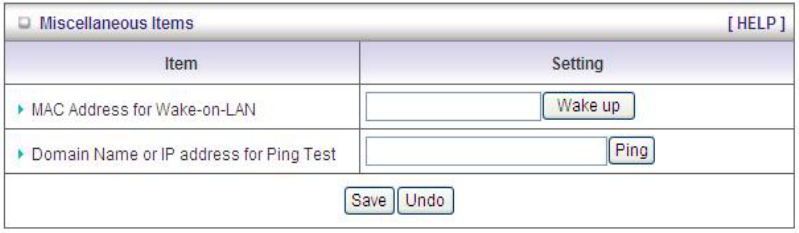

3.5.6 Miscellaneous

1. MAC Address for Wake-on-LAN: It enables you to power up a networked device

remotely. If you would like to trigger this function, you have to know the MAC address of

this device. For instance if the MAC address is 00-11-22-33-44-55, enter it into the blank

of MAC Address for Wake-on-LAN. Afterwards. Afterwards, click "Wake up" button which

makes the router to send the wake-up frame to the target device immediately.

2. Domain Name or IP address for Ping Test: Allow you to configure an IP, and ping the

device. You can ping a specific IP to test whether it is alive.

Afterwards, click on “Save” to store your settings or click “Undo” to give up the changes.

CHAPTER 4. Troubleshooting

This Chapter provides solutions to problems for the installation and operation of the WiFi Combo

VPN Router. You can refer to the following if you are having problems.

1 Why can’t I configure the router even the cable is

plugged and the LED is lit?

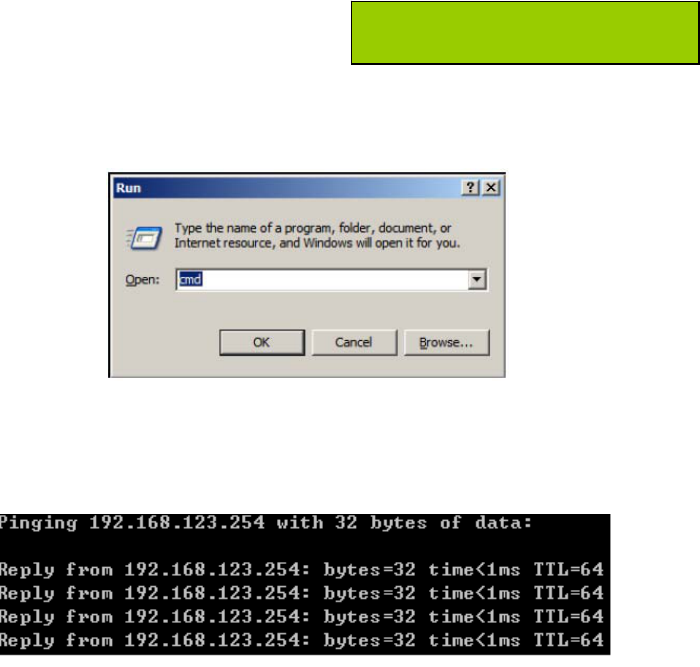

Do a Ping test to make sure that the WiFi Combo Note: It is recommended that you use

VPN Router is responding. an Ethernet connection to configure it.

Go to Start > Run.

1. Type cmd.

2. Press OK.

3. Type ipconfig to get the IP of default gateway.

4. Type “ping 192.168.123.254”. Assure that you ping the correct IP Address assigned

to the WiFi Combo VPN Router. It will show four replies if you ping correctly.

Ensure that your Ethernet Adapter is working, and that all network drivers are installed

properly. Network adapter names will vary depending on your specific adapter. The

installation steps listed below are applicable for all network adapters.

1. Go to Start > Right click on “My Computer” > Properties.

2. Select the Hardware Tab.

3. Click Device Manager.

4. Double-click on “Network Adapters”.

5. Right-click on Wireless Card bus Adapter or your specific network adapter.

6. Select Properties to ensure that all drivers are installed properly.

7. Look under Device Status to see if the device is working properly.

8. Click “OK”.

2 What can I do if my Ethernet connection does not

work properly?

A. Make sure the RJ45 cable connects with the router.

B. Ensure that the setting on your Network Interface Card adapter is “Enabled”.

C. If settings are correct, ensure that you are not using a crossover Ethernet cable, not all

Network Interface Cards are MDI/MDIX compatible, and use a patch cable is

recommended.

D. If the connection still doesn’t work properly, then you can reset it to default.

3 Problems with 3G connection?

A. What can I do if the 3G connection is failed by Auto detection?

Maybe the device can’t recognize your ISP automatically. Please select “Manual” mode,

and filling in dial-up settings manually.

B. What can I do if my country and ISP are not in the list?

Please choose “Others” item from the list, and filling in dial-up settings manually.

C. What can I do if my 3G connection is failed even the dongle is plugged?

Please check the following items:

I. Make sure you have inserted a validated SIM card in the 3G data card, and the

subscription from ISP is still available

II. If you activate PIN code check feature in SIM card, making sure the PIN code you

fill in dial-up page is correct

III. Checking with your ISP to see all dial-up settings are correct

IV. Make sure 3G signal from your ISP is available in your environment

D. What can I do if my router can’t recognize my 3G data card even it is

plugged?

There might be compatibility issue with some certain 3G cards. Please check the latest

compatibility list to see if your 3G card is already supported.

E. What should I insert in APN, PIN Code, Account, Password, Primary DNS,

and Secondary DNS?

The device will show this information after you choose country and Telcom. You can

also check these values with your ISP.

F. Which 3G network should I select?

It depends on what service your ISP provider. Please check your ISP to know this

information.

G. Why does my 3G connection keep dropping?

Please check 3G signal strength from your ISP in your environment is above middle

level.

4 Something wrong with the wireless connection?

A. Can’t setup a wireless connection?

I. Ensure that the SSID and the encryption settings are exactly the same to the

Clients.

II. Move the WiFi Combo VPN Router and the wireless client into the same room,

and then test the wireless connection.

III. Disable all security settings such as WEP, and MAC Address Control.

IV. Turn off the WiFi Combo VPN Router and the client, then restart it and then turn

on the client again.

V. Ensure that the LEDs are indicating normally. If not, make sure that the power and

Ethernet cables are firmly connected.

VI. Ensure that the IP Address, subnet mask, gateway and DNS settings are correctly

entered for the network.

VII. If you are using other wireless device, home security systems or ceiling fans,

lights in your home, your wireless connection may degrade dramatically. Keep

your product away from electrical devices that generate RF noise such as

microwaves, monitors, electric motors…

B. What can I do if my wireless client can not access the Internet?

I. Out of range: Put the router closer to your client.

II. Wrong SSID or Encryption Key: Check the SSID or Encryption setting.

III. Connect with wrong AP: Ensure that the client is connected with the correct

Access Point.

i. Right-click on the Local Area Connection icon in the taskbar.

ii. Select View Available Wireless Networks in Wireless Configure. Ensure you

have selected the correct available network.

iii. Reset the WiFi Combo VPN Router to default setting

C. Why does my wireless connection keep dropping?

I. Antenna Orientation.

i. Try different antenna orientations for the WiFi Combo VPN Router.

ii. Try to keep the antenna at least 6 inches away from the wall or other objects.

II. Try changing the channel on the WiFi Combo VPN Router, and your Access Point

and Wireless adapter to a different channel to avoid interference.

III. Keep your product away from electrical devices that generate RF noise, like

microwaves, monitors, electric motors, etc.

5 What to do if I forgot my encryption key?

1. Go back to advanced setting to set up your Encryption key again.

2. Reset the WiFi Combo VPN Router to default setting

Appendix A. Spec Summary Table

*Specifications are subject to change without notice.

Appendix B. Licensing Information

This product includes copyrighted third-party software licensed under the terms of the GNU

General Public License. Please refer to the GNU General Public License below to check the

detailed terms of this license.

The following parts of this product are subject to the GNU GPL, and those software packages

are copyright by their respective authors.

Linux-2.4.28 system kernel

busybox_1_00_rc2

bridge-utils 0.9.5

dhcpcd-1.3

ISC DHCP V2 P5

util-linux 2.12b for fdisk application

e2fsprogs 1.27

mini-lpd

samba 2.2.7a

syslogd spread from busybox

wireless tools

ntpclient of NTP client implementation

RT61apd for 802.1X application

vsftpd-2.0.3

quota-tools 3.13

GNU Wget

Availability of source code

Please visit our web site or contact us to obtain more information.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it.

By contrast, the GNU General Public License is intended to guarantee your freedom to share

and change free software--to make sure the software is free for all its users. This General

Public License applies to most of the Free Software Foundation's software and to any other

program whose authors commit to using it. (Some other Free Software Foundation software is

covered by the GNU Library General Public License instead.) You can apply it to your

programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public

Licenses are designed to make sure that you have the freedom to distribute copies of free

software (and charge for this service if you wish), that you receive source code or can get it if

you want it, that you can change the software or use pieces of it in new free programs; and that

you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights

or to ask you to surrender the rights. These restrictions translate to certain responsibilities for

you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must

give the recipients all the rights that you have. You must make sure that they, too, receive or

can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license

which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone

understands that there is no warranty for this free software. If the software is modified by

someone else and passed on, we want its recipients to know that what they have is not the

original, so that any problems introduced by others will not reflect on the original authors'

reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the

danger that redistributors of a free program will individually obtain patent licenses, in effect

making the program proprietary. To prevent this, we have made it clear that any patent must be

licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the

The "Program", below, refers to any such program or work, and a "work based on the

Program" means either the Program or any derivative work under copyright law: that is to say,

a work containing the Program or a portion of it, either verbatim or with modifications and/or

translated into another language. (Hereinafter, translation is included without limitation in the

term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License;

they are outside its scope. The act of running the Program is not restricted, and the output

from the Program is covered only if its contents constitute a work based on the Program

(independent of having been made by running the Program). Whether that is true depends on

what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it,

in any medium, provided that you conspicuously and appropriately publish on each copy an

appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to

this License and to the absence of any warranty; and give any other recipients of the Program

a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option

offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work

based on the Program, and copy and distribute such modifications or work under the terms of

Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the

files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or

is derived from the Program or any part thereof, to be licensed as a whole at no charge to

all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause

it, when started running for such interactive use in the most ordinary way, to print or display

an announcement including an appropriate copyright notice and a notice that there is no

warranty (or else, saying that you provide a warranty) and that users may redistribute the

program under these conditions, and telling the user how to view a copy of this License.

(Exception: if the Program itself is interactive but does not normally print such an

announcement, your work based on the Program is not required to print an

announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work

are not derived from the Program, and can be reasonably considered independent and

separate works in themselves, then this License, and its terms, do not apply to those sections

when you distribute them as separate works. But when you distribute the same sections as

part of a whole which is a work based on the Program, the distribution of the whole must be on

the terms of this License, whose permissions for other licensees extend to the entire whole,

and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written

entirely by you; rather, the intent is to exercise the right to control the distribution of derivative

or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or

with a work based on the Program) on a volume of a storage or distribution medium does not

bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object

code or executable form under the terms of Sections 1 and 2 above provided that you also do

one of the following:

a) Accompany it with the complete corresponding machine-readable source code,

which must be distributed under the terms of Sections 1 and 2 above on a medium

customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a

charge no more than your cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code, to be distributed under the

terms of Sections 1 and 2 above on a medium customarily used for software interchange;

or,

c) Accompany it with the information you received as to the offer to distribute corresponding

source code. (This alternative is allowed only for noncommercial distribution and only if

you received the program in object code or executable form with such an offer, in accord

with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it.

For an executable work, complete source code means all the source code for all modules it

contains, plus any associated interface definition files, plus the scripts used to control

compilation and installation of the executable. However, as a special exception, the source

code distributed need not include anything that is normally distributed (in either source or

binary form) with the major components (compiler, kernel, and so on) of the operating system

on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a

designated place, then offering equivalent access to copy the source code from the same

place counts as distribution of the source code, even though third parties are not compelled to

copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly

provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute

the Program is void, and will automatically terminate your rights under this License. However,

parties who have received copies, or rights, from you under this License will not have their

licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing

else grants you permission to modify or distribute the Program or its derivative works. These

actions are prohibited by law if you do not accept this License. Therefore, by modifying or

distributing the Program (or any work based on the Program), you indicate your acceptance of

this License to do so, and all its terms and conditions for copying, distributing or modifying the

Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient

automatically receives a license from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not impose any further restrictions

on the recipients' exercise of the rights granted herein. You are not responsible for enforcing

compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other

reason (not limited to patent issues), conditions are imposed on you (whether by court order,

agreement or otherwise) that contradict the conditions of this License, they do not excuse you

from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your

obligations under this License and any other pertinent obligations, then as a consequence you

may not distribute the Program at all. For example, if a patent license would not permit

royalty-free redistribution of the Program by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it and this License would be to refrain

entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance,

the balance of the section is intended to apply and the section as a whole is intended to apply

in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right

claims or to contest validity of any such claims; this section has the sole purpose of protecting

the integrity of the free software distribution system, which is implemented by public license

practices. Many people have made generous contributions to the wide range of software

distributed through that system in reliance on consistent application of that system; it is up to

the author/donor to decide if he or she is willing to distribute software through any other system

and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the

rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by

patents or by copyrighted interfaces, the original copyright holder who places the Program

under this License may add an explicit geographical distribution limitation excluding those

countries, so that distribution is permitted only in or among countries not thus excluded. In

such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General

Public License from time to time. Such new versions will be similar in spirit to the present

version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version

number of this License which applies to it and "any later version", you have the option of

following the terms and conditions either of that version or of any later version published by the

Free Software Foundation. If the Program does not specify a version number of this License,

you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution

conditions are different, write to the author to ask for permission. For software which is

copyrighted by the Free Software Foundation, write to the Free Software Foundation; we

sometimes make exceptions for this. Our decision will be guided by the two goals of

preserving the free status of all derivatives of our free software and of promoting the sharing

and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO

WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR

OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS

WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF

ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN

WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY

AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU

FOR DAMAGES,

INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT

NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR

LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO

OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

D Link DIR410A1 M2M 3G VPN Router User Manual

D Link Corporation M2M 3G VPN Router

User Manual

Navigation menu

Namespaces

Views

Navigation
