D Link DP-311U Wireless USB Print Server User Manual DP300U manual 021203

D Link Corporation Wireless USB Print Server DP300U manual 021203

Contents

users manual 2

49
Unix/Linux Printing
Please refer to the PS Admin Manual on the CD included with your purchase for
information on setting up the Print Server in Unix/Linux.
50
Setting up Apple Talk or LPR
Printing in Mac OS X
At the Configure
pull-down menu,
select Manually
Open your System
Preferences
window and Click
Network.
With Mac OSX you can use AppleTalk or LPR printers using IP protocols for printing
through Print Servers. Follow the instructions below for setting up the Print Server.
After attaching the Print Server to your network using the directions provided in the
Quick Installation Guide, change the IP Address of your Macintosh to access the
Print Server’s web configuration.
Note: Mac OS printing with this print server is sup-
ported by Postscript printers only!
51

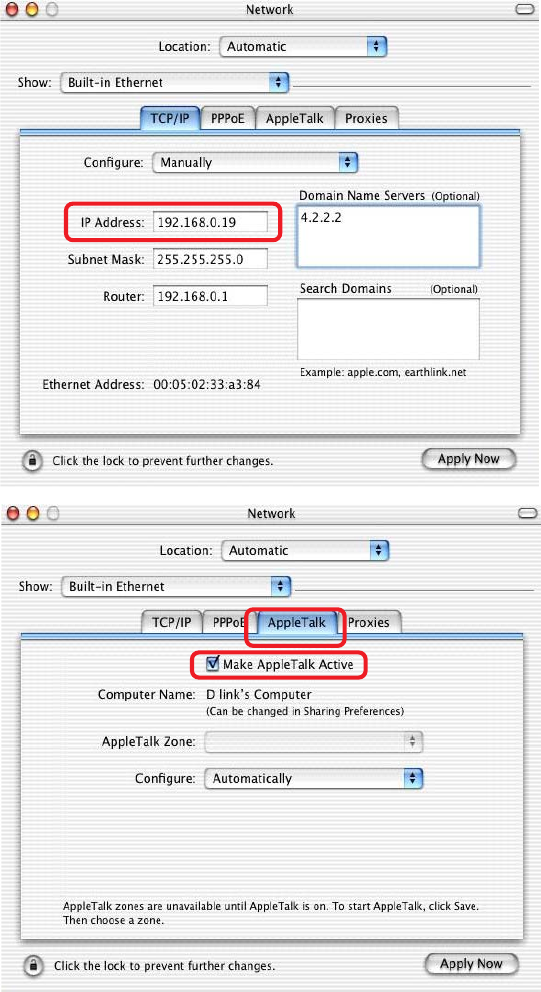

The default IP
Address of the Print
Server is
192.168.0.10.
Manually change
your IP Address to
102.168.0.x, where
x is any number
between 1 and 254
(except 10 which is
the IP Address of
the Print Server.)
The IP Addresses
and Subnet Mask
shown here are
examples only.
Setting up Apple Talk or LPR Printing
in Mac OS X (continued)
Select the AppleTalk
tab in this window
and check Make
AppleTalk Active.
52
Setting up Apple Talk or LPR Printing
in Mac OS X (continued)

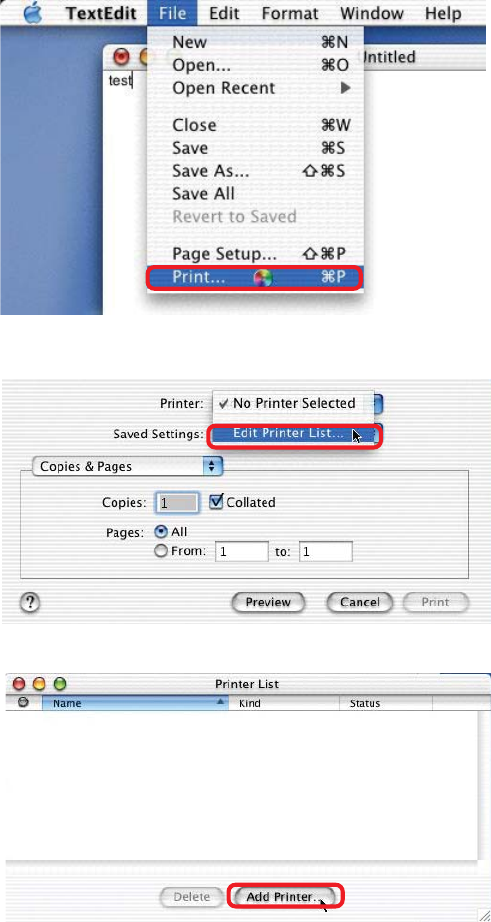

To print, open a document
and select File > Print
from the menu.
Select Edit Printer
List from the Printer
dialog box.
Click Add Printer
53
Setting up Apple Talk or LPR Printing
in Mac OS X (continued)
Select the printing
protocol preferred,
AppleTalk or LPR
Printers using IP.
AppleTalk protocol:
After selecting
AppleTalk the Port
Name of the Print
Server will be dis-
played. The Port
Name shown here is
an example only.
Click on the Port to
which the post-script
printer is connected.
In this example,
AppleTalk has been
selected.
PS - 116688-U1 Laserwriter
Then select the printer model from the dialog box displayed here.
Click Add Printer and the Printer Port configuration is complete.
Select the Printer Port just configured in the Print window.
Click Print to print your document.
PS - 116688-U1 Laserwriter
54
Setting up Apple Talk or LPR Printing
in Mac OS X (continued)

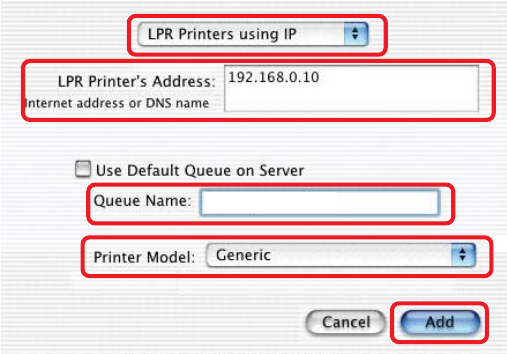

LPR Printers using IP
protocol:
When you select LPR
Printers using IP Proto-
col, this window will ap-
pear.
Type the IP Address of the
Print Server into the LPR
Printer’s Address field.
In the Queue Name field, type in the Port Name of the post-script printer that is
connected to the Print Server. The Port Name illustrated here is only an example.
Select the printer model from the dialog box.
In the Queue Name field, type in the Port Name of the post-script printer that is
connected to the Print Server. The Port Name illustrated here is only an example.
Select the printer model from the dialog box.
Click Add and the process is complete.
Close all Print Center windows, select the Printer Port that was just selected.
Click Print to print the document.Click Add and the process is complete.
PS-116688 - U1
55
Setting up Apple Talk Printing
in Mac OS 9
The AppleTalk network protocol is used with computers using the MacOS operating
system. It can be used for network communications over standard Ethernet or Fast
Ethernet using the EtherTalk transport, or over a proprietary low-speed LocalTalk
transport.
Your Print Server can be used for network printing to PostScript printers. You can
print from any MacOS computer connected to your Ethernet network, either directly
using an EtherTalk connection, or indirectly through a LocalTalk-to-EtherTalk router.
NOTE: The Chooser name of a printer connected to one of the Print Server’s ports
is the same as its Port Name. If you are using AppleTalk printing, you will need to
make sure that every Port Name is unique among all of the network printers in your
AppleTalk zone. The Port Names shown in this manual are examples only.
Setting up the Print Server for AppleTalk Printing
To set up your Print Server so that it can be used for AppleTalk printing:
Note: Mac OS printing with this print server sup-
ports Postscript printers only!
If your AppleTalk network is divided into AppleTalk zones, you will have to
specify which zone the Print Server should be in. You should locate the Print
Server in the same zone as most of the users who will be using it. If your
network is not divided into zones, the AppleTalk Zone field should contain a
single asterisk “*”.
Select the Network tab and scroll to the bottom to the AppleTalk protocol
section
Change the IP Address on one of the computers on your network to
192.168.0.x, where x is any number between 11-254.
Type 192.168.0.10 into the address field of your web browser. 192.168.0.10 is
the default IP Address of the DP-311U.
Make sure the AppleTalk protocol is enabled in your Macintosh.
56
Printing from MacOS Client Workstations
The exact procedure for selecting a PostScript printer connected to your Print
Server may vary slightly, depending on what printer driver version you are using.
The procedure described below assumes you are using the LaserWriter 8.
To choose a printer connected to your Print Server as your MacOS
workstation’s default printer,

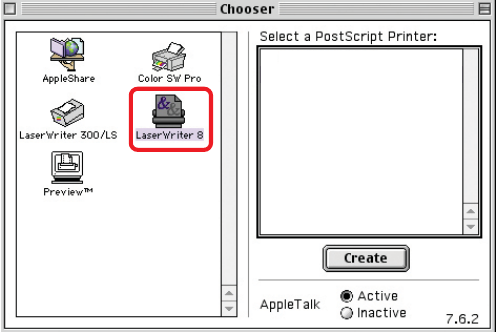

Open the Chooser by selecting Chooser from the Apple menu.
Select the LaserWriter 8 icon on the left. Make sure that AppleTalk is set
to Active.
A list of all networked PostScript printers will be displayed:
Double-click the name of
the Printer Port you wish
to use. The Printer Ports
shown are examples only.
PS-116688-U1
57
Printing from MacOS Client Workstations (continued)
If you have not previously
set this printer as the
default, your computer
will prompt you for a
PostScript Printer
Description file. Choose
Select PPD.
If you wish to access this setting in the future, you can use the Setup button in the
Chooser window.
The selected printer will become your computer’s default printer. You may need to
choose Page Setup in any applications you have open.
Select the appropriate
printer description file for
your printer.
Click Open.
(If your printer is not listed,
click Generic to use a
generic printer
description.)
58
Networking Basics
Using the Network Setup Wizard in Windows XP
In this section you will learn how to establish a network at home or work, using
Microsoft Windows XP.
Note: Please refer to websites such as http://www.homenethelp.com
and http://www.microsoft.com/windows2000 for information about networking
computers using Windows 2000, ME or 98SE.

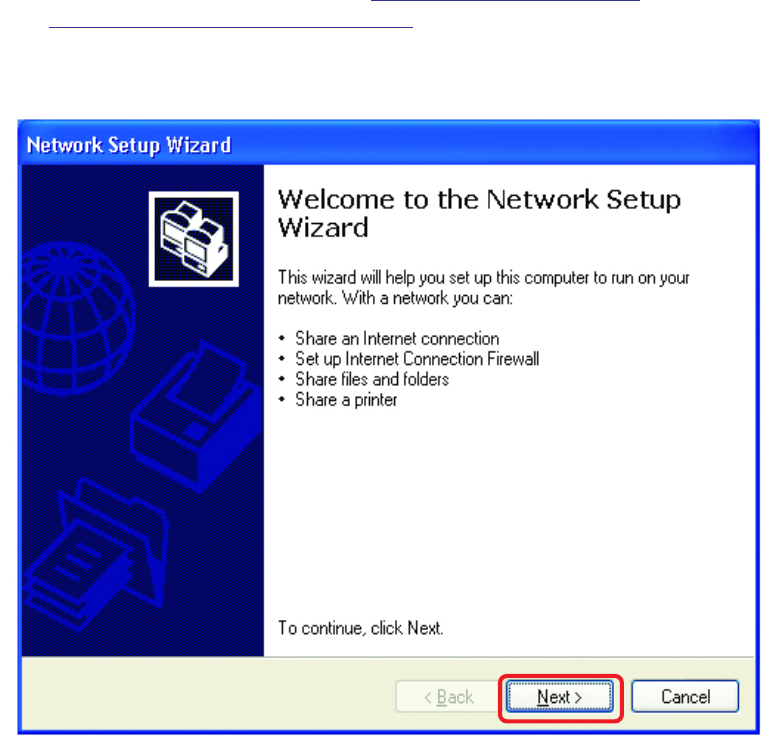

Go to Start>Control Panel>Network Connections
When this screen appears, Click Next
59
Networking Basics (continued)

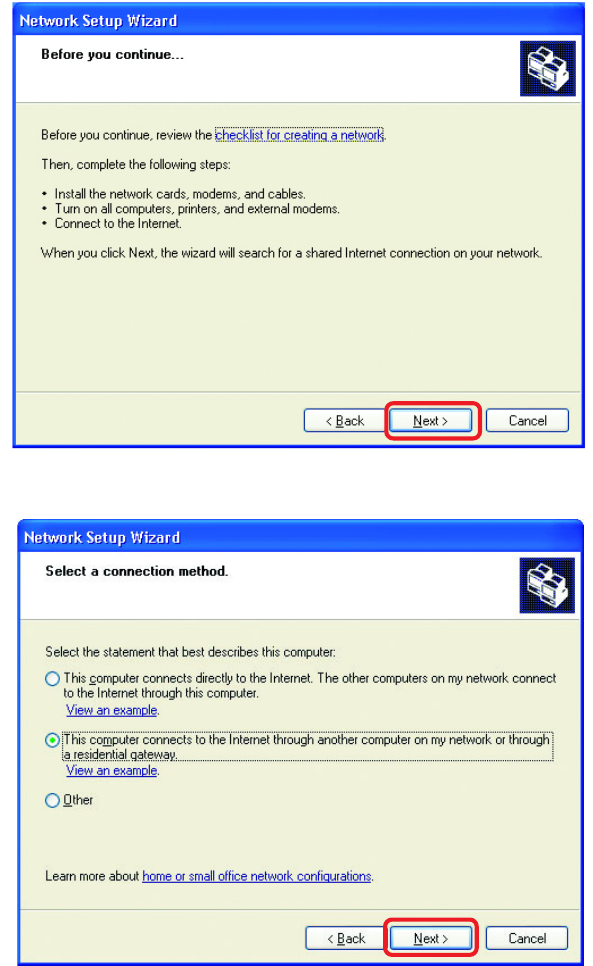

Please follow all
the instructions in
this window:
Click Next
In this window,
select the
best description of
your computer.
If your computer
connects to the
internet through a
gateway/router,
select the second
option as shown.
60
Networking Basics

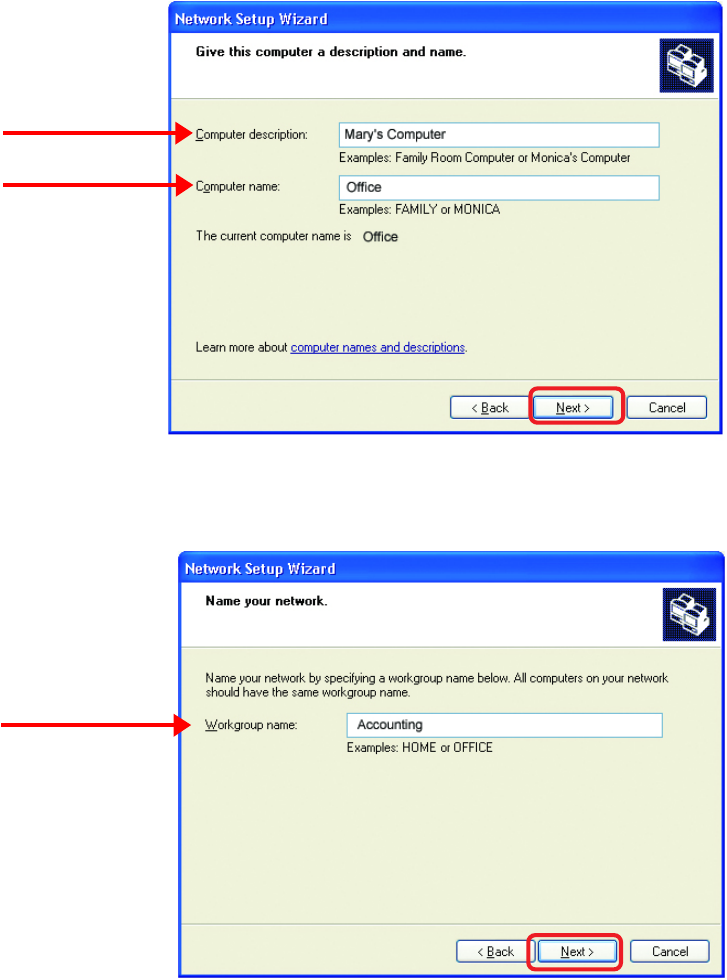

Enter a Computer
description and a
Computer name
(optional.)
Click Next
Enter a Workgroup
name. All computers
on your network
should have the
same Workgroup
name.
Click Next
(continued)
61
Networking Basics

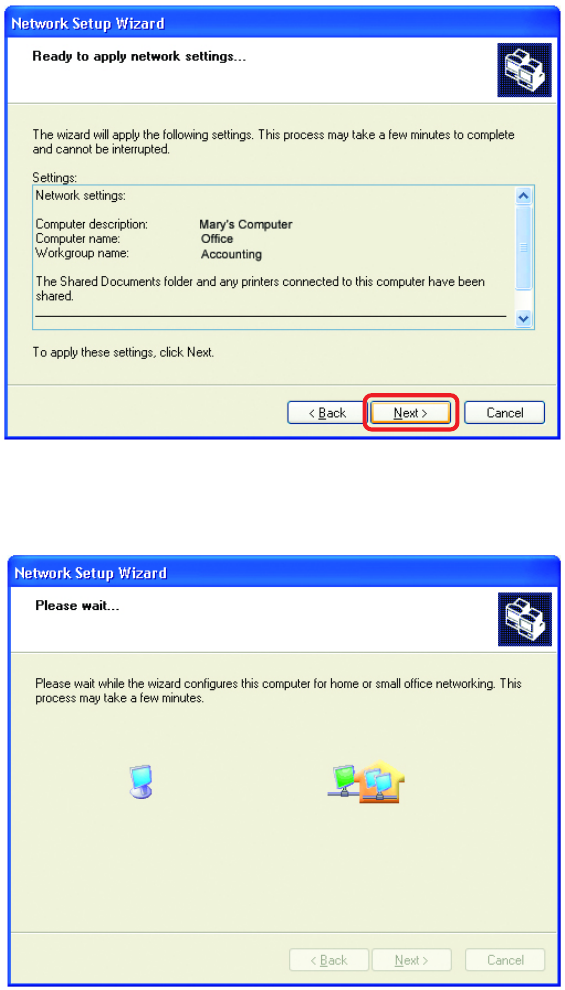

Please wait while
the Network
Setup Wizard
applies the
changes.
When the changes
are complete,
Click Next.
Please wait while
the Network
Setup Wizard
configures the
computer.
This may take a
few minutes.
(continued)
62
Networking Basics

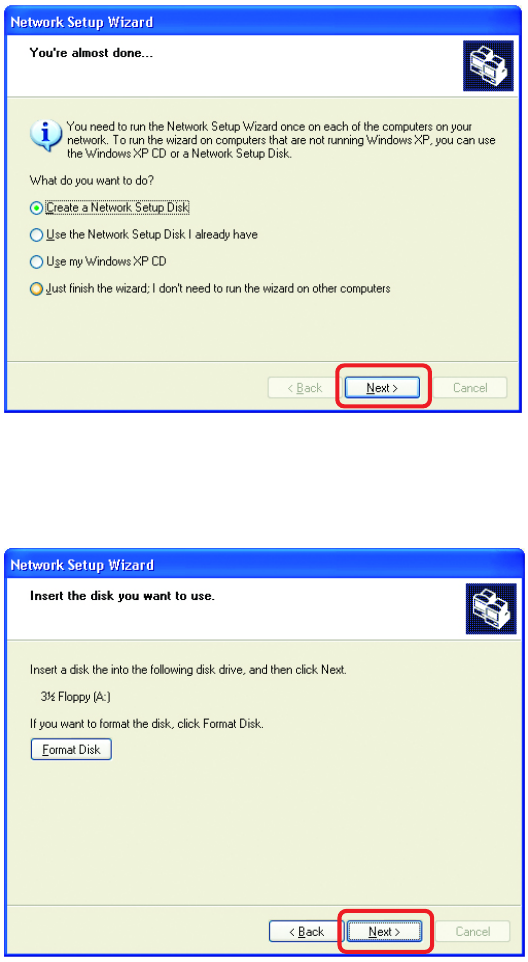

In this window, select
the best option. In
this example, Create
a Network
Setup Disk has been
selected.
You will run this disk
on each of the
computers on your
network.
Insert a disk into the
Floppy Disk Drive, in
this case drive A.
Format the disk if you
wish, and Click Next
Click Next
(continued)
63
Networking Basics

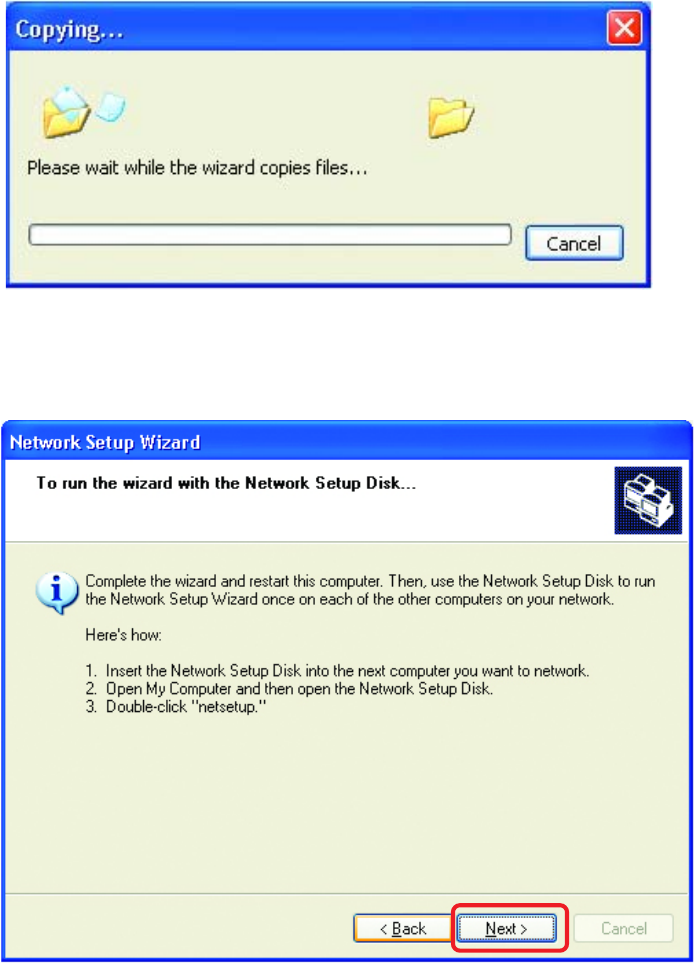

Please wait while the Network Setup Wizard copies the files.
Please read the information under Here’s how in the screen below. After you
complete the Network Setup Wizard you will use the Network Setup Disk to run
the Network Setup Wizard once on each of the computers on your network. To
continue, Click Next.
(continued)
64
Networking Basics

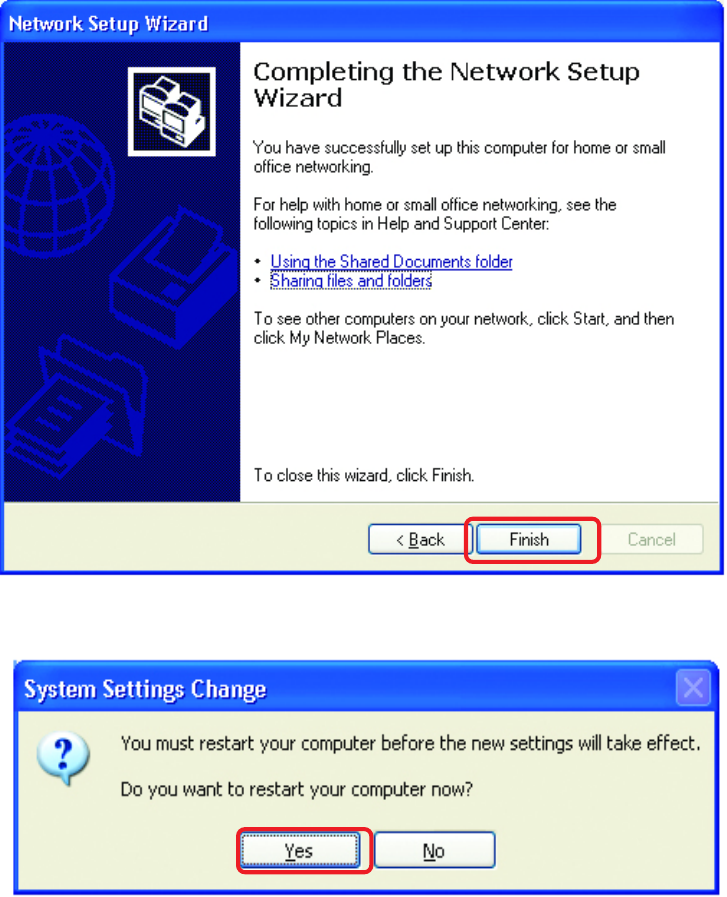

The new settings will take effect when you restart the computer. Click Yes to
restart the computer.
You have completed configuring this computer. Next, you will need to run the Net-
work Setup Disk on all the other computers on your network. After running the
Network Setup Disk on all your computers, your new wireless network will be
ready to use.
(continued)
65
Networking Basics

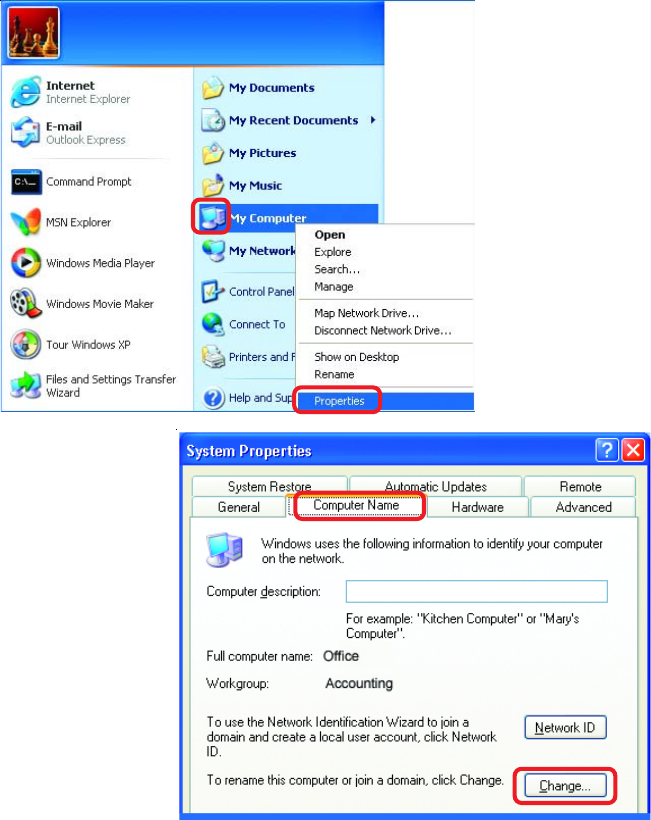

How to assign a Name to your computer
To name your computer, please follow these directions in Windows XP:
Click Start (in the lower left corner of the screen)
Right-click My Computer
Select Properties and Click
Select the Computer
Name tab in the System
Properties window.
You may enter a
Computer Description
(optional).
To rename the computer
and join a domain, Click
Change.
(continued)
66
Networking Basics
How to assign a Name to your Computer

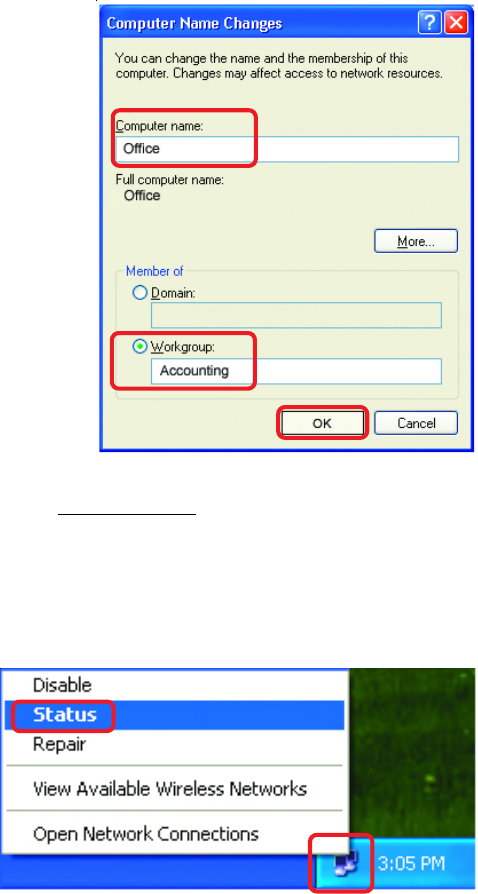

In this window, enter the
Computer name
Select Workgroup and enter
the name of the Workgroup
All computers on your network
must have the same
Workgroup name.
Click OK
How to find your IP Address in Windows XP
The adapter-equipped computers in your network must be in the same IP Ad-
dress range. To verify the IP Address of the adapter, please do the following:
Right-click on the
Local Area Con-
nection icon in
the task bar
Click on Status
(continued)
67
Networking Basics (continued)
How to find your IP Address in Windows XP

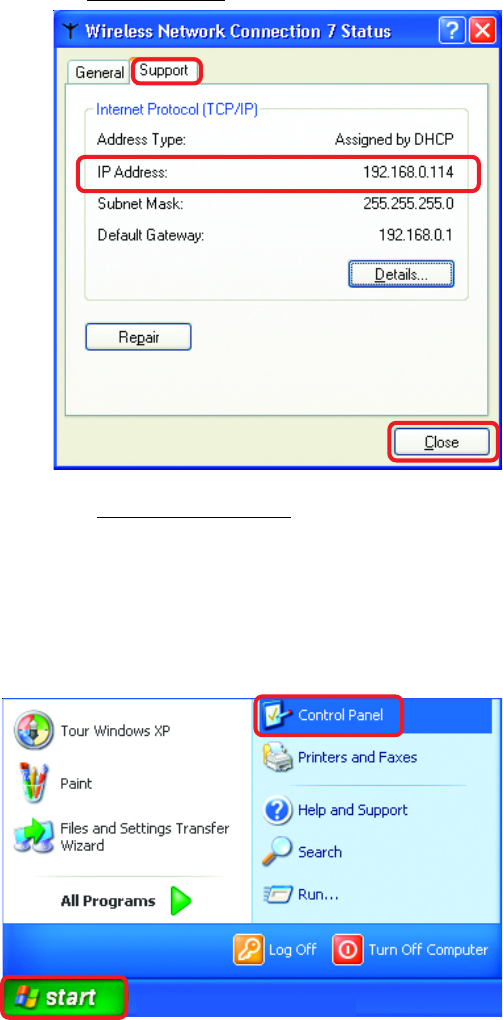

This window will appear.
Click the
Support tab
Click Close
Assigning a Static IP Address in Windows XP/2000
Note: Residential Gateways/Broadband Routers will automatically assign IP
Addresses to the computers on the network, using DHCP (Dynamic Host Con-
figuration Protocol) technology. If you are using a DHCP-capable Gateway/
Broadband Router you will not need to assign Static IP Addresses.
If you are not using a DHCP capable Gateway/Broadband Router, or you need
to assign a Static IP Address, please follow these instructions:

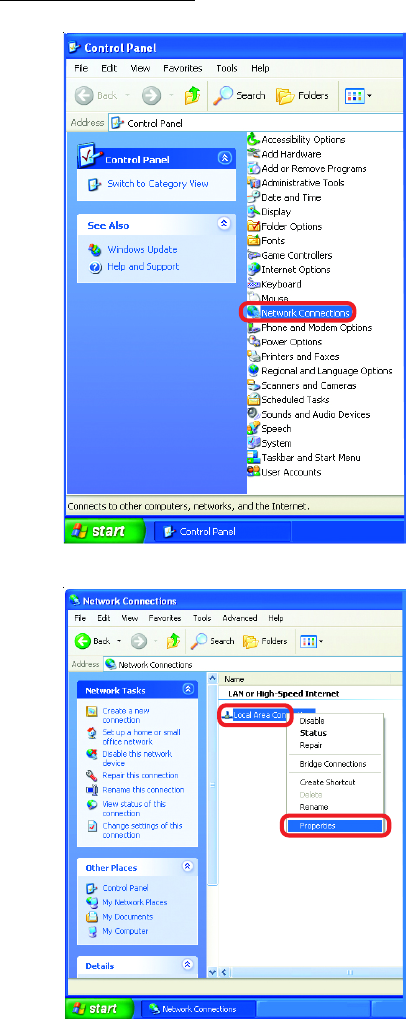

Go to Start
Double-click
Control Panel
68
Networking Basics (continued)

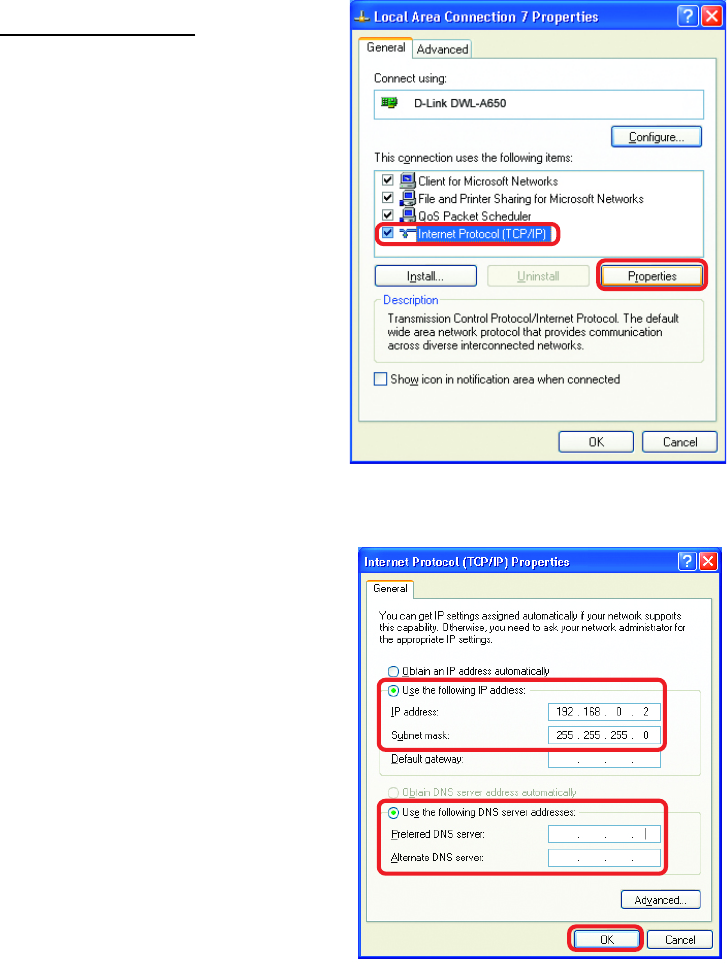

Assigning a Static IP Address in Windows XP/2000
Double-click
Network
Connections
Double-click
Properties
Right-click Local Area
Connections
69
Input your IP Address and
subnet mask. (The IP
Addresses on your network
must be within the same
range. For example, if one
computer has an IP
Address of 192.168.0.2, the
other computers should
have IP Addresses that are
sequential, like 192.168.0.3
and 192.168.0.4. The
subnet mask must be the
same for all the computers
on the network.)
Networking Basics (continued)
Assigning a Static IP Address
in Windows XP/2000
Input your DNS server
addresses. (Note: If you
are entering a DNS server,
you must enter the IP
Address of the Default
Gateway.)
The DNS server information will be supplied
by your ISP (Internet Service Provider.)
Click OK
Click Internet Protocol
(TCP/IP)
Click Properties
Select Use the
following IP Address in
the Internet Protocol
(TCP/IP)Properties
window.
70
Technical Specifications
Printer Connection
Printer Port: USB port (ver 1.1)
Bidirectional Communication:
Network Connection
Network Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.11b Wireless Standard
Network Data Transfer Rate: 10/100 Mbps (megabits per second)
Network Connector: RJ-45 connector for 10Base-T Category 5 twisted-pair connection
Network Protocols
Ethernet Frame Types: 802.2, 802.3, Ethernet II, SNAP (auto-switching)
Transport Protocols: TCP/IP, NetBEUI, AppleTalk/EtherTalk, LPR
TCP/IP Protocols Supported: BOOTP, SNMP, Telnet, TFTP, FTP, LPD, RARP, DHCP
Management and Diagnostics
Standard: SNMP
MIBs: MIB-II (RFC 1213)
Diagnostic LED Indicators: Pw, Lk/Act, USB
Environmental and Physical
Power Supply: External power supply providing 5V/ 2.5A
Dimensions: 3.54" x 3.19" x 1.57" (90mm x 81mm x 40mm)
Weight: approx. 5.19 oz. (147g)
Operating Temperature: 32 to122°F (0 to 50°C)
Storage Temperature: -13 to 131°F (-25 to 55°C)
Humidity: 5% to 95% non-condensing
Emissions: FCC Class B, CE Class B, VCCI Class B
Hewlett-Packard PJL (Printer Job Language) standard
for bidirectional communication.
71
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and within
Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our website,
or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:support@dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:support@dlink.ca
When contacting technical support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Technical Support
72
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:
D-Link or its authorized reseller or distributor and
Products purchased and delivered within the fifty states of the United States, the District of
Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an APO or
FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below will
be free from material defects in workmanship and materials from the date of original retail purchase of the
product, for the period set forth below applicable to the product type (“Warranty Period”), except as otherwise
stated herein.
1-Year Limited Warranty for the Product(s) is defined as follows:
Hardware (excluding power supplies and fans)One (1) Year
Power Supplies and Fans One (1) Year
Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no
charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be
rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or
have an identical make, model or part. D-Link may in its sole discretion replace the defective Hardware (or any
part thereof) with any reconditioned product that D-Link reasonably determines is substantially equivalent (or
superior) in all material respects to the defective Hardware. Repaired or replacement Hardware will be
warranted for the remainder of the original Warranty Period from the date of original retail purchase. If a
material defect is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to
repair or replace the defective Hardware, the price paid by the original purchaser for the defective Hardware
will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware (or part thereof) that
is replaced by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon
replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”) will
substantially conform to D-Link’s then current functional specifications for the Software, as set forth in the
applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Warranty Period”), provided that the Software is properly installed on approved hardware and
operated as contemplated in its documentation. D-Link further warrants that, during the Warranty Period, the
magnetic media on which D-Link delivers the Software will be free of physical defects. D-Link’s sole obligation
shall be to replace the non-conforming Software (or defective media) with software that substantially
conforms to D-Link’s functional specifications for the Software or to refund at D-Link’s sole discretion. Except
as otherwise agreed by D-Link in writing, the replacement Software is provided only to the original licensee,
and is subject to the terms and conditions of the license granted by D-Link for the Software. Software will be
warranted for the remainder of the original Warranty Period from the date or original retail purchase. If a
material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it is not
practical to replace the non-conforming Software, the price paid by the original licensee for the non-
conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies
thereof) is first returned to D-Link. The license granted respecting any Software for which a refund is given
automatically terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software of
D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or the
liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product
is being sold “As-Is” without any warranty whatsoever including, without limitation, the Limited Warranty as
described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its return
policy. In case the return policy period has expired and the product is within warranty, the customer shall
submit a claim to D-Link as outlined below:
The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the
same.
Warranty and Registration
73
After an RMA number is issued, the defective product must be packaged securely in the original or
other suitable shipping package to ensure that it will not be damaged in transit, and the RMA number
must be prominently marked on the outside of the package. Do not include any manuals or
accessories in the shipping package. D-Link will only replace the defective portion of the Product
and will not ship back any accessories.
The original product owner must obtain a Return Material Authorization (“RMA”) number from the
Authorized D-Link Service Office and, if requested, provide written proof of purchase of the
product (such as a copy of the dated purchase invoice for the product) before the warranty service
is provided.
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the property of
D-Link. Products shall be fully insured by the customer and shipped to D-Link Systems, Inc., 53
Discovery Drive, Irvine, CA 92618. D-Link will not be held responsible for any packages that are
lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS
Ground or any common carrier selected by D-Link, with shipping charges prepaid. Expedited
shipping is available if shipping charges are prepaid by the customer and upon request.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing
requirements, or for which an RMA number is not visible from the outside of the package. The product owner
agrees to pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged
and shipped in accordance with the foregoing requirements, or that is determined by D-Link not to be defective
or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced or
removed; Initial installation, installation and removal of the product for repair, and shipping costs; Operational
adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in
shipment, due to act of God, failures due to power surge, and cosmetic damage; Any hardware, software,
firmware or other products or services provided by anyone other than D-Link; Products that have been
purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers, or the
liquidators expressly disclaim their warranty obligation pertaining to the product. Repair by anyone other than
D-Link or an Authorized D-Link Service Office will void this Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE
A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90)
DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE
RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF
THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER
ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY
LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF
GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION,
FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED
WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT
RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING
TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE
FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-
CONFORMING PRODUCT. THE MAXIMUM LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE
PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR
REMEDIES, EXPRESS, IMPLIED OR STATUTORY.
74
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some states
do not allow exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the foregoing limitations and exclusions may not apply. This limited warranty provides
specific legal rights and the product owner may also have other rights which vary from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered
trademarks are the property of their respective manufacturers or owners.
Copyright Statement: No part of this publication or documentation accompanying this Product may be
reproduced in any form or by any means or used to make any derivative such as translation, transformation,
or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the United
States Copyright Act of 1976. Contents are subject to change without prior notice. Copyright© 2002 by D-Link
Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Register your D-Link product online at http://support.dlink.com/register/
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
Consult the dealer or an experienced radio/TV technician for help.
the receiver is connected.
(03/17/03)
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of about 8 inches (20cm) between the
radiator and your body.
FCC Radiation Exposure Statement:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmiter.
75
The Canon Printer
Canon BJC-55, 85
Canon S100SP
Canon S200SP
Canon S300
Canon S330
Canon S400SP
Canon S450
Canon S520
Canon S600
Canon S750
Canon S4500
Canon S6300
Canon S9000
The Epson Printer
Epson Stylus Color 900
Epson Stylus Color 1160
Epson Stylus Color 2200
Epson Stylus Photo 720
Epson Stylus Photo 810, 820, 830, 890
Epson Stylus Photo 900
Epson Stylus Photo 1280, 1290
Epson Stylus C41UX, C405, C42UX
Epson Stylus C60, C61, C62
Epson Stylus C80, C82
Appendix:
The Lexmark Printer
Lexmark Z13
Lexmark Z25
Lexmark Z33
Lexmark Z35
Lexmark Z43
Lexmark Z45
Lexmark Z53
The HP Printer
HP DeskJet 640C, 656C
HP DeskJet 845C
HP DeskJet 920C
HP DeskJet 948C
HP DeskJet 960C
HP DeskJet 990Cxi, 995C
HP DeskJet 1125C, 1180C
HP DeskJet 1220C
HP DeskJet 3320
HP DeskJet 3420, 3425
HP Color Inkjet CP1700
HP LaserJet 1200
HP LaserJet 2200, 2200d
DP-311U Printer Compatibility List For Windows
76
Appendix: DP-311U Printer Compatibility List for Windows (continued)
Other printers from the brands listed above may also be supported.
For an updated compatibility list please visit: http://www.support.dlink.com
The Lexmark Printer
Lexmark 4039 10R
Lexmark 5700
Lexmark Optra Color 45
Lexmark Optra C710
Lexmark Optra E, E+, E310
Lexmark Optra K1220
Lexmark Optra M410, M412
Lexmark Optra N
Lexmark Optra R+
Lexmark Optra S1250, S1855
Lexmark Optra SC-1275
Lexmark Optra SE-3455
Lexmark Optra T614
Lexmark Optra W810
Lexmark Z53

Navigation menu
