D Link DSL-2750U ADSL2+ 4-port Wireless Router User Manual User Mannul
D Link Corporation ADSL2+ 4-port Wireless Router User Mannul
D Link >
user manual
Table of Contents
D-Link DSL-2750U User Manual 1
Table of Contents
PACKAGE CONTENTS .......................................................................................... 3
SYSTEM REQUIREMENTS..................................................................................... 3
FEATURES .......................................................................................................... 4
HARDWARE OVERVIEW .................................................................................... 6
Connections ................................................................................................. 6
LEDs............................................................................................................. 7
INSTALLATION .................................................................................................... 8
BEFORE YOU BEGIN............................................................................................ 8
INSTALLATION NOTES .......................................................................................... 9
INFORMATION YOU WILL NEED FROM YOUR ADSL SERVICE PROVIDER..................11
INFORMATION YOU WILL NEED ABOUT DSL-2750U ............................................ 13
DEVICE INSTALLATION ....................................................................................... 15
Power on Router ........................................................................................ 15
Factory Reset Button.................................................................................. 16
Network Connections ................................................................................. 16
CONFIGURATION.............................................................................................. 17
WEB-BASED CONFIGURATION UTILITY ................................................................ 17
DEVICE INFO ..................................................................................................... 18
SUMMARY......................................................................................................... 19
WAN................................................................................................................ 20
STATISTICS ....................................................................................................... 21
ROUTE ............................................................................................................. 24
ARP ................................................................................................................ 24
DHCP.............................................................................................................. 24
ADVANCED SETUP........................................................................................... 25
LAYER2 INTERFACE........................................................................................... 25
ATM Interface ............................................................................................. 26
WAN SERVICE.................................................................................................. 27
PPTP .............................................................................................................. 45
LAN................................................................................................................. 46
NAT................................................................................................................. 48
Virtual Servers............................................................................................ 48
Port Triggering............................................................................................ 49
DMZ Host ................................................................................................... 50
SECURITY......................................................................................................... 51
IP Filtering................................................................................................... 51
PARENTAL CONTROL.......................................................................................... 55
URL Filter.................................................................................................... 56
QUALITY OF SERVICE......................................................................................... 57
Queue Config.............................................................................................. 58
QoS Classification ...................................................................................... 59
ROUTING .......................................................................................................... 60
Default Gateway ......................................................................................... 60
Static Route ................................................................................................ 60
Policy Routing............................................................................................. 61
RIP.............................................................................................................. 62
DNS................................................................................................................. 63
DNS Server................................................................................................. 63
Dynamic DNS ............................................................................................. 63
DSL ................................................................................................................. 66
UPNP .............................................................................................................. 68
DNS PROXY ..................................................................................................... 68
INTERFACE GROUP............................................................................................ 69
IPSEC .............................................................................................................. 70
MULTICAST ....................................................................................................... 72
WIRELESS.......................................................................................................... 73
BASIC ............................................................................................................... 73
SECURITY ......................................................................................................... 74
MAC FILTER ..................................................................................................... 75
WIRELESS BRIDGE ............................................................................................ 76
ADVANCED ........................................................................................................ 77
STATION INFO.................................................................................................... 78
DIAGNOSTICS ................................................................................................... 79
MANAGEMENT .................................................................................................. 80
SETTINGS ......................................................................................................... 80
SYSTEM LOG..................................................................................................... 81
SNMP AGENT................................................................................................... 82
TR-069 CLIENT................................................................................................. 84
INTERNET TIME.................................................................................................. 85
ACCESS CONTROL ............................................................................................ 86
Passwords .................................................................................................. 86
UPDATE SOFTWARE........................................................................................... 87
Table of Contents
D-Link DSL-2750U User Manual 2
REBOOT ........................................................................................................... 87
TROUBLESHOOTING ....................................................................................... 88
NETWORKING BASICS .................................................................................... 90
CHECK YOUR IP ADDRESS ................................................................................ 90
STATICALLY ASSIGN AN IP ADDRESS................................................................... 91
USAGE OF USB INTERFACE ........................................................................... 92
DRIVER AUTOMATIC INSTALLATION ..................................................................... 92
DRIVER AUTOMATIC UNINSTALLATION................................................................. 95
DRIVER MANUAL INSTALLATION.......................................................................... 96
DRIVER MANUAL UNINSTALLATION ................................................................... 100
CONFIGURATION OF "USB REMOTE NDIS NETWORK DEVICE"错误！未定义书签。
TECHNICAL SPECIFICATIONS ...................................................................... 102
Section 1 - Product Overview
D-Link DSL-2750U User Manual 3
Package Contents
DSL-2750U Wireless ADSL Router
Power Adapter
CD-ROM with User Manual
One twisted-pair telephone cable used for ADSL connection
One straight-through Ethernet cable
One Quick Installation Guide
Note: Using a power supply with a different voltage rating than the one included
with the DSL-2750U will cause damage and void the warranty for this product.
System Requirements
ADSL Internet service
Computer with:
200MHz Processor
64MB Memory
CD-ROM Drive
Ethernet Adapter with TCP/IP Protocol Installed
Internet Explorer v6 or later, FireFox v1.5
Computer with Windows 2000, Windows XP, or Windows Vista
Section 1 - Product Overview
D-Link DSL-2750U User Manual 4
11 Features
PPP (Point-to-Point Protocol) Security – The DSL-2750U ADSL Router supports PAP (Password Authentication Protocol) and CHAP
(Challenge Handshake Authentication Protocol) for PPP connections. The Router also supports MSCHAP.
DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your
network. This eliminates the need to reconfigure every host whenever changes in network topology occur.
Network Address Translation (NAT) – For small office environments, the DSL-2750U allows multiple users on the LAN to access the
Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user.
NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can
also be used to link two IP domains via a LAN-to-LAN connection.
TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-2750U supports TCP/IP protocol, the language used for the Internet. It is
compatible with access servers manufactured by major vendors.
RIP-1/RIP-2 – The DSL-2750U supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to
communicate with all RIP enabled devices.
Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age
out”. If you wish to define a specific route that will always be used for data traffic from your LAN to a specific destination within your LAN (for
example to another router or a server) or outside your network (to an ISP defined default gateway for instance).
Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is
particularly useful when/if the Router functions as the sole connection to the Internet.
ATM (Asynchronous Transfer Mode) – The DSL-2750U supports Bridged Ethernet over ATM (RFC1483), IP over ATM (RFC1577), and
PPP over ATM (RFC 2364).
Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the
Quality of Service for ATM data transfer.
Section 1 - Product Overview
D-Link DSL-2750U User Manual 5
G.hs (Auto-handshake) – This allows the Router to automatically choose either the G.lite or G.dmt ADSL connection standards.
High Performance – Very high rates of data transfer are possible with the Router. Up to 8 Mbps downstream bit rate using the G.dmt
standard.
Full Network Management – The DSL-2750U incorporates SNMP (Simple Network Management Protocol) support for web-based
management and text-based network management via an RS-232 or Telnet connection.
Telnet Connection – The Telnet enables a network manager to access the Router’s management software remotely.
Easy Installation – The DSL-2750U uses a web-based graphical user interface program for convenient management access and easy set
up. Any common web browser software can be used to manage the Router.
USB – Support USB 2.0 Host Driver
Section 1 - Product Overview
D-Link DSL-2750U User Manual 6
Hardware Overview

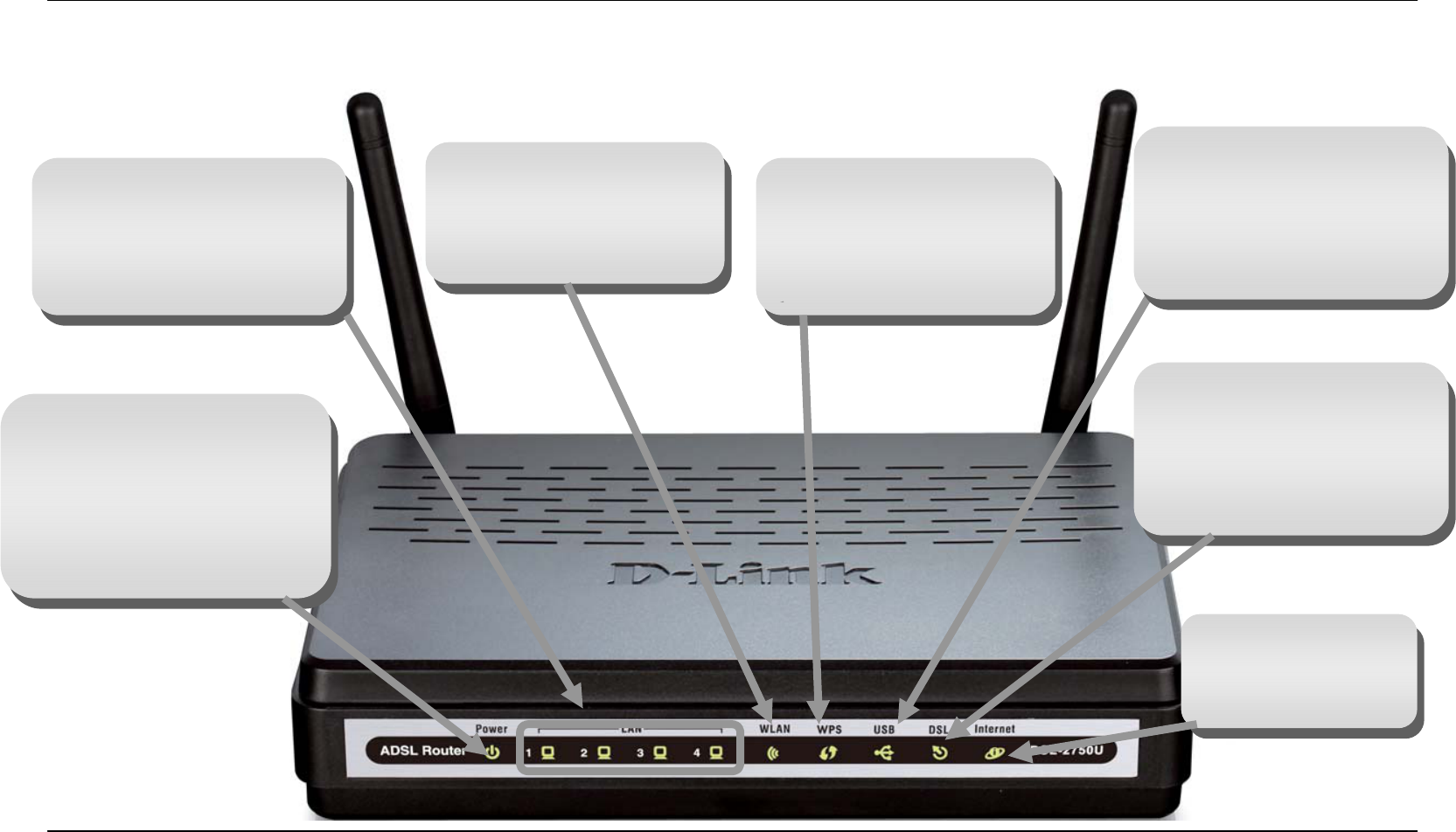

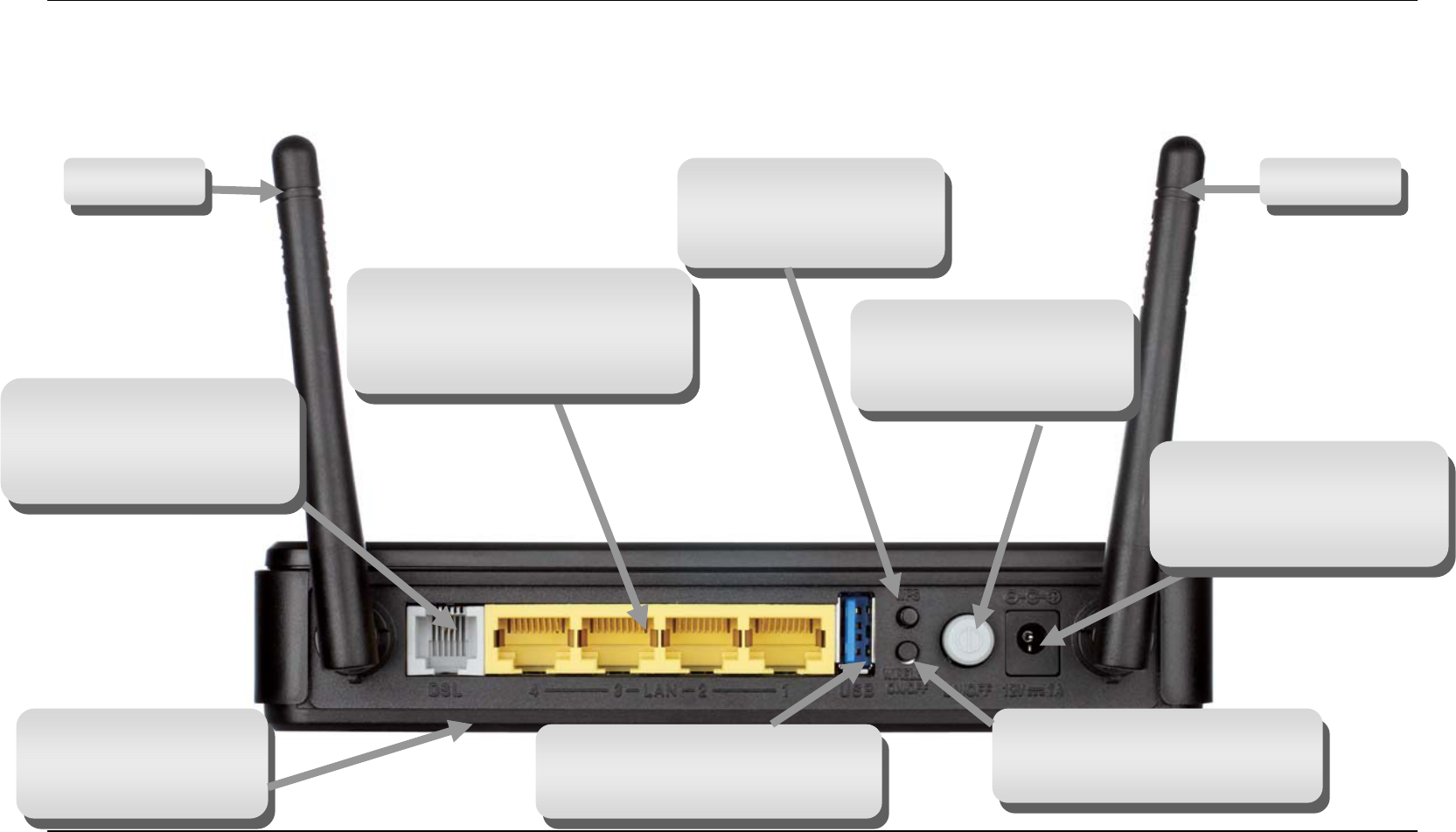

Connections
Power Insert
Use the adapter shipped
with the Router to connect
to power source.
Power Button
Push in to power-on the
Router. Push again to
power-off the Router.
Reset Button
On the bottom of the
device，push it to reset
to factory confugration
ADSL Port
Use the ADSL cable to
connect to the your
telephone line (RJ-11 port)
Antenna
Wireless ON/OFF Button
Push the button to on/off
wireless function
WPS Button
Push the button to on/off
WPS function
Antenna
USB Port
Use the USB port to connect to
the computer
Section 1 - Product Overview
D-Link DSL-2750U User Manual 7
Hardware Overview
LEDs
Power
A steady green light indicates the
unit is powered on. When the
device is powered off it remains
dark. Lights steady green during
power on self-test (POST) means
the power connection works
properly.
DSL
A steady green light indicates a
valid ADSL connection. This will
light after the ADSL negotiation
process has been settled. A
blinking green light indicates that
ADLS is attem
p
tin
g
to s
y
nc.
LAN
A solid green light indicates a
valid link on startup. This light will
blink when there is activity
currently passing through the
Ethernet port.
WLAN
A steady green light indicates a
wireless connection. A blinking
green light indicates activity on
the WLAN interface.
Internet
A steady green light
indicates a valid internet
connection.
WPS
A blinking green light indicates
the device has connected the
wireless network card, A
blinking green light indicates
activity on WPS.
USB
A steady green light indicates a
valid link on startup. This light will
blink when there is activity
ceurrently passing through the
USB port.
Section 2 – Installation
D-Link DSL-2750U User Manual 8
Installation
This section will walk you through the installation process. Placement of the Router is very important. Do not place the Router in an enclosed area
such as a closet, cabinet, or in the attic or garage.
Before You Begin
Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and
equipment on hand before beginning the installation.
Section 2 – Installation
D-Link DSL-2750U User Manual 9
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some
users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet
connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all
the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be
sure to keep this information safe and private.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to
avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy
to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more
information about the use of low pass filters with your installation.
Operating Systems
The DSL-2750U uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any
operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, and Windows
Vista.
Web Browser
Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to
work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or
later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not
been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection
and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port
already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer
does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the
installation instructions that come with the Ethernet NIC adapter.
Section 2 – Installation
D-Link DSL-2750U User Manual 10
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if
you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored
on another computer or gateway device, not in the Router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection
can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some
settings in the device, including account information used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled
device on the LAN side of the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be
assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC
configuration that may be required.
Section 2 – Installation
D-Link DSL-2750U User Manual 11
Information you will need from your ADSL service
provider
Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the
identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use
the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed
in parenthesis):
PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)
Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)
IPoA/MER (Static IP Address) (Bridged IP LLC, 1483 Bridged IP VC Mux, 1483 Routed IP LLC, 1483 Routed IP VC-Mux or IPoA)
MER (Dynamic IP Address) (1483 Bridged IP LLC or 1483 Bridged IP VC-Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the
type of modulation used for their service. The default DSL modulation (ADSL2+ Multi-Mode) used for the Router automatically detects all types of
ADSL, ADSL2, and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router
supports the PAP and CHAP protocols.
Section 2 – Installation
D-Link DSL-2750U User Manual 12
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI)
to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual
connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can
be changed in the WAN Settings window of the web management interface.
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path
between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to
configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN
Settings window of the web management interface.
Section 2 – Installation
D-Link DSL-2750U User Manual 13
Information you will need about DSL-2750U
Username
This is the Username needed to access the Router’s management interface. When you attempt to connect to the device through a web browser you
will be prompted to enter this Username. The default Username for the Router is “admin.” The user cannot change this.
Password
This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “admin.” The
user may change this.
LAN IP addresses for the DSL-2750U
This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI)
using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will
be the base IP address used for DHCP service on the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2750U
This is the subnet mask used by the DSL-2750U, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be
changed later.
Section 2 – Installation
D-Link DSL-2750U User Manual 14
Information you will need about your LAN or computer:
Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2750U to this Ethernet port using an Ethernet cable. You can also use the Ethernet
ports on the DSL-2750U to connect to other computer or Ethernet devices.
DHCP Client status
Your DSL-2750U ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a
default gateway address to computers on your LAN. The default range of IP addresses the DSL-2750U will assign are from 192.168.1.2 to
192.168.1.254. Your computer (or computers) needs to be configured to obtain an IP address automatically (that is, they need to be configured as
DHCP clients.)
It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL
connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-2750U ADSL Router.
Section 2 – Installation
D-Link DSL-2750U User Manual 15
Device Installation
The DSL-2750U connects two separate physical interfaces, an ADSL (WAN) and an Ethernet (LAN) interface. Place the Router in a location where
it can be connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture or
excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical
appliance, observe common sense safety procedures.
The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for
troubleshooting.
Power on Router
The Router must be used with the power adapter included with the device.
1. Insert the DC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby
power source.
2. Depress the Power button into the on position. You should see the Power LED indicator light up and remain lit. The Status LED should light solid
green and begin to blink after a few seconds.
3. If the Ethernet port is connected to a working device, check the LAN LED indicators to make sure the connection is valid. The Router will attempt
to establish the ADSL connection, if the ADSL line is connected and the Router is properly configured this should light up after several seconds.
If this is the first time installing the device, some settings may need to be changed before the Router can establish a connection.
Section 2 – Installation
D-Link DSL-2750U User Manual 16
Factory Reset Button
The Router may be reset to the original factory default settings by using a ballpoint or paperclip to gently push down the reset button in the following
sequence:
1. Press and hold the reset button while the device is powered off.
2. Turn on the power.
3. Wait for 10 seconds and then release the reset button.
Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings
will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0, the default management Username is “admin”
and the default Password is “admin.” Network Connections
Connect ADSL Line
Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port
(RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow
the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the
connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.
Connect Router to Ethernet
The Router may be connected to a single computer or Ethernet device through the 10BASE-TX Ethernet port on the rear panel. Any connection to
an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any
Ethernet device that is capable of operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the
connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard
Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a
normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a
normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to
the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.
Hub or Switch to Router Connection
Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable. If you wish to reserve the uplink port on the
switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.
Computer to Router Connection
You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 17
Configuration
This section will show you how to configure your new D-Link Router using the web-based configuration utility.
Web-based Configuration Utility
Connect to the Router
The default IP address for ADSL MODEM is: 192.168.1.1; The Subnet Mask is：255.255.255.0. Users can configure ADSL MODEM through an
Internet browser. ADSL MODEM can be used as gateway and DNS server; users need to set the computer’s TCP/IP protocol as follow:

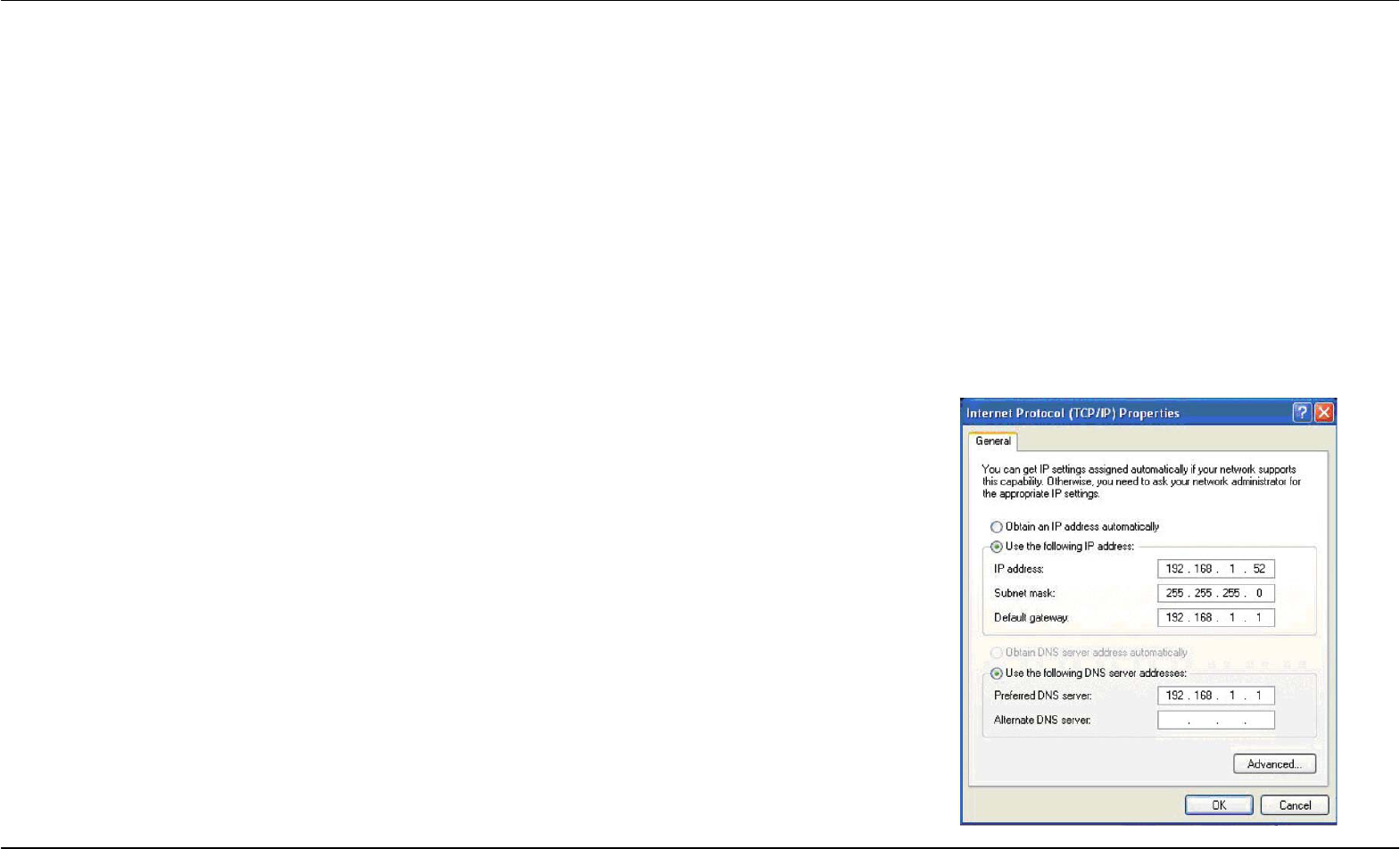

1. Set the computer IP address at same segment of ADSL MODEM, such as set the IP address of the network card to one of the “192.168.1.2”
～ “192.168.1.254”.
2. Set the computer’s gateway the same IP address as the ADSL Modem’s.
3. Set computer’s DNS server the same as ADSL Modem’s IP address or that of an effective DNS server.

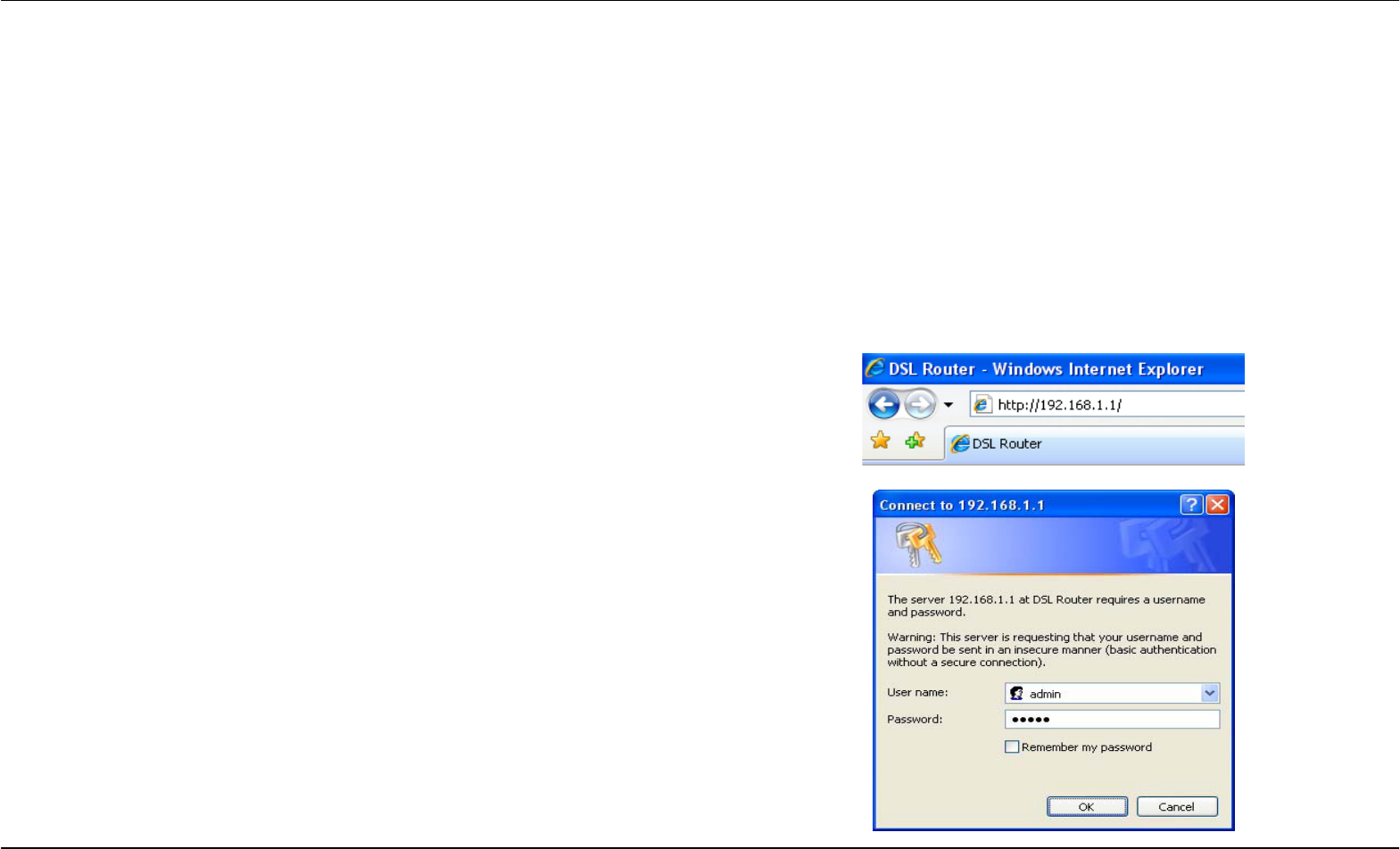

To access the configuration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.1.1).
Type “admin” for the User Name and “admin” in the Password field. If
you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 18
Device Info

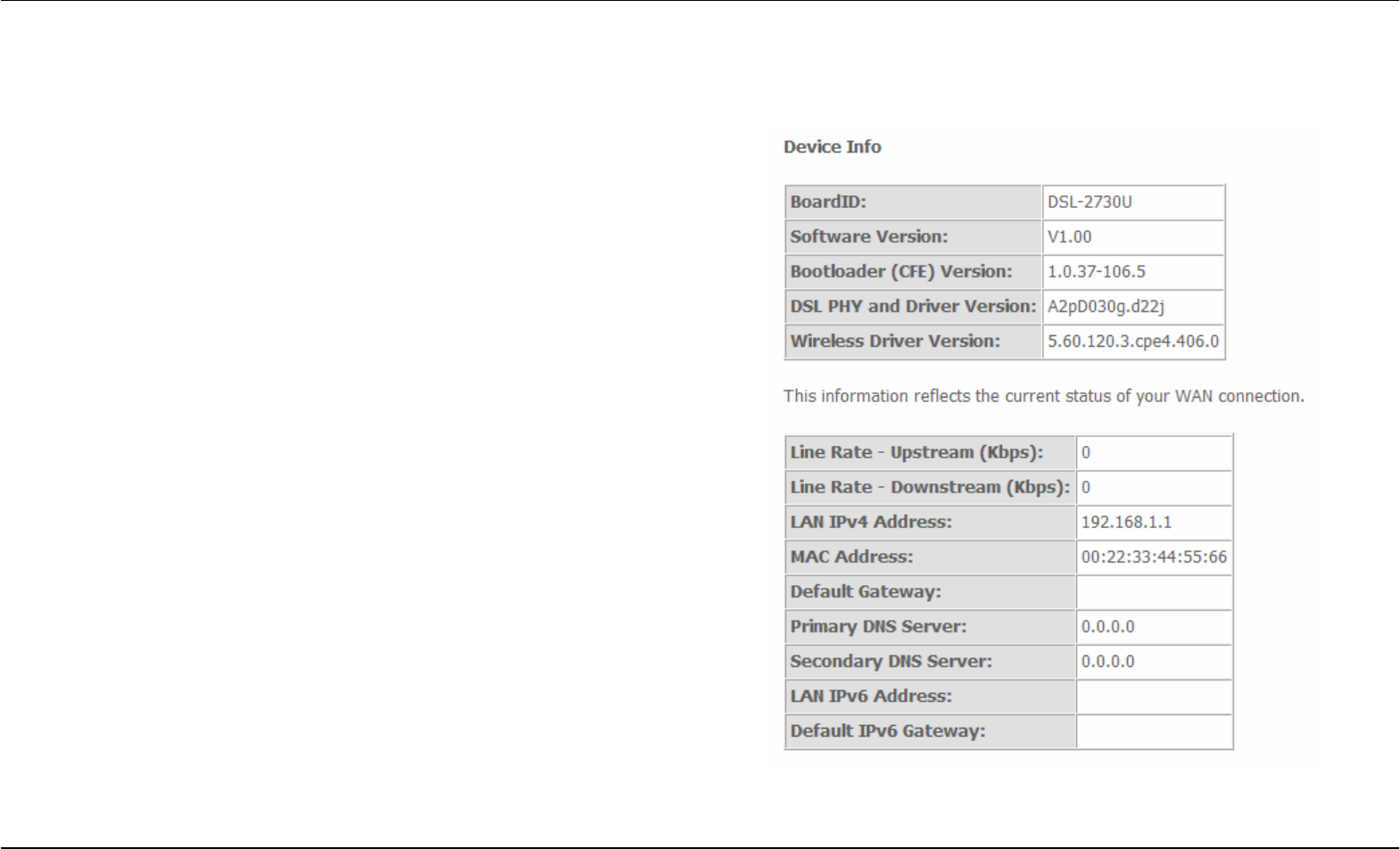

To access the Device Info window, click either the Device Info or Summary button in the Device Info directory. The following page opens:
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 19
Summary
To access the Router’s first Summary window, click the Summary button in the Device Info directory.
This window displays the current status of your DSL connection, including
the software version, LAN IP address, and DNS server address.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 20
WAN
To access the WAN Info window, click the WAN button in the Device Info directory.
This window displays the current status of your WAN connection.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 21
Statistics

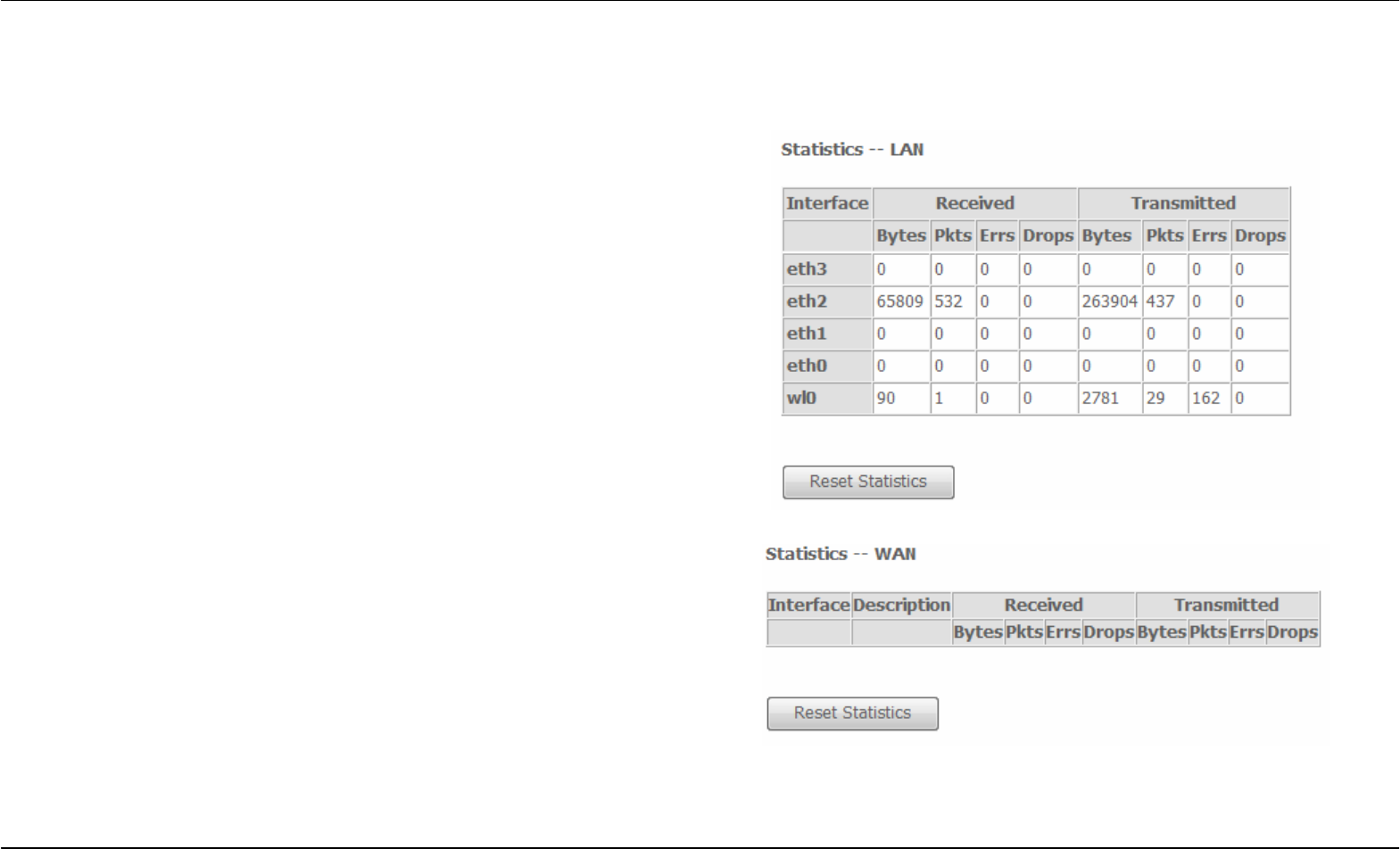

To access the Router’s first Statistics window, click the Statistics button in the Device Info directory.
This window displays the Router’s LAN statistics. Click the Reset
Statistics button to refresh these statistics.
This window displays the Router’s WAN statistics. Click the Reset
Statistics button to refresh these statistics.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 22

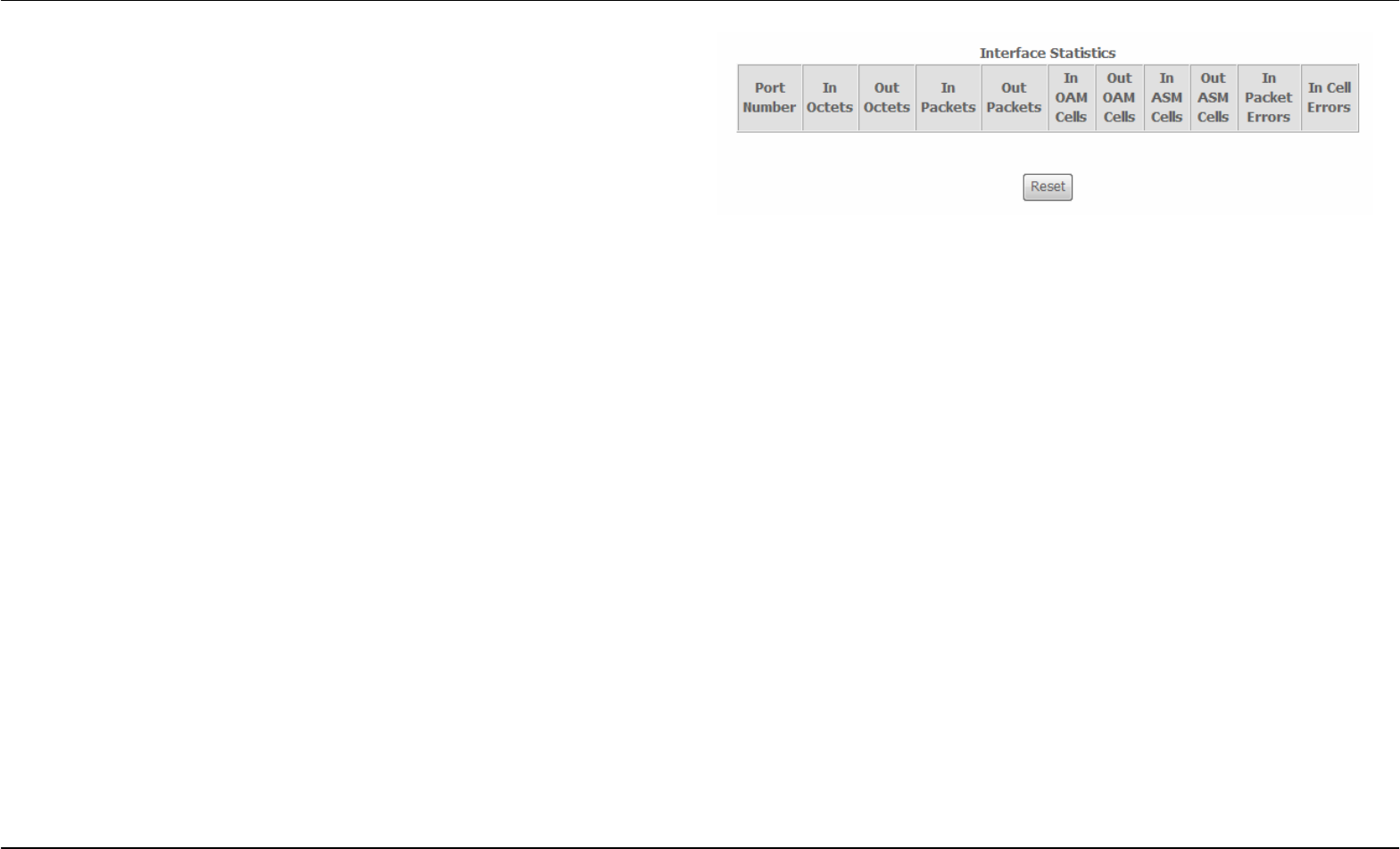

This window displays the Router’s XTM statistics. Click the Reset button
to refresh these statistics.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 23
This window displays the Router’s xDSL statistics. Click the Reset
Statistics button to refresh these statistics.

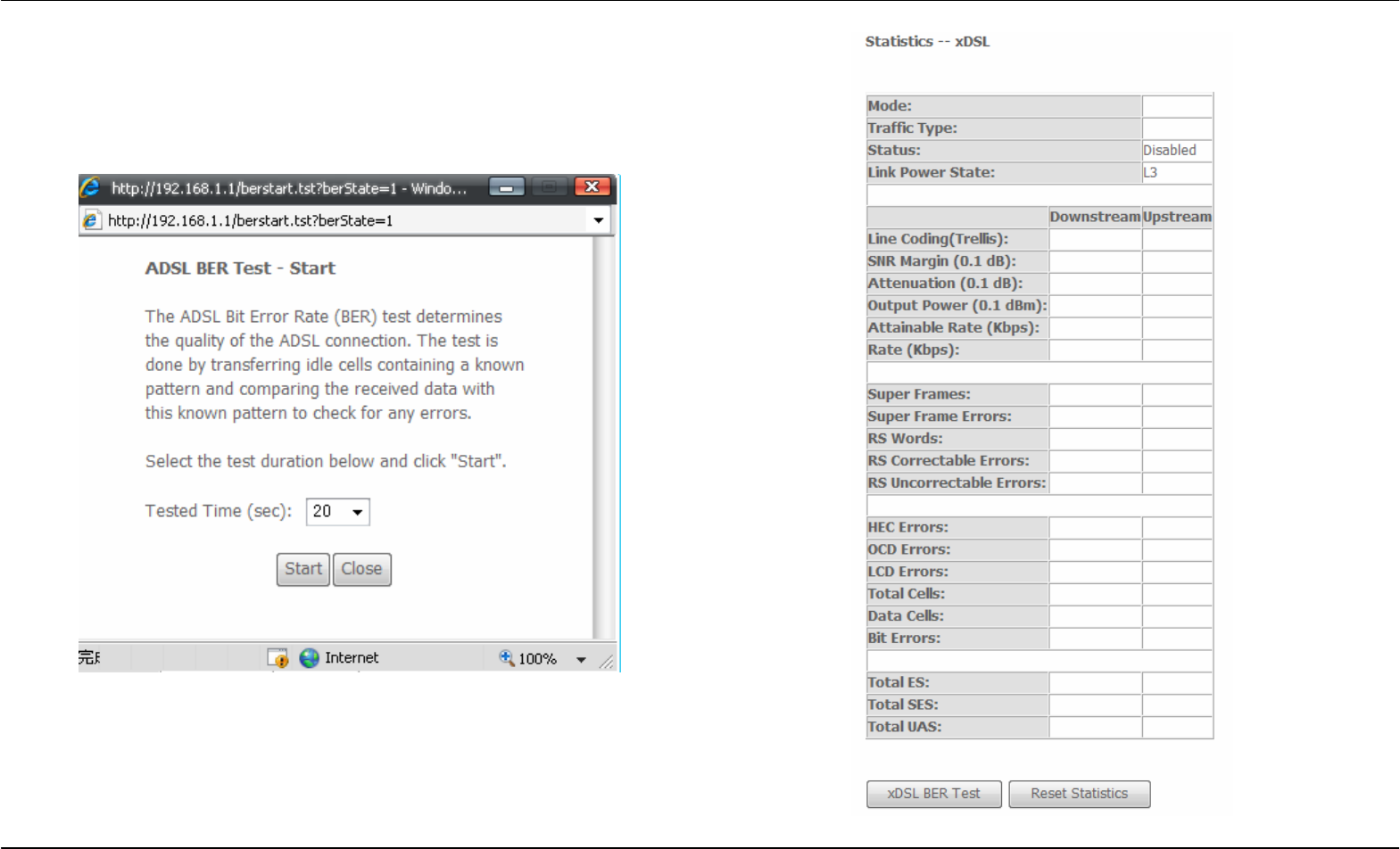

Click the xDSL BER Test button to access the ADSL Bit Error Rate Test
window displayed below:
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 24

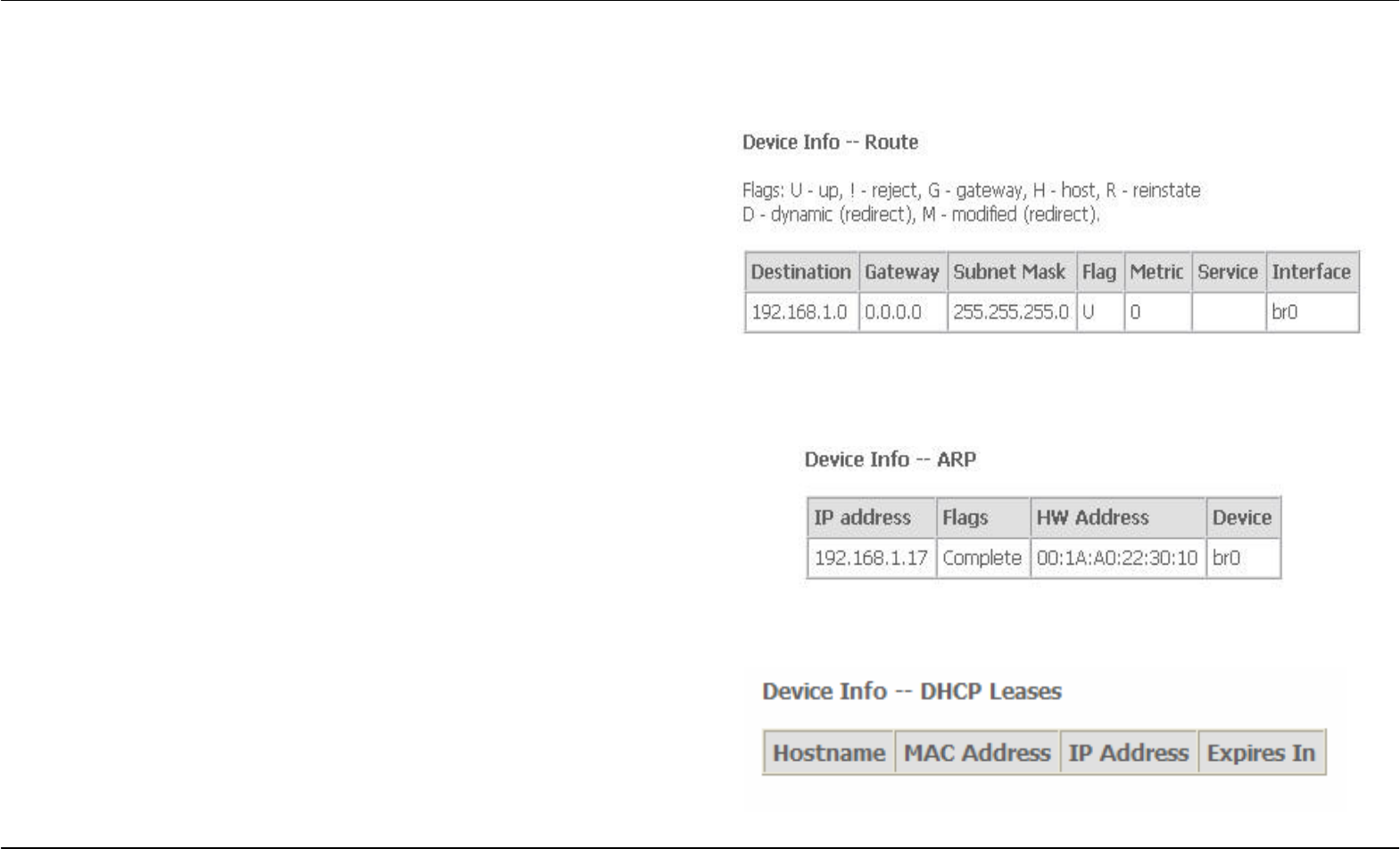

Route
To access the Device Info – Route window, click the Route button in the Device Info directory.
This read-only window displays routing info.
ARP
To access the Device Info – ARP window, click the ARP button in the Device Info directory.
This read-only window displays Address Resolution Protocol info.
DHCP
To access the Device Info – DHCP Leases window, click the DHCP button in the Device Info directory.
This read-only window displays DHCP lease info.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 25
Advanced Setup
This chapter include the more advanced features used for network management and security as well as administrative tools to manage the Router,
view status and other information used to examine performance and for troubleshooting.
Layer2 Interface

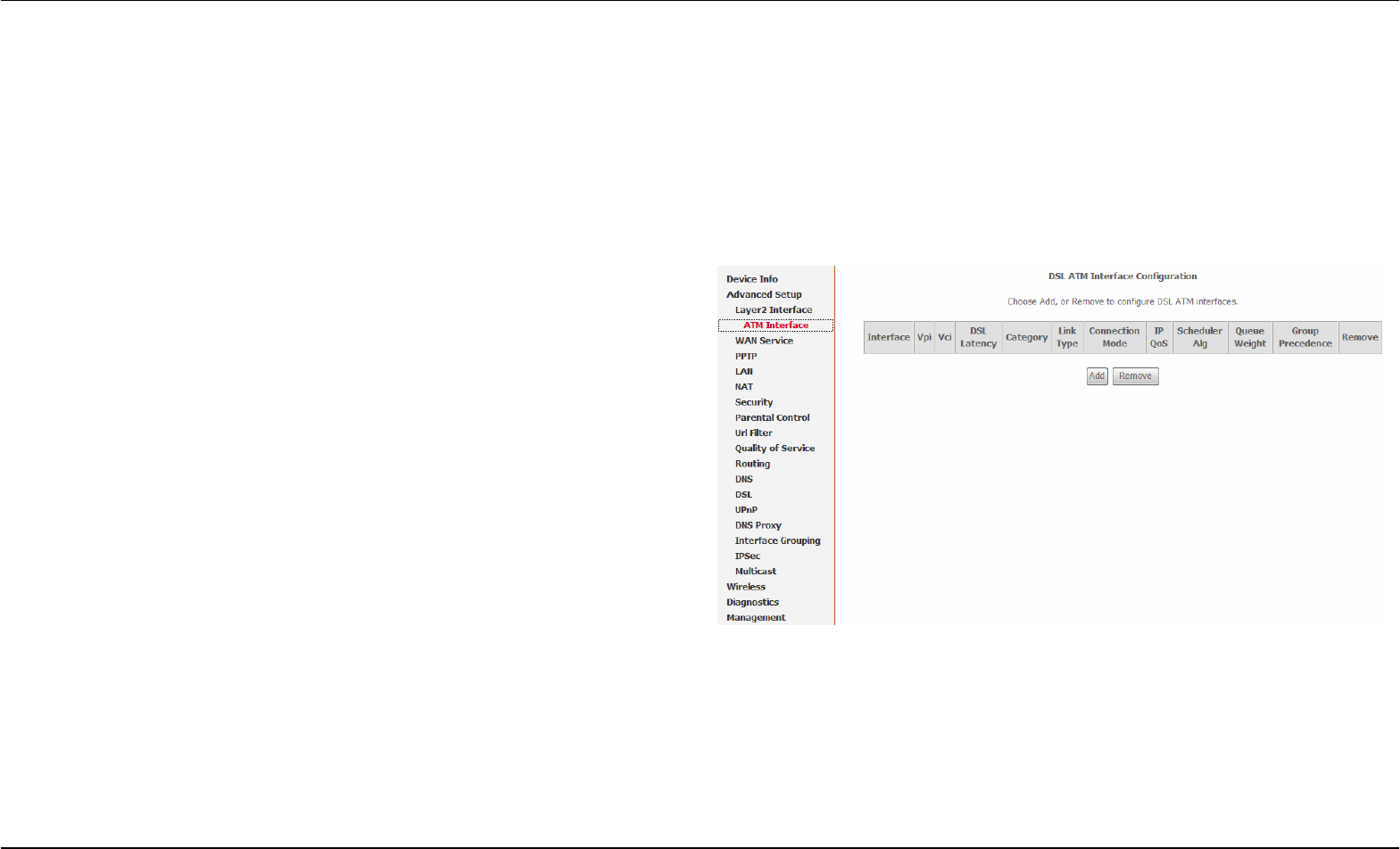

To access the DSL ATM Interface Configuration window, click the ATM Interface button in the Layer2 Interface directory.
This window is used to configure the ATM interface. You can add and
delete ATM interface on this window.
If you are setting up the ATM interface for the first time, click the Add
button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 26

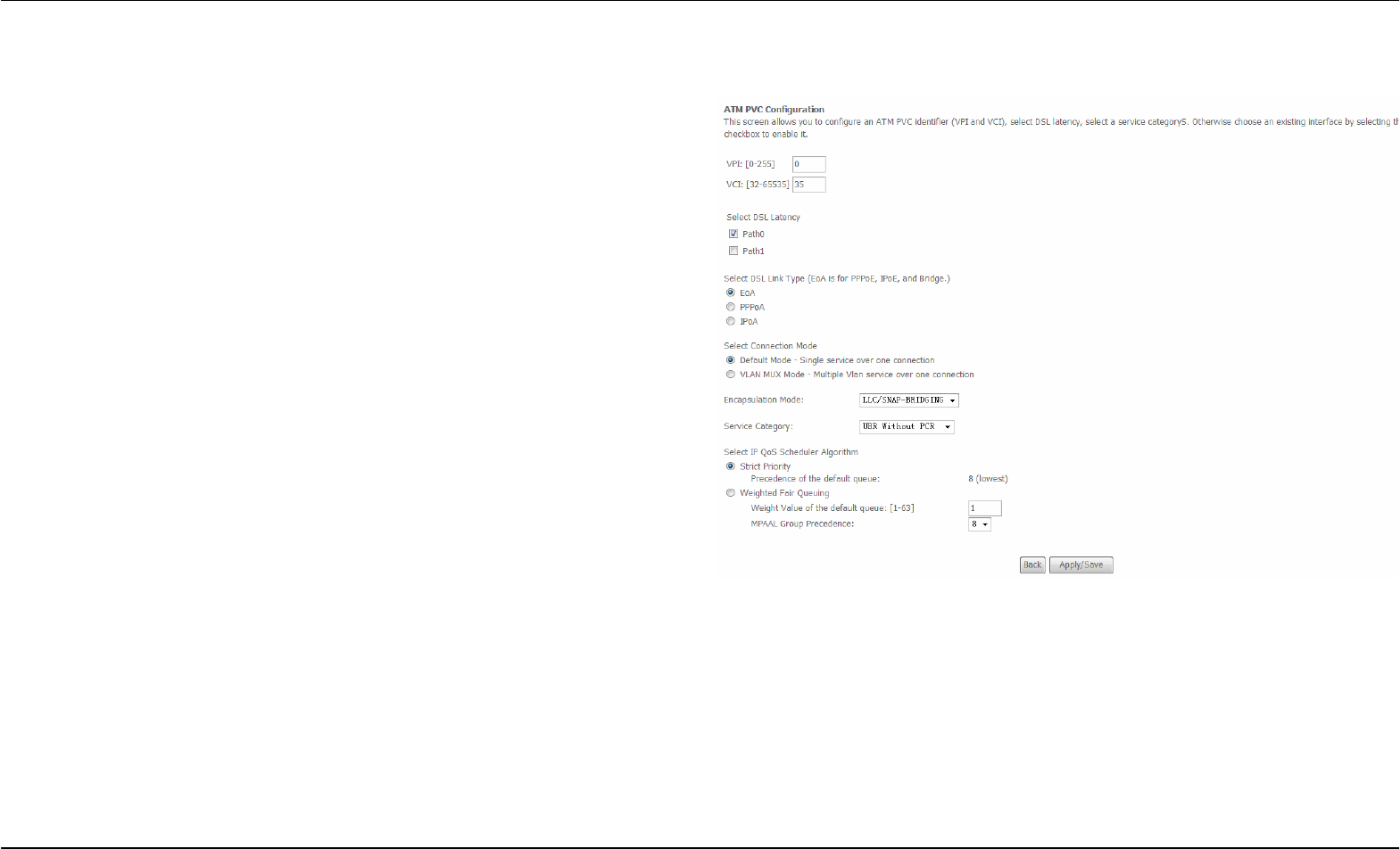

ATM Interface
The ATM PVC Configuration window allows you to set up ATM PVC
configuration. Enter Virtual Path Identifier,and Virtual Channel Identifier.
The VPI and VCI values should be provided by your ISP. This window
also allows you to select DSL Link Type, PPPoA、IpoA and EoA (EoA is
for PPPoE, IPoE, and Bridge)
Use the drop-down menu to select the desired Encapsulation Mode..
Click the Apply / Save button to Save.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 27
WAN Service

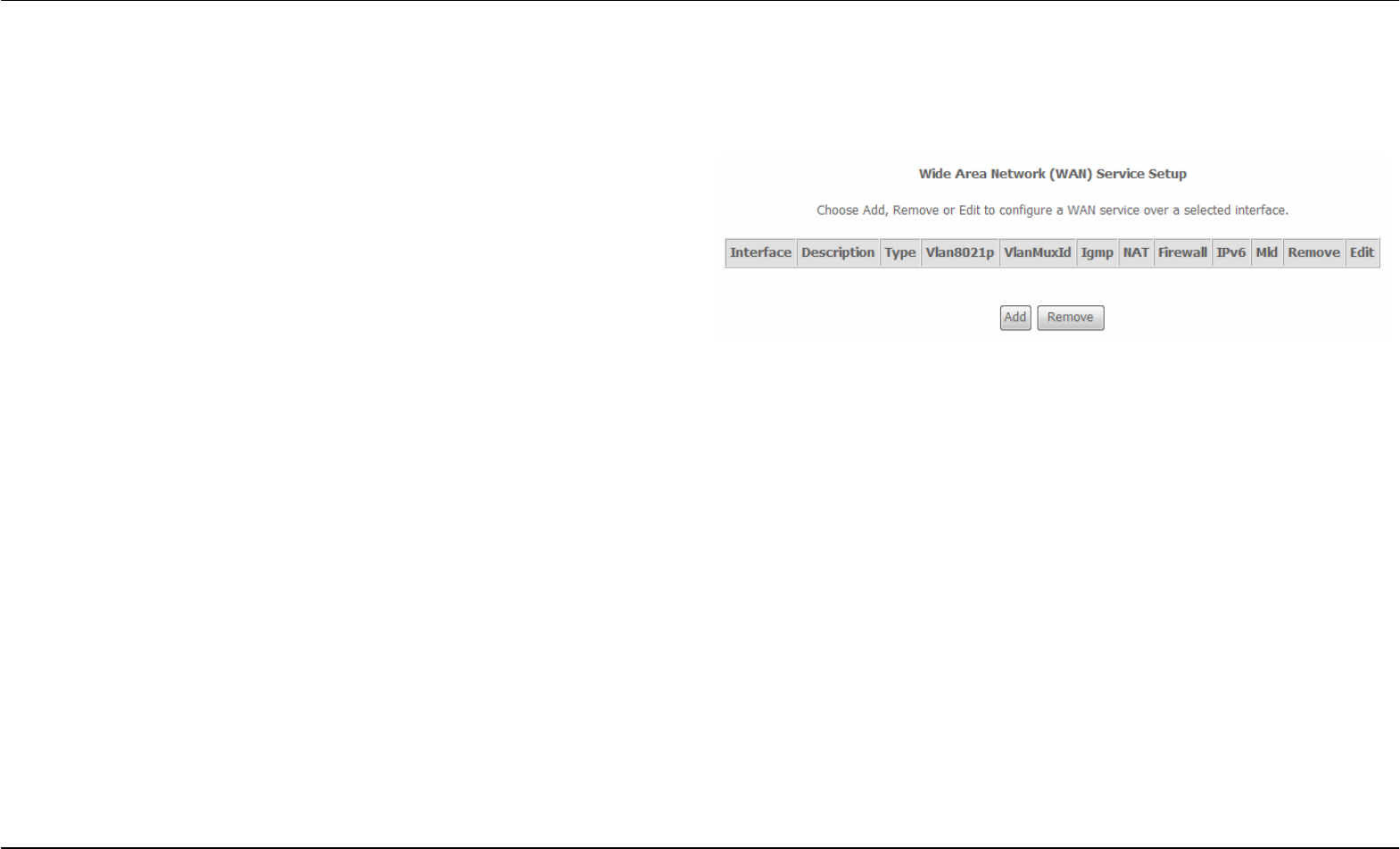

To access the Wide Area Network (WAN) Service Setup window, click the WAN Service button in the Advanced Setup directory.
This window is used to configure the WAN interface. You can add and
delete WAN interface on this window.
If you are setting up the WAN interface for the first time, click the Add
button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 28

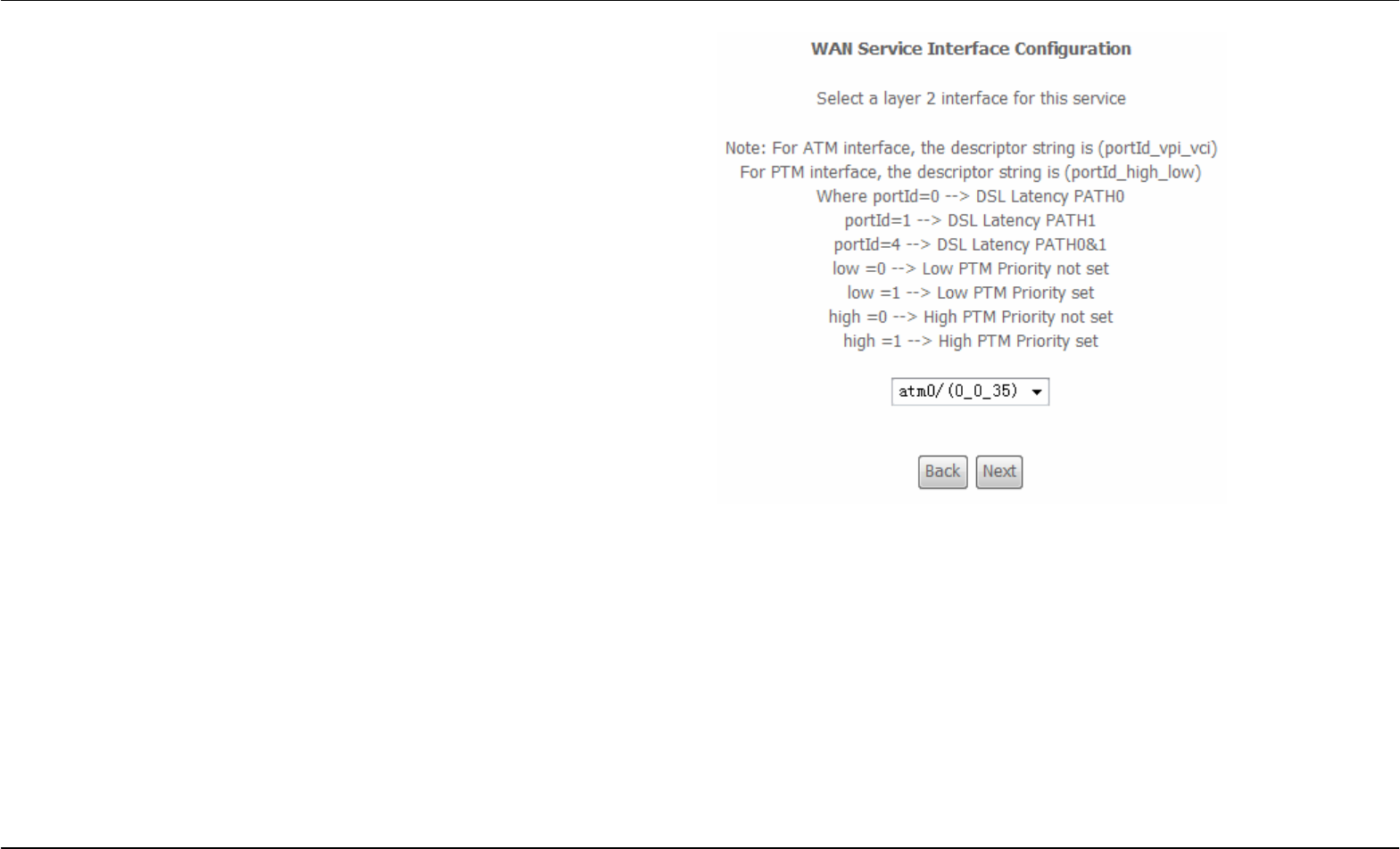

The WAN Service Interface Configuration Configuration window allows
select a layer 2 interface for this service. Click the Next button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 29
This window allows you to select the appropriate connection type. The
choices include PPP over ATM (PPPoA), PPP over Ethernet (PPPoE), IP
over Ethernet (IpoE), IP over ATM (IPoA), and Bridging.

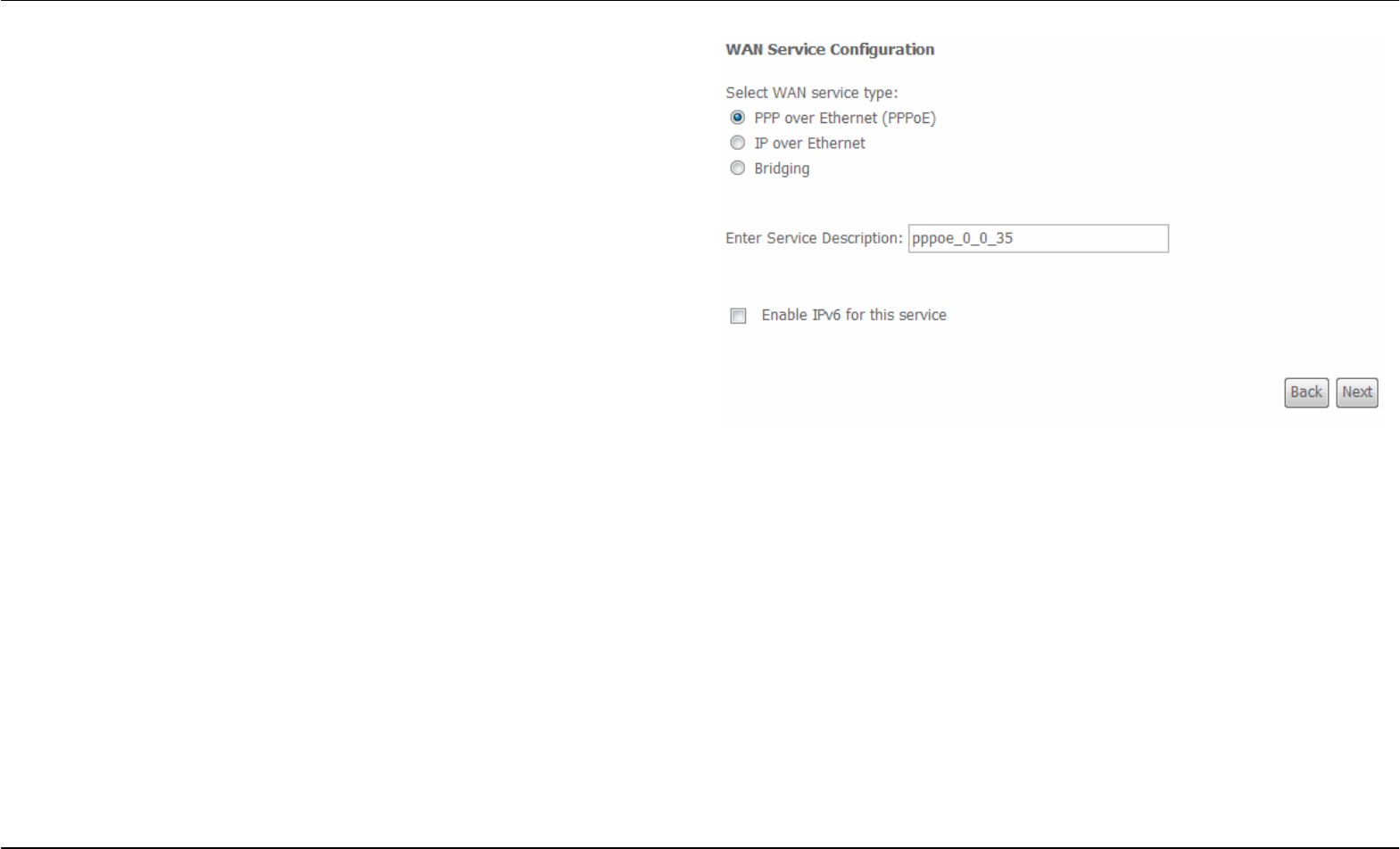

WAN Service Configuration – PPPoE
Click the PPP over Ethernet (PPPoE) radio button on this window. This
window also allows you to use the drop-down menu to enable IPv6
service. Click the Next button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 30
WAN Service Configuration – PPPoE

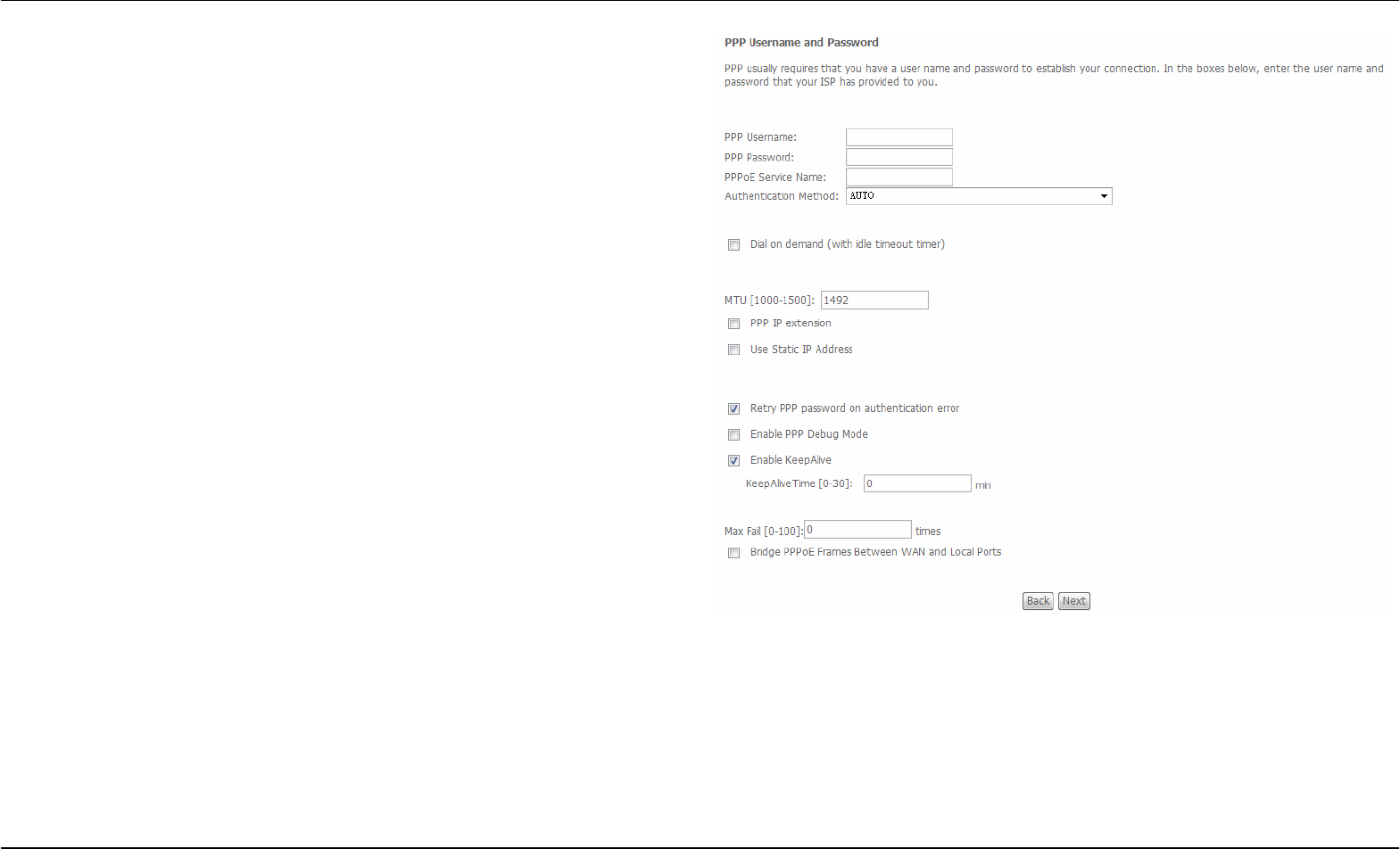

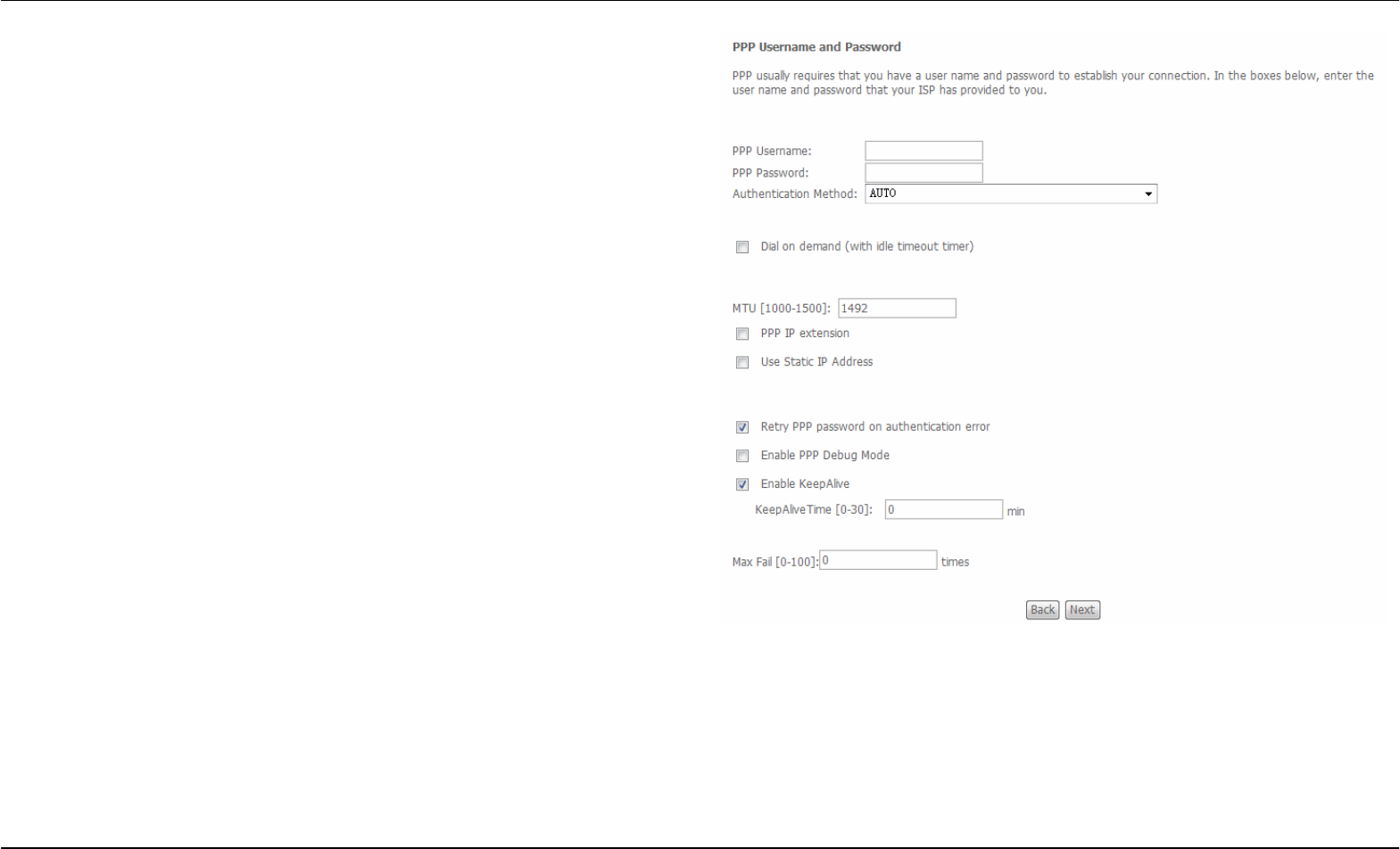

This window allows you to set the username and the password for your
PPP connection. This information is obtained from your ISP. Additional
settings on this window will also depend on your ISP. Click the Next
button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 31
WAN Service Configuration – PPPoE

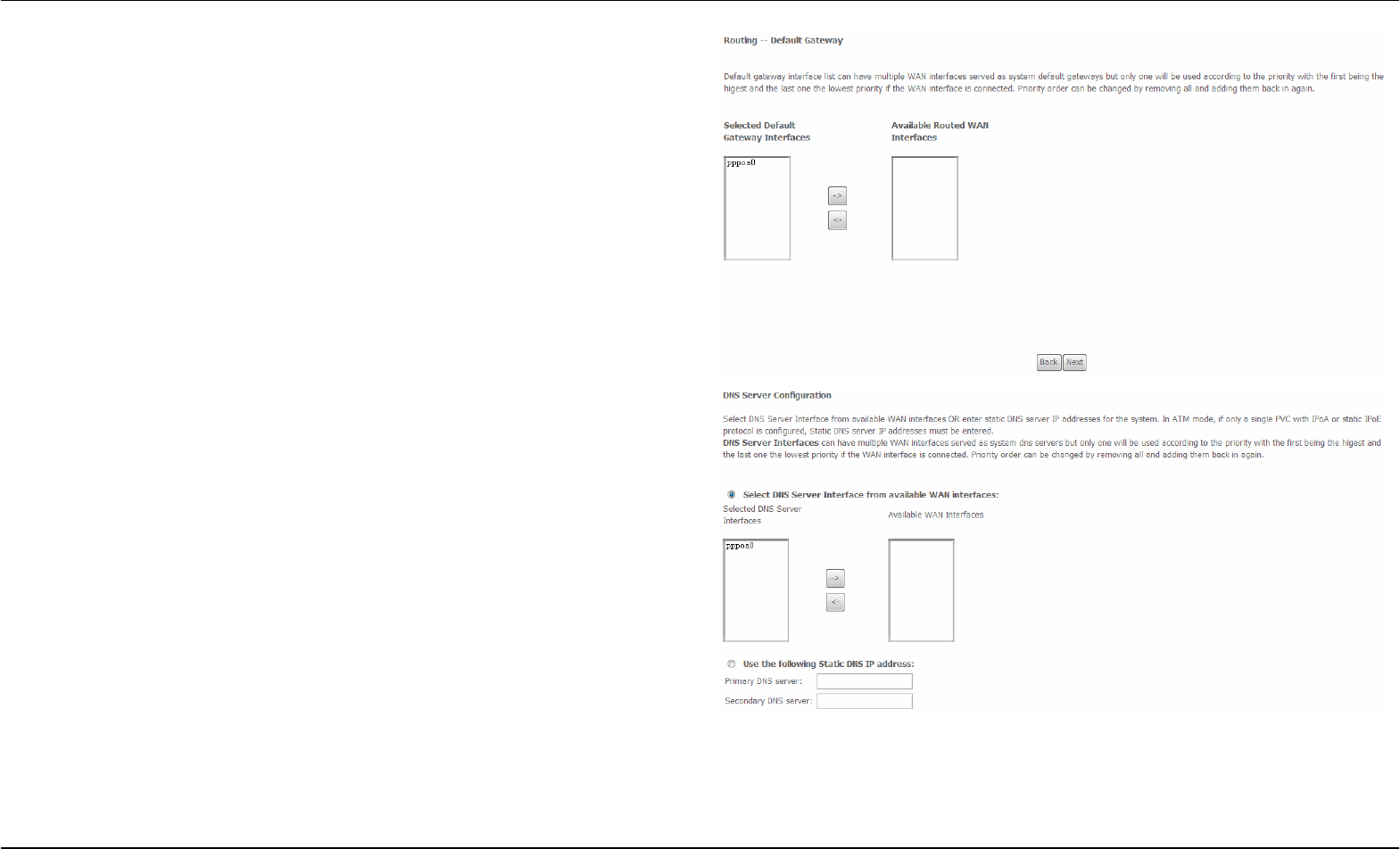

Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the higest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing
all and adding them back in again. Click the Next button to continue.
WAN Service Configuration – PPPoE
Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as
system dns servers but only one will be used according to the priority with
the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again. Click the Next button to continue
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 32
WAN Service Configuration – PPPoE

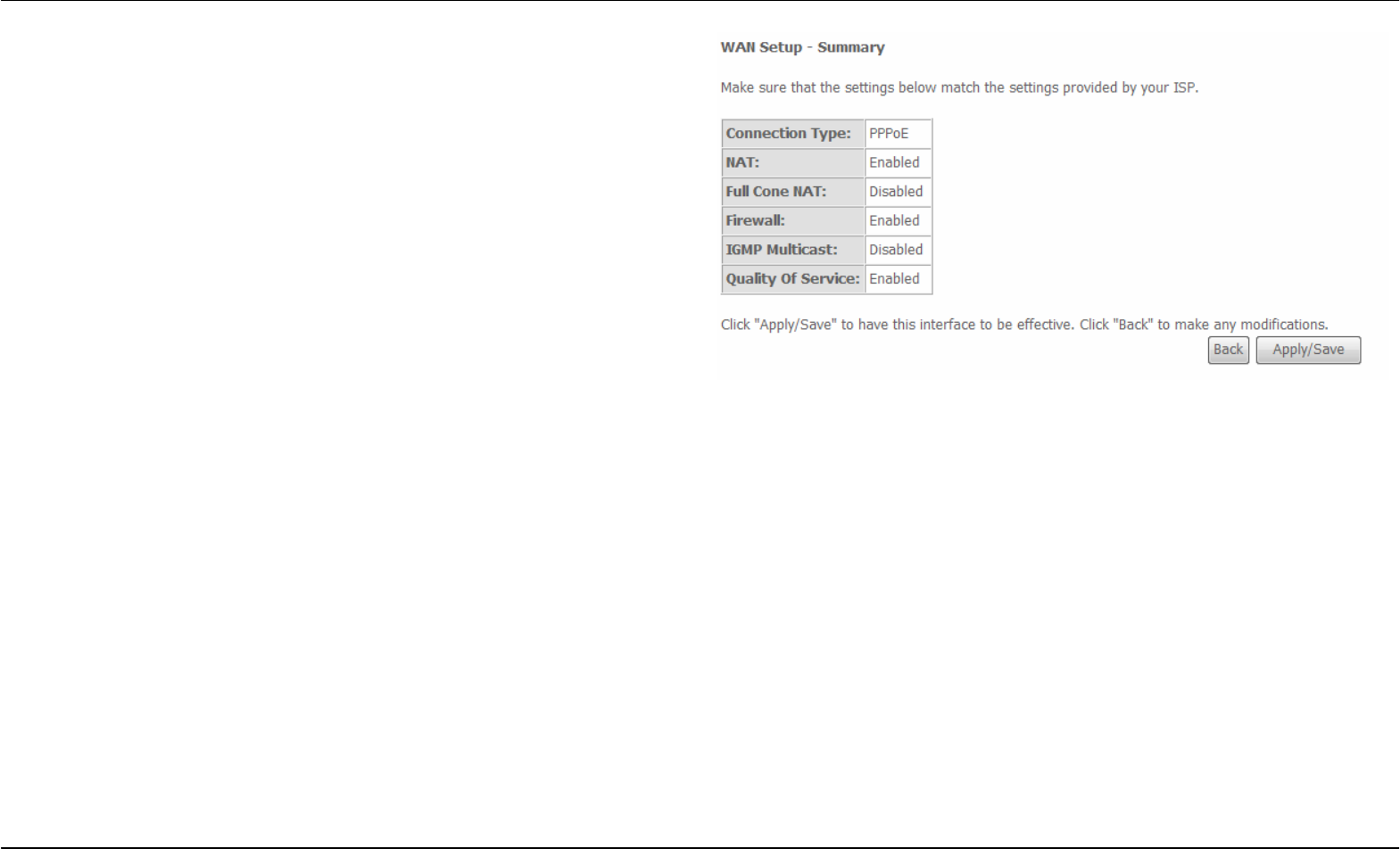

This summary window allows you to confirm the settings you have just
made. Click the Apply / Save button to save your new PPP over Ethernet
settings and restart the Router.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 33
WAN Service Configuration – IPoE
Click the IP over Ethernet radio button on this window. Click the Next
button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 34
WAN Service Configuration – IPoE

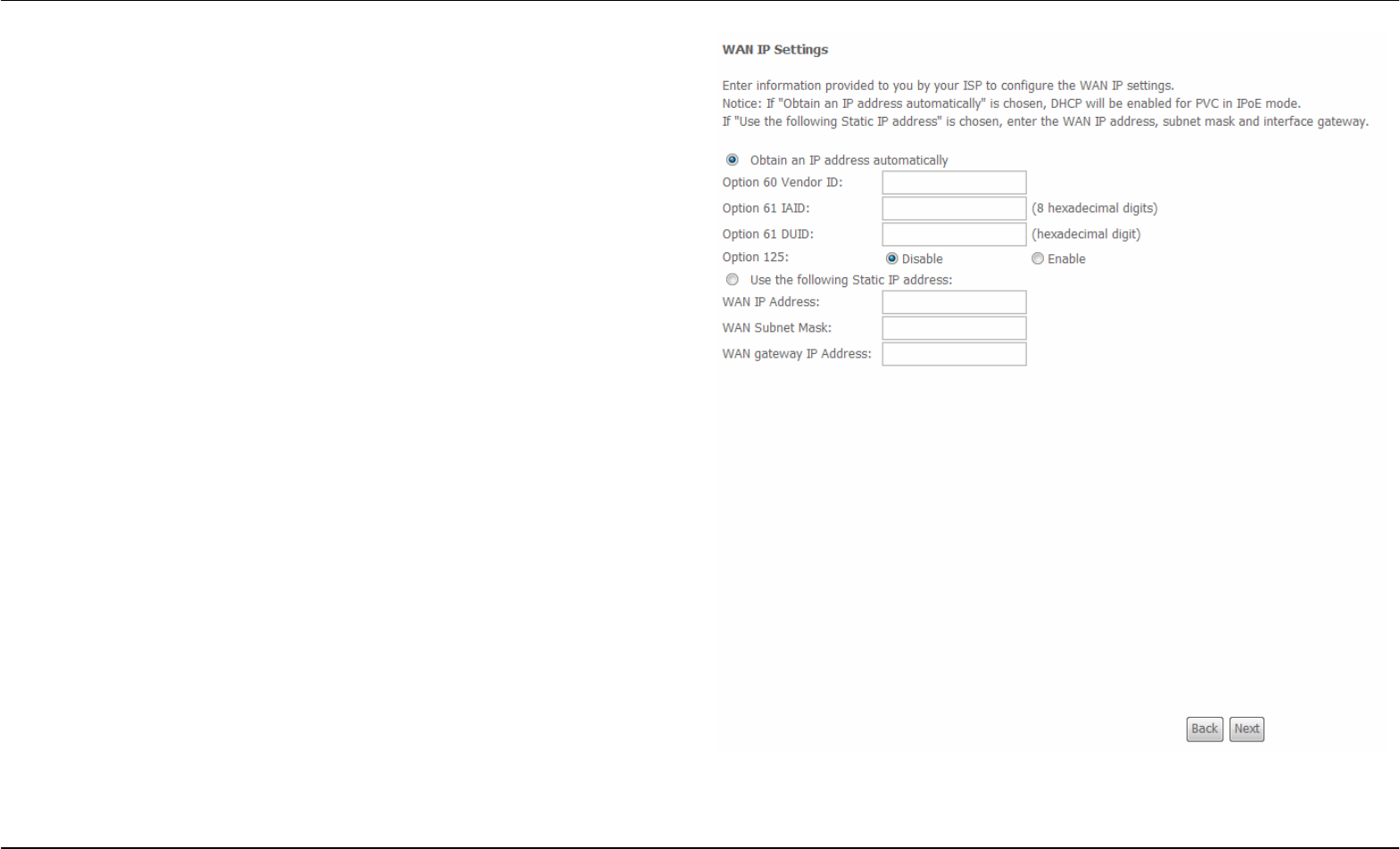

This window allows you to configure the WAN IP settings. This information
is obtained from your ISP. Click the Next button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 35

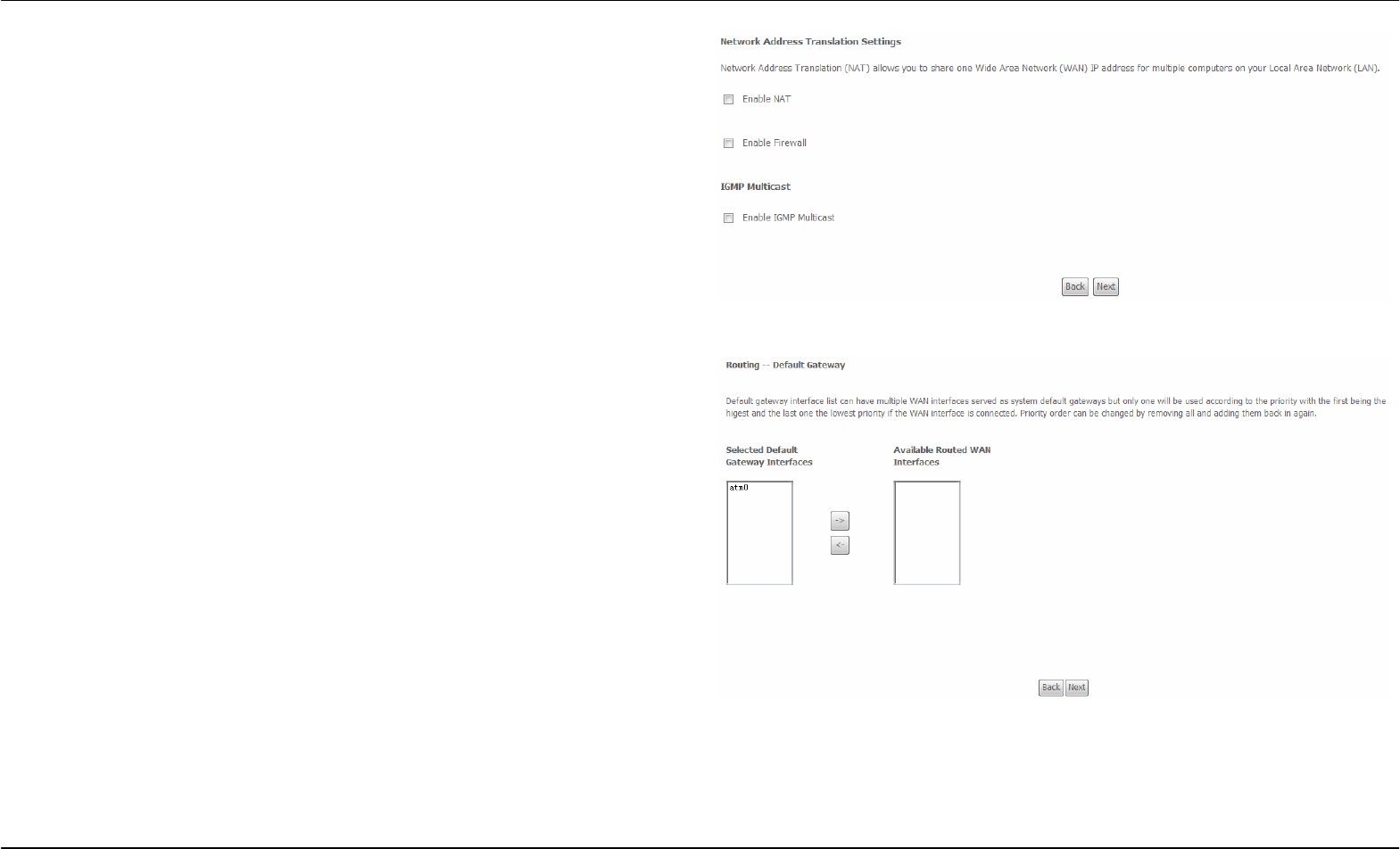

WAN Service Configuration – IPoE
This window allows you to enable or disable Network Address Translation
and a firewall for your Router. In addition, you can enable or disable IGMP
multicasting. Click the Next button to continue.
WAN Service Configuration – IPoE
Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the higest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing
all and adding them back in again. Click the Next button to continue
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 36
WAN Service Configuration – IPoE
Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as
system dns servers but only one will be used according to the priority with
the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again. Click the Next button to continue

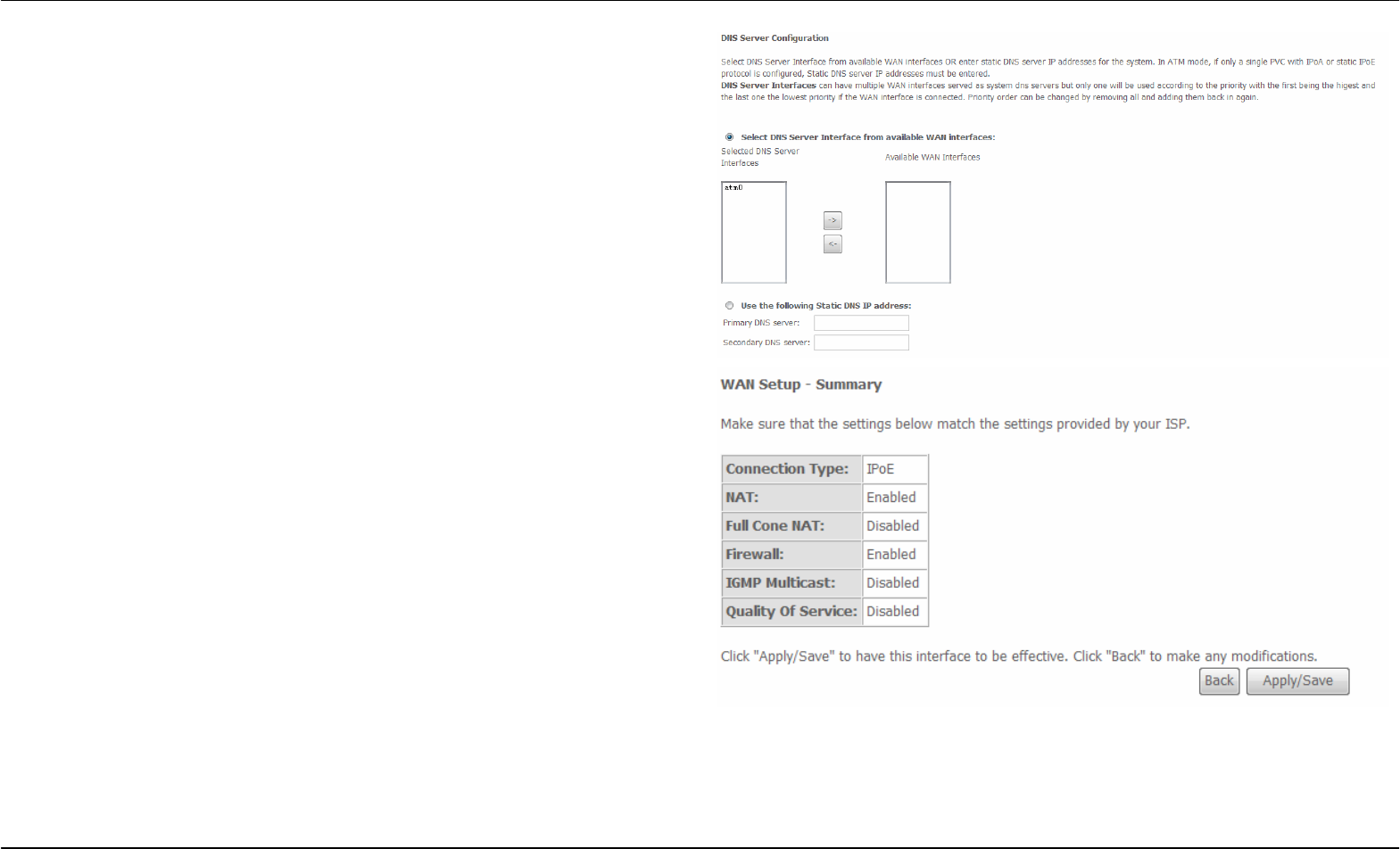

WAN Service Configuration – IPoE
This summary window allows you to confirm the settings you have just
made. Click the Apply / Save button to save your new IP over Ethernet
settings and restart the Router.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 37
WAN Service Configuration – BRIDGING
Click the Bridge radio button on this window. Click the Next button to
continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 38
WAN Service Configuration – BRIDGING

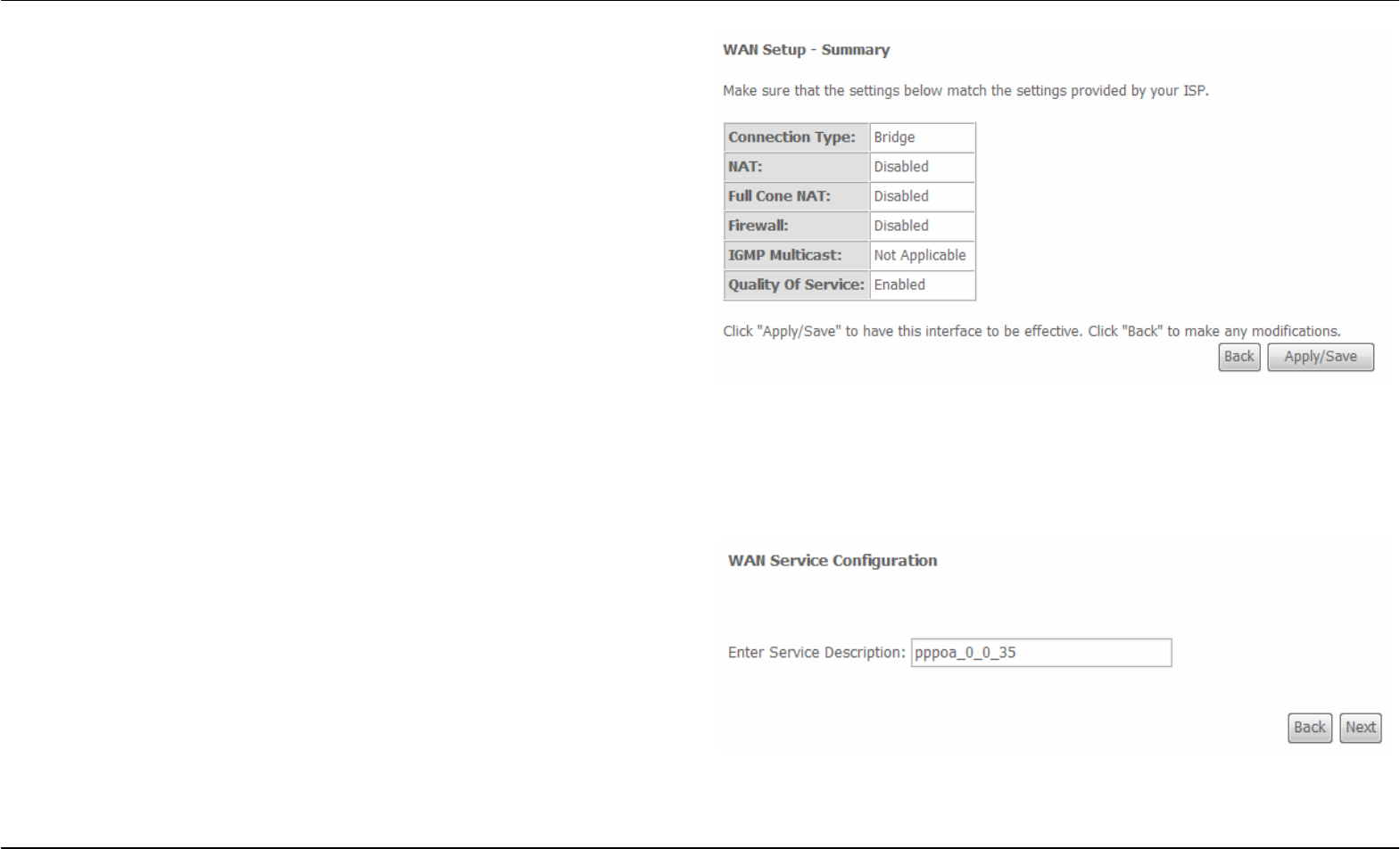

This summary window allows you to confirm the bridging settings you
have just made. Click the Apply /Save button to save your new bridging
settings and restart the Router.
WAN Service Configuration – PPPoA
This window allows you to enter service description. Click the Next button
to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 39
WAN Service Configuration – PPPoA
This window allows you to set the username and the password for your
PPP connection. This information is obtained from your ISP. Additional
settings on this window will also depend on your ISP. Click the Next
button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 40
WAN Service Configuration –PPPoA

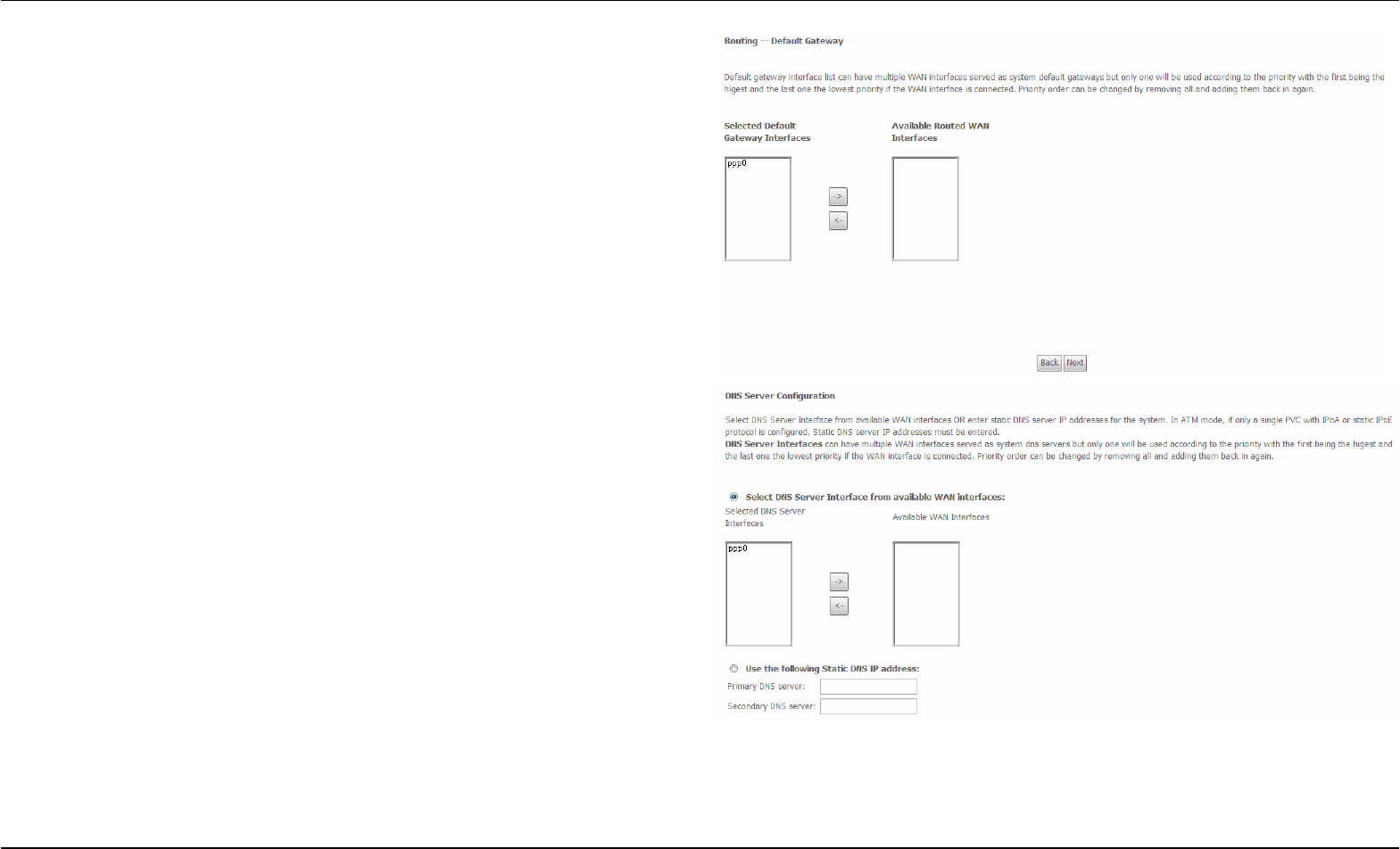

Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the higest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing
all and adding them back in again. Click the Next button to continue.
WAN Service Configuration – PPPoA
Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as
system dns servers but only one will be used according to the priority with
the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again. Click the Next button to continue
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 41
WAN Service Configuration – PPPoA

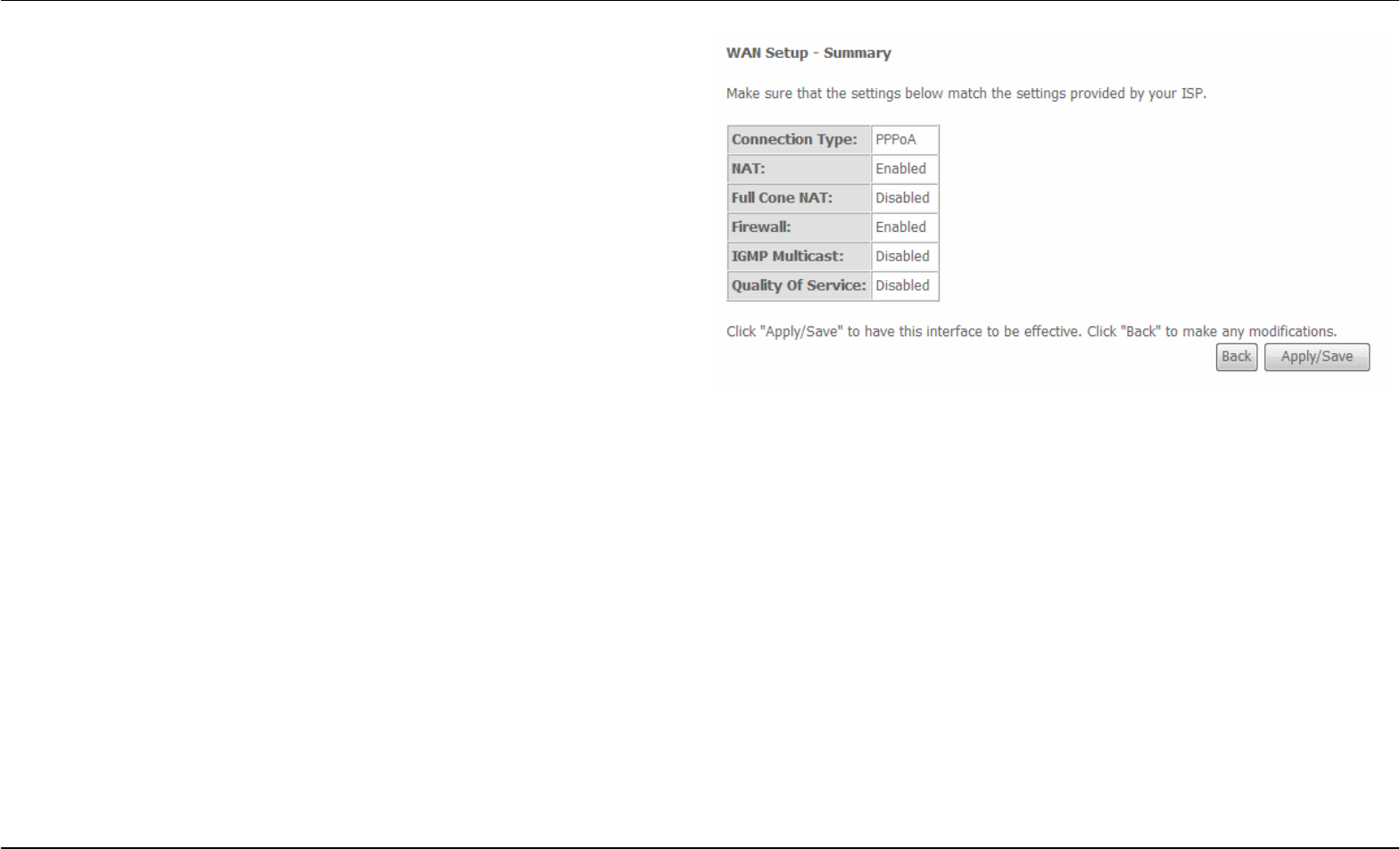

This summary window allows you to confirm the settings you have just
made. Click the Apply / Save button to save your new PPP over ATM
settings and restart the Router.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 42

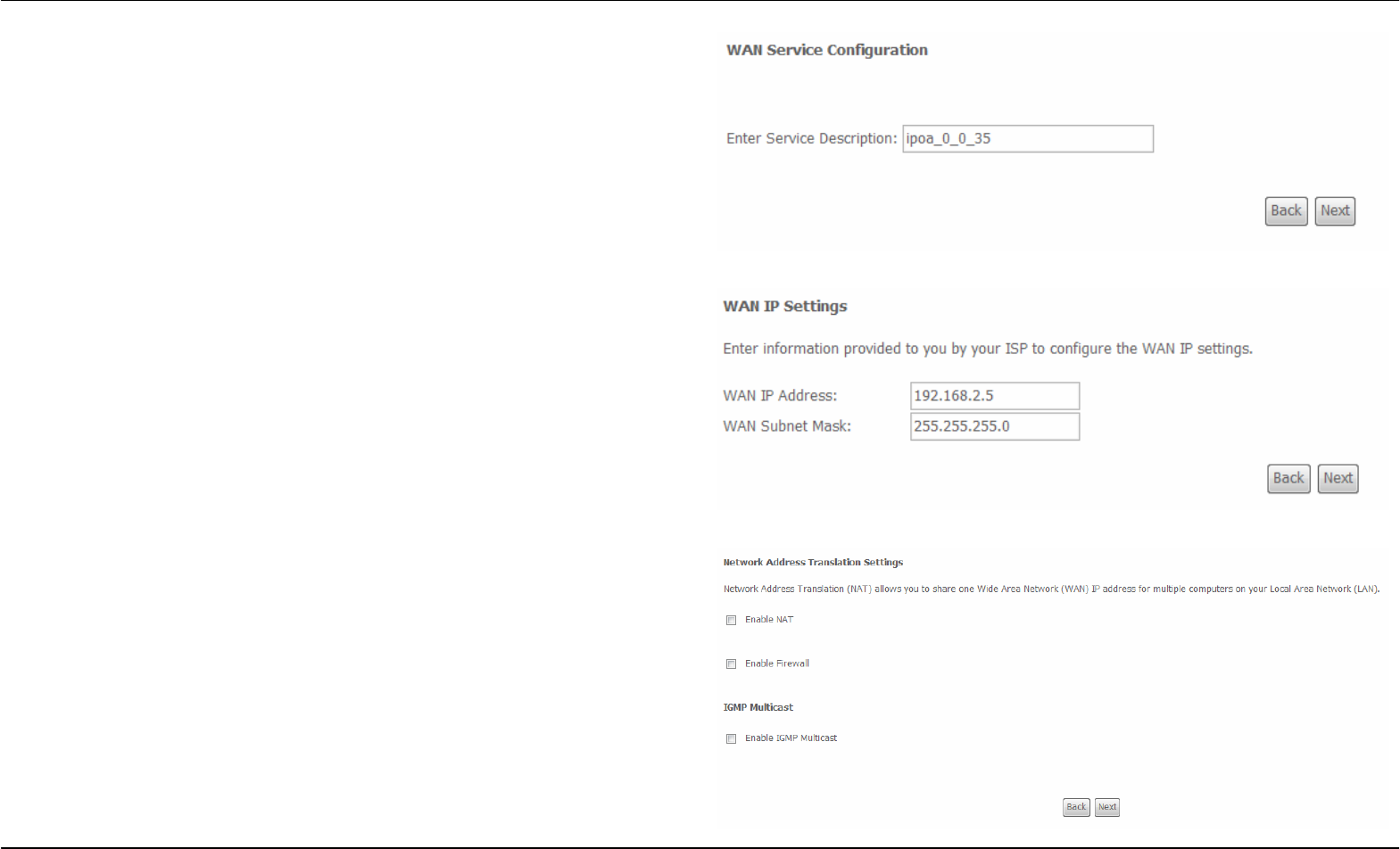

WAN Service Configuration – IPoA
This window allows you to enter service description. Click the Next button
to continue.
WAN Service Configuration – IPoA
This window allows you to configure the WAN IP settings. This information
is obtained from your ISP. Click the Next button to continue.
WAN Service Configuration – IPoA
This window allows you to enable or disable Network Address Translation
and a firewall for your Router. In addition, you can enable or disable IGMP
multicasting. Click the Next button to continue.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 43
WAN Service Configuration – IPoA
Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the higest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing
all and adding them back in again. Click the Next button to continue.
WAN Service Configuration – IPoA
Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as
system dns servers but only one will be used according to the priority with
the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again. Click the Next button to continue
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 44
WAN Service Configuration – IPoA

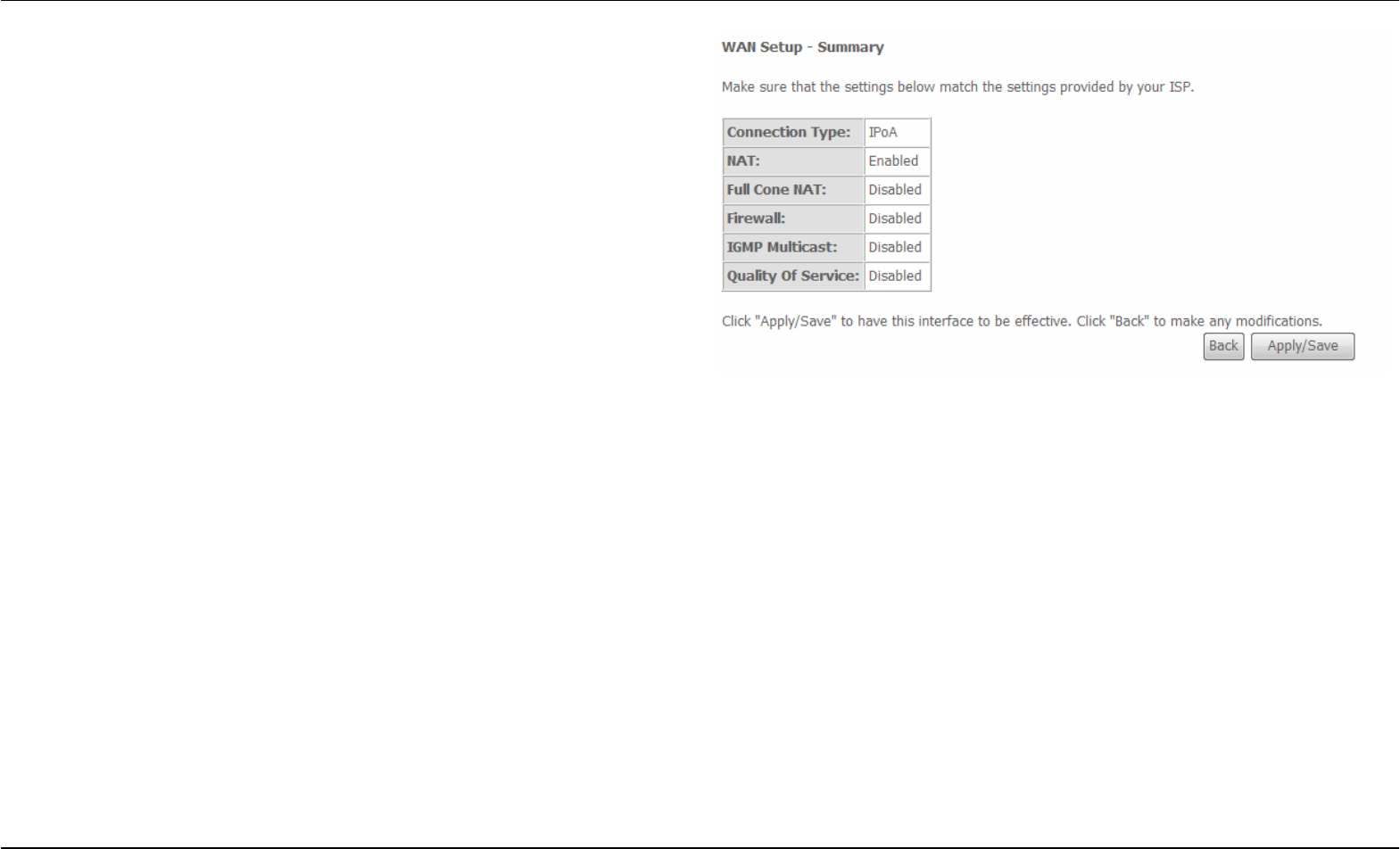

This summary window allows you to confirm the settings you have just
made. Click the Save/Reboot button to save your new IP over ATM
settings and restart the Router.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 45
PPTP

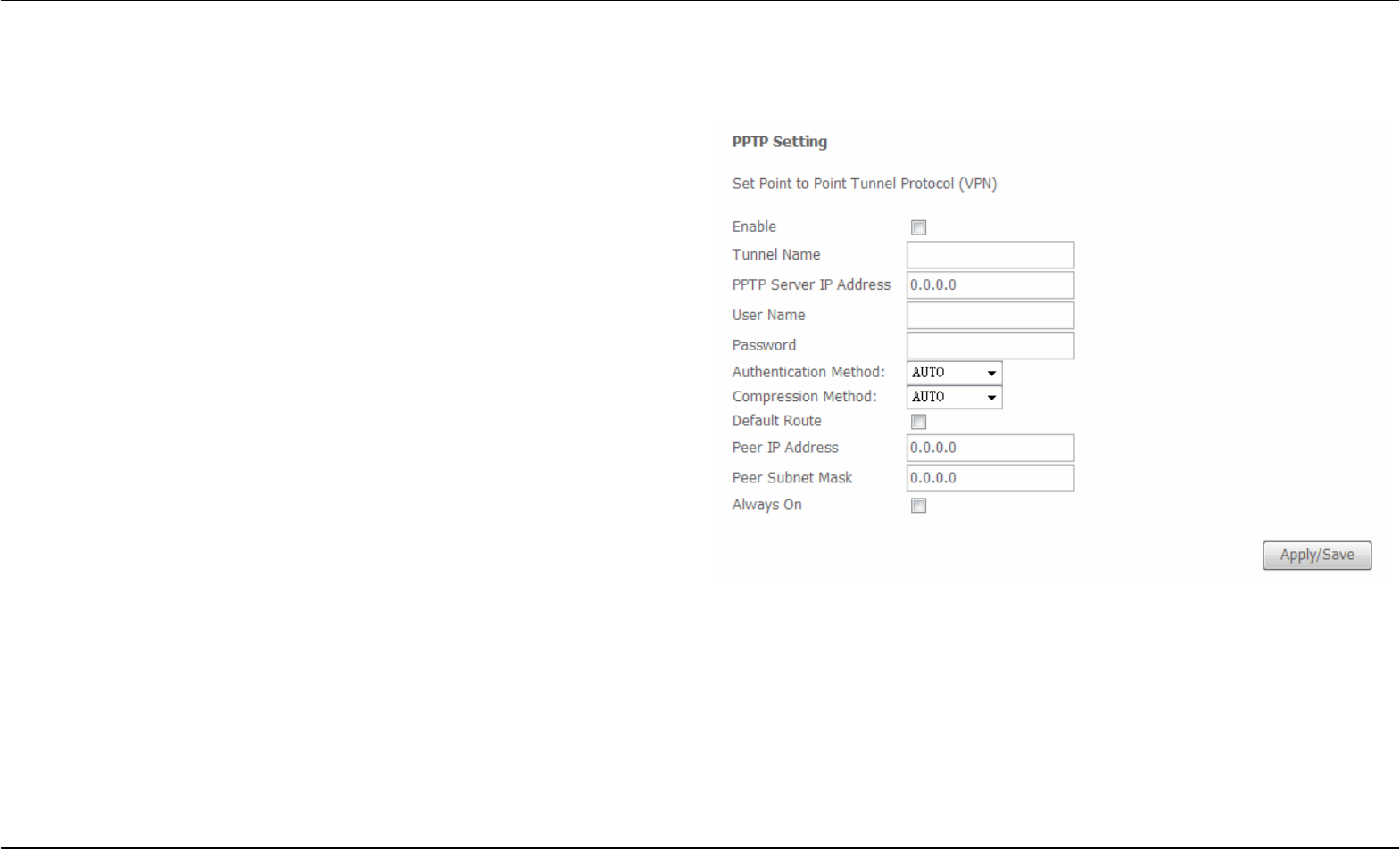

To access the PPTP Setting window, click the PPTP button in the Advanced Setup directory.
To set up Point-to-Point Tunnel Protocol, tick the Enable check box, enter
the appropriate information in the fields offered, and then click the Apply /
Save button when you are finished.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 46
LAN

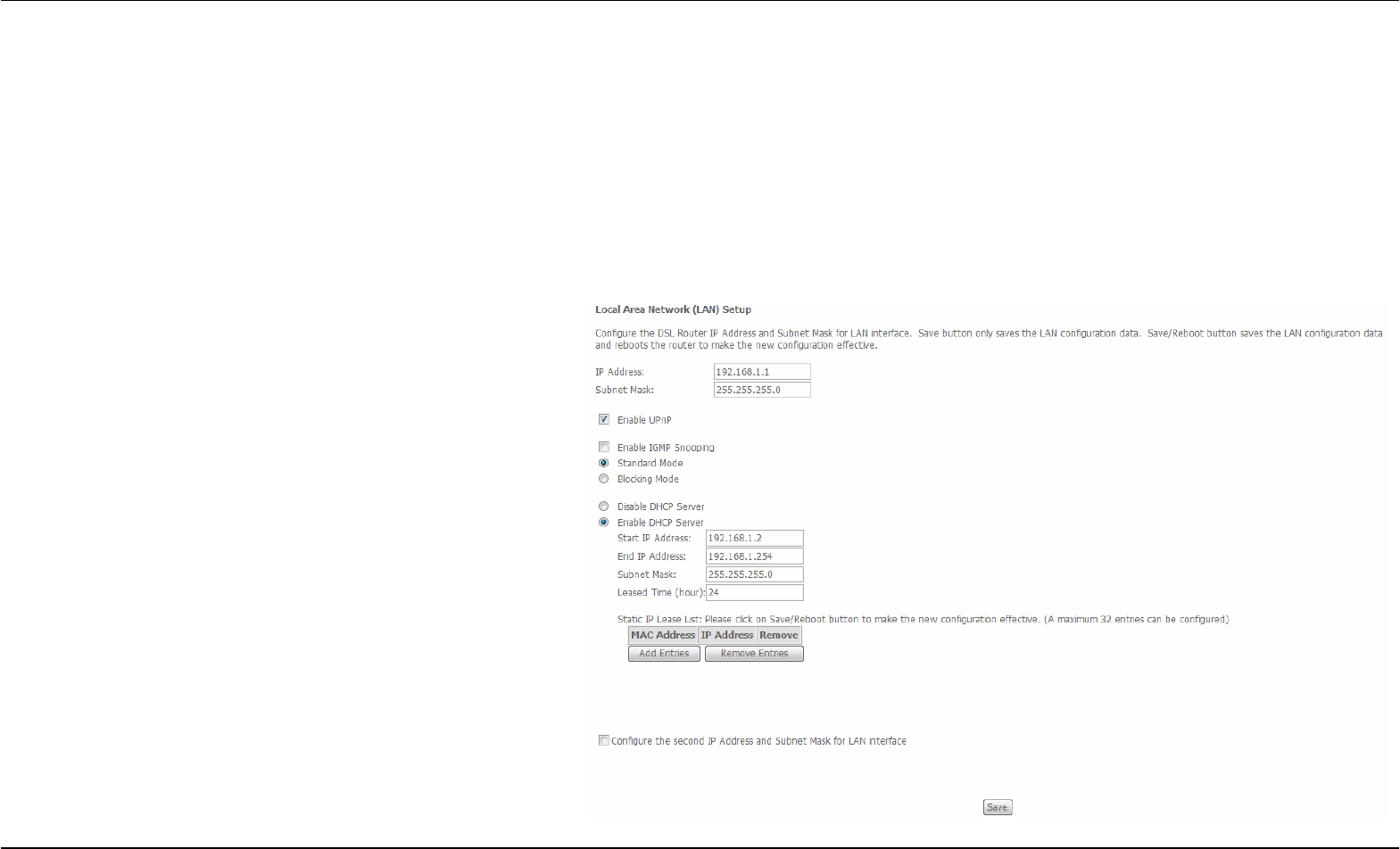

You can configure the LAN IP address to suit your preference. Many users will find it convenient to use the default settings together with DHCP
service to manage the IP settings for their private network. The IP address of the Router is the base address used for DHCP. In order to use the
Router for DHCP on your LAN, the IP address pool used for DHCP must be compatible with the IP address of the Router. The IP addresses
available in the DHCP IP address pool will change automatically if you change the IP address of the Router.
To access the Local Area Network (LAN) Setup window, click the LAN button in the Advanced Setup directory.
This window allows you to set up a LAN interface. When you
are finished, click the Apply / Save button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 47

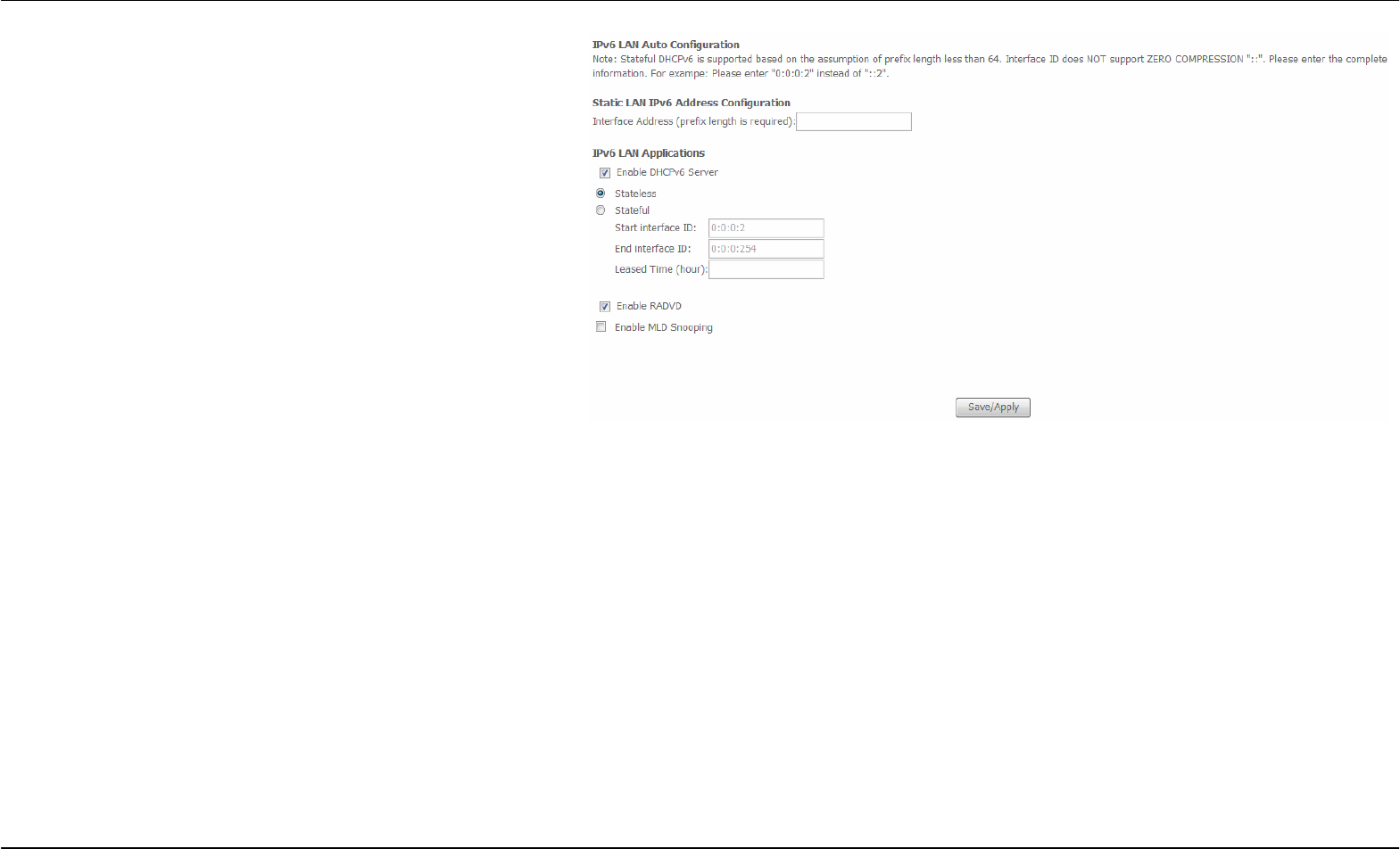

To access the IPv6 LAN Auto Configuration window, click
the IPv6 AutoConfig button in the LAN directory.
This window allows you to set up IPv6 LAN Auto
Configuration. When you are finished, click the Apply /
Save button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 48
NAT
To access the Network Address Translation (NAT) Setup window, click the NAT button in the Advanced Setup directory. The NAT button
appears when configuring WAN interface in PPPoA, PPPoE, IPoE or IPoA.
Virtual Servers
This window is used to configure virtual server. You can add, delete, and
modify virtual server on this window.
If you are setting up the virtual server, click the Add button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 49
You can configure the service settings on this window by clicking the
Select a Service radio button and then using the drop-down list to choose
an existing service, or by clicking the Custom Server radio button and
entering your own Application Rule in the field provided.
Click Apply / Save when you are finished with the virtual server
configuration.

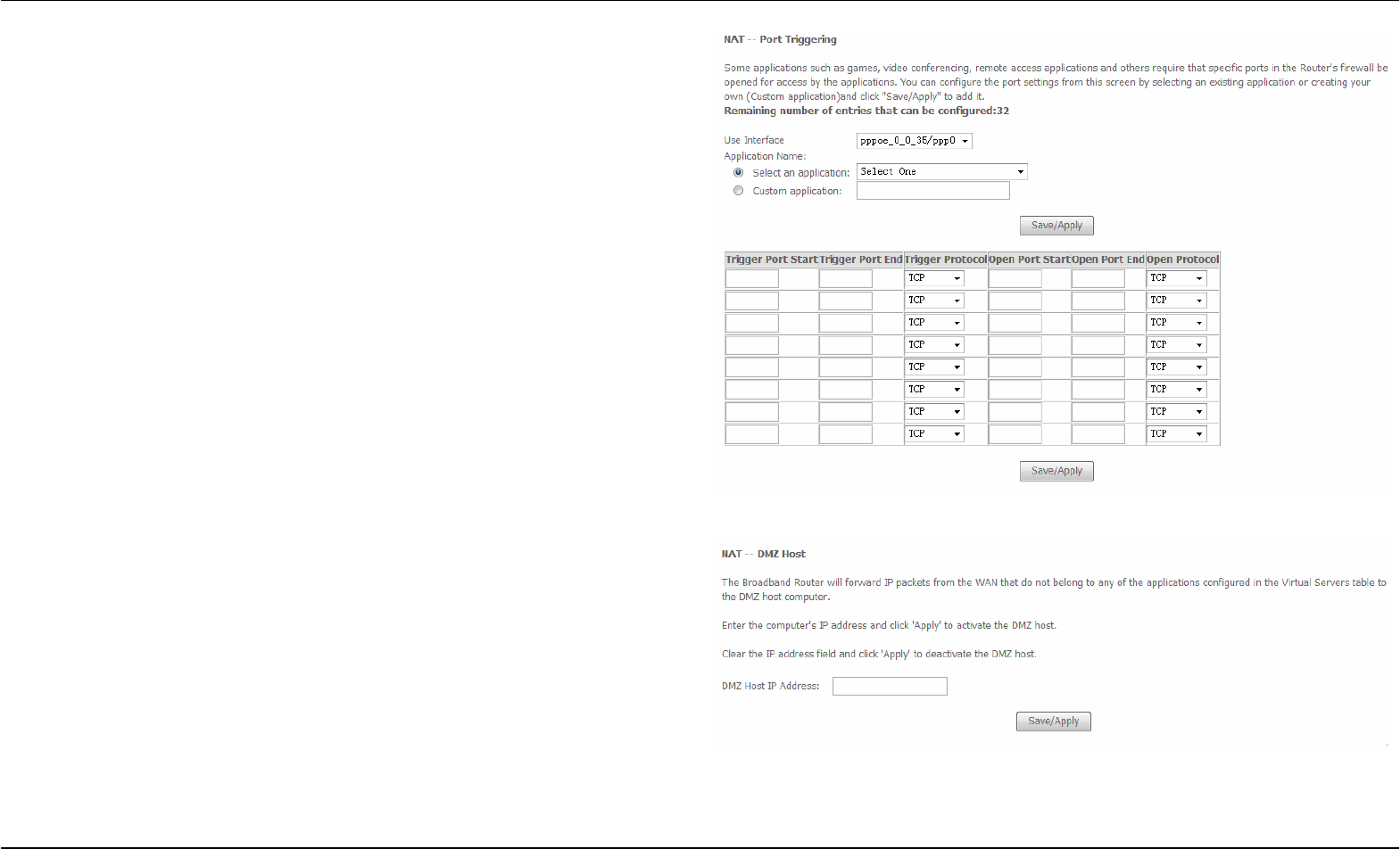

Port Triggering
Some applications such as games, video conferencing, remote access
applications and others require that specific ports in the Router's firewall
be opened for access by the applications. You can configure the port
settings from this screen by selecting an existing application or creating
your own (Custom application).
Click the Add button to configure port triggering.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 50
You can configure the port settings on this window by clicking the Select
an application radio button and then using the drop-down list to choose
an existing application, or by clicking the Custom application radio
button and entering your own Application Rule in the field provided.
Click Save/Apply when you are finished with the port setting
configuration. The new Application Rule will appear in the Port Triggering
table.
DMZ Host
Since some applications are not compatible with NAT, the Router supports
use of a DMZ IP address for a single host on the LAN. This IP address is
not protected by NAT and will therefore be visible to agents on the Internet
with the right type of software. Keep in mind that any client PC in the DMZ
will be exposed to various types of security risks. If you use the DMZ, take
measures (such as client-based virus protection) to protect the remaining
client PCs on your LAN from possible contamination through the DMZ.
To designate a DMZ IP address, type in the IP Address of the server or
device on your LAN, and click the Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 51
Security
To access the Security window, click the Security button in the Advanced Setup directory. The Security button appears after configuring WAN
interface in PPPoA, PPPoE, IPoE or IPoA.
IP Filtering
The IP Filtering button appears when configuring WAN interface in PPPoA, PPPoE, IPoE or IPoA.

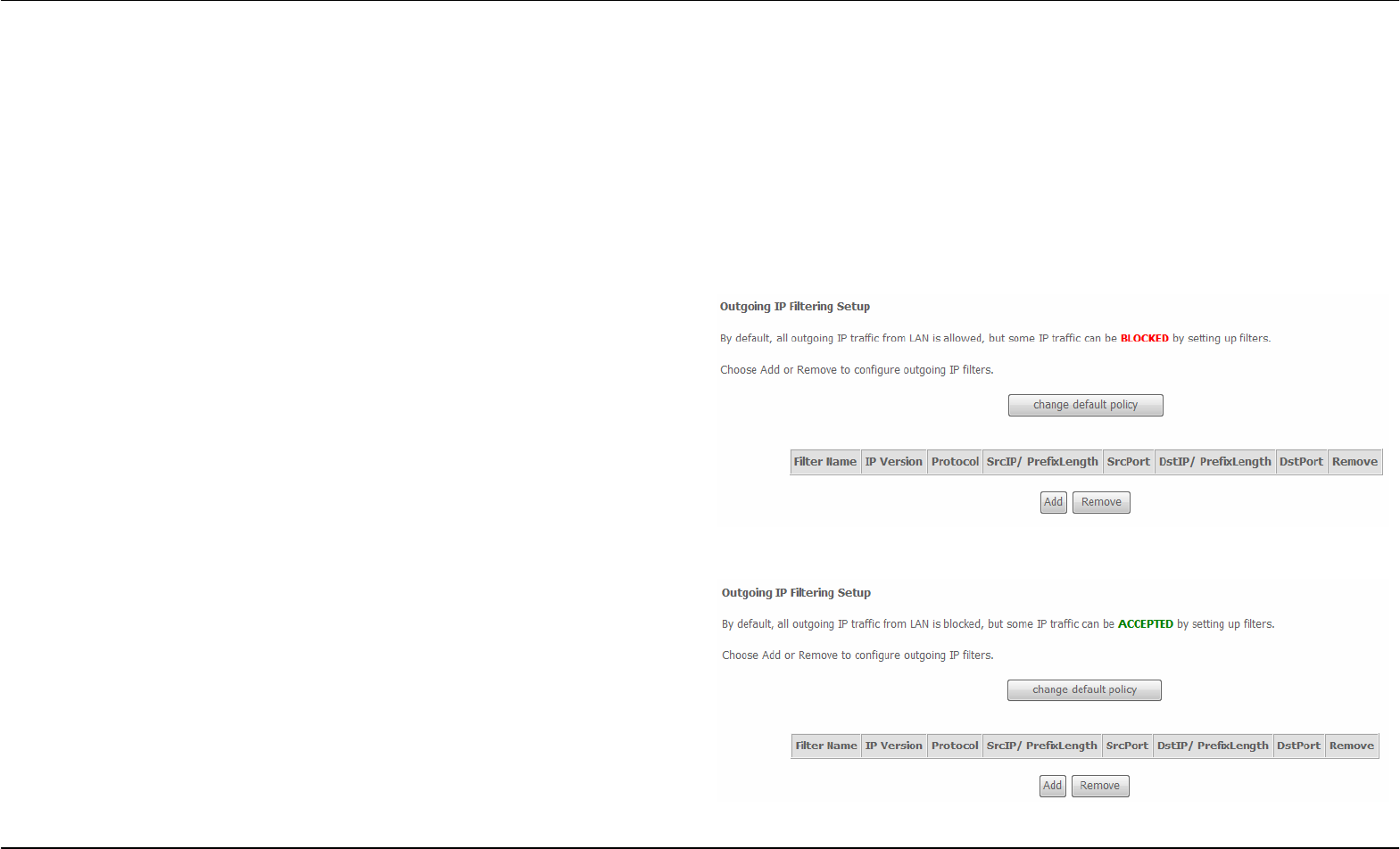

IP Filtering - Outgoing
This window allows you to create a filter rule of Outgoing.
Click change default policy to change the mode of policy.
Now default policy is BLOCK, it means all outgoing IP traffic from LAN is
blocked, but some IP traffic can be accepted by setting up filters.
If you are setting up the outgoing IP filtering, click the Add button.
Now default policy is ACCEPT, it means all outgoing IP traffic from LAN is
allowed, but some IP traffic can be Blocked by setting up filters.
If you are setting up the outgoing IP filtering, click the Add button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 52

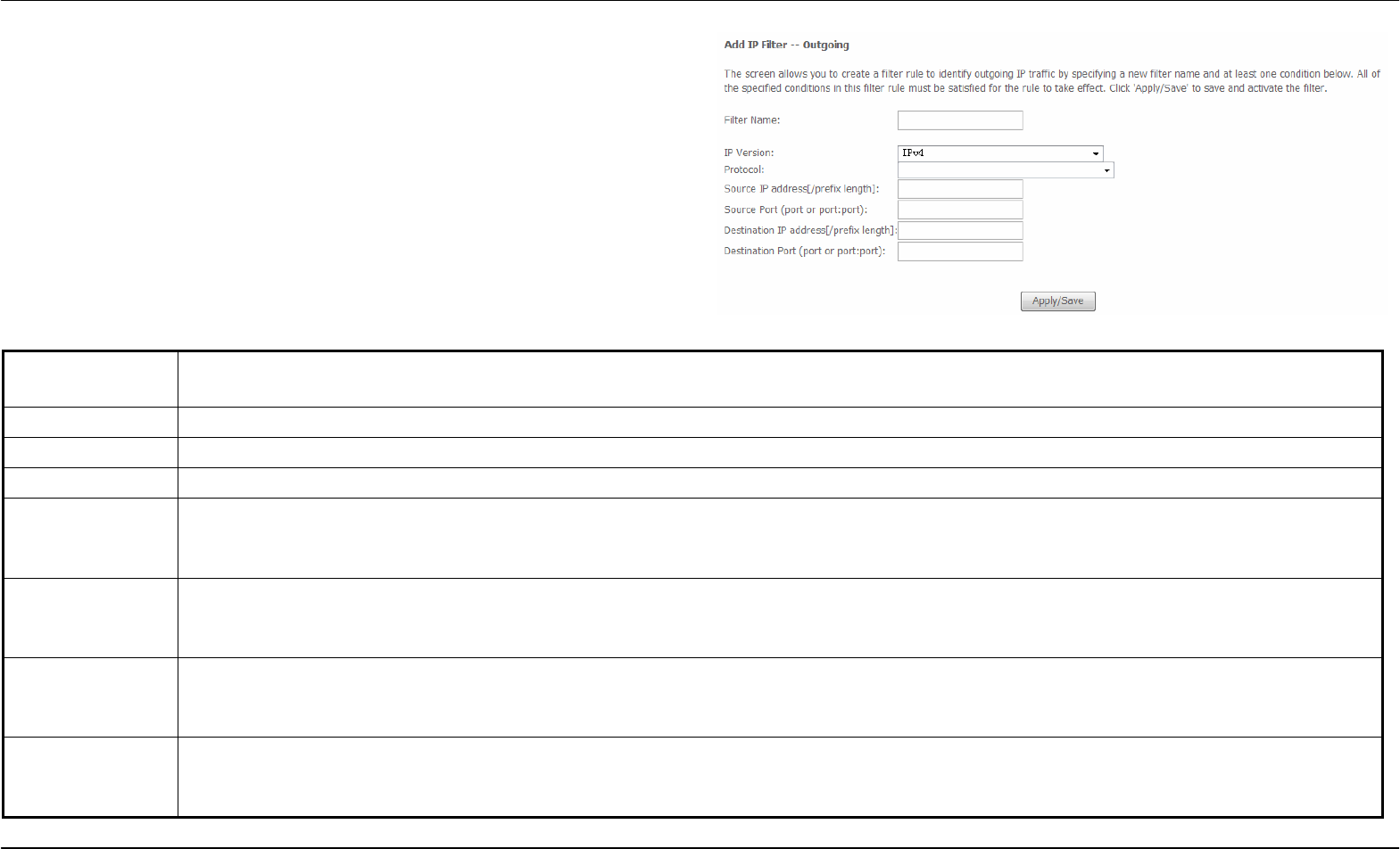

Enter the information in the section. Explanations of parameters are
described below. Click the Apply / Save button to add the entry in the
Active Outbound IP Filtering table.
Filters
Parameter Description
Filter Name Enter a name for the new filter.
IP Version Ipv4/Ipv6
Protocol Select the transport protocol (Any, TCP/UDP, TCP, UDP or ICMP) that will be used for the filter rule.
Source IP
address[/prefix
length]
Enter the start IP address which you are creating the filter rule.
Source Port
(port or
port:port)
The Source Port is the TCP/UDP port on either the LAN or WAN depending on if you are configuring an Outbound or Inbound
Filter rule.
Destination IP
address[/prefix
length]
Enter the end IP address which you are creating the filter rule.
Destination Port
(port or
port:port)
The Destination Port is the TCP/UDP port on either the LAN or WAN depending on if you are configuring an Outbound or
Inbound Filter rule.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 53

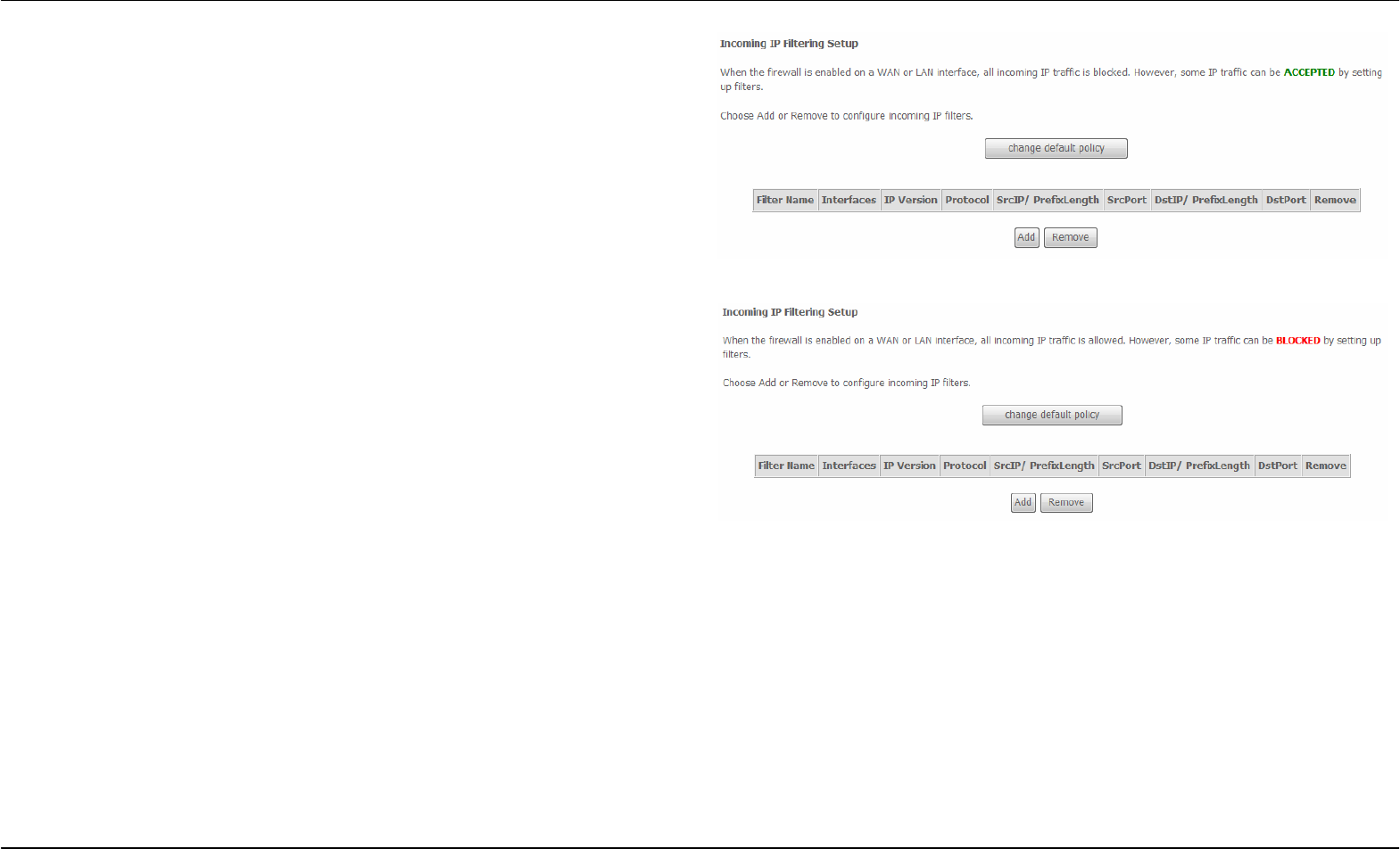

IP Filtering – Incoming
This window allows you to create a filter rule of Incoming.
Click change default policy to change the mode of policy.
Now default policy is ACCEPT, it means all incoming IP traffic from WAN
is accepted, but some IP traffic can be blocked by setting up filters.
If you are setting up the incoming IP filtering, click the Add button.
Now default policy is BLOCK, it means all incoming IP traffic from WAN is
blocked, but some IP traffic can be accepted by setting up filters.
If you are setting up the incoming IP filtering, click the Add button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 54
Enter the information in the section. Explanations of parameters are
described below. Click the Apply / Save button to add the entry in the
Active Inbound IP Filtering table.
Filters Parameter Description
Filter Name Enter a name for the new filter.
IP Version Ipv4/Ipv6
Protocol Select the transport protocol (Any, TCP/UDP, TCP, UDP or ICMP) that will be used for the filter rule.
Source IP
address[/prefix
length]
Enter the start IP address which you are creating the filter rule.
Source Port (port or
port:port) The Source Port is the TCP/UDP port on either the LAN or WAN depending on if you are configuring an Outbound or
Inbound Filter rule.
Destination IP
address[/prefix
length]
Enter the end IP address which you are creating the filter rule.
Destination Port The Destination Port is the TCP/UDP port on either the LAN or WAN depending on if you are configuring an Outbound or
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 55
(port or port:port) Inbound Filter rule.

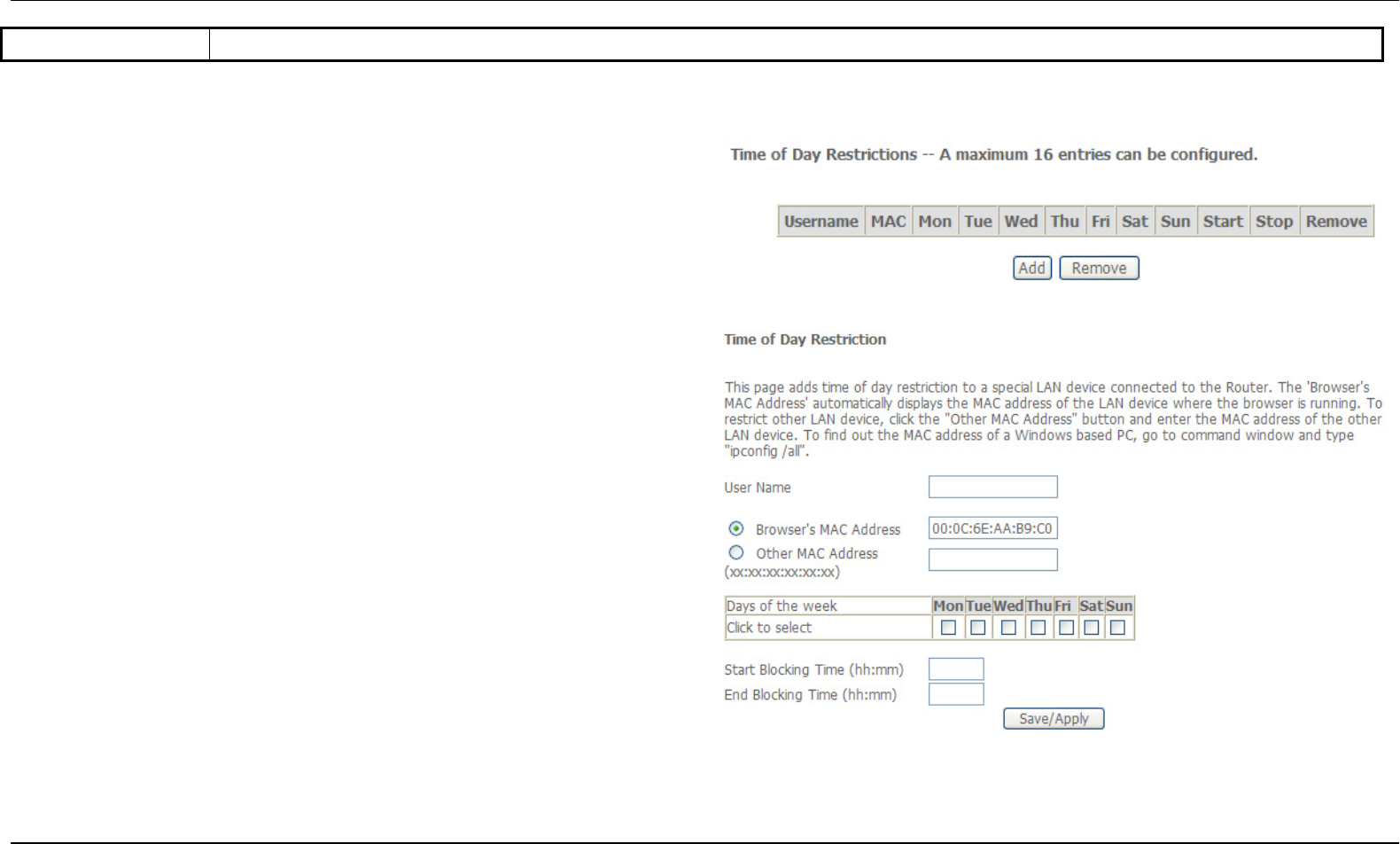

Parental Control
Use this window to deny access to specified MAC address.
If you are setting up the MAC address blocking, click the Add button.
MAC address is a specially formatted text string (xx:xx:xx:xx:xx:xx) that
uniquely identification of a device. This section will allow users to block
devices with certain MAC addresses on the LAN.
To configure for MAC address blocking, enter the username into the
Username field, click Browser’s MAC Address to have MAC address of
the LAN device, or click Other MAC Address and enter a MAC address
manually. Tick the checkboxes for the desired individual days of the week
and enter desired Start Blocking Time and End Blocking Time.
Click the Save/Apply button to save the configuration
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 56

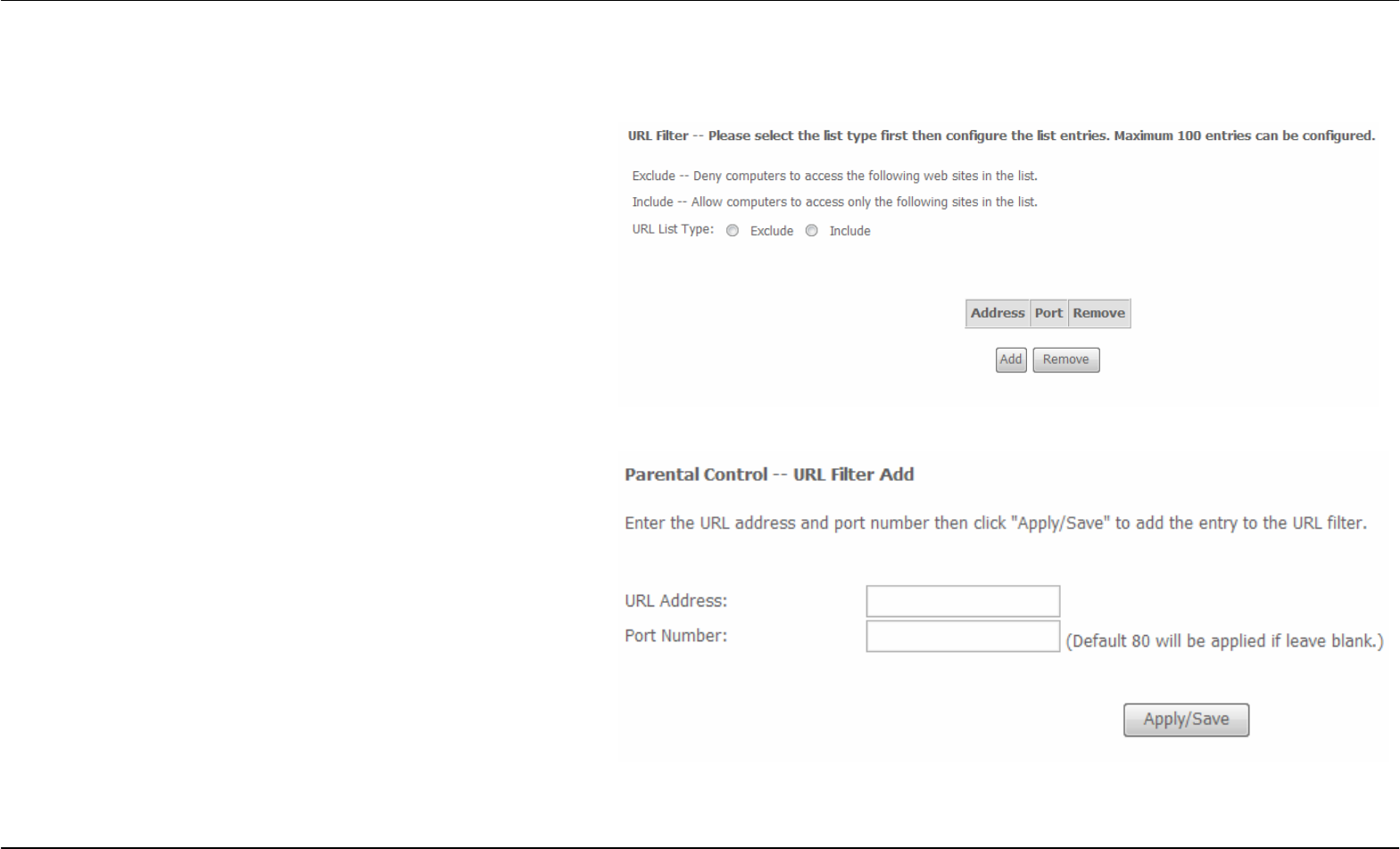

URL Filter
This window allows you to set up URL Filter on the Router.
Choose URL List Type Exclude or Include first and click Add
button.
Enter the URL address and port number then click Apply /
Save to add the entry to the URL filter.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 57

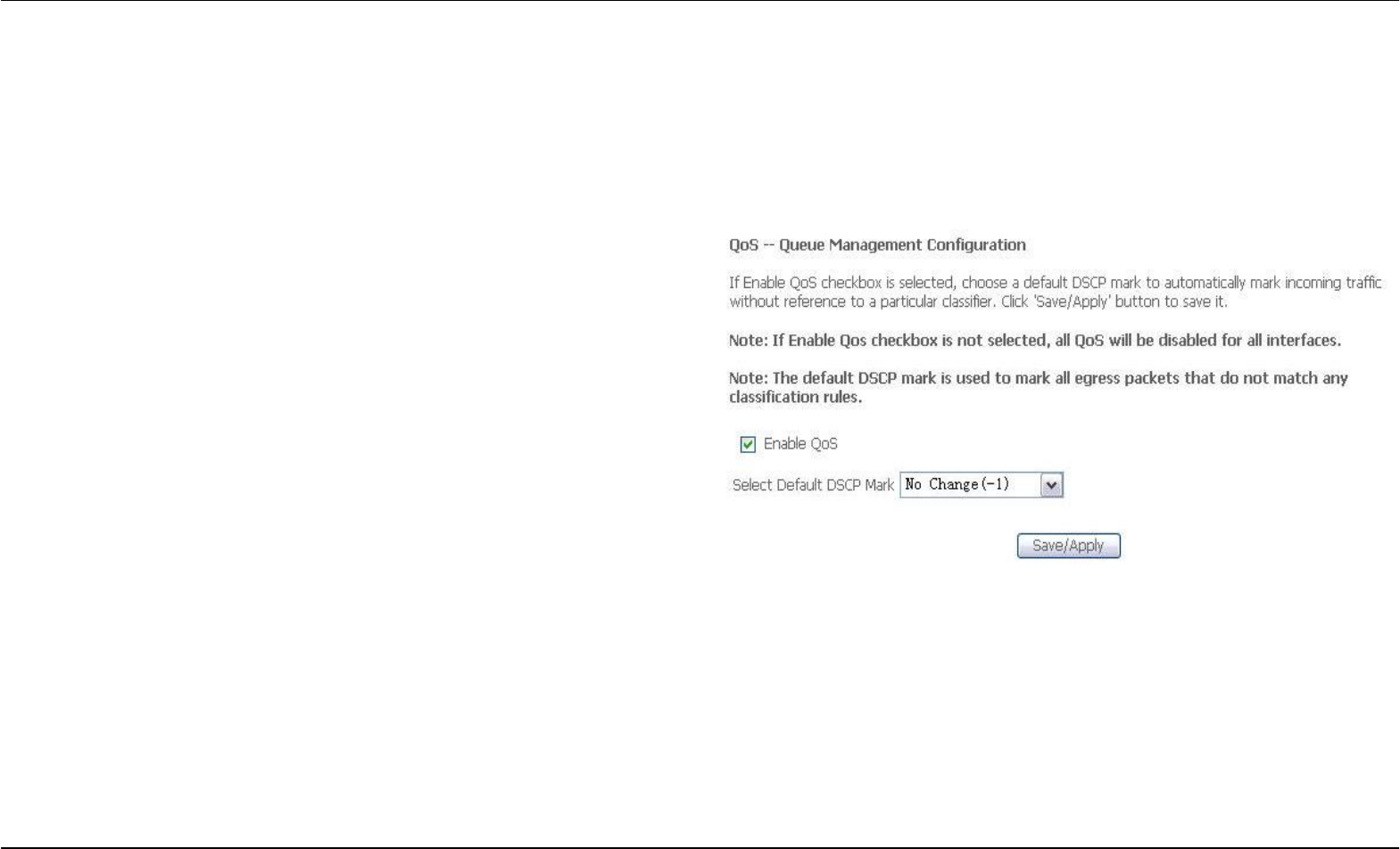

Quality of Service
QoS or Quality of Service allows your Router to help prioritize the data packet flow in your Router and network. This is very important for time
sensitive applications such as VoIP where it may help prevent dropped calls. Large amounts of non-critical data can be scaled so as not to affect
these prioritized sensitive real-time programs.
To access the QoS – Queue Management Configuration window, click the Quality of Service button in the Advanced Setup directory.
This window allows you to set up QoS on the Router. When you are
finished, click on the Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 58

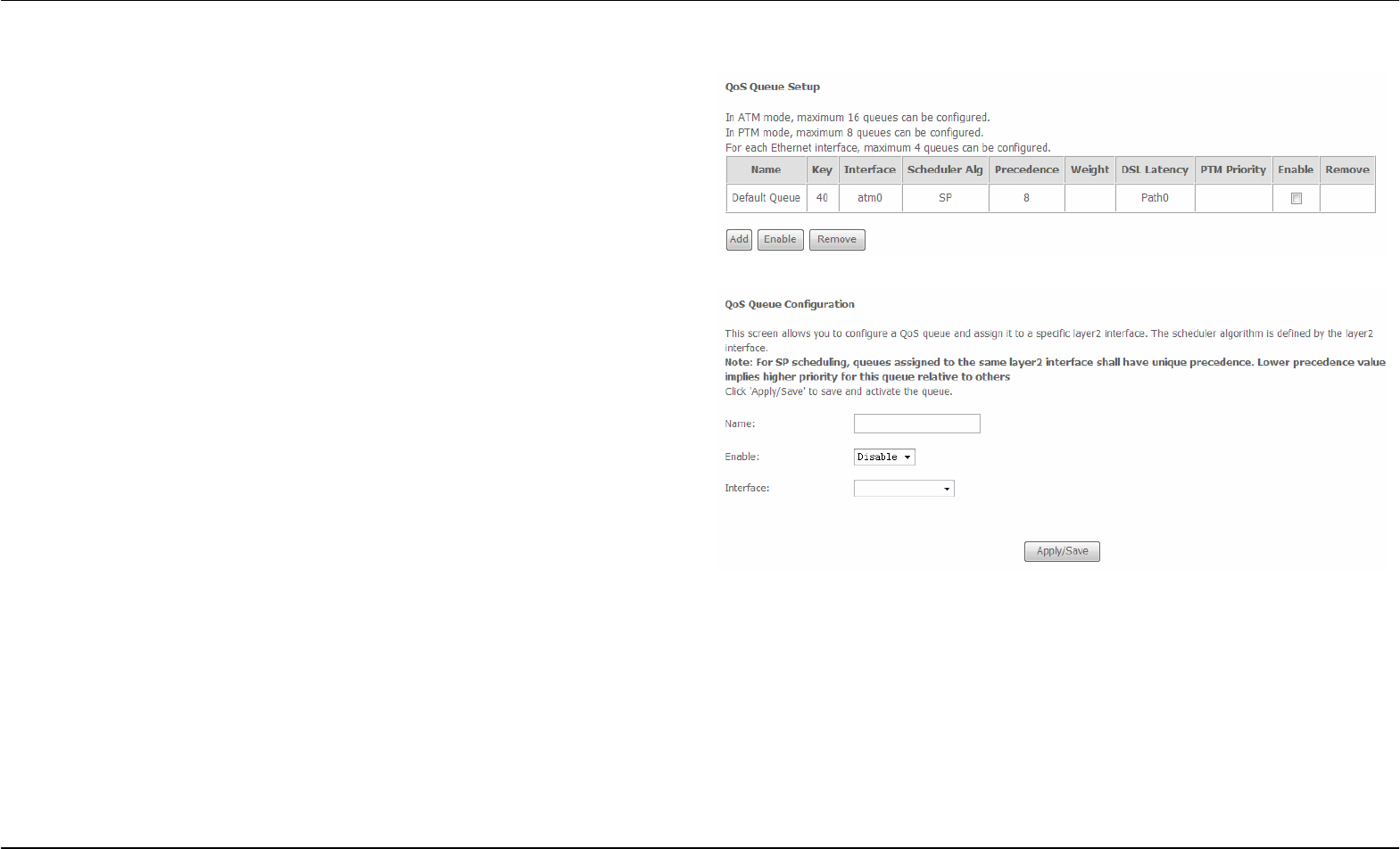

Queue Config
Click the Add button to add a QoS Queue Configuration table entry.
This window allows you to configure a QoS queue entry and assign it a
specific network interface.
Click the Apply / Save button to save and activate the filter.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 59

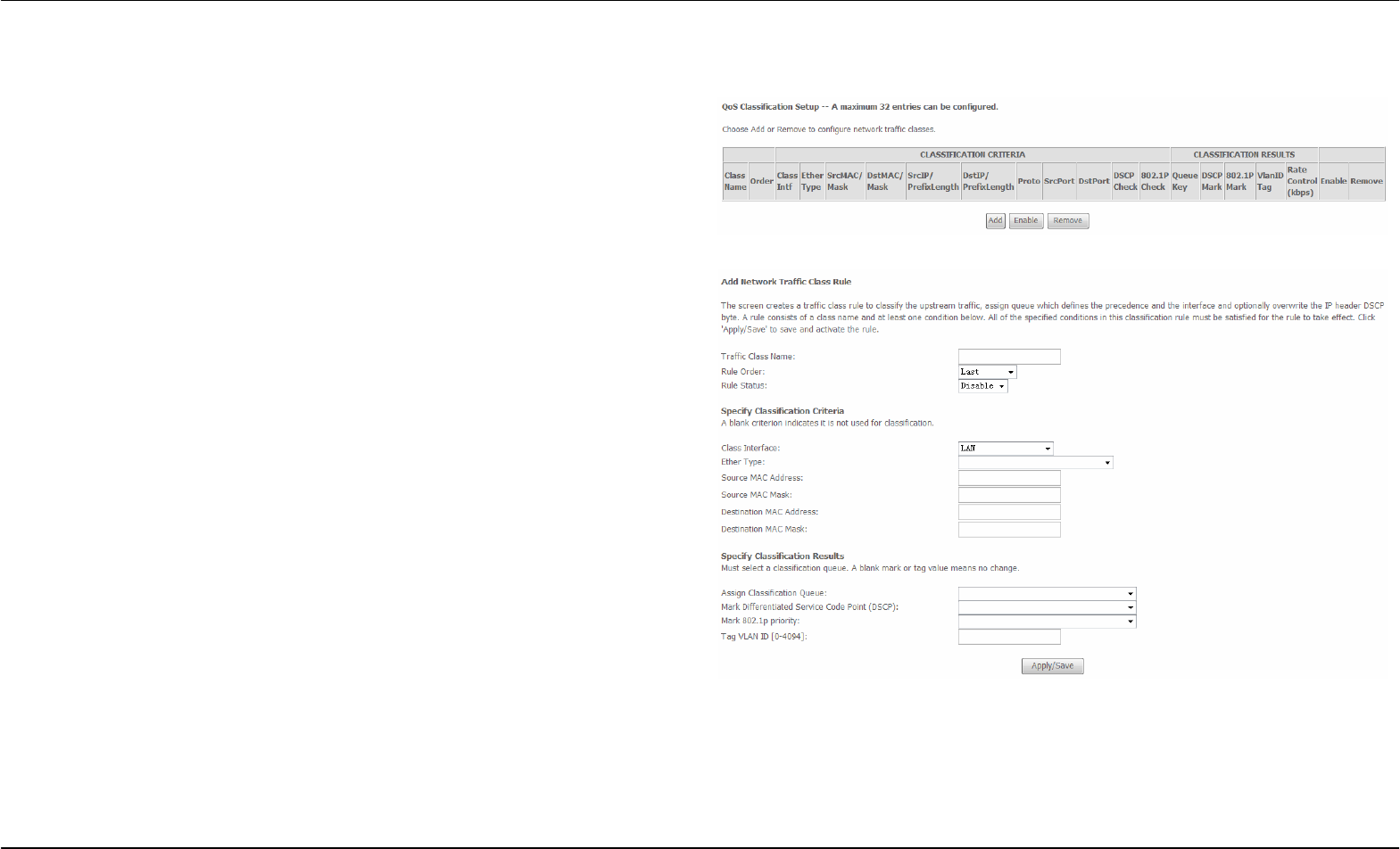

QoS Classification
Choose Add or Remove to configure network traffic classes.
Use this window to create a traffic class rule to classify the upstream
traffic, assign a queue that defines the precedence and the interface, and
optionally overwrite the IP header DSCP byte. A rule consists of a class
name and at least one condition. Please remember that all of the specified
conditions on this window must be met for the rule to take effect.
Click the Apply / Save button to save and activate this rule.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 60
Routing
To access the Routing windows, click the Routing button in the Advanced Setup directory.
Default Gateway
Default gateway interface list can have multiple WAN interfaces served as
system default gateways but only one will be used according to the priority
with the first being the highest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing
all and adding them back in again. Click the Apply / Save button when
you are finished.
Static Route

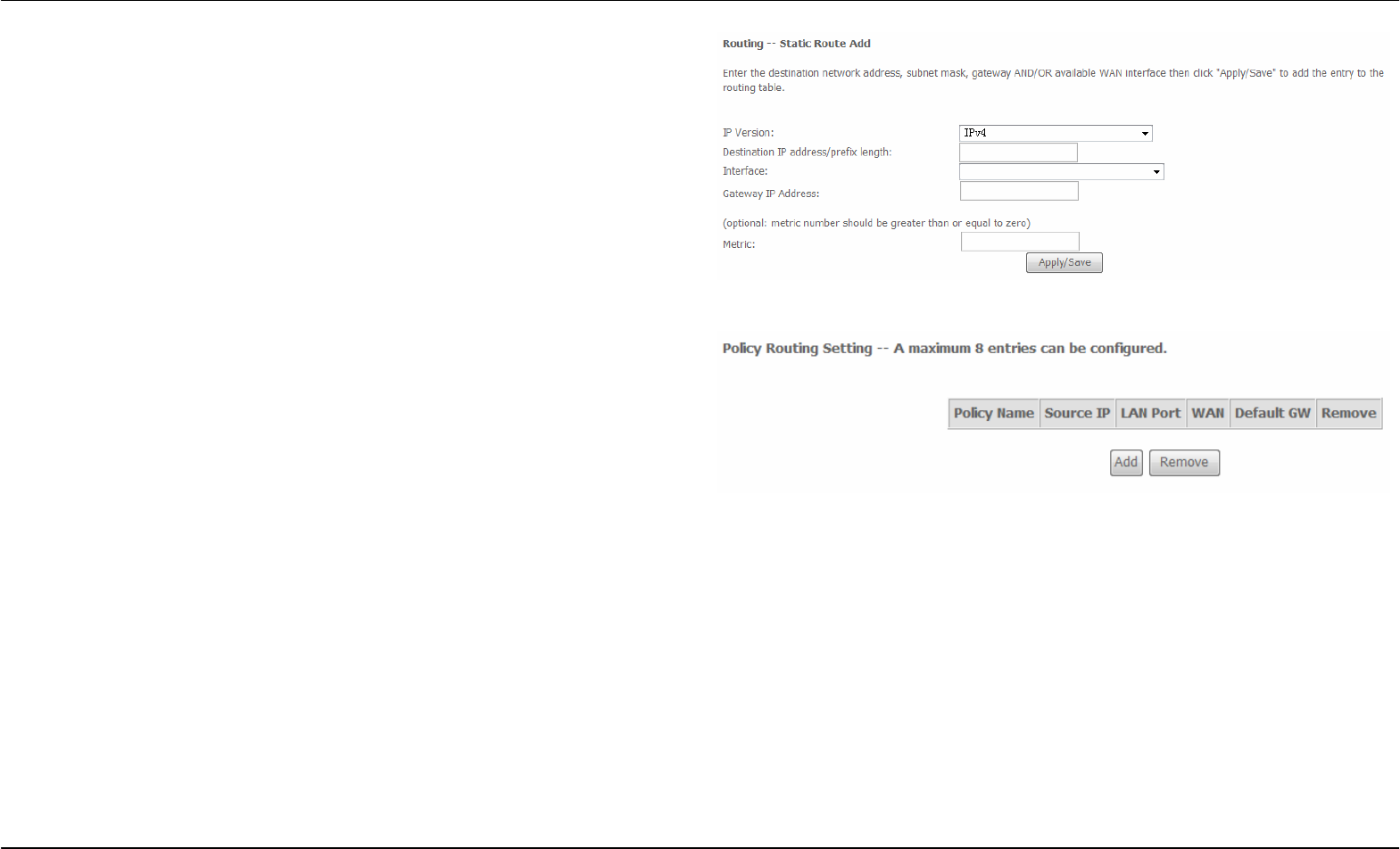

Click the Add button on the Routing – Static Route window to access the
following window displayed on the next page.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 61
Enter the static routing information for an entry to the routing table.
Click the Apply / Save button when you are finished.

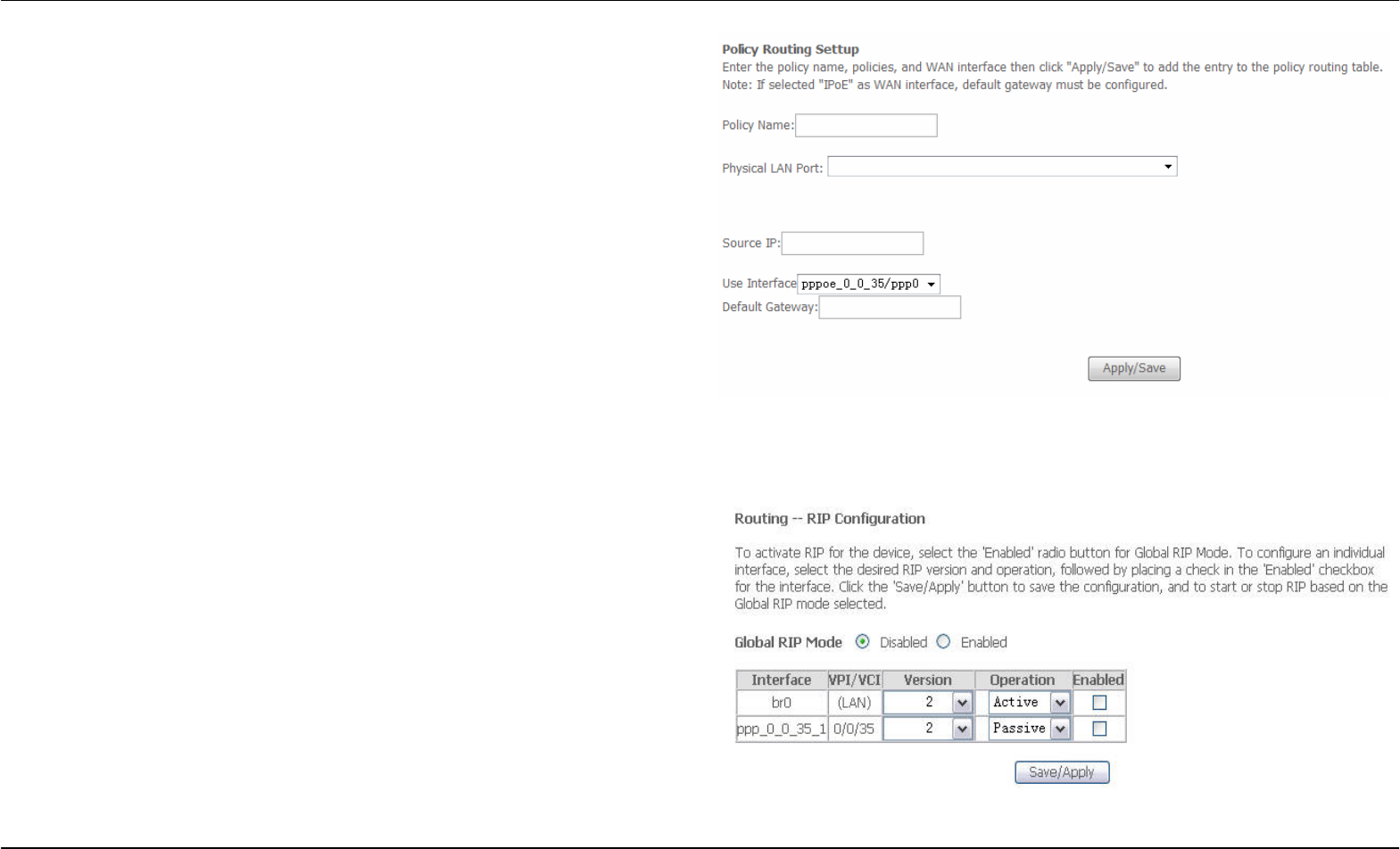

Policy Routing
Click the Add button on the Policy Routing Settup window to access the
following window displayed on the next page.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 62
Enter the Policy Routing information.Click the Apply / Save button when
you are finished.
RIP
To activate RIP for the device, select the Enabled radio button for Global
RIP Mode. To configure an individual interface, select the desired RIP
version and operation, followed by placing a check in the 'Enabled'
checkbox for the interface. Click the Save/Apply button to save the
configuration, and to start or stop RIP based on the Global RIP mode
selected.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 63
DNS
To access the DNS windows, click the DNS button in the Advanced Setup directory. The DNS button appears when configuring WAN interface in
PPPoA, PPPoE, MER or IPoA.
DNS Server
Select DNS Server Interface from available WAN interfaces OR enter
static DNS server IP addresses for the system. In ATM mode, if only a
single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses must be entered.
DNS Server Interfaces can have multiple WAN interfaces served as
system dns servers but only one will be used according to the priority with
the first being the higest and the last one the lowest priority if the WAN
interface is connected. Priority order can be changed by removing all and
adding them back in again. Click the Apply / Save button when you are
finished.

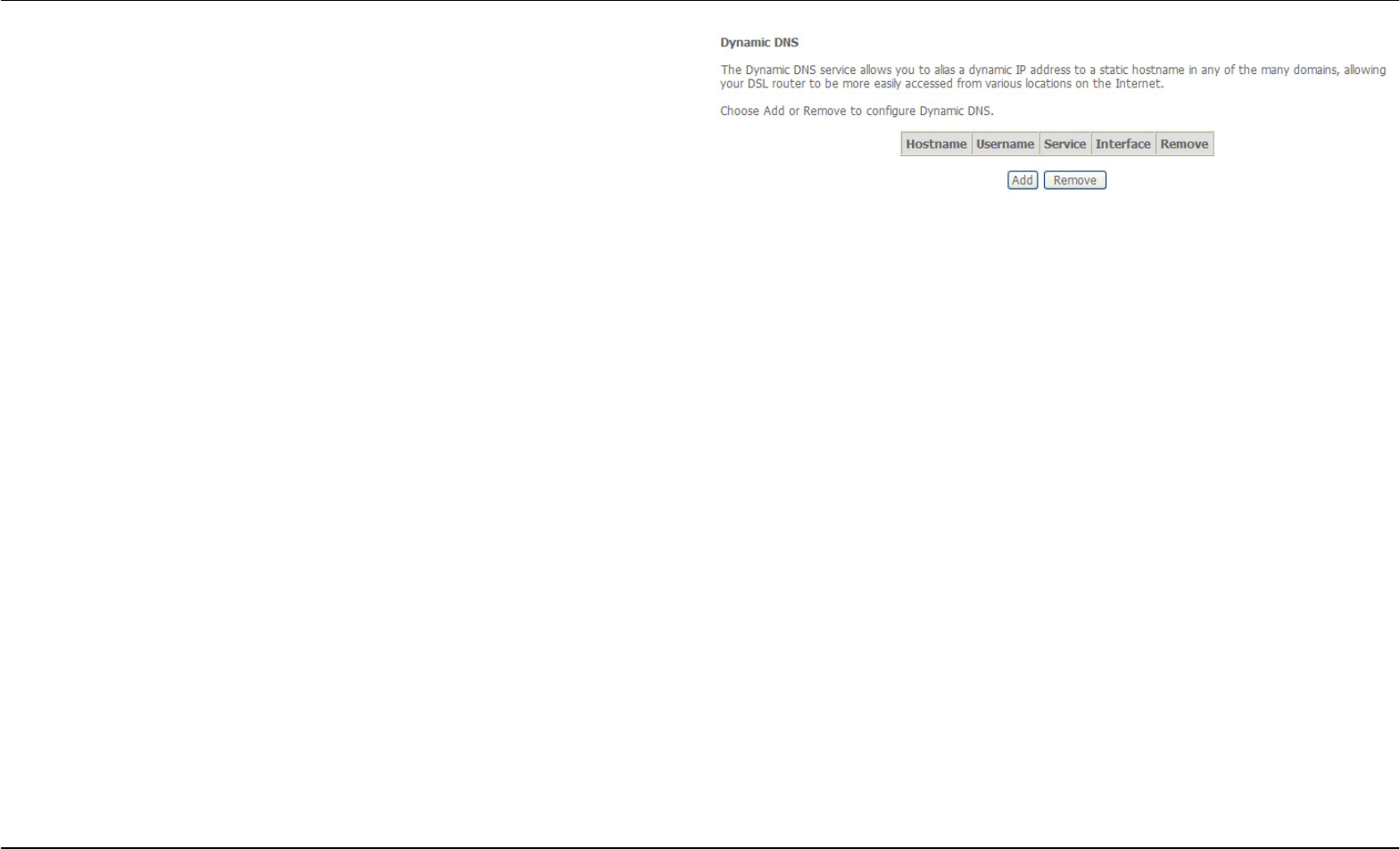

Dynamic DNS
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 64
The Router supports Dynamic DNS (Dynamic Domain Name Service).
The Dynamic DNS service allows a dynamic public IP address to be
associated with a static host name in any of the many domains, allowing
access to a specified host from various locations on the Internet. This is
enabled to allow remote access to a host by clicking a hyperlinked URL in
the form hostname.dyndns.org, Many ISPs assign public IP addresses
using DHCP, this can make it difficult to locate a specific host on the LAN
using standard DNS. If for example you are running a public web server or
VPN server on your LAN, this ensures that the host can be located from
the Internet if the public IP address changes. DDNS requires that an
account be setup with one of the supported DDNS providers.

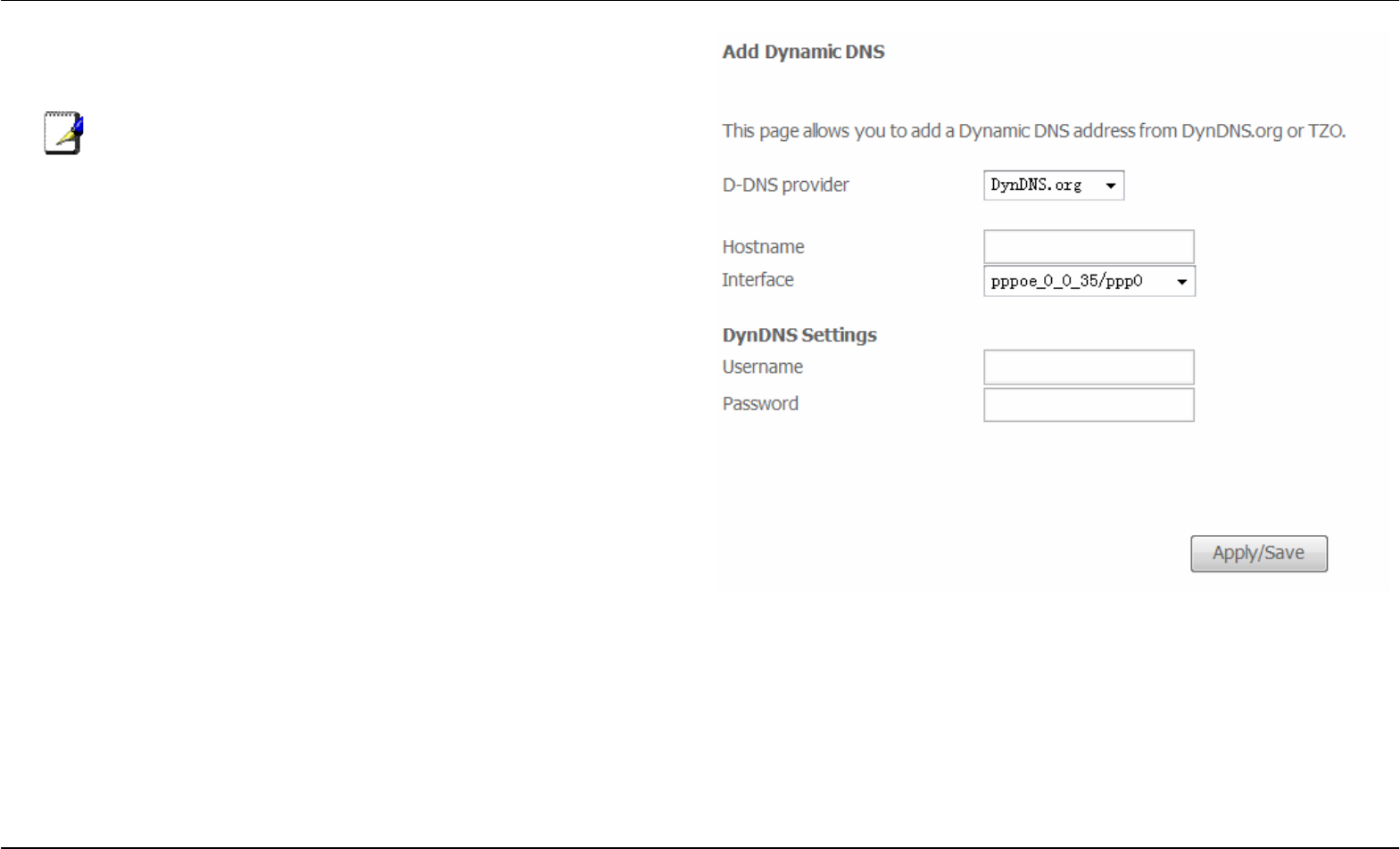

Click Add to see the Add DDNS Settings section.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 65
Enter the required DDNS information, click the Apply / Save button to
save the information.
Note
DDNS requires that an account be setup with one of the supported
DDNS servers prior to engaging it on the Router. This function will not
work without an accepted account with a DDNS server.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 66
DSL
To access the DSL Settings window, click the DSL button in the Advanced Setup directory.
This window allows you to select the desired modulation, phone line pair,
and capability. Click the Apply / Save button when you are finished.
Click the Advanced Settings button to select a DSL test mode.
Note: Modulation ADSL2、ADSL2+ and AnnexL should be selected
simultaneously
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 67
Select the desired DSL test mode and then click the Apply button.
Click the Tone Selection button to modify the upstream and downstream
tones.
Select the appropriate upstream and downstream tones for your ADSL
connection. Click the Apply button to let your settings take effect.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 68

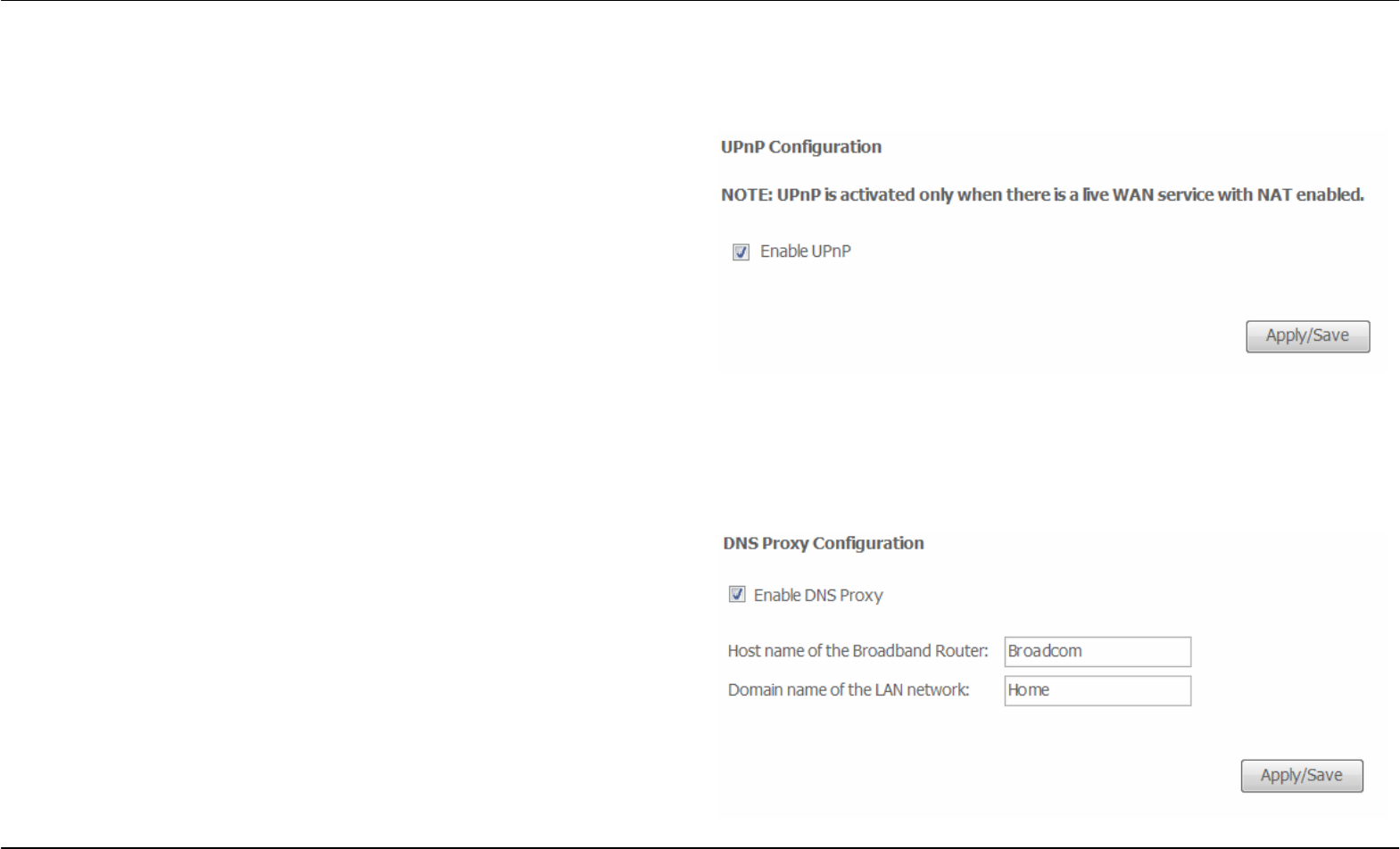

UPNP
To access the UPnP Configuration window, click the UPnP button in the Advanced Setup directory.
This window allows you to Config UPnP Proxy. Click the Apply / Save
button when you are finished.
DNS Proxy
To access the DNS Proxy Configuration window, click the DNS Proxy button in the Advanced Setup directory.
This window allows you to Config DNS Proxy. Click the Apply / Save
button when you are finished.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 69

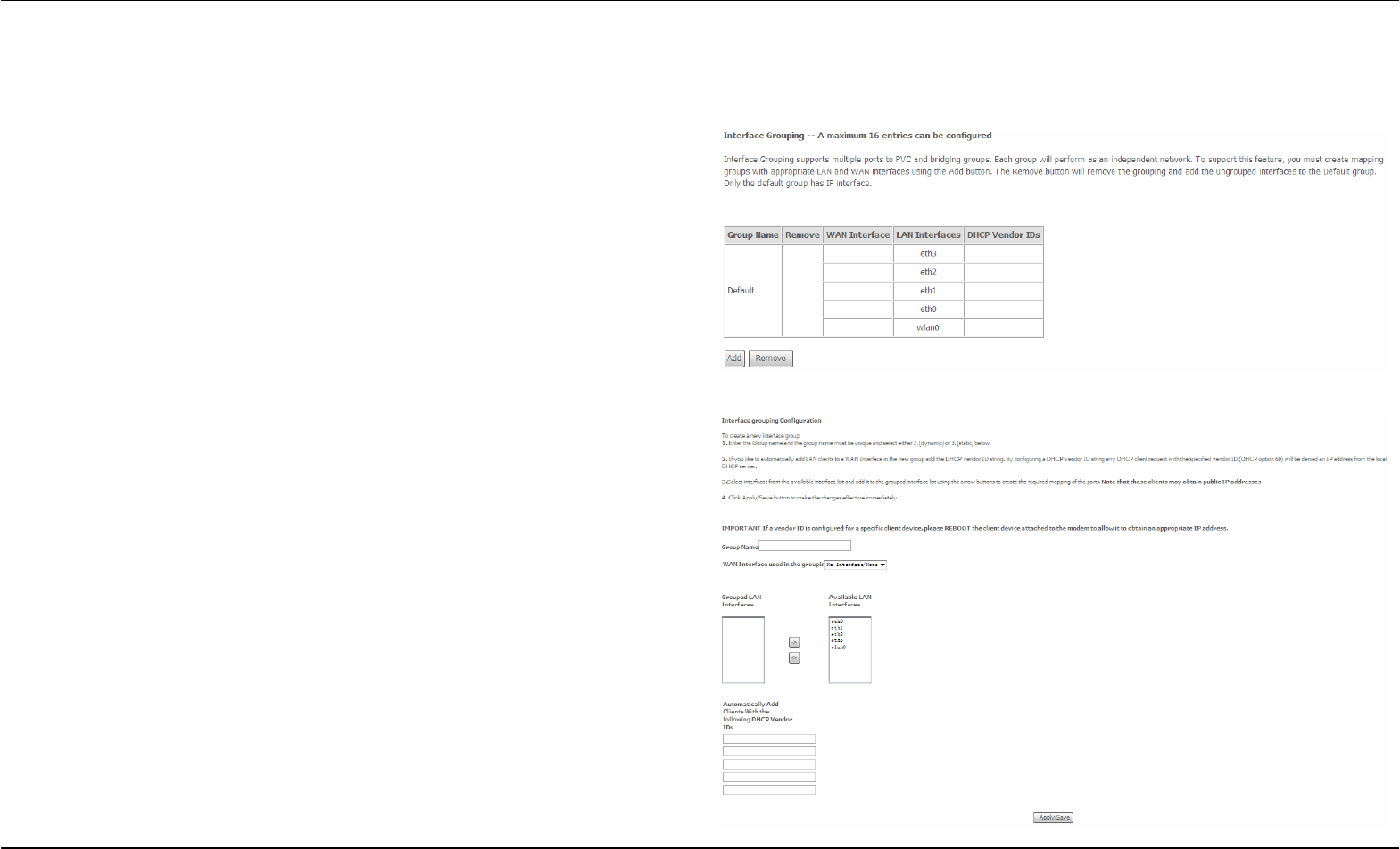

Interface Group
Interface Group supports multiple ports to PVC and bridging groups. Each group will perform as an independent network.
To support this feature, you must create mapping groups with appropriate
LAN and WAN interfaces using the Add button. The Remove button will
remove the grouping and add the ungrouped interfaces to the Default
group. Only the default group has IP interface.
Click Add to do advanced settings.
To create a new mapping group, enter Group Name, add interfaces to
Grouped Interfaces.
Click Apply / Save to save the changes.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 70

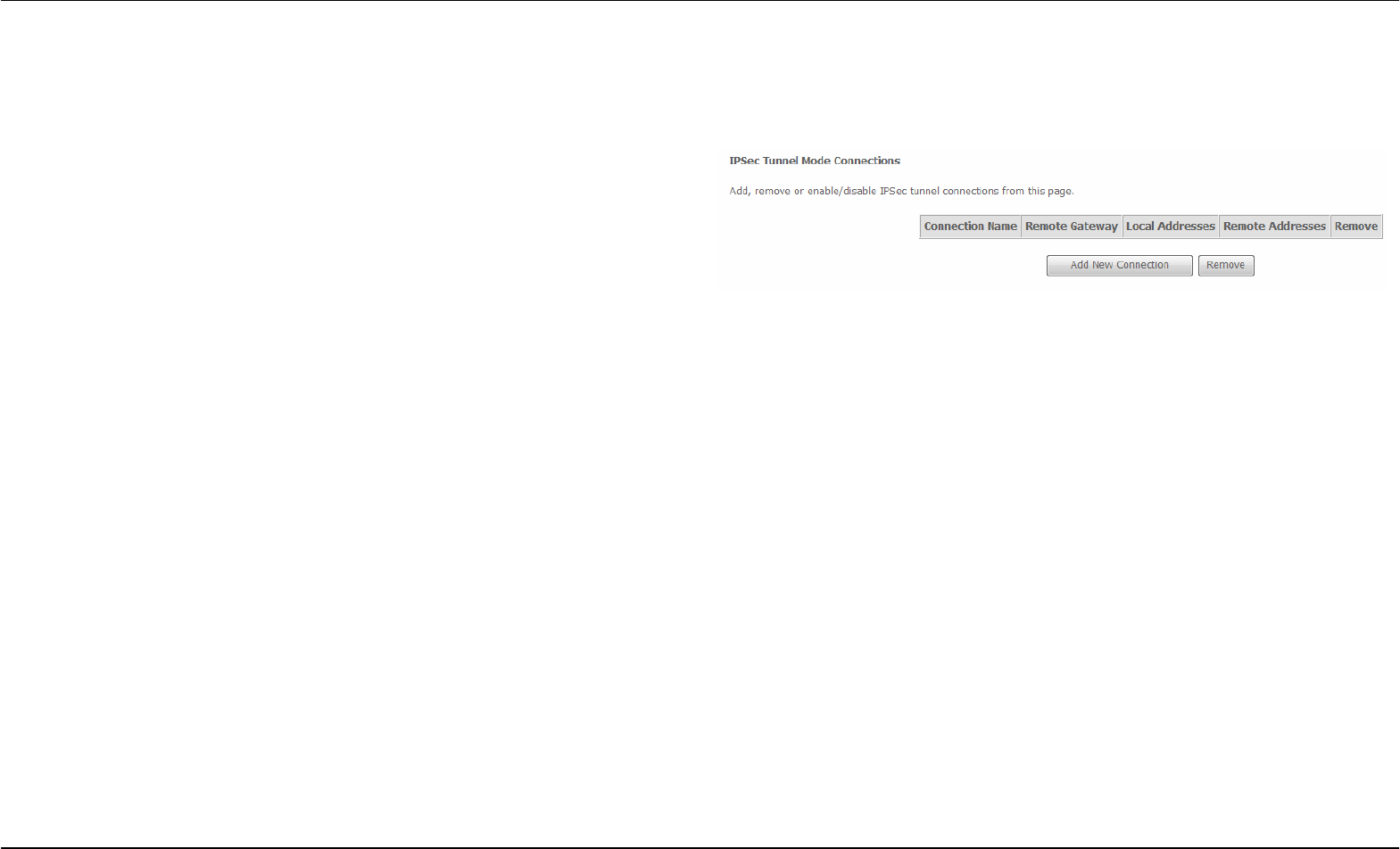

IPSec
To access the IPSec Tunnel Mode Connections window, click the IPSec button in the Advanced Setup directory.
This window allows you to configure IPSec.
Click Add New Connection to edit IPSec tunnel mode connections from
this page
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 71

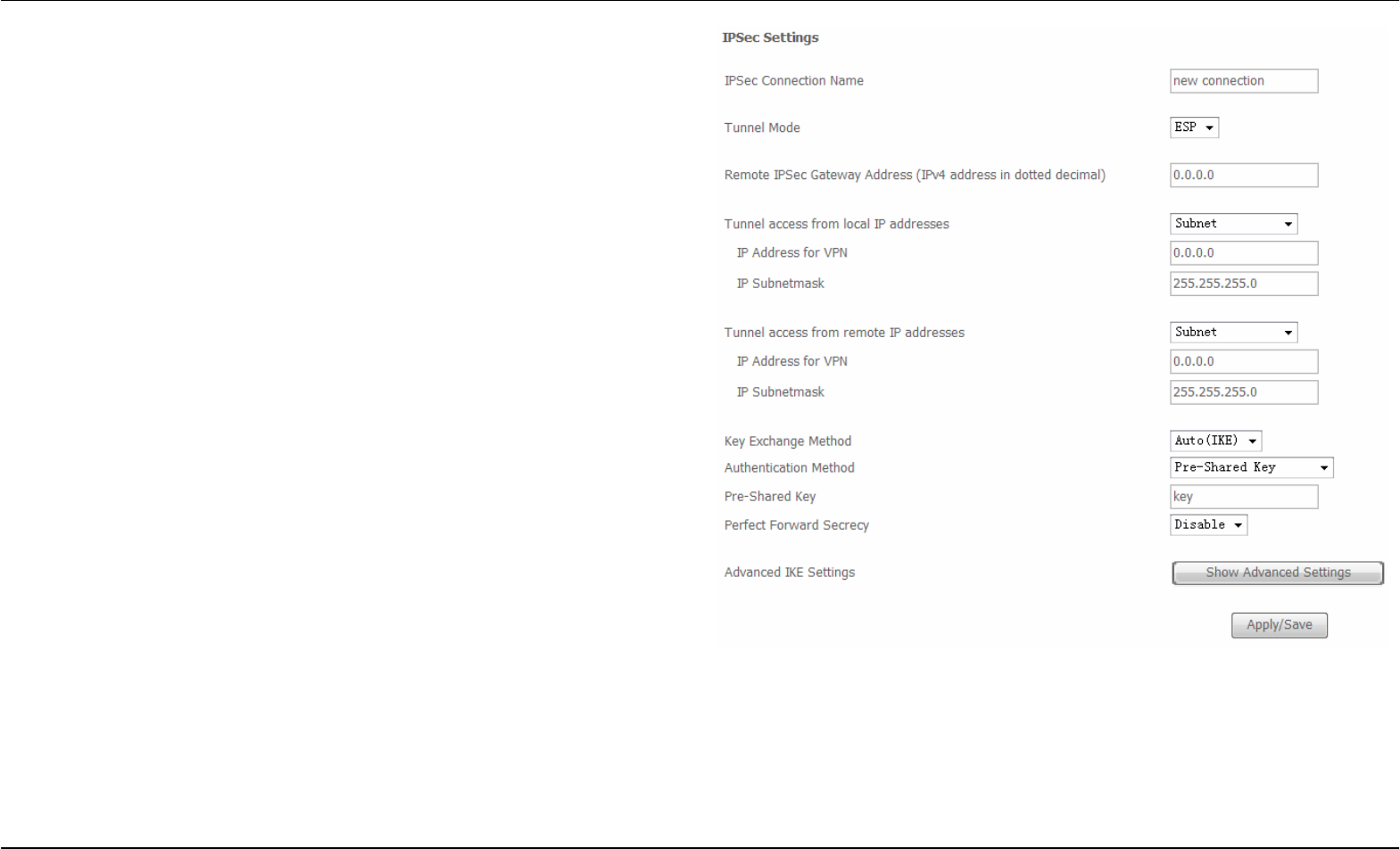

This window allows you to advanced settings.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 72
Multicast

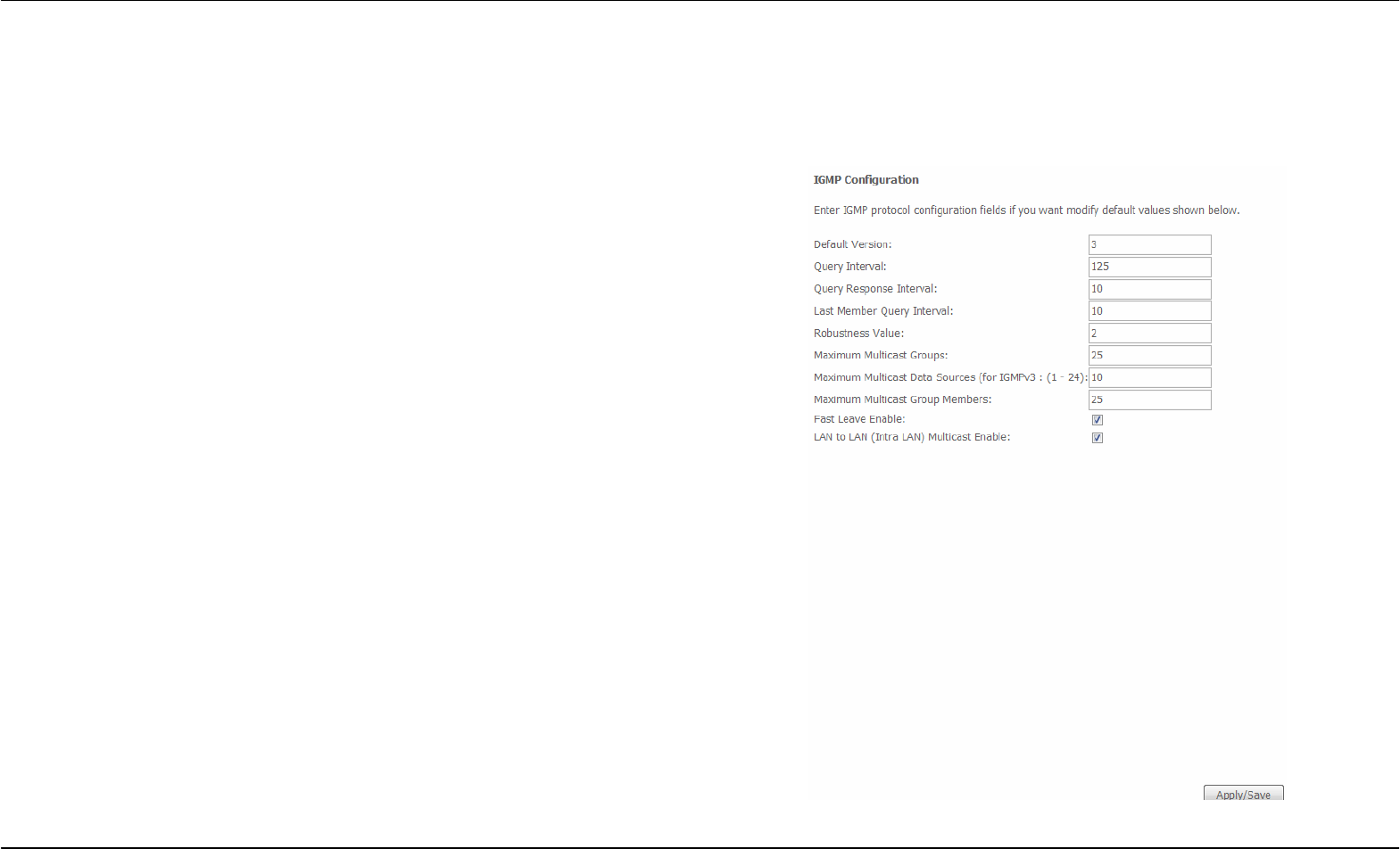

To access the IGMP Configuration window, click the Multicast button in the Advanced Setup directory.
Enter IGMP protocol configuration fields if you want modify default
values shown below.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 73
Wireless
Press Wireless in the left menu to enter wireless section. You can select to configure wireless setup, security and management.

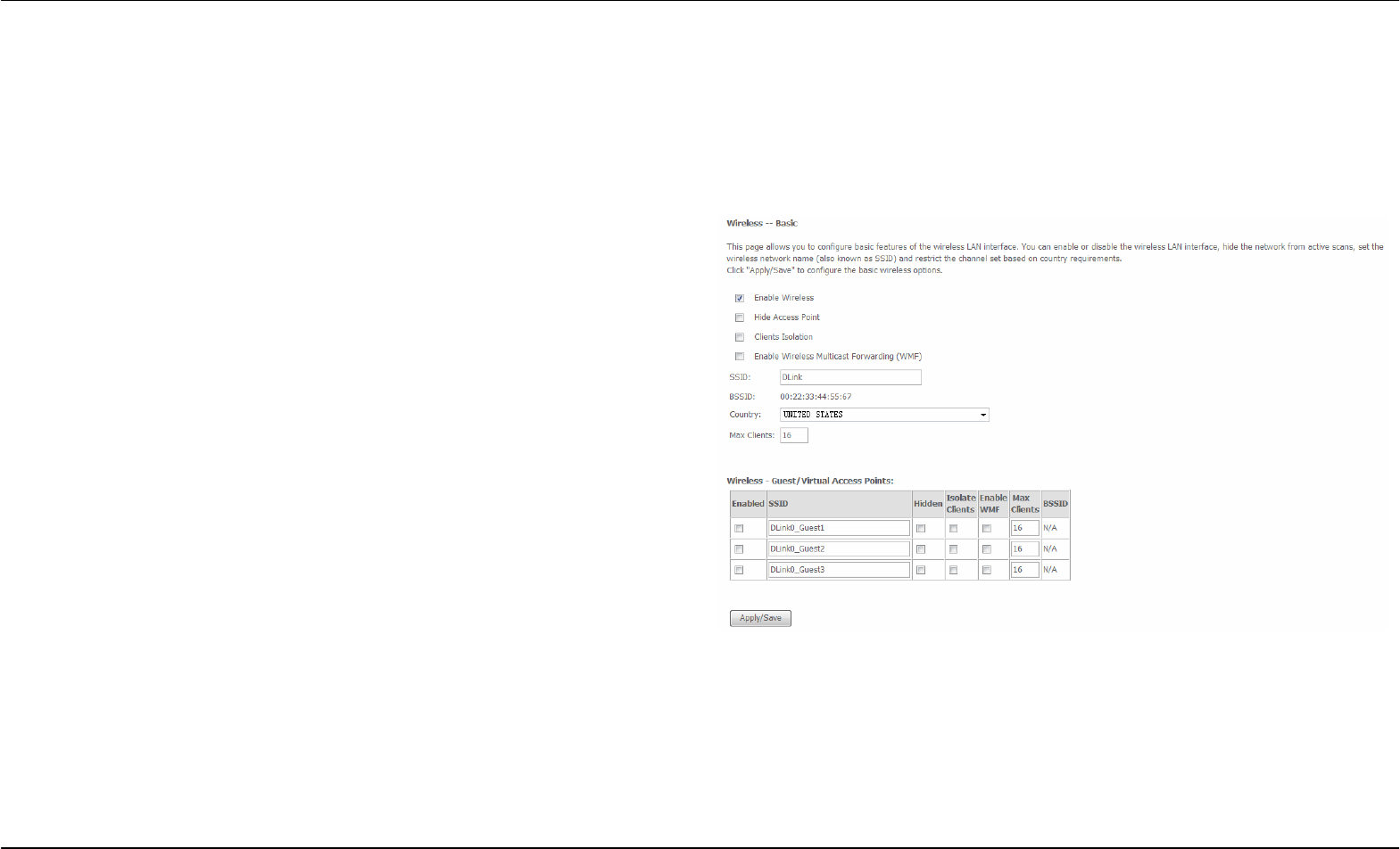

Basic
This page allows you to configure basic features of the wireless LAN
interface. You can enable or disable the wireless LAN interface, hide the
network from active scans, set the wireless network name (also known as
SSID) and restrict the channel set based on country requirements.
Click "Apply/Save" to configure the basic wireless options.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 74
Security
This page allows you to configure security features of the
wireless LAN interface.
You may setup configuration manually or through WiFi
Protcted Setup(WPS)
You can select to configure WEP encryption, Shared, 802.1x,
WPA, and WPA2 authentication.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 75

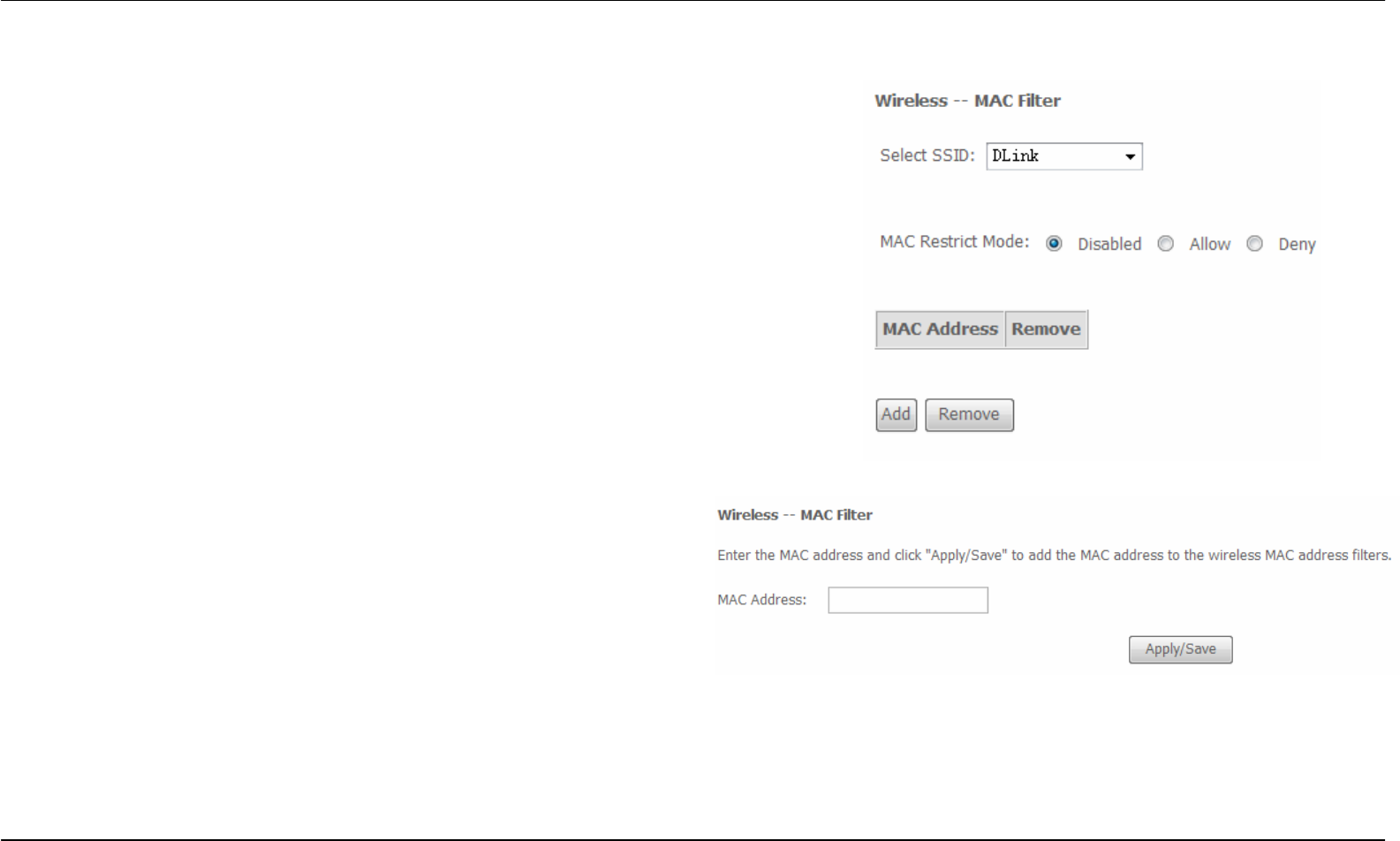

MAC Filter
This page can help you to allow or deny certain MAC addresses to pass
through or block out.
Click Add to see the following page.
Enter MAC Address and click Apply / Save to add the MAC address to
MAC filter.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 76

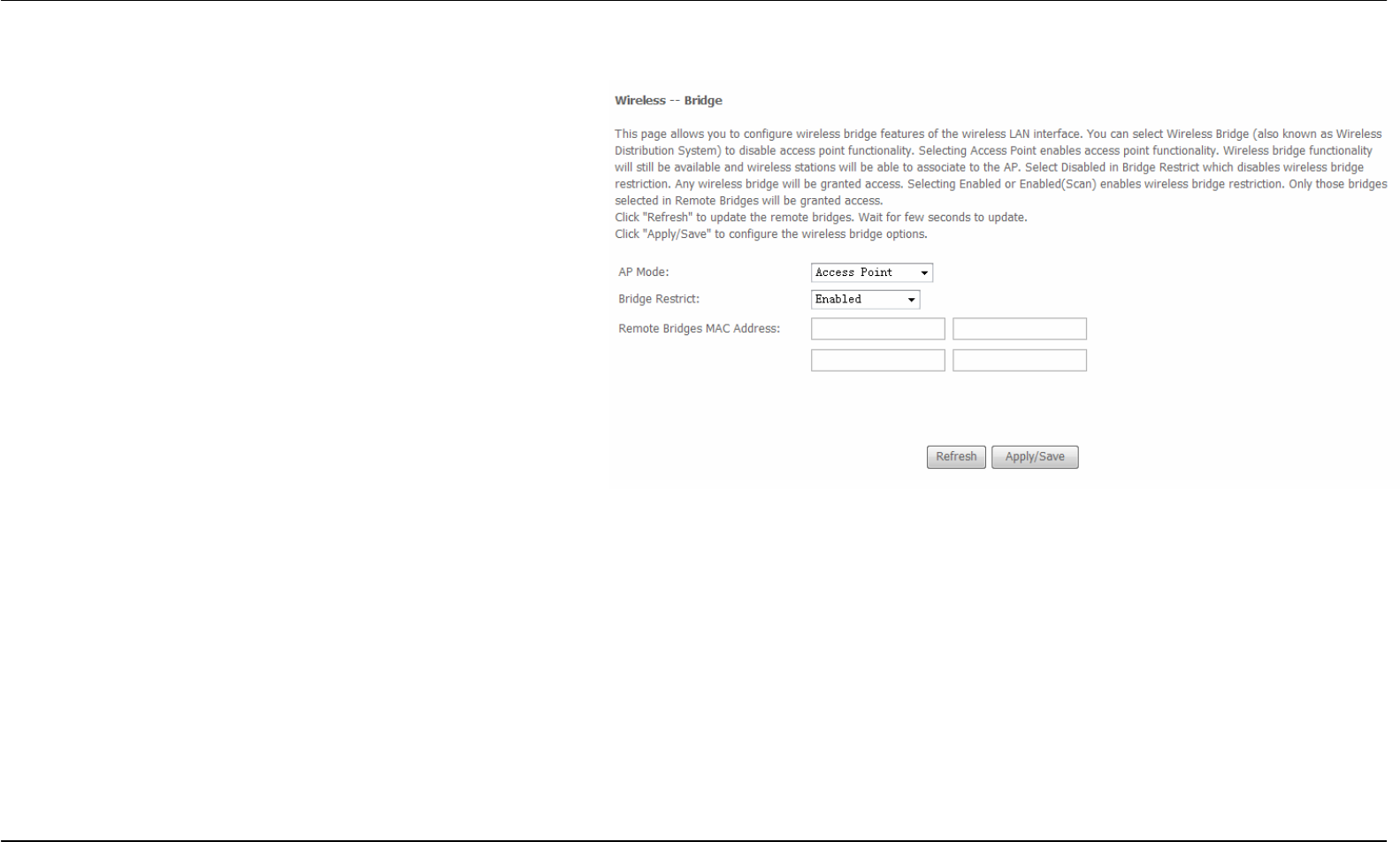

Wireless Bridge
This page allows you to configure bridge features of the
wireless LAN.
Click Refresh to update the remote bridges.
Click Apply / Save to save the settings.
\
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 77

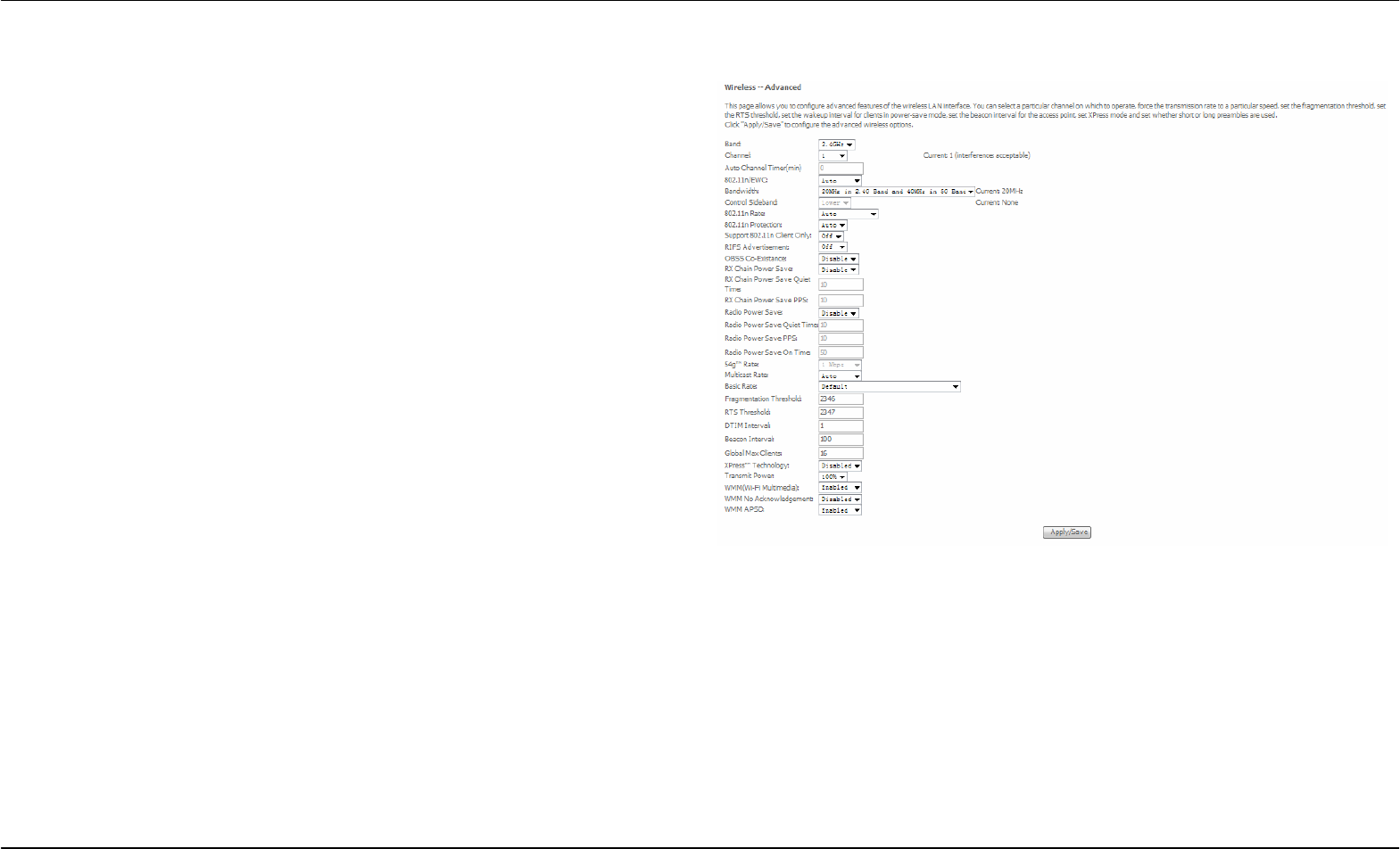

Advanced
This page allows you to configure advanced wireless LAN interface.
Configuring these settings may increase the performance of your router
but if you are not familiar with networking devices and protocols, this
section should be left at its default settings.
Click Apply / Save to save the settings.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 78

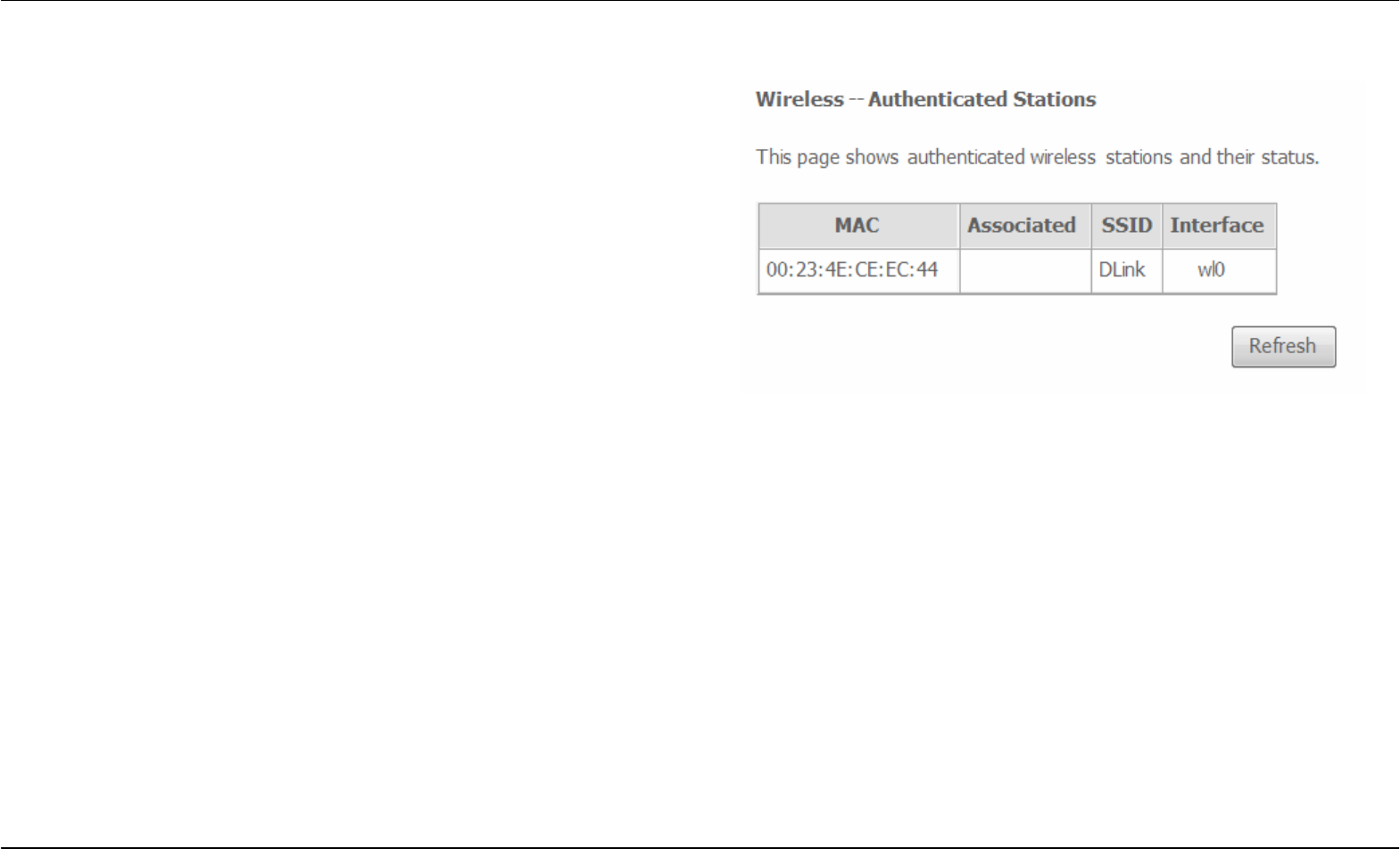

Station Info
This page shows the authenticated wireless stations and their status.
Click Refresh to update the information.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 79
Diagnostics
Your modem is capable of testing your DSL connection with access to Diagnostics.

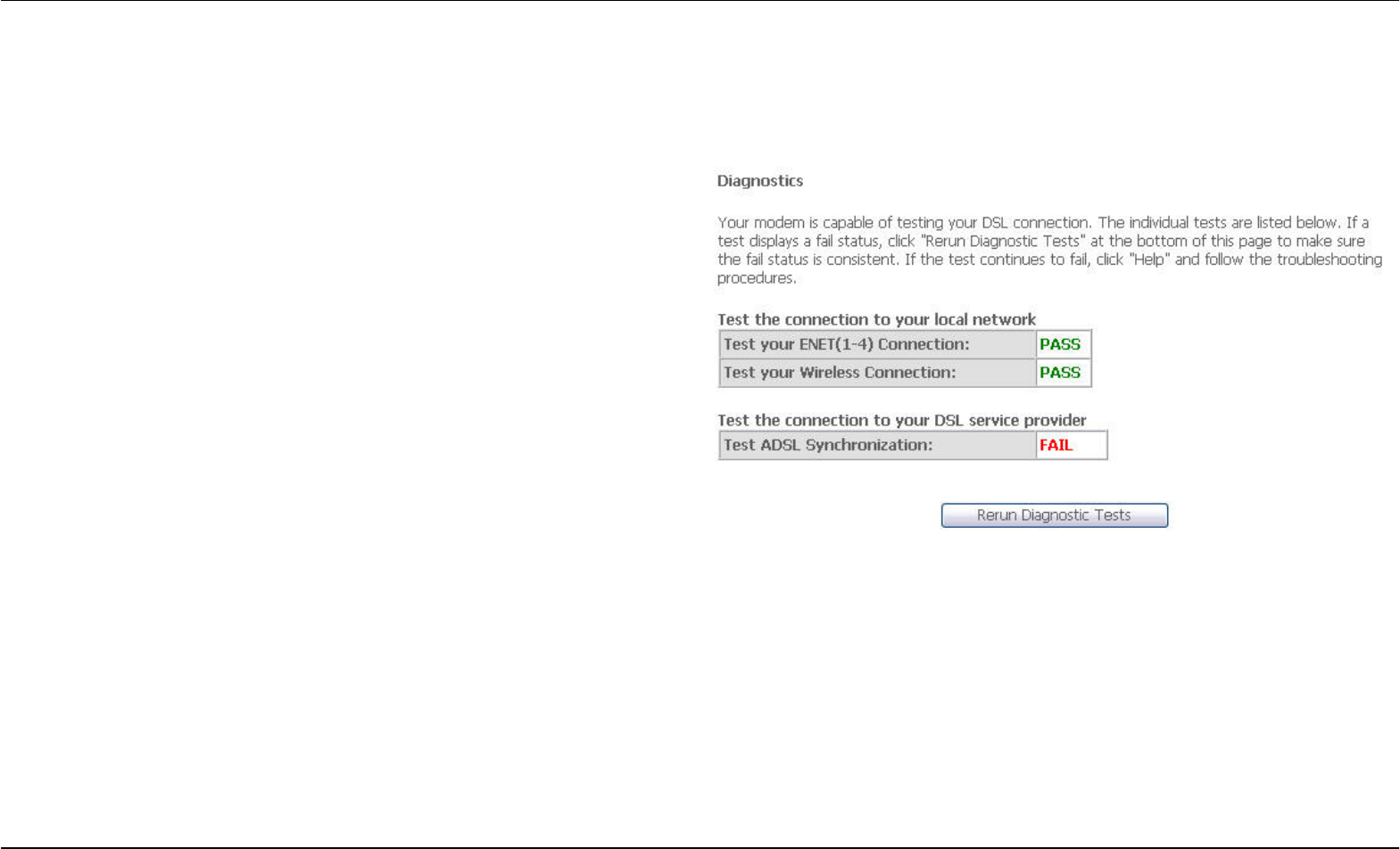

This window is used to test connectivity of the Router.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 80
Management
The Management directory features an array of options designed to help you get the most out of your Router.

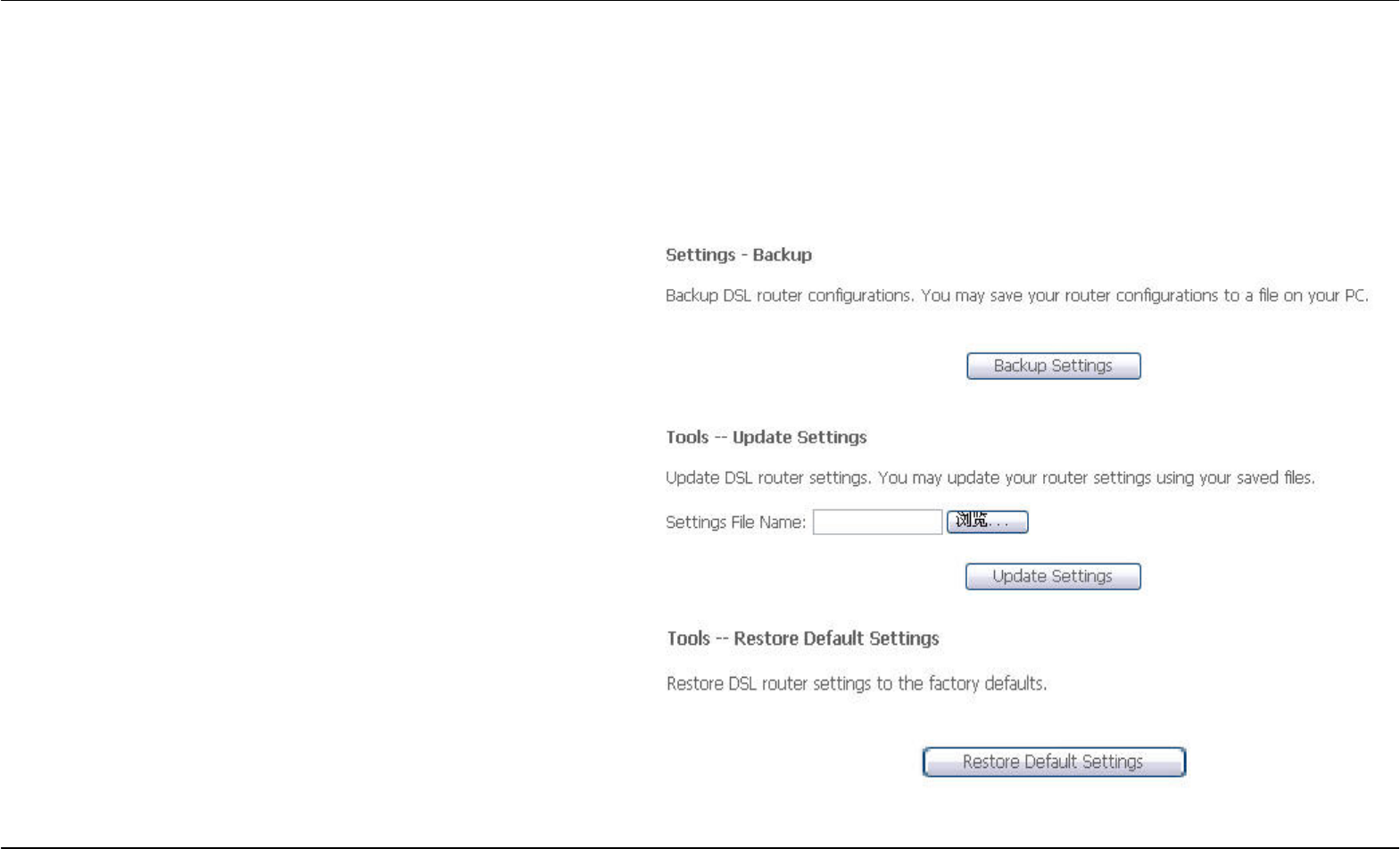

Settings
To access the Settings - Backup window, click the Settings button in the Management directory.
This window allows you to backup your DSL Router configurations.
Click the Backup Settings button to save your Router
configurations to a file on your computer.
This window allows Update DSL router settings. You may update
your router settings using your saved files.
Click the Update Settings button to update your Router
configurations with a file on your computer.
This window allows Restore DSL router settings to the factory
defaults.
Click the Restore DSL Settings button to restore DSL router
settings to the factory defaults.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 81

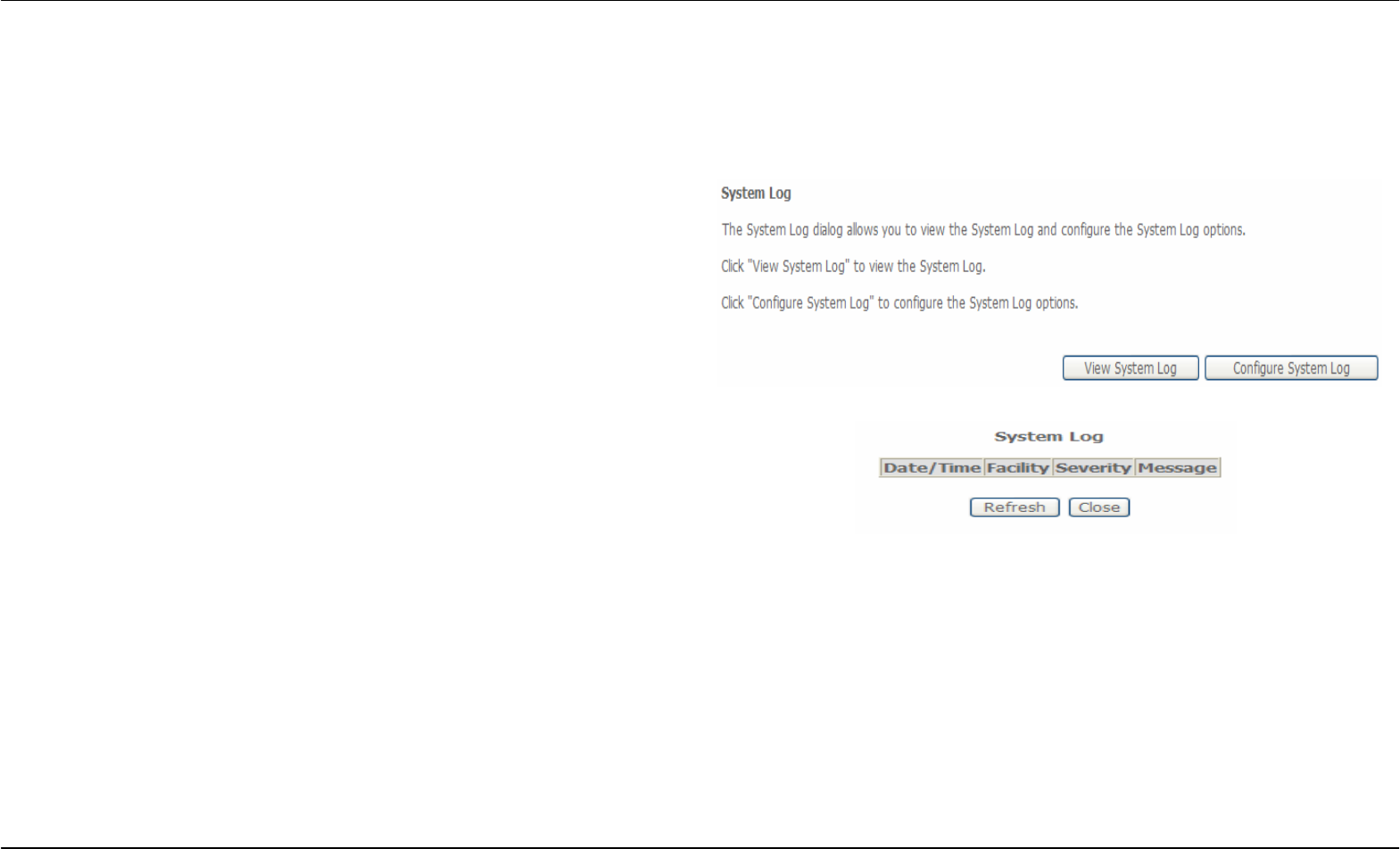

System Log
These windows allow you to view the System Log and configure the System Log options. To access the System Log window, click the System Log
button in the Management directory.
Click the View System Log button to view the System Log.
Click the Configure System Log button to configure the System Log
options.
Click on the Refresh button to refresh the system log settings.
System Log – Configuration
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 82

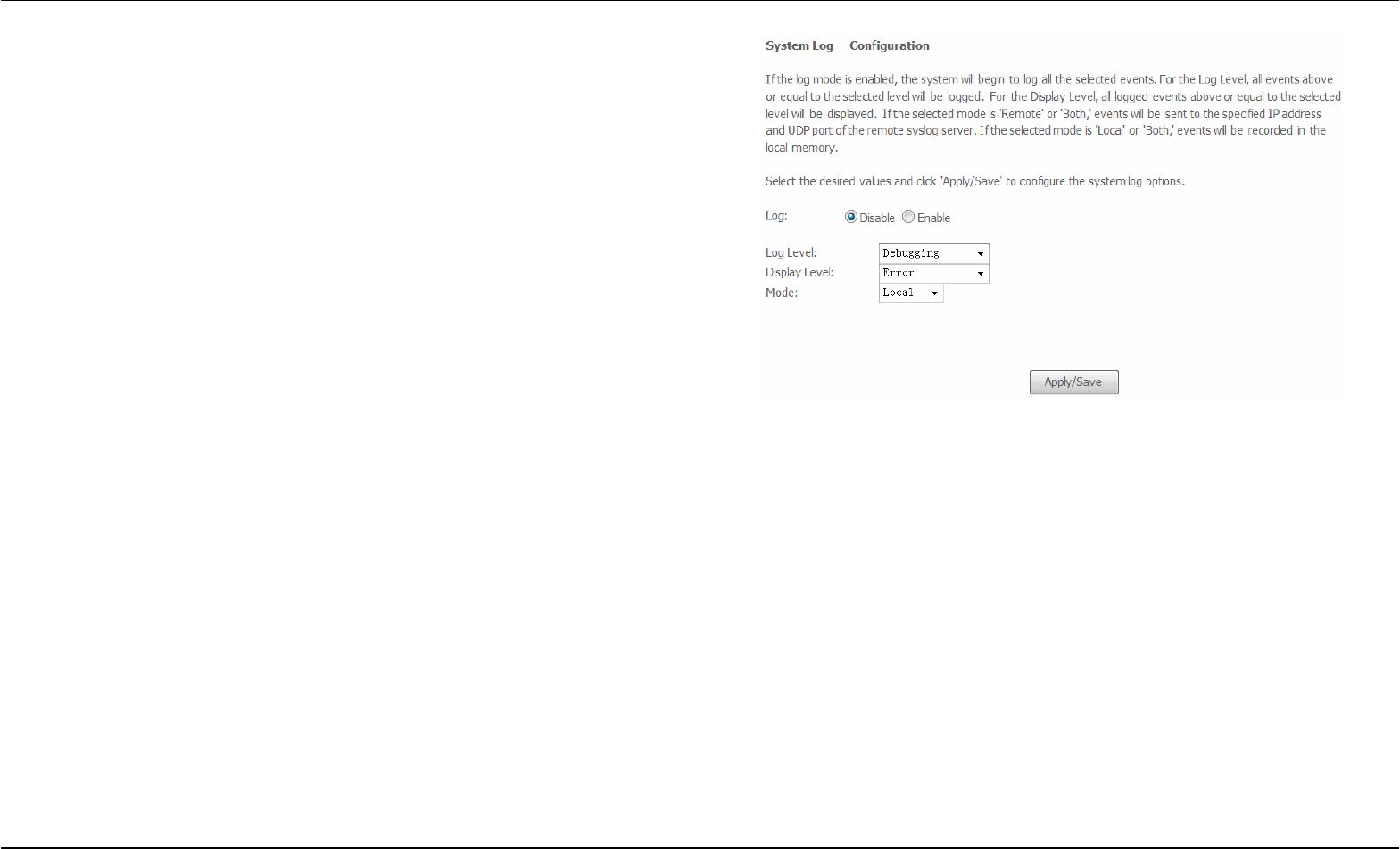

The system log displays chronological event log data. The event log can
be read from local host or sent to a System Log server. The available
event severity levels are: Emergency, Alert, Critical, Error, Warning,
Notice, Informational, and Debugging.
This window allows you to log selected events. When you are finished,
click the Apply / Save button.
SNMP Agent

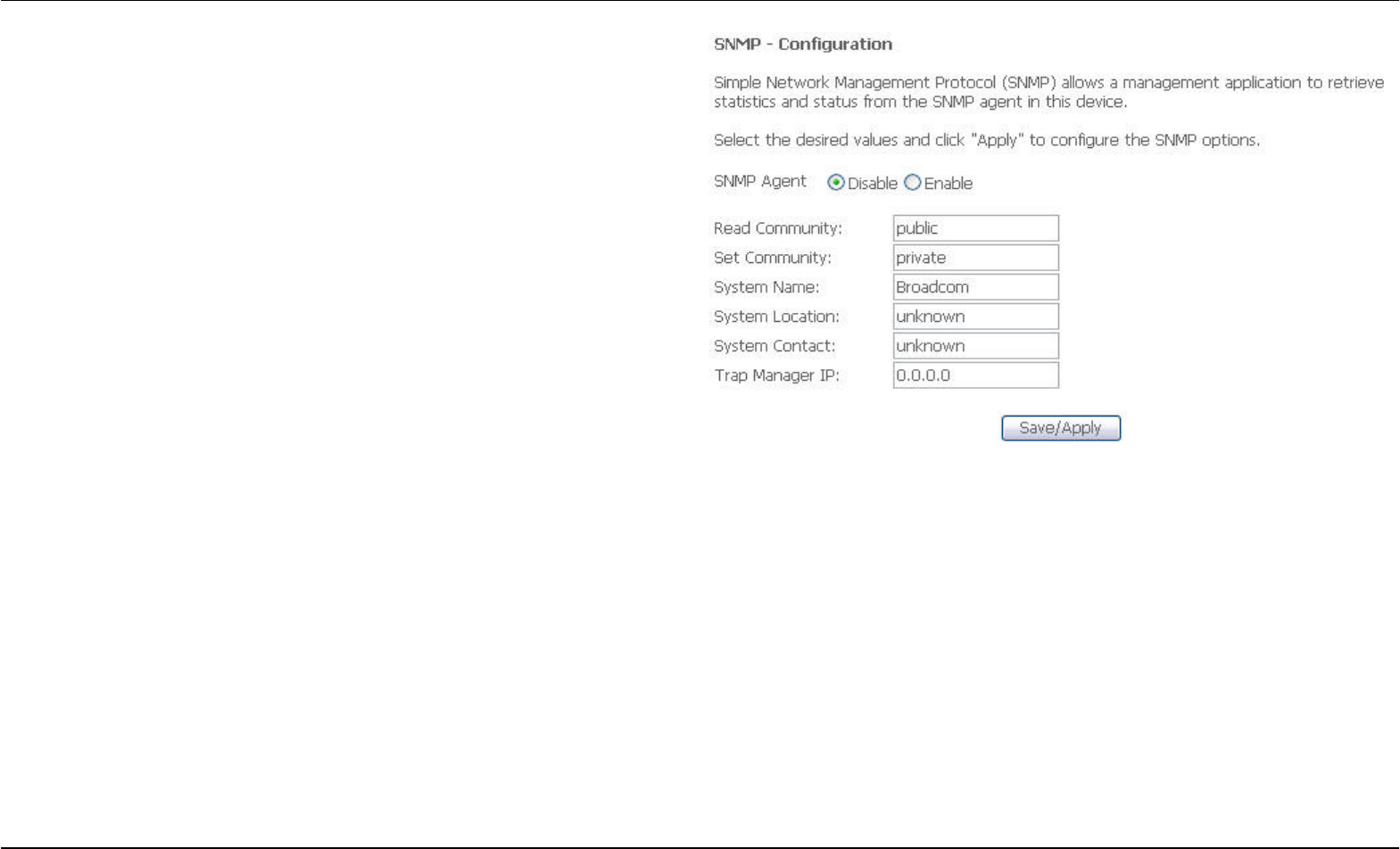

To access the SNMP – Configuration window, click the SNMP Agent button in the Management directory.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 83
Simple Network Management Protocol allows a management application
to retrieve statistics and status from the SNMP agent in the Router. When
you are finished, click the Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 84
TR-069 Client

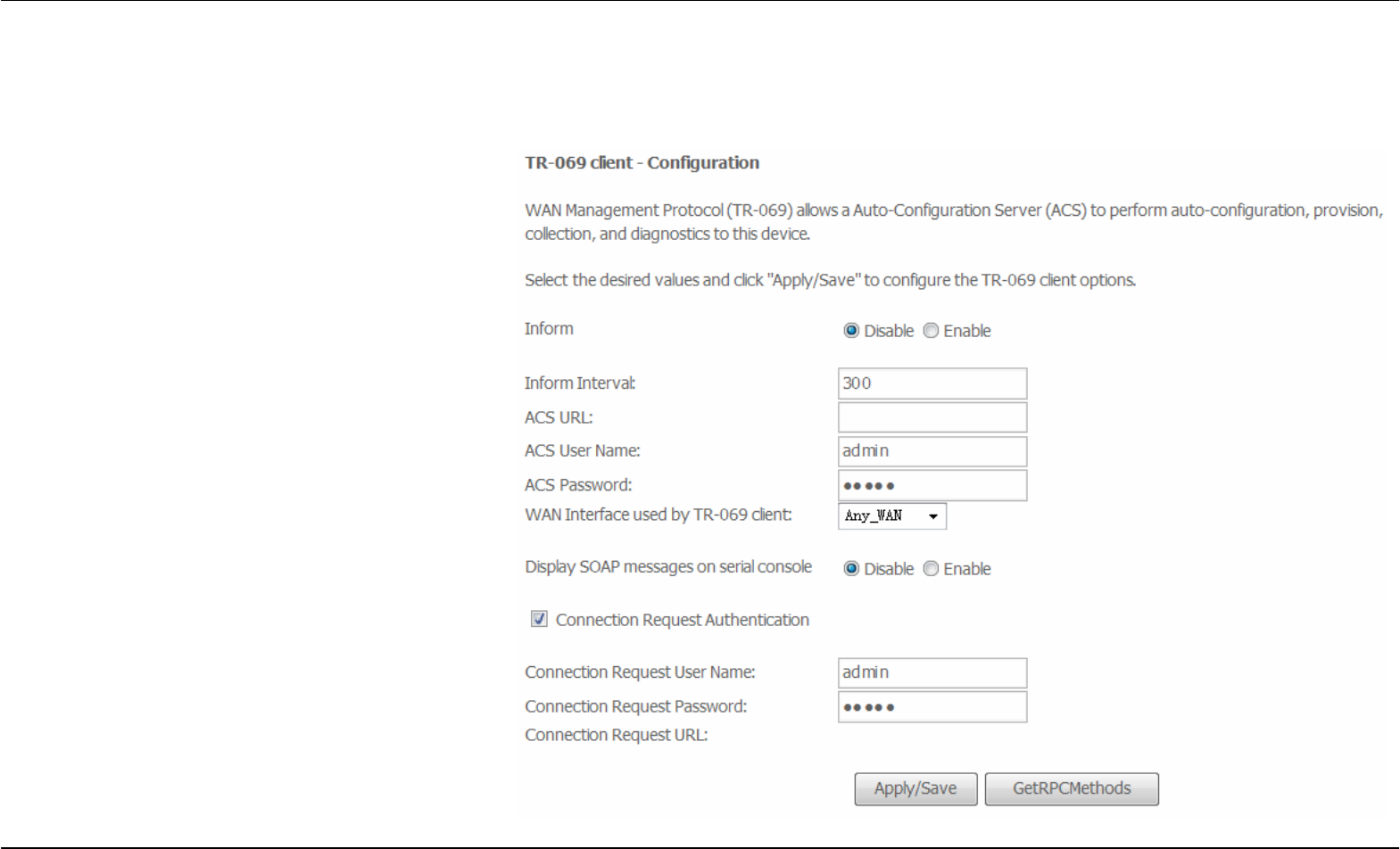

To access the TR-069 Client – Configuration window, click the TR-069 Client button in the Management directory.
Simple Network Management Protocol allows a
management application to retrieve statistics and
status from the TR-069 client in the Router. When
you are finished, click the Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 85
Internet Time
To access the Time settings window, click the Internet Time button in the Management directory.
This window allows you to set the Router’s time configuration. When you
are finished, click the Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 86
Access Control
To access the Access Control windows, click the Access Control button in the Management directory.
Passwords
This window allows you to change the password
on the Router. When you are finished, click the
Save/Apply button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 87

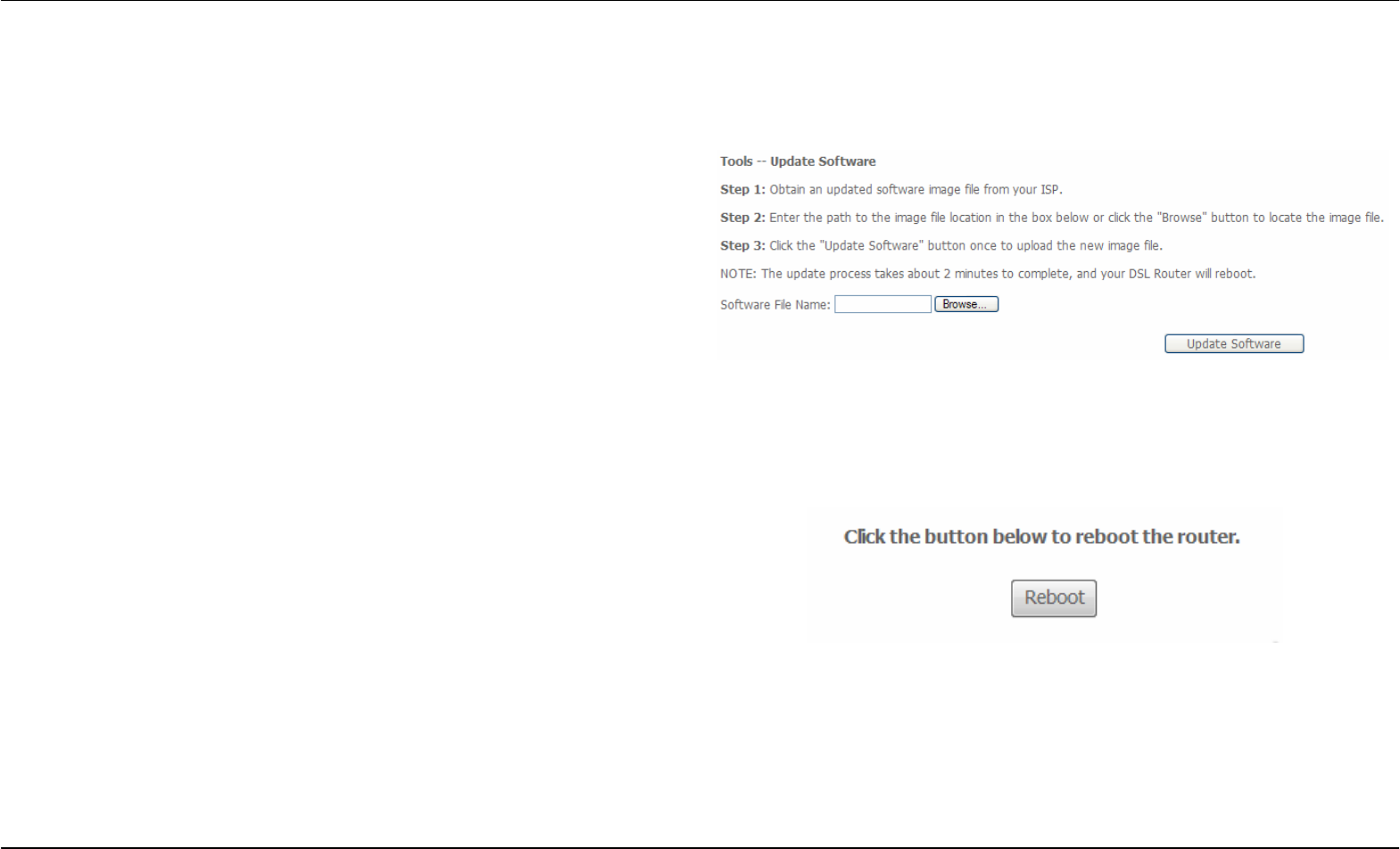

Update Software
To access the Tools - Update Software window, click the Update Software button in the Management directory.
This window allows you to update the Router’s software.
Reboot
To access this window, click the Reboot button in the Management directory.
To save your settings and reboot the system, click the Reboot button.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 88
Troubleshooting
This chapter provides solutions to problems that might occur during the installation and operation of the DSL-2750U. Read the following
descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the
screenshots on your computer will look similar to the following examples.)
1. How do I configure my DSL-2750U Router without the CD-ROM?
Connect your PC to the Router using an Ethernet cable.
Open a web browser and enter the address http://192.168.1.1
The default username is ‘admin’ and the default password is ‘admin’.
If you have changed the password and cannot remember it, you will need to reset the Router to the factory default setting (see question 2),
which will set the password back to ‘admin’.
Note: Please refer to the next section “Networking Basics” to check your PC’s IP configuration if you can’t see the login windows.
2. How do I reset my Router to the factory default settings?
Ensure the Router is powered on.
Press and hold the reset button on the back of the device for approximately 10 seconds.
This process should take around 30~60 seconds.
3. What can I do if my Router is not working correctly?
There are a few quick steps you can take to try and resolve any issues:
Follow the directions in Question 2 to reset the Router.
Check that all the cables are firmly connected at both ends.
Check the LEDs on the front of the Router. The Power indicator should be on, the Status indicator should flash, and the DSL and LAN
indicators should be on as well.
Please ensure that the settings in the Web-based configuration manager, e.g. ISP username and password, are the same as the settings
that have been provided by your ISP.
Appendix A – Troubleshooting
D-Link DSL-2750U User Manual 89
4. Why can’t I get an Internet connection?
For ADSL ISP users, please contact your ISP to make sure the service has been enabled/connected by your ISP and that your ISP username and
password are correct.
5. What can I do if my router can’t be detected by running installation CD?
Ensure the Router is powered on.
Check that all the cables are firmly connected at both ends and all LEDs work correctly.
Ensure only one network interface card on your PC is activated.

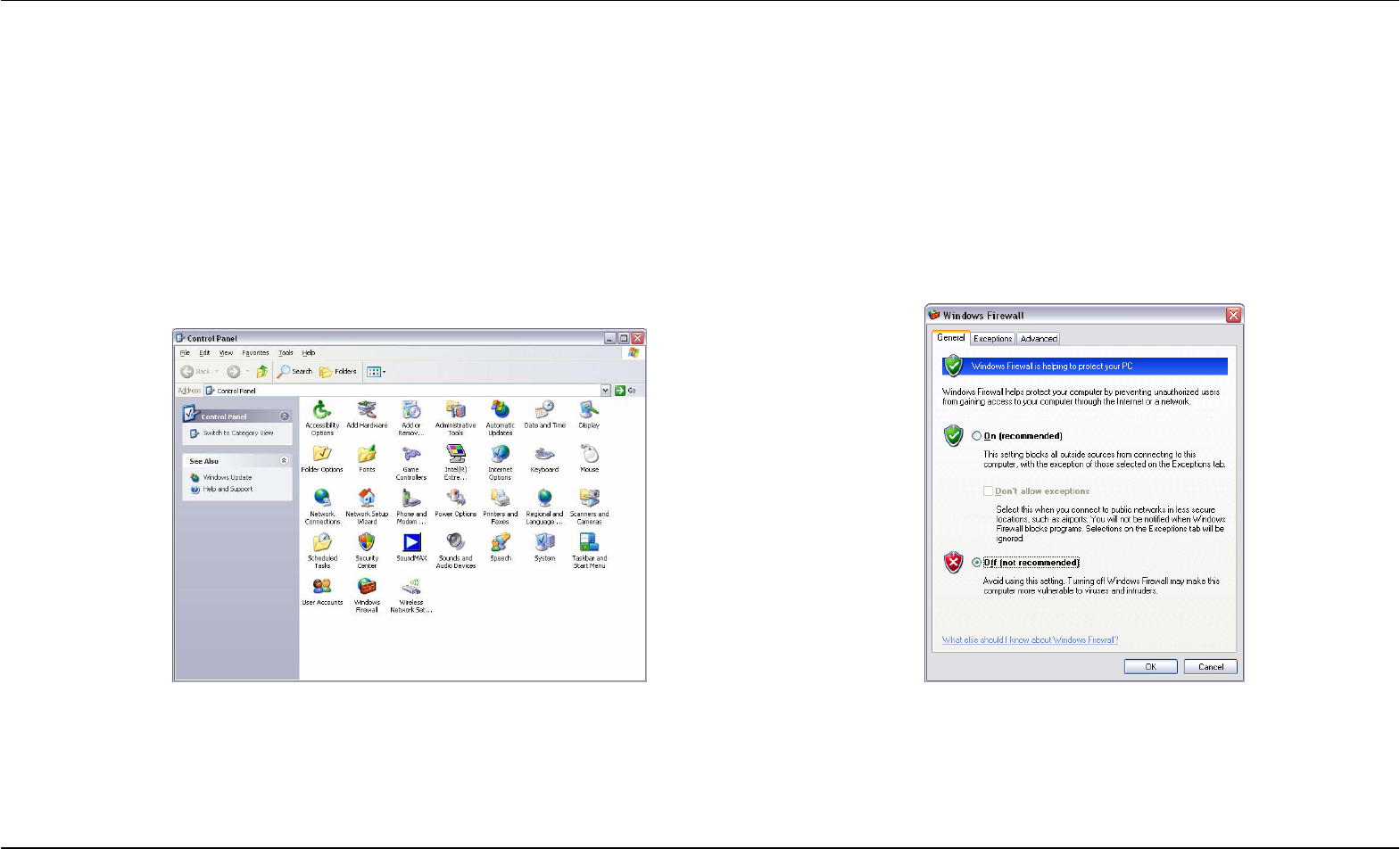

Click on Start > Control Panel > Security Center to disable the setting of Firewall.
Note: There might be a potential security issue if you disable the setting of Firewall on your PC. Please remember to turn it back on once you have finished
the whole installation procedure and can surf on Internet without any problem.
Appendix B - Networking Basics
D-Link DSL-2750U User Manual 90
Networking Basics
Check Your IP Address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click on the OK.

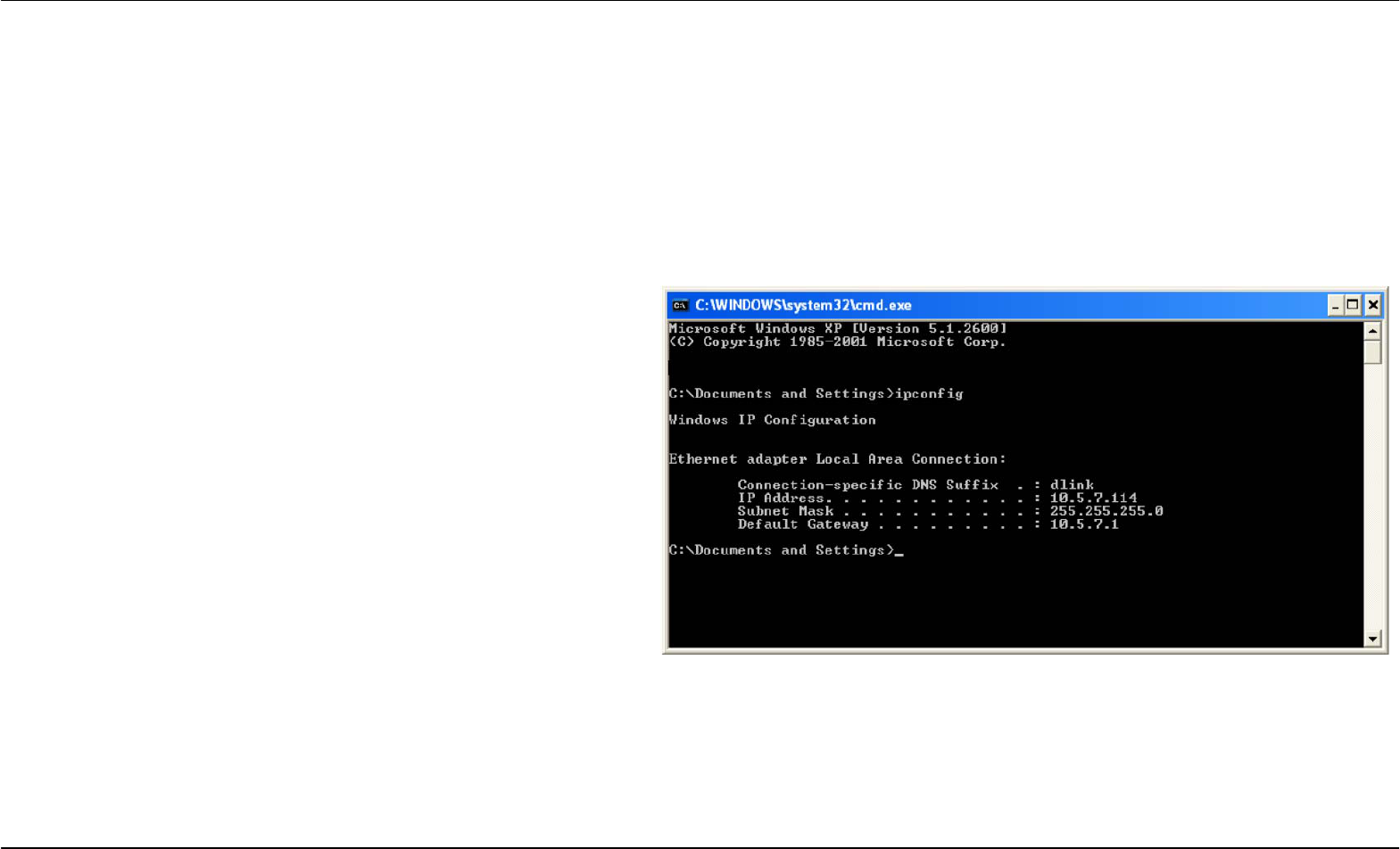

At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some firewall software
programs may block a DHCP request on newly installed adapters.
If you are connecting to a wireless network at a hotspot (e.g. hotel,
coffee shop, airport), please contact an employee or administrator
to verify their wireless network settings.
Appendix B - Networking Basics
D-Link DSL-2750U User Manual 91
Statically Assign an IP Address
If your DHCP is disabled, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click on the My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click on the Properties.
Step 4
Click on the Use the following IP address and enter an IP address that is on the same subnet as
your network or the LAN IP address on your router.
Example: If the router’s LAN IP address is 192.168.1.1, make your IP address 192.168.1.X where X
is a number between 2 and 99. Make sure that the number you choose is not in use on the network.
Set Default Gateway the same as the LAN IP address of your router (192.168.1.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.1.1). The Secondary
DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click on the OK twice to save your settings.
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 92
Usage of USB Interface
The Combo DSL Gateway is a device with both Ethernet Interface and USB Interface, which is independent, you may use either of them to
connect to the different computers, in this way the two computers can connect to the network at one time. The Gateway can be seen as a simple
two-port HUB. So, do not connect both the Ethernet Interface and USB Interface to a same computer.
When using USB Interface, you must install the drivers. After installation, a virtual network card, "USB Remote NDIS Network Device", will be
added into the computer. It has all the functions of a real network card, and it makes installation more easily.
NOTES:
The following shows the steps for Windows®2000, the installation, configuration and uninstallation of Windows®98 or Windows®XP
are similar to this.
Driver Automatic Installation

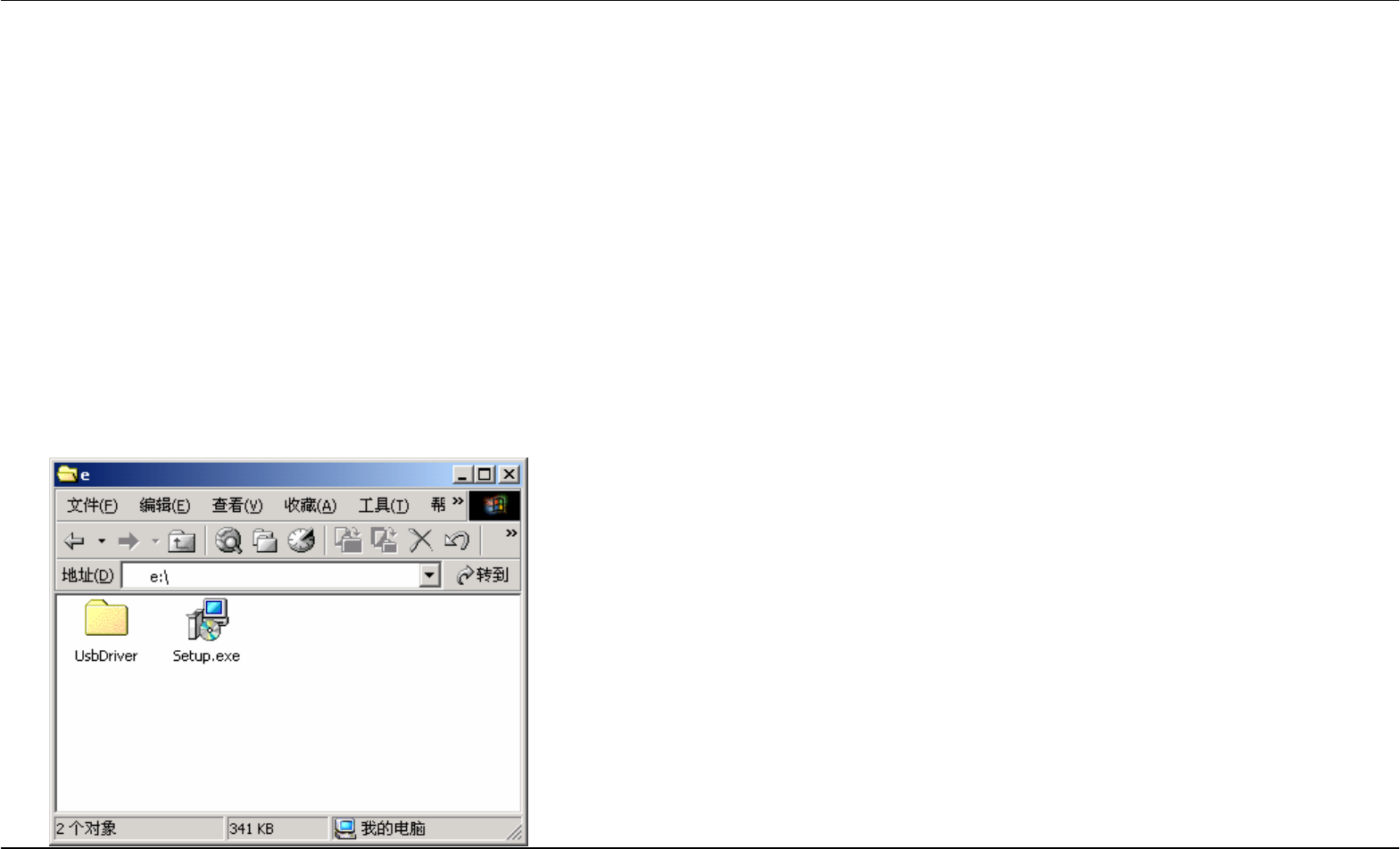

There are two files in the DRIVER-CD.
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 93

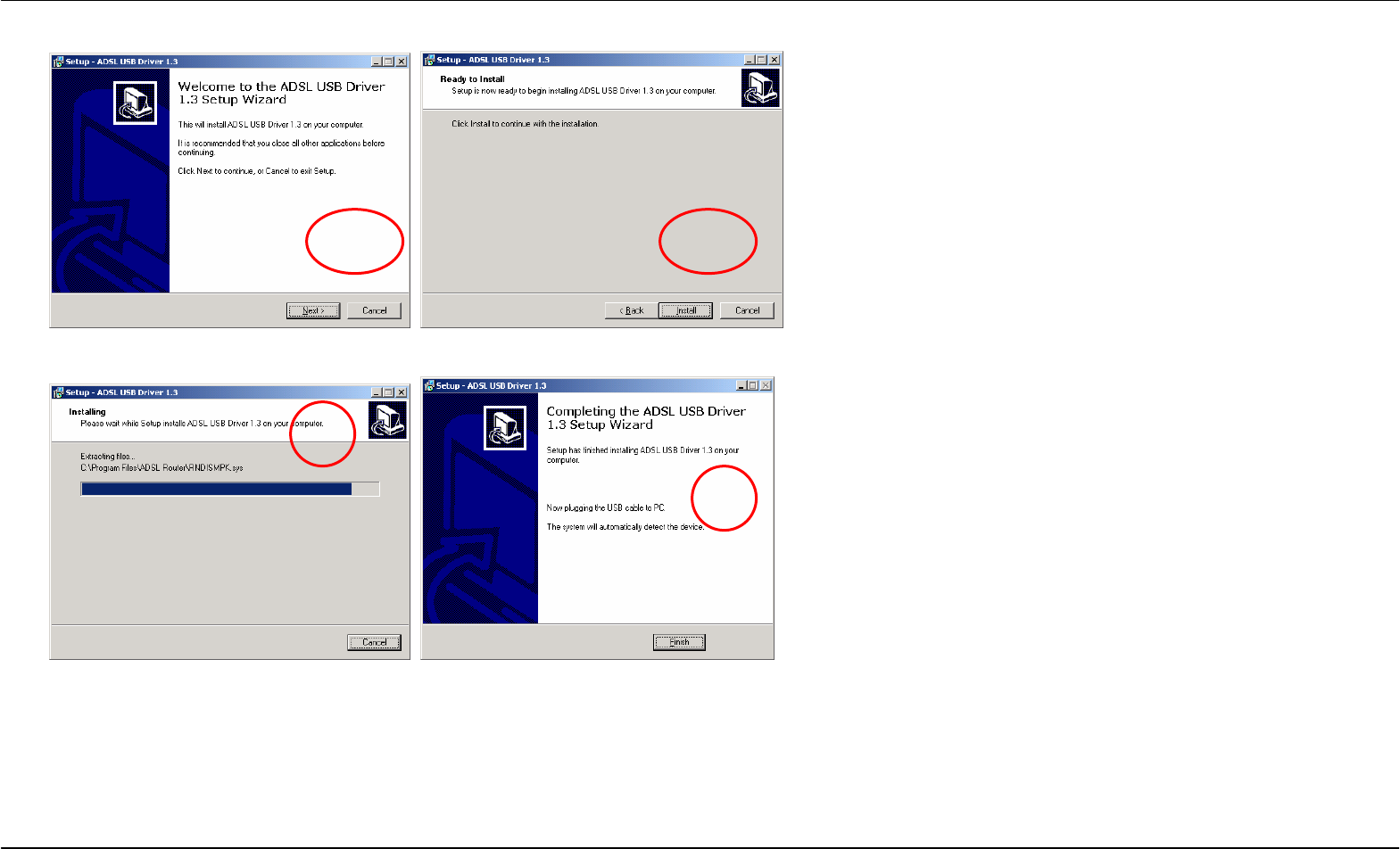

1. Run “setup.exe” in DRIVER-CD and click “Next” button.
2. Click “Install” button to install the driver and wait few seconds.
3. Click “finish” to complete the install.
4. Plug in the power cord, and turn on the power.
2
3
1-1 1-2
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 94

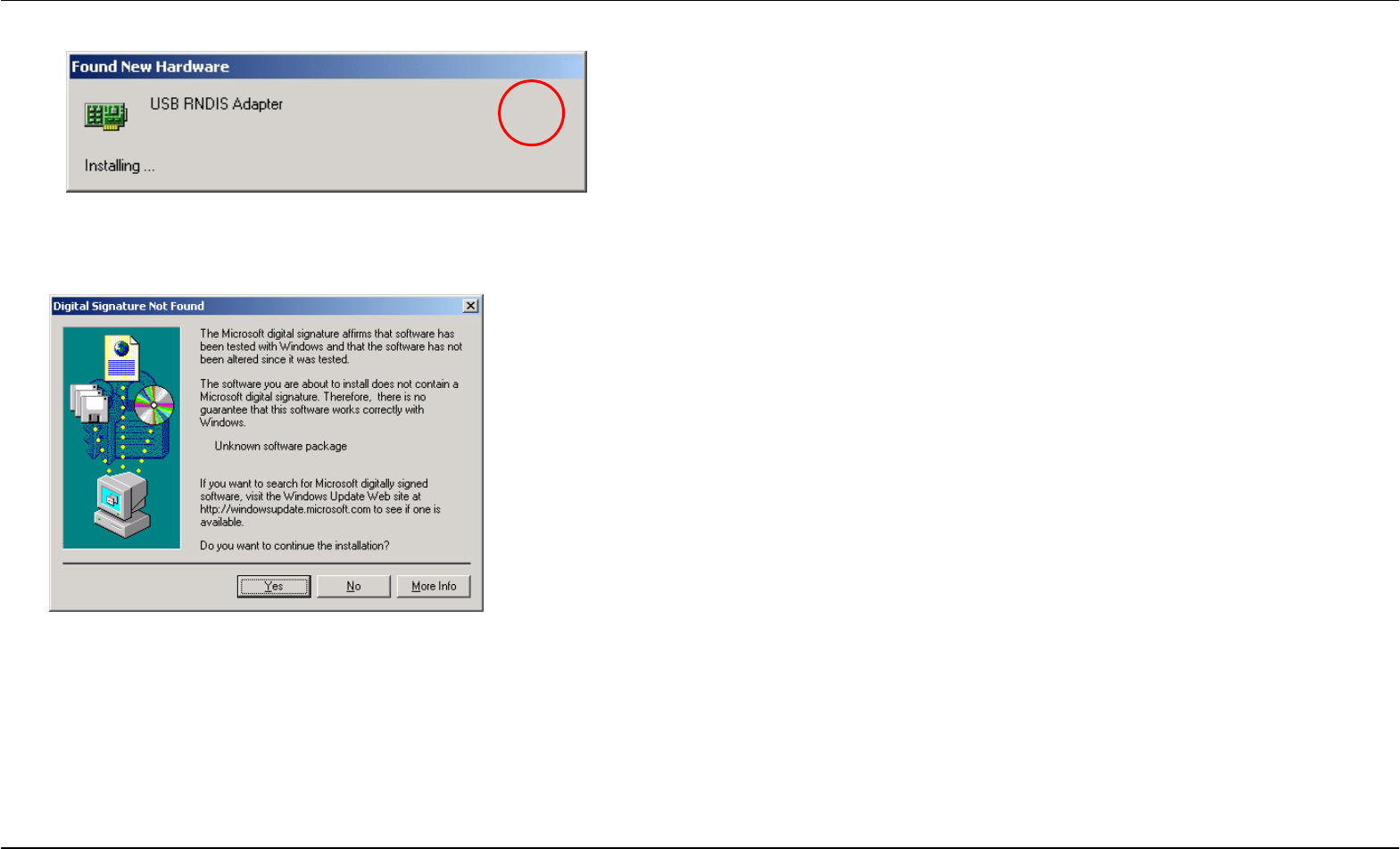

5. Connect USB port of the Gateway to USB port on your PC with the USB cable that comes with the Gateway.
.
6. System install the drivers automatically.
Notice: If pop up a windows like blow picture, please click “Yes” to allow it.
5
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 95

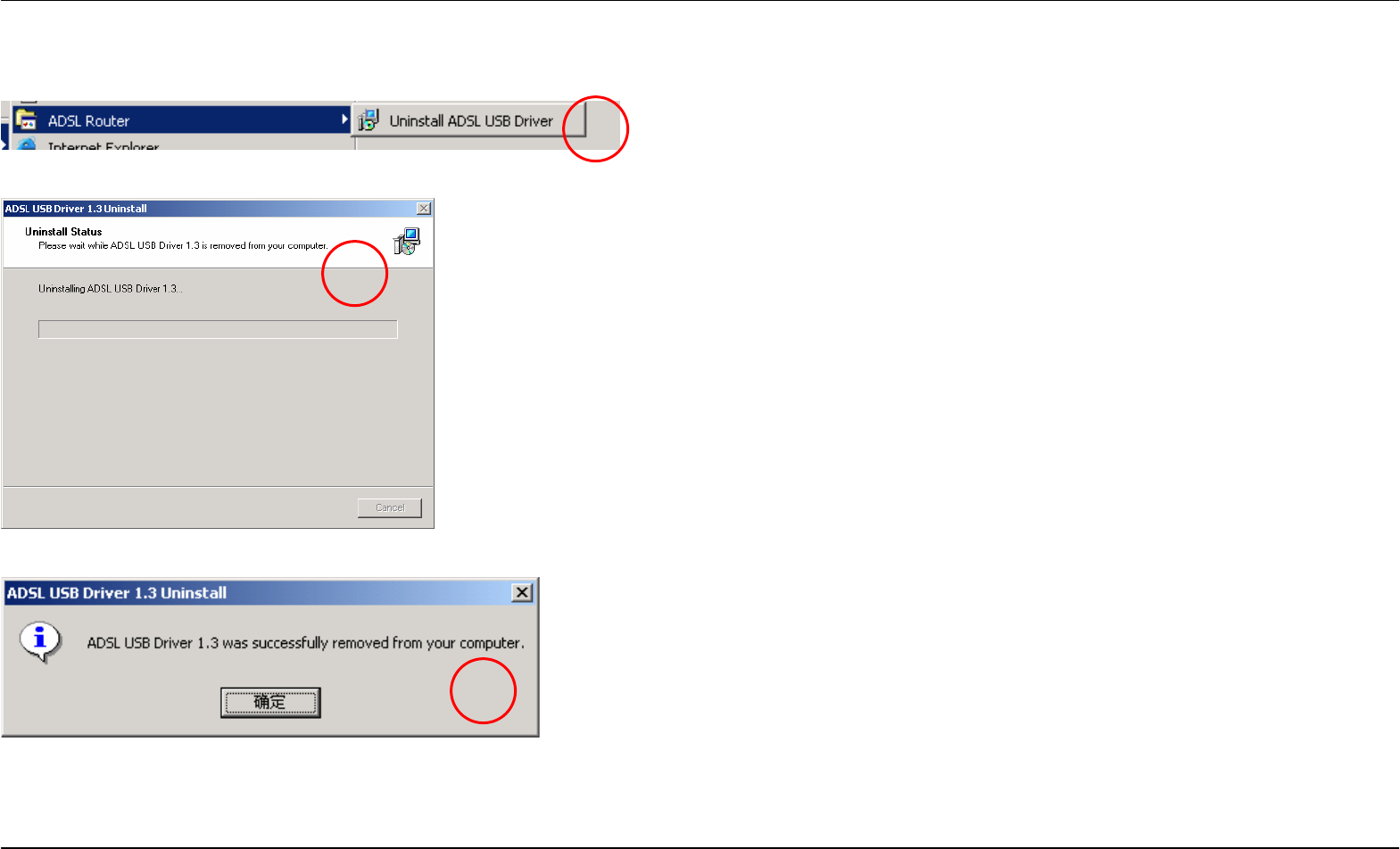

Driver Automatic Uninstallation
1. Run “setup.exe” in DRIVER-CD and click “Next” button.
2. Click “Yes” button to start uninstall the driver.
3. Click “OK” button completed uninstall the driver.
1
2
3
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 96
Driver Manual Installation
1. Plug in the power cord, and turn on the power.
2. Connect USB port of the Gateway to USB port on your PC with the USB cable that comes with the Gateway.

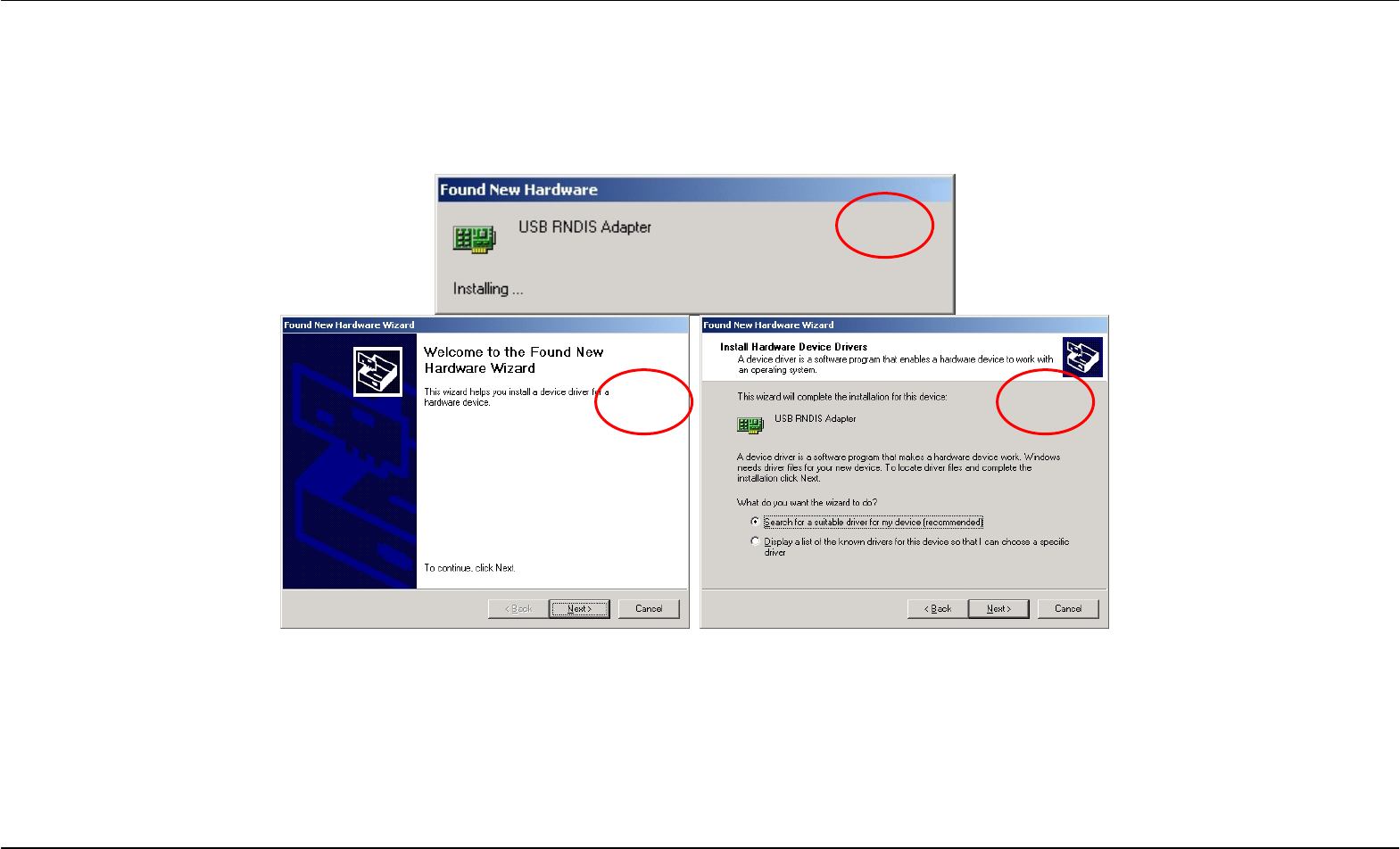

3. Once the new hardware is detected as shown in the dialog box below, Choice "Search for a suitable driver for my device". Then click "Next"
button.
3-1
3-2 3-3
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 97

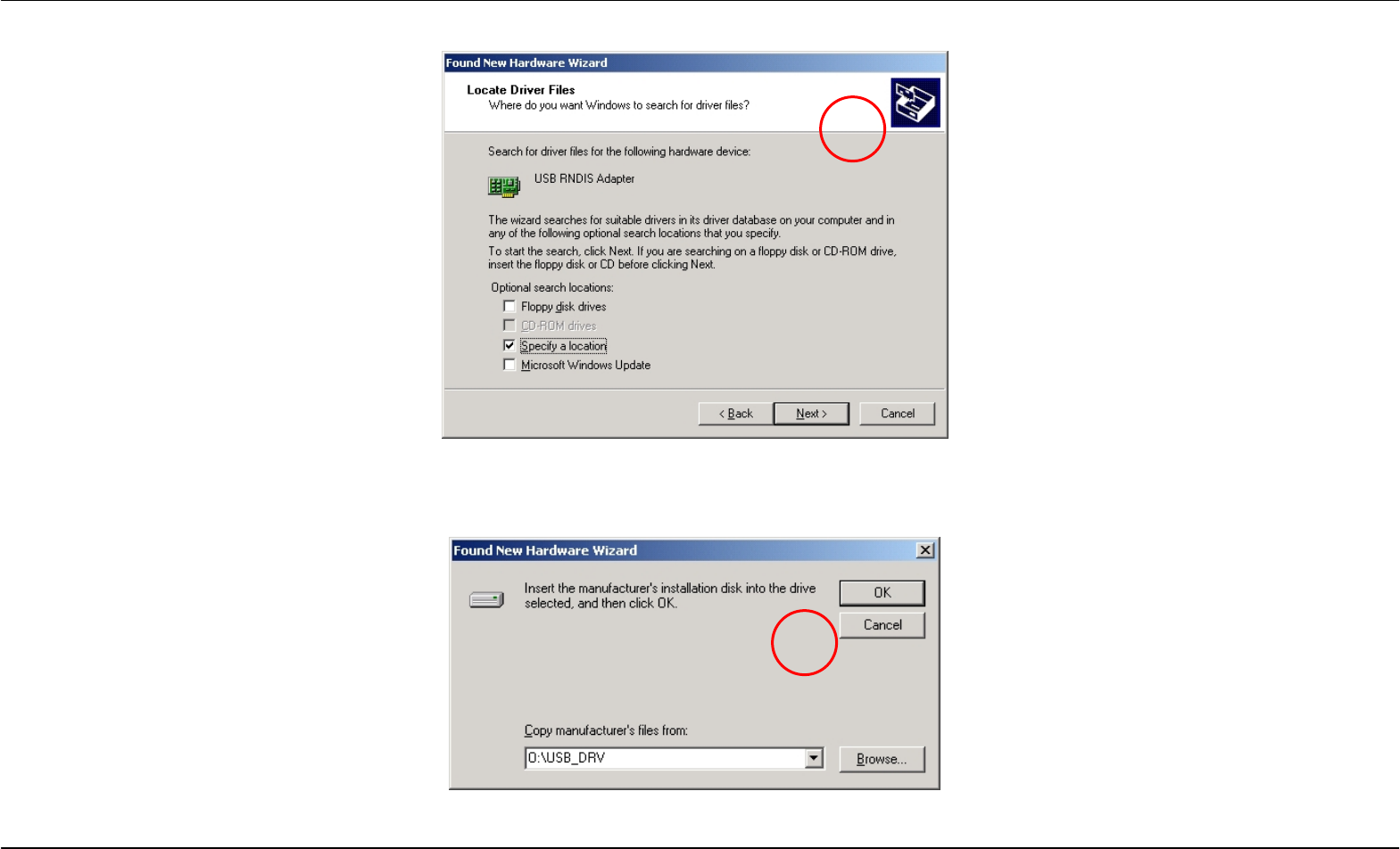

4. Dialog box is. Choice "Specify a location", and Click "Next" button.
5. A new box will pop up for selection of the location of the driver. If the location is incorrect please click "Browse" and select the right location,
then click "Next" button.
The default location is in the "USB_DRV" folder of the CD.
4
5
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 98
6. Click "Next" or "Continue" for any dialog box pops up.
7. A message box will show the installation of "USB Remote NDIS Network Device" is complete. Click "Finish" button.
6
7
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 99

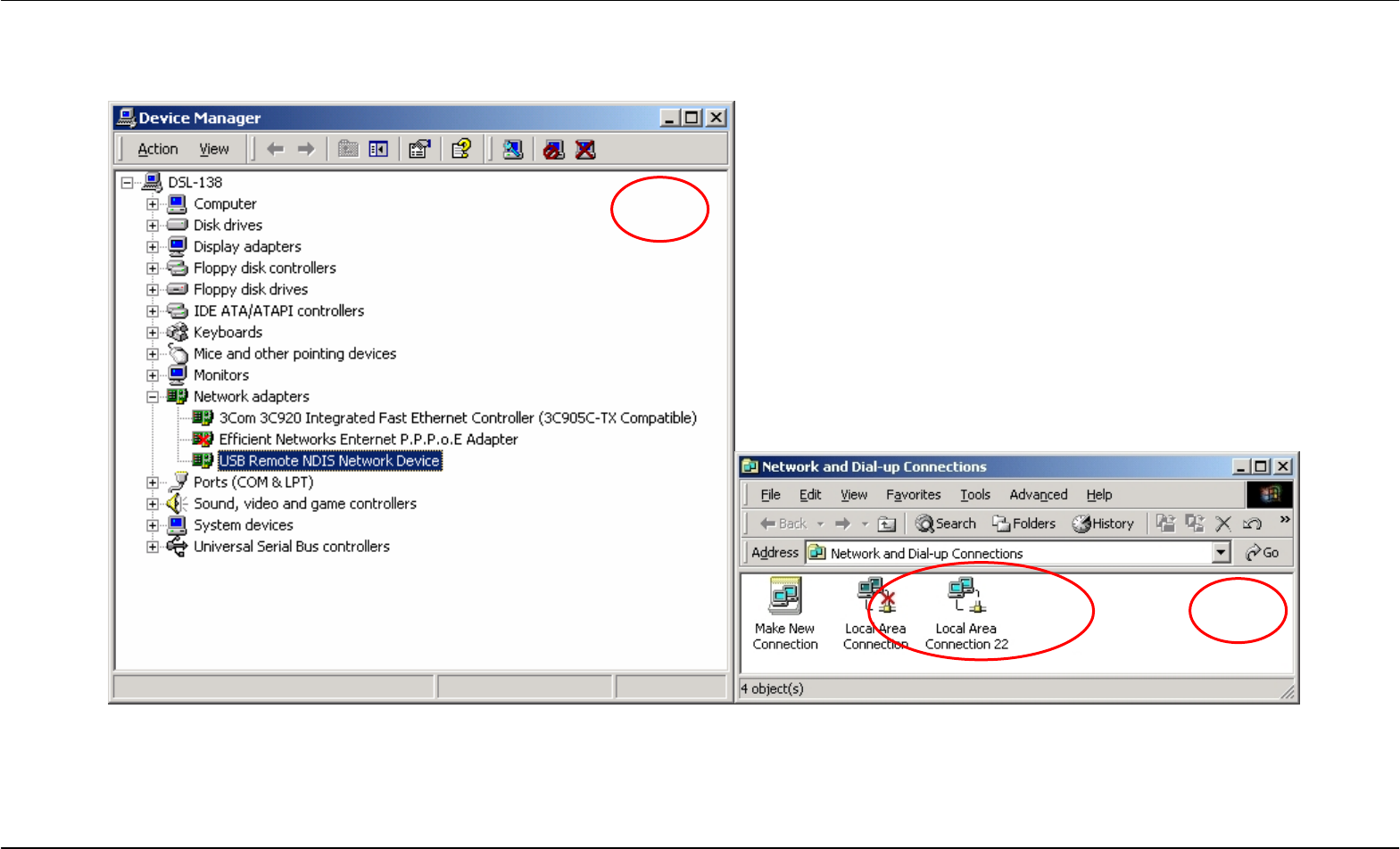

8. After the steps above, you will find there is a new item called "USB Remote NDIS Network Device" in "Control Panel"-"System"-"Device
Manager"-"Network adapters".
And a new "Local Area Connection X" is added in "Network Connections".
8-1
8-2
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 100

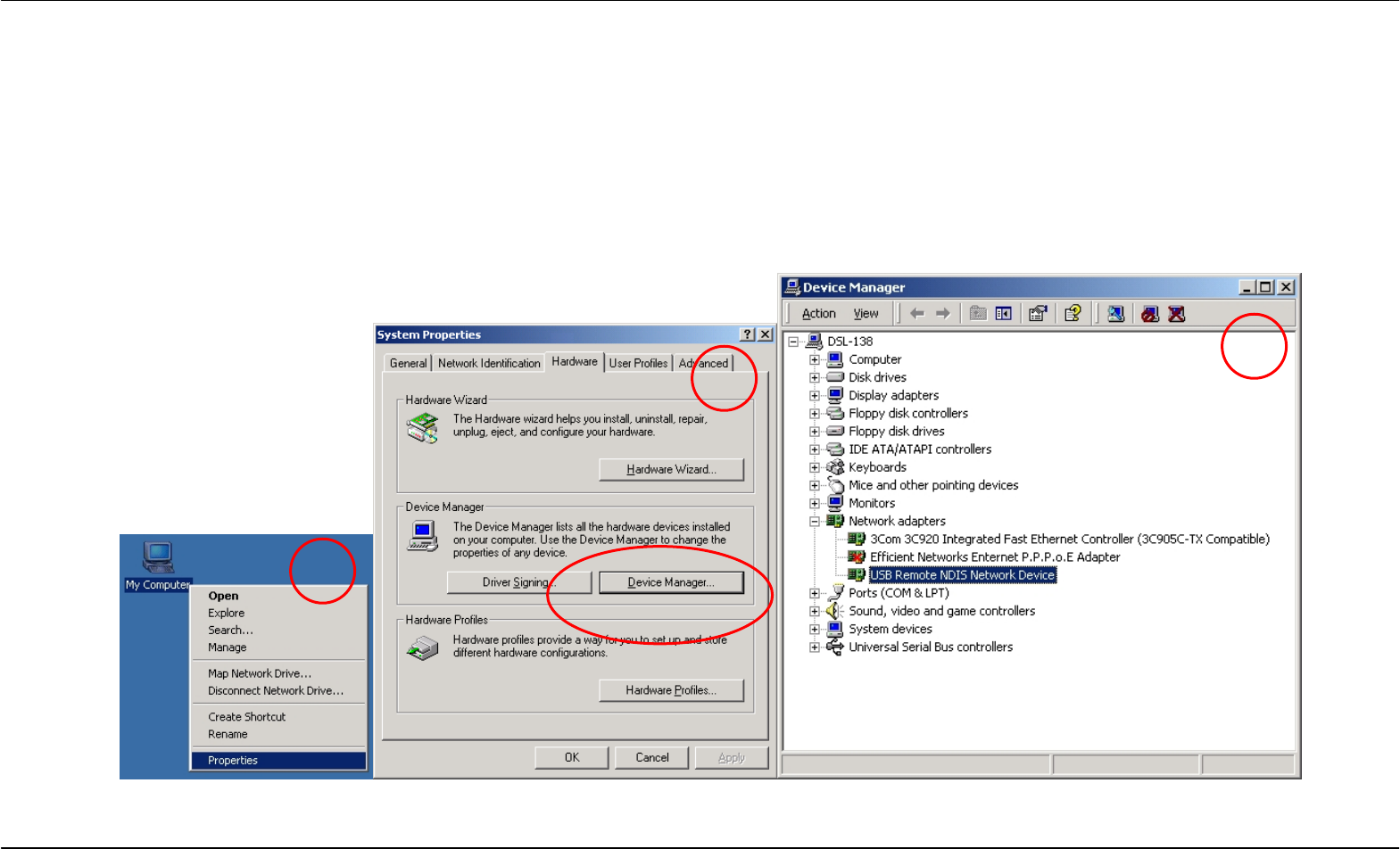

Driver Manual Uninstallation
1. Right click the icon of "My Computer" on the desktop, choice "Properties" item on menu pop up.
2. Click "Device Manager" button in "Hardware" page.
3. Double Click the "USB Remote NDIS Network Device" in "Device Manager" dialog box.
1
23
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 101

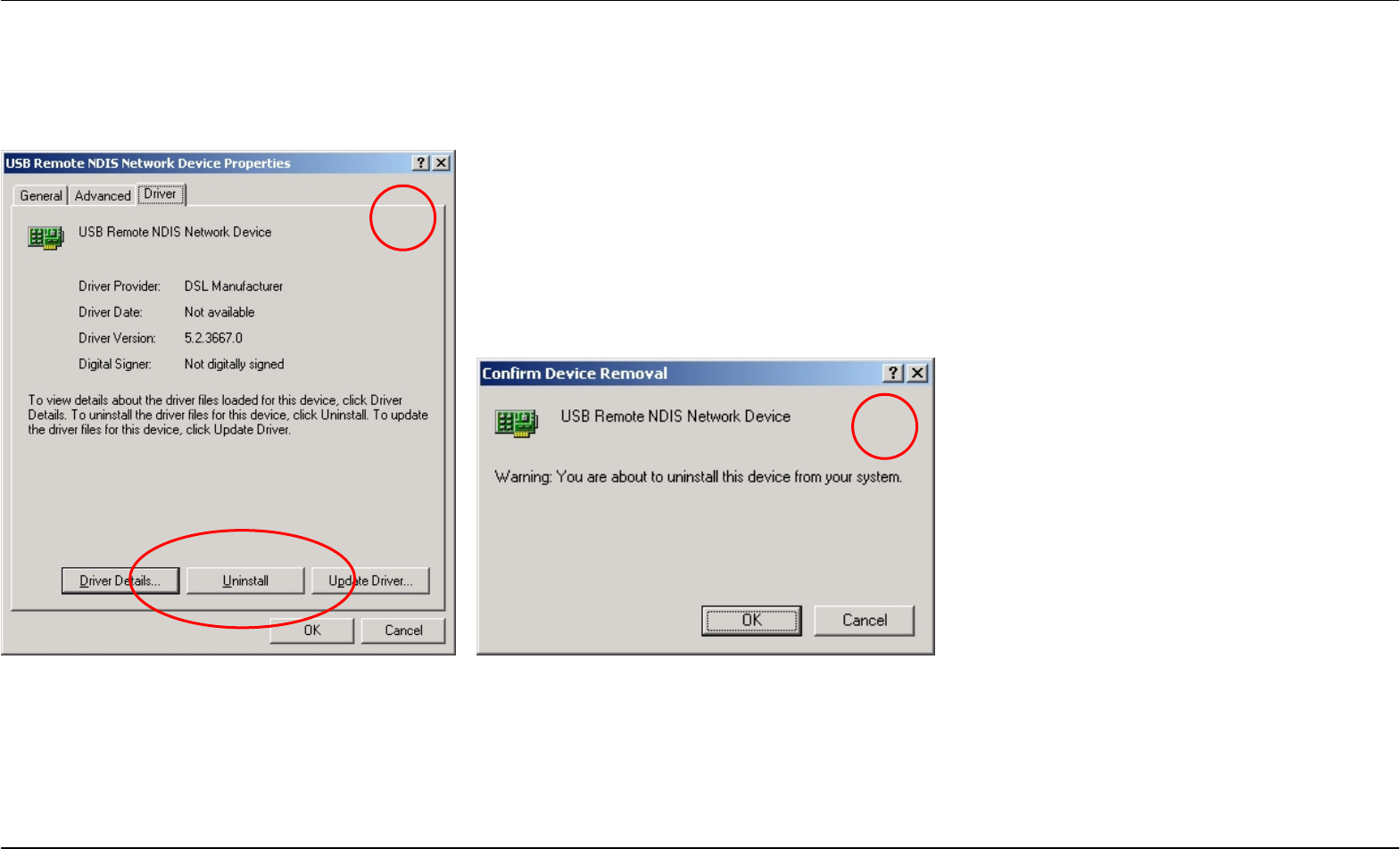

4. Click "Uninstall" button in "Driver" page.
5. Click "OK" when the dialog box shown as below to finish the uninstallation.
4
5
Appendix C – Technical Specification
D-Link DSL-2750U User Manual 102
Technical Specifications
ADSL Standards
ANSI T1.413 Issue 2
ITU G.992.1 (G.dmt) AnnexA
ITU G.992.2 (G.lite) Annex A
ITU G.994.1 (G.hs)
ADSL2 Standards
ITU G.992.3 (G.dmt.bis) Annex A
ITU G.992.4 (G.lite.bis) Annex A
ADSL2+ Standards
ITU G.992.5 Annex A/M
Protocols
IEEE 802.1d Spanning
Tree
TCP/UDP
ARP
RARP
ICMP
RFC1058 RIP v1
RFC1213 SNMP v1 & v2c
RFC1334 PAP
RFC1389 RIP v2
RFC1577 Classical IP over
ATM
RFC1483/2684
Multiprotocol
Encapsulation over ATM
Adaptation Layer 5 (AAL5)
RFC1661 Point to Point
Protocol
RFC1994 CHAP
RFC2131 DHCP Client /
DHCP Server
RFC2364 PPP over ATM
RFC2516 PPP over
Ethernet
Data Transfer Rate
G.dmt full rate downstream: up to 8 Mbps / upstream: up to 1
Mbps
G.lite: ADSL downstream up to 1.5 Mbps / upstream up to 512
Kbps
G.dmt.bis full rate downstream: up to 12 Mbps / upstream: up to
1 Mbps
ADSL full rate downstream: up to 24 Mbps / upstream: up to 1
Mbps
Wireless Transfer Rates
IEEE 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5,65,78,104,117,130
Mbps
IEEE 802.11b: 11, 5.5, 2, and 1Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Media Interface
ADSL interface: RJ-11 connector for connection to 24/26 AWG
twisted pair telephone line
LAN interface: RJ-45 port for 10/100BASE-T Ethernet
connection
Certification:
This device complies with Part15 of the FCC Rules. Operation is
subject to the following conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:
‧ This device may not cause harmful interference, and
‧ This device must accept any interference received, including interference that may
cause undesired operation.
‧
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
‧ Reorient or relocate the receiving antenna.
‧ Increase the separation between the equipment and receiver.
‧ Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
‧ Consult the dealer or an experienced radio/TV technician for help.
The use of a shielded-type power cord is required in order to meet FCC emission limits and
to prevent interference to the nearby radio and television reception. It is essential that only
the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment. You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
Note:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users and installers
must be provided with antenna installation instructions and transmitter operating conditions
for satisfying RF exposure compliance.
