Manual 3
110
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Networking Basics
Click Apply Now.
The IP Address, Subnet mask, and the Router’s IP Address will appear in a few
seconds.

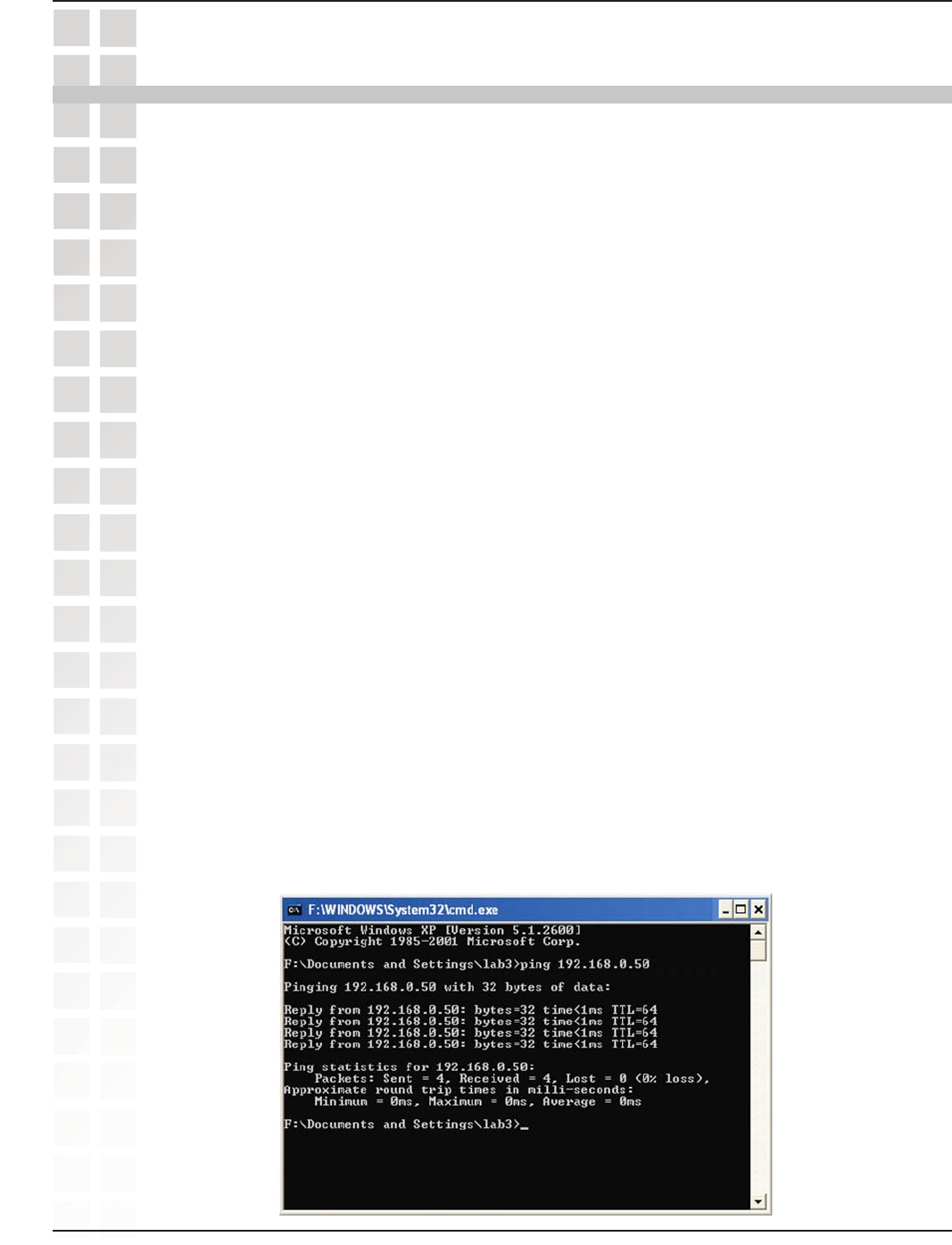

Go to Start > Run > type cmd. A window similar to this one will appear. Type ping
xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point.
A good wireless connection will show four replies from the wireless router or access
point, as shown.

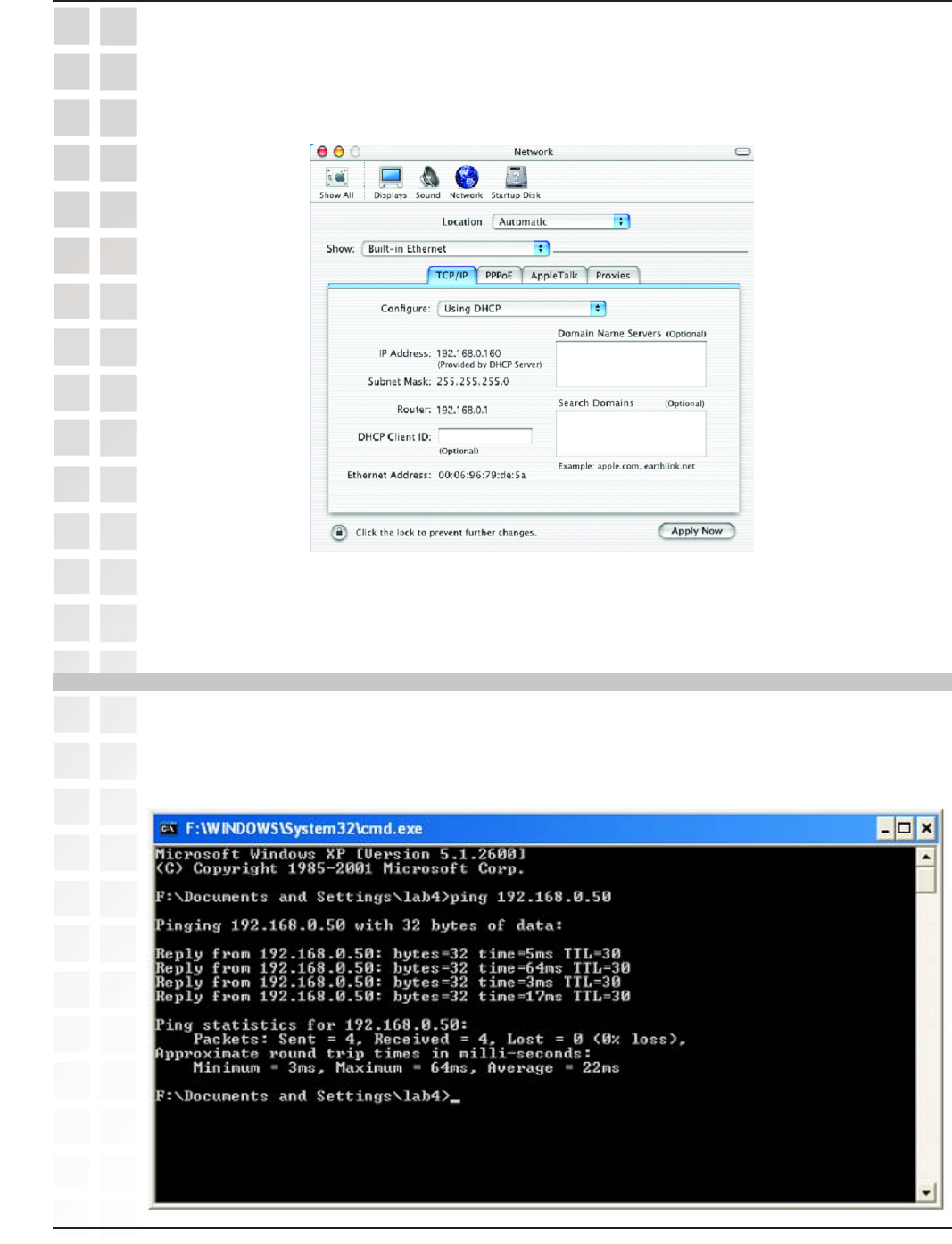

Checking the Wireless Connection by Pinging
in Windows® XP and 2000
111
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Troubleshooting
Troubleshooting
This Chapter provides solutions to problems that can occur during the installation and
operation of the DWL-2700AP Wireless Access Point. We cover various aspects of the
network setup, including the network adapters. Please read the following if you are
having problems.
Note: It is recommended that you use an Ethernet connection to configure the
DWL-2700AP.
1. The computer used to configure the DWL-2700AP cannot access the
Configuration menu.
Check that the Ethernet LED on the DWL-2700AP is ON. If the LED is not ON,
check that the cable for the Ethernet connection is securely inserted.
Check that the Ethernet Adapter is working properly. Please see item 3 (Check
that the drivers for the network adapters are installed properly) in this
Troubleshooting section to check that the drivers are loaded properly.
Check that the IP address is in the same range and subnet as the DWL-2700AP.
Please see Checking the IP Address in Windows® XP in the Networking Basics
section of this manual.
Note: The IP address of the DWL-2700AP is 192.168.0.50. All the computers on the
network must have a unique IP address in the same range, e.g., 192.168.0.x. Any
computers that have identical IP addresses will not be visible on the network. They
must all have the same subnet mask, e.g., 255.255.255.0.
Do a Ping test to make sure that the DWL-2700AP is responding. Go to
Start>Run>Type Command>Type ping 192.168.0.50. A successful ping will show
four replies.
Note: If you have changed the default IP address, make sure to ping the correct IP
address assigned to the DWL-2700AP.
112
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Troubleshooting
2. The wireless client cannot access the Internet in the Infrastructure mode.
Make sure the wireless client is associated and joined with the correct access point. To

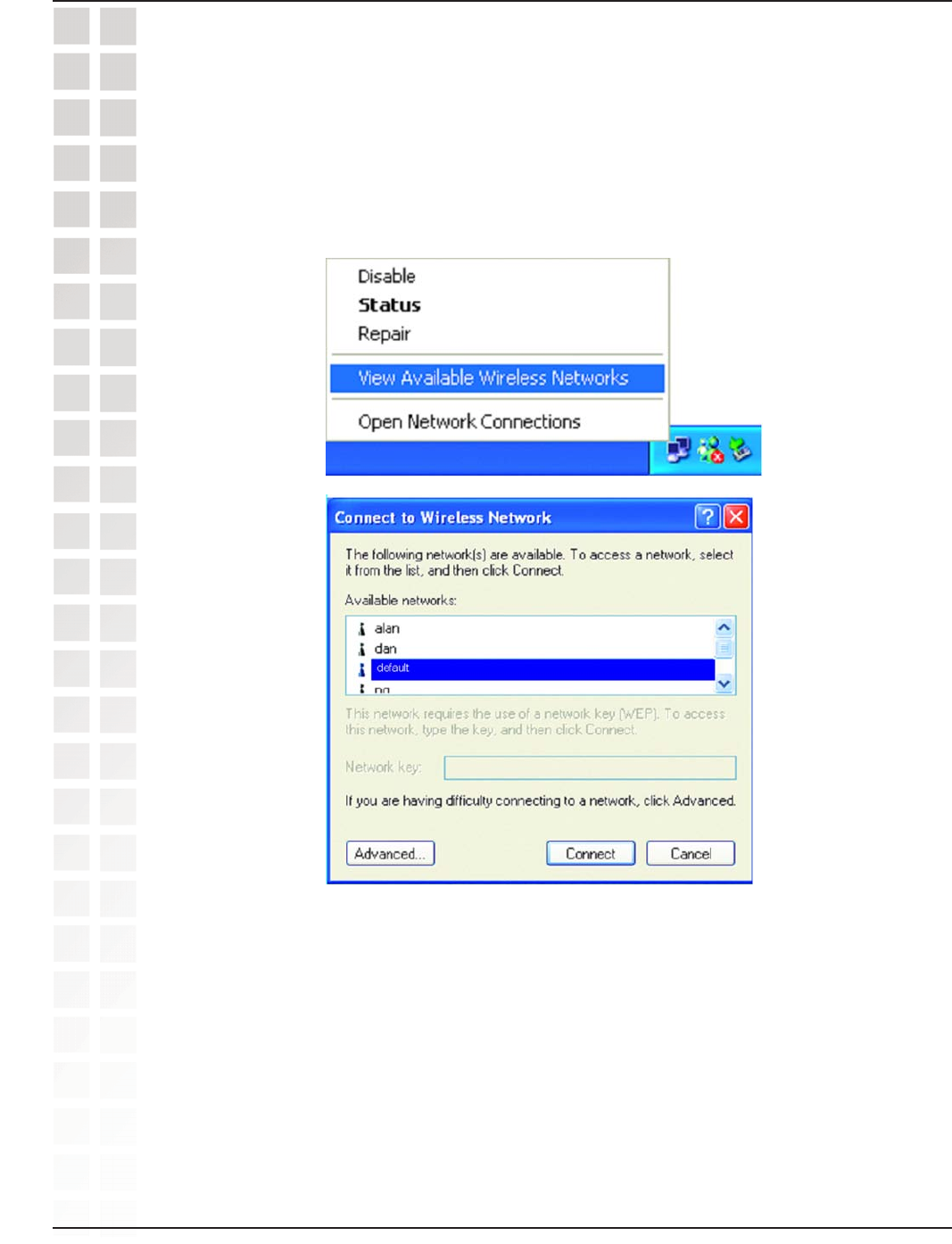

check this connection: Right-click on the Local Area Connection icon in the taskbar>
select View Available Wireless Networks. The Connect to Wireless Network screen
will appear. Please make sure you have selected the correct available network, as
shown in the illustrations below.
Check that the IP address assigned to the wireless adapter is within the same
IP address range as the access point and gateway. Since the DWL-2700AP has
an IP address of 192.168.0.50, wireless adapters must have an IP address in the
same range, e.g., 192.168.0.x. Each device must have a unique IP address; no two
devices may have the same IP address. The subnet mask must be the same for all
the computers on the network.) To check the IP address assigned to the wireless
adapter, double-click on the Local Area Connection icon in the taskbar > select
the Support tab and the IP address will be displayed. Please refer to Checking
the IP Address in the Networking Basics section of this manual.)
If it is necessary to assign a Static IP Address to the wireless adapter, please refer
to the appropriate section in Networking Basics. If you are entering a DNS Server
address you must also enter the Default Gateway Address. (Remember that if
you have a DHCP capable router, you will not need to assign a static IP address.
See Networking Basics: Assigning a Static IP Address.)
113
DWL-2700AP User’s Manual
D-Link Systems, Inc.
3. Check that the drivers for the network adapters are installed properly.
You may be using different network adapters than those illustrated here, but this
procedure will remain the same, regardless of the type of network adapters you are
using.

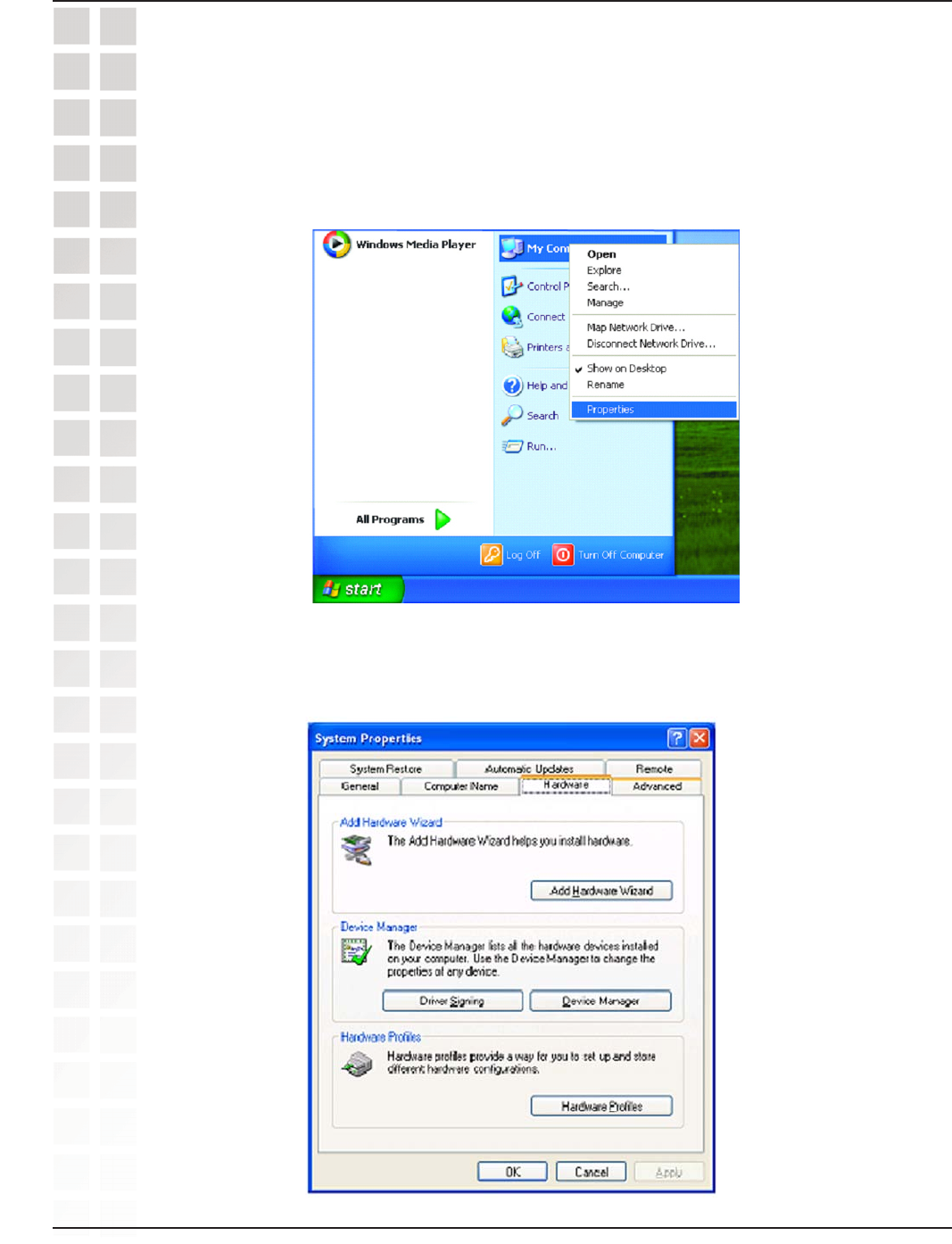

Go to Start > My Computer > Properties.
Troubleshooting
Select the Hardware Tab.
Click Device Manager.
114
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Troubleshooting

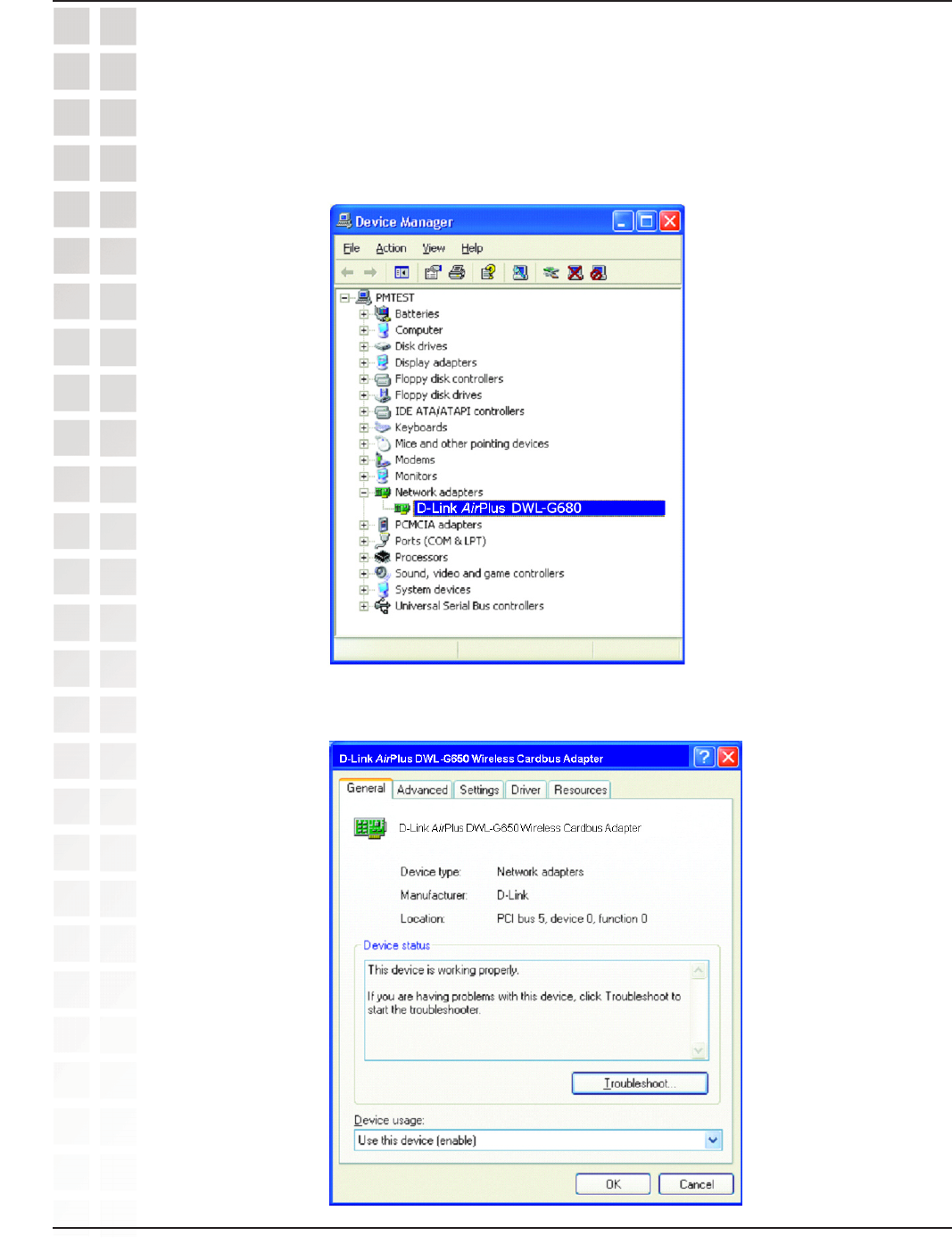

Double-click on Network Adapters.
Right-click on D-Link AirPlus DWL-G680 Wireless Cardbus Adapter. (In this
example we use the DWL-G680; you may be using other network adapters, but the
procedure will remain the same.)
Select Properties to check that the drivers are installed properly.
Look under Device Status to check that the device is working properly.
Click OK.
115
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Troubleshooting
4. What variables may cause my wireless products to lose reception?
D-Link products let you access your network from virtually anywhere you want. However,
the positioning of the products within your environment will affect the wireless range.
Please refer to Installation Considerations in the Wireless Basics section of this
manual for further information about the most advantageous placement of your D-Link
wireless products.
5. Why does my wireless connection keep dropping?
Antenna Orientation- Try different antenna orientations for the DWL-2700AP. Try to
keep the antenna at least 6 inches away from the wall or other objects.
If you are using 2.4GHz cordless phones, X-10 equipment or other home security
systems, ceiling fans, and lights, your wireless connection will degrade dramatically
or drop altogether. Try changing the channel on your router, access point and wireless
adapter to a different channel to avoid interference.
Keep your product away (at least 3-6 feet) from electrical devices that generate RF
noise, like microwaves, monitors, electric motors, etc.
6. Why can’t I get a wireless connection?
If you have enabled encryption on the DWL-2700AP, you must also enable encryption
on all wireless clients in order to establish a wireless connection.
Make sure that the SSID on the router and the wireless client are exactly the same.
If they are not, wireless connection will not be established.
Move the DWL-2700AP and the wireless client into the same room and then test
the wireless connection.
Disable all security settings.
Turn off your DWL-2700AP and the client. Turn the DWL-2700AP back on again,
and then turn on the client.
Make sure that all devices are set to Infrastructure mode.
Check that the LED indicators are indicating normal activity. If not, check that the
AC power and Ethernet cables are firmly connected.
Check that the IP address, subnet mask, gateway and DNS settings are correctly
entered for the network.
If you are using 2.4GHz cordless phones, X-10 equipment or other home security
systems, ceiling fans, and lights, your wireless connection will degrade dramatically
or drop altogether. Try changing the channel on your DWL-2700AP, and on all the
devices in your network to avoid interference.
Keep your product away (at least 3-6 feet) from electrical devices that generate RF
noise, like microwaves, monitors, electric motors, etc.
116
DWL-2700AP User’s Manual
D-Link Systems, Inc.
7. I forgot my encryption key.
Reset the DWL-2700AP to its factory default settings and restore the other devices
on your network to their default settings. You may do this by pressing the Reset
button on the back of the unit. You will lose the current configuration settings.
Troubleshooting
117
DWL-2700AP User’s Manual
D-Link Systems, Inc.
External Antenna
Optional External Antenna
The default antenna can be replaced with another external antenna (not included) to
extend the range of the network.
For antenna information, please contact D-Link Sales at (800) 326-1688.
An optional external antenna should be connected on the right side of the DWL-2700AP
when the front panel is facing towards you.

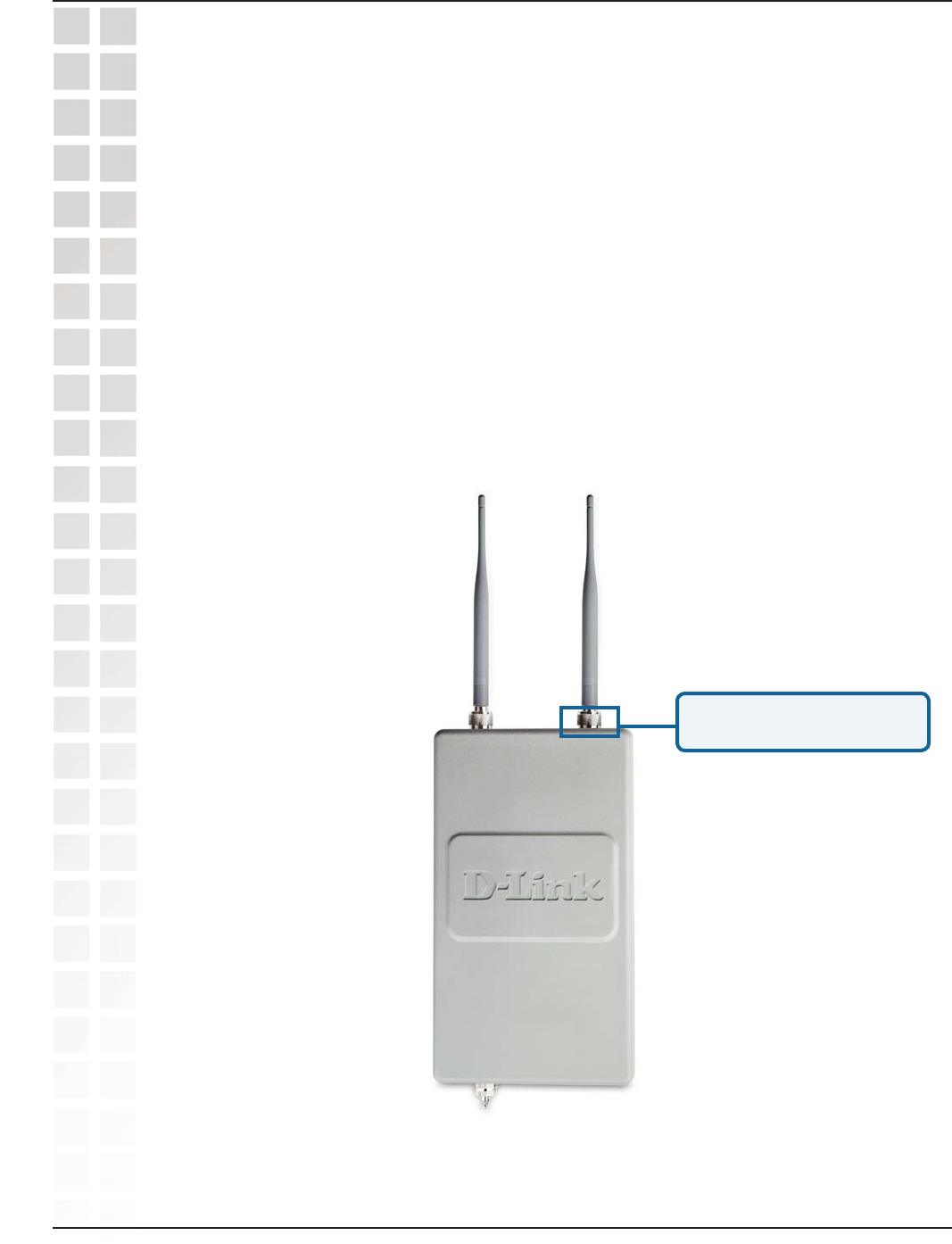

An optional external
antenna connects here.
118
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Technical Specifications
Technical Specifications
Standards
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
Network Management
• Web Browser interface
- HTTP
• AP Manager
• SNMP Support
- D-View Module
- Private MIB
• Command Line Interface
- Telnet
Data Rate
For 802.11b:
• 11, 5.5, 2, and 1Mbps
For 802.11g:
• 54, 48, 36, 24, 18, 12, 9 and 6Mbps
Security
• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• 64/128/152-bit WEP
• SSID Broadcast Disable
• MAC Address Access Control List
Wireless Frequency Range
• 2.4GHz to 2.4835GHz
Radio and Modulation Type
For 802.11b:
DSSS:
• DBPSK @ 1Mbps
• DQPSK @ 2Mbps
• CCK @ 5.5 and 11Mbps
For 802.11g:
OFDM:
• BPSK @ 6 and 9Mbps
• QPSK @ 12 and 18Mbps
• 16QAM @ 24 and 36Mbps
• 64QAM @ 48 and 54Mbps
DSSS:
• DBPSK @ 1Mbps
• DQPSK @ 2Mbps
• CCK @ 5.5 and 11Mbps
119
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Technical Specifications
Antenna Type
• Monopole antennas with 5dBi gain
Receiver Sensitivity
For 802.11b:
• 1Mbps: -92dBm
• 2Mbps: -89dBm
• 5.5Mbps: -88dBm
• 11Mbps: -83dBm
For 802.11g:
• 1Mbps: -92dBm
• 2Mbps: -89dBm
• 5.5Mbps: -88dBm
• 6Mbps: -87dBm
• 9Mbps: -86dBm
• 11Mbps: -85dBm
• 12Mbps: -88dBm
• 18Mbps: -83dBm
• 24Mbps: -80dBm
• 36Mbps: -76dBm
• 48Mbps: -71dBm
• 54Mbps: -66dBm
Transmit Output Power
For 802.11b:
• 100mW (20dBm)
• 50mW (17dBm)
• 30mW (15dBm)
• 20mW (13dBm)
• 10mW (10dBm)
• 5mW (7dBm)
• 1mW (0dBm)
For 802.11g:
• 200mW (23dBm)
• 63mW (18dBm)
• 30mW (15dBm)
• 20mW (13dBm)
• 10mW (10dBm)
• 5mW (7dBm)
• 1mW (0dBm)
Wireless Operating Range*
802.11g (Full Power with 5dBi gain diversity dipole antenna)
Indoor:
• 98ft (30m) @ 54Mbps
• 112ft (34m) @ 48Mbps
• 128ft (39m) @ 36Mbps
• 154ft (47m) @ 24Mbps
• 184ft (56m) @ 18Mbps
• 217ft (66m) @ 12Mbps
• 259ft (79m) @ 9Mbps
• 325ft (99m) @ 6Mbps
Outdoor:
120
DWL-2700AP User’s Manual
D-Link Systems, Inc.
• 367ft (112m) @ 54Mbps
• 820ft (250m) @ 18Mbps
• 1,640ft (500m) @ 6Mbps
LEDs
• Power
• 10/100M
• RSSI level
• 802.11b/g
Operating Voltage
• 48VDC +/- 10% for PoE
Current Consumption
• Max.8.5W with PoE (without heater)
• Max.28.5W without PoE (with heater)
Temperature
• Operating: -40oF to 140oF (-40oC to 60oC)
• Storing: -4oF to 149oF (-40oC to 65oC)
Humidity
• Operating: 10%~90% (non-condensing)
• Storing: 5%~95% (non-condensing)
Certifications
• FCC Part 15
• CSA international
Dimensions
• L = 10.93 inches (277.7mm)
• W = 6.10 inches (155mm)
• H = 1.77 inches (45mm)
Warranty
• 1 Year
121
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Contacting Technical Support
Technical Support
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
Monday to Friday 8:00am to 5:00pm PST
D-Link Technical Support on the Internet:
http://support.dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 7:30am to 9:00pm EST
D-Link Technical Support on the Internet:
http://support.dlink.ca
122
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides
this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized
reseller or distributor, and
• Only for products purchased and delivered within the fifty states of the United States,
the District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, or
addresses with an APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link product described
below (“Hardware”) will be free from material defects in workmanship and materials under
normal use from the date of original retail purchase of the product, for the period set forth below
(“Warranty Period”), except as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer's sole and exclusive remedy and the entire liability of D-Link and its suppliers
under this Limited Warranty will be, at D-Link’s option, to repair or replace the defective Hardware
during the Warranty Period at no charge to the original owner or to refund the actual purchase
price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link
Service Office. The replacement hardware need not be new or have an identical make, model
or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior)
in all material respects to the defective Hardware. Repaired or replacement hardware will be
warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is
longer, and is subject to the same limitations and exclusions. If a material defect is incapable
of correction, or if D-Link determines that it is not practical to repair or replace the defective
Hardware, the actual price paid by the original purchaser for the defective Hardware will be
refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware or part
thereof that is replaced by D-Link, or for which the purchase price is refunded, shall become
the property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as
set forth in the applicable documentation, from the date of original retail purchase of the Software
for a period of ninety (90) days (“Software Warranty Period”), provided that the Software is
properly installed on approved hardware and operated as contemplated in its documentation.
D-Link further warrants that, during the Software Warranty Period, the magnetic media on which
123
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Warranty
D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive
remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be,
at D-Link’s option, to replace the non-conforming Software (or defective media) with software
that substantially conforms to D-Link’s functional specifications for the Software or to refund
the portion of the actual purchase price paid that is attributable to the Software. Except as
otherwise agreed by D-Link in writing, the replacement Software is provided only to the original
licensee, and is subject to the terms and conditions of the license granted by D-Link for the
Software. Replacement Software will be warranted for the remainder of the original Warranty
Period and is subject to the same limitations and exclusions. If a material non-conformance
is incapable of correction, or if D-Link determines in its sole discretion that it is not practical
to replace the non-conforming Software, the price paid by the original licensee for the non-
conforming Software will be refunded by D-Link; provided that the non-conforming Software
(and all copies thereof) is first returned to D-Link. The license granted respecting any Software
for which a refund is given automatically terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for Hardware and
Software portions of D-Link’s products will not be applied to and does not cover any refurbished
product and any product purchased through the inventory clearance or liquidation sale or
other sales in which D-Link, the sellers, or the liquidators expressly disclaim their warranty
obligation pertaining to the product and in that case, the product is being sold “As-Is” without
any warranty whatsoever including, without limitation, the Limited Warranty as described herein,
notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point
based on its return policy. In case the return policy period has expired and the product is within
warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same, along with proof of purchase of the product (such as a copy of the dated purchase
invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-
5465, who will attempt to assist the customer in resolving any suspected defects with the
product. If the product is considered defective, the customer must obtain a Return Material
Authorization (“RMA”) number by completing the RMA form and entering the assigned Case
ID Number at https://rma.dlink.com/.
• After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit,
and the RMA number must be prominently marked on the outside of the package. Do not
include any manuals or accessories in the shipping package. D-Link will only replace the
defective portion of the product and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the
property of D-Link. Products shall be fully insured by the customer and shipped to D-Link
Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held
responsible for any packages that are lost in transit to D-Link. The repaired or replaced
packages will be shipped to the customer via UPS Ground or any common carrier selected
by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the
124
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Warranty
United States, otherwise we will ship the product to you freight collect. Expedited shipping
is available upon request and provided shipping charges are prepaid by the customer.
D-Link may reject or return any product that is not packaged and shipped in strict compliance
with the foregoing requirements, or for which an RMA number is not visible from the outside of
the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping
charges for any product that is not packaged and shipped in accordance with the foregoing
requirements, or that is determined by D-Link not to be defective or non-conforming.
What Is Not Covered: The Limited Warranty provided herein by D-Link does not cover: Products
that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modification,
tampering, negligence, misuse, faulty installation, lack of reasonable care, repair or service in
any way that is not contemplated in the documentation for the product, or if the model or serial
number has been altered, tampered with, defaced or removed; Initial installation, installation and
removal of the product for repair, and shipping costs; Operational adjustments covered in the
operating manual for the product, and normal maintenance; Damage that occurs in shipment,
due to act of God, failures due to power surge, and cosmetic damage; Any hardware, software,
firmware or other products or services provided by anyone other than D-Link; and Products
that have been purchased from inventory clearance or liquidation sales or other sales in which
D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to
the product. While necessary maintenance or repairs on your Product can be performed by
any company, we recommend that you use only an Authorized D-Link Service Office. Improper
or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED
HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF
ANY KIND WHATSOEVER INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A
PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO
THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT
AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE
ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT
IS WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT
LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE
OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF
GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR
MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH
D-LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED
IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR
WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO
WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY,
EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE
SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR,
REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE
MAXIMUM LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE
125
DWL-2700AP User’s Manual
D-Link Systems, Inc.
PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING EXPRESS
WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY
OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR STATUTORY.
Governing Law: This Limited Warranty shall be governed by the laws of the State of California.
Some states do not allow exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions
may not apply. This Limited Warranty provides specific legal rights and you may also have other
rights which vary from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or
registered trademarks are the property of their respective owners.
Copyright Statement: No part of this publication or documentation accompanying this product
may be reproduced in any form or by any means or used to make any derivative such as
translation, transformation, or adaptation without permission from D-Link Corporation/D-Link
Systems, Inc., as stipulated by the United States Copyright Act of 1976 and any amendments
thereto. Contents are subject to change without prior notice. Copyright 2005 by D-Link
Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate measures.
126
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
127
DWL-2700AP User’s Manual
D-Link Systems, Inc.
FCC Antenna Usage and Transmit Power
To comply with FCC/Canada telecommunication regulation, the conducted output power
of this transmitter, when use with each specific antenna supplied, cannot exceed the
maximum limit indicated in the following tables:
Wireless
Mode
Antenna Type &
Gain
2412MHz 2437MHz 2462MHz
IEEE 802.11b
(1) WSS005, 5Bi,
monopole
(2) SAA04-220080,
4.5dBi, Dipole
19.38 dBm 23.50 dBm 19.00 dBm
Maximum Conducted Transmit Power
Certified Antenna Configurations
Wireless
Mode
Antenna Type &
Gain
2412MHz 2437MHz 2462MHz
IEEE 802.11g
(1) WSS005, 5Bi,
monopole
(2) SAA04-220080,
4.5dBi, Dipole
20.63 dBm 25.50 dBm 20.00 dBm
Maximum Conducted Transmit Power
Certified Antenna Configurations
128
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Industry Canada Statement
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
This device has been designed to operate with an antenna having a maximum gain
of 5 dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada.
The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the EIRP is not more than required for successful
communication.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
129
DWL-2700AP User’s Manual
D-Link Systems, Inc.
Registration
Registration
Version 2.00
Revised: 7/13/2006
Product registration is entirely voluntary and failure to complete or return
this form will not diminish your warranty rights.
