DWL-G730AP
802.11g/2.4GHz
Building Networks for People
Wireless Pocket Router/AP
D-Link AirPlus G
TM
2
Contents
Package Contents ................................................................................3
Introduction............................................................................................4
Wireless Basics ....................................................................................6
Hardware Overview ...............................................................................8
Getting Started in AP Mode ...................................................................9
Getting Started in Client Mode.............................................................10
Getting Started in Router Mode ...........................................................11
Using the Configuration Utility in AP Mode...........................................12
Using the Configuration Utility in AP Client Mode .................................24
Using the Configuration Utility in Router Mode .....................................35
Networking Basics ..............................................................................60
Technical Specifications ......................................................................73
Contacting Technical Support ..............................................................76
Warranty and Registration ...................................................................77
3
Computer with Windows XP/2000/Me operating system with
an installed Ethernet adapter
Internet Explorer version 6.0 or Netscape Navigator version
7.0, with JavaScript enabled
Contents of Package:
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements:
D-Link AirPlusTM G DWL-G730AP
802.11g/2.4GHz Wireless Pocket Router/AP
Power Supply - 5V DC, 1.2A
Manual on CD
Quick Installation Guide
Ethernet Cable
USB Power Cable
Travel Case
Note: Using a power supply with a different voltage rating than the one included
with the DWL-G730AP will cause damage and void the warranty for this product.
4
At up to five times the speed of previous wireless devices (maximum wireless signal rate
up to 54Mbps*), you can work faster and more efficiently, increasing productivity. With
the DWL-G730AP, bandwidth-intensive applications like graphics or multimedia will benefit
significantly because large files are able to move across the network quickly.
Introduction
The D-Link AirPlusTM G DWL-G730AP Wireless Pocket Router/AP is an 802.11g
high-performance, wireless device that is also compatible with 802.11b devices. It is an
ideal way to extend the reach and number of computers connected to your wireless
network.
The DWL-G730AP is capable of data transfer rates up to 54Mbps*, when used with
other D-Link AirPlus G products, and can be integrated into a large network.
The pocket-sized DWL-G730AP gives you all the features of a full-size router/access
point with pocket-size convenience and portability. Carry it along with you on business
trips and vacations, and experience the convenience of wireless networking with your
colleagues and family almost anywhere you travel.
With 3 different operating modes, the versatile DWL-G730AP can be used as a portable
access point, AP client or router.
*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.
5
Up to 5X Faster with AirPlus G Products - maximum wireless signal rate up
to 54Mbps.* With increased data rate and capacity, the DWL-G730AP delivers
media rich content such as digital images, videos, and MP3 files much faster
than standard 802.11b networks.
Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b
standard and interoperable with all existing 802.11b compliant devices.
Network Security with up to 128-bit WEP Encryption – Supports
64/128-bit WEP encryption for a level of security for your data and wireless
communication.
Built-in DHCP Server – If enabled, it will automatically assign IP addresses
to wireless clients on the local network.
Web-based interface for Managing and Configuring – Easy-to-use
interface independent of the operating system.
Features and Benefits
*Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput
will vary. Network conditions and environmental factors lower actual data throughput rate.
6
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public access
wireless networks. D-Link wireless products will allow you access to the data you want,
when and where you want it. You will be able to enjoy the freedom that wireless networking
brings.
A Wireless Local Area Network (WLAN) is a computer network that transmits and receives
data with radio signals instead of wires. WLANs are used increasingly in both home and
office environments, and public areas such as airports, coffee shops and universities.
Innovative ways to utilize WLAN technology are helping people to work and communicate
more efficiently. Increased mobility and the absence of cabling and other fixed
infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change and
relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and Network Expansion - Installing a WLAN system can be fast
and easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technology allows the network to go where wires cannot go - even outside the home or
office.
Scalability – WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
from peer-to-peer networks suitable for a small number of users to larger infrastructure
networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventional Ethernet network devices.
7
Installation Considerations
Keep in mind, that the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic
guidelines:
Wireless Basics (continued)
Keep the number of walls and ceilings between the DWL-G730AP and other
network devices to a minimum - each wall or ceiling can reduce your DWL-G730AP’s
range from 3-90 feet (1-30 meters.) Position your devices so that the number of
walls or ceilings is minimized.
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that
the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
2
Building materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or
open doorways and not other materials.
3
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices
or appliances that generate RF noise.
4
1
8

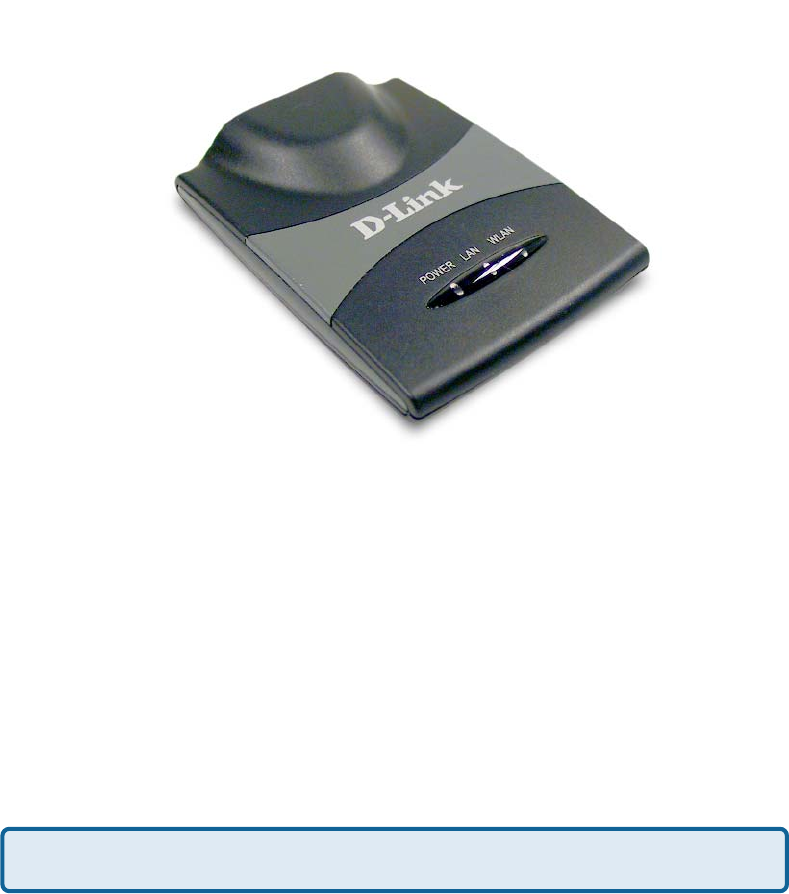

Hardware Overview

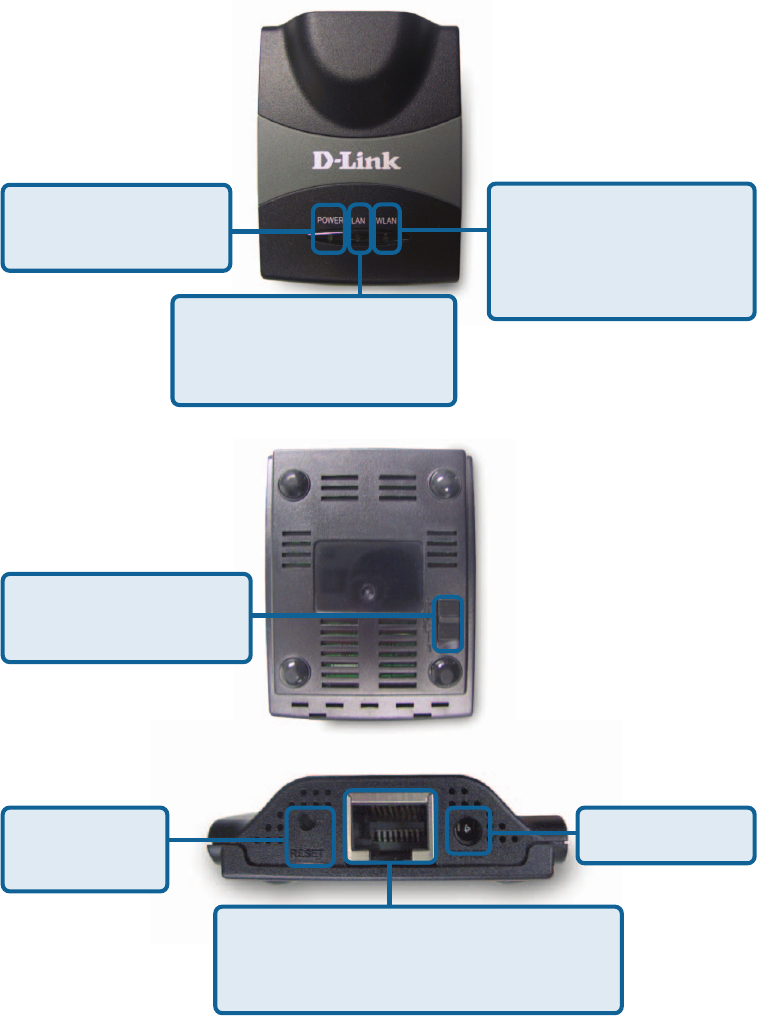

Mode Selection Switch:
Used to select AP,
client, or router mode.
LAN Port
This is the connection for Ethernet cables to
your Ethernet-enabled device. When in Router
mode, this port functions as a WAN port.
Receptor for
Power Adapter
Power LED: Solid
indicates a connection
to a good power source.
Top Panel
Rear Panel
LAN LED: Solid indicates an
Ethernet connection. Blinking
indicates activity on the
Ethernet network.
WLAN LED: A solid light
indicates that the wireless
segment is ready. This LED
blinks during wireless data
transmission.
Reset Button:
Used to restore
default settings.
9
Please remember that D-Link AirPlus G wireless devices are pre-configured to
connect together, right out of the box, with their default settings.
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office)
Consult with your Cable or DSL provider for proper installation of the modem
If you are connecting a desktop computer in your network, you can install the
D-Link AirPlus G DWL-G510 wireless PCI adapter into an available PCI slot on
your desktop computer.
(See the Quick Installation Guide included with the DWL-G510.)
Install the drivers for the wireless Cardbus adapter into a laptop computer.
(e.g, the DWL-G630; See the Quick Installation Guide included with the
DWL-G630.)
22
22
211
11
1
33
33
3
44
44
4
Getting Started - in AP mode

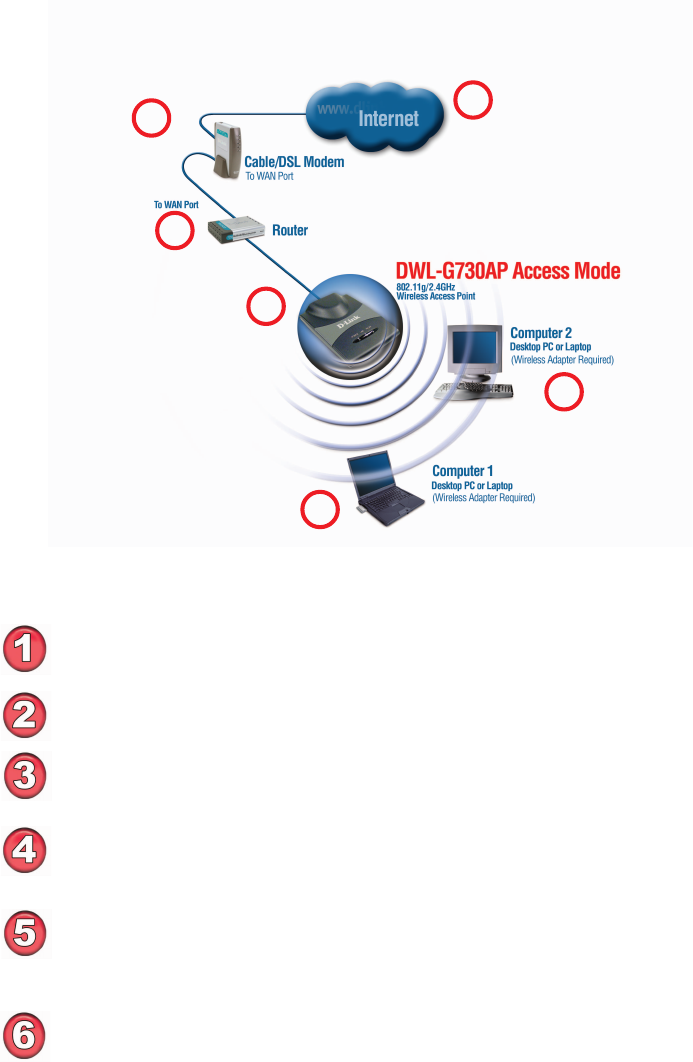

Connect the router to the D-Link AirPlus G DWL-G730AP (in access point mode).
(See the Quick Installation Guide included with the DWL-G730AP.)
For a typical wireless setup at home (as shown above), please do the following:
55
55
5
Connect the Cable or DSL modem to your broadband router (see the Quick
Installation Guide included with your router.)
66
66
6
An Example of a Wireless Infrastructure Network
10
Please remember that D-Link AirPlus G wireless devices are pre-configured to
connect together, right out of the box, with their default settings.
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office)
Consult with your Cable or DSL provider for proper installation of the modem
An Example of a Wireless Infrastructure Network
22
22
211
11
1
33
33
3
44
44
4
Getting Started - in Client mode

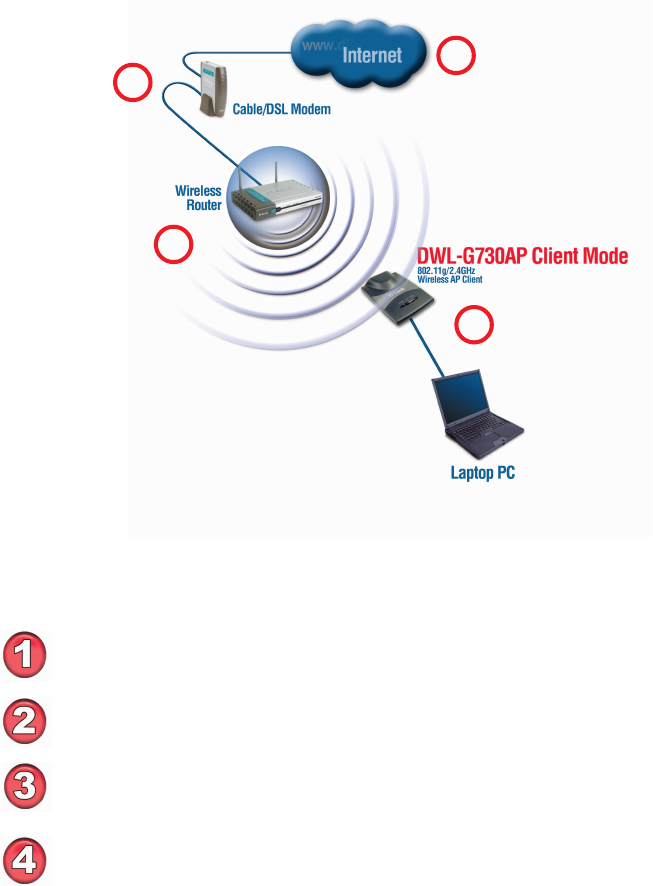

Connect the D-Link AirPlus G DWL-G730AP (in client mode) to your laptop.
(See the Quick Installation Guide included with the DWL-G730AP.)
For a typical wireless setup at home (as shown above), please do the following:
Connect the Cable or DSL modem to your broadband router (see the Quick
Installation Guide included with your router.)
11
Please remember that D-Link AirPlus G wireless devices are pre-configured to
connect together, right out of the box, with their default settings.
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office)
Consult with your Cable or DSL provider for proper installation of the modem.
If you are connecting a desktop computer in your network, you can install the
D-Link AirPlus G DWL-G510 wireless PCI adapter into an available PCI slot on
your desktop computer.
(See the Quick Installation Guide included with the DWL-G510.)
Install the drivers for the wireless Cardbus adapter into a laptop computer.
(e.g, the DWL-G630; See the Quick Installation Guide included with the
DWL-G630.)
An Example of a Wireless Infrastructure Network
22
22
2
11
11
1
33
33
3
44
44
4

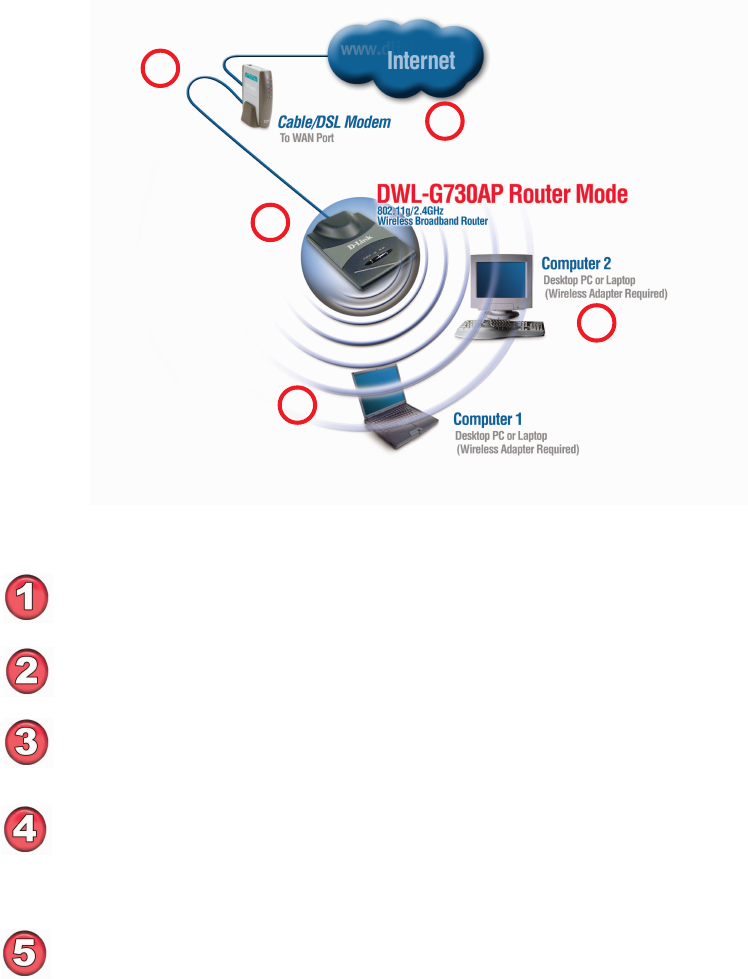

Getting Started - in Router mode
Connect the modem to the D-Link AirPlus G DWL-G730AP (in router mode).
(See the Quick Installation Guide included with the DWL-G730AP.)
For a typical wireless setup at home (as shown above), please do the following:
55
55
5
12

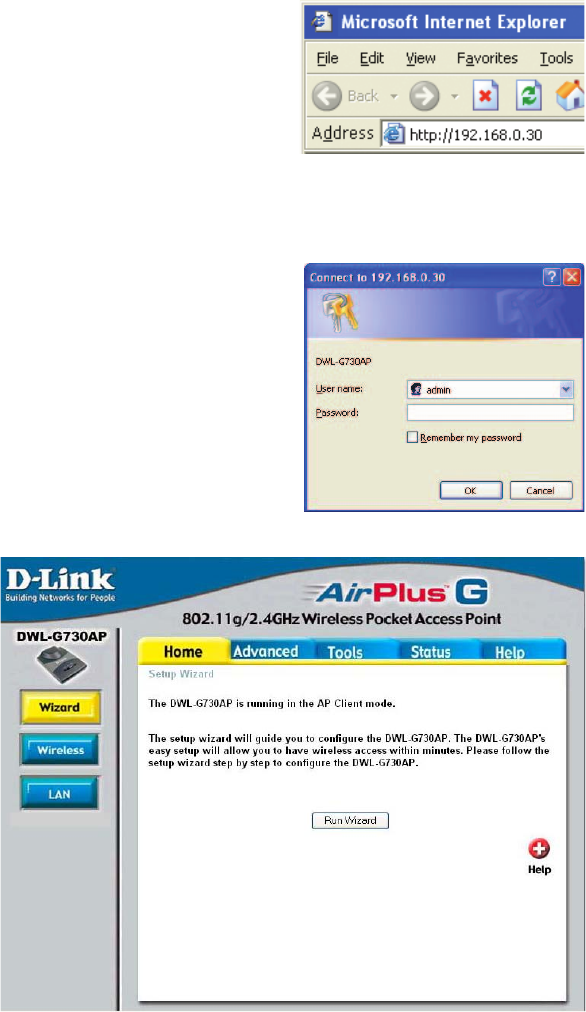

After you have completed the initial installation and the Setup Wizard (as illustrated in
the Quick Installation Guide that is included with the DWL-G730AP), and you have
selected AP Mode, you can access the configuration menu, at any time, by opening
the web-browser and typing in the IP address of the DWL-G730AP.
The DWL-G730AP’s default IP address is shown below:
Open the web browser
Type in the IP address of the
DWL-G730AP. (192.168.0.30).
Type admin in the
User Name field
Leave the Password
blank
Click OK
Using the Configuration Utility
in AP Mode
Note: If you have changed the default IP address assigned to the DWL-G730AP, make
sure to enter the correct IP address.
The Home>Wizard screen
will appear. Please refer to
the Quick Installation Guide
for more information
regarding the Setup Wizard.
http://192.168.0.30
13
Using the Configuration Utility in AP Mode (continued)

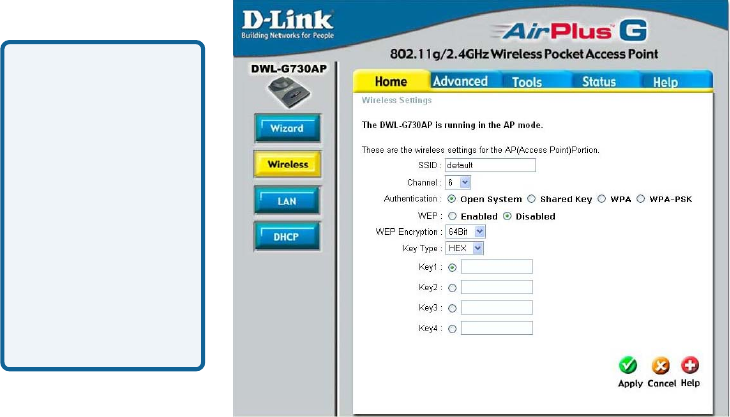

Home > Wireless
ASCII (American
Standard Code for
Information
Interchange) is a
code for
representing
English letters as
numbers from 0-127
Hexadecimal
digits consist of
the numbers 0-9
and the letters A-F
SSID: (Service Set Identifier) default is the default setting. The SSID is a unique
name that identifies a network. All devices on a network must share the same SSID
name in order to communicate on the network. If you choose to change the SSID from
the default setting, input your new SSID name in this field.
Channel: Channel 6 is the default channel. Input a new number if you want to change
the default setting. All devices on the network must be set to the same channel to
communicate on the network.
Authentication:
WEP: Select Enabled or Disabled.
WEP Encryption: Select 64-bit or 128-bit WEP encryption.
Key Type: Select Hexadecimal or ASCII key type
Keys 1-4: Input up to four encryption keys. You will select one of these to be the active key.
Apply: Click Apply to apply the changes.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication only to those devices
that share the same WEP settings.
Select WPA to select Wi-Fi Protected Access in conjunction with a
RADIUS server in your network
Select WPA-PSK to select Wi-Fi Protected Access without a
RADIUS server.
14
SSID: (Service Set
Identifier) Default is the
default setting. The SSID is
a unique name that
identifies a network. All
devices on a network must
share the same SSID
name in order to
communicate on the
network. If you choose to
change the SSID from the
default setting, input your
new SSID name in this
field.
Channel: Channel 6 is the
default channel. Input a new
number if you want to change
the default setting. All
devices on the network must be set to the same channel to communicate on the network.
Authentication:
When WPA is selected fill in the following fields:
RADIUS Server 1 IP: Enter the IP address of the RADIUS server.
Port: Enter the Port number here.
Shared Secret: Enter the shared secret here.
Apply: Click Apply to apply the changes.
Using the Configuration Utility in AP Mode (continued)

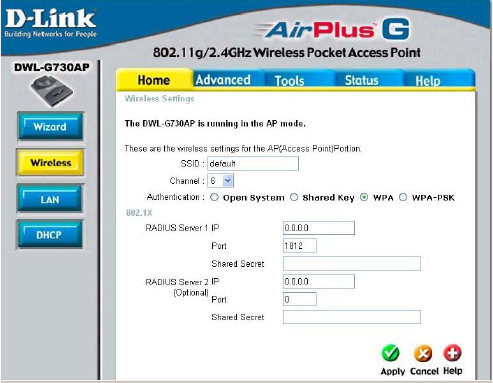

Home > Wireless > WPA
Select WPA to select Wi-Fi Protected Access in conjunction with a
RADIUS server in your network.
RADIUS Server 2 IP: Enter the IP address of the RADIUS server.
Port: Enter the Port number here.
Shared Secret: Enter the shared secret here.
15
SSID: (Service Set
Identifier) Default is
the default setting.
The SSID is a unique
name that identifies a
network. All devices
on a network must
share the same SSID
name in order to
communicate on the
network. If you
choose to change the
SSID from the default
setting, input your
new SSID name in
this field.
Channel: Channel 6
is the default channel.
Input a new number if you want to change the default setting. All devices on the network
must be set to the same channel to communicate on the network.
Authentication:
When WPA-PSK is selected fill in the following fields:
Passphrase: Enter the Passphrase here.
Confirmed Passphrase: Confirm the Passphrase here.
Apply: Click Apply to apply the changes.
Using the Configuration Utility in AP Mode (continued)

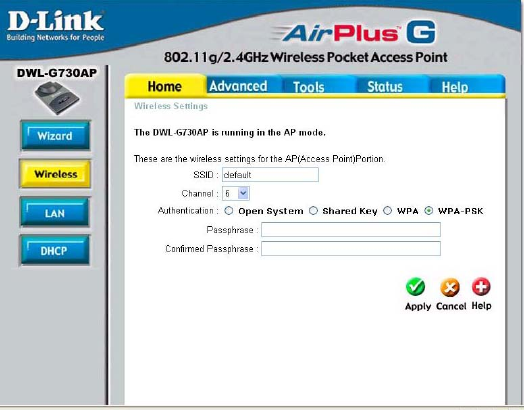

Home > Wireless > WPA-PSK
16
Dynamic IP Address: Select this option if you would like to have an IP Address
automatically assigned to the DWL-G730AP by a DHCP server in your network.
DHCP stands for Dynamic Host Configuration Protocol. It is a protocol for assigning
dynamic IP addresses “automatically.” With a DHCP Server there is no need to
manually assign an IP Address.
Static IP Address: Select this option if you are manually assigning an IP address.
IP Address: 192.168.0.30 is the default IP address of the access point.
Subnet Mask: 255.255.255.0 is the default Subnet Mask. All devices on the
network must have the same subnet mask to communicate on the network.
Gateway: Enter the IP address of the router in your network.
DNS Server:

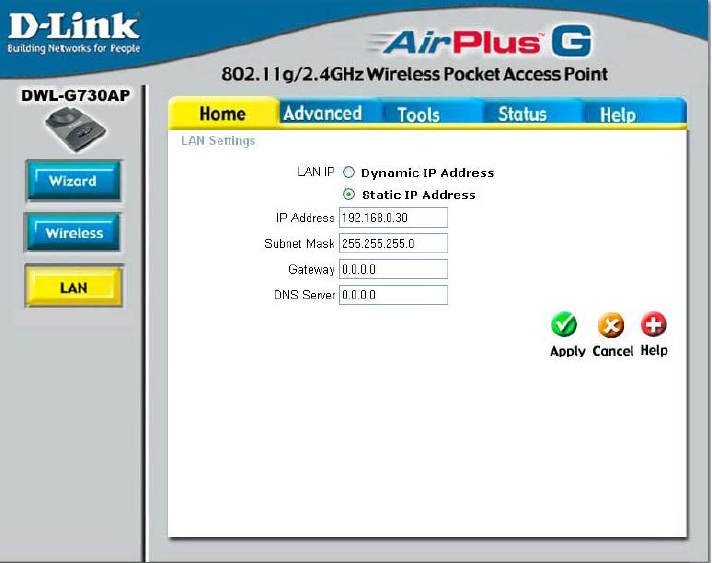

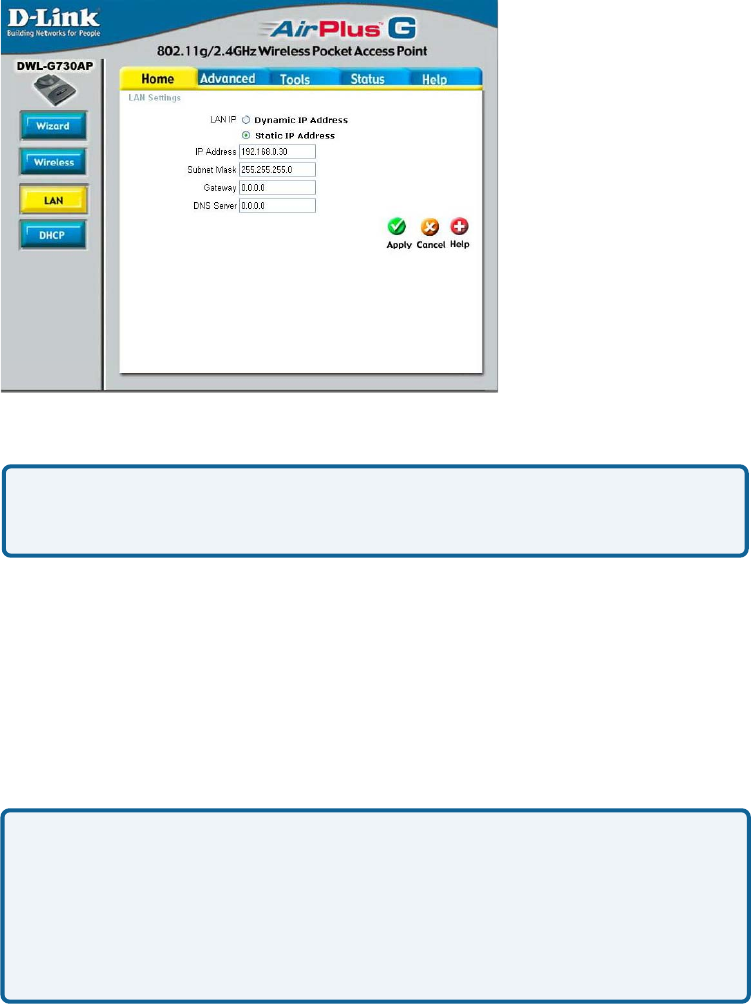

Home > LAN
IP Address
If you need to assign static IP addresses to the devices in your network, please
remember that the IP address for each computer or device must be in the same IP
address range as all the devices in the network. Each device must also have the same
subnet mask. For example: Assign the first computer an IP address of 192.168.0.2
and a subnet mask of 255.255.255.0, the second device an IP address of 192.168.0.3
and a subnet mask of 255.255.255.0, and so on. Note: Devices that are assigned
the same IP address may not be visible on the network.
Enter the IP address of the DNS server. The DNS server
translates domain names such as www.dlink.com into IP addresses.
Using the Configuration Utility in AP Mode (continued)
17

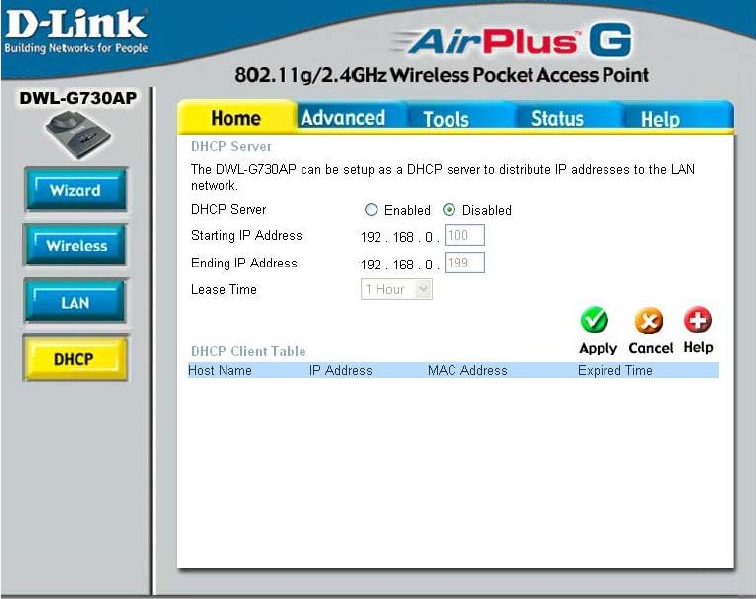

Home > DHCP
DHCP Server: Select Enabled or Disabled. Disabled is the default setting.
If you want to use the DWL-G730AP as a DHCP server, to automatically assign
dynamic IP addresses on the network, you will select Enabled.
Starting IP Address: If you have enabled the DHCP server function, enter the
starting point of the IP address range for your network.
Ending IP Address: Enter the ending IP address of your IP address range, if you
have enabled the DHCP function of the DWL-G730AP.
Lease Time: Choose the length of time during which the DHCP function of the
DWL-G730AP automatically regenerates the IP addresses to the devices in your network.
DHCP Client Table: Lists the devices on your network that are receiving dynamic
IP addresses from the DWL-G730AP.
Using the Configuration Utility in AP Mode (continued)
18
Beacon Interval: Beacons
are packets sent by an access
point to synchronize a wireless
network. Specify a beacon
interval value. Default (100) is
recommended.
RTS Threshold: This value
should remain at its default
setting of 2432. If you encounter
inconsistent data flow, only
minor modifications to the value
range between 256 and 2432
are recommended.
Fragmentation: This value
should remain at its default
setting of 2346. If you experience
a high packet error rate, you may
slightly increase your fragmentation threshold within the value range of 256 to 2346.
Setting the fragmentation threshold too low may result in poor performance.
DTIM Interval (Beacon Rate): (Delivery Traffic Indication Message) Enter a value
between 1 and 255 (default is 3) for the Delivery Traffic Indication Message (DTIM.) A
DTIM is a countdown informing clients of the next window for listening to broadcast and
multicast messages.
TX Rates: Select the transmission rate for the network. The default setting is Auto.
Mode Setting: For utmost speed, select G Mode to include only 802.11g devices in
your network. Select Mix Mode to include 802.11g and 802.11b devices in your network.
Preamble: Short Preamble is the default setting. (High traffic networks should use
the shorter preamble type.) The preamble defines the length of the CRC block (Cyclic
Redundancy Check is a common technique for detecting data transmission errors) used
in communication between the access point and the wireless network adapters.

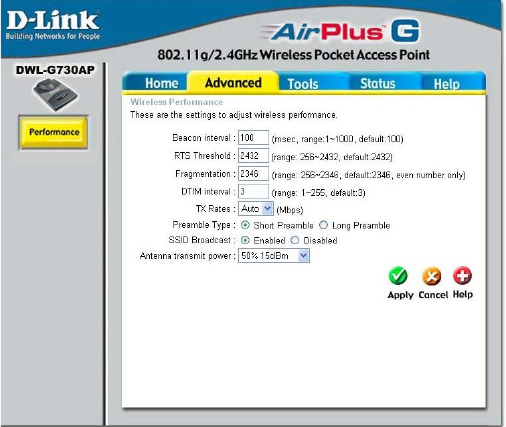

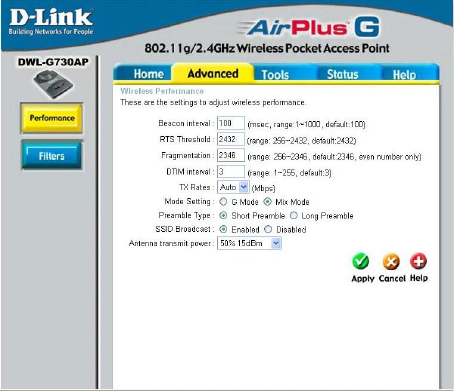

Advanced > Performance
SSID Broadcast: (Service Set Identifier) Enable or Disable (default) the broadcast of
the SSID name across the network. SSID is a name that identifies a wireless network.
All devices on a network must use the same SSID to establish communication.
Antenna Transmit Power: Select the transmission power of the antenna. Limiting
antenna power can be useful for security purposes.
Using the Configuration Utility in AP Mode (continued)
19
Use MAC Filters to allow or deny wireless clients (identified by their MAC addresses)
access to the DWL-G730AP.
You can manually add a MAC address or select the MAC address from the list of clients
that are currently connected to the router (Connected PCs).
The default setting is Disabled MAC Filters.
MAC Filter List: This list will display the MAC addresses that are in the selected filter.
Using the Configuration Utility in AP Mode (continued)
Advanced > Filters
20

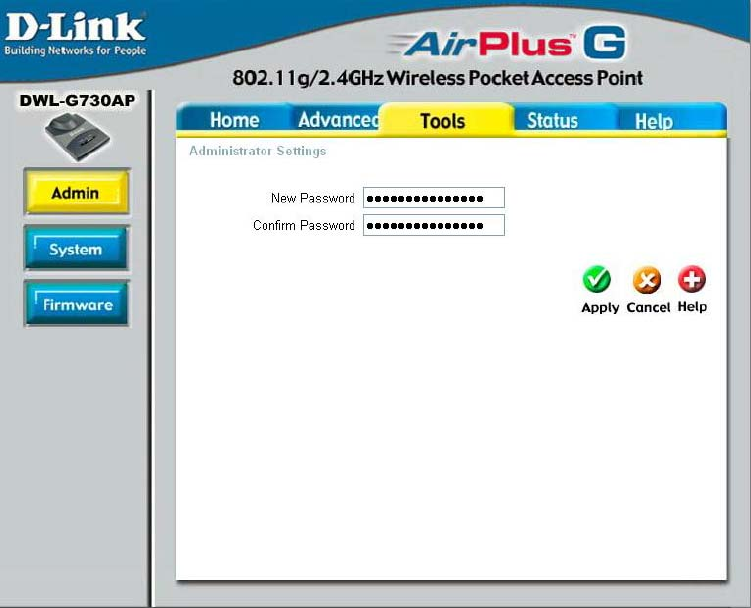

Tools > Admin
New Password: Enter the
new password.
Confirm Password:
Re-enter the password to
confirm it.

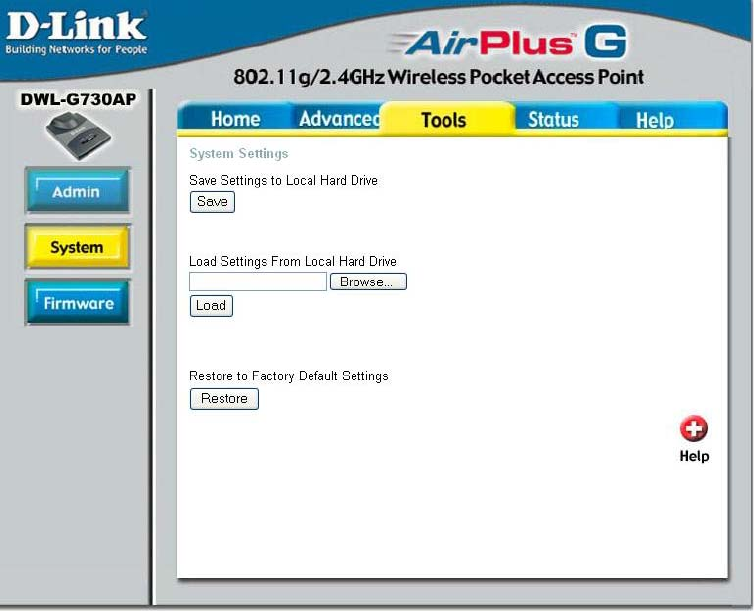

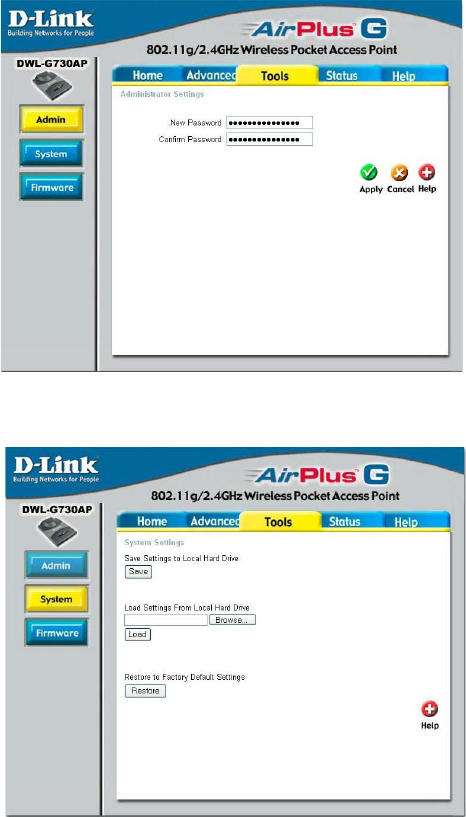

Tools > System
Save Settings: The current
system settings can be saved
as a file onto the local hard drive.
Load Settings: The saved file
or any other saved setting file
can be loaded back on the access
point. To reload a system settings
file, click on Browse to browse
the local hard drive and locate
the system file to be used. Click
Load when you have selected
the file to be loaded back onto
the access point.
Restore: You may also reset
the DWL-G730AP back to
factory settings by clicking on Restore. Make sure to save the unit’s settings before
clicking on Restore. You will lose your current settings when you click Restore.
Using the Configuration Utility in AP Mode (continued)
21
You can upgrade the
firmware of the
DWL-G730AP on this
page. When you click
Click here to check... in
this window you will be
connnected to
D-Link’s website,
where you can
download the latest
firmware update. After
you have completed
the firmware download
to your hard drive, click
Browse to browse
your local hard drive
and locate the
firmware to be used for
the update.
Click Apply.

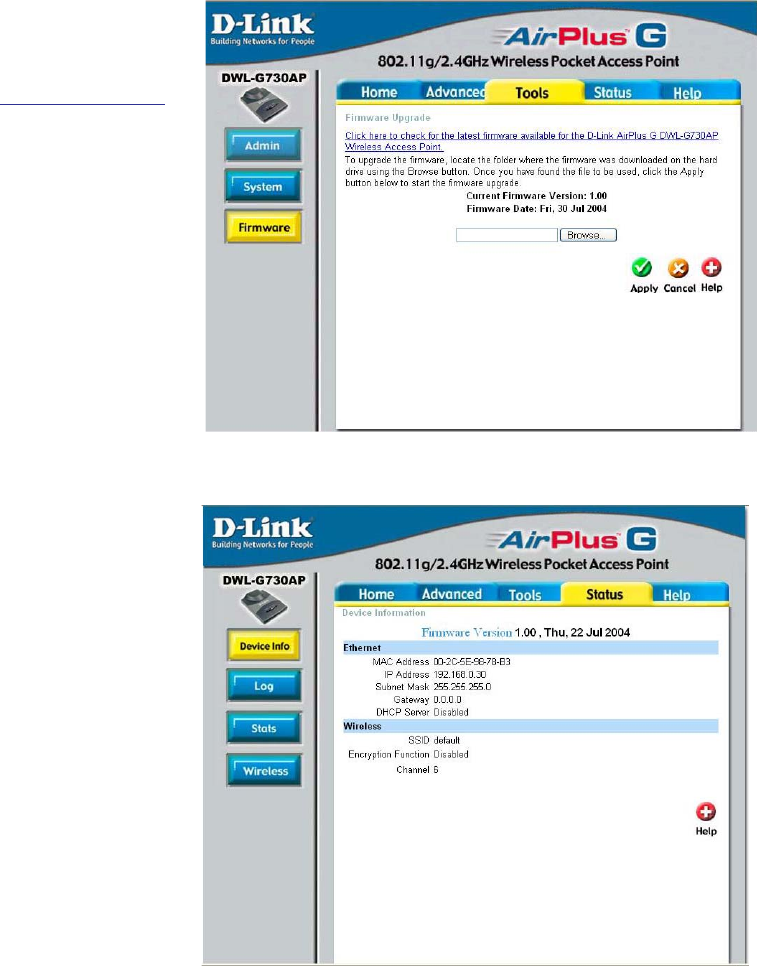

Tools > Firmware
Status > Device Info
This screen displays
the current firmware
version, and the
current wireless and
Ethernet settings of
the DWL-G730AP.
Using the Configuration Utility in AP Mode (continued)
22
Using the Configuration Menu

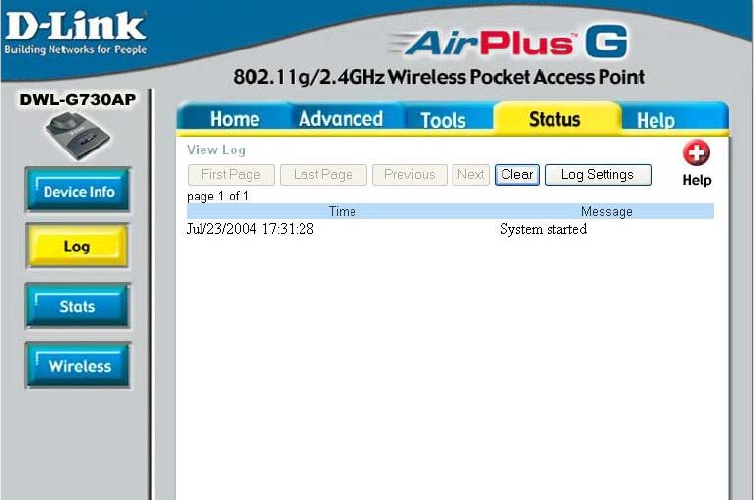

Status > Log
View Log
The DWL-G730AP keeps a running log of events and activities occurring on the AP. If the
device is rebooted, the logs are automatically cleared. You may save the log files under
Log Setting.
First Page - The first page of the log.
Last Page - The last page of the log.
Previous - Moves back one log page.
Next - Moves forward one log page.
Clear - Clears the logs completely.
Log Settings - Brings up the page to configure the logs.
Log Settings
Not only does the DWL-G730AP display the logs of activities and events, it can be
setup to send these logs to another location. The logs can be sent via email to an email
account.
Using the Configuration Utility in AP Mode (continued)
23

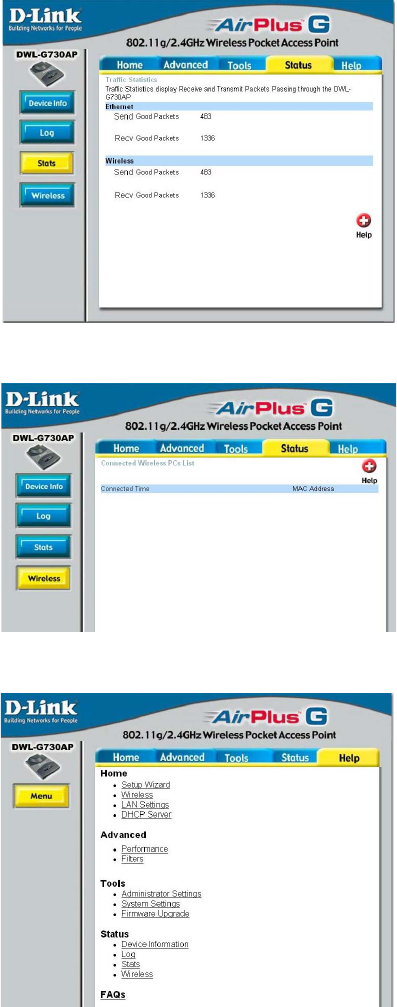

Status> Stats
Traffic Statistics
The DWL-G730AP keeps statistics
of traffic that passes through it. You
are able to view the amount of
packets that pass through the
Ethernet and wireless portions of
the network. The traffic counter will
reset if the device is rebooted.
Status > Wireless
Connected
Wireless PCs List
This list displays the MAC
addresses of connected PCs and
the length of time that they have
been connected.
Help
Select from this menu for extra
help.
Menu
Using the Configuration Utility in AP Mode (continued)
24

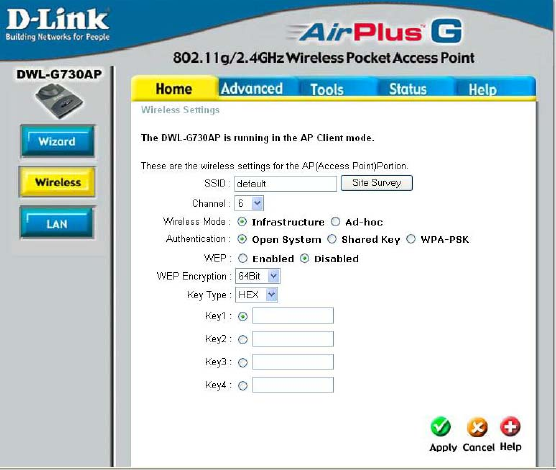

Using the Configuration Utility
in AP Client Mode
Whenever you want to configure your network or the
DWL-G730AP, you can access the Configuration
Menu by opening the Web browser and typing in
the IP address of the DWL-G730AP. The
DWL-G730AP default IP address is shown at right.
Home > Wizard
The Home>Wizard
screen will appear.
Please refer to the
Quick Installation
Guide for more
information
regarding the
Setup Wizard.
Open the Web browser
Type in the IP address of the AP Client (http://192.168.0.30)
Note: if you have changed the default IP address
assigned to the DWL-G730AP, make sure to enter the
correct IP address.
Type admin in the User Name field
Leave the Password blank
Click OK
25
Using the Configuration Utility in AP Client Mode (continued)
Home > Wireless
Keys 1-4- Input up to 4 WEP keys; select the one you wish to use
Key Type- Select HEX or ASCII
WEP Encryption- Select the level of encryption desired: 64-bit, or 128-bit
SSID-
Service Set Identifier
(SSID) is the name
designated for a
specific wireless
local area network
(WLAN). The SSID’s
factory default
setting is default.
The SSID can be
easily changed to
connect to an
existing wireless
network or to
establish a new
wireless network.
WEP- Wired Equivalent Privacy (WEP) is a wireless security protocol
for Wireless Local Area Networks (WLAN). WEP provides secu-
rity by encrypting the data that is sent over the WLAN. Select
Enabled or Disabled. Disabled is the default setting.
Channel-
6 is the default
channel. All devices
on the network must
share the same
channel. (Note: The wireless adapters will automatically scan and match the wireless
setting.)
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication only to those devices
that share the same WEP settings.
Select WPA-PSK to select Wi-Fi Protected Access without a
RADIUS server.
Authentication-
Wireless Mode- Select Infrastructure or Ad-Hoc mode.
26
Using the Configuration Utility in AP Client Mode (continued)
Home > Wireless > WPA-PSK
When WPA-PSK is selected fill in the following fields:
Passphrase: Enter the Passphrase here.
Confirmed Passphrase: Confirm the Passphrase here.
Apply: Click Apply to apply the changes.
Select Open System, Shared Key or WPA-PSK
Authentication-
Wireless Mode- Select Infrastructure or Ad-Hoc mode.
SSID-
Service Set Identifier (SSID) is
the name designated for a
specific wireless
local area network (WLAN).
The SSID’s factory default
setting is default. The SSID
can be easily changed to
connect to an existing
wireless network or to
establish a new wireless
network. Click Site Survey to
view the available networks.
Channel-
6 is the default channel. All
devices on the network must
share the same channel. (Note: The wireless adapters will automatically scan
and match the wireless setting.)
27
Using the Configuration Utility in AP Client Mode (continued)
Home > LAN
LAN is short for Local Area Network. This is considered your internal network. These are
the IP settings of the LAN interface for the DWL-G730AP. These settings may be referred
to as private settings. You may change the LAN IP address if needed. The LAN IP
address is private to your internal network and cannot be seen on the Internet.
Subnet Mask- The subnet mask of the LAN interface.
The default subnet mask is 255.255.255.0
IP Address- The IP address of the LAN interface. The default IP address is:
192.168.0.30
Gateway- The IP address of the router.
DNS Server- The IP address of the Domain Name Server.
)
28
Beacon Interval:
Beacons are packets sent
by an access point to
synchronize a wireless
network. Specify a beacon
interval value. Default (100)
is recommended.
RTS Threshold: This
value should remain at its
default setting of 2432. If
you encounter
inconsistent data flow,
only minor modifications
to the value range
between 256 and 2432
are recommended.
Fragmentation: This
value should remain at its default setting of 2346. If you experience a high packet error
rate, you may slightly increase your fragmentation threshold within the value range of 256
to 2346. Setting the fragmentation threshold too low may result in poor performance.
DTIM Interval: (Delivery Traffic Indication Message) Enter a value between 1 and 255
(default is 3) for the Delivery Traffic Indication Message (DTIM.) A DTIM is a countdown
informing clients of the next window for listening to broadcast and multicast messages.
TX Rates: Select the transmission rate for the network. The default setting is Auto.
Preamble Type: Short Preamble is the default setting. (High traffic networks should
use the shorter preamble type.) The preamble defines the length of the CRC block (Cyclic
Redundancy Check is a common technique for detecting data transmission errors) used
in communication between the access point and the wireless network adapters.
Using the Configuration Utility in AP Client Mode (continued)
Advanced > Performance
SSID Broadcast: (Service Set Identifier) Enable or Disable (default) the broadcast of
the SSID name across the network. SSID is a name that identifies a wireless network.
All devices on a network must use the same SSID to establish communication.
Antenna Transmit Power: Select the transmission power of the antenna. Limiting
antenna power can be useful for security purposes.
29
Using the Configuration Utility in AP Client Mode (continued)
Tools > Admin
Administrator Settings-
New Password- Enter the password.
Confirm Password- Enter the password again.
)
30
Click Browse to find the settings, then click Load
Using the Configuration Utility in AP Client Mode (continued)
Tools > System
The current system settings can be saved as a file onto the local hard drive. To reload a
system settings file, click on Browse to browse the local hard drive and locate the
system file to be used.
Click Save to save the current settings to the local hard drive
Save Settings to
Local Hard Drive-
Load Settings from
Local Hard Drive-
Restore to Factory
Default Settings- Click Restore to restore the factory default settings
