D Link IR510LA1 AC750 Portable Router and Charger User Manual DIR 510L A1 Manual V1 01 HQ
D Link Corporation AC750 Portable Router and Charger DIR 510L A1 Manual V1 01 HQ
D Link >
manual
Version 1.01 | 12/18/2013

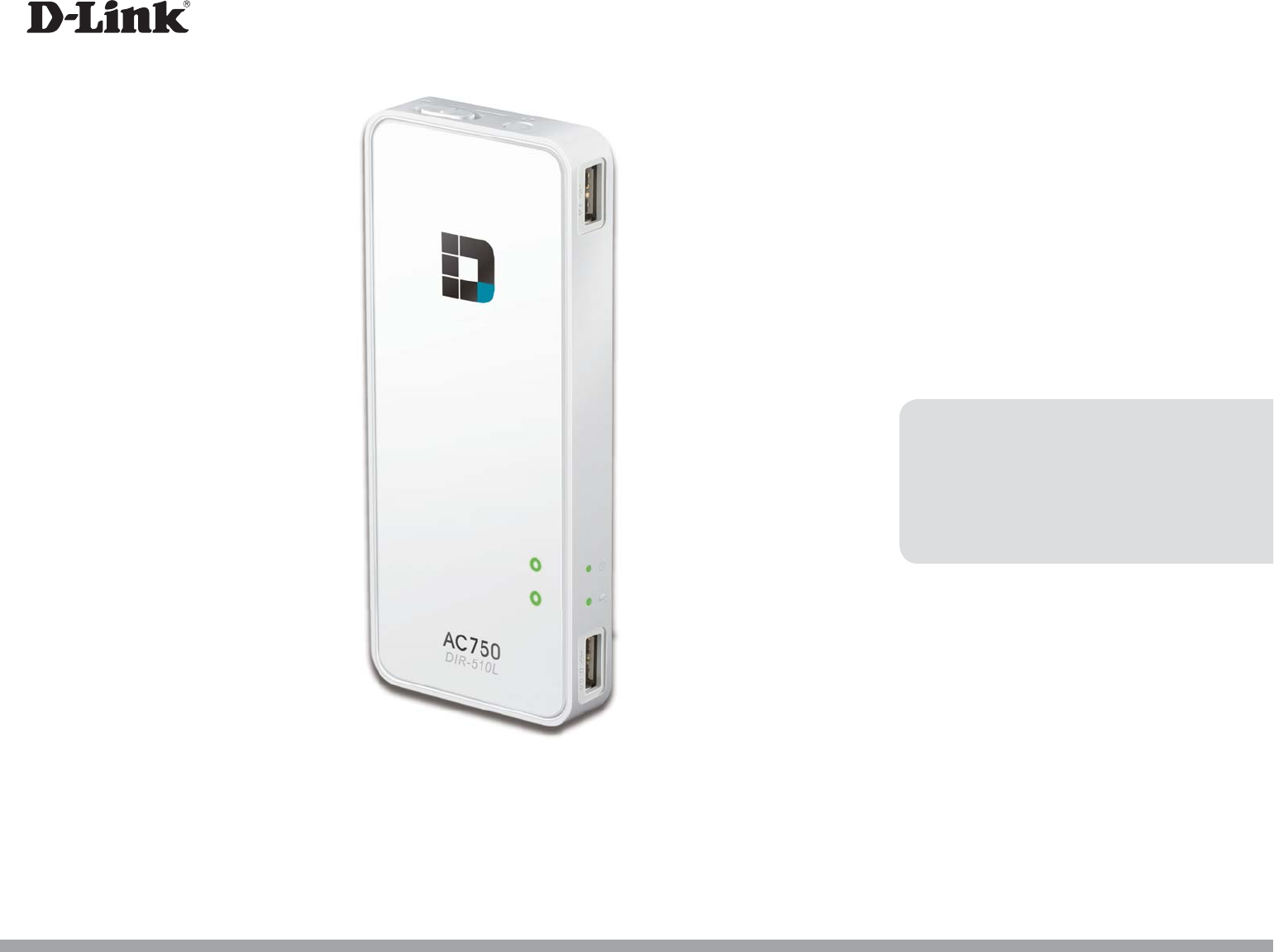

DIR-510L
User Manual
Wi-Fi AC750 Portable Router and Charger
iD-Link DIR-510L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2013 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.
Revision Date Description
1.0 7 November, 2013 tInitial release for Revision A1
1.01 18 December, 2013 tUpdate to Revision A1
Preface
iiD-Link DIR-510L User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................4

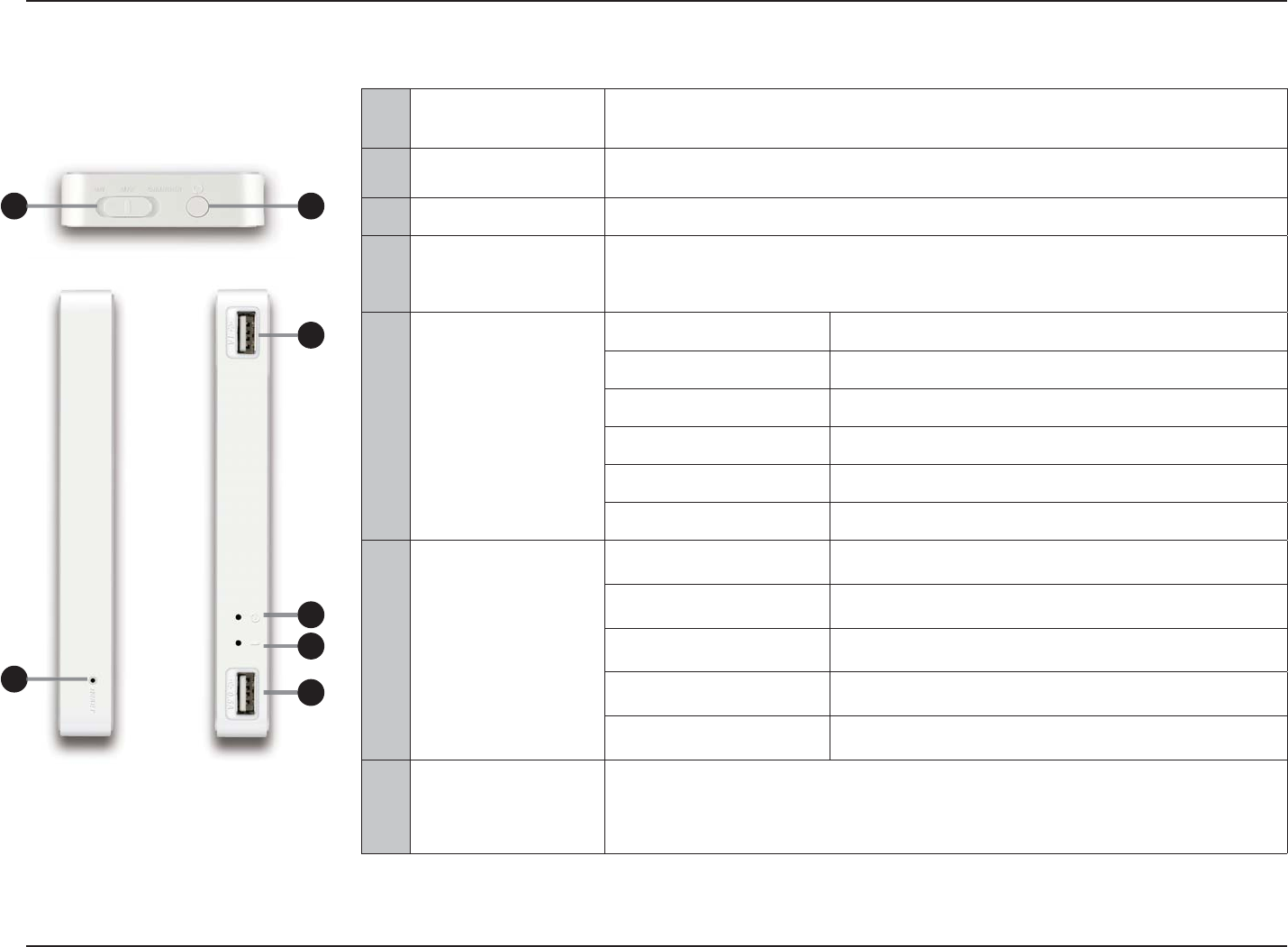

Hardware Overview ..................................................................... 5
Installation ......................................................................... 7
Wireless Installation Considerations ...................................... 7

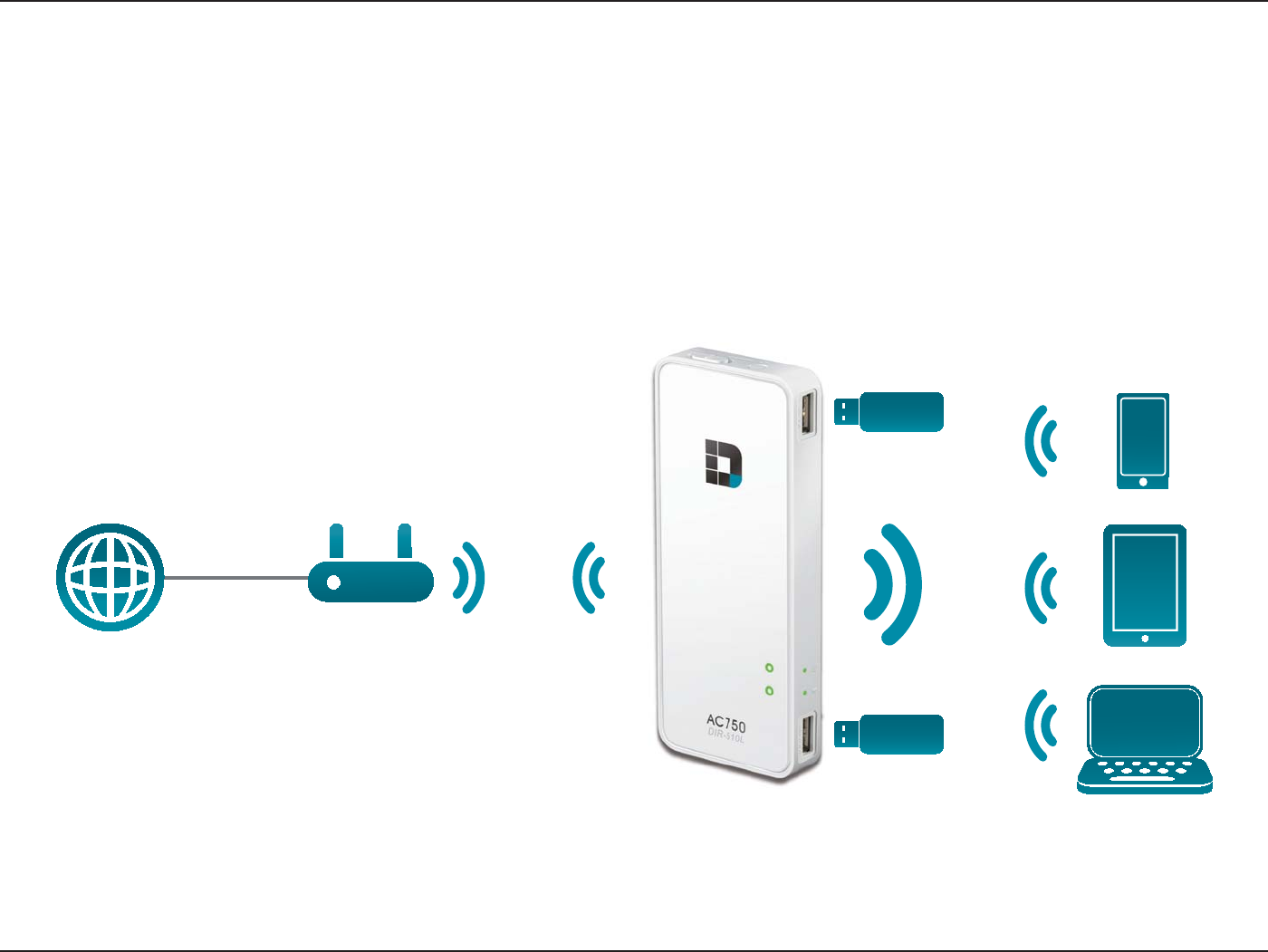

Connection Diagrams ................................................................. 8

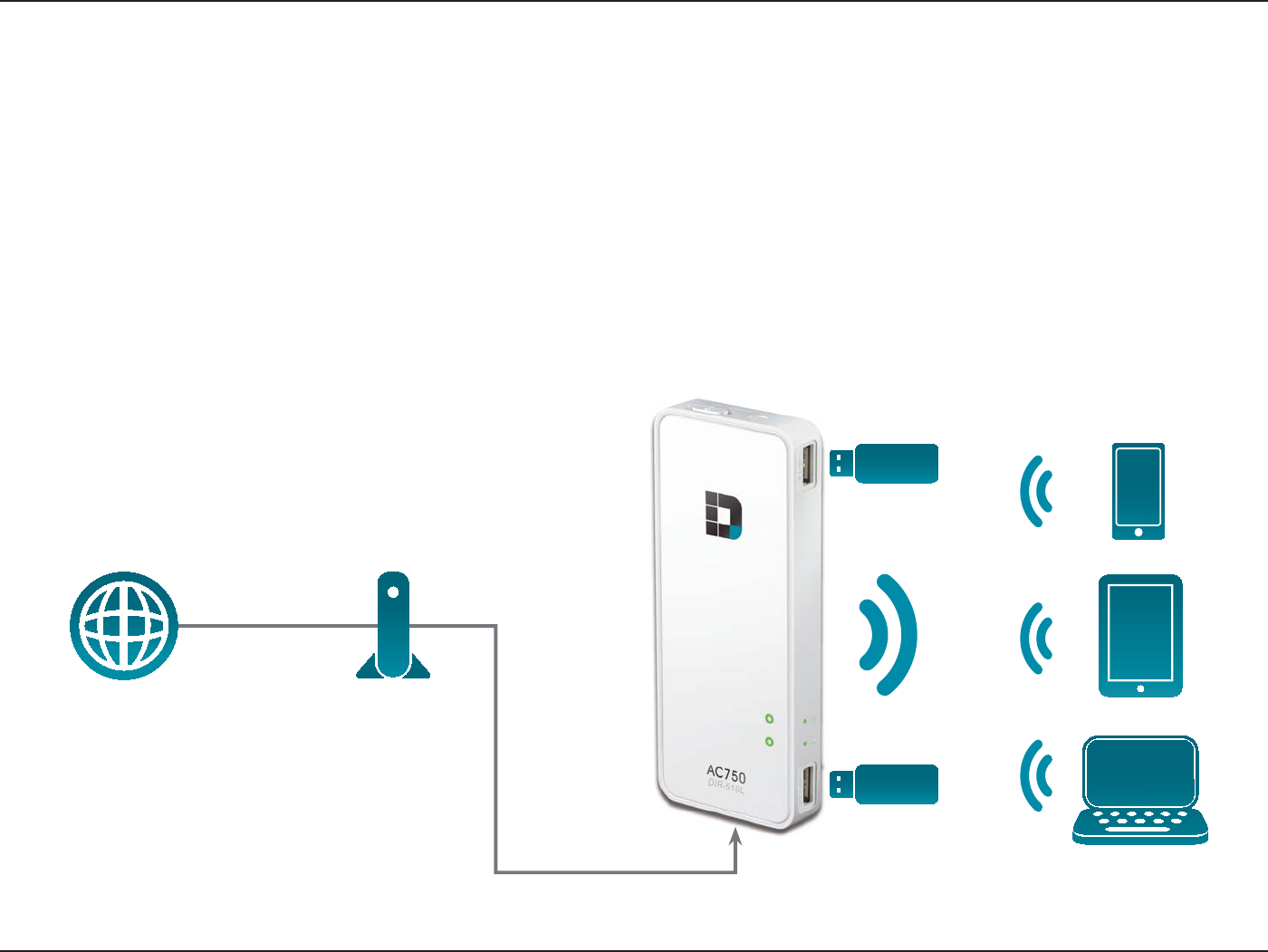

Broadband Router Setup ................................................... 8
Mobile Router Setup ........................................................... 9
Wi-Fi Hotspot Setup ...........................................................10
LAN Sharing Setup .............................................................11
Setting Up Your DIR-510L ........................................................12

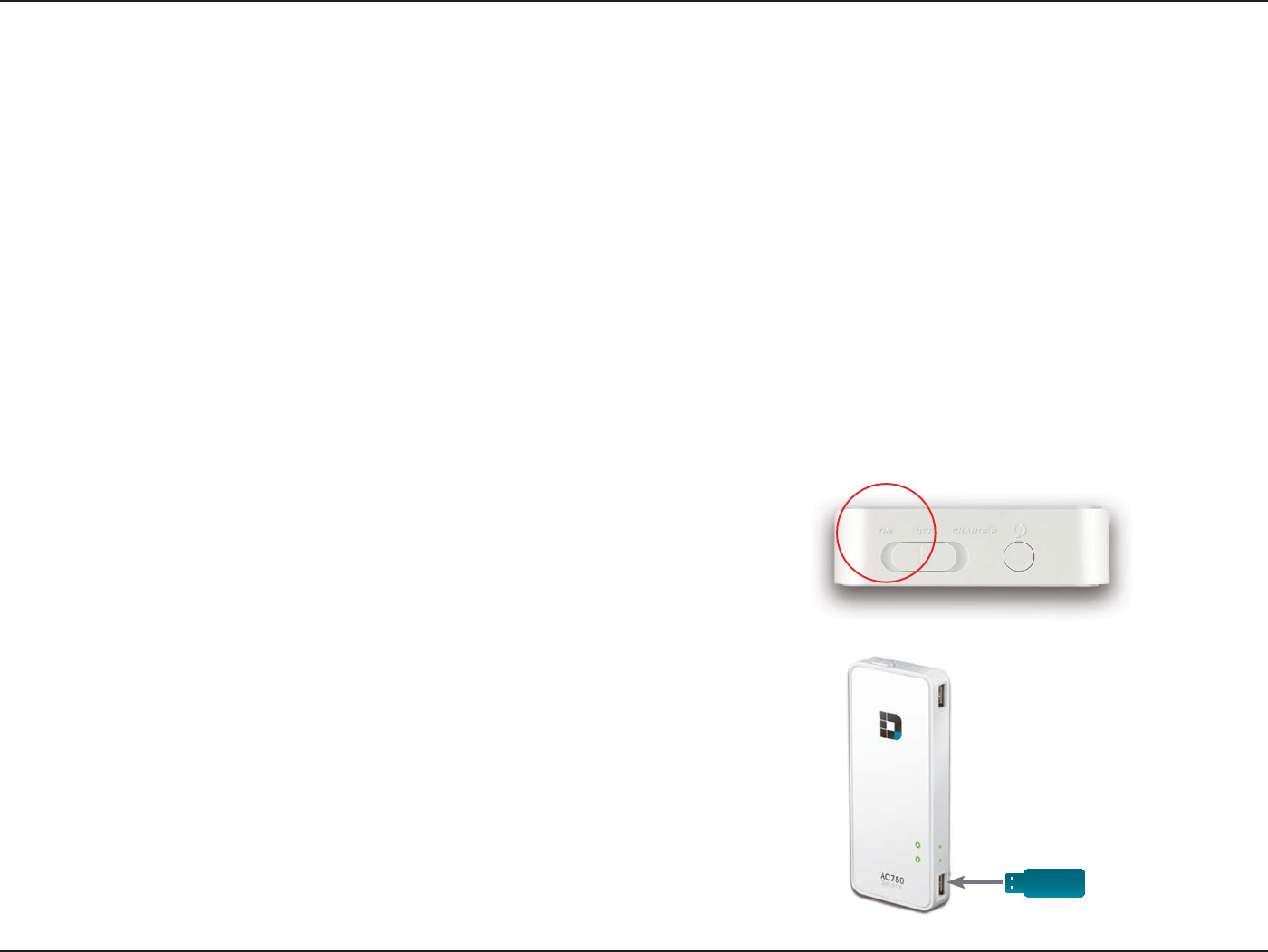

Connecting Your Equipment ..........................................13
Connecting to Your DIR-510L .........................................14
Sharing Files .....................................................................16

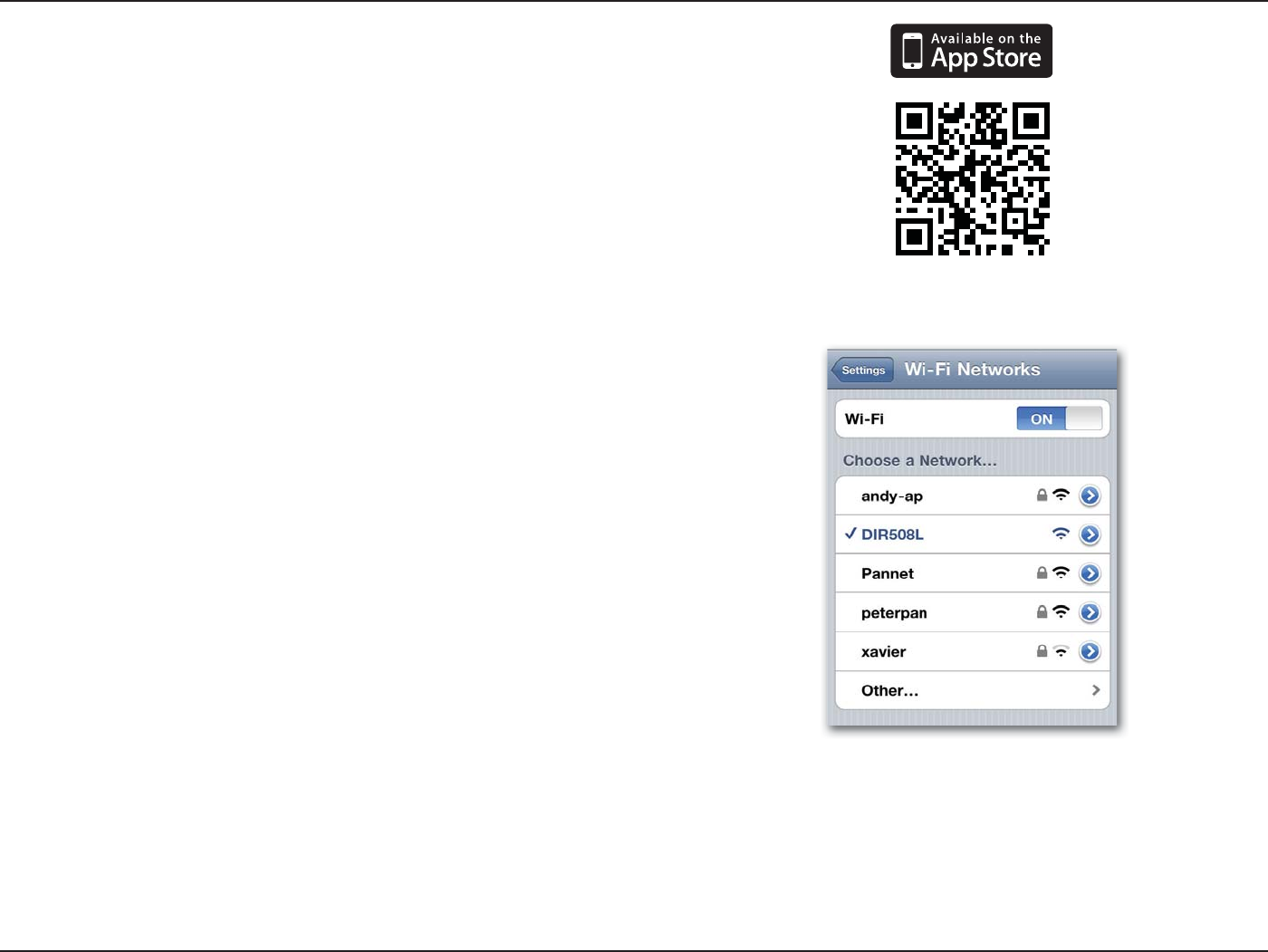

Using the mydlink SharePort app for iPad®, iPhone®, and
iPod touch® ...................................................................................16
Main Menu ............................................................................20
Documents ............................................................................21

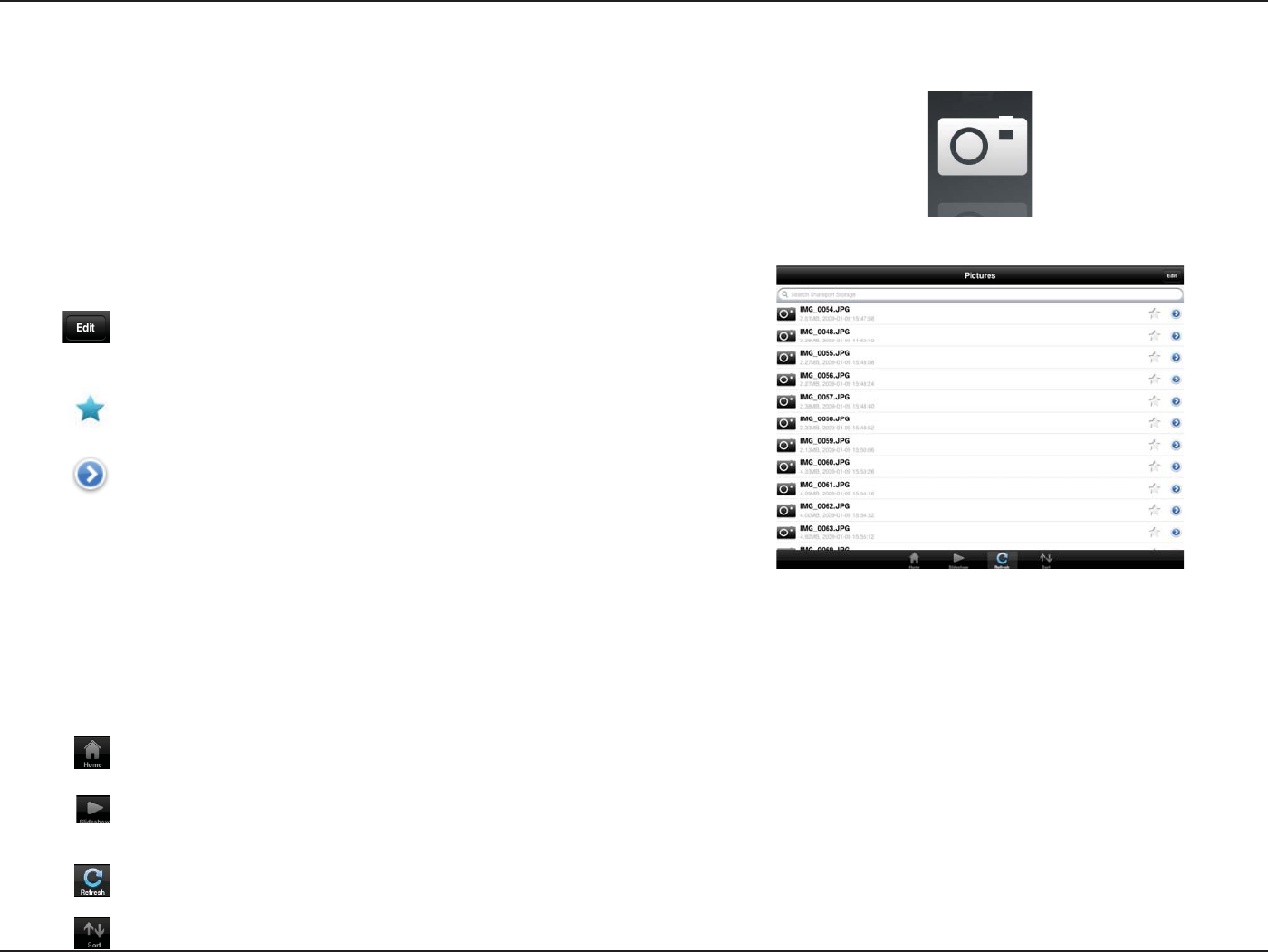

Pictures ...................................................................................23
Videos .....................................................................................25
Music .......................................................................................27

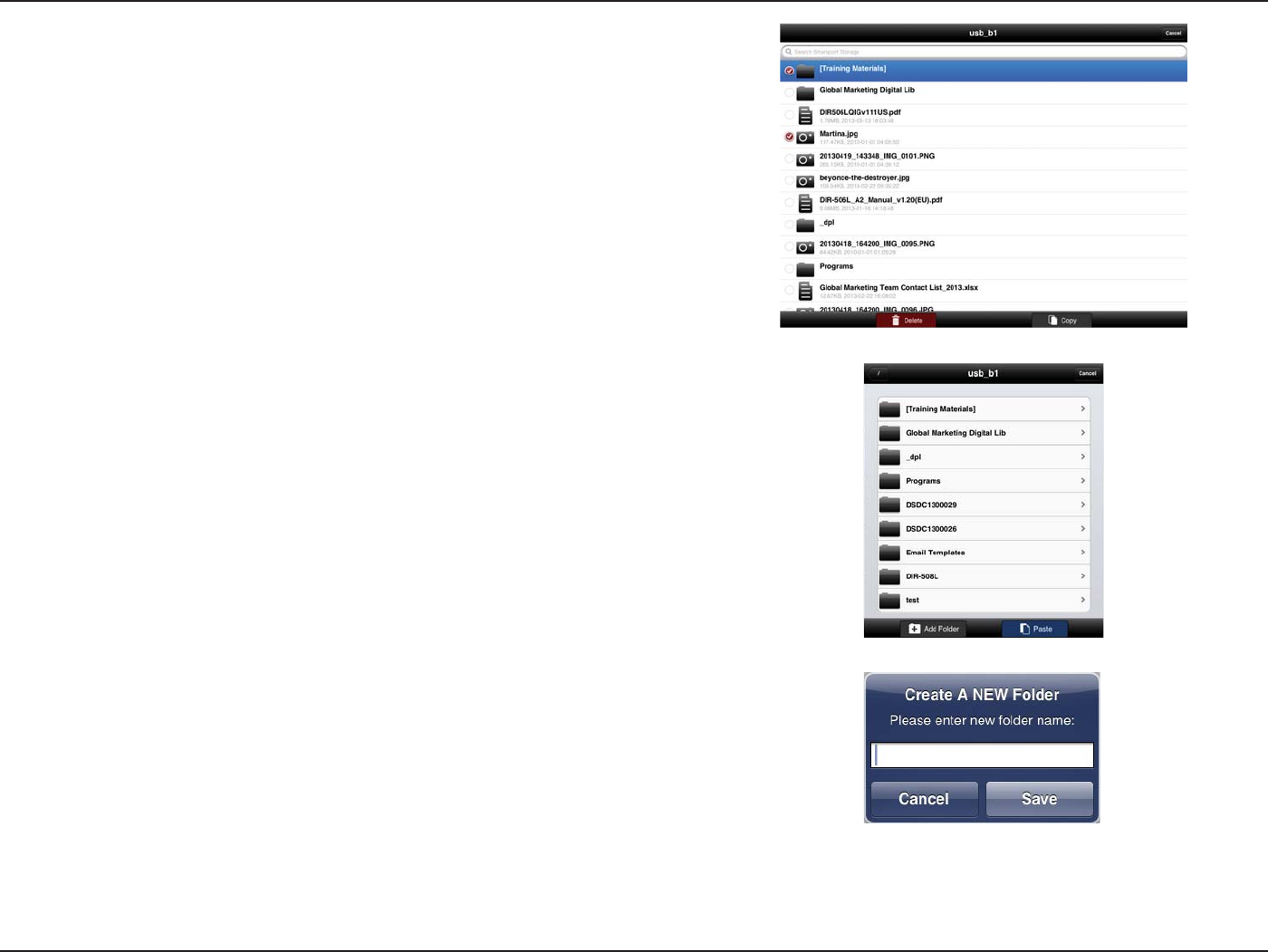

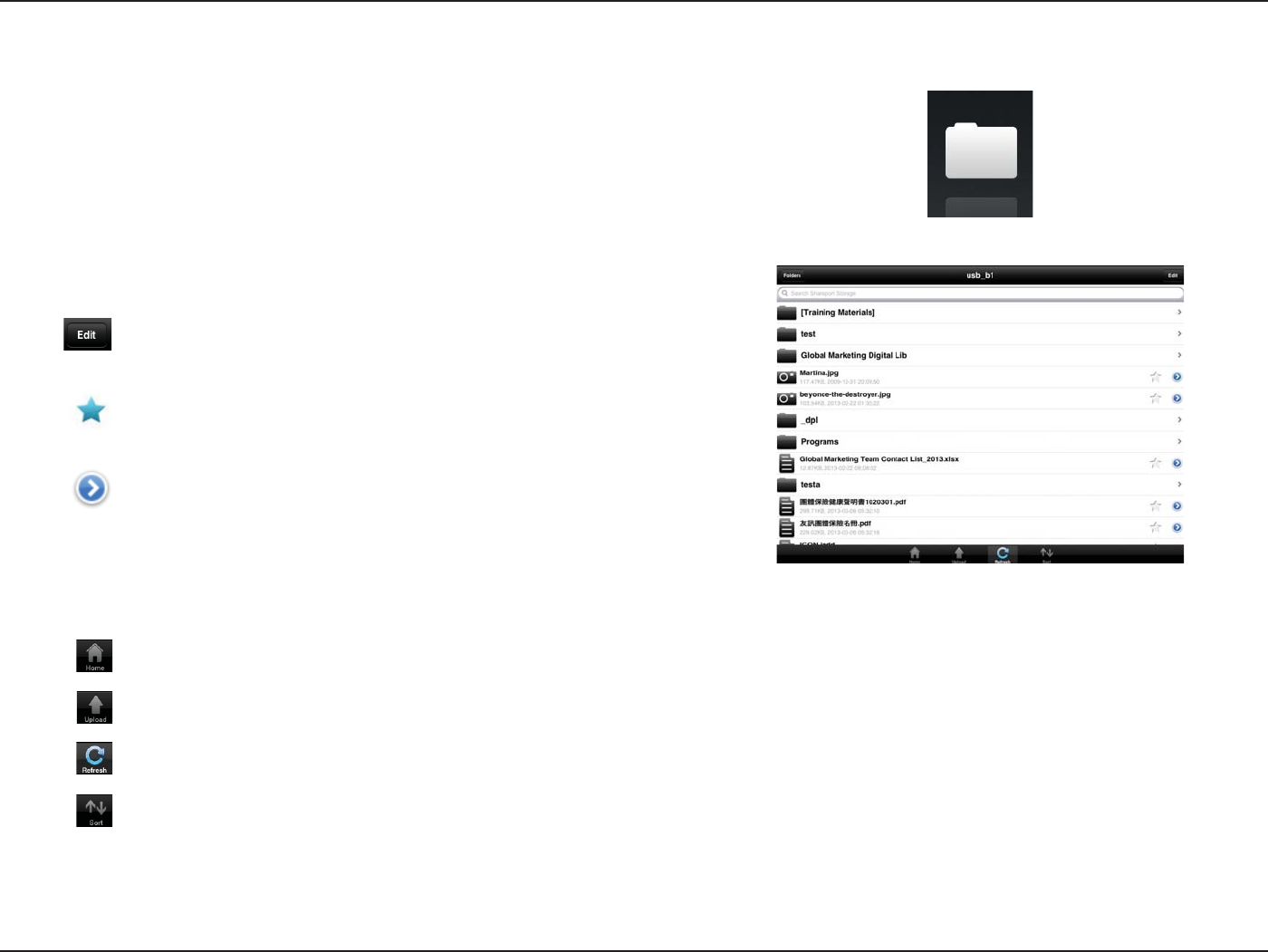

Folders ....................................................................................30

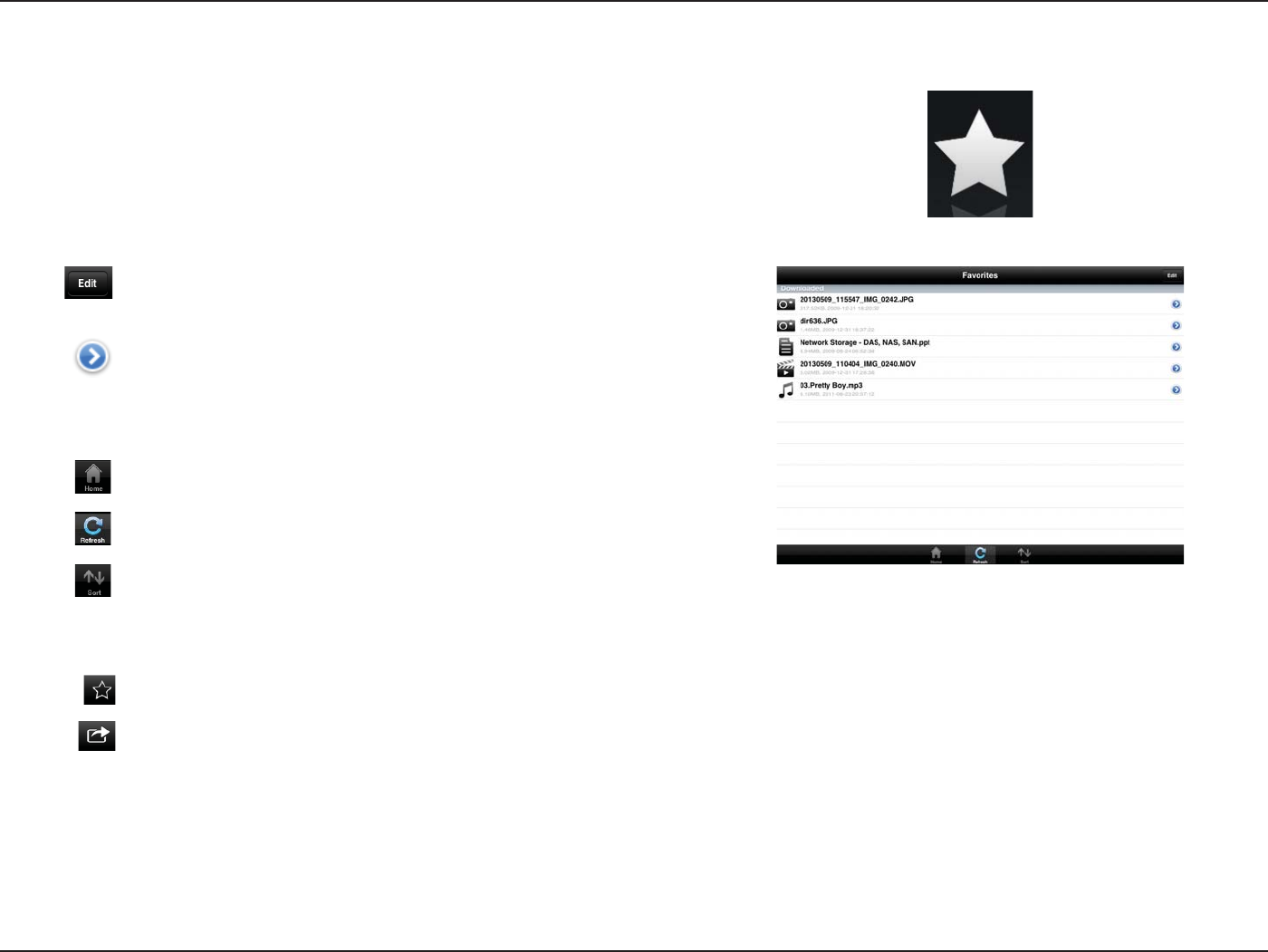

Favorites .................................................................................33

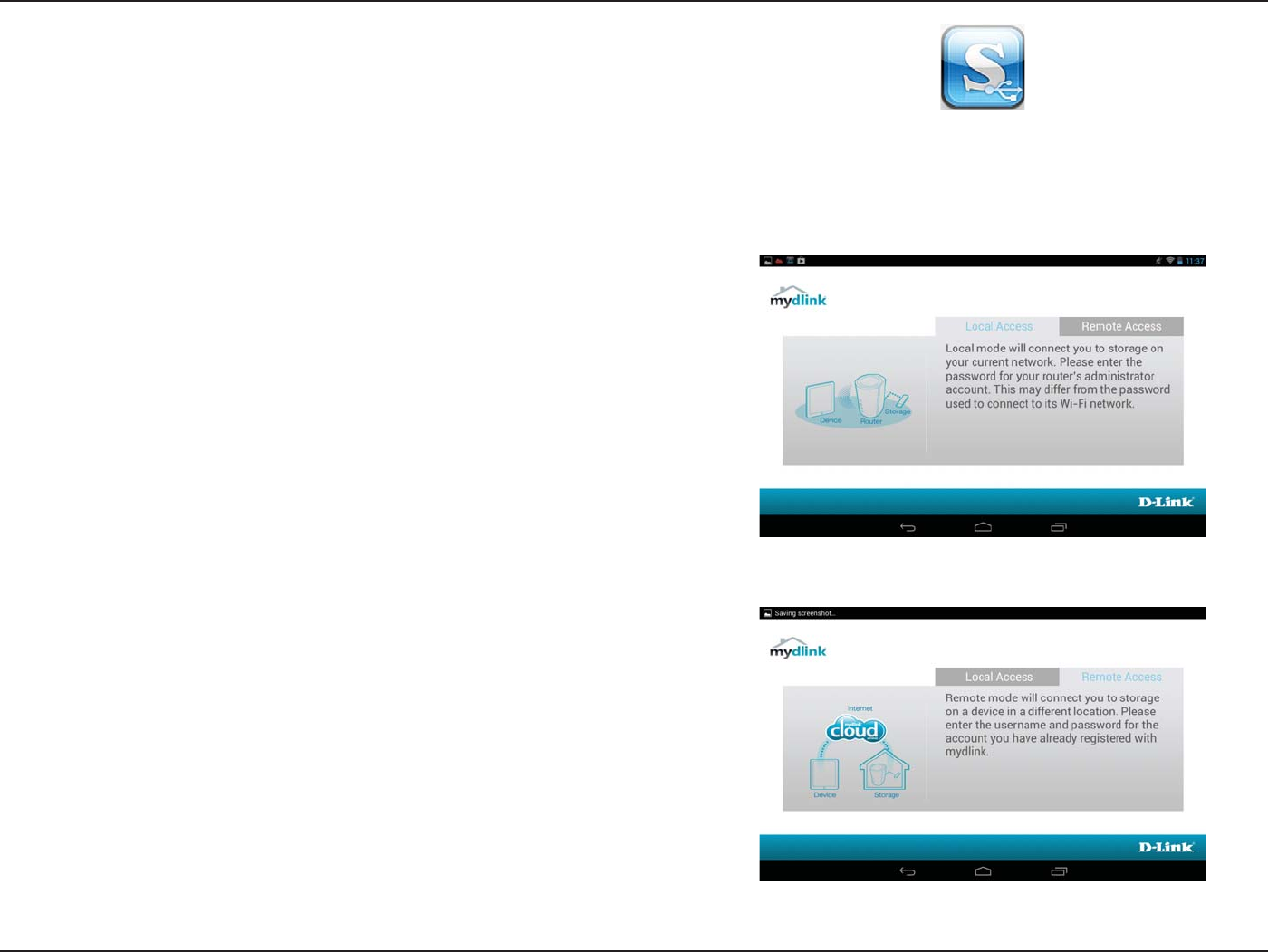

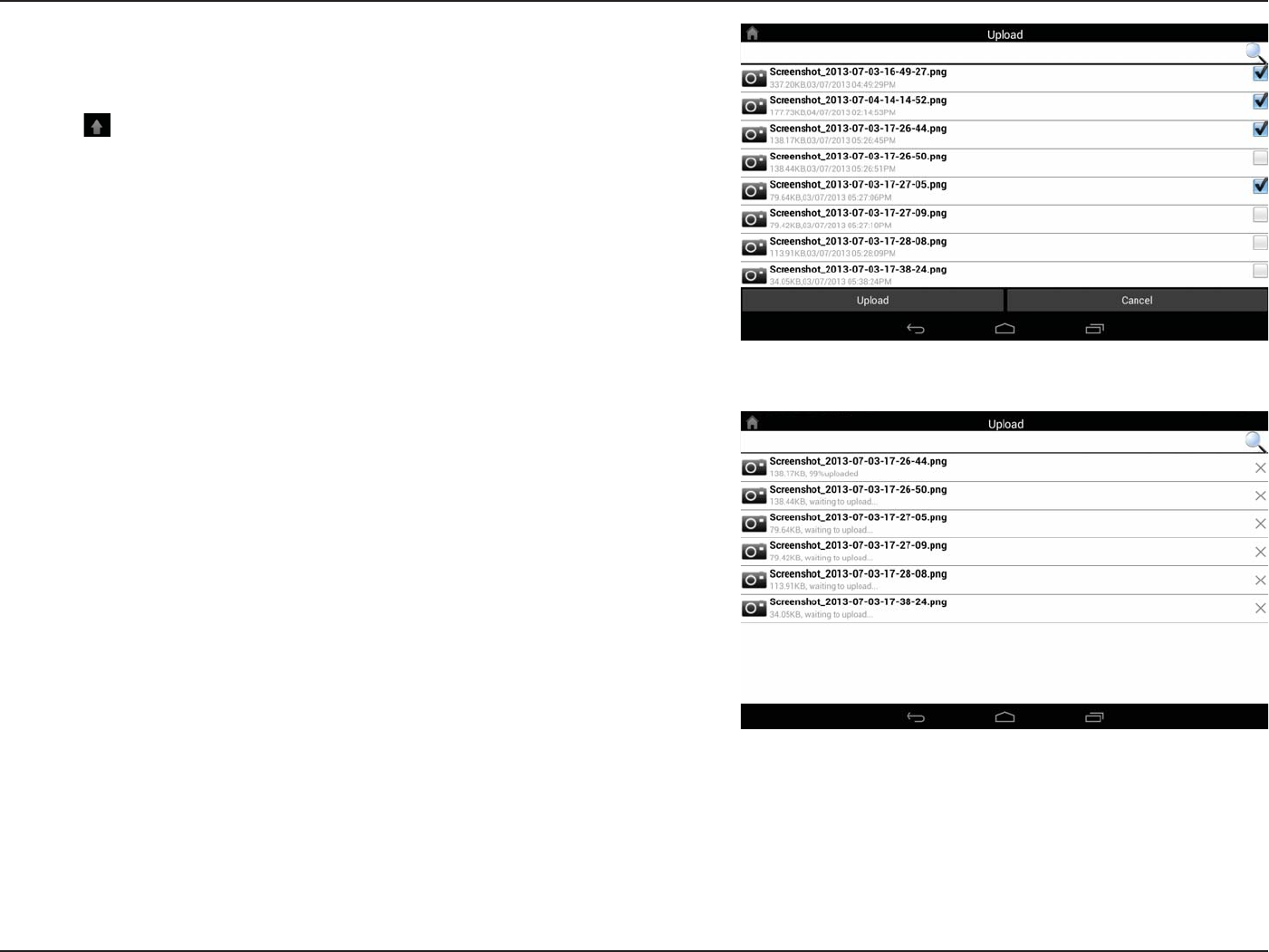

Using the mydlink SharePort app for Android™ ..............34

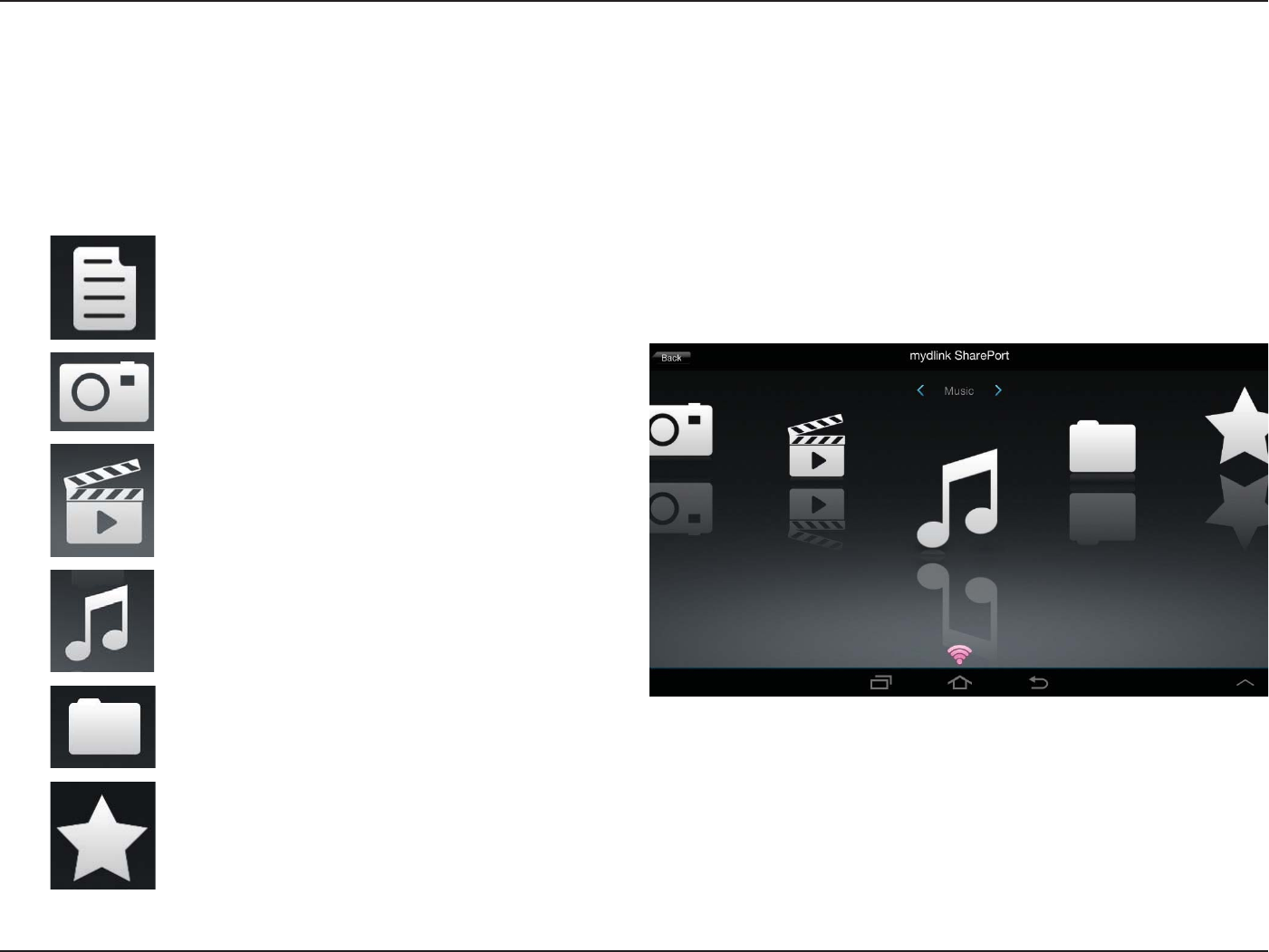

Main Menu ............................................................................38
Documents ............................................................................39

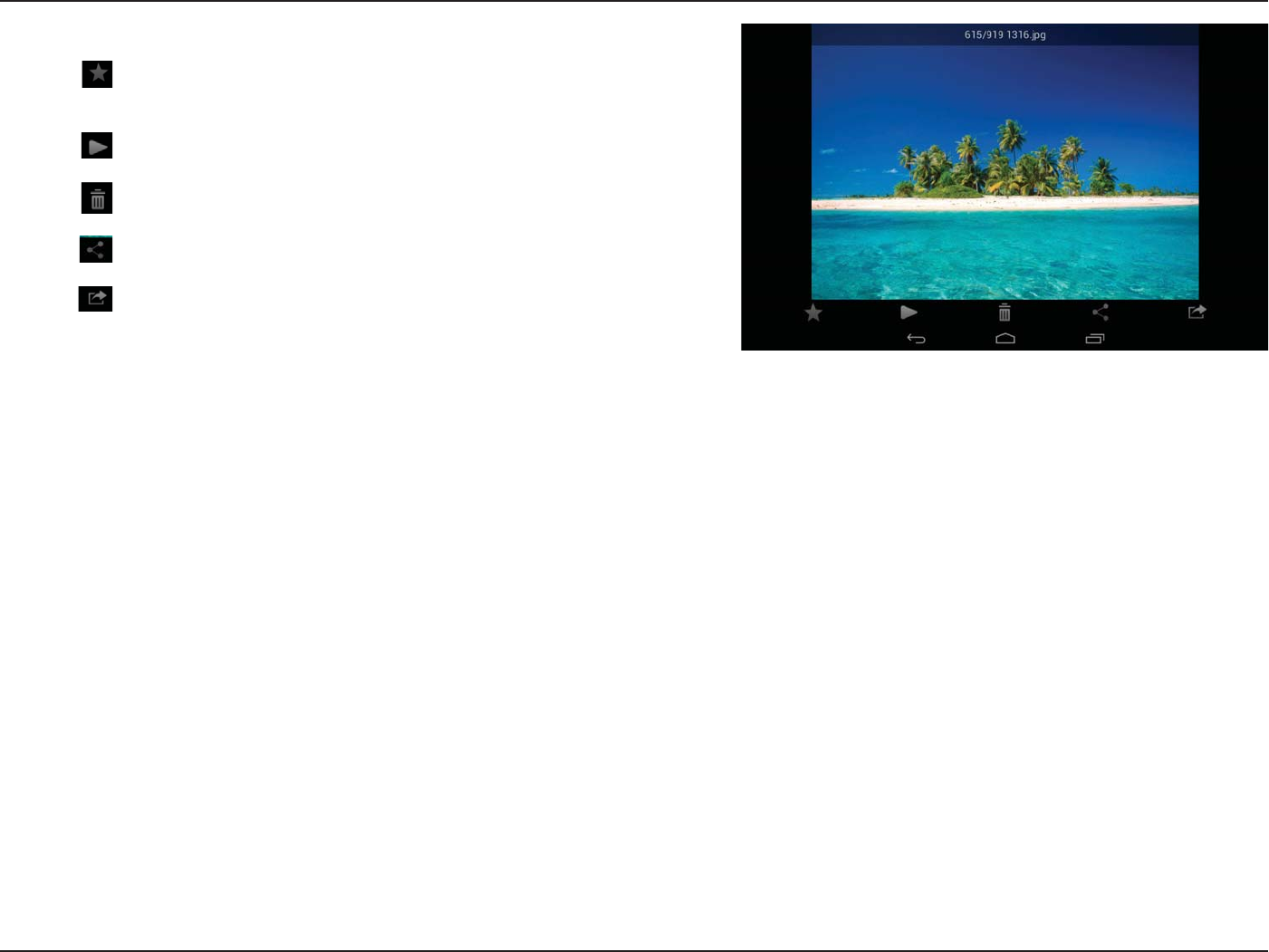

Pictures ...................................................................................41

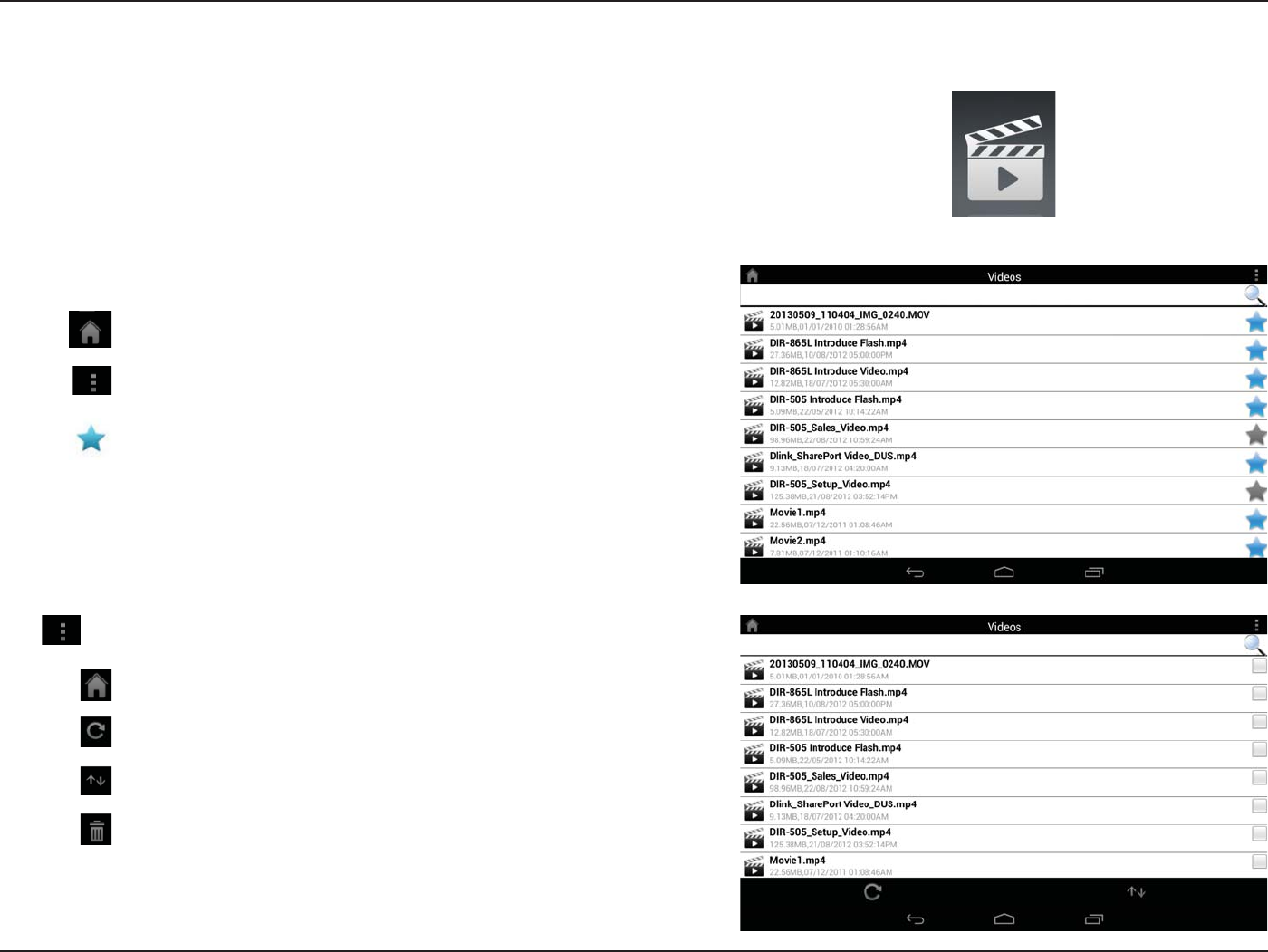

Videos .....................................................................................43

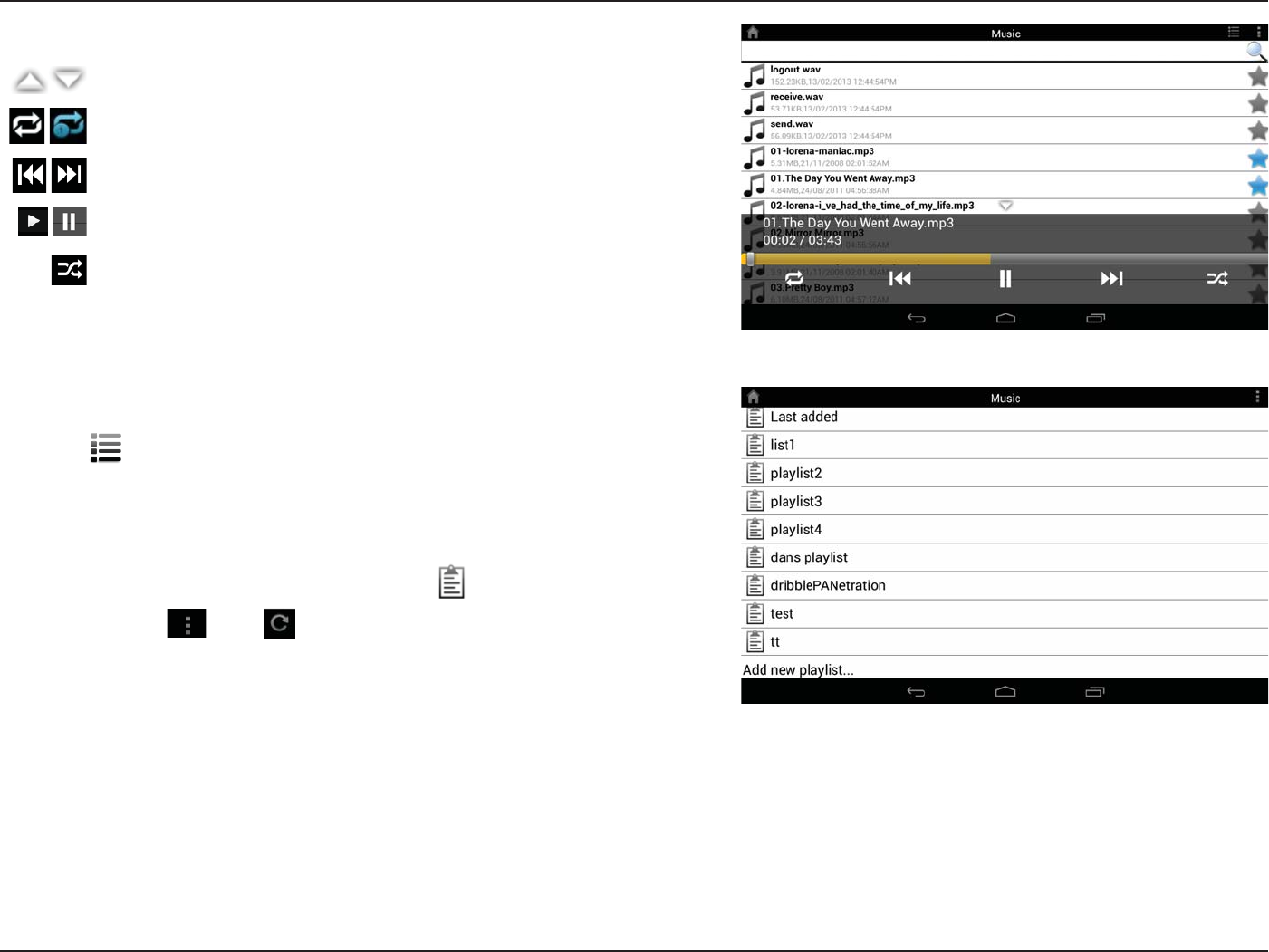

Music .......................................................................................45
Folders ....................................................................................48
Favorites .................................................................................52

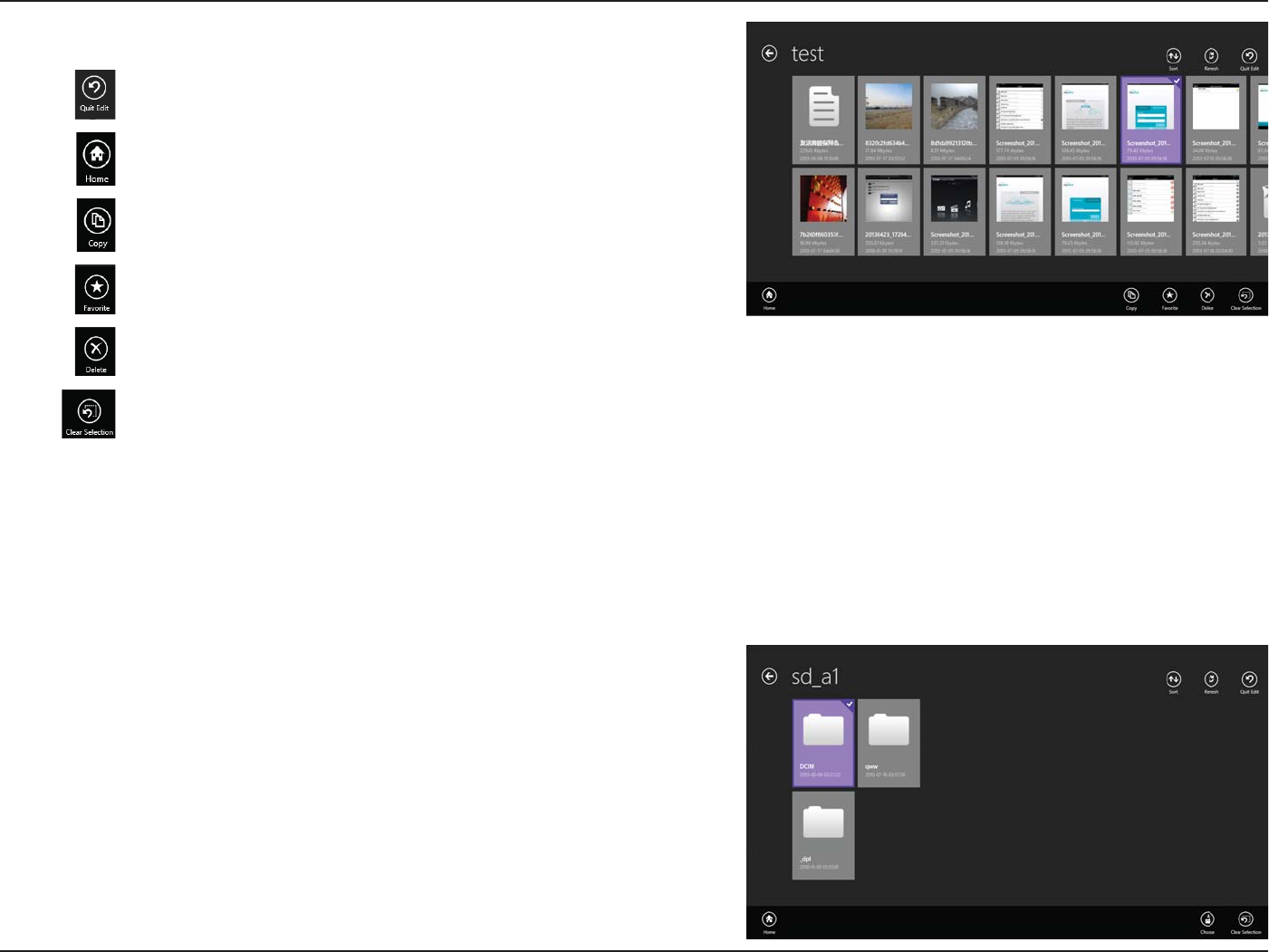

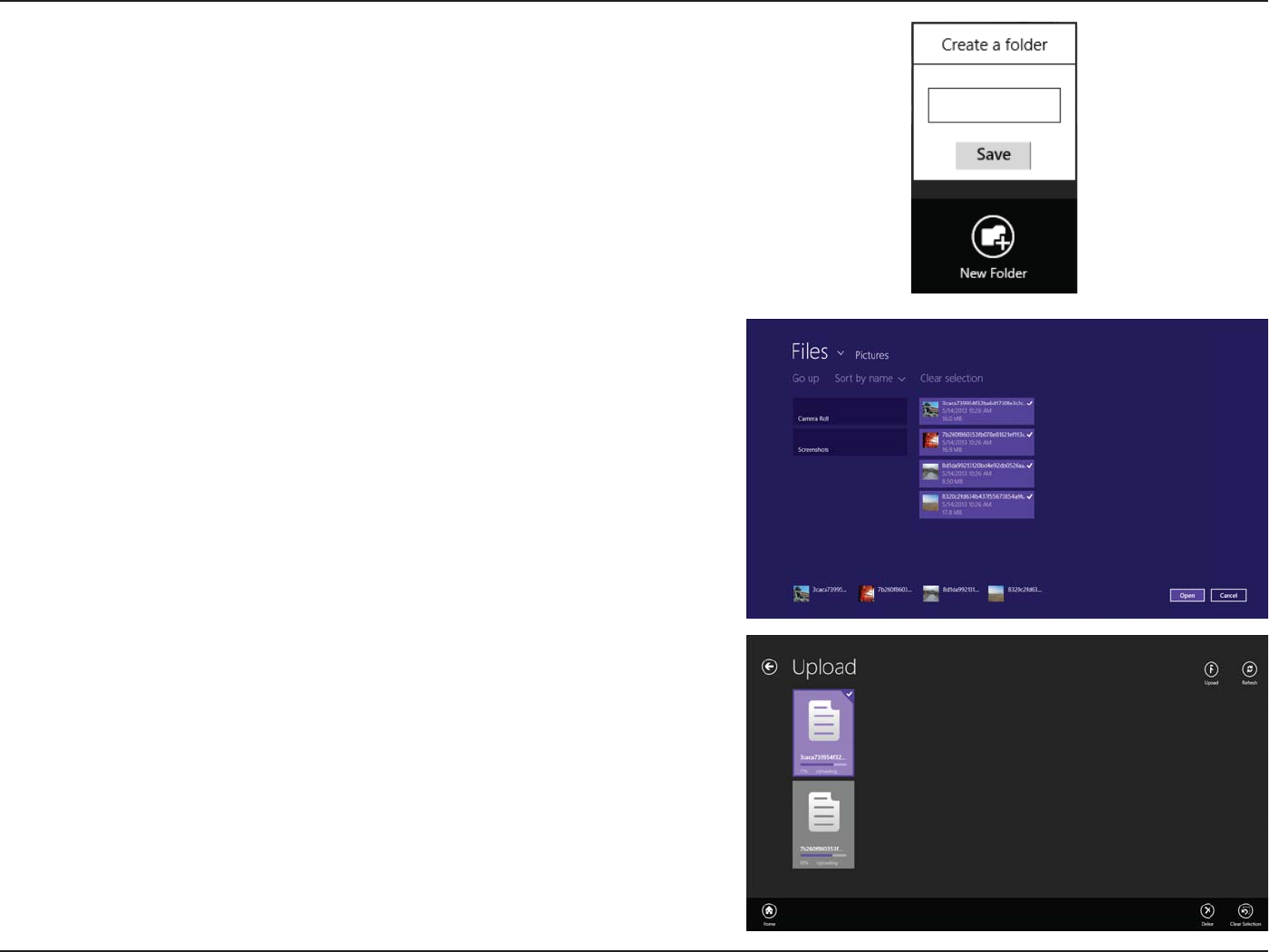

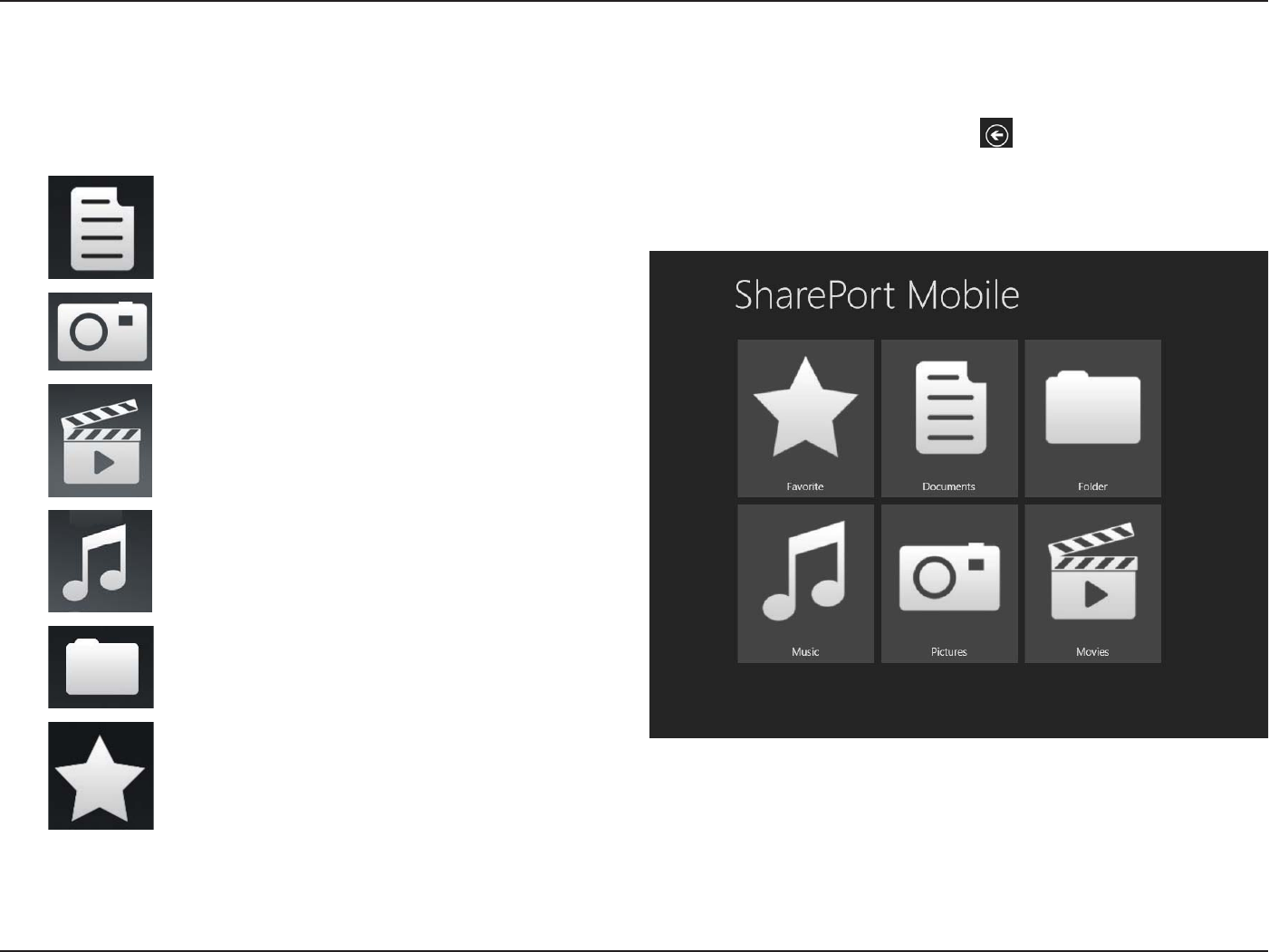

Using SharePort Mobile for Windows® 8/RT .....................53
Main Menu ............................................................................56
Documents ............................................................................57

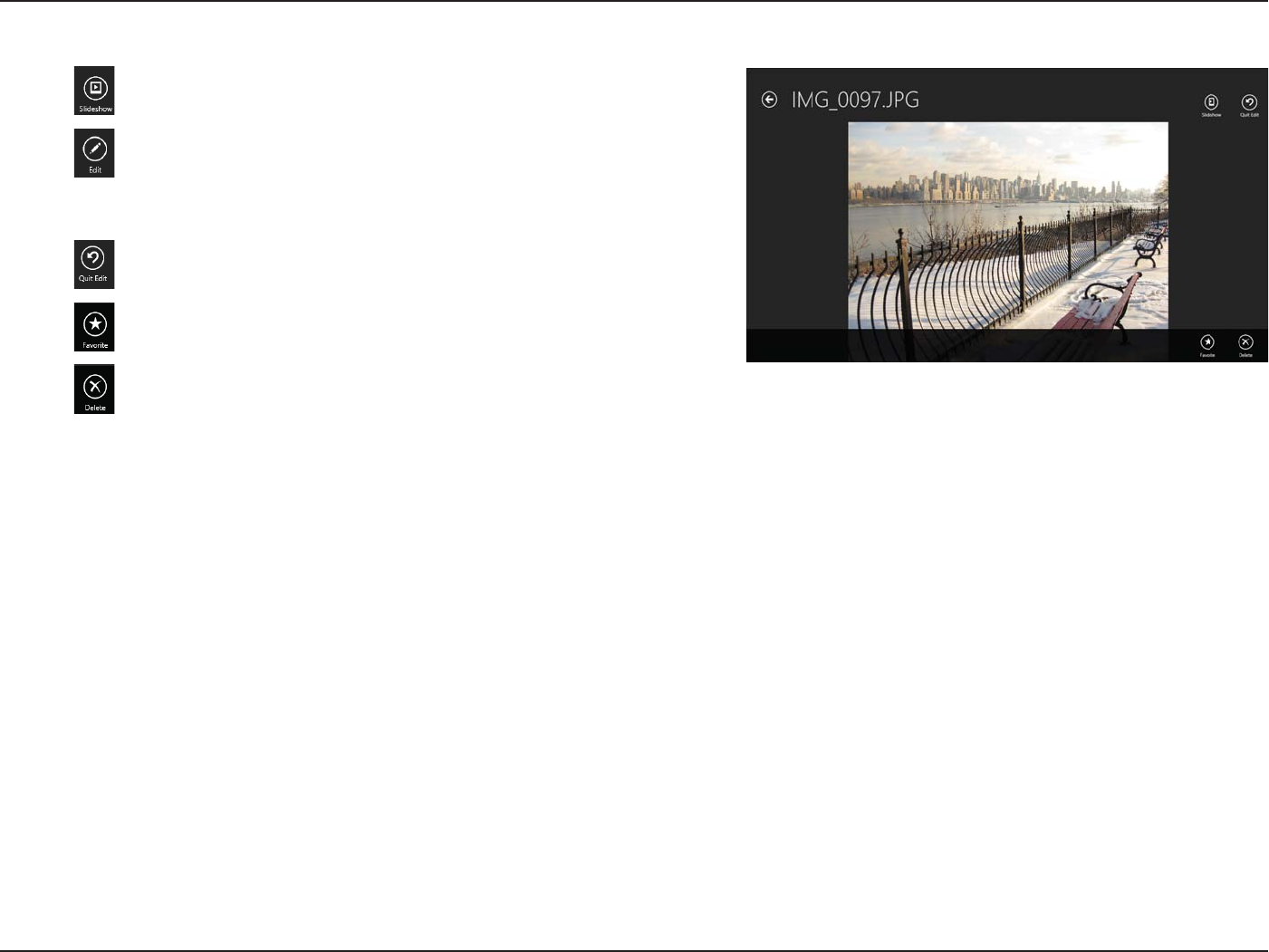

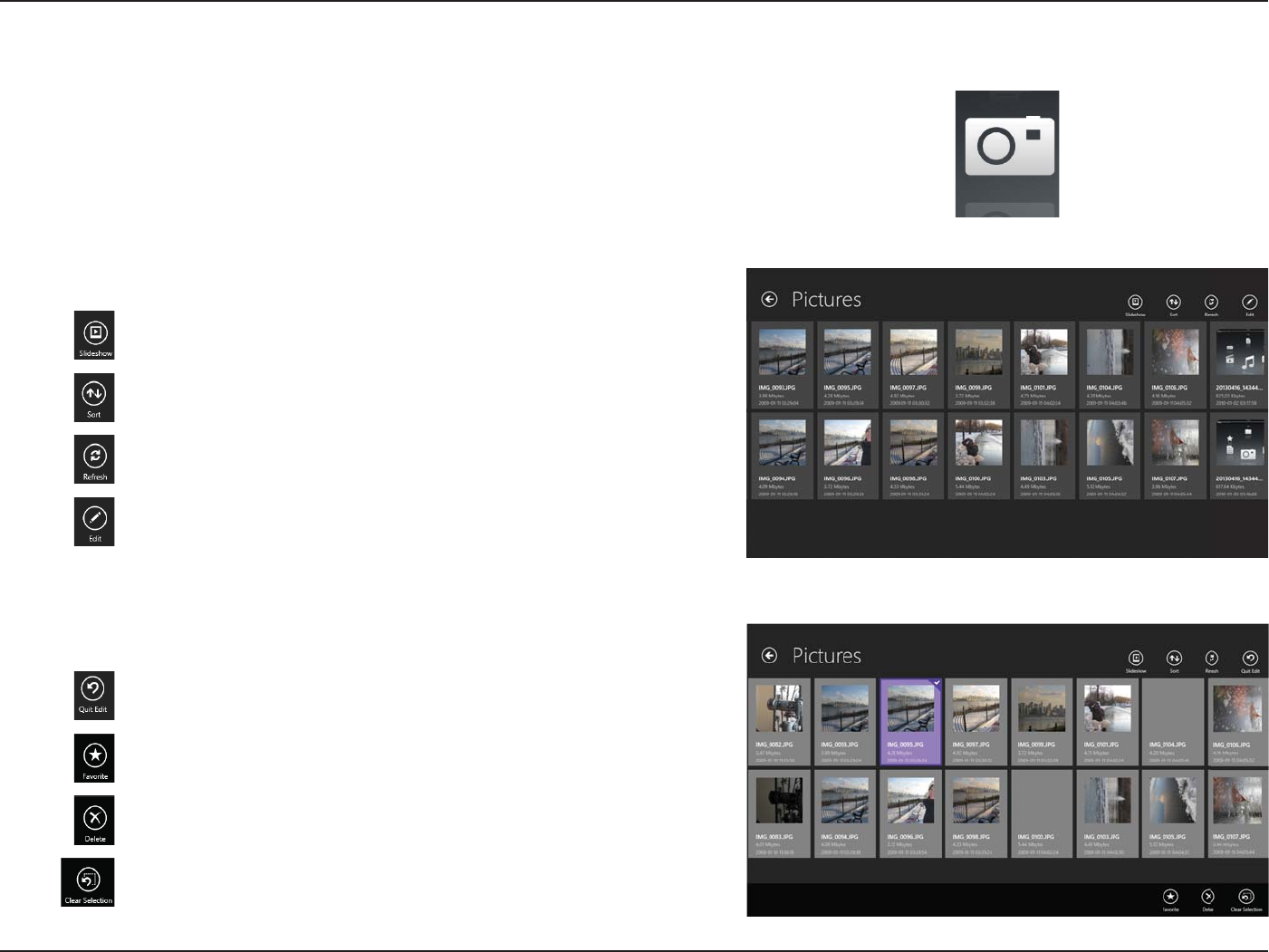

Pictures ...................................................................................58
Movies .....................................................................................60

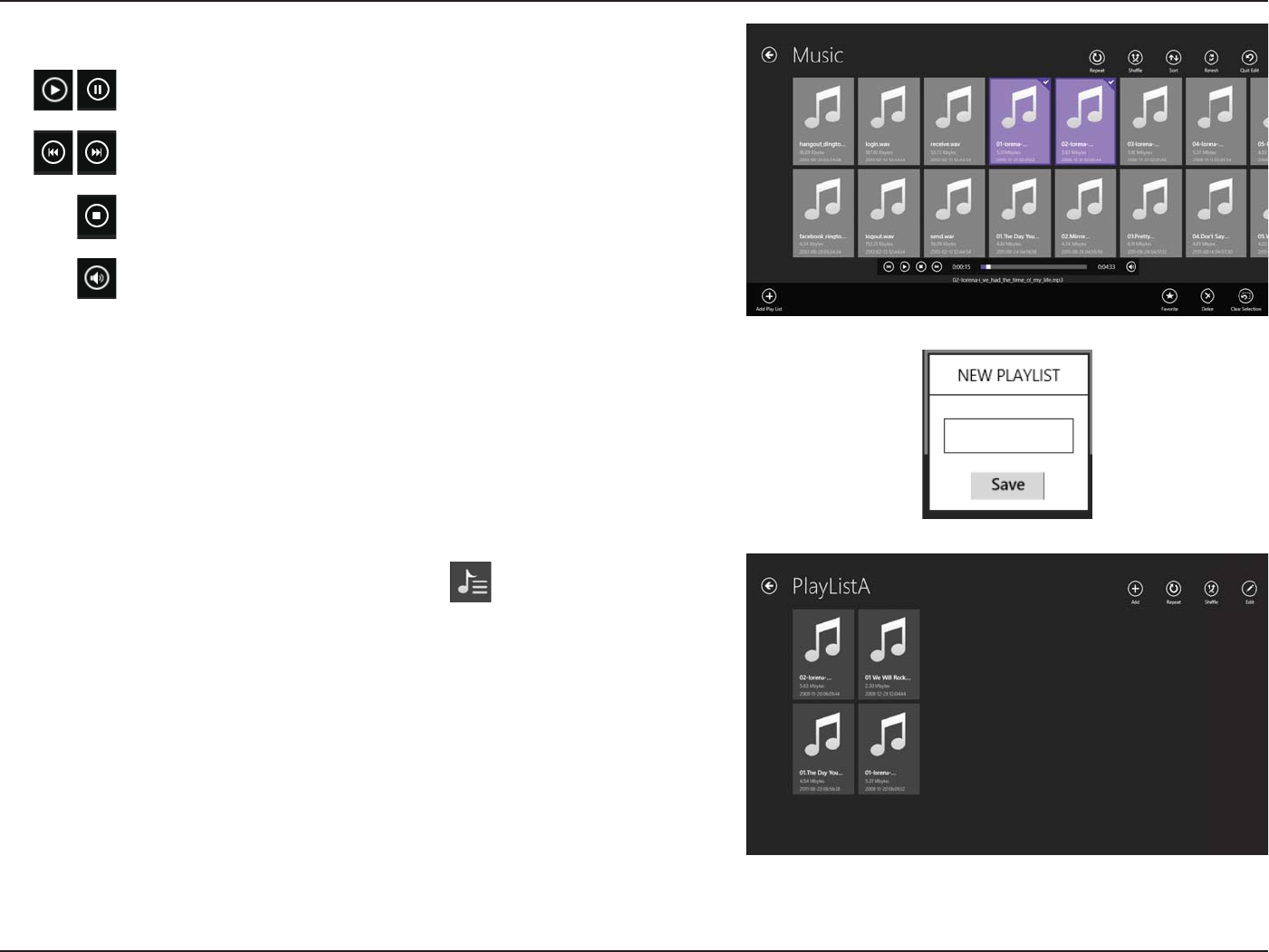

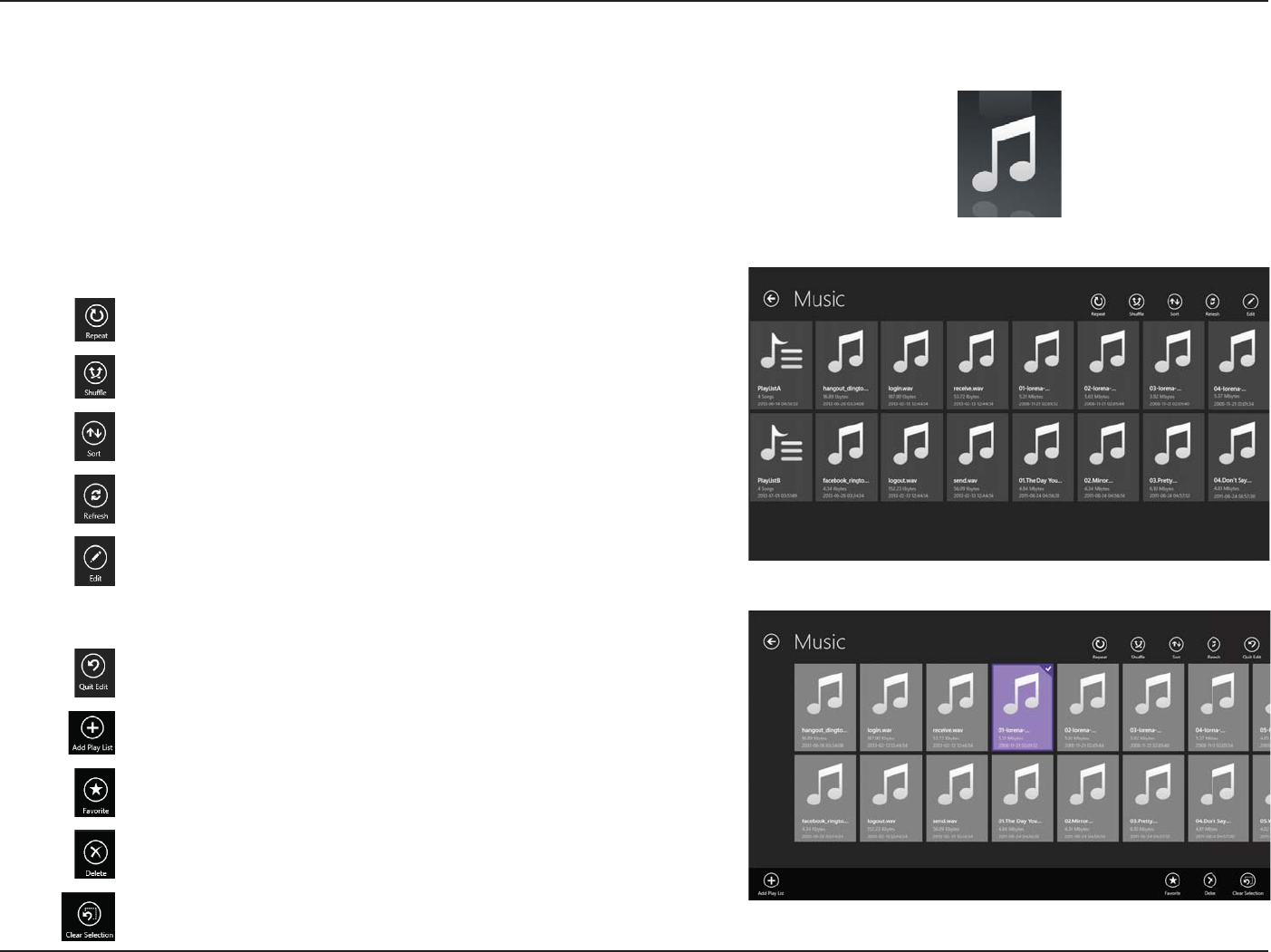

Music .......................................................................................62
Folder ......................................................................................65
Favorite ...................................................................................68

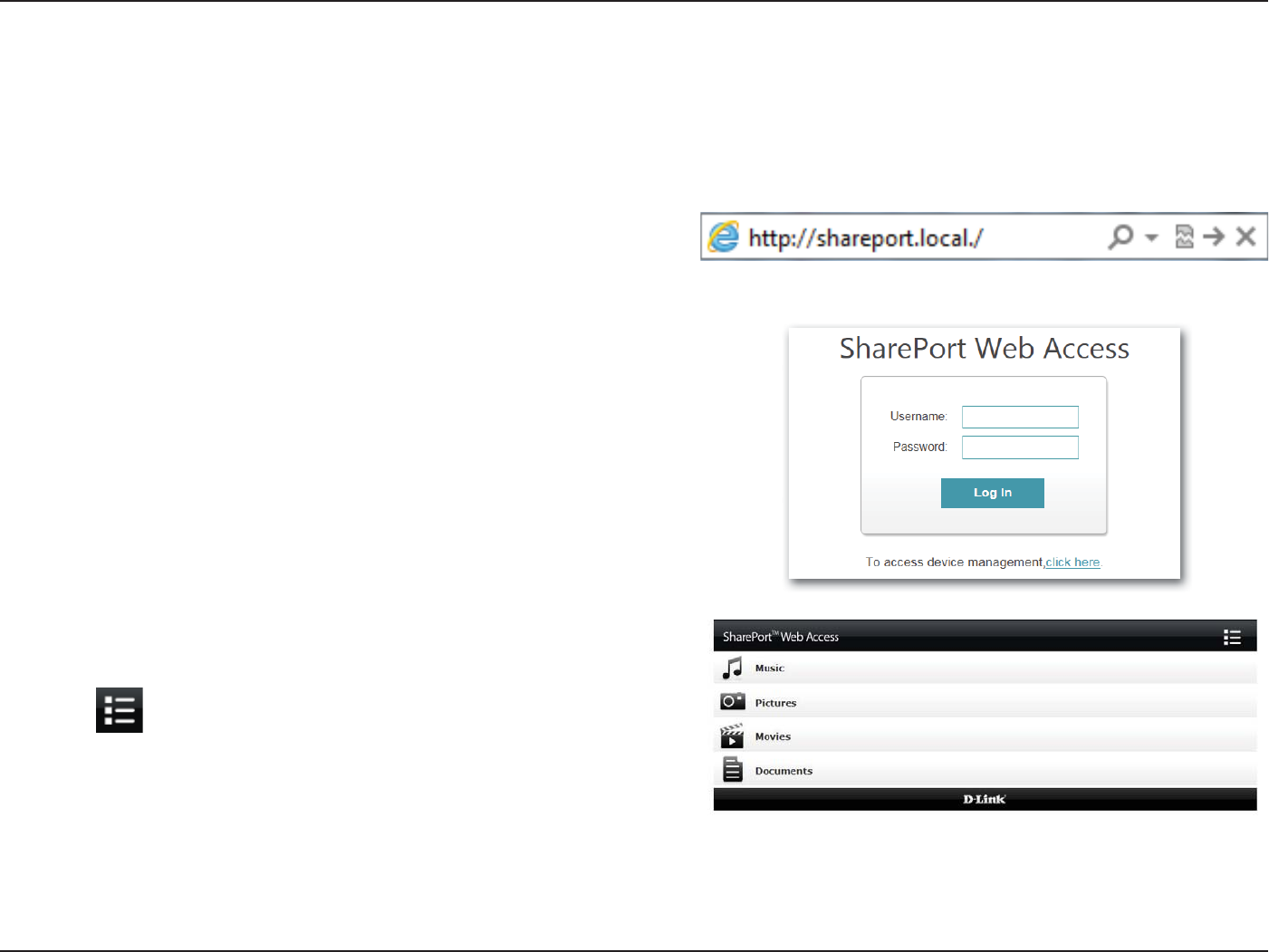

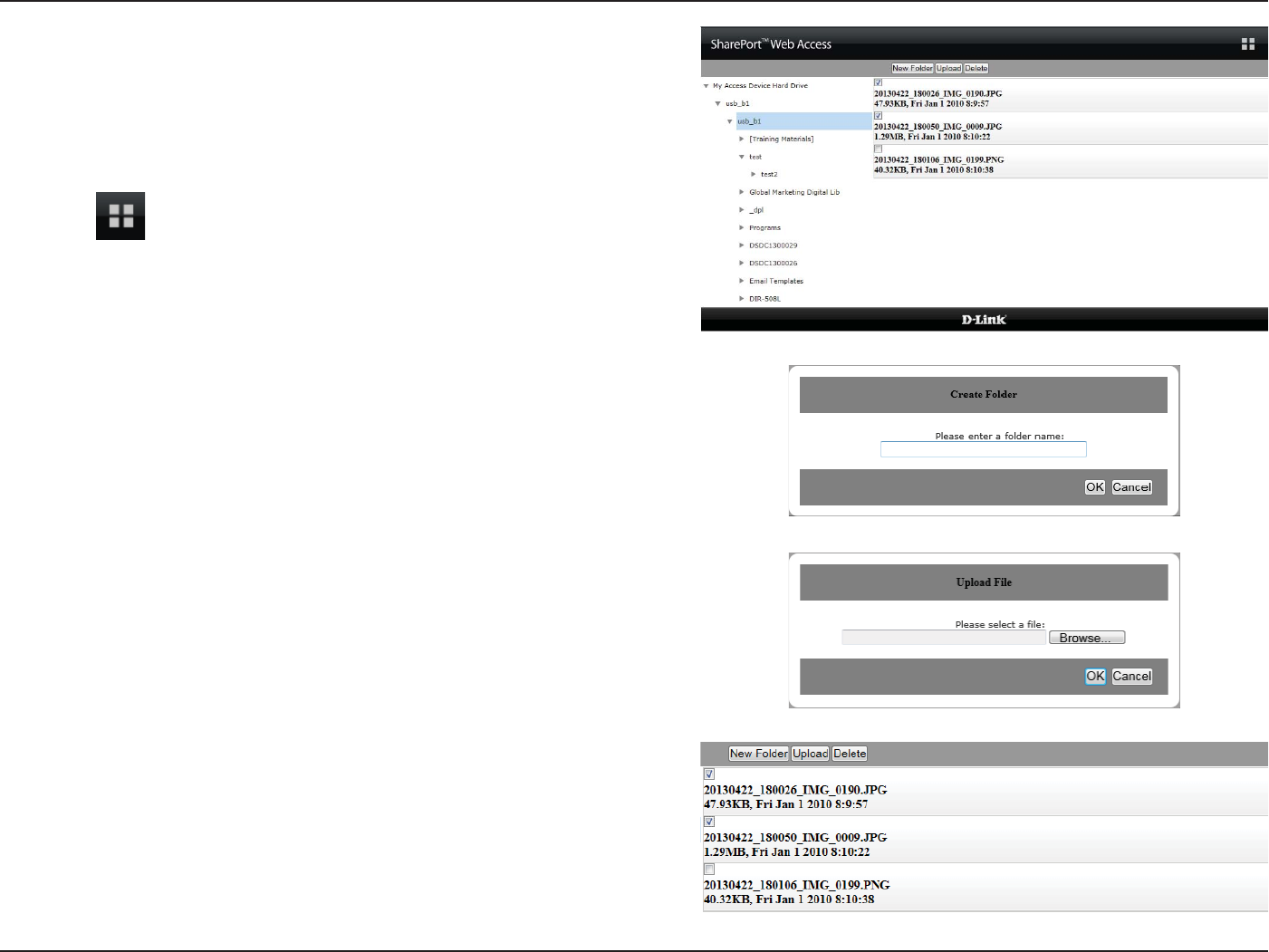

Using SharePort Web Access ..................................................69
Music .......................................................................................71
Pictures ...................................................................................72

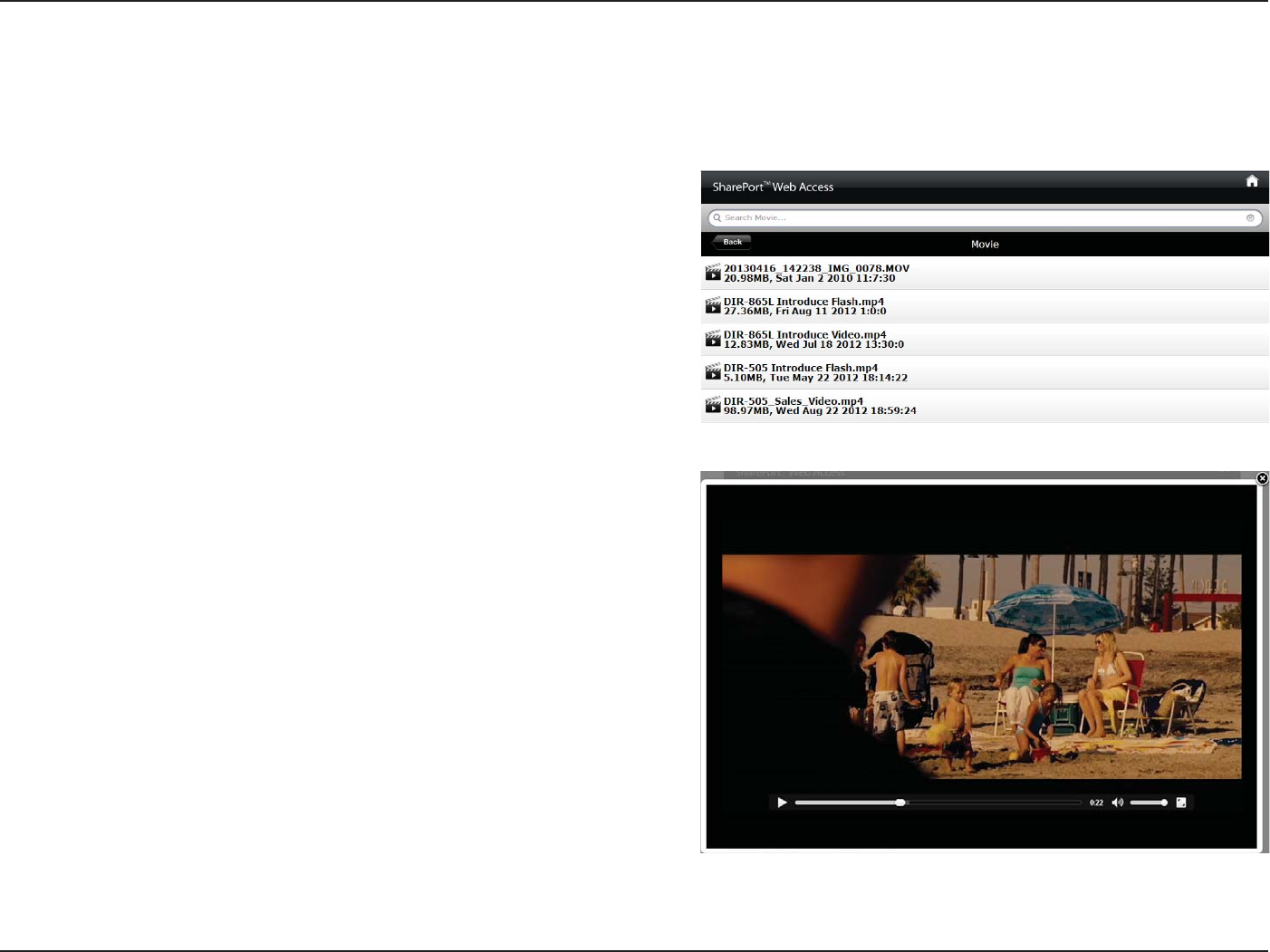

Videos .....................................................................................73
Documents ............................................................................74
Table of Contents
iiiD-Link DIR-510L User Manual
Table of Contents
Conguration ...................................................................75
Home ..............................................................................................76
Current Status ......................................................................76

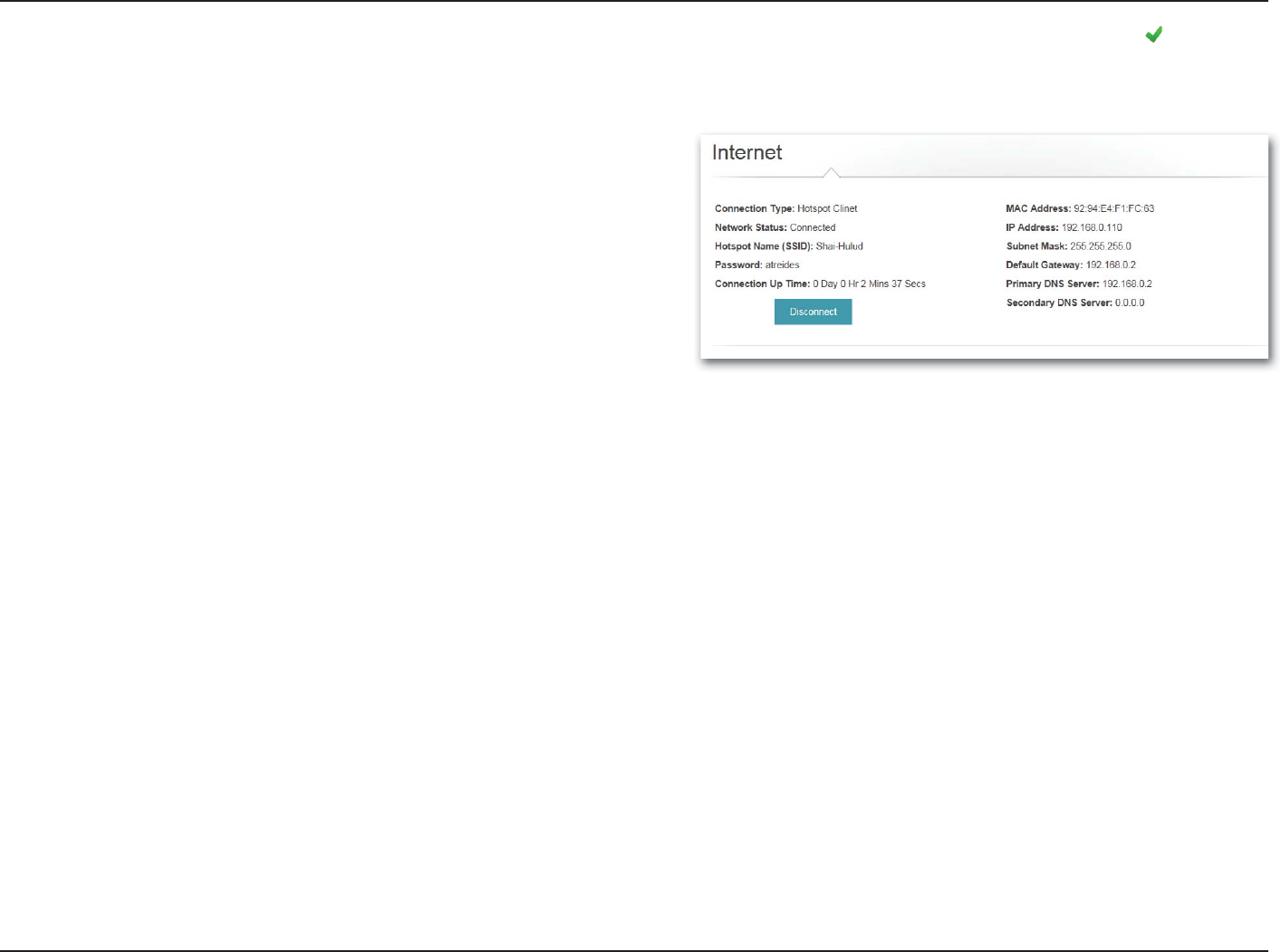

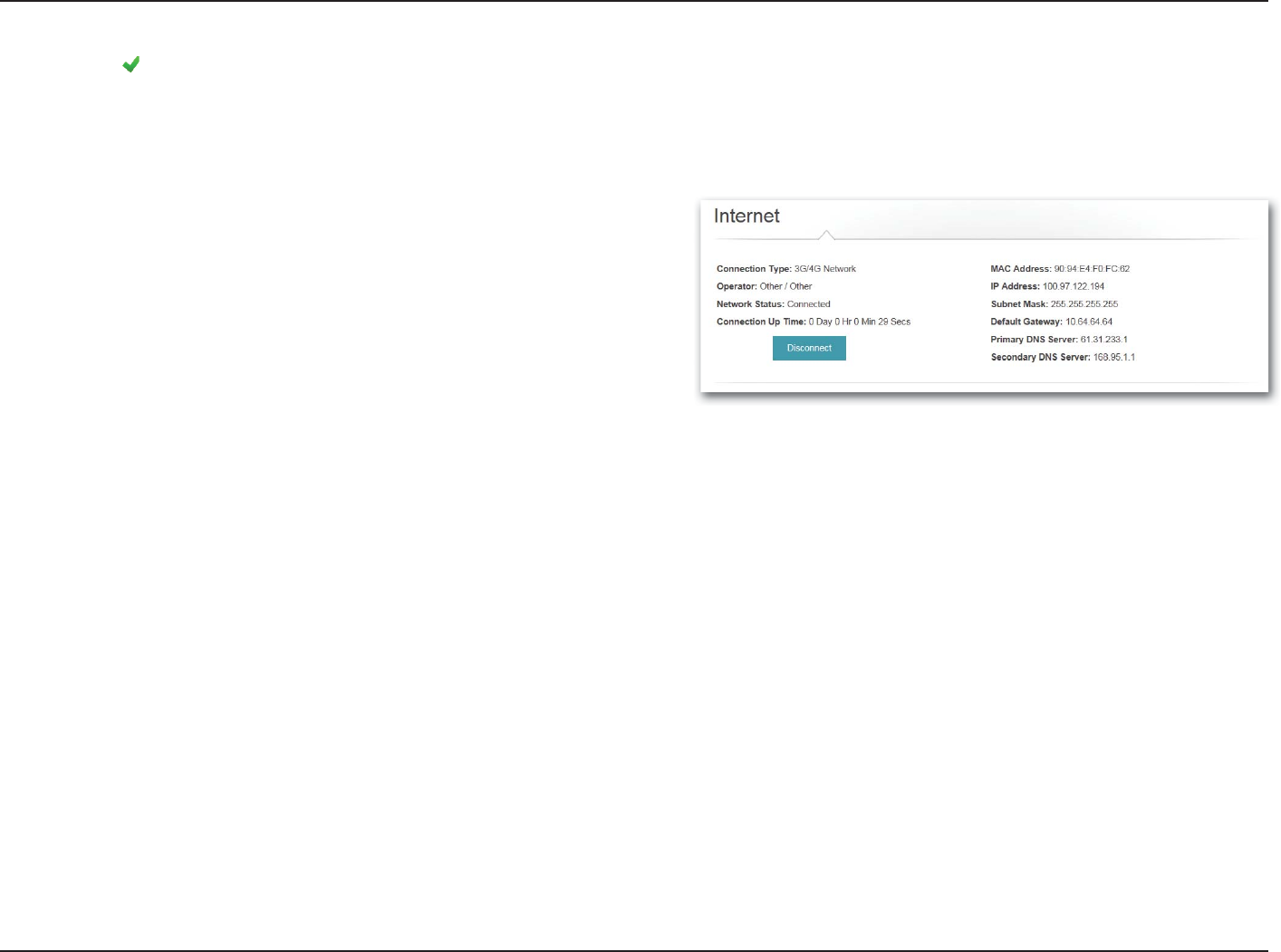

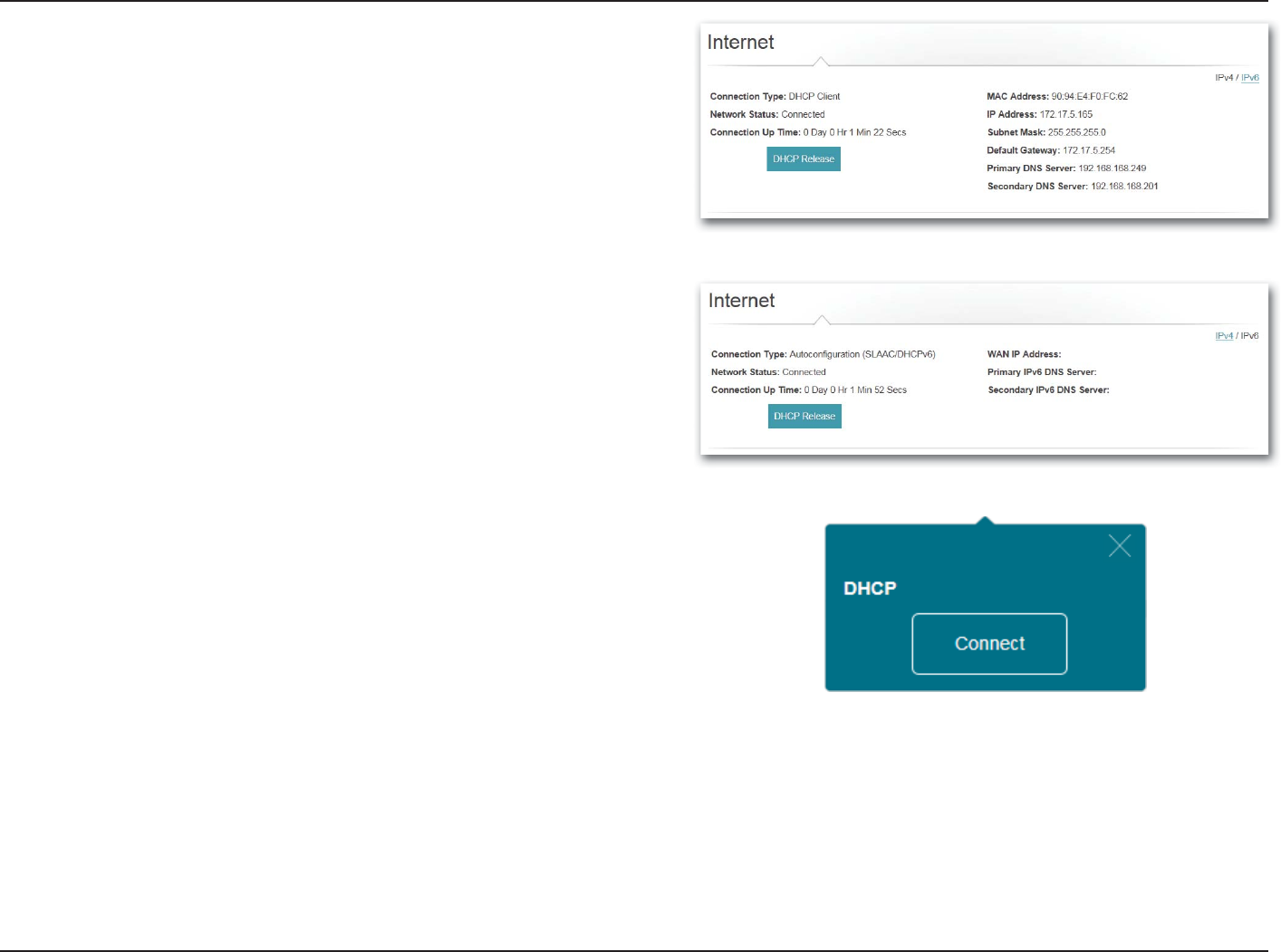

Internet ................................................................................... 77
Router .....................................................................................83

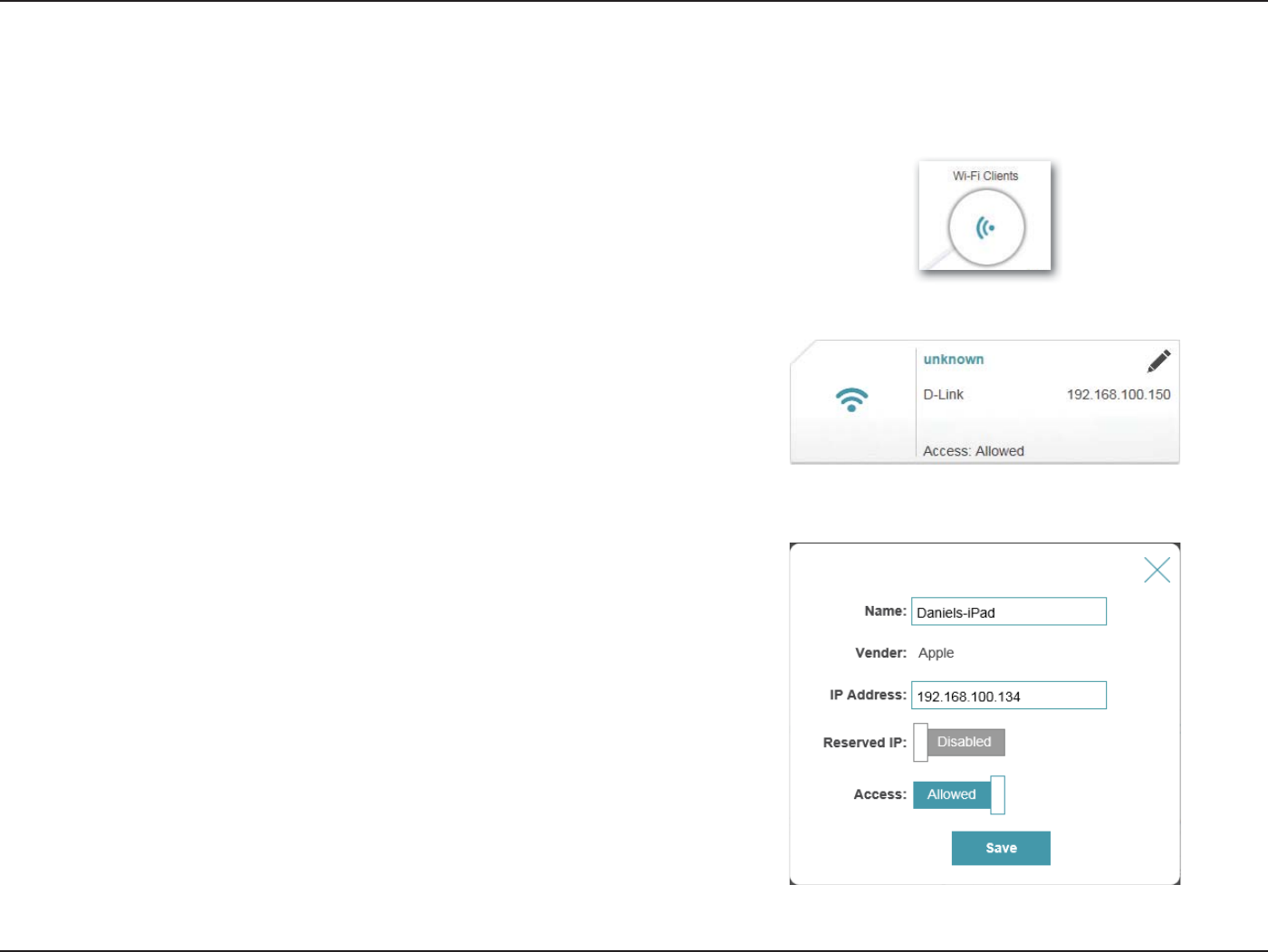

Wi-Fi Clients ..........................................................................85
USB Storage ..........................................................................86
Settings ..........................................................................................87

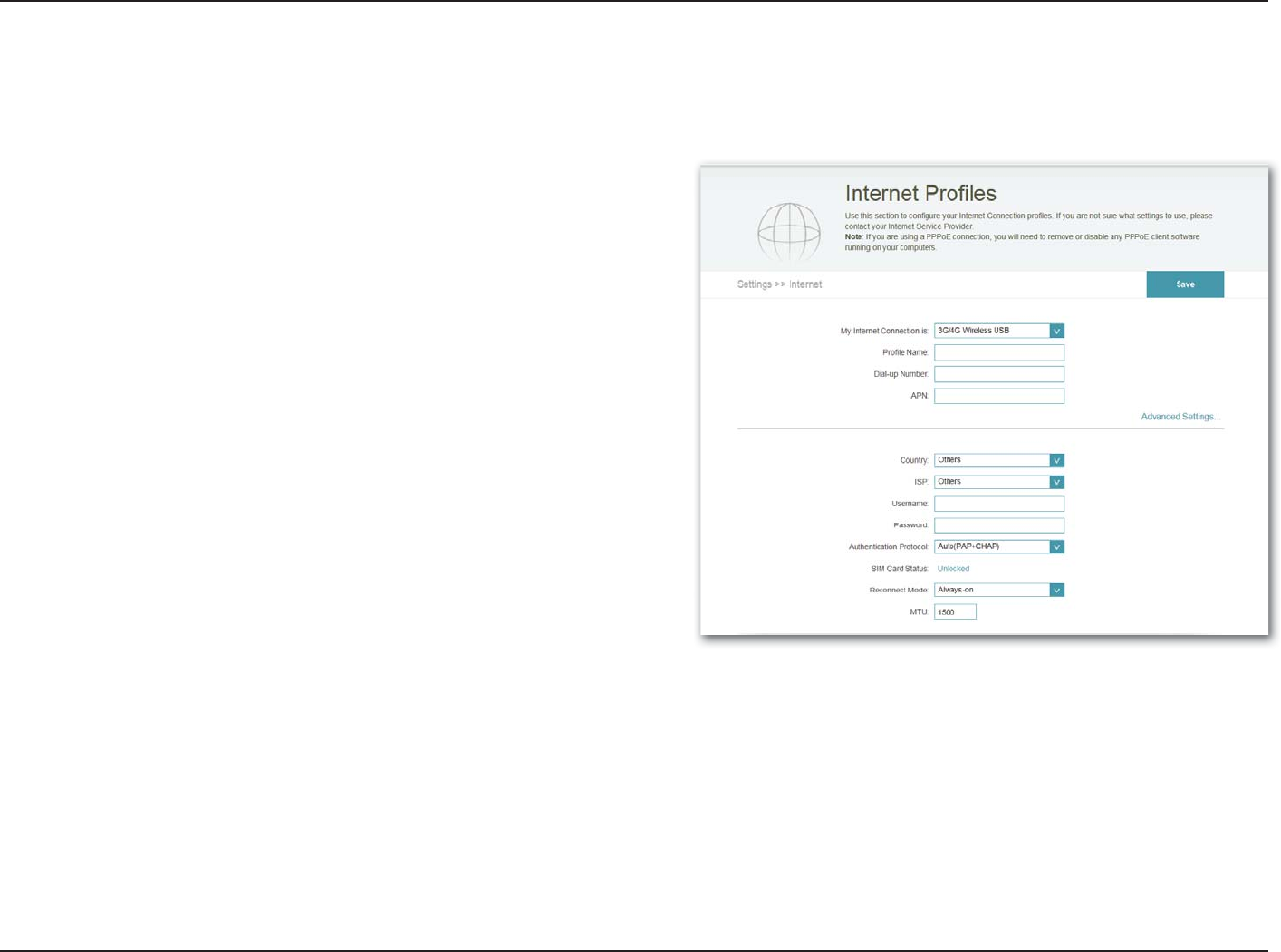

Internet Proles ...................................................................87

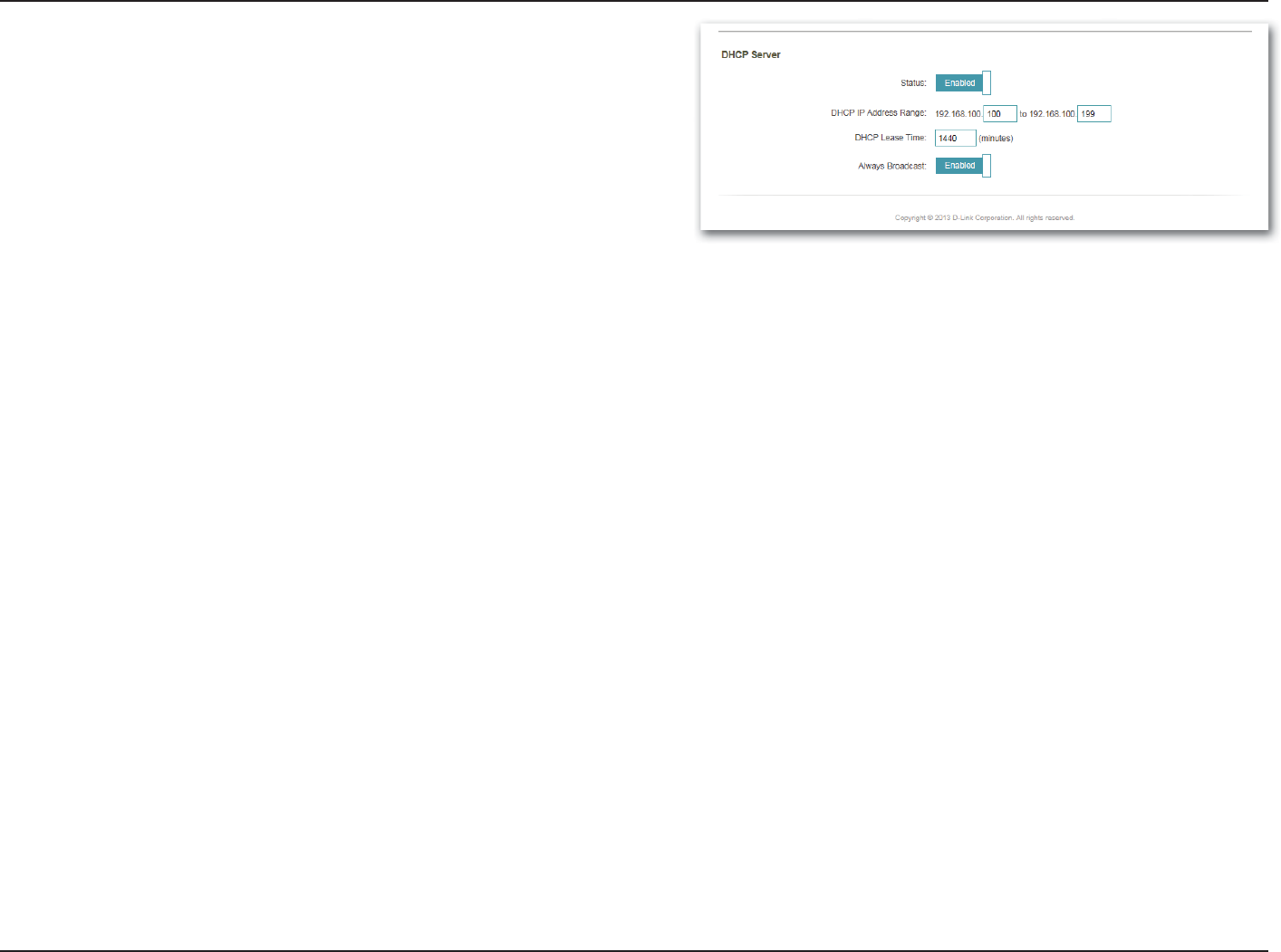

DHCP ..................................................................................88
xDSL Broadband (PPPoE) ............................................89
3G/4G Wireless USB .......................................................90

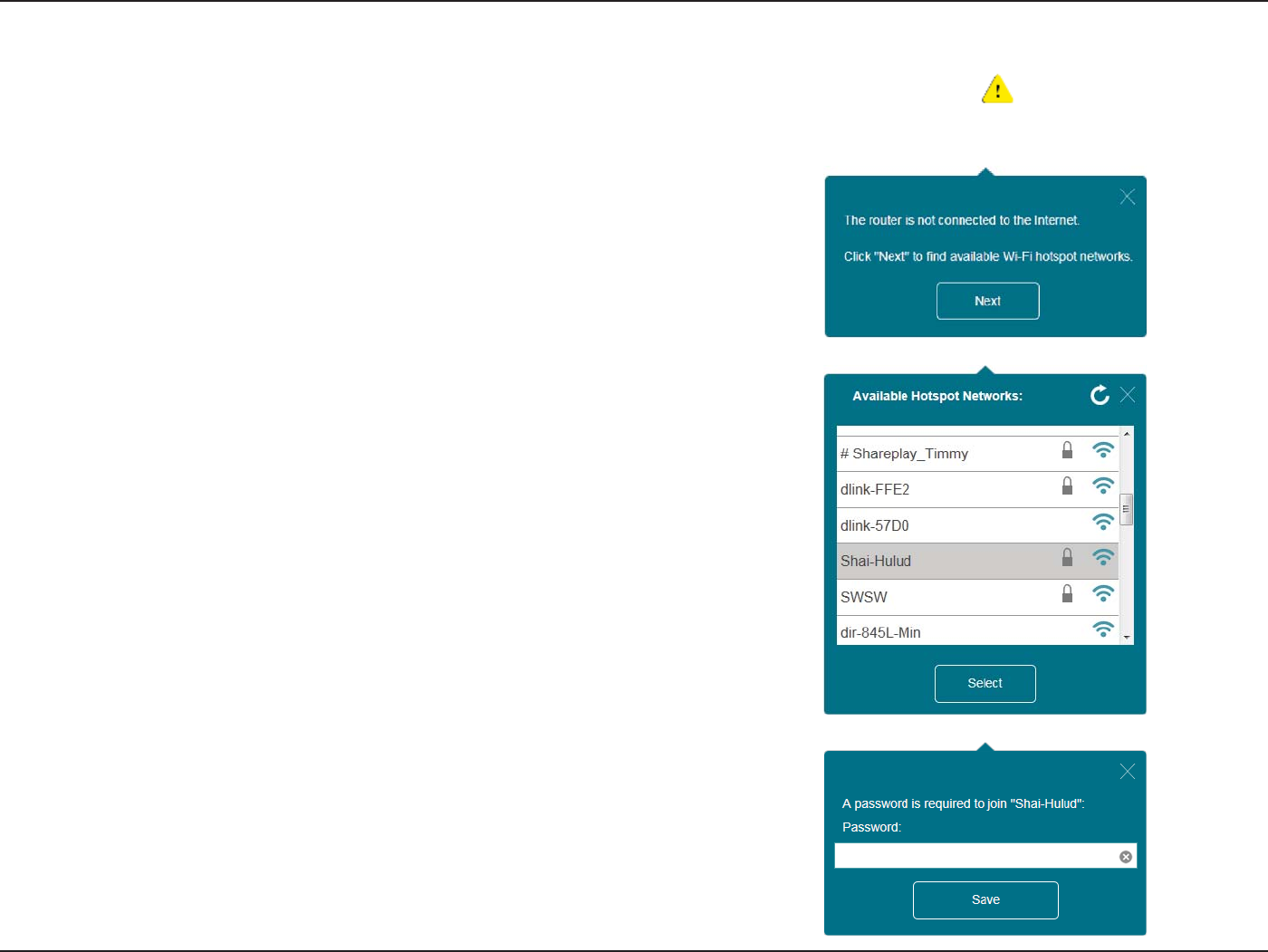

Wi-Fi Hotspot Client ......................................................91
Static IP ..............................................................................92

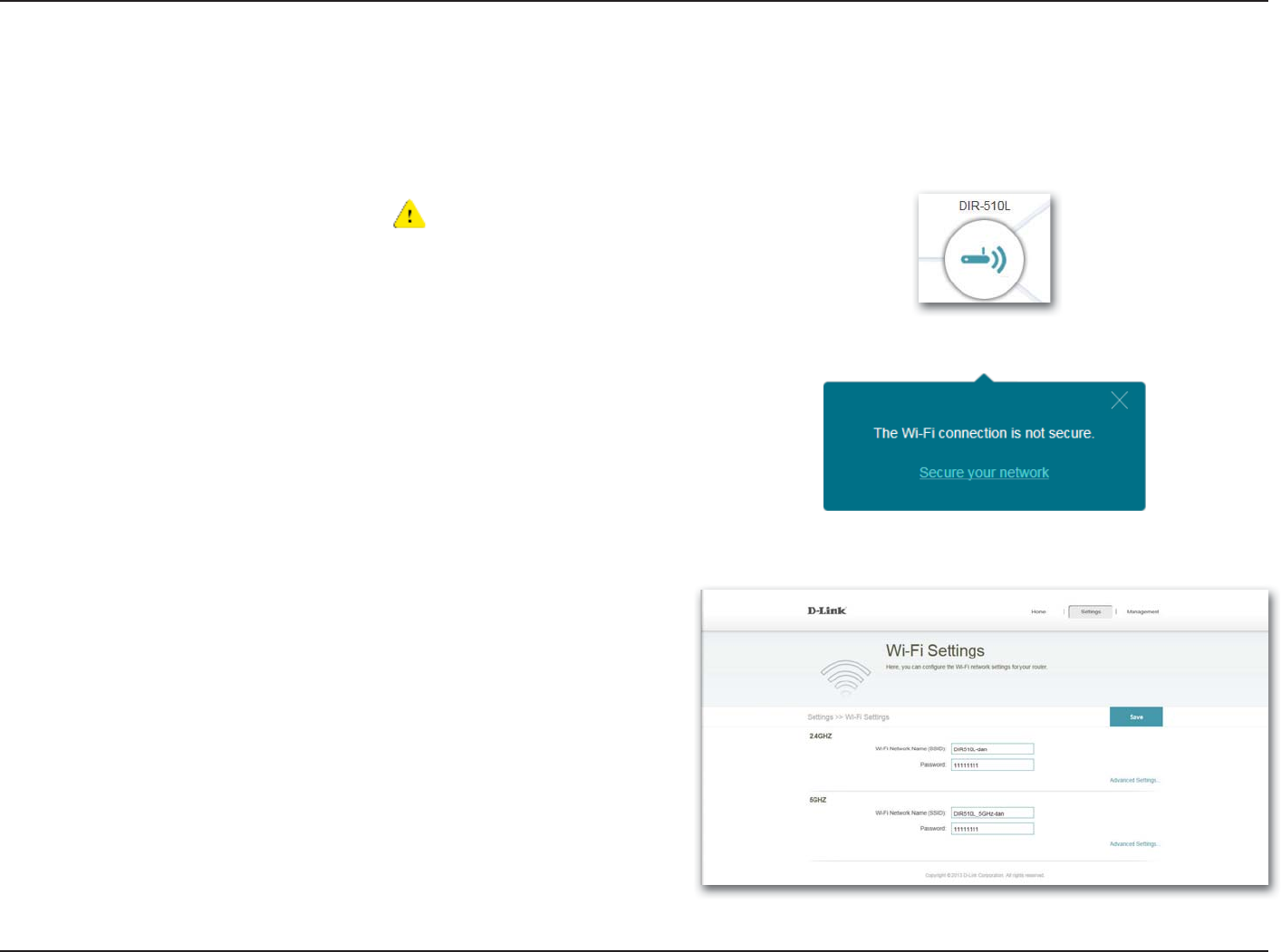

Wi-Fi .........................................................................................93

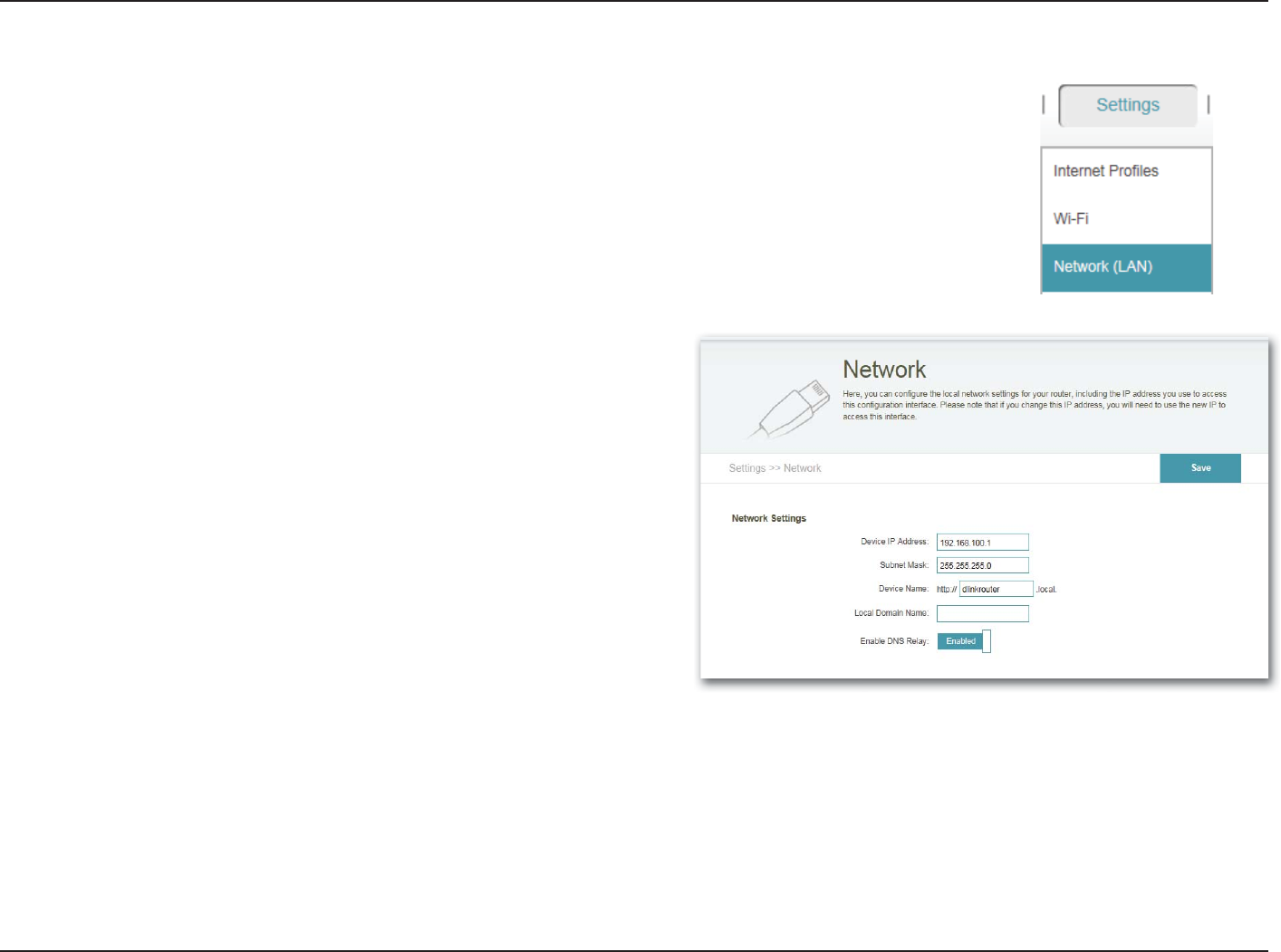

Network (LAN) .....................................................................95
SharePort ...............................................................................97
Guest Zone ......................................................................... 100
mydlink ................................................................................ 101
Management ............................................................................. 104

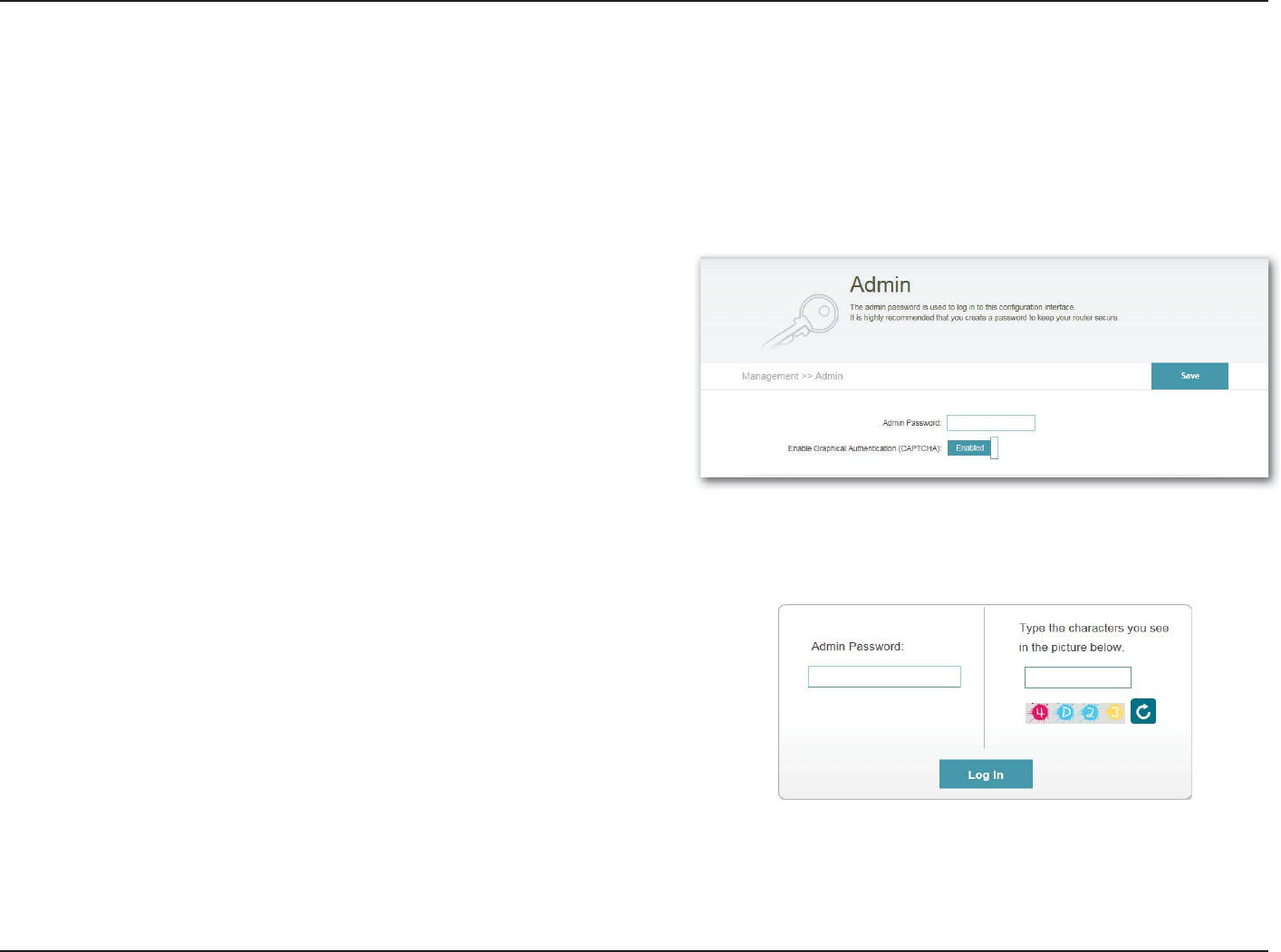

Admin .................................................................................. 104

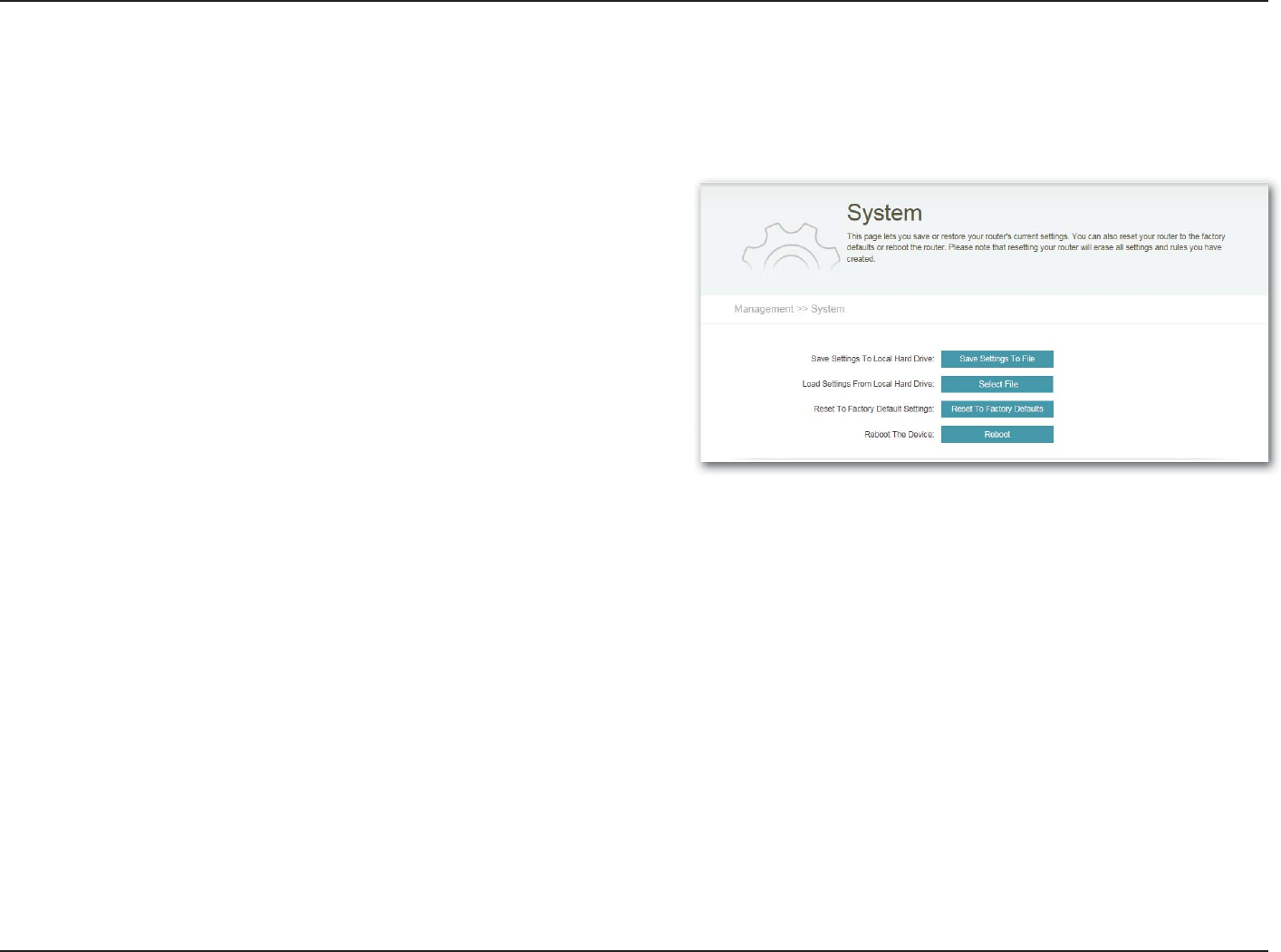

System ................................................................................. 105

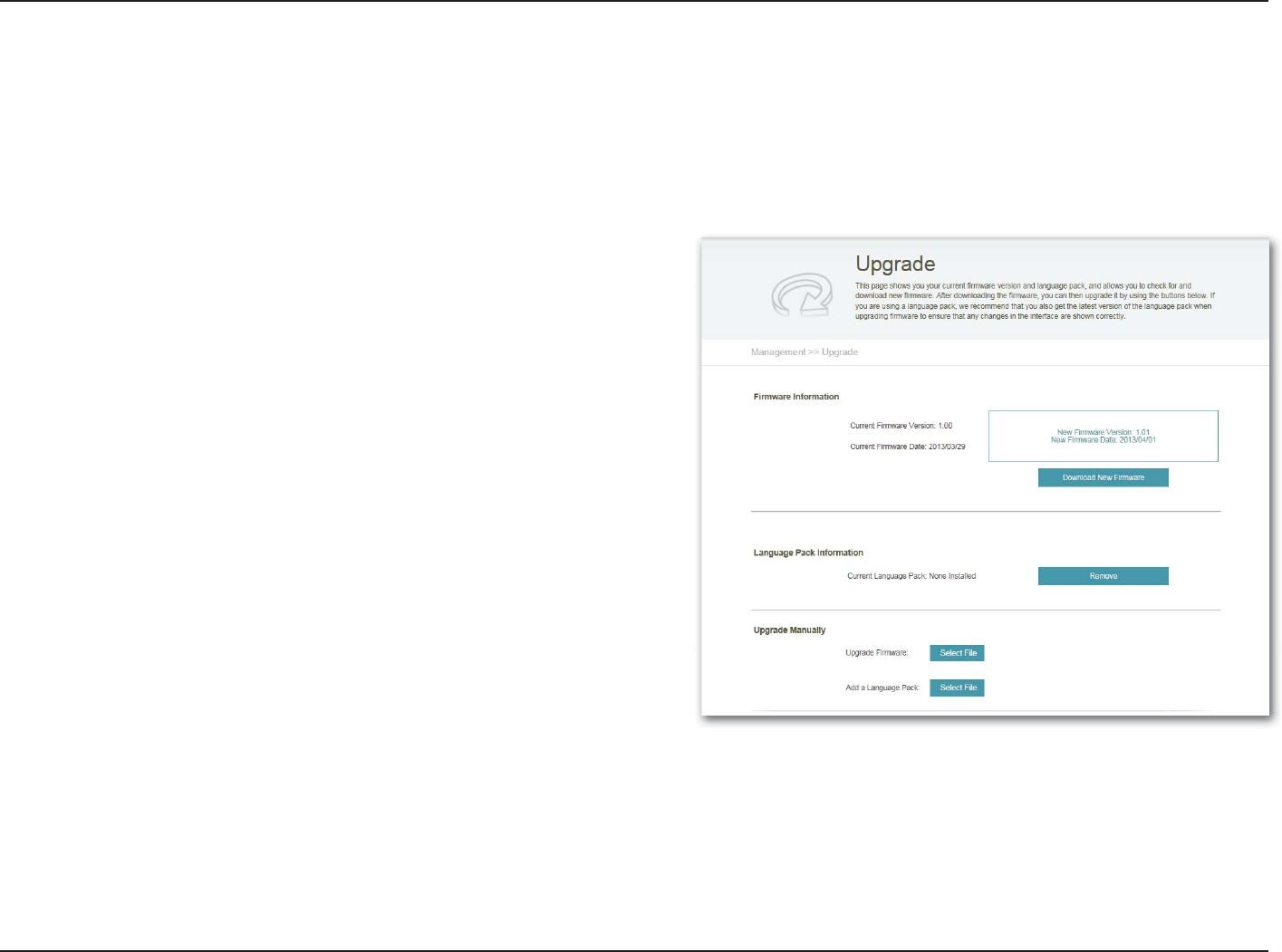

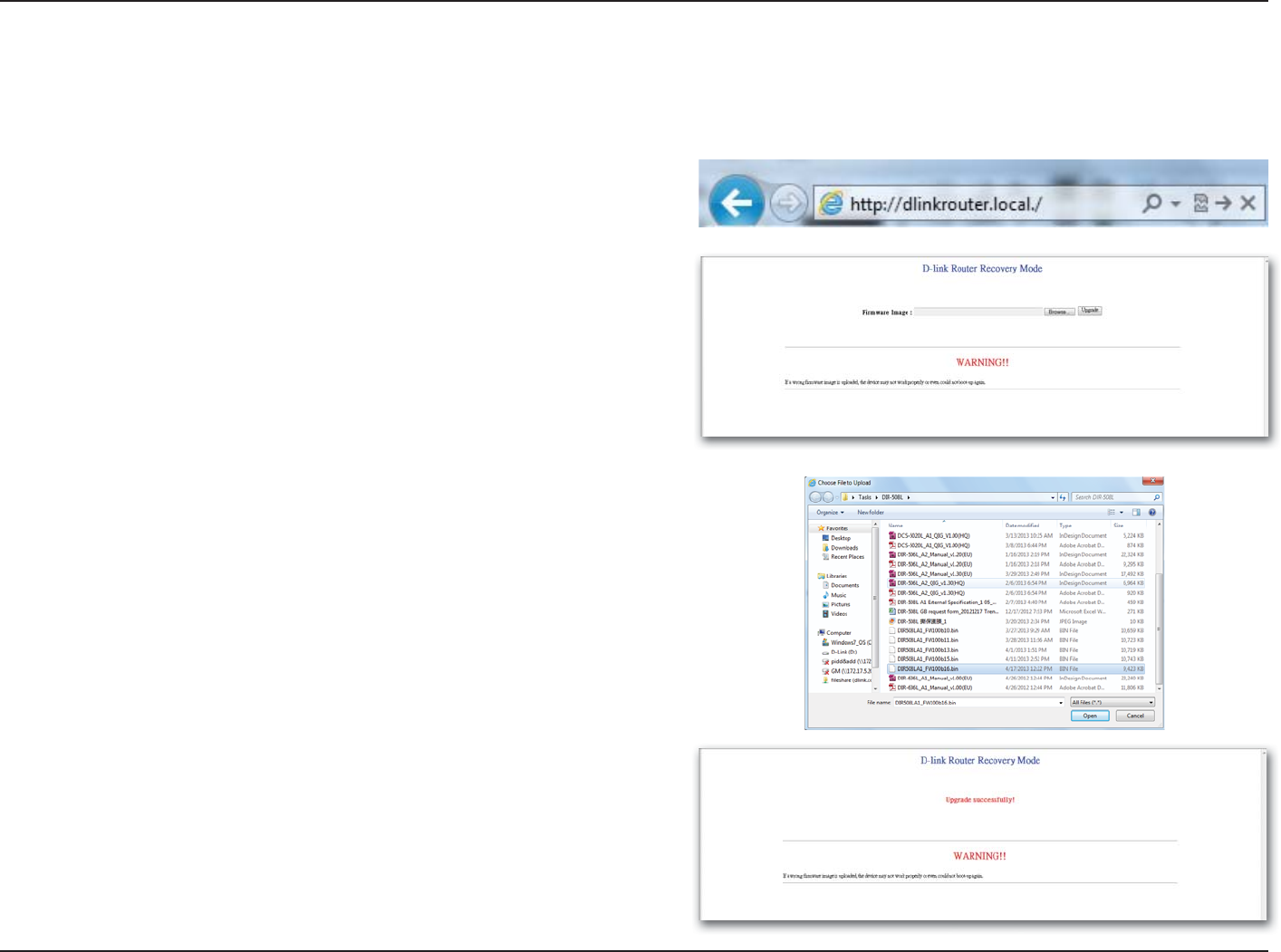

Upgrade .............................................................................. 106
Statistics .............................................................................. 107
Connecting a Wireless Client ........................................108

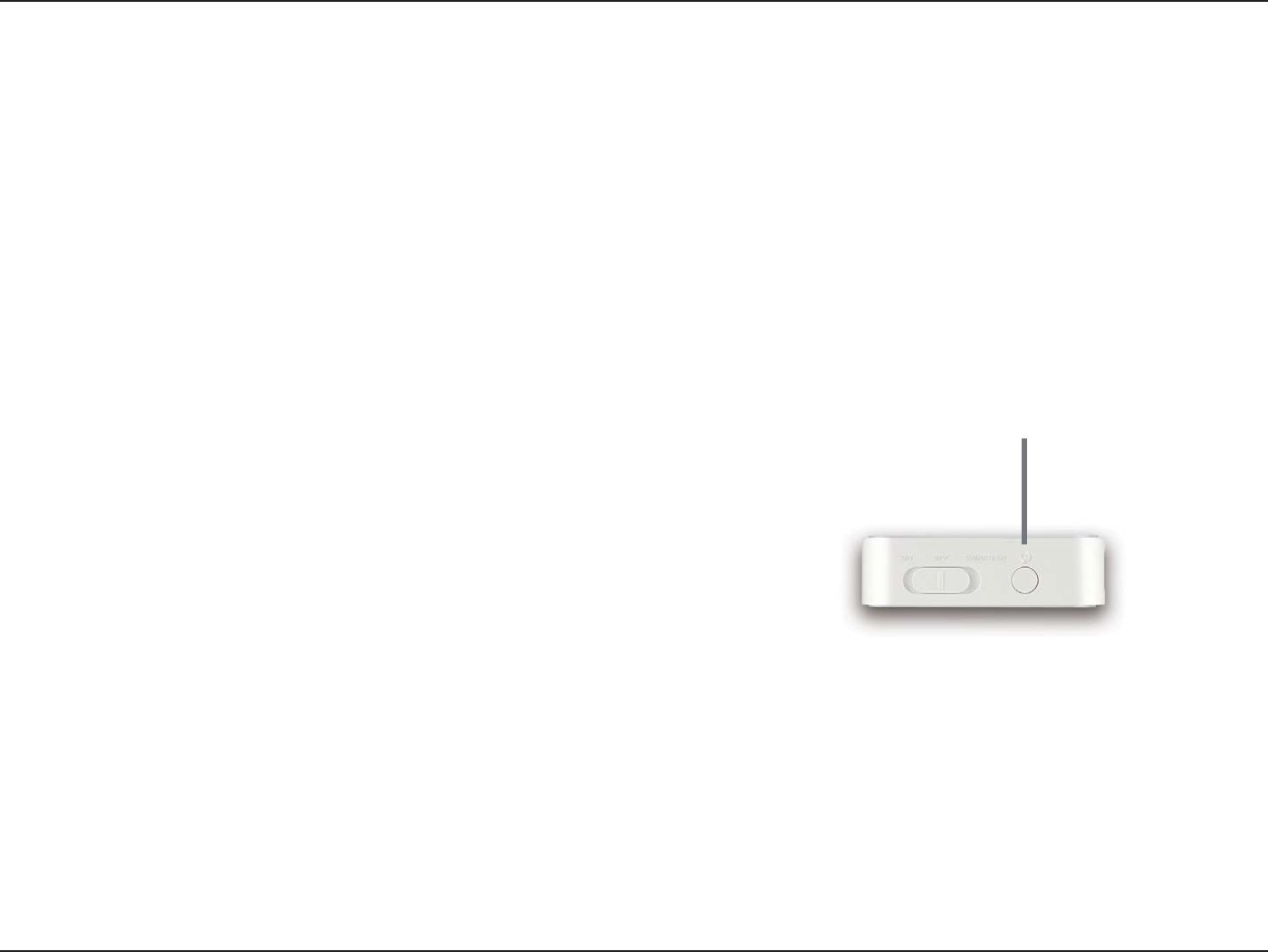

WPS Button ................................................................................ 108

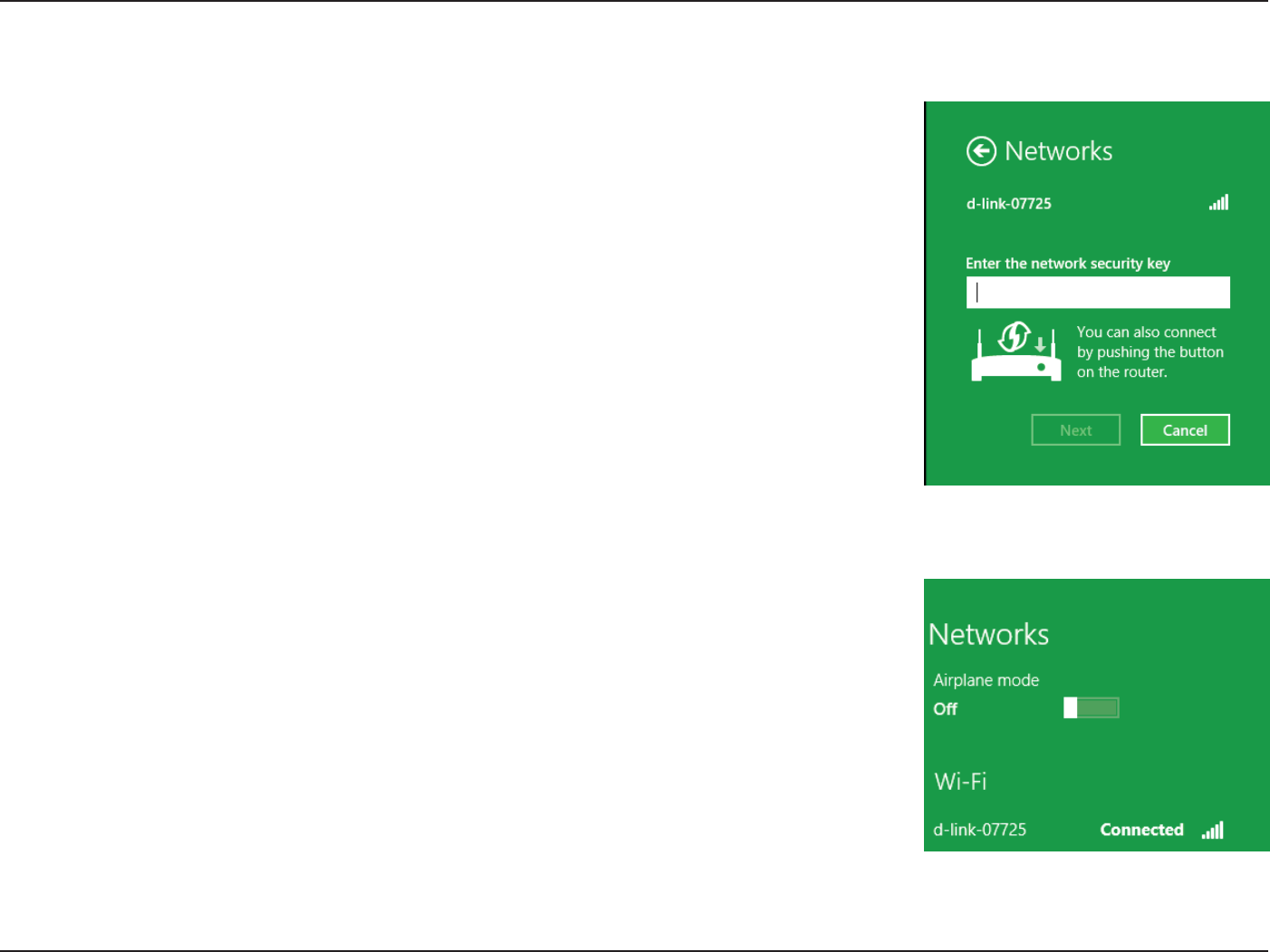

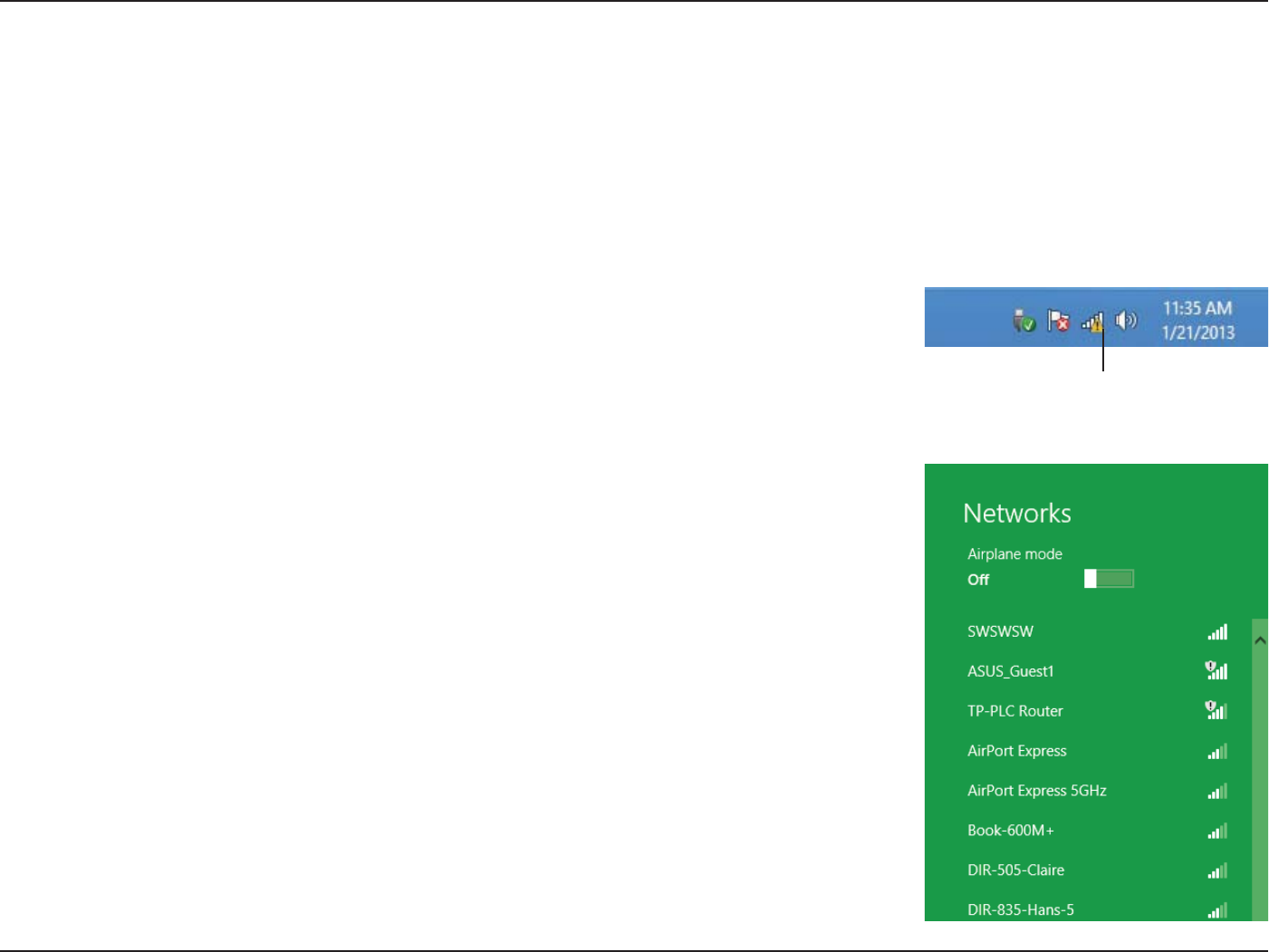

Windows® 8 ................................................................................ 109
WPA/WPA2 ......................................................................... 109

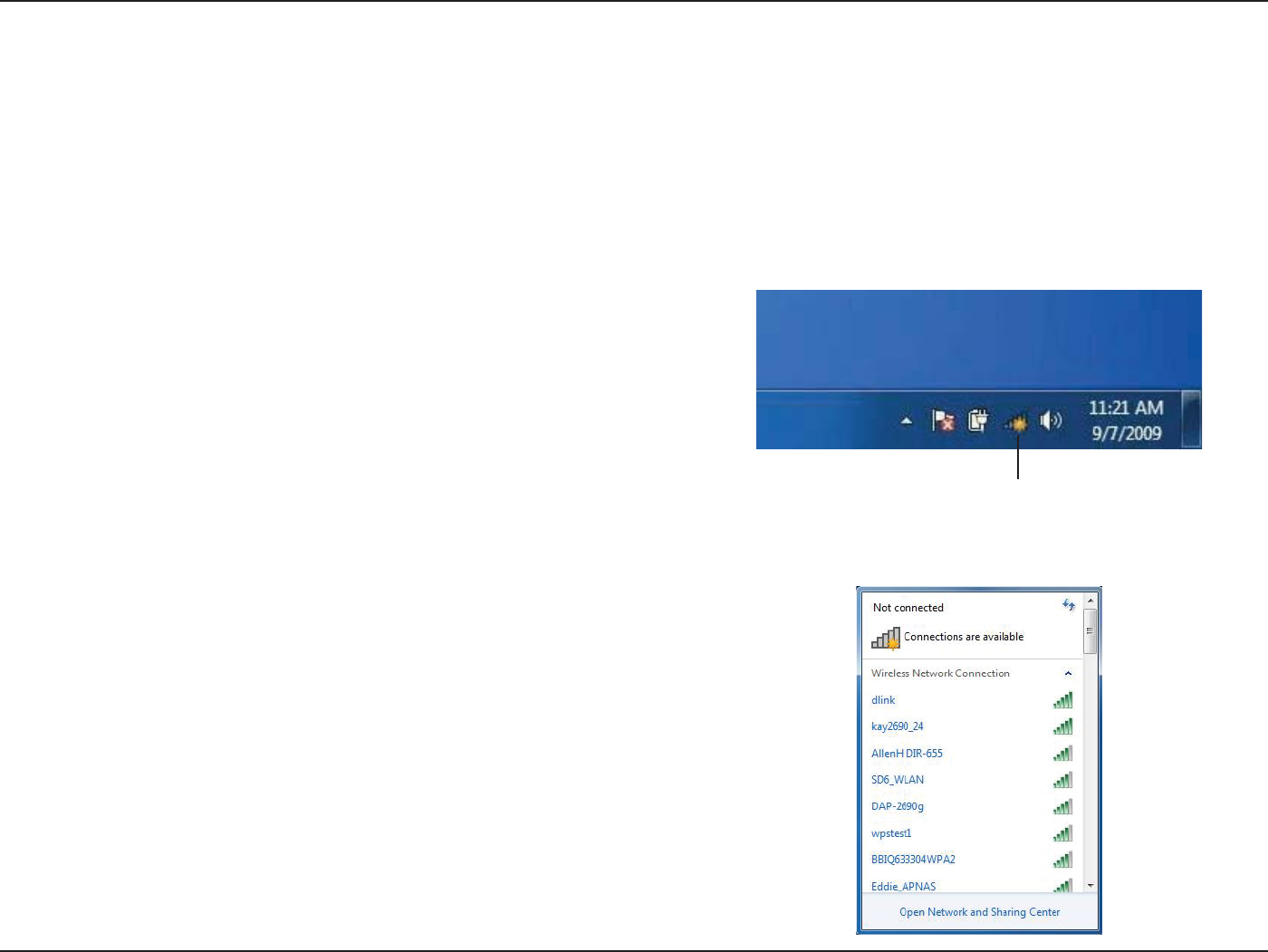

Windows® 7 ................................................................................ 111
WPA/WPA2 ......................................................................... 111
Windows Vista® ......................................................................... 114
WPA/WPA2 ......................................................................... 115
Windows® XP ............................................................................. 117
WPA/WPA2 ......................................................................... 118
Troubleshooting ............................................................120
Wireless Basics ...............................................................125
What is Wireless? ...................................................................... 126
Tips ................................................................................................ 128
Wireless Modes ......................................................................... 129
Networking Basics .........................................................130
Technical Specications ................................................133
GPL Code Statement......................................................135
Safety Statements .........................................................150
1D-Link DIR-510L User Manual
Section 1 - Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
DIR-510L Quick Installation Guide
Micro USB Power Adapter D-Link Cloud Service Mobile Apps Guide
2D-Link DIR-510L User Manual
Section 1 - Product Overview
Network Requirements tCable/DSL modem, 3G/4G USB adapter, or a hotspot
tIEEE 802.11bgn wireless clients
Web-based Conguration
Utility Requirements
A computer or mobile device with the following:
tWindows®, Macintosh, Linux-based, iOS, or Android™ operating
system
tAn installed Wi-Fi adapter
Browser Requirements:
tInternet Explorer® 8 or higher
tFirefox® 12.0 or higher
tSafari® 4 or higher
tChrome™ 20 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink SharePort
Requirements
tiPhone/iPad/iPod Touch (iOS 5.0 or higher)
tAndroid device (2.3.3 or higher)
SharePort Mobile tWindows 8/RT device
System Requirements
3D-Link DIR-510L User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-510L Wi-Fi AC750 Portable Router and Charger lets you create a secure wireless network to share photos, les, music,
and video on the go. Connect the router to a cable or DSL modem and share your high-speed Internet access with everyone on the
network. Even when you are away from home, connect to a Wi-Fi hotspot to share your Internet access with your friends securely. Directly
attaching a 3G/4G USB adapter allows sharing of a mobile broadband connection on the go. For convergence and convenience, the
DIR-510L also supports UPnP and DLNA protocols for easy sharing of media to other certied devices. With the mydlink SharePort and
SharePort Mobile apps, your iOS, Android, and Windows 8/RT devices can easily access les and stream media either remotely or locally
from a USB drive attached to the router.
The DIR-510L provides the latest Wireless AC 750 technology for smooth performance during data transmission and multimedia streaming.
It supports all of the latest wireless security features to prevent unauthorized access; no matter if you are connected to the Internet via
a wired or wireless connection. Support for WPA2 standards ensures that you’ll be able to use the best possible encryption method,
regardless of your client devices. WPS 2.0 Wi-Fi Protected Setup allows for easy and secure wireless connections and a Guest Zone feature
provides a separate subnet for guests to access the Internet without the privilege to access the administration UI. In addition, this router
allows VPN pass through via PPTP, L2TP, or IPSec for secure tunnel connections.
To round out this complete all-in-one mobile solution, the DIR-510L can charge mobile devices such as phones, tablets, and other devices
via its universal USB ports. This feature oers convenience and peace of mind when your devices are low on battery or when you’ve
forgotten to bring along your devices’ chargers on your travels.
4D-Link DIR-510L User Manual
Section 1 - Product Overview
t Advanced Wireless AC Technology - The DIR-510L provides up to 750 Mbps1 wireless speeds with other 802.11ac wireless
clients using dual frequency bands to free up network congestion. This capability allows for smooth performance in video
streaming, audio playback, and online gaming for multiple clients.
t Access the Internet - The DIR-510L allows you to connect all of your wireless devices to the Internet via wired Broadband,
3G/4G, or wireless hotspot.

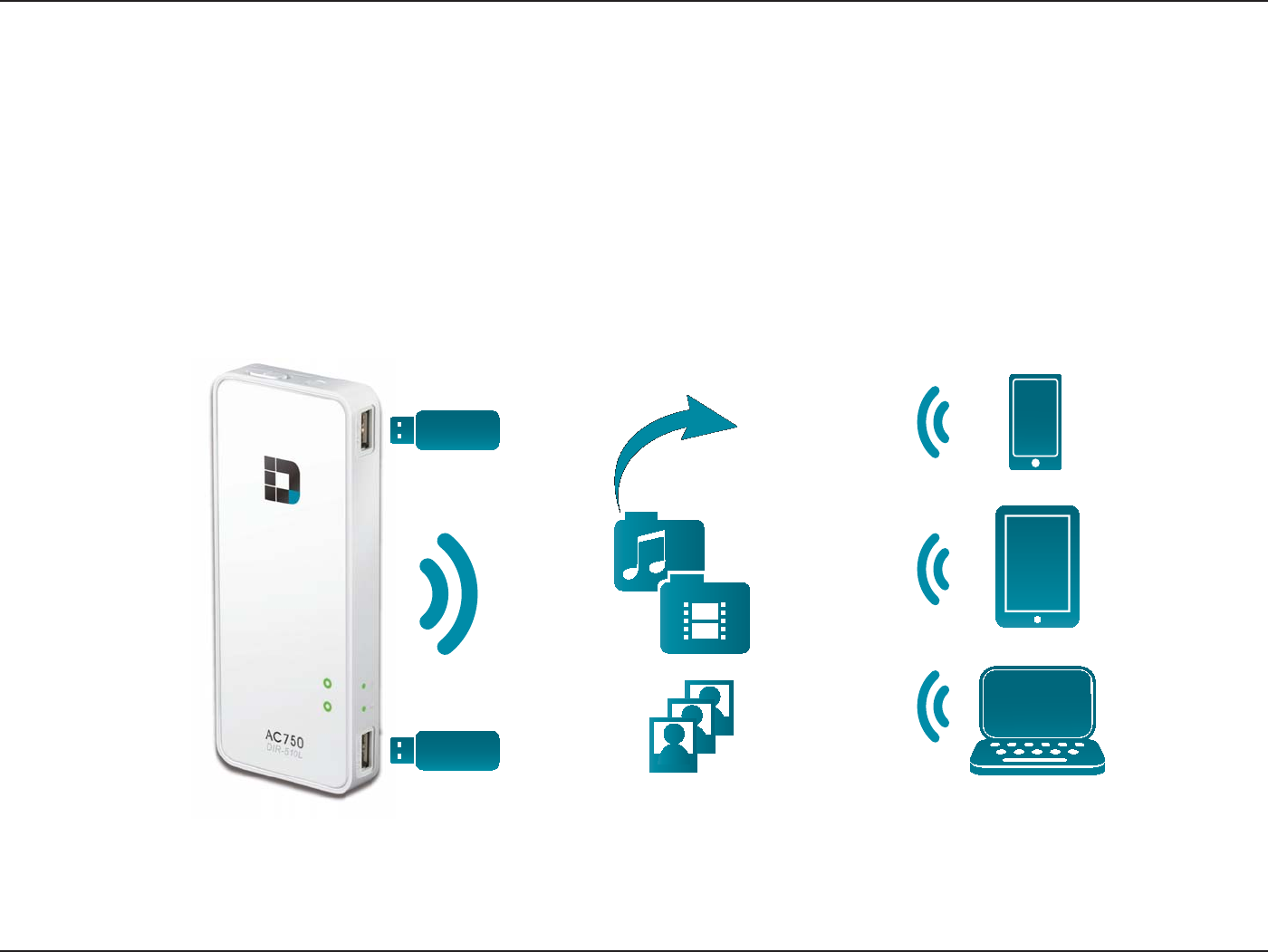

t Multimedia On-The-Go - The DIR-510L is designed as the media hub for all of your mobile needs with the following features:
tDual USB Interfaces2 - Easily store and share music, videos, photos, and les on your USB drive while charging
another device.
t UPnP and DLNA Support3 - Compliant with the latest DLNA certication requirements, the DIR-510L can
stream many compatible media formats to other DLNA devices wirelessly.
tmydlink SharePort app - Stream your media and upload les locally or remotely through the Internet to your
iPhone®, iPad® or Android™ device.
tBuilt-in Charger4 - A 4000 mAh lithium-ion internal battery with Over Current Protection (OCP), Over Voltage
Protection (OVP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) lets you charge your
mobile devices on-the-go.
t Compatible with 802.11n, 802.11g and 802.11b Devices - The DIR-510L is still fully backward-compatible with the IEEE
802.11n, 802.11g and 802.11b standards, so it can connect with existing devices using these standards.
1Maximum wireless signal rate derived from IEEE Standard specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of
network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
2The battery may be drained if a high-power 2.5” or 3.5” USB hard drive is attached to the USB ports.
3DLNA support will be available in a future rmware update.
4Actual usable capacity may vary depending on charging conditions.
Features
5D-Link DIR-510L User Manual
Section 1 - Product Overview
Hardware Overview
1 ON/OFF/CHARGER
Switch
Slide the switch to ON to operate the unit in router modes.1
Slide the switch to CHARGER to charge devices connected via USB.
2 WPS Button Press the WPS button to automatically connect additional devices to the unit securely.
3 Reset Button Pressing the Reset button restores the router to its original factory default settings.
4 USB Port 1 A
Connect a 3G/4G USB adapter to use Mobile Router Mode to share your Internet broadband.
Connect a USB drive to share locally using mydlink SharePort and SharePort Web Access.
Connect a device (high-power support) via USB cable to charge it.2
5 Power/Status LED
Green (Solid) The device is connected and working properly.
Green (Blinking) The device is currently connecting via WPS.
Orange (Solid) The device is booting or resetting.
Orange (Blinking) The device cannot connect to the Internet or is in recovery mode.
Red (Solid) The system is defective.
O The device is turned o or in charging mode.
6 Battery LED
Green (Solid) Battery capacity is 80% or more.
Orange (Solid) Battery capacity is between 15% and 80%.
Red (Solid) Battery capacity is 15% or less.
Red (Blinking) Battery is defective.
O Charging is complete (connected to power adapter) or the device
is out of battery.
7 USB Port 0.5 A Connect a USB drive to share locally using mydlink SharePort and SharePort Web Access.1
1 2
3
4
6
7
5
1To comply with SAR certication, no RF devices can be connected to the 0.5 A USB port.
6D-Link DIR-510L User Manual
Section 1 - Product Overview
8 Power Receptor
(Micro USB) Connect the included power adapter to power and charge the unit.
9 INTERNET Port Connect an Ethernet cable to a cable or DSL modem to use Broadband Router Mode.
89
1If you have attached one or more USB devices (such as a 2.5” USB drive) that draw a total of 0.7 A or more power, the power adapter will not supply enough voltage to
charge your DIR-510L while simultaneously powering the USB devices.
2The DIR-510L only supports charging other devices on USB port (1 A) in CHARGER mode.
7D-Link DIR-510L User Manual
Section 2 - Installation
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall
or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of
walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears
to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that
the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try
to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base
is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
Installation
Wireless Installation Considerations
8D-Link DIR-510L User Manual
Section 2 - Installation
Connection Diagrams
Broadband Router Setup
Ethernet cable
Computer
iPad
Smartphone
USB drive
USB drive
Internet Modem
Cable or DSL line
In the Broadband Router Mode, the DIR-510L connects to your cable modem, DSL modem, or other Internet source via an
Ethernet cable and wirelessly shares your Internet connection with other devices, providing Internet access for an entire home,
oce, or hotel room. You can then connect an SD card and/or a USB drive to share les with these devices on your wireless
network by using the SharePort feature.
Note: To ensure performance when using SharePort, it is highly suggested to limit this application to 5 simultaneous users.
9D-Link DIR-510L User Manual
Section 2 - Installation
Mobile Router Setup
In the Mobile Router Mode, you must have a compatible 3G/4G USB adapter and be within your ISP’s cellular coverage. Once
connected, you can then wirelessly share your Internet connection with other devices on the go. You can also share les with
these devices on your wireless network by inserting a USB drive and using the SharePort feature.
Note: Please check your local D-Link website for more information on compatible 3G/4G USB adapters.
Computer
iPad
Smartphone
3G/4G cell
tower
3G/4G USB
adapter
Internet
USB drive
10D-Link DIR-510L User Manual
Section 2 - Installation
Wi-Fi Hotspot Setup
Computer
iPad
Smartphone
USB drive
USB drive
Wi-Fi
Hotspot
Internet
You can set up your DIR-510L to share a hotspot (for example, at a cafe) wirelessly with other devices. In the Wi-Fi Hotspot
Mode, the DIR-510L connects wirelessly to another wireless network and then wirelessly shares your Internet connection with
other devices. You must have the username and password for the access point you are connecting the DIR-510L to.
Note: In public environments, it is highly recommended to password protect the shared Internet connection on the DIR-510L.
11D-Link DIR-510L User Manual
Section 2 - Installation
LAN Sharing Setup
Even without Internet broadband access, you can connect other Wi-Fi devices wirelessly to the DIR-510L by creating a private
network anywhere. You can then connect one or two USB drives to locally share les with these devices on your wireless
network via the SharePort feature.
Note: In public environments, it is highly recommended to password protect the private LAN on the DIR-510L.
Computer
iPad
Smartphone
USB drive
USB drive
12D-Link DIR-510L User Manual
Section 2 - Installation
Setting Up Your DIR-510L

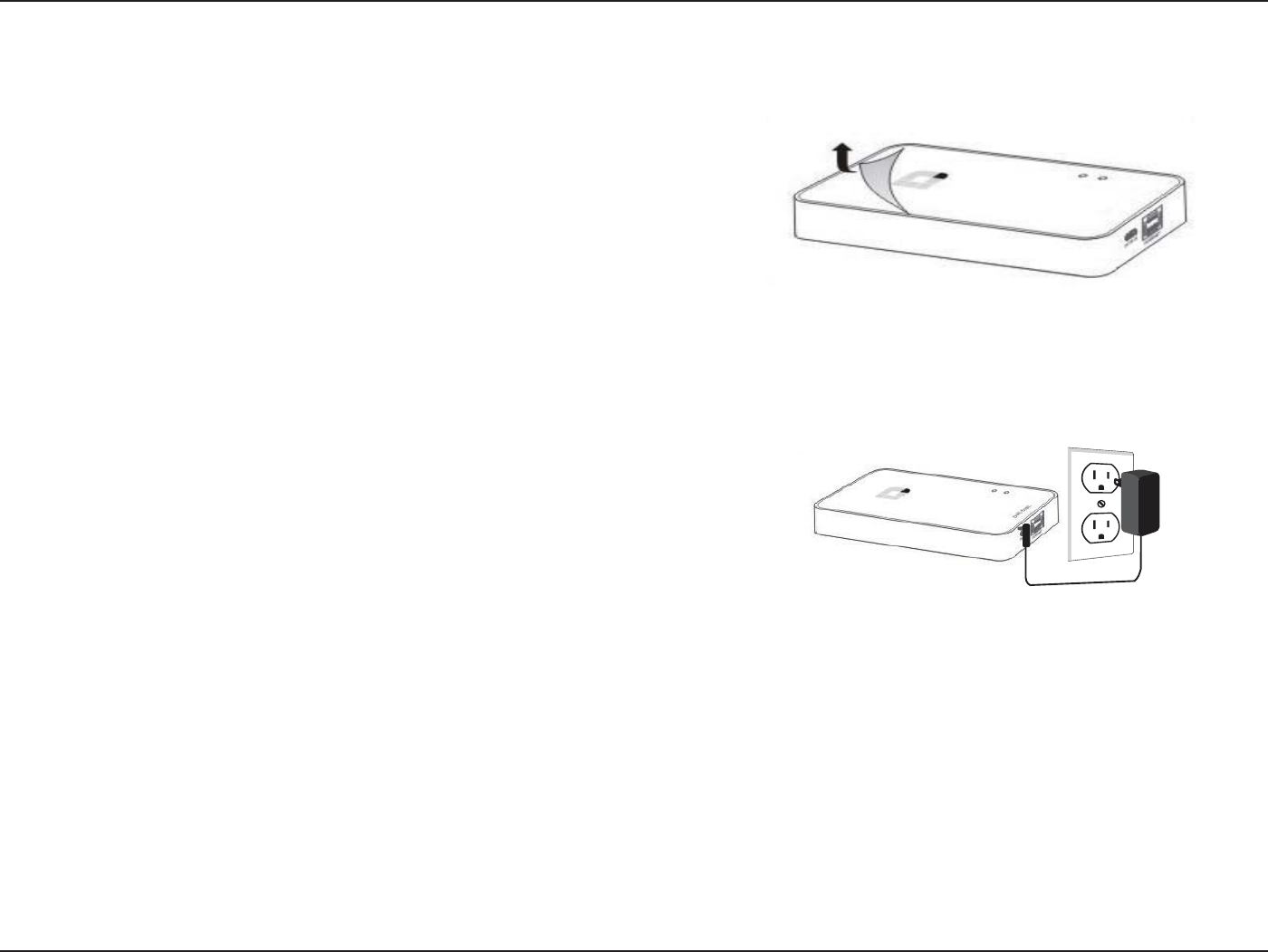

t Peel o the protective lm from the top and bottom of the
device.
t Charge the device by connecting one end of the power
adapter to the DIR-510L and the other end to a wall outlet.
Charge the device for at least 4 hours or until the battery LED
indicator is solid green or o.
Note: For more information on charging the device and the battery LED
indicator, refer to “Hardware Overview” on page 5.
13D-Link DIR-510L User Manual
Section 2 - Installation
Using Broadband Ethernet: You will need an Ethernet cable
connection to your cable or DSL modem.
t Connect one end of an Ethernet cable to your modem and
the other end to the Internet port on the DIR-510L.
Connecting Your Equipment
Connecting to a Wi-Fi Hotspot: You will need the Wi-Fi network
name and password of the hotspot you want to connect to.
Using a 3G/4G USB Adapter: You will need a compatible
3G/4G USB adapter with an active SIM card. Please check our
compatibility list for more information.
t Plug the 3G/4G USB adapter into the USB 1 A port on the
DIR-510L.
Depending on your equipment, the DIR-510L can be set up easily from any device with Wi-Fi and a Web browser.
3G/4G USB Adapter
Wi-Fi Hotspot
14D-Link DIR-510L User Manual
Section 2 - Installation
Connecting to Your DIR-510L
To congure the router, you will need to connect to it wirelessly from your mobile device or computer.
Mobile Desktop
Note: If you have a device that supports Wi-Fi Protected Setup, please refer
to ”WPS Button” on page 108.
t Once connected, open a Web browser on your mobile or
computer and type http://dlinkrouter.local. or http://
dlinkrouter in the URL address box.
t Turn on DIR-510L by sliding the ON/OFF/CHARGER switch
to ON.
t On your computer or mobile device, connect to the DIR-510L’s
wireless network. By default, the settings are:
t2.4 GHz Wi-Fi Network Name (SSID): DIR510L
t5 GHz Wi-Fi Network Name: DIR510L_5GHz
tPassword: (leave this blank)
t At the login page, enter the Admin Password. By default, it
should be left blank. Click Log In.
15D-Link DIR-510L User Manual
Section 2 - Installation
After logging in, you will see the Current Status page. If the
Internet icon is blue and there is a mark, you are already
connected to the Internet and the device is ready for use!
If the Internet icon is grey and there is an icon, please refer
to :
t “xDSL Broadband (PPPoE)” on page 89 if you are using
an xDSL modem.
t “3G/4G Wireless USB” on page 90 if you are using a 3G/4G
USB adapter.
t “Wi-Fi Hotspot Client” on page 91 if you are connecting
to a Wi-Fi hotspot.
16D-Link DIR-510L User Manual
Section 3 - Usage
The mydlink SharePort app is a streamlined mobile application that allows you to conveniently stream media and share les
stored on a removable storage connected to your router. Once the router is set up, you can start the app and easily connect
from a local network or through the Internet to access your photos, videos, music, and documents. It allows you to create your
own personal cloud storage; you can upload les and photos from your mobile device to the removable storage via the app
from anywhere in the world!
Note: In order to ensure smooth streaming performance, you will need a minimum of 2 Mbit/s upload bandwidth for your router’s Internet connection.
Streaming performance will vary depending on the quality of your Internet connection.
1. If you are connecting remotely through the mydlink SharePort app
from the Internet, you will need a mydlink account. Please refer to
“mydlink” on page 101 for more details.
2. Make sure the device is powered on. Then plug your USB drive into
the USB port of the device.
Note: If you connect a removable storage with many les or a large capacity, it
may take a while for the router to scan and catalog your les.
Sharing Files
Using the mydlink SharePort app for iPad®, iPhone®,
and iPod touch®
USB drive
17D-Link DIR-510L User Manual
Section 3 - Usage
4. On your mobile device, go to your Wi-Fi settings and connect to
your router’s wireless network using the default Wi-Fi settings. By
default, your wireless network details are:
t2.4 GHz Wi-Fi Network Name (SSID): DIR510L
t5 GHz Wi-Fi Network Name: DIR510L_5GHz
tPassword: (leave this blank)
3. Use your iPhone, iPad or iPod Touch to search for and download the
free mydlink SharePort app from the App Store.
If you have a QR code reader, you can scan the code for mydlink
SharePort to the right.
18D-Link DIR-510L User Manual
Section 3 - Usage
5. Once connected, tap the mydlink SharePort icon, and the app will
load.
6. At the login page, tap to select between a local access or
remote access connection. If you are unsure, tap Help?
to see descriptions of the two types of connections.
Local Access:
Local mode will connect you to storage on your current network. For
example, if you are at home connecting to your router, choose this
mode.
Remote Access:
Remote mode will connect you to storage on your router in a dierent
location. For example, you are at your oce connecting to your router at
home.
If you are directly connected to the DIR-510L’s wireless
network, tap Local Access and enter the Admin Password of your router,
then tap Log In.
If you are connecting through the Internet tap Remote Access and
enter your mydlink login information, then tap Log In. Tap on your router
on the devices page that appears. You can now share your les.
After logging in, select your router from the device list.
19D-Link DIR-510L User Manual
Section 3 - Usage
7. You can now use the mydlink SharePort app interface to
stream media and access les stored on your removable drive.
The wireless icon at the bottom will be lit blue to indicate
a Local Access connection. It will be green to indicate you
are connected to the router through Remote Access.
Note: If you see a red wireless icon, your router’s network environment may not
be suitable for a direct network connection and you may experience slow
network speeds.
20D-Link DIR-510L User Manual
Section 3 - Usage

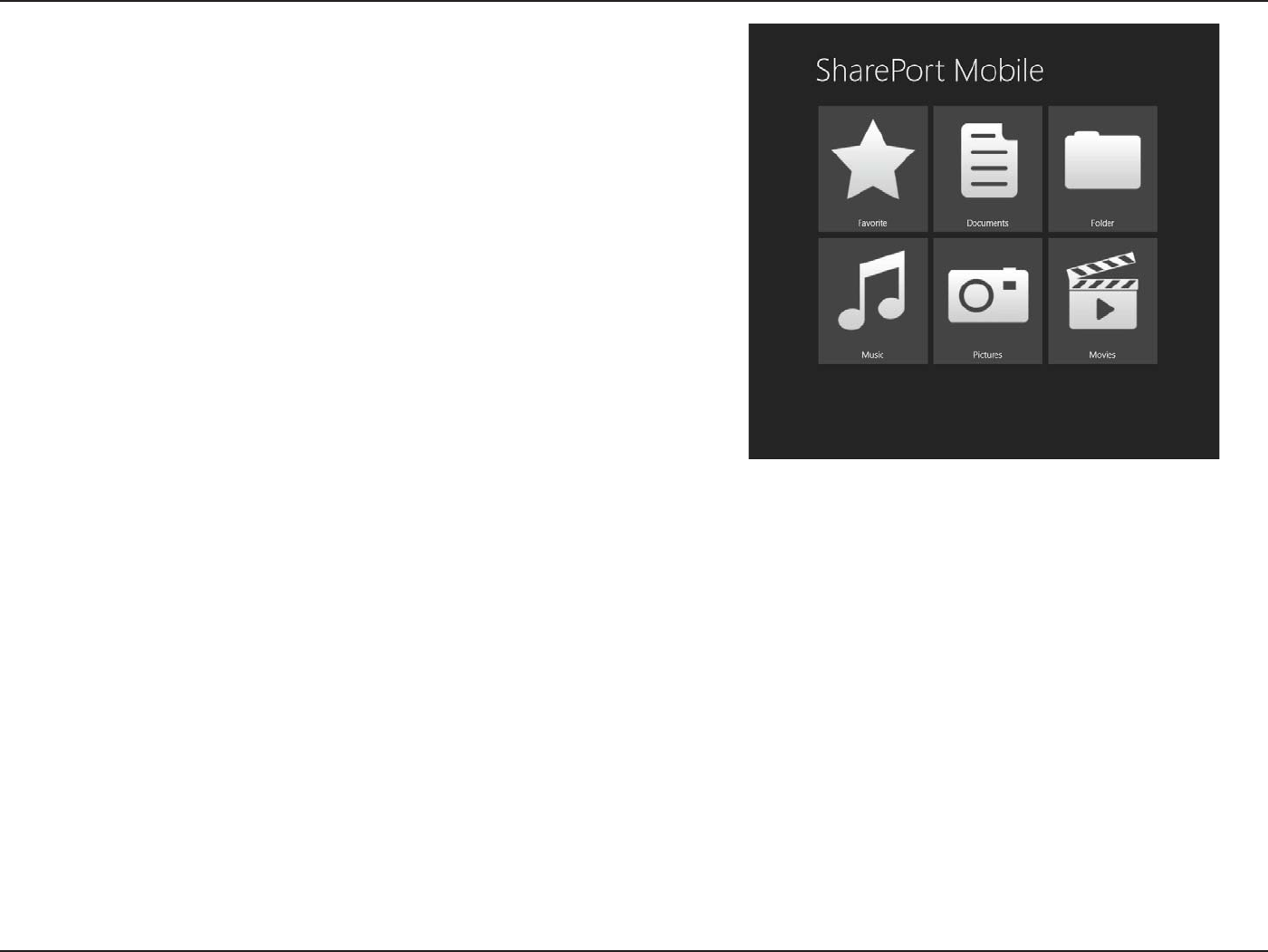

Main Menu
Tap on the document icon to view documents.
Tap the camera icon to view photos.
Tap on the movie icon to play videos.
Tap on the music icon to play audio les.
Tap on the folder icon to browse all les in a folder
view.
Tap on the star icon to access your favorite les.
The mydlink SharePort main menu has dierent sections that let you see all the documents, photos, movies, or music stored
on your removable storage. Tap < or >, or swipe left or right to move between the dierent sections. The Wi-Fi icon at the
bottom indicates an active local network connection (blue) or remote connection (green/red). Tap Log In if it is not lit, or Log
Out to return to the login page.
21D-Link DIR-510L User Manual
Section 3 - Usage
Documents
The Documents section allows you to share, print, and view documents
streamed from your DIR-510L to your mobile device. Tap the document
icon on the main menu to browse the documents on your mobile
device.
Enter a lename here to search your storage.
Tap to mark les for deletion.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Tapping this icon gives you additional options:
tMail: Tap to e-mail the le.
tiCloud: Tap to store the le on iCloud.
tAirPrint: Tap to print the le.
tOpen In...: Tap to use a third-party app to open the le.
The bottom menu bar includes these options:
Search Bar:
Tap to go back to the main menu.
Tap to update the list of les.
Tap to reorder the les alphabetically.
22D-Link DIR-510L User Manual
Section 3 - Usage

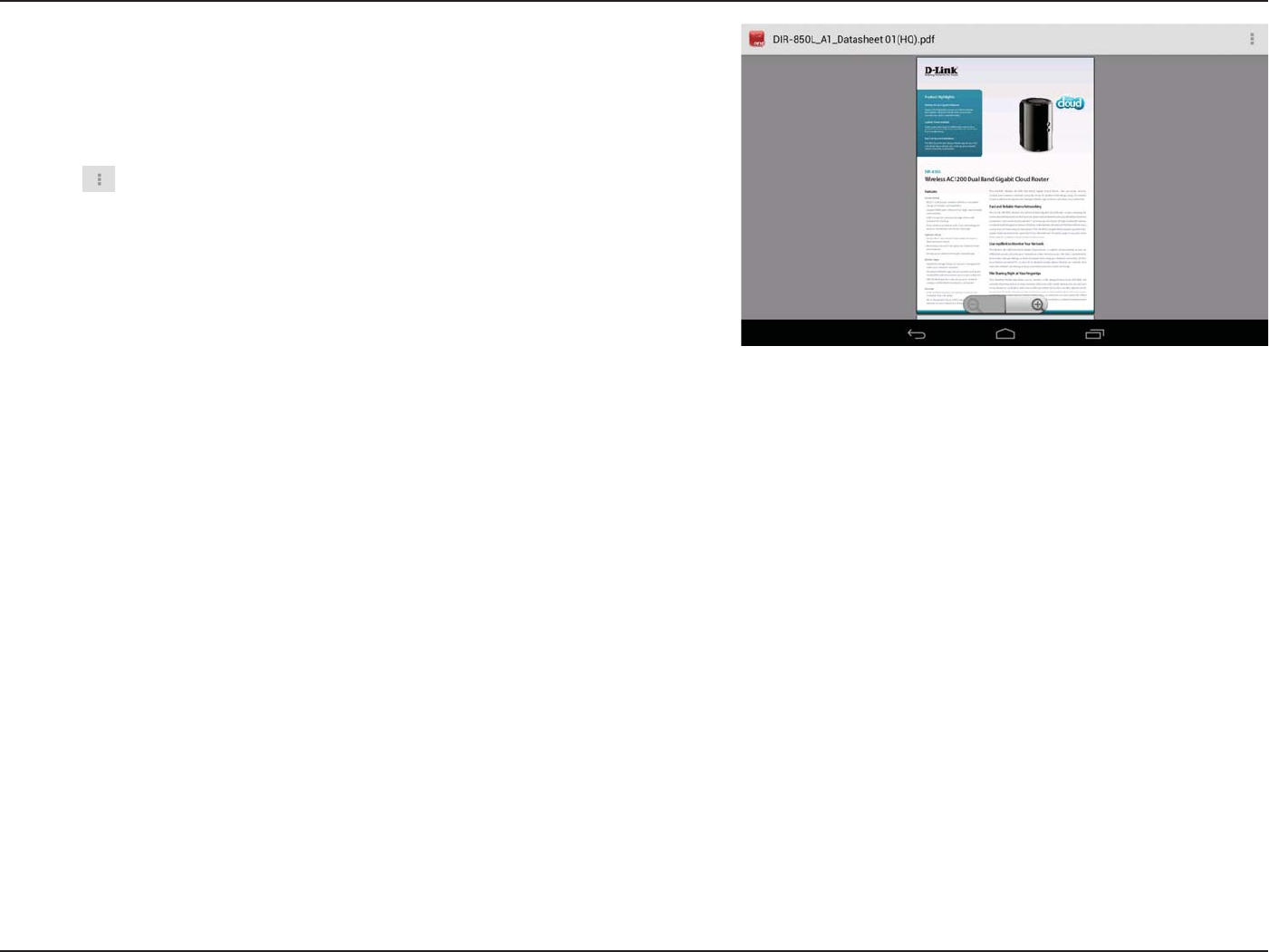

Tap on a le to start the document viewer. In the viewer:
Tap to add/remove the le from your Favorites.
Tap to bring up the same options as >.
Note: Some les may require a third-party app to view them.
23D-Link DIR-510L User Manual
Section 3 - Usage
Pictures
The Pictures section allows you to stream images from your DIR-510L to
your mobile device. Tap the camera icon on the main menu to browse
your photo collection on your removable storage.
Enter a lename here to search your storage.
Tap to mark les for deletion.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Tapping this icon gives you additional options:
tMail: Tap to e-mail the image.
tiCloud: Tap to store the image on iCloud.
tAirPrint: Tap to print the image.
tFacebook: Tap to upload the image to your Facebook account.
tTwitter: Tap to upload the image to your Twitter account.
tOpen In...: Tap to use a third-party app to open the le.
Search Bar:
Tap to go back to the main menu.
Tap to start a slideshow of your photos. Tap the screen again to
bring up the menu.
Tap to update the list of les.
Tap to reorder the les alphabetically.
The bottom menu bar includes these options:
24D-Link DIR-510L User Manual
Section 3 - Usage

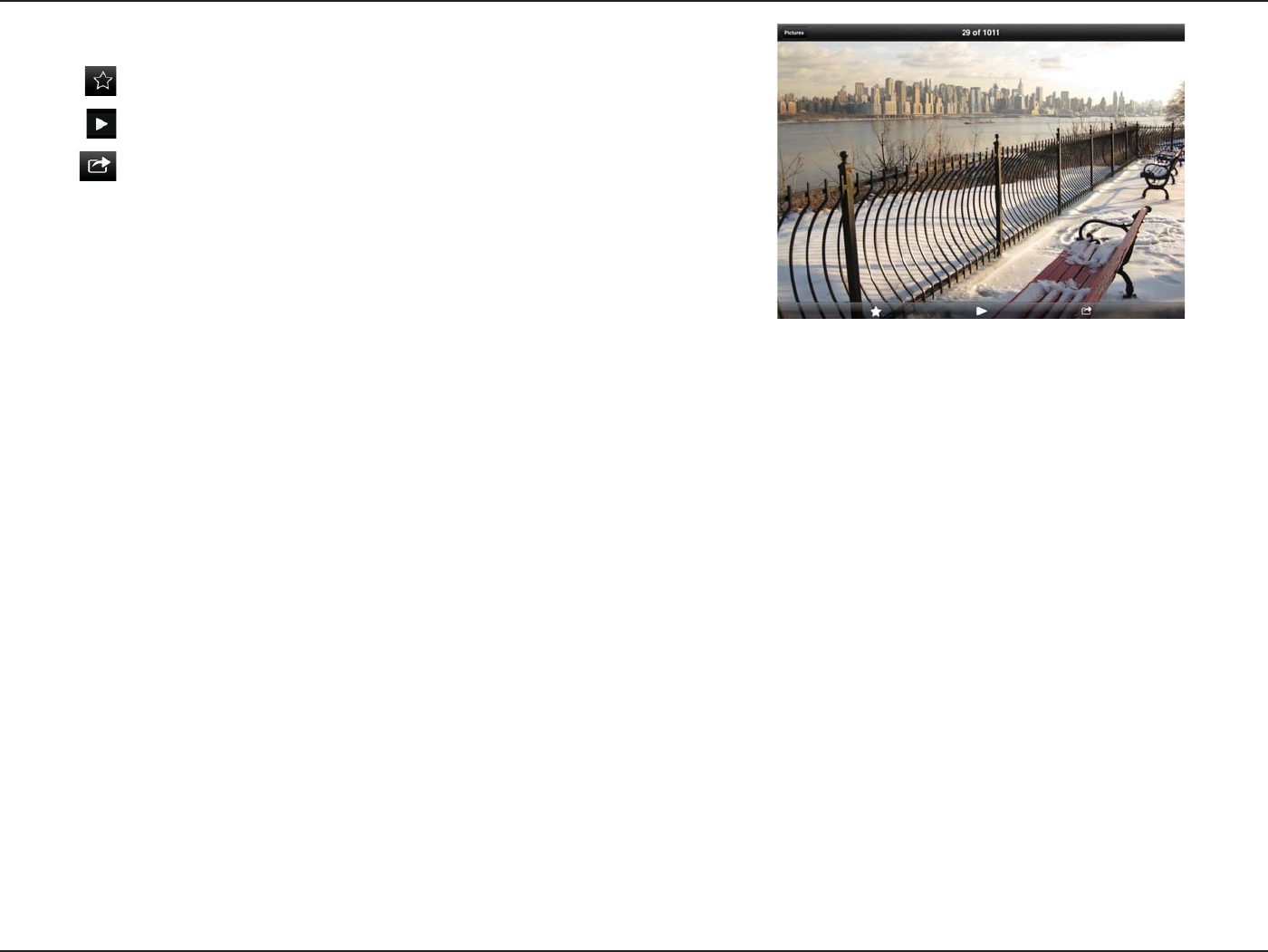

Tap on a le to start the photo viewer. In the viewer:
Tap to add/remove the current image from your Favorites.
Tap to start the slideshow.
Tap to bring up the same options as >.
25D-Link DIR-510L User Manual
Section 3 - Usage
Videos
The Videos section allows you to stream video clips and movies from
your DIR-510L to your mobile device. Tap the movie icon on the main
menu to browse your videos on your removable storage.
Enter a lename here to search for a specic le.
Tap to mark les for deletion.
Tap the star icon next to a le to download it to your device and add
it into your Favorites section.
Tapping this icon gives you additional options:
tMail: Lets you e-mail the le.
tiCloud: Lets you store the le on iCloud.
tOpen In...: Lets you use a third-party app to open the le.
Search Bar:
The bottom menu bar includes these options:
Tap to go back to the main menu.
Tap to update the list of les.
Tap to reorder the les alphabetically.
26D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. In the player:
Tap to play/pause the video. You can scroll to any time on the time
line by holding and sliding your nger.
Tap to enter/exit fullscreen mode.
Tap to add/remove the le from your Favorites.
Tapping this icon gives you additional options:
tMail: Lets you e-mail the video.
tiCloud: Lets you store the video on iCloud.
tOpen In...: Lets you use a third-party app to open the le.
27D-Link DIR-510L User Manual
Section 3 - Usage
Music
The Music section allows you to stream songs from your DIR-510L to
your mobile device. Tap the music icon on the main menu to browse
your music collection on your removable storage.
The bottom menu bar includes these options:
Enter a lename here to search your storage.
Tap to create a playlist and mark les for deletion.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Tapping this icon gives you additional options:
tMail: Lets you e-mail the le.
tiCloud: Lets you store the le on iCloud.
tOpen In...: Lets you use a third-party app to open the le.
Search Bar:
Tap to go back to the main menu.
Tap to update the list of les.
Tap to reorder the les alphabetically.
28D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. In the player:
Tap to repeat all. Tap again to repeat a single song.
Tap to skip to the previous/next song.
Tap to enable/disable shue mode.
To create a playlist:
t Tap Edit > Add Playlist.
t Enter a name for the playlist, then tap Save.
t The name of the playlist will appear in the browser next
to the icon.
29D-Link DIR-510L User Manual
Section 3 - Usage

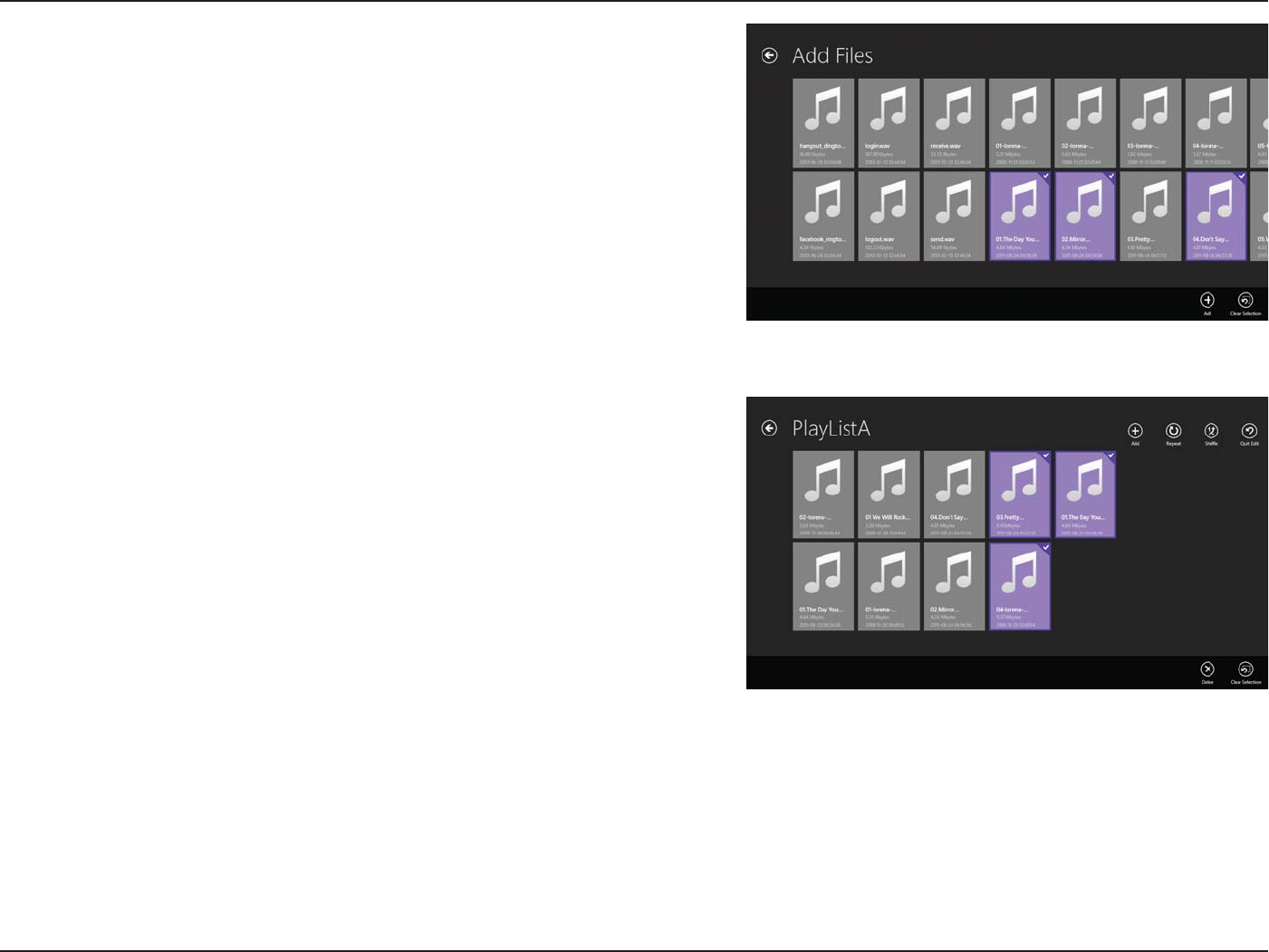

To add songs to a playlist:
t Tap the playlist in the browser.
t Tap Add Music... to add songs to the current playlist.
t Tick the songs you wish to add and tap Done.
To delete songs from the playlist:
t Tap Edit in the playlist browser and mark the les to be deleted.
t Tap Delete.
30D-Link DIR-510L User Manual
Section 3 - Usage
Folders
You can browse your removable storage in a folder view in the folders
section. Tapping the lename will open the viewer/player for that le
type as described in the previous pages. You can also upload les from
your mobile device to the removable storage attached to your router.
Enter a lename here to search your storage.
Tap to take you to the editing screen where you can add a folder
and mark les for deletion or copying.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Tapping the > icon gives you additional options depending on the
le type.
Search Bar:
The bottom menu bar includes these options:
Tap to go back to the main menu.
Tap to upload les from your device to your removable storage.
Tap to update the list of les.
Tap to reorder the les alphabetically.
31D-Link DIR-510L User Manual
Section 3 - Usage
To delete les:
t Tap Edit at the top right.
t Tick the circle next to a le to mark it for deletion.
t Tap on Delete at the bottom to delete the le.
To create a new folder:
t Browse to the directory you wish to create a new folder in.
t Tap Edit at the top right.
t Tap Add Folder to add a new folder.
t Enter the name of the new folder, then tap Save.
t Tap OK to conrm folder creation.
To copy les:
t Tap on Copy to bring up a window where you can select the folder
to copy to.
t Browse to the directory you want to copy the marked les to and
tap Paste.
t You can also tap Add Folder to create a new folder.
32D-Link DIR-510L User Manual
Section 3 - Usage
To upload images and videos from your mobile device:
t Browse to the folder you wish to upload to.
t Tap Upload at the bottom.
t Select the photos/videos you wish to upload.
t Tap Done.
During the upload process, the size of the le and the upload progress
will be displayed.
To upload more les, tap the + icon at the top right and repeat the
steps listed above.
33D-Link DIR-510L User Manual
Section 3 - Usage
Favorites
The Favorites section allows you to quickly access your most often
used les, no matter what le type, in a special section. Files added to
the Favorites section will be copied here for playback in a centralized
location.
Tap to mark les for deletion from the local storage in Favorites.
The le will still be accessible in other mydlink SharePort sections.
Tapping this icon gives you additional options depending on the
le type.
The bottom menu bar includes these options:
Tap on a le to start the le viewer. In the viewer:
Tap to add/remove the le from your Favorites.
Tap to bring up additional options.
Note: The le options available will vary depending on the le type.
Tap to go back to the main menu.
Tap to update the list of les.
Tap to reorder the les alphabetically.
34D-Link DIR-510L User Manual
Section 3 - Usage
Using the mydlink SharePort app for Android™
The mydlink SharePort app is a streamlined mobile application that allows you to conveniently stream media and share les
stored on a removable storage connected to your router. Once the router is set up, you can start the app and easily connect
from a local network or through the Internet to access your photos, videos, music, and documents. It allows you to create your
own personal cloud storage; you can upload les and photos from your mobile device to the removable storage via the app
from anywhere in the world!
Note: In order to ensure smooth streaming performance, you will need a minimum of 2 Mbit/s upload bandwidth for your router’s Internet connection.
Streaming performance will vary depending on the quality of your Internet connection.
1. If you are connecting remotely through the mydlink SharePort app
from the Internet, you will need a mydlink account. Please refer to
“mydlink” on page 101 for more details.
2. Make sure the device is powered on. Then plug your USB drive into
the USB port of the device.
Note: If you connect a removable storage with many les or a large capacity, it
may take a while for the router to scan and catalog your les.
USB drive
35D-Link DIR-510L User Manual
Section 3 - Usage
4. On your mobile device, go to your Wi-Fi settings and connect to
your router’s wireless network using the default Wi-Fi settings. By
default, your wireless network details are:
t2.4 GHz Wi-Fi Network Name (SSID): DIR510L
t5 GHz Wi-Fi Network Name: DIR510L_5GHz
tPassword: (leave this blank)
3. Use your Android mobile device to search for and download the
free mydlink SharePort app from Google Play™.
If you have a QR code reader, you can scan the code for mydlink
SharePort to the right.
36D-Link DIR-510L User Manual
Section 3 - Usage
5. Once connected, tap the mydlink SharePort icon, and the app will
load.
6. At the login page, tap to select between a local access
or remote access connection. If you are unsure, tap ? to
see descriptions of the two types of connections.
Local Access:
Local mode will connect you to storage on your
current network. For example, if you are at home
connecting to your router, choose this mode.
Remote Access:
Remote mode will connect you to storage on your
router in a dierent location. For example, you are at
your oce connecting to your router at home.
37D-Link DIR-510L User Manual
Section 3 - Usage
If you are directly connected to the DIR-510L’s wireless network, tap
Local Access and enter the Admin Password of your router, then tap Log
In.
If you are connecting through the Internet tap Remote Access and
enter your mydlink login information, then tap Log In. Tap on your router
on the devices page that appears. You can now share your les.
After logging in, select your router from the device list.
7. You can now use the mydlink SharePort app interface to stream
media and access les stored on your removable drive.
The wireless icon at the bottom will be lit blue to indicate
a Local Access connection. It will be green to indicate you
are connected to the router through Remote Access.
Note: If you see a red wireless icon, your router’s network environment may not
be suitable for a direct network connection and you may experience slow
network speeds.
38D-Link DIR-510L User Manual
Section 3 - Usage
Note: Available features may dier depending on the Android OS version
of your device.
Main Menu
Tap on the document icon to view documents.
Tap the camera icon to view pictures.
Tap on the movie icon to play videos.
Tap on the music icon to play audio les.
Tap on the folder icon to browse all les in a folder
view.
Tap on the star icon to access your favorite les.
The mydlink SharePort main menu has dierent sections that let you see all the documents, photos, movies, or music stored
on your removable storage. Tap < or >, or swipe left or right to move between the dierent sections. The Wi-Fi icon at the
bottom indicates an active local network connection (blue) or remote connection (green/red). Tap Log In if it is not lit, or Log
Out to return to the login page.
39D-Link DIR-510L User Manual
Section 3 - Usage
Documents
The Documents section allows you to share, print, and view documents
streamed from your DIR-510L to your mobile device. Tap the document
icon on the main menu to browse the les on your mobile device.
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to refresh, sort, or mark les for deletion.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Search Bar:
Tap for additional options:
Tap to return to the main menu.
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Check a le then tap to delete it.
40D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start the document viewer. In the viewer:
t Tap the screen to bring up zoom in/out buttons.
t Drag the screen up or down to scroll between pages.
t Tap to perform File, Find, Zoom, Reading View, Go To Page, and
Bookmarks actions.
Note: Available actions may dier depending on your Android OS.
41D-Link DIR-510L User Manual
Section 3 - Usage
Pictures
The Pictures section allows you to view images streamed from your
DIR-510L to your mobile device. Tap the camera icon on the main menu
to browse your photo collection on your removable storage.
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to start a slideshow.
Tap to refresh, sort, or mark les for deletion.
Tap the star icon next to each le to download it to your device and
add it into your Favorites section.
Search Bar:
Tap to return to the main menu.
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Check a le then tap to delete it.
Tap for additional options:
42D-Link DIR-510L User Manual
Section 3 - Usage
Tap on an image le to start the image viewer. In the viewer:
Tap the star icon to download it to your device and add it into your
Favorites section.
Tap to start a slideshow. Tap the image to stop the slideshow.
Tap to delete the current image. Tap OK to conrm.
Tap to bring up additional options using other applications.
Tap to access the image editor.
Note: This function may vary depending on the version of your
Android OS.
43D-Link DIR-510L User Manual
Section 3 - Usage
Videos
The Videos section allows you to stream video clips and movies from
your DIR-510L to your mobile device. Tap the movie icon on the main
menu to browse your videos on your removable storage.
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to refresh, sort, or mark les for deletion.
Tap the star icon next to a le to download it to your device and add
it into your Favorites section.
Search Bar:
Tap to return to the main menu.
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Check a le then tap this icon to delete it.
Tap for additional options:
44D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. Tap on the screen to bring up the scroll
bar, pause button, and play button.
Tap to resume playback.
Tap to pause the video.
Note: Available features may vary depending on the Android OS version installed
on your device.
45D-Link DIR-510L User Manual
Section 3 - Usage
Music
The Music section allows you to stream songs from your DIR-510L to
your mobile device. Tap the music icon on the main menu to browse
your music collection on your removable storage.
Tap to return to the main menu.
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Check a le then tap this icon to delete it.
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to refresh, sort, or mark les for deletion.
Tap to browse your playlists.
Tap the star icon next to a le to download it to your device and add
it into your Favorites section.
Search Bar:
Tap for additional options:
46D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. In the player:
Tap on the up/down arrow to show/hide the player controls.
Tap to repeat all. Tap again to repeat a single song.
Tap to skip to the previous/next song.
Tap to play or pause the song.
Tap to enable/disable shue mode.
To create a playlist:
t Tap
t Tap Add new playlist...
t Enter a name for the playlist, then tap OK. The name of the playlist
will appear in the browser next to the icon.
t You can tap then to refresh the playlist page.
47D-Link DIR-510L User Manual
Section 3 - Usage
To add songs to a playlist:
t Tap a playlist to see its contents.
t Tap Add Music... to add songs to the current playlist.
t Tick the songs you wish to add and tap to save.
To delete songs from the playlist:
t Tap Edit in the playlist browser and mark the les to be deleted.
t Tap then tap OK to conrm.
48D-Link DIR-510L User Manual
Section 3 - Usage
Folders
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to access le options.
Search Bar:
In the le browser:
Tap to return to the main menu.
Tap to upload les.
Tap to refresh, sort, create a new folder, or mark les for deletion
and copying.
You can browse your removable storage in a folder view in the folders
section. Tapping the lename will open the viewer/player for that le
type as described in the previous pages. You can also upload les from
your mobile device to the removable storage attached to your router.
49D-Link DIR-510L User Manual
Section 3 - Usage
To copy les:
t Tap on to select les for copying. Tick the box next to each
le for copying.
t Tap on to browse to the destination.
Tap to select les and perform the following actions:
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Tap to create a new folder.
Mark a le then tap this icon to delete it.
Mark a le then tap this icon to copy it.
To delete les:
t Tap on and tick the box next to a le for deletion.
t Tap on to delete your selected les. Tap OK to conrm.
50D-Link DIR-510L User Manual
Section 3 - Usage
To create a new folder:
t Browse to the directory you wish to create a new folder in.
t Tap then .
t Enter the name of the folder in the box, then tap OK.
t Tap Paste or Cancel.
t You can also tap New Folder if you wish to create a folder in the
current directory.
51D-Link DIR-510L User Manual
Section 3 - Usage
To upload images and videos from your mobile device:
t Browse to the folder you wish to upload to.
t Tap and browse to the le or les you wish to upload from the
local device.
t Tick the box next to each of the les you wish to upload.
t Tap Upload.
During the upload process, the size of the le and the upload progress
will be displayed under the le name.
t To remove a le from the upload queue, tap the X next to it.
52D-Link DIR-510L User Manual
Section 3 - Usage
Favorites
The Favorites section allows you to quickly access your most often
used les, no matter what le type, in a special section. Files added to
the Favorites section will be copied here for playback in a centralized
location.
Type in the name of a le to search for it.
Tap to return to the main menu.
Tap to refresh, sort, or mark les for deletion.
Search Bar:
Tap to return to the main menu.
Tap to update the list of les.
Tap to sort the les by name, size, type, or date.
Check a le then tap to delete it.
Tap for additional options:
53D-Link DIR-510L User Manual
Section 3 - Usage
Using SharePort Mobile for Windows® 8/RT
The SharePort Mobile app is a streamlined mobile application that allows you to conveniently stream media and share les
stored on a removable storage connected to your router. Once the router is set up, you can start the app and easily connect
from a local network to access your photos, videos, music, and documents. Then, you can upload les and photos from your
mobile device to your router’s removable storage via the app wirelessly!
1. Make sure the device is powered on. Then plug your USB drive into
the USB port of the device.
Note: If you connect a removable USB drive with many les or a large capacity, it
may take a while for the router to scan and catalog your les.
USB drive
54D-Link DIR-510L User Manual
Section 3 - Usage
3. On your mobile device, go to your Wi-Fi settings and connect to
your router’s wireless network using the default Wi-Fi settings. By
default, your wireless network details are:
t2.4 GHz Wi-Fi Network Name (SSID): DIR510L
t5 GHz Wi-Fi Network Name: DIR510L_5GHz
tPassword: (leave this blank)
2. Use your Windows 8/RT mobile device to search for and download
the free SharePort Mobile app from the Windows store.
4. Once connected, tap the SharePort Mobile icon, and the app will
load.
5. At the main menu, if you see any greyed out icons, swipe the
right edge of the screen to bring up Settings. Then tap SharePort
Settings and enter your admin password. Tap on the back
icon to exit settings and log in. Once you are logged in, all of
the menu icons will be lit to indicate a successful connection.
55D-Link DIR-510L User Manual
Section 3 - Usage
6. You can now use the SharePort Mobile app interface to stream media
and access les stored on your removable drive.
56D-Link DIR-510L User Manual
Section 3 - Usage
Main Menu
Tap on the document icon to view documents.
Tap the camera icon to view pictures.
Tap on the movie icon to play videos.
Tap on the music icon to play audio les.
Tap on the folder icon to browse all les in a folder
view.
Tap on the star icon to access your favorite les.
The SharePort Mobile main menu has dierent sections that let you see all the documents, photos, movies, or music stored
on your removable storage. Tap an icon to access your les by type. In each section, you can tap at any time to go back.
57D-Link DIR-510L User Manual
Section 3 - Usage
Documents
The Documents section allows you to share, print, and view documents
streamed from your DIR-510L to your mobile device. Tap the document
icon on the main menu to browse the documents on your mobile
device.
In the documents browser, tap the document to open it with a third-
party application.
Tap to sort les by...
Tap to refresh the list of les.
Tap to select les to be added as a favorite or deleted.
Tapping Edit and selecting one or more les gives you the following
options:
Tap to leave the editing screen.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
Tap to deselect all selected les.
58D-Link DIR-510L User Manual
Section 3 - Usage
Pictures
The Pictures section allows you to stream images from your DIR-510L to
your mobile device. Tap the camera icon on the main menu to browse
your photo collection on your removable storage.
In the image browser, tap the image to open it.
Tap to start a slideshow of your images.
Tap to sort les by....
Tap to refresh the list of les.
Tap to select les to be added as a favorite or deleted.
Tapping Edit and selecting a le gives you the following options:
Tap to leave the editing screen.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
Tap to deselect all selected les.
59D-Link DIR-510L User Manual
Section 3 - Usage
In the image viewer:
Tap to start a slideshow of your images.
Tap to open, mark as favorite, or delete the image.
After tapping Edit:
Tap to leave the editing screen.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
60D-Link DIR-510L User Manual
Section 3 - Usage
Movies
The Movies section allows you to stream video clips and movies from
your DIR-510L to your mobile device. Tap the movie icon on the main
menu to browse your videos on your removable storage.
In the movies browser, tap the le to play it.
Tap to sort les by....
Tap to refresh the list of les.
Tap to select les to be added as a favorite or deleted.
Tapping Edit and selecting a le gives you the following options:
Tap to leave the editing screen.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
Tap to deselect all selected les.
61D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. In the player:
Tap to play/pause the video. You can scroll to any time on the time
line by holding and sliding your nger.
Tap to enter/exit fullscreen mode.
Tap to adjust the volume.
Tap to add or delete the le.
After tapping Edit:
Tap to leave the editing screen.
Tap to return to the main menu.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the le.
62D-Link DIR-510L User Manual
Section 3 - Usage
Music
The Music section allows you to stream songs from your DIR-510L to
your mobile device. Tap the music icon on the main menu to browse
your music collection on your removable storage.
In the music browser, tap a le to play it with the music player.
Tap to repeat one or all songs.
Tap to enable/disable shue mode.
Tap to sort les by....
Tap to refresh the list of les.
Tap to select les to be added as a favorite or deleted.
Tapping Edit and selecting a le will show:
Tap to leave the editing screen.
Tap to add selected songs to a new play list.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
Tap to deselect all selected les.
63D-Link DIR-510L User Manual
Section 3 - Usage
Tap on a le to start playing it. In the player:
Tap to play/pause the song.
Tap to skip to the previous/next song.
Tap to stop playback.
Tap to adjust the volume.
To create a playlist:
t Tap Edit, then select songs to be added to a new playlist.
t Tap Add Playlist.
t Enter a name for the playlist, then tap Save.
The playlist will appear in the browser as an icon.
To add songs to a playlist:
t Tap your playlist to see its current contents.
t Tap Edit.
t Tap Add.
64D-Link DIR-510L User Manual
Section 3 - Usage
t Select songs to be added to your playlist, then tap Add.
To delete songs from your playlist:
t Tap your playlist to see its current contents.
t Tap Edit in the playlist browser and mark the les to be deleted.
t Tap Delete to remove the le.
65D-Link DIR-510L User Manual
Section 3 - Usage
Folder
You can browse your removable storage in a folder view in the Folder
section. Tapping the lename will open the viewer/player for that
le type as described in the previous pages. You can also upload les
from your mobile device to the removable storage attached to your
router here.
In the browser, tap the le to open it.
Tap to sort les by....
Tap to refresh the list of les.
Tap to upload les, create a new folder, or select les to be copied,
opened, favorited or deleted.
Tapping Edit will show:
Tap to return to the main menu.
Tap to upload a le from your device.
Tap to create a new folder.
66D-Link DIR-510L User Manual
Section 3 - Usage
To delete les:
t Browse to the folder with the le to be deleted.
t Tap Edit in the browser and mark the le to be deleted.
t Tap Delete to delete the le.
To copy les:
t Select the le to be copied and tap Copy.
t Browse to and select the destination folder.
t Tap Choose to copy the le to that folder.
Tapping Edit and selecting a le gives you the following options:
Tap to leave the editing screen.
Tap to return to the main menu.
Tap to copy selected les.
Tap to add the le to Favorite and download it to your local device.
Tap to delete the selected le or les.
Tap to deselect all selected les.
67D-Link DIR-510L User Manual
Section 3 - Usage
To upload images and videos from your mobile device:
t Browse to the folder you wish to upload to.
t Tap Upload. In the Upload screen, tap Upload to bring up
Windows le browser.
t Select your les to be uploaded from your device to the USB
storage and tap Open. The les will begin uploading.
t During the upload process, you can tap the upload queue les to
delete them from the queue.
t To upload more les, tap the Upload icon at the top right and
repeat the steps above.
To create a new folder:
t Browse to the directory you wish to create a new folder in.
t Tap Edit at the top right.
t Tap New Folder and enter the name of the new folder.
t Tap Save to create the folder.
68D-Link DIR-510L User Manual
Section 3 - Usage
Favorite
The Favorite section allows you to quickly access your most often used
les, no matter what le type, in a special section. Files added to this
section will be copied here for playback in a centralized location.
In the Favorite browser, tap the le to open it.
Tap to refresh the list of les.
Tap to select les to be opened or deleted.
Tapping Edit and selecting a le gives you the following options:
Tap to leave the editing screen.
Tap to delete the selected le or les.
Tap to deselect all selected les.
69D-Link DIR-510L User Manual
Section 3 - Usage
SharePort Web Access lets you stream music, photos, and movies from a USB drive attached to your DIR-510L through a Web
browser. You can also download and upload les to and from a computer through the Web browser interface.
At the main menu, you can browse the les stored on your USB
drive by le type.
t Click to browse by folders.
t Log in with your admin password or a SharePort Username
and Password.
t Type http://shareport.local. in your browser’s URL to take
you to the SharePort Web Access log in page.
Using SharePort Web Access
70D-Link DIR-510L User Manual
Section 3 - Usage
The folder browser section will show folder hierarchy at the left
and les at the right. You can quickly browse directories and
perform operations by using the buttons in the folder browser
view.
To create a new folder:
t Click New Folder in the current directory.
t Enter a folder name in the Create Folder pop-up.
t Click OK. The new folder will appear in the left column.
To upload a le:
t Click Upload to upload a le to the current folder.
t In the pop-up browse to the le you wish to upload.
t Click OK. The le will appear after the browser refreshes.
To delete a le:
t Tick the checkbox next to the les you wish to delete.
t Click Delete and a dialog box will appear.
t Click OK to conrm.
t Click to return to the main menu.
71D-Link DIR-510L User Manual
Section 3 - Usage

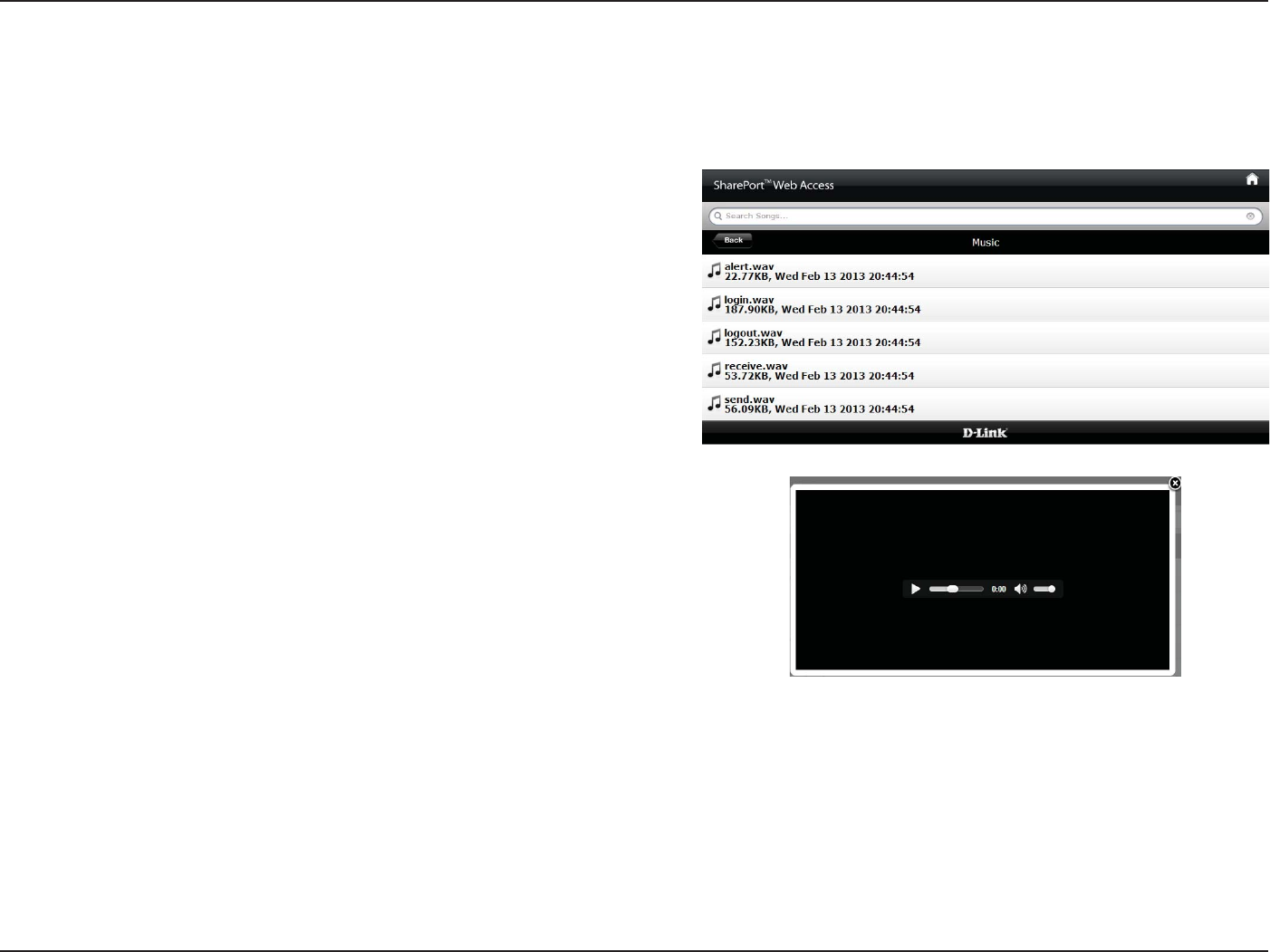

Music
You can go to the Music section to browse and play the music les on your storage. Click Back to return to the main menu.
t Click on the audio lename to play it in the browser.
You can pause, seek, mute and adjust the volume in the window.
t Close the window to end playback.
72D-Link DIR-510L User Manual
Section 3 - Usage
t Click on the image name to view it in the browser.
Pictures
You can go to the Pictures section to browse and view the image les on your storage. Click Back to return to the main menu.
t Hover your mouse over the left or right side of the image and
click < or > to view the previous or next image.
73D-Link DIR-510L User Manual
Section 3 - Usage
Videos
You can go to the Videos section to browse and play the video les on your storage. Click Back to return to the main menu.
t Click on the video file to open the file in a window for
streaming.
You can pause, seek, mute, adjust the volume, and activate full
screen mode in the window controls.
t Close the window to end playback.
Note: Depending on your browser, the video le may be played back using
the default player associated with that le format.
74D-Link DIR-510L User Manual
Section 3 - Usage
t Click on the lename to open the le.
t Depending on the le type, the default program will be
started or a pop-up may ask you to open or save the le.
Documents
You can go to the Documents section to open and save les from your storage to your computer. Click Back to return to the
main menu.
75D-Link DIR-510L User Manual
Section 4 - Conguration
Conguration
t To access the conguration utility of the DIR-510L, open
a Web browser and enter http://dlinkrouter.local. or
http://dlinkrouter in the address bar.
t Enter your password for the Admin account.
By default, the password is blank.
t Click Log In.
The router’s home page will open, and you can check its current
status, start a wizard, and navigate to the dierent settings of the
DIR-510L.
The bar at the top of the page has quick access to Settings and
Management functions, and you may quickly jump back Home
at any time.
Note: The system will automatically log out after a period of inactivity.
Before you can use your DIR-510L, you will need to access its conguration utility by using a Web browser.
76D-Link DIR-510L User Manual
Section 4 - Conguration
Home
The Internet icon indicates the status of the Internet connection to the router. It is grey if there is no connection,
and blue if a connection is established.
The router icon indicates the status of the Wi-Fi security on the DIR-510L. It is grey if it is unsecured, and blue if your Wi-Fi network
name (SSID) and password have been set.
The Wi-Fi icon indicates if there are clients currently connected to the router via Wi-Fi. It will be blue if there are active connections.
The USB icon will be blue if you have connected a USB storage device to the router.
Internet:
DIR-510L:
Wi-Fi Clients:
USB Storage:
The Home page will display a diagram with icons indicating the statuses of various functions and connections. Clicking on an
icon with an next to it will start a wizard for that function. You may also click on the to congure your Internet connection.
If the link to the Internet shows , this means your router has been assigned an uplink IP but does not have Internet access.
You will need to contact your service provider. If the link is showing a , it means you are connected to the Internet.
77D-Link DIR-510L User Manual
Section 4 - Conguration

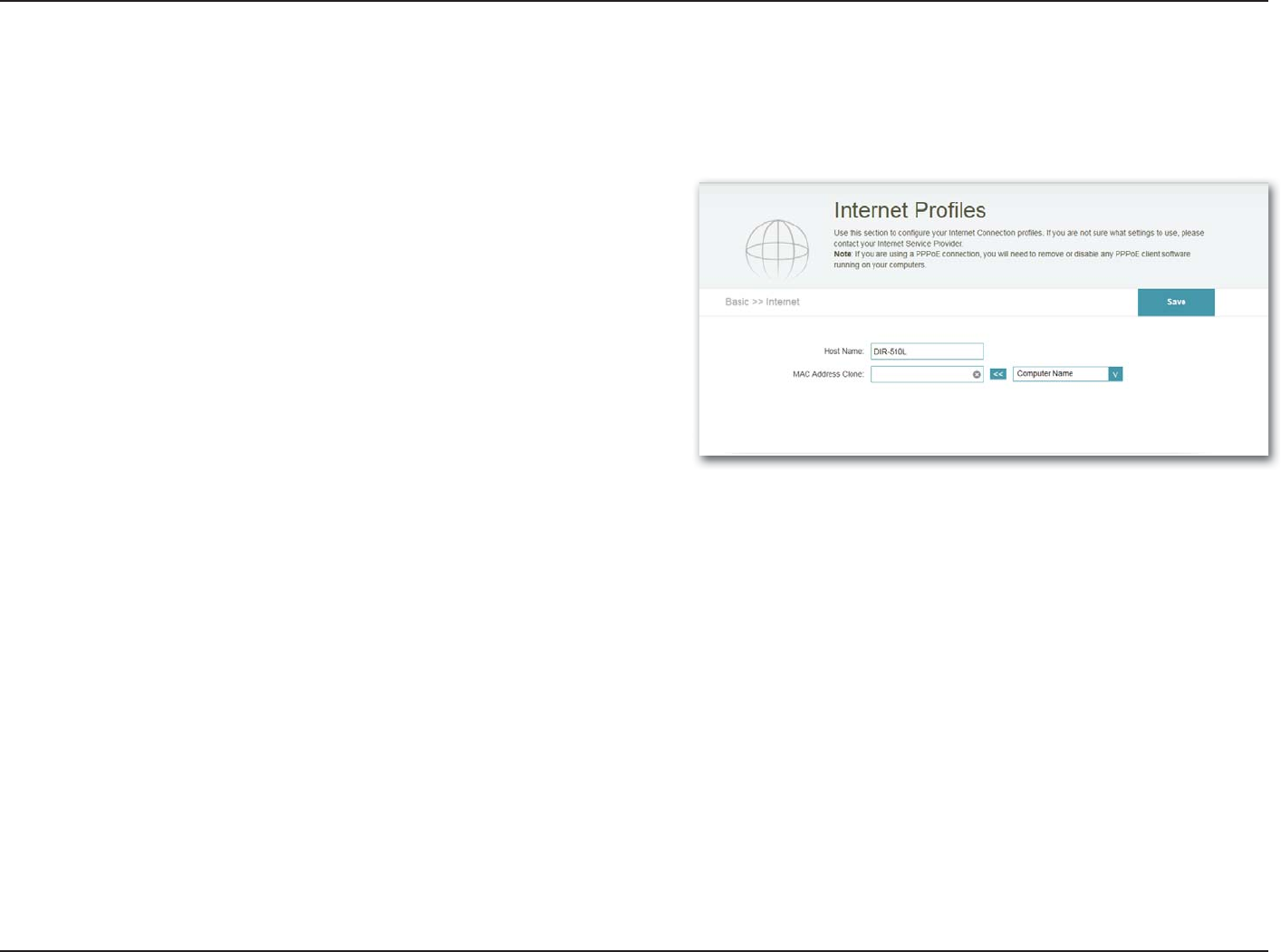

Internet
Broadband Ethernet
If you have connected the DIR-510L to an xDSL modem via an
Ethernet cable but can not access the Internet:
t Click on the Internet icon to start the wizard.
t Enter the Username and Password as provided by your
Internet Service Provider.
t Click Save.
If you have connected the DIR-510L to a cable modem via an Ethernet cable, your Internet should be connected and ready for
use. The Internet icon will be blue and the connection will have a check mark .
78D-Link DIR-510L User Manual
Section 4 - Conguration
t Click on DHCP Release if you wish to disconnect from the
Internet.
t To reconnect to the Internet, you may click the Internet icon
and then click Connect in the pop-up dialog to enable DHCP.
Once you are connected:
t Click on the Internet icon to display the IPv4 network details
below the diagram. You can view the IPv6 details by clicking
at the top right.
Note: This information will be saved as an xDSL Broadband (PPPoE) Internet
Prole for future use.
79D-Link DIR-510L User Manual
Section 4 - Conguration
3G/4G Mobile Broadband
You can connect a compatible 3G/4G USB adapter to the USB port on the DIR-510L to access the Internet. Depending on your
mobile service provider, you may have to input optional settings before use. You may need to contact your service provider
regarding these details.
APN:
Dial-Up Num-
ber (optional):
Username
(optional):
Password
(optional):
Enter your service provider’s APN.
Enter the dial-up number required by your service
provider.
Enter the username provided by your service provider.
Enter the password provided by your service provider.
t Click Save to store the settings.
PIN code
(optional):
Enter the 4-digit PIN for your SIM card.
t Click Save to store the settings.
80D-Link DIR-510L User Manual
Section 4 - Conguration
When you are connected to the Internet via mobile broadband, the Internet icon should be blue and the link will have a green
check mark .
Clicking on the Internet icon will display the 3G/4G network details. You may click on the Disconnect button to drop the 3G/4G
connection .
Connection Type:
Operator:
Network Status:
Connection Up
Time:
MAC Address:
IP Address:
Subnet Mask:
Default Gateway:
Primary
DNS Server:
Secondary
DNS Server:
Displays whether it is a 3G/4G network.
Displays the country name and service provider.
Displays the status of the connection to the 3G/4G
network.
Displays the number of days, hours, minutes, and seconds
the router has been connected to the 3G/4G network.
Displays the MAC address of the 3G/4G adapter.
Displays the IP address provided to the router.
Displays the subnet mask of the 3G/ 4G network.
Displays the default gateway of the 3G/4G network.
Displays the primary DNS server of the 3G/4G network.
Displays the secondary DNS server of the 3G/4G network.
81D-Link DIR-510L User Manual
Section 4 - Conguration
Wi-Fi Hotspot
On the Home page, when you wish to connect to the Internet via a Wi-Fi hotspot, there will be a next to the Internet icon.
Click it to start the wizard.
t Click Next to scan available Wi-Fi networks.
t Click on the hotspot network you wish to connect to and
click Select.
t You will need to enter a password if there is a lock icon next
to that network. Enter the password and click Save. You will
need to wait while the router connects to the network.
82D-Link DIR-510L User Manual
Section 4 - Conguration
Once you are connected, the Internet icon will be blue and the status diagram will show a green check mark when the
connection is established. You can now click on the Internet icon in the Current Status diagram to see details of the connection.
You may also click on the button to Disconnect from this network .
Connection Type:
Network Status:
Hotspot Name (SSID):
Password:
Connection Up
Time:
MAC Address:
IP Address:
Subnet Mask:
Default Gateway:
Primary
DNS Server:
Secondary
DNS Server:
Displays whether it is a hotspot network connection.
Displays the status of the connection to the hotspot
network.
Displays the SSID or the name of the hotspot network.
Displays the password of the hotspot network.
Displays the number of days, hours, minutes, and seconds
the router has been connected to the hotspot network.
Displays the MAC address of the hotspot router.
Displays the IP address provided to the router.
Displays the subnet mask of the hotspot network.
Displays the default gateway of the hotspot network.
Displays the primary DNS server of the hotspot network.
Displays the secondary DNS server of the hotspot
network.
Note: These connection details will be saved as a Wi-Fi Hotspot under
Internet Proles to allow automatic connections to this network in
the future. For more information, please refer to “Internet Proles”
on page 87.
83D-Link DIR-510L User Manual
Section 4 - Conguration
Router
On the home page, you can proceed to secure your wireless network. To secure your network, you may customize your Wi-Fi
Network Name (SSID) and Password by clicking on the router icon. You may also customize the 2.4 GHz and 5 GHz network
settings independently.
t Click on the router icon with the next to “DIR-510L” to
start the wizard.
t Click Secure your network in the pop-up.
On the Wi-Fi Settings page, you can customize the Wi-Fi
Network Name (SSID) and Password for both bands.
Note: Enter a password with a minimum of 8 characters.
t Click Save. The settings will take effect and you will be
disconnected from the network.
84D-Link DIR-510L User Manual
Section 4 - Conguration
Devices may now connect to the network using the new SSID and
password. The will no longer be displayed on the Home page.
t Clicking on the router icon will now display Network, Wi-Fi,
and Guest Zone information.
t Clicking on the links will take you to their respective pages
under Settings where you can further congure advanced
settings.
For Network, please refer to “Network (LAN)” on page 95.
For Wi-Fi, please refer to “Wi-Fi” on page 93.
For Guest Zone, please refer to “Guest Zone” on page 100.
85D-Link DIR-510L User Manual
Section 4 - Conguration
Wi-Fi Clients
On the Home page, clicking on the Wi-Fi Clients icon takes you to a page where you can see a list of all devices connected to
your Wi-Fi network on both the 2.4 GHz and 5 GHz bands.
Name:
Vendor:
IP Address:
Reserved IP:
Access:
Enter a custom name for this client.
Displays the vendor of the device.
Enter a specic IP address for this client.
Enable to reserve this IP address for this client.
Allow or Block access to the router.
The box for each device will show its connection status, name,
vendor, IP address, and access status. To change the settings for
each device, you can click on the pencil icon to bring up a new
window.
t Click Save when you are done.
t Click on the Wi-Fi icon to access Wi-Fi client details.
86D-Link DIR-510L User Manual
Section 4 - Conguration
USB Storage
If you have a USB drive attached to the DIR-510L, you can view the storage details from the Home page via the USB Storage
pane.
t Click on the USB Storage icon to access storage details.
For more information on DLNA and SharePort settings, please
refer to “SharePort” on page 97.
Available Space:
Total:
Displays the amount of free space on the USB storage.
Displays the total capacity of the USB storage.
USB1/USB2
Status:
Service Name:
Displays if DLNA is enabled or disabled.
Displays the name of the DLNA server as it appears to
other devices on the network.
DLNA MEDIA SERVER
Status: Displays if SharePort is enabled or disabled.
SHAREPORT
87D-Link DIR-510L User Manual
Section 4 - Conguration
Settings
Internet Proles
To Add a prole:
t Click Add Prole.
t On the next screen, select a connection type from the drop
down menu.
t Fill in the required information under the connection type.
If required, click on Advanced Settings... to ll in details
required by the ISP.
t Click Save to store the prole.
To Edit a prole:
t Click on the pencil icon next to the prole you want to edit.
To Delete a prole:
t Click on the trash icon next to the prole you want to delete.
Internet Proles are networks you want the device to remember and reconnect to in the future.
Proles are created automatically the rst time you connect to a particular network. The Prole
List shows all of the saved proles and you can select the prole you wish to use by clicking on the
radio button. You may also Add, Edit, and Delete proles from this page.
88D-Link DIR-510L User Manual
Section 4 - Conguration
DHCP
Depending on your connection method and your service provider, you may select the default DHCP prole to automatically
connect to the Internet. Click on the pencil to edit it. Click Save to store your settings.
Host Name:
MAC Address Clone:
Enter the name of your host.
Type in the MAC address or select the client from the
drop-down menu and click <<.
89D-Link DIR-510L User Manual
Section 4 - Conguration
xDSL Broadband (PPPoE)
Depending on your Internet Service Provider, you may need to congure the PPPoE settings in order to connect to the Internet.
You may need to contact your ISP for this information. Click Save to store your settings.
Note: If you are using a PPPoE connection, you will need to remove or disable
any PPPoE client software running on your computers.
My Internet
Connection is:
Prole Name:
Username:
Password:
Select xDSL Broadband (PPPoE) from the drop-down list.
Enter a custom name for this prole.
Enter the username assigned by your ISP.
Enter the password assigned by your ISP.
Address Mode:
Service Name:
Reconnect Mode:
Primary
DNS Address:
Secondary
DNS Address:
MTU:
Select Static IP if your ISP assigned you the IP address,
Subnet Mask, ateway, and DNS Server addresses.
Otherwise, select Dynamic.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter the Primary DNS Server Address.
Enter the Secondary DNS Server Address.
Maximum Transmission Unit - you may need to change
the MTU for optimal performance with your specic ISP.
1492 is the default MTU.
ADVANCED SETTINGS
90D-Link DIR-510L User Manual
Section 4 - Conguration
3G/4G Wireless USB
Depending on the service provider for your 3G/4G wireless service, you may need to congure the 3G/4G settings in order to
connect to the Internet. You may need to contact your ISP for this information. Click Save to store your settings.
My Internet
Connection Is:
Prole Name:
Dial-up Number:
APN:
Select 3G/4G Wireless USB from the drop-down list.
Enter a custom name for this prole.
Enter your service provider’s dial-up number.
Enter the password assigned by your ISP.
Country:
ISP:
Username:
Password:
Authentication
Protocol:
SIM Card Status:
Reconnect Mode:
MTU:
Select the country of your service provider.
Select your provider from the drop-down menu.
Enter the username assigned by your service provider.
Enter the password assigned by your service provider.
Select between Auto(PAP+CHAP), PAP, or CHAP, depending
on your service provider.
Displays whether your SIM card is locked or unlocked.
Select between Always-on, On Demand, or Manual.
Maximum Transmission Unit - you may need to change
the MTU for optimal performance with your specic ISP.
1500 is the default MTU.
ADVANCED SETTINGS
91D-Link DIR-510L User Manual
Section 4 - Conguration
Wi-Fi Hotspot Client
This is the Wi-Fi Hotspot page; you may need to congure the settings in order to connect to the Internet. You may need to
contact your hotspot provider for this information. Click Save to store your settings.
Hotspot Network
Name (SSID):
Security:
Password:
Enter the name of your hotspot or click Scan to select
from a list. Please refer to “Wi-Fi Hotspot” on page 81
for detailed steps.
Select None, WEP, or WPA/WPA2-Personal encryption
depending on the security of your hotspot.
Enter the hotspot network password.
92D-Link DIR-510L User Manual
Section 4 - Conguration
Static IP
Depending on your Internet Service Provider, you may need to congure the static IP settings in order to connect to the Internet.
You may need to contact your service provider for this information. Click Save to store your settings.
My Internet
Connection Is:
IP Address:
Subnet Mask:
Default Gateway:
Primary
DNS Address:
Select Static IP from the drop-down list.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
Enter the Primary DNS Address assigned by your ISP.
Secondary
DNS Address:
MTU:
Enter the Secondary DNS Address assigned by your ISP.
Maximum Transmission Unit - you may need to change
the MTU for optimal performance with your specic ISP.
1500 is the default MTU.
ADVANCED SETTINGS
93D-Link DIR-510L User Manual
Section 4 - Conguration
Wi-Fi
To secure your Wi-Fi network manually and/or access advanced settings, you can go to the Wi-Fi
page under Settings. You can congure the settings for both the 2.4 GHz and 5 GHz bands on this
page. Click Save to store your settings.
Wi-Fi Network Name
(SSID):
Password:
Enter a custom name for your 2.4 GHz network.
Enter a custom password for your network.
Security Mode:
802.11 Mode:
Wi-Fi Channel:
Transmission Power:
Channel Width:
Select from None or WPA/WPA2-Personal
802.11b Only - Select only if all of your wireless clients
are 802.11b.
802.11g Only - Select only if all of your wireless clients
are 802.11g.
802.11n Only - Select only if all of your wireless clients
are 802.11n.
Mixed 802.11g/b - Select if you are using both 802.11g
and 802.11b wireless clients.
Mixed 802.11n/g - Select if you are using both 802.11n
and 802.11g wireless clients.
Mixed 802.11b/g/n - Select if you are using both 802.11b,
802.11g, and 802.11n wireless clients.
Change the channel setting for the DIR-510L. By default
the channel is set to Auto.
Select from High, Medium, or Low.
Select between Auto 20/40 MHz or 20 MHz.
ADVANCED SETTINGS
2.4 GHz
94D-Link DIR-510L User Manual
Section 4 - Conguration
Security Mode:
802.11 Mode:
Wi-Fi Channel:
Transmission Power:
Channel Width:
Select from None or WPA/WPA2-Personal
802.11a Only - Select only if all of your wireless clients
are 802.11b.
802.11n Only - Select only if all of your wireless clients
are 802.11g.
Mixed 802.11a/n - Select if you are using both 802.11a
and 802.11n wireless clients.
Mixed 802.11a/n/ac - Select if you are using both 802.11a
802.11n, and 802.11ac wireless clients.
Change the channel setting for the DIR-510L. By default
the channel is set to Auto.
Select from High, Medium, or Low.
Select between Auto 20/40/80, Auto 20/40 MHz, or 20
MHz.
ADVANCED SETTINGS
Wi-Fi Network Name
(SSID):
Password:
Enter a custom name for your 5 GHz network.
Enter a custom password for your network.
5 GHz
95D-Link DIR-510L User Manual
Section 4 - Conguration
Network (LAN)
You can congure the local network settings for your router by going to Network (LAN) under
Settings. Click Save to store your settings.
Device IP Address:
Subnet Mask:
Device Name:
Local Domain Name:
Enable DNS Relay:
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Save Settings,
you will need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Disable DNS Relay to transfer the DNS server information
from your ISP to your computers. If enabled, your
computers will use the router for a DNS server.
NETWORK SETTINGS
96D-Link DIR-510L User Manual
Section 4 - Conguration
Status:
DHCP IP Address
Range:
DHCP Lease Time:
Always Broadcast:
Slide to enable or disable the DHCP server function.
Enter the starting and ending IP addresses for the DHCP
server’s IP assignment.
Note: If you statically (manually) assign IP addresses to your
computers or devices, make sure the IP addresses are outside
of this range or you may have an IP conict.
The length of time for the IP address lease. Enter the Lease
time in minutes.
Enable this feature to broadcast your network’s DHCP
server to LAN/WLAN clients.
DHCP SERVER
97D-Link DIR-510L User Manual
Section 4 - Conguration
SharePort
On this page, you can congure the various storage sharing features of your router. The DLNA
server allows you to stream stored pictures, music, and video to another DLNA-compatible device
on your network. SharePort Web Access allows you to use a Web browser to access stored les from
a PC connected to your network. Click Save to store your settings.
Status:
DLNA Media Server
Name:
Slide to enable or disable the DLNA Media Server function.
Enter a name for the DLNA Media Server.
DLNA MEDIA SERVER
Status:
Direct Links:
Slide to enable or disable the SharePort Web Access
function.
Click on the rst link to reach your SharePort page using
HTTP protocol.
Click on the second link to reach your SharePort page
using HTTPS protocol.
SHAREPORT WEB ACCESS
98D-Link DIR-510L User Manual
Section 4 - Conguration
USERS
t To Edit a user, click on the pencil icon.
t To Delete a user, click on the trash icon.
t To Create a user, click on Create a New User +.
A window with the following elds will appear:
You can manage your user accounts and their access privileges
for SharePort Web Access by clicking on the Users tab.
The User List displays the Username, Access Path, and Permissions
of all saved users.
Username:
Password:
Permissions:
Folder:
Enter a username for the new user.
Enter a password for the new user.
Select Read Only or Read/Write privileges from the drop-
down.
Click Browse to select a folder that you want this user to
access. You can browse to lower directories by clicking
on the rightward-facing arrow.
Click on the folder name to add it. Then, click Append.
If you wish to add multiple sub-directories, repeat the
steps above. Click Save.
t Click Save to store your settings.
99D-Link DIR-510L User Manual
Section 4 - Conguration
You can now log in to SharePort Web Access with any of the
accounts you created by typing http://shareport.local. in your
browser URL to access the log in page.
100D-Link DIR-510L User Manual
Section 4 - Conguration
Guest Zone
You can create a Wi-Fi Guest Zone to share Internet access with guests on a separate Wi-Fi network
for both the 2.4 GHz and 5 GHz networks. This is useful when you wish to block guests from accessing
devices on your home network.
Enable or disable the Guest Zone feature.
Enter a custom Guest Zone name.
Enter a password for your Guest Zone.
Enable or disable this feature to allow or block guests from
accessing devices and les on your network.
Status:
Guest Zone Wi-Fi
Name (SSID):
Password:
Allow Local Access:
t Click Save to store the settings.
101D-Link DIR-510L User Manual
Section 4 - Conguration
If you have an existing account:
t Select Yes, I have a mydlink account.
t Log in with the E-mail address and password that you signed
up with.
t Click the Save button.
Setting and registering your router with mydlink will allow you to use its mydlink cloud services
features, including online access and management of your router through the mydlink portal
website.
mydlink
102D-Link DIR-510L User Manual
Section 4 - Conguration
If you do not have an account:
t Select No, I want to create a new mydlink account.
t Fill in the following elds.
t Read and tick the checkbox next to I accept the mydlink
terms and conditions.
t Click the Sign Up button.
Note: If you have not set an admin password, you will be asked to do so
now. Click Save.
103D-Link DIR-510L User Manual
Section 4 - Conguration
Accessing Settings>mydlink will now display a summary of your
mydlink Service status and mydlink Account.
Note: After mydlink registration is completed, your router’s default PPPoE
connection will be set to Always On. If your ISP charges for usage,
you may wish to manually choose Dial On Demand as your default
setting, however, mydlink features may not work as intended.
104D-Link DIR-510L User Manual
Section 4 - Conguration
Management
Admin
On this page, you can change the admin security settings for logging in to the router conguration interface. It is highly
recommended that you create a password with a minimum of 6 characters to keep your router secure. Click Save to store your
settings.
You will need to log back into the conguration interface with
the new password.
If CAPTCHA has been enabled, you will need to enter the 4-digit
code as well.
Enter a password to secure administrative access to your
router.
If enabled, you will be required to enter a CAPTCHA along
with your password at the log in page.
Admin Password:
Enable Graphical
Authentication
(CAPTCHA):
105D-Link DIR-510L User Manual
Section 4 - Conguration
System
Here, you can save or restore your router settings to and from a le. You can also reset your router to the factory default settings
and reboot the router.
Use this option to save the current router conguration
settings to a le on the hard disk of the computer you are
using. First, click the Save Settings to File button. A le
dialog will appear, allowing you to select a location and le
name for the settings.
Use this option to load previously saved router conguration
settings. First, click the Select File button to nd a previously
saved le of conguration settings. Then, click the Restore
Settings From File button to transfer those settings to the
router.
This option will restore all conguration settings back to
the settings that were in eect at the time the router was
shipped from the factory. Any settings that have not been
saved will be lost, including any rules that you have created.
Clicking OK in the window will require you to reconnect to
this device using the default SSID and password.
Click to reboot the router.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Reset to Factory
Default Settings:
Reboot Device:
Note: Resetting your router here or via the RESET button will have the same
eect as Reset to Factory Default Settings.
106D-Link DIR-510L User Manual
Section 4 - Conguration
Upgrade
This page displays your current rmware version and language pack, and allows you to check for and download new rmware.
After downloading the rmware, you can then upload it from this page. If you are using a language pack for your web UI,
we recommend that you also download the latest version when upgrading the rmware to ensure that any changes in the
interface are shown correctly.
Displays the installed language pack.
You can select your language on the login page.
Click Remove to uninstall any previously installed
language packs.
LANGUAGE PACK INFORMATION
Current Language
Pack:
FIRMWARE INFORMATION
Displays the version of the installed rmware.
Displays the date of the installed rmware.
Click Check for New Firmware to retrieve the latest
version.
Current Firmware
Version:
Current Firmware
Date:
UPGRADE MANUALLY
Click Select File to open a window and select a
downloaded rmware le. Click Upload to install it.
Click Select File to install a downloaded language pack.
Click Upload to install it.
Upgrade Firmware:
Add a Language
Pack:
107D-Link DIR-510L User Manual 107
Section 5 - Status
Statistics
The Blue line indicates the upload speeds and the red line
indicates the download speeds.
Click Clear to reset the statistics.
The table below displays the following in real-time:
t Total Packets
t Total Byte(s)
t Total Kbit(s)
t Kbits/sec
t Session (Internet only)
The Session box displays the number of active Internet sessions
through your router. An Internet session is a conversation between
a program or application on a LAN-side computer and a program
or application on a WAN-side computer.
The Battery tab shows the remaining charge in percent.
This page provides statistics about data transmitted and received by your router through the Internet (WAN) on your router’s
2.4 GHz and 5 GHz wireless networks. It also displays the status of the internal battery. The graph displays the real-time upstream
and downstream transfer speeds depending on which tab (Internet or Wi-Fi) you are currently viewing.
108D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
Step 2 - Within 2 minutes, press the WPS button on your wireless client
(or launch the software utility and start the WPS process).
Step 1 - Press the WPS button on the router for about 1 second.
The Power/Status LED will start to blink.
Step 3 - Allow up to 1 minute to congure. Once the Power/Status
LED stops blinking, you will be connected and your wireless
connection will be secure with WPA2.
To connect your wireless devices to the router using WPS:
Connecting a Wireless Client
WPS Button
The easiest and most secure way to connect your wireless devices to the router is WPS (Wi-Fi Protected Setup). Most wireless
devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button
(or a software utility with WPS) that you can press to connect to the router. Please refer to your user manual for the wireless
device you want to connect to make sure you understand how to enable WPS. To connect a client, follow the steps below:
WPS Button
109D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to
the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network
name.
110D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
111D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
Windows® 7
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
112D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
4. The following window appears while your computer tries to connect
to the router.
3. Highlight the wireless connection with Wi-Fi name (SSID) you would
like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
113D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
5. Enter the same security key or passphrase (Wi-Fi password) that is
on your router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
114D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using a third-party utility or Windows® 2000, please refer to
the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey”
option similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-
right corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected pop-up, click on the
center of the window to access the utility.
or
The utility will display available wireless networks in your area. Select
a network (displayed using the SSID) and click the Connect button.
If you have a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
115D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
116D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
3. Enter the same security key or passphrase that is on your router
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
117D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client

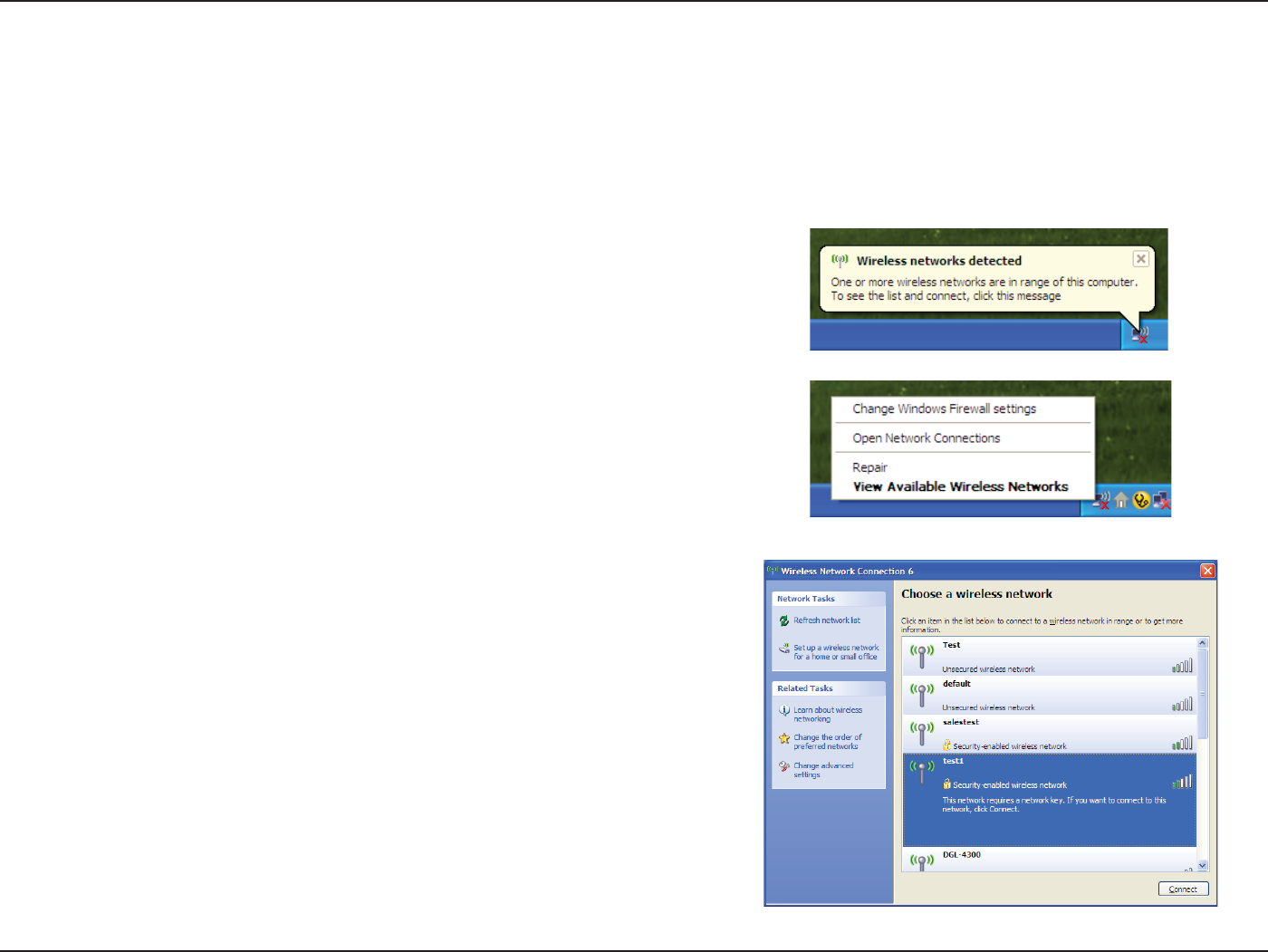

Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
118D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner of
screen). Select View Available Wireless Networks.
WPA/WPA2
119D-Link DIR-510L User Manual
Section 6 - Connecting a Wireless Client
3. The Wireless Network Connection box will appear. Enter the WPA-
PSK passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct.
The WPA-PSK passphrase must be exactly the same as on the wireless
router.
120D-Link DIR-510L User Manual
Section 7 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-510L. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.
1. Why can’t I access the web-based conguration?
When entering http://dlinkrouter.local., you are not connecting to a website nor do you have to be connected to the Internet.
The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect
to the web-based utility.
Make sure you have an updated Java-enabled Web browser. We recommend the following:
t Microsoft Internet Explorer® 8.0 or higher
t Mozilla Firefox® 12.0 or higher
t Google™ Chrome 20 or higher
t Safari® 4.0 or higher
Verify wireless connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent
device if possible.
Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate, Norton
Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included with
your rewall software for more information on disabling or conguring it.
121D-Link DIR-510L User Manual
Section 7 - Troubleshooting
Congure your Internet settings:
t Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the
button to restore the settings to their defaults.
t Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make
sure nothing is checked. Click OK.
t Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
t Close your Web browser (if open) and open it.
Access the web management. Open your Web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 60
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait
about 60 seconds to access the router. The default IP address is 192.168.0.1 or you may be able to reach the router at
http://dlinkrouter.local./ or http://dlinkrouter/. When logging in, leave the admin password box empty.
122D-Link DIR-510L User Manual
Section 7 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
t Click on Start and then click Run.
t Windows® 95, 98, and Me users type in command (Windows®
NT, 2000, XP, Vista®, and 7 users type in cmd) and press Enter
(or click OK).

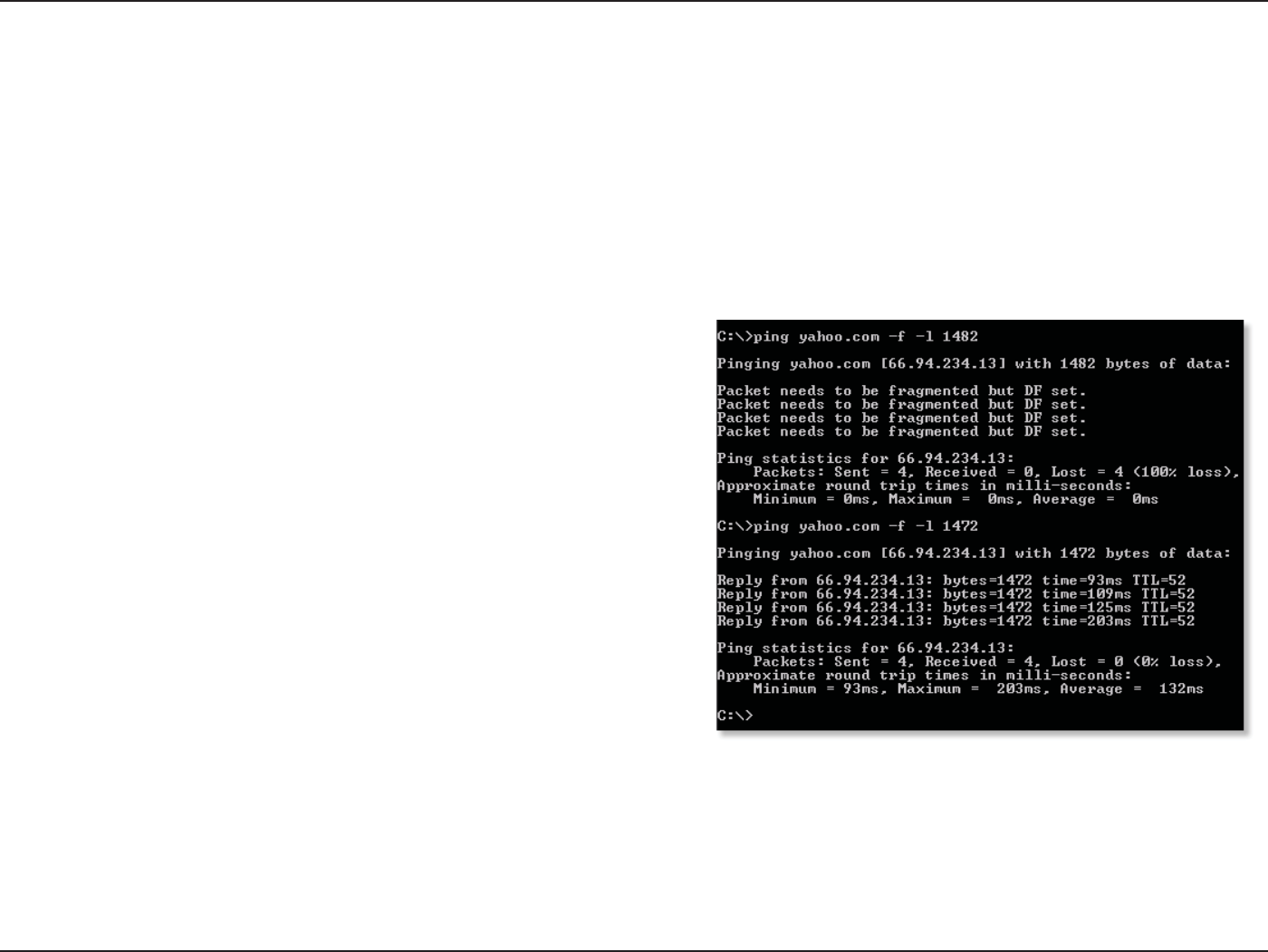

t Once the window opens, you’ll need to do a special ping.
Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented
packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the
proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
123D-Link DIR-510L User Manual
Section 7 - Troubleshooting
To change the MTU rate on your router follow the steps below:
t Open your browser, enter the IP address of your router (192.168.0.1, http://dlinkrouter.local. or http://dlinkrouter)
and click OK.
t Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page for the
device.
t Click on Setup and then click Manual Congure.
t To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.
t Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten.
124D-Link DIR-510L User Manual
Section 7 - Troubleshooting
To recover your device:
t Connect an Ethernet cable from the router to your computer.
t Open a Web browser and enter the IP of your router
(http://dlinkrouter or http://dlinkrouter.local. or 192.168.0.1)
and press Enter.
t The page will show D-link Router Recovery Mode. Click
Browse to select your current or a newer rmware.
t Click Open to load it.
t Click Upgrade.
t When the screen shows “Upgrade Successfully”, unplug the
Ethernet cable and power o and on the device.
t Please refer to “Connecting to Your DIR-510L” on page 14
to setup your router.
4. What happens if the power is cut during rmware upgrade?
If you can’t connect to your device or are having a problem connecting to the admin page, your router may be in recovery
mode. This is indicated by a steady blinking orange Power/Status LED.
125D-Link DIR-510L User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able
to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide
this link.
Wireless Basics
126D-Link DIR-510L User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point,
the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor
venues.
127D-Link DIR-510L User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to
30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
Home
t(JWFTFWFSZPOFBUIPNFCSPBECBOEBDDFTT
t4VSGUIFXFCDIFDLFNBJMJOTUBOUNFTTBHFFUD
t(FUTSJEPGUIFDBCMFTBSPVOEUIFIPVTF
t4JNQMFBOEFBTZUPVTF
Small Oce and Home Oce
t4UBZPOUPQPGFWFSZUIJOHBUIPNFBTZPVXPVMEBUPóDF
t3FNPUFMZBDDFTTZPVSPóDFOFUXPSLGSPNIPNF
t4IBSF*OUFSOFUDPOOFDUJPOBOEQSJOUFSXJUINVMUJQMFDPNQVUFST
t/POFFEUPEFEJDBUFPóDFTQBDF
128D-Link DIR-510L User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations
like: Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have
a two-story home, you may need a repeater to boost the signal to extend the range.
129D-Link DIR-510L User Manual
Appendix A - Wireless Basics
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.
There are basically two modes of networking:
t Infrastructure – All wireless clients will connect to an access point or wireless router.
t Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters
on each computer, such as two or more wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
130D-Link DIR-510L User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP Address
In Windows:
Click on Start > Run.
In the run box type cmd and click OK. (Windows® 7/Vista® users
type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some rewall software
programs may block a DHCP request on newly installed adapters.
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
131D-Link DIR-510L User Manual
Appendix B - Networking Basics
Assign a Static IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same
subnet as your network or the LAN IP address on your router.
132D-Link DIR-510L User Manual
Appendix B - Networking Basics

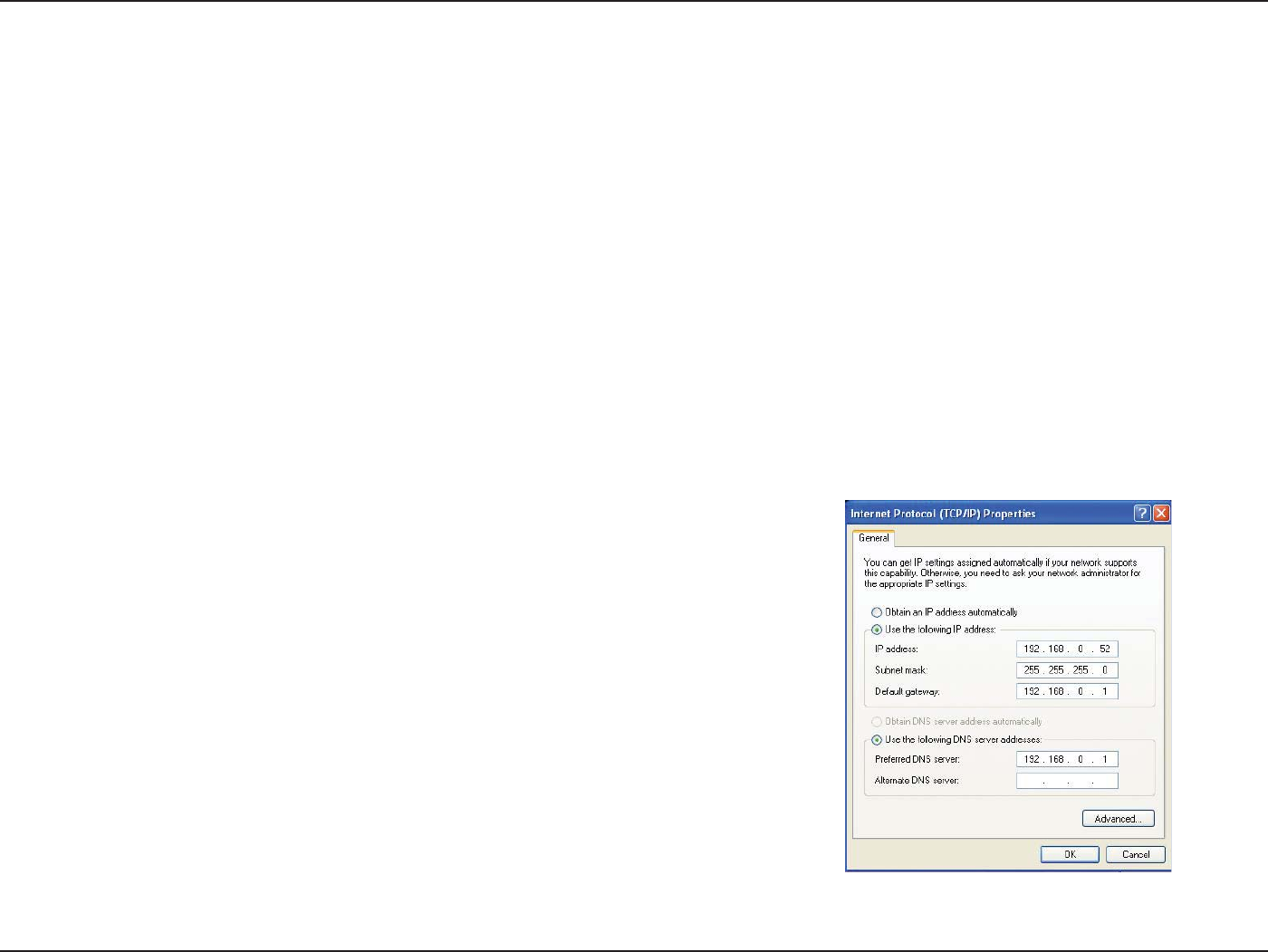

Example: If the router´s LAN IP address is 192.168.0.1 or http://dlinkrouter.local., make your IP address 192.168.0.X where X is
a number between 2 and 99. Make sure that the number you choose is not in use on the network. Set the Default Gateway
the same as the LAN IP address of your router (I.E. 192.168.0.1 or http://dlinkrouter.local.).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1 or http://dlinkrouter.local.). The Secondary DNS
is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
133D-Link DIR-510L User Manual
Appendix C - Technical Specications
Technical Specications
Standards
tIEEE 802.11b/g/n
tIEEE 802.11a/n
tIEEE 802.11ac
tIEEE 802.3
tIEEE 802.3u
tIEEE 802.3x
Internet Modes
tBroadband Router Mode
tMobile Router Mode
tWi-Fi Hotspot Mode
Wireless Frequency Range 1
t802.11b/g/n: 2.4 GHz to 2.497 GHz
t802.11a/n/ac: 5.15 GHz to 5.85 GHz
Security
tWi-Fi Protected Access (WPA/WPA2)
tWPS 2.0 (Wi-Fi Protected Setup)
Advanced Features
tmydlink SharePort app for iPhone®, iPad®, iPod touch® and Android
tSharePort Mobile app for Windows 8/RT
tD-Link Intelligent QoS Technology
tVPN passthrough
tGuest Zone Support
tUPnP™ (DLNA) Support
tSharePort Web Access Support
tIPv6
Transmitter Output Power
IEEE 802.11b:
t17 dBm at 1, 2, 5.5, 11 Mbps
IEEE 802.11g:
t18 dBm at 6 to 18 Mbps
t16 dBm at 24 to 36 Mbps
t14 dBm at 48 to 54 Mbps
IEEE 802.11n (2.4 GHz):
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
tE#NBU.$4UP.$4 tE#NBU.$4BOE.$4
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
IEEE 802.11n (5 GHz):
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
tE#NBU.$4UP.$4 tE#NBU.$4BOE.$4
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
IEEE 802.11ac (5 GHz):
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
tE#NBU.$4UP.$4 tE#NBU.$4BOE.$4
tE#NBU.$4UP.$4 tE#NBU.$4UP.$4
Receiver Sensitivity1
IEEE 802.11b:
tE#NBU.CQT tE#NBU.CQT
tE#NBU.CQT tE#NBU.CQT
IEEE 802.11g:
tE#NBU.CQT tE#NBU.CQT
134D-Link DIR-510L User Manual
Appendix C - Technical Specications
1 Actual usable capacity may vary depending on charging conditions.
tE#NBU.CQT tE#NBU.CQT
tE#NBU.CQT tE#NBU.CQT
tE#NBU.CQT tE#NBU.CQT
IEEE 802.11n HT20(MHz):
t-82 dBm at MCS0, MCS8 · -79 dBm at MCS1, MCS9
t-77 dBm at MCS2, MCS10 · -74 dBm at MCS3, MCS11
t-70 dBm at MCS4, MCS12 · -66 dBm at MCS5, MCS13
t-65 dBm at MCS6, MCS14 · -64 dBm at MCS7, MCS15
IEEE 802.11n HT40(MHz):
t-79 dBm at MCS0, MCS8 · -76 dBm at MCS1, MCS9
t-74 dBm at MCS2, MCS10 · -71 dBm at MCS3, MCS11
t-67 dBm at MCS4, MCS12 · -63 dBm at MCS5, MCS13
t-62 dBm at MCS6, MCS14 · -61 dBm at MCS7, MCS15
USB Interface
tUSB 2.0 Type A
tMicro USB-B
Embedded Battery
t4000 mAh (Li-ion) power capacity1
tOCP, OVP, OTP, SCP protection
Electrical
tPower Input: Max 1800 mA (standard adapter); 1000 mA (USB 2.0 port)
tMax Operating Voltage: 5 V
tMax Power Consumption: 14 W
tUSB 1 A Output: Max 1000 mA
tUSB 0.5 A Output: Max 500 mA
Operating Temperature
t0 to 40 °C (32 to 104 °F)
Storage Temperature
t-20 to 65 °C (-4 to 149 °F)
Operating Humidity
t10% to 90% non-condensing
Storage Humidity
t5% to 95% non-condensing
Certications
tFCC/CE/cUL
Dimensions
t140 x 59 x 16 mm (5.51 x 2.32 x 0.63 inches)
Weight
t154 g (0.34 lbs)
mydlink SharePort App Supported File Formats for iPhone, iPad,
iPod touch, and Android
Video:
t.mp4, .mov, .m4v
Music:
t.mp3, .wav, .m4a
Image:
t.jpg, .bmp, .png
Document:
tMicrosoft Oce formats, .pdf
135D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
GPL Code Statement
This D-Link product includes software code developed by third parties, including software code subject to the GNU General
Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and
information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights
of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
WRITTEN OFFER FOR GPL AND LGPL SOURCE CODE
Where such specic license terms entitle you to the source code of such software, D-Link will provide upon written request
via email and/or traditional paper mail the applicable GPL and LGPLsource code les via CD-ROM for a nominal cost to cover
shipping and media charges as allowed under the GPL and LGPL.
Please direct all inquiries to:
Email: GPLCODE@DLink.com
Snail Mail:
Attn: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/> Everyone is permitted to copy and distribute verbatim
copies of this license document, but changing it is not allowed.
136D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
Preamble
The GNU General Public License is a free, copyleft license for software and other kinds of works.
The licenses for most software and other practical works are designed to take away your freedom to share and change the
works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions
of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General
Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to
your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source
code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know
you can do these things.
To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore,
you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the
freedom of others.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the
same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show
them these terms so they know their rights.
Developers that use the GNU GPL protect your rights with two steps:
(1) assert copyright on the software, and (2) oer you this License giving you legal permission to copy, distribute and/or
modify it.
For the developers’ and authors’ protection, the GPL clearly explains that there is no warranty for this free software. For both
users’ and authors’ sake, the GPL requires that modied versions be marked as changed, so that their problems will not be
attributed erroneously to authors of previous versions.
Some devices are designed to deny users access to install or run modied versions of the software inside them, although
the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users’ freedom to change the
software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it
is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such
problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of
the GPL, as needed to protect the freedom of users.
137D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development
and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents
applied to a free program could make it eectively proprietary. To prevent this, the GPL assures that patents cannot be used
to render the program non-free.
The precise terms and conditions for copying, distribution and modication follow.
TERMS AND CONDITIONS
0. Denitions.
“This License” refers to version 3 of the GNU General Public License.
“Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.
“The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees”
and “recipients” may be individuals or organizations.
To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than
the making of an exact copy. The resulting work is called a “modied version” of the earlier work or a work “based on” the
earlier work.
A “covered work” means either the unmodied Program or a work based on the Program.
To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable
for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation
includes copying, distribution (with or without modication), making available to the public, and in some countries other
activities as well.
To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with
a user through a computer network, with no transfer of a copy, is not conveying.
An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently
visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work
(except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a
copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list
meets this criterion.
138D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
1. Source Code.
The “source code” for a work means the preferred form of the work for making modications to it. “Object code” means any
non-source form of a work.
A “Standard Interface” means an interface that either is an ocial standard dened by a recognized standards body, or, in the
case of interfaces specied for a particular programming language, one that is widely used among developers working in that
language.
The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the
normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable
use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available
to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window
system, and so on) of the specic operating system (if any) on which the executable work runs, or a compiler used to produce
the work, or an object code interpreter used to run it.
The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for
an executable work) run the object code and to modify the work, including scripts to control those activities. However, it
does not include the work’s System Libraries, or general-purpose tools or generally available free programs which are used
unmodied in performing those activities but which are not part of the work. For example, Corresponding Source includes
interface denition les associated with source les for the work, and the source code for shared libraries and dynamically
linked subprograms that the work is specically designed to require, such as by intimate data communication or control ow
between those subprograms and other parts of the work.
The Corresponding Source need not include anything that users can regenerate automatically from other parts of the
Corresponding Source.
The Corresponding Source for a work in source code form is that same work.
139D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
2. Basic Permissions.
All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the
stated conditions are met. This License explicitly arms your unlimited permission to run the unmodied Program. The
output from running a covered work is covered by this License only if the output, given its content, constitutes a covered
work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.
You may make, run and propagate covered works that you do not convey, without conditions so long as your license oth-
erwise remains in force. You may convey covered works to others for the sole purpose of having them make modications
exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this
License in conveying all material for which you do not control copyright. Those thus making or running the covered works
for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any
copies of your copyrighted material outside their relationship with you.
Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed;
section 10 makes it unnecessary.
3. Protecting Users’ Legal Rights From Anti-Circumvention Law.
No covered work shall be deemed part of an eective technological measure under any applicable law fullling obligations
under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting
circumvention of such measures.
When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent
such circumvention
is eected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit
operation or modication of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to
forbid circumvention of technological measures.
140D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
4. Conveying Verbatim Copies.
You may convey verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously
and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and
any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any
warranty; and give all recipients a copy of this License along with the Program.
You may charge any price or no price for each copy that you convey, and you may oer support or warranty protection for a
fee.
5. Conveying Modied Source Versions.
You may convey a work based on the Program, or the modications to produce it from the Program, in the form of source
code under the terms of section 4, provided that you also meet all of these conditions:
a) The work must carry prominent notices stating that you modied it, and giving a relevant date.
b) The work must carry prominent notices stating that it is released under this License and any conditions added
under section 7. This requirement modies the requirement in section 4 to “keep intact all notices”.
c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a
copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of
the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the
work in any other way, but it does not invalidate such permission if you have separately received it.
d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program
has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.
A compilation of a covered work with other separate and independent works, which are not by their nature extensions of
the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or
distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or
legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate
does not cause this License to apply to the other parts of the aggregate.
141D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
6. Conveying Non-Source Forms.
You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the
machine-readable Corresponding Source under the terms of this License, in one of these ways:
a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),
accompanied by the Corresponding Source xed on a durable physical medium customarily used for software
interchange.
b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),
accompanied by a written oer, valid for at least three years and valid for as long as you oer spare parts or
customer support for that product model, to give anyone who possesses the object code either (1) a copy
of the Corresponding Source for all the software in the product that is covered by this License, on a durable
physical medium customarily used for software interchange, for a price no more than your reasonable cost of
physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network
server at no charge.
c) Convey individual copies of the object code with a copy of the written oer to provide the Corresponding
Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object
code with such an oer, in accord with subsection 6b.
d) Convey the object code by oering access from a designated place (gratis or for a charge), and oer equivalent
access to the Corresponding Source in the same way through the same place at no further charge. You need
not require recipients to copy the Corresponding Source along with the object code. If the place to copy the
object code is a network server, the Corresponding Source may be on a dierent server (operated by you or
a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the
object code saying where to nd the Corresponding Source. Regardless of what server hosts the Corresponding
Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.
e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object
code and Corresponding Source of the work are being oered to the general public at no charge under
subsection 6d.
A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System
Library, need not be included in conveying the object code work.
142D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for
personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining
whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product
received by a particular user, “normally used” refers to a typical or common use of that class of product, regardless of the status
of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A
product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer
uses, unless such uses represent the only signicant mode of use of the product.
“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required
to install and execute modied versions of a covered work in that User Product from a modied version of its Corresponding
Source. The information must suce to ensure that the continued functioning of the modied object code is in no case
prevented or interfered with solely because modication has been made.
If you convey an object code work under this section in, or with, or specically for use in, a User Product, and the conveying
occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in
perpetuity or for a xed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under
this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any
third party retains the ability to install modied object code on the User Product (for example, the work has been installed in
ROM).
The requirement to provide Installation Information does not include a requirement to continue to provide support service,
warranty, or updates for a work that has been modied or installed by the recipient, or for the User Product in which it has
been modied or installed. Access to a network may be denied when the modication itself materially and adversely aects
the operation of the network or violates the rules and protocols for communication across the network.
Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is
publicly documented (and with an implementation available to the public in source code form), and must require no special
password or key for unpacking, reading or copying.
143D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
7. Additional Terms.
“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its
conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in
this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program,
that part may be used separately under those permissions, but the entire Program remains governed by this License without
regard to the additional permissions.
When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or
from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify
the work). You may place additional permissions on material, added by you to a covered work, for which you have or can give
appropriate copyright permission.
Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the
copyright holders of that material) supplement the terms of this License with terms:
a) Disclaiming warranty or limiting liability dierently from the terms of sections 15 and 16 of this License; or
b) Requiring preservation of specied reasonable legal notices or author attributions in that material or in the
Appropriate Legal Notices displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of that material, or requiring that modied versions of such material
be marked in reasonable ways as dierent from the original version; or
d) Limiting the use for publicity purposes of names of licensors or authors of the material; or
e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or
f) Requiring indemnication of licensors and authors of that material by anyone who conveys the material (or
modied versions of it) with contractual assumptions of liability to the recipient, for any liability that these
contractual assumptions directly impose on those licensors and authors.
144D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program
as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a
further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing
or conveying under this License, you may add to a covered work material governed by the terms of that license document,
provided that the further restriction does not survive such relicensing or conveying.
If you add terms to a covered work in accord with this section, you must place, in the relevant source les, a statement of the
additional terms that apply to those les, or a notice indicating where to nd the applicable terms.
Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as
exceptions; the above requirements apply either way.
8. Termination.
You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to
propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses
granted under the third paragraph of section 11).
However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a)
provisionally, unless and until the copyright holder explicitly and nally terminates your license, and (b) permanently, if the
copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.
Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder noties you of the
violation by some reasonable means, this is the rst time you have received notice of violation of this License (for any work)
from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.
Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights
145D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to
receive new licenses for the same material under section 10.
9. Acceptance Not Required for Having Copies.
You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a
covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not
require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered
work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered
work, you indicate your acceptance of this License to do so.
10. Automatic Licensing of Downstream Recipients.
Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify
and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this
License.
An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing
an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party
to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in
interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work
from the predecessor in interest, if the predecessor has it or can get it with reasonable eorts.
You may not impose any further restrictions on the exercise of the rights granted or armed under this License. For example,
you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not
initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making,
using, selling, oering for sale, or importing the Program or any portion of it.
146D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
11. Patents.
A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is
based. The work thus licensed is called the contributor’s “contributor version”.
A contributor’s “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired
or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its
contributor version, but do not include claims that would be infringed only as a consequence of further modication of
the contributor version. For purposes of this denition, “control” includes the right to grant patent sublicenses in a manner
consistent with the requirements of this License.
Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor’s essential patent
claims, to make, use, sell, oer for sale, import and otherwise run, modify and propagate the contents of its contributor version.
In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not
to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To
“grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the
party.
If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available
for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other
readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive
yourself of the benet of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements
of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge
that, but for the patent license, your conveying the covered work in a country, or your recipient’s use of the covered work in a
country, would infringe one or more identiable patents in that country that you have reason to believe are valid.
If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance
of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use,
propagate, modify or convey a specic copy of the covered work, then the patent license you grant is automatically extended
to all recipients of the covered work and works based on it.
147D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is
conditioned on the non-exercise of one or more of the rights that are specically granted under this License. You may not
convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software,
under which you make payment to the third party based on the extent of your activity of conveying the work, and under which
the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a)
in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in
connection with specic products or compilations that contain the covered work, unless you entered into that arrangement,
or that patent license was granted, prior to 28 March 2007.
Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that
may otherwise be available to you under applicable patent law.
12. No Surrender of Others’ Freedom.
If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy
simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not
convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to
whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely
from conveying the Program.
13. Use with the GNU Aero General Public License.
Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work
licensed under version 3 of the GNU Aero General Public License into a single combined work, and to convey the resulting
work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of
the GNU Aero General Public License, section 13, concerning interaction through a network will apply to the combination
as such.
148D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
14. Revised Versions of this License.
The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time.
Such new versions will be similar in spirit to the present version, but may dier in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program species that a certain numbered version of the GNU
General Public License “or any later version” applies to it, you have the option of following the terms and conditions either of
that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify
a version number of the GNU General Public License, you may choose any version ever published by the Free Software
Foundation. If the Program species that a proxy can decide which future versions of the GNU General Public License can
be used, that proxy’s public statement of acceptance of a version permanently authorizes you to choose that version for the
Program.
Later license versions may give you additional or dierent permissions. However, no additional obligations are imposed on
any author or copyright holder as a result of your choosing to follow a later version.
15. Disclaimer of Warranty.
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS
WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
16. Limitation of Liability.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO
USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
149D-Link DIR-510L User Manual
Appendix D - GPL Code Statement
17. Interpretation of Sections 15 and 16.
If the disclaimer of warranty and limitation of liability provided above cannot be given local legal eect according to their
terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection
with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.
150D-Link DIR-510L User Manual
Appendix E - Safety Statements
Safety Statements
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the Instructions , may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
1. This device complies with Part 15 of the FCC rules/Industry Canada RSS 210 standard . Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
3. Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate
the equipment.
IMPORTANT NOTE : (For Mobile Device Conguration)
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
151D-Link DIR-510L User Manual
Appendix E - Safety Statements
operated with minimum distance 20 cm between the radiator & your body.
IMPORTANT NOTE : (For Portable Device Conguration)
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods
and procedures specied in OET Bulletin 65 Supplement C. SAR has been evaluated at 10 mm.
This Class [*] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada.
Industry Canada Caution:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif.
IC IMPORTANT NOTE : (For Mobile Device Conguration)
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
IC IMPORTANT NOTE : (For Portable Device Conguration)
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
IC RSS-102 and had been tested in accordance with the measurement methods and procedures specied in IEEE 1528. This equipment
should be installed and operated with minimum distance 1 cm between the radiator & your body. SAR has been evaluated at 10 mm.
152D-Link DIR-510L User Manual
Appendix E - Safety Statements
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
En vertu de la réglementation de l’industrie du Canada, cet émetteur de radio ne peuvent fonctionner en utilisant une antenne d’un type
et maximum (ou moins) Gain approuvé pour l’émetteur par Industrie Canada. Pour réduire risque d’interférence aux autres utilisateurs,
le type d’antenne et son gain doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui
est nécessaire pour la réussite de communication.
旬抬)8*!Ỷ≇䌯暣㲊廣⮬⿏暣㨇䭉䎮彎㱽
䫔⋩Ḵ㡅
䴻✳⺷娵嫱⎰㟤ᷳỶ≇澯⮬柣暣㨇炻朆䴻姙⎗炻℔⎠ˣ⓮嘇ㆾἧ䓐侭⛯澵⼿㑭冒嬲潏柣澯ˣ≈⣏≇澯ㆾ嬲潏⍇姕妰ᷳ䈡⿏⍲≇傥ˤ
䫔⋩⚃㡅
Ỷ≇澯⮬柣暣㨇ᷳἧ䓐澵⼿⼙枧梃凒⬱ℐ⍲⸚㒦⎰㱽忂ᾉ烊䴻䘤䎦㚱⸚㒦䎦尉㗪炻ㅱ㓡┬军䃉⸚㒦㗪㕡⼿两临ἧ䓐ˤ⇵枭⎰㱽忂ᾉ炻㊯ὅ
暣ᾉ㱽夷⭂ἄ㤕ᷳ䃉䶂暣忂ᾉˤỶ≇澯⮬柣暣㨇枰⽵⍿⎰㱽忂ᾉㆾⶍ㤕ˣ䥹⬠⍲慓瀏䓐暣㲊灕⮬⿏暣㨇姕⁁ᷳ⸚㒦ˤ
