D Link IR605LB1 Wireless N 300 Cloud Router User Manual 15

D Link Corporation Wireless N 300 Cloud Router 15

User Manual

User Manual
Wireless N 300 Cloud Router
Version 2.00 | 02/25/2013
iD-Link DIR-605L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 December 02, 2011 t'JSTUSFMFBTFWFSTJPO
2.0 'FCSVBSZ t6QEBUFEGPSSFWJTJPO#
Preface
iiD-Link DIR-605L User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Package Contents.............................................................. 1
System Requirements................................................................. 1
'FBUVSFT............................................................................................ 2
Hardware Overview.....................................................................3
Connections ........................................................................... 3
LEDs ........................................................................................... 4
Installation ......................................................................... 5
#FGPSFZPV#FHJO........................................................................... 5
Wireless Installation Considerations...................................... 6
Connect to Cable/DSL/Satellite Modem.............................. 7
Conguration..................................................................... 8
Web-based Conguration Utility............................................8
Internet Setup......................................................................13
Static (assigned by ISP)................................................13
Dynamic ............................................................................14
PPPoE ................................................................................15
PPTP....................................................................................16
L2TP ....................................................................................17
Wireless Setup......................................................................18
LAN Setup..............................................................................23
DHCP Server Settings........................................................24
Time and Date......................................................................25
Parental Control ..................................................................26
1PSU'PSXBSEJOH ..................................................................27
Application Rules................................................................28
Access Control .....................................................................29
Trac Control.......................................................................30
'JSFXBMM%.;.....................................................................31
Advanced Wireless .............................................................32
Advanced Network ............................................................33
Routing...................................................................................34
Device Administration......................................................35
Save and Restore.................................................................36
'JSNXBSF6QEBUF ................................................................37
DDNS Setting .......................................................................38
System Check.......................................................................39
Schedules ..............................................................................40
Log Settings..........................................................................41
Device Info ............................................................................42
Log ...........................................................................................43
Trac Statistics....................................................................44
Active Session .....................................................................44
Table of Contents
iiiD-Link DIR-605L User Manual
Table of Contents
Wireless ..................................................................................45
Help .........................................................................................46
Wireless Security .............................................................47
What is WEP? ................................................................................47
Congure WEP.............................................................................48
What is WPA?................................................................................49
Congure WPA-PSK and WPA2-PSK .....................................50
Congure WPA/WPA2-PSK ......................................................51
Congure WPA, WPA2, and WPA/WPA2 (RADIUS)...........52
Connect to a Wireless Network.......................................53
Using Windows® XP ....................................................................53
Congure WEP.............................................................................54
Congure WPA-PSK....................................................................56
Setting Up Wi-Fi Protection ............................................58
(WCN 2.0 in Windows Vista) ............................................58
*OJUJBM3PVUFS$POöHVSBUJPOGPS8J'J1SPUFDUJPO.............58
Setting Up a Congured Router............................................59
Changing the Computer Name and Joining a Workgroup.. 60
Conguring the IP Address in Vista................................62
Setting Up a Connection or Network Wirelessly ...........65
Connecting to a Secured Wireless Network (WEP, WPA-
PSK & WPA2-PSK).............................................................70
Connecting to an Unsecured Wireless Network............74
Troubleshooting ..............................................................78
Wireless Basics.................................................................82
What is Wireless?.........................................................................83
Tips...................................................................................................85
Wireless Modes............................................................................86
Networking Basics...........................................................87
Check your IP address...............................................................87
Statically Assign an IP address...............................................88
Technical Specications..................................................89
1D-Link DIR-605L User Manual
Section 1 - Product Overview
t%-JOL%*3-8JSFMFTT/$MPVE3PVUFS
t1PXFS"EBQUFS
t2VJDL*OTUBMMBUJPO(VJEF
t&UIFSOFUDBCMF
System Requirements
t&UIFSOFUCBTFE$BCMFPS%4-.PEFN
t $PNQVUFSTXJUI8JOEPXT®, Macintosh®, or Linux-based operating systems with an installed Ethernet adapter
t*OUFSOFU&YQMPSFSPS'JSFGPYPSBCPWFGPSDPOöHVSBUJPO
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included
with the DIR-605L will cause damage and void the warranty for this product.
Note: Always attach the power cord plug to the power supply, before inserting the
power cord and connected power supply to the wall outlet.
2D-Link DIR-605L User Manual
Section 1 - Product Overview
t'BTUFS8JSFMFTT/FUXPSLJOH - The DIR-605L provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
t$PNQBUJCMFXJUICBOEH%FWJDFT - The DIR-605L is still fully compatible with the IEEE 802.11b and
*&&&HTUBOEBSETPJUDBODPOOFDUXJUIFYJTUJOHCBOE*&&&H1$*64#BOE$BSECVTBEBQUFST
t$MPVE4FSWJDF - The DIR-605L features a new cloud service that pushes information such as rmware upgrade
notications, user activity, and intrusion alerts, to the mydlink app on android and apple mobile devices. to
insure that your router is up-to-date with the latest features, mydlink will notify you when an update is available
for your router.
You can monitor a user’s online activity with real-time website browsing history, maintaining a safe and secure
environment, especially for children at home.
t&BTZ4FUVQ8J[BSE - Through its easy-to-use Web-based user interface, the DIR-605L lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
'FBUVSFT
3D-Link DIR-605L User Manual
Section 1 - Product Overview
1SFTTJOHUIF3FTFU#VUUPOSFTUPSFTUIF
router to its original factory default
settings.
Receptor for the Power Adapter.
The Auto MDI/MDIX WAN
port is the connection for the
Ethernet cable to the Cable
or DSL modem.
LAN Ports
Connect Ethernet devices such as
computers, switches, and hubs.
)BSEXBSF0WFSWJFX
Connections
4D-Link DIR-605L User Manual
Section 1 - Product Overview
)BSEXBSF0WFSWJFX
-&%T
*/5&3/&5
A solid light indicates connection on
the WAN port. This LED blinks during
data transmission.
8-"/-&%
A solid light indicates that the wireless
segment is ready. This LED blinks during
wireless data transmission.
-PDBM/FUXPSL-&%T
A solid light indicates a connection to an
Ethernet-enabled computer on ports 1-4. This
LED blinks during data transmission.
1PXFS-&%
A solid light indicates a proper
connection to the power supply.
5D-Link DIR-605L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
Please congure the router with the computer that was last connected directly to your modem. Also, you can only use the
&UIFSOFUQPSUPOZPVSNPEFN*GZPVXFSFVTJOHUIF64#DPOOFDUJPOCFGPSFVTJOHUIFSPVUFSUIFOZPVNVTUUVSOPòZPVS
NPEFNEJTDPOOFDUUIF64#DBCMFBOEDPOOFDUBO&UIFSOFUDBCMFUPUIF8"/QPSUPOUIFSPVUFSBOEUIFOUVSOUIFNPEFN
CBDLPO*OTPNFDBTFTZPVNBZOFFEUPDBMMZPVS*41UPDIBOHFDPOOFDUJPOUZQFT64#UP&UIFSOFU
*GZPVIBWF%4-BOEBSFDPOOFDUJOHWJB111P&NBLFTVSFZPVEJTBCMFPSVOJOTUBMMBOZ111P&TPGUXBSFTVDIBT8JO1PFU#SPBEKVNQ
or Ethernet 300 from your computer or you will not be able to connect to the Internet.
6D-Link DIR-605L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
PSPUIFSPCKFDUTUIBUUIFXJSFMFTTTJHOBMTNVTUQBTTUISPVHINBZMJNJUUIFSBOHF5ZQJDBMSBOHFTWBSZEFQFOEJOHPOUIFUZQFT
PGNBUFSJBMTBOECBDLHSPVOE3'SBEJPGSFRVFODZOPJTFJOZPVSIPNFPSCVTJOFTT5IFLFZUPNBYJNJ[JOHXJSFMFTTSBOHFJTUP
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. #FBXBSFPG UIFEJSFDUMJOF CFUXFFOOFUXPSLEFWJDFT" XBMMUIBUJTGFFUUIJDLNFUFSTBU B
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. #VJMEJOH.BUFSJBMTNBLFBEJòFSFODF"TPMJENFUBMEPPSPSBMVNJOVNTUVETNBZIBWFBOFHBUJWFFòFDUPO
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
PSPQFOEPPSXBZT.BUFSJBMTBOEPCKFDUTTVDIBTHMBTTTUFFMNFUBMXBMMTXJUIJOTVMBUJPOXBUFSöTIUBOLT
mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4.,FFQZPVSQSPEVDUBXBZBUMFBTUGFFUPSNFUFSTGSPNFMFDUSJDBMEFWJDFTPSBQQMJBODFTUIBUHFOFSBUF3'
noise.
5.*GZPVBSFVTJOH()[DPSEMFTTQIPOFTPS9XJSFMFTTQSPEVDUTTVDIBTDFJMJOHGBOTMJHIUTBOEIPNFTFDVSJUZ
TZTUFNTZPVSXJSFMFTTDPOOFDUJPONBZEFHSBEFESBNBUJDBMMZPSESPQDPNQMFUFMZ.BLFTVSFZPVS()[QIPOF
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
7D-Link DIR-605L User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power o on your modem. If there is no on/o switch, then unplug the modem’s power adapter. Shut down your
computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the WAN
port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your
computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot.
7. Turn on your computer.
 Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is plugged
into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable connections
are correct.
9. Skip to page 8 to congure your router.
Connect to Cable/DSL/Satellite Modem
8D-Link DIR-605L User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser
such as Internet Explorer and enter the IP address of the
router (192.168.0.1) or http://dlinkrouter.
9D-Link DIR-605L User Manual
Section 3 - Conguration
Select the type of Internet connection that Easy Setup Wizard detects, type
in necessary information and then click Next
to continue.
If you selected PPPoE, enter your PPPoE username and password. Click
Next to continue.
Select Static if your ISP assigned you the IP address, subnet mask, gateway,
and DNS server addresses.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If you selected PPTP, enter your PPTP username and password. Click Next to
continue.
10D-Link DIR-605L User Manual
Section 3 - Conguration
If you selected L2TP, enter your L2TP username and password. Click Next to
continue.
If you selected Static, enter your network settings supplied by your Internet
provider. Click Next to continue.
*OUIFQBHFPGi$633&/5/&5803,4&55*/(wZPVXJMMTFFUIF*/5&3/&5TUBUVT
JTiDPOOFDUFEw
11D-Link DIR-605L User Manual
Section 3 - Conguration
*GZPVIBWFOPUSFHJTUFSFEBNZEMJOLBDDPVOUQMFBTFDMJDLiDPOöHVSFw*OUIF
section “mydlink account’ and complete the registration form.
$MJDLi3FHJTUFSw

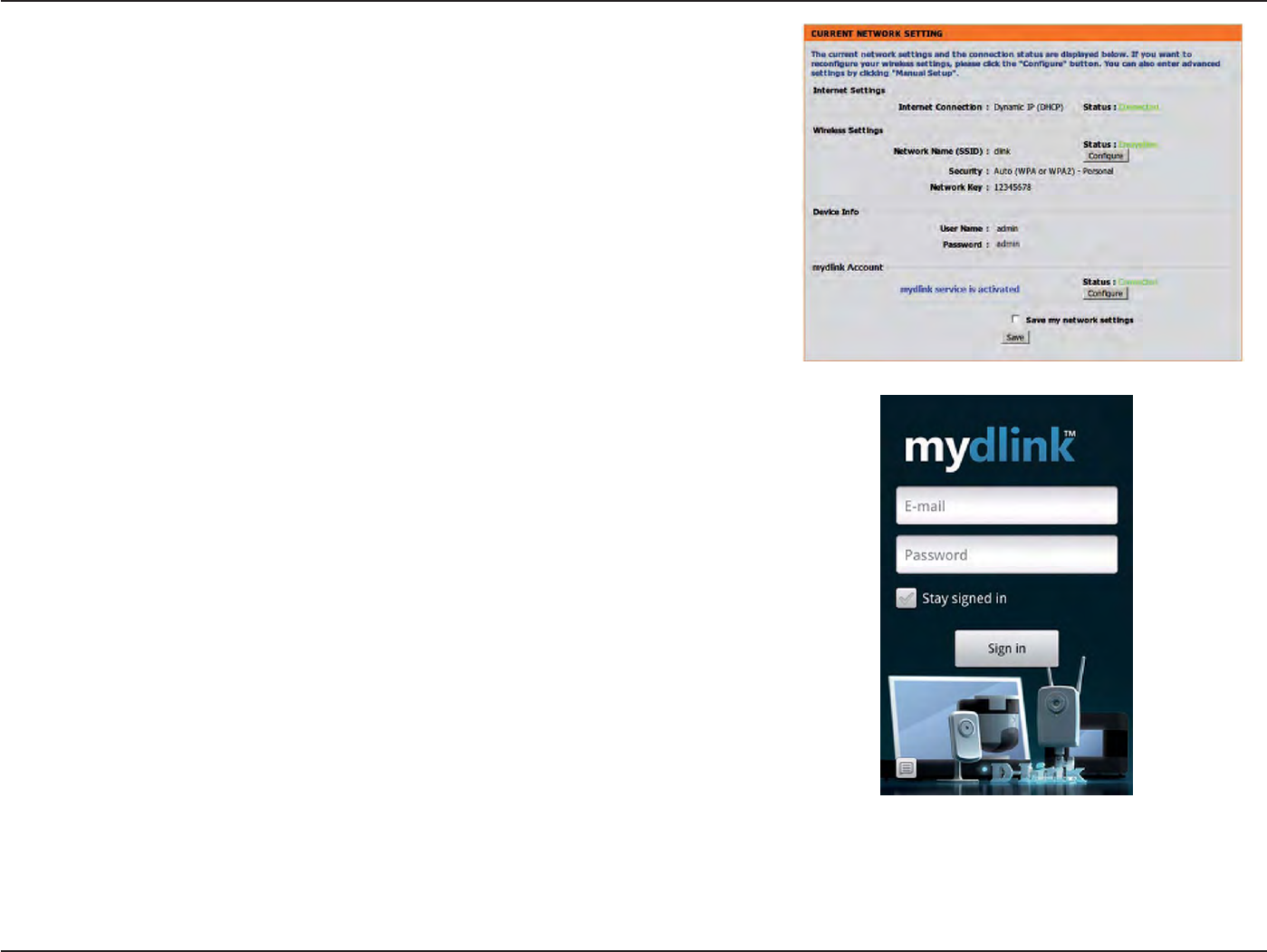

Now you can see the hint that a verication e-mail has been sent out. Open
a new browser to login your e-mail account for receiving the verication
mail.
Once the account verication phase is complete, click "congure" In the
section "mydlink account' and login mydlink account.
Click "Login"
12D-Link DIR-605L User Manual
Section 3 - Conguration
Now the router has successfully connected to mydlink service. You can
download the App "mydlink lite" from android market or apple store to
TUBSUFOKPZNZEJOLTFSWJDF
13D-Link DIR-605L User Manual
Section 3 - Conguration
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
&OUFSUIF(BUFXBZBTTJHOFECZZPVS*41
The default MAC Address is set to the WAN’s physical interface
."$BEESFTTPOUIF#SPBECBOE3PVUFS*UJTOPUSFDPNNFOEFE
that you change the default MAC address unless required by
your ISP.
The default MAC address is set to the WAN’s physical interface
."$BEESFTTPOUIF#SPBECBOE3PVUFS:PVDBOVTFUIFClone
MAC Address button to copy the MAC address of the Ethernet
Card installed by your ISP and replace the WAN MAC address
with the MAC address of the router. It is not recommended that
you change the default MAC address unless required by your ISP.
Enter the Primary DNS server IP address assigned by your ISP.
This is optional.
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1492 is
the default MTU.
IP Address:
Subnet Mask:
*41(BUFXBZ
MAC Address:
Clone MAC
Address:
Primary DNS
Address:
Secondary DNS
Address:
MTU:
Internet Setup
Static (assigned by ISP)
Select Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway
address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are four
octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
DIR-605L
14D-Link DIR-605L User Manual
Section 3 - Conguration
Choose Dynamic IP Address to obtain IP Address information
automatically from your ISP. Select this option if your ISP does
not give you any IP numbers to use. This option is commonly
used for Cable modem services.
The Host Name is optional but may be required by some ISPs.
The default host name is the device name of the Router and
may be changed.
The default MAC Address is set to the WAN’s physical interface
."$BEESFTTPOUIF#SPBECBOE3PVUFS*UJTOPUSFDPNNFOEFE
that you change the default MAC address unless required by
your ISP.
The default MAC address is set to the WAN’s physical interface
."$BEESFTTPOUIF#SPBECBOE3PVUFS:PVDBOVTFUIFi$MPOF
."$"EESFTTwCVUUPOUPDPQZUIF."$BEESFTTPGUIF&UIFSOFU
Card installed by your ISP and replace the WAN MAC address
with the MAC address of the router. It is not recommended that
you change the default MAC address unless required by your ISP.
Enter the DNS (Domain Name Server) server IP address assigned
by your ISP.
Dynamic IP
Address:
Host Name:
MAC Address:
Internet Setup
Dynamic
Clone MAC
Address:
DNS
Addresses:
MTU: Maximum Transmission Unit - You may need to change the MTU for optimal performance with your specic ISP.
Access Point
Mode:
Checking this box disables NAT and turns the Router into an
Access Point only.
To manually set up the Internet connection, click the Manual Internet Connection Setup button on the Router’s opening
window.
DIR-605L
15D-Link DIR-605L User Manual
Section 3 - Conguration
Select Dynamic (most common) or Static. Select Static if your
ISP assigned you the IP address, subnet mask, gateway, and
DNS server addresses.
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in
the next box.
Enter the ISP Service Name (optional).
Enter the IP address (Static PPPoE only).
Enter the Primary and Secondary DNS Server Addresses (Static
PPPoE only).
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature,
enable Auto-reconnect.
Maximum Transmission Unit - You may need to change the
MTU for optimal performance with your specic ISP. 1492 is
the default MTU.
Select either "MXBZTPO,Manual, or Connect-on demand.
111P&
User Name:
1BTTXPSE
Service Name:
IP Address:
DNS Addresses:
Maximum Idle
Time:
MTU:
Connection Mode
Select:
Internet Setup
111P&
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work through a router.
DIR-605L
16D-Link DIR-605L User Manual
Section 3 - Conguration
Select Dynamic (most common) or Static. Select Static if your
ISP assigned you the IP address, subnet mask, gateway, and
DNS server addresses.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static
PPTP only).
&OUFSUIF(BUFXBZ*1"EESFTTQSPWJEFECZZPVS*41
The DNS server information will be supplied by your ISP (Inter-
net Service Provider.)
Enter the Server IP provided by your ISP (optional).
Enter your PPTP account name.
Enter your PPTP password and then retype the password in
the next box.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Maximum Transmission Unit - You may need to change the MTU
for optimal performance.
Select either Always-on, Manual, or Connect-on demand.
PPTP:
IP Address:
Subnet Mask:
(BUFXBZ
DNS:
Internet Setup
PPTP

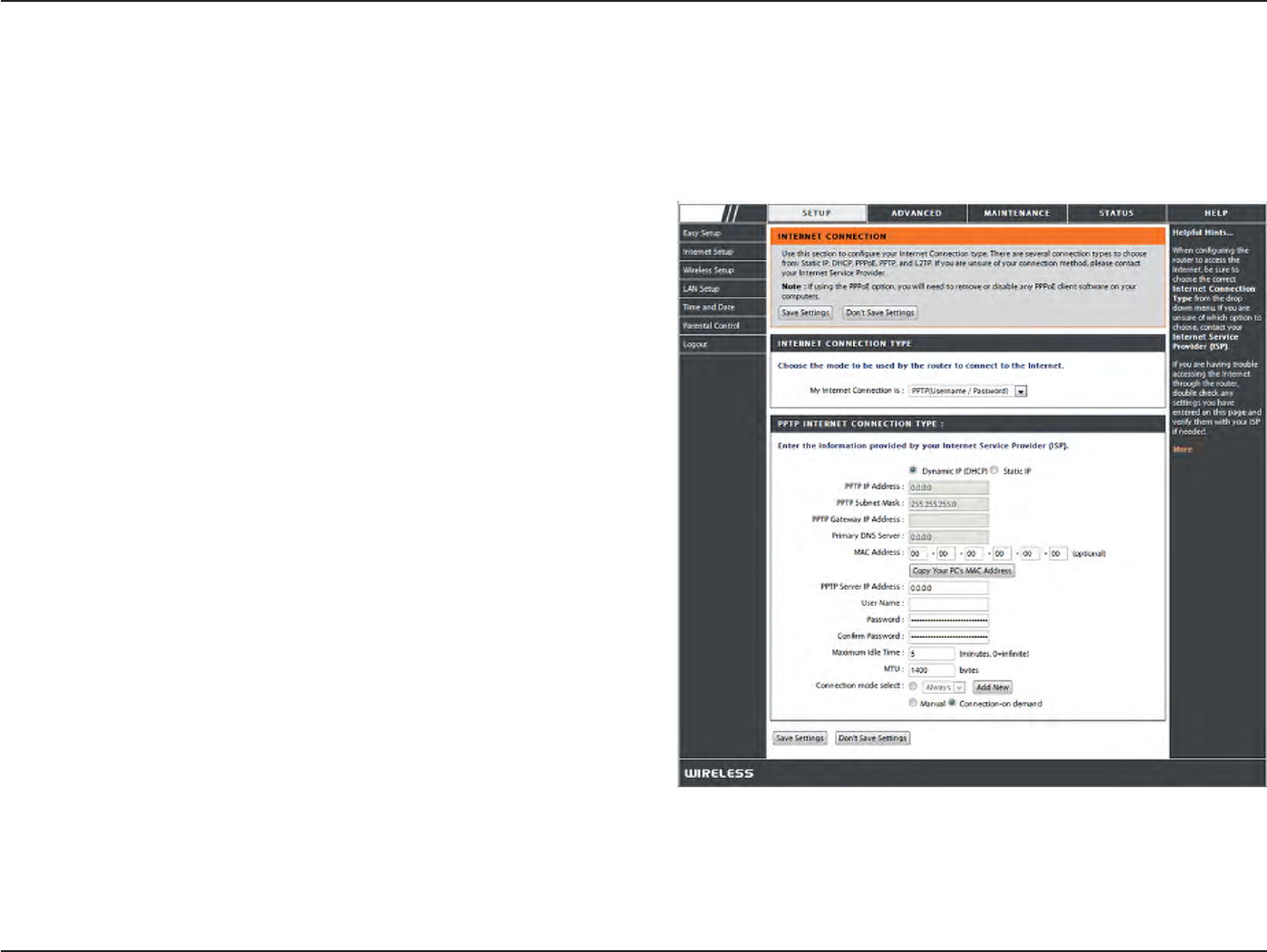

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
Server IP:
PPTP Account:
11511BTTXPSE
Maximum Idle
Time:
MTU:
Connect Mode:
DIR-605L
17D-Link DIR-605L User Manual
Section 3 - Conguration
Select Dynamic (most common) or Static. Select Static if your
ISP assigned you the IP address, subnet mask, gateway, and
DNS server addresses.
Enter the IP address (Static L2TP only).
Enter the Primary and Secondary DNS Server Addresses (Static
L2TP only).
&OUFSUIF(BUFXBZ*1"EESFTTQSPWJEFECZZPVS*41
The DNS server information will be supplied by your ISP (Inter-
net Service Provider.)
Enter the Server IP provided by your ISP (optional).
Enter your L2TP account name.
Enter your L2TP password and then retype the password in the
next box.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Maximum Transmission Unit - You may need to change the MTU
for optimal performance with your specic ISP.
Select either Always-on, Manual, or Connect-on demand.
L2TP:
IP Address:
Subnet Mask:
(BUFXBZ
DNS:
Server IP:
L2TP Account:
-511BTTXPSE
Maximum Idle
Time:
MTU:
Connect Mode:
Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
DIR-605L
18D-Link DIR-605L User Manual
Section 3 - Conguration

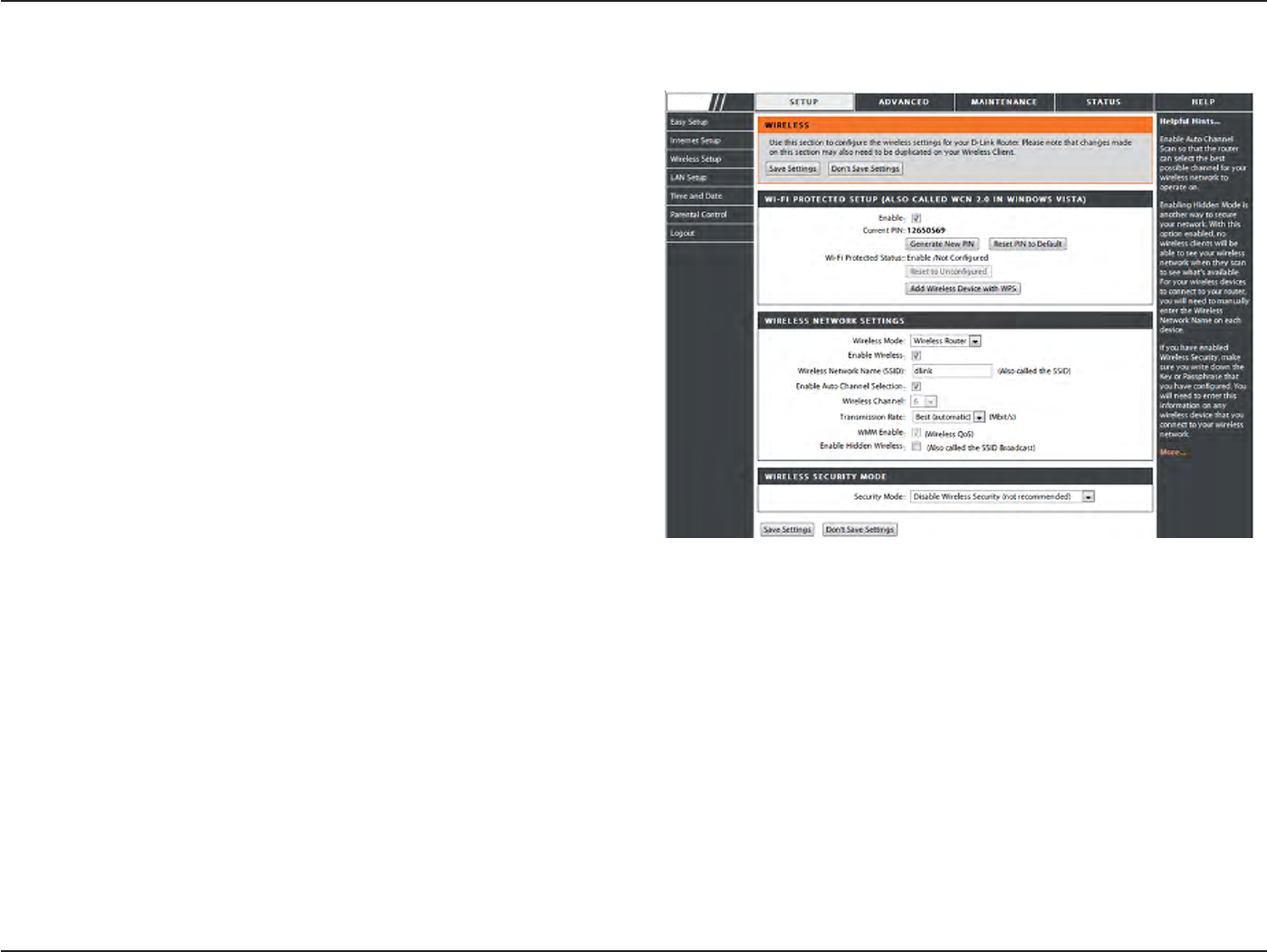

Wireless Setup
Wireless settings for the router may be configured
manually or by using a wizard. To use the wizard, click
the 8JSFMFTT$POOFDUJPO4FUVQ8J[BSE button and then
follow the steps that are described below. To congure
the wireless settings manually, click the Manual Wireless
Connection Setup button. The parameters for this
window are described later in this section. The Wireless
Security section that directly follows this Conguration
section provides additional explanation for how to
congure the WEP, WPA, WPA2, and WPA/WPA2 wireless
security mode options.
Click Next to continue.
Enter a Wireless Network Name in the textbox, which is also
known as the SSID, and then click Next to continue.
DIR-605L
19D-Link DIR-605L User Manual
Section 3 - Conguration
Enter a Wireless Security Password in the textbox and then click Next to continue.
This window displays a summary of your wireless security settings. Please print
this out or record this information in a safe place and then click Save to continue.
The Router will save your new settings and reboot. When it is nished after 1-2
minutes, the opening Wireless Setup window is displayed.
20D-Link DIR-605L User Manual
Section 3 - Conguration
5PJNQMFNFOU8J'JQSPUFDUJPOPS8$/UJDLUIF&OBCMF
checkbox, click either (FOFSBUF/FX1*/or Reset PIN to
DefaultBOEUIFODPOöHVSFUIF8J'JTFUUJOHTCFMPX1MFBTF
TFFUIF4FUUJOH6Q8J'J1SPUFDUJPO 8$/JO8JOEPXT
Vista) section later in this manual for detailed conguration
information.
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the
wireless functions.
Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID
is case-sensitive.
*OEJDBUFTUIFDIBOOFMTFUUJOHGPSUIF%*3-#ZEFGBVMU
the channel is set to 6. The Channel can be changed to t
the channel setting for an existing wireless network or to
customize the wireless network. The "VUP$IBOOFM4FMFDUJPO
setting can be selected to allow the DIR-605L to choose the
channel with the least amount of interference.
8J'J1SPUFDUFE
Setup:
&OBCMF
8JSFMFTT$IBOOFM
8JSFMFTT/FUXPSL
Name:
Transmission
Rate:
8..&OBCMF
&OBCMF8JSFMFTT
&OBCMF)JEEFO
Wireless:
DIR-605L
Use the drop-down menu to select the appropriate Transmission Rate in Mbits per second. Many users will want to use the default
setting, Best (automatic).
&OBCMF8J'J.VMUJNFEJBUPFOKPZCBTJDRVBMJUZPGTFSWJDFGFBUVSFT8..QSJPSJUJ[FTUSBóDBDDPSEJOHUPGPVSBDDFTTDBUFHPSJFTWPJDF
video, best eort, and background.
Check this option if you would not like the SSID of your wireless network to be broadcasted by the DIR-605L. If this option is checked,
the SSID of the DIR-605L will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-605L
in order to connect to it.
21D-Link DIR-605L User Manual
Section 3 - Conguration
1. To enable wireless security on the Router, use the
drop-down menu to select the desired option. To
enable WEP, select Enable WEP Wireless Security (basic).
2. Next to "VUIFOUJDBUJPO, select either Open or Shared
Key. Shared Key provides greater security.
3. Select either 64Bit or 128Bit encryption from the drop-
down menu next to 8&1&ODSZQUJPO.
4. Next to Default Key Type, select WEP Key 1 and enter
a WEP key that you create. Make sure you enter this
key exactly on all your wireless devices. You may enter
up to four dierent keys either using Hex or ASCII. Hex
JTSFDPNNFOEFEMFUUFST"'BOEOVNCFSTBSFWBMJE
In ASCII all numbers and letters are valid.
5. Click Save Settings to save your settings. If you are
conguring the Router with a wireless adapter, you
will lose connectivity until you enable WEP on your
adapter and enter the same WEP key as you did on
the Router. /05&
It is recommended to enable encryption on your wireless Router
before your wireless network adapters. Please establish wireless
connectivity before enabling encryption. Your wireless signal may
degrade when enabling encryption due to the added overhead.
22D-Link DIR-605L User Manual
Section 3 - Conguration
1. To enable WPA, WPA2, or WPA/WPA2, select either
Enable WPA Only Wireless Security (enhanced),
Enable WPA2 Only Wireless Security (enhanced), or
Enable WPA/WPA2 Wireless Security (enhanced).
2. Next to $JQIFS5ZQF, select TKIP,AES,orBoth.
3. Next to 14,&"1, select PSK.
4. Next to /FUXPSL,FZ, enter a passphrase. The key
is an alpha-numeric password between 8 and 63
characters long. The password can include symbols
 @BOETQBDFT.BLFTVSFZPVFOUFSUIJTLFZ
exactly the same on all other wireless clients.
5. Click Save Settings to save your settings. If you are
conguring the router with a wireless adapter, you
will lose connectivity until you enable WPA, WPA2,
or WPA/WPA2 (whichever of the three options you
have selected above) on your adapter and enter
the same network key as you did on the router.
23D-Link DIR-605L User Manual
Section 3 - Conguration

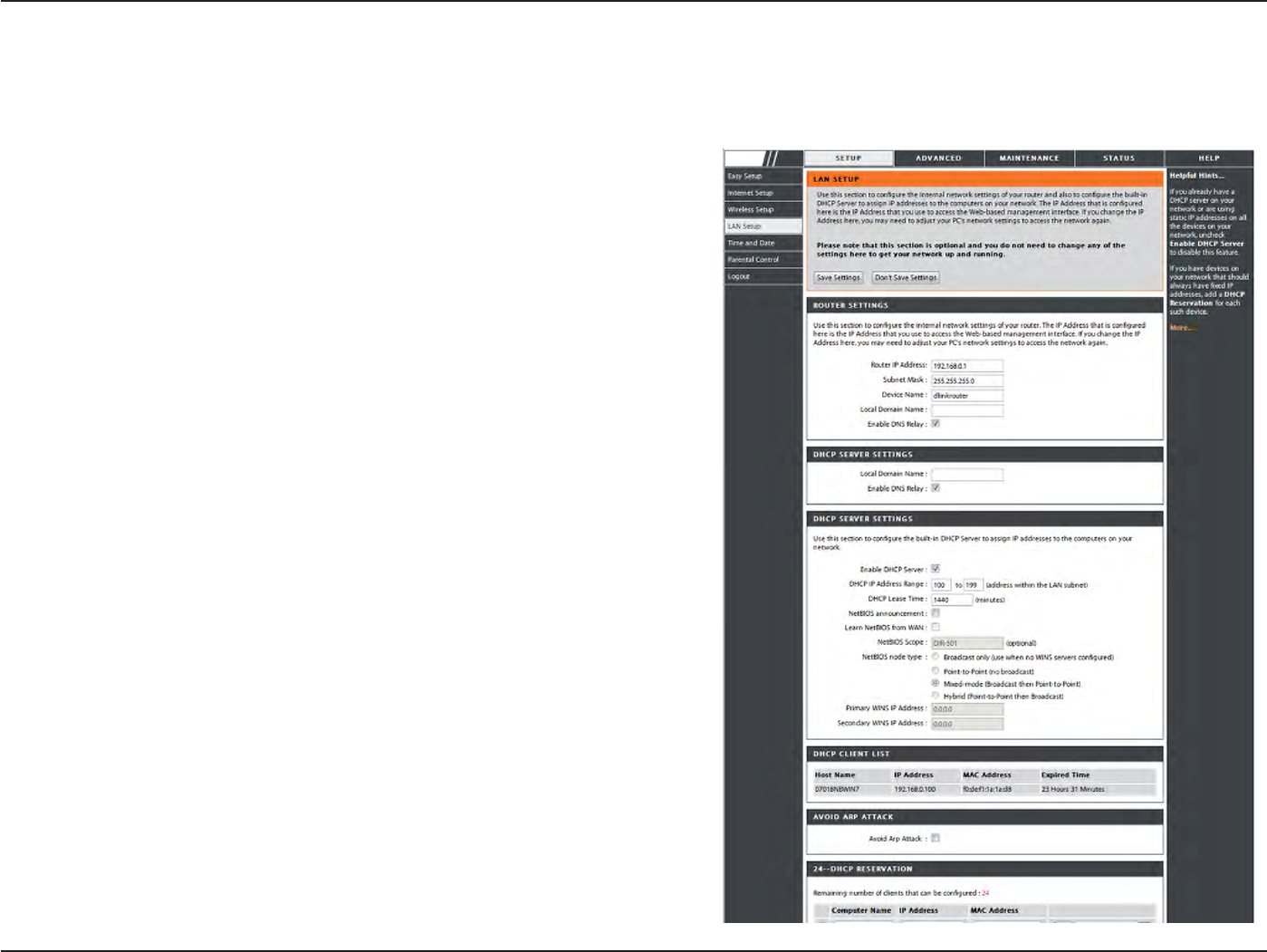

This section will allow you to change the local network settings of the router and to congure the DHCP settings.
LAN Setup
Enter the IP address of the router. The default IP
address is 192.168.0.1.
If you change the IP address, once you click Apply,
you will need to enter the new IP address in your
browser to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter the Domain name (Optional).
Check the box to transfer the DNS server information
from your ISP to your computers. If unchecked, your
computers will use the router for a DNS server.
Router IP Address:
Default Subnet
Mask:
Local Domain
Name:
&OBCMF%/43FMBZ
Refer to the next page for DHCP information.
DIR-605L
24D-Link DIR-605L User Manual
Section 3 - Conguration
Check the box to enable the DHCP server on your
router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the
DHCP server’s IP assignment.
The length of time for the IP address lease. Enter
the Lease time in minutes.
&OBCMF%)$1
Server:
DHCP IP
Address Range:
DHCP Lease
Time:

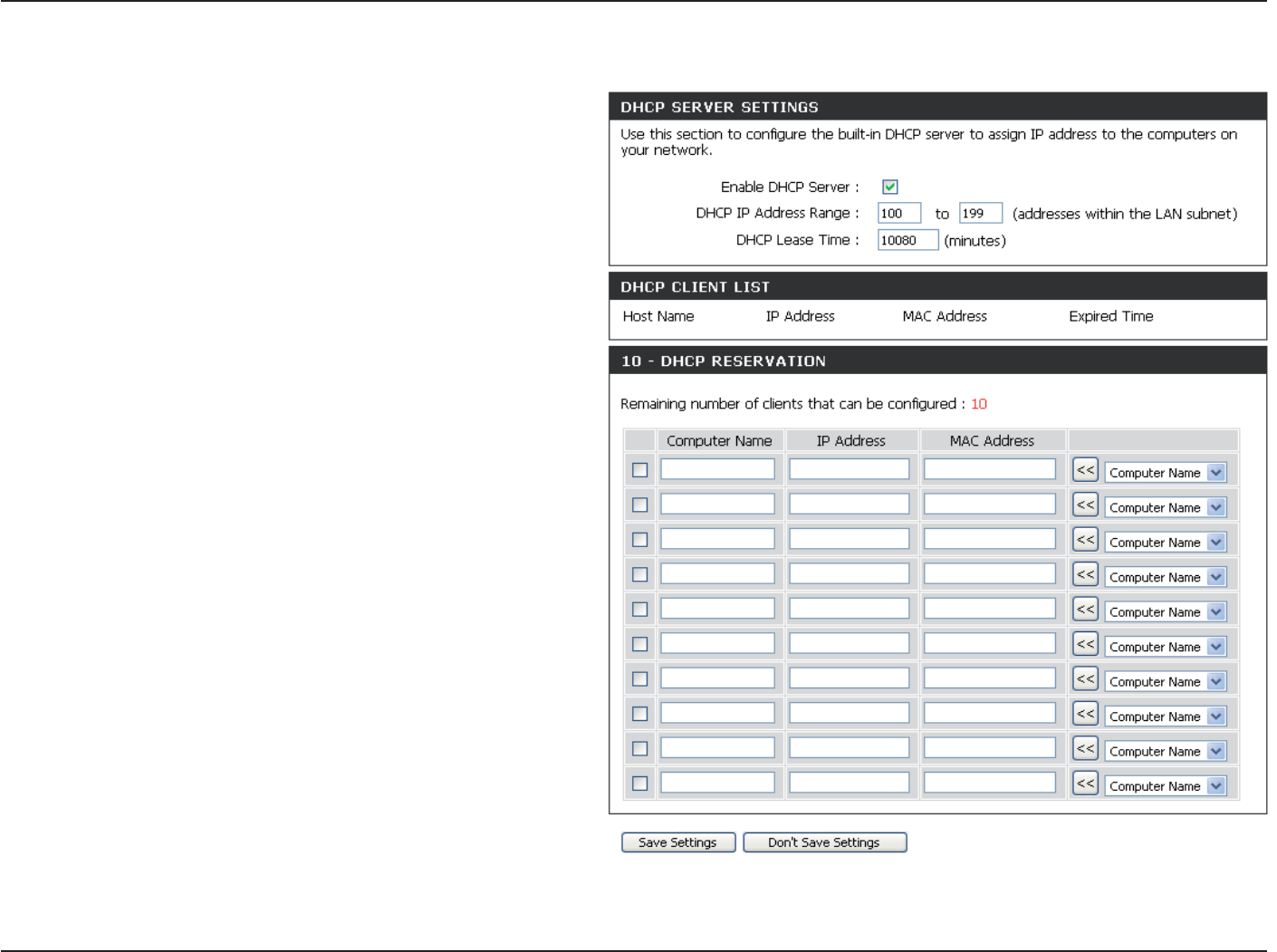

DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The
DIR-605L has a built-in DHCP server. The DHCP Server
will automatically assign an IP address to the computers
POUIF -"/QSJWBUFOFUXPSL#F TVSFUPTFUZPVS
computers to be DHCP clients by setting their TCP/IP
TFUUJOHTUPi0CUBJOBO*1"EESFTT"VUPNBUJDBMMZw8IFO
you turn your computers on, they will automatically load
the proper TCP/IP settings provided by the DIR-605L.
The DHCP Server will automatically allocate an unused
IP address from the IP address pool to the requesting
computer. You must specify the starting and ending
address of the IP address pool.
25D-Link DIR-605L User Manual
Section 3 - Conguration

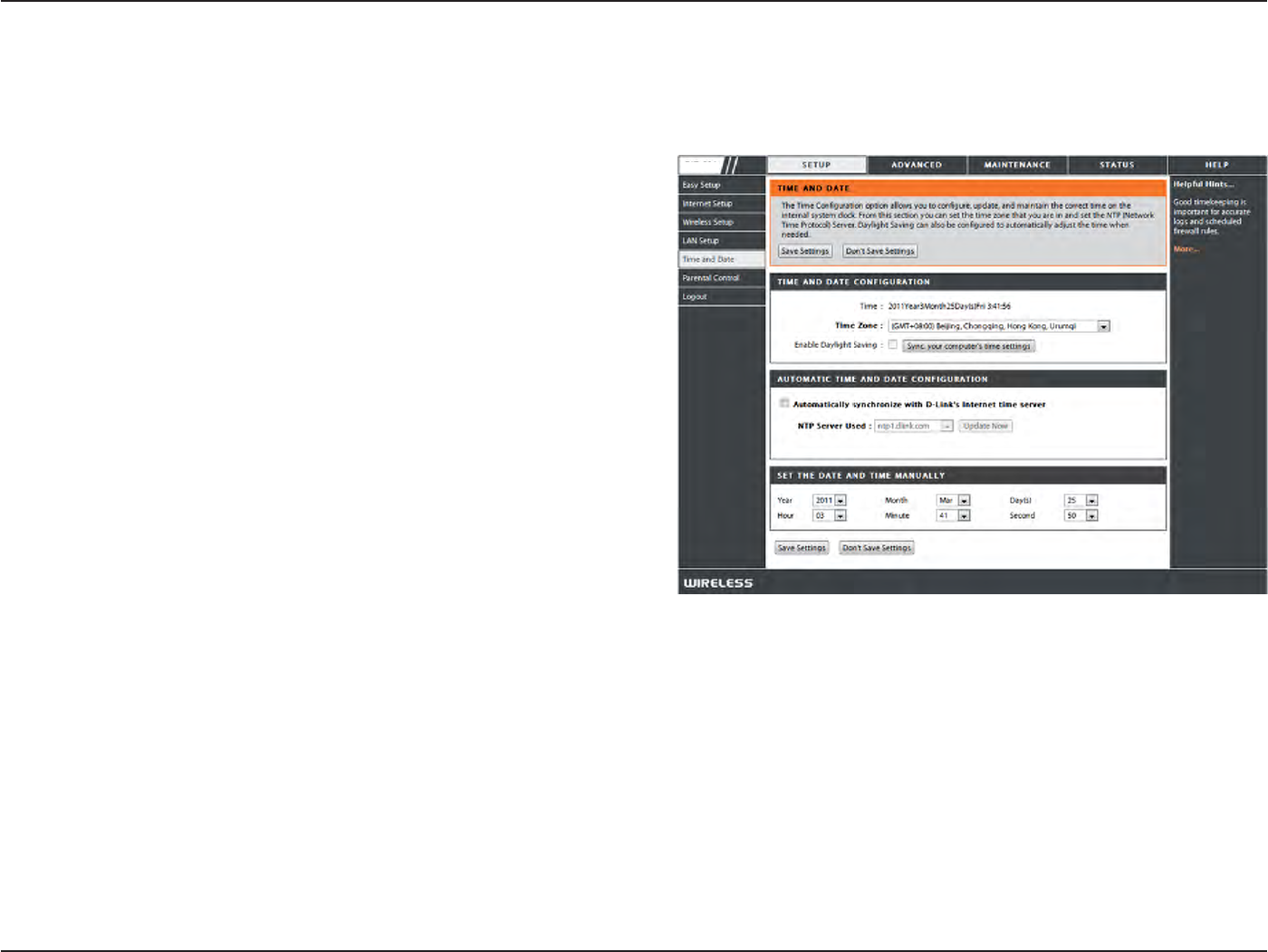

This section will allow you to congure, update, and maintain the correct time on the internal system clock.
Time and Date
4FMFDUUIF5JNF;POFGSPNUIFESPQEPXONFOV
Ticking this checkbox enables Daylight Saving
time. Click Sync. your computer’s time settings
to copy your PC’s time settings.
Tick the “Automatically synchronize with D-Link’s
*OUFSOFUUJNFTFSWFSwDIFDLCPYBOEUIFOVTFUIF
drop-down menu to select an NTP Server. NTP is
short for Network Time Protocol. NTP synchronizes
computer clock times in a network of computers.
To manually input the time, enter the values in
these elds for the Year, Month, Day, Hour, Minute,
and Second. Click Save Settings.
Time Zone:
&OBCMF
%BZMJHIU
Saving:
NTP
Server
Used:
Manual:
DIR-605L
26D-Link DIR-605L User Manual
Section 3 - Conguration

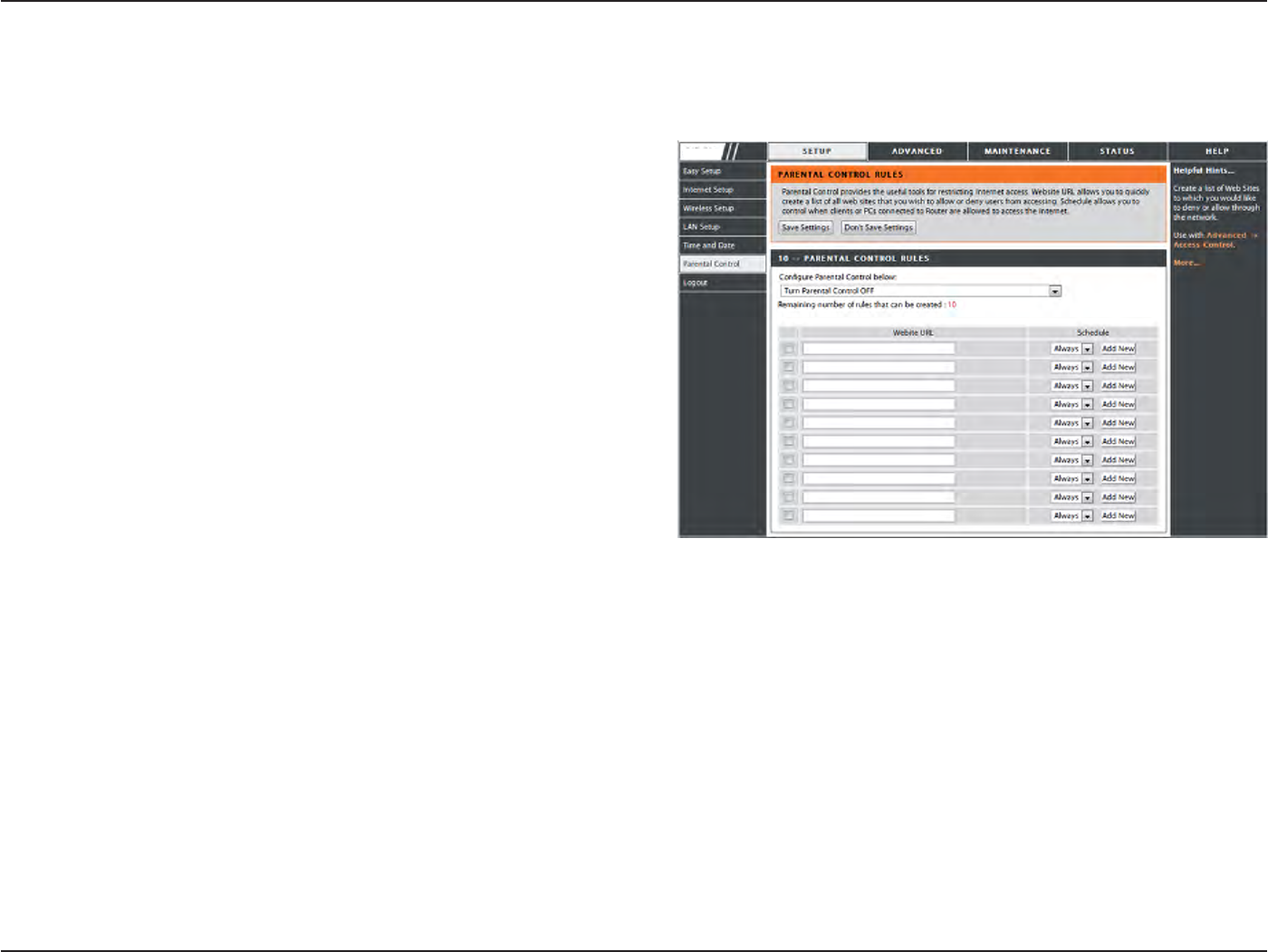

This feature allows you to create a list of websites that you want to either allow or deny users access.
Parental Control
4FMFDU5VSO1BSFOUBM$POUSPM0''5VSO1BSFOUBM
Control ON and ALLOW computers access to ONLY
these sites, or Turn Parental Control ON and DENY
computers access to ONLY these sites.
Enter the keywords or URLs that you want to block
(or allow). Any URL with the keyword in it will be
blocked.
The schedule of time when the parental control
lter will be enabled. The schedule may be set to
Always, which will allow the particular service to
always be enabled. You can create your own times
in the Maintenance > 4DIFEVMFT section.
Congure
Parental
Control:
Website URL:
4DIFEVMF
DIR-605L
27D-Link DIR-605L User Manual
Section 3 - Conguration

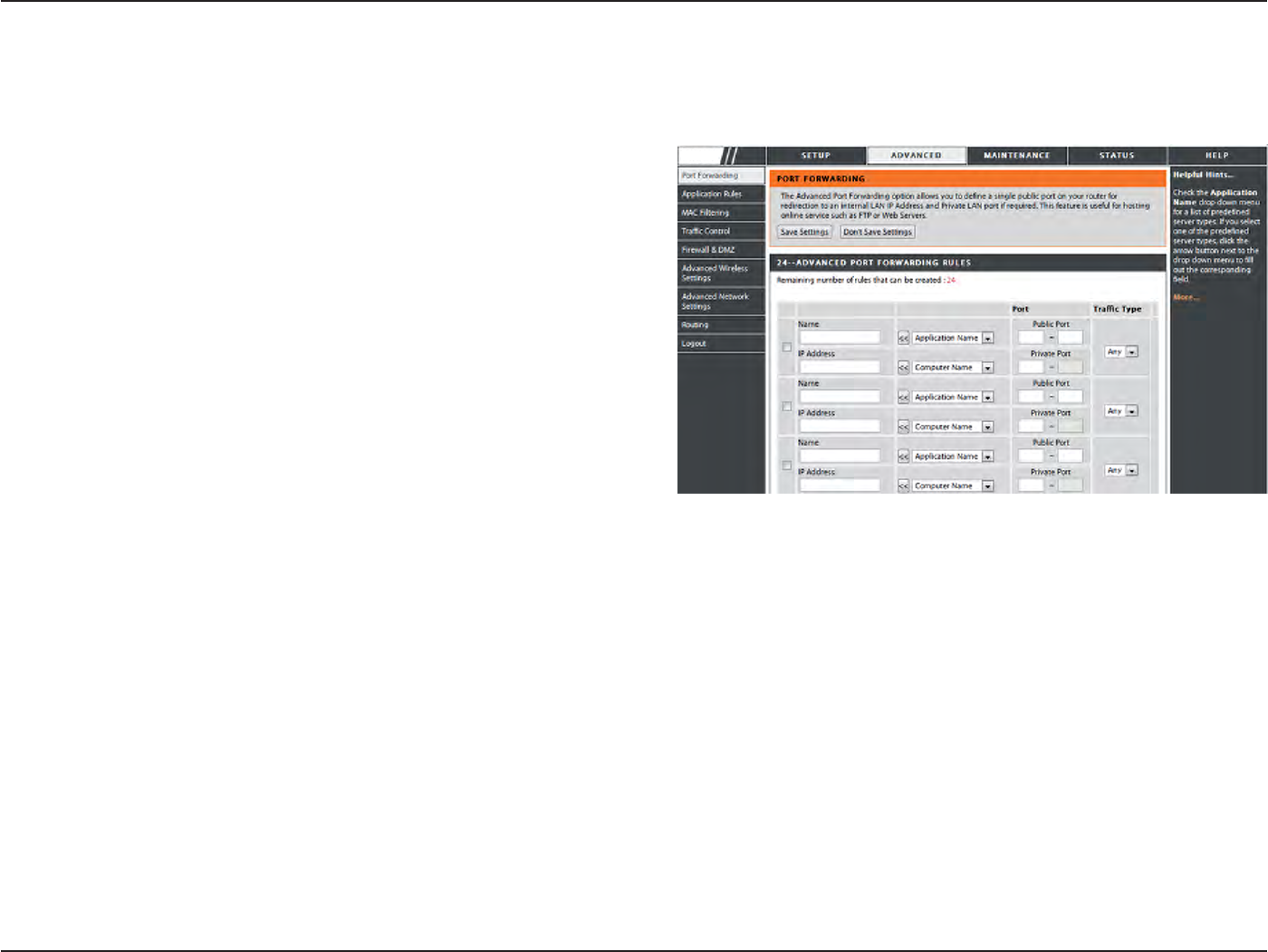

1PSU'PSXBSEJOH
This will allow you to open a single port or a range of ports.
Check the box to enabled the rule.
Enter a name for the rule.
Enter the IP address of the computer on your local
network that you want to allow the incoming service
to.
Enter the port or ports that you want to open. If you
want to open one port, enter the same port in both
boxes.
Select TCP, UDP, or Any
Rule:
Name:
IP Address:
Start Port/
&OE1PSU
Trac Type:
DIR-605L
28D-Link DIR-605L User Manual
Section 3 - Conguration

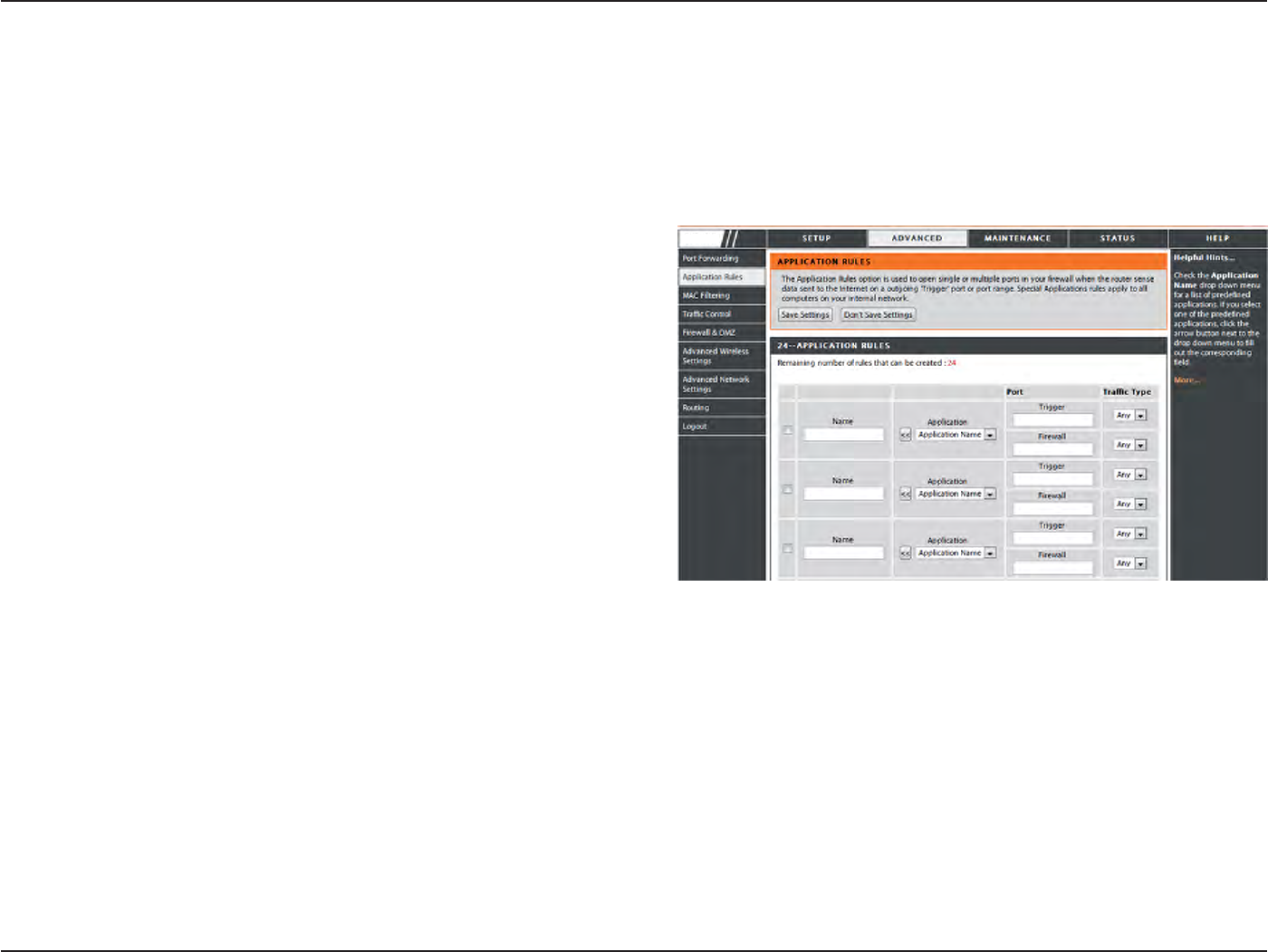

Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.
These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of
these applications work with the DIR-605L.
Check the box to enable the rule.
Enter a name for the rule.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
This is the port number on the WAN side that will
be used to access the application. You may dene
a single port or a range of ports. You can use a
comma to add multiple ports or port ranges.
Select TCP, UDP, or Any.
Rule:
Name:
Trigger Port:
'JSFXBMM1PSU
Trac Type:
DIR-605L
29D-Link DIR-605L User Manual
Section 3 - Conguration

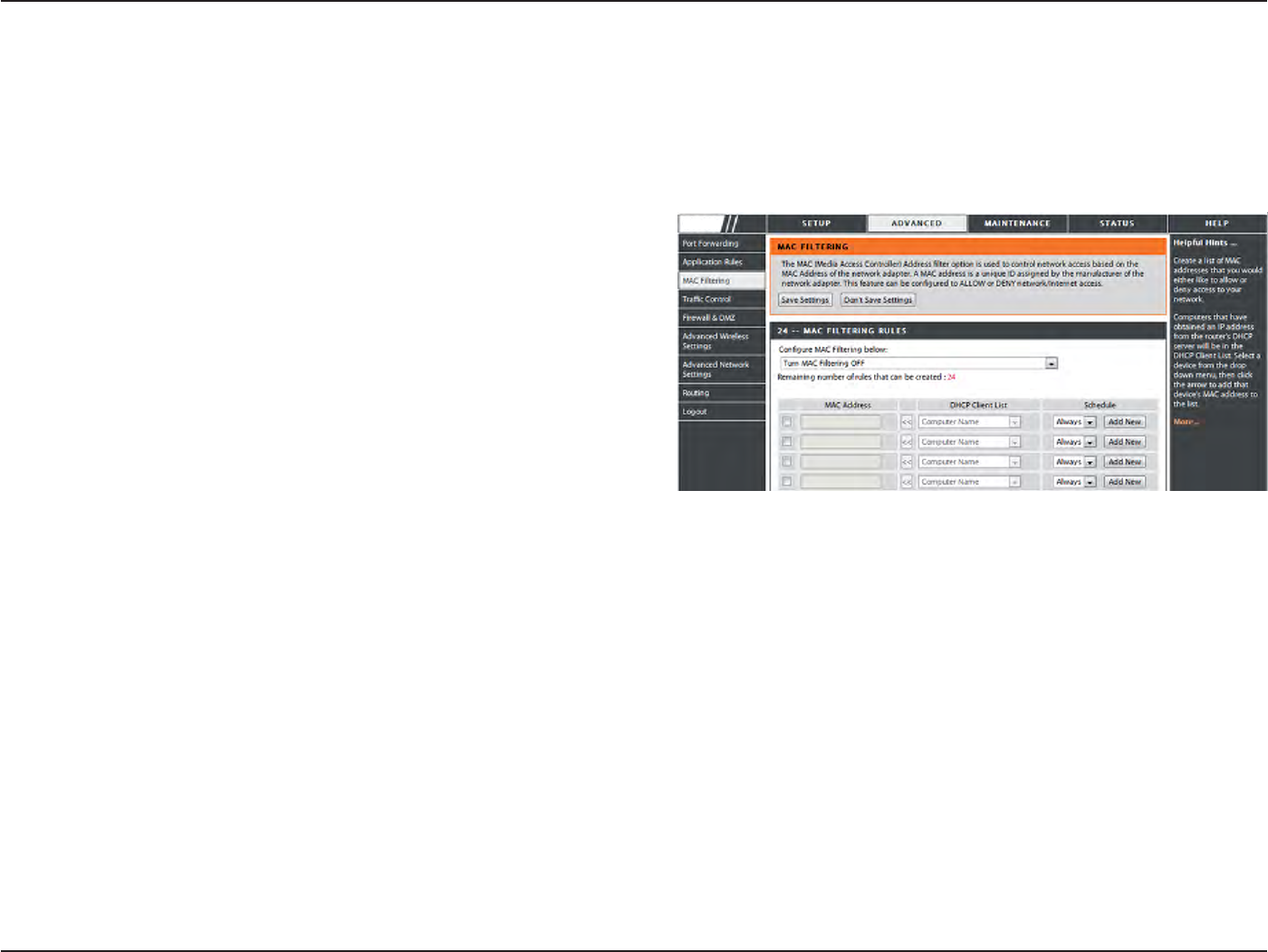

Access Control
4FMFDU5VSO."$'JMUFSJOH0''5VSO."$'JMUFSJOH0/
and ALLOW computers listed to access the network,
PS5VSO."$'JMUFSJOH0/BOE%&/:DPNQVUFSTMJTUFE
to access the network.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to
UIF/FUXPSLJOH#BTJDTTFDUJPOJOUIJTNBOVBM
Select a DHCP client from the drop-down menu and
click the arrow to copy that MAC Address.
The schedule of time when the network lter will be
enabled. The schedule may be set to Always, which
will allow the particular service to always be enabled.
You can create your own times in the Maintenance >
4DIFEVMFT section.
Congure MAC
'JMUFS
MAC Address:
DHCP Client
List:
4DIFEVMF
6TF."$.FEJB"DDFTT$POUSPM'JMUFSTUPBMMPXPSEFOZ-"/-PDBM"SFB/FUXPSLDPNQVUFSTCZUIFJS."$BEESFTTFTGSPN
accessing the Network. You can either manually add a MAC address or select the MAC address from the list of clients that are
DVSSFOUMZDPOOFDUFEUPUIF#SPBECBOE3PVUFS
DIR-605L
30D-Link DIR-605L User Manual
Section 3 - Conguration

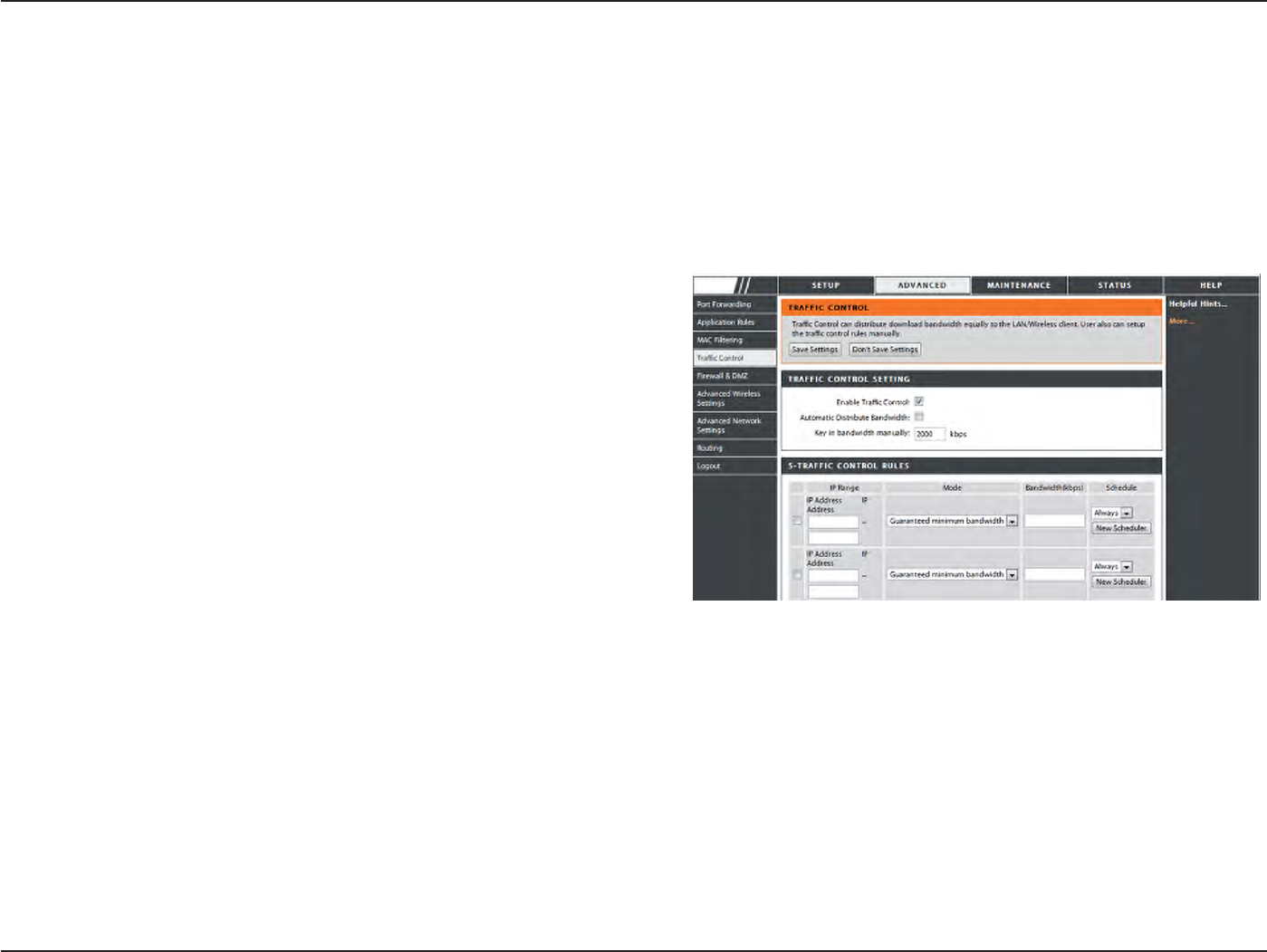

Trac Control
Trac control can be used to distribute download bandwidth automatically according to the requirements of the users,
and the users also can setup manually.
Enable Trac Control: Select this function to control the access bandwidth of computer in LAN.
Select this function to control the access bandwidth
of computer in LAN.
All the computers in LAN will be distributed the
bandwidth equally.
Key in the value to setup the bandwidth manually.
8IFOUIFPQUJPO"VUPNBUJD%JTUSJCVUF#BOEXJEUIJT
unchecked, you can control the access bandwidth of
the specic IP address.
&OBCMF5SBóD
Control:
Automatic
Distribute
#BOEXJEUI
LFZJOCBOEXJEUI
manually:
Trac Control
Rules:
DIR-605L
31D-Link DIR-605L User Manual
Section 3 - Conguration
'JSFXBMM%.;
5IJTTFDUJPOXJMMBMMPXZPVUPTFUVQB%.;IPTUBOEUPTFUVQöSFXBMMSVMFT
If you have a client PC that cannot run Internet applications properly from behind the DIR-605L, then you can set the client up
for unrestricted Internet access. It allows a computer to be exposed to the Internet. This feature is useful for gaming purposes.
&OUFSUIF*1BEESFTTPGUIFJOUFSOBMDPNQVUFSUIBUXJMMCFUIF%.;IPTU"EEJOHBDMJFOUUPUIF%.;%FNJMJUBSJ[FE;POFNBZ
expose your local network to a variety of security risks, so only use this option as a last resort.
Check this to enable SPI.
$IFDLUIJTCPYUPFOBCMF%.;
Enter the IP address of the computer you would like
to open all ports to.
Choose a name for the rewall rule.
Select to Allow or Deny transport of the data packets
according to the criteria dened in the rule.
The Source/Destination is the TCP/UDP port on either
the LAN or WAN side.
Click "EE/FX to access the Schedules window. See
.BJOUFOBODF4DIFEVMFT for more information.
Enter a beginning and ending IP address.
Select the transport protocol that will be used for the
lter rule.
Enter the desired port range for the lter rule.
&OBCMF%.;)PTU
DMZ IP Address:
Name:
Action:
Source/Dest:
4DIFEVMF
IP Address:
Protocol:
Port Range:
&OBCMF41*DIR-605L
32D-Link DIR-605L User Manual
Section 3 - Conguration
Set the transmit power of the antennas.
#FBDPOTBSFQBDLFUTTFOUCZBO"DDFTT1PJOUUPTZODISPOJ[FBXJSFMFTTOFUXPSL
Specify a value. 100 is the default setting and is recommended.
This value should remain at its default setting of 2346. If inconsistent data ow
is a problem, only a minor modication should be made.
The fragmentation threshold, which is specied in bytes, determines whether
packets will be fragmented. Packets exceeding the 2346 byte setting will be
fragmented before transmission. 2346 is the default setting.
(Delivery Traffic Indication Message) 1 is the default setting. A DTIM is a
countdown informing clients of the next window for listening to broadcast
and multicast messages.
Select Short or Long Preamble. The Preamble denes the length of the CRC
block (Cyclic Redundancy Check is a common technique for detecting data
transmission errors) for communication between the wireless router and the
roaming wireless network adapters. Auto is the default setting. Note: High
network trac areas should use the shorter preamble type.
5SBOTNJU1PXFS
Beacon interval:
3545ISFTIPME
'SBHNFOUBUJPO
DTIM Interval:
Preamble Type:
CTS Mode:
.PEF
$IBOOFM8JEUI
4IPSU(*
Advanced Wireless
This window allows you to change the behavior of the 802.11g wireless radio from the standard settings. Please be aware that any
changes to the factory default settings may adversely aect the behavior of your network.
DIR-605L
CTS (Clear To Send) is a function used to minimize collisions among wireless devices on a wireless local area network (LAN). CTS will make sure the wireless network
is clear before a wireless client attempts to send wireless data. Enabling CTS will add overhead and may lower wireless through put. None: CTS is typically used
JOBQVSFHFOWJSPONFOU*G$54JTTFUUPi/POFwJOBNJYFENPEFFOWJSPONFOUQPQVMBUFECZCDMJFOUTXJSFMFTTDPMMJTJPOTNBZPDDVSGSFRVFOUMZ
"MXBZTCTS will always be used to make sure the wireless LAN is clear before sending data. Auto: CTS will monitor the wireless network and
automatically decide whether to implement CTS based on the amount of trac and collisions that occurs on the wireless network.
Select one of the following:
.JYFEHBOEC - Select if you are using both 802.11b and 802.11g wireless clients.
O0OMZ - Select only if all of your wireless clients are 802.11n.
.JYFEOCBOEH - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients.
Select the Channel Width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.
.)[ - Select if you are not using any 802.11n wireless clients. This is the default setting.
Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.
33D-Link DIR-605L User Manual
Section 3 - Conguration
To use the Universal Plug and Play (UPnP™) feature
tick this checkbox. UPNP provides compatibility with
networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-605L to
SFTQPOEUP1JOHT#MPDLJOHUIF 1JOHNBZQSPWJEF
some extra security from hackers. Tick this checkbox
UPBMMPXUIF8"/QPSUUPCFi1JOHFEw
You may set the port speed of the WAN port to
10Mbps,100Mbps, or 10/100Mbps Auto. Some older
cable or DSL modems may require you to set the port
speed to 10Mbps.
&OBCMF61O1
&OBCMF8"/
Ping Respond:
WAN Port Speed:

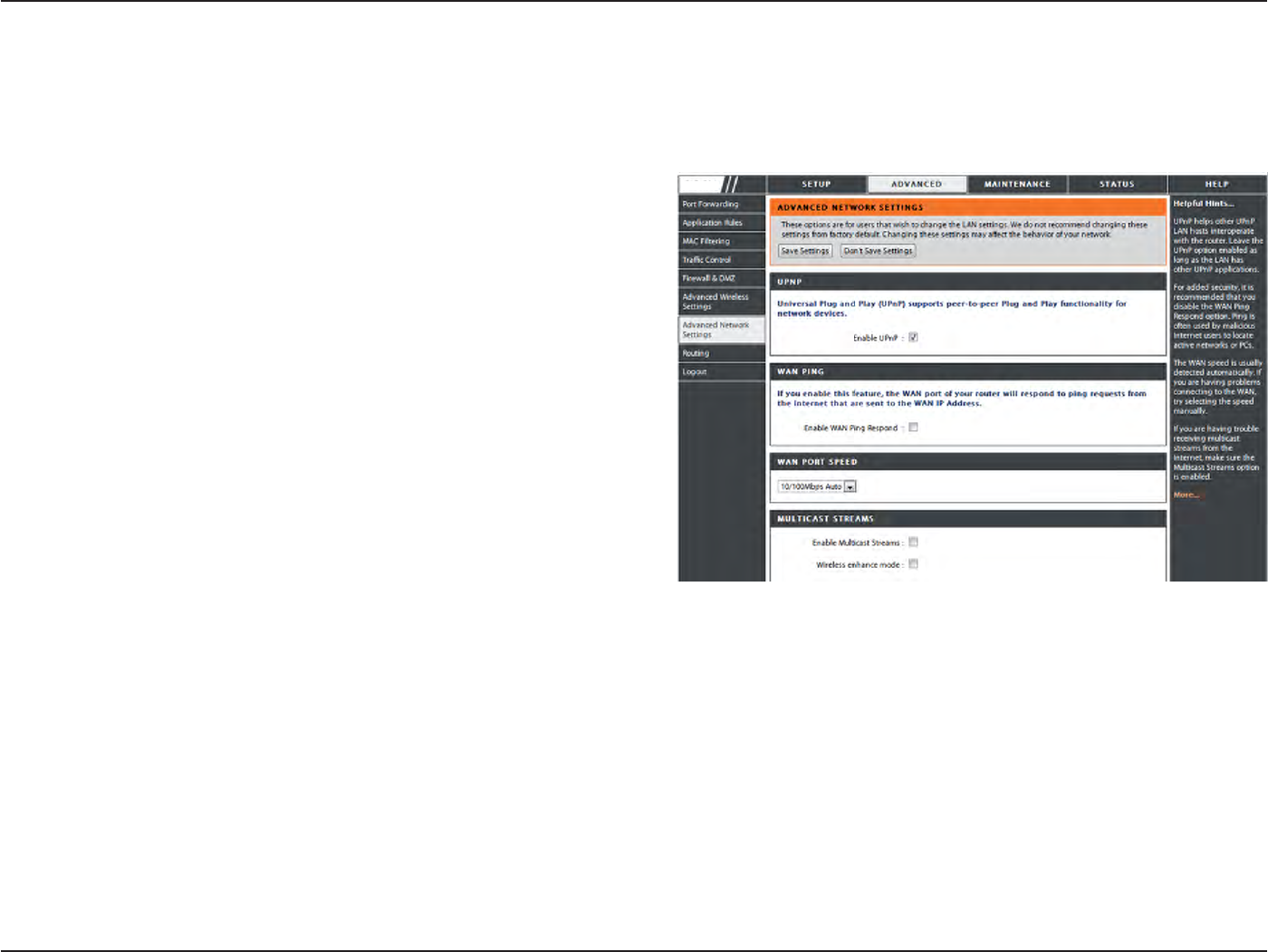

"EWBODFE/FUXPSL
This window allows you to change the LAN settings. Please be aware that any changes to the factory default settings may
aect the behavior of your network.
DIR-605L
34D-Link DIR-605L User Manual
Section 3 - Conguration
Tick this checkbox to enable or disable xed routes
to dened destinations.
Use the drop-down menu to choose the WAN or
WAN (Physical Port) Interface the IP packet must use
to transit out of the Router.
The IP address of the packets that will take this route.
The subnet of the IP address of the packets that will
take this route.
Species the next hop to be taken if this route is used.
&OBCMF
Interface:
Destination:
Subnet Mask:
(BUFXBZ

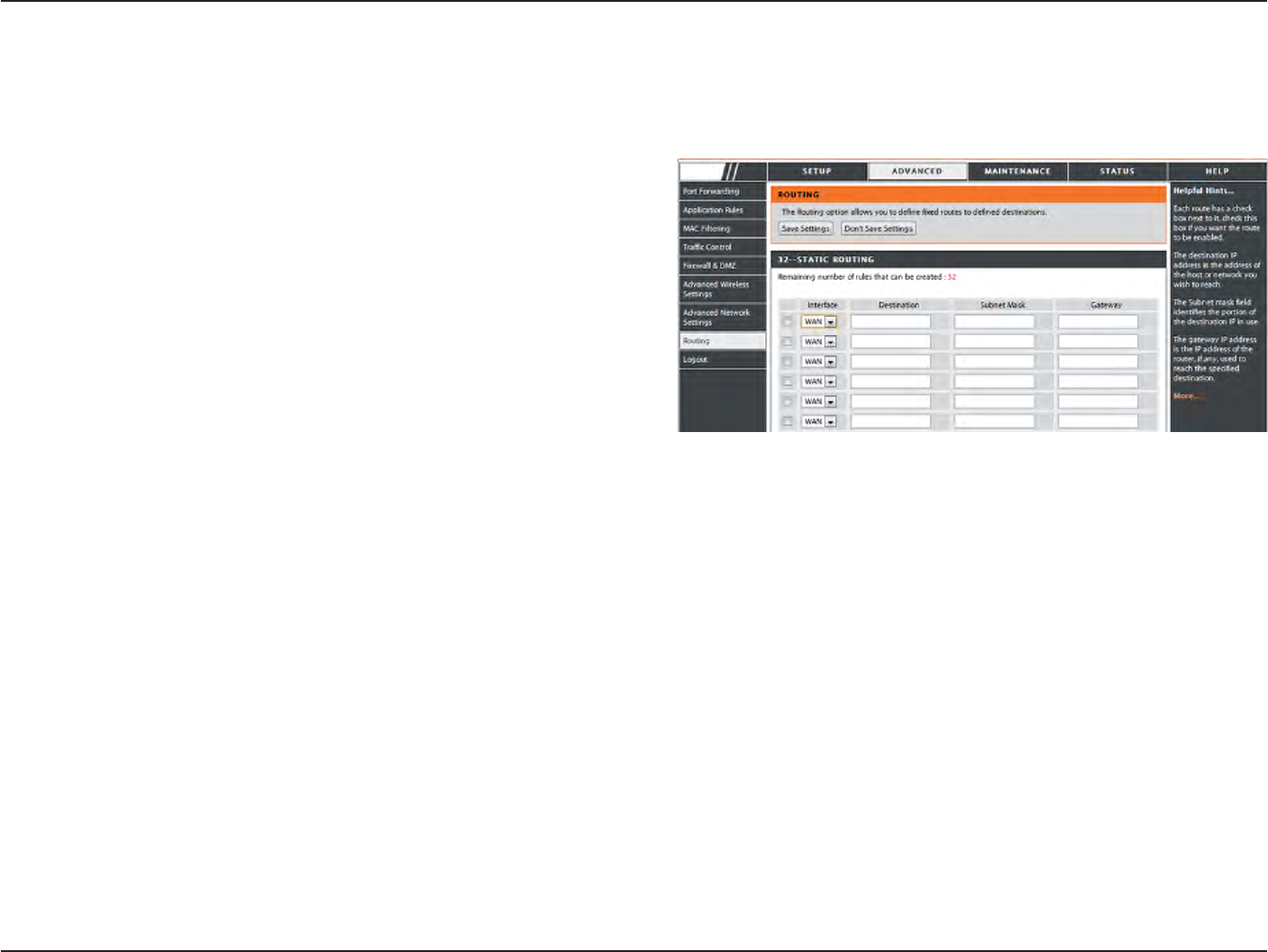

Routing
This option allows you to dene xed routes to dened destinations.
DIR-605L
35D-Link DIR-605L User Manual
Section 3 - Conguration
Enter a new Login Name for the Administrator account.
Enter a new password for the Administrator Login Name
and then retype the new password in the Conrm Password
textbox. The administrator can make changes to the settings.
Remote management allows the DIR-605L to be congured
from the Internet by a web browser. A username and password
is still required to access the Web-Management interface.
In general, only a member of your network can browse the
built-in web pages to perform Administrator tasks. This feature
enables you to perform Administrator tasks from the remote
(Internet) host.
The Internet IP address of the computer that has access to the
#SPBECBOE3PVUFS*GZPVJOQVUBOBTUFSJTLJOUPUIJTöFME
then any computer will be able to access the Router. Putting
an asterisk (*) into this eld would present a security risk and
is not recommended.
5IFQPSUOVNCFSVTFEUPBDDFTTUIF%*3-'PSFYBNQMF
http://x.x.x.x:8080 whereas x.x.x.x is the WAN IP address of the
DIR-605L and 8080 is the port used for the Web-Management
interface.

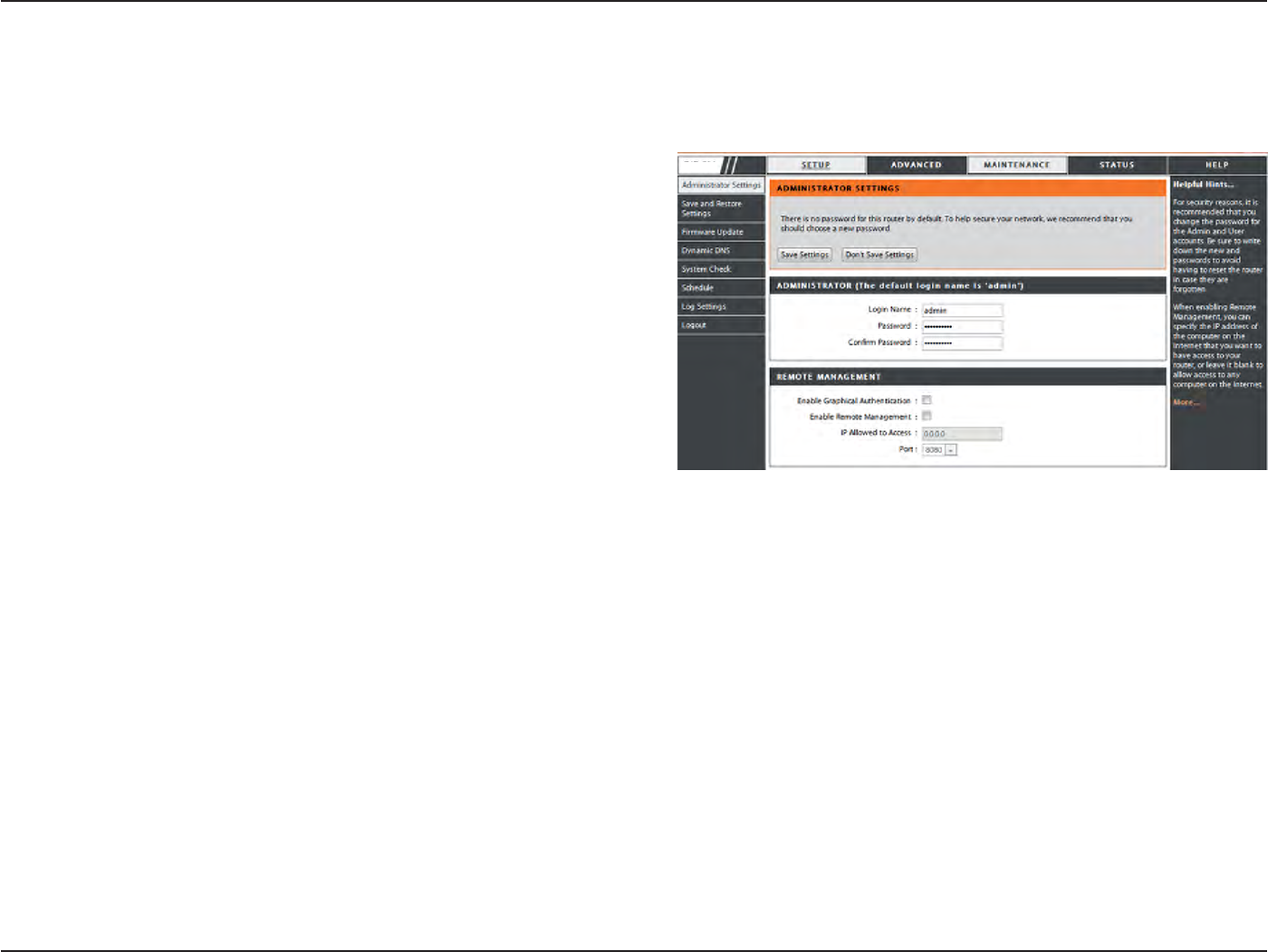

Administrator
Login Name:
Administrator
1BTTXPSE
&OBCMF3FNPUF
Management:
*1"MMPXFEUP
Access:
Port:
Device Administration
This window will allow you to change the Administrator password. You can also enable Remote Management.
DIR-605L
36D-Link DIR-605L User Manual
Section 3 - Conguration
Save and Restore
Use this option to save the current router conguration
settings to a le on the hard disk of the computer you
BSFVTJOH'JSTUDMJDLUIFSave button. You will then see
a le dialog, where you can select a location and le
name for the settings.
Use this option to load previously saved router
DPOöHVSBUJPOTFUUJOHT'JSTUVTFUIF#SPXTF control
to nd a previously save le of conguration settings.
Then, click the Upload Settings button to transfer
those settings to the Router.
This option will restore all conguration settings back
to the settings that were in eect at the time the router
was shipped from the factory. Any settings that have
not been saved will be lost, including any rules that
you have created. If you want to save the current router
conguration settings, use the Save button above.
Click the Reboots button on the left side of the window
to restart the Router.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Restore to
'BDUPSZ%FGBVMU
Settings:
Reboots:
This window allows you to save your conguration le to a hard drive, load conguration settings from a hard drive, and restore
the Router’s factory default settings.
DIR-605L
37D-Link DIR-605L User Manual
Section 3 - Conguration

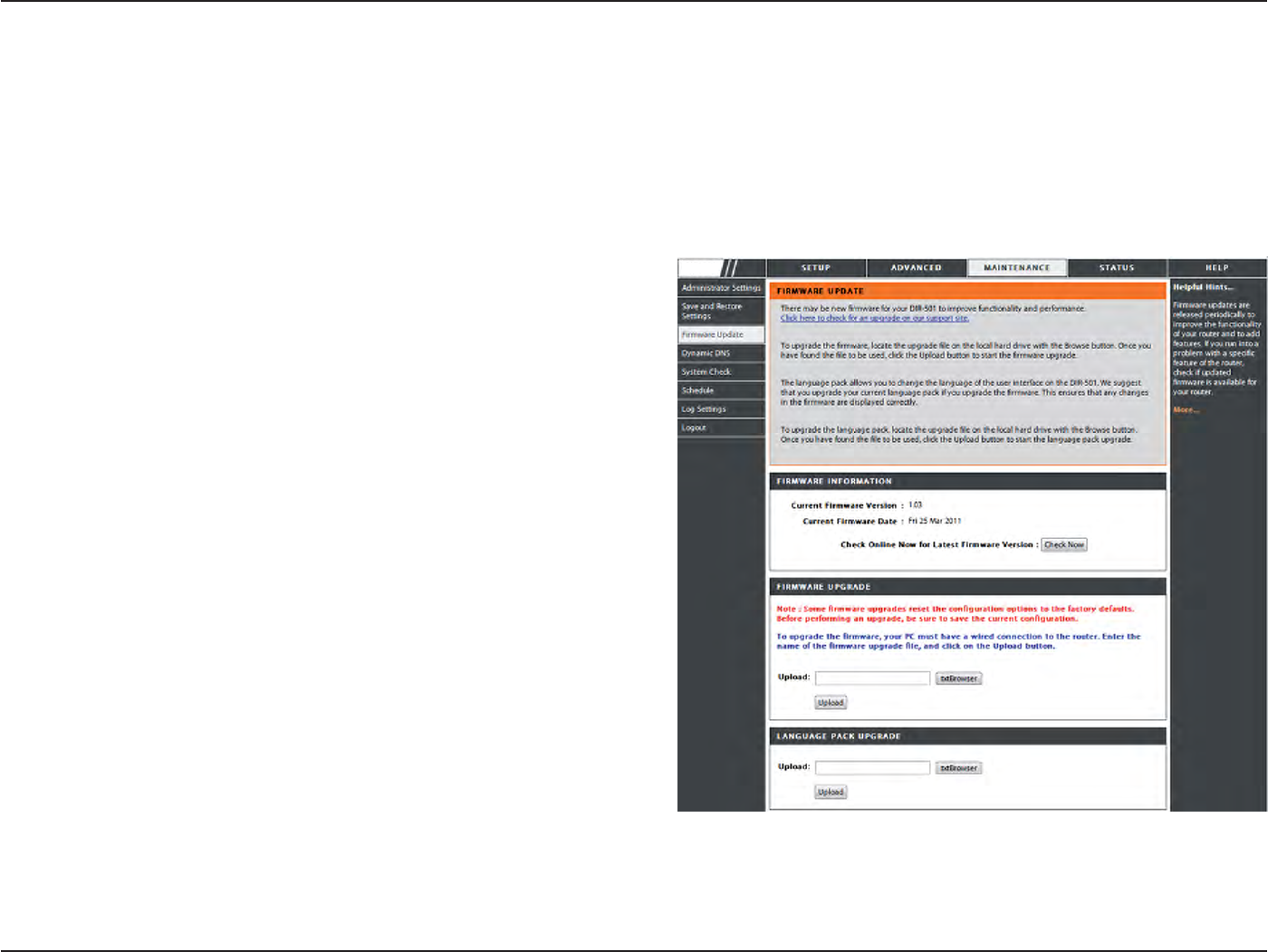

'JSNXBSF6QEBUF
Click the $IFDL/PX button (or the link at the top of
the window) to nd out if there is an updated rmware;
if so, download the new rmware to your hard drive.
After you have downloaded the new rmware, click
#SPXTF in this window to locate the rmware update
on your hard drive. Click Save Settings to complete
the rmware upgrade.
'JSNXBSF
Upgrade:
#SPXTF
You can upgrade the rmware of the Router here. Make sure the rmware you want to use is on the local hard drive of the
computer. Click on #SPXTF to locate the rmware le to be used for the update. Please check the D-Link support site for rmware
updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from the D-Link support site.
DIR-605L
38D-Link DIR-605L User Manual
Section 3 - Conguration
DDNS Setting
Tick the Enable DDNS checkbox to enable support
for DDNS.
Select one of the DDNS registration organizations form
those listed in the pull-down menu. Available servers
include dlinkddns.com(Free), DynDns.org(Custom), Dyn.
Dns.org(free), and Dyn.Dns.org(Static).
Enter the host name of the DDNS server.
Enter the username given to you by your DDNS server.
Enter the password or key given to you by your DDNS
server.
&OBCMF%%/4
Server Address:
Host Name:
Username:
1BTTXPSE
The router supports DDNS (Dynamic Domain Name Service). The Dynamic DNS service allows a dynamic public IP address to
be associated with a static host name in any of the many domains, allowing access to a specied host from various locations on
UIF*OUFSOFU5IJTJTFOBCMFEUPBMMPXSFNPUFBDDFTTUPBIPTUCZDMJDLJOHBIZQFSMJOLFE63-JOUIFGPSNiIPTUOBNFEZOEOTPSHw
Many ISPs assign public IP addresses using DHCP, this can make it dicult to locate a specic host on the LAN using standard
DNS. If for example you are running a public web server or VPN server on your LAN, this ensures that the host can be located
from the Internet if the public IP address changes. DDNS requires that an account be setup with one of the supported DDNS
providers.
DIR-605L
39D-Link DIR-605L User Manual
Section 3 - Conguration

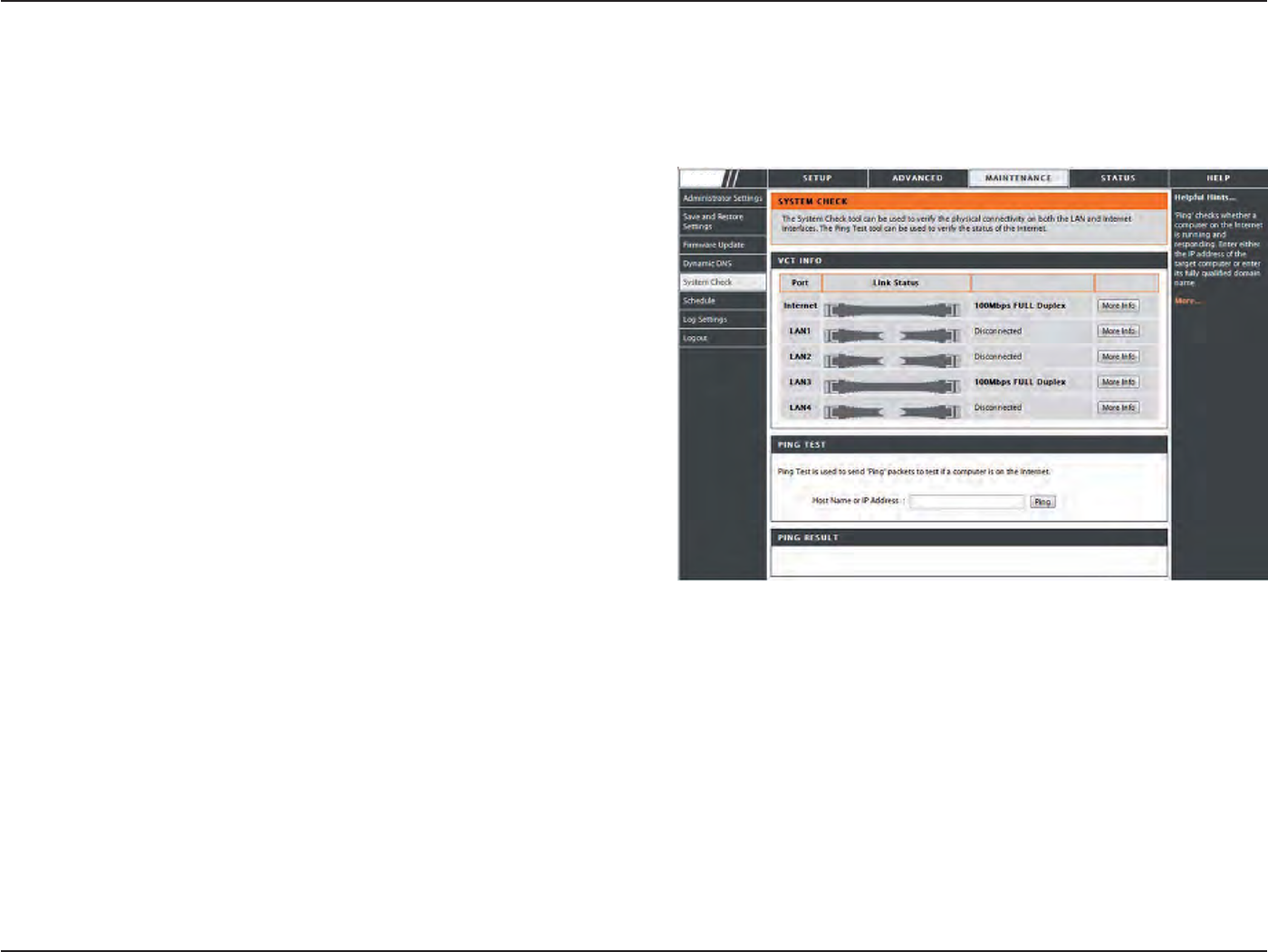

4ZTUFN$IFDL
VCT is an advanced feature that integrates a LAN cable
tester on every Ethernet port on the router. Through
UIFHSBQIJDBMVTFSJOUFSGBDF(6*7$5DBOCFVTFE
to remotely diagnose and report cable faults such as
opens, shorts, swaps, and impedance mismatch. This
feature signicantly reduces service calls and returns
by allowing users to easily troubleshoot their cable
connections.
The Ping Test is used to send Ping packets to test if
a computer is on the Internet. Enter the IP Address
that you wish to Ping, and click Ping.
Virtual Cable
Tester (VCT) Info:
Ping Test:
This tool is used to verify the physical connectivity on both the LAN and the WAN interfaces. The Ping Test can be used to test
the status of the Internet.
DIR-605L
40D-Link DIR-605L User Manual
Section 3 - Conguration

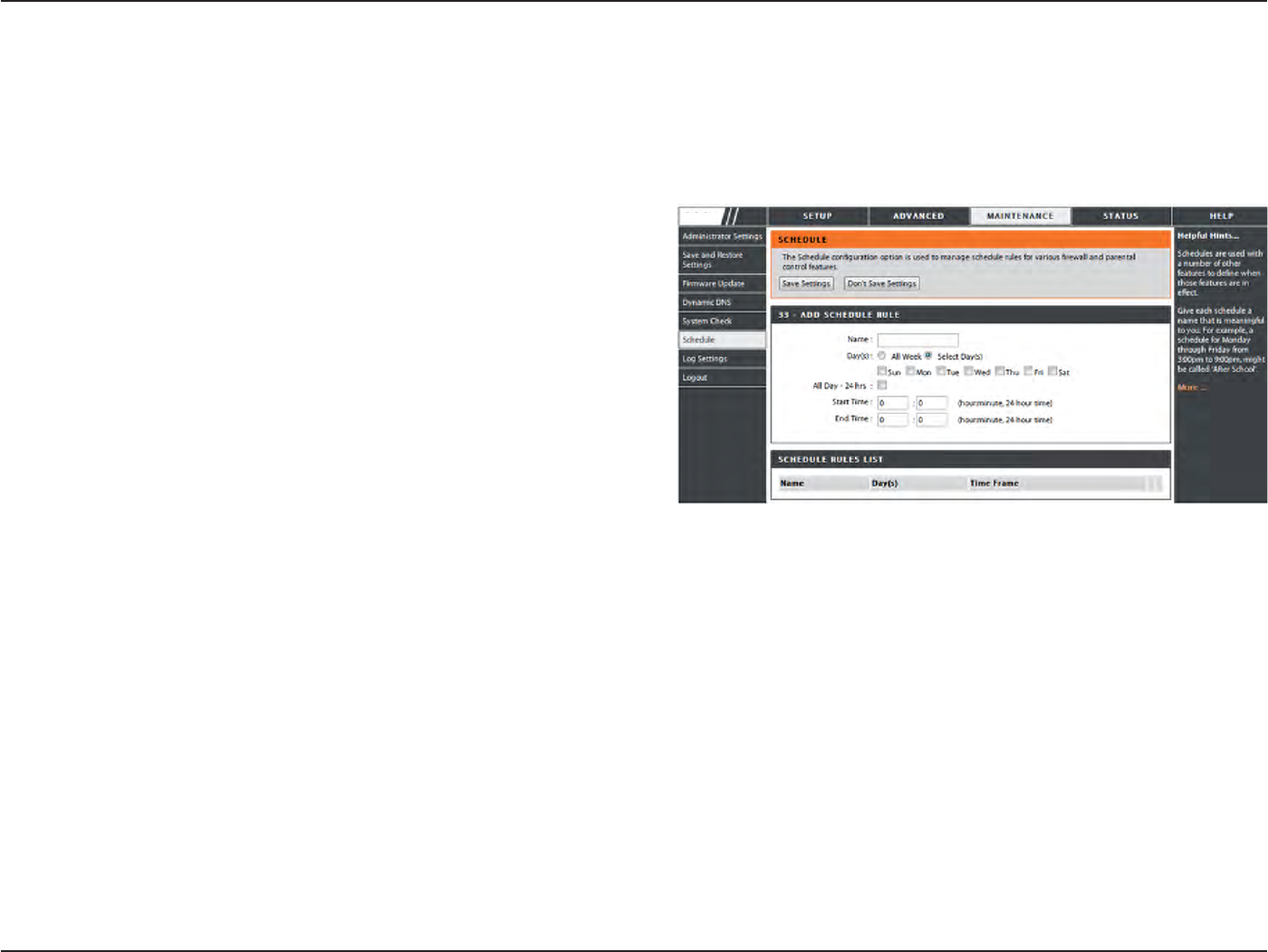

4DIFEVMFT
Enter a name for the new schedule rule.
Choose the desired day(s), either All Week or Select
Days. If the latter is selected, please use the checkboxes
directly below to specify the individual days.
Tick this check box if the new schedule rule applies to
the full 24-hour period.
If the new schedule rule does not apply to the full 24-
hour period, untick the previous checkbox and then
enter a specic beginning and ending time.
Name:
Day(s):
"MM%BZIST
Start Time/
&OE5JNF
The Router allows the user the ability to manage schedule rules for various rewall and parental control features on this window.
Once you have nished conguring the new schedule rule, click the Save Settings button at the top of the window.
DIR-605L
41D-Link DIR-605L User Manual
Section 3 - Conguration
Log Settings
Click on the Save button link on this window to save
the log le to your local hard drive.
click the checkbox to save the log in the log server in
the LAN side.
Click the checkbox(es) of the type of log information
requested: i4ZTUFN'JSFXBMM 4FDVSJUZ 3PVUFS
4UBUVT$SJUJDBM8BSOJOHBOE*OGPSNBUJPOw
Enter the your SNTP server name(or IP address) and
enter your mail address before sending your system
log by mail.
4BWF-PH'JMF
Syslog Server:
-PH5ZQF-FWFM
Send by Mail:
The system log displays chronological event log data specied by the router user. You may also save a simple text le containing
the log to your computer. Click the Save button and follow the prompts to save the le.
DIR-605L

Navigation menu
