User Manual
DSL-2885A
Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2
Modem Router
iD-Link DSL-2885A User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
Preface
Revision Date Description
1.00 November 26, 2015 Initial release
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: TBA watts
Switched O: TBA watts
iiD-Link DSL-2885A User Manual
Table of Contents
Preface ................................................................................. i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements .................................................................2
Introduction ................................................................................... 3
Features ............................................................................................4
Antenna Setup ............................................................................... 5
Hardware Overview ..................................................................... 6
Back Panel ...............................................................................6
Side Panel ................................................................................ 7
LEDs ........................................................................................... 8
Installation ......................................................................... 9
Before you Begin ...........................................................................9
Wireless Installation Considerations ....................................10
Manual Setup ...............................................................................11
Getting Started ................................................................14
Setup Wizard ................................................................................15
...................................................................23
Home ..............................................................................................24
Internet ................................................................................... 24
DSL-2885A .............................................................................25
Connected Clients ..............................................................26
USB Device ............................................................................28
Settings ..........................................................................................29
Wizard .....................................................................................29
Internet ................................................................................... 29
IPv4 .....................................................................................31
DSL ......................................................................................40
ATM .....................................................................................41
PTM .....................................................................................42
IPv6 .....................................................................................43
Wireless ..................................................................................57
Guest Zone .......................................................................59
Network .................................................................................. 60
SharePort ...............................................................................62
Create User .......................................................................63
Features ..........................................................................................65
QoS Engine............................................................................65
Firewall Settings ..................................................................66
IPv4/IPv6 Rules ...............................................................68
Port Forwarding ..................................................................69
Virtual Server ...................................................................70
Website Filter ........................................................................71
Static Routes .........................................................................72
IPv6 .....................................................................................73
Dynamic DNS .......................................................................74
IPv6 Host ...........................................................................75
Management ................................................................................ 76
Time & Schedule .................................................................76
Table of Contents
iiiD-Link DSL-2885A User Manual
Table of Contents
Time ....................................................................................76
Schedule ...........................................................................77
System Log ............................................................................78
Admin .....................................................................................79
System ...............................................................................81
Upgrade .................................................................................82
Statistics .................................................................................83
Connect a Wireless Client to your Router ......................84
WPS Button ...................................................................................84
Windows® 8 ...................................................................................85
WPA/WPA2 ............................................................................85
Windows® 7 ...................................................................................87
WPA/WPA2 ............................................................................87
WPS ..........................................................................................90
Windows Vista® ............................................................................94
WPA/WPA2 ............................................................................95
Windows® XP ................................................................................97
WPA/WPA2 ............................................................................98
Troubleshooting ............................................................100
Wireless Basics ...............................................................104
What is Wireless? ...................................................................... 105
Tips ................................................................................................107
Wireless Modes ......................................................................... 108
Networking Basics .........................................................109
Check your IP address ............................................................ 109
Statically Assign an IP address ............................................110
Wireless Security .........................................................111
What is WPA? ................................................................ 111
Technical Specications ................................................112
1D-Link DSL-2885A User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DSL-2885A will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
Wireless AC1200 Dual-Band Gigabit
ADSL2+/VDSL2 Modem Router(DSL-2885A)
Power Adapter
Ethernet Cable
DSL Microlter/Splitter
Phone Cable
2D-Link DSL-2885A User Manual
Section 1 - Product Overview
Network Requirements
• An active account with an Internet Service Provider using one of the
following connection types:
• A VDSL/ADSL connection to a telephone line using the DSL port
• A broadband device connected using the WAN port
• A mobile broadband 3G/4G/LTE connection using a USB modem
• 802.11ac, n, g, b, or a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• EDGE Browser (v20 and above)
• Firefox 11 or higher
• Safari 5 or higher
• Chrome 17 or higher
Windows® Users: Make sure you have the latest version of Java installed. Visit
www.java.com to download the latest version.
System Requirements
3D-Link DSL-2885A User Manual
Section 1 - Product Overview
Introduction
The D-Link DSL-2885A Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router shares your DSL Internet connection
over a blazing-fast Wireless AC connection using advanced AC beamforming technology to maximize the speed and range of
your wireless signal to signicantly outperform 802.11n and other 802.11ac devices. It also comes equipped with four Gigabit
ports to provide speeds up to 10x faster than standard 10/100 ports. With the addition of Advanced Quality of Service (QoS),
data streams are separated, which helps organize and prioritize your network trac so your video streaming, gaming, and VoIP
calls run smoother over both your wired and wireless network.
SharePort technology lets you take advantage of the USB 2.0 porst found on the back and side of your DSL-2885A (as well as an
additional USB 2.0 port). Plug in a USB storage drive and you can access les, stream videos, view photos, or listen to music on
your laptop or mobile devices.
The DSL-2885A Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router provides incredible speeds, smart antenna
technology, fast ports, cloud features, and terric security features. It also features an innovative design and easy installation
options.
4D-Link DSL-2885A User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DSL-2885A introduces Smart Connect, a new D-Link feature which when
combined with an additional 5 Ghz antenna can provide up to a full 1200 Mbps* wireless connection with
concurrent 801.11ac and 802.11n wireless clients . It also operates on both the 2.4 GHz and 5 GHz bands to
allow separation of trac so users can participate in high-bandwidth activities, such as video streaming, online
gaming, and real-time audio, without aecting low-priority trac like email and web surng.
• Compatible with 802.11n/g/b/a Devices - The DSL-2885A is still fully compatible with the 802.11n, IEEE
802.11g and 802.11a standards, so it can connect with existing 802.11n, 802.11g, 802.11b, and 802.11a wireless
devices.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Scheduling - The Firewall, wireless, and port forwarding features can be scheduled to be active on
certain days, or for a duration of a set number of hours.
• Secure Multiple/Concurrent Sessions - The DSL-2885A can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DSL-2885A can securely
access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DSL-2885A lets you control
what information is accessible to those on the wireless network, whether from the Internet, or from your
company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features
6D-Link DSL-2885A User Manual
Section 1 - Product Overview
Hardware Overview
Back Panel
1 3 4 5 62 7

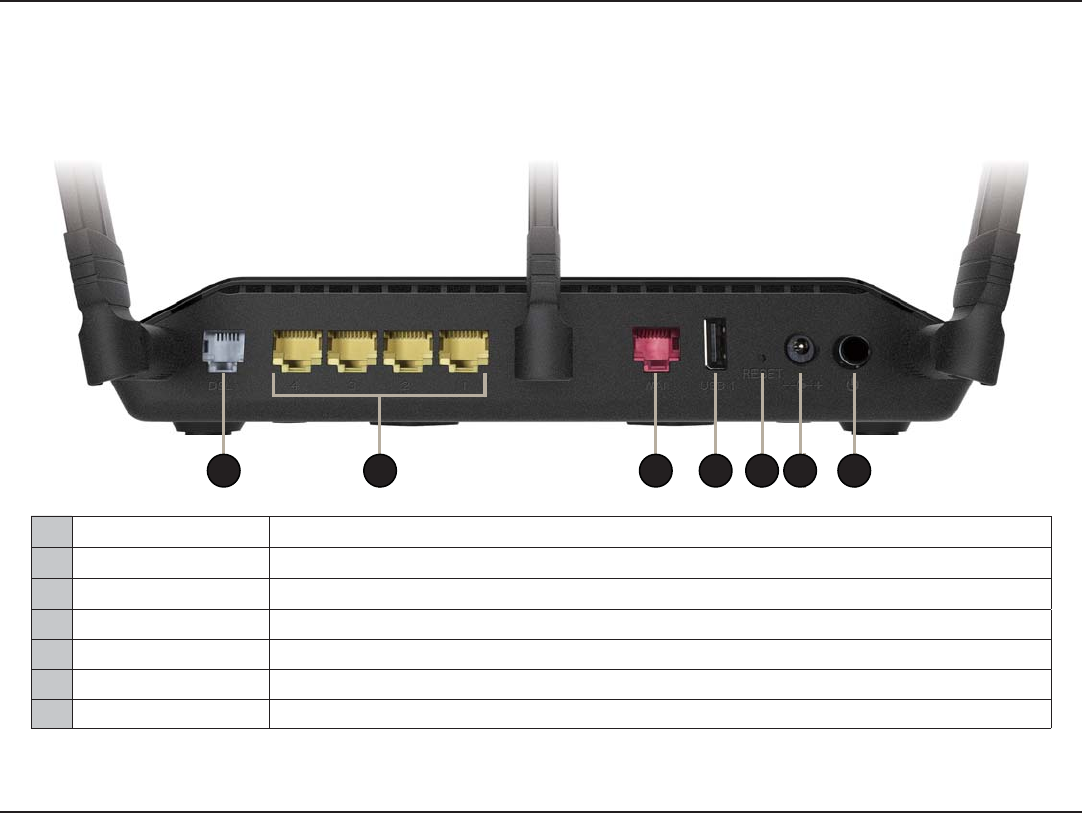

1 DSL Port Connect to an DSL-enabled telephone line and with the supplied microlter/splitter.
2 Gigabit LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3 Gigabit WAN Port Connect broadband Ethernet WAN devices.
4 USB 2.0 Port Connect a USB ash drive to share content , or connect it to a USB printer to share it on your network.
5 Reset Button Insert a paperclip in the hole and wait for several seconds to reset the router to default settings.
6 Power Connector Connector for the supplied power adapter.
7 Power Button Press the power button to power on and o.
7D-Link DSL-2885A User Manual
Section 1 - Product Overview
1 USB 2.0 Port Connect a USB ash drive to share content , or connect it to a USB printer to share it on your network.
2 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
3 Wi-Fi Button Press and hold for 2 seconds to enable or disable Wi-Fi.

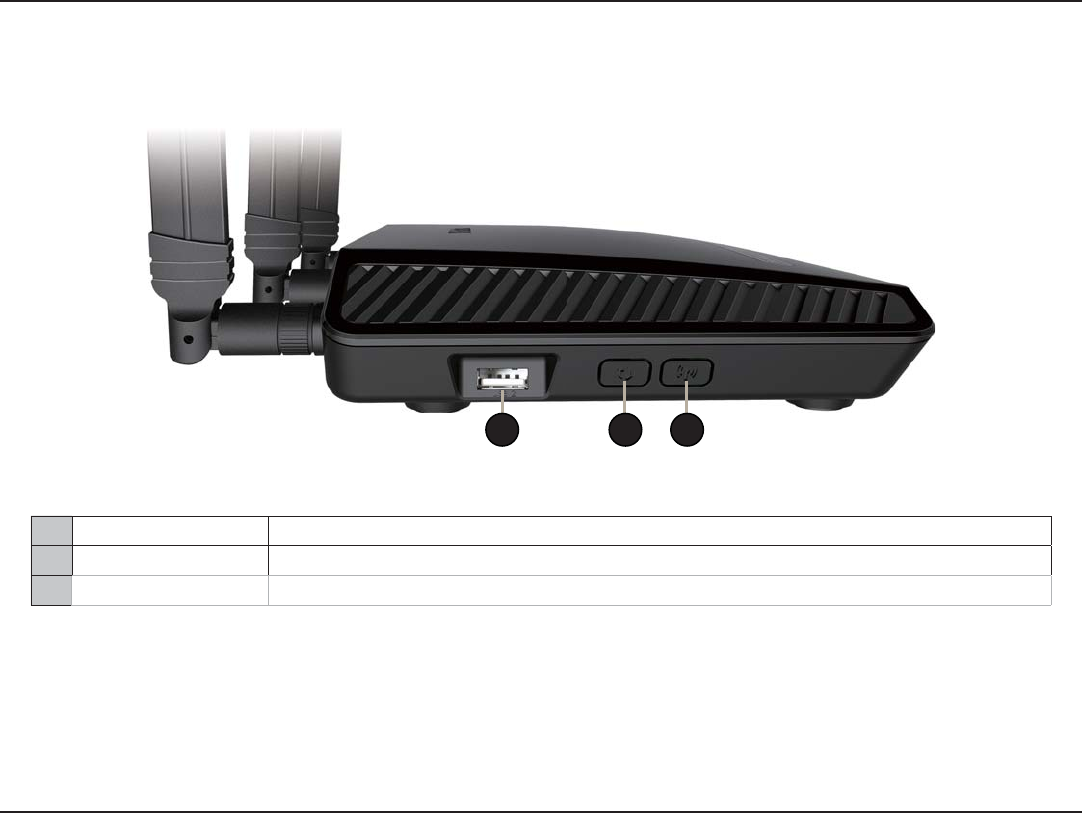

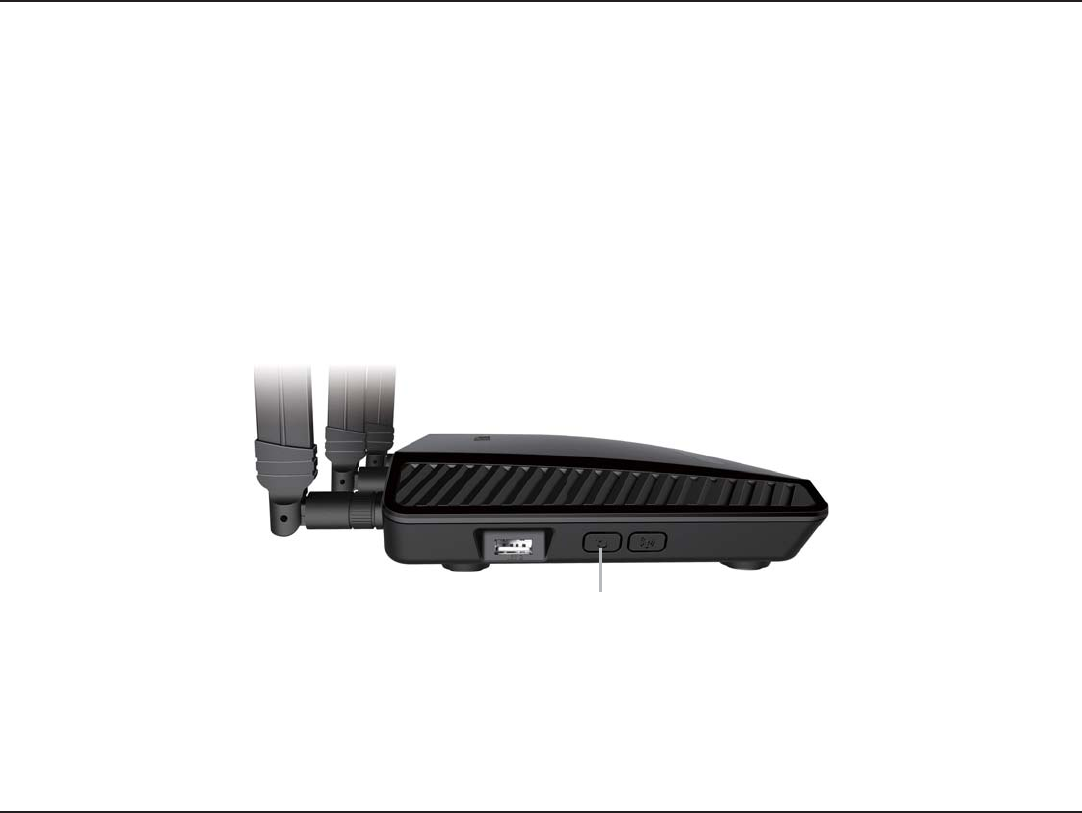

Side Panel
1 2 3
8D-Link DSL-2885A User Manual
Section 1 - Product Overview
2 3 4 56 7 81
Hardware Overview

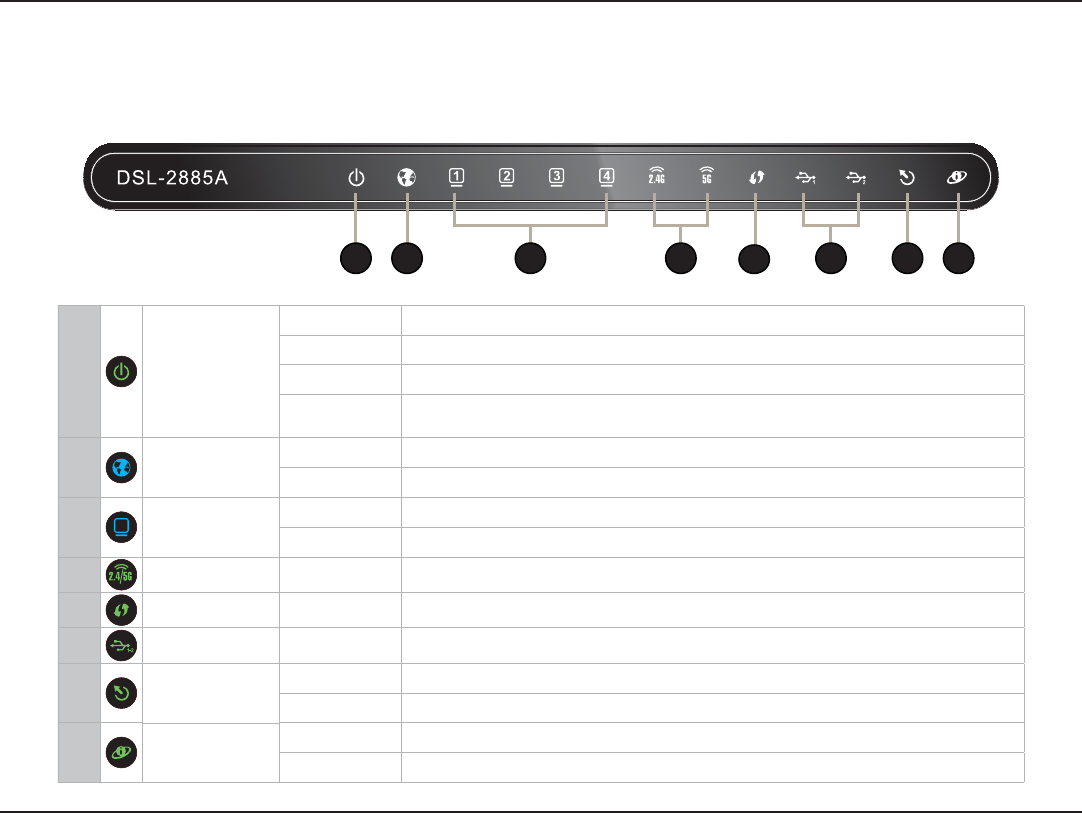

LEDs
1Power
Solid Green A solid green light indicates a proper connection to the power supply.
Solid Red A solid red light indicates a the device is booting or an error has occurred.
Blinking Green A blinking green light indicates that backup mode is active.
Blinking Red A blinking red light indicates that the device is resetting to factory defaults or the
rmware is being updated.
2WAN Solid Blue A solid blue light indicates a WAN Port connection.
Blinking Blue A blinking blue light indicates a WAN Port activity.
3LAN Ports 1-4 Solid Blue A solid blue light indicates a LAN Port connection.
Blinking Blue A blinking blue light indicates a LAN Port activity.
4Wireless 2.4/5G Solid Green A solid green light indicates that the 2.4/5 GHz wireless band is enabled.
5WPS Blinking Green A blinking green light indicates the WPS process is active.
6USB 1-2 Solid Green A solid green light indicates that a USB device is detected on a USB port.
7DSL Solid Green A solid green light indicates a proper connection to a DSL enabled telephone line.
Blinking Green A blinking green light indicates the DSL port is negotiating a connection.
8Internet Solid Green A solid green light indicates an Internet connection.
Solid Red A solid red light indicates no Internet connection is available.
9D-Link DSL-2885A User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in
an enclosed area such as a closet, cabinet, attic, or garage.
Note: This installation section is written for users who are setting up their home Internet service with the DSL-2885A Wireless
AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router for the rst time. If you are replacing an existing DSL modem and/or
router, you may need to modify these steps.
• Make sure to have your DSL service information provided by your Internet Service Provider handy. This
information is likely to include your DSL account's Username and Password. Your ISP may also supply you with
additional WAN conguration settings which are necessary to establish a connection. This information may
include the connection type (DHCP IP, Static IP, PPPoE, or PPPoA) and/or ATM PVC details.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• We suggest setting up your DSL-2885A from a single device and verifying that it is connected to the Internet
before connecting additional devices.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE connection software
such as WinPoET, BroadJump, or EnterNet 300 from your computer as the DSL-2885A will be providing this
functionality.
10D-Link DSL-2885A User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
11D-Link DSL-2885A User Manual
Section 2 - Installation
Manual Setup
Microlter
Telephone Outlet
PHONE
DSL-2885A
DS
L-
28
85
A
Phone Cable Microlter

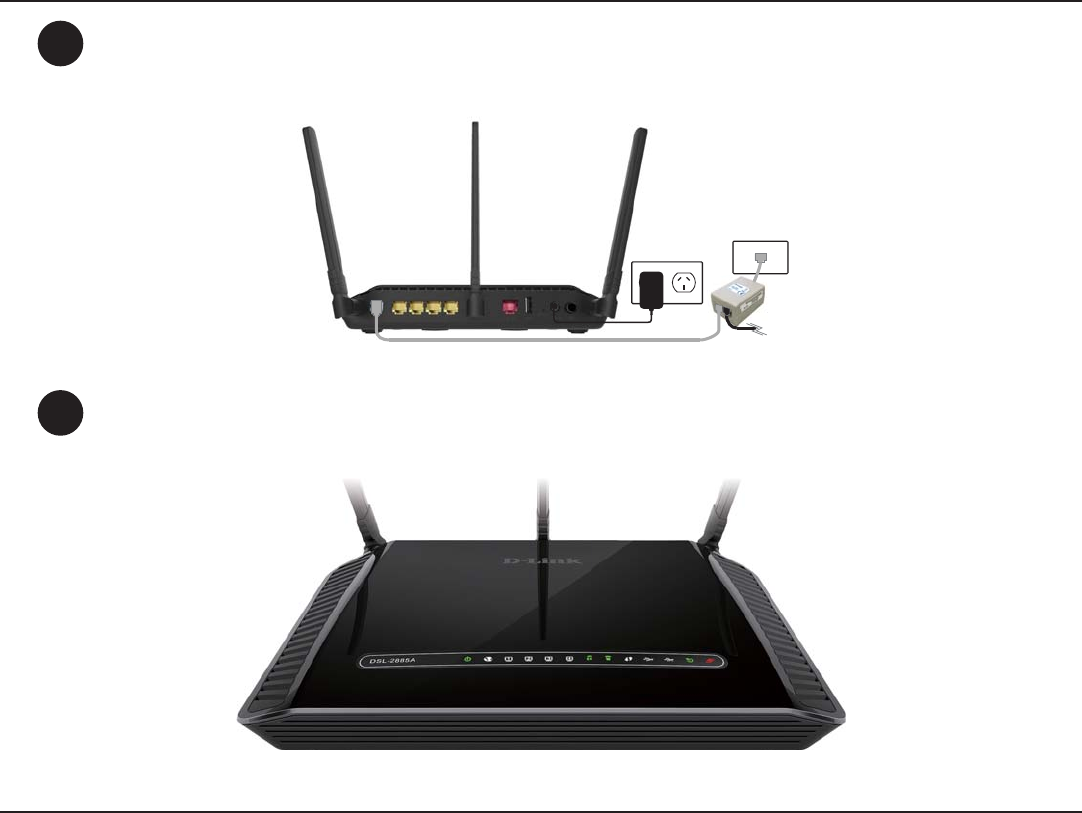

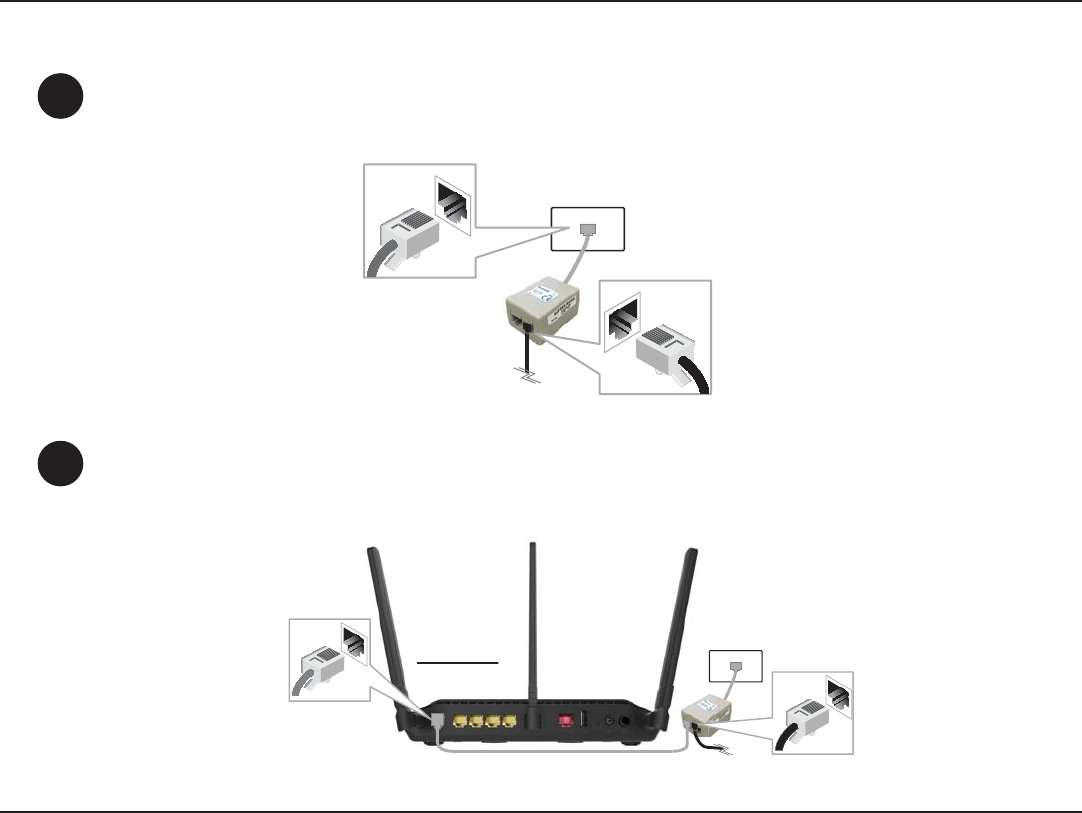

1Connect the supplied micro-lter to the telephone outlet. If you are using a telephone handset on the same
outlet, connect it to the PHONE port on the micro-lter.
Connect the phone cable from the DSL port on the microlter to the DSL port of the modem router.
2Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.
12D-Link DSL-2885A User Manual
Section 2 - Installation
4Press the power button and verify that the power LED is lit. Allow one minute for the router to boot up.
After the modem router has powered up, verify that the Power and DSL LEDs are both lit.
3
DSL-2885A
Power Adapter
Plug the power adapter into your modem router and connect to an available power outlet or surge protector.
Caution: - Use only the included power adapter with this product.
13D-Link DSL-2885A User Manual
Section 2 - Installation
Computer
5
6
If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DSL-2885A to the
Ethernet port on your computer.

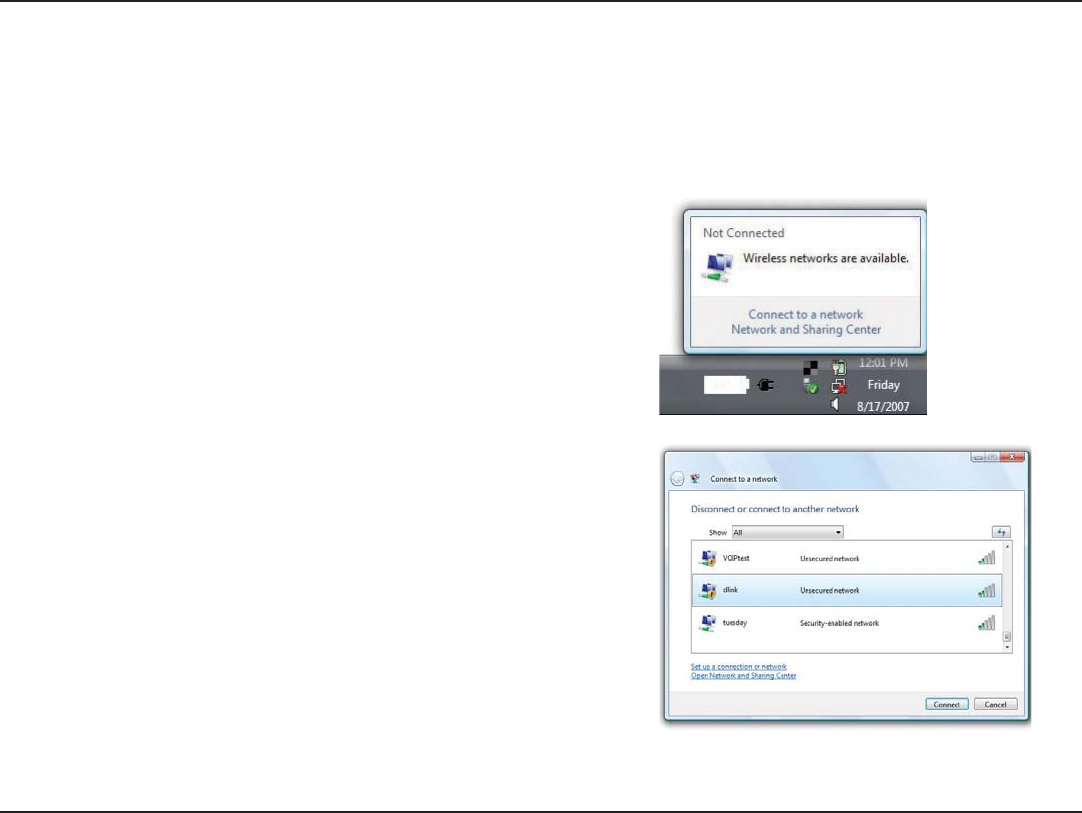

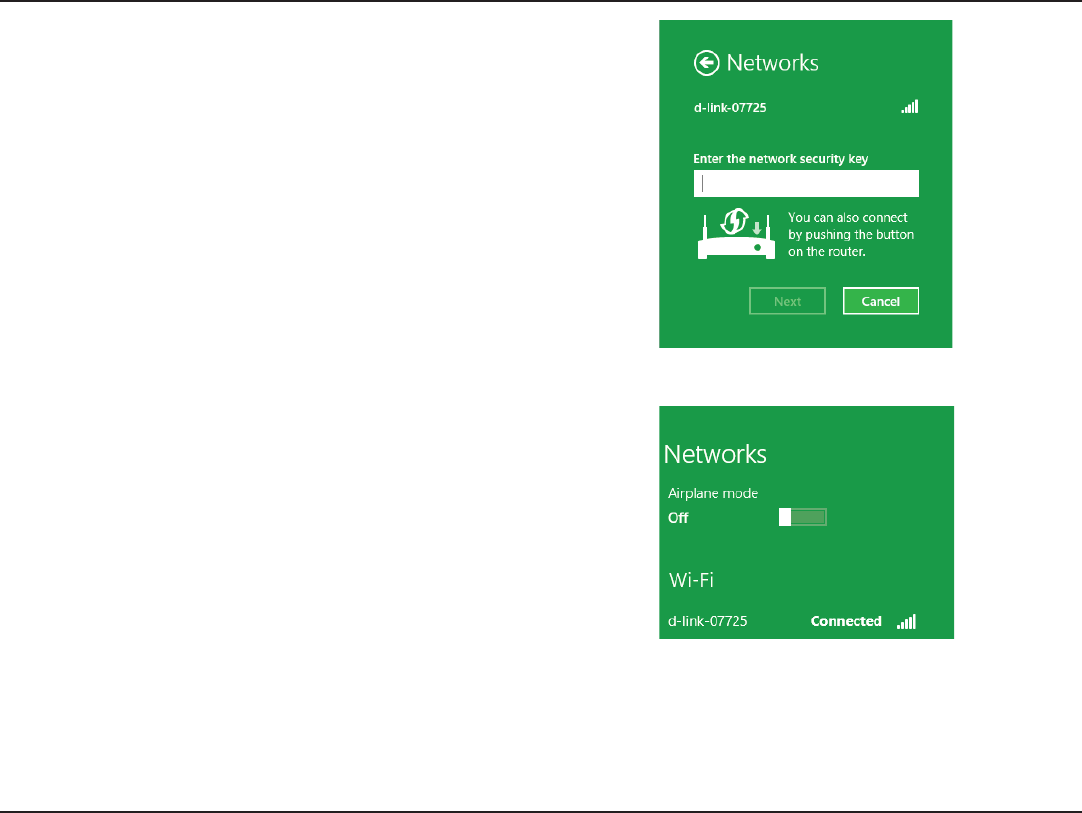

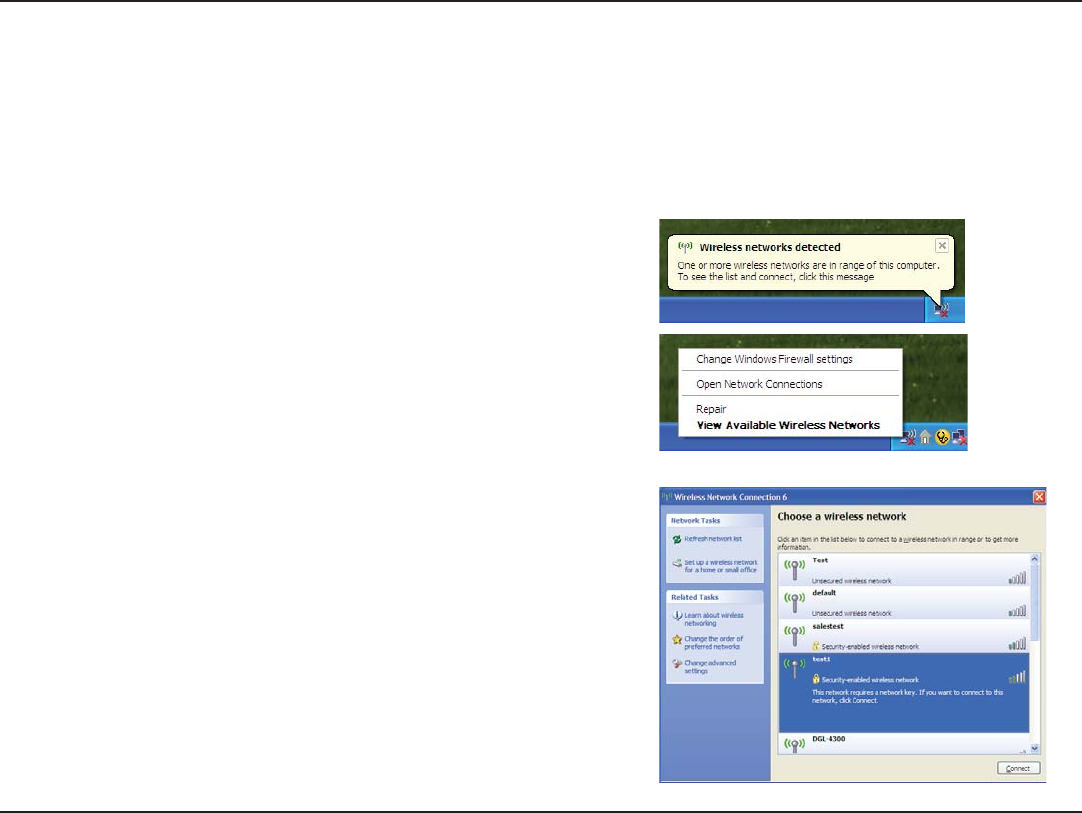

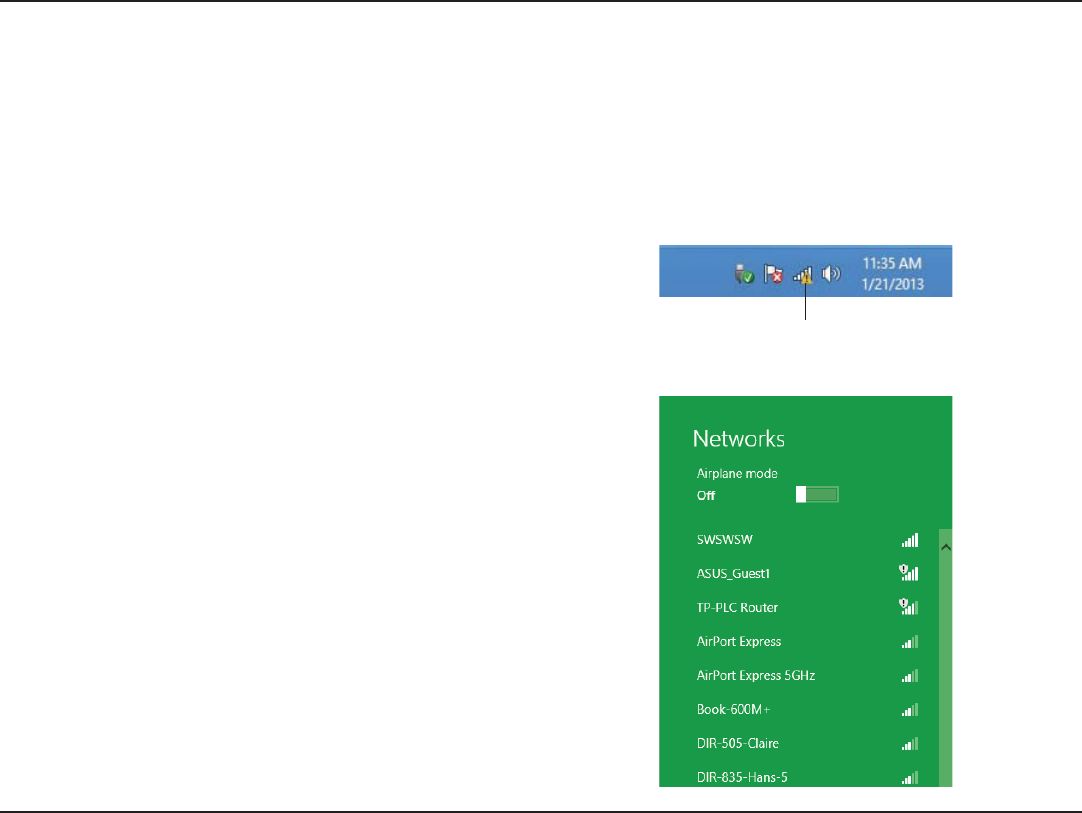

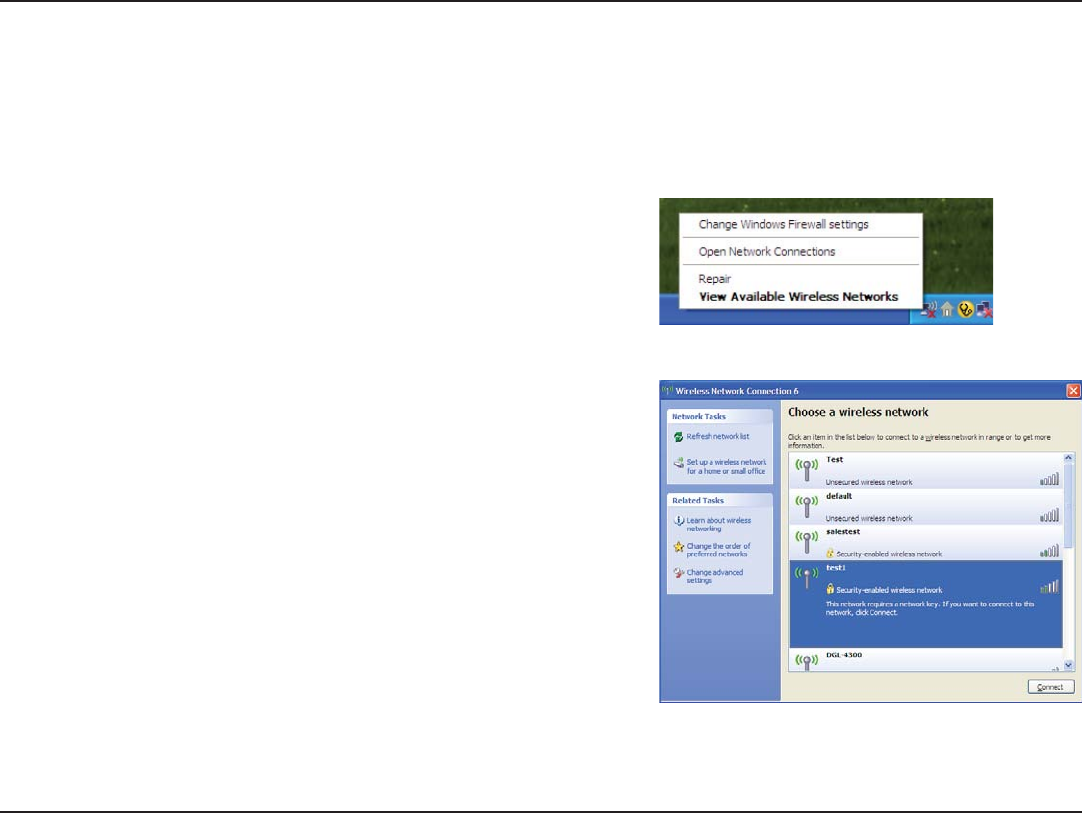

If you wish to use a wireless connection, the default Wi-Fi Networks are dlink-2885A-z and dlink-2885A5G-z.
Select either one from your computer’s wireless utility and connect. Enter the default Wi-Fi password printed
on the product label on the bottom of the DSL-2885A.
Computer
Ethernet Cable
14D-Link DSL-2885A User Manual
Section 3 - Getting Started
There are two ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page "Setup Wizard"
on page 15.
• Manual Setup - Log into the router and manually congure your router. Refer to "Conguration" on page 22.
Getting Started
26D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter a custom name for this client.
Displays the vendor of the device.
Displays the MAC address of the device.
Enter a specic IP address for this client.
Enable to reserve this IP address for this client.
Allow or Block access to the router.
Click Save when you are done.
Name:
Vendor:
MAC Address:
IP Address:
Reserve IP:
Parental
Control:
29D-Link DSL-2885A User Manual

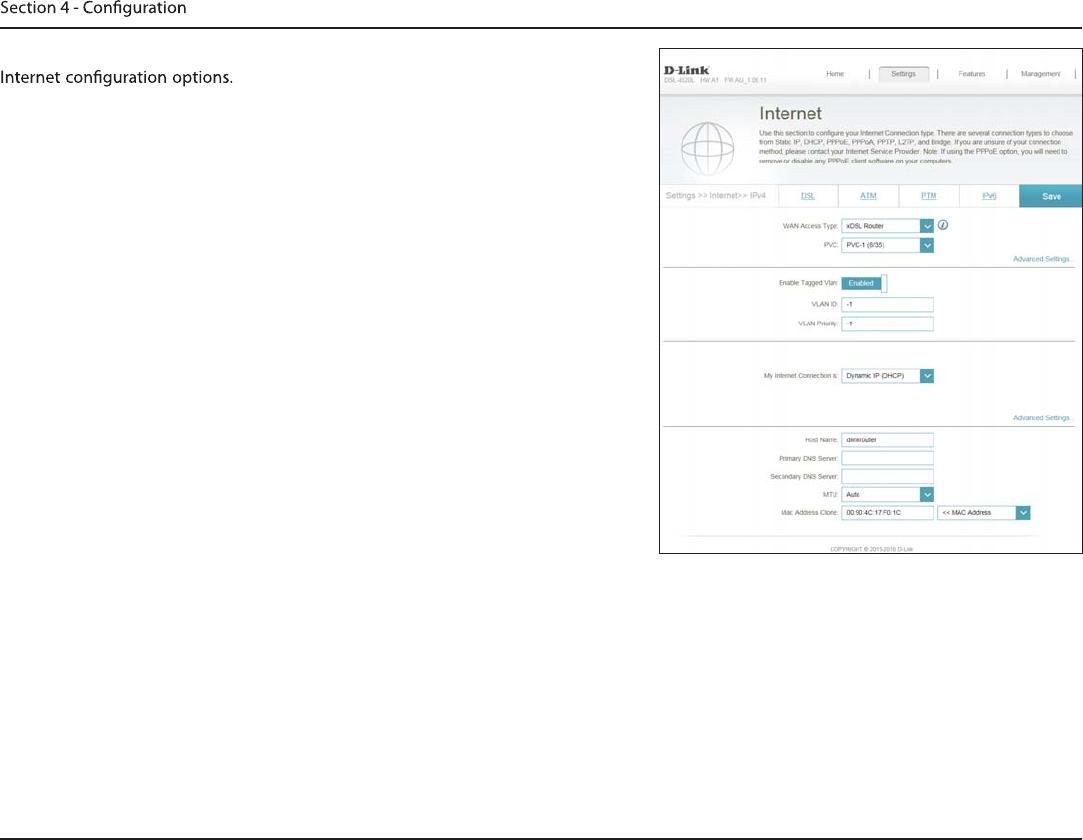

For Dynamic IP (DHCP) refer to Dynamic IP (DCHP) on page 30.
For Static IP refer to Static IP on page 31.
For PPPoE refer to PPPoE on page 32.
For PPPoA refer to PPPoA on page 33.
For PPTP refer to PPTP on page 34.
For L2TP refer to L2TP on page 36.
Select whether the device should act as an xDSL Router or a
Residential Gateway.
Use the default setting unless otherwise instructed by your ISP.
If you selected Residential Gateway, sselect the Ethernet port that
will connect to the WAN. Use this setting if you do not intend to use
the built-in DSL modem.
Enable or disable tagged VLAN.
Enter the VLAN ID.
Enter the VLAN Priority from the default 0 (lowest) to 7 (highest).
Choose your Internet connection type from the drop-down menu.
You will be presented with the appropriate options for your
connection type.
WAN Access
Type:
PVC:
Ether WAN Port:
Enable Tagged
Vlan:
VLAN ID:
VLAN Priority:
My Internet
Connection Is:

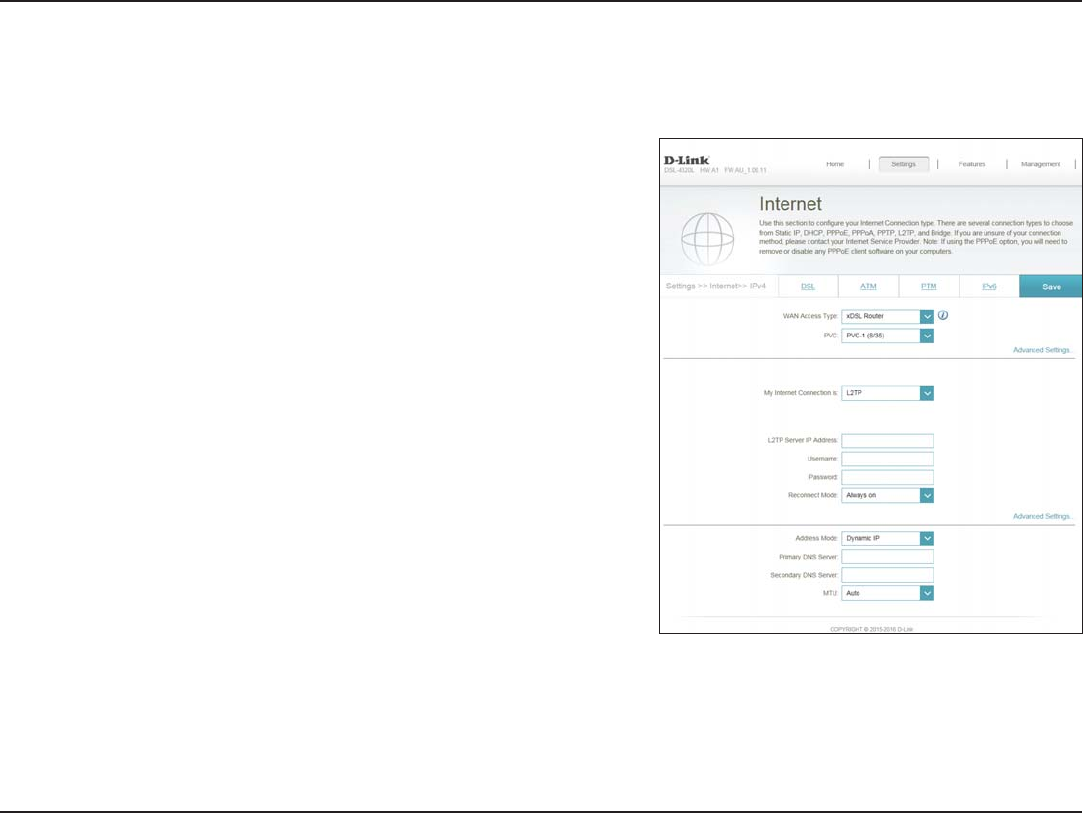

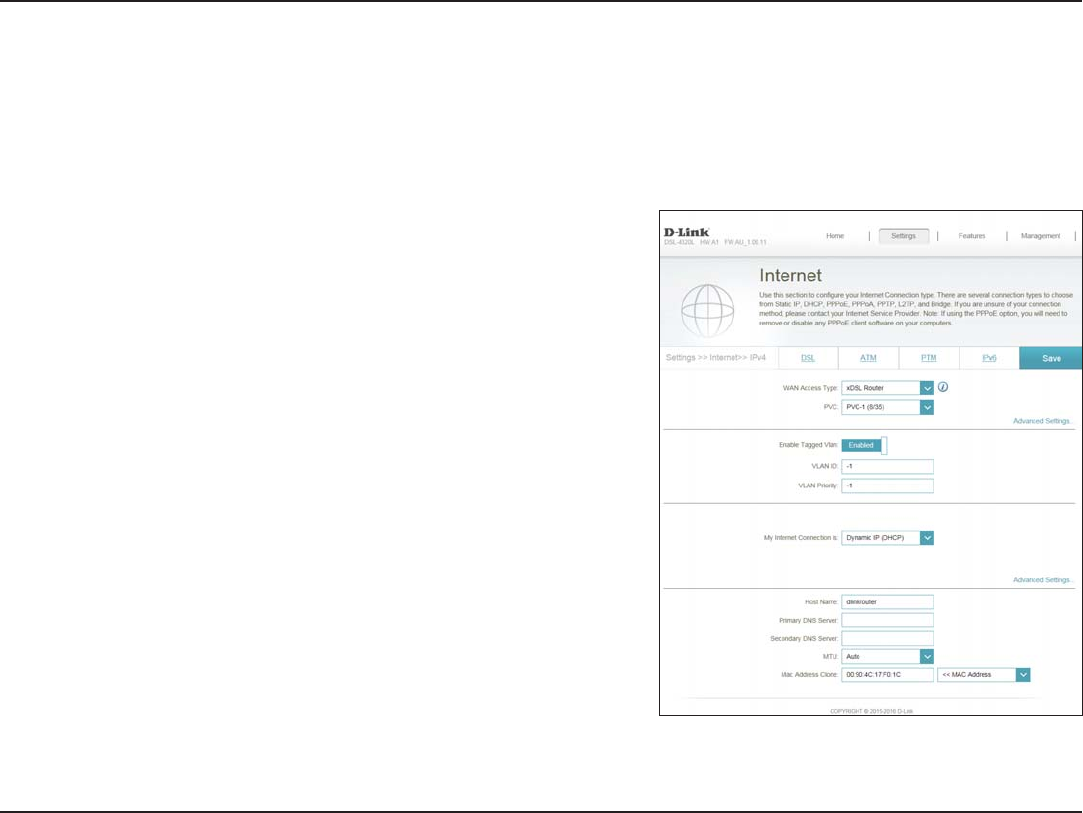

In the Settings menu on the bar on the top of the page, click Internet to see the
Click Advanced Settings... to expand the list and
see all of the options.
30D-Link DSL-2885A User Manual
Section 4 - Conguration
The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
Host Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address
Clone:
Dynamic IP (DCHP)
Select Dynamic IP (DHCP) to obtain IP address information automatically from your Internet Service Provider (ISP). Select this option if your ISP
does not give you an IP address to use.
IPv4
31D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the IP address provided by your ISP.
Enter the subnet mask provided by your ISP.
Enter the default gateway address provided by your ISP.
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use drop-down menu to replace
the Internet port’s MAC address with the MAC address of a connected
client.
Click Save when you are done.
IP Address:
Subnet Mask:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address
Clone:
Static IP
Select Static IP if your IP information is provided by your Internet Service Provider (ISP).
32D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the username provided by your ISP.
Enter the password provided by your ISP.
Select either Always-on, On-Demand, or Manual.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the ISP service name (optional).
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
Username:
Password:
Reconnect
Mode:
Address Mode:
IP Address:
Service Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU:

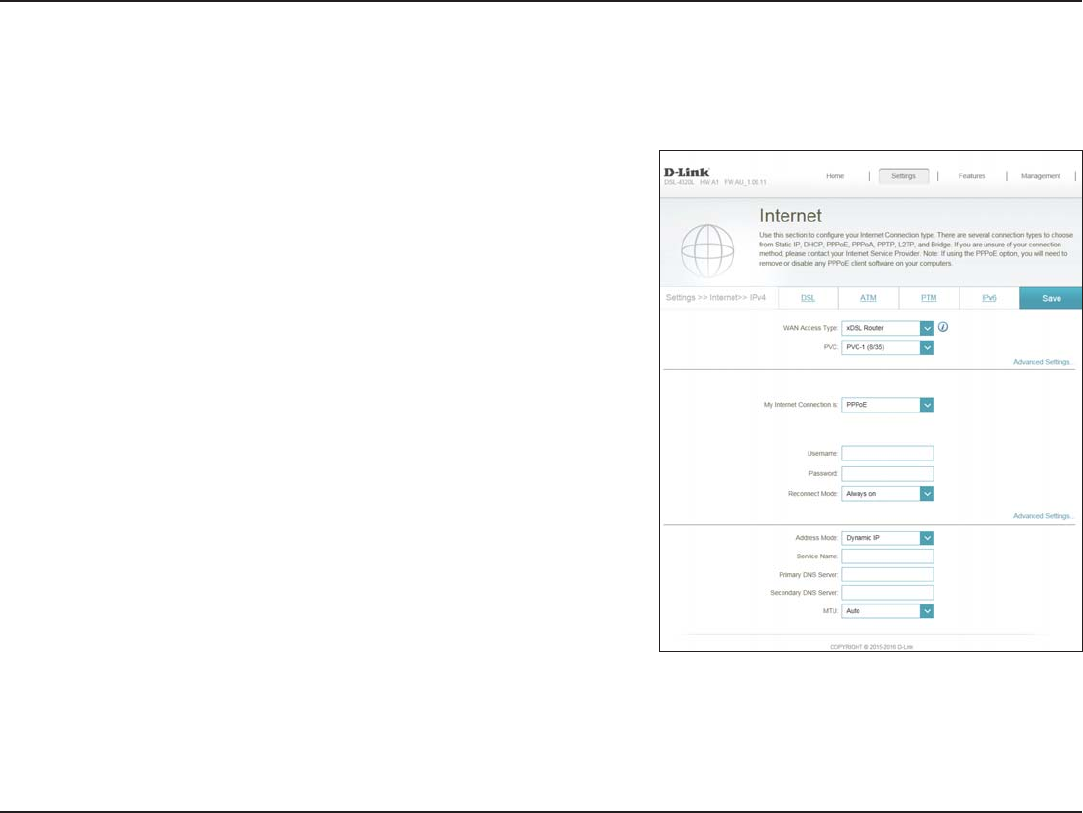

Select PPPoE if your Internet connection requires you to enter a PPPoE username and password. This information is provided by your Internet
Service Provider (ISP).
PPPoE
33D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the username provided by your ISP.
Enter the password provided by your ISP.
Select either Always-on, On-Demand, or Manual.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
Click Save when you are done.
Username:
Password:
Reconnect
Mode:
Address Mode:
IP Address:
Primary DNS
Server:
Secondary DNS
Server:
Choose PPPoA if your Internet connection requires you to enter a PPPoA username and password. This information is provided by your Internet
Service Provider (ISP).
PPPoA
34D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the PPTP server IP address provided by your ISP.
Enter the username provided by your ISP.
Enter the password provided by your ISP.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable Auto-
reconnect.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the subnet mask provided by your ISP (Static IP only).
Enter the gateway IP address provided by your ISP (Static IP only).
Enter the primary DNS server IP address assigned by your ISP.
PPTP Server IP
Address:
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
Address Mode:
PPTP IP
Address:
PPTP Subnet
Mask:
PPTP Gateway
IP Address:
Primary DNS
Server:

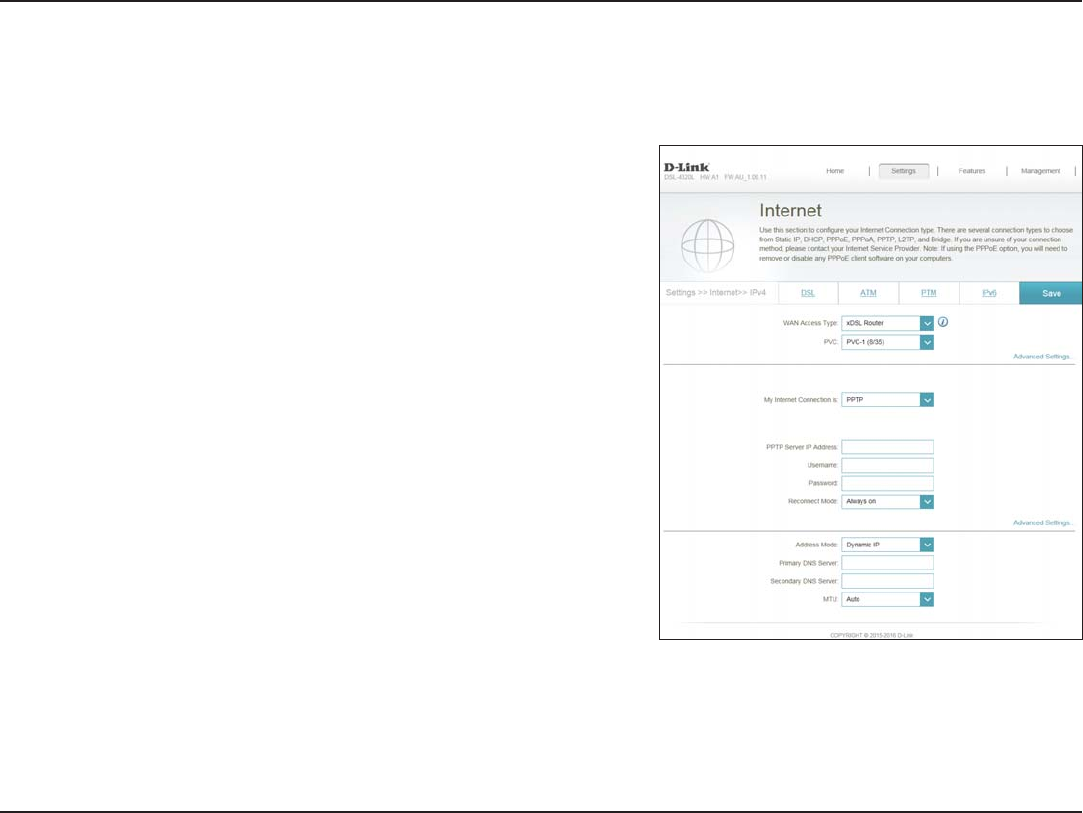

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your Internet Service Provider (ISP) uses a PPTP connection. Your ISP will provide you with a
username and password.
PPTP
35D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the secondary DNS server IP address assigned by your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
Secondary DNS
Server:
MTU:
36D-Link DSL-2885A User Manual
Section 4 - Conguration

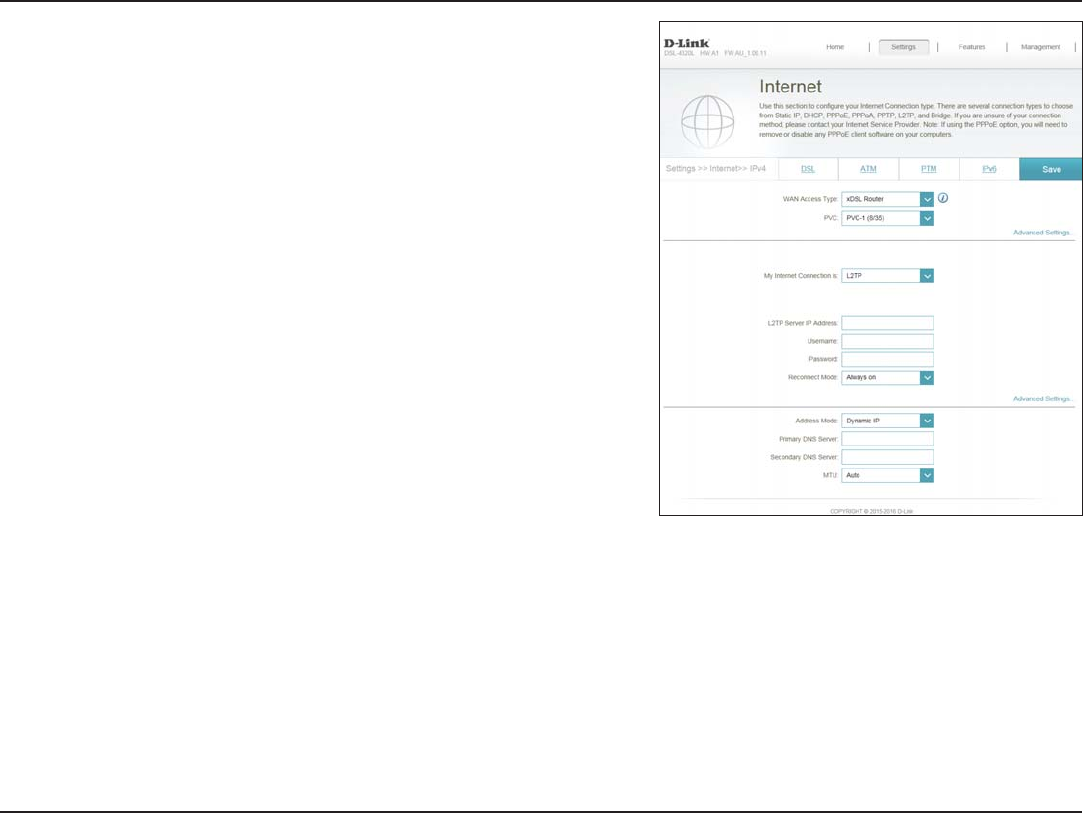

L2TP
Enter the L2TP server IP address provided by your ISP.
Enter the username provided by your ISP.
Enter the password provided by your ISP.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable Auto-
reconnect.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the subnet mask provided by your ISP (Static IP only).
Enter the gateway IP address provided by your ISP (Static IP only).
Enter the primary DNS server IP address assigned by your ISP.
L2TP Server IP
Address:
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
Address Mode:
L2TP IP
Address:
L2TP Subnet
Mask:
L2TP Gateway
IP Address:
Primary DNS
Server:
Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider (ISP) uses a L2TP connection. Your ISP will provide you with a username
and password.
37D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the secondary DNS server IP address assigned by your ISP.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
Secondary DNS
Server:
MTU:
39D-Link DSL-2885A User Manual
Section 4 - Conguration
DSL

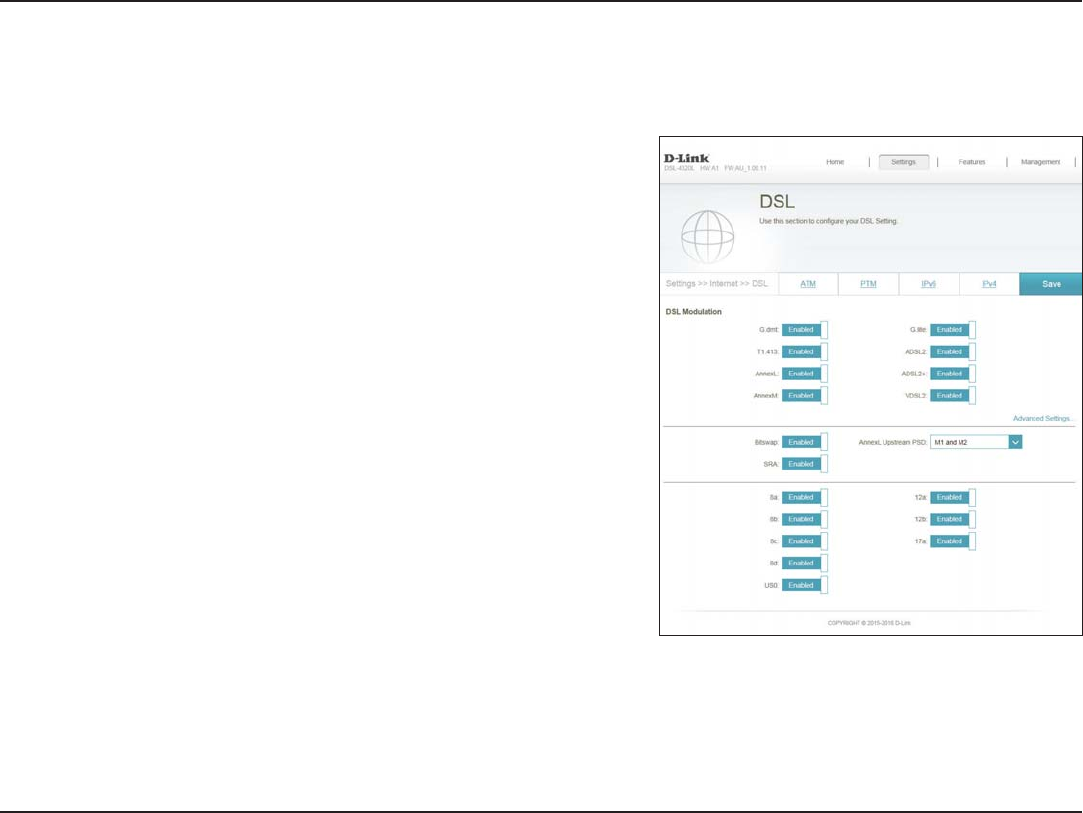

Select whether to enable or disable each DSL modulation option.
Usually it is best to leave these at their defaults, unless otherwise
instructed by your ISP.
Click Save when you are done.
DSL
Modulation:
On this page you can congure your DSL settings. If you are unsure, you can obtain these settings from your ISP.
40D-Link DSL-2885A User Manual
Section 4 - Conguration
ATM

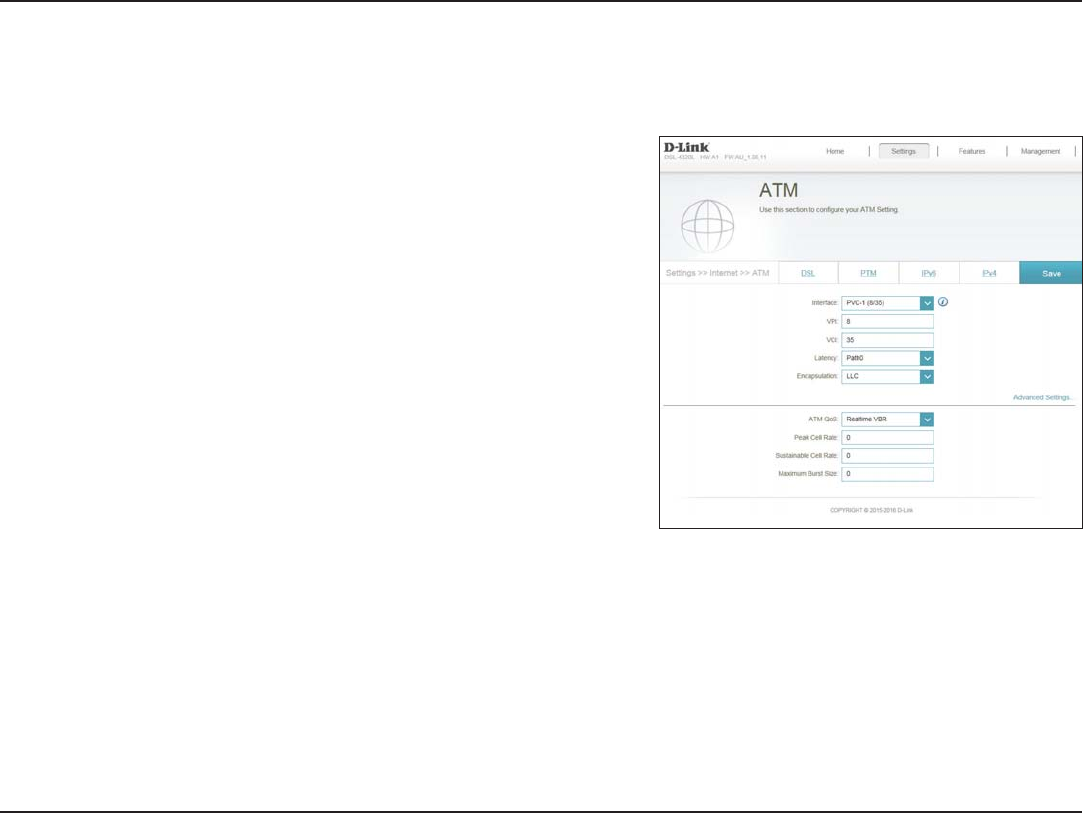

Select the ATM interface from the drop-down menu.
Enter the Virtual Path Indicator (0 - 255).
Enter the Virtual Channel Indicator (32 - 65535).
Select the latency from the drop-down menu.
Select the method of encapsulation provided by your ISP. You can
select LLC or VCMUX.
Select the Quality of Service type from the drop-down menu.
Click Save when you are done.
Interface:
VPI:
VCI:
Latency:
Encapsulation:
ATM QoS:
On this page you can congure your Asynchronous Transfer Mode (ATM) settings. If you are unsure, you can obtain these settings from your ISP.
41D-Link DSL-2885A User Manual
Section 4 - Conguration

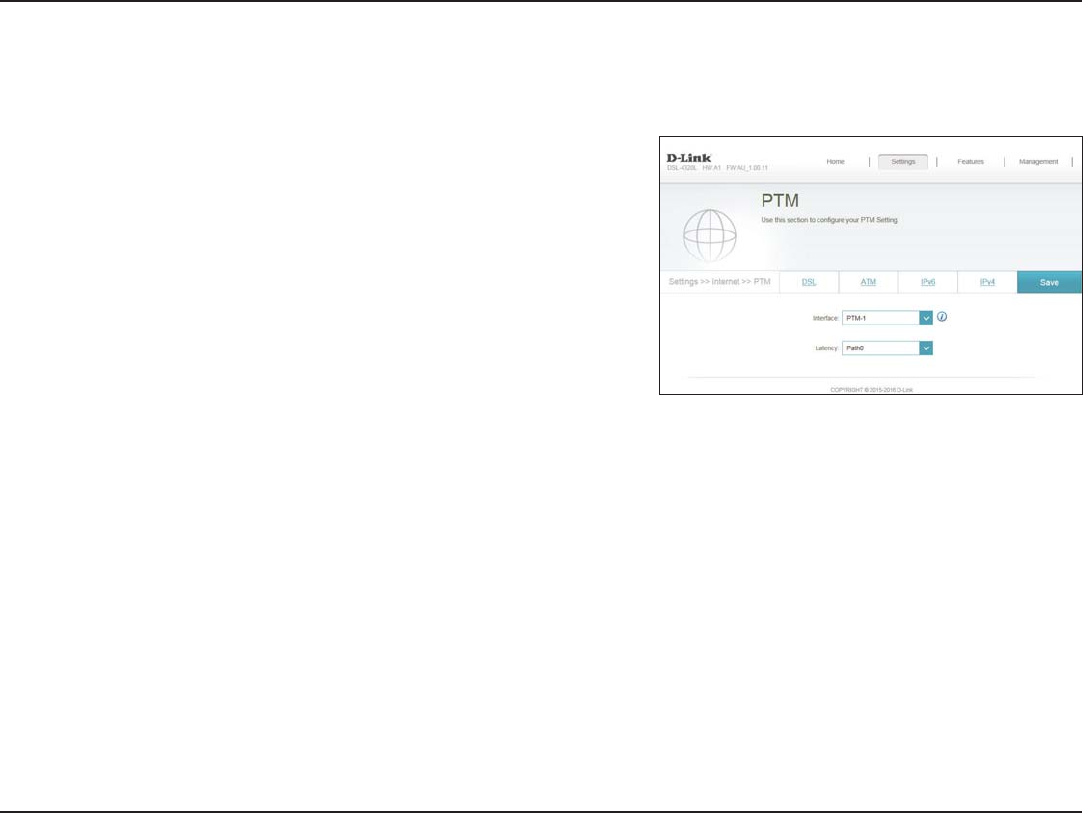

PTM
On this page you can congure your Packet Transfer Mode (ATM) settings. If you are unsure, you can obtain these settings from your ISP.
Select the PTM interface from the drop-down menu.
Select the latency from the drop-down menu.
Interface:
Latency:
42D-Link DSL-2885A User Manual
Section 4 - Conguration
IPv6
To congure an IPv6 connection, click the IPv6 link. To return to the IPv4 settings, click IPv4.
Choose your IPv6 connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of
the options.
My Internet
Connection Is:
For Auto Detection refer to Auto Detection on page 43.
For Static IPv6 refer to Static IPv6 on page 44.
For Auto Conguration (SLAAC/DHCPv6) refer to Auto Conguration (SLAAC/
DHCPv6) on page 46.
For PPPoE refer to PPPoE on page 48.
For IPv6 in IPv4 Tunnel refer to IPv6 in IPv4 Tunnel on page 50.
For 6 to 4 refer to 6 to 4 on page 52.
For 6rd refer to 6rd on page 53.
For Local Connectivity Only refer to Local Connectivity Only on page 55.
43D-Link DSL-2885A User Manual
Section 4 - Conguration

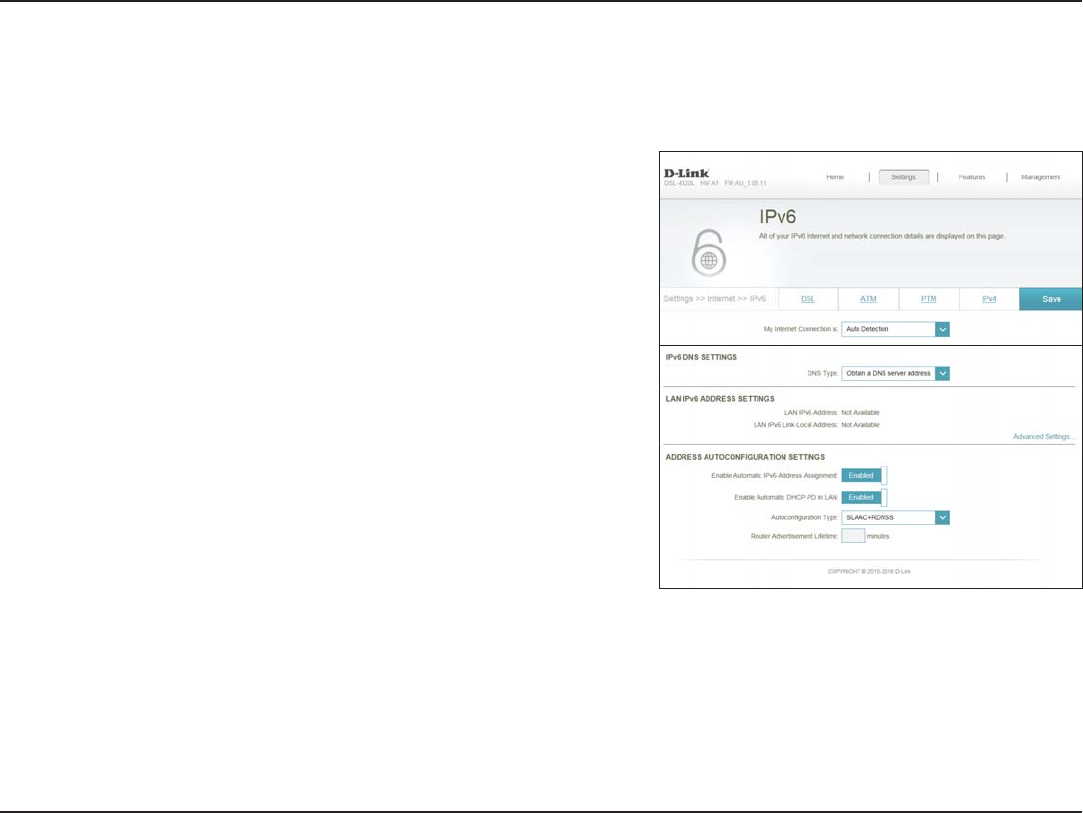

Auto Detection
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable automatic DHCP-PD services.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Auto Detection mode (not Auto-Conguration mode) automatically detects IPv6 the connection method used by your Internet Service Provider
(ISP). If your ISP provides an IPv6 service and Auto Detection failed to detect it, the user must manually select another IPv6 connection type (such
as PPPoE, Auto Conguration, 6rd, DS-Lite etc.)
44D-Link DSL-2885A User Manual
Section 4 - Conguration
Static IPv6

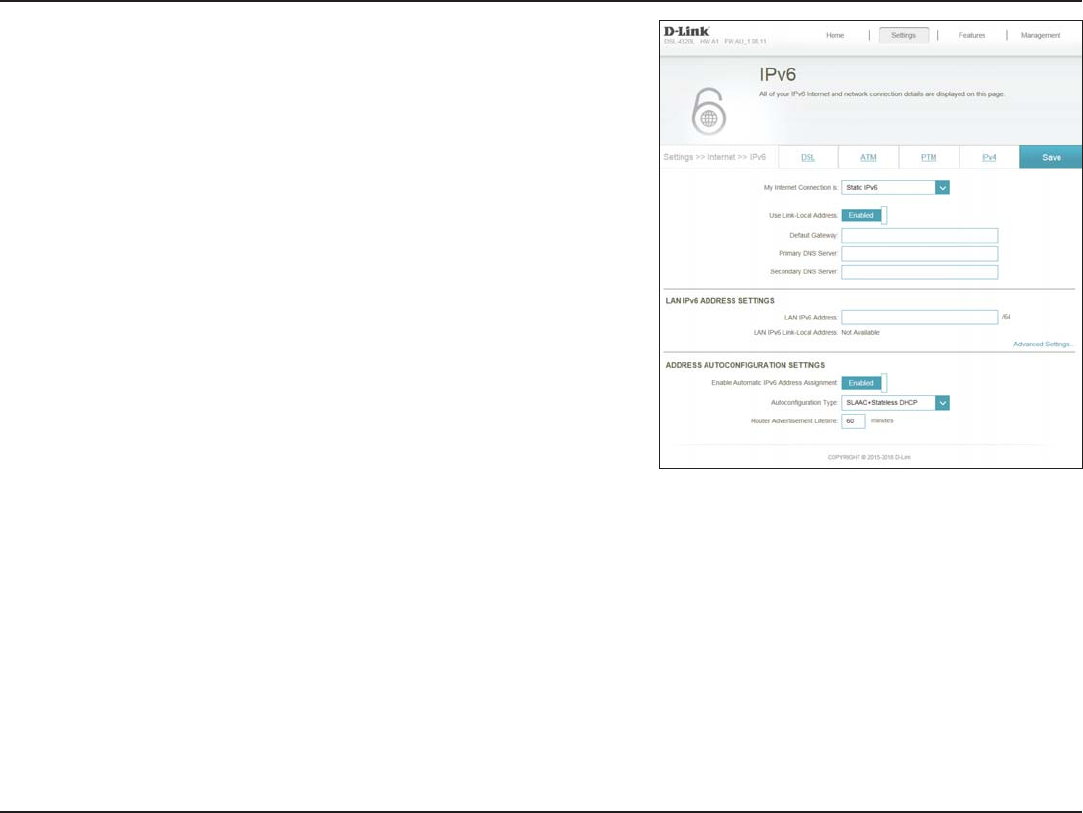

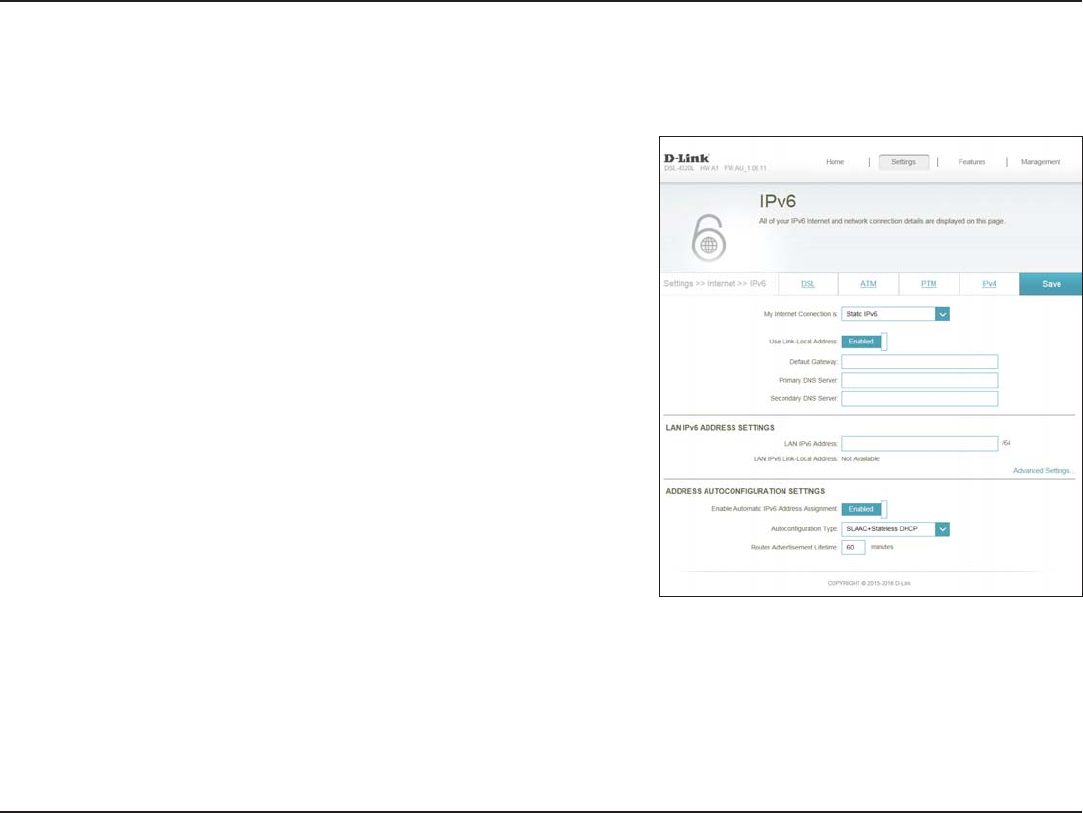

Enable or disable a link-local address.
If you disabled Use Link-Local Address, enter the address supplied
by your ISP.
If you disabled Use Link-Local Address, enter the subnet prex
length supplied by your ISP.
Enter the default gateway for your IPv6 connection.
Enter the primary DNS server address.
Enter the secondary DNS server address.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the Automatic IPv6 Address Assignment feature.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex
Length:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
LAN IPv6
Address:
LAN IPv6 Link-
Local Address:
Enable
Automatic
IPv6 Address
Assignment:
Select Static IP if your IPv6 information is provided by your Internet Service Provider (ISP).
45D-Link DSL-2885A User Manual
Section 4 - Conguration
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
Autoconguration
Type:
Router
Advertisement
Lifetime:
46D-Link DSL-2885A User Manual
Section 4 - Conguration

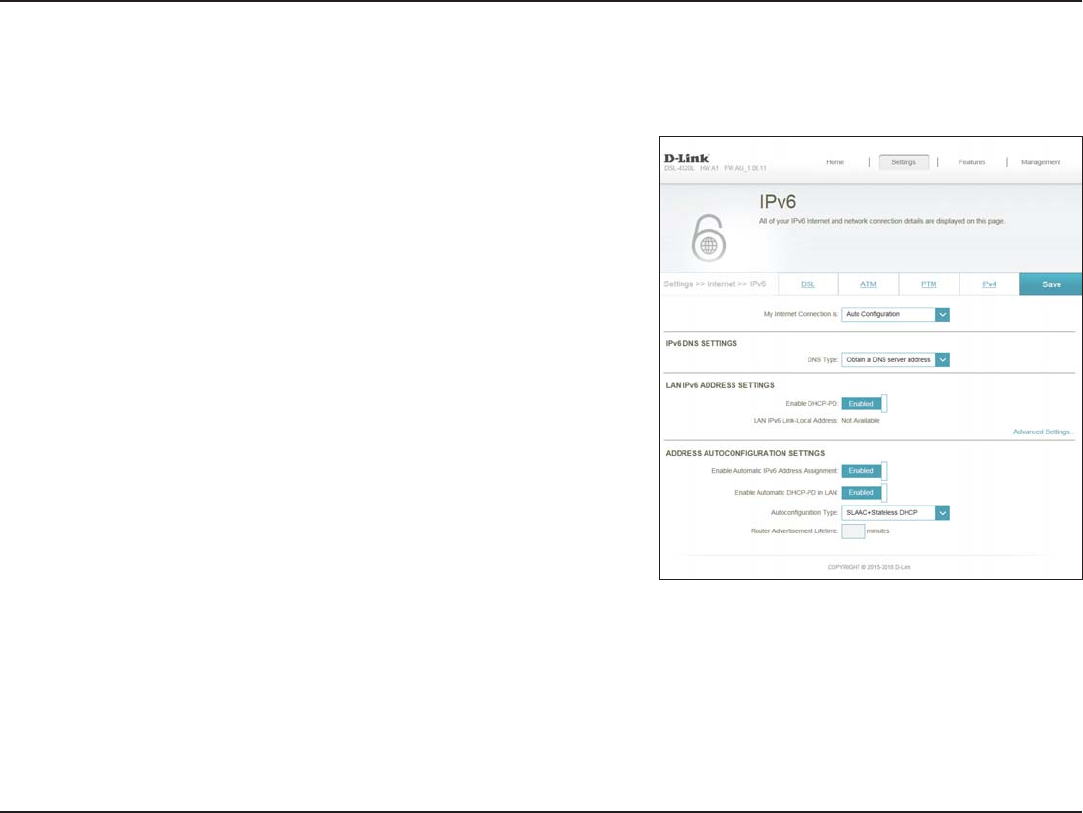

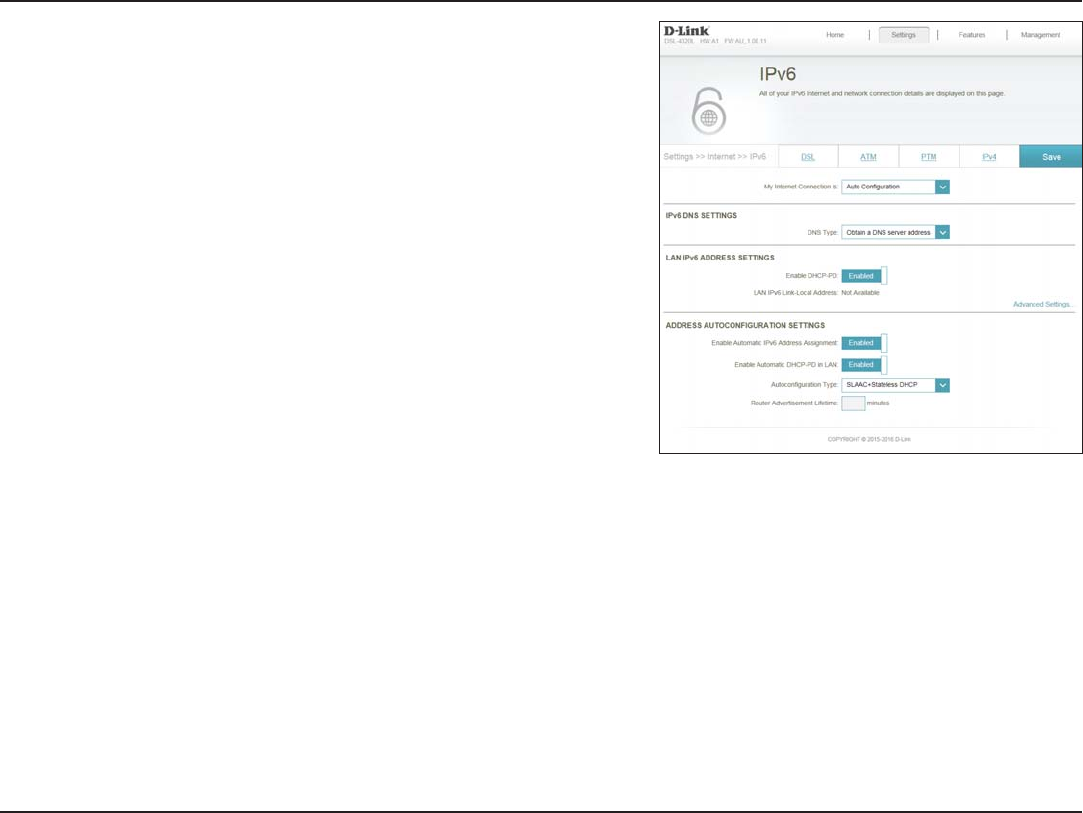

Auto Conguration (SLAAC/DHCPv6)
Select either Obtain DNS server address automatically or Use the
following DNS address.
If you selected Use the following DNS address above, enter the
primary DNS server address.
If you selected Use the following DNS address above, enter the
secondary DNS server address.
Enable or disable prex delegation services.
If you disabled DHCP-PD, enter the LAN (local) IPv6 address for the
router.
Displays the router’s LAN link-local address.
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable automatic DHCP-PD services.
DNS Type:
Primary DNS
Server:
Secondary DNS
Server:
Enable DHCP-
PD:
LAN IPv6
Address:
LAN IPv6 Link-
Local Address:
Enable
Automatic
IPv6 Address
Assignment:
Enable
Automatic
DHCP-PD in
LAN:
This is a connection method where the ISP assigns your IPv6 address when your router requests one from the ISP’s server. Some ISPs require you
to make some settings on your side before your router can connect to the IPv6 Internet.
47D-Link DSL-2885A User Manual
Section 4 - Conguration
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
Autoconguration
Type:
Router
Advertisement
Lifetime:
48D-Link DSL-2885A User Manual
Section 4 - Conguration

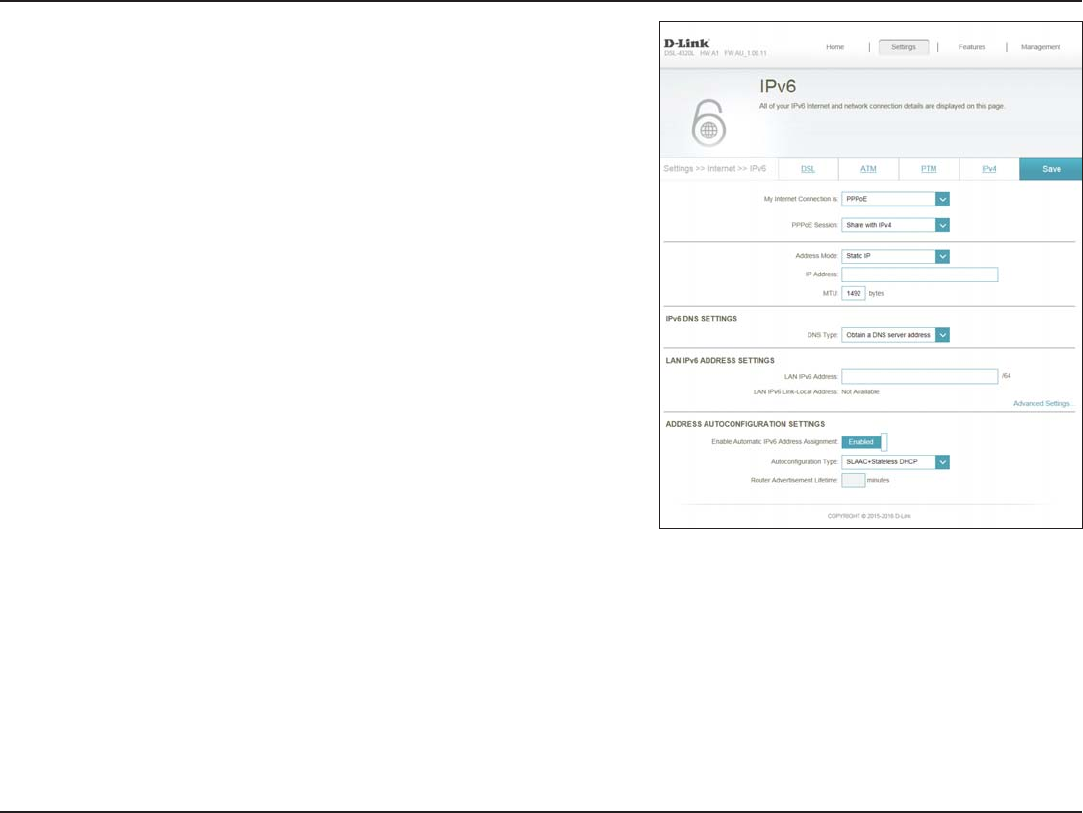

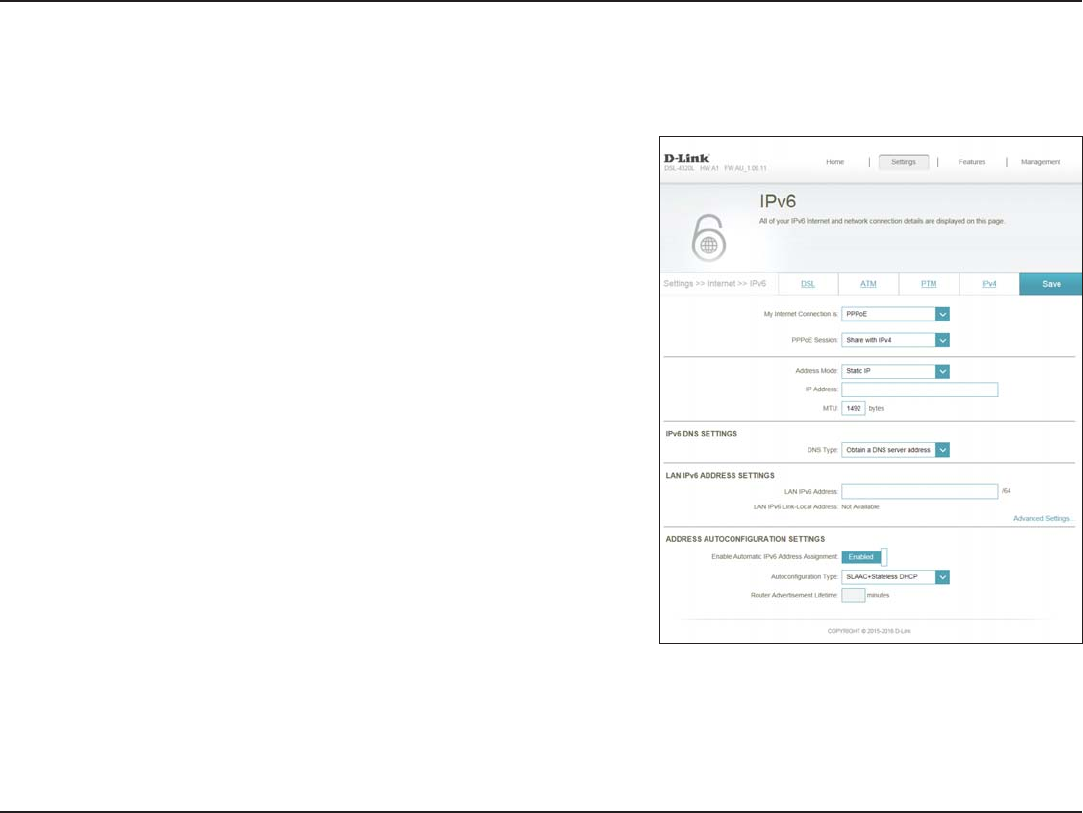

PPPoE
Choose Share with IPv4 to re-use your IPv4 PPPoE username and
password, or Create a new session.
If you selected Create a new session above, enter the PPPoE
username provided by your ISP here.
If you selected Create a new session above, enter the PPPoE
password provided by your ISP here.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Select either Obtain DNS server address automatically or Use the
following DNS address.
If you selected Use the following DNS address above, enter the
primary DNS server address.
If you selected Use the following DNS address above, enter the
secondary DNS server address.
Enable or disable prex delegation services.
PPPoE Session:
Username:
Password:
Address Mode:
IP Address:
MTU:
DNS Type:
Primary DNS
Server:
Secondary DNS
Server:
Enable DHCP-
PD:
Select PPPoE if your Internet connection requires you to enter a username and password. This information is provided by your Internet Service
Provider (ISP).
49D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
LAN IPv6 Address:
LAN IPv6 Link-
Local Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
Router
Advertisement
Lifetime:
50D-Link DSL-2885A User Manual
Section 4 - Conguration

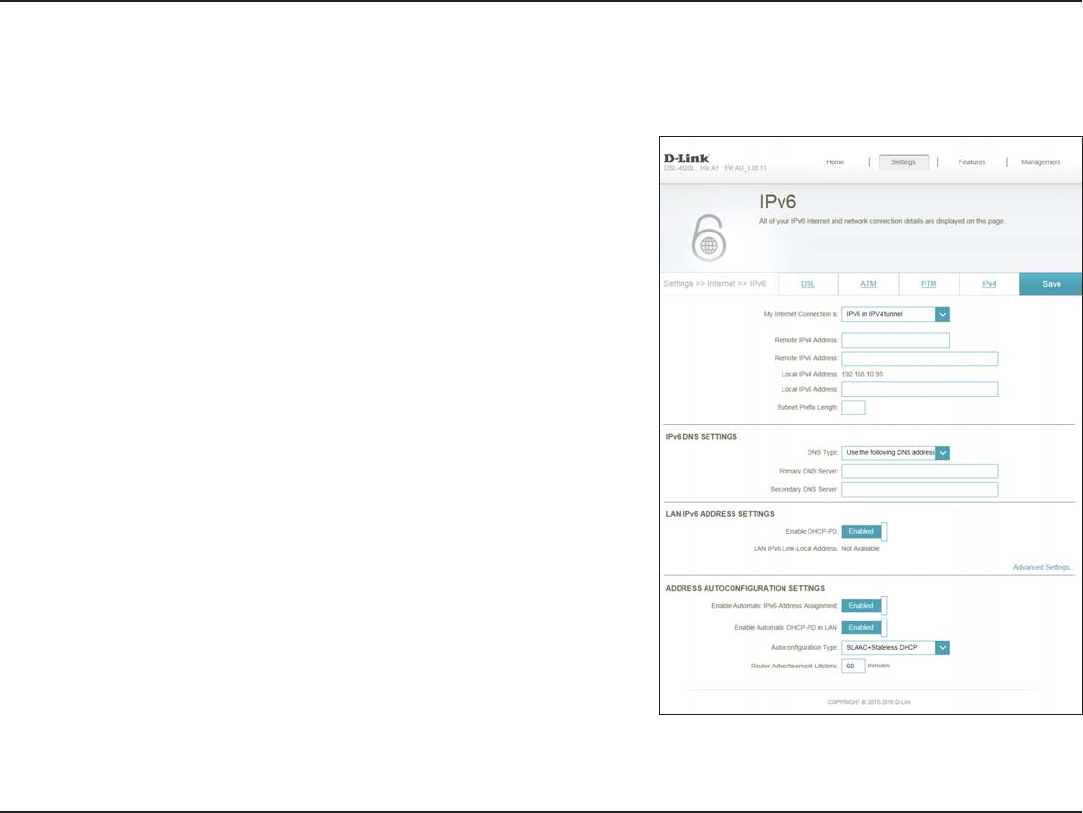

IPv6 in IPv4 Tunnel

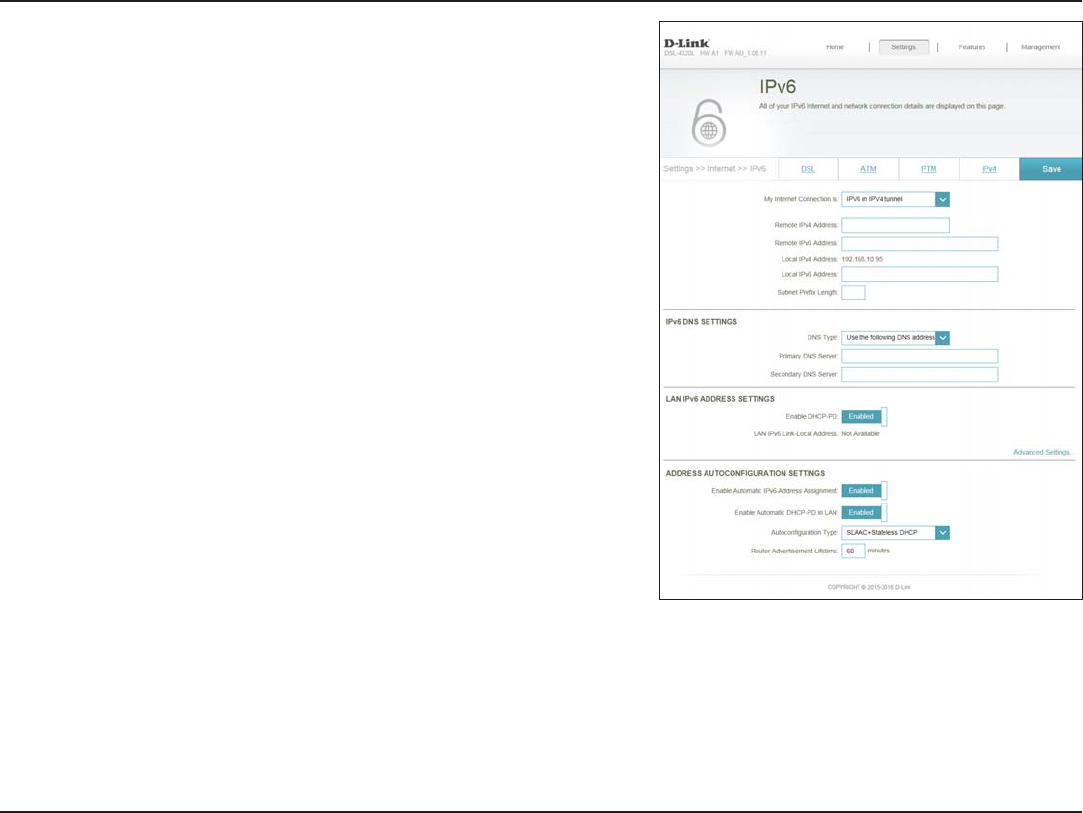

Enter the IPv4 remote address you will use.
Enter the IPv6 remote address you will use.
Enter the IPv4 local address you will use.
Enter the IPv6 local address you will use.
Enter the subnet prex length supplied by your ISP.
Select either Obtain DNS server address automatically or Use the
following DNS address.
If you selected Use the following DNS address above, enter the
primary DNS server address.
If you selected Use the following DNS address above, enter the
secondary DNS server address.
Enable or disable prex delegation services.
If you disabled DHCP-PD, enter the LAN (local) IPv6 address for the
router.
Remote IPv4
Address:
Remote IPv6
Address:
Local IPv4
Address:
Local IPv6
Address:
Subnet Prex
Length:
DNS Type:
Primary DNS
Server:
Secondary DNS
Server:
Enable DHCP-
PD:
LAN IPv6
Address:
The user can congure the IPv6 connection to run in IPv4 Tunnel mode. IPv6 over IPv4 tunneling encapsulates IPv6 packets in IPv4 packets so
that IPv6 packets can be sent over an IPv4 infrastructure.
51D-Link DSL-2885A User Manual
Section 4 - Conguration
Displays the router’s LAN link-local address.
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable automatic DHCP-PD services.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
LAN IPv6 Link-
Local Address:
Enable
Automatic
IPv6 Address
Assignment:
Enable
Automatic
DHCP-PD in
LAN:
Auto
Conguration
Type:
Router
Advertisement
Lifetime:
53D-Link DSL-2885A User Manual
Section 4 - Conguration
6rd

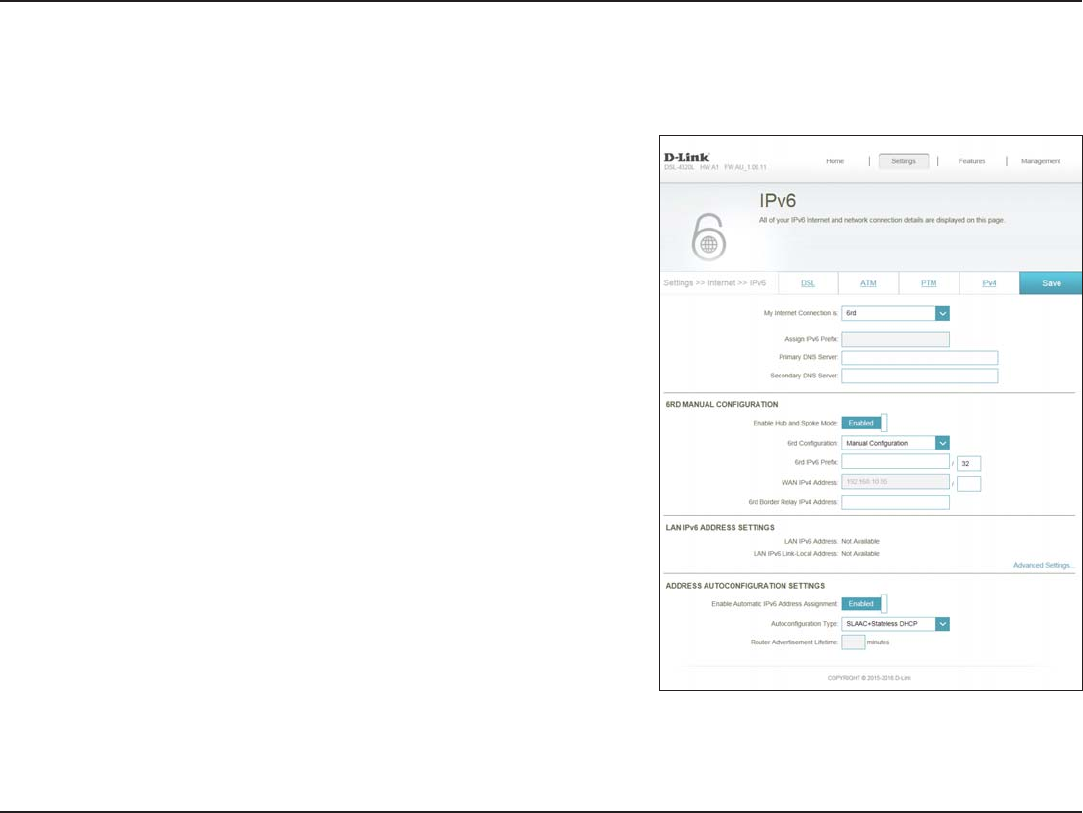

Enter the IPv6 prex.
Enter the primary DNS server address.
Enter the secondary DNS server address.
Enable if you want to minimize the number of routes to the
destination by using a hub and spoke method of networking.
Choose the 6rd DHCPv4 Option to automatically discover and
populate the data values, or Manual Conguration to enter the
settings yourself.
Enter the 6rd IPv6 prex and mask length supplied by your ISP
(manual conguration only).
Enter the 6rd border relay IPv4 address settings supplied by your ISP
(manual conguration only).
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Assign IPv6
Prex:
Primary DNS
Server:
Secondary DNS
Server:
Enable Hub and
Spoke Mode:
6rd
Conguration:
6rd IPv6 Prex:
6rd Border
Relay IPv4
Address:
LAN IPv6
Address:
LAN IPv6 Link-
Local Address:
In this section the user can congure the IPv6 6rd connection settings.
54D-Link DSL-2885A User Manual
Section 4 - Conguration
Check to enable the Automatic IPv6 Address Assignment feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
Router
Advertisement
Lifetime:
55D-Link DSL-2885A User Manual
Section 4 - Conguration
Local Connectivity Only
Click here to enable Unique Local IPv6 Unicast Addresses settings.
Checking this box will automatically congure the ULA prex for
the default setting.
If you wish to choose your own ULA prex, enter it here.
This section will display the current settings for your IPv6 ULA.
Click Save when you are done.
Enable ULA:
Use Default
ULA Prex:
ULA Prex:
Current IPv6
ULA Settings:

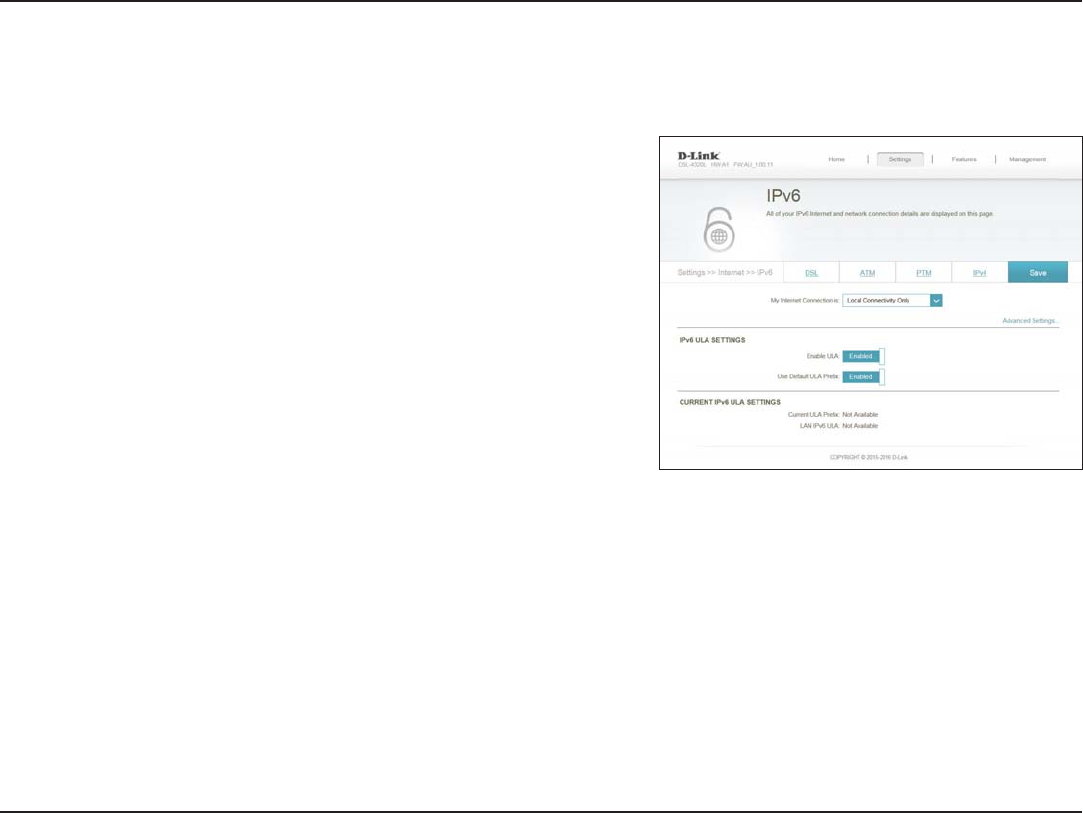

Local Connectivity Only allows you to set up an IPv6 connection that will not connect to the Internet.
56D-Link DSL-2885A User Manual
Section 4 - Conguration
Wireless
Enable or disable the wireless frequency band.
Create a name for your wireless network using up to 32 characters.
Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the network.
Choose None, WEP, or WPA/WPA2-(Personal) (recommended).
Select the desired wireless networking standards to use. The available
options will depend on the wireless frequency band, as well as the
currently selected security mode.
Select the desired channel. The default is Auto (recommended).
Select the desired wireless transmission power.
NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED
TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT
The default setting is Visible. Select Invisible if you do not want to
broadcast the SSID of your wireless network.
NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED
TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT NEED TEXT
Status:
Wi-Fi Name
(SSID):
Password:
Security Mode:
802.11 Mode:
Wi-Fi Channel:
Transmission
Power:
coexistence:
Visibility Status:
Turbo Mode:

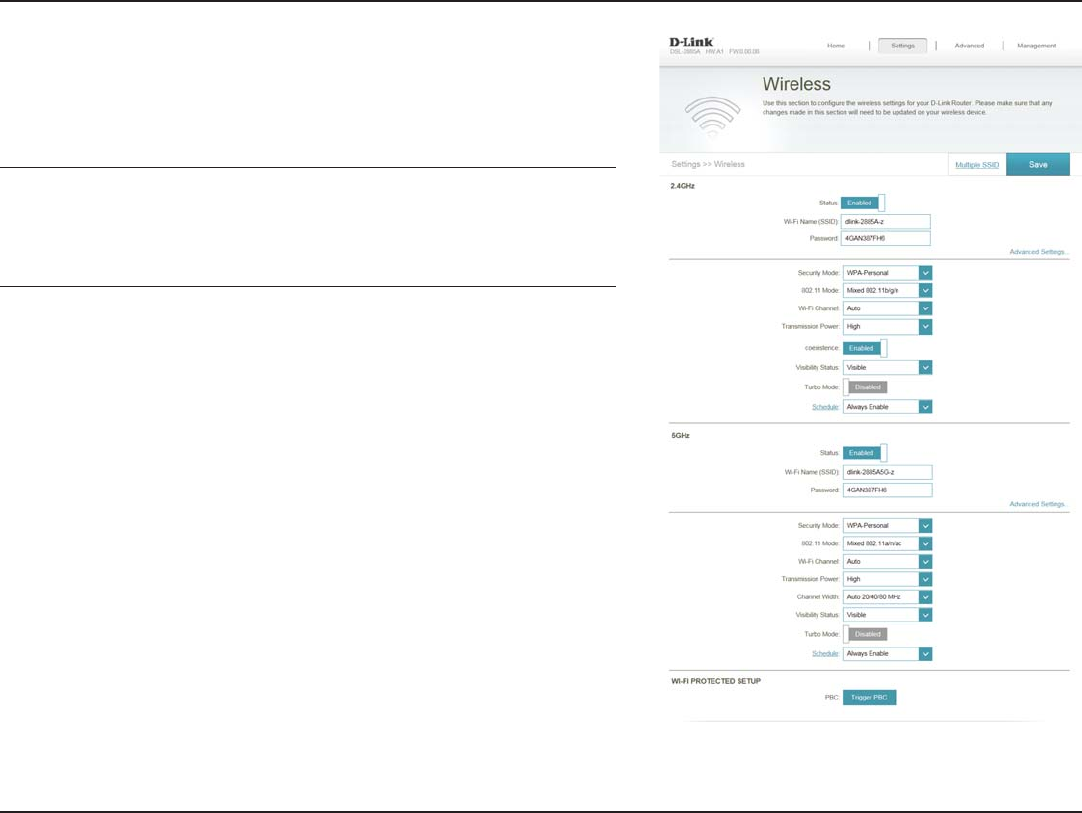

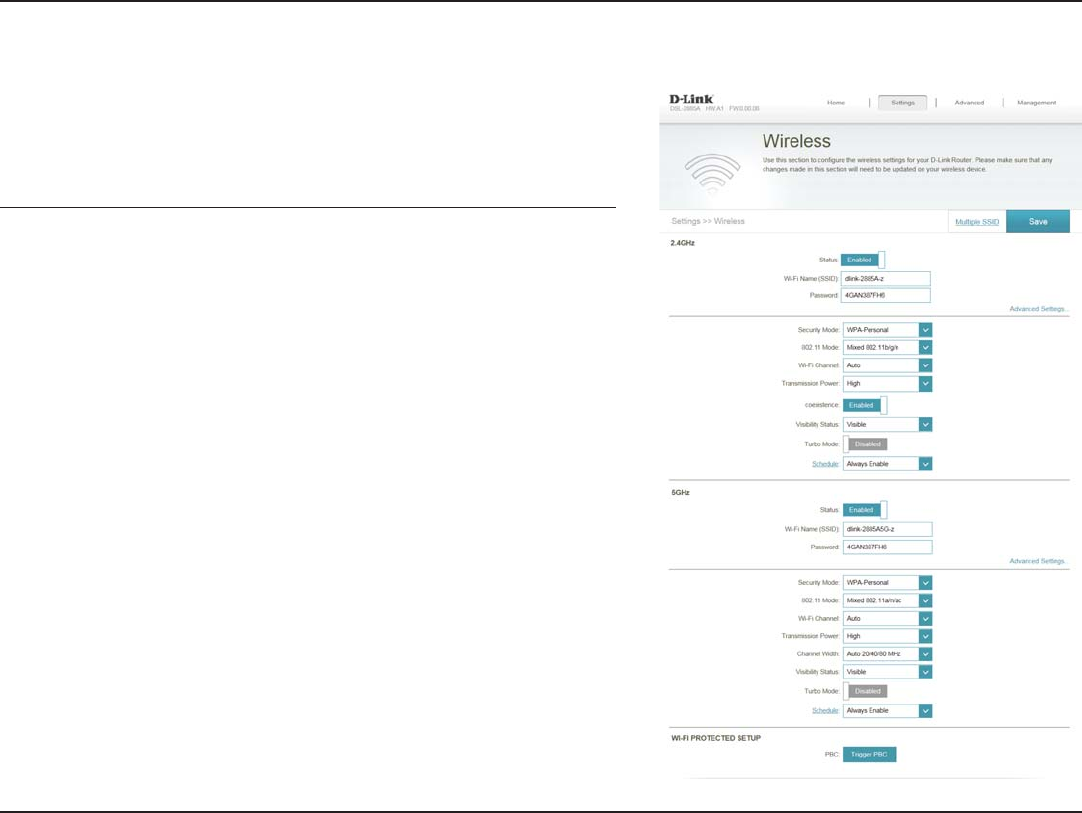

In the Settings menu on the bar on the top of the page, click Wireless to see the
wireless conguration options. To congure the router’s guest zone, click the Guest
Zone link. Refer to 59 for details. Click Advanced Settings... to expand the list
and see all of the options.
2.4 GHz
57D-Link DSL-2885A User Manual
Section 4 - Conguration
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Schedule:
5 GHz
Wi-Fi Protected Setup
Click Save when you are done.
Channel Width:
Trigger PBC:
Select Auto 20/40 if you are using both 802.11n and non-802.11n
wireless devices, or select 20 MHz if you are not using any 802.11n
wireless clients.
Press this button to initiate a Wi-Fi Protected Setup (WPS) pairing.
58D-Link DSL-2885A User Manual
Section 4 - Conguration
Multiple SSID
Enable or disable the guest zone for each wireless frequency band.
Enter a wireless network name (SSID) that is dierent from your main
wireless network.
Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the guest zone.
Enabling this option will confine connectivity to the Internet,
disallowing guests from accessing other local network devices.
Click Save when you are done.
Status:
Wi-Fi Name
(SSID):
Password:
Internet Access
Only:
In the Settings menu on the bar on the top of the page, click Wireless, then click
the Guest Zone link. Click Advanced Settings... to expand the list and see all of
the options. The following options apply to both the 2.4 GHz and the 5 GHz wireless
frequency bands:

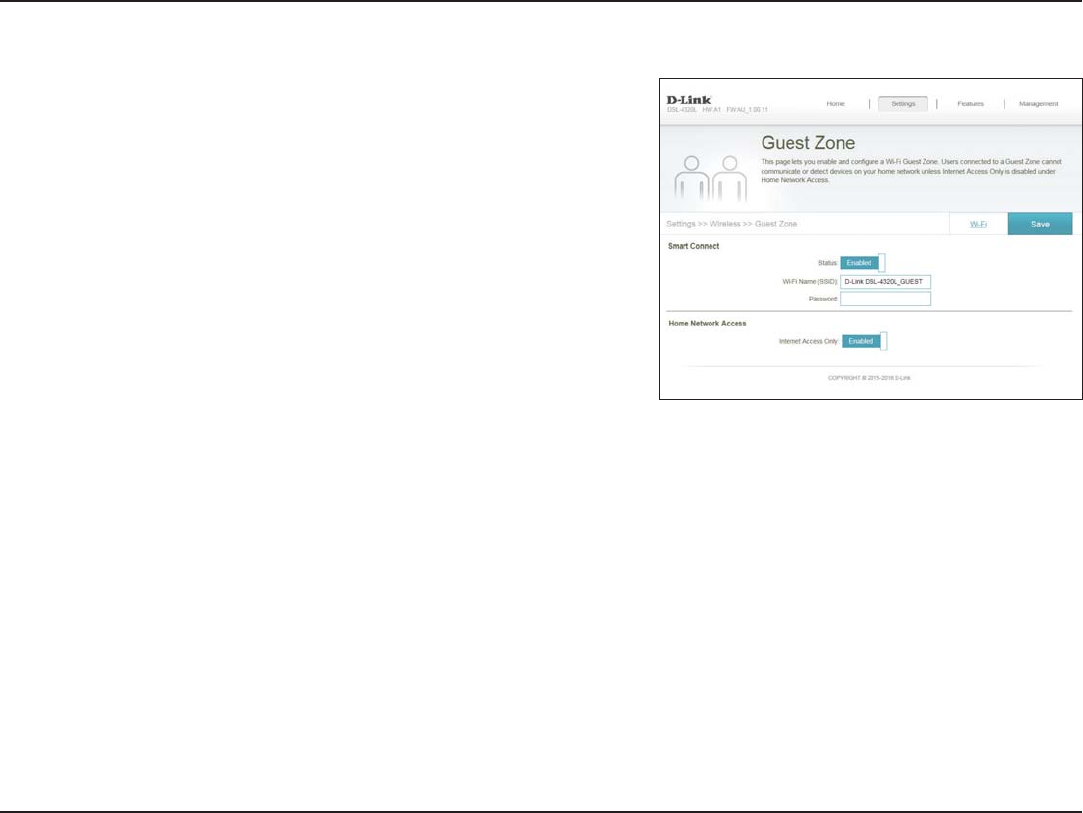

The guest zone feature will allow you to create temporary zones that can be used by
guests to access the Internet. These zones will be separate from your main wireless
network. You may congure dierent zones for the 2.4 GHz and 5 GHz wireless bands.
59D-Link DSL-2885A User Manual
Section 4 - Conguration
Network
Enter the IP address of the router. The default IP address is
192.168.0.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
The default address to access the router’s configuration is
http://dlinkrouter.local./ Here, you can replace dlinkrouter with
a name of your choice.
Enter the domain name (optional).
Disable to transfer the DNS server information from your ISP to your
computers. If enabled, your computers will use the router for a DNS
server.
Enable or disable the DHCP server.
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may have an IP conict.
LAN IP Address:
Subnet Mask:
Management
Link:
Local Domain
Name:
Enable DNS
Relay:
Status:
DHCP IP
Address Range:

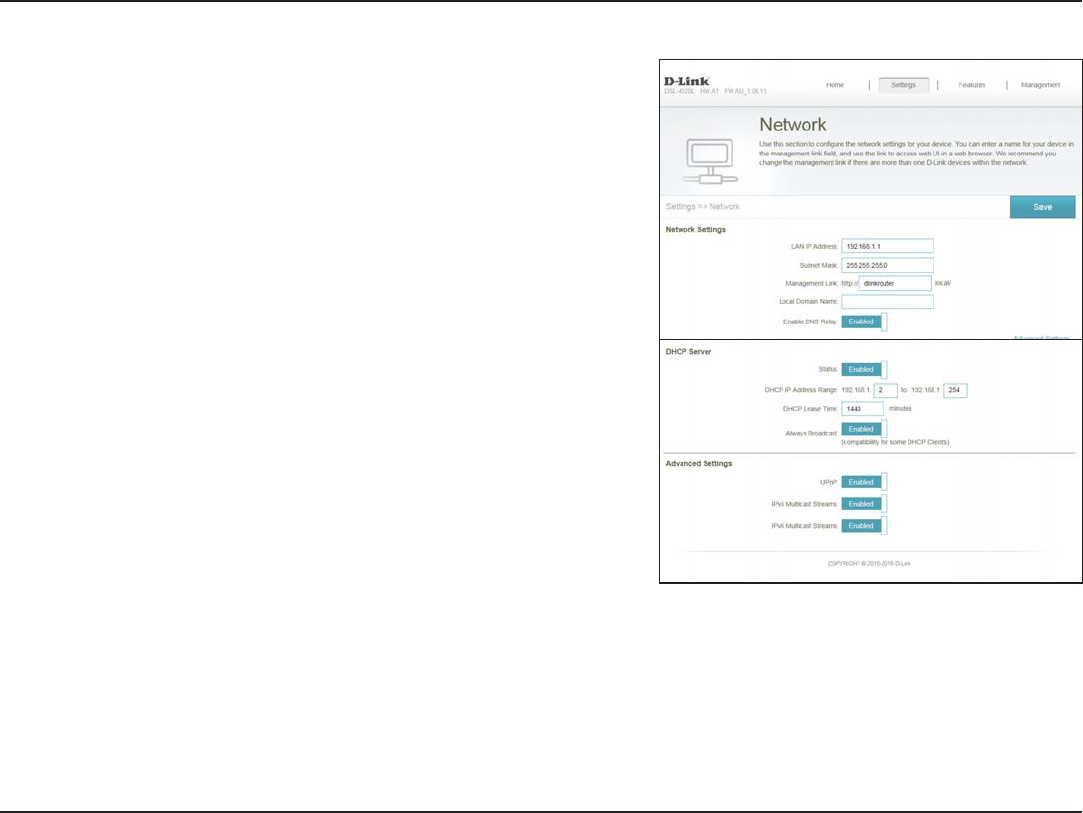

This section will allow you to change the local network settings of the router and to
congure the DHCP settings. In the Settings menu on the bar on the top of the page,
click Network. Click Advanced Settings... to expand the list and see all of the options.
60D-Link DSL-2885A User Manual
Section 4 - Conguration
DHCP Lease
Time:
Always
Broadcast:
UPnP:
IPv4 Multicast
Stream:
IPv6 Multicast
Stream:
Enter the length of time for the IP address lease in minutes.
Enable this feature to broadcast your networks DHCP server to LAN/
WLAN clients.
Enable or disable Universal Plug and Play (UPnP). UPnP provides
compatibility with networking equipment, software and peripherals.
Enable to allow IPv4 multicast trac to pass through the router from
the Internet.
Enable to allow IPv6 multicast trac to pass through the router from
the Internet.
Click Save when you are done.
61D-Link DSL-2885A User Manual
Section 4 - Conguration
SharePort

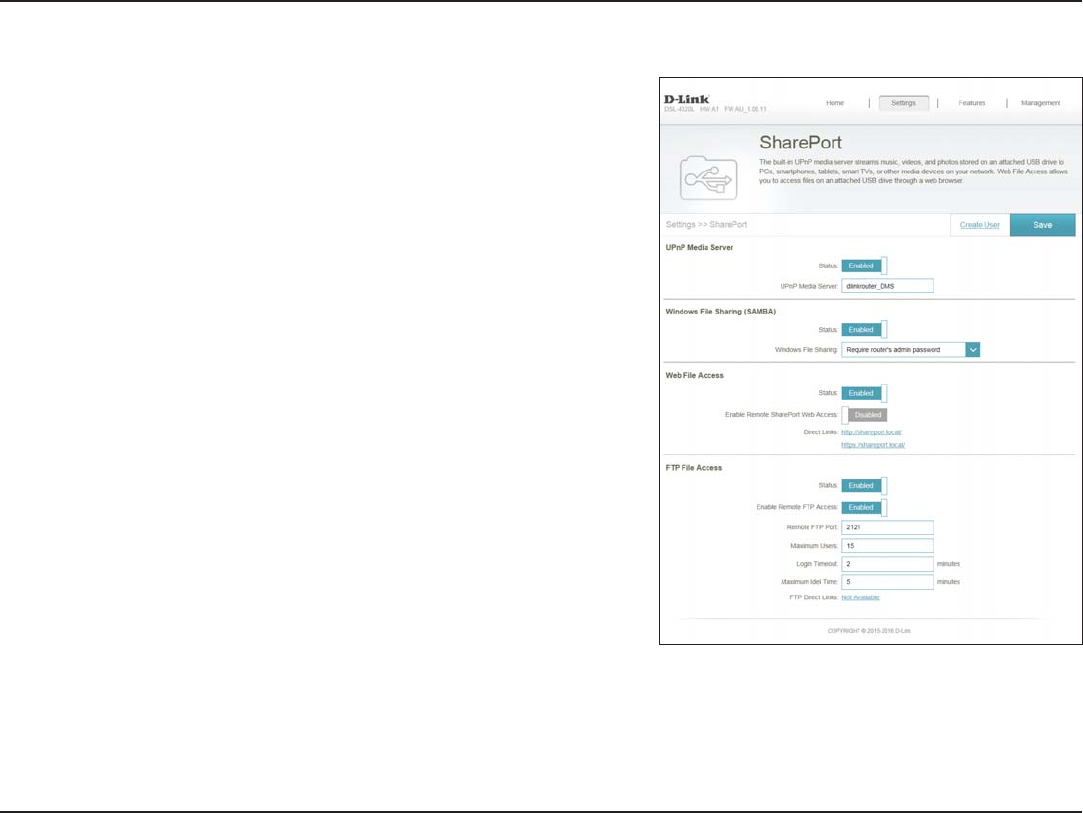

This page will allow you to set up access to les on an external USB device plugged
into the router. You can do this through the local network or from the Internet using
either a web browser or an app on your smartphone or tablet. In the Settings menu
on the bar on the top of the page, click SharePort.
Check to enable the media server functions, allowing connected
clients access to media les over the network.
Choose a name for your media server so that it can be found.
Choose either Allow all users to access (no password) or Require
router’s admin password to specify whether the router’s password
will be required for access.
Enable remote access to les stored on a USB device plugged into
the router through a web browser.
This area will display the HTTP and HTTPS links to connect to your
SharePort drive through a web browser from a device on your
network.
To allow le access via FTP, ensure that the Status is Enabled.
Enable Remote FTP Access allows users to access les from outside
the network via FTP. If this is enabled, enter the Remote FTP Port,
Maximum Users, Login Timeout, and the Maximum Idle Time.
Click Save when you are done.
Status:
UPnP Media
Server:
Windows
File Sharing
(SAMBA):
Web File Access:
Direct Links:
FTP File Access:
To manage user accounts for SharePort access, click Create User and refer to the
next page for details.
62D-Link DSL-2885A User Manual
Section 4 - Conguration

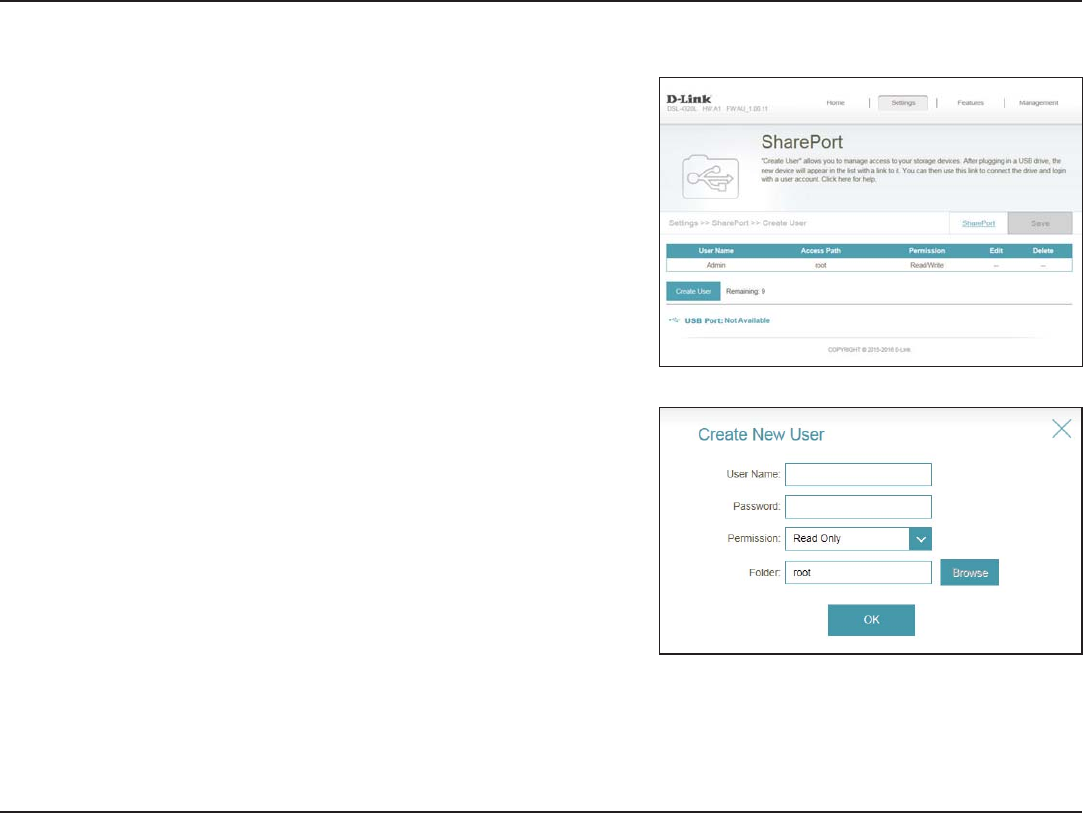

Create User
Enter the desired user name for the new account.
Enter the password which the user will need to enter when logging in.
Select either Read Only or Read/Write to control whether the user
can edit, add, or delete les on the device.
Choose the parent folder that the user will be able to access. Files
and folders on a higher level will be unavailable. “root” means that
the user can access all les on the device. To change the selected
folder, click Browse and browse to the desired folder.
Click OK when you are done. The new user should be added to the
list of user accounts. To save the new list, click Save. To return to the
SharePort page, click SharePort.
User Name:
Password:
Permission:
Folder:
The Create User page allows you to manage your SharePort user accounts. The current
list of user accounts will be displayed, along with their current permissions and access
path. If they do not have an account set up, users will be restricted to guest access;
only having access to the “Guest” folder on the media server. The router can store a
maximum of ten accounts (including the “Admin” account).
If you wish to remove an account, click on its trash can icon in the Delete column. If
you wish to edit an account, click on its pencil icon in the Edit column. If you wish to
create a new account, click the Create User button. If you edit or create a user, the
following options will appear:
65D-Link DSL-2885A User Manual
Section 4 - Conguration
Firewall Settings
Enable or disable Demilitarized Zone (DMZ). This completely exposes
the client to threats over the Internet, and is not recommended in
ordinary situations.
If you enabled DMZ, enter the IP address of the client you wish to
expose, or use the drop-down menu to quickly select it.
Enabling Stateful Packet Inspection (SPI) helps to prevent cyber
attacks by validating that the trac passing through the session
conforms to the protocol.
Enable this feature to protect your network from certain kinds of
“spoong” attacks.
Enable or disable IPv6 simple security.
Enable or disable IPv6 ingress ltering.
Allows multiple machines on the LAN to connect to their corporate
network using the PPTP protocol.
Enable DMZ:
DMZ IP
Address:
Enable SPI IPv4:
Enable
Anti-Spoof
Checking:
IPv6 Simple
Security:
IPv6 Ingress
Filtering:
PPTP:

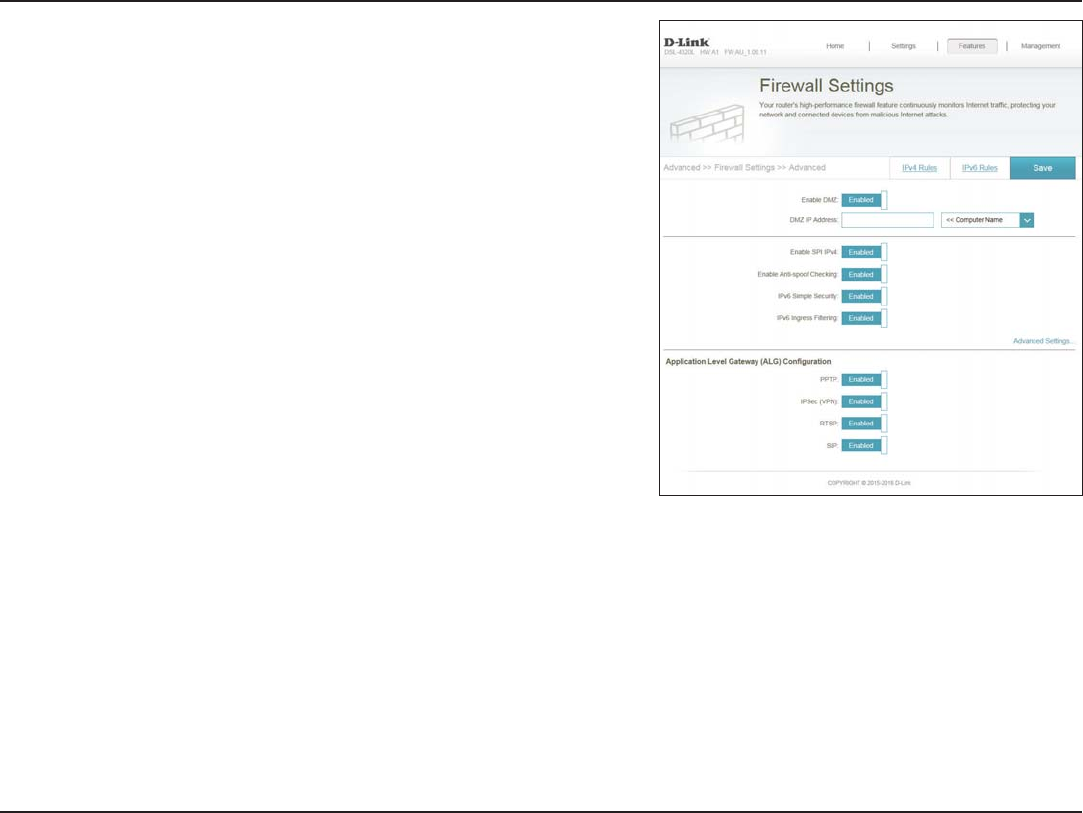

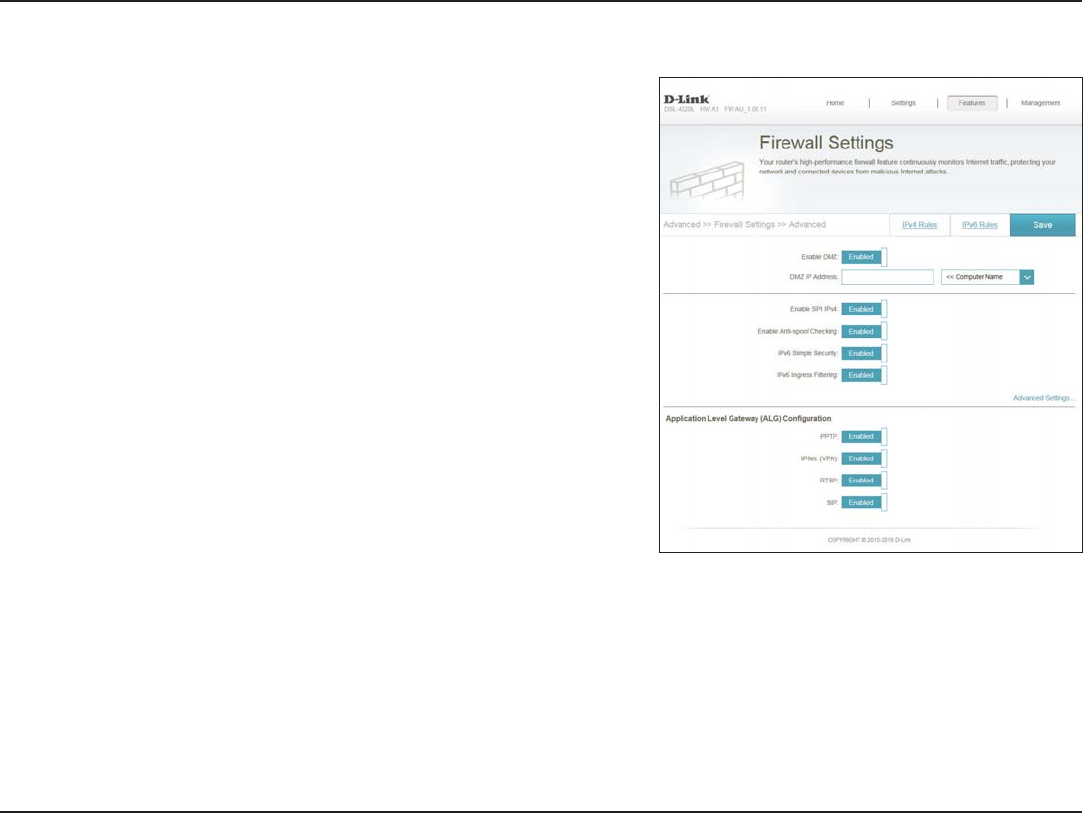

The router’s rewall protects your network from malicious attacks over the Internet.
In the Features menu on the bar on the top of the page, click Firewall Settings. Click
Advanced Settings... to expand the list and see all of the options.
66D-Link DSL-2885A User Manual
Section 4 - Conguration
Allows multiple VPN clients to connect to their corporate network
using IPSec. Some VPN clients support traversal of IPSec through
NAT. This Application Level Gateway (ALG) may interfere with the
operation of such VPN clients. If you are having trouble connecting
with your corporate network, try turning this ALG o. Please check
with the system administrator of your corporate network whether
your VPN client supports NAT traversal.
Allows applications that uses Real Time Streaming Protocol (RTSP)
to receive streaming media from the Internet.
Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG
may interfere with the operation of such devices. If you are having
trouble making VoIP calls, try turning this ALG o.
Click Save when you are done.
IPSec (VPN):
RTSP:
SIP:
67D-Link DSL-2885A User Manual
Section 4 - Conguration

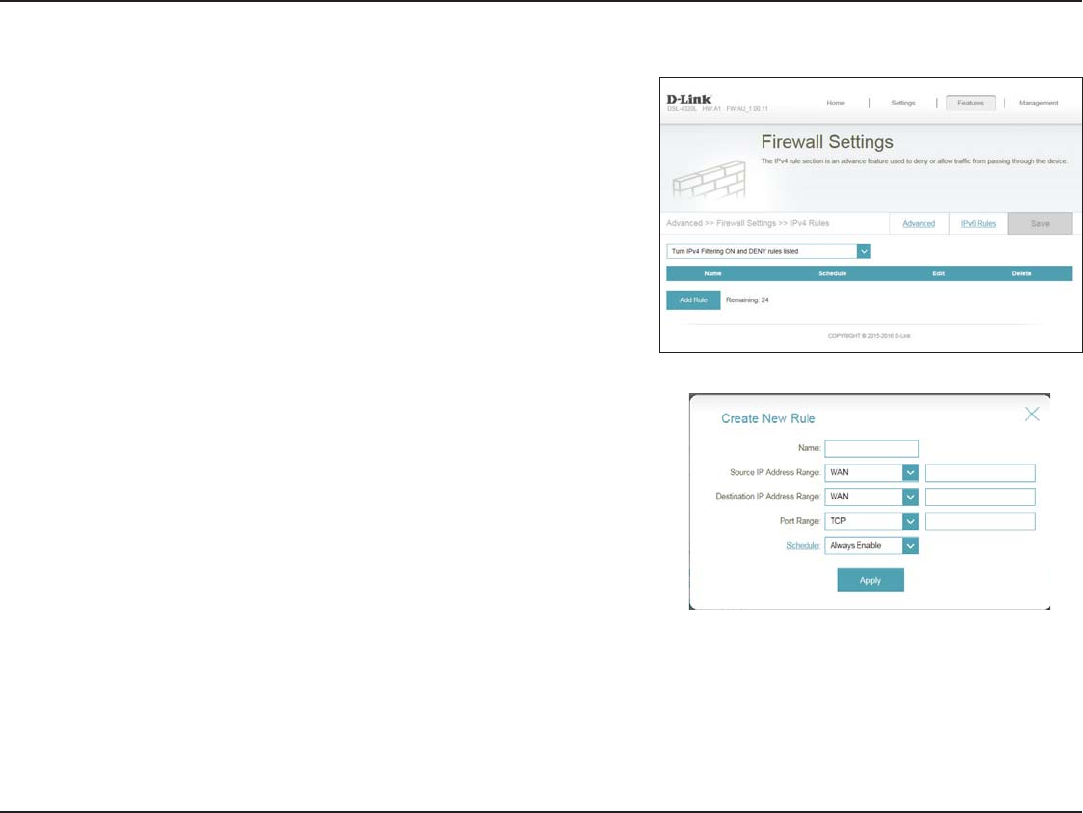

IPv4/IPv6 Rules
Enter a name for the rule.
Enter the source IP address range that the rule will apply to, and using
the drop-down menu, specify whether it is a WAN or LAN IP address.
Enter the destination IP address range that the rule will apply to, and
using the drop-down menu, specify whether it is a WAN or LAN IP
address.
Select the protocol of the trac to allow or deny (Any, TCP, or UDP)
and then enter the range of ports that the rule will apply to.
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Apply when you are done.
The IPv4/IPv6 Rules section is an advanced option that lets you congure what kind
of trac is allowed to pass through the network. To congure the IPv4 rules, from
the Firewall Settings page click IPv4 Rules. To congure IPv6 rules, from the Firewall
Settings page click IPv6 Rules. To return to the main Firewall Settings page, click
Security Check.
To begin, use the drop-down menu to select whether you want to ALLOW or DENY
the rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
Name:
Source IP
Address Range:
Destination IP
Address Range:
Port Range:
Schedule:
68D-Link DSL-2885A User Manual
Section 4 - Conguration

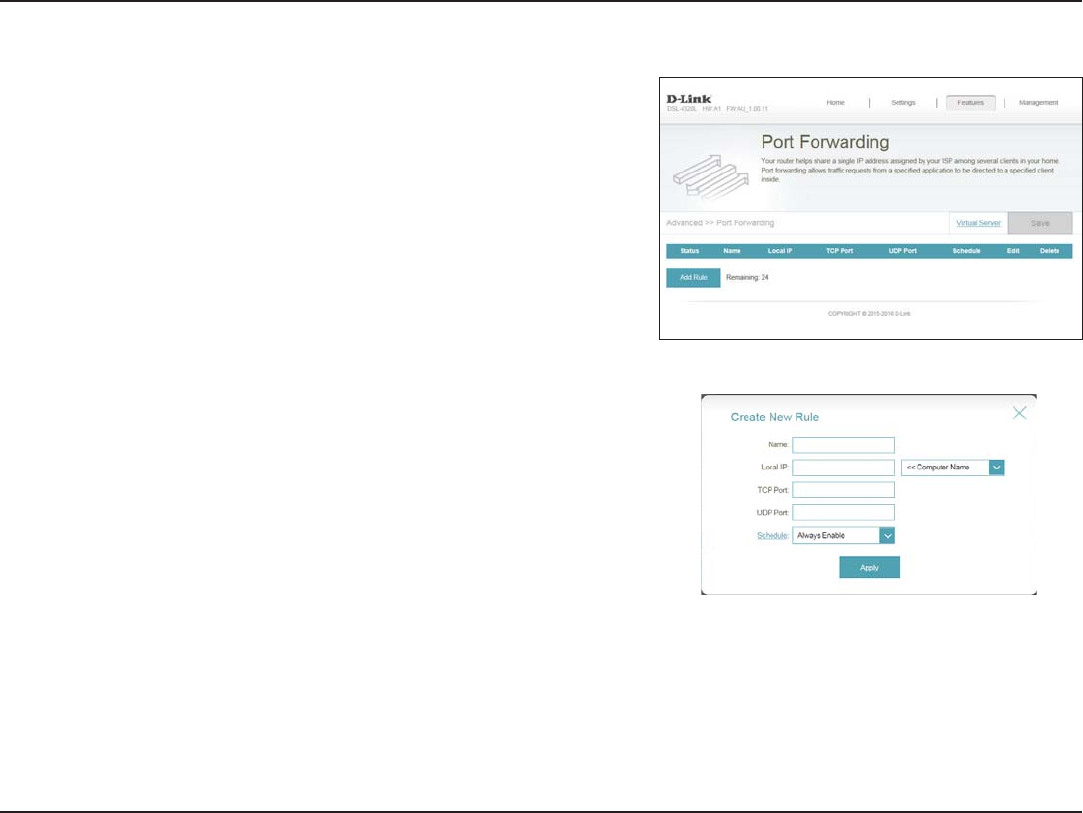

Port Forwarding
Enter a name for the rule.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Enter the TCP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Enter the UDP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to 76 for more information.
Click Apply when you are done.
Name:
Local IP:
TCP Port:
UDP Port:
Schedule:
Port forwarding allows you to specify a port or range of ports to open for specic
devices on the network. This might be necessary for certain applications to connect
through the router. In the Features menu on the bar on the top of the page, click
Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
69D-Link DSL-2885A User Manual
Section 4 - Conguration

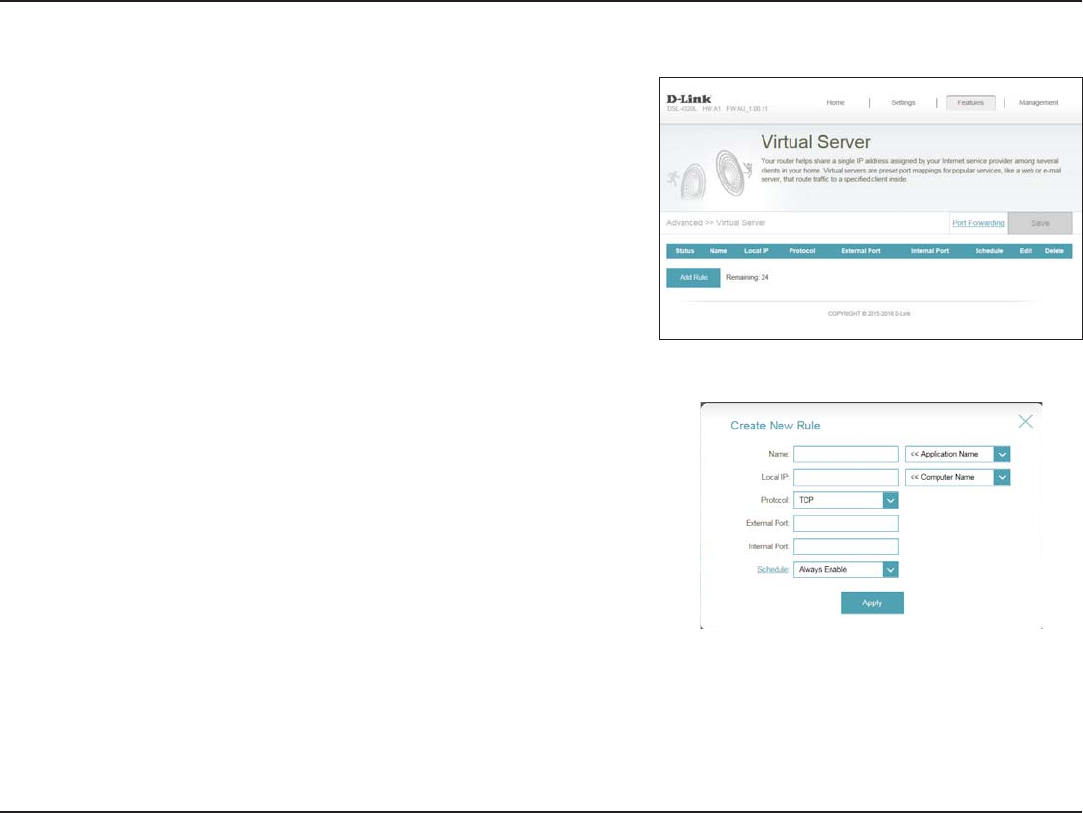

Virtual Server
Enter a name for the rule.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Select the protocol of the trac to allow or deny (TCP, UDP, Both,
or Other).
If you entered Other above, enter the protocol number.
Enter the public port you want to open.
Enter the private port you want to open.
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Apply when you are done.
The virtual server allows you to specify a single public port on your router for
redirection to an internal LAN IP Address and Private LAN port. To congure the
virtual server, from the Port Forwarding page click Virtual Server. To return to the
main Port Forwarding page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
Name:
Local IP:
Protocol:
Protocol
Number:
External Port:
Internal Port:
Schedule:
70D-Link DSL-2885A User Manual
Section 4 - Conguration

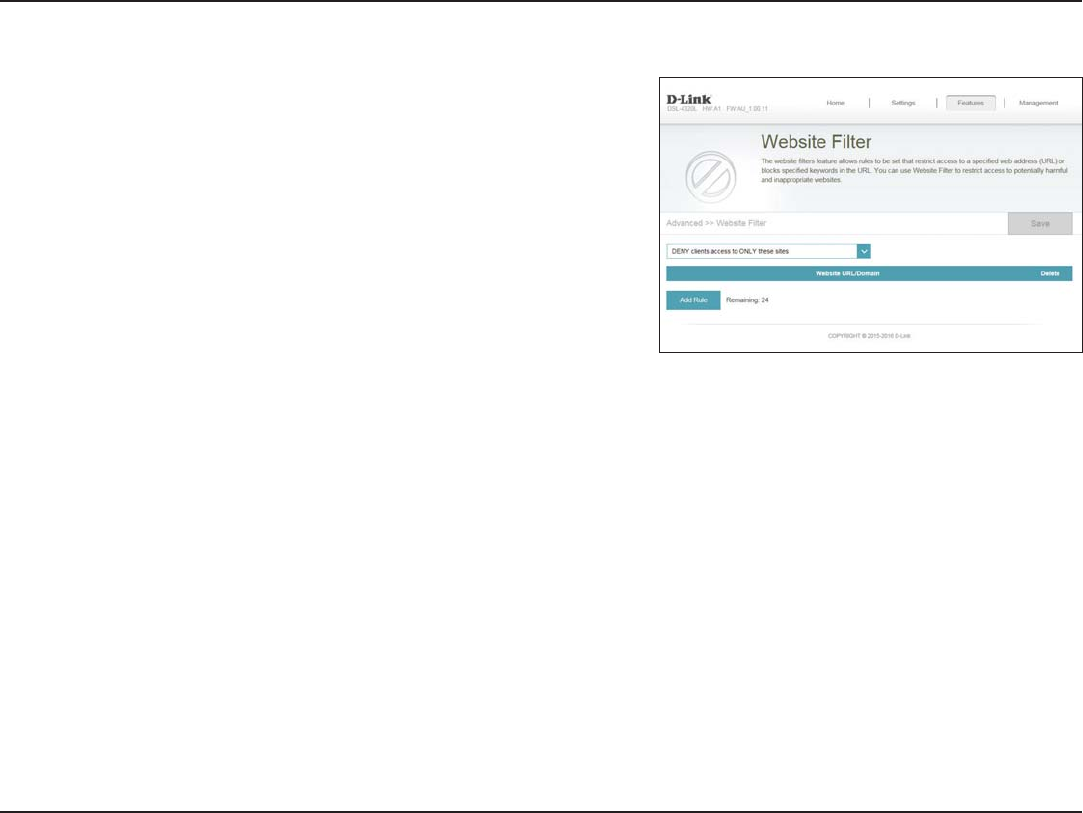

Website Filter
The website lter settings allow you to block access to certain web sites. You can
either create a list of sites to block, or create a list of sites to allow (with all other sites
being blocked).
In the Features menu on the bar on the top of the page, click Website Filter.
If you want to create a list of sites to block, select DENY computers access to ONLY
these sites from the drop-down menu. All other sites will be accessible. If you want
to specify a list of sites to allow, select ALLOW computers access to ONLY these
sites from the drop-down menu. All other sites will be blocked.
You may specify a maximum of fteen web sites. To add a new site to the list, click
Create New Rule. Next, under Website URL/Domain enter the URL or domain. If you
wish to remove a rule, click on its trash can icon in the Delete column. If you wish to
edit a rule, simply replace the URL or domain.
Click Save when you are done.
71D-Link DSL-2885A User Manual
Section 4 - Conguration

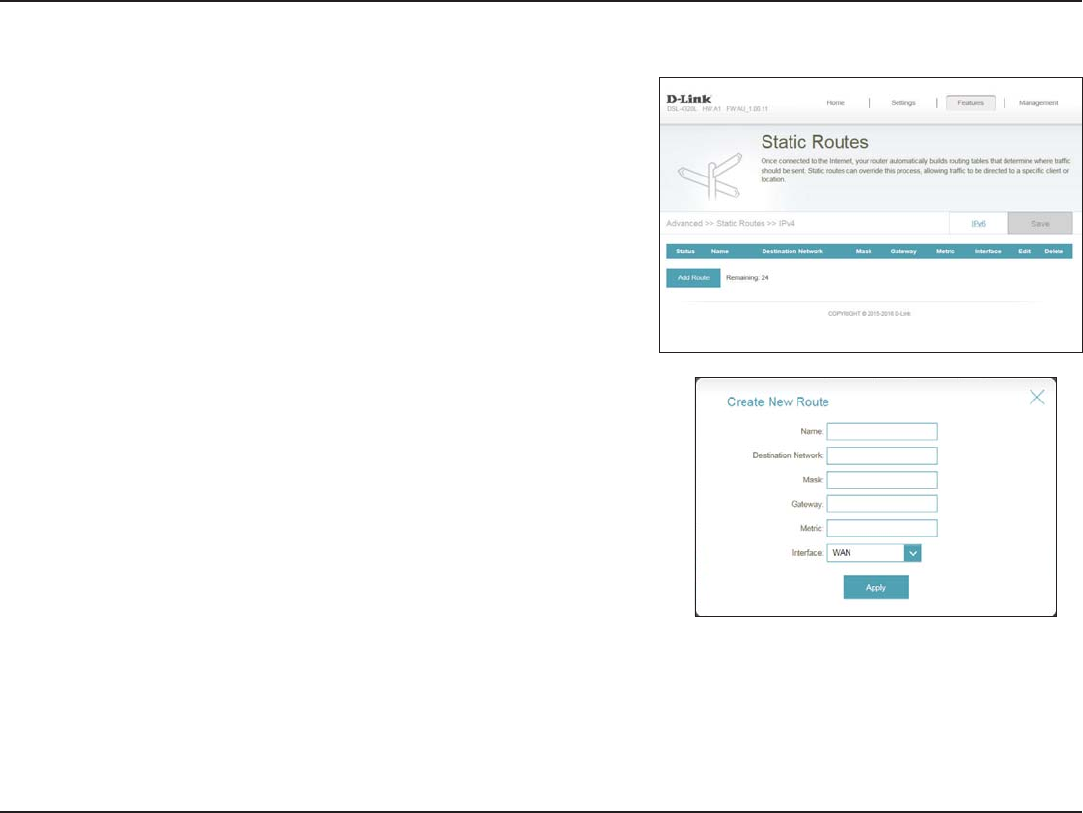

Static Routes
Enter a name for the rule.
Enter the IP address of packets that will take this route.
Enter the netmask of the route.
Enter your next hop gateway to be taken if this route is used.
The route metric is a value from 1 to 16 that indicates the cost of
using this route. A value 1 is the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Apply when you are done.
The Static Routes section allows you to dene custom routes to control how data
trac is moved around your network.
In the Features menu on the bar on the top of the page, click Static Routes.
To congure IPv6 rules, click IPv6 and refer to page 72 for more information. To
return to the main IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
72D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter a name for the rule.
This is the IP address of the router used to reach the specied
destination.
Enter the IPv6 address prex length of the packets that will take this
route.
Enter the metric value for this rule here.
Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Apply when you are done.
Name:
DestNetwork:
PrexLen:
Metric:
Interface:
IPv6
To congure IPv6 rules, on the Static Routes page click IPv6. To return to the main
IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
73D-Link DSL-2885A User Manual
Section 4 - Conguration

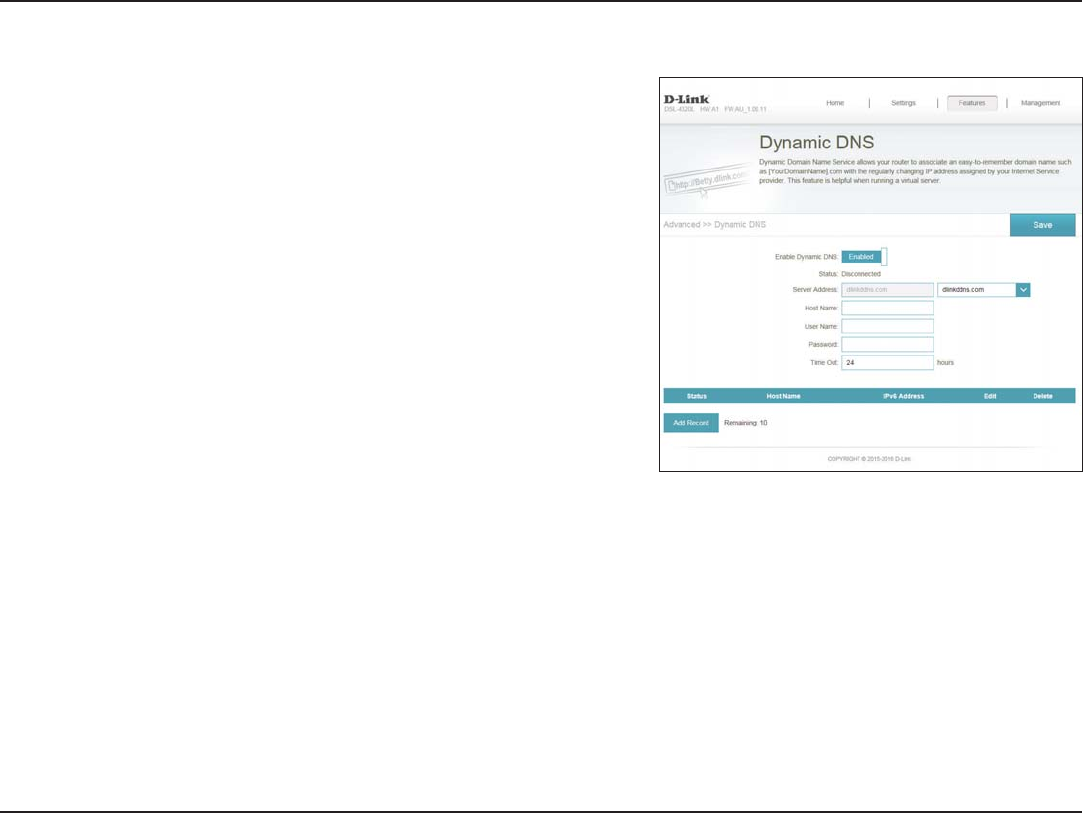

Dynamic DNS
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses. Using
a dynamic DNS service provider, people can enter your domain name in their web
browser to connect to your server no matter what your IP address is.
In the Features menu on the bar on the top of the page, click Dynamic DNS.
Enabling dynamic DNS will reveal further conguration options.
Displays the current dynamic DNS connection status.
Enter the address of your dynamic DNS server, or select one from
the drop-down menu.
Enter the host name that you registered with your dynamic DNS
service provider.
Enter your dynamic DNS username.
Enter your dynamic DNS password.
Enter a timeout time (in hours).
Click Save when you are done.
Enable
Dynamic DNS:
Status:
Server Address:
Host Name:
User Name:
Password:
Time Out:
At the bottom of the page are the IPv6 host settings. To congure an IPv6 dynamic
DNS host, refer to 74 for more information.
74D-Link DSL-2885A User Manual
Section 4 - Conguration
Enter the host name that you registered with your dynamic DNS
service provider.
Enter the IPv6 address of the dynamic DNS server. Alternatively, select
the server device in the drop-down menu.
Click Apply when you are done.
Host Name:
IPv6 Address:
The IPv6 host settings are found at the bottom of the Dynamic DNS page.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following options will appear:
IPv6 Host
75D-Link DSL-2885A User Manual
Section 4 - Conguration
Management
Time & Schedule
Time
The Time page allows you to congure, update, and maintain the correct time on
the internal system clock. From here you can set the time zone, the Network Time
Protocol (NTP) server, and enable or disable daylight saving time.
In the Management menu on the bar on the top of the page, click Time & Schedule.
Select your time zone from the drop-down menu.
Displays the current date and time of the router.
Enable or disable daylight saving time.
Enable or disable to allow an NTP server on the Internet to
synchronize the time and date with your router. If you enable this
option, select an NTP server from the drop-down menu. To congure
the router’stime and date manually, disable this option and use the
drop-down menus that appear to input the time and date.
Click Save when you are done.
Time Zone:
Time:
Daylight
Saving:
Update Time
Using an NTP
Server:
To congure and manage your schedules, click Schedule and refer to page 76 for
more information.
76D-Link DSL-2885A User Manual
Section 4 - Conguration
Schedule
Some conguration rules can be set according to a pre-congured schedule. To
create, edit, or delete schedules, from the Time page click Schedule. To return to
the Time page, click Time.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button. Click Save when you are done. If you edit or
create a rule, the following screen will appear:
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add a time
period to the schedule, simply click on the start hour and drag to the end hour. You
can add multiple days to the schedule, but only one period per day.
To remove a time period from the schedule, click on the cross icon.
Click Apply when you are done.
77D-Link DSL-2885A User Manual
Section 4 - Conguration

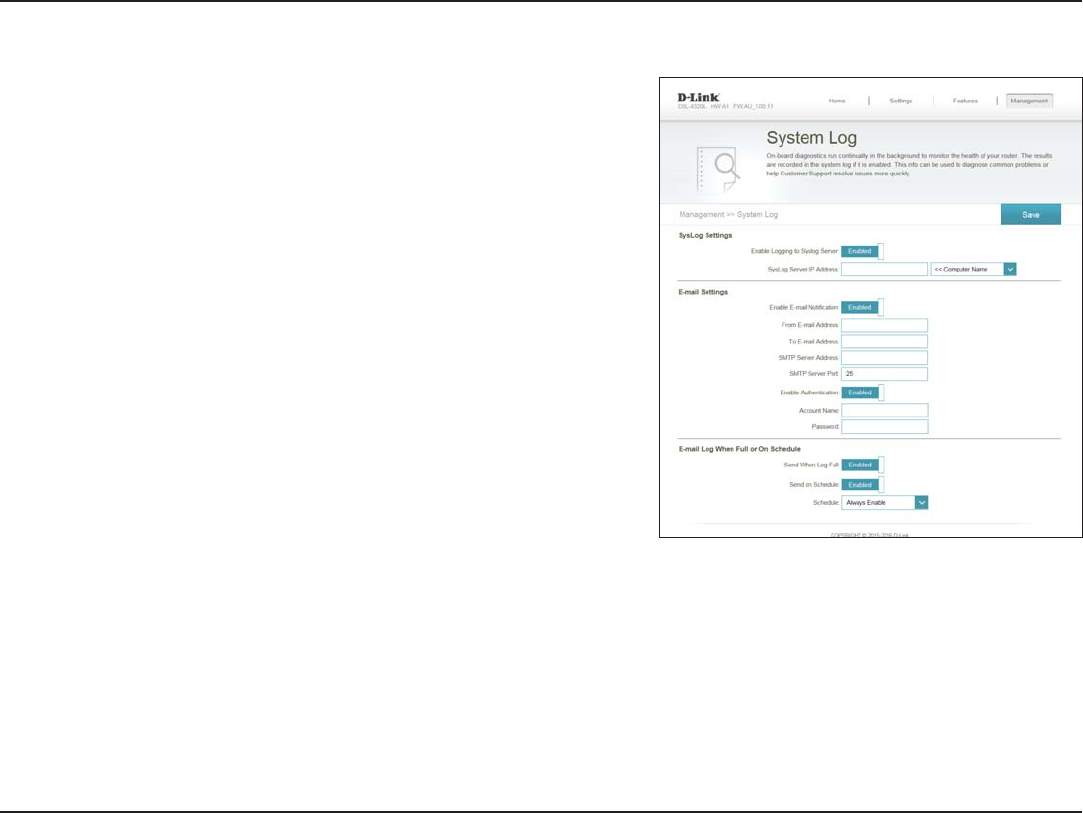

System Log
Check this box to send the router logs to a SysLog Server. If this is
disabled, there will be no other options on this page.
Enter the IP address for the Syslog server. If the Syslog server is
connected to the router, select it from the drop-down menu to
automatically populate the eld.
If you want the logs to be automatically sent to an email address,
enable this option.
Enter the settings for your email account. These are obtained from
your email service provider.
If email notication is enabled, this option will set the router to send
the log by email when the log is fully.
This option can be enabled to send an email according to a pre-
congured schedule. See below.
If you enable On Schedule is enabled, use the drop-down menu
to select the time schedule that the rule will be enabled on. The
schedule may be set to Always Enable, or you can create your own
schedules in the Schedules section. Refer to page 76 for more
information.
Click Save when you are done.
Enable Logging
to Syslog
Server:
Syslog Server IP
Address:
Enable Email
Notication:
On Log Full:
On Schedule:
Schedule:
The router keeps a running log of events. This log can be sent to a Syslog server, and
sent to your email address. In the Management menu on the bar on the top of the
page, click System Log.
78D-Link DSL-2885A User Manual
Section 4 - Conguration

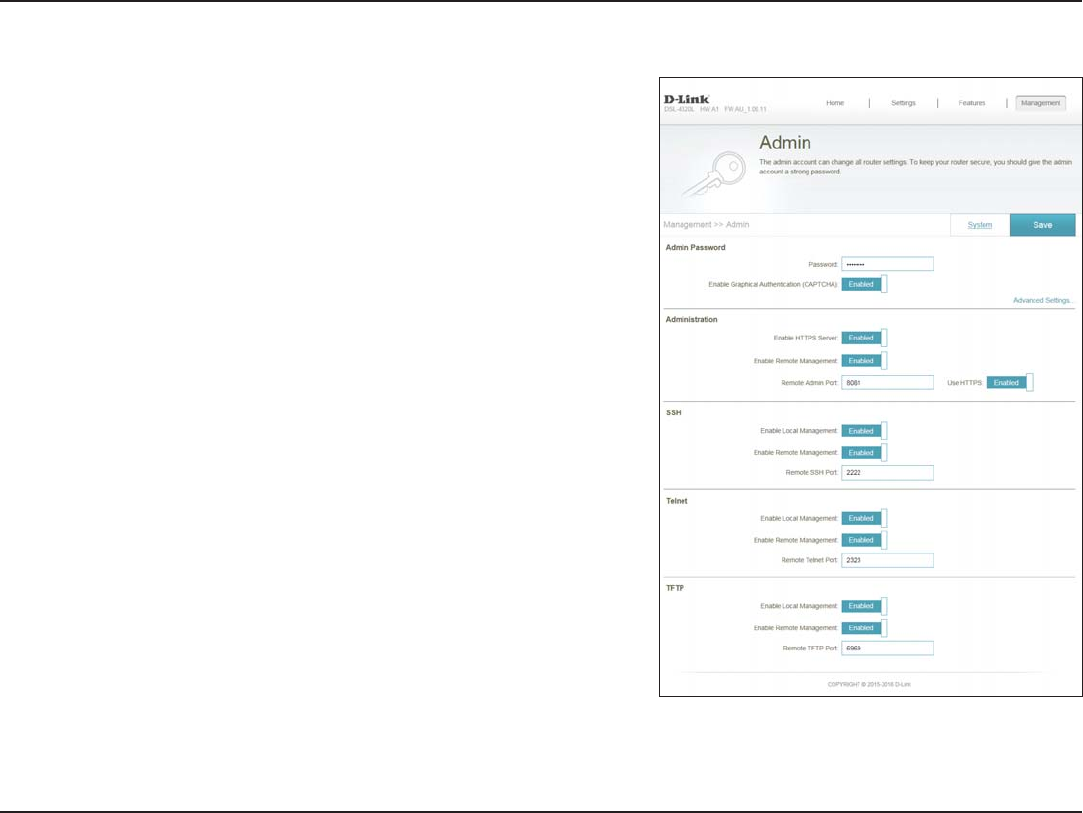

Admin
This page will allow you to change the administrator (Admin) password and enable
remote management.
In the Management menu on the bar on the top of the page, click Admin.
Enter a new password for the administrator account. You will need to
enter this password whenever you congure the router using a web
browser.
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from gaining access to your
router’s network settings.
Check to enable HTTPS to connect to the router securely. This means
to connect to the router, you must enter https://dlinkrouter.local./
instead of http://dlinkrouter.local./
Remote management allows the DSL-2885A to be congured from the
Internet by a web browser. A password is still required to access the web
management interface.
The port number used to access the DSL-2885A is used in the URL.
Example: http://x.x.x.x:8080 where x.x.x.x is the Internet IP address
of the DSL-2885A and 8080 is the port used for the web management
interface.
Note: If you enabled HTTPS Server and wish to access the router remotely
and securely, you must enter https:// at the beginning of the address.
Password:
Enable
Graphical
Authentication
(CAPTCHA):
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:
79D-Link DSL-2885A User Manual
Section 4 - Conguration
If you want to allow router setup via the SSH, telnet, or TFTP protocols,
you can congure it here.
For each protocol, click Enable Local Management to allow
administrators to congure the network from within, and/or Enable
Remote Management to allow administrators to congure the
network from outside.
If you enabled remote management, enter the remote port number
that the router will use for that protocol.
Click Save when you are done.
SSH / Telnet /
TFTP:
To load, save, or reset settings, or reboot the router, click Save.
91D-Link DSL-2885A User Manual
Section 4 - Conguration

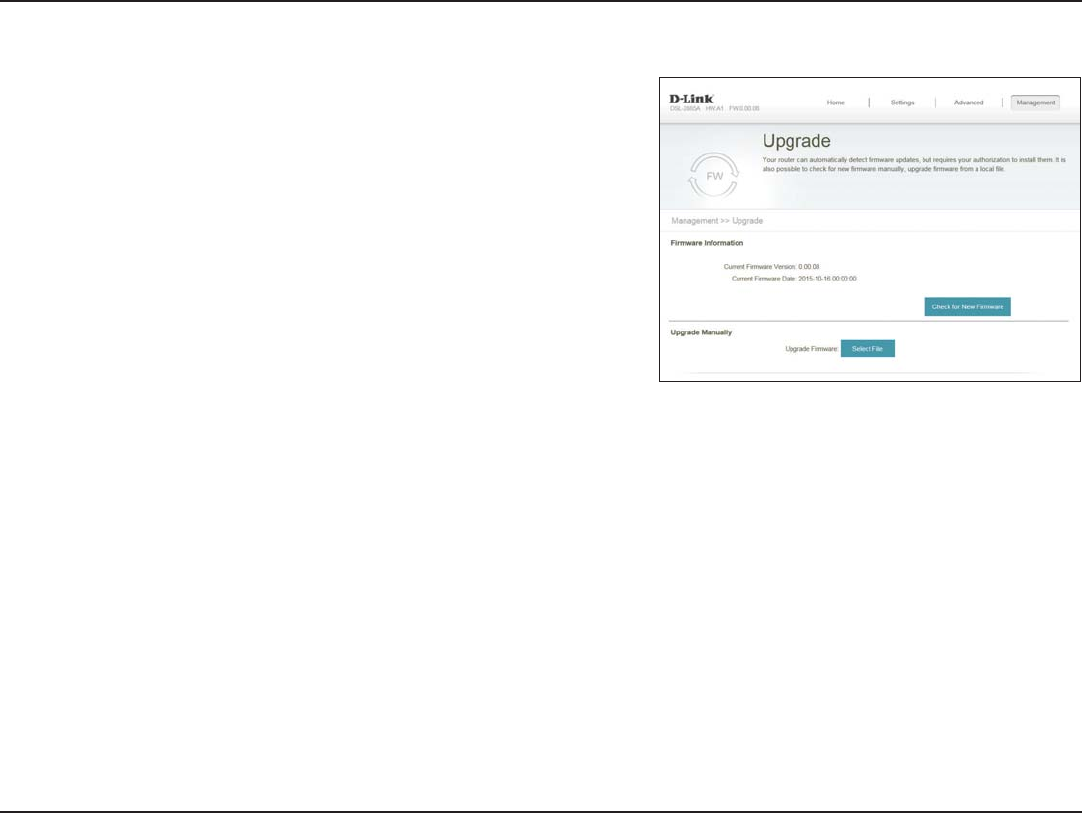

Upgrade
This page will allow you to upgrade the router’s rmware or language pack, either
automatically or manually. To manually upgrade the rmware or language pack, you
must rst download the relevant le from http://support.dlink.com.
In the Management menu on the bar on the top of the page, click Upgrade.
The current rmware’s version and date will be displayed.
Click this button to prompt the router to automatically check for a new
rmware version. If a newer version is found, it will prompt you to install
it.
If you wish to upgrade manually, rst download the rmware le you
wish to upgrade to. Next, click the Upgrade Firmware button and
browse to the le to install the new rmware. You can also browse to a
language pack le to install a new language pack.
Firmware
Information:
Check for New
Firmware:
Upgrade
Firmware:
92D-Link DSL-2885A User Manual
Section 4 - Conguration
Statistics
On the Statistics page you can view the amount of packets that pass through the
router on the WAN, LAN, and wireless segments.
In the Management menu on the bar on the top of the page, click Statistics.
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on the
respective tabs at the top. The graph will update in real time. To clear the information
on the graph, click Clear.
The trac counter will reset if the device is rebooted.
93D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
Connect a Wireless Client to your Router
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
The easiest and most secure way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most
wireless devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS
button (or a software utility with WPS) that you can press to connect to the DSL-2885A router. Please refer to your user manual
for the wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the DSL-2885A for about 1 second. The Internet LED on the front will start to blink.
Step 3 - Allow up to 1 minute for your connection to be congured. Once the Internet light stops blinking, you will be
connected and your wireless connection will be secure with WPA2.
WPS Button
94D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
Windows® 8
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being
used.
To join an existing network, locate the wireless network icon in the
taskbar next to the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks that are
within connecting proximity of your computer. Select the desired
network by clicking on the network name.
95D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
You will then be prompted to enter the network security key (Wi-Fi
password) for the wireless network. Enter the password into the box and
click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router,
you can also press the WPS button on your router during this step to
enable the WPS function.
When you have established a successful connection to a wireless
network, the word Connected will appear next to the name of the
network to which you are connected to.
96D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
Windows® 7
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
97D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
3. Highlight the wireless connection with Wi-Fi name (SSID) you would
like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to connect
to the router.
98D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase (Wi-Fi password) that is on
your router and click Connect. You can also connect by pushing the
WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as the one on the wireless
router.
99D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
WPS
The WPS feature of the DSL-2885A can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature:

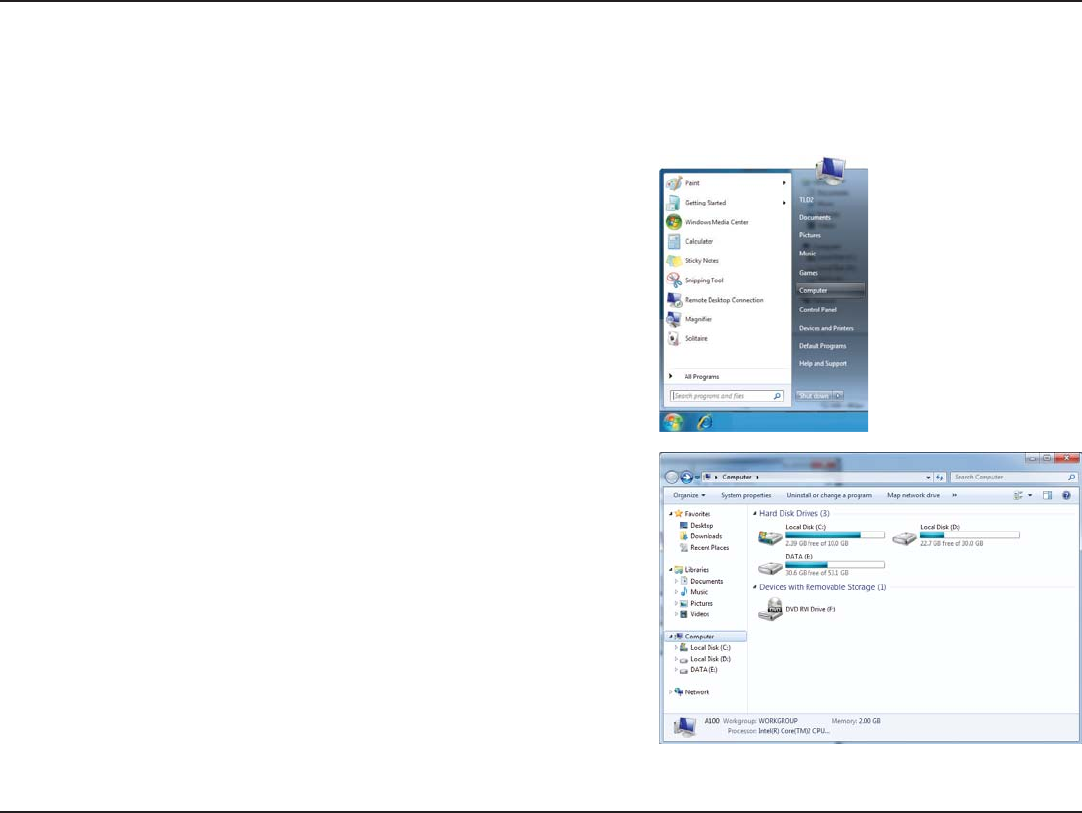

1. Click the Start button and select Computer from the Start menu.

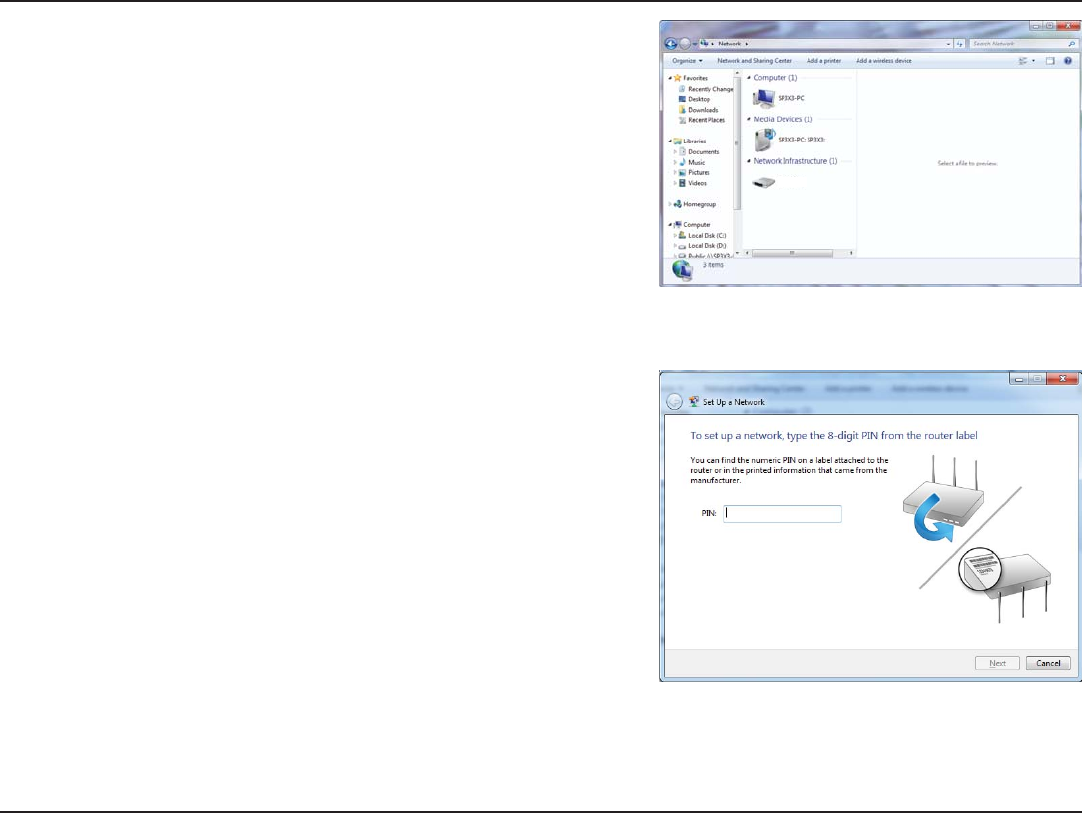

2. Click Network on the left side.
100D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
3. Double-click the DSL-2885A.
4. Input the WPS PIN number (on the router label) in the Setup >
Wireless Setup menu in the Router’s Web UI) and click Next.
DSL-2885A
101D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network

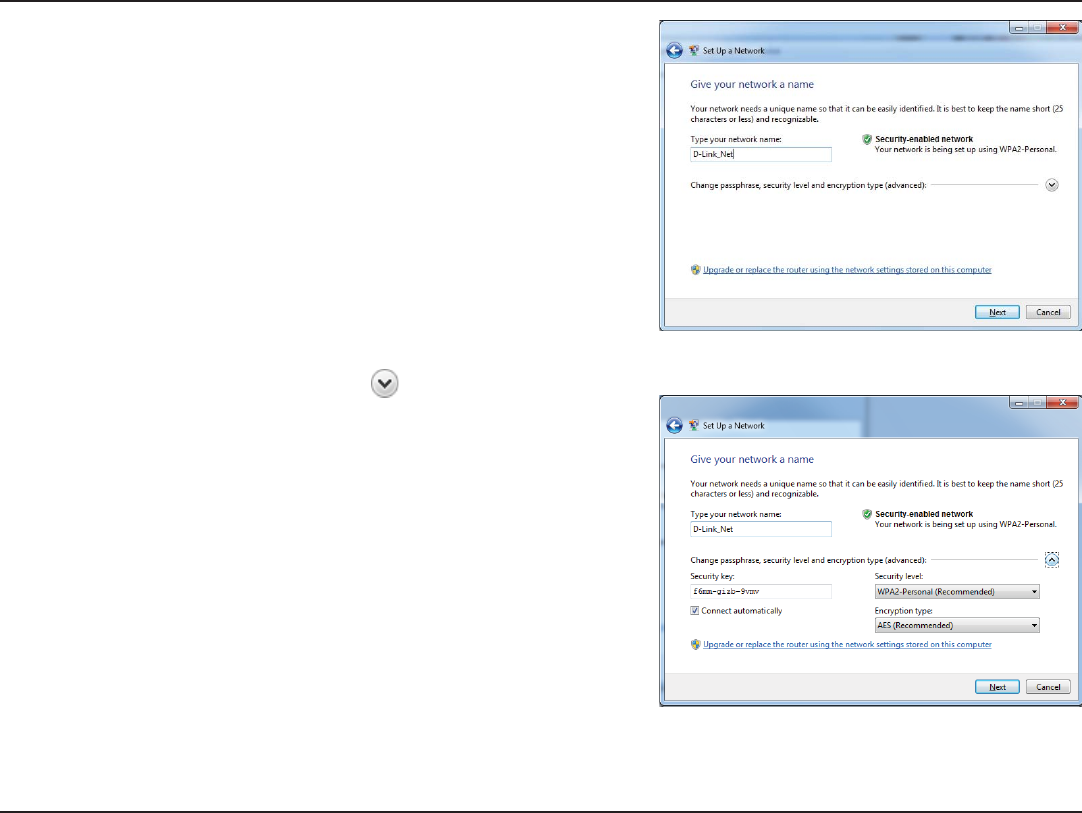

5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
102D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network

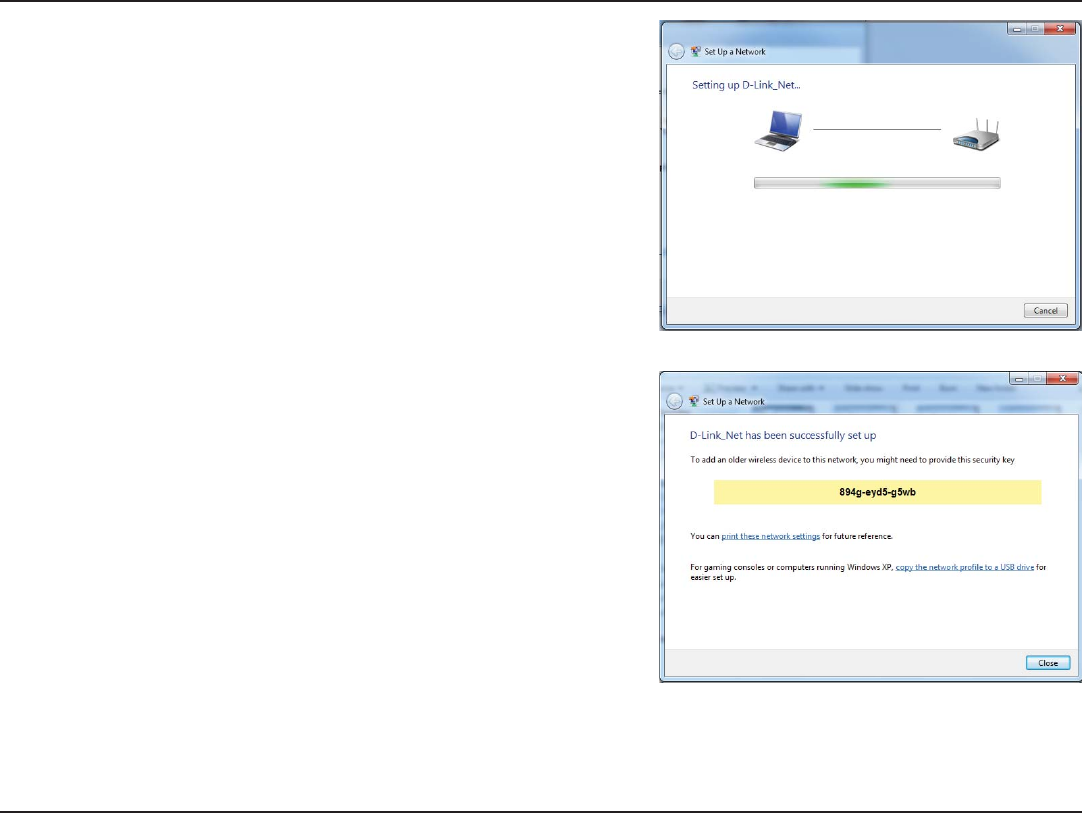

7. The following window appears while the Router is being congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has been
set up successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in the
future.
9. Click Close to complete WPS setup.
103D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s wireless utility, please refer to the
user manual of your wireless adapter for help connecting to a wireless network. Most wireless utilities will have a “site survey”
option similar to the Windows Vista® utility as seen below.

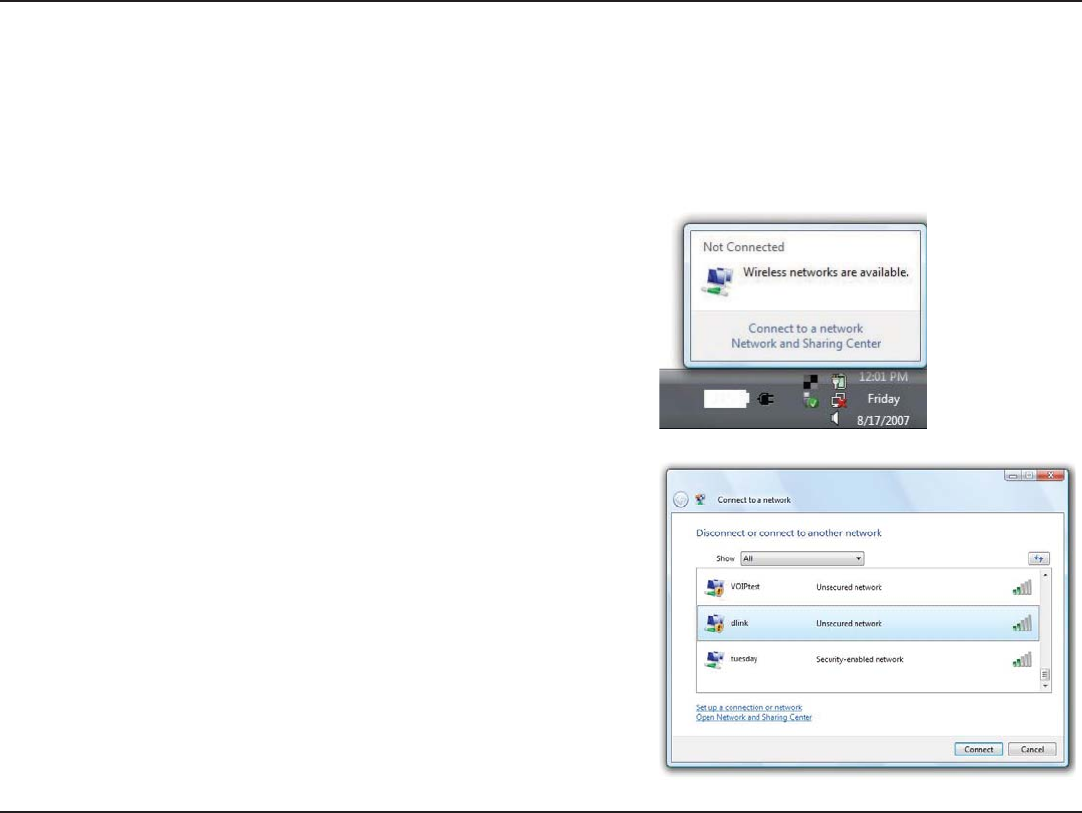

Right-click on the wireless computer icon in your system tray (lower-
right corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
104D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and
click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
105D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on
your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as the one on the wireless
router.
106D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-
right corner next to the time). Select View Available Wireless
Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a Wi-Fi network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
107D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the Wi-Fi network (SSID) you would like to connect to and
click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner of
screen). Select View Available Wireless Networks.
WPA/WPA2
108D-Link DSL-2885A User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-
PSK Wi-Fi password and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
Wi-Fi password must be exactly the same as on the wireless router.
109D-Link DSL-2885A User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DSL-2885A. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to these examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.1.1 for example), you are not connecting to a website, nor do you
have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 7 or higher
- Mozilla Firefox 3.5 or higher
- Google™ Chrome 8 or higher
- Apple Safari 4 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable, or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BLACKICE, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les
included with your rewall software for more information on disabling or conguring it.
110D-Link DSL-2885A User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.1.1. When logging in, leave the password box empty.
111D-Link DSL-2885A User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and
press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
112D-Link DSL-2885A User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a
fragmented packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say
that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with
(1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.1.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page for
the device.
• Click on Setup and then click Manual Congure.
• To change the MTU, enter the number in the MTU eld and click Save Settings to save your settings.
• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments
of ten.
113D-Link DSL-2885A User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when, and where you want it. You will be able to
enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports,
coee shops and universities. Innovative ways to utilize WLAN technology are helping people work, and communicate more
eciently. Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many
users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide
this link.
Wireless Basics
114D-Link DSL-2885A User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products.
D-Link delivers the performance you need at a price you can aord. D-Link has all the products you need to build your
network.
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networksl: Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point
has a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access
point the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places
like manufacturing plants, industrial locations, university and high school campuses, airports, golf courses, and many other
outdoor venues.
115D-Link DSL-2885A User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce,
business, D-Link has a wireless solution for it.
Home Uses/Benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce Uses/Benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
116D-Link DSL-2885A User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link CardBus adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations
like: airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a
two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
117D-Link DSL-2885A User Manual
Appendix A - Wireless Basics
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to the product manual for detail information on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-hoc – Directly connecting to another computer for peer-to-peer communication using wireless network
adapters on each computer, such as two or more DSL-2885A wireless network CardBus adapters.
An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-hoc network contains only clients, such as laptops with wireless CardBus adapters. All the adapters must be in Ad-hoc
mode to communicate.
Wireless Modes
118D-Link DSL-2885A User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings on
your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
119D-Link DSL-2885A User Manual
Appendix B - Networking Basics

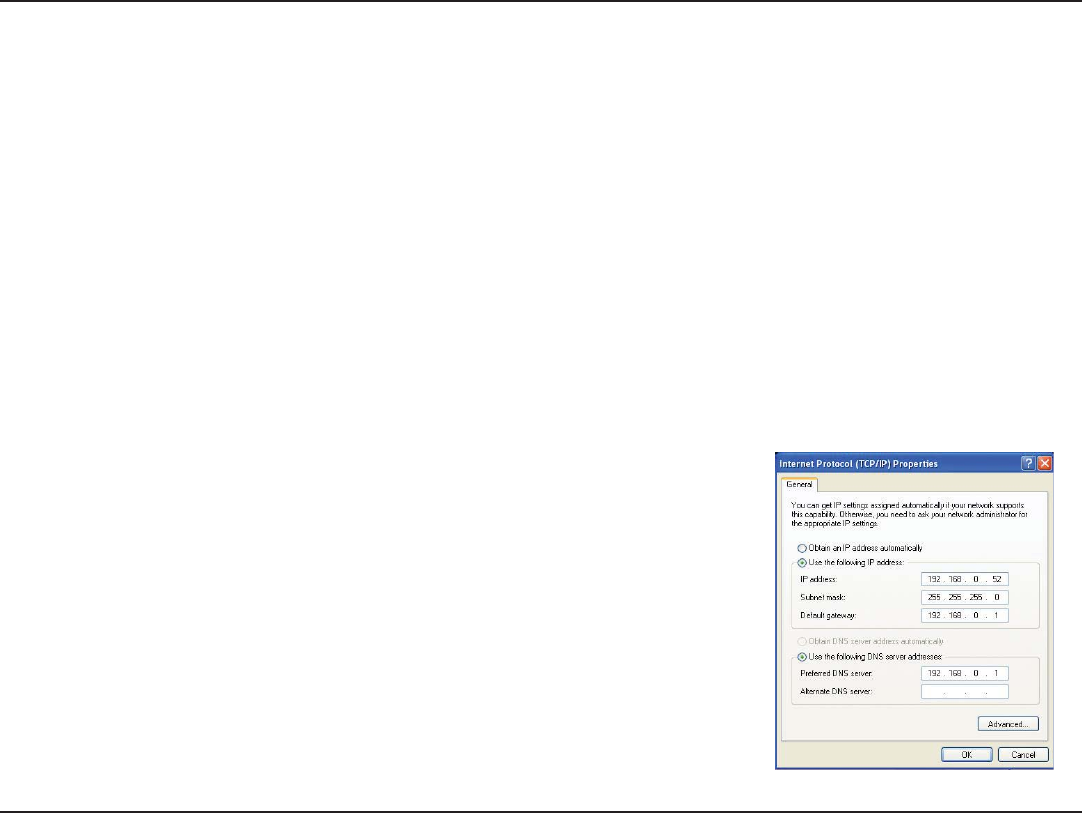

Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage
Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not
in use on the network. Set the Default Gateway the same as the LAN IP address of your
router (I.E. 192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
120D-Link DSL-2885A User Manual
Appendix B - Networking Basics
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DSL-2885A oers the
following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing
algorithm and by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is
based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple
to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public
key encryption system to ensure that only authorized network users can access the network.
121D-Link DSL-2885A User Manual
Appendix C - Technical Specications
Technical Specications
Device Interfaces
• One RJ-11 xDSL port
• 802.11 ac/n/g/b Wireless LAN
• One 10/100/1000 Gigabit WAN port
• Four 10/100/1000 Gigabit LAN ports
• Two USB 2.0 ports
Antenna Types
• Three external removable MIMO antennas
Standards
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3x
Security
• WPA™ - Personal/Enterprise
• WPA2™ - Personal/Enterprise
• Wi-Fi Protected Setup (WPS) PIN/PBC
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC, 2 A
Operating Temperature
• 0 to 45 °C (32 to 113 °F)
Storage Temperature
• -20 to 70 °C (-4 to 158 °F)
Operating Humidity
• 10% to 95% maximum (non-condensing)
Certications
• CE
• FCC
• LVD
• RCM
Dimensions
• 230 mm (9.05 inches)
• 155 mm (6.10 inches)
• 37 mm (1.45 inches)
Weight
• 523 grams (1.15 pounds)
Note:
• Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors, including
volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
• Frequency Range varies depending on country’s regulation.
122D-Link DSL-2885A User Manual 122
Appendix D - Regulatory Statements
Regulatory Statements
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Non-modications Statement:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance
with FCC multi-transmitter product procedures. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
Note
The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in
the USA must be xed to USA operational channels only.
123D-Link DSL-2885A User Manual 123
Appendix D - Regulatory Statements
RF Frequency Requirements
This device is for indoor use only when using all channels in the 5.150 GHz-5.250 GHz, and 5.725 GHz-5.850 GHz frequency range.
High power radars are allocated as primary users of the 5.150 GHz-5.250 GHz, 5.250 GHz-5.350 GHz, and 5.725 GHz-5.850 GHz bands.
These radar stations can cause interference with and/or damage this device.
It is restricted to indoor environments only.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement
This equipm,ent complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This equipemnt should be installed
and operated with minimum distance 25cm between the radiator and your body .
Non-Applicability of Warranty:
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Coporation, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming
124D-Link DSL-2885A User Manual 124
Appendix D - Regulatory Statements
Customer Information:
(1) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On bottom of this equipment is a label
that contains, among other information, a product identier of TBC. If requested, this number must be provided to the telephone company.
(2) If this equipment Wireless AC1200 Dual-Band Gigabit ADSL2+/VDSL2 Modem Router causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the
telephone company will notify the customer as soon as possible. Also you will be advised of your right to le a complaint with the FCC if you
believe it is necessary.
(3) The telephone company may make changes in its facilities, equipment, operations or procedures that could aect the operation of the
equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modication to maintain
uninterrupted service.
(4) If you experience trouble with this equipment, disconnect it from the network until the problem has been corrected or until you are sure that
the equipment is not malfunctioning.
(5) Please follow instructions for repairing, if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device
except specied.
(6) Connection to party line service is subject to state taris. Contact the state public utility commission, public service commission or
corporation commission for information.
(7) If the telephone company requests information on what equipment is connected to their lines, inform them of:
(a) The telephone number that this unit is connected to,
(b) The ringer equivalence number 0,
(c) The USOC jack required 0, and
(d) The FCC Registration Number TBC
Items (b) and (d) are indicated on the label. The ringer equivalence number (REN) is used to determine how many devices can be connected
to your telephone line. In most areas, the sum of the RENs of all devices on any one line should not exceed ve (5.0). If too many devices are
attached, they may not ring properly.
(8) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable
alarm equipment, consult your telephone company or a qualied installer.
125D-Link DSL-2885A User Manual 125
Appendix D - Regulatory Statements
European Union:
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. For more information, please refer to the Declaration of
Conformity.
Notice of Wireless Radio LAN Usage in The European Community:
• At the time of writing this addendum, some countries such as Italy, Greece, Portugal, and Spain have not allowed operation of radio devices
in the 5 GHz bands, although operation of 2.4 GHz radio devices is allowed. Please check with your local authority to conrm.
• This device is restricted to indoor use when operated in the European Community using channels in the 5.15-5.35 GHz band to reduce the
potential for interference.
• This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in
France where restrictive use applies. This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 –2483.5 MHz. For detailed information the end-user should contact the
national spectrum authority in France.
This equipment may be operated in AL, AD, BE, BG, DK, DE, FI, FR, GR, GW, IS, IT, HR, LI, LU, MT, MK, MD, MC, NL, NO, AT, OL, PT, RO, SM, SE, RS, SK,
ES, CI, HU, CY
Usage Notes:
• To remain in conformance with European National spectrum usage regulations, frequency and channel limitations will be applied on the
products according to the country where the equipment will be deployed.
• This device is restricted from functioning in Ad-hoc mode while operating in 5 GHz. Ad-hoc mode is direct peer-to-peer communication
between two client devices without an Access Point.
• Access points will support DFS (Dynamic Frequency Selection) and TPC (Transmit Power Control) functionality as required when operating in
5 GHz within the EU.
126D-Link DSL-2885A User Manual 126
Appendix D - Regulatory Statements
2.4 GHz Wireless Frequency and Channel Operation in EEC Countries:
Region Frequency Band Max output power (EIRP)
Metropolitan 2400 - 2454 MHz 100 mW
Guadeloupe, Martinique, StPierre et
Miquelon, Mayotte
2454 - 2483.5 MHz 100 mW indoor, 10 mW outdoor
Reunion et Guyane 2400 - 2483.5 MHz 100 mW
Rest of EU community 2420 - 2483.5 MHz 100 mW
R&TTE 1999/5/EC
WLAN 2.4 - 2.4835 GHz
IEEE 802.11b/g/n
Spectrum Regulation MHz, Europa (ETSI) max. EIRP Innenbereich max. EIRP Außenbereich
Europa 2400 - 2483.5 MHz 100 mW 100 mW
Frankreich 2400 - 2454 MHz 100 mW 100 mW
2454 - 2483.5 MHz 100 mW 10 mW
127D-Link DSL-2885A User Manual 127
Appendix D - Regulatory Statements
5 GHz Wireless Frequency and Channel Operation in EEC Countries:
Allowable 802.11a Frequencies and Channels Countries
5.15-5.25 GHz
(Channels 36, 40, 44, 48)
Liechtenstein
5.15-5.25 GHz & 5.725-5.875 GHz
(Channels 36, 40, 44, 48, 149, 153, 157, 161, 165, 169)
Austria
5.15-5.35 GHz
(Channels 36, 40, 44, 48, 52, 56, 60, 64)
France
5.15-5.35 & 5.47-5.725 GHz
(Channels 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136,
140)
Denmark, Germany, Iceland, Finland, Netherlands,
Norway, Poland, Sweden, Slovenia, Luxembourg, U.K.,
Ireland, Slovak, Switzerland, Hungary, Italy
5.15-5.35 GHz & 5.725-5.875 GHz
(Channels 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165, 169)
Czech Republic
128D-Link DSL-2885A User Manual 128
Appendix D - Regulatory Statements
European Community Declaration of Conformity:
Česky [Czech] D-Link tímto prohlašuje, že tento DSL-2885A je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede D-Link erklærer herved, at følgende udstyr DSL-2885A overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt D-Link, dass sich das Gerät DSL-2885A in Übereinstimmung mit den grundlegenden Anforderungen
und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian] Käesolevaga kinnitab D-Link seadme DSL-2885A vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English D-Link hereby, declares that this DSL-2885A is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente D-Link declara que el DSL-2885A cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ D-Link ΔΗΛΩΝΕΙ ΟΤΙ DSL-2885A ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente D-Link déclare que l'appareil DSL-2885A est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente D-Link dichiara che questo DSL-2885A è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo D-Link deklarē, ka DSL-2885A atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių [Lithuanian] Šiuo D-Link deklaruoja, kad šis DSL-2885A atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart D-Link dat het toestel DSL-2885A in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, D-Link, jiddikjara li dan DSL-2885A jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn
relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, D-Link nyilatkozom, hogy a DSL-2885A megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
129D-Link DSL-2885A User Manual 129
Appendix D - Regulatory Statements
Polski [Polish] Niniejszym D-Link oświadcza, że DSL-2885A jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] D-Link declara que este DSL-2885A está conforme com os requisitos essenciais e outras disposições da Directiva
1999/5/CE.
Slovensko [Slovenian] D-Link izjavlja, da je ta DSL-2885A v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/
ES.
Slovensky [Slovak] D-Link týmto vyhlasuje, že DSL-2885A spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/
ES.
Suomi [Finnish] D-Link vakuuttaa täten että DSL-2885A tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Warning Statement:
The power outlet should be near the device and easily accessible.
130D-Link DSL-2885A User Manual 130
Appendix D - Regulatory Statements
Disposing of and Recycling Your Product
ENGLISH EN
This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed
of in household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has
reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to
conserve the environment and protect human health.
D-Link and the Environment
At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise
this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both
products and packaging.
D-Link recommends that you always switch o or unplug your D-Link products when they are not in use. By doing so you will help to save energy
and reduce CO2 emissions.
To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com.
DEUTSCH DE
Dieses Symbol auf dem Produkt oder der Verpackung weist darauf hin, dass dieses Produkt gemäß bestehender örtlicher Gesetze
und Vorschriften nicht über den normalen Hausmüll entsorgt werden sollte, sondern einer Wiederverwertung zuzuführen ist. Bringen
Sie es bitte zu einer von Ihrer Kommunalbehörde entsprechend amtlich ausgewiesenen Sammelstelle, sobald das Produkt das Ende
seiner Nutzungsdauer erreicht hat. Für die Annahme solcher Produkte erheben einige dieser Stellen keine Gebühren. Durch ein auf
diese Weise durchgeführtes Recycling des Produkts und seiner Verpackung helfen Sie, die Umwelt zu schonen und die menschliche
Gesundheit zu schützen.
D-Link und die Umwelt
D-Link ist sich den möglichen Auswirkungen seiner Geschäftstätigkeiten und seiner Produkte auf die Umwelt bewusst und fühlt sich verpichtet,
diese entsprechend zu mindern. Zu diesem Zweck entwickelt und stellt D-Link seine Produkte mit dem Ziel größtmöglicher Umweltfreundlichkeit
her und verwendet wiederverwertbare, schadstoarme Materialien bei Produktherstellung und Verpackung.
D-Link empehlt, Ihre Produkte von D-Link, wenn nicht in Gebrauch, immer auszuschalten oder vom Netz zu nehmen. Auf diese Weise helfen
Sie, Energie zu sparen und CO2-Emissionen zu reduzieren.
Wenn Sie mehr über unsere umweltgerechten Produkte und Verpackungen wissen möchten, nden Sie entsprechende Informationen im Internet
unter www.dlinkgreen.com.
131D-Link DSL-2885A User Manual 131
Appendix D - Regulatory Statements
FRANÇAIS FR
Ce symbole apposé sur le produit ou son emballage signie que, conformément aux lois et règlementations locales, ce produit ne
doit pas être éliminé avec les déchets domestiques mais recyclé. Veuillez le rapporter à un point de collecte prévu à cet eet par les
autorités locales; certains accepteront vos produits gratuitement. En recyclant le produit et son emballage de cette manière, vous
aidez à préserver l’environnement et à protéger la santé de l’homme.
D-Link et l’environnement
Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter
cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement
toxiques, tant dans ses produits que ses emballages.
D-Link recommande de toujours éteindre ou débrancher vos produits D-Link lorsque vous ne les utilisez pas. Vous réaliserez ainsi des économies
d’énergie et réduirez vos émissions de CO2.
Pour en savoir plus sur les produits et emballages respectueux de l’environnement, veuillez consulter le www.dlinkgreen.com.
ESPAÑOL ES
Este símbolo en el producto o el embalaje signica que, de acuerdo con la legislación y la normativa local, este producto no se debe
desechar en la basura doméstica sino que se debe reciclar. Llévelo a un punto de recogida designado por las autoridades locales una
vez que ha llegado al n de su vida útil; algunos de ellos aceptan recogerlos de forma gratuita. Al reciclar el producto y su embalaje
de esta forma, contribuye a preservar el medio ambiente y a proteger la salud de los seres humanos.
D-Link y el medio ambiente
En D-Link, comprendemos y estamos comprometidos con la reducción del impacto que puedan tener nuestras actividades y nuestros productos
en el medio ambiente. Para reducir este impacto, D-Link diseña y fabrica sus productos para que sean lo más ecológicos posible, utilizando
materiales reciclables y de baja toxicidad tanto en los productos como en el embalaje.
D-Link recomienda apagar o desenchufar los productos D-Link cuando no se estén utilizando. Al hacerlo, contribuirá a ahorrar energía y a reducir
las emisiones de CO2.
Para obtener más información acerca de nuestros productos y embalajes ecológicos, visite el sitio www.dlinkgreen.com.
132D-Link DSL-2885A User Manual 132
Appendix D - Regulatory Statements
ITALIANO IT
La presenza di questo simbolo sul prodotto o sulla confezione del prodotto indica che, in conformità alle leggi e alle normative locali,
questo prodotto non deve essere smaltito nei riuti domestici, ma avviato al riciclo. Una volta terminato il ciclo di vita utile, portare il
prodotto presso un punto di raccolta indicato dalle autorità locali. Alcuni questi punti di raccolta accettano gratuitamente i prodotti
da riciclare. Scegliendo di riciclare il prodotto e il relativo imballaggio, si contribuirà a preservare l'ambiente e a salvaguardare la
salute umana.
D-Link e l'ambiente
D-Link cerca da sempre di ridurre l'impatto ambientale dei propri stabilimenti e dei propri prodotti. Allo scopo di ridurre al minimo tale impatto,
D-Link progetta e realizza i propri prodotti in modo che rispettino il più possibile l'ambiente, utilizzando materiali riciclabili a basso tasso di
tossicità sia per i prodotti che per gli imballaggi.
D-Link raccomanda di spegnere sempre i prodotti D-Link o di scollegarne la spina quando non vengono utilizzati. In questo modo si contribuirà
a risparmiare energia e a ridurre le emissioni di anidride carbonica.
Per ulteriori informazioni sui prodotti e sugli imballaggi D-Link a ridotto impatto ambientale, visitate il sito all'indirizzo www.dlinkgreen.com.
NEDERLANDS NL
Dit symbool op het product of de verpakking betekent dat dit product volgens de plaatselijke wetgeving niet mag worden weggegooid
met het huishoudelijk afval, maar voor recyclage moeten worden ingeleverd. Zodra het product het einde van de levensduur heeft
bereikt, dient u het naar een inzamelpunt te brengen dat hiertoe werd aangeduid door uw plaatselijke autoriteiten, sommige
autoriteiten accepteren producten zonder dat u hiervoor dient te betalen. Door het product en de verpakking op deze manier te
recyclen helpt u het milieu en de gezondheid van de mens te beschermen.
D-Link en het milieu
Bij D-Link spannen we ons in om de impact van onze handelingen en producten op het milieu te beperken. Om deze impact te beperken, ontwerpt
en bouwt D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en
verpakking.
D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart
u energie en beperkt u de CO2-emissies.
Breng een bezoek aan www.dlinkgreen.com voor meer informatie over onze milieuverantwoorde producten en verpakkingen.
133D-Link DSL-2885A User Manual 133
Appendix D - Regulatory Statements
POLSKI PL
Ten symbol umieszczony na produkcie lub opakowaniu oznacza, że zgodnie z miejscowym prawem i lokalnymi przepisami
niniejszego produktu nie wolno wyrzucać jak odpady czy śmieci z gospodarstwa domowego, lecz należy go poddać procesowi
recyklingu. Po zakończeniu użytkowania produktu, niektóre odpowiednie do tego celu podmioty przyjmą takie produkty
nieodpłatnie, dlatego prosimy dostarczyć go do punktu zbiórki wskazanego przez lokalne władze. Poprzez proces recyklingu i
dzięki takiemu postępowaniu z produktem oraz jego opakowaniem, pomogą Państwo chronić środowisko naturalne i dbać o
ludzkie zdrowie.
D-Link i środowisko
D-Link podchodzimy w sposób świadomy do ochrony otoczenia oraz jesteśmy zaangażowani w zmniejszanie wpływu naszych działań i produktów
na środowisko naturalne. W celu zminimalizowania takiego wpływu rma D-Link konstruuje i wytwarza swoje produkty w taki sposób, aby były
one jak najbardziej przyjazne środowisku, stosując do tych celów materiały nadające się do powtórnego wykorzystania, charakteryzujące się
małą toksycznością zarówno w przypadku samych produktów jak i opakowań.
Firma D-Link zaleca, aby Państwo zawsze prawidłowo wyłączali z użytku swoje produkty D-Link, gdy nie są one wykorzystywane. Postępując w
ten sposób pozwalają Państwo oszczędzać energię i zmniejszać emisje CO2.
Aby dowiedzieć się więcej na temat produktów i opakowań mających wpływ na środowisko prosimy zapoznać się ze stroną Internetową www.
dlinkgreen.com.
ČESKY CZ
Tento symbol na výrobku nebo jeho obalu znamená, že podle místně platných předpisů se výrobek nesmí vyhazovat do komunálního
odpadu, ale odeslat k recyklaci. Až výrobek doslouží, odneste jej prosím na sběrné místo určené místními úřady k tomuto účelu.
Některá sběrná místa přijímají výrobky zdarma. Recyklací výrobku i obalu pomáháte chránit životní prostředí i lidské zdraví.
D-Link a životní prostředí
Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své
výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
Společnost D-Link doporučuje, abyste své výrobky značky D-Link vypnuli nebo vytáhli ze zásuvky vždy, když je nepoužíváte. Pomůžete tak šetřit
energii a snížit emise CO2.
Více informací o našich ekologických výrobcích a obalech najdete na adrese www.dlinkgreen.com.
134D-Link DSL-2885A User Manual 134
Appendix D - Regulatory Statements
MAGYAR HU
Ez a szimbólum a terméken vagy a csomagoláson azt jelenti, hogy a helyi törvényeknek és szabályoknak megfelelően ez a termék
nem semmisíthető meg a háztartási hulladékkal együtt, hanem újrahasznosításra kell küldeni. Kérjük, hogy a termék élettartamának
elteltét követően vigye azt a helyi hatóság által kijelölt gyűjtőhelyre. A termékek egyes helyeken ingyen elhelyezhetők. A termék és
a csomagolás újrahasznosításával segíti védeni a környezetet és az emberek egészségét.
A D-Link és a környezet
A D-Linknél megértjük és elkötelezettek vagyunk a műveleteink és termékeink környezetre gyakorolt hatásainak csökkentésére. Az ezen hatás
csökkentése érdekében a D-Link a lehető leginkább környezetbarát termékeket tervez és gyárt azáltal, hogy újrahasznosítható, alacsony károsanyag-
tartalmú termékeket gyárt és csomagolásokat alkalmaz.
A D-Link azt javasolja, hogy mindig kapcsolja ki vagy húzza ki a D-Link termékeket a tápforrásból, ha nem használja azokat. Ezzel segít az energia
megtakarításában és a széndioxid kibocsátásának csökkentésében.
Környezetbarát termékeinkről és csomagolásainkról további információkat a www.dlinkgreen.com weboldalon tudhat meg.
NORSK NO
Dette symbolet på produktet eller forpakningen betyr at dette produktet ifølge lokale lover og forskrifter ikke skal kastes sammen
med husholdningsavfall, men leveres inn til gjenvinning. Vennligst ta det til et innsamlingssted anvist av lokale myndigheter når
det er kommet til slutten av levetiden. Noen steder aksepteres produkter uten avgift. Ved på denne måten å gjenvinne produktet
og forpakningen hjelper du å verne miljøet og beskytte folks helse.
D-Link og miljøet
Hos D-Link forstår vi oss på og er forpliktet til å minske innvirkningen som vår drift og våre produkter kan ha på miljøet. For å minimalisere denne
innvirkningen designer og lager D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i
produktene og forpakningen.
D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere
CO2-utslipp.
For mer informasjon angående våre miljøansvarlige produkter og forpakninger kan du gå til www.dlinkgreen.com.
135D-Link DSL-2885A User Manual 135
Appendix D - Regulatory Statements
DANSK DK
Dette symbol på produktet eller emballagen betyder, at dette produkt i henhold til lokale love og regler ikke må bortskaes som
husholdningsaald, mens skal sendes til genbrug. Indlever produktet til et indsamlingssted som angivet af de lokale myndigheder,
når det er nået til slutningen af dets levetid. I nogle tilfælde vil produktet blive modtaget gratis. Ved at indlevere produktet og dets
emballage til genbrug på denne måde bidrager du til at beskytte miljøet og den menneskelige sundhed.
D-Link og miljøet
Hos D-Link forstår vi og bestræber os på at reducere enhver indvirkning, som vores aktiviteter og produkter kan have på miljøet. For at minimere
denne indvirkning designer og producerer D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer
med lavt giftighedsniveau i både produkter og emballage.
D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og
reducere CO2-udledningerne.
Du kan nde ere oplysninger om vores miljømæssigt ansvarlige produkter og emballage på www.dlinkgreen.com.
SUOMI FI
Tämä symboli tuotteen pakkauksessa tarkoittaa, että paikallisten lakien ja säännösten mukaisesti tätä tuotetta ei pidä hävittää
yleisen kotitalousjätteen seassa vaan se tulee toimittaa kierrätettäväksi. Kun tuote on elinkaarensa päässä, toimita se lähimpään
viranomaisten hyväksymään kierrätyspisteeseen. Kierrättämällä käytetyn tuotteen ja sen pakkauksen autat tukemaan sekä ympäristön
että ihmisten terveyttä ja hyvinvointia.
D-Link ja ympäristö
D-Link ymmärtää ympäristönsuojelun tärkeyden ja on sitoutunut vähentämään tuotteistaan ja niiden valmistuksesta ympäristölle mahdollisesti
aiheutuvia haittavaikutuksia. Nämä negatiiviset vaikutukset minimoidakseen D-Link suunnittelee ja valmistaa tuotteensa mahdollisimman
ympäristöystävällisiksi käyttämällä kierrätettäviä, alhaisia pitoisuuksia haitallisia aineita sisältäviä materiaaleja sekä tuotteissaan että niiden
pakkauksissa.
Suosittelemme, että irrotat D-Link-tuotteesi virtalähteestä tai sammutat ne aina, kun ne eivät ole käytössä. Toimimalla näin autat säästämään
energiaa ja vähentämään hiilidioksiidipäästöjä.
Lue lisää ympäristöystävällisistä D-Link-tuotteista ja pakkauksistamme osoitteesta www.dlinkgreen.com.
136D-Link DSL-2885A User Manual 136
Appendix D - Regulatory Statements
SVENSKA SE
Den här symbolen på produkten eller förpackningen betyder att produkten enligt lokala lagar och föreskrifter inte skall kastas i
hushållssoporna utan i stället återvinnas. Ta den vid slutet av dess livslängd till en av din lokala myndighet utsedd uppsamlingsplats,
vissa accepterar produkter utan kostnad. Genom att på detta sätt återvinna produkten och förpackningen hjälper du till att bevara
miljön och skydda människors hälsa.
D-Link och miljön
På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan
utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med
låg gifthalt i både produkter och förpackningar.
D-Link rekommenderar att du alltid stänger av eller kopplar ur dina D-Link produkter när du inte använder dem. Genom att göra detta hjälper
du till att spara energi och minska utsläpp av koldioxid.
För mer information om våra miljöansvariga produkter och förpackningar www.dlinkgreen.com.
PORTUGUÊS PT
Este símbolo no produto ou embalagem signica que, de acordo com as leis e regulamentações locais, este produto não deverá ser
eliminado juntamente com o lixo doméstico mas enviado para a reciclagem. Transporte-o para um ponto de recolha designado pelas
suas autoridades locais quando este tiver atingido o m da sua vida útil, alguns destes pontos aceitam produtos gratuitamente. Ao
reciclar o produto e respectiva embalagem desta forma, ajuda a preservar o ambiente e protege a saúde humana.
A D-Link e o ambiente
Na D-Link compreendemos e comprometemo-nos com a redução do impacto que as nossas operações e produtos possam ter no ambiente.
Para minimizar este impacto a D-Link concebe e constrói os seus produtos para que estes sejam o mais inofensivos para o ambiente possível,
utilizando meteriais recicláveis e não tóxicos tanto nos produtos como nas embalagens.
A D-Link recomenda que desligue os seus produtos D-Link quando estes não se encontrarem em utilização. Com esta acção ajudará a poupar
energia e reduzir as emissões de CO2.
Para saber mais sobre os nossos produtos e embalagens responsáveis a nível ambiental visite www.dlinkgreen.com.
