Section 1 - Product Overview
Product Overview
D-Link DUB-2240 Wireless USB 4-Port Hub
D-Link DUB-1210 USB Adapter
USB Cable
Power Adapter (5V; 3A)
Firmware, Drivers and Utilities CD
Quick Installation Guide
Package Contents
Note: Using a power supply with a different voltage than the one included with the DUB-2240 will cause damage and
void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Your DUB-9240 should contain all the items listed below. Before you begin the installation of the device, please check
to make sure that the following items are included in your package.
4D-Link DUB-9240 User Manual
Section 3 - Configuration
Click Next.
Getting Started
Before connecting your wireless USB Adapter or 4-port Hub, insert the provided CD into your PC. The InstallSheild
Wizard will start automatically and detect what operating system you are running on the PC.
After the InstallSheild Wizard detects what operating
system is running on your PC, the Welcome screen
will appear.
Software Installation
5D-Link DUB-9240 User Manual
Section 3 - Configuration

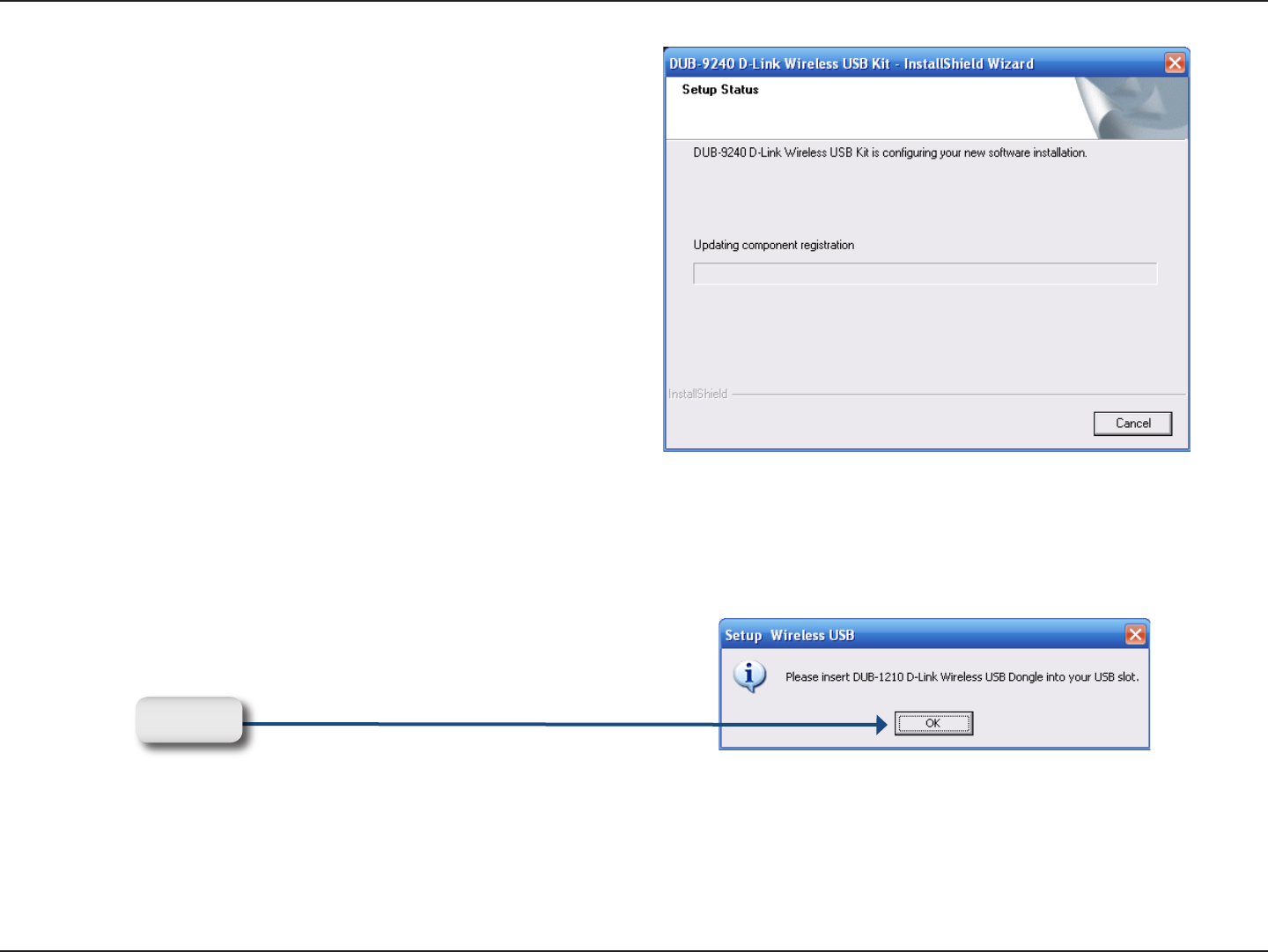

The InstallSheild Wizard will begin the DUB-9240
software installation.
The wizard will prompt you to insert the DUB-1210
wireless USB dongle into an available USB slot.
Click OK.
6D-Link DUB-9240 User Manual
Section 3 - Configuration
Click Next to continue.
The wizard will prompt you to install the Device Firmware
Utility. Select “Install the software automatically”.
The Device Firmware Utility will take a few moments
to install.
7D-Link DUB-9240 User Manual
Section 3 - Configuration

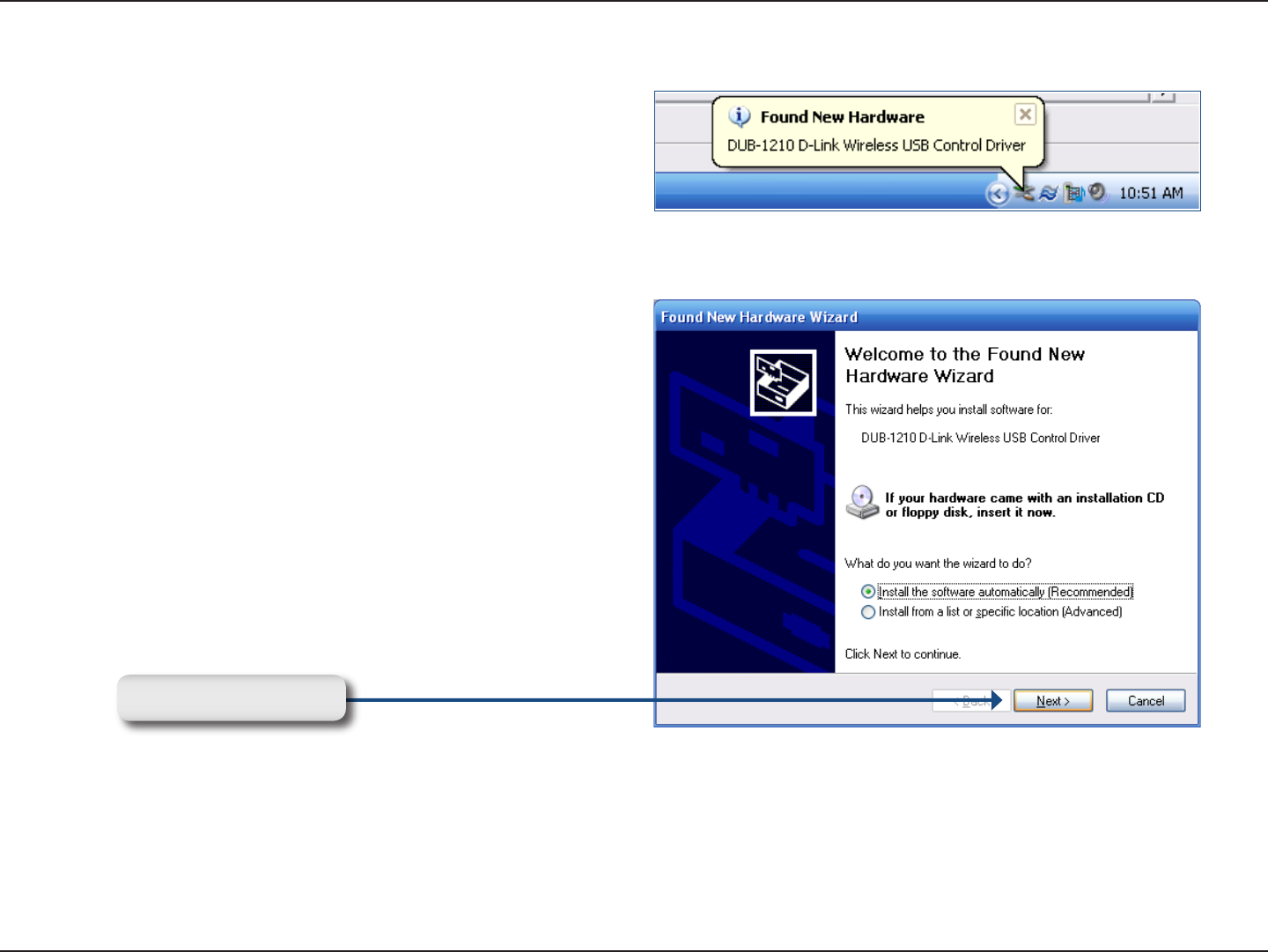

After the Device Firmware Utility has installed, your
system should detect the DUB-1210 Wireless USB
Control Driver as new hardware.
The InstallSheild Wizard will prompt you to install
software for the DUB-1210 Wireless USB Control Driver.
Select “Install the software automatically”.
Click Next to continue.
8D-Link DUB-9240 User Manual
Section 3 - Configuration

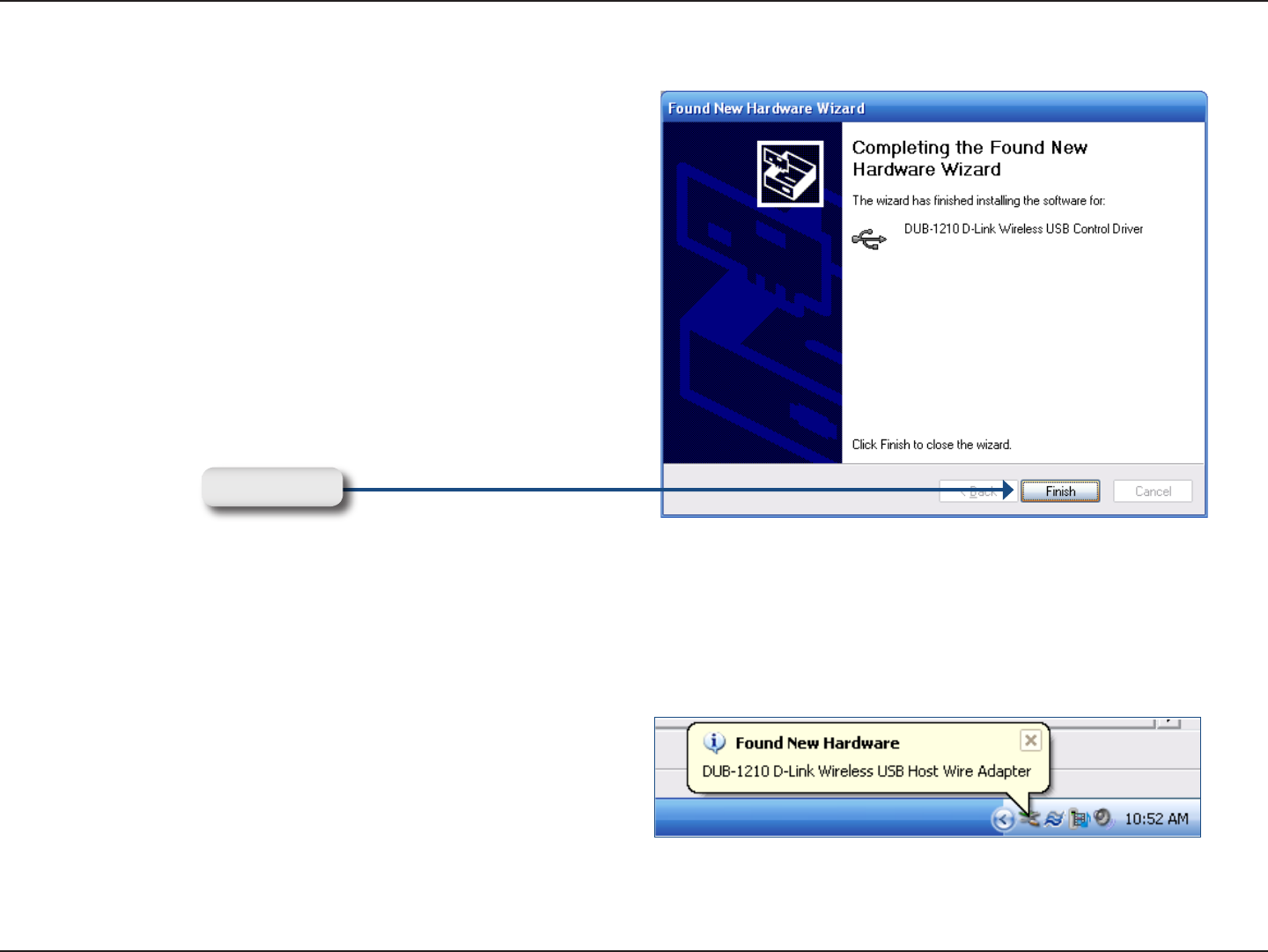

Click Finish.
After the DUB-1210 Wireless USB Control Driver has
installed, your system should detect the DUB-1210
Wireless USB Host Wire Adapter as new hardware.
9D-Link DUB-9240 User Manual
Section 3 - Configuration

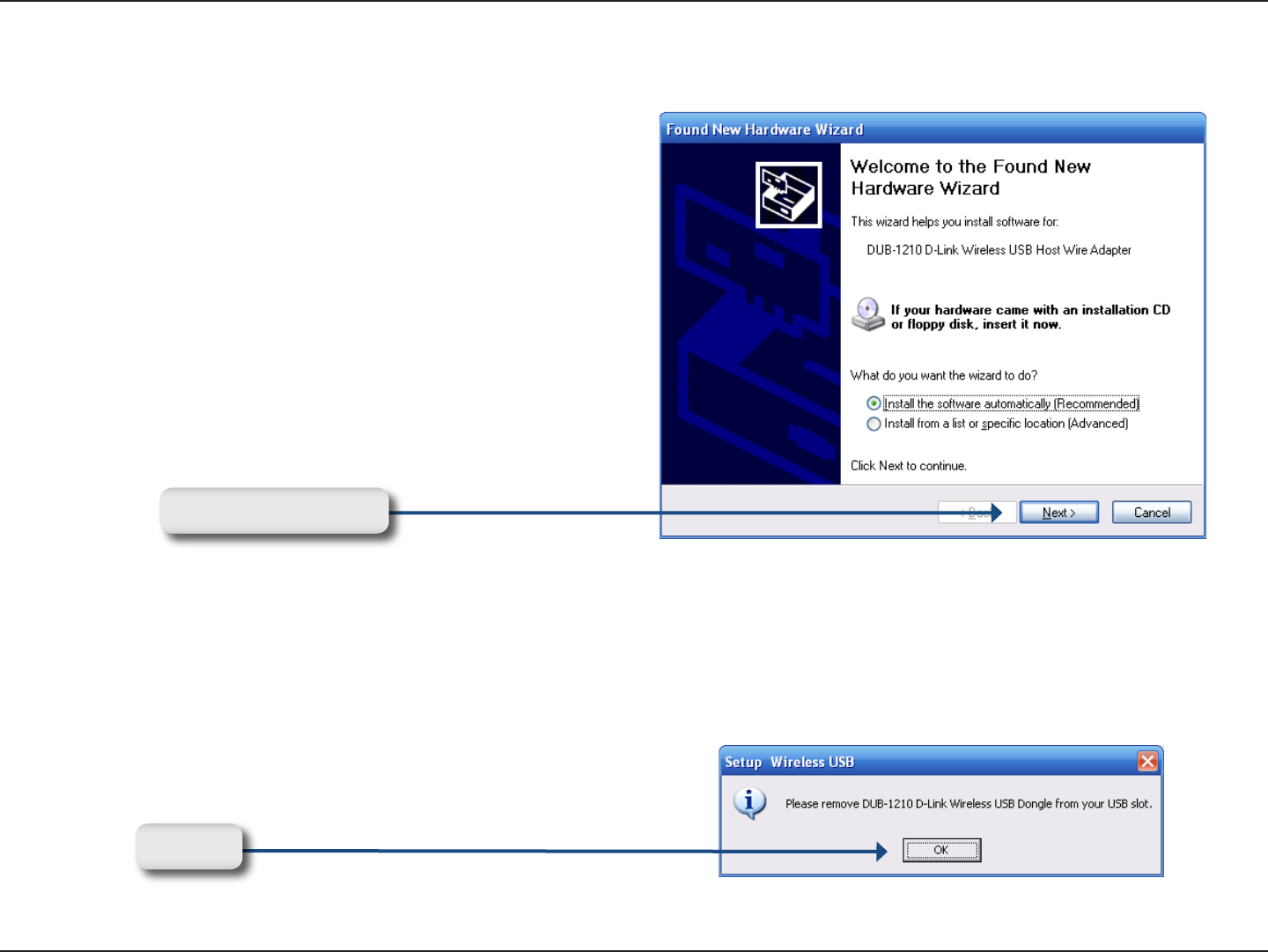

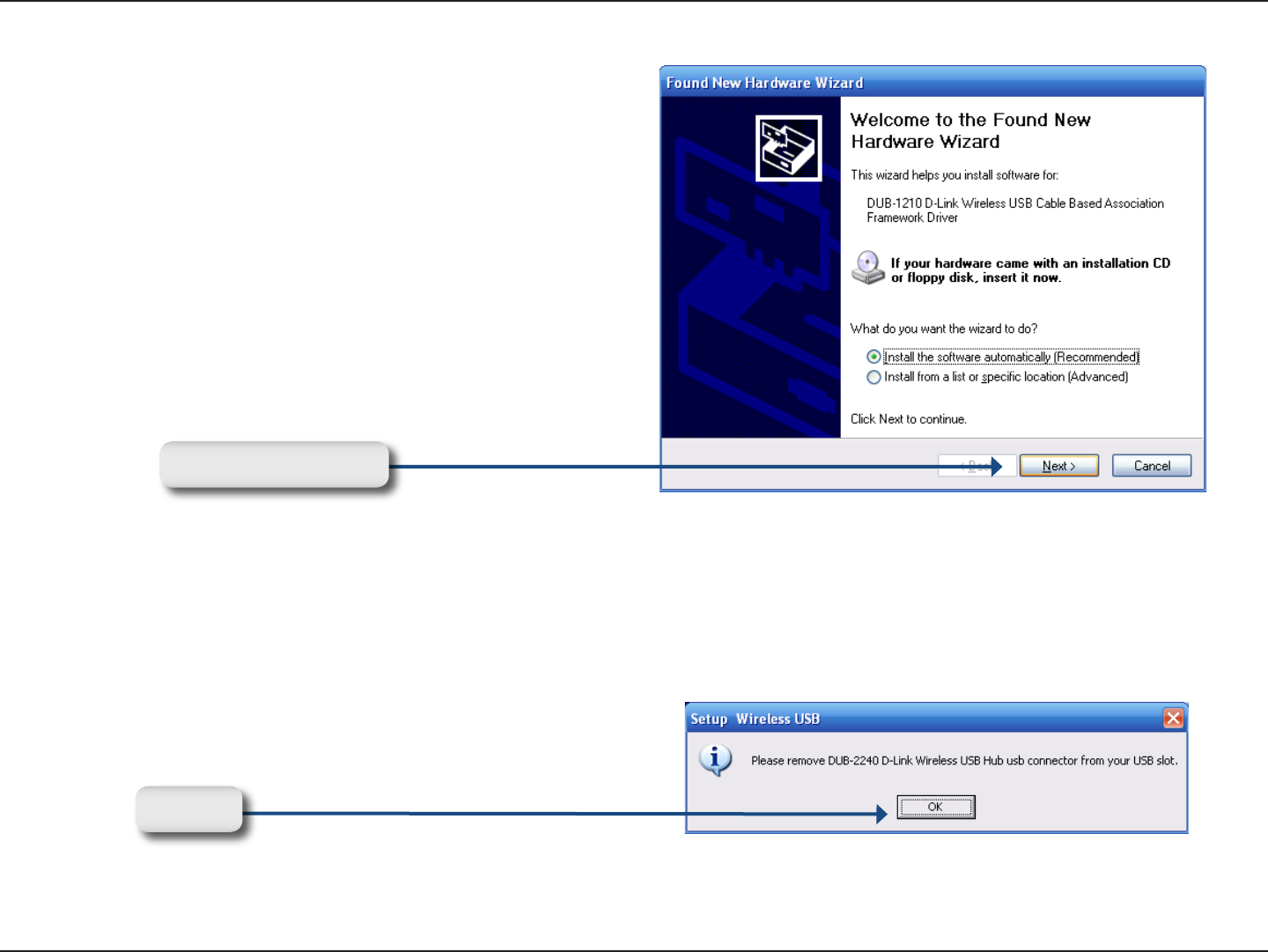

Click Next to continue.
The InstallSheild Wizard will prompt you to install
software for the DUB-1210 Wireless USB Host Wire
Adapter. Select “Install the software automatically”.
The wizard will prompt you to remove the DUB-1210
wireless USB dongle from the USB port.
Click OK.
10D-Link DUB-9240 User Manual
Section 3 - Configuration

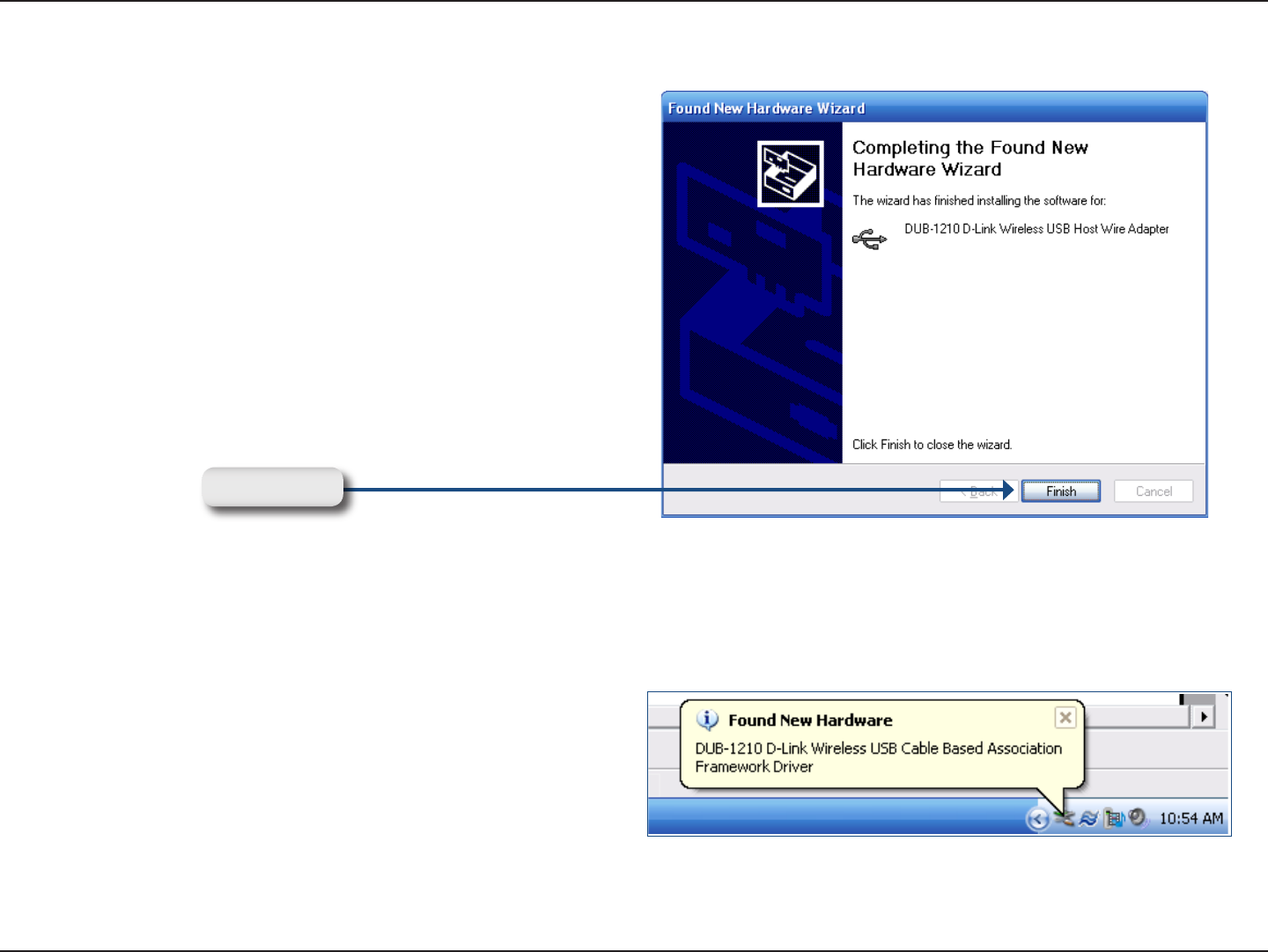

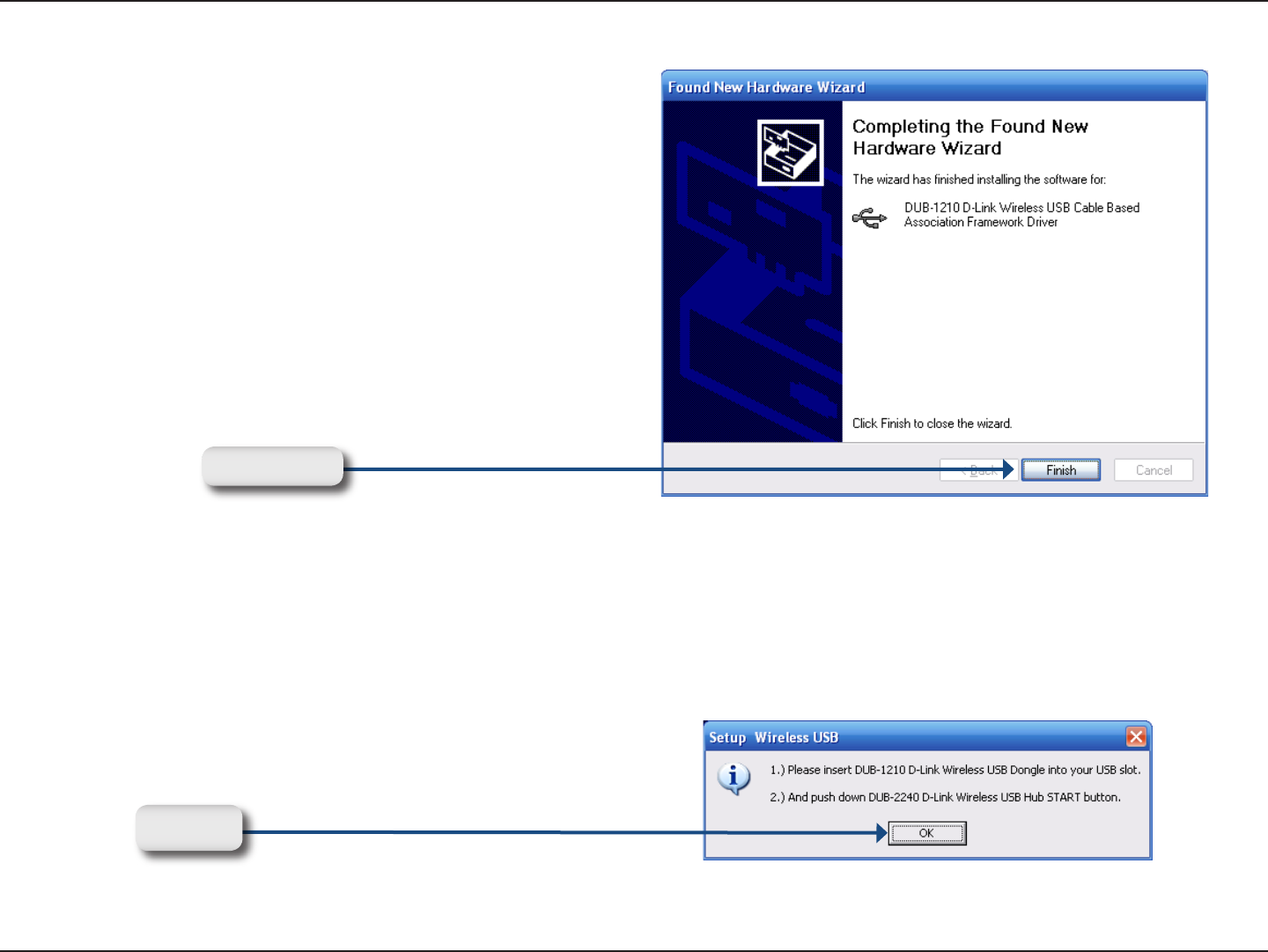

Click Finish.
The following prompt appears when the installation is
complete.
You will be prompted to power on the DUB-2240 Wireless
USB Hub and connect it to an available USB port.
Click OK.
11D-Link DUB-9240 User Manual
Section 3 - Configuration
Click Finish.
The following prompt appears when the installation is
complete.
After the DUB-1210 Wireless USB Host Wire Adapter
has installed, your system should detect the DUB-1210
Wireless USB Cable Based Association Framework
Driver as new hardware.
12D-Link DUB-9240 User Manual
Section 3 - Configuration
Click Next to continue.
The InstallSheild Wizard will prompt you to install
software for the DUB-1210 Wireless USB Cable Based
Association Framework Driver. Select “Install the
software automatically”.
You will be prompted to remove the DUB-2240 Wireless
USB Hub from the USB port.
Click OK.
13D-Link DUB-9240 User Manual
Section 3 - Configuration
Click Finish.
The following prompt appears when the installation is
complete.
You will be prompted to insert the DUB-1210 Wireless
USB Dongle into an available USB port and push the
Start button on the DUB-2240 Wireless USB Hub.
Click OK.
14D-Link DUB-9240 User Manual
Section 3 - Configuration
Using the Control Center
Link Info
Link List The Link Info list displays the status of
the connection between the wireless USB
adapter and hub.
15D-Link DUB-9240 User Manual
Section 3 - Configuration
Configuration
Connection
Status
The Connection Status option allows you to
power off the wireless USB adapter.
Host Settings The Radio Channel and WUSB Host Name
can be changed here.
16D-Link DUB-9240 User Manual
Section 3 - Configuration
About
About Displays the software name.
17D-Link DUB-9240 User Manual
Appendix A - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DUB-9240)
• Hardware Revision (located on the label on the bottom of the switch (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the device).
You can find software updates and user documentation on the D-Link website as well as frequently asked questions
and answers to technical issues.
For customers within the United States:
Phone Support:
(877) 453-5465
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 361-5265
Internet Support:
http://support.dlink.com
18D-Link DUB-9240 User Manual
