I. Introduction
i
ii
i. Overview
. Overview. Overview
. Overview
DWR-510 HSPA USB Dongle Router – is a highly integrated wireless solution for 3G and WiFi.
The demands of data communication everywhere becomes more due to the great development of
3G HSPA system. DWR-510 adopts Qualcomm MSM6290 solution. It provides up to 7.2 Mbps
HSDPA, up to 5.76 Mbps HSUPA, RX antenna diversity and wireless router etc. DWR-510 is fast,
reliable and easy to operate. Therefore, user can experience the new features and surf the internet
everywhere by DWR-510 dongle router.
ii. Features
◎HSUPA data rate up to 5.76 Mbps
◎HSDPA data rate up to 7.2 Mbps
◎UMTS PS domain data rate up to 384 kbps
◎EDGE packet data rate up to 236.8 kbps
◎GPRS packet data rate up to 115.2 kbps
◎WiFi 802.11 b/g/n
◎Share internet connection with 6 WiFi devices
◎A slide switch to select between WiFi router mode and PC USB modem mode
◎USB interface
◎Multi-color LED indicating status of network connection
◎Support Microsoft Windows XP / Vista / Windows 7
◎Support Linux (Router mode only)
◎Support Mac OS (Router mode only)
iii. Product Review

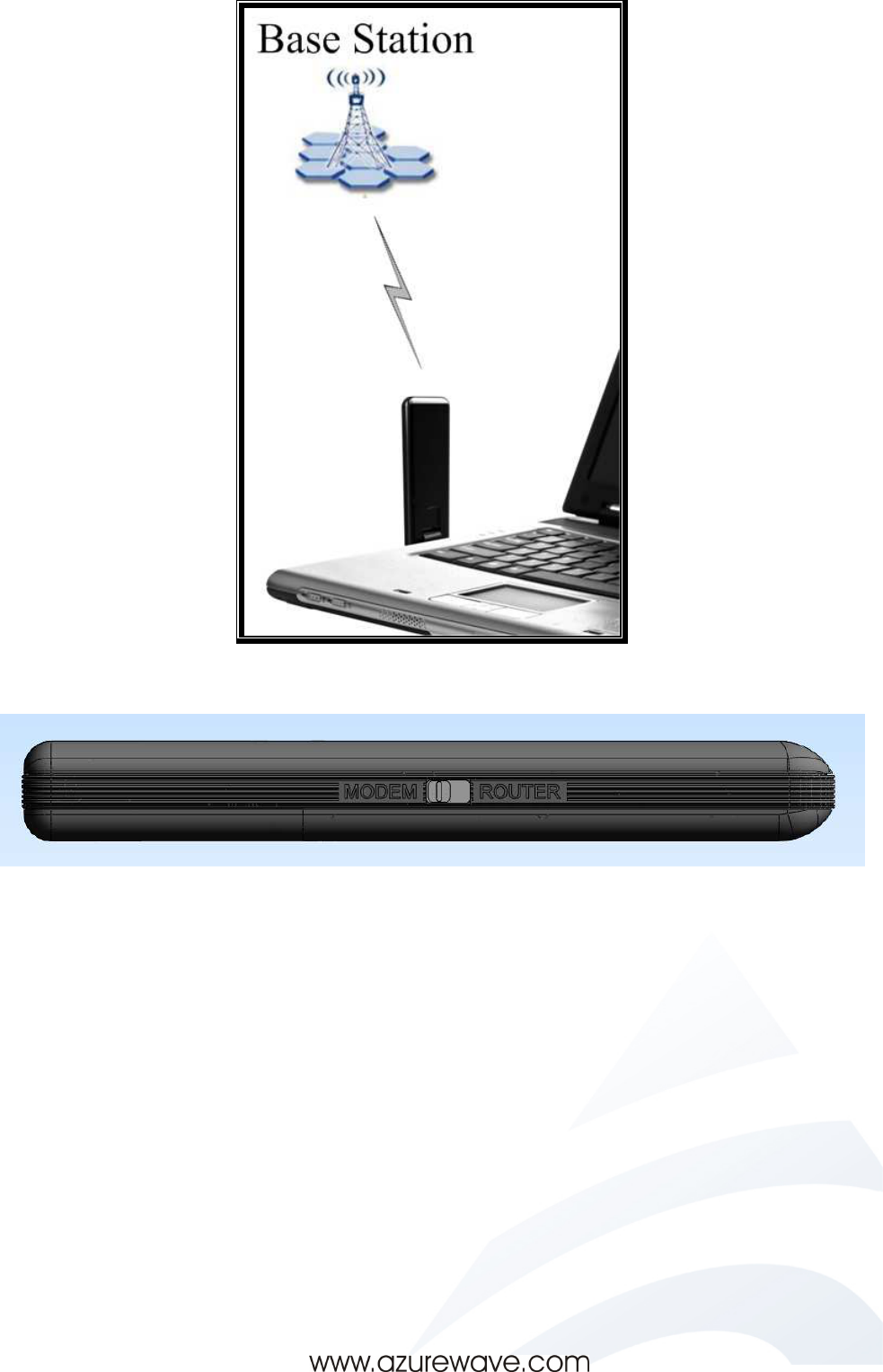

◎Modem mode
Modem mode provides the 3G access only from USB interface. User needs to set the slide switch to
modem mode then device will operate in 3G USB modem mode. User needs to launch connection
manager utility to access 3G data transaction.
User Manual
DWR-510 V0.1 (Draft)
- 3 -
Modem Mode
Modem Mode Switch configuration

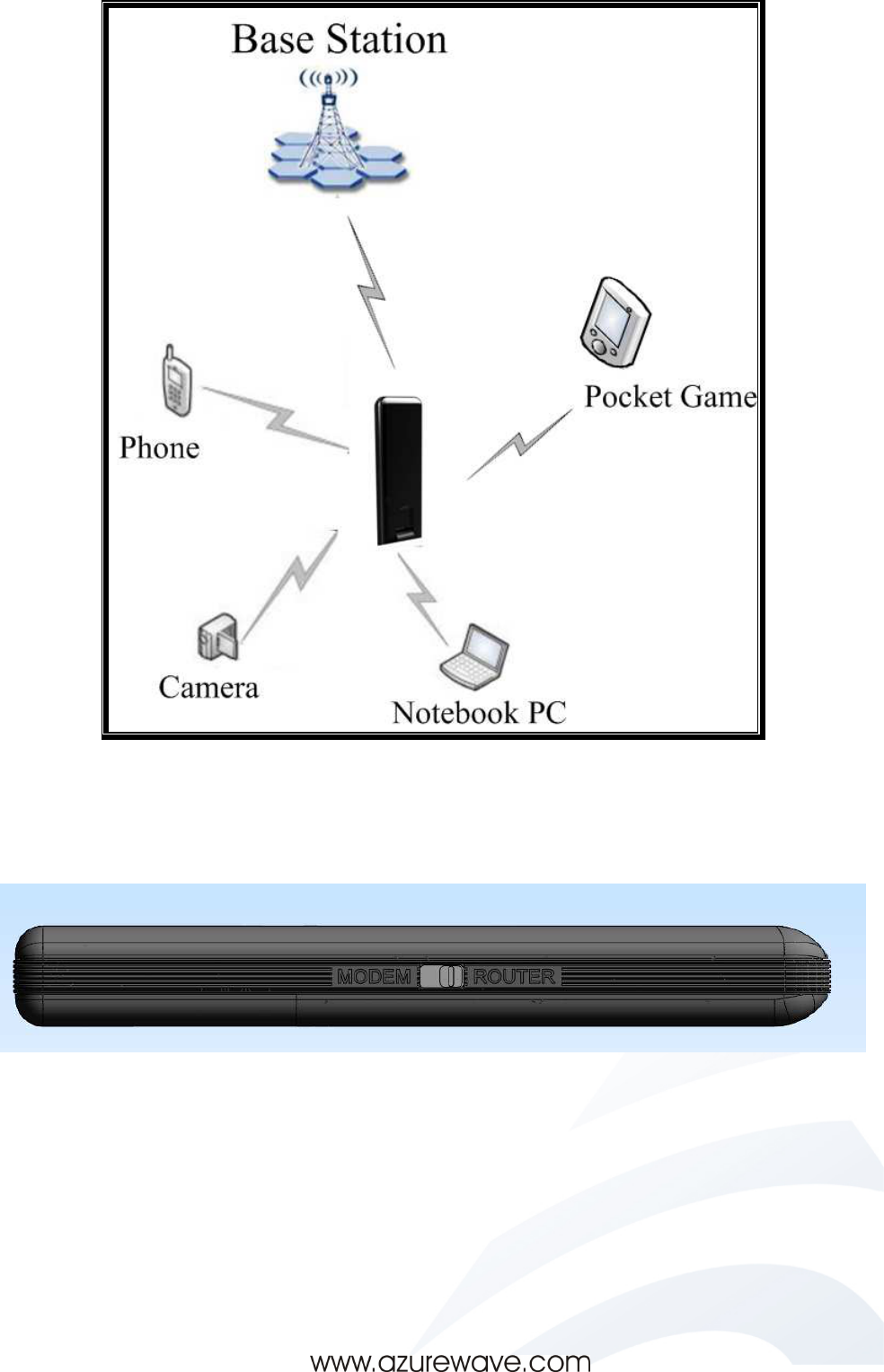

◎Router Mode
DWR-510 will become 3G / WiFi Router in this mode and can share 3G bandwidth to other devices
that connect to DWR-510 by WiFi. DWR-510 allows up to 8 WiFi enabled devices to
simultaneously connect to the Internet.
User Manual
DWR-510 V0.1 (Draft)
- 4 -
Router Mode
It is recommended to choose this mode when there is no access point showed in your wireless
network.
Router Mode Switch configuration
User Manual
DWR-510 V0.1 (Draft)
- 5 -
II. Installation
i. System Requirements
Before you install DWR-510, please make sure your system meets the following requirements.
*Desktop or Laptop or applications with USB 1.1/2.0 port
*Minimum of 64MB system memory
*Operating system: XP/Vista/ Windows 7
ii. Hardware Installation
1. Find an available USB 1.1/2.0 port on your desktop or laptop or other applications.
2. Plug DWR-510 USB adapter into USB port of desktop or laptop or other applications.
iii. Setup: Windows XP OS
If your computer is running a Windows operating system, it will automatically detect the DWR-510
after device plug into the USB port, and OS displays a “Found New Hardware” window.
User Manual
DWR-510 V0.1 (Draft)
- 6 -

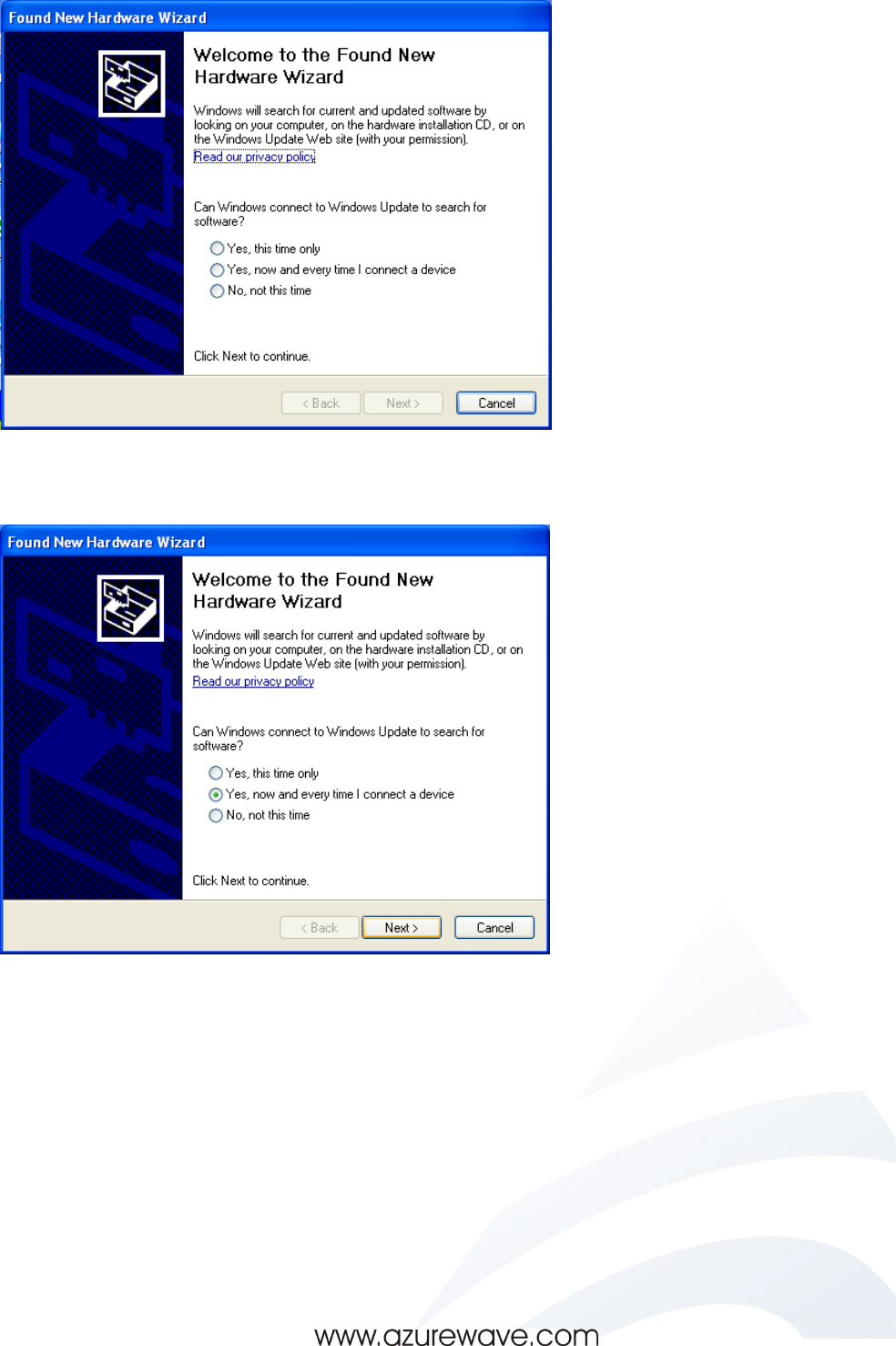

1. Find out the Driver, and launch the Hardware Wizard
2. Please click “Yes, now and every time I connect a device” circle, and “Next>” button.
User Manual
DWR-510 V0.1 (Draft)
- 7 -
3. Please click “Install the software automatically (Recommended)”, and “Next>” button
4. The Hardware Wizard will automatically install the software
User Manual
DWR-510 V0.1 (Draft)
- 8 -

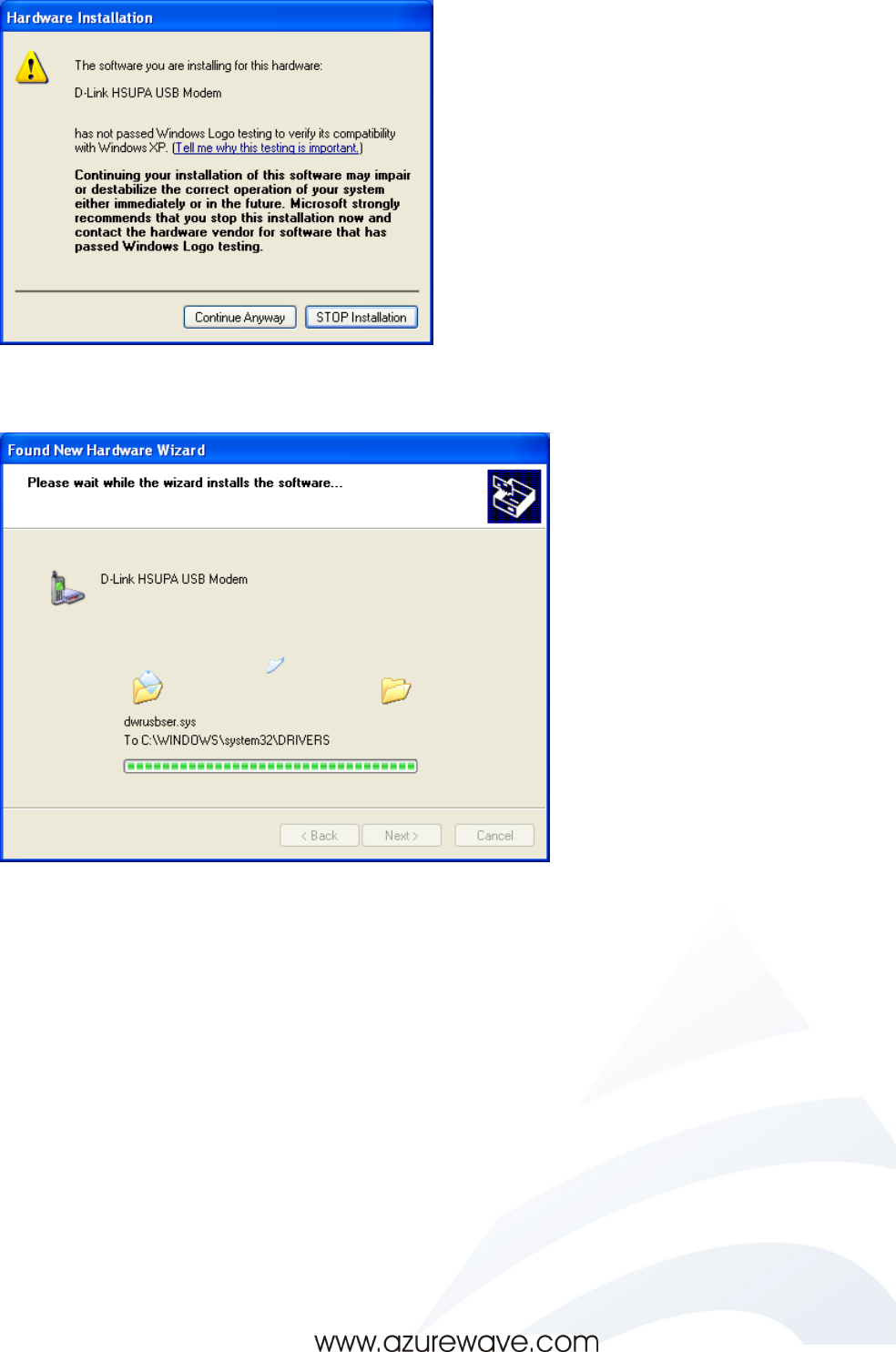

5. If you see the warning Windows Logo testing message, please click “Continue Anyway”
6. Please wait the software installation.
User Manual
DWR-510 V0.1 (Draft)
- 9 -
7. After the “Completing the Found New Hardware Wizard” windows appear, click “Finish”
button.
User Manual
DWR-510 V0.1 (Draft)
- 10 -
III. Using
i.
i.i.
i. Modem
ModemModem
Modem
mode
modemode
mode
Please push slide switch to “Modem” position to configure device to “Modem mode”. Device will
only enable WWAN function in “Modem mode”, WiFi function will be disabled. Steps to use
device in “Modem mode”:

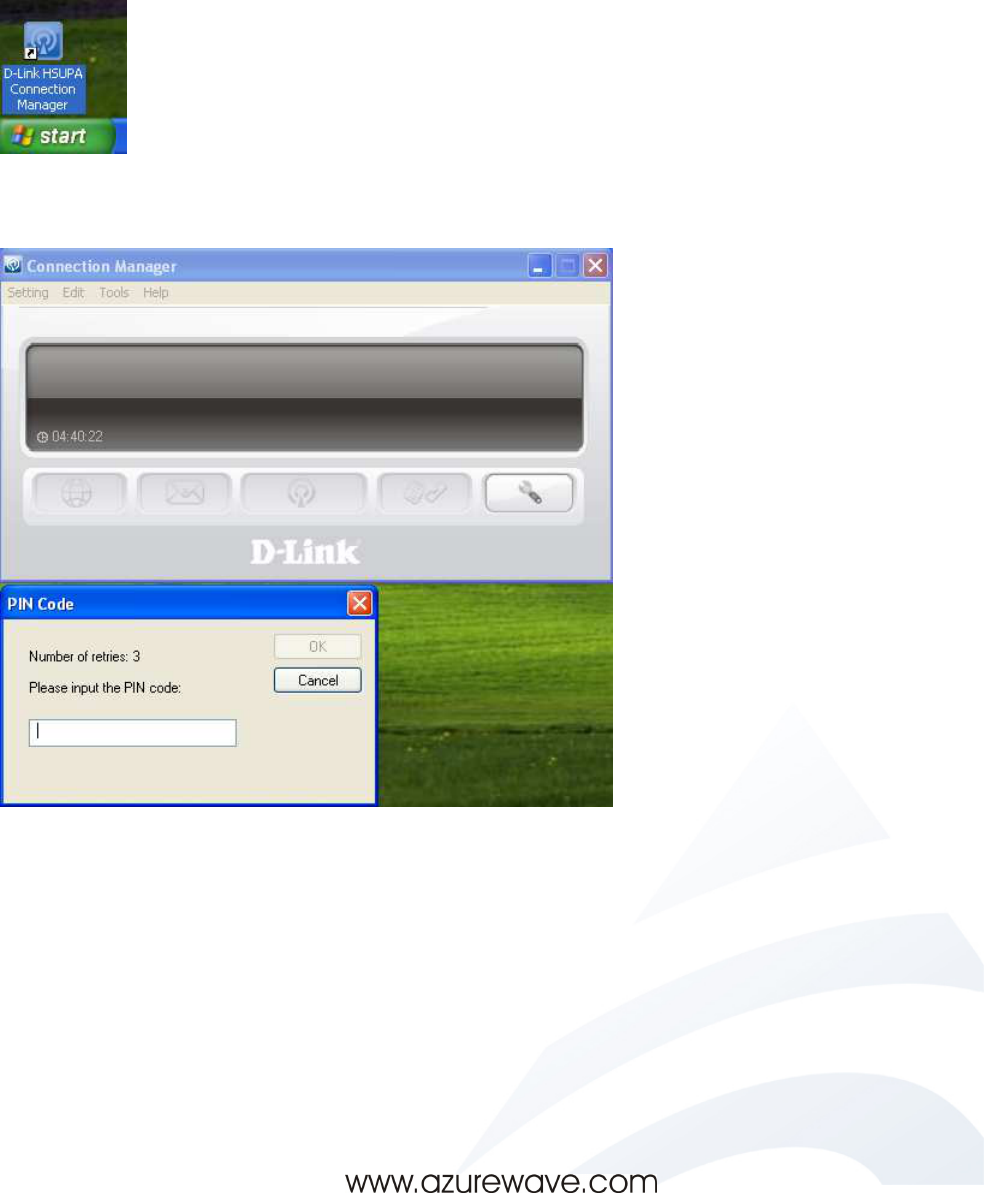

1. Please double click “D-Link HSUPA Connection Manager” Icon to launch utility.
2. Please input “PIN code”
User Manual
DWR-510 V0.1 (Draft)
- 11 -
3. After found WWAN Network information and signal bar, please click “connect” icon to connect
to WWAN network.
4. The “Dial Up” window will appear, please wait this process to finish.
5. Now, your computer is connecting to WWAN network. You can use internet browser and other
internet utility to surf the network.
User Manual
DWR-510 V0.1 (Draft)
- 12 -
6. Menu List:
6.1 Setting

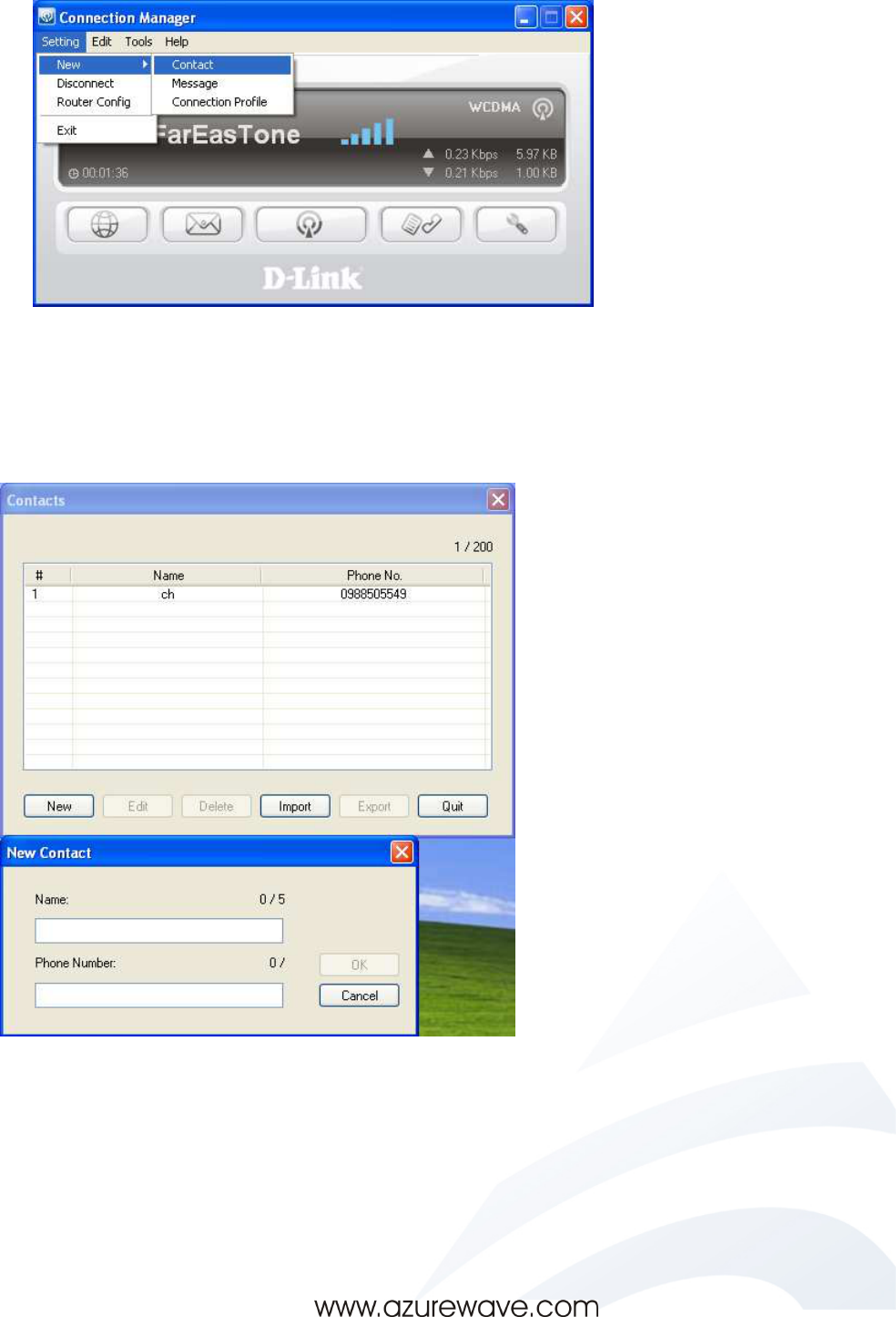

6.1.1 New
6.1.1.1 Contact
It’s used for the contact information management.
New -> Contact
User Manual
DWR-510 V0.1 (Draft)
- 13 -
6.1.1.2 Message
It’s used to edit and send short message.
New -> Message

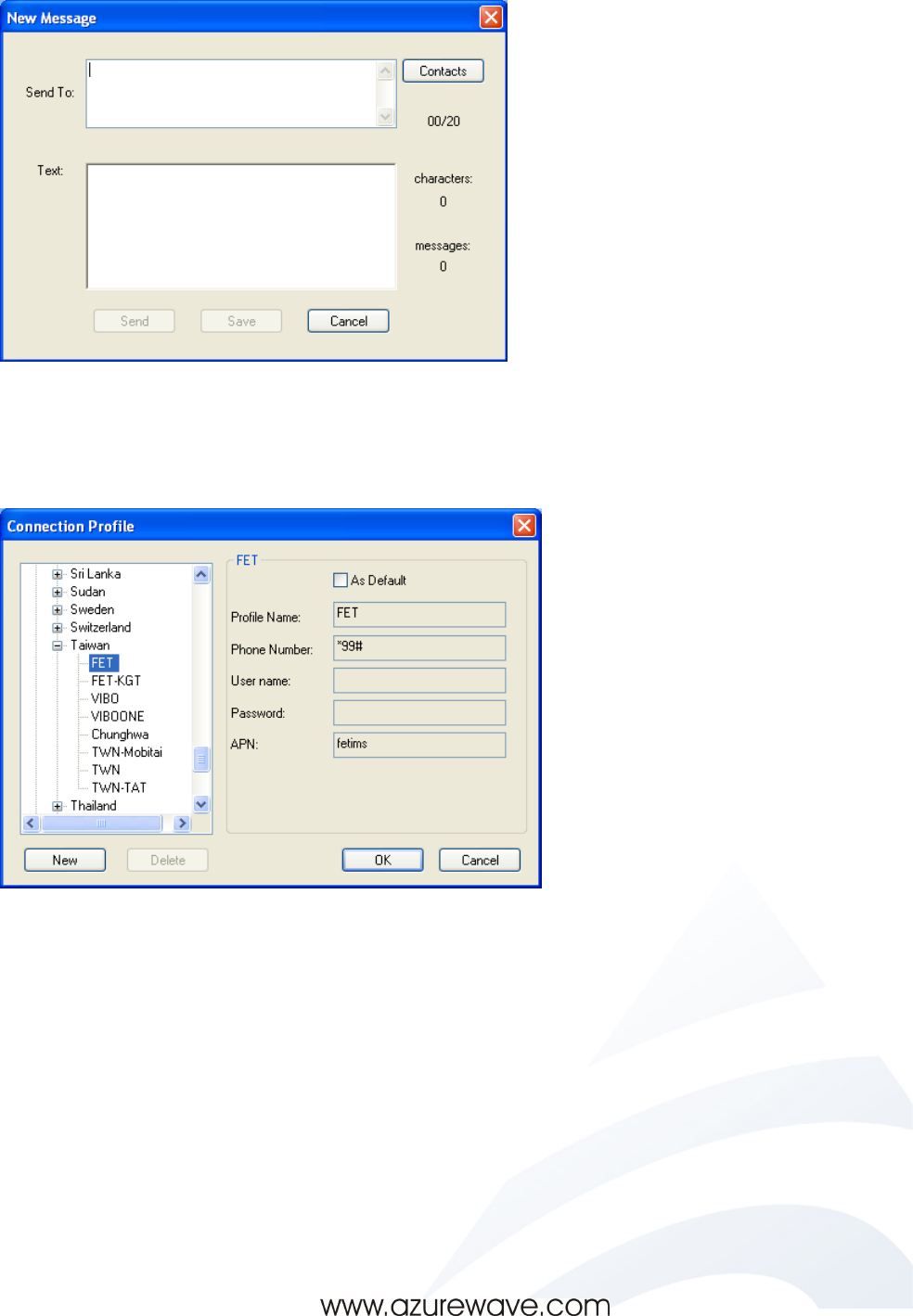

6.1.1.3 Connection Profile
It’s used to select built-in APN or modify APN setting.
New -> Connection Profile
6.1.2 Connect / Disconnect
It’s used to connect or disconnect to WWAN network.
User Manual
DWR-510 V0.1 (Draft)
- 14 -
6.1.3 Router Config
6.1.3.1 Wireless Setting
It’s used to modify WiFi setting, including wireless network name (SSID) and security option.
Router Config -> Wireless Setting
6.1.3.2 Network Setting
It’s used to modify WiFi network setting, including IP and DHCP address.
Router Config -> Network Setting
User Manual
DWR-510 V0.1 (Draft)
- 15 -
6.1.3.3 Advanced
It’s used to modify WiFi MAC filter setting.
Router Config -> Advanced
6.1.3.4 Internet
It’s used to modify APN setting for “Router mode” using condition.
Router Config -> Internet
User Manual
DWR-510 V0.1 (Draft)
- 16 -

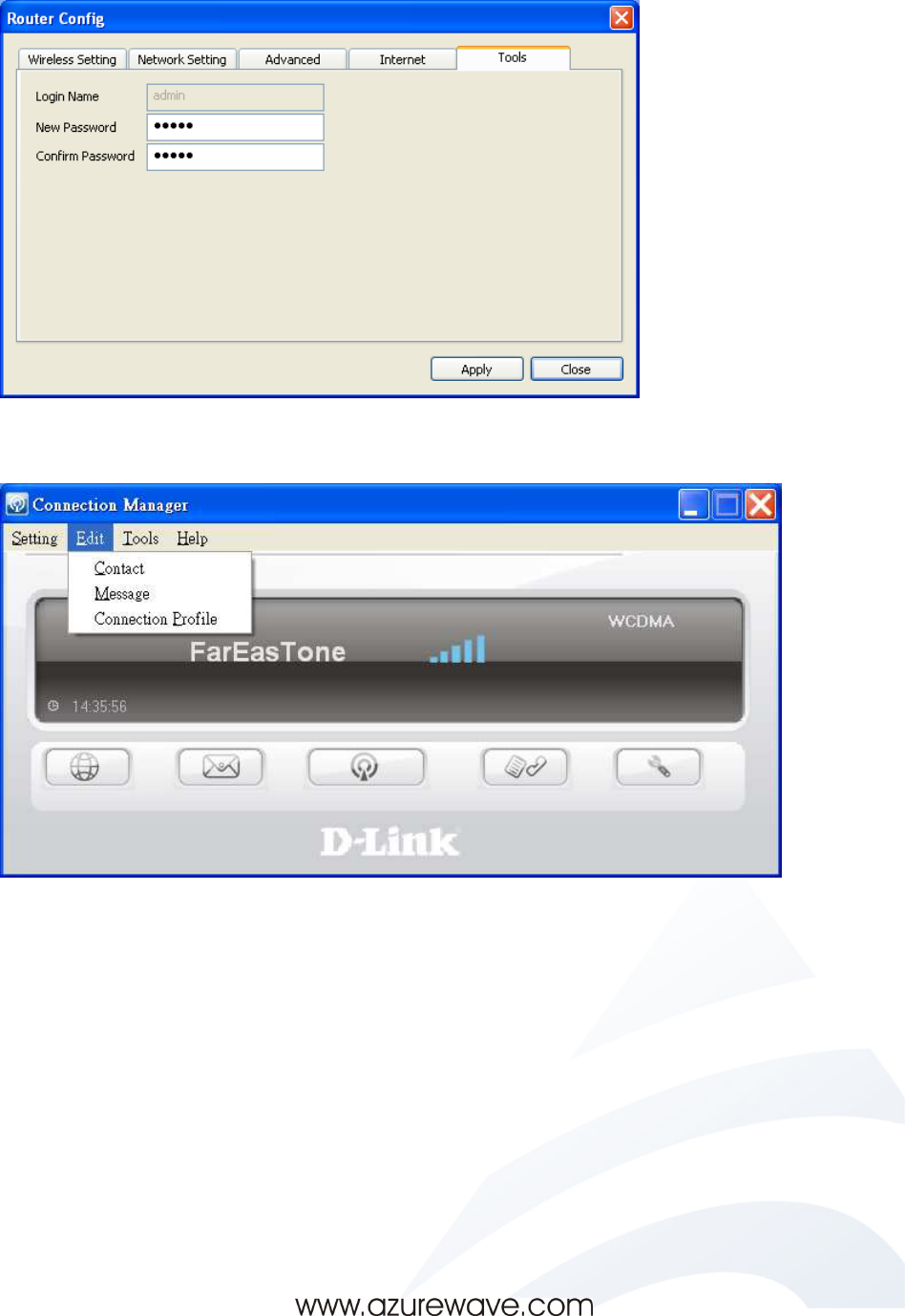

6.1.3.5 Tools
It’s used to set password for the management web page in “Router mode” using condition.
The default login name and password is admin
Router Config -> Tools
6.2 Edit
User Manual
DWR-510 V0.1 (Draft)
- 17 -

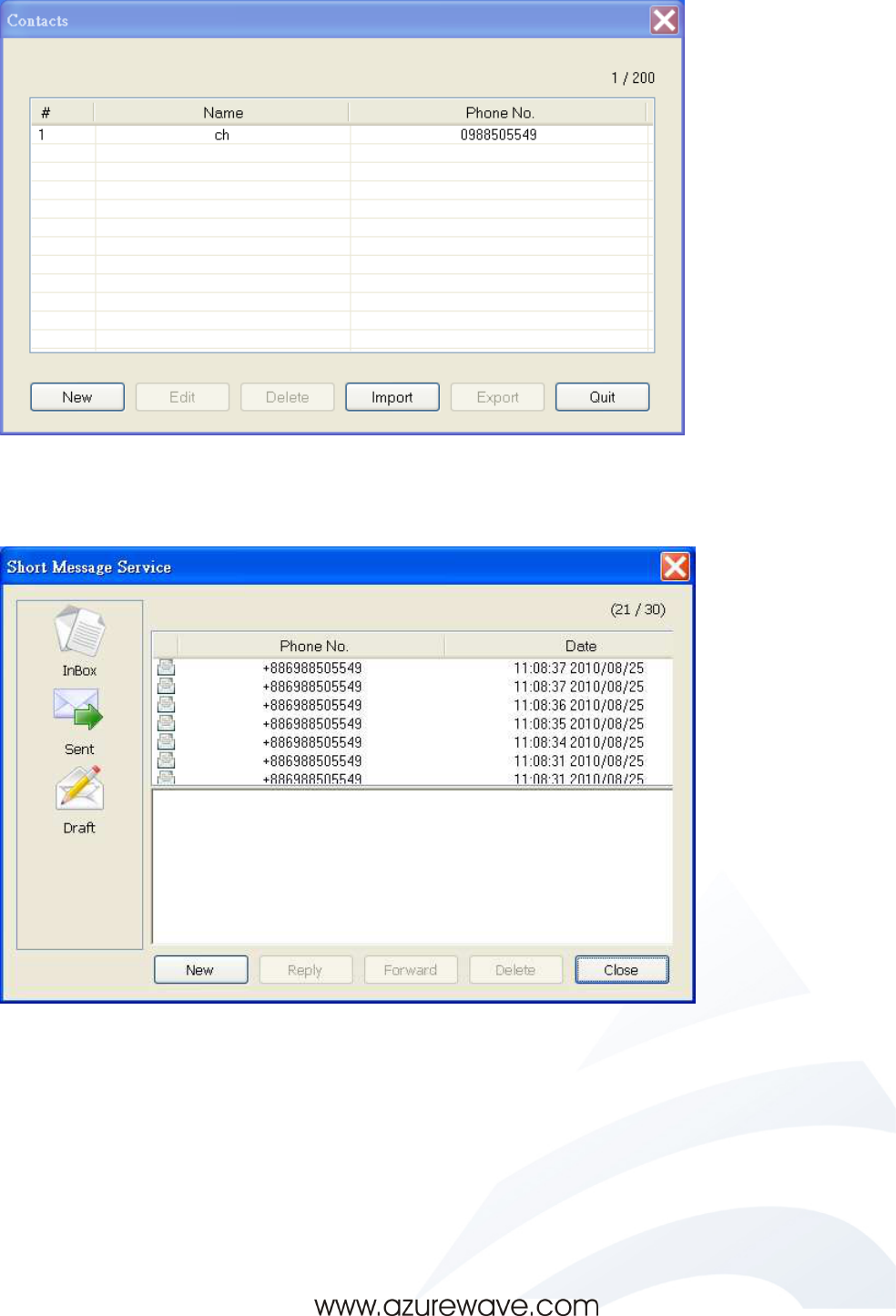

6.2.1 Contact
It’s used to manage the contact information.
6.2.2 Message
It’s used to manage the short message information.
User Manual
DWR-510 V0.1 (Draft)
- 18 -
6.2.3 Connection Profile
It’s used to manage the connection profile in “Modem mode” using condition.
6.3 Tools

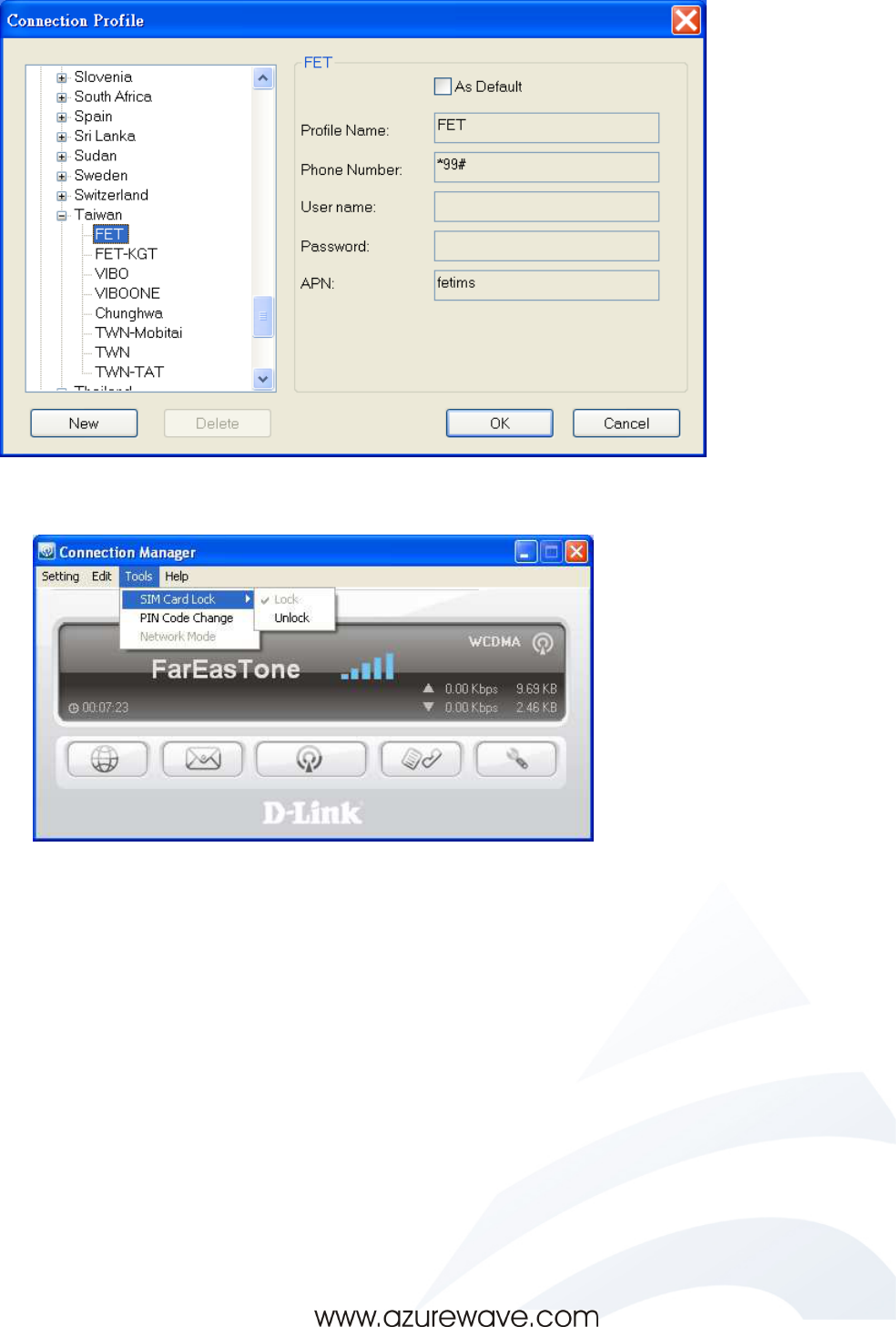

6.3.1 SIM Card Lock
It’s used to lock /unlock SIM card.
6.3.2 PIN Code Change
It’s used to change PIN code.
User Manual
DWR-510 V0.1 (Draft)
- 19 -
6.3.3 Network Mode
It’s used to configure the WWAN network to “Auto” or “WCDMA only” or “GSM only”.
6.4 Help
6.4.1 About
User Manual
DWR-510 V0.1 (Draft)
- 20 -
ii.
ii.ii.
ii. Router mode
Router modeRouter mode
Router mode
Please push slide switch to “Router” position to configure device to “Router mode”. Device will
enable WWAN and WiFi router function in “Router mode”. Steps to use device in “Router mode”:
1. Push slide switch of device to “Router” position.
2. Enable WiFi function in your computer.
3. Turn on WiFi management tool in your computer, the default SSID of DWR-510 is
DWR-510-dlnk. Please connect to it and you can start to surf the network.
4. Webpage for “Router mode” management
4.1 IP address to access management webpage
The default IP address is http://192.168.0.1/
4.2 SETUP
4.2.1 INTERNET
It’s used to setup APN for 3G router.
User Manual
DWR-510 V0.1 (Draft)
- 21 -

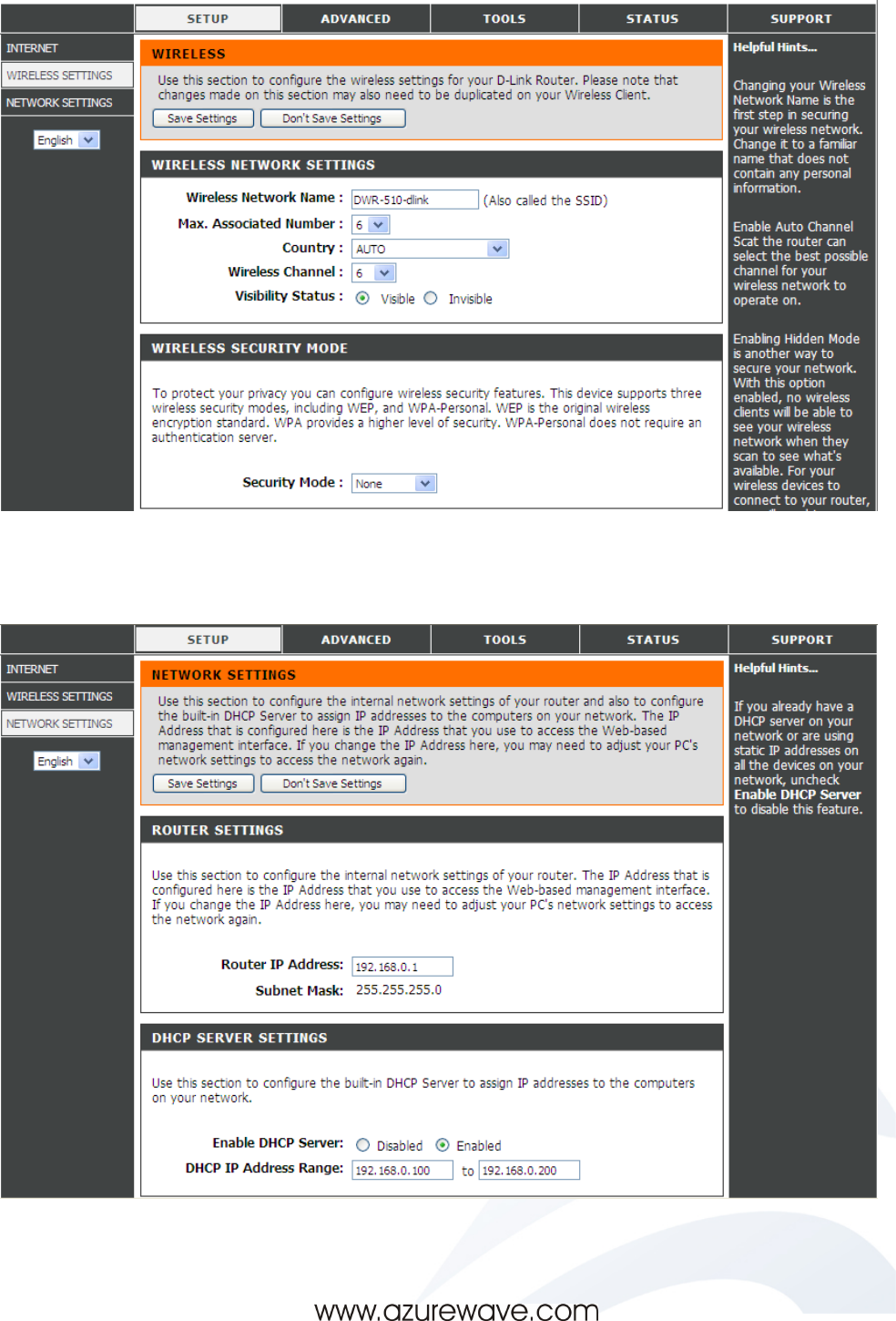

4.2.2 WIRELESS SETTINGS
It’s used to set WiFi SSID, Country, Channel and Security Mode.
4.2.3 NETWORK SETTINGS
It’s used to set the IP address of the management webpage.
User Manual
DWR-510 V0.1 (Draft)
- 22 -
4.3 ADVANCED
It’s used to set the MAC filtering rules for “Router mode” using case.
4.4 TOOLS
4.4.1 ADMIN
It’s used to set the password for the management webpage.

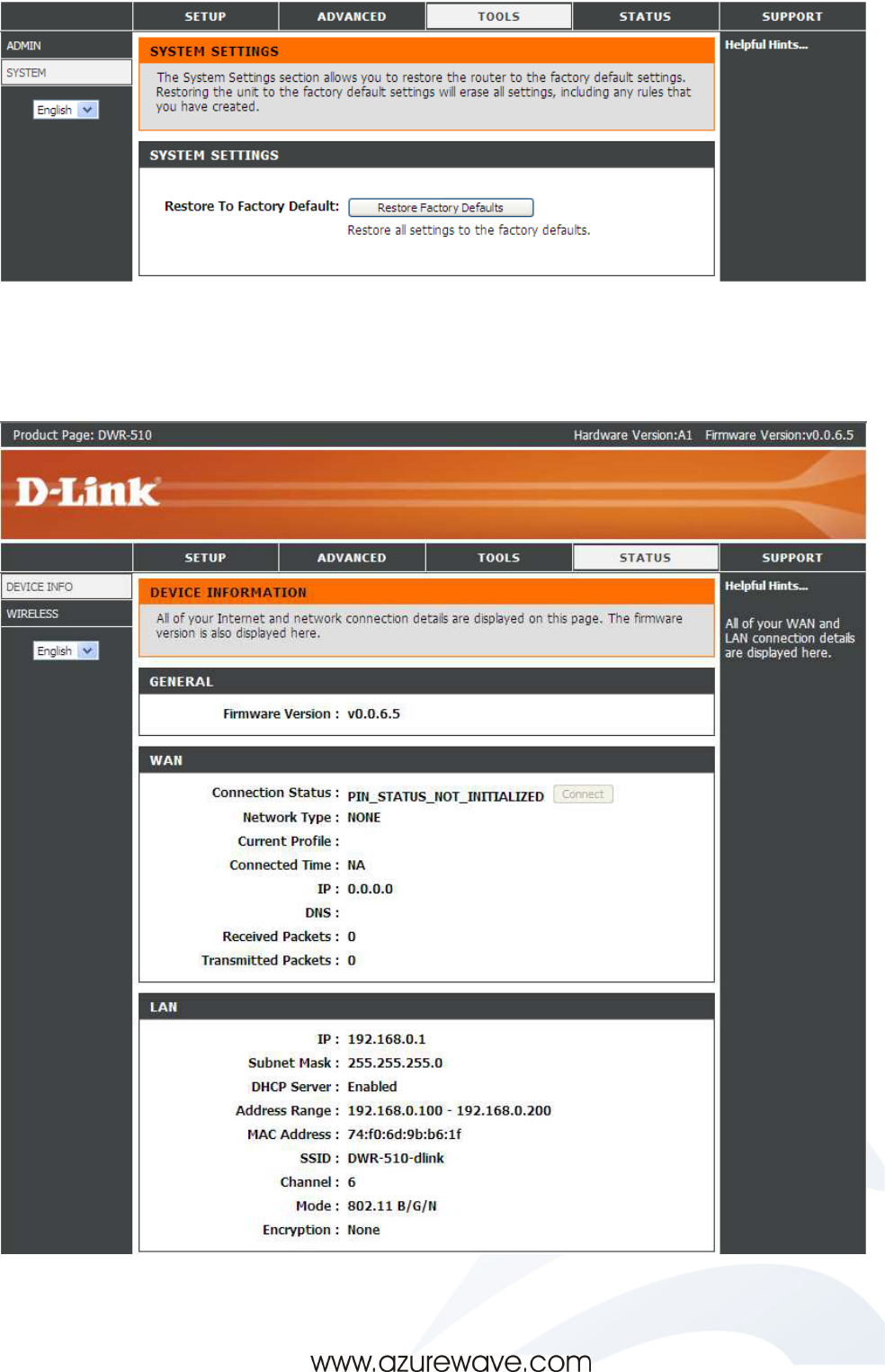

4.4.2 SYSTEM
It’s used to restore the factory default setting.
User Manual
DWR-510 V0.1 (Draft)
- 23 -
4.5 STATUS
4.5.1 DEVICE INFO
It’s used to show the device information.
User Manual
DWR-510 V0.1 (Draft)
- 24 -

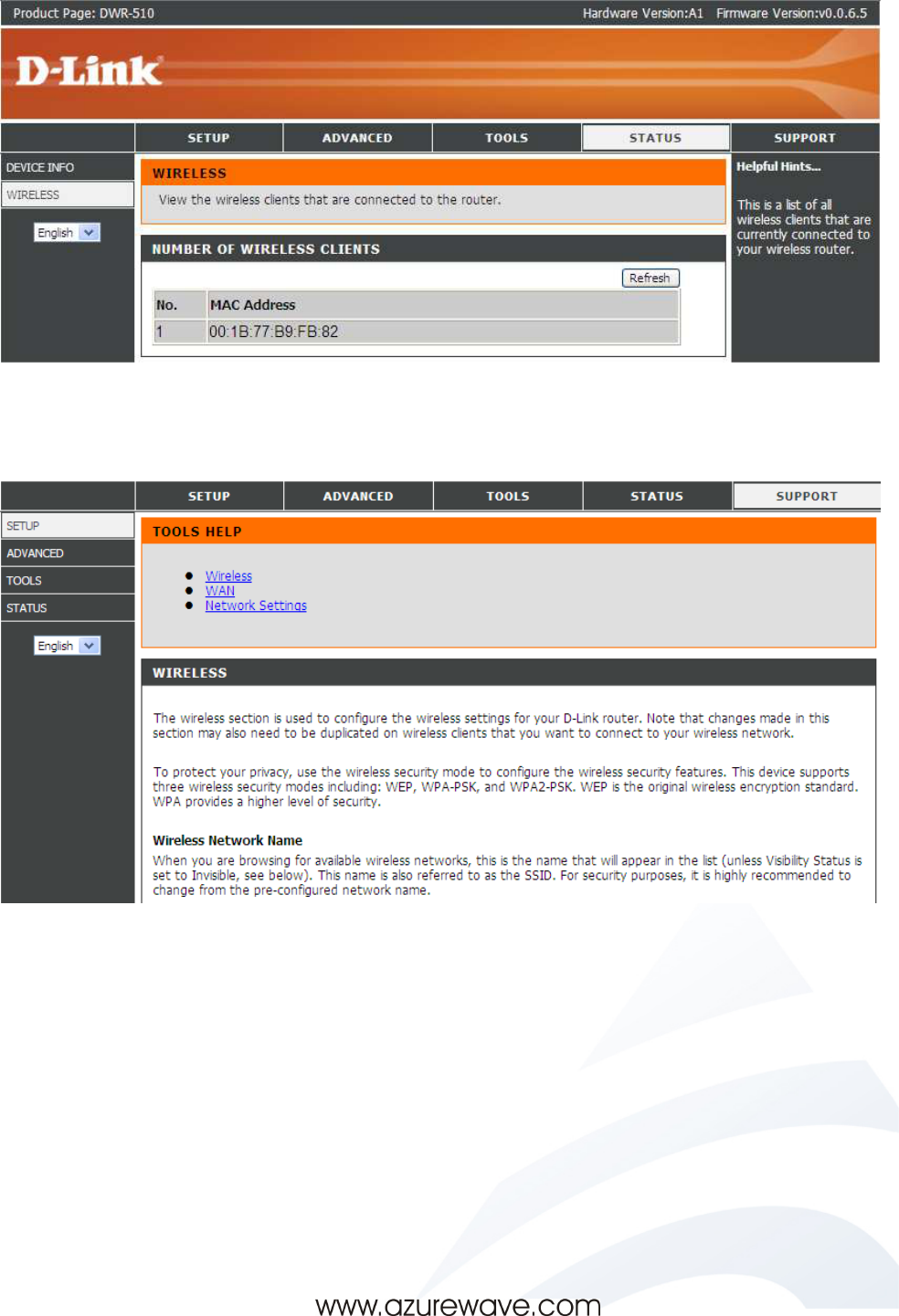

4.5.2 WIRELESS
It’s used to show the WiFi MAC address.
4.6 SUPPORT
It’s the help information here.
User Manual
DWR-510 V0.1 (Draft)
- 25 -
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
User Manual
DWR-510 V0.1 (Draft)
- 27 -
Products with 2.4–GHz Wireless LAN Devices France
L'utilisation de cet equipement (2.4GHz wireless LAN) est soumise à certaines restrictions: cet
equipement peut être utilisé à l'interieur d'un batiment en utilisant toutes les frequences de 2400 a
2483.5MHz (Chaine 1–13). Pour une utilisation en environement exterieur, les frequences
comprises entre 2400-2454 MHz (Chaîne 1-9) peuvent être utilisé. Pour les dernières restrictions,
voir http://www.art-telecom.fr.
For 2.4–GHz wireless LAN operation of this product, certain restrictions apply. This equipment
may use the entire–2400–MHz to 2483.5–MHz frequency band (channels 1 through 13) for indoor
applications. For outdoor use, only 2400-2454 MHz frequency band (channels 1-9) may be used.
For the latest requirements, see http://www.art-telecom.fr.
Wireless LAN Module’s Maximum EIRP
Frequency Ranges (MHz) Indoors Outdoors
2400 MHz ~ 2446.5 MHz 10mW Not Permitted
2446.5 MHz ~ 2483.5 MHz 100mW 100mW on private property with Ministry of
Defense approval.
User Manual
DWR-510 V0.1 (Draft)
- 28 -
