User’s Guide
H950V(B19AC)
TFT-LCD Monitor
Regulatory Information
...............................................................................................................................2
Introduction
Package ........................................................................................................................................................ 3
The range of control Angle ............................................................................................................................3
Connection to Signal Source .........................................................................................................................4
Controls
Front panel ................................................................................................................................................... 5
Functions .......................................................................................................................................................5
Adjusting OSD(PC MODE) ............................................................................................................................6
Adjusting OSD(CVBS, S-VIDEO MODE) .................................................................................................... 11
Caution
.........................................................................................................................................................16
Power Management Feature
.................................................................................................................... 17
Standard Signal Table
............................................................................................................................... 18
Specifications
............................................................................................................................................. 19
Pin assignment table D-Sub Mini 15pin connector
........................................................................... 20
Troubleshooting
......................................................................................................................................... 21
Table of Contents
![](/img.php?id=593165&img=bg2.png)
TFT-LCD Monitor
2
Regulatory
Information
- FCC Information
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
- Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
- Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
- Energy Star As an ENERGY STAR partner, Hansol LCD Inc. has determined that this product meets energy Star
guidelines for energy efficiency.
Notice
The information contained in this document is subject to change without notice.
This equipment has been tested and found to comply with limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause unacceptable interference to radio and television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced Radio/TV technician for help.
![](/img.php?id=593165&img=bg3.png)
TFT-LCD Monitor
3
Introduction

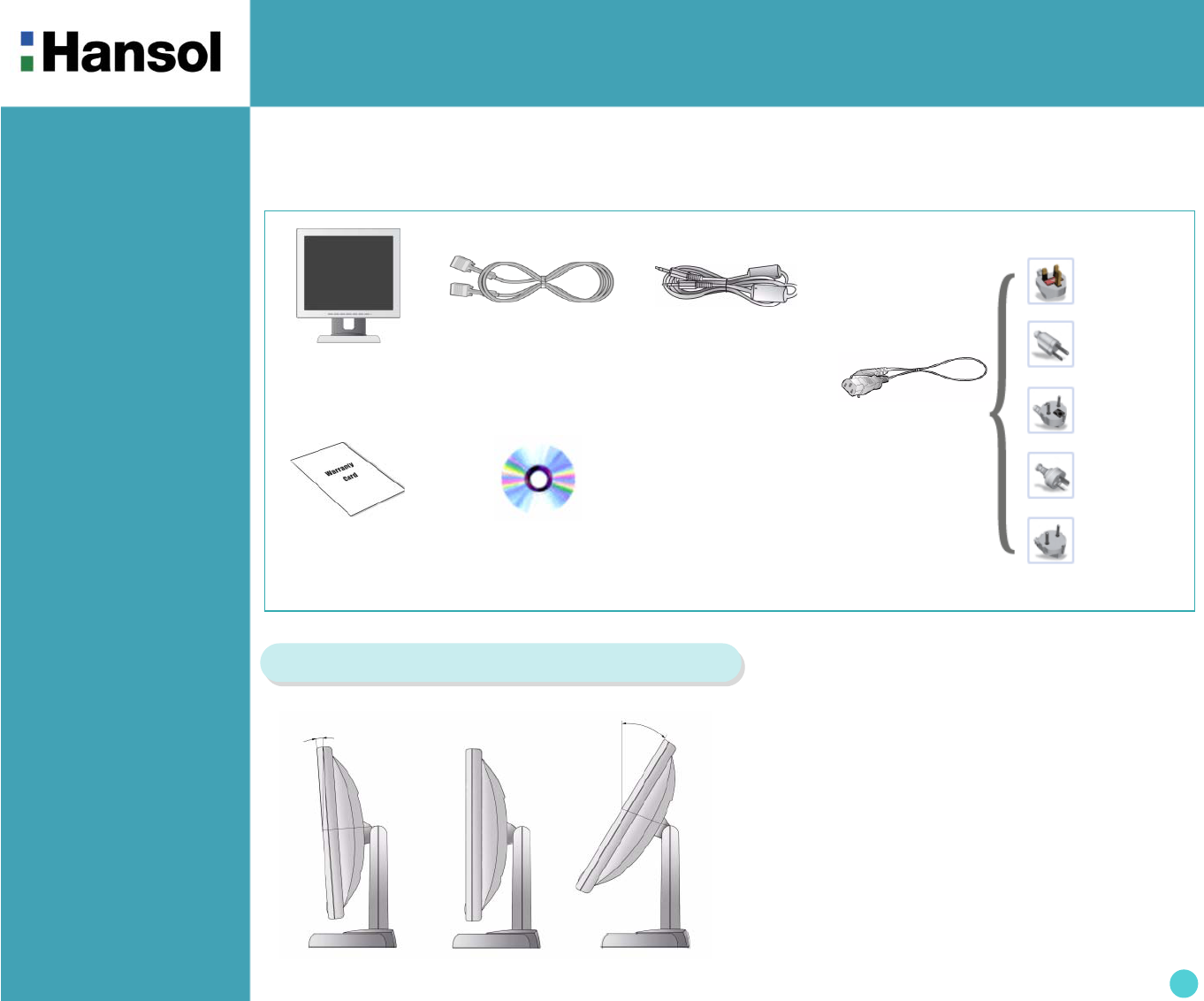

- Package
- The range of
control Angle
LCD Monitor
UK
U.S.A/
Canada
Europe
Australia
Korea
AC Power
Cable
Signal Cable
C D
(User’s Guide & etc)
Warranty
Card
Congratulations on your purchase of this top quality color monitor!
The items illustrated below are contained in the carton.
First, be sure that your carton includes all of them.
If any items are missing or damaged, please contact your local dealer or supplier.
▲ Forward 5° ▲ Default ▲ Backward 33°
How to Adjust the Stand
Stereo Cable
(Option)
![](/img.php?id=593165&img=bg4.png)
TFT-LCD Monitor
4
Introduction

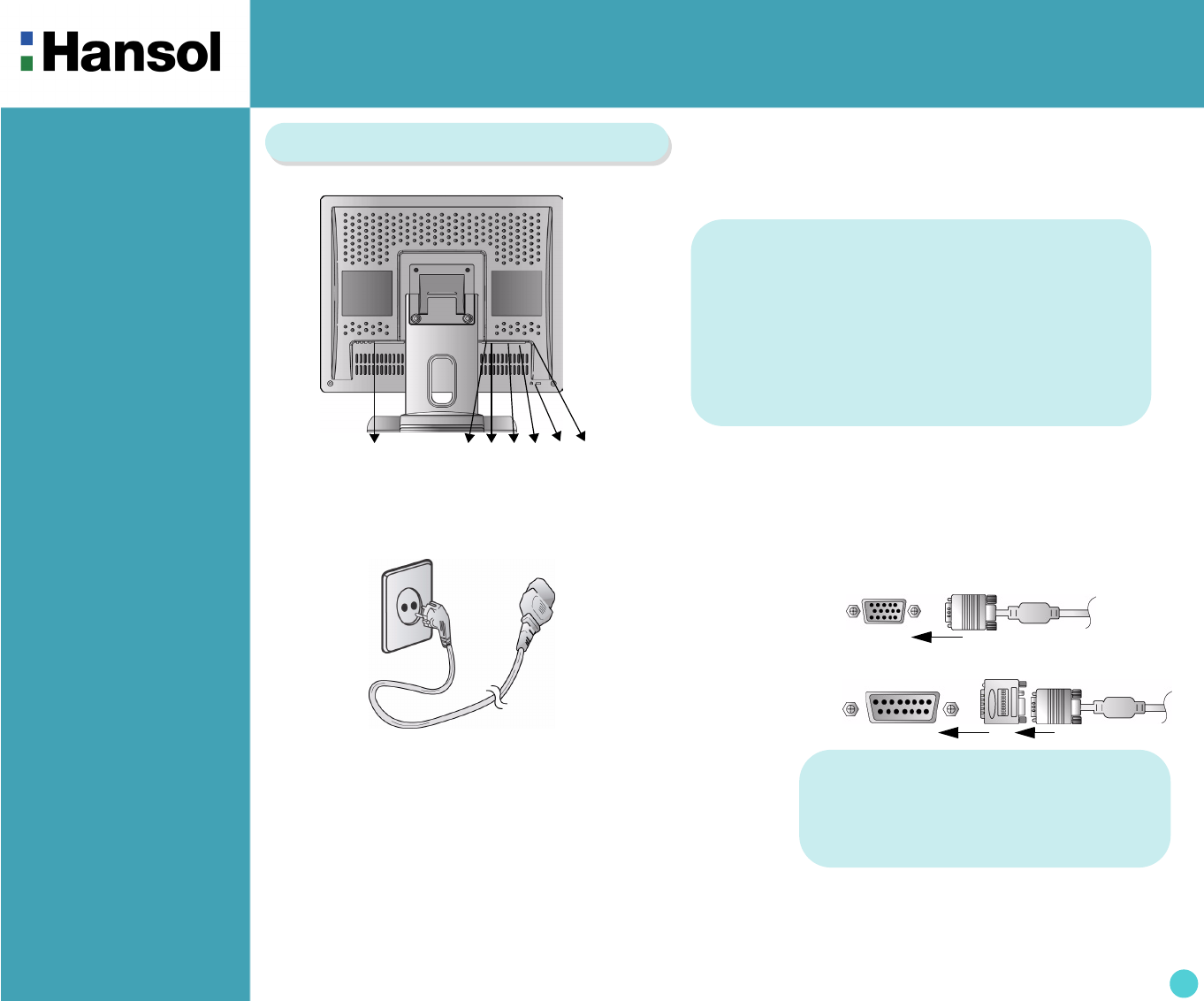

- Connection to
Signal Source
<Power Source Connection> <Signal Cable Connection>
①
① Port for AC power cable.
② Port for BNC output.
③ Port for BNC input.
④ Port for S-VHS input.
⑤ Port for Audio input.
⑥Kensington Lock.
⑦Port for signal cable from signal source.
② ③ ④ ⑤ ⑥ ⑦
General
For Macintosh
Adapter for Macintosh(Optional)
Refer to the table on the rear side of
the optional Macintosh adapter and
adjust DIP switch by the resolution.
1. Use 220V or 110 V. (Free Voltage)
2. Connect monitor and Signal Source via Signal cable.
3. Power on the monitor and computer.
4. Connection is finished.
Basic Connection
![](/img.php?id=593165&img=bg5.png)
TFT-LCD Monitor
5
Controls

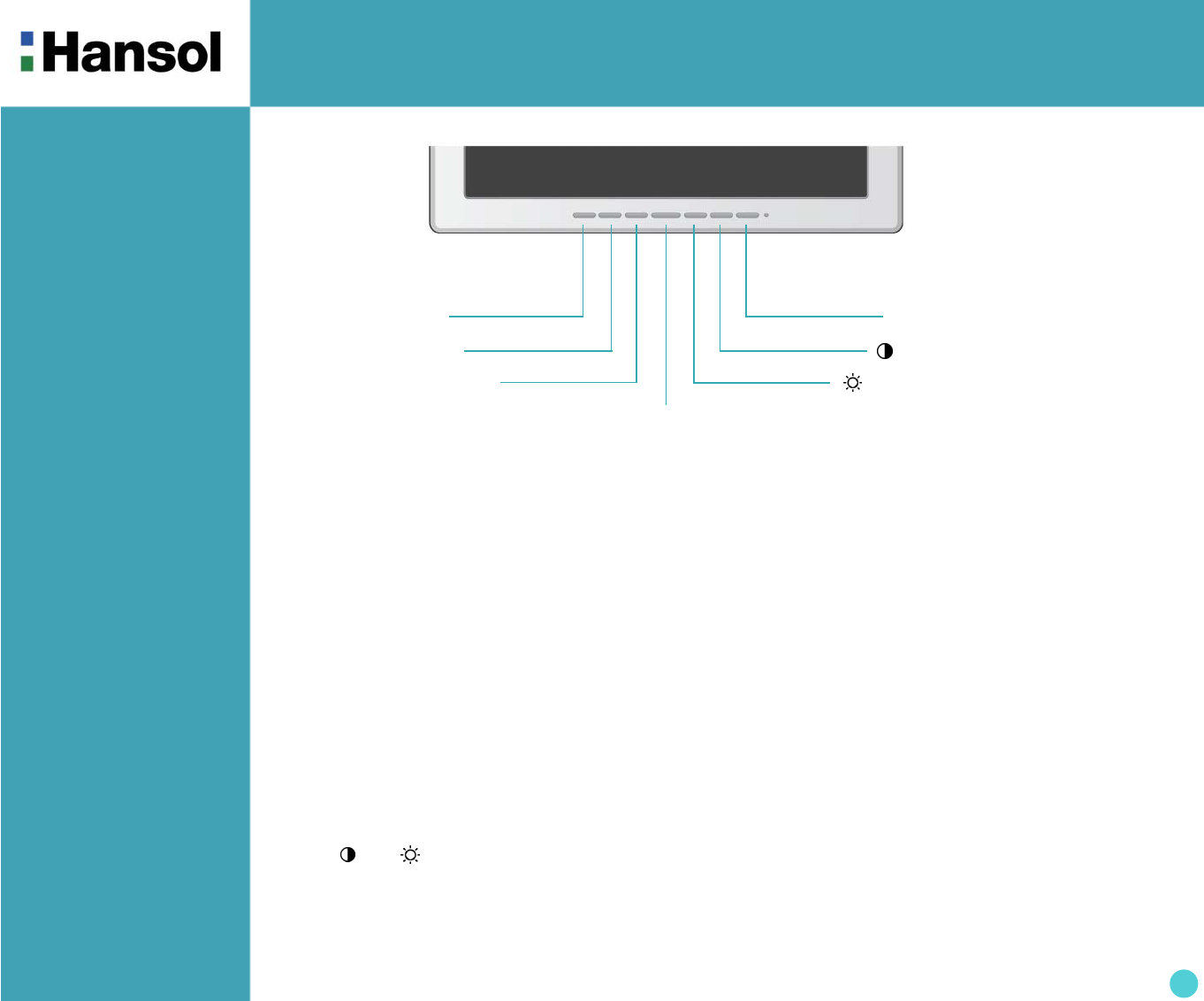

- Front panel
- Functions Power button
Power button is located in the lower center of the Front Bezel.
You can push the button to trun on/off the power.
Power Indicating LED
Dark : Power off
Green : Normal mode
Green blinking : DPMS mode or Check Signal Cable mode.
On Screen Display(OSD) Function Button
OSD buttons on the front of bezel perform the following functions.
SOURCE : Monitor displays source of the signal in order (PC → CVBS → S-VHS)
MENU/EXIT : Press this button to display menus.If you press this button when OSD is displayed, you can switch
display to the previous menu and exit menu.
SELECT/AUTO : Press this button, when OSD is not displayed, to perform automatic setting.(only PC Mode.)
When OSD is displayed, you can select icons.
POWER : Power button.
+ / , – / : By pressing these button when OSD is displayed, you can move cursor into the menus which
you want. After press the SELECT button, you can change gauge level or select submenus.
When OSD is not displayed, you can adjust brightness or contrast.
VOLUME/MUTE : Press this button for volume control. When Control is displayed, you can control mute
by pressing this button.
/ – BUTTON
SELECT/AUTO BUTTON
POWER BUTTON
(Power indicating LED)
/ + BUTTON
VOL/MUTE BUTTON
MENU/EXIT BUTTON
SOURCE BUTTON
![](/img.php?id=593165&img=bg6.png)
TFT-LCD Monitor
6
MENU – + SELECT

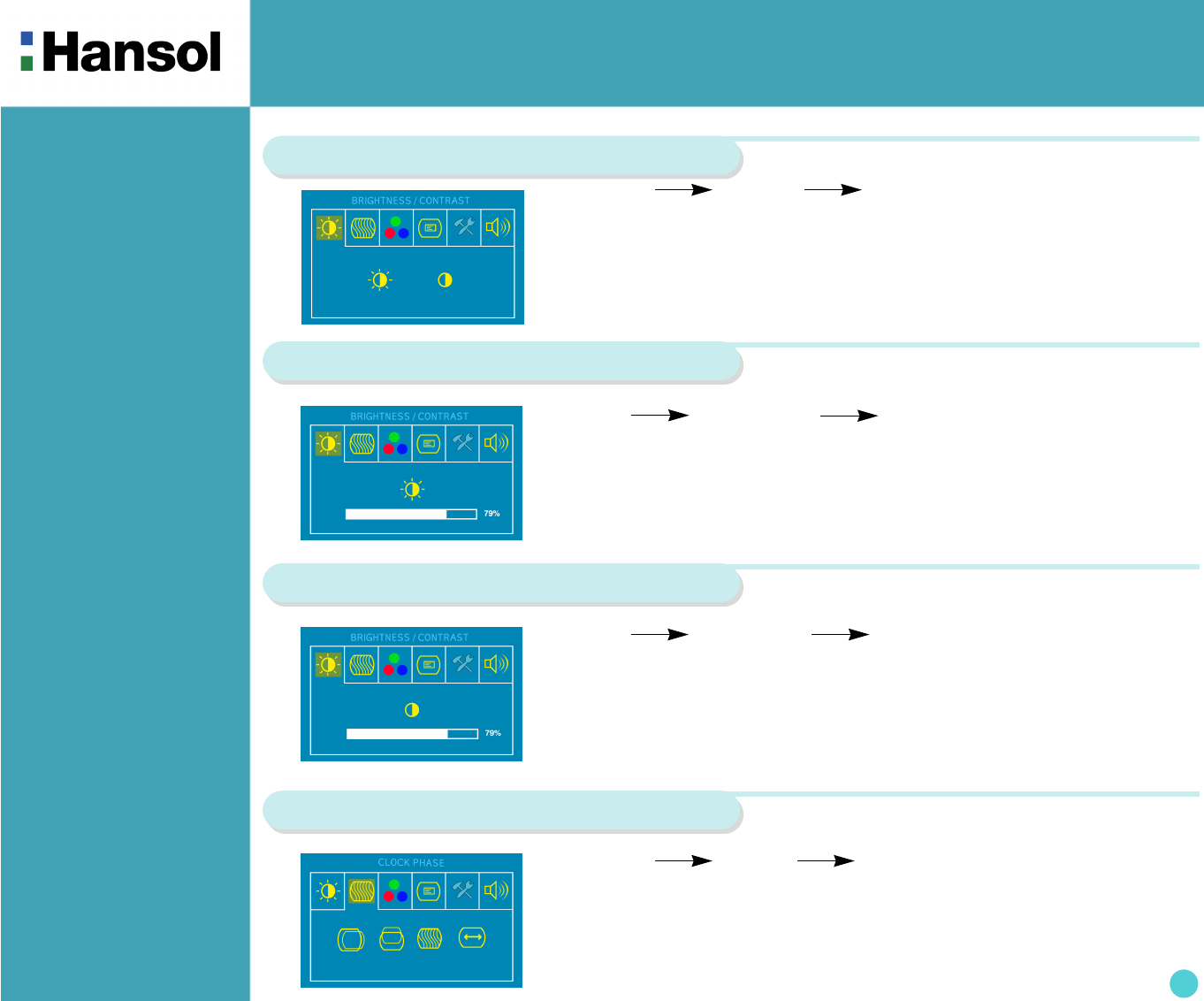

Brightness / Contrast
1. Press the MENU button to access main menu.
2. Use – , + to move Brightness / Contrast ICON.
3. Press SELECT button into the submenu.
Brightness
– + SELECT – +
1. Use – , + to move Brightness ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust the brightness of the screen.
Contrast
– + SELECT – +
Clock Phase
MENU – + SELECT
1. Press the MENU button to access main menu.
2. Use – , + to move CLOCK PHASE ICON.
3. Press SELECT button into the submenu.
1. Use – , + to move Contrast ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust the contrast of the screen.
Controls
- Adjusting OSD
(PC MODE)
![](/img.php?id=593165&img=bg7.png)
TFT-LCD Monitor
7

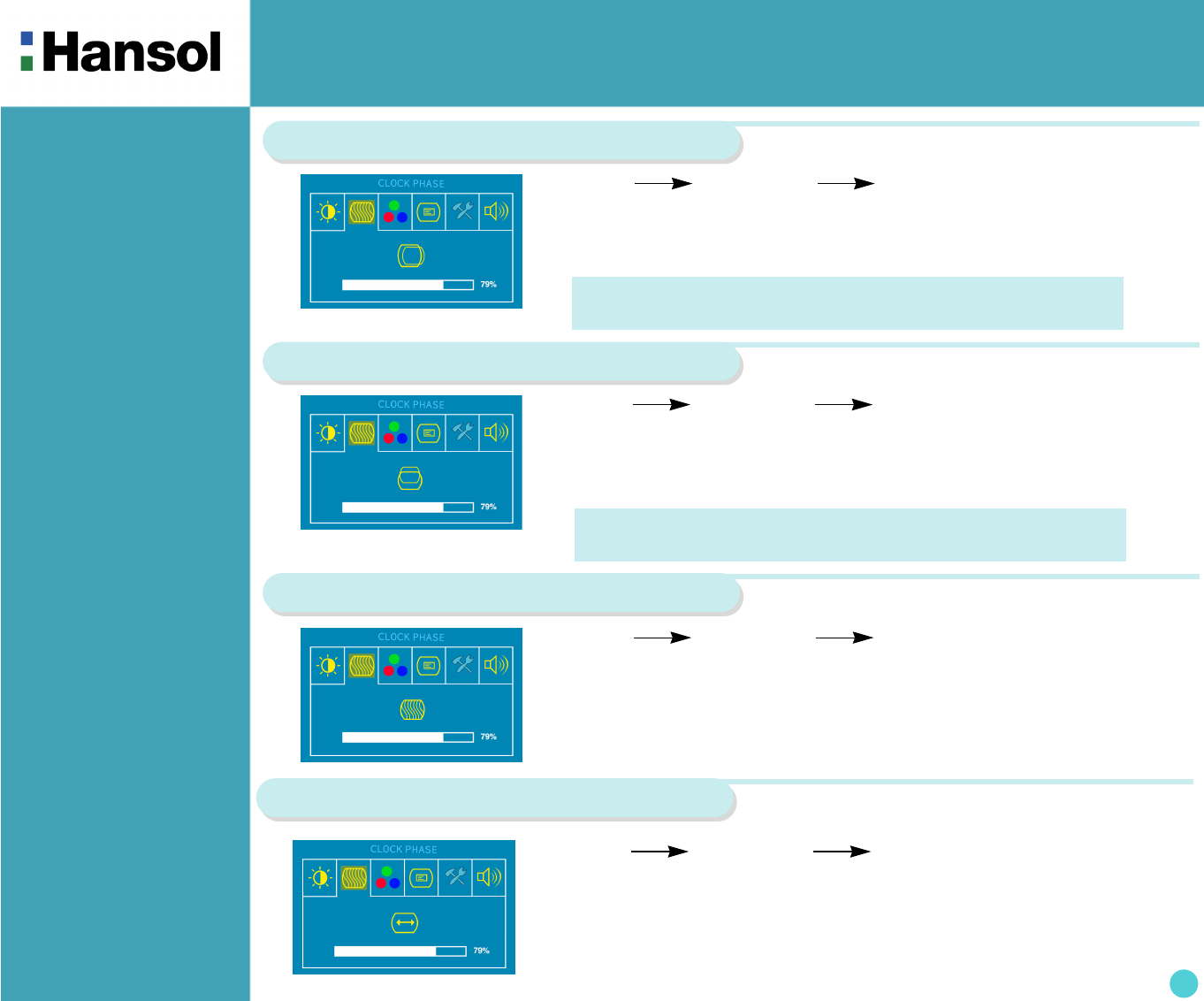

Horizontal Position
Vertical Position
– + SELECT – +
– + SELECT – +
1. Use – , + to move V-Position ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust display upward or downward.
Phase
1. Press – , + to move Phase ICON.
2. Use SELECT button to select it.
3. Use – , + to correct fine trembling or Video noise.
1. Use – , + to move H-Position ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust display left or right.
– + SELECT – +
According to the characteristic of video card, control range
can be changed.
According to the characteristic of video card, control range
can be changed.
Clock
1. Use – , + to move Clock ICON.
2. Press SELECT button to select it.
3. Press – or + to remove vertical noise.
(Adjusting clock phase is required after the adjustment of clock.)
– + SELECT – +
![](/img.php?id=593165&img=bg8.png)
TFT-LCD Monitor
8
– + SELECT – + MENU

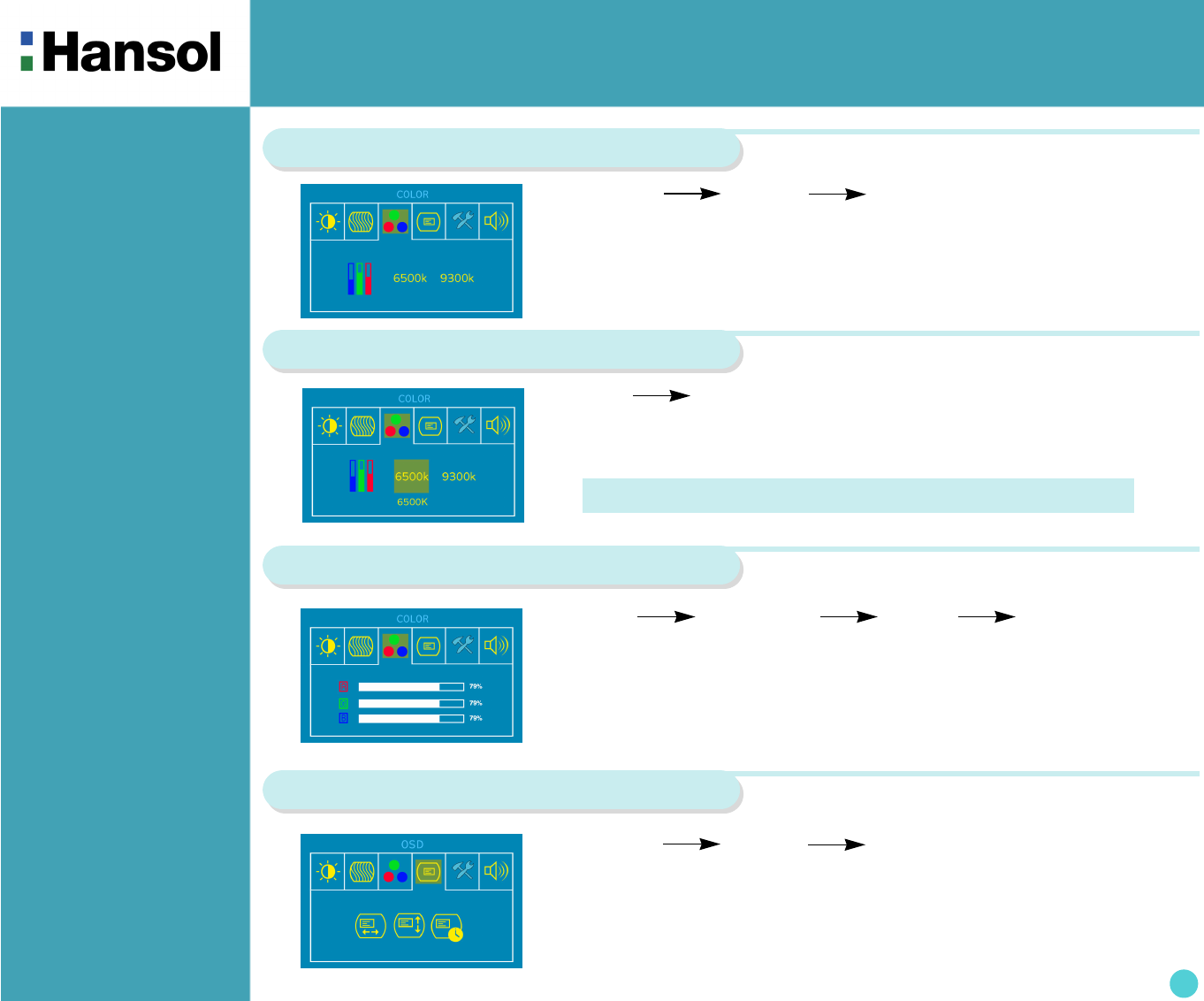

Color
MENU – + SELECT
1. Press MENU button to access main menu.
2. Use – , + to move Color ICON.
3. Press SELECT button into the submenu.
Preset Color
– + MENU
1. Use – , + to select the Mode 1, and Mode 2.
2. Press the Menu button to return previous state.
User Color
1. Use – , + to move Color ICON.
2. Press SELECT button to select it.
3. Use – , + to increase or decrease each color.
9300K : Slighty Bluish white. 6500K : Slighty Reddish white.
OSD
1. Press MENU button to access main menu.
2. Use – , + to move OSD ICON
3. Press SELECT button into the submenu.
MENU – + SELECT
![](/img.php?id=593165&img=bg9.png)
TFT-LCD Monitor
9
OSD H-Position
– + SELECT – +
1. Use – , + to move OSD H-position ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust OSD Left or right.
OSD V-Position
1. Use – , + to move OSD V-position ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust OSD upward or downward.
OSD Time
1. Use – , + to move OSD Time ICON.
2. Press SELECT button to select it.
3. Use – , + to adjust OSD display time.
4. Press menu button to return main menu.
– + SELECT – +
– + SELECT – +
Special
1. Press the MENU button to access main menu.
2. Use – , + to move Special ICON.
3. Press SELECT button into the submenu.
MENU – + SELECT
![](/img.php?id=593165&img=bga.png)
TFT-LCD Monitor
10
– + SELECT

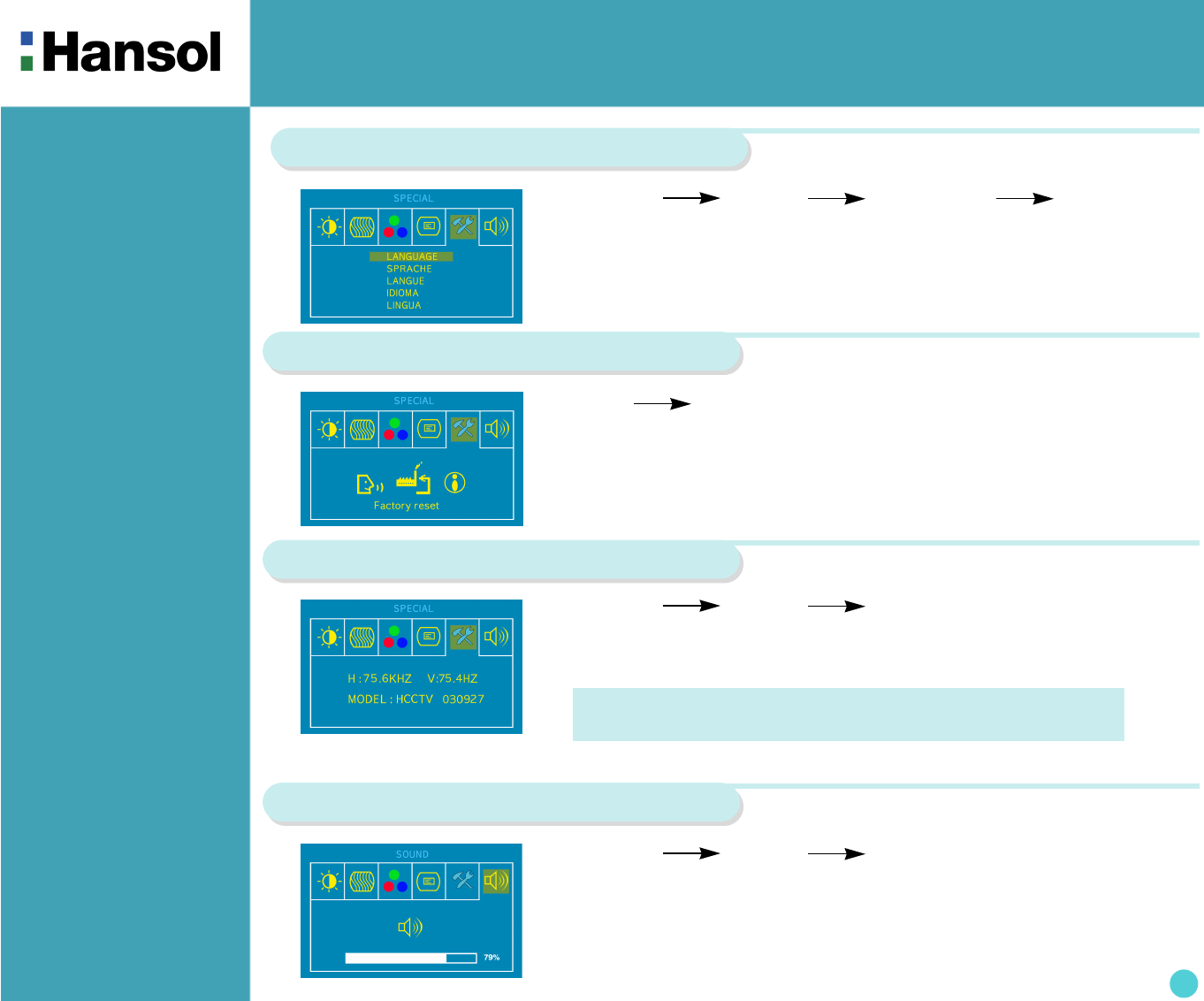

Language
1. Use – , + to move Language ICON.
2. Press SELECT button to select it.
3. Use – , + to select language.
Factory Reset
1. Use – , + to move the Factory Reset ICON.
2. Press SELECT button to return to default setting.
Information
1. Use – , + to move the information ICON.
2. Press SELECT button to select it.
MENU – + SELECT – +
MENU – + SELECT
※ You can know display information.
According to the characteristic of video card, display information
can be incorrect.
Sound
1. Use – , + to decrease or increase volume level.
2. Press SELECT button to select it.
3. Use – , + to control volume.
MENU – + SELECT
