Users Manual
![](/img.php?id=1334840&img=bg1.png)
TANDBERG
TFT-LCD Color Monitor
FS-P6501C
User Guide
General Specification
![](/img.php?id=1334840&img=bg2.png)

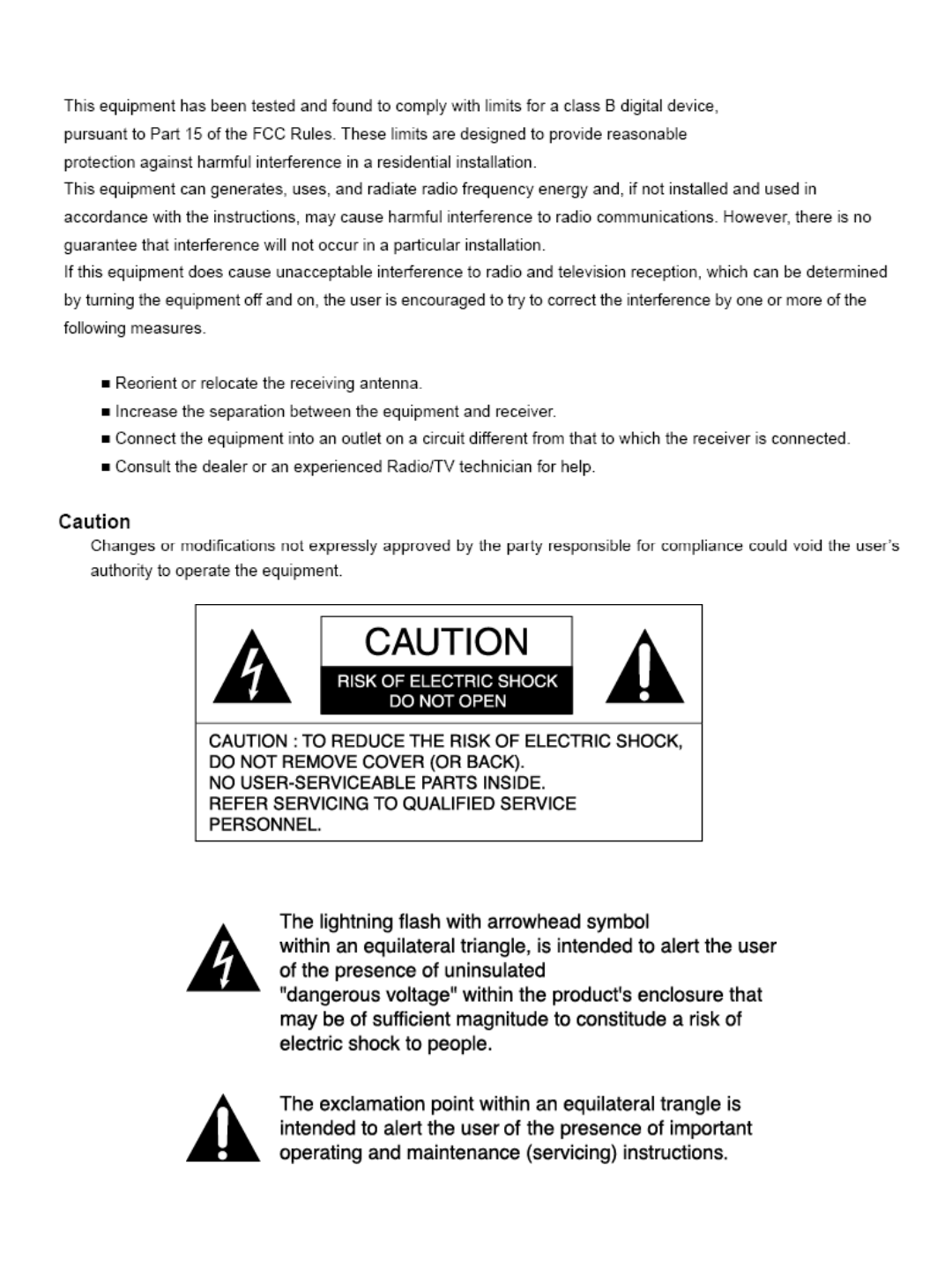

INFORMATION TO USER :
General Specification
![](/img.php?id=1334840&img=bg3.png)
TABLE OF CONTENTS
1. Product Drawing ------------------------------------------------------------------------------------- 1
2. Column S
p
ecification ------------------------------------------------------------------------------ 2
p
3. Standard signal Table ------------------------------------------------------------------------------ 3
4. Signal Connector Pin Assignments ----------------------------------------------------------- 4
5. Specification ------------------------------------------------------------------------------------------ 6
General Specification
![](/img.php?id=1334840&img=bg4.png)

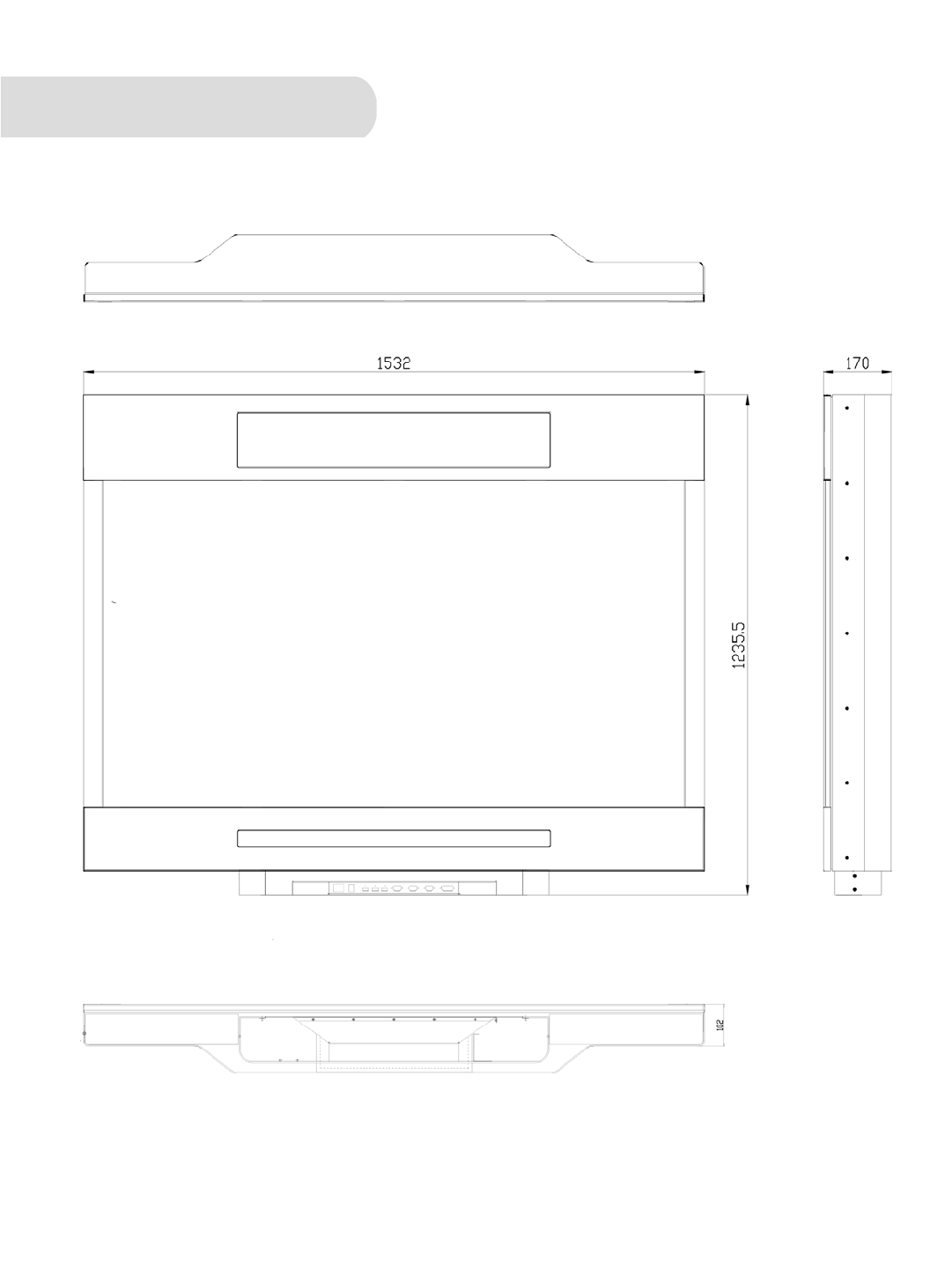

1. Product Drawing
General Specification 1
Unit : mm
![](/img.php?id=1334840&img=bg5.png)
2. Column Specification
Power
switch
AC HDMI 1 HDMI 2 HDMI 3 RS-232
Input
RS-232
Output
Specker
Input
VGA
General Specification 2
![](/img.php?id=1334840&img=bg6.png)
3. Standard signal Table
PC Supported Mode
Resolution Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
Clock
Frequency(MHz)
PAL 15.6 50 13.5
NTSC
15 7
60
13 5
NTSC
15
.
7
60
13
.
5
640x480 29.5 60 23.625
800x600 31.5 50 35.4375
800x600 37.9 60 40.0
800x600 47 75 48.875
1024x768 47.3 60 56
720p(1280x720) 37.5 50 74.25
720p(1280x720) 45 60 74.25
720p(1280x720) 75 100 148.5
720p(1280x720) 90 120 148.5
1280x1024 64 60 108
1280x768 47.7 60 79.5
1360x768 47.3 60 72
1366x768 48.3 60 87.75
1400x1050 64.7 60 101
1680x1050 64.7 60 119.125
1600 1200
74
60
130 375
1600
x
1200
74
60
130
.
375
1080p(1920x1080) 27 24 74.25
1080p(1920x1080) 28.12 25 74.25
1080p(1920x1080) 33.75 30 74.25
1080p(1920x1080) 52 48 148.5
1080 (1920 1080)
56 25
50
148
General Specification
1080
p
(1920
x
1080)
56
.
25
50
148
1080p(1920x1080) 67.5 60 148.5
1920x1200 74 60 154
3
![](/img.php?id=1334840&img=bg7.png)
4. Signal Connector Pin Assignments
Pin No. Assignment Pin No. Assignment
1 TMDS Data2+ 11 Ground_Clock
Shield
2
Ground
D
ata
2
1
2
TM
D
S
Clock
-
1. HDMI1, HDMI2, HDMI3
Ground
_
ata
Shield
1
TM S Clock
3 TMDS Data2- 13 No Connection
4 TMDS Data1+ 14 No Connection
5Ground_Data1
Shield
15 TMDS SCL
6 TMDS Data1- 16 TMDS SDA
7 TMDS Data0+ 17 Ground
8Ground_Data0
Shield
18 TMDS Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Pin No. Assignment Pin No. Assignment
1Red 9D-Sub Power
EDID write prote
ct
2. VGA(D-Sub 15p)
2 Green 10 Ground-Sync
3Blue 11Ground
4 Ground 12 DDC Data
5 DDC 5V
Standby Cable
Connection
check
13 H sync
General Specification
check
6Ground-Red 14V sync
7 Ground-Green 15 DDC Clock
8Ground-Blue
4
![](/img.php?id=1334840&img=bg8.png)
Pin No. Assignment Pin No. Assignment
3. RS-232 input (D-Sub 9Pin)
1
1 RS-232 ID 6 No Connection
2 RS-232 RXD Input 7 No Connection
3 RS-232 TXD Input 8 5V Power
4 No Connection 9 No Connection
5Ground
Pin No. Assignment Pin No. Assignment
1 No Connection 6 No Connection
2 RS-232 RXD Out 7 No Connection
3
RS
232 TXD Out
8
No Connection
4. RS-232 Output (D-Sub 9Pin)
2
3
RS
-
232
TXD
Out
8
No
Connection
4 No Connection 9 No Connection
5Ground
5. Speaker input (D-Sub 2Row 15Pin)
3
Pin No. Assignment Pin No. Assignment
1 CABINET_VERSION1 9 LEFT+ (Left speaker)
2 CABINET_VERSION0 10 LEFT- (Left speaker)
3 TW+ (Center tweeter) 11 RIGHT+ (Right speaker)
4 TW- (Center tweeter) 12 RIGHT- (Right speaker)
5
MID+ (Center
13
LOWMOUNTED
5
MID+
(Center
midrange)
13
LOWMOUNTED
6MID-(Center
midrange)
14 GND
7 LOW+ (Center bass) 15 CABINET_VERSION2
8 LOW- (Center bass)
General Specification 5
Notes
1,2,3 - This port is only valid on system level assembly Do not use this port as
personnel usage.
![](/img.php?id=1334840&img=bg9.png)
5. Specification
Model FS-P6501C
LCD PANEL
Type A-si TFT Active matrix
Screen size 163.9Cm (Diagonal)
Maximum Resolution 1920X1080 @60Hz
Pixel pitch 0.744(H)mmX0.744(V)mm
Di l l
1073 7M (RGB 10
bit d t )
Di
sp
l
ay co
l
ors
1073
.
7M
(RGB
10
-
bit
d
a
t
a
)
Contrast Ratio (Typ.) 4000:1
Viewing Angle (Typ.) 89/89/89/89
Response Time (Typ.) 6.5ms
Luminance (Typ.) 350cd/m2
Synchro
nization
Horizontal Frequency 67.5KHz
Vertical Frequency 60Hz
Power
Consumption
Maximum 500W
Standby Mode Under 45W
Power
AC
100
240V 50
60Hz 5A
Max
Power
AC
100
-
240V
~
50
-
60Hz
5A
Max
Approval Mark&
EMI
Safety CB,CE-LVD,CSA,KC,CCC
EMI CE-EMC,FCC,KCC
Dimension Size and weight 1532X170X1235.5/120Kg
General Specification 6
