user manual
General Specification
TFT-LCD Color Monitor
FS-S5201C&FS-P6501C
User Guide
TANDBERG
General Specification

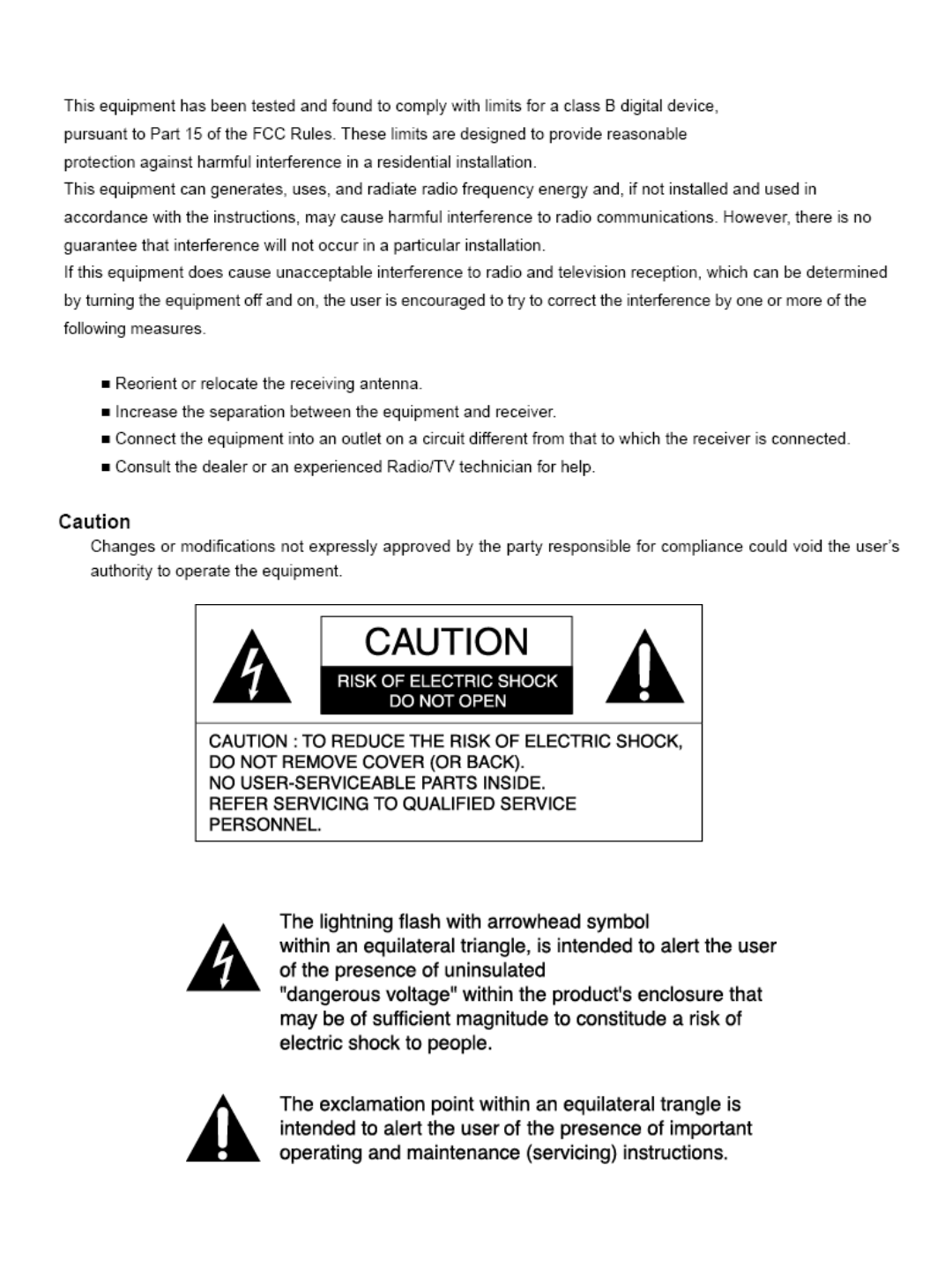

INFORMATION TO USER :
General Specification
TABLE OF CONTENTS
1. Product Drawing------- ------------------------------------------------------------------------------ 1
2. Column Specification- ----------------------------------------------------------------------------- 3
3. Standard signal Table ------------------------------------------------------------------------------4
4. Signal Connector Pin Assignments------------------------------------------------------------5
5. Specification ------------------------------------------------------------------------------------------6
General Specification
1. Product Drawing

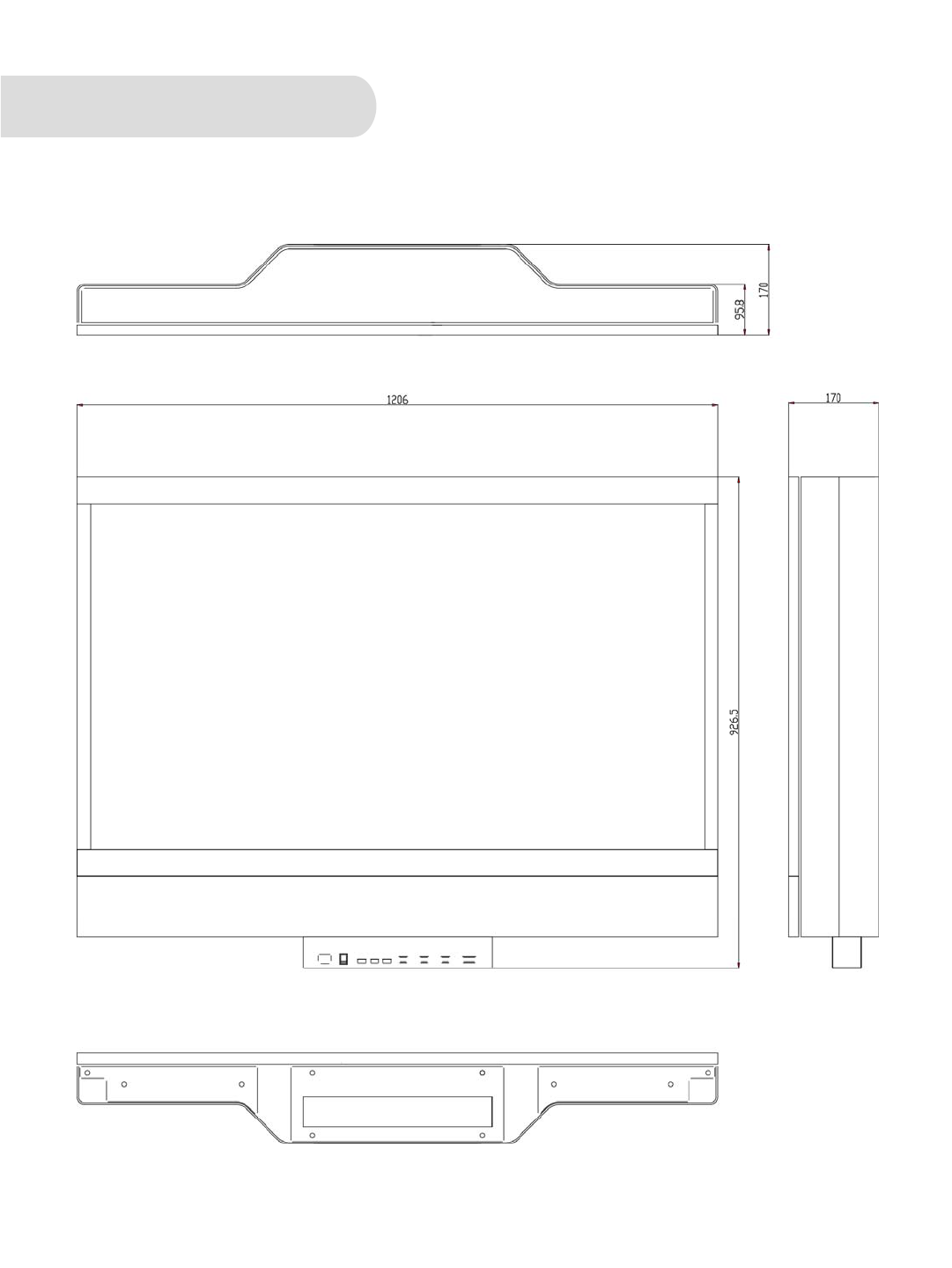

1-1. FS-S5201C Product Drawing
Unit : mm
1
General Specification

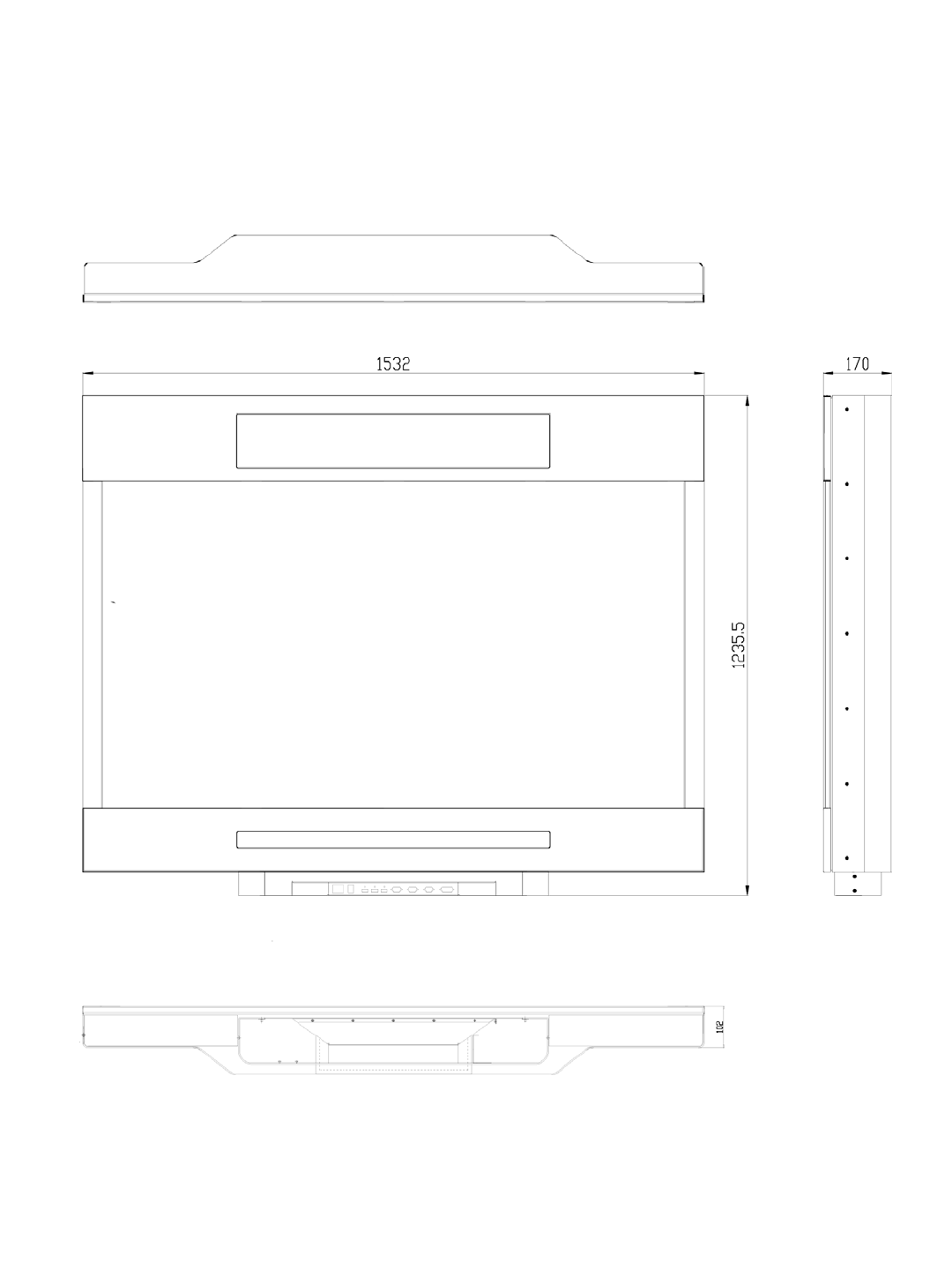

1-2. FS-P6501C Product Drawing
Unit : mm
2
General Specification
2. Column Specification
Power
switch
AC HDMI 1 HDMI 2 HDMI 3 RS-232
Input
RS-232
Output
Specker
Input
3
VGA
General Specification
PC Supported Mode
35.56037800x600
148.56076.51080p(1920x1080)
1485056.251080p(1920x1080)
119.1256064.71680x1050
1016064.71400x1050
87.756048.31366x768
74.252528.121080p(1920x1080)
74.2524271080p(1920x1080)
130.37560741600x1200
74.253033.751080p(1920x1080)
148.548521080p(1920x1080)
1920x1200
1360x768
1280x768
1280x1024
720p(1280x720)
720p(1280x720)
720p(1280x720)
720p(1280x720)
1024x768
800x600
800x600
640x480
NTSC
PAL
Resolution
148.510075
13.55015.6
79.56047.7
15.46074
23.6256029.5
726047.3
1086964
148.512090
74.256045
74.255037.5
566047.3
48.8757547
35.43755031.5
13.56015.7
Clock
Frequency(MHz)
Vertical
Frequency(Hz)
Horizontal
Frequency(KHz)
3. Standard signal Table
4
General Specification
4. Signal Connector Pin Assignments
Hot Plug Detect19TMDS Data0-9
TMDS Power18Ground_Data0
Shield
8
TMDS SCL15Ground_Data1
Shield
5
10
7
6
4
3
2
1
Pin No.
Ground_Clock
Shield
11TMDS Data2+
No Connection13TMDS Data2-
TMDS Clock+
Ground17TMDS Data0+
TMDS SDA16TMDS Data1-
No Connection14TMDS Data1+
TMDS Clock-12Ground_Data2
Shield
AssignmentPin No.Assignment
1. HDMI1, HDMI2, HDMI3
Ground-Blue8
H sync13DDC 5V
Standby Cable
Connection
check
5
7
6
4
3
2
1
Pin No.
D-Sub Power
EDID write prote
ct
9Red
Ground11Blue
DDC Clock15Ground-Green
V sync14Ground-Red
DDC Data12Ground
Ground-Sync10Green
AssignmentPin No.Assignment
2. VGA(D-Sub 15p)
5
General Specification
Ground5
4
3
2
1
Pin No.
No Connection6RS-232 ID
5V Power8RS-232 TXD Input
No Connection9No Connection
No Connection7RS-232 RXD Input
AssignmentPin No.Assignment
3. RS-232 input(D-Sub 9Pin)
Ground5
4
3
2
1
Pin No.
No Connection6No Connection
No Connection8RS-232 TXD Out
No Connection9No Connection
No Connection7RS-232 RXD Out
AssignmentPin No.Assignment
4. RS-232 Output(D-Sub 9Pin)
CABINET_VERSION215LOW+ (Center bass) 7
LOWMOUNTED13MID+ (Center
midrange)
5
GND 14MID- (Center
midrange)
6
LOW- (Center bass) 8
4
3
2
1
Pin No.
LEFT+ (Left speaker)9CABINET_VERSION1
RIGHT+ (Right speaker)11TW+ (Center tweeter)
RIGHT- (Right speaker)12TW- (Center tweeter)
LEFT- (Left speaker)10CABINET_VERSION0
AssignmentPin No.Assignment
5. Speaker input(D-Sub 2Row 15Pin)
6
Notes
1,2,3 - This port is only valid on system level assembly Do not use ehis port as
personnel usage.
1
2
3
General Specification
5. Specification
70KHzHorizontal FrequencySynchro
nization
600cd/m2Luminance(Typ.)
8msResponse Time(Typ.)
88/88/88/88Viewing Angle(Typ.)
1700:1Contrast Ratio(Typ.)
Under 30Standby Mode
500WMaximumPower
Consumption
85KHzVertical Frequency
1206X170X926.5 /68KgSize and weightDimension
CE,FCCEMI
16.7M (RGB 8-bit data)Display colors
Approval Mark&
EMI
Power
LCD PANEL
Model
A-si TFT Active matrixType
1920X1080@60HzMaximum Resolution
CE,CSAApproval Mark
AC 100-240V~50-60Hz 5A Max
0.6(H)mmX0.6(V)mmPixel pitch
106.7Cm (Diagonal)Screen size
FS-S5201C
5-1. Specification
7
General Specification
70KHzHorizontal FrequencySynchro
nization
450cd/m2Luminance(Typ.)
6msResponse Time(Typ.)
88/88/88/88Viewing Angle(Typ.)
2000:1Contrast Ratio(Typ.)
Under 30Standby Mode
500WMaximumPower
Consumption
85KHzVertical Frequency
1532X170X1235.5/130.5KgSize and weightDimension
CE,FCCEMI
16.7M (RGB 8-bit data)Display colors
Approval Mark&
EMI
Power
LCD PANEL
Model
A-si TFT Active matrixType
1920X1080@60HzMaximum Resolution
CE,CSAApproval Mark
AC 100-240V~50-60Hz 5A Max
0.744(H)mmX0.744(V)mmPixel pitch
163.9Cm (Diagonal)Screen size
FS-P6501C
5-2. Specification
8
