User Manual
1 DATECS
User Manual

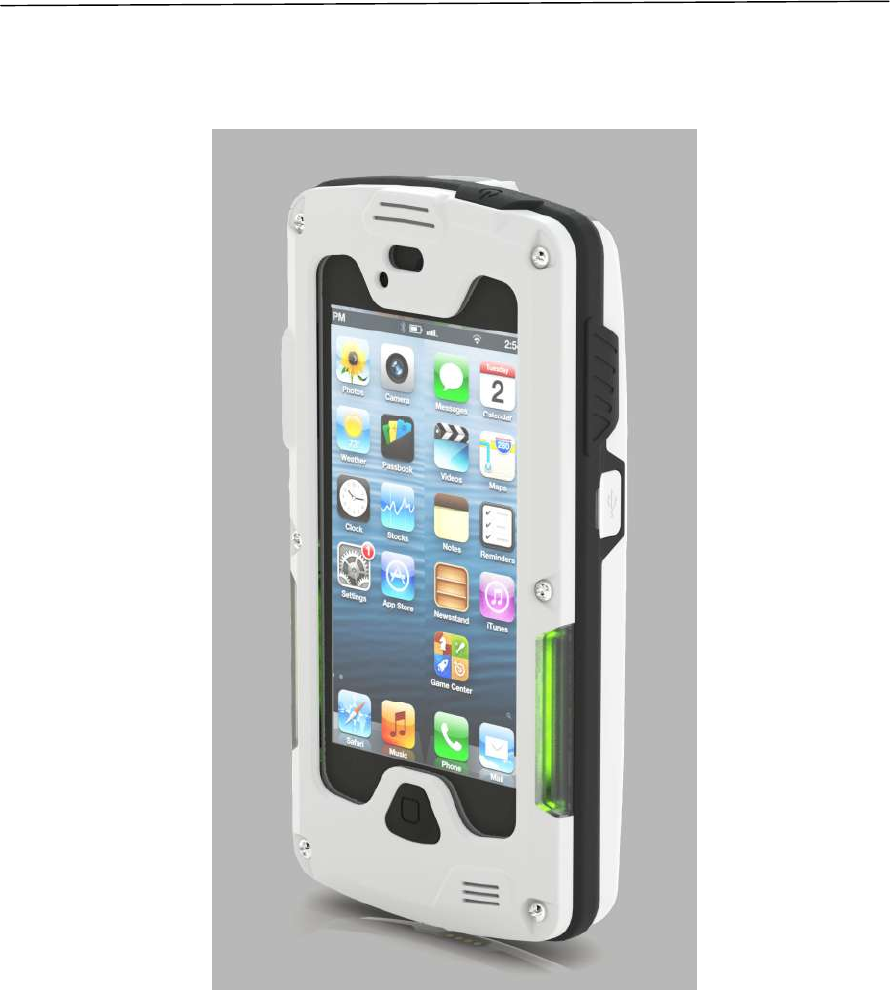

INFINEA X
1 DATECS InfineaX User manual
`
2
THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL
OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD.
VERSION: March 2016
1 DATECS InfineaX User manual
`
3
Legal Notice
“Made for iPod” and “Made for iPhone” mean that an electronic accesory has been designed to
connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible fort he operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this accesory with iPod,
or iPhone may affect wireless performance.
Compatibility
Made for
iPhone 5
iPhone 5S
iPhone SE
iPod touch (5th generation)
iPod touch (6th generation)
iPhone, iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a
trademark of Apple Inc.
1 DATECS InfineaX User manual
`
4
FCC Notice
FCC ID: YRWDATECSBTIX
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
No changes shall be made to the equipment without the manufacturer’s permission as this
may void the user’s authority to operate the equipment.
Exposure to Radio Frequency (RF) Signals
The Infinea X, incorporating the iPhone 5/iPod Touch, has been tested and meets applicable
limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at
which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram averaged over 1
gram of tissue.
During testing, the iPhone 5/iPod Touch devices, incorporated within the Infinea X, are set to
their highest transmission levels and placed in positions that simulate use against the head,
with no separation, and near the body, with 5mm separation. When using the incorporated
iPhone 5/iPod Touch functionality, to reduce exposure to RF energy, use a hands-free
option, such as the built-in speakerphone, the supplied headphones or other similar
accessories. Carry the Infinea X at least 5mm away from your body to ensure exposure levels
remain at or below the as-tested levels.
Cases with metal parts may change the RF performance of the device, including its
compliance with RF exposure guidelines, in a manner that has not been tested or certified.
The Infinea X complies with the FCC safety requirements for RF exposure in accordance with
FCC rule part §2.1093 and KDB447498 D01 for portable use conditions.
The Infinea X, incorporating the iPhone 5/iPod Touch, must not be co-located or operated in
conjunction with any other antenna nor transmitter.
1 DATECS InfineaX User manual
`
5
CONTENTS
Legal Notice............................................................................................................................................. 3
Compatibility ............................................................................................................................................ 3
1. Technical specification ........................................................................................................................ 6
2. Box Contents ....................................................................................................................................... 7
3. General View ....................................................................................................................................... 8
4. Operation Modes ............................................................................................................................... 11
4.1 Attaching device ......................................................................................................................... 11
4.2 Running device........................................................................................................................... 11
4.3 Battery charging and status level ............................................................................................... 11
4.4 Scanning barcodes..................................................................................................................... 12
4.5 Bluetooth connecting to iOS device for transferring audio......................................................... 12
4.6 Clearing Bluetooth pairing info ................................................................................................... 13
4.7 Switching between Rear and Front Speakers............................................................................ 13
4.8 Automatic charge ....................................................................................................................... 13
4.9 Vibration on scan........................................................................................................................ 13
4.10 Pass-through sync through mini USB ...................................................................................... 13
4.11 Reset the InfineaX.................................................................................................................... 13
4.12 Scanning barcodes................................................................................................................... 13
4.13 RF card reading........................................................................................................................ 14
1 DATECS InfineaX User manual
`
6
1. Technical specification
Processor
32-bit ARM
TM
Cortex
TM
- M3 based Microcontroller
Contactless Card
Reader
(option)
ISO/IEC 14443 Type-A/MIFARE:
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and others
ISO/IEC 14443 Type-B:
- supports most of the cards
ISO/IEC 15693:
- supports most of the cards
Barcode Reader
(option)
• Intermec EA-30* - Image Sensor 752 x 480 CMOS, High Performance 2D
Imager Scan Engine
• Intermec EA-31 - Image Sensor 752 x 480 CMOS, High Performance 2D
Imager Scan Engine
Supported Barcode
Types
• 2D* Imager Supported Symbologies:
EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code 39,
Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/Industrial and
Standard 2 of 5, Codabar, Code 93/93i,Code 11, MSI, Plessey, Telepen,
Postal codes: Australian Post, BPO, Canada Post, Dutch Post, Japan Post,
PostNet, Sweden Post
Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec, GS1
composite codes, Direct Part Marking Reading multicodes
Battery
Rechargeable hard pack Li-Ion Battery 3.7V / 1900 mAh
Rechargeable hard pack Li-Ion Battery 3.7V / 3800 mAh (option)
Connectivity
• Apple 9 pin connector
• Pass-through sync through special 4 pin waterproof connector
• Pass-through sync through mini USB
• Bluetooth for audio signals transfer between InfineaX and iOS device
Device compatibility
Apple iPod 5 / iPod 6 / iPhone 5 / iPhone 5S / iPhone SE
Buttons
• Scan button
• Battery status button
LED indication
18 LEDs for battery and emergency status
Audio indication
Electro-Magnetic Buzzer
Vibration capabilities
Micro Vibration Motor - Rated speed: 14,000 ± 2,000rpm
Sound capabilities
• 1.7-W mono fully differential audio power amplifier
• Front Speaker – 150mW
• Rear Speaker – 750mW
• Electret Condenser Microphone
Certifications
CE, Apple
®
MFi
1 DATECS InfineaX User manual
`
7
Weight, g
200 with battery and 2D barcode reader (without iPod/iPhone)
Dimensions (LxWxH),
mm
148 x 72 x 31
Environmental
• Operating: -10oC to +40oC / 5% to 90% RH
• Storage: -20oC to +50oC / 5% to 90% RH
Drop Test
1.5 m, 6 faces + 4 edges on concrete
Power Supply
• 5V through special 4 pin waterproof connector
• 5V through single or 5 station charger
Accessories
• Single station charger - SC-1
• 5 stations charger - GC-5
* Specifications subject to change without notice.

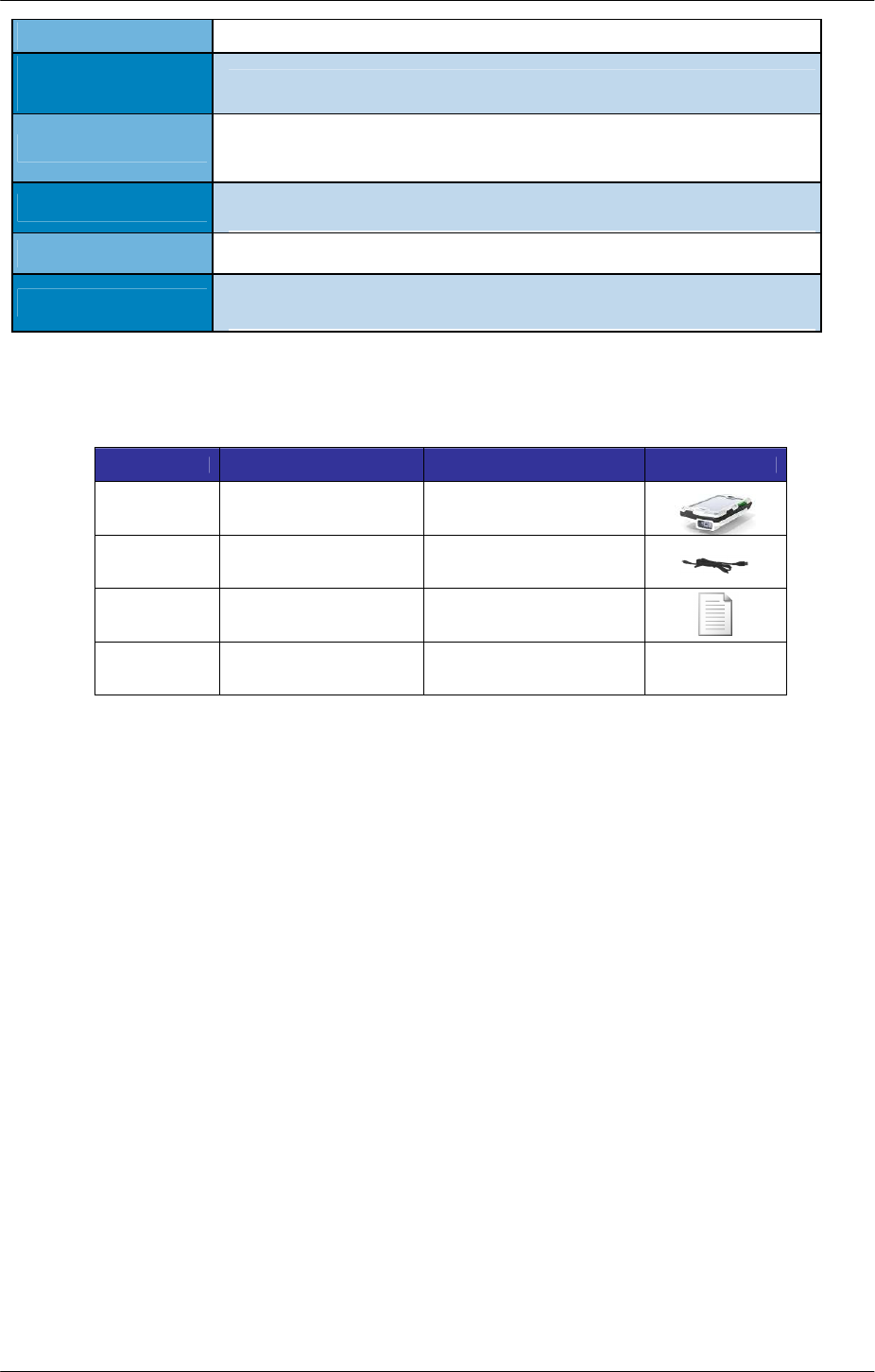

2. Box Contents
Item Part Number Descriptions Image
1 InfineaX InfineaX Scanner
2 USB A to mini
B(0.9m) USB sync cable
3 InfineaX User
Manual User's manual
4 IX-BP Li-Polymer Battery
3,7V
1 DATECS InfineaX User manual
`
8

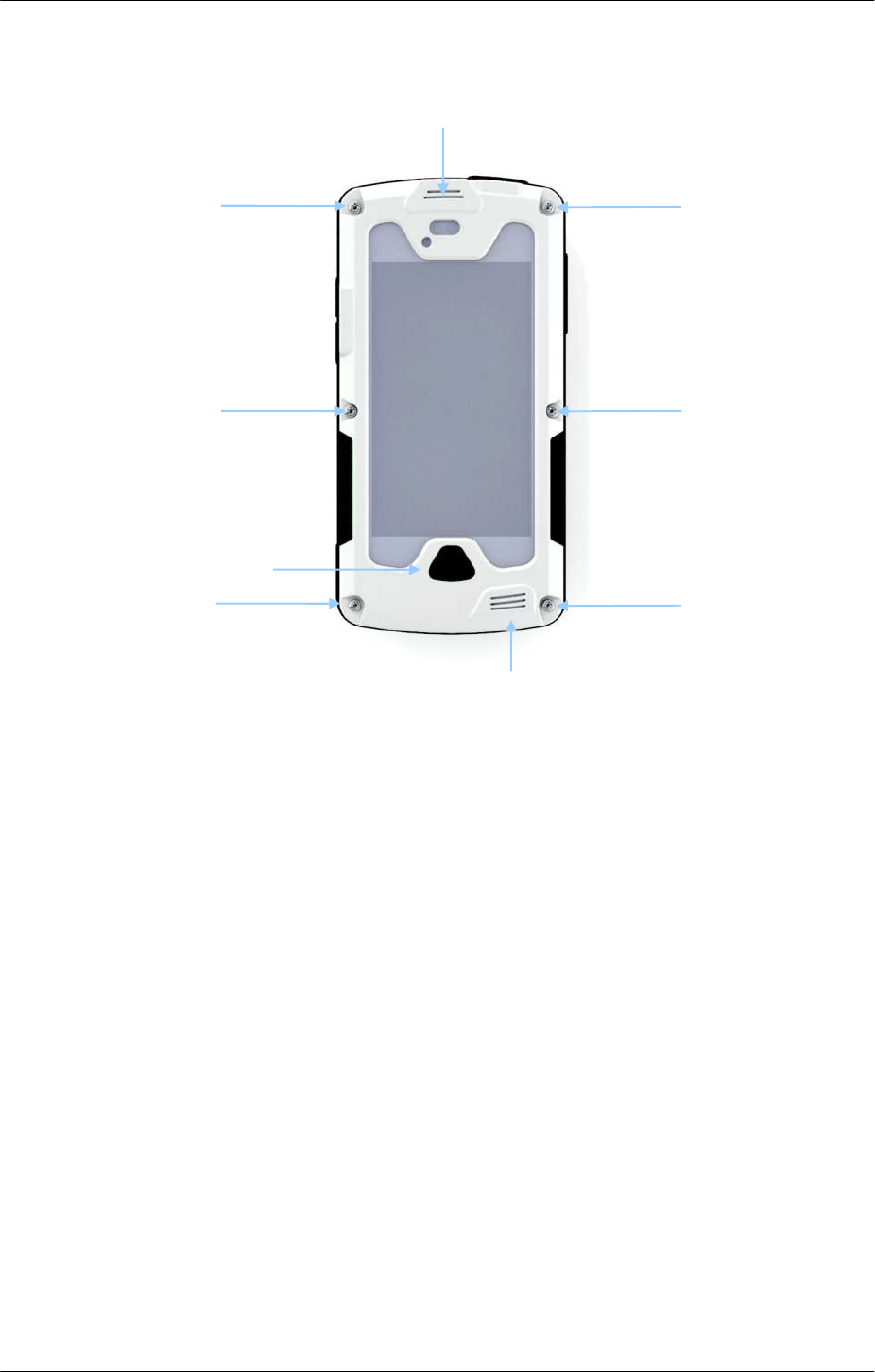

3. General View
Front Speaker
Microphone
Home button
Mounting torx
screws (1)
(2)
(3)
(4)
(5)
(6)
1 DATECS InfineaX User manual
`
9

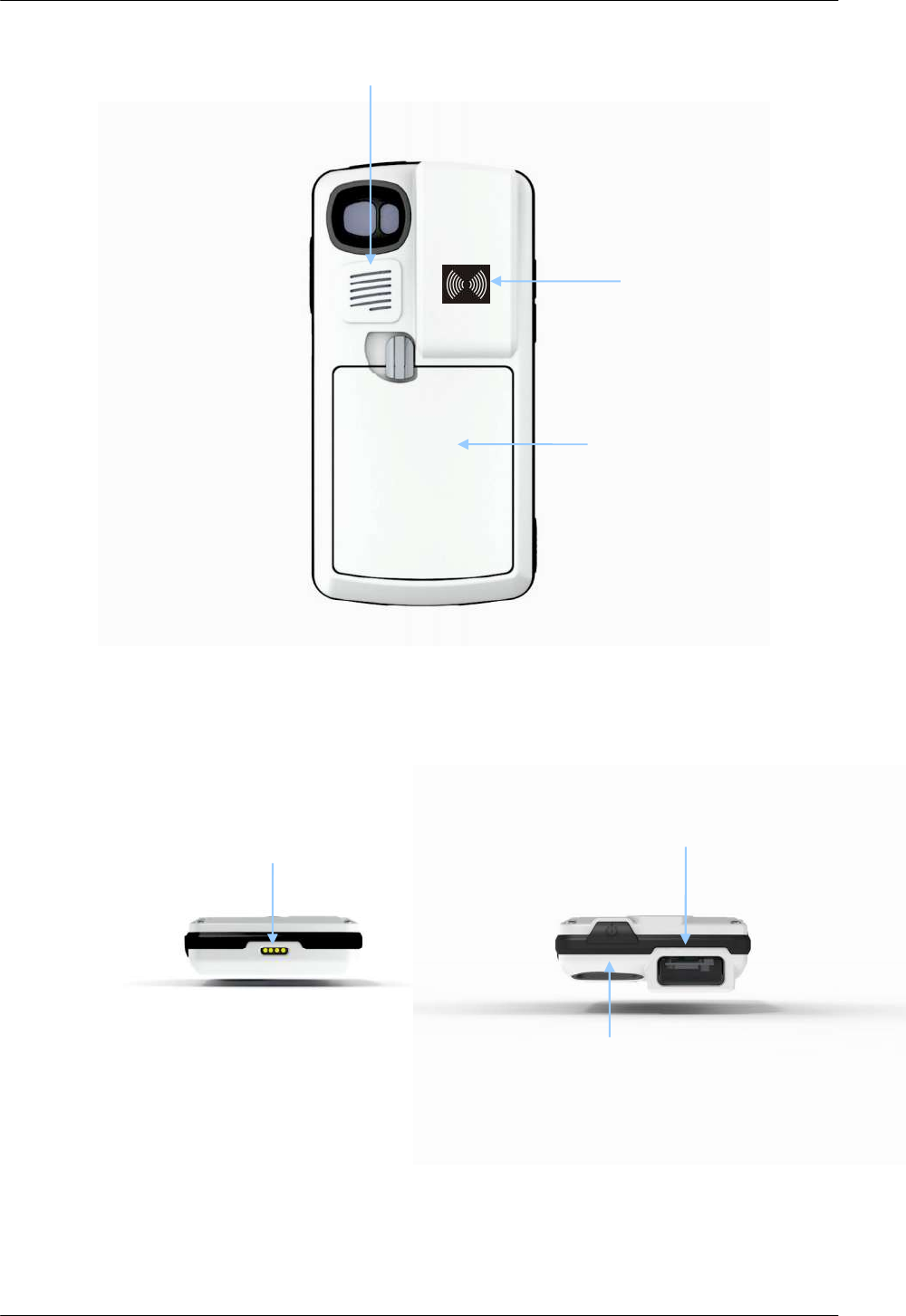

Scan engine
On/Off button
Pads for charging
station and sync
Rear Speaker
Battery
RF reader
1 DATECS InfineaX User manual
`
10

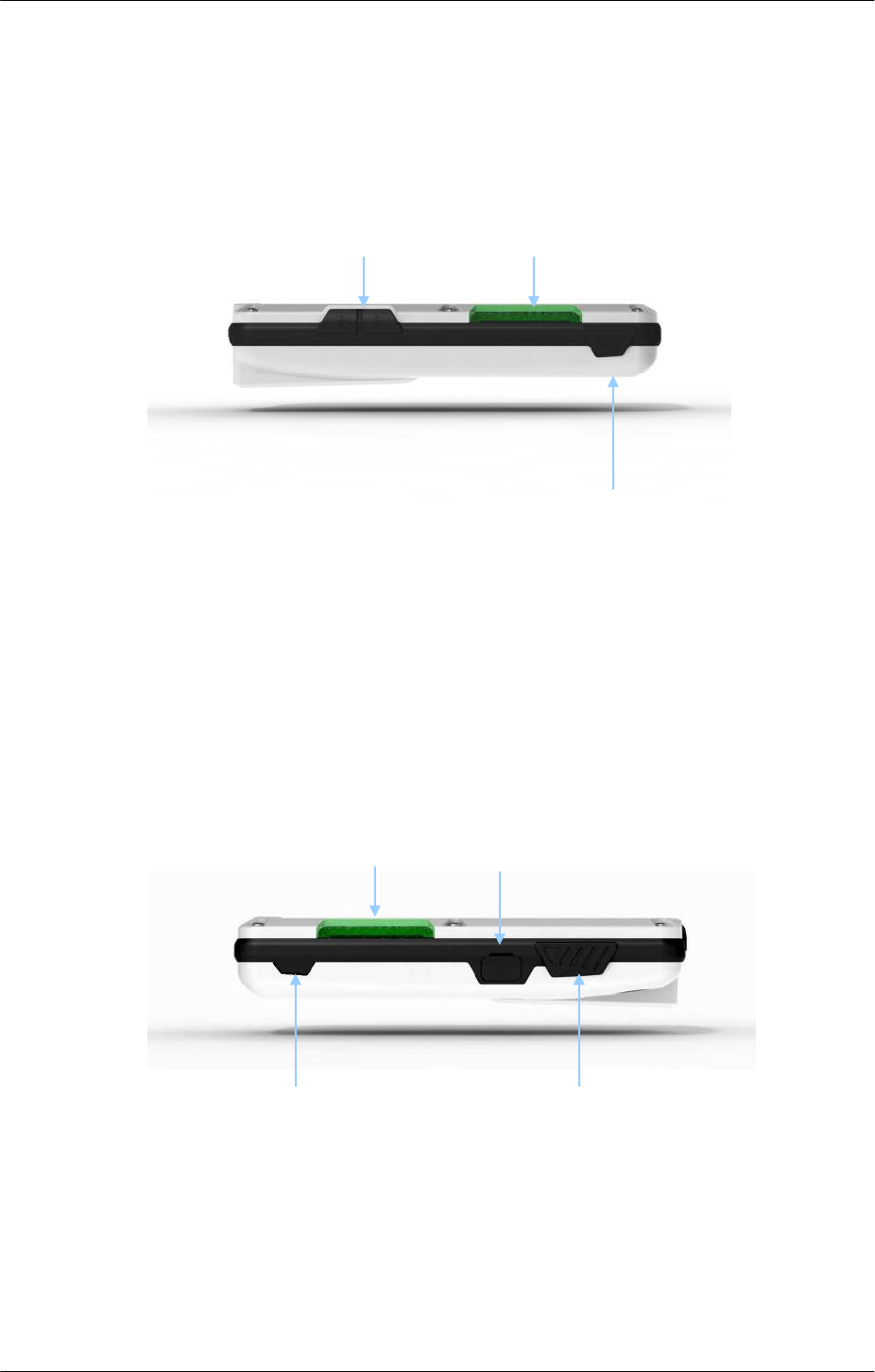

Battery status
button
Volume
buttons
LEDs
indications
LEDs
indications
mini USB
connector
Scan button
Button for
switching between
Rear/Front
speakers
1 DATECS InfineaX User manual
`
11
4. Operation Modes
4.1 Attaching device
Remove all 6 mounting screws, slide device to 9-pin lightning connector.
After that all 6 screws must be mounting again.

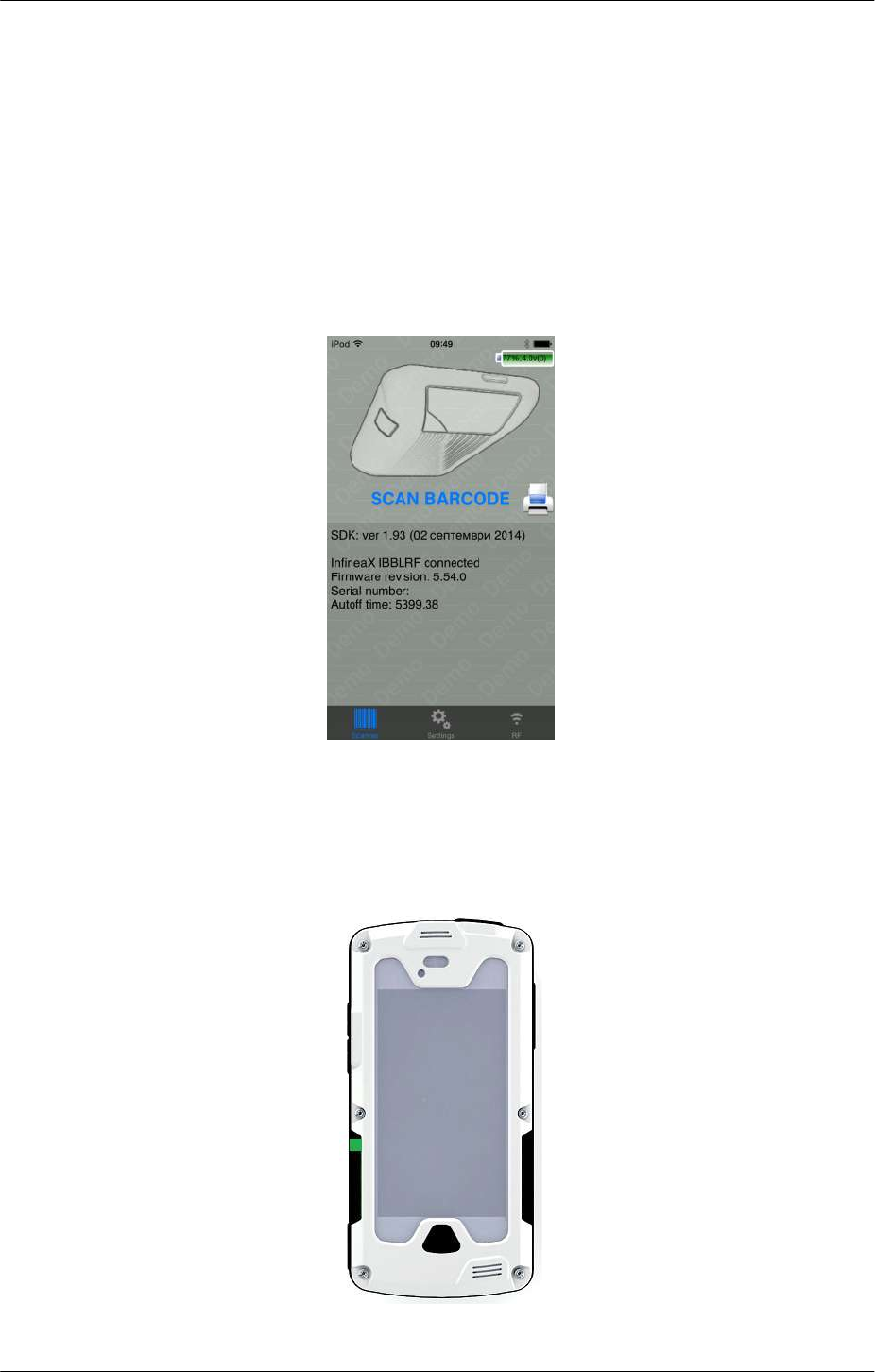

4.2 Running device
Important - Before first use, battery must be connect to the device.
Press one of these buttons; Scan, Status or Speaker Switch.
Run app “LibraryDemo”, and device is ready for using (Pic.7).
Pic. 7
4.3 Battery charging and status level
This device can be charge from USB port or Datecs charging station.
Connect mini USB cable to USB port and charge will start. When the device is charging one
green LED is light (Pic.8).
Pic. 8
1 DATECS InfineaX User manual
`
12

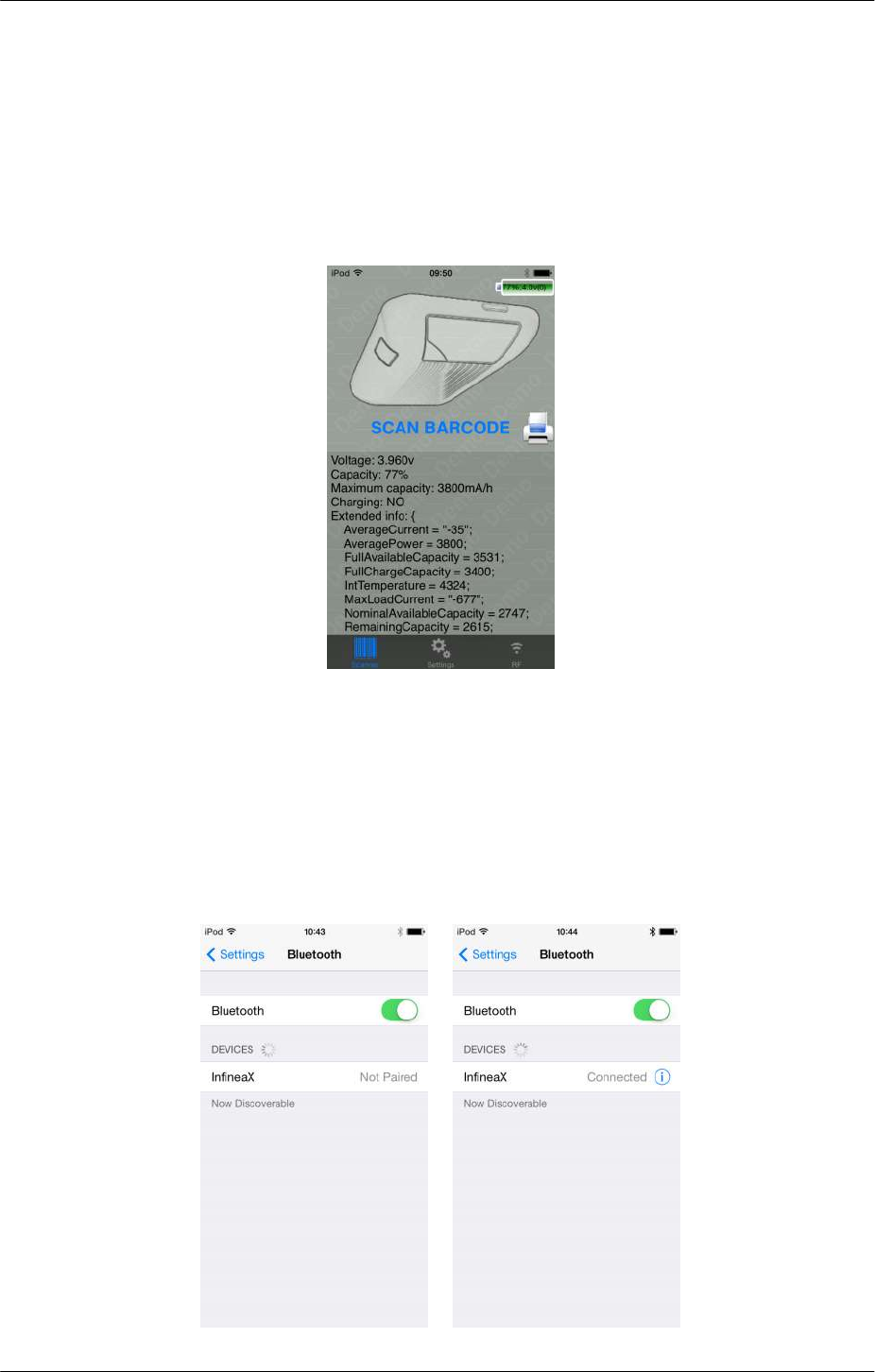

Battery level status can be check, when is press battery status button:
- Battery percentage above 75% – LEDs flash on green
- Battery percentage between 50-75% – LEDs blinks on green
- Battery percentage between 25-50% – LEDs blinks on orange
- Battery percentage between 10-25% – LEDs blinks on red
- Battery percentage under 10% – One red LED is blinks
On the “LibraryDemo”, press battery indicator or battery level button (Pic.9):
Pic. 9
4.4 Scanning barcodes
Turn scan engine to barcode and press “Scan barcode” or scan button.
4.5 Bluetooth connecting to iOS device for transferring audio
- For connecting InfineaX Bluetooth to iOS device, open setting and select Bluetooth, then on
available Bluetooth device will shown “InfineaX”. Select that Bluetooth device.
Pic. 10 and 11
1 DATECS InfineaX User manual
`
13
4.6 Clearing Bluetooth pairing info
- Hold on same time status and rear speaker button until the device is beep twice, if after
that the devices is still not showing on iOS device available for connecting press on same
“battery status” and “scan” button for ~5sec.
*Note: If after Bluetooth paring info clearing, InfineaX is not visible, perform with “Reset
InfineaX” (4.11)
4.7 Switching between Rear and Front Speakers.
- For changing active speaker, press speaker switching button.
When the rear speaker is active, blue led is light.
4.8 Automatic charge
- When the battery level is above 3,9V – InfineaX is automatically start to charge iPhone5 or
iPod5. (If the option is enabled in settings)
4.9 Vibration on scan
- This function can be enabled or disabled
4.10 Pass-through sync through mini USB
- This function can be enabled or disabled
4.11 Reset the InfineaX
- Holding on same time status and scan button for ~5sec
4.12 Scanning barcodes
The InfineaX uses a scan engine that supports one-dimensional (1D) and two-dimensional
(2D) barcode symbols. The effective reading distance of the barcode reader varies
depending on the barcode size.
Scanning Barcodes:
To scan a barcode fist activate the scanner. Then position the scan head to center the
red aiming laser near the center of the barcode and the illumination box is over the outer
edges of the barcode.
Slowly pull back the unit increasing the distance between the barcode and scan head until
the barcode has been read by the scanner.
1 DATECS InfineaX User manual
`
14
4.13 RF card reading
Start the app and select tab “RF”. Place the card on the spot with RF symbol (back side on
barcode cover).
