DENSO Korea FN00100 SMART FOB KEY User Manual US07 Brochure like

DENSO KOREA ELECTRONICS CORPORATION SMART FOB KEY US07 Brochure like

Users Manual

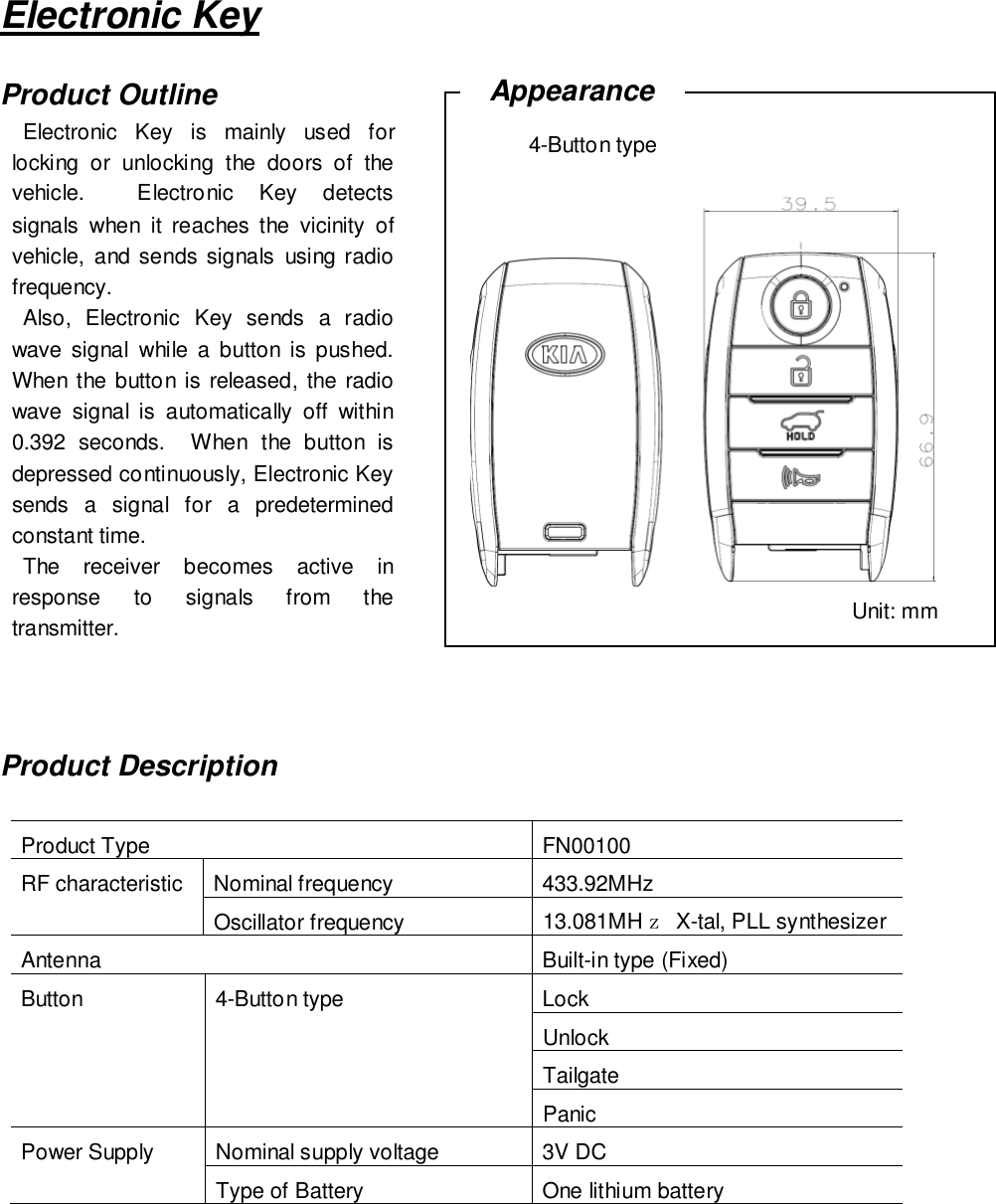

Electronic KeyProduct OutlineProduct DescriptionProduct Type FN00100RF characteristic Nominal frequency 433.92MHzOscillator frequency 13.081MHｚX-tal, PLL synthesizerAntenna Built-in type (Fixed)Button 4-Button type LockUnlockTailgatePanicPower Supply Nominal supply voltage 3V DCType of Battery One lithium batteryElectronic Key is mainly used forlocking or unlocking the doors of thevehicle. Electronic Key detectssignals when it reaches the vicinity ofvehicle, and sends signals using radiofrequency.Also, Electronic Key sends a radiowave signal while a button is pushed.When the button is released, the radiowave signal is automatically off within0.392seconds. When the button isdepressed continuously, Electronic Keysends a signal for a predeterminedconstant time.The receiver becomes active inresponse to signals from thetransmitter. Unit: mmAppearance4-Button type

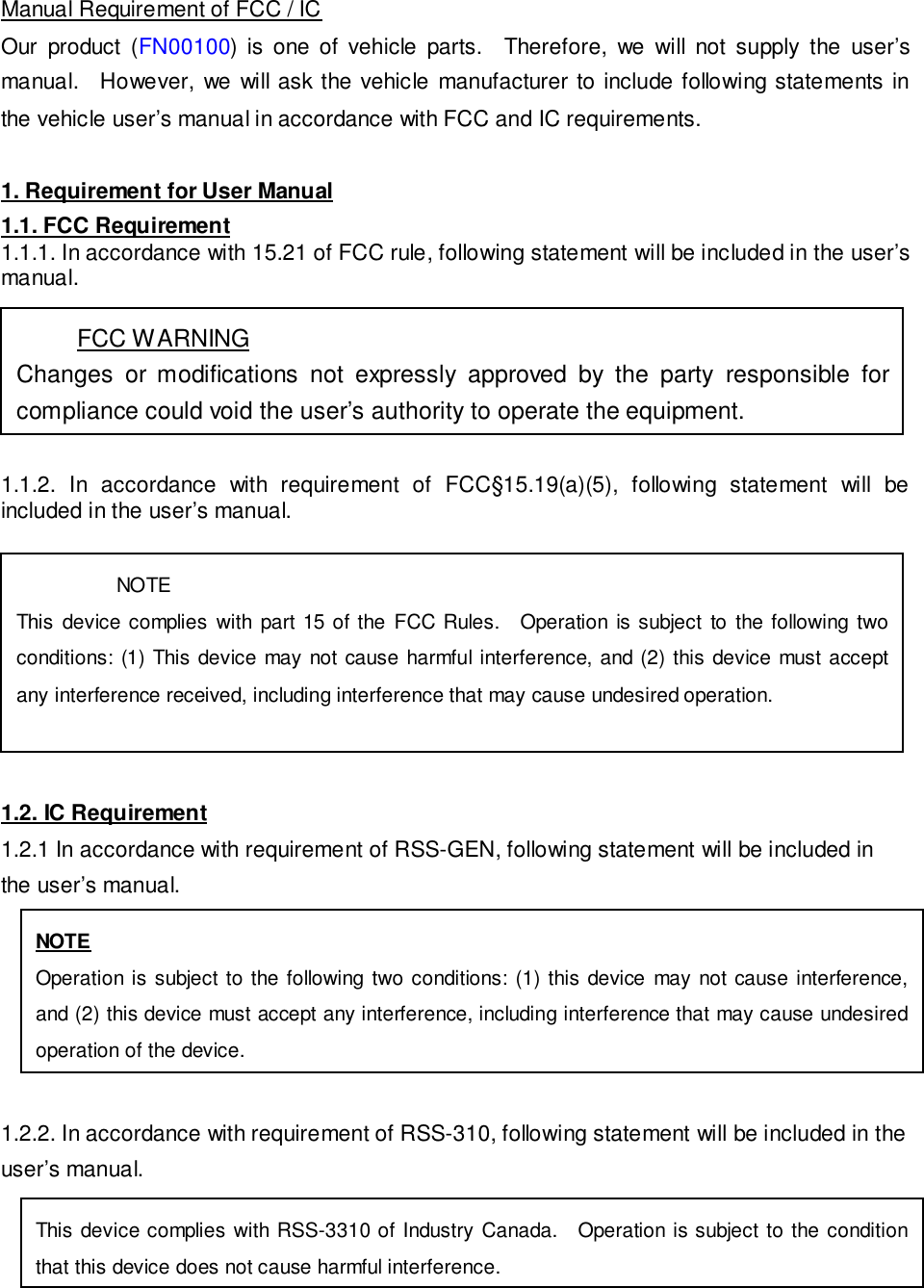

Manual Requirement of FCC / ICOur product (FN00100) is one of vehicle parts. Therefore, we will not supply the user’smanual. However, we will ask the vehicle manufacturer to include following statements inthe vehicle user’s manual in accordance with FCC and IC requirements.1. Requirement for User Manual1.1. FCC Requirement1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’smanual.1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will beincluded in the user’s manual.1.2. IC Requirement1.2.1 In accordance with requirement of RSS-GEN, following statement will be included inthe user’s manual.1.2.2. In accordance with requirement of RSS-310, following statement will be included in theuser’s manual.FCC WARNINGChanges or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.NOTEThis device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.NOTEOperation is subject to the following two conditions: (1) this device may not cause interference,and (2) this device must accept any interference, including interference that may cause undesiredoperation of the device.This device complies with RSS-3310 of Industry Canada. Operation is subject to the conditionthat this device does not cause harmful interference.
