DFI ART101 Rugged Tablet User Manual

DFI Inc. Rugged Tablet Users Manual

Users Manual

User ManualRugged TabletART101DFI

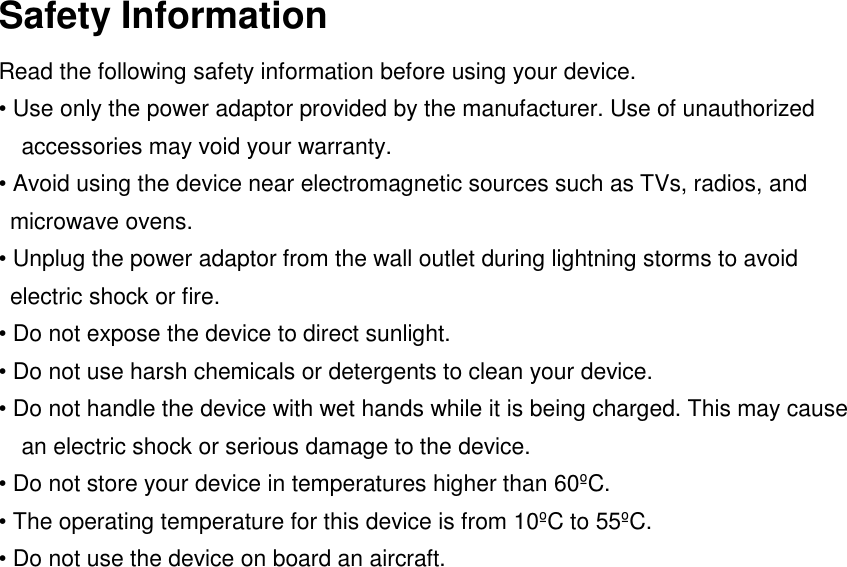

Safety InformationRead the following safety information before using your device.• Use only the power adaptor provided by the manufacturer. Use of unauthorizedaccessories may void your warranty.• Avoid using the device near electromagnetic sources such as TVs, radios, andmicrowave ovens.• Unplug the power adaptor from the wall outlet during lightning storms to avoidelectric shock or fire.• Do not expose the device to direct sunlight.• Do not use harsh chemicals or detergents to clean your device.• Do not handle the device with wet hands while it is being charged. This may causean electric shock or serious damage to the device.• Do not store your device in temperatures higher than 60ºC.• The operating temperature for this device is from 10ºC to 55ºC.• Do not use the device on board an aircraft.
Regulatory StatementFederal Communications Commission StatementThis device complies with Par 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that maycause undesired operation.This device has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisdevice generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However there is no guarantee that interference will not occur in aparticular installation if this device does cause harmful interference to radio ortelevision reception, which can be determined by turning the device off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.- Increase the separation between theequipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which thereceiver connected.- Consult the dealer or an experienced radio/TV technician forhelp. Changes or modifications not expressly approved by the party responsible forcompliance could void the user‘s authority to operate the equipment.SAR InformationThis device meets the government’s requirements for exposure to radio waves. Thisdevice is designed and manufactured not to exceed the emission limits for exposureto radio frequency (RF) energy set by the Federal Communications Commission ofthe U.S. Government. The exposure standard employs a unit of measurement knownas the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.Tests for SAR are conducted using standard operating positions accepted by the FCCwith the EUT transmitting at the specified power level in different channels.The highest SAR value for the device as reported to the FCC is 1.382 W/kg whenplaced next to the body. The FCC has granted an Equipment Authorization for thisdevice with all reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines. SAR information on this device is on file with the FCC and canbe found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searchingon FCC ID: NDPEM-100. This device is compliance with SAR for general population

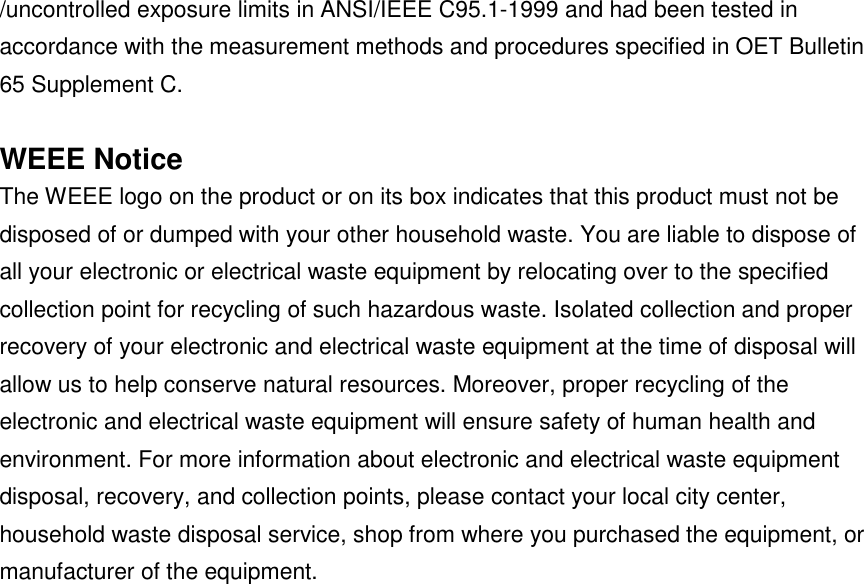

/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested inaccordance with the measurement methods and procedures specified in OET Bulletin65 Supplement C.WEEE NoticeThe WEEE logo on the product or on its box indicates that this product must not bedisposed of or dumped with your other household waste. You are liable to dispose ofall your electronic or electrical waste equipment by relocating over to the specifiedcollection point for recycling of such hazardous waste. Isolated collection and properrecovery of your electronic and electrical waste equipment at the time of disposal willallow us to help conserve natural resources. Moreover, proper recycling of theelectronic and electrical waste equipment will ensure safety of human health andenvironment. For more information about electronic and electrical waste equipmentdisposal, recovery, and collection points, please contact your local city center,household waste disposal service, shop from where you purchased the equipment, ormanufacturer of the equipment.

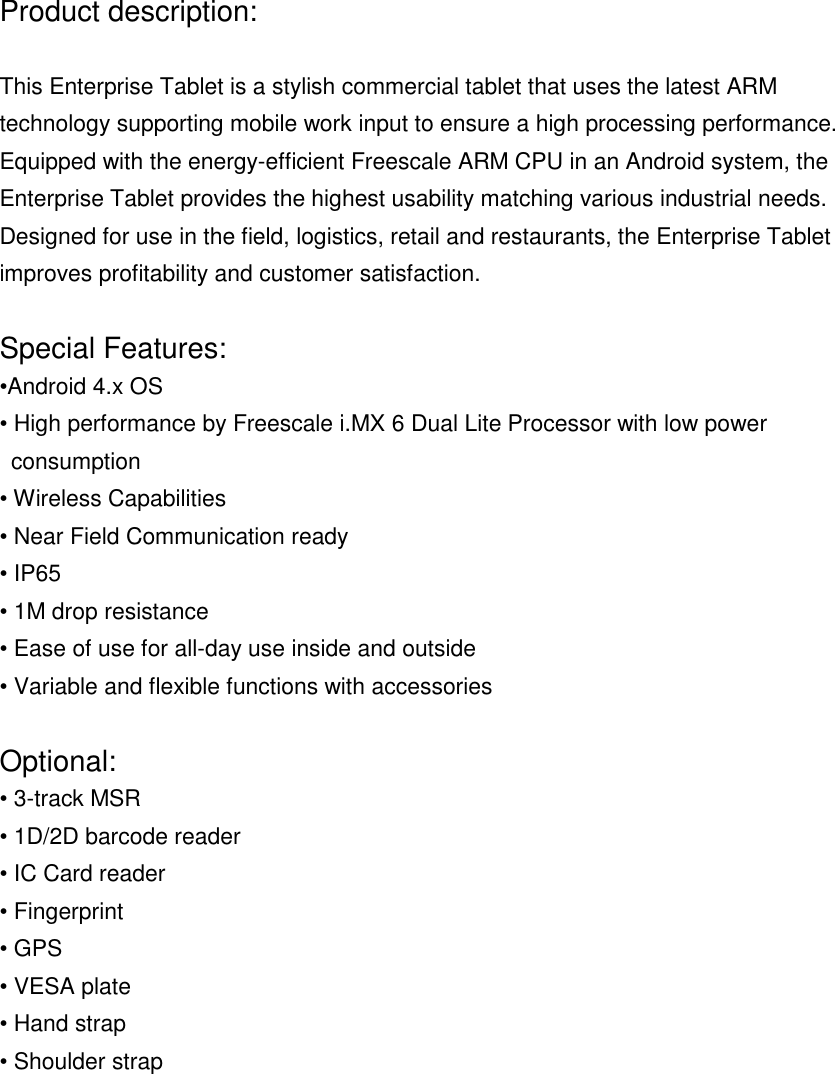

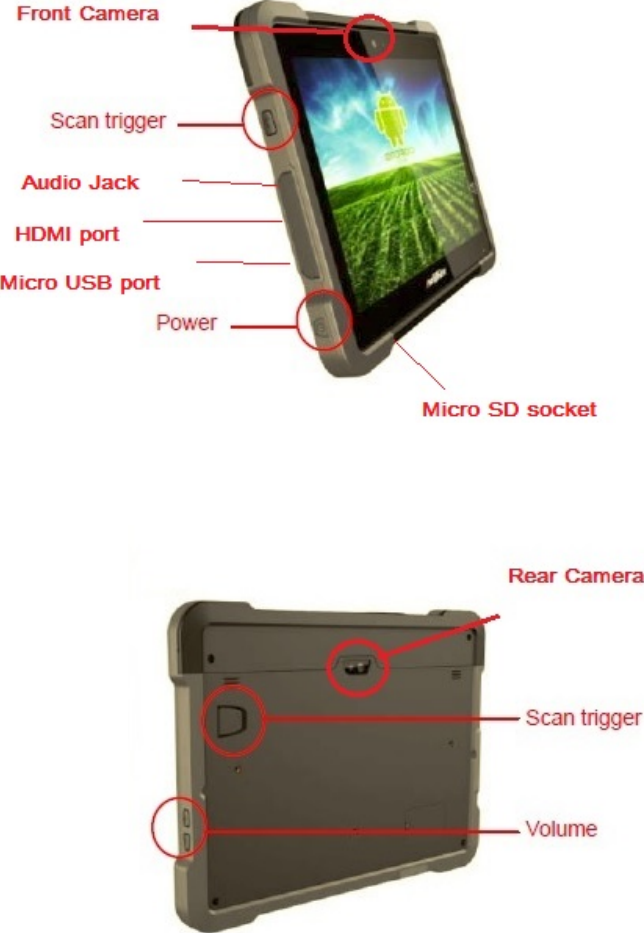

Product description:This Enterprise Tablet is a stylish commercial tablet that uses the latest ARMtechnology supporting mobile work input to ensure a high processing performance.Equipped with the energy-efficient Freescale ARM CPU in an Android system, theEnterprise Tablet provides the highest usability matching various industrial needs.Designed for use in the field, logistics, retail and restaurants, the Enterprise Tabletimproves profitability and customer satisfaction.Special Features:•Android 4.x OS• High performance by Freescale i.MX 6 Dual Lite Processor with low powerconsumption• Wireless Capabilities• Near Field Communication ready• IP65• 1M drop resistance• Ease of use for all-day use inside and outside• Variable and flexible functions with accessoriesOptional:• 3-track MSR• 1D/2D barcode reader• IC Card reader• Fingerprint• GPS• VESA plate• Hand strap• Shoulder strap

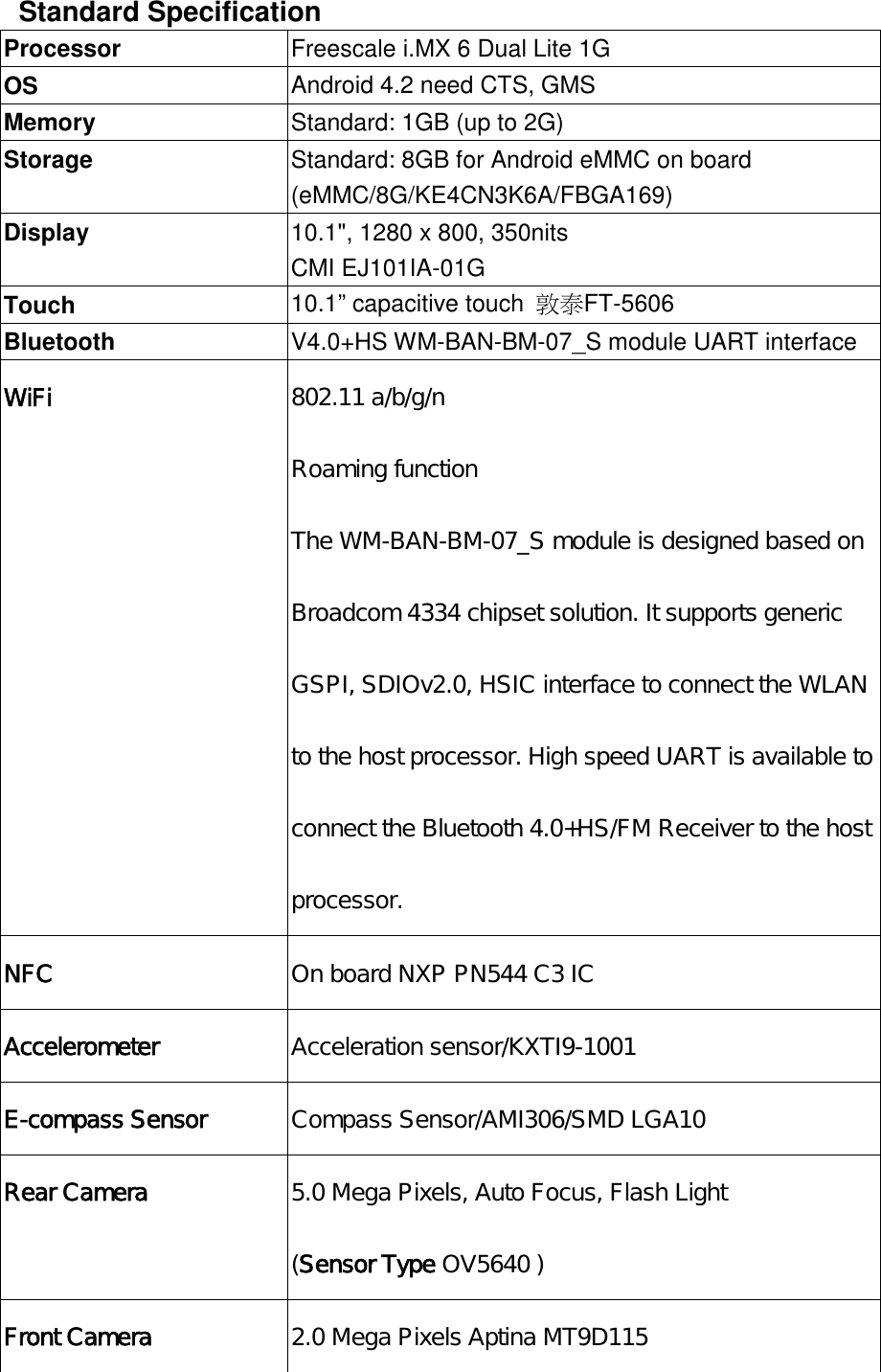

Standard SpecificationProcessor Freescale i.MX 6 Dual Lite 1GOS Android 4.2 need CTS, GMSMemory Standard: 1GB (up to 2G)Storage Standard: 8GB for Android eMMC on board(eMMC/8G/KE4CN3K6A/FBGA169)Display 10.1", 1280 x 800, 350nitsCMI EJ101IA-01GTouch 10.1” capacitive touch 敦泰FT-5606Bluetooth V4.0+HS WM-BAN-BM-07_S module UART interfaceWiFi 802.11 a/b/g/nRoaming functionThe WM-BAN-BM-07_S module is designed based onBroadcom 4334 chipset solution. It supports genericGSPI, SDIOv2.0, HSIC interface to connect the WLANto the host processor. High speed UART is available toconnect the Bluetooth 4.0+HS/FM Receiver to the hostprocessor.NFC On board NXP PN544 C3 ICAccelerometer Acceleration sensor/KXTI9-1001E-compass Sensor Compass Sensor/AMI306/SMD LGA10Rear Camera 5.0 Mega Pixels, Auto Focus, Flash Light(Sensor Type OV5640 )Front Camera 2.0 Mega Pixels Aptina MT9D115

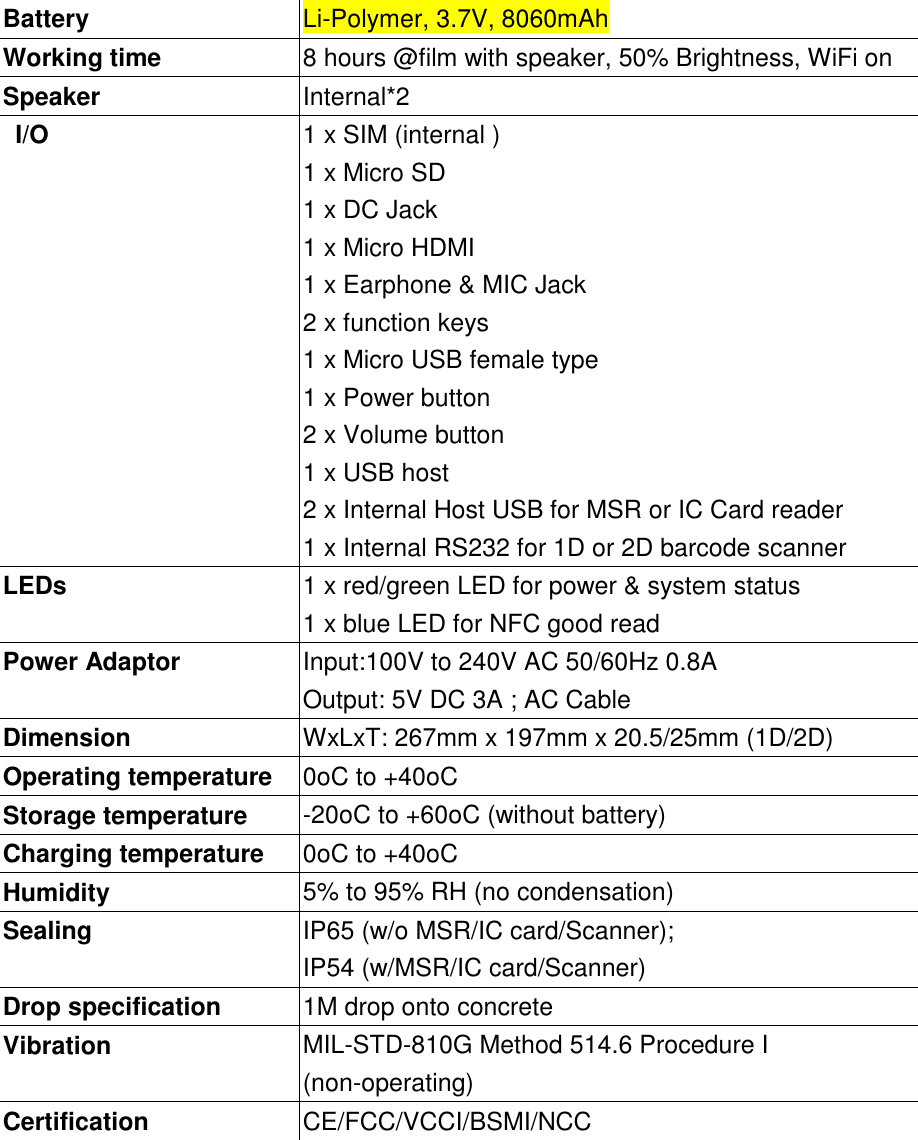

Battery Li-Polymer, 3.7V, 8060mAhWorking time 8 hours @film with speaker, 50% Brightness, WiFi onSpeaker Internal*2I/O 1 x SIM (internal )1 x Micro SD1 x DC Jack1 x Micro HDMI1 x Earphone & MIC Jack2 x function keys1 x Micro USB female type1 x Power button2 x Volume button1 x USB host2 x Internal Host USB for MSR or IC Card reader1 x Internal RS232 for 1D or 2D barcode scannerLEDs 1 x red/green LED for power & system status1 x blue LED for NFC good readPower Adaptor Input:100V to 240V AC 50/60Hz 0.8AOutput: 5V DC 3A ; AC CableDimension WxLxT: 267mm x 197mm x 20.5/25mm (1D/2D)Operating temperature 0oC to +40oCStorage temperature -20oC to +60oC (without battery)Charging temperature 0oC to +40oCHumidity 5% to 95% RH (no condensation)Sealing IP65 (w/o MSR/IC card/Scanner);IP54 (w/MSR/IC card/Scanner)Drop specification 1M drop onto concreteVibration MIL-STD-810G Method 514.6 Procedure I(non-operating)Certification CE/FCC/VCCI/BSMI/NCC

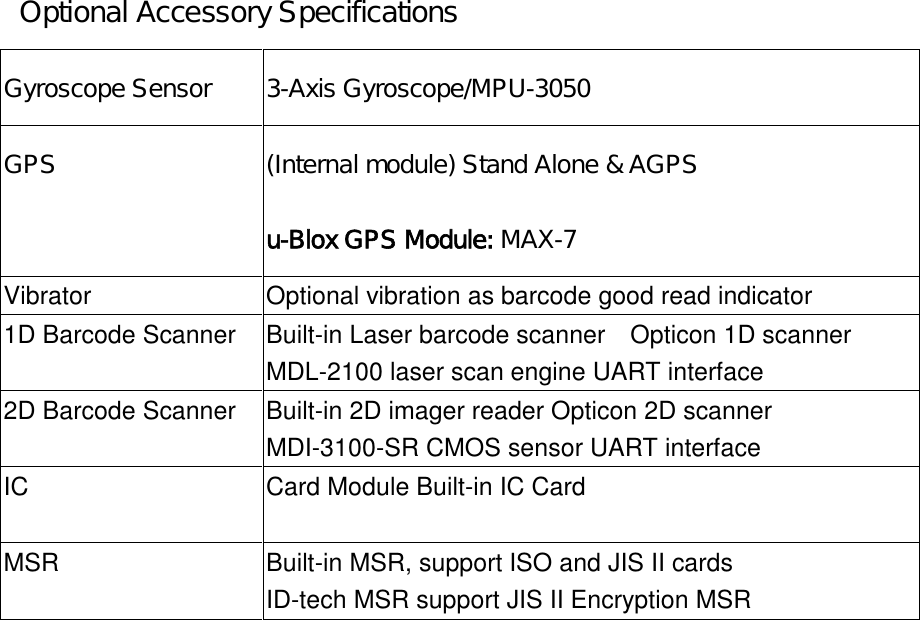

Optional Accessory SpecificationsGyroscope Sensor 3-Axis Gyroscope/MPU-3050GPS (Internal module) Stand Alone & AGPSu-Blox GPS Module: MAX-7Vibrator Optional vibration as barcode good read indicator1D Barcode Scanner Built-in Laser barcode scanner Opticon 1D scannerMDL-2100 laser scan engine UART interface2D Barcode Scanner Built-in 2D imager reader Opticon 2D scannerMDI-3100-SR CMOS sensor UART interfaceIC Card Module Built-in IC CardMSR Built-in MSR, support ISO and JIS II cardsID-tech MSR support JIS II Encryption MSR
