Users Manual
User Manual
Rugged Tablet
ART101
DFI
Safety Information
Read the following safety information before using your device.
• Use only the power adaptor provided by the manufacturer. Use of unauthorized
accessories may void your warranty.
• Avoid using the device near electromagnetic sources such as TVs, radios, and
microwave ovens.
• Unplug the power adaptor from the wall outlet during lightning storms to avoid
electric shock or fire.
• Do not expose the device to direct sunlight.
• Do not use harsh chemicals or detergents to clean your device.
• Do not handle the device with wet hands while it is being charged. This may cause
an electric shock or serious damage to the device.
• Do not store your device in temperatures higher than 60ºC.
• The operating temperature for this device is from 10ºC to 55ºC.
• Do not use the device on board an aircraft.
Regulatory Statement
Federal Communications Commission Statement
This device complies with Par 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation if this device does cause harmful interference to radio or
television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.- Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver connected.- Consult the dealer or an experienced radio/TV technician for
help. Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
SAR Information
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government. The exposure standard employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
Tests for SAR are conducted using standard operating positions accepted by the FCC
with the EUT transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is 1.382 W/kg when
placed next to the body. The FCC has granted an Equipment Authorization for this
device with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on file with the FCC and can
be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching
on FCC ID: NDPEM-100. This device is compliance with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in
accordance with the measurement methods and procedures specified in OET Bulletin
65 Supplement C.
WEEE Notice
The WEEE logo on the product or on its box indicates that this product must not be
disposed of or dumped with your other household waste. You are liable to dispose of
all your electronic or electrical waste equipment by relocating over to the specified
collection point for recycling of such hazardous waste. Isolated collection and proper
recovery of your electronic and electrical waste equipment at the time of disposal will
allow us to help conserve natural resources. Moreover, proper recycling of the
electronic and electrical waste equipment will ensure safety of human health and
environment. For more information about electronic and electrical waste equipment
disposal, recovery, and collection points, please contact your local city center,
household waste disposal service, shop from where you purchased the equipment, or
manufacturer of the equipment.

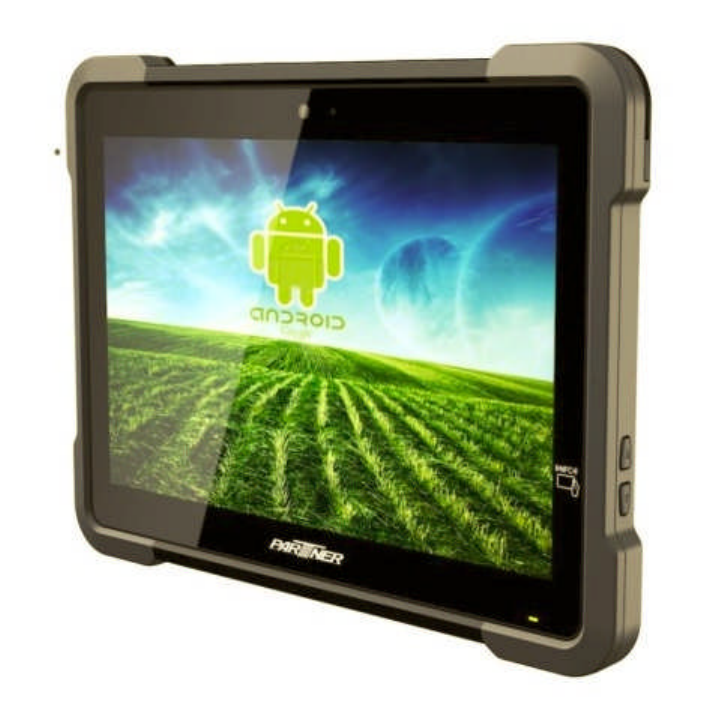

Product description:
This Enterprise Tablet is a stylish commercial tablet that uses the latest ARM
technology supporting mobile work input to ensure a high processing performance.
Equipped with the energy-efficient Freescale ARM CPU in an Android system, the
Enterprise Tablet provides the highest usability matching various industrial needs.
Designed for use in the field, logistics, retail and restaurants, the Enterprise Tablet
improves profitability and customer satisfaction.
Special Features:
•Android 4.x OS
• High performance by Freescale i.MX 6 Dual Lite Processor with low power
consumption
• Wireless Capabilities
• Near Field Communication ready
• IP65
• 1M drop resistance
• Ease of use for all-day use inside and outside
• Variable and flexible functions with accessories
Optional:
• 3-track MSR
• 1D/2D barcode reader
• IC Card reader
• Fingerprint
• GPS
• VESA plate
• Hand strap
• Shoulder strap
Standard Specification
Processor Freescale i.MX 6 Dual Lite 1G
OS Android 4.2 need CTS, GMS
Memory Standard: 1GB (up to 2G)
Storage Standard: 8GB for Android eMMC on board
(eMMC/8G/KE4CN3K6A/FBGA169)
Display 10.1", 1280 x 800, 350nits
CMI EJ101IA-01G
Touch 10.1” capacitive touch 敦泰FT-5606
Bluetooth V4.0+HS WM-BAN-BM-07_S module UART interface
WiFi 802.11 a/b/g/n
Roaming function
The WM-BAN-BM-07_S module is designed based on
Broadcom 4334 chipset solution. It supports generic
GSPI, SDIOv2.0, HSIC interface to connect the WLAN
to the host processor. High speed UART is available to
connect the Bluetooth 4.0+HS/FM Receiver to the host
processor.
NFC On board NXP PN544 C3 IC
Accelerometer Acceleration sensor/KXTI9-1001
E-compass Sensor Compass Sensor/AMI306/SMD LGA10
Rear Camera 5.0 Mega Pixels, Auto Focus, Flash Light
(Sensor Type OV5640 )
Front Camera 2.0 Mega Pixels Aptina MT9D115
Battery Li-Polymer, 3.7V, 8060mAh
Working time 8 hours @film with speaker, 50% Brightness, WiFi on
Speaker Internal*2
I/O 1 x SIM (internal )
1 x Micro SD
1 x DC Jack
1 x Micro HDMI
1 x Earphone & MIC Jack
2 x function keys
1 x Micro USB female type
1 x Power button
2 x Volume button
1 x USB host
2 x Internal Host USB for MSR or IC Card reader
1 x Internal RS232 for 1D or 2D barcode scanner
LEDs 1 x red/green LED for power & system status
1 x blue LED for NFC good read
Power Adaptor Input:100V to 240V AC 50/60Hz 0.8A
Output: 5V DC 3A ; AC Cable
Dimension WxLxT: 267mm x 197mm x 20.5/25mm (1D/2D)
Operating temperature 0oC to +40oC
Storage temperature -20oC to +60oC (without battery)
Charging temperature 0oC to +40oC
Humidity 5% to 95% RH (no condensation)
Sealing IP65 (w/o MSR/IC card/Scanner);
IP54 (w/MSR/IC card/Scanner)
Drop specification 1M drop onto concrete
Vibration MIL-STD-810G Method 514.6 Procedure I
(non-operating)
Certification CE/FCC/VCCI/BSMI/NCC
Optional Accessory Specifications
Gyroscope Sensor 3-Axis Gyroscope/MPU-3050
GPS (Internal module) Stand Alone & AGPS
u-Blox GPS Module: MAX-7
Vibrator Optional vibration as barcode good read indicator
1D Barcode Scanner Built-in Laser barcode scanner Opticon 1D scanner
MDL-2100 laser scan engine UART interface
2D Barcode Scanner Built-in 2D imager reader Opticon 2D scanner
MDI-3100-SR CMOS sensor UART interface
IC Card Module Built-in IC Card
MSR Built-in MSR, support ISO and JIS II cards
ID-tech MSR support JIS II Encryption MSR
