Chapter1Introduction



1.1Overviewoftheproducts

Congratulationsonyourpurchaseofthiscomputerswitch.Theswitchcancontrol

computer’spowerON/OFFwithin20meters.

Theswitchincludetwoparts:

Internalconnectionpart‐connectioncard

Externalcontrolpart‐miniremotecontrolswitch

Beforepurchasing,pleasekindlycheckyourslot,thendecidetochoosePCIinterfaceversion

orPCIeinterfaceversion.



1.2Features

※Miniaturedesign,easytocarry

※SupportthecomputerswhichhaveavailablePCI/PCIeslot

※Plug‐and‐Playinstallation

※Inductiondistance:20meters

※Twokindsofinterface:PCIandPCIe

※Twobuttons:ResetandPower

※RedLEDindicator

※Poweredbyonebuttonbattery

※Theinternalconnectioncardandexternalremotecontrolswitcharepaired,pleasedo

notmixthosetwopartswithothersets



Chaper2InstallationGuide



2.1Installation

Toinstalltheswitch,pleasefollowthesestepslistedbelow:

1. Turnoffyourcomputerandunplugthepowercordandallcables.

2. Removeyourcomputer’scasecover

3. Unplugthethepowercableandresetcablefrommotherboard

4. LocateanavailablePCIorPCIeslot

5. Removethescrewthatsecurestheblackplate(thesmallpieceofmetalthatcoversthe

openingforPCIecardonthebackpanelofyourcomputer),thenremovethebackplate.

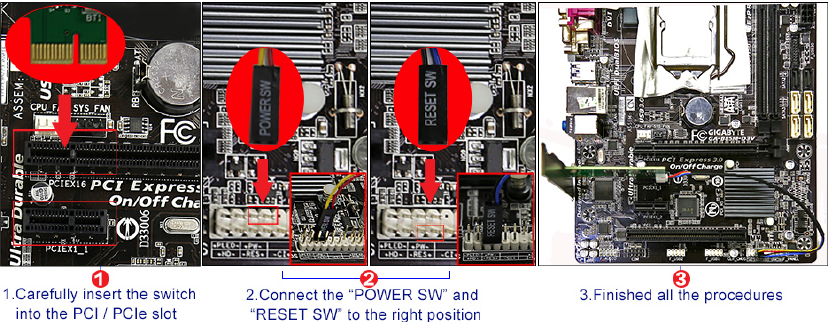

6. Carefullyinserttheswitch(internalconnectionpart)intothePCI/PCIeslot,thenconnect

the“POWERSW”and“RESETSW”totherightpositioninthemotherboard.Donottouch

themetalconnectorontheinternalpart(RefertotheFigure1.1)

7. Securetheswitch(internalconnectionpart)tothecaseusingthescrewyouremoved

fromthebackplate

8. Reinstallyourcomputer’scasecover

9. Pluginthepowercordandothercables,andthenpressthepowerbuttonofswitchto

turnonthecomputer



Chapter3Commonproblems



1. Can’tturnonthecomputerbypressingthepowerbutton

PleasecheckiftheLEDindicatorwillblinkwhenpressingPowerbuttonorResetbutton,

Ifdoesn’tblink,itshowsyoushouldchangethebattery.



Ifblink,butstillcan’tturnonthecomputer,pleasetrydoasthefollowingsteps:

(1) Unplugthecomputer’spowercord,pullandplugtheconnectioncardforseveraltimes,

usetheeraserwipethegoldfinger,re‐plugthecard

(2) CheckifthePOWERSWandRESETSWputinthecorrectposition,besuretheyarenot

loose



2. Pressingthebutton,theLEDindicatorofswitchandcardbothlight,butstillcan’tturnon

thecomputer



Solution:needtore‐match

Matchingmethod:longpressthePowerbuttonandResetbuttonatthesametime,untilthe

indicatorlightcontinuousflashforfivetimes(Don’tusethismethodifnotnecessary)

󵔁󰜁󵘁󵀁󴠁󵨁󰜁󵔁󵘁󵬁󴰁󵤁󵨁󶀁󰜁󵜁󴰁󴬁󰜁󴼁󵜁󴠁󵤁󵬁󶀁󰜁󴰁󵘁󵨁󵀁󴤁󵌁󴴁󵤁󰜁󴨁󵘁󵐁󵜁󵔁󴰁󴨁󵌁󰜁󵴁󵘁󵀁󴬁󰜁󵰁󴰁󵨁󴠁󵬁󴼁󵤁󰜁󵬁󵘁󴰁󰜁󵬁󴰁󵰁󵀁󵜁󰜁󵔁󰜁󵘁󵀁󴠁󵨁󰜁󵔁󵘁󵬁󴰁󵤁󵨁󶀁󰜁󵜁󴰁󴬁󰜁󴼁󵜁󴠁󵤁󵬁󶀁󰜁󴰁󵘁󵨁󵀁󴤁󵌁󴴁󵤁󰜁󴨁󵘁󵐁󵜁󵔁󴰁󴨁󵌁󰜁󵴁󵘁󵀁󴬁󰜁󵰁󴰁󵨁󴠁󵬁󴼁󵤁󰜁󵬁󵘁󴰁󰜁󵬁󴰁󵰁󵀁󵜁󰜁

󵔁󰜁󵘁󵀁󴠁󵨁󰜁󵔁󵘁󵬁󴰁󵤁󵨁󶀁󰜁󵜁󴰁󴬁󰜁󴼁󵜁󴠁󵤁󵬁󶀁󰜁󴰁󵘁󵨁󵀁󴤁󵌁󴴁󵤁󰜁󴨁󵘁󵐁󵜁󵔁󴰁󴨁󵌁󰜁󵴁󵘁󵀁󴬁󰜁󵰁󴰁󵨁󴠁󵬁󴼁󵤁󰜁󵬁󵘁󴰁󰜁󵬁󴰁󵰁󵀁󵜁
