IB-3500 RF BASE STATION
IB-3500
Tentative Edition
COPYRIGHT © 2005 TERAOKA WEIGH-SYSTEM PTE LTD
Table of Content
i) Notice ..................................................................................................................... 1
ii) Safety Information .................................................................................................. 2
iii) Safety Regulations ................................................................................................. 2
1. General ............................................................................................................................. 5
1.1 Model Specification ................................................................................................ 5
1.2 Operating Specification .......................................................................................... 6
2. Dimension ........................................................................................................................ 7
3. IB-3500 Station Setup Diagram & Spec Setting ............................................................ 8
3.1 Setup Diagram ........................................................................................................ 8
3.2 RF Station Setup .................................................................................................... 9
4. Revision Records .......................................................................................................... 11
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subject
to change without notice. Teraoka Weigh-System assumes no responsibility for any errors or
damages arising from misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different
software version releases.
This document shall not be reproduced whether in part or whole without the written consent
from Teraoka Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
1
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and
procedures outlined in this document. Teraoka Weigh-System Pte Ltd assumes no
responsibility or liability for failure to comply with these requirements.
• Repair and servicing of product, shall only be carried out by trained and qualified
personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate.
Please be aware that Teraoka has indicated that its hardware and software used in the
product may require additional updates in the future as our product is continually under
development. The need for such updates most likely applies to the Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT ÊTRE
INSALLÉ À PROXIMITÉ DU MATÉRIEL ET DOIT ÊTRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊME CARACTÉRISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
2
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This
equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority
of Singapore) Standard under Dealer’s Class License.
Industry Canada statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
Actual size
9mm (H) x 17mm (W)
3
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps.
For Taiwan 警語：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾
4
IB-3500 Base Station Service Manual
1. General
1.1 Model Specification
Model
:
IB-3500
Dimensions (in mm)
:
Body Casing
Dimension
-
230(L) x 210(W) x 51(H)
With Upright Antenna
-
230(L) x 210(W) x 205.5(H)
Color
:
White
LED (x4)
:
Red
-
Power Indicator
Green
-
Data Transmit Indicator
Orange
-
Data Receive Indicator
Red
-
System Busy Indicator
Reset Button
:
1 x Mechanical Switch
Antenna (x4)
:
Antenna Color (White)
2 x Transmit Data (TX)
2 x Receive Data (RX)
Weight
:
1500g approx.
Operating System
:
Linux
Power Source
:
Ethernet Cable from POE Switch Port (48 Volt DC)
Voltage & Current
:
DC 48V, 0.35A
Operating Temperature
Ranges
:
10ºC to +40ºC
Operating Humidity
:
85% Max. Non-condensing
I/O Interface
:
Ethernet 10/100 Base T
Housing Material
:
Powder Coated SPCC Metal Sheet
5
IB-3500 Base Station Service Manual
1.2 DC Specification
Power Source
:
External
:
Ethernet Cable from POE Switch Port
(48 Volt DC)
:
Internal
:
NA
Operating Temperature
:
10ºC to +40ºC
Humidity
:
85% Max. Non-condensing
1.3 RF Specification
RF Standard
:
FCC
ARIB STD-T66
NCC, C-TICK, IC, CE
Modulation
:
GFSK, MSK
Frequency Band
:
2.402GHz to 2.475GHz
Channel list
:
73 Channels
Transmit Power
:
16.35dBm (GFSK)
8.58dBm (MSK)
Receiver Sensitivity
:
-90dBm (typical), PER = 1%
6
IB-3500 Base Station Service Manual

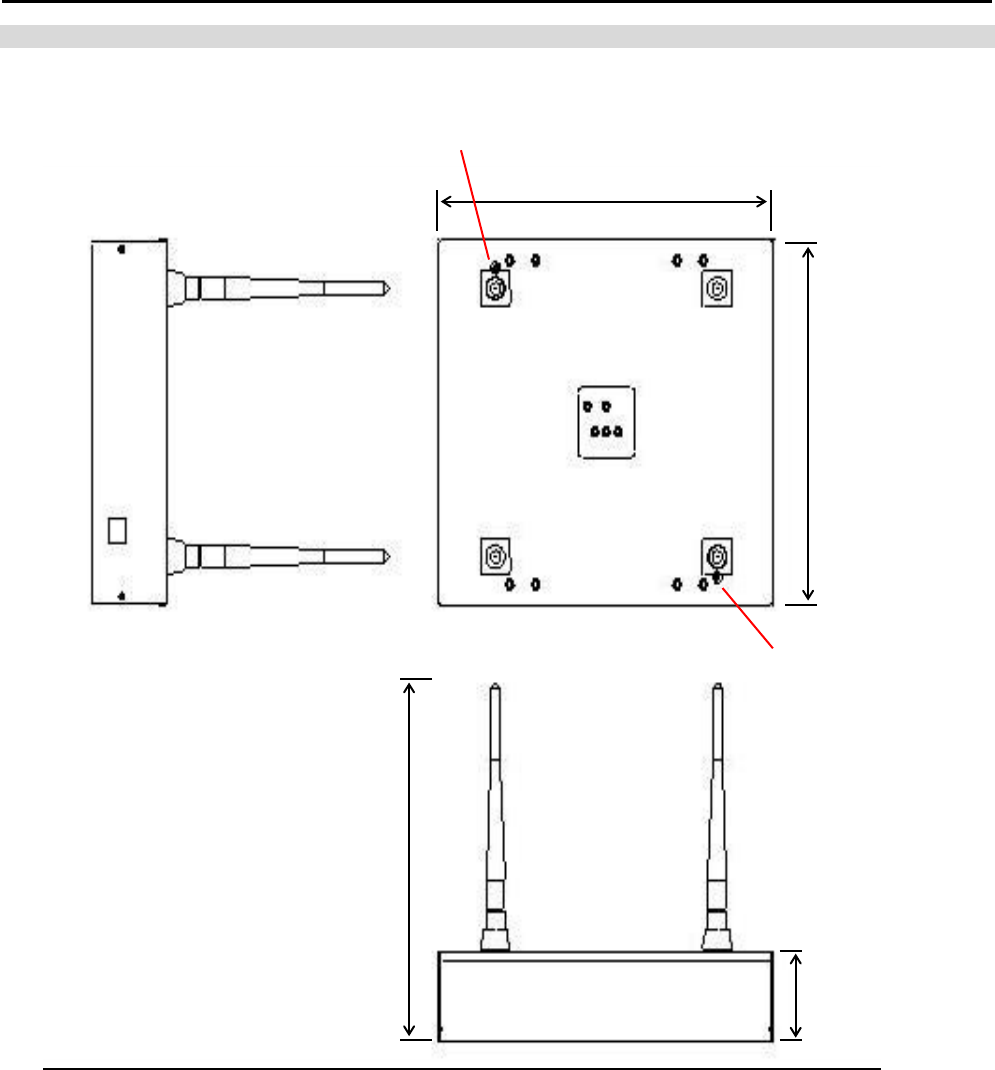

2. Dimension
205.5
230
210
51
“R”ound projection denotes
“Receiver” Antenna
“R”ound projection denotes
“Receiver” Antenna
7
IB-3300 Base Station Service Manual
3. IB-300 Station Setup Diagram & Spec Setting
3.1 Setup Diagram

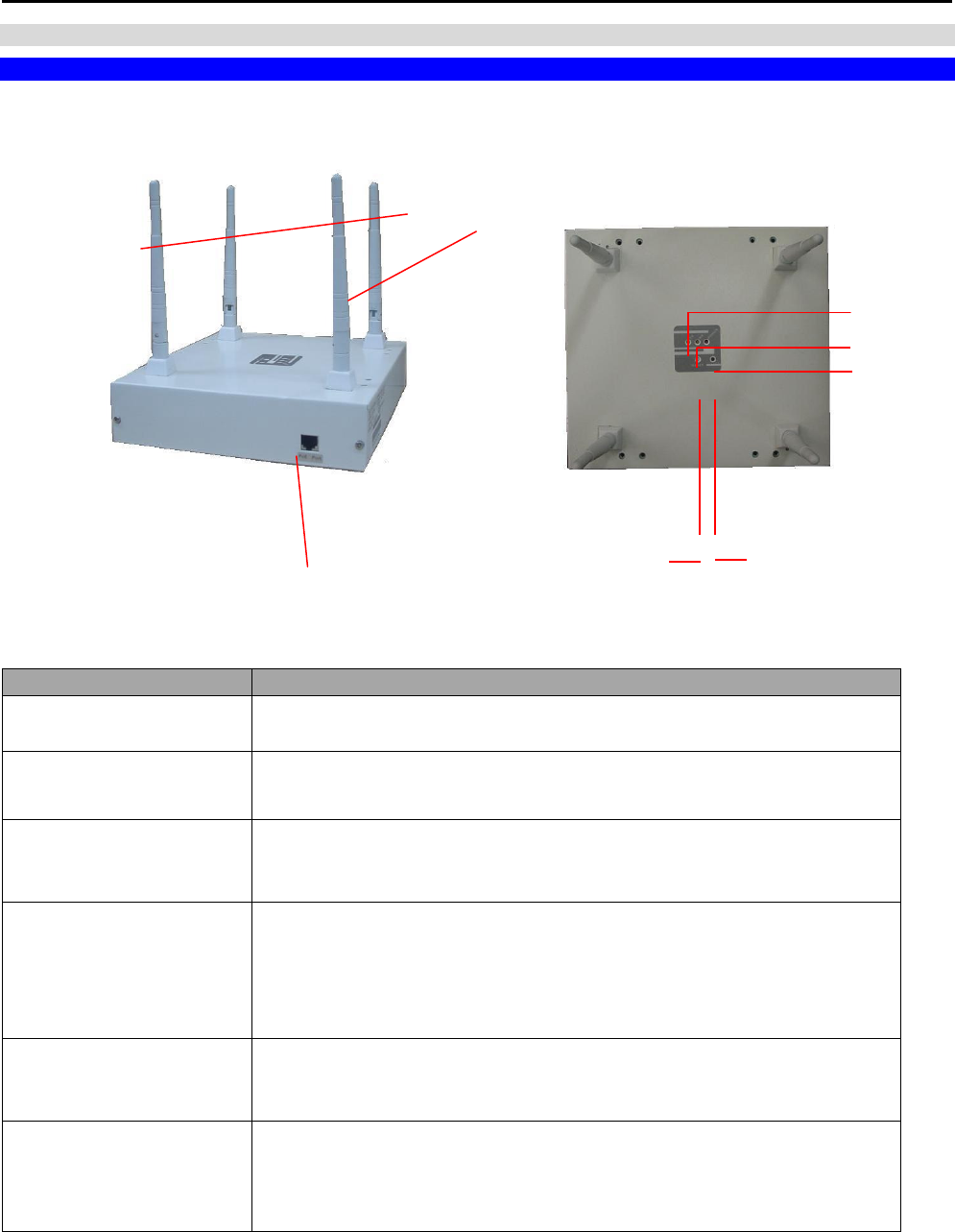

LED / BUTTON
Descriptions
Power LED (Red)
• Power On Indicator.
TX LED (Green)
• The indicator light will be stay ‘On’ or ‘Blinking’, when Transmit Data
communication is connected.
RX LED (Orange)
• The indicator light will be stay ‘Toggle’, when Receive Data
communication is connected.
Reset LED (Red)
• The indicator light will be on a time when press the reset
switch.
• The indicator light will be “on off” or “off on” when data
busy.
Reset Button
• To reset the program when programming running error is
appear.
Ethernet (POE Port)
• For RF Station power input voltage go through Ethernet LAN
cable.
• Transmit/Receive the data with Info Server (CT-3100)
Front View
Top View
Ethernet (POE Port)
TX LED
Power LED
RX LED
Reset LED
Reset Button
ANTENNA
8
IB-3300 Base Station Service Manual

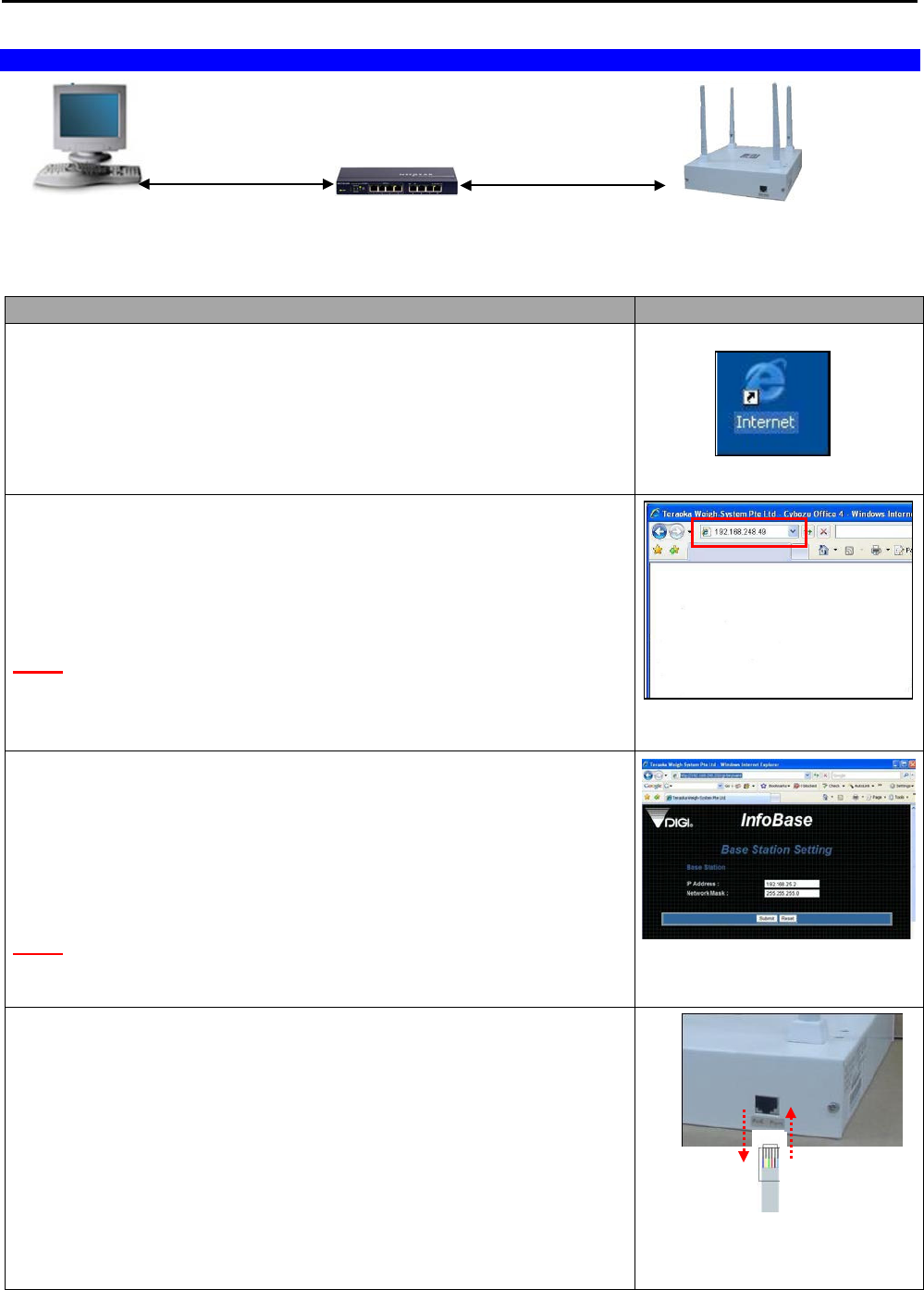

3.2 RF Station Setup
PROCEDURE

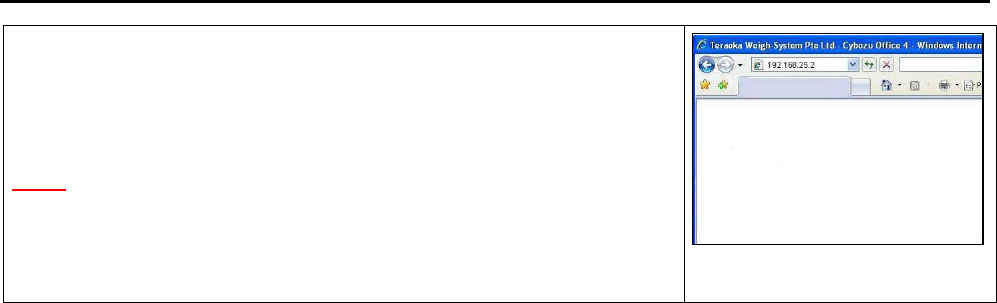

1) Double click open the [Internet Explorer] icon.
2) In the Web Browser, key in the RF Station IP address
[192.168.50.49] accesses to RF Station Setting main screen.
Note:
192.168.50.49 is Default IP Address
3) In the RF Station Setting main screen, keying the new “IP
Address” and “Network Mask”. After that click [Submit] to
save change the setting.
Example New IP Address: 192.168.50.XXX
Note:
Click [Reset] will cancel the setting changed.
4) After finish new setting changed need to plug out the Ethernet
cable from POE switches and then plug in again to implement the
new setting.
PC
Ethernet
Straight Cable
Ethernet
Straight Cable
POE Switch
RF Station
Ethernet Cable
9
IB-3300 Base Station Service Manual
5) Repeat the Step 2, and keying the new IP Address to checking the
setting is changed.
Note:
Ensure the PC IP Address is also change to under same network.
(Example: 192.168.50.123)
10
IB-3100 Base Station Service Manual
4. Revision Records
Serial
No.
Date
Edition
Status
Description of Changes
Software
Version
Remarks
001
DEC ‘13
00
First Release
NA
002
JAN’13
00
Update IC statements
NA
11
