DIGI SINGAPORE IFT2120 INFOTAG 2.0 User Manual

Teraoka Weigh-System Pte Ltd. INFOTAG 2.0

User Manual

COPYRIGHT © 2010 TERAOKA WEIGH-SYSTEM PTE LTD
SERVICE MANUAL
IFT-2120 INFOTAG 2.0
IFT-2120
Table of Content
i) Notice ................................................................................................................................................. 1
ii) Safety Information .............................................................................................................................. 2
iii) Safety Regulations ............................................................................................................................. 2
1. General ............................................................................................................................................................. 5
1.1 Model Specification ............................................................................................................................ 5
1.2 Operating Specification ...................................................................................................................... 5
2. Dimension ........................................................................................................................................................ 6
3. IFT-2120 Setup Diagram & Spec Setting ...................................................................................................... 7
3.1 Overall Layout and Label design ......................................................................................................... 7
3.2 Exploded View ....................................................................................................................................... 8
3.3 Replacement of Info Tag Battery .......................................................................................................... 9
3.4 Button Cell Specifications ...................................................................................................................... 9
3.5 ESL Attachment (Refer to ESL Attachment Catalogue) ....................................................................... 9
3.6 Product Handling of Info Tag ................................................................................................................. 9
4. Revision Records .......................................................................................................................................... 10
1
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subject to change without
notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
2
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
Repair and servicing of product, shall only be carried out by trained and qualified personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT Ê TRE
INSALLÉ À PROXIMITÉ DU MATÉ RIEL ET DOIT Ê TRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊ ME CARACTÉ RISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉ ES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.
iii) Safety Regulations
Federal Communication Commission Interference Statement
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority of Singapore)
Standard under Dealer’s Class License.
3
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Actual size
9mm (H) x 17mm (W)
4
For Taiwan 警語：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾
IFT2120 Service Manual
5
1. General
1.1 Model Specification
Model
:
Dimensions (in mm)
:
Infotag
-
65.4 (L) X 39.0 (H) X 11.5 (W)
LCD Size
-
57.0mm x 28.8mm
Display Window
-
46.8mm x 23.0mm
LCD Resolution
-
200 x 96 dots
Weight
:
Power Source
:
Operating
Temperature
:
Humidity
:
IP Rating
:
Battery Specification
:
Type
-
CR2450 (Cell Button Battery)
Nominal Voltage
-
3.0V
Life Time
-
5 years (1 update/day)
Weight
-
6.6g approx.
1.2 Operating Specification
Power Source
:
External
:
NA
:
Internal
:
CR2450 (Cell Button Battery)
Operating Temperature
:
0ºC to +40ºC
Humidity
:
85% Max. Non-condensing
IFT2120 Service Manual
6

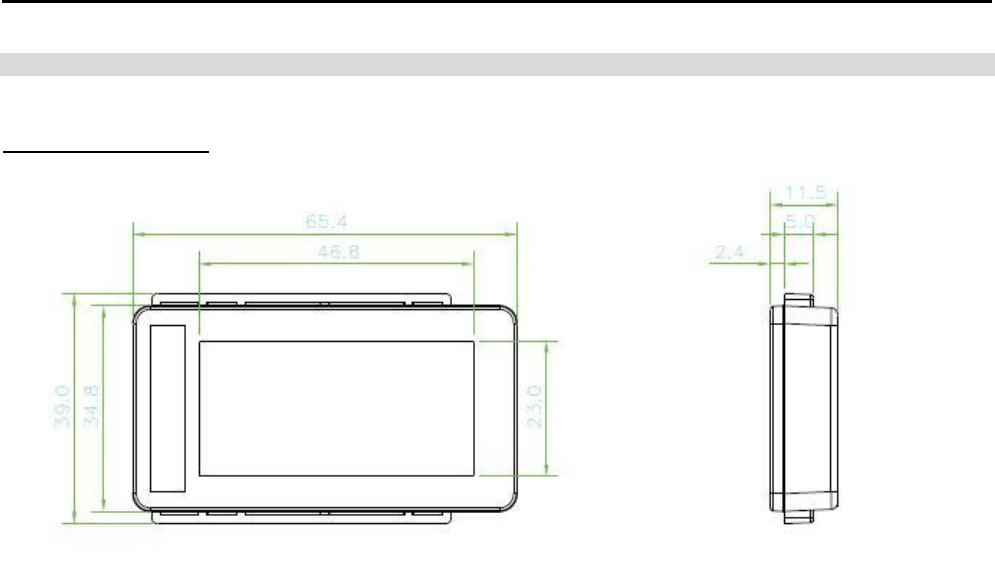

2. Dimension
Info Tag (IFT-2120)
IFT2120 Service Manual
7
3. IFT-2120 Setup Diagram & Spec Setting

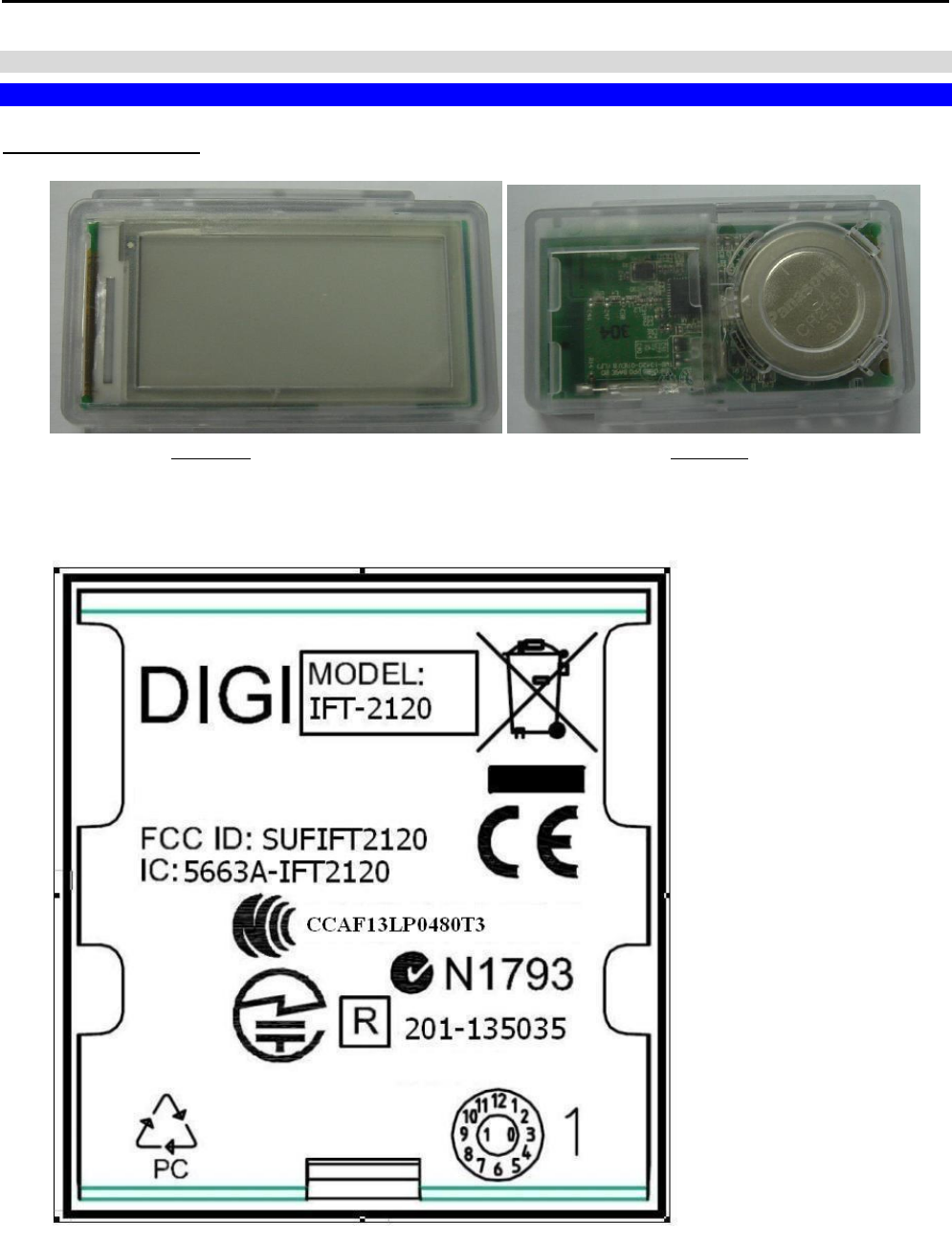

3.1 Overall Layout and Label design
Info Tag (IFT-2120)
Front View
Back View
IFT2120 Service Manual
8
3.2 Exploded View
Info Tag (IFT-2120)
Front Cover
Battery
Cover
LCD & PCBA
Back Cover
Note:
This product is fully sealed by Ultrasonic Welding process.
(Above the information is only reference for factory and Technical department.)
Battery Cover
IFT2120 Service Manual
9
3.3 Replacement of Info Tag Battery
i. Pull off the battery cover from back of the Info Tag.
ii. Replace the new battery. (Ensure the Battery polarity is correct)
3.4 Button Cell Specifications
3.5 ESL Attachment (Refer to ESL Attachment Catalogue)
For all information about the ESL Various Attachment type, function, installation etc. Please refer to
ESL Attachment Catalogue
3.6 Product Handling of Info Tag
Handle product with care. Do not expose product to corrosive chemical solution, any organic solvent
acidic or alkaline. If cleaning is required, wash only water or mild soap solution.
Do not attempt to disassemble, apply force or heavy load to the product. No user serviceable parts inside.
Location of Battery in Info Tag
+
Battery
Battery Cover
Info Tag
Caution: Dispose of the Battery according the Safety Guideline.
i. Avoid placing the battery in reverse polarity.
ii. Do not heat or dispose of fire. May burst or release toxic material.
iii. Do not charge.
iv. Do not short circuit.
v. Do not solder the battery directly.
IFT-2120 Service Manual
10
4. Revision Records
Serial
No.
Date
Edition
Status
Description of Changes
Software
Version
Remarks
001
JAN 13
00
First Release
V0.01
Tentative Edition
002
MAR 13
01
ADD IC STATEMENT
003
APRL
02
UPDATE FCC STATEMENT
