DIGILINK GROUP 007FIT Smart Watch User Manual
DIGILINK GROUP CO., LTD. Smart Watch
User Manual
DW-007F
I +
Smart Watch
T
E-ink display bracelet DW-007fit+ Manual
1.Specification:
Model DW-007fit+
CPU nRF51822 ARM Cortex M0 32bit
Display 1.28 inch 128*128 pixel E-ink display
Sports type 24 kinds of sports recording
Waterproof IP67 waterproof
Charging 3 point connect charge DC 5V/0.12A
Function Dynamic heart rate measure,Sleep monitor.Sedentary
remind,Pedometer,Distance,Calorie,Remote camera
control,Call remind, SMS notifications from Facebook,Twitter,
Skype etc.
2.Compatibility：
Bluetooth 4.0; Android 4.4 or above ; IOS 7.1 or above.
3.Power on and wear:
A.Press and hold the screen until it displays.
(If there is still no response, please try again after charging)
B. Put the bracelet on the wrist (Appropriate wear mode will greatly
improve the accuracy of heart rate acquisition)
4.Features:
24 kinds of Sports：
bowling pull-up surfing
Badminton volleyball shuttlecock
dance golf mountaineering
Skipping walking sit-up
Skiing body building basketball
table tennis rock climbing skating
push-up football yoga
Steps: Distance: Calories: heart rate:

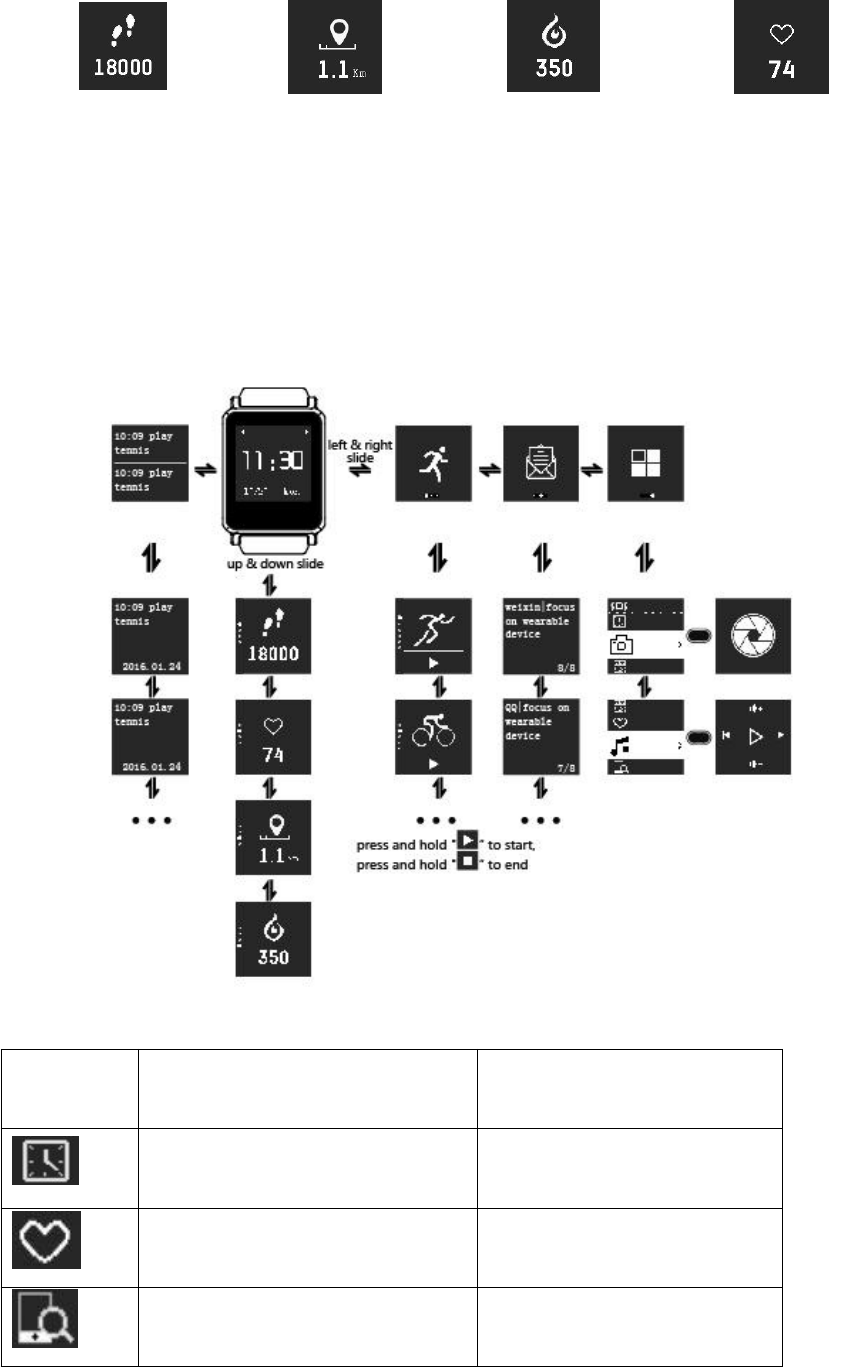

5.Interaction:
A. Operation mode: sliding up and down, sliding around, long press the
screen B. Operate the bracelet
Icon
Function
Operation
Dial pictures optional
Long press and slide to
choose dial pictures.
Test heart rate automatic.
Long press to shift
on/off.
Find your phone
Long press

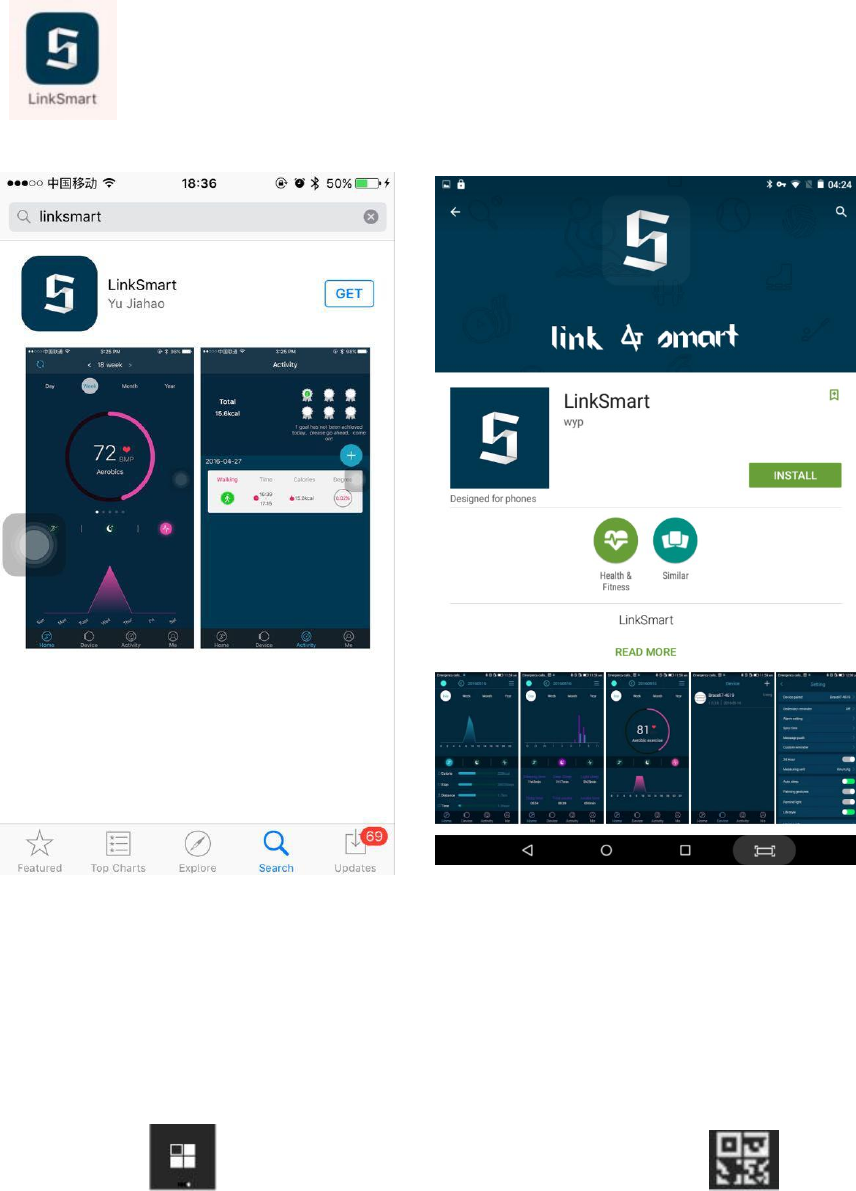

6.Application download:
Search “Linksmart” on Apple store or Google play to install it.
IOS Android

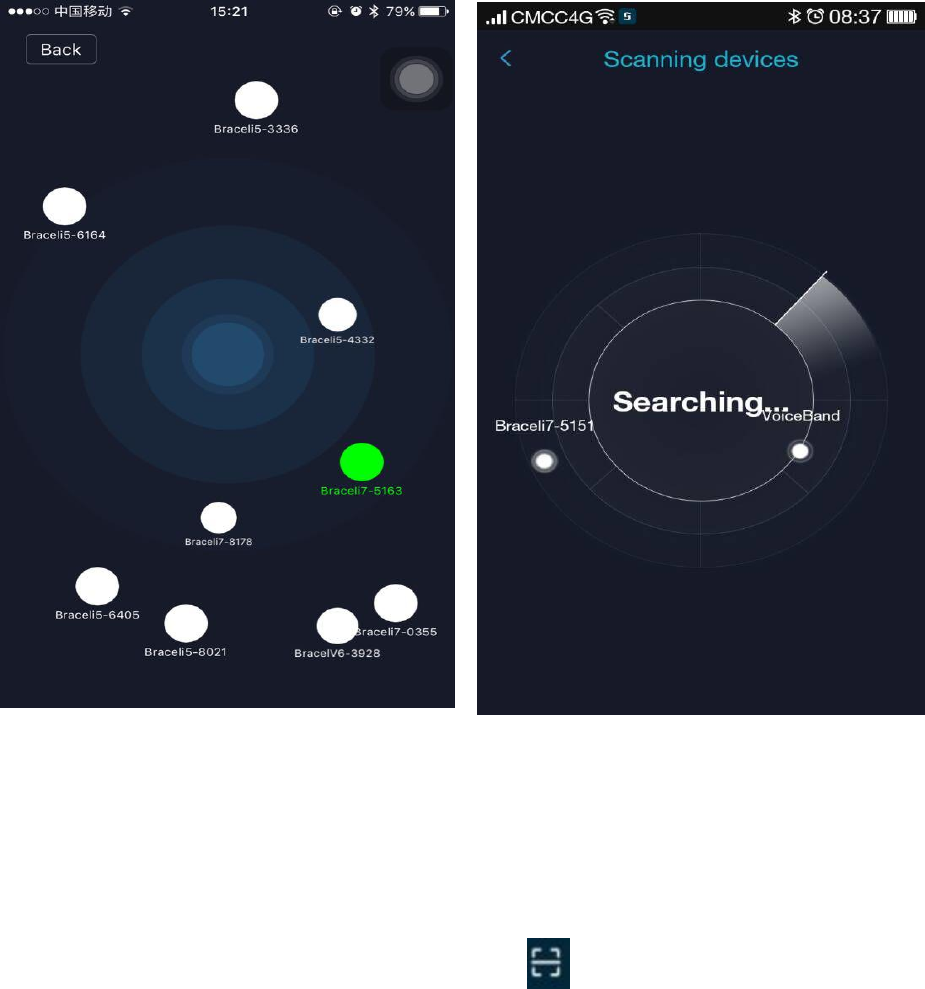

7.Connect APP with bracelet:
Connection Method 1:
1.Keep Bluetooth on.
2.Find menu and then slip vertically to find the QR code.
3. Long press to amplify the QR code.Find the code in it.
4.Open APP, Click the 【Device】In the bottom of main interface.
5.In the page of 【Device】,click the “+”in the top right corner.
6. Search and connect the code showed on QR code.
For example: The code is 5151 in the Braceli7-5151.
IOS: Android:
Connection Method 2:
1.Long press to amplify the QR code in bracelet.Find the code in it.
2.Open APP, Click the word【Device】In the bottom of main interface.
3.In the left corner of【Device】, Choose the to scan the QR code.

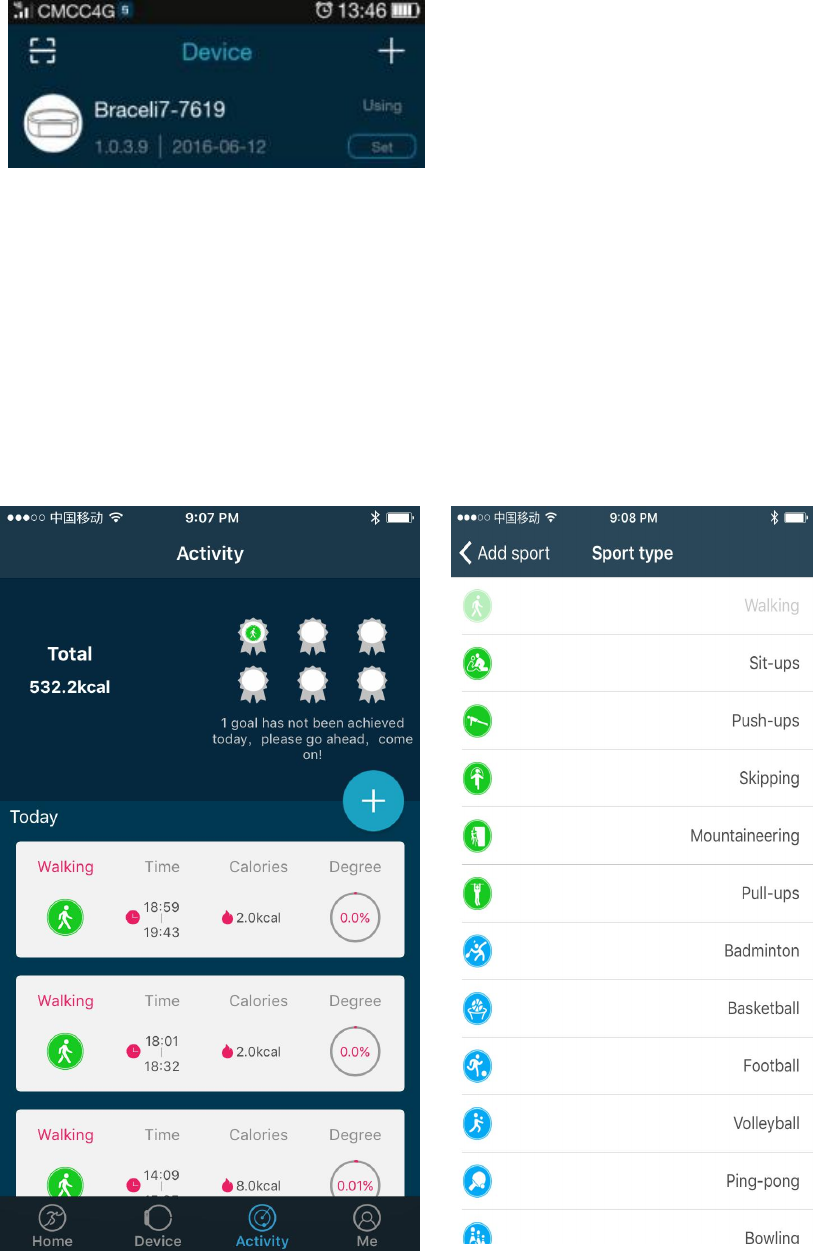

8.Choose sports type:
1.Click the word【Activity】in the main interface.
2.In the【Activity】page,click the “+” to add sport type. You can choose
any five type sports besides walking among 24 types sports. You can set
sports target and reminder time.

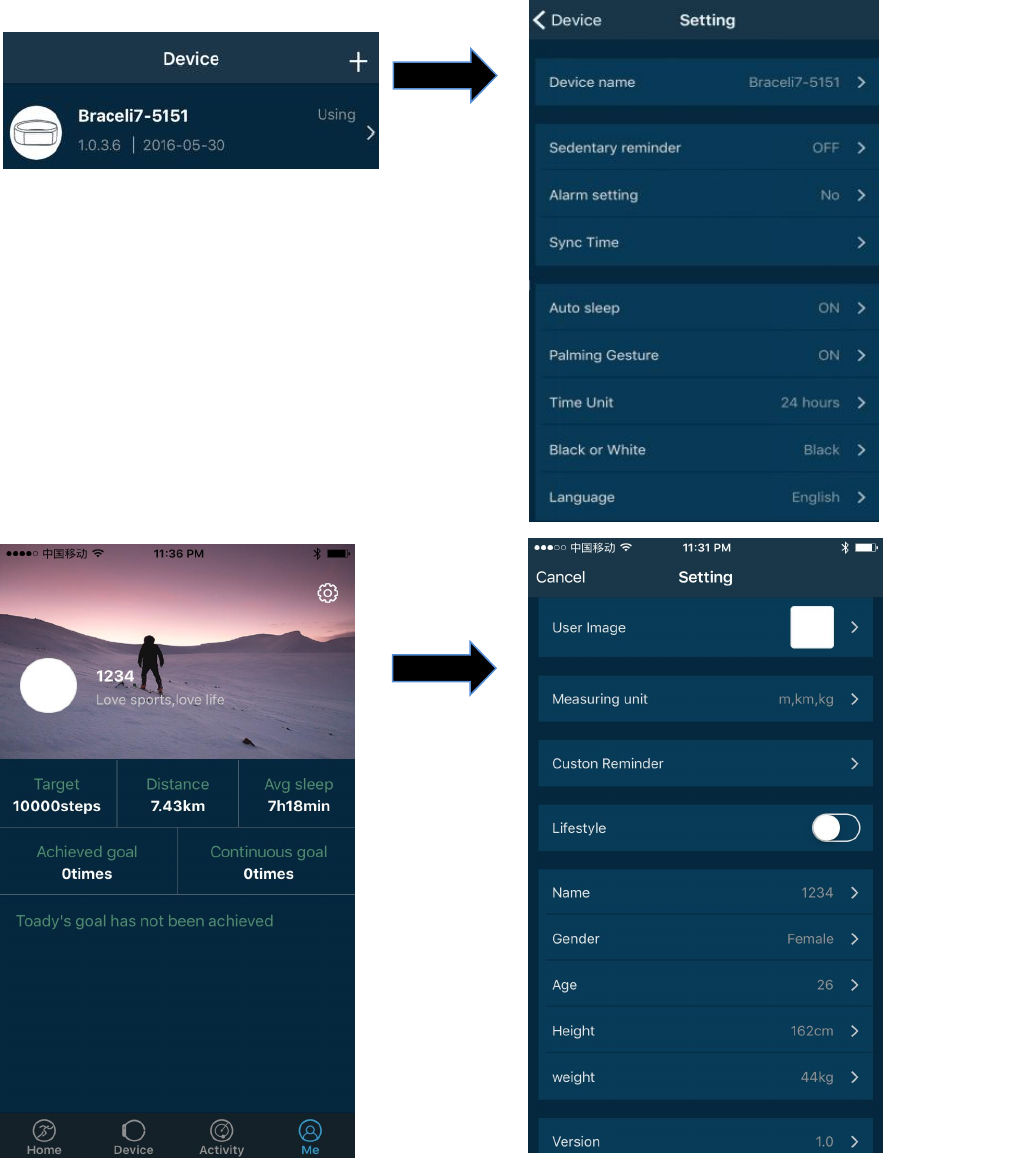

9.Setting:
1.Click the word【Device】in the bottom of main interface.
2.In 【Device 】page,click the connected bracelet using,setting below
items.

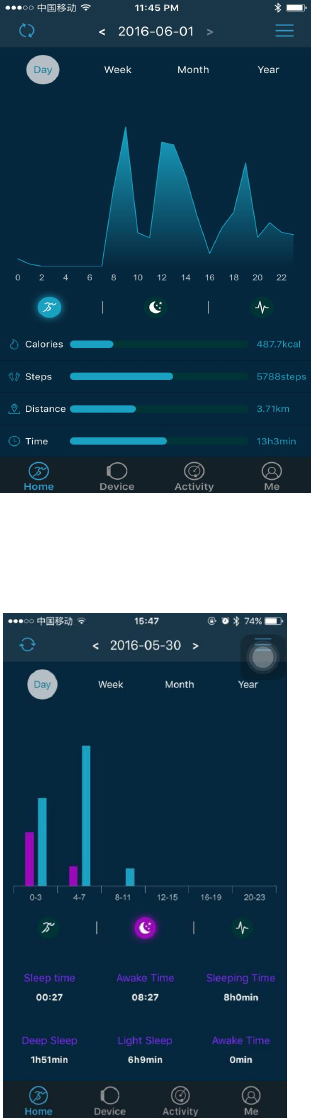

Sports Monitor :
Sports Monitor:
App will keep your record everyday,average data of a week,a month
and a year. Record steps and distance when walking,calculate total
excerise time and burned calories by all sports.
Sleeping Monitor:
In histogram,the blue column is light sleep time,purple column is deep
sleep time.
Heart rate monitor:
Dynamic heart rate monitor: Aerobic,Anaerobic exercise,Fat
burning,Cardiopulmonary exercise.
10.Power Charging
Please place the Magnetic Charging Cable on the back of the Smart band
(as shown in the figure ).Plug it into the power adapter, or 5V/500mA(or
above) standard USB adapter. For example: Laptop、USB adapter、Bank
Power and others. When wristband screen appears icon,which
means is being charged.
Place the Magnetic Charging Cable on the reverse side.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifcations to this device not explicitly approved by manufacturer could void
your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
