DIGILINK GROUP DM302 MP5 PLAYER User Manual DM302 manual

DIGILINK GROUP CO., LTD. MP5 PLAYER DM302 manual

Users Manual

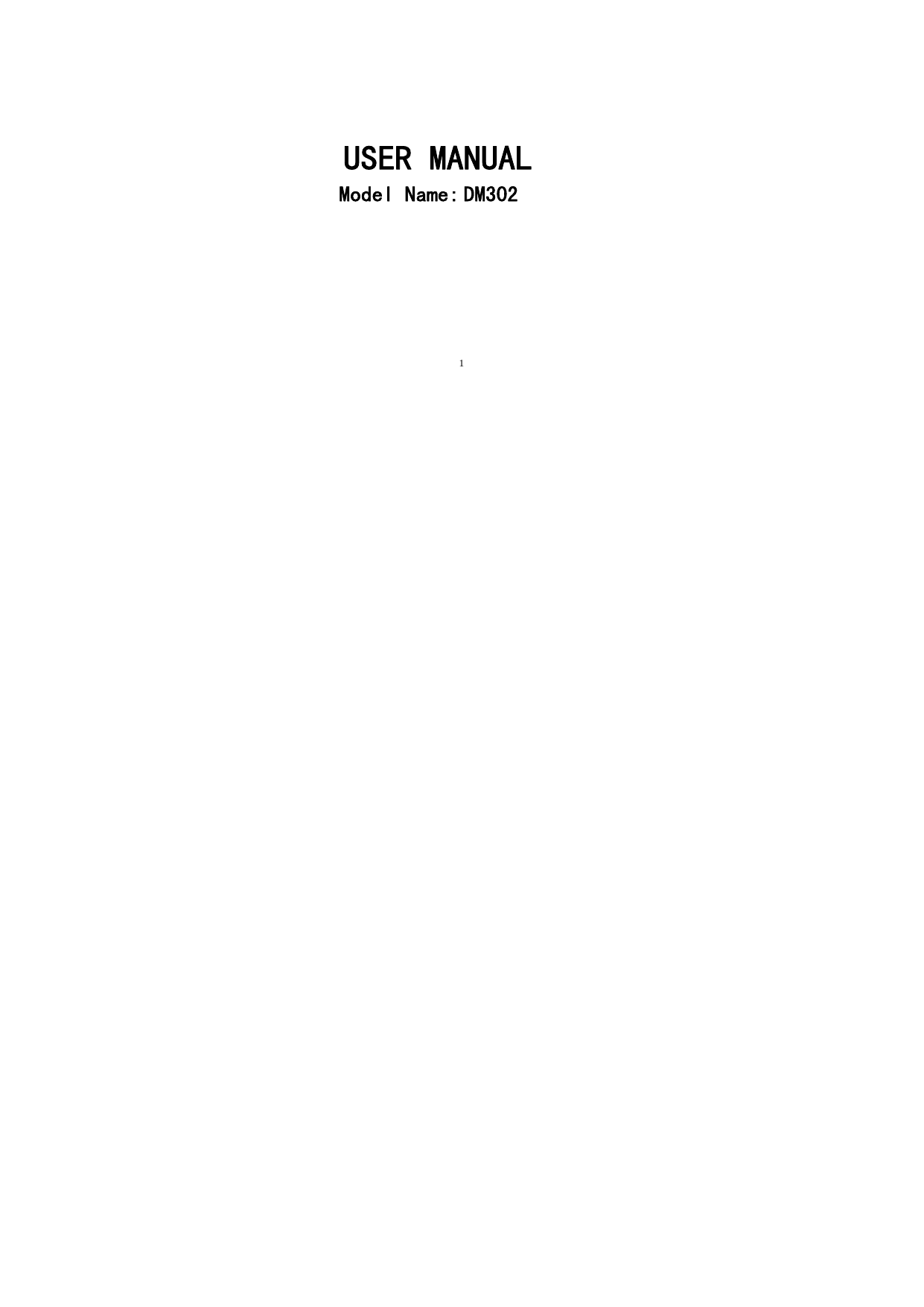

 1        USER MANUAL Model Name: DM302

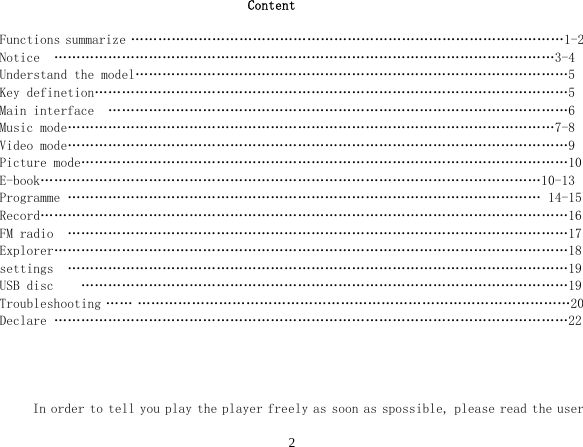

 2Content  Functions summarize ……………………………………………………………………………………1-2 Notice  …………………………………………………………………………………………………3-4 Understand the model……………………………………………………………………………………5 Key definetion……………………………………………………………………………………………5 Main interface  …………………………………………………………………………………………6 Music mode………………………………………………………………………………………………7-8 Video mode…………………………………………………………………………………………………9 Picture mode………………………………………………………………………………………………10 E-book…………………………………………………………………………………………………10-13 Programme …………………………………………………………………………………………… 14-15 Record………………………………………………………………………………………………………16 FM radio  …………………………………………………………………………………………………17 Explorer……………………………………………………………………………………………………18 settings  …………………………………………………………………………………………………19 USB disc    ………………………………………………………………………………………………19 Troubleshooting …… ……………………………………………………………………………………20 Declare ……………………………………………………………………………………………………22     In order to tell you play the player freely as soon as spossible, please read the user

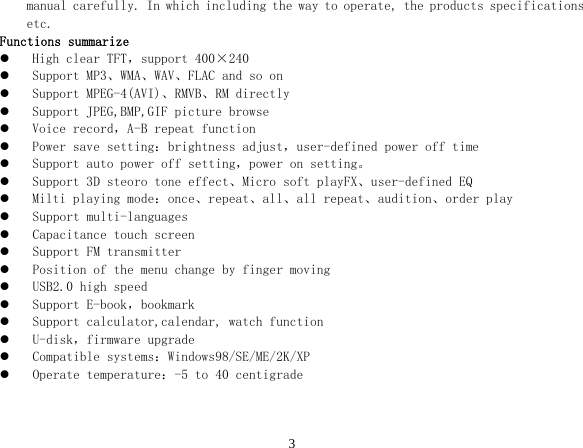

 3manual carefully. In which including the way to operate, the products specifications etc. Functions summarize z High clear TFT,support 400×240 z Support MP3、WMA、WAV、FLAC and so on z Support MPEG-4(AVI)、RMVB、RM directly z Support JPEG,BMP,GIF picture browse z Voice record,A-B repeat function z Power save setting:brightness adjust,user-defined power off time z Support auto power off setting,power on setting。 z Support 3D steoro tone effect、Micro soft playFX、user-defined EQ z Milti playing mode:once、repeat、all、all repeat、audition、order play z Support multi-languages z Capacitance touch screen z Support FM transmitter z Position of the menu change by finger moving z USB2.0 high speed z Support E-book,bookmark z Support calculator,calendar, watch function z U-disk,firmware upgrade z Compatible systems:Windows98/SE/ME/2K/XP z Operate temperature:-5 to 40 centigrade

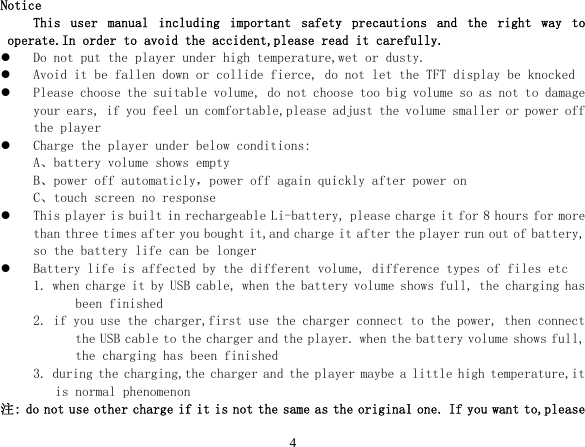

 4Notice This  user  manual  including  important  safety  precautions  and  the  right  way  to operate.In order to avoid the accident,please read it carefully. z Do not put the player under high temperature,wet or dusty. z Avoid it be fallen down or collide fierce, do not let the TFT display be knocked z Please choose the suitable volume, do not choose too big volume so as not to damage your ears, if you feel un comfortable,please adjust the volume smaller or power off the player z Charge the player under below conditions: A、battery volume shows empty B、power off automaticly,power off again quickly after power on C、touch screen no response z This player is built in rechargeable Li-battery, please charge it for 8 hours for more than three times after you bought it,and charge it after the player run out of battery, so the battery life can be longer z Battery life is affected by the different volume, difference types of files etc 1. when charge it by USB cable, when the battery volume shows full, the charging has been finished  2. if you use the charger,first use the charger connect to the power, then connect the USB cable to the charger and the player. when the battery volume shows full, the charging has been finished  3. during the charging,the charger and the player maybe a little high temperature,it is normal phenomenon 注: do not use other charge if it is not the same as the original one. If you want to,please

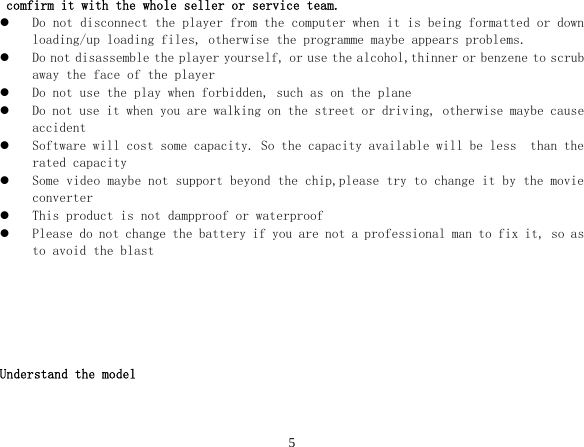

 5comfirm it with the whole seller or service team. z Do not disconnect the player from the computer when it is being formatted or down loading/up loading files, otherwise the programme maybe appears problems. z Do not disassemble the player yourself, or use the alcohol,thinner or benzene to scrub away the face of the player z Do not use the play when forbidden, such as on the plane z Do not use it when you are walking on the street or driving, otherwise maybe cause accident z Software will cost some capacity. So the capacity available will be less  than the rated capacity z Some video maybe not support beyond the chip,please try to change it by the movie converter z This product is not dampproof or waterproof z Please do not change the battery if you are not a professional man to fix it, so as to avoid the blast       Understand the model

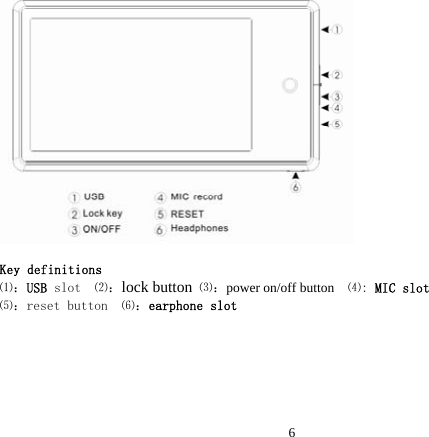

 6  Key definitions ⑴:USB slot  ⑵:lock button ⑶:power on/off button  ⑷: MIC slot ⑸:reset button  ⑹:earphone slot

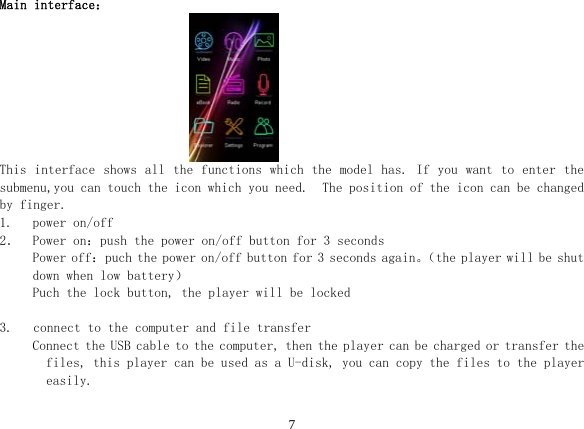

 7 Main interface:                                      This interface shows all the functions which the model has. If you want to enter the submenu,you can touch the icon which you need.  The position of the icon can be changed by finger. 1. power on/off 2. Power on:push the power on/off button for 3 seconds Power off:puch the power on/off button for 3 seconds again。(the player will be shut down when low battery) Puch the lock button, the player will be locked  3.   connect to the computer and file transfer Connect the USB cable to the computer, then the player can be charged or transfer the files, this player can be used as a U-disk, you can copy the files to the player easily.

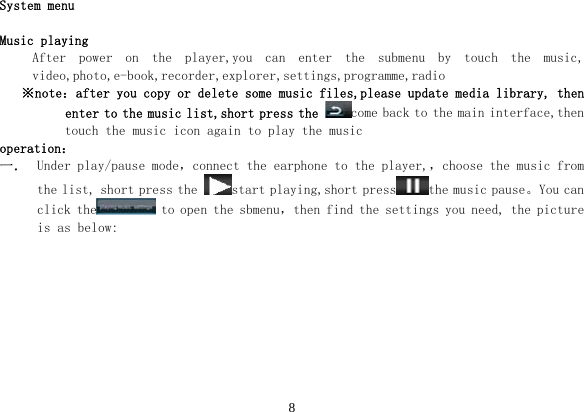

 8  System menu  Music playing After  power  on  the  player,you  can  enter  the  submenu  by  touch  the  music, video,photo,e-book,recorder,explorer,settings,programme,radio ※note:after you copy or delete some music files,please update media library, then enter to the music list,short press the come back to the main interface,then touch the music icon again to play the music operation: 一. Under play/pause mode,connect the earphone to the player,,choose the music from the list, short press the  start playing,short press the music pause。You can click the  to open the sbmenu,then find the settings you need, the picture is as below:

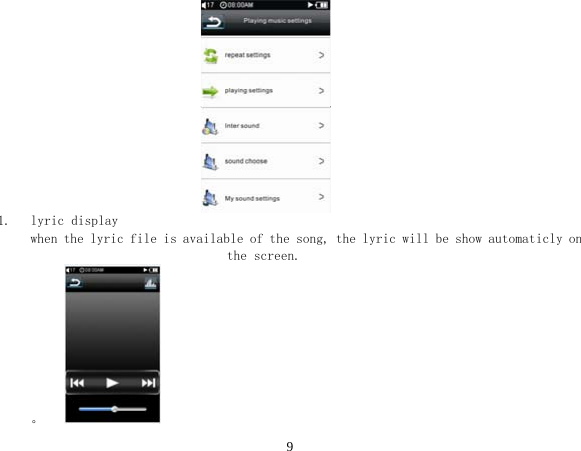

 9                                1. lyric display when the lyric file is available of the song, the lyric will be show automaticly on the screen. 。

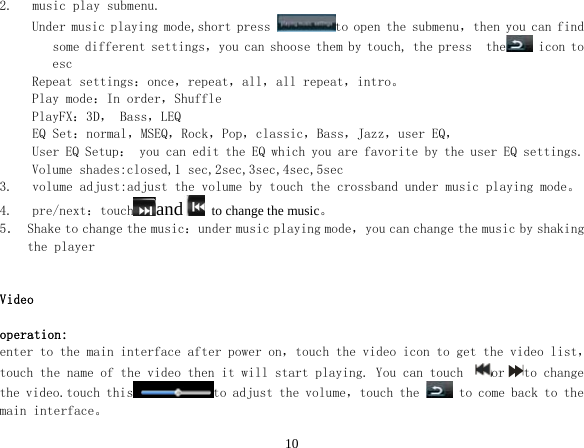

 102. music play submenu. Under music playing mode,short press  to open the submenu,then you can find some different settings,you can shoose them by touch, the press  the  icon to esc Repeat settings:once,repeat,all,all repeat,intro。 Play mode:In order,Shuffle PlayFX:3D, Bass,LEQ EQ Set:normal,MSEQ,Rock,Pop,classic,Bass,Jazz,user EQ, User EQ Setup: you can edit the EQ which you are favorite by the user EQ settings. Volume shades:closed,1 sec,2sec,3sec,4sec,5sec 3. volume adjust:adjust the volume by touch the crossband under music playing mode。 4. pre/next:touch and   to change the music。 5. Shake to change the music:under music playing mode,you can change the music by shaking the player   Video  operation: enter to the main interface after power on,touch the video icon to get the video list,touch the name of the video then it will start playing. You can touch  or to change the video.touch this to adjust the volume,touch the   to come back to the main interface。

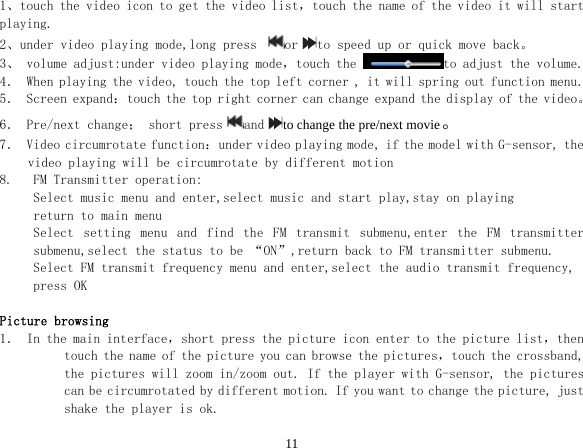

 111、touch the video icon to get the video list,touch the name of the video it will start playing. 2、under video playing mode,long press  or to speed up or quick move back。 3、 volume adjust:under video playing mode,touch the  to adjust the volume. 4. When playing the video, touch the top left corner , it will spring out function menu. 5. Screen expand:touch the top right corner can change expand the display of the video。 6. Pre/next change; short press and to change the pre/next movie。 7. Video circumrotate function:under video playing mode, if the model with G-sensor, the video playing will be circumrotate by different motion  8.   FM Transmitter operation: Select music menu and enter,select music and start play,stay on playing  return to main menu Select  setting  menu  and  find  the  FM  transmit  submenu,enter  the  FM  transmitter submenu,select the status to be “ON”,return back to FM transmitter submenu. Select FM transmit frequency menu and enter,select the audio transmit frequency, press OK  Picture browsing 1. In the main interface,short press the picture icon enter to the picture list,then touch the name of the picture you can browse the pictures,touch the crossband, the pictures will zoom in/zoom out. If the player with G-sensor, the pictures can be circumrotated by different motion. If you want to change the picture, just shake the player is ok.

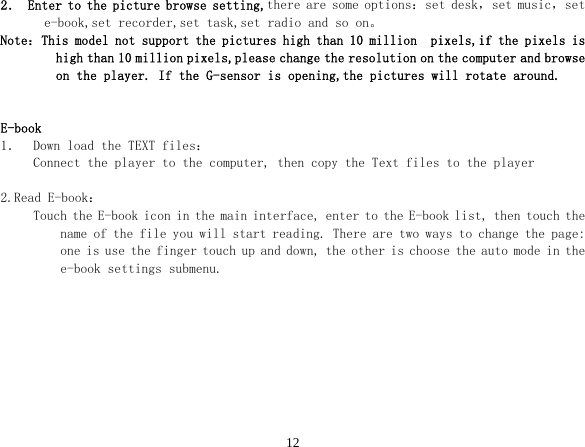

 122. Enter to the picture browse setting,there are some options:set desk,set music,set e-book,set recorder,set task,set radio and so on。 Note:This model not support the pictures high than 10 million  pixels,if the pixels is high than 10 million pixels,please change the resolution on the computer and browse on the player. If the G-sensor is opening,the pictures will rotate around.   E-book 1. Down load the TEXT files: Connect the player to the computer, then copy the Text files to the player  2.Read E-book: Touch the E-book icon in the main interface, enter to the E-book list, then touch the name of the file you will start reading. There are two ways to change the page: one is use the finger touch up and down, the other is choose the auto mode in the e-book settings submenu.

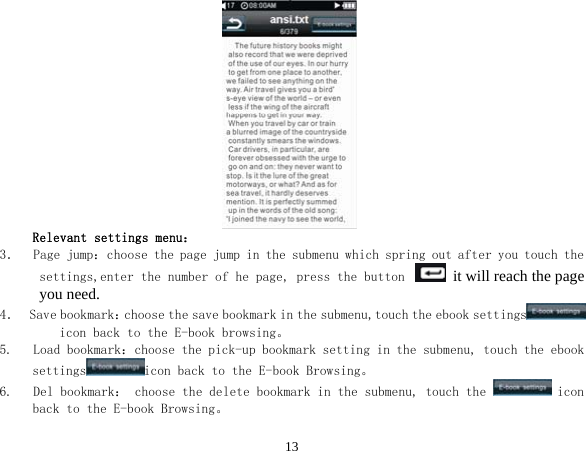

 13 Relevant settings menu: 3.  Page jump:choose the page jump in the submenu which spring out after you touch the settings,enter the number of he page, press the button   it will reach the page you need. 4.  Save bookmark:choose the save bookmark in the submenu,touch the ebook settings  icon back to the E-book browsing。 5.   Load bookmark:choose the pick-up bookmark setting in the submenu, touch the ebook settings icon back to the E-book Browsing。 6.   Del bookmark: choose the delete bookmark in the submenu, touch the   icon back to the E-book Browsing。

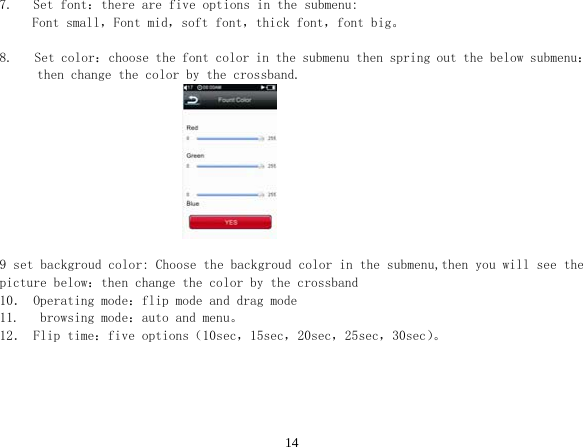

 147.   Set font:there are five options in the submenu: Font small,Font mid,soft font,thick font,font big。  8. Set color:choose the font color in the submenu then spring out the below submenu: then change the color by the crossband.                                9 set backgroud color: Choose the backgroud color in the submenu,then you will see the picture below:then change the color by the crossband 10. Operating mode:flip mode and drag mode 11.   browsing mode:auto and menu。 12. Flip time:five options(10sec,15sec,20sec,25sec,30sec)。

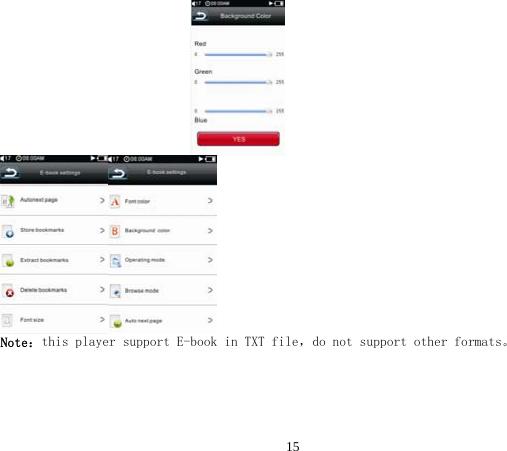

 15                               Note:this player support E-book in TXT file,do not support other formats。

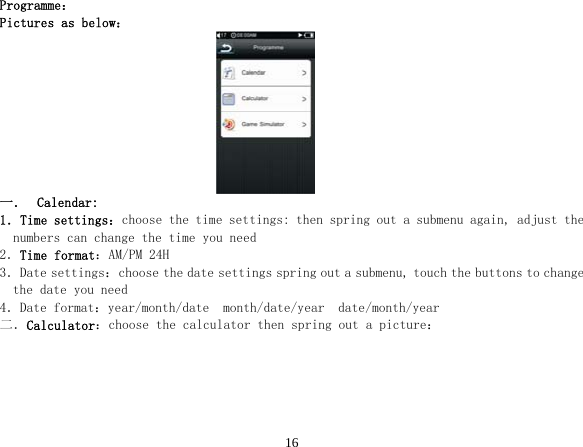

 16Programme: Pictures as below:                               一. Calendar: 1.Time settings:choose the time settings: then spring out a submenu again, adjust the numbers can change the time you need 2.Time format:AM/PM 24H 3.Date settings:choose the date settings spring out a submenu, touch the buttons to change the date you need 4.Date format:year/month/date  month/date/year  date/month/year 二.Calculator:choose the calculator then spring out a picture:

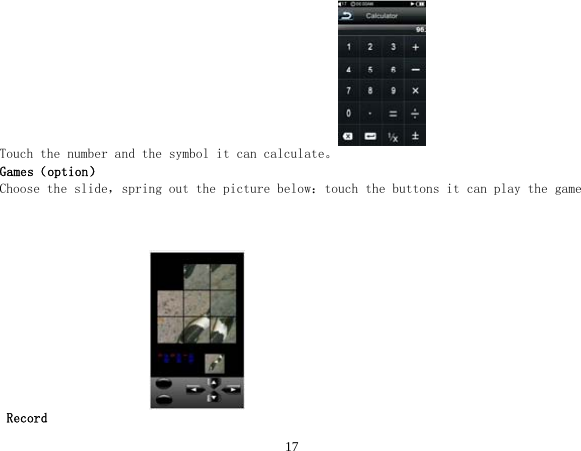

 17                                                    Touch the number and the symbol it can calculate。 Games(option) Choose the slide,spring out the picture below:touch the buttons it can play the game                              Record

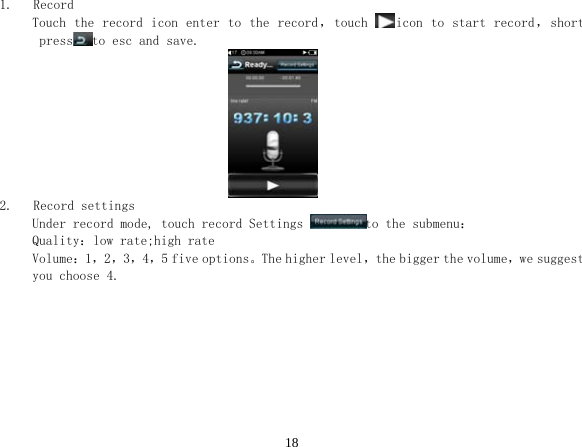

 181.   Record Touch the record icon enter  to the record,touch  icon to  start record,short press to esc and save.                                2.   Record settings Under record mode, touch record Settings  to the submenu: Quality:low rate;high rate Volume:1,2,3,4,5 five options。The higher level,the bigger the volume,we suggest you choose 4.

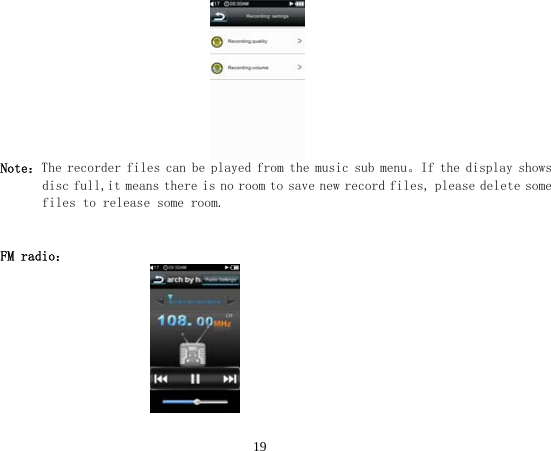

 19                                 Note:The recorder files can be played from the music sub menu。If the display shows disc full,it means there is no room to save new record files, please delete some files to release some room.   FM radio:

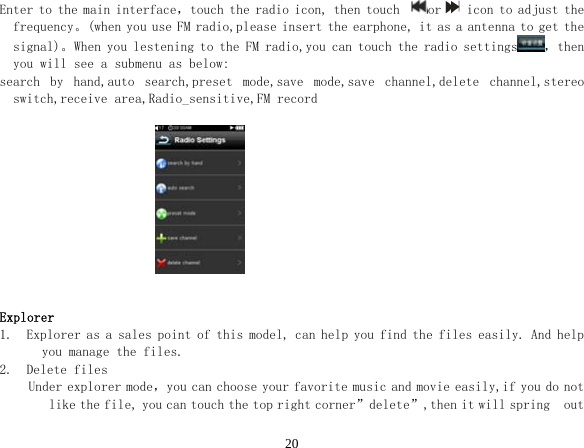

 20Enter to the main interface,touch the radio icon, then touch  or  icon to adjust the frequency。(when you use FM radio,please insert the earphone, it as a antenna to get the signal)。When you lestening to the FM radio,you can touch the radio settings ,then you will see a submenu as below:  search  by  hand,auto  search,preset  mode,save  mode,save  channel,delete  channel,stereo switch,receive area,Radio_sensitive,FM record                             Explorer 1.  Explorer as a sales point of this model, can help you find the files easily. And help you manage the files. 2.  Delete files Under explorer mode,you can choose your favorite music and movie easily,if you do not like the file, you can touch the top right corner”delete”,then it will spring  out

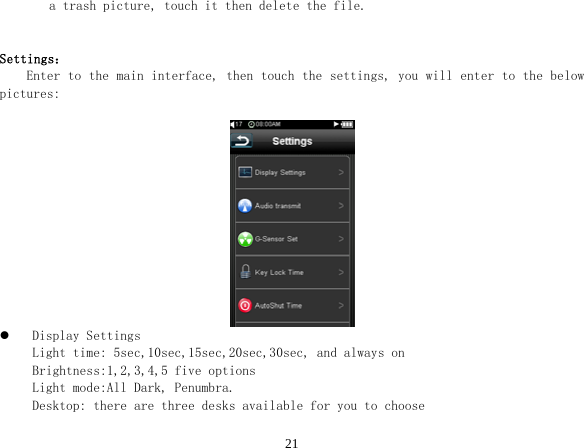

 21a trash picture, touch it then delete the file.   Settings:     Enter to the main interface, then touch the settings, you will enter to the below pictures:            z Display Settings Light time: 5sec,10sec,15sec,20sec,30sec, and always on Brightness:1,2,3,4,5 five options Light mode:All Dark, Penumbra. Desktop: there are three desks available for you to choose

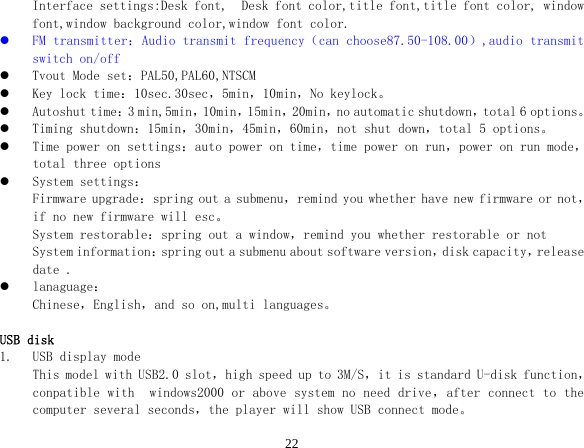

 22Interface settings:Desk font,  Desk font color,title font,title font color, window font,window background color,window font color. z FM transmitter:Audio transmit frequency(can choose87.50-108.00),audio transmit switch on/off z Tvout Mode set:PAL50,PAL60,NTSCM z Key lock time:10sec.30sec,5min,10min,No keylock。 z Autoshut time:3 min,5min,10min,15min,20min,no automatic shutdown,total 6 options。 z Timing shutdown:15min,30min,45min,60min,not shut down,total 5 options。 z Time power on settings:auto power on time,time power on run,power on run mode,total three options z System settings: Firmware upgrade:spring out a submenu,remind you whether have new firmware or not,if no new firmware will esc。 System restorable:spring out a window,remind you whether restorable or not System information:spring out a submenu about software version,disk capacity,release date . z lanaguage: Chinese,English,and so on,multi languages。  USB disk 1. USB display mode This model with USB2.0 slot,high speed up to 3M/S,it is standard U-disk function,conpatible with  windows2000 or above system no need drive,after connect to the computer several seconds,the player will show USB connect mode。
 232. Charge display mode If the player low battery. The display shows low battery shut down,then the player power off automaticly. Then it need be charged, if by charger it about 4 hours.After full charge, the battery will shows full on the display.  Trouble shootings If the play is not working normal,please check the following reasons:  problem  Possible reasons Can not power on  Please check whether there is any batteryy?After connect it to the computer, whether it will be working or not.  If still not owrking, please try it after you reset it. After reset it still not work,please contact the wholeseller. freezing  Press the reset button。 Can  not  player anything Please check whether there is any battery? Check whether the volume is in “0”,check the earphone connect to the player,check the eaphone slot is clear or not。 Check whether the file is damaged. Delete the file and copy it again。 Please format the disk on the computer Can  not  down loadthe files Make  sure  the  whether  the  player  is  connect  well  to  the computer.check whether the disk is full. Check whether the USB cable is damaged

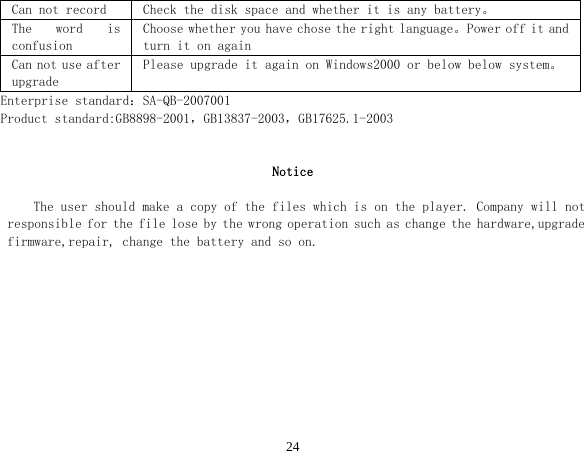

 24Can not record  Check the disk space and whether it is any battery。 The  word  is confusion Choose whether you have chose the right language。Power off it and turn it on again Can not use after upgrade Please upgrade it again on Windows2000 or below below system。 Enterprise standard:SA-QB-2007001 Product standard:GB8898-2001,GB13837-2003,GB17625.1-2003   Notice  The user should make a copy of the files which is on the player. Company will not responsible for the file lose by the wrong operation such as change the hardware,upgrade firmware,repair, change the battery and so on.

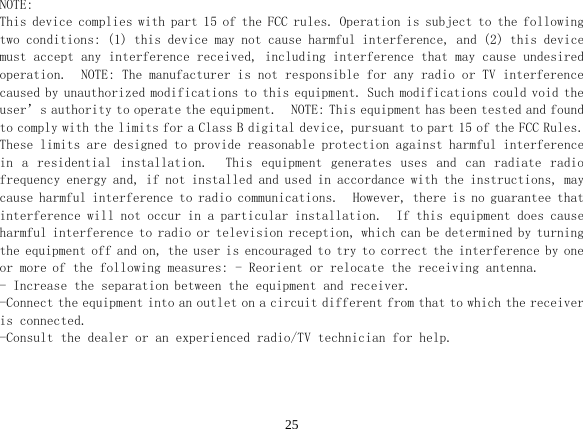

 25 NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in  a  residential  installation.    This  equipment  generates  uses  and  can  radiate  radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.  - Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help.
