DIGILINK GROUP DM302 MP5 PLAYER User Manual DM302 manual
DIGILINK GROUP CO., LTD. MP5 PLAYER DM302 manual
Users Manual
1
USER MANUAL
Model Name: DM302
2
Content
Functions summarize ……………………………………………………………………………………1-2
Notice …………………………………………………………………………………………………3-4
Understand the model……………………………………………………………………………………5
Key definetion……………………………………………………………………………………………5
Main interface …………………………………………………………………………………………6
Music mode………………………………………………………………………………………………7-8
Video mode…………………………………………………………………………………………………9
Picture mode………………………………………………………………………………………………10
E-book…………………………………………………………………………………………………10-13
Programme …………………………………………………………………………………………… 14-15
Record………………………………………………………………………………………………………16
FM radio …………………………………………………………………………………………………17
Explorer……………………………………………………………………………………………………18
settings …………………………………………………………………………………………………19
USB disc ………………………………………………………………………………………………19
Troubleshooting …… ……………………………………………………………………………………20
Declare ……………………………………………………………………………………………………22
In order to tell you play the player freely as soon as spossible, please read the user
3
manual carefully. In which including the way to operate, the products specifications
etc.
Functions summarize
z High clear TFT，support 400×240
z Support MP3、WMA、WAV、FLAC and so on
z Support MPEG-4(AVI)、RMVB、RM directly
z Support JPEG,BMP,GIF picture browse
z Voice record，A-B repeat function
z Power save setting：brightness adjust，user-defined power off time
z Support auto power off setting，power on setting。
z Support 3D steoro tone effect、Micro soft playFX、user-defined EQ
z Milti playing mode：once、repeat、all、all repeat、audition、order play
z Support multi-languages
z Capacitance touch screen
z Support FM transmitter
z Position of the menu change by finger moving
z USB2.0 high speed
z Support E-book，bookmark
z Support calculator,calendar, watch function
z U-disk，firmware upgrade
z Compatible systems：Windows98/SE/ME/2K/XP
z Operate temperature：-5 to 40 centigrade
4
Notice
This user manual including important safety precautions and the right way to
operate.In order to avoid the accident,please read it carefully.
z Do not put the player under high temperature,wet or dusty.
z Avoid it be fallen down or collide fierce, do not let the TFT display be knocked
z Please choose the suitable volume, do not choose too big volume so as not to damage
your ears, if you feel un comfortable,please adjust the volume smaller or power off
the player
z Charge the player under below conditions:
A、battery volume shows empty
B、power off automaticly，power off again quickly after power on
C、touch screen no response
z This player is built in rechargeable Li-battery, please charge it for 8 hours for more
than three times after you bought it,and charge it after the player run out of battery,
so the battery life can be longer
z Battery life is affected by the different volume, difference types of files etc
1. when charge it by USB cable, when the battery volume shows full, the charging has
been finished
2. if you use the charger,first use the charger connect to the power, then connect
the USB cable to the charger and the player. when the battery volume shows full,
the charging has been finished
3. during the charging,the charger and the player maybe a little high temperature,it
is normal phenomenon
注: do not use other charge if it is not the same as the original one. If you want to,please
5
comfirm it with the whole seller or service team.
z Do not disconnect the player from the computer when it is being formatted or down
loading/up loading files, otherwise the programme maybe appears problems.
z Do not disassemble the player yourself, or use the alcohol,thinner or benzene to scrub
away the face of the player
z Do not use the play when forbidden, such as on the plane
z Do not use it when you are walking on the street or driving, otherwise maybe cause
accident
z Software will cost some capacity. So the capacity available will be less than the
rated capacity
z Some video maybe not support beyond the chip,please try to change it by the movie
converter
z This product is not dampproof or waterproof
z Please do not change the battery if you are not a professional man to fix it, so as
to avoid the blast
Understand the model
6

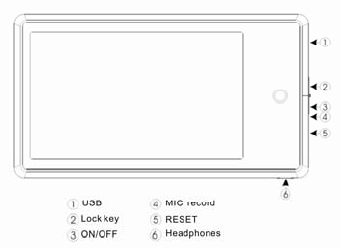

Key definitions
⑴：USB slot ⑵：lock button ⑶：power on/off button ⑷: MIC slot
⑸：reset button ⑹：earphone slot
7
Main interface：
This interface shows all the functions which the model has. If you want to enter the
submenu,you can touch the icon which you need. The position of the icon can be changed
by finger.
1. power on/off
2． Power on：push the power on/off button for 3 seconds
Power off：puch the power on/off button for 3 seconds again。（the player will be shut
down when low battery）
Puch the lock button, the player will be locked
3. connect to the computer and file transfer
Connect the USB cable to the computer, then the player can be charged or transfer the
files, this player can be used as a U-disk, you can copy the files to the player
easily.
8
System menu
Music playing
After power on the player,you can enter the submenu by touch the music,
video,photo,e-book,recorder,explorer,settings,programme,radio
※note：after you copy or delete some music files,please update media library, then
enter to the music list,short press the come back to the main interface,then
touch the music icon again to play the music
operation：
一． Under play/pause mode，connect the earphone to the player,，choose the music from
the list, short press the start playing,short press the music pause。You can
click the to open the sbmenu，then find the settings you need, the picture
is as below:
9
1. lyric display
when the lyric file is available of the song, the lyric will be show automaticly on
the screen.
。
10

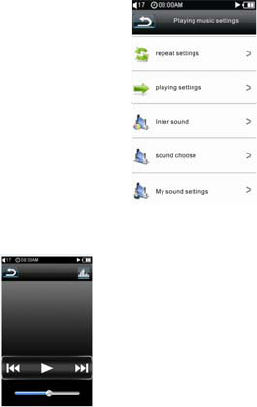

2. music play submenu.
Under music playing mode,short press to open the submenu，then you can find
some different settings，you can shoose them by touch, the press the icon to
esc
Repeat settings：once，repeat，all，all repeat，intro。
Play mode：In order，Shuffle
PlayFX：3D， Bass，LEQ
EQ Set：normal，MSEQ，Rock，Pop，classic，Bass，Jazz，user EQ，
User EQ Setup： you can edit the EQ which you are favorite by the user EQ settings.
Volume shades:closed,1 sec,2sec,3sec,4sec,5sec
3. volume adjust:adjust the volume by touch the crossband under music playing mode。
4. pre/next：touch and to change the music。
5． Shake to change the music：under music playing mode，you can change the music by shaking
the player
Video
operation:
enter to the main interface after power on，touch the video icon to get the video list，
touch the name of the video then it will start playing. You can touch or to change
the video.touch this to adjust the volume，touch the to come back to the
main interface。
11
1、touch the video icon to get the video list，touch the name of the video it will start
playing.
2、under video playing mode,long press or to speed up or quick move back。
3、 volume adjust:under video playing mode，touch the to adjust the volume.
4． When playing the video, touch the top left corner , it will spring out function menu.
5． Screen expand：touch the top right corner can change expand the display of the video。
6． Pre/next change； short press and to change the pre/next movie。
7． Video circumrotate function：under video playing mode, if the model with G-sensor, the
video playing will be circumrotate by different motion
8. FM Transmitter operation:
Select music menu and enter,select music and start play,stay on playing
return to main menu
Select setting menu and find the FM transmit submenu,enter the FM transmitter
submenu,select the status to be “ON”,return back to FM transmitter submenu.
Select FM transmit frequency menu and enter,select the audio transmit frequency,
press OK
Picture browsing
1． In the main interface，short press the picture icon enter to the picture list，then
touch the name of the picture you can browse the pictures，touch the crossband,
the pictures will zoom in/zoom out. If the player with G-sensor, the pictures
can be circumrotated by different motion. If you want to change the picture, just
shake the player is ok.
12
2． Enter to the picture browse setting,there are some options：set desk，set music，set
e-book,set recorder,set task,set radio and so on。
Note：This model not support the pictures high than 10 million pixels,if the pixels is
high than 10 million pixels,please change the resolution on the computer and browse
on the player. If the G-sensor is opening,the pictures will rotate around.
E-book
1． Down load the TEXT files：
Connect the player to the computer, then copy the Text files to the player

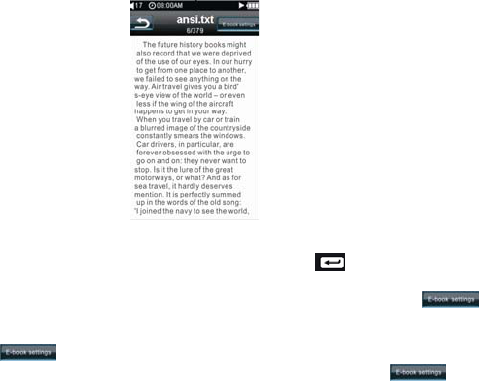

2.Read E-book：
Touch the E-book icon in the main interface, enter to the E-book list, then touch the
name of the file you will start reading. There are two ways to change the page:
one is use the finger touch up and down, the other is choose the auto mode in the
e-book settings submenu.
13
Relevant settings menu：
3． Page jump：choose the page jump in the submenu which spring out after you touch the
settings,enter the number of he page, press the button it will reach the page
you need.
4． Save bookmark：choose the save bookmark in the submenu,touch the ebook settings
icon back to the E-book browsing。
5. Load bookmark：choose the pick-up bookmark setting in the submenu, touch the ebook
settings icon back to the E-book Browsing。
6. Del bookmark： choose the delete bookmark in the submenu, touch the icon
back to the E-book Browsing。
14
7. Set font：there are five options in the submenu:
Font small，Font mid，soft font，thick font，font big。

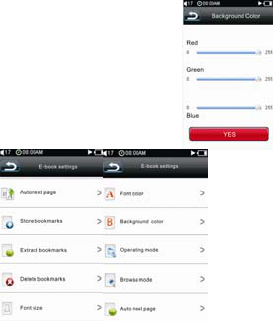

8. Set color：choose the font color in the submenu then spring out the below submenu：
then change the color by the crossband.
9 set backgroud color: Choose the backgroud color in the submenu,then you will see the
picture below：then change the color by the crossband
10． Operating mode：flip mode and drag mode
11. browsing mode：auto and menu。
12． Flip time：five options（10sec，15sec，20sec，25sec，30sec）。
15
Note：this player support E-book in TXT file，do not support other formats。
16
Programme：
Pictures as below：
一． Calendar:
1．Time settings：choose the time settings: then spring out a submenu again, adjust the
numbers can change the time you need
2．Time format：AM/PM 24H
3．Date settings：choose the date settings spring out a submenu, touch the buttons to change
the date you need
4．Date format：year/month/date month/date/year date/month/year

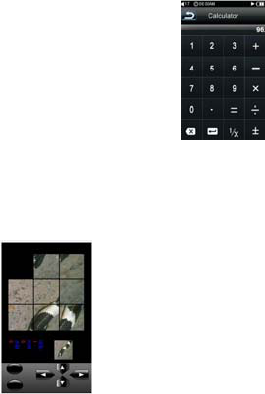

二．Calculator：choose the calculator then spring out a picture：
17
Touch the number and the symbol it can calculate。
Games（option）
Choose the slide，spring out the picture below：touch the buttons it can play the game
Record
18

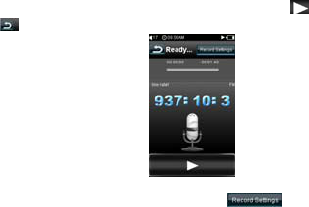

1. Record
Touch the record icon enter to the record，touch icon to start record，short
press to esc and save.

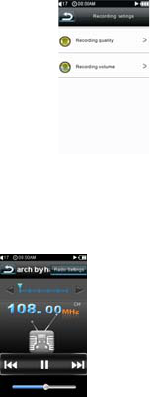

2. Record settings
Under record mode, touch record Settings to the submenu：
Quality：low rate;high rate
Volume：1，2，3，4，5 five options。The higher level，the bigger the volume，we suggest
you choose 4.
19
Note：The recorder files can be played from the music sub menu。If the display shows
disc full,it means there is no room to save new record files, please delete some
files to release some room.

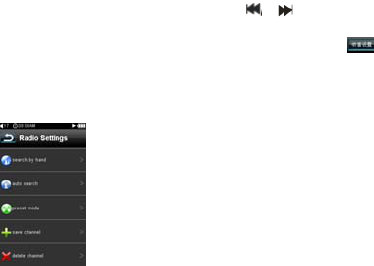

FM radio：
20
Enter to the main interface，touch the radio icon, then touch or icon to adjust the
frequency。(when you use FM radio,please insert the earphone, it as a antenna to get the
signal)。When you lestening to the FM radio,you can touch the radio settings ，then
you will see a submenu as below:
search by hand,auto search,preset mode,save mode,save channel,delete channel,stereo
switch,receive area,Radio_sensitive,FM record
Explorer
1. Explorer as a sales point of this model, can help you find the files easily. And help
you manage the files.
2. Delete files
Under explorer mode，you can choose your favorite music and movie easily,if you do not
like the file, you can touch the top right corner”delete”,then it will spring out
21
a trash picture, touch it then delete the file.
Settings：
Enter to the main interface, then touch the settings, you will enter to the below
pictures:
z Display Settings
Light time: 5sec,10sec,15sec,20sec,30sec, and always on
Brightness:1,2,3,4,5 five options
Light mode:All Dark, Penumbra.
Desktop: there are three desks available for you to choose
22
Interface settings:Desk font, Desk font color,title font,title font color, window
font,window background color,window font color.
z FM transmitter：Audio transmit frequency（can choose87.50-108.00）,audio transmit
switch on/off
z Tvout Mode set：PAL50,PAL60,NTSCM
z Key lock time：10sec.30sec，5min，10min，No keylock。
z Autoshut time：3 min,5min，10min，15min，20min，no automatic shutdown，total 6 options。
z Timing shutdown：15min，30min，45min，60min，not shut down，total 5 options。
z Time power on settings：auto power on time，time power on run，power on run mode，
total three options
z System settings：
Firmware upgrade：spring out a submenu，remind you whether have new firmware or not，
if no new firmware will esc。
System restorable：spring out a window，remind you whether restorable or not
System information：spring out a submenu about software version，disk capacity，release
date .
z lanaguage：
Chinese，English，and so on,multi languages。
USB disk
1. USB display mode
This model with USB2.0 slot，high speed up to 3M/S，it is standard U-disk function，
conpatible with windows2000 or above system no need drive，after connect to the
computer several seconds，the player will show USB connect mode。
23
2. Charge display mode
If the player low battery. The display shows low battery shut down,then the player
power off automaticly. Then it need be charged, if by charger it about 4 hours.After
full charge, the battery will shows full on the display.
Trouble shootings
If the play is not working normal，please check the following reasons：
problem Possible reasons
Can not power on Please check whether there is any batteryy？After connect it to
the computer, whether it will be working or not. If still not
owrking, please try it after you reset it. After reset it still
not work,please contact the wholeseller.
freezing Press the reset button。
Can not player
anything
Please check whether there is any battery？
Check whether the volume is in “0”，check the earphone connect
to the player，check the eaphone slot is clear or not。
Check whether the file is damaged. Delete the file and copy it
again。
Please format the disk on the computer
Can not down
loadthe files
Make sure the whether the player is connect well to the
computer.check whether the disk is full.
Check whether the USB cable is damaged
24
Can not record Check the disk space and whether it is any battery。
The word is
confusion
Choose whether you have chose the right language。Power off it and
turn it on again
Can not use after
upgrade
Please upgrade it again on Windows2000 or below below system。
Enterprise standard：SA-QB-2007001
Product standard:GB8898-2001，GB13837-2003，GB17625.1-2003
Notice
The user should make a copy of the files which is on the player. Company will not
responsible for the file lose by the wrong operation such as change the hardware,upgrade
firmware,repair, change the battery and so on.
25
NOTE:
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment. NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: - Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
