User manual

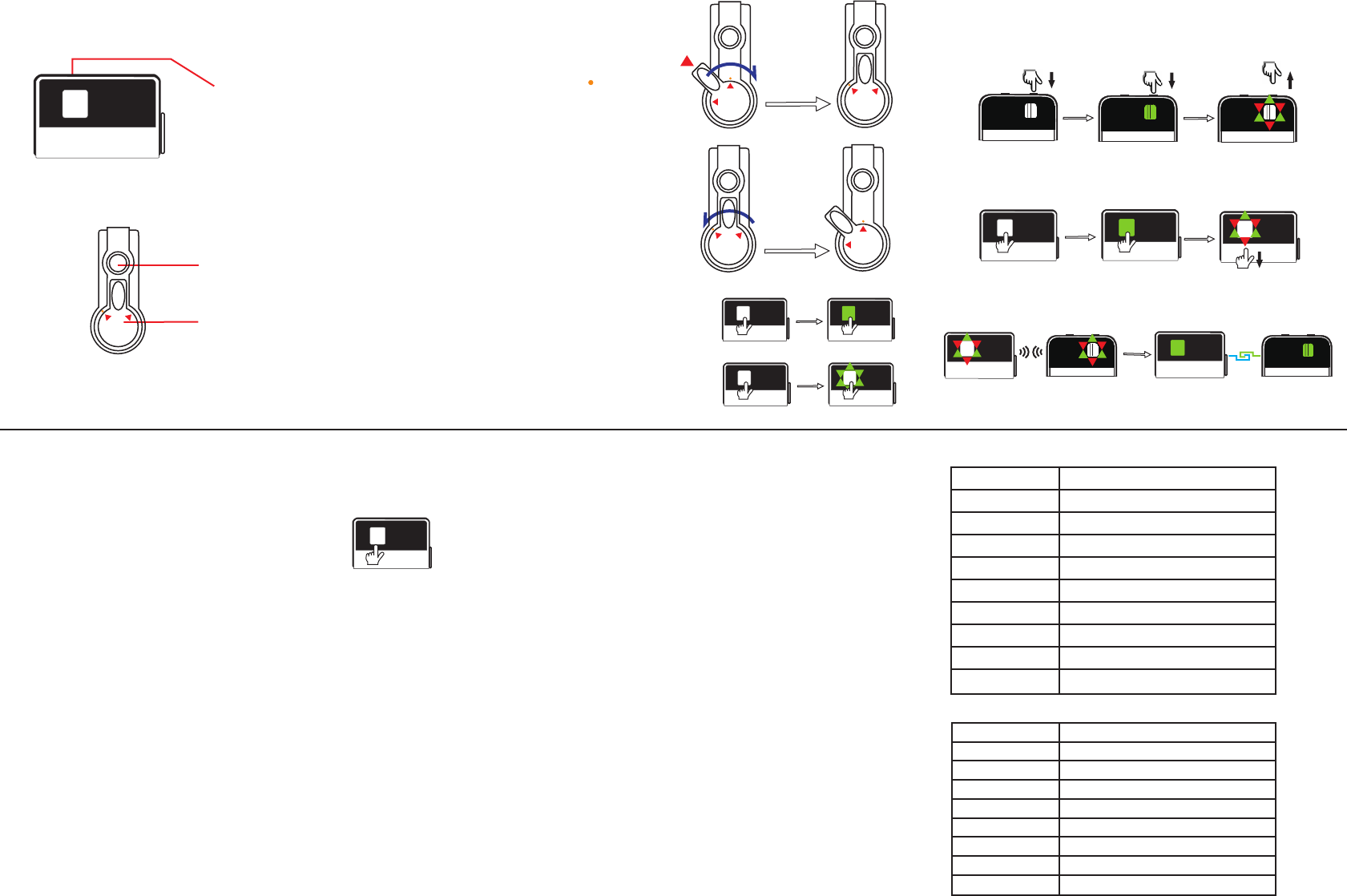

A. Overview：

1. Button:

Power On(Off), Pairing,

Change mode

Light Indicator

2. 2.5mm Phone Jack

3. Battery Cover

Left

B. Install and Change Battery

Put the battery into the unit and

close the battery cover (Pic. 1)

Check the cover indication “ ”

is aimed at “ ”as show on

Pic. 1. Close the cap by rotating

the battery cover clockwise

about 45 degrees.

Clockwise 45

C. Pairing mode :

5sec. 3sec.

Object : BSH-02

a. Turn on the BSH-02 device and go to pairing mode ( press

the button A about 8 sec.)。

D. Change mode E、Light indicator table

F.Specifion

1. Install the Battery

When you want change the

battery.

Rotate counterclockwise 45

degrees, as show on Pic. 2.

Pull the battery cover and

change the battery.

Counterclockwise 45

2. Change Battery

3. Power On

When the unit is power off, please

press the button about 3 sec. till

the indicator light flashes green.

b.Confirm the BMD-01 is power Off.

Press the BMD-01 button about 6 sec. till the indicator light

flashes green and red.

3 sec. 3 sec.

3 sec.

c. When those units have been successfully paired, their

indicator lights flash green.

BMD-01 have 3 modes can be selected, A2DP,

HSP standby and HSP always On. Different modes will

connect different channeal.

Press the button to change mode.

For Example：

a. If you want to use Radio, and need play music from mobile phone.

You need set the BMD-01 to HSP standby mode.

If your Radio communication is the most important, you need set

the BMD-01 to HSP always On mode.

b. If you want to use audio player (ex. Navigation device or ipod),

you need set the BMD-01 to A2DP mode.

BMD-01 function Light inducator

Turn On Green light 1 time

Searching Green light flash quickly.(15 sec.)

Turn Off Green light flash 5 times.

Paining mode Green and red lights flash (60 sec.)

A2DP Mode Green light flash 1 time every 2 Sec.

HSPAO Mode

Green light flash 2 times every 2 Sec.

HSPS Mode

Green light flash 3 times every 2 Sec.

Standby Green light flash 1 time every 6 Sec.

Low Power Red light flash every 6 Sec.

Chipset CSR BC05 V2.1+EDR

Profile HSP, A2DP

Frequency 2402~2480 MHz

Range 10 meters (Open area)

Power Supply 1 x AAA battery

Dimensions 60(L)x 36(W)x 16(H)mm

Weight 18g (Without battery weight)

Standby time 120hrs

Use time Music 17 hrs / Talking 19 hrs

3. HSP Always On mode：

When BMD-01 setting on HSP Always On mode (HSPAO)

; This mode will continue connect with BSH-02, no matter the

signal is incoming or no signal.

This mode is suitable for highly use Radio, and hope no lose

timing by communication from Radio.

The light will continue flash green light 3 times evey 2 sec.

2. HSP Standby mode：

When BMD-01 setting on HSP Standby mode (HSPS)

; When you have a signal income or push the PTT (Push to Talk)

, it will auto connect with BSH-02.

This mode is suitable for you want listen music from BHS-02

by A2DP profile and use Radio from BMD-01.

The light will continue flash green light 2 times every 2 sec.

Pic. 1

4. Power Off

Press the button about 3 sec. till

the indicator green light flashes

3 times.

3 sec.

1. A2DP mode：(Default setting)

The BMD-01 will set at A2DP Profile, this mode is useful by connect

with music audio devices. (ex. Audio player, GPS, Radar detector).

The light will continues flash green light 1 time every 2 sec.

E. Wack Up Function

If the range between BMD-01 and BSH-02 over 10 meters, they

will be disconnected.

Press BMD-01 button, it will be auto searching and connect to

BSH-02.

Pic. 2

FederalCommunicationCommissionInterferenceStatement



Youarecautionedthatchangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidyourauthoritytooperatetheequipment.

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseharmfulinterferenceand(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipment

generates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause

harmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCRadiationExposureStatement

1.ThisTransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

2.ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.Endusersmustfollow

thespecificoperatinginstructionsforsatisfyingRFexposurecompliance.TomaintaincompliancewithFCCRFexposurecompliance

requirements,pleasefollowoperationinstructionasdocumentedinthismanual.
