DONGGUAN FINEMOST ELECTRONICS DCR002 Bluetooth Radio Adaptor User Manual Installation manual

DCR002_Installation manual_0518

Installation manual

(DCR002)

1. Mount parts on PCB

Main board: top side

Main board: bottom side

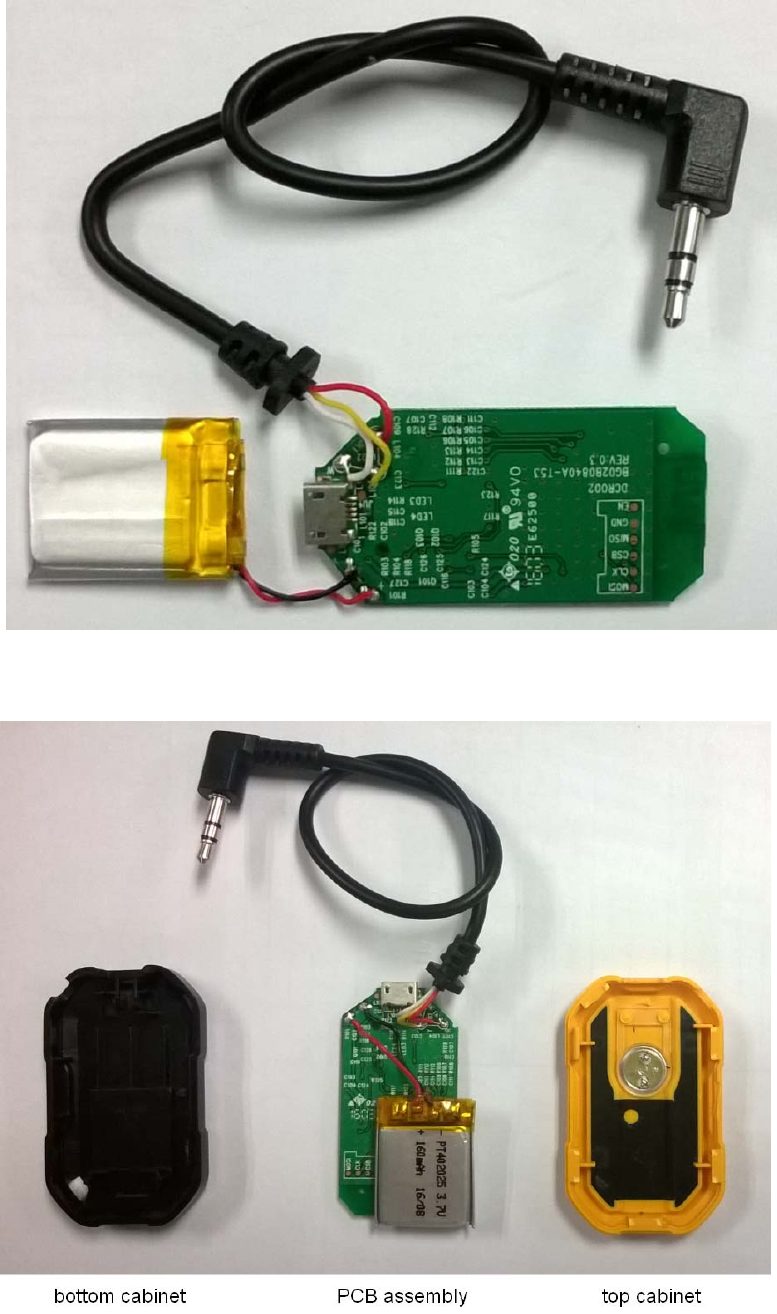

Solder battery & audio cable to PCB on bottom side:

For a module with print circuit board antenna, to eliminate the influence from other components or

ground, a clearance area around the print circuit board antenna is necessary, please refer to following

picture. In this area, there should be no metal in it. Besides x-y-axis, there should also be no metal at the

Z-axis direction.

2. TestthePCB.

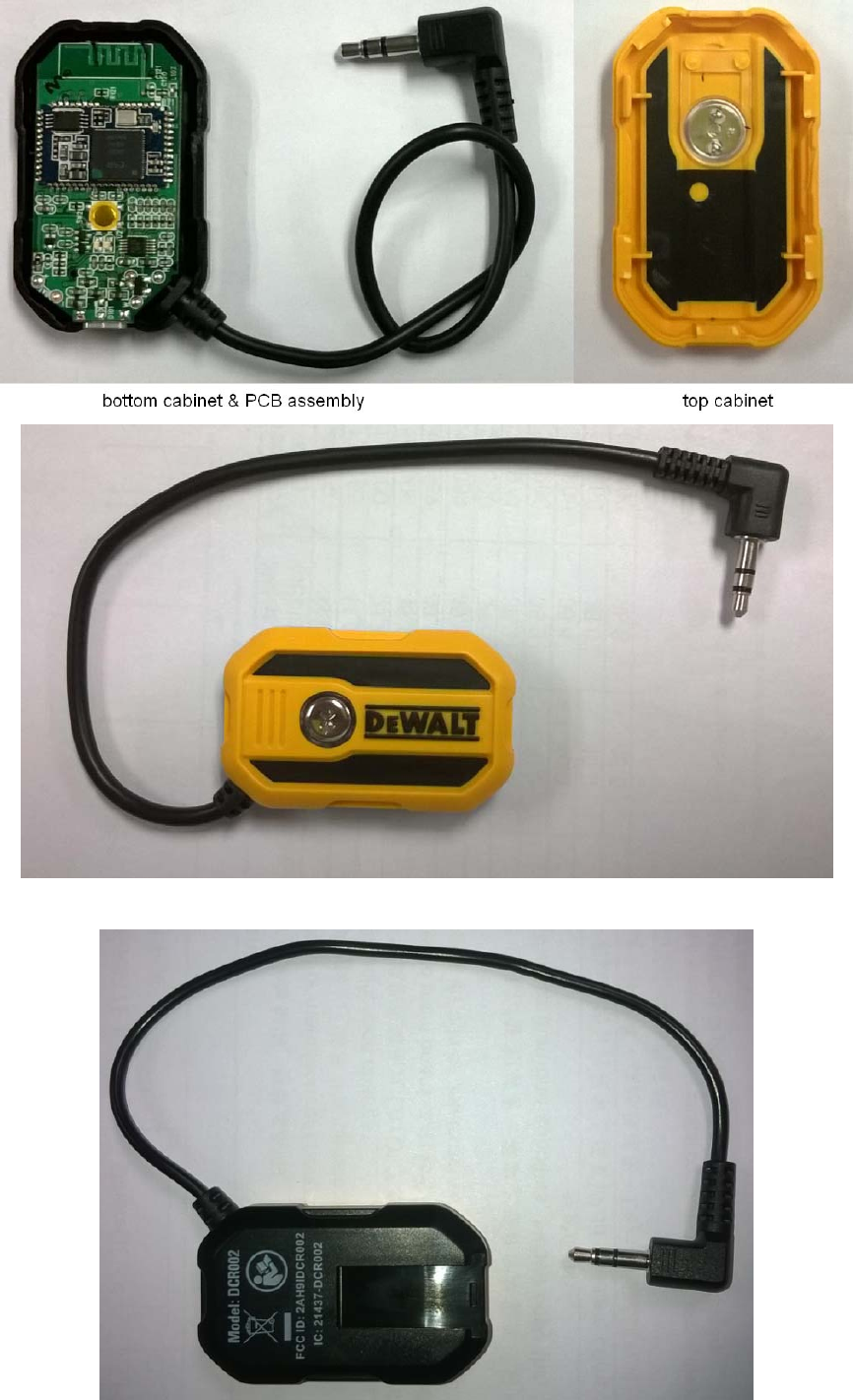

3. Assembleacompleteproduct:

3‐1:solderthebatteryandaudiocabletoPCBrightlyonbottomside.





3‐2:InstallthePCBassemblytocabinetrightly.



Completeset





 


