Introduction

This guide will take you through the main features and functions of this device.

Keep it near to you for future reference.

BUTTONS

POWER

Press and hold for some seconds to power on the device. While it is on,

hold this button pressed to enter to the Energy Saving mode.

Once there, you can wake up your device again by shortly

pressing the POWER key. To go back to Energy Saving Mode, short

press POWER again.

VOLUME

VOL+ / VOL- : Increase audio volume / Decrease volume.

ACTIVATE / DEACTIVATE the Energy Saving Mode

Short press POWER located on the upper right corner of the device. In

this mode, it will turn off the screen to save the battery

energy. Once on the Energy Saving Mode, you can wake up the device

by short pressing POWER again.

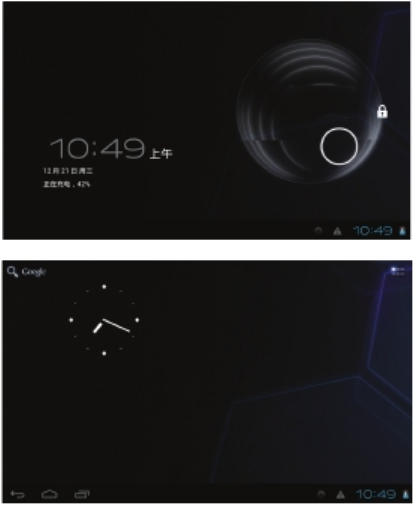

LOCK / UNLOCK the screen

You can lock the screen of the device. From the menu, is possible to set

up the unactive time afther wich the device will lock the screen automatically.

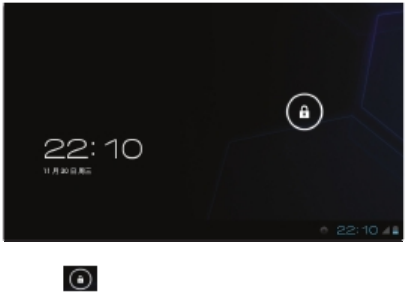

Touche the icon

to unlock the screen. The device will return to the

Main Screen.

MAIN FUNCTIONS

- Capacitive Multi-Touch screen 7” 800 x 480 px.

- Supports almost all the audio and video formats. Check out Google

Play Store for tons of programs to increase compatibility even

more.

(1080p) /etc.

- MicroSD card slot.

- Image formats supported: JPG/BMP/JPEG /GIF.

- Energy Saving Mode, brightness control and hibernation.

- Support multiple languages.

- Windows Vista / Win 7 / Mac OS compatible device.

- Internet file download.

- USB 2.0 High speed connector.

- Applications.

- Portable Hard Drive.

- Acelerómetro.

- Fron camera 0.3 MP.

- Wi-Fi.

Warnings

- Don´t use your device on extreme weather conditions or

dusty envirioments.

- Don´t throw the device.

- The battery life may vary depending on usage and enviromental

conditions.

- Please charge the battery when:

A. The battery icon shows a low charge.

B. The sistem shuts down and is imposible to turn the device on.

C. the keys are not working propery.

- During the format process, upload and download of data, don´t

turn off the device. Wait for the process to finish before

disconnecting the device 2 from your computer. Not doing

so may cause damage on the files and on the device.

- An static energy discharge during the connection with the computer

may also damage the file and the device.

- The images of this guide may sightly vary from the device. Please

use this pictures as a reference.

- Dismounting the device will avoid the guarranty inmediately. Please

refer to the Troubleshooting section of this guide to solve any

issue.

- The company reserves the right to improve this product, that can be

subjected to change with no previous notification.

- Please respect the Intellectual Property laws of your country.

- the device has a touch screen, so the keys on the device

surface are only for assistance on some functions of the system.

Main Screen

After turning on the device, the Main Screen is shown as in the

following picture:

On the bottom of this screen, you´ll find different navigation buttons

allways available to choose. No matter what you´re doing on your

device, you´ll be able to go back to the Main Screen by pressing

the buttons on the bottom bar.

Back: go to the previous page, or previous application.

Once you reach the Main Screen you can go back further.

Home: go to the Main Screen. Or if you´re looking the rigth

or left screen of the Desktop, this icon will take you back to the

central screen.

Recient Apps: Shows a list of the apps used recently. To

open one of them, touch on it. To erase one or a group of the list,

de la lista, slide your finger on it from left to right.,

Note: En algunas aplicaciones estos botones se convertirán en

unos puntos, pero mantendrán sus funciones.

System Notifications: slide your finger from the top to

the bottom of the screen to see the Notifications Center.

Status icons: Shows the status of the internet connection,

volume, battery and hour.

All the apps: Touch to see a list of all the apps and widgets

installed on the device.

Internet Browser

On the Main screen or the screen of “All the Applications”, ttouch

the icon to open the Internet Browser.

Touch to open a new window.

Touch to see the visited web pages and the bookmarks list.

Touch to add to your favourites.

Touch to see more options.

Settings

From the Main Screen or the screen of “All the Applications”, touch

the configuration icon to enter to the following screen:

a) Wirekess & Networks: Touch to see the Wi-Fi Adjustments,

where you´ll be able to see the status of your connection. On this

screen also, touching the option Wi-Fi Settings, the device

will search fot the available networks and it´ll create list of them to

establish a connection.

On the list of Wi-Fi Networks, touching any of the elements of the

list, it´s possible to see the intensity of the signal and choose your

network to start the connection. T Touching the menu icon ,

you´ll be able to see more options.

b) Sound: Touch Settings> Volume > Notifications to set the

sounds of the alerts. Touch Sound > Sound of Screen Lock to set

the sound when blocking the screen.

c) Screen: Follow this path to set up the screen of your device:

Settings > Brightness, Wallpaper, Screen rotation, Hibernation,

Font size.

d) Storage: Touch SD and Storage to see the setup screen.

e) Battery: In this screen you can see the current status of the

battery.

f) Applications: Touch to see the list of installed apps and manage

them.

g) Location and Services: Here you can configure the location

services options.

h) Security: here you can set up the security of the device.

i) Backup & restart: This option lets you restart your device to the

factory settings.

j) Language and Keyboard: Touch to configure the language

options and the keyboard input method.

k) Accesibility: Accesibility Setup screen.

l) Date and Hour: Date and Hour settings.

m) About the device: More details about the device.

Note: It´s very important to thake your time to do the system

settings before starting to use the device.

Installing Applications

You can install Apps on your device. To do it go to the main screen,

touch the APK installer icon . You´ll see the following screen,

where the system will search for the application to install.

The system can search for the apps installed on the diferent

storage media.

On the list of applications, touch the icon to see the following

submenu:

Install/uninstall: touch to install/uninstall an application.

Select All: Selects all the apps.

Deselect All: deselects all the apps.

Refresh: Update the content of the list of apps.

About: Information about the APK installer.

You can send or receive Emails right from your device

using the “Mail” app.

Playing videos

From the Main Screen or the screen of “All the Applications”, touch

the video player icon to see a list of all the videos available on

your device. Use your finger to navigate the list upside down.

Touch on the video that you want to play. You´ll see the video

playback screen.

The icons on this screen has the following functions:

Progress bar: let you see the time progress of the video. Slide your

finger over it to fast forward/rewind the video playback.

touch to go back to the previous directory.

touch to play the previous video.

touch and hold to rewind a video.

/ pause/play a video.

touch and hold to fast forward a video.

play the next video.

shows a submenu with the following options:

screen mode (normal, full screen, 4:3, 16:9)

Continuous mode (enable/disable)

Playback style (repeat all/one)

brightness (1,2,3,4,5,6)

Information about the file: name, format, size, resolution, duration.

Music

From the Main Screen or the screen of “All the applications”, touch

the Music icon to see the music player.

Shows all the songs.

Arrange songs by artist.

Arrange songs by album.

Show the newest songs.

Slide your finger from the bottom to

the top of the screen to navigate the

list.

The icons of the music player has the following functions:

Progress bar: let you see the time progress of the video. Slide your

finger over it to fast forward/rewind the music playback.

touch to go to the beginning of a song

touch and hold to go fast forward the song playback, touch

to go to the next song.

/ Pause/Play a song.

touch to see the list of music.

touch to Enable/Disable the shuffle playback mode.

Enable/Disable the repetition mode: Repeat one or all the

songs.

Gallery

From the Home screen or the All Apps screen, touch the Gallery

icon . The Gallery is used to view photo files on your device.

you can also download another APK program to view photos from

Google Play or other origins. The interface is shown as the picture

below:

Touch this icon go tho the Camera app directly.

Choose an album,then choose a photo to see the photo. When you

see a picture, touch icon to view a popup submenu with more

options.

File Browser

From the Main Screen or the “All Apps” screen, touch the

FileBrowers icon . This program lets you manage your data

on the device (feles, songs, videos, pictures, etc).

Select/open mode: when this icon popup light, you can play

the music/movie direactly; when this icon is grey, you´ll see

the edition menu (cut, copy, paste, delete)

Show home page

Select/open mode

Show edit dialog

Show sort dialog

Back to parent dir

View by thumbnail

Help

Calculator

From the Home or the “All Apps” screen, touch the Calculator icon

enter the corresponding interface, you can all sort of mathmatic

operations here.

Calendar

From the Home screen or the “All Apps” screen, touch the

Canlendar icon to enter the corresponding interface,

Clock

From the Home screen or the “All Apps” screen, touch the Clock

icon to enter the corresponding interface, you can set up the

clock here and add an alarm.

Camera

From the Home screen or the “All Apps” screen, touch the icon of

the camera to see the image capture menu:

Shift front and back camera

White balance

Unhide setting menu

Touch to comfirm take photo

Exposure

Touch to shift take photo to picture recording

Shift front and back camera

Hide setting menu

Start or pause recording picture

Shift recording picture to take photo

Pause recording picture

Troubleshooting

The device cannot be turned on.

Please charge it via the DC charger to check if the battery is low. If

not, then please reset the MID.

No sound can be heard from the earphones.

1. Check if the volume is set as 0. Adjust the volume as required.

2. Check the volume of the file attempting to be played.

3. Confirm the earphone is properly connected.

Noise through earphones.

1. Check if the earphone plug is clean, foreign particles can cause

static to be heard through the earphone during playback.

2. Check if the music file is damaged. Confirm by playing other

music. The damaged file might create serious noises or voice

dithering.

How to power on/off the device.

Please press power key and hold for 3S. This period will need

several seconds, please wait patient.

Incorrect language displayed.

Please make sure that you have selected the correct language.

Set language in (Settings) => (personal) => (Language &input)

Files cannot be downloaded.

1. Make sure the proper connection between your computer and

the device.

2. Check if the memory is full.

3. Check if the USB cable is damaged and replace if necessary.

Audio / Video files not playable.

Please check that the files transferred to the VORTEX Color are in

the correct format. Some files may need to be re encoded to be

played on this device.

Fail to open the web page.

Check if you´ve correctly created the Wi-Fi connection.

LCD Screen

Resolution

CPU

Operating System

HDD

RAM

Network

USB 2.0, MiniUSB

MicroSD Card

Audio

Camera

Accelerometer

Weight

Size

Lithium Battery

7" Capacitiva Multi-Touch Screen (5 points)

800 px. x 480 px.

ARM Cortex A-8 + MALI 400

Android 4.0

4 GB

512 MB DDR III

WiFi 802.11 (B/G/N)

Not included MicroSD (supports up to 32 GB)

Speaker + 3,5mm. Audio Output + Microphone.

0,3 MP

310 g.

189 x 117.9 x 12.5 mm.

2600 mAh

18

FCCStatement

ThisdevicecomplieswithPart15oftheFCCRules:Operationissubjecttothefollowingtwo

conditions:

1.Thisdevicemaynotcauseharmfulinterferenceand

2.Thisdevicemustacceptanyinterferencethatisreceived,includinganyinterferencethatmay

causeundesiredoperation.



*RF warning for Portable device:

The device has been evaluated to meet general RF exposure requirement. The device can be used

in portable exposure condition without restriction.

Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



AdHocfunctionissupportedbutnotabletooperateonnon‐USfrequencies.‐‐‐WIFI

Donotusethedevicewiththeenvironmentwhichbelowminimum‐10℃ormaximumover.

Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

DOPPIO MOBILE DP5100WIFI Tablet Wave WiFi DP5100 User Manual DP5100 manual

DOPPIO MOBILE INTERNATIONAL LIMITED Tablet Wave WiFi DP5100 DP5100 manual

user manual

Navigation menu

Namespaces

Views

Navigation
