DW800 User Manual

Manual

Instructions for useDW 800

4ContentsSafety information .............................................................................................................. 6Delivery includes .................................................................................................................. 6System overview ................................................................................................................. 7Operating elements ............................................................................................................ 8Basic settings ....................................................................................................................... 8The basic settings of the docking station .................................................................. 8The basic settings of the mobile units ........................................................................ 9Putting the DW 800 system into operation ................................................................ 10Setting up the docking station .................................................................................. 10Connecting the docking station to the telephone ................................................. 10Connecting a headset to a mobile unit .................................................................... 11Testing the setup ......................................................................................................... 11Adjusting the DW 800 system to your telephone ................................................. 12Connecting the DW 800 docking station to a computer sound card ................. 13Connecting the DW 800 docking station to an external audio source .............. 13Charging the rechargeable batteries of the mobile units ......................................... 14Charging the rechargeable battery for the first time ........................................... 14Charging the rechargeable battery while telephoning (Hot Swap™) ................ 14Telephoning with the DW 800 system ......................................................................... 16Standard telephoning ................................................................................................. 16Telephoning in voicelink automatic mode .............................................................. 16Telephoning with a telephone controlling device .................................................. 17Basic intercom ............................................................................................................... 17Advanced settings ........................................................................................................... 18Making conference calls with the DW 800 system .................................................... 19Setting up the DW 800 system for conference calls ............................................. 19Ending a conference call ............................................................................................. 20Intercom conference between up to five mobile units .............................................. 21Setting up the DW 800 system for an intercom conference ............................... 21Ending the intercom mode ......................................................................................... 23Pairing mobile units .......................................................................................................... 23

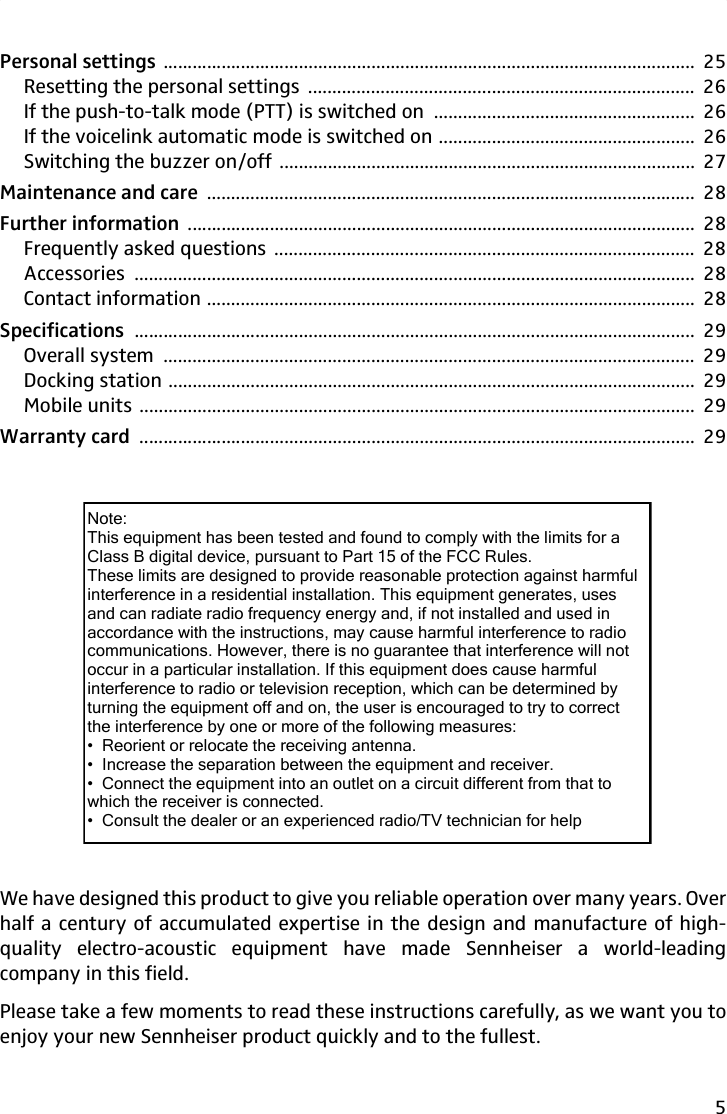

5Personal settings .............................................................................................................. 25Resetting the personal settings ................................................................................ 26If the push-to-talk mode (PTT) is switched on ...................................................... 26If the voicelink automatic mode is switched on ..................................................... 26Switching the buzzer on/off ...................................................................................... 27Maintenance and care ..................................................................................................... 28Further information ......................................................................................................... 28Frequently asked questions ....................................................................................... 28Accessories .................................................................................................................... 28Contact information ..................................................................................................... 28Specifications .................................................................................................................... 29Overall system .............................................................................................................. 29Docking station ............................................................................................................. 29Mobile units ................................................................................................................... 29Warranty card ................................................................................................................... 29We have designed this product to give you reliable operation over many years. Overhalf a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leadingcompany in this field. Please take a few moments to read these instructions carefully, as we want you toenjoy your new Sennheiser product quickly and to the fullest.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help

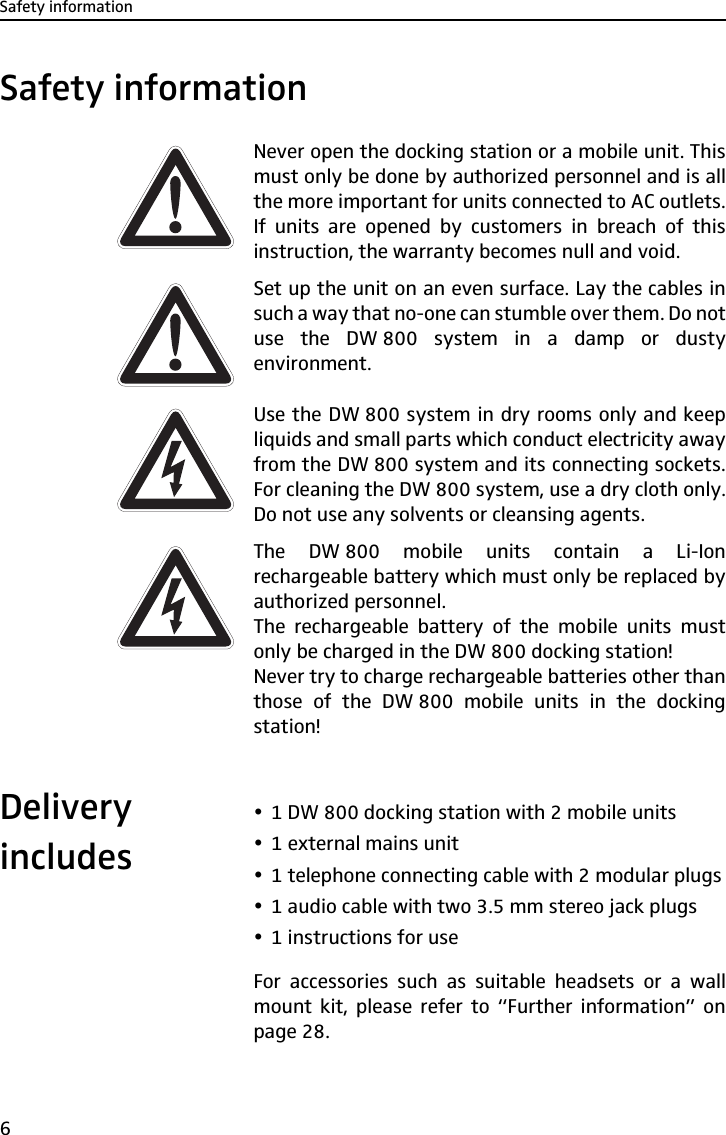

Safety information6Safety informationNever open the docking station or a mobile unit. Thismust only be done by authorized personnel and is allthe more important for units connected to AC outlets.If units are opened by customers in breach of thisinstruction, the warranty becomes null and void.Set up the unit on an even surface. Lay the cables insuch a way that no-one can stumble over them. Do notuse the DW 800 system in a damp or dustyenvironment.Use the DW 800 system in dry rooms only and keepliquids and small parts which conduct electricity awayfrom the DW 800 system and its connecting sockets.For cleaning the DW 800 system, use a dry cloth only.Do not use any solvents or cleansing agents.The DW 800 mobile units contain a Li-Ionrechargeable battery which must only be replaced byauthorized personnel.The rechargeable battery of the mobile units mustonly be charged in the DW 800 docking station! Never try to charge rechargeable batteries other thanthose of the DW 800 mobile units in the dockingstation!Delivery includesy1 DW 800 docking station with 2 mobile unitsy1 external mains unity1 telephone connecting cable with 2 modular plugsy1 audio cable with two 3.5 mm stereo jack plugsy1 instructions for useFor accessories such as suitable headsets or a wallmount kit, please refer to “Further information” onpage 28.

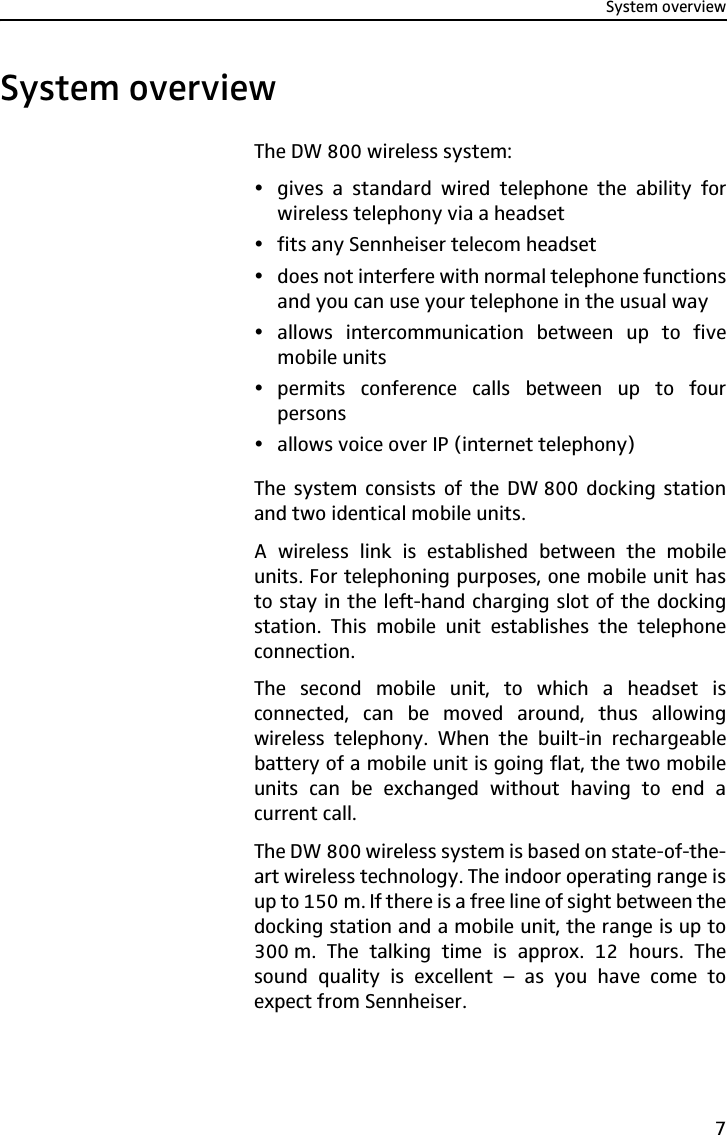

System overview7System overviewThe DW 800 wireless system:ygives a standard wired telephone the ability forwireless telephony via a headsetyfits any Sennheiser telecom headsetydoes not interfere with normal telephone functionsand you can use your telephone in the usual wayyallows intercommunication between up to fivemobile unitsypermits conference calls between up to fourpersonsyallows voice over IP (internet telephony)The system consists of the DW 800 docking stationand two identical mobile units.A wireless link is established between the mobileunits. For telephoning purposes, one mobile unit hasto stay in the left-hand charging slot of the dockingstation. This mobile unit establishes the telephoneconnection.The second mobile unit, to which a headset isconnected, can be moved around, thus allowingwireless telephony. When the built-in rechargeablebattery of a mobile unit is going flat, the two mobileunits can be exchanged without having to end acurrent call.The DW 800 wireless system is based on state-of-the-art wireless technology. The indoor operating range isup to 150 m. If there is a free line of sight between thedocking station and a mobile unit, the range is up to300 m. The talking time is approx. 12 hours. Thesound quality is excellent – as you have come toexpect from Sennheiser.

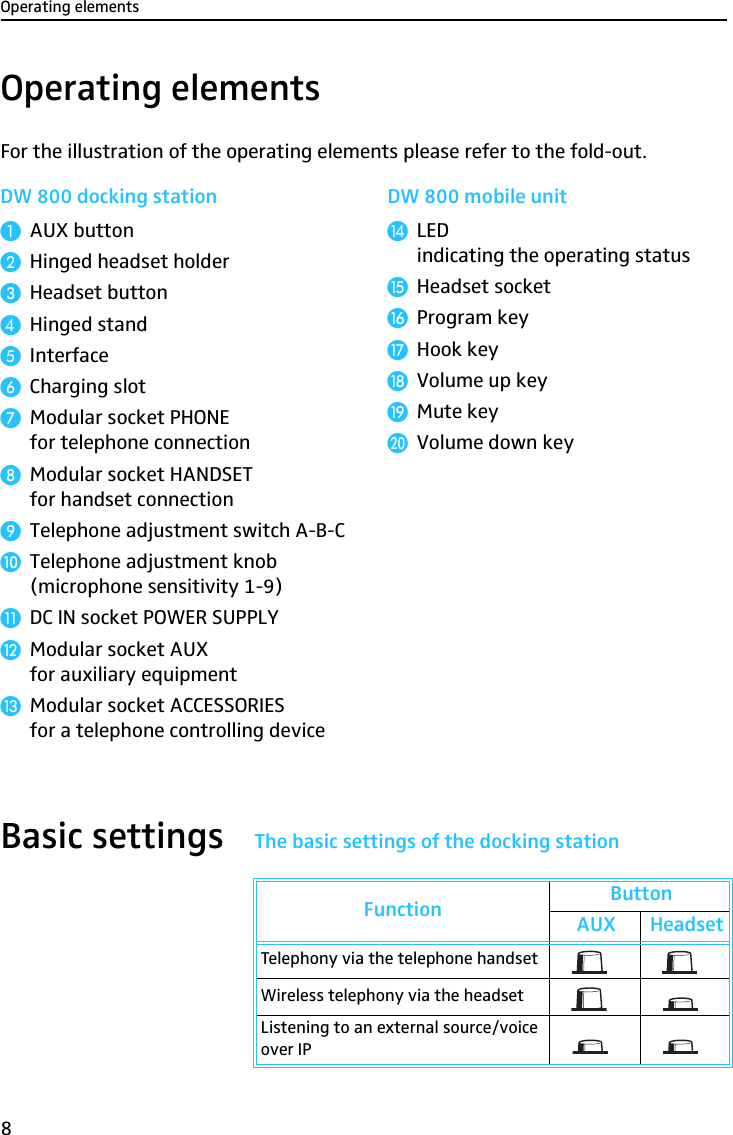

Operating elements8Operating elementsFor the illustration of the operating elements please refer to the fold-out.Basic settings The basic settings of the docking stationDW 800 docking station DW 800 mobile unit³AUX button·Hinged headset holder»Headset button¿Hinged stand´Interface²Charging slot¶Modular socket PHONEfor telephone connection ºModular socket HANDSET for handset connection¾Telephone adjustment switch A-B-CµTelephone adjustment knob (microphone sensitivity 1-9)¸DC IN socket POWER SUPPLY¹Modular socket AUXfor auxiliary equipmentƸModular socket ACCESSORIES for a telephone controlling deviceƹLED indicating the operating status ƺHeadset socketƻProgram keyƼHook keyƽVolume up keyƾMute keyƿVolume down keyFunction ButtonAUX HeadsetTelephony via the telephone handsetWireless telephony via the headsetListening to an external source/voice over IP

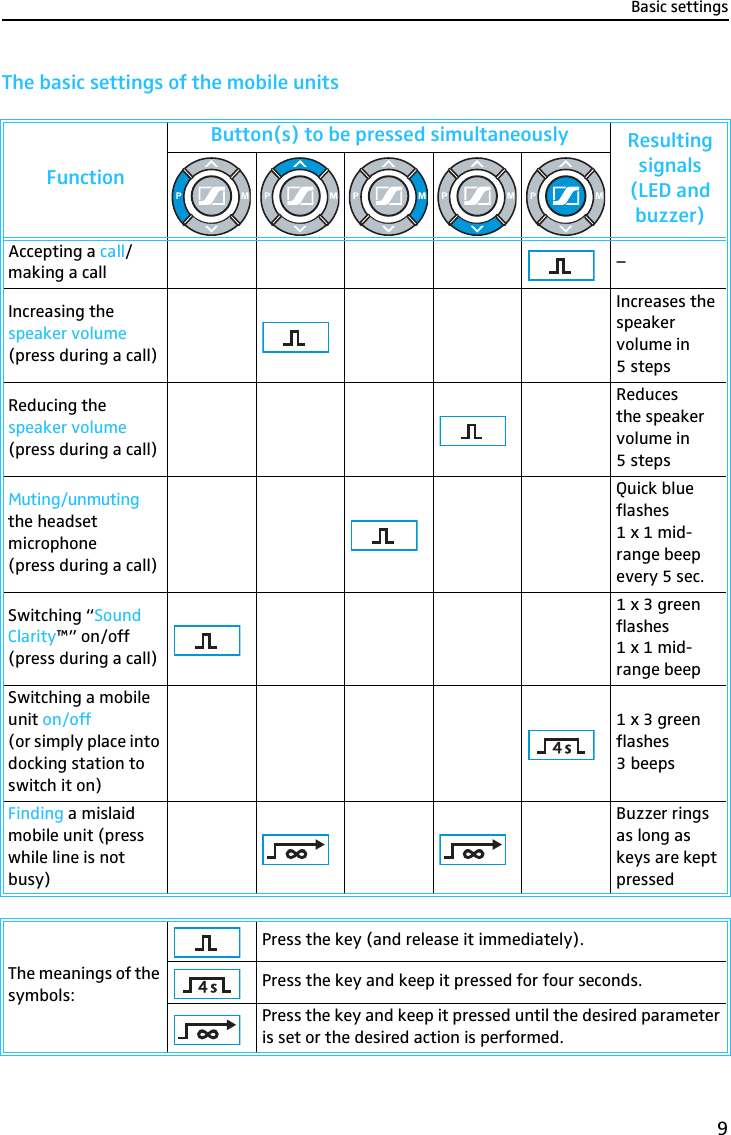

Basic settings9The basic settings of the mobile unitsFunctionButton(s) to be pressed simultaneously Resulting signals (LED and buzzer)Accepting a call/making a call –Increasing the speaker volume(press during a call)Increases the speaker volume in 5stepsReducing the speaker volume(press during a call)Reduces the speaker volume in 5stepsMuting/unmuting the headset microphone (press during a call)Quick blue flashes 1 x 1 mid-range beep every 5 sec.Switching “Sound Clarity™” on/off(press during a call)1 x 3 green flashes1 x 1 mid-range beepSwitching a mobile unit on/off (or simply place into docking station to switch it on)1 x 3 green flashes3 beepsFinding a mislaid mobile unit (press while line is not busy)Buzzer rings as long as keys are kept pressedThe meanings of the symbols:Press the key (and release it immediately).Press the key and keep it pressed for four seconds.Press the key and keep it pressed until the desired parameter is set or the desired action is performed.

Basic settings10Putting the DW 800 system into operationSetting up the docking station̈Move the hinged headset holder · to a verticalposition until a “click” is heard.̈Move the hinged stand ¿ until you overcome acertain resistance.̈Move back the hinged stand ¿ so that the dockingstation tilts back slightly.̈Connect the external mains unit to the DC INsocket ¸ and to the mains.̈Charge the built-in rechargeable battery of themobile units (see “Charging the rechargeablebattery for the first time” on page 14).Note:For wall mounting the docking station, a wallmount kit is available (see “Further information”on page 28).Connecting the docking station to the telephonëUnplug the telephone handset (including the cable)from the telephone.̈Plug the handset into the modular socket º andreturn it to its place on the telephone.̈Plug one of the modular plugs of the telephoneconnecting cable to the modular socket to whichthe handset was connected.̈Plug the other modular plug of the telephoneconnecting cable to the modular socket ¶.·¿¸º¶

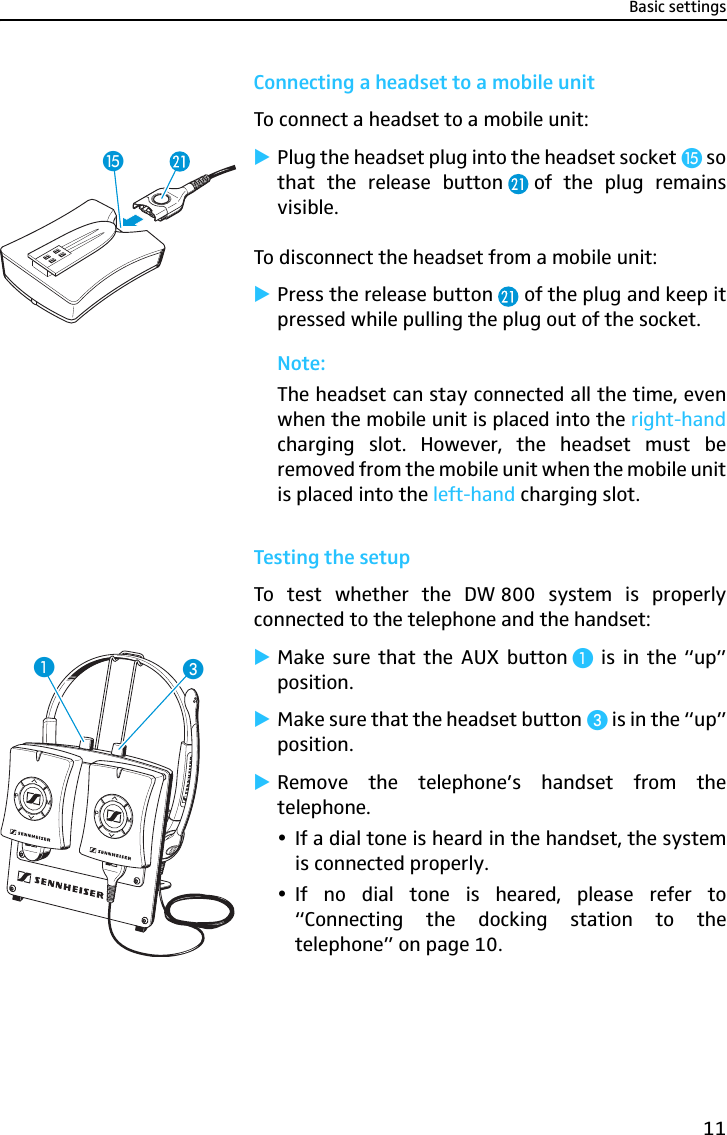

Basic settings11Connecting a headset to a mobile unitTo connect a headset to a mobile unit:̈Plug the headset plug into the headset socket ƺ sothat the release button of the plug remainsvisible.To disconnect the headset from a mobile unit:̈Press the release button of the plug and keep itpressed while pulling the plug out of the socket.Note:The headset can stay connected all the time, evenwhen the mobile unit is placed into the right-handcharging slot. However, the headset must beremoved from the mobile unit when the mobile unitis placed into the left-hand charging slot.Testing the setupTo test whether the DW 800 system is properlyconnected to the telephone and the handset:̈Make sure that the AUX button ³ is in the “up”position.̈Make sure that the headset button » is in the “up”position.̈Remove the telephone’s handset from thetelephone.yIf a dial tone is heard in the handset, the systemis connected properly. yIf no dial tone is heared, please refer to“Connecting the docking station to thetelephone” on page 10.ƺ»³

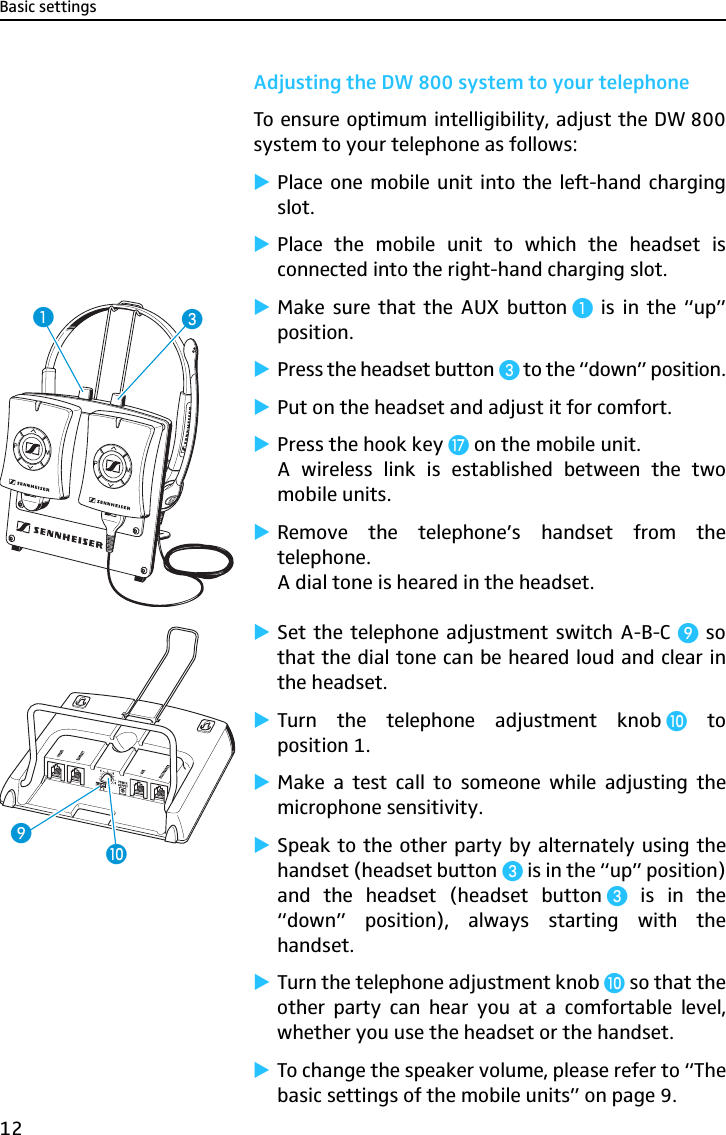

Basic settings12Adjusting the DW 800 system to your telephoneTo ensure optimum intelligibility, adjust the DW 800system to your telephone as follows:̈Place one mobile unit into the left-hand chargingslot.̈Place the mobile unit to which the headset isconnected into the right-hand charging slot.̈Make sure that the AUX button ³ is in the “up”position.̈Press the headset button» to the “down” position.̈Put on the headset and adjust it for comfort.̈Press the hook key Ƽ on the mobile unit.A wireless link is established between the twomobile units.̈Remove the telephone’s handset from thetelephone.A dial tone is heared in the headset.̈Set the telephone adjustment switch A-B-C ¾ sothat the dial tone can be heared loud and clear inthe headset.̈Turn the telephone adjustment knob µ toposition 1.̈Make a test call to someone while adjusting themicrophone sensitivity.̈Speak to the other party by alternately using thehandset (headset button » is in the “up” position)and the headset (headset button » is in the“down” position), always starting with thehandset.̈Turn the telephone adjustment knob µ so that theother party can hear you at a comfortable level,whether you use the headset or the handset.̈To change the speaker volume, please refer to “Thebasic settings of the mobile units” on page 9.»³¾µ

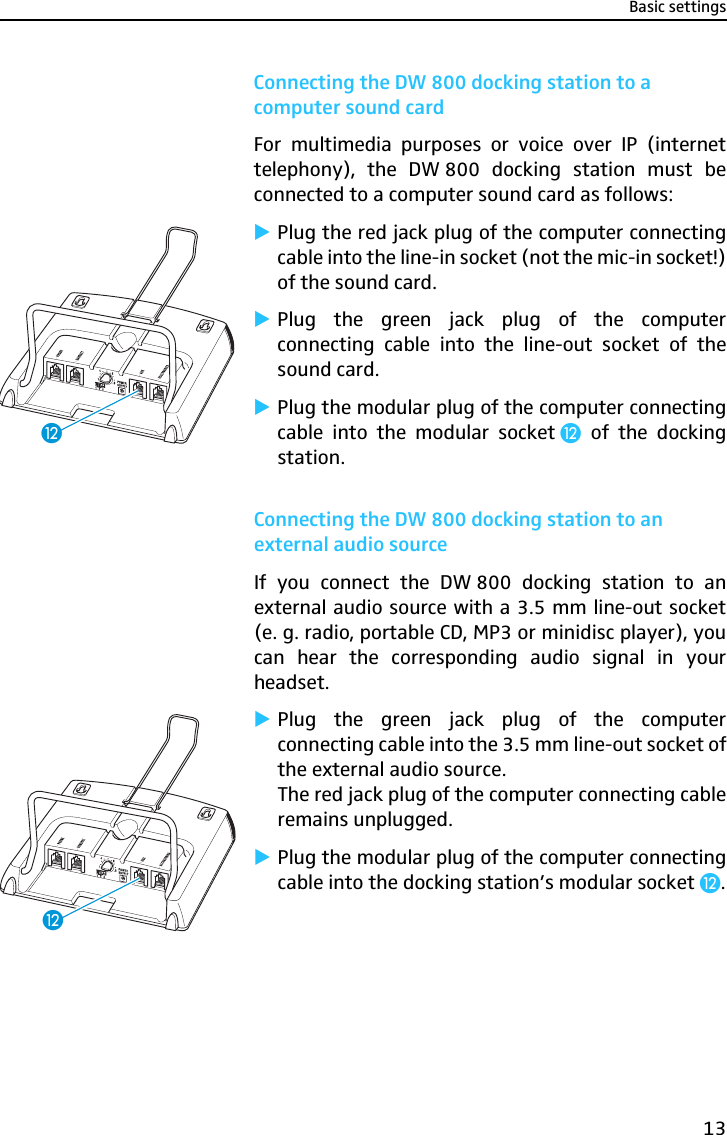

Basic settings13Connecting the DW 800 docking station to a computer sound cardFor multimedia purposes or voice over IP (internettelephony), the DW 800 docking station must beconnected to a computer sound card as follows:̈Plug the red jack plug of the computer connectingcable into the line-in socket (not the mic-in socket!)of the sound card.̈Plug the green jack plug of the computerconnecting cable into the line-out socket of thesound card.̈Plug the modular plug of the computer connectingcable into the modular socket ¹ of the dockingstation.Connecting the DW 800 docking station to an external audio sourceIf you connect the DW 800 docking station to anexternal audio source with a 3.5 mm line-out socket(e. g. radio, portable CD, MP3 or minidisc player), youcan hear the corresponding audio signal in yourheadset. ̈Plug the green jack plug of the computerconnecting cable into the 3.5 mm line-out socket ofthe external audio source.The red jack plug of the computer connecting cableremains unplugged.̈Plug the modular plug of the computer connectingcable into the docking station’s modular socket ¹.¹¹

Basic settings14Charging the rechargeable batteries of the mobile unitsThe mobile units are fitted with a built-in Li-Ionrechargeable battery which provides an operatingtime of approx. 12 hours.Charging the rechargeable battery for the first timëPlace each mobile unit into a charging slot ². Sinceboth mobile units are identical, there is nopreferred charging slot for a mobile unit.The hook key Ƽ is backlit in blue and the LED ƹstarts flashing in green every two seconds.Note:Make sure the mobile unit in the right-handcharging slot is connected to the headset to avoidthe warning for missing audio connection (orangeflashing and beeping).̈Do not interrupt the charging process for at leasttwo hours!Charging the rechargeable battery while telephoning (Hot Swap™)When the rechargeable battery of a mobile unit isgoing flatya low buzzing tone can be heard in the headsettwice every 5 seconds,ya low buzzing tone from the mobile unit can beheard twice every 5 seconds – provided the buzzeris switched on (see “Switching the buzzer on/off”on page 27),ythe LED ƹ flashes in red twice every 5 seconds,ythe rechargeable battery of the mobile unit has tobe charged within the next 30 minutes.²ƹƼ

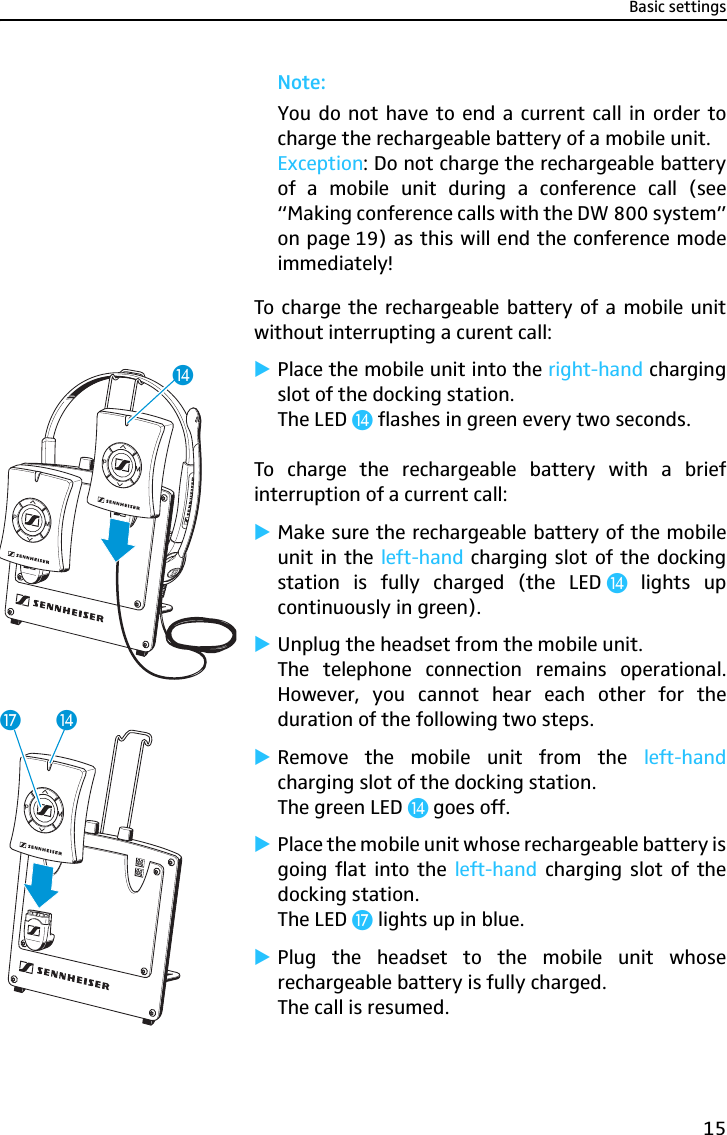

Basic settings15Note: You do not have to end a current call in order tocharge the rechargeable battery of a mobile unit. Exception: Do not charge the rechargeable batteryof a mobile unit during a conference call (see“Making conference calls with the DW 800 system”on page 19) as this will end the conference modeimmediately!To charge the rechargeable battery of a mobile unitwithout interrupting a curent call:̈Place the mobile unit into the right-hand chargingslot of the docking station.The LED ƹ flashes in green every two seconds.To charge the rechargeable battery with a briefinterruption of a current call:̈Make sure the rechargeable battery of the mobileunit in the left-hand charging slot of the dockingstation is fully charged (the LED ƹ lights upcontinuously in green).̈Unplug the headset from the mobile unit.The telephone connection remains operational.However, you cannot hear each other for theduration of the following two steps.̈Remove the mobile unit from the left-handcharging slot of the docking station.The green LED ƹ goes off.̈Place the mobile unit whose rechargeable battery isgoing flat into the left-hand charging slot of thedocking station.The LED Ƽ lights up in blue.̈Plug the headset to the mobile unit whoserechargeable battery is fully charged.The call is resumed.ƹƹƼ

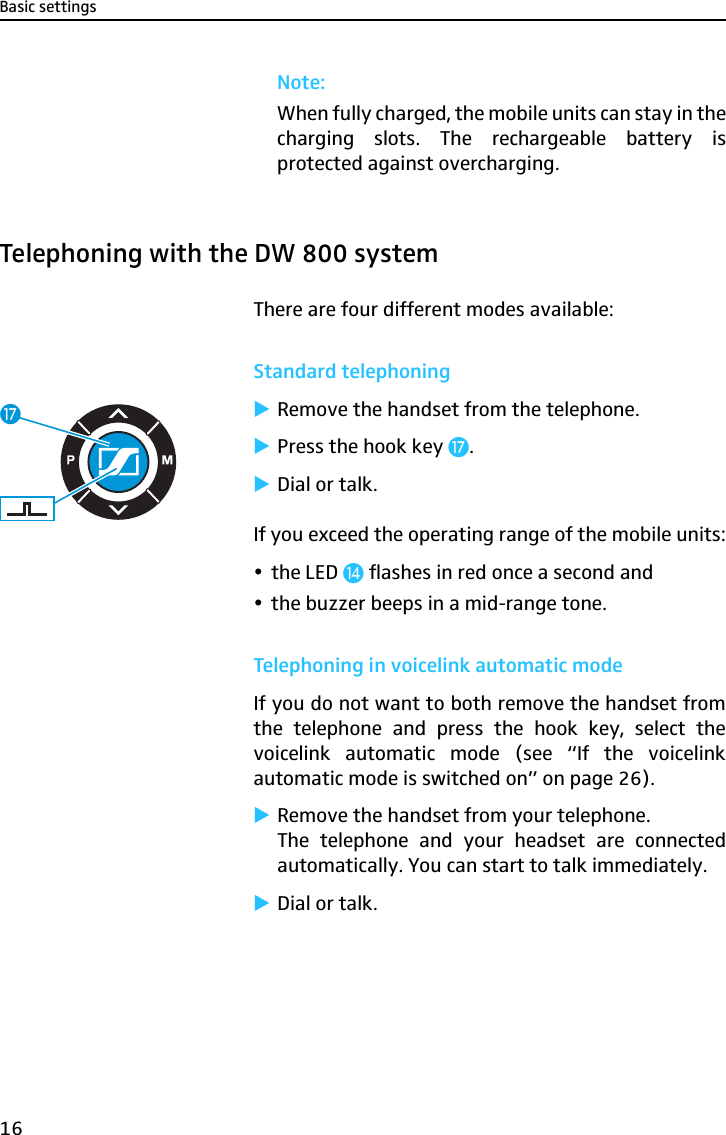

Basic settings16Note:When fully charged, the mobile units can stay in thecharging slots. The rechargeable battery isprotected against overcharging.Telephoning with the DW 800 systemThere are four different modes available:Standard telephoning̈Remove the handset from the telephone.̈Press the hook key Ƽ.̈Dial or talk.If you exceed the operating range of the mobile units:ythe LED ƹ flashes in red once a second andythe buzzer beeps in a mid-range tone.Telephoning in voicelink automatic modeIf you do not want to both remove the handset fromthe telephone and press the hook key, select thevoicelink automatic mode (see “If the voicelinkautomatic mode is switched on” on page 26).̈Remove the handset from your telephone.The telephone and your headset are connectedautomatically. You can start to talk immediately.̈Dial or talk.Ƽ

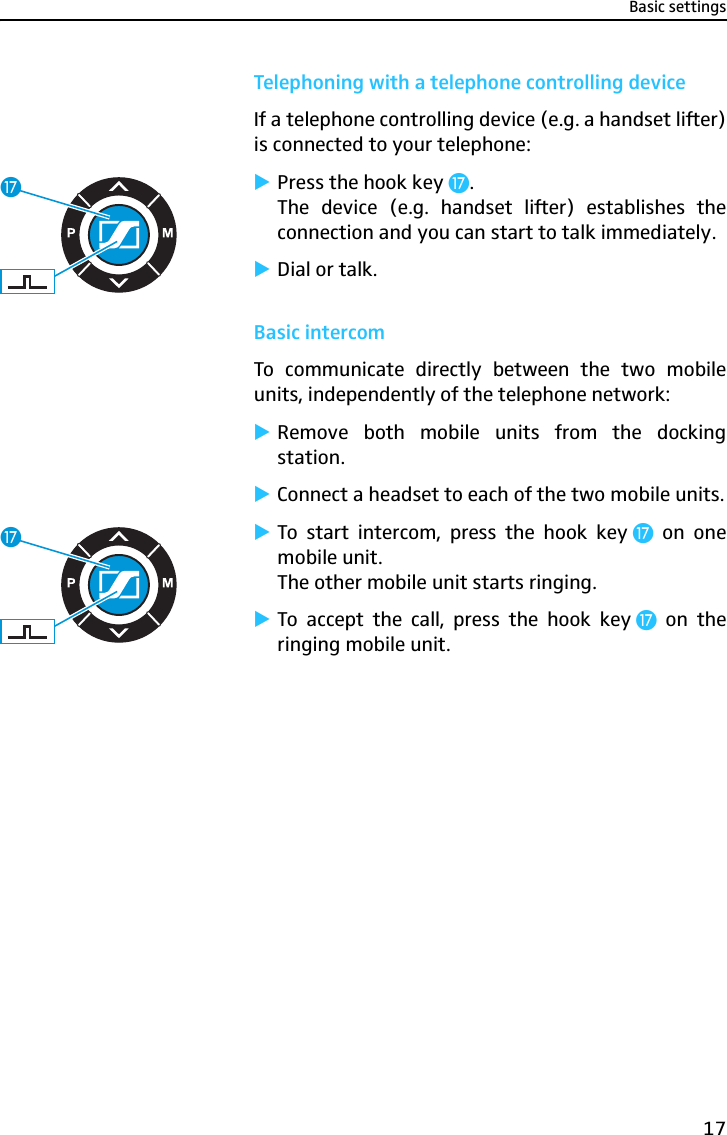

Basic settings17Telephoning with a telephone controlling deviceIf a telephone controlling device (e.g. a handset lifter)is connected to your telephone:̈Press the hook key Ƽ.The device (e.g. handset lifter) establishes theconnection and you can start to talk immediately.̈Dial or talk.Basic intercomTo communicate directly between the two mobileunits, independently of the telephone network:̈Remove both mobile units from the dockingstation.̈Connect a headset to each of the two mobile units.̈To start intercom, press the hook key Ƽ on onemobile unit.The other mobile unit starts ringing.̈To accept the call, press the hook key Ƽ on theringing mobile unit.ƼƼ

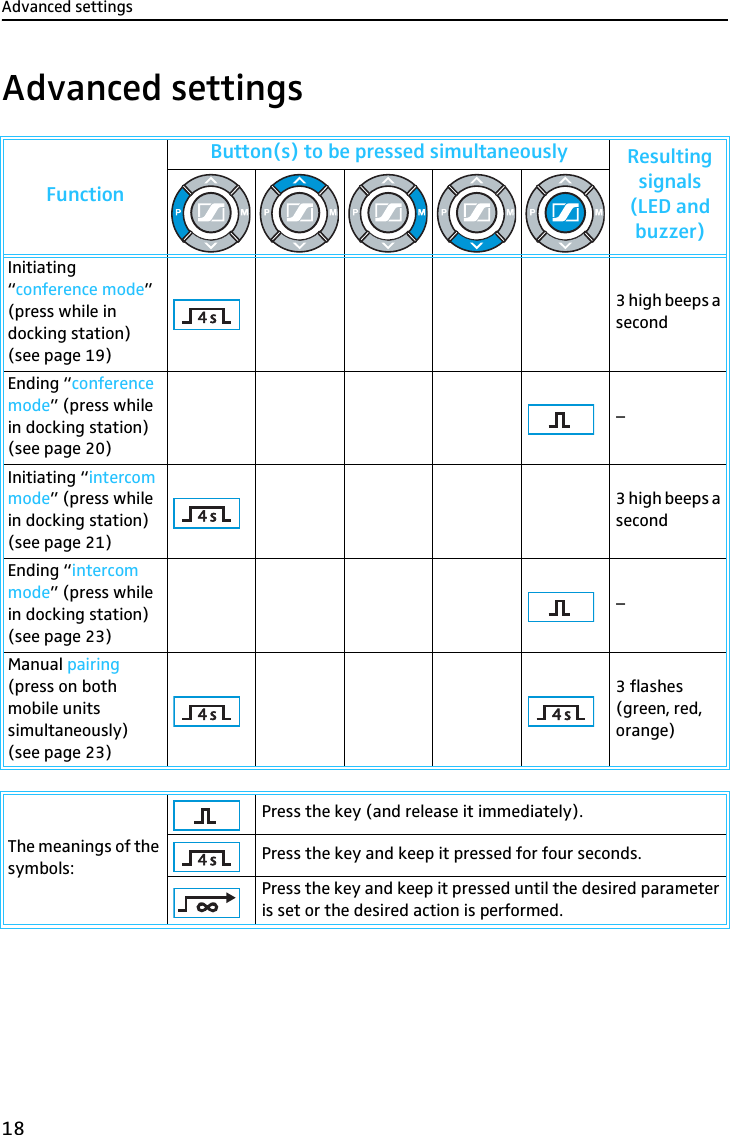

Advanced settings18Advanced settingsFunctionButton(s) to be pressed simultaneously Resulting signals (LED and buzzer)Initiating “conference mode” (press while in docking station)(see page 19)3 high beeps a secondEnding “conference mode” (press while in docking station)(see page 20)–Initiating “intercom mode” (press while in docking station)(see page 21)3 high beeps a secondEnding “intercom mode” (press while in docking station) (see page 23)–Manual pairing (press on both mobile units simultaneously) (see page 23)3 flashes (green, red, orange)The meanings of the symbols:Press the key (and release it immediately).Press the key and keep it pressed for four seconds.Press the key and keep it pressed until the desired parameter is set or the desired action is performed.

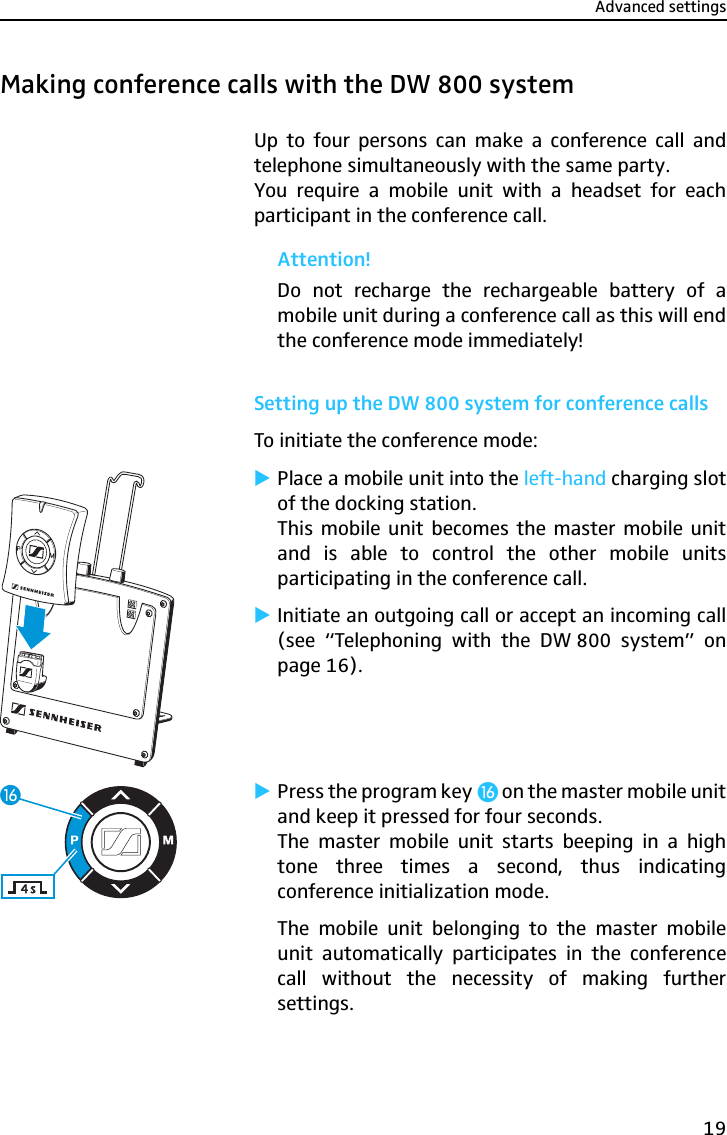

Advanced settings19Making conference calls with the DW 800 systemUp to four persons can make a conference call andtelephone simultaneously with the same party. You require a mobile unit with a headset for eachparticipant in the conference call.Attention!Do not recharge the rechargeable battery of amobile unit during a conference call as this will endthe conference mode immediately!Setting up the DW 800 system for conference callsTo initiate the conference mode:̈Place a mobile unit into the left-hand charging slotof the docking station.This mobile unit becomes the master mobile unitand is able to control the other mobile unitsparticipating in the conference call.̈Initiate an outgoing call or accept an incoming call(see “Telephoning with the DW 800 system” onpage 16).̈Press the program key ƻ on the master mobile unitand keep it pressed for four seconds.The master mobile unit starts beeping in a hightone three times a second, thus indicatingconference initialization mode.The mobile unit belonging to the master mobileunit automatically participates in the conferencecall without the necessity of making furthersettings.ƻ

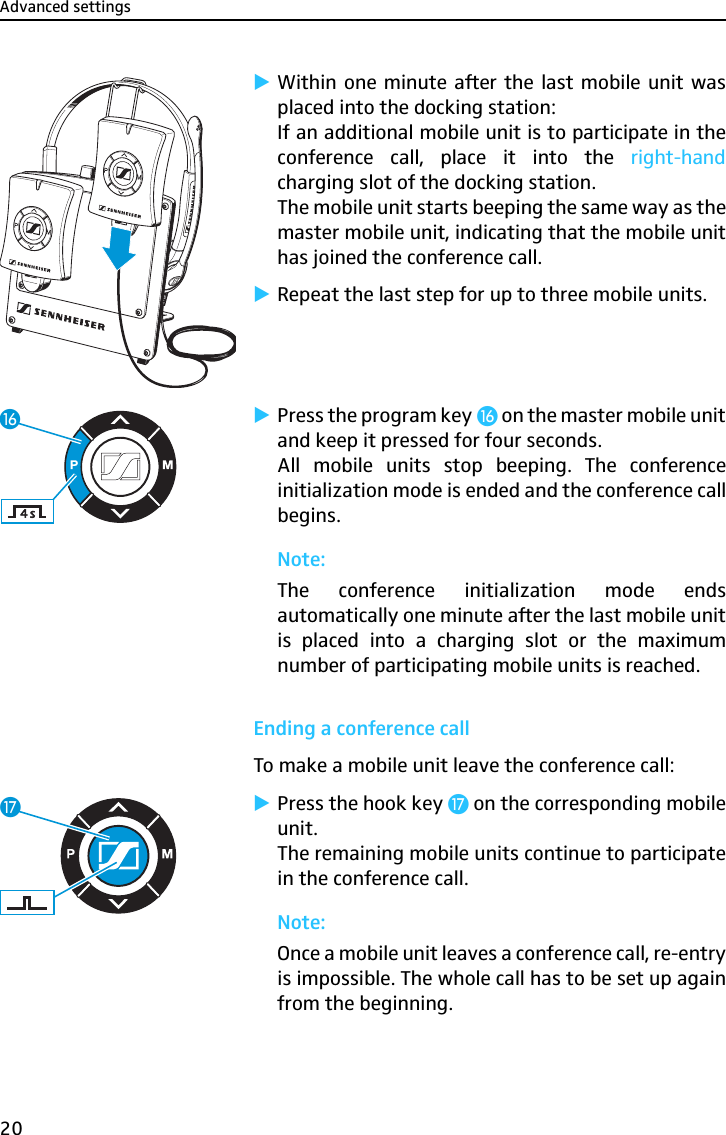

Advanced settings20̈Within one minute after the last mobile unit wasplaced into the docking station:If an additional mobile unit is to participate in theconference call, place it into the right-handcharging slot of the docking station.The mobile unit starts beeping the same way as themaster mobile unit, indicating that the mobile unithas joined the conference call.̈Repeat the last step for up to three mobile units.̈Press the program key ƻ on the master mobile unitand keep it pressed for four seconds.All mobile units stop beeping. The conferenceinitialization mode is ended and the conference callbegins.Note:The conference initialization mode endsautomatically one minute after the last mobile unitis placed into a charging slot or the maximumnumber of participating mobile units is reached.Ending a conference callTo make a mobile unit leave the conference call:̈Press the hook key Ƽ on the corresponding mobileunit.The remaining mobile units continue to participatein the conference call.Note:Once a mobile unit leaves a conference call, re-entryis impossible. The whole call has to be set up againfrom the beginning.ƻƼ

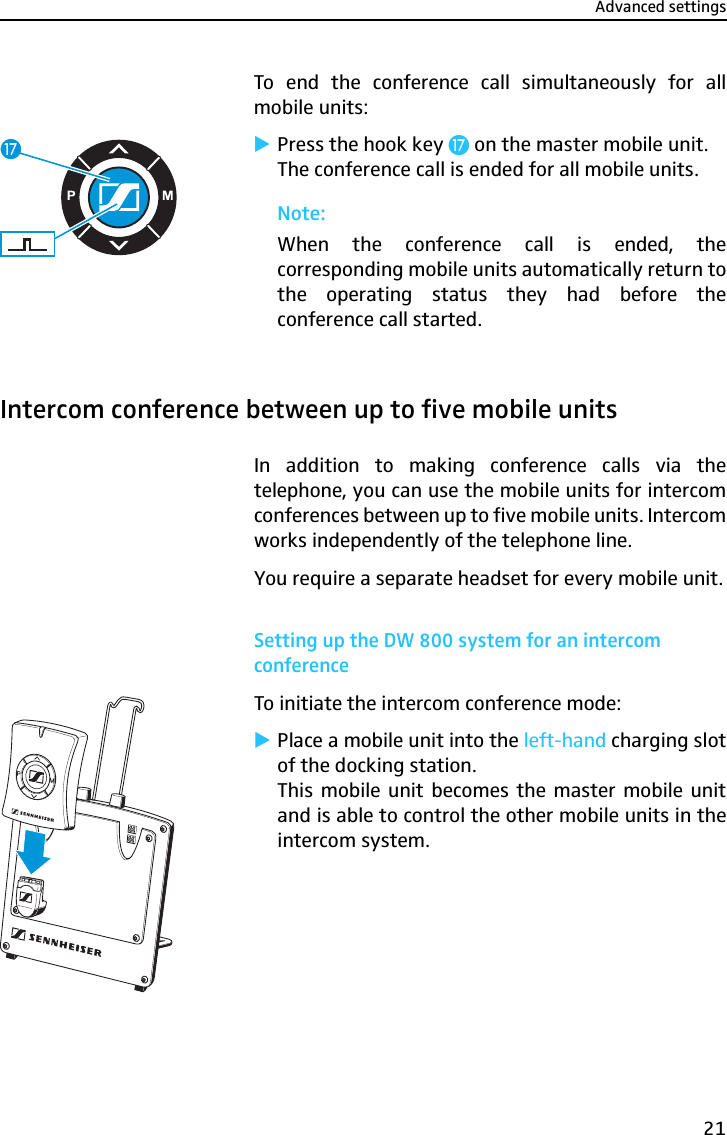

Advanced settings21To end the conference call simultaneously for allmobile units:̈Press the hook key Ƽ on the master mobile unit.The conference call is ended for all mobile units.Note:When the conference call is ended, thecorresponding mobile units automatically return tothe operating status they had before theconference call started.Intercom conference between up to five mobile unitsIn addition to making conference calls via thetelephone, you can use the mobile units for intercomconferences between up to five mobile units. Intercomworks independently of the telephone line.You require a separate headset for every mobile unit.Setting up the DW 800 system for an intercom conferenceTo initiate the intercom conference mode:̈Place a mobile unit into the left-hand charging slotof the docking station.This mobile unit becomes the master mobile unitand is able to control the other mobile units in theintercom system.Ƽ

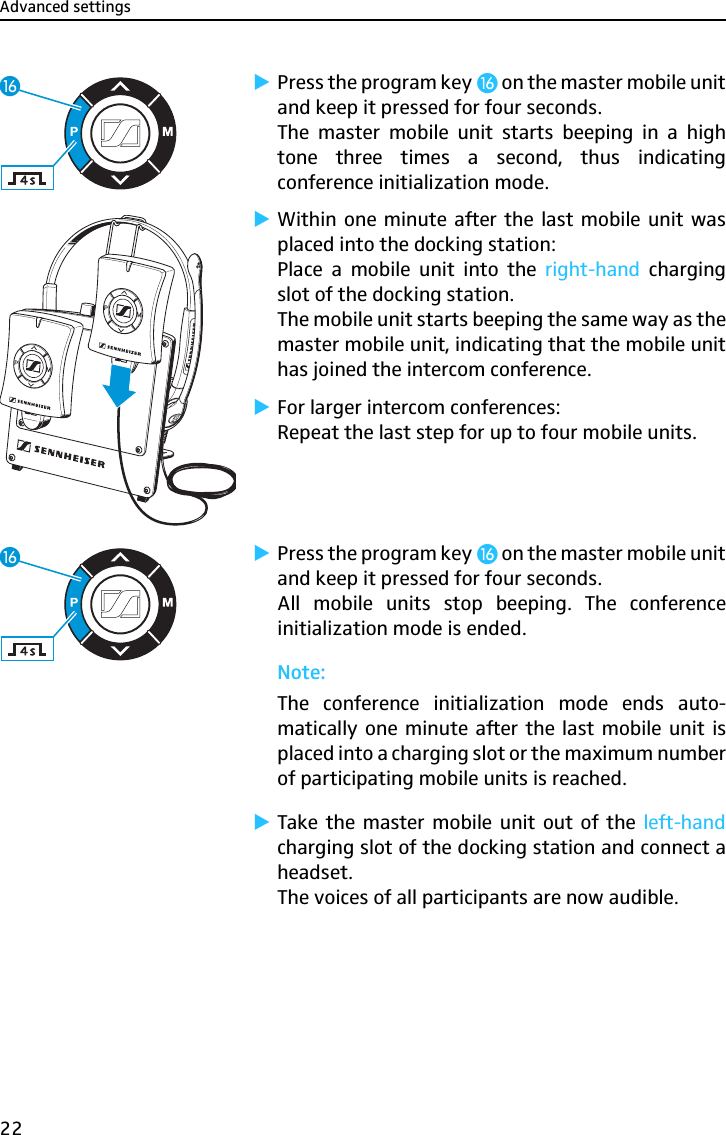

Advanced settings22̈Press the program key ƻ on the master mobile unitand keep it pressed for four seconds.The master mobile unit starts beeping in a hightone three times a second, thus indicatingconference initialization mode.̈Within one minute after the last mobile unit wasplaced into the docking station:Place a mobile unit into the right-hand chargingslot of the docking station.The mobile unit starts beeping the same way as themaster mobile unit, indicating that the mobile unithas joined the intercom conference.̈For larger intercom conferences:Repeat the last step for up to four mobile units.̈Press the program key ƻ on the master mobile unitand keep it pressed for four seconds.All mobile units stop beeping. The conferenceinitialization mode is ended.Note:The conference initialization mode ends auto-matically one minute after the last mobile unit isplaced into a charging slot or the maximum numberof participating mobile units is reached.̈Take the master mobile unit out of the left-handcharging slot of the docking station and connect aheadset.The voices of all participants are now audible.ƻƻ

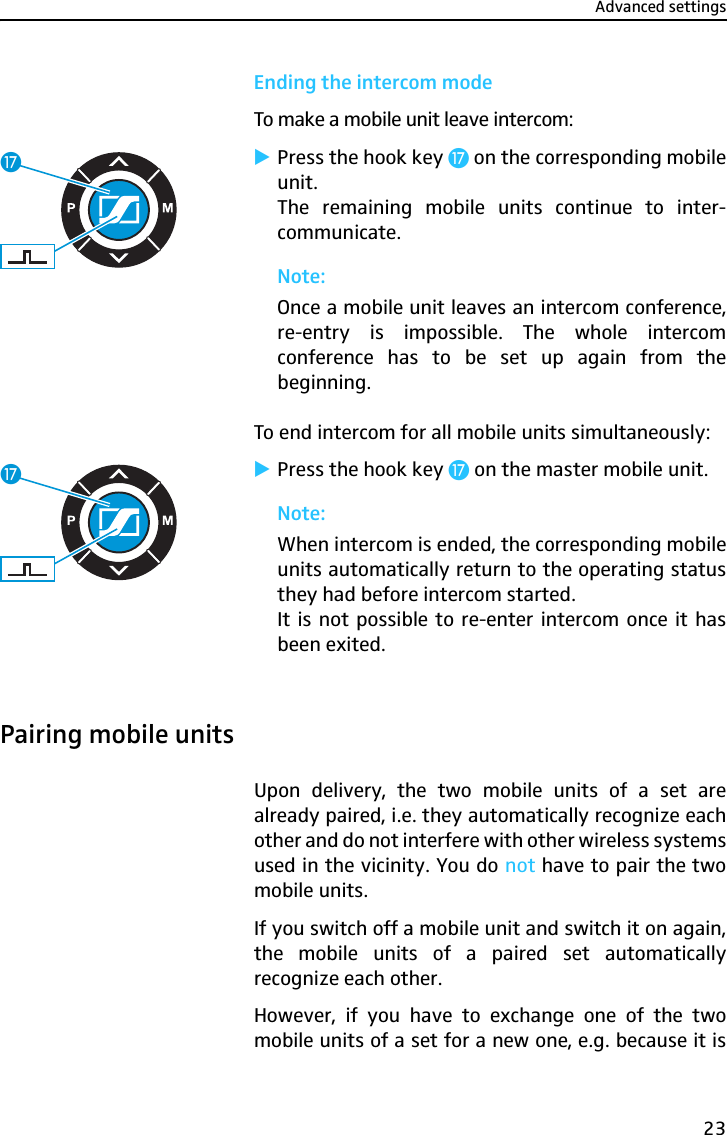

Advanced settings23Ending the intercom modeTo make a mobile unit leave intercom:̈Press the hook key Ƽ on the corresponding mobileunit.The remaining mobile units continue to inter-communicate.Note:Once a mobile unit leaves an intercom conference,re-entry is impossible. The whole intercomconference has to be set up again from thebeginning.To end intercom for all mobile units simultaneously:̈Press the hook key Ƽ on the master mobile unit.Note:When intercom is ended, the corresponding mobileunits automatically return to the operating statusthey had before intercom started.It is not possible to re-enter intercom once it hasbeen exited.Pairing mobile unitsUpon delivery, the two mobile units of a set arealready paired, i.e. they automatically recognize eachother and do not interfere with other wireless systemsused in the vicinity. You do not have to pair the twomobile units.If you switch off a mobile unit and switch it on again,the mobile units of a paired set automaticallyrecognize each other.However, if you have to exchange one of the twomobile units of a set for a new one, e.g. because it isƼƼ

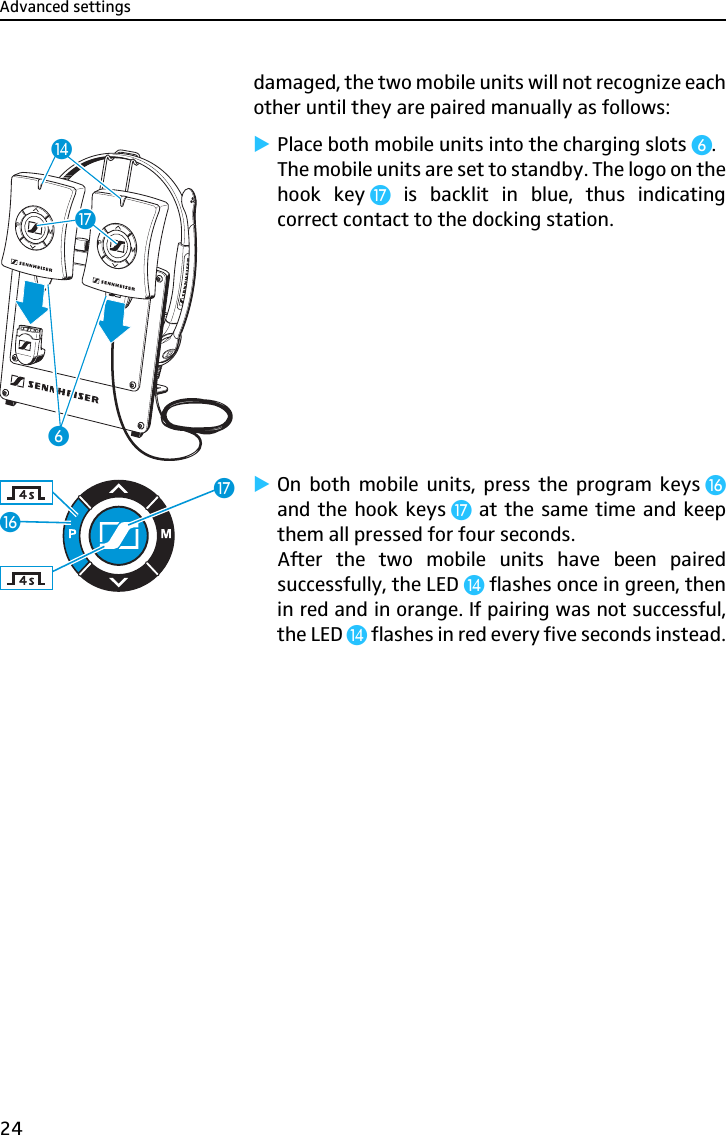

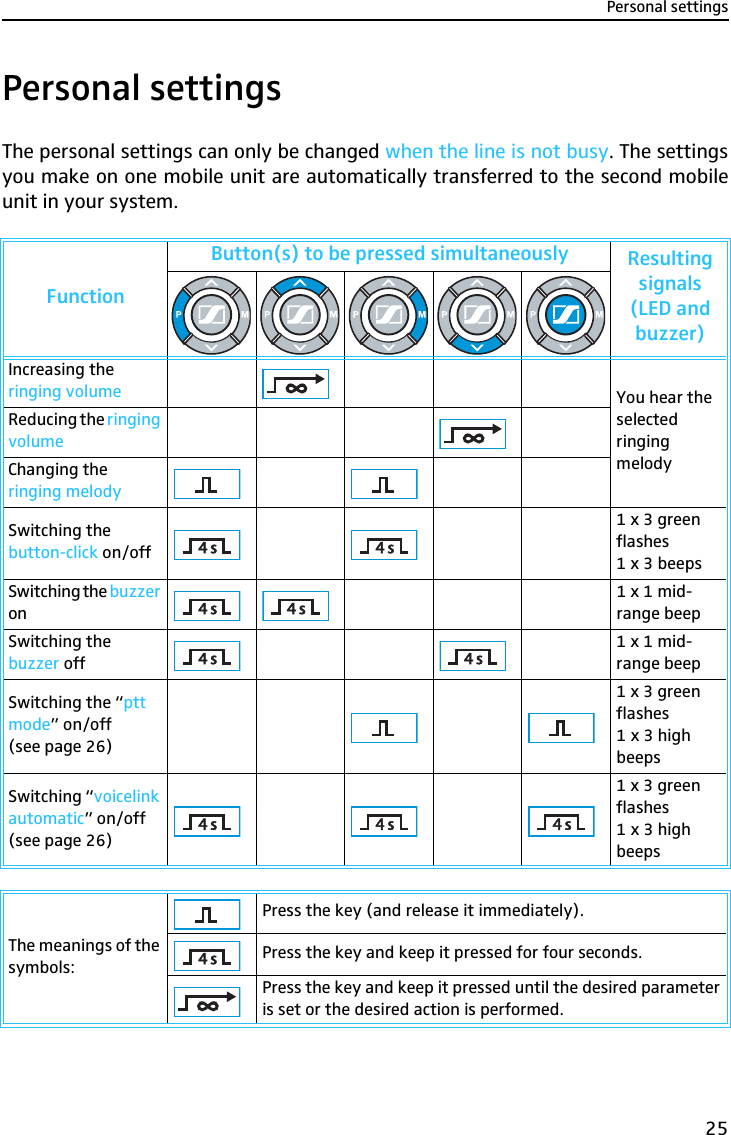

Personal settings25Personal settingsThe personal settings can only be changed when the line is not busy. The settingsyou make on one mobile unit are automatically transferred to the second mobileunit in your system.FunctionButton(s) to be pressed simultaneously Resulting signals (LED and buzzer)Increasing the ringing volume You hear the selected ringing melodyReducing the ringing volumeChanging the ringing melodySwitching the button-click on/off1 x 3 green flashes 1 x 3 beeps Switching the buzzer on1 x 1 mid-range beep Switching the buzzer off1 x 1 mid-range beep Switching the “ptt mode” on/off(see page 26)1 x 3 green flashes 1 x 3 high beeps Switching “voicelink automatic” on/off(see page 26)1 x 3 green flashes 1 x 3 high beepsThe meanings of the symbols:Press the key (and release it immediately).Press the key and keep it pressed for four seconds.Press the key and keep it pressed until the desired parameter is set or the desired action is performed.

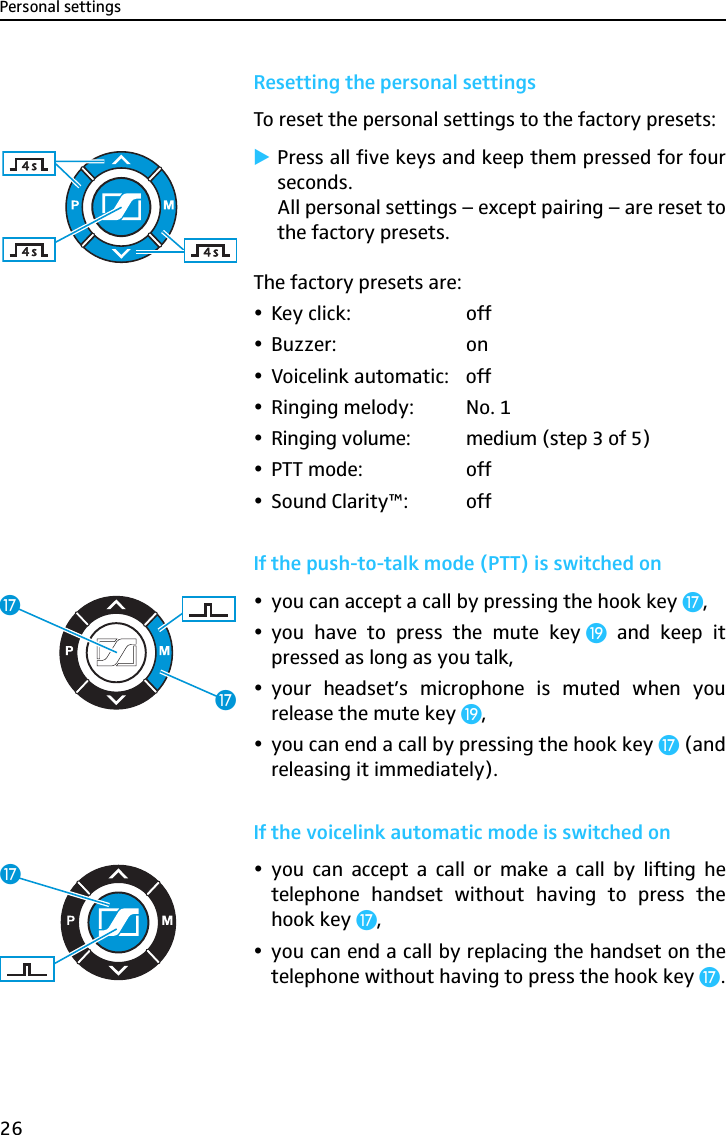

Personal settings26Resetting the personal settingsTo reset the personal settings to the factory presets:̈Press all five keys and keep them pressed for fourseconds.All personal settings – except pairing – are reset tothe factory presets. The factory presets are:yKey click: offyBuzzer: onyVoicelink automatic: offyRinging melody: No. 1yRinging volume: medium (step 3 of 5)yPTT mode: offySound Clarity™: offIf the push-to-talk mode (PTT) is switched onyyou can accept a call by pressing the hook key Ƽ,yyou have to press the mute key ƾ and keep itpressed as long as you talk,yyour headset’s microphone is muted when yourelease the mute key ƾ,yyou can end a call by pressing the hook key Ƽ (andreleasing it immediately).If the voicelink automatic mode is switched onyyou can accept a call or make a call by lifting hetelephone handset without having to press thehook key Ƽ,yyou can end a call by replacing the handset on thetelephone without having to press the hook key Ƽ.ƼƼƼ

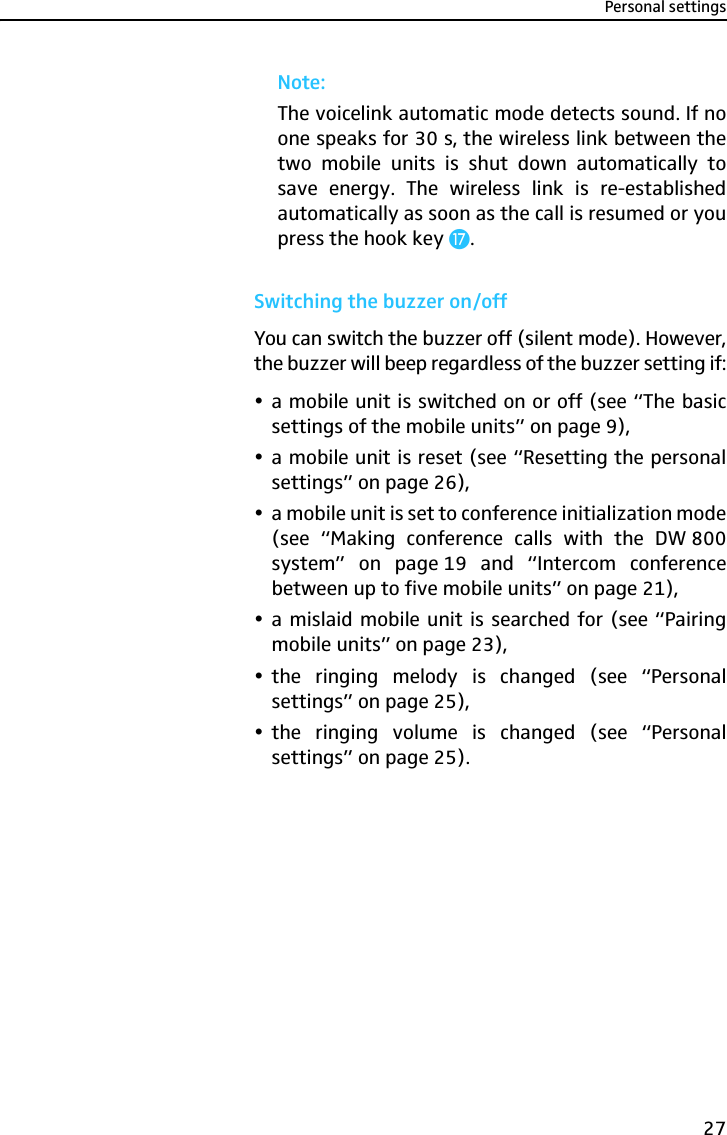

Personal settings27Note:The voicelink automatic mode detects sound. If noone speaks for 30 s, the wireless link between thetwo mobile units is shut down automatically tosave energy. The wireless link is re-establishedautomatically as soon as the call is resumed or youpress the hook key Ƽ.Switching the buzzer on/offYou can switch the buzzer off (silent mode). However,the buzzer will beep regardless of the buzzer setting if:ya mobile unit is switched on or off (see “The basicsettings of the mobile units” on page 9),ya mobile unit is reset (see “Resetting the personalsettings” on page 26),ya mobile unit is set to conference initialization mode(see “Making conference calls with the DW 800system” on page 19 and “Intercom conferencebetween up to five mobile units” on page 21),ya mislaid mobile unit is searched for (see “Pairingmobile units” on page 23),ythe ringing melody is changed (see “Personalsettings” on page 25),ythe ringing volume is changed (see “Personalsettings” on page 25).

Maintenance and care28Maintenance and careUse a soft or, if necessary, slightly damp cloth to cleanthe DW 800 system. Do not use any solvents orcleansing agents as these can damage the varnish ofthe DW 800 system. Further informationFrequently asked questionsFor possible solutions to problems, please refer to theFAQ on our web page:www.sennheisercommunications.comand see under “Products”, “Wireless solution” and“DW 800”.AccessoriesFor accessories to the DW 800 system, please refer to:www.sennheisercommunications.comand see under “Products”, “Wireless solution” and“DW 800”.Contact informationIn case of further questions, please contact your localdistributor. For a list of distributors, please refer to:www.sennheisercommunications.comand see under “Support”.

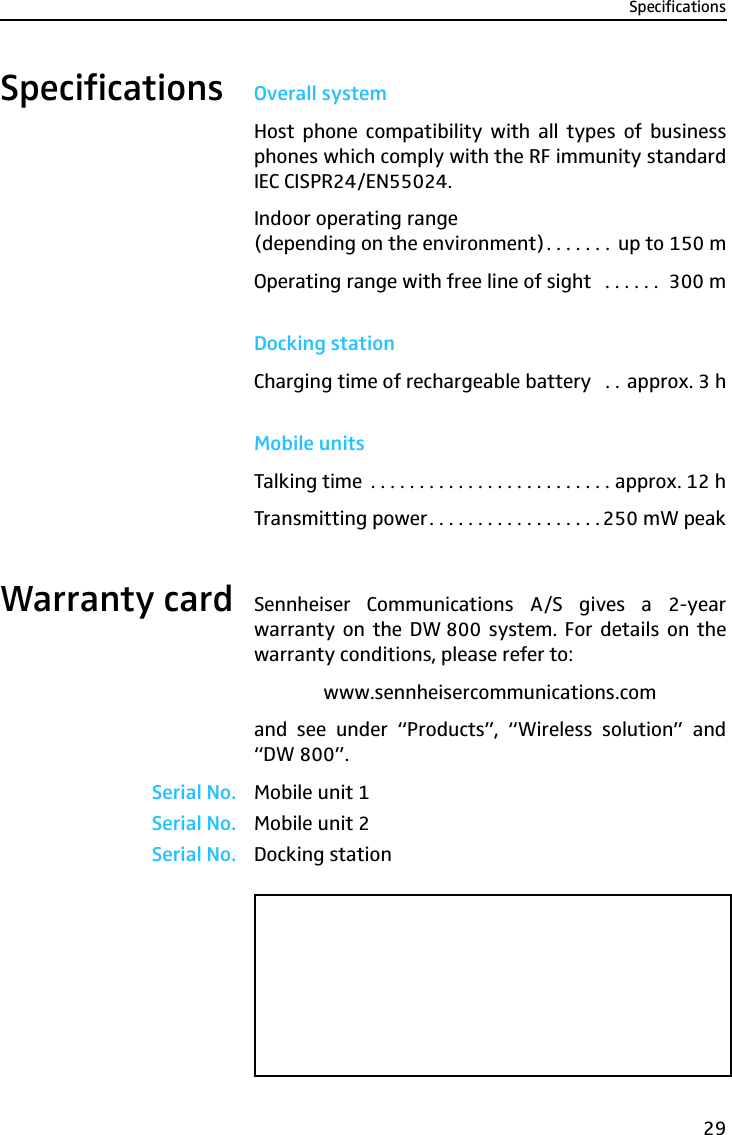

Specifications29Specifications Overall systemHost phone compatibility with all types of businessphones which comply with the RF immunity standardIEC CISPR24/EN55024.Indoor operating range (depending on the environment). . . . . . . up to 150 mOperating range with free line of sight . . . . . . 300 mDocking stationCharging time of rechargeable battery . . approx. 3 hMobile unitsTalking time . . . . . . . . . . . . . . . . . . . . . . . . . approx. 12 hTransmitting power. . . . . . . . . . . . . . . . . . 250 mW peakWarranty card Sennheiser Communications A/S gives a 2-yearwarranty on the DW 800 system. For details on thewarranty conditions, please refer to:www.sennheisercommunications.comand see under “Products”, “Wireless solution” and“DW 800”.Serial No. Mobile unit 1Serial No. Mobile unit 2Serial No. Docking station

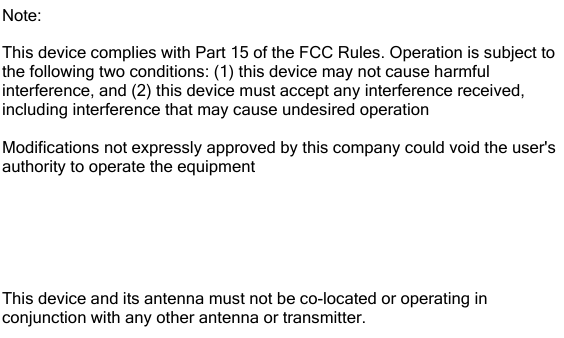

Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operationModifications not expressly approved by this company could void the user's authority to operate the equipmentThe internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
